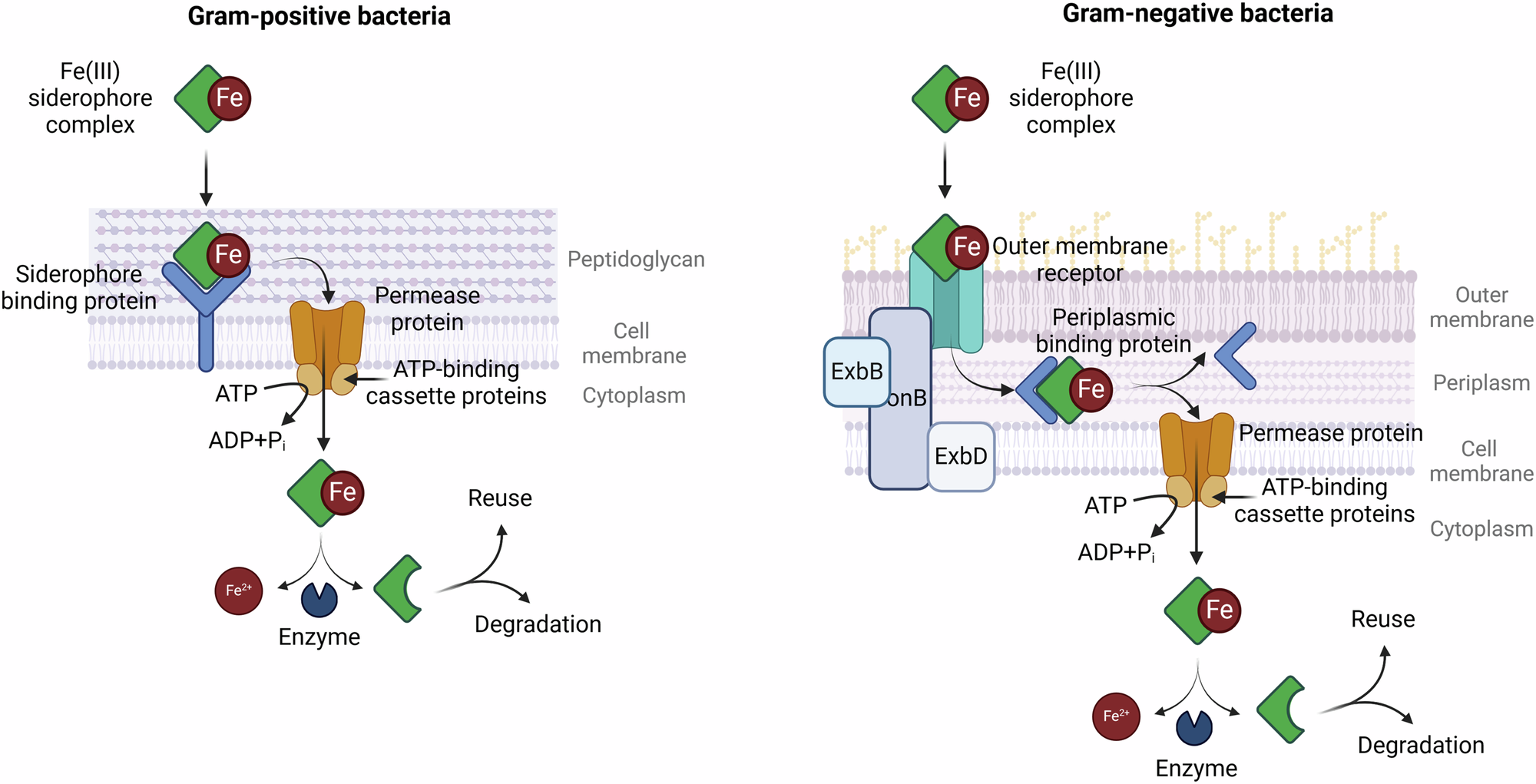

Fig. 3: Iron-siderophore complex uptake in Gram-positive and Gram-negative bacteria.
From: New insights into radiolabelled siderophores for molecular imaging of bacterial infections
Created in https://BioRender.com. Bendová, K. (2025) (Gram-positive) https://BioRender.com/5d0c3ij and (Gram-negative) https://BioRender.com/c57m966.
