Fig. 7: Experimental setup for continuous-wave (CW) characterization of the device. | npj Nanophotonics

Fig. 7: Experimental setup for continuous-wave (CW) characterization of the device.

From: A silicon integrated source of hyper-entangled photon pairs with rate exceeding 1 billion pairs per second

Fig. 7

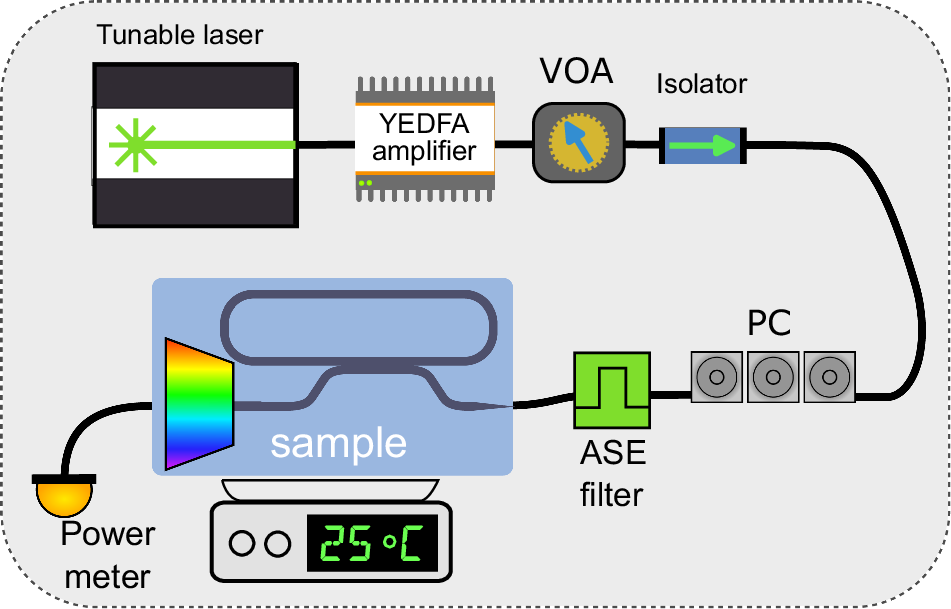

A tunable laser (Santec TSL-710) tuned to the pump resonance is amplified by an Erbium-doped fiber amplifier (Keopsys, EDFA). An isolator and a variable optical attenuator (VOA) regulate the input power, while a fiber optical filter suppresses amplified spontaneous emission (ASE). The signal is then coupled to the chip using UHNA-7 fiber spliced to match the integrated inverse taper coupler, with index matching gel ensuring stable optical contact.
