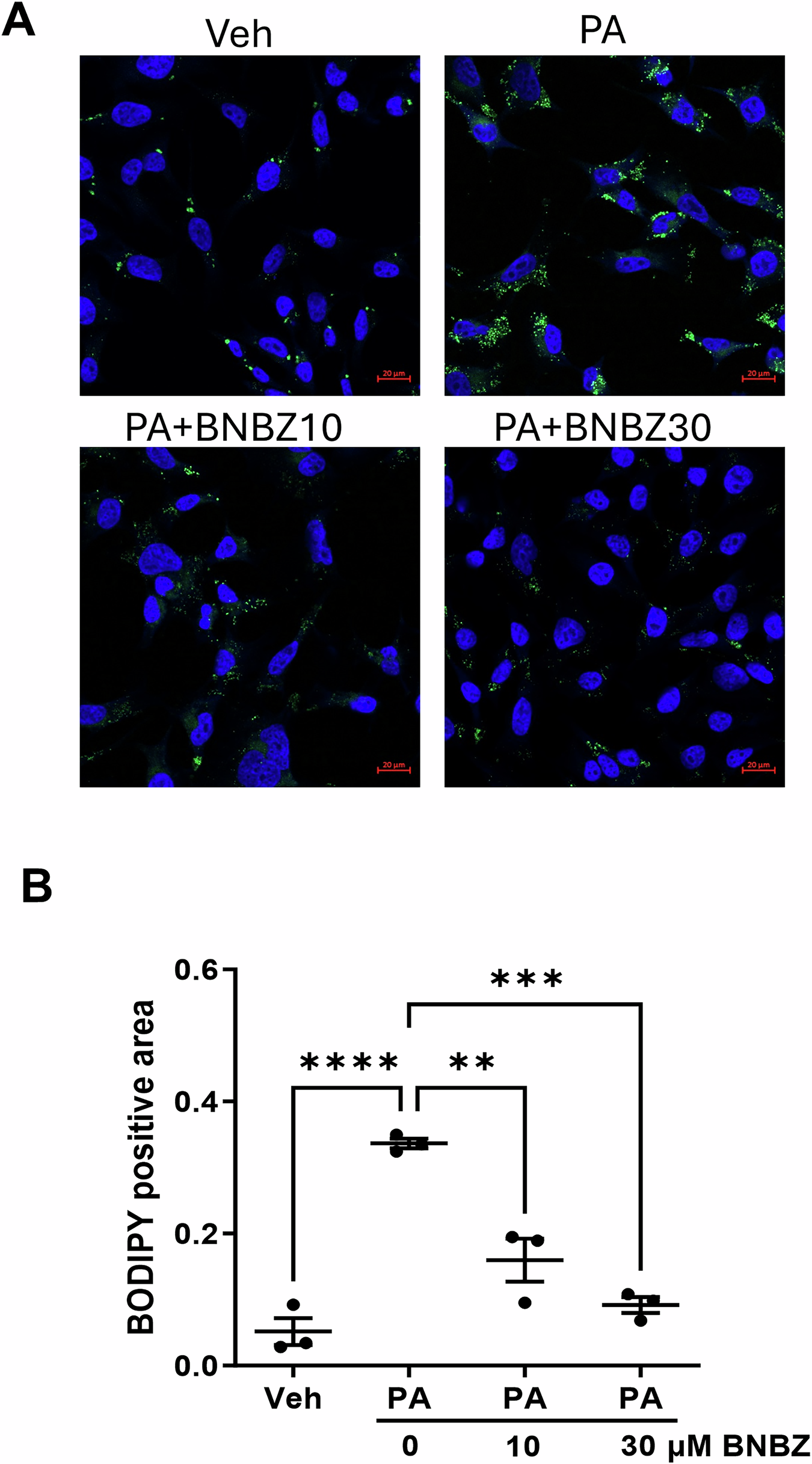

Fig. 5: HK2 inhibition attenuates palmitate-induced steatosis.
From: Silencing of S100A11 attenuates murine metabolic dysfunction-associated steatohepatitis
A Representative BODIPY stained images from Hu1545 human hepatocyte cell line treated with palmitate (PA) with or without benitrobenrazide (BNBZ). The experiment was replicated 3 times. Vehicle control (Veh) included equivalent amounts of isopropanol and DMSO. Scale bar: 20 µm. B Quantification of BODIPY staining was performed in Image J. Each dot represents a separate experiment averaged over five fields. Approximately 16–36 cells were counted per field. Data were calculated as the mean intensity divided by the number of cells per field. **P < 0.01, ***P < 0.001, ****P < 0.0001.
