Abstract
The complex operation of industrial integrated energy systems (IES), with their coupled energy, material, and information flows, is being transformed by artificial intelligence (AI). This paper reviews the AI-driven advancements in IES modeling, design, and operation. We explore the potential of large language models-assisted decision-making and the energy–AI–industrial multidisciplinary nexus. The deep integration of AI and energy science promises to reshape industrial energy management and accelerate the net-zero carbon transition.
Introduction
The clean and low-carbon transition of the energy system is a key issue in addressing global climate change, environmental governance, and water and food crises. To safeguard a green and livable Earth, the Paris Agreement1 proposed the goal of keeping the global temperature increase well below 2 °C above pre-industrial levels and pursuing efforts to limit the temperature increase to 1.5 °C. However, the World Meteorological Organization confirmed that global temperature in 2024 has exceeded Paris Agreement targets, rising 1.55 °C above pre-industrial levels2. To actively respond to the aforementioned crises, over 100 countries have established carbon neutrality targets3. Many developing countries have also introduced policies and laws4,5,6,7 to reduce carbon emissions and promote renewable energy. The advancement of carbon neutrality goals will transform global economic and social systems.
Decarbonizing the industrial sector represents a crucial pathway to achieving carbon neutrality. It also serves as a modern production mode for enterprise clusters that foster collaboration along the industrial chain, promote multi-energy complementarity, and enable resource sharing8. China, being the world’s largest energy consumer and manufacturing hub, has an energy consumption per unit of GDP in its industrial sector that is 40% higher than that of the United States and almost double that of the European Union9. China currently has over 2500 national and provincial-level industrial parks10. Industrial activities in the parks account for over 50% of the gross domestic product. However, they also contribute to 31% of China’s carbon emissions and 69% of the total social energy consumption. The five major high-energy-consuming process industries (iron and steel, petrochemicals, non-ferrous metals, and chemicals) account for nearly 55% of total industrial energy consumption11. China’s energy production and industrial energy consumption exhibit an inverse relationship, with varying regional development foundations and resource endowments. Thus, creating integrated energy systems (IES) suited to local conditions is strategically important for achieving green, low-carbon transformation of industrial clusters and supplying diverse, clean, efficient energy to overcome the carbon lock-in effect12 and reach carbon neutrality goals.
IES is becoming a current research hotspot. IESs make energy use cleaner and more efficient by harmoniously combining different energy sources and coordinating generation, grid, load, and storage. Additionally, they integrate physical infrastructure and digital technologies to achieve precise and intelligent control of multi-energy flows. To investigate the current research landscape, we analyzed 3516 articles (2014–2024) from the Web of Science using VOSviewer, as shown in Fig. 1. The keyword co-occurrence map clearly illustrates that the field is organized into three main thematic clusters. The red cluster shows the core concepts of IESs and their operational optimization. The green cluster focuses on renewable and clean energy sources, which are fundamental to carbon neutrality. The blue cluster encompasses key technologies, such as storage and conversion devices, that provide flexibility. The results show that IES has replaced distributed energy systems (DES)13, multi-energy systems (MES)14, microgrid (MG)15, and others to become a more popular research topic. The central position of the 'operation' keyword, connecting all three clusters, highlights that smart operational strategies are the key to integrating elements such as energy storage, renewable energy, and demand response. This structure confirms that the smart operation of IES is the focal point of current research efforts towards a sustainable energy future, setting the stage for the analysis presented in this review.

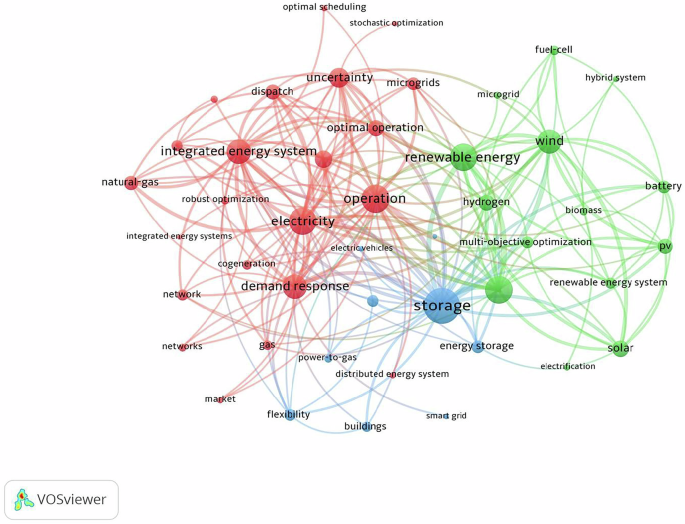

The map was created by VOSviewer. 3516 articles were retrieved from the Web of Science from 2014 to 2024.
The ongoing development of IESs is showcasing new characteristics and challenges as it transforms the energy structure. On one hand, the future energy system, focusing heavily on high penetration of renewable energy, will require enhanced flexibility. In 2023, China’s renewable energy installed capacity hit around 1384 GW, exceeding that of coal-fired power for the first time. Zhuo et al.16 estimated that the total energy potential of wind and solar photovoltaic power in China could reach 200.9 PWh per year, which is 13.5 times China’s maximum projected electricity demand in 2050. The daily regulation range of conventional power sources of China’s State Grid has exceeded 300 GW. The bi-interaction between the source and load, combined with multi-time scale coupling, poses a considerable challenge for the operation of future IESs. On the other hand, the deep integration of artificial intelligence (AI) technology into IESs is creating new opportunities for energy savings and carbon reduction, in addition to low-carbon green fuels17,18,19, energy-efficient conversion devices20,21, and system energy efficiency improvement22. The Global Enabling Sustainability Initiative estimated that digital technologies can reduce global carbon emissions by 20% within the next decade by empowering the energy and industrial sectors23. According to Ding et al.24, the full adoption of AI could potentially reduce building energy use and carbon emissions by ~8–19% by 2050.
However, this enthusiasm masks a critical weakness: current AI cannot inherently guarantee compliance with the fundamental constitutive equations and physical constraints of multi-energy flows. This deficit means AI-driven decisions could be physically unfeasible or even dangerous. Therefore, establishing a regulatory framework for IES that can govern and trust AI-driven control remains a challenge. Future breakthroughs in transformative technologies like AI and large language models (LLMs) are urgently needed to bridge this gap, enabling smart energy systems to achieve fully autonomous and physically reliable multi-energy operations. Figure 2 illustrates the literature on the modeling, design, and operation of IESs integrated with AI technology from 2014 to 2024. AI-related literature has demonstrated a rapid growth trend, from 12 to 286 annual publications. The data also reveals two key trends. First, the field has pivoted from foundational modeling to a dominant focus on practical operation and control, indicating a move toward solving real-world challenges (Fig. 2a). Second, the geographical distribution is led by nations with the most significant energy demands and ambitious carbon neutrality goals, such as China, the US, and India, which accounting for about 90% publications (Fig. 2b).

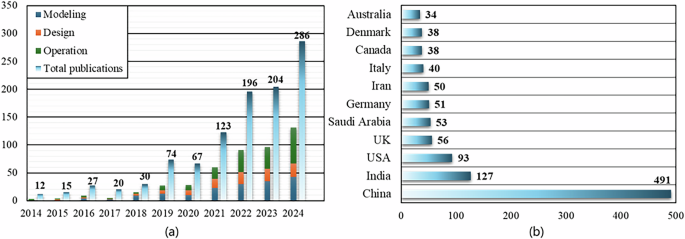

a Publications on system modeling, planning/design, and operation/control. b Publications of articles by country.
The integration of AI into energy systems has garnered significant research attention in recent years. Alabi et al.25 provided a thorough overview of the optimization methods and machine learning (ML) techniques applications in IES, noting that the integrated ML in IES is still in its infancy. Entezari et al.26 conducted a bibliometric analysis of around 2000 highly cited energy papers. The findings reveal that AI currently impacts only a small portion of energy-related fields but has significant integration potential. Additionally, the number of AI-related patents in the energy sector is 17 times greater than that of scientific papers, highlighting a stronger industrial demand for AI. Moreover, Table 1 provides a list of recent review articles on AI in energy systems, categorized by different system types and focus areas. However, a comprehensive review specifically addressing the modeling, design, and operation of IES in the industrial sector remains scarce. Furthermore, there is a notable lack of discussion on the potential impact of emerging LLMs on IES and its interdisciplinary synergies. Unlike general energy systems, IESs for industrial carbon neutrality face stricter constraints on energy and material flows, stakeholders, environmental factors, and market considerations. Their dynamic nature and uncertainty require consideration of new characteristics, such as energy efficiency, carbon emissions, and economic value. Therefore, this review provides a systematic analysis based on our proposed “Energy + AI” framework, which is structured around five interconnected parts (see Fig. 3): (1) Modeling, which reviews the progression from mechanism-based theories to advanced physics-informed hybrid models; (2) Design, focusing on multi-timescale and decarbonized strategies; (3) Operation, analyzing methods for incorporating energy storage and enhancing multi-sector flexibility; (4) Industrial integration, which specifically addresses the synergistic modeling, design, and operation of coupled energy and production systems; and (5) AI nexus, which explores the frontier from AI embedded and LLM-assisted energy management to the conceptualization and application of the multidisciplinary synergistic.

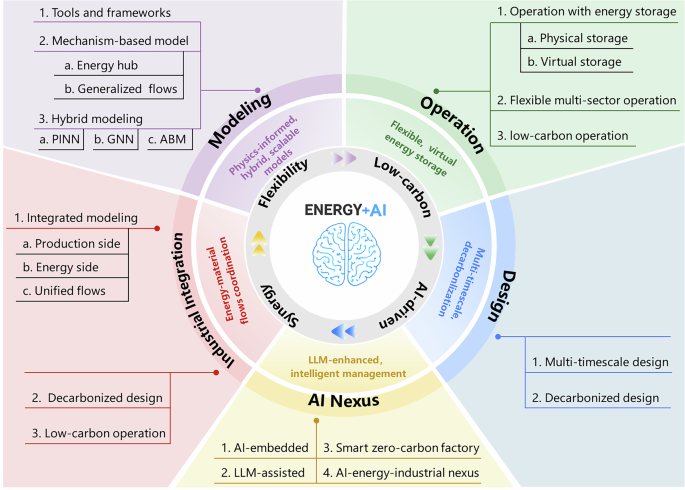

The diagram depicts the framework through five interconnected components: (1) Modeling; (2) Operation; (3)Design; (4) Industrial integration; (5) AI Nexus.
To bridge the existing gaps, this review provides a unique and critical synthesis of the field. Specifically, the main contributions of this work are threefold:
(1) A systematic review of modeling methods for IESs is presented, covering the evolution from foundational mechanism-based theories to advanced physics-informed hybrid models (e.g., PINN, GNN, and Agent-based). Uniquely, this review also focuses on the integrated modeling of industrial production and energy supply, addressing the challenges of coupling energy and material flows.
(2) With industrial decarbonization as the core objective, typical design and operation strategies for IESs are comprehensively analyzed. We connect multi-timescale optimization frameworks with key technologies, such as physical and virtual energy storage and multi-sector flexibility, to address the challenges faced by energy-intensive industries in achieving low-carbon operation.
(3) The frontier of the “ Energy and AI” nexus is explored, discussing the transformative potential of emerging technologies, such as AI and LLMs, for optimized decision-making and control. Furthermore, within a multidisciplinary framework, this review elaborates on the interdisciplinary synergies among AI, energy, and industry and proposes solutions for the future zero-carbon smart factory. Finally, it provides an outlook on the technical bottlenecks and industrial implementation pathways for future IESs, aiming to guide subsequent research and development.
This review systematically organizes the technological landscape and cutting-edge advancements in integrating AI with the modeling, design, and operation of IESs within industrial carbon neutrality. It aims to provide theoretical and technical references for the zero-carbon and intelligent transformation of the industrial sector.
Integrated energy system modeling
Energy system modeling and simulation fundamentally depend on physical device models and the energy flow topology. This is accomplished using computers to simulate the dynamic behaviors and interrelationships among energy device components under various operating conditions, thereby facilitating the optimized design and operation of IESs. In contrast to traditional energy modeling methods, the innovative IES modeling paradigm showcases the integration of diverse components in a region—energy supply, transportation, conversion, storage, and consumption—into a unified system. This addresses the various new demands for clean, low-carbon27, safety28, high efficiency29, and flexibility30 of IESs under the carbon neutrality goal. This section focuses on mechanism-based modeling, physics-informed hybrid modeling, and energy-production fusion modeling. Figure 4 presents the leading system modeling software tools, open-source frameworks, and theoretical technologies in integrated energy.

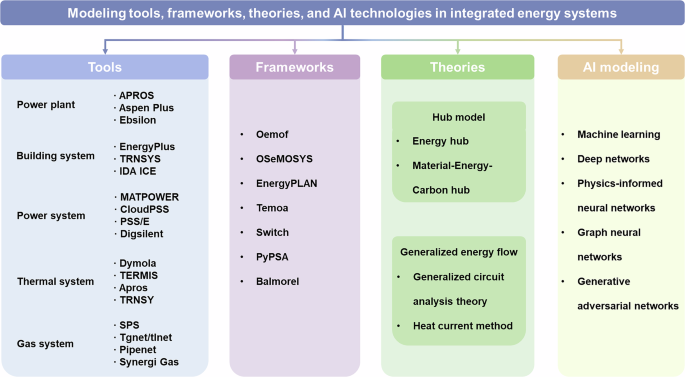

The diagram categorizes the key components for analyzing integrated energy systems into four pillars: (1) Tools; (2) Frameworks; (3) Theorie; (4) AI Modeling.
Modeling tools and frameworks
A wide array of IES modeling tools and frameworks has been developed to manage the growing complexity of modern energy systems. This complexity arises from the need to integrate renewable energy utilization, demand-side management, and coordinate electricity and carbon markets. As a result, companies and research institutions in the energy, power, petroleum, and chemical sectors have created diverse energy modeling tools. The review by Majidi et al.31 assessed 97 energy system modeling tools, highlighting a prevalent trend of using the Python programming language for their development, with a significant 89% being open-source and accessible through community collaboration. The evolution of energy system modeling software has undergone significant technological advancements, moving from single-physics field analysis32,33 to multi-energy flow coupling34,35, progressing from steady-state simulation to dynamic modeling36,37, and advancing towards digital twins (DT)38. Some tools concentrate on high-precision modeling of specific subsystems. For instance, refs. 39,40,41 utilized commercial software such as APROS, Aspen Plus, and Ebsilon to create dynamic models of power plant systems and simulate their thermodynamic processes. References 42,43,44 utilized modeling tools, including EnergyPlus, TRNSYS, and IDA ICE, to execute dynamic simulations, optimize design processes, and undertake life cycle analyses of building energy systems. References 45,46,47 employed tools such as Dymola, MATPOWER, and CloudPSS to simulate the dynamic transport processes in thermal (including hot water/steam) networks, natural gas networks, and power networks. In recent years, enhanced modeling technologies like AI and DT, along with cloud platforms, have enabled city-level modeling48,49. These tools primarily focus on large-scale 3D visualization and energy systems management.
Meanwhile, many open-source frameworks are available, such as Oemof50, OSeMOSYS51, EnergyPLAN52, and TEMOA53. These frameworks facilitate the modeling and optimization of diverse energy systems, with some support for addressing features like uncertainty, nonlinearity, multi-temporal and spatial dimensions, and various energy carriers. Berendes et al.54 proposed an ESMUT method and evaluated five major open-source energy system modeling frameworks. Groissböck et al.55 evaluated 31 energy modeling tools, revealing that Switch, TEMOA, OSeMOSYS, and pyPSA excelled. Furthermore, many current open-source tools now match or exceed the capabilities of certain closed-source options. Nonetheless, these modeling tools and frameworks still face challenges in handling more personalized deployment scenarios and requirements. Additionally, existing modeling tools often encounter heterogeneous interface data, slow interaction times, and mismatched time steps when performing cross-scale co-simulation through software. Furthermore, most tools have limited control-level functionalities. Additionally, the closed architecture of many commercial software packages restricts the deep integration of third-party algorithms developed in Python and MATLAB code, making collaborative simulation across platforms and languages challenging. While these tools and frameworks provide the practical means for IES analysis, their foundation lies in the mechanism-based modeling theories, such as energy hub (EH) modeling and generalized energy flow modeling (EFM). These theories define the intrinsic principles and dynamic characteristics of multi-energy flows and core devices.
Energy hub modeling
The EH model was first proposed by Geidl et al.56. The model is defined as a unit capable of converting, regulating, and storing multiple energy carriers, and provides a general framework for modeling IESs. Numerous studies have conducted modeling work based on EHs for IESs that incorporate energy storage57, energy networks58, demand response59, and renewable energy60. Nozari et al.61 further explored the dynamic operating characteristics of multi-energy storage systems and developed a dynamic energy storage hub model. Mohammadi et al.62 reviewed various concepts and models used for EHs, noting that future EH models should concentrate more on combined heat and power systems, renewable energy utilization, and applications across different sectors, such as residential, commercial, industrial, and agricultural. Pazmiño-Arias et al.63 introduced a scheduling model for an IES in the dairy sector, leveraging the EH concept along with renewable energy and ice storage solutions. To tackle energy conservation and carbon reduction issues in the iron and steel industry, Zhang et al.64 developed the traditional EH into a material-energy-carbon hub, analyzing how material and energy flows affect carbon dioxide emissions during production. Lasemi et al.65 reviewed smart EH modeling methods from design, planning, and operation perspectives. They emphasized renewable energy, energy storage, demand response, optimization, and the significance of uncertainty, noting that robust and stochastic optimization is the leading method in c modeling.
Generalized energy flow modeling
Generalized EFM is a hot topic due to its coverage of energy carriers, including electricity, heat, gas, and steam, and their dynamic interactions. As demands for real-time operational performance, flexibility, and safety increase, traditional static models become inadequate for multi-timescale dynamic analysis. Generalized EFM presents a new way to model the dynamics of multi-energy flow networks, integrating graph theory and matrix analysis to describe mixed differential-algebraic systems uniformly. Jin et al.66 reviewed the development history and solution methods of IESs, spanning from steady-state to dynamic modeling. They provided a detailed and comprehensive overview of research that incorporates dynamic characteristics into the modeling, design, operation, and control of IESs. Research examples include Yang et al.67, who developed a generalized circuit analysis theory for multi-energy networks using circuit analogy and the Laplace transform. This describes the relationship between heat sources and loads, and the dynamic characteristics of heat networks. The theory also applies to unified modeling of electricity-gas IESs68. Chen et al.69 abstracted elements such as “resistance,” “inductance,” and “capacitance” in gas, water, and heat networks based on the circuit analogy method and unified the mathematical forms and solution methods of multi-energy networks using the Fourier transform and graph theory. Zhang et al.70,71 analyzed the similarities and differences in the physical structure and transmission processes of hot water and power networks, discussing various time–frequency domain transformation methods for dynamic modeling of electricity-thermal IESs. Chen et al.72,73 identified relationships among thermal system elements and their consistency with power systems regarding heat transfer driving force and impedance, proposing another unified energy transfer model for electricity-thermal IESs.
The core of the dynamic unified solution methods for energy flows, such as electricity, heat, and gas, involves linearizing the model and partially decoupling equations (e.g., neglecting temperature in natural gas transmission, assuming flow and heat transfer are separate in heating systems) around stable, reliable reference conditions. It finds analytical expressions for energy and mass transfer relationships between adjacent nodes in the frequency domain and combines these with the energy system topology. However, for large-scale, complex looped structures and multi-energy flow networks under extreme conditions, these models involve numerous spatiotemporal variables and complex coefficients, so issues of computational efficiency and accuracy remain. This has prompted the development of a physics-informed hybrid modeling approach that integrates various neural network technologies to overcome limitations in model scalability, computational efficiency, and adaptability and improve prediction accuracy.
Physics-informed hybrid modeling
IES modeling often encounters a lack of sufficient historical data for model calibration, hindering frequent analyses of variable operating conditions and real-time system control. Many refs. 74,75,76,77 indicate that data-driven methods like machine learning, deep networks, and reduced-order models excel in modeling and predicting IES loads, equipment, and networks. They offer better accuracy, adaptive adjustment, and faster computation than mechanism models. Current challenges with data-driven approaches include the need for vast training data to create accurate models and the absence of reliable AI explanation frameworks78. Li et al.79 noted that AI performance in multi-scale engineering is often inadequate, necessitating urgent focus on the logic and architecture of data systems for a high-quality ecosystem. A common solution is to model considering both mechanisms and data fusion in complex energy scenario systems. Two typical methods are to combine the physical physics-informed neural network (PINN), graph neural network (GNN), with IES modeling (see Fig. 5). These methods have been applied in fields such as multi-physics simulation, design optimization, multi-energy flow calculation, and state estimation80,81,82,83. Figure 5a shows the structure of a PINN, where the neural network’s loss function is augmented with physical laws to ensure its predictions are physically consistent. Similarly, Fig. 5b depicts a GNN architecture that processes a system’s network topology and time-series data to capture complex spatio-temporal dynamics. Furthermore, Fig. 5c illustrates the classic application of PINN and GNN in energy modeling.

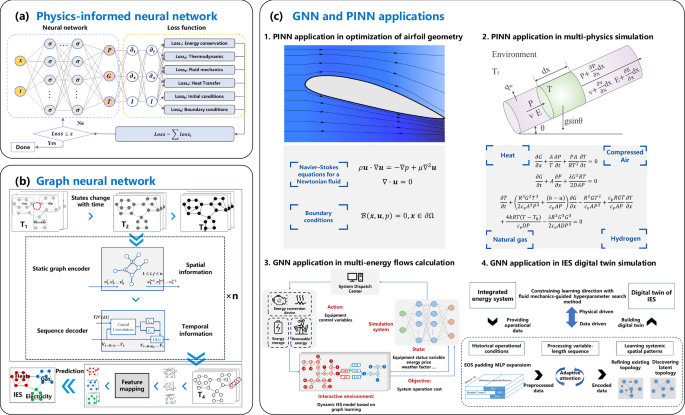

a Core architecture of a PINN. b A GNN architecture for spatio-temporal modeling. c Illustrative applications, including airfoil geometry optimization295, multi-physics simulation, multi-energy flow calculation, and IES digital twin modeling.
PINN was initially introduced by Raissi et al.84. PINN’s primary advantage lies in providing a unified framework for solving both forward problems (i.e., solving PDEs given physical parameters) and especially inverse problems (i.e., inferring unknown physical parameters from observed data), and enhancing data efficiency by regularizing the solution space with physical laws. At present, PINNs are being widely applied in power systems. Huang et al.85 offer a review of the latest research on PINNs for power system state estimation, dynamic analysis, optimal power flow, and anomaly detection. In building and thermal energy systems, Xiao et al.86 introduced an optimization framework utilizing physics-consistent deep learning aimed at load forecasting, indoor climate prediction, and enhancing grid-interactive community indoor thermal comfort control in energy systems for buildings. Gokhale et al.87 presented two novel physics-informed neural network architectures and incorporated prior information about building parameters into the neural network to enhance model interpretability. In geothermal energy systems, PINNs are employed for inverse modeling to forecast essential parameters, such as temperature, pressure, and permeability in geothermal wells88. However, current PINN-based modeling methods have not yet effectively addressed complex structures such as multi-node fluid networks and electricity-thermal-gas IESs. Additionally, the issues of training stability and generalization under extreme operating conditions remain unsolved.
GNN technique has also attracted significant attention. Unlike the PINNs paradigm, which depends on the explicit representation of partial differential equations, GNNs are skilled at adapting to multi-spatiotemporal scale prediction tasks89 and can learn node-edge relationships directly from graph data structures90. This capability enables the effective capture of the diverse topological features and dynamic interaction mechanisms inherent within multi-energy flow networks. For instance, Yang et al.91 integrated RC models and GNNs to develop dynamic thermal models for multiple regions. Their findings indicated that GNNs exhibit robust learning abilities and can handle up to 60% data loss. Yang et al.92 introduced a physics-guided graph neural network (PG-GNN) approach to autonomously learn power grid topology, integrating it with transfer learning for real-time optimal power flow solutions. Boussaid et al.93 introduced a physics-informed spatiotemporal convolutional GNN designed for quickly predicting transient physical fields in district heating networks. This innovative network achieves a 99% decrease in simulation time relative to conventional mechanistic models while maintaining high accuracy. However, GNN-based modeling relies heavily on large training datasets, may produce physically unreliable predictions, and lacks robustness and generalization capabilities. Future research should explore integration mechanisms and interpretability of graph dynamics with multi-physics conservation laws, while also addressing the generalization limitations of data-driven GNNs.
While the modeling methods mentioned earlier are predominantly focused on centralized IES, Agent-based modeling (ABM) offers a powerful framework for decentralized IES modeling. ABM primarily comprises distributed optimization algorithms (such as ADMM and consensus algorithms), game-theoretic approaches (including the Stackelberg game model), and multi-agent reinforcement learning techniques. A comparison of these three modeling types is presented in Table 2, highlighting the fundamental trade-offs involved in selecting these methods for various system objects and scenarios. At the application level, ABM technology has been employed in several crucial areas of integrated energy. To enhance system resilience and security, agents coordinate distributed energy resources to facilitate rapid recovery during extreme climate events and conditions. For instance, Dan et al.94 developed an ABM platform to optimize the planning and layout of urban-level electric vehicle charging stations, demonstrating that multi-agent-based optimization strategies and vehicle-building-grid interactions can accelerate urban decarbonization and enhance the resilience of the energy system. Additionally, to promote low-carbon operations, the ABM integrates carbon trading mechanisms and emission constraints, providing a framework for point-to-point (P2P) energy and carbon trading. For example, Madler et al.95 constructed an ABM to simulate the operational performance of urban micro-grids under different market conditions and explored the comprehensive performance of micro-grids in the economic, technical, and environmental dimensions under P2P energy trading. However, for ABM to large-scale IESs, breakthroughs still need to be made in algorithmic scalability and synchronization. Meanwhile, the decision-making of human-in-the-loop will also be a key research point for improving the trustworthiness of the model.
Industrial energy system modeling
With the above understanding of the evolution from traditional mechanism-based to advanced hybrid modeling techniques, the focus now turns to their application in one of the most complex and critical domains: the integrated modeling of industrial production and energy supply. Industrial energy systems are distinct from residential and commercial systems due to their high energy consumption and stringent safety requirements. To ensure a stable and efficient energy supply in industrial settings, factories and industrial parks are often equipped with dedicated energy generation facilities. The integration of energy systems with industrial production has undergone a gradual and transformative evolution. In the early stages of industrialization, energy systems and industrial production operated independently, with excess energy and waste materials largely unutilized96. As energy management in industrial processes progressed, the development of CHP97 marked a pivotal shift by facilitating the coupling of industrial production processes with steam and electricity, waste heat, and material recovery led to the initial integration of energy and production processes98. Research on this integration can be categorized into three types, its development in recent years can be seen in Fig. 6. The first focuses on the energy sector, where system scheduling is used to optimize industrial demand response (IDR)99 through the flexibility of production processes. The second originates from production process management, in which multiple forms of energy are considered critical manufacturing resources, especially in energy-intensive industries100 such as steel, chemicals, and machinery manufacturing101. As research advances, coupling models of industrial production and energy systems are evolving into a unified framework centered on energy and material flows, aiming to optimize both production processes and energy supply.

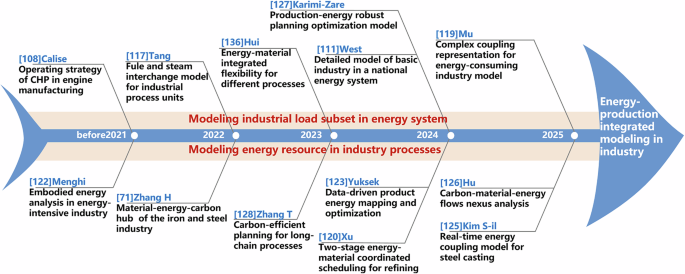

This timeline highlights key research developments in modeling industrial load subsets and energy resources, tracking significant studies from before 2021 to 2025.
Modeling industrial load subsets for energy system analysis has traditionally involved treating these loads as components of overall energy demand. However, this approach often neglects the unique operational constraints and dynamics of production processes. With the continued evolution of electricity markets, there has been a growing focus on integrating IDR, particularly in industries such as cement and aluminum smelting102. For example, Mossie et al.103 developed a mixed-integer linear programming (MILP) model to assess the demand response potential of waste heat power generation in cement plants. Similarly, Wang et al.104 quantified the reducible load of ladle furnaces in the steel industry, considering peak-valley electricity pricing. Additionally, multi-time-scale modeling strategies for end-use industries have been explored, focusing on optimizing energy consumption across different time frames105. Industrial load subset modeling for IDR has traditionally concentrated on electricity. However, modeling gas and thermal energy consumption is becoming increasingly vital to the completeness of IES. To address this gap, researchers have investigated the interchange of energy between fuel and steam systems106 within industrial energy models. As the demand for carbon management and green production grows, there is a need for more refined models of industrial loads, even in less energy-intensive sectors107. In response, Mu et al.108 proposed a coupling representation in low-dimensional space for energy-consuming industries modeling, which meets the real-time control requirements of industrial operations.
Modeling energy resources in industry processes, particularly in energy-intensive industries, such as metallurgy and coal chemical production, is a dynamic system where material flows, energy flows, and waste streams interact and influence each other101. These industrial processes are basically continuous109, with energy being a critical resource, or involve the processing and production of energy, such as in oil refining and hydrogen production. Early modeling research integrated the energy consumption module110 into manufacturing system models, aiming to align energy management with production control and to develop energy efficiency assessment tools through data integration111. For example, Yuksek et al.112 established a data collection and evaluation framework to quantify the embodied energy of product, enabling industries to measure production efficiency113 and assess low-efficiency114 processes.
In addition to energy data integration, energy-intensive industries have also pioneered the joint optimization of energy and material flows. For example, in the steel industry, the carbon-material-energy flows nexus in electric arc furnace processes has been studied115, and Karimi-Zare et al.116 developed a low-carbon optimization model that includes production planning and energy management, guiding low-carbon production in the steel industry. Zhang et al.117 explored the coupling among carbon emissions, materials, and energy in fluid catalytic cracking units, while Xu et al.109 conducted coupling optimization of material and steam systems for refineries. Collectively, these studies contribute to a deeper understanding of energy-material coupling from the perspective of industrial energy management.
Unified model for energy and material flows
Achieving holistic system optimization requires the joint scheduling of materials and energy, yet conventional fixed production plans often hinder such coordination. Recognizing this limitation, researchers have underscored the value of cross-sectoral interaction modeling118 for both energy and material usage in manufacturing. Among modeling methods, graphical modeling for production processes offers distinct advantages in handling complex workflows, concurrent tasks, and resource management. For instance, Ding et al.119 introduced a state-task network (STN), which represents the dependencies between tasks and states as a network, to model production as a combination of discrete and continuous variables. Similarly, Petri nets can represent the dynamic behaviors of processes, including concurrency and asynchrony120, making them suitable for modeling production lines that integrate energy flows, material flows, and carbon flows121.
On the other hand, several studies have designed a unified method to represent the conversion, storage, distribution, and consumption of energy and materials. To construct scalable models that couple energy and material flows, Li et al.122,123 proposed a unified framework for industrial park planning, integrating material flows into EH models. Furthermore, Zhang et al.64 introduced the integrated material-energy-carbon hub model, enabling precise energy efficiency optimization and carbon emission control at the specific production stage. Bao et al.124,125 integrated an energy converter model with four different production tasks, exploring the integrated flexibility. Collectively, these advances establish a unified, scalable modeling framework capable of addressing diverse industrial systems and lay the groundwork for real-time, co-optimized management of materials and energy.
In conclusion, this section has examined the evolution of IES modeling, starting with a review of established software tools and frameworks and their inherent limitations in interoperability and integration. It then explored the core mechanism-based theories, such as EH and GEF models, which form the physical foundation of IES representation. The focus is now on the significant paradigm shift toward hybrid physics-informed models, especially PINN, GNN and ABM, which aim to address the limitations of purely physical or purely data-driven approaches. Ultimately, applying and adapting these advanced modeling techniques to the unique, tightly-coupled domain of industrial systems—where energy and material flows must be optimized together—represents the cutting edge of IES modeling and a vital step toward industrial decarbonization. To provide a clear comparative overview of the modeling approaches discussed, Table 3 summarizes their core principles, typical applications, strengths, and limitations.
Integrated energy system design and operation
Multi-timescale optimal
The optimal design and operation of IESs is a core scientific issue in building a sustainable energy system in the future. Current research commonly uses bi-level optimization models to couple the design and operation stages of IES design (or planning) methods. The design level selects the device and capacity configuration, using linear or nonlinear models and heuristic algorithms. The operation level employs MILP for scheduling optimization. Ding et al.126 proposed a bi-level planning model integrating renewable energy and HVAC demand response. Results indicated that reducing electric chillers’ capacity and increasing the planned capacity of ground source heat pumps and thermal storage lead to higher average exergy efficiency and flatter electricity/heat network curves. He et al.127 focused on planning near-zero emission park IESs using a bi-level method to configure renewable energy capacity, power-to-gas, and carbon capture, considering the dynamic impacts of electricity, hydrogen, and carbon markets. Although existing research considers the impact of system operation at the planning level, future research needs to further consider the impact of electricity, carbon, and fuel market trading behaviors, as well as the impact of high renewable energy penetration. The planning process of IESs also involves multiple time scales, such as short-term, medium-term, and long-term. Cross-seasonal energy storage and seasonal multi-energy complementarity are widely used in medium and long-term system planning. For example, Zhang et al.128 decoupled the annual net power curve into seasonal and hourly energy balance, using a robust optimization method at the short-term scale to address the uncertainty of wind and solar power output, and planning seasonal energy storage at the long-term scale. Zhou et al.129 achieved seasonal imbalance of renewable energy in the Nordic region by configuring hydrogen storage. Zhang et al.130 proposed a three-layer IES optimization framework. The long-term layer ensures seasonal source-load matching via a refined electricity-gas complementary model. The medium-term layer employs intraday energy transfer for extreme weather. The short-term layer focuses on real-time energy balance and economic benefits through intraday peak shaving. Lin et al.131 proposed a quantitative method for evaluating multi-energy complementarity in long-term planning optimization in industrial park IESs, simulating load growth for the next 20 years. Results indicated that improved multi-energy complementarity enhances the system’s long-term economy.
In contrast to design stages, the operation of IESs is more dynamic, influenced by various source-load uncertainties and multi-timescale characteristics. Traditional methods convert constrained physical problems into linear or mixed-integer linear programming problems, which are solved using mathematical solvers such as Gurobi, Cplex, and GLPK. These solvers incorporate various preprocessing, heuristic algorithms, and acceleration algorithms. Simultaneously, some researchers have developed general and extensible frameworks suitable for modeling and optimizing the scheduling of IESs. For example, Langiu et al.132 proposed the COMANDO framework, which allows for component-based modeling of energy systems and supports dynamic and nonlinear characteristics, enabling flexible customization of design and operation optimization problems related to energy systems. In addition, heuristic algorithms such as particle swarm optimization (PSO)133,134, genetic algorithm (GA)135, and multi-objective evolutionary algorithm (MOEA)136 are also widely used to solve multi-objective optimization problems in IESs. Research commonly combines mathematical programming, heuristic algorithms, stochastic or robust optimization137,138, and model predictive control139,140 to handle multi-timescale problems. This is achieved by coordinating operations in day-ahead, intraday, and real-time stages, which gradually reduces the impact of uncertainties and optimizes multiple objectives, including system economy, carbon emissions, and flexibility. Li et al.141 introduced a coordinated multi-timescale optimization framework for IESs. This framework focuses on optimizing scheduling at a regional level for the day-ahead stage, facilitating rolling optimization of device outputs within individual IESs during the intraday stage, and adjusting device outputs in real-time. Wang et al.142 proposed a multi-timescale optimization model for a park IES that accounts for demand responses and source-load uncertainties in the day-ahead stage. A rolling model was established to minimize operating costs in the intraday and real-time stages. Wang et al.143 proposed a multi-timescale scheduling optimization strategy for seasonal hydrogen utilization, considering renewable energy and load variations in day-ahead scheduling. It utilizes rolling optimization for intraday scheduling to tackle forecast errors from wind and photovoltaic fluctuations and a chance-constrained method for real-time scheduling to ensure short-term supply–demand balance. Results indicated a 12% increase in renewable energy consumption. The optimization objectives in the research are often fixed, ignoring dynamic changes caused by multi-timescale variations. Dynamic multi-objective optimization poses a challenge for complex time-varying scenarios, where the objective function, constraints, and feasible solution space can evolve in real-time with changes in the environment or system state. Traditional algorithms struggle to balance global search efficiency and dynamic tracking, suggesting that AI algorithms could be a breakthrough in the future. Although the theoretical models for the design and operation of IESs are becoming increasingly sophisticated, there is still a gap between research and practice. Table 4 summarizes six recent and upcoming international IES case studies. A primary conclusion from these examples is that successful IES implementation is not based on a single template, but rather on tailored technological solutions designed for specific environments. These cases highlight a clear global trend towards more intelligent and specialized energy management, moving beyond traditional designs to incorporate smart controls, novel hardware, and sophisticated planning methods to achieve decarbonization.
Physical and virtual energy storage
In recent years, in-depth research has shown that operating IESs should consider fluid networks’ dynamic inertia alongside energy storage devices’ control features, ensuring accurate scheduling and control. Shirizadeh et al.144 indicate that choosing various time scales for scheduling instructions significantly influences the optimal scheduling strategy in IESs. Additionally, the scheduling of steady-state models fails to capture the dynamic effects of multi-energy coupling amidst uncertainty and diverse spatiotemporal characteristics. The introduction of new physical energy storage devices such as compressed air energy storage145, molten salt energy storage146, flywheel energy storage147, and supercapacitors148, as well as virtual energy storage in fluid networks, enables energy matching to achieve energy–power decoupling and time–space decoupling gradually. Due to their varying scales of inertial delay, the traditional rigid real-time balance of energy can shift towards flexible non-aligned energy matching.
In terms of hybrid physical energy storage, the structure of combining batteries with other forms of energy storage149 is the most effective. For instance, Wang et al.150 analyzed the high-frequency and low-frequency fluctuations of renewable energy using the wavelet transform. They employed a hybrid energy storage system combining batteries and supercapacitors to engage in demand response. This approach increased the renewable energy utilization rate by 16%, while the hybrid system extended equipment lifespan by 75%. Zhu et al.151 developed a novel IES that couples electrical and thermal energy storage with an Organic Rankine cycle (ORC), enabling economical operation through flexible hybrid energy storage and waste heat recovery. Considering the high investment and construction costs of energy storage equipment, some refs. 152,153 have proposed strategies for the utilization of shared energy storage. These strategies aim to further tap the potential of energy storage and improve economic efficiency, but the business model and pricing mechanism still require further research. Although physical energy storage technologies are powerful, their high investment costs have always been a key factor restricting the economy of IES. Researchers have turned their attention to the virtual energy storage inside the system, which utilizes the dynamic characteristics of the existing energy network and load to simulate the effect of energy storage.
In terms of virtual energy storage in fluid networks, Wang et al.154 proposed an optimal scheduling method for IESs, considering the flexibility of natural gas pipeline storage and the demand response capabilities of end-users. Wang et al.155 developed a multi-frequency optimization model for IESs, integrating virtual energy storage of heating networks and achieving coordinated high and low-frequency regulation with high renewable energy penetration through electricity–thermal coordination. Hu et al.156 proposed an operation optimization model for IESs considering the constraints of electricity, heating, and natural gas multi-networks. During winter, while centralized heating operates, buildings are partially integrated into the regulation of energy systems, acting as virtual energy storage. This is due to the heat storage capacity of their envelope structures157,158 and users’ variable thermal comfort preferences159. In industrial applications, steam networks involve strong coupling of multiple physical fields such as temperature, pressure, and phase change, and their complexity far exceeds that of conventional hot water and natural gas networks. To address the high demand for steam and compressed air in industrial parks, researchers have explored optimizing system operations by focusing on virtual energy storage within industrial pipelines for these resources. For instance, Zhong et al.160 introduced a technology for piecewise linearization of physical properties. This innovation enables analytical modeling of the dynamic processes within steam heat networks and allows for the rapid resolution of the dynamic characteristics of these networks under minor temperature variations. Zhuang et al.161 introduced the steam accumulator into industrial steam systems to mitigate renewable energy fluctuations, enabling complementary operation of electricity and steam through steam network simulation and IES scheduling. However, although a large amount of research has been conducted on the high-precision dynamic modeling of fluid networks, incorporating the dynamic constraints of fluid networks into the scheduling process of integrated energy systems will significantly increase the model dimension and solution difficulty. Therefore, most optimization scheduling studies considering virtual energy storage in fluid networks still adopt linearized or static models. At the same time, research on the energy storage characteristics of steam/compressed air pipeline networks is still in its initial stage, and the impact mechanism of key parameters such as phase change and pressure fluctuations on virtual energy storage capacity has not been quantified, lacking a universal operation optimization framework.
In summary, both physical and virtual energy storage are indispensable for enhancing the flexibility of IES. While physical energy storage relies on dedicated, capital-intensive equipment to store and release energy, virtual energy storage unlocks the inherent, often untapped, flexibility within existing infrastructure like fluid networks and thermal loads. This creates a key trade-off: physical storage offers direct, high-performance, and dispatchable control, making it ideal for applications requiring rapid response and high power density. In contrast, virtual storage offers a low-cost solution by leveraging existing assets, but its capacity and response characteristics are indirect, highly dependent on the real-time state of the network, and pose significant modeling and control challenges. Therefore, a primary future research direction is the development of advanced co-optimization and control strategies that can synergistically manage both types of assets.
Flexible operation
As renewable energy sources rapidly grow, the need for enhanced flexibility and management in IESs has become exceptionally important. Research on flexibility is highlighted in the design and operation of energy systems, primarily focusing on power systems162, district heating systems163, and building energy systems164, with a gradual shift towards IESs. Existing research defines and embodies flexibility as an aggregate concept, with optimization of resource allocation at its core, based on spatiotemporal uncertainties in both supply and demand. As IESs advance to a more refined stage of management and control, the decomposition and aggregation of multi-sector and multi-category flexibility resources become increasingly important. Flexibility will evolve from a perceptual concept to a theoretical framework, becoming integral to IESs. This section categorizes flexibility resources across various sectors (illustrated in Fig. 7) and outlines the operating strategies of these systems, considering demand response, distributed energy integration, and the coordination of multi-energy flows, among other flexibility resources.

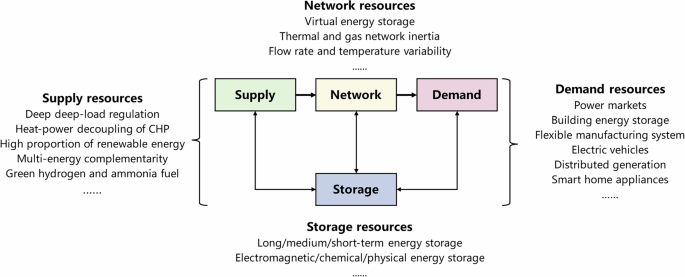

This diagram illustrates the interactions between supply, network, demand, and storage resources, highlighting their flexibility in various sectors such as energy storage, power markets, and distributed generation.
Currently, flexibility on the supply side is primarily enhanced by retrofitting thermal power units165, utilizing thermal-electric decoupling technology166, and adopting deep peak shaving operation strategies167. The flexibility of both the network and the storage sides primarily arises from physical energy storage and the virtual energy storage of fluid networks. Research on enhancing the flexibility of fluid networks primarily combines their thermal inertia168, variable flow rate169, variable temperature170, and topological structure171. Physical energy storage flexibility is achieved through charging and discharging strategies optimized with time-varying energy prices. Demand-side flexibility enhancement focuses on integrating distributed energy resources, user demand response, and grid interaction. For instance, Srithapon et al.172 enhanced the system’s operational flexibility and decreased the requirement for grid electricity by coordinating the scheduling of heat pumps, thermal storage systems, and electric vehicles. Nozarian et al.173 proposed utilizing building clusters as energy hubs to enable coordinated energy efficiency and flexibility management. Zhou et al.174 proposed generalized flexibility indicators to explore the flexibilities in building energy systems and discussed methods to enhance system flexibility under various control strategies. Some studies175,176 have also integrated the building and heating sectors with the transportation sector by using power-to-heat and power-to-vehicle technologies to achieve flexible energy conversion and value flow. For instance, Zhou et al.177 conducted a review on the flexible and collaborative optimization of elements such as renewable energy, hydrogen energy, energy storage, and the spatio-temporal sharing modes of land and air transportation in the airport energy ecosystem. Researchers have also studied flexibility assessment in energy systems. Xu et al.178 used a mechanism-data-driven method to approximate the flexibility domain boundaries of steam systems under different operating conditions. Tie et al.179 suggested applying a multi-energy flow flexible operation domain to clearly illustrate multi-dimensional operational and safety constraints. They calculated the volume of this flexible operation domain to define the flexibility of the integrated energy system. The research shows that coordinated operation of energy subsystems offers flexible services, and energy equipment in a multi-level system can also provide flexibility. However, current quantification models for flexibility across multi-energy and multi-sector systems face a trade-off between accuracy and scalability. Future research should focus on hybrid methods, such as developing adaptive model simplification techniques or using machine learning to train surrogate models that can quickly and accurately replace complex flexibility domain calculations, aiming to find a better balance between precision and computational speed.
For the operational optimization of IESs with multiple flexibility resources, Liu et al.180 proposed a two-stage flexible optimization model for source-load-storage in IESs, considering resources such as CHP units, energy storage, and distributed wind and solar units. Karimi et al.181 introduced a stochastic framework for the operational scheduling of a renewable energy-based IES, considering total generation costs, generation flexibility, and demand-side flexibility. The optimized strategy enhanced the generation flexibility index and the thermal generation flexibility index by 22.98% and 34.64%, respectively. Gao et al.182 considered the impact of electricity market flexibility on the operation of IESs, simulating the complex interactions between the bidding and scheduling decisions of IESs. The results indicated that flexibility technologies affect the economics of electricity market participants and lead to the accelerated retirement of low-flexibility equipment. Ma et al.183 addressed nonlinear energy conversion and heat transfer constraints in combined heat and power systems, proposing a two-stage thermal-electricity dispatch scheme for optimizing energy supply flexibility and conversion efficiency. The results showed an 11.65% reduction in heat consumption compared to traditional methods. However, partial conflicts exist between flexibility enhancement and the economic and low-carbon goals of IESs. Focusing solely on flexibility optimization may hurt operational performance or raise carbon emissions. Future research must explore the relationships between flexibility and multiple optimization objectives, decoupling the inverse relationship by altering system configuration and operations for coordinated multi-objective optimization.
Decarbonized design and operation
Carbon emissions in industrial production originate from four primary sources: product design, resource control, the production process, and end-of-life disposal184. In response to increasingly stringent carbon regulations, research on industrial energy systems has coalesced around two complementary decarbonization pathways: embedding low-carbon technologies and optimized layouts at the design stage to reduce lifecycle emissions, and integrating carbon tracing, emissions constraints, and flexible control strategies into operation.
As for industrial IES design, an effective way must address each of these stages to achieve meaningful decarbonization. Early efforts emphasized optimized plant layouts and fuel substitution. Recent work has advanced toward multi-technology bundles tailored to specific sectors. One line of research is dedicated to integrating various low-carbon technologies, such as carbon capture, hydrogen, and heat pumps, with local renewable energy sources101,185,186,187. Recent work has advanced toward multi-technology bundles tailored to specific sectors. In heavy industries, Chen et al.188 introduced a three-tier hybrid carbon-hydrogen process to reduce steel-plant emissions, while Bararzadeh et al.189 studied the potential for producing low-carbon hydrogen and electricity in the steel manufacturing process. Wang et al.190 evaluated the integration of photovoltaic power with steel production, proposing optimal energy substitution solutions suitable for different regions. Similarly, in light industries191, coal substitution with green hydrogen has been shown to be feasible in plastics, chemicals, and fertilizers. Jost et al.192 analyzed the low-carbon technologies implemented in flat glass production using LCA. By integrating biomass utilization and carbon capture technologies, Meys et al.193 achieved net-zero emissions in the plastics industry. Zanon-Zotin et al.194 explored sustainable development solutions for the chemical industry. Importantly, these low-carbon technologies must align with the characteristics of each process and local renewable sources195. Furthermore, from a broader global industrial perspective, strategic adjustments to production locations and energy supply structures can also enable decarbonization across entire production value chains196.
As for industrial IES operation, carbon emission targets have been incorporated into industrial IES operations to promote clean production and sustainability. Table 5 shows an overview of optimization research in industrial IESs. Earlier operational strategies mainly focused on resource efficiency and environmental performance197, while recent studies include specific carbon emission constraints, such as carbon markets, allocation, and footprints198. For example, Mengesha et al.199 proposed that carbon pricing could promote green growth for energy producers. Fisco-Compte et al200 incorporated carbon trading policy to achieve green production scheduling in manufacturing. In particular, Li et al.201 contributed by focusing on the joint optimization of total carbon emissions and emission intensity in electrolytic aluminum production, utilizing an STN model. In multi-energy coupled production processes, low-carbon operations must balance the end-use energy loads of different energy sources. To address this challenge, Ma et al.202 developed a linearization operation model with a nodal energy-carbon price, and Wu et al.203 optimized the scheduling of the steel industry using wind-hydrogen power. Building on these system-level studies, Zhang et al.204 recently used an integrated energy-material-carbon flows model in discrete manufacturing, achieving flexible production and precise footprint tracing.
At a more detailed level of production, research has focused on optimizing job shop scheduling and machine operations with a dual emphasis on energy efficiency and low-carbon performance. For instance, Fang et al.205 pioneered the integration of energy consumption and carbon footprint into the optimization of dual-device scheduling in flow shop production systems. Piroozfard et al.206 innovatively minimized both the total footprint and the total late work criterion in flexible job shop scheduling. Building on these advancements, Wang et al.207 introduced an enhanced memetic algorithm that accounts for machine restarts, thereby improving adaptability in dynamic processes. Furthermore, logistics208 and guided vehicles209 in a job shop have coordinated these systems with energy scheduling, ensuring that material handling and energy management remain closely aligned.
Energy and AI nexus in future integrated energy system
AI-embedded operation
Recently, AI algorithms like deep learning (DL), generative adversarial networks (GAN), and reinforcement learning (RL) have significantly advanced IES optimization. Thus, it’s essential to examine research on optimizing these systems beyond mathematical programming and heuristic algorithms. Existing research applies GANs to address scenario generation under source-load uncertainty. Huang et al.210 analyzed correlations between source-load uncertainty variables and created multiple operating scenarios using GANs, enabling stochastic scheduling that addresses this uncertainty. Li et al.211 used GANs and clustering algorithms to create scenarios and designed a metaheuristic method for scheduling multi-community IESs. Overall, the studies are limited to using AI algorithms for system boundary conditions and scenarios, without effectively solving operation scheduling problems in IESs. AI algorithms have advanced in unit commitment (UC) optimization to address power system scheduling challenges. To address this, Zhang et al.212 proposed a frequency-constrained UC framework for high renewable energy scenarios, reformulating the deep neural network as mixed-integer linear constraints in a standard unit commitment model. Ramesh et al.213 introduced a machine learning model that combines GNNs and LSTMs, reducing the computational complexity of security-constrained UC while maintaining solution quality by predicting generator schedules and transmission lines. Currently, the area closest to IES scheduling and control is RL214, particularly deep reinforcement learning (DRL)215. RL is an approach that learns optimal strategies by interacting with the environment. It models scheduling issues as Markov decision processes (MDPs) and employs deep neural networks to approximate policies or value functions, allowing for adaptive optimization in complex, dynamic settings. IESs have a more complex state space compared to scenarios like building energy management216, microgrid control217, and the scheduling of electric vehicle clusters218. Perera et al.219 reviewed the application of RL in energy systems, noting that RL methods are more competitive for large decision space problems than other technologies, particularly given uncertainties in renewable energy and energy markets and expanded energy system boundaries involving sector coupling. For instance, Yang et al.220 enhanced the quality and learning efficiency of scheduling strategies using an improved deep deterministic policy gradient (DDPG) algorithm, addressing the optimal scheduling challenge of IESs while factoring in energy demand and renewable energy output uncertainties. Zhang et al.221 employed the soft actor-critic (SAC) algorithm to tackle the multi-objective optimization challenge of balancing economy and supply reliability in electricity–thermal-gas IESs. The findings revealed that the benefits gained through the SAC-based DRL approach were 21.66% superior to those obtained from the PSO algorithm.
However, although model-free RL avoids complex mechanistic modeling, it still requires significant historical training data. Acquiring high-quality data in energy systems is often limited, especially for new IESs during the initial stages. RL needs extensive offline training to optimize decision strategies. The “black-box” approach lacks transparency and requires high-performance computing. Future research should investigate hybrid modeling, transfer learning, and explainable AI to improve DRL’s decision-making in IESs. Current studies primarily focus on AI integration to optimize physical and mathematical models, while there is less attention on innovative optimization algorithm designs. Current research frequently employs machine learning to adaptively modify the hyperparameters of optimization algorithms222 or adjust the weights of various optimization objectives within the system223. However, these methods still find enhancing the algorithms’ generalization performance challenging. Tang et al.224 presented a comprehensive review of research on automated optimization algorithm design, recommending the use of automated machine learning methods to establish the mapping between target problem classes and solvers. This concept facilitates generative design and learning transfer of intelligent optimization algorithms for IESs by creating a problem feature space that includes typical energy scenarios and requirements, enabling automatic generation of tailored optimization algorithms for specific problem characteristics.
LLM assisted operation
LLMs have demonstrated significant potential in recent years beyond text225, image226, and video227 domains. The energy, power, and building energy system sectors, characterized by high complexity and multiple constraints, are actively exploring the applications of LLMs in areas such as prediction, modeling, decision-making, and control. Research in power systems indicates the feasibility of using LLMs to solve optimal power flow228, wind/solar power prediction229, and state estimation230. Majumder et al.231 examined the efficacy of LLMs in power system knowledge question answering, data analysis, and fault diagnosis. Nonetheless, they identified challenges, including the insufficiency of training datasets within certain domains and the lack of security and physical interpretability. Similar emerging results exist in building energy systems. Liang et al.232 proposed EnergyGPT, which fine-tunes a pre-trained GPT-2 model to achieve high-accuracy multi-energy load forecasting. Jiang et al.233 proposed the integration of LLMs with EnergyPlus to facilitate automated modeling. This approach utilizes fine-tuned LLMs to generate building models from natural language descriptions, thereby significantly reducing the modeling workload by 95% while maintaining high accuracy. Li et al.234 developed an LLM-based query paradigm that combines model fine-tuning with a knowledge graph and retrieval-augmented generation to process complex operation and maintenance data of building systems. Overall, the advantages presented by large language models in the domains of text and data analysis empower them to manage equipment diagnosis effectively235, as well as various prediction tasks236,237. Nevertheless, decision-making in energy systems utilizing LLMs encounters security and trust challenges238. The statistical findings presented by Zhang et al.239 further corroborate that system operation and control remain the least explored domain within the context of LLMs, largely due to the optimality and physical constraints associated with the intricacies of these systems.
Some scholars have proposed integrating LLMs into agent-based modeling and simulation240. Multi-agent systems possess the capability to manage complex decision-making tasks through the interactions among various agents. Consequently, they hold considerable application potential within energy systems that routinely engage with operational entities, including electricity and carbon trading markets, as well as virtual power plants241,242. However, it is important to note that multi-agent systems based on LLMs rely on text and data-driven probabilistic reasoning, making it difficult to satisfy the physical equations and constraints of IESs strictly. To bridge this gap, Yang et al.243 proposed an innovative LLM plus RL approach, which utilizes an LLM to generate and iteratively optimize penalty functions for an RL agent, thereby achieving safer energy management of active distribution networks while reducing reliance on human domain knowledge. Simultaneously, LLMs’ current long logical reasoning time poses challenges for supporting dynamic regulation and ensuring the safe operation of energy systems under extreme weather impacts244. Significant bottlenecks remain in developing energy-LLMs, particularly at the process and algorithm levels. On one hand, collaboration between enterprises and academic institutions is essential to establish a transparent and shared, high-quality simulation data foundation for the training of LLMs, enabling self-learning and the autonomous generation of operational regulation strategies. On the other hand, top-level design of energy-LLMs requires experts in materials, equipment, thermodynamic cycles, and subsystems to develop specialized modeling, simulation, and optimization tools, integrating multi-scale joint tools for global optimized design and operation. Concurrently, Jiang et al.245 emphasized that the extensive training, fine-tuning, and updating of LLMs may contribute to significant carbon emissions and electricity consumption. Consequently, while employing LLMs to assist individuals in various tasks, it is imperative to consider their impact on global energy resources and the environment.

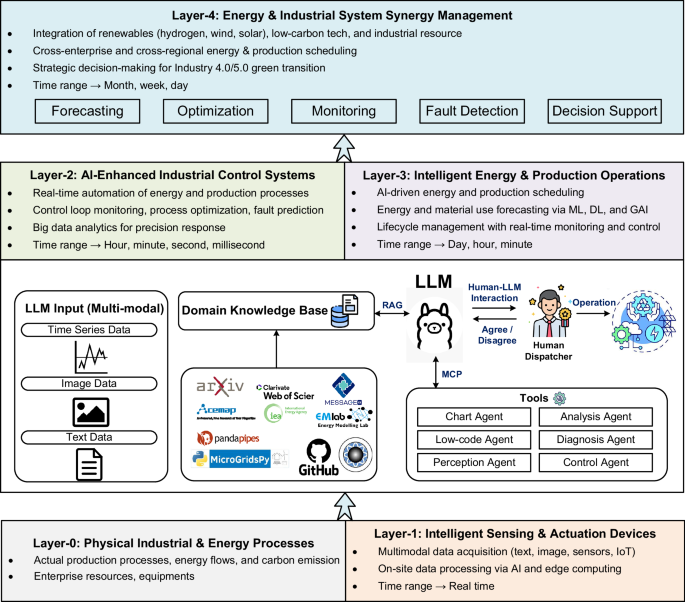

To conceptualize how these components might be integrated, Fig. 8 presents a potential layered architecture for an LLM-powered management and control system. This framework illustrates a bottom-up data flow, starting from a physical layer containing the IES assets, moving through a perception layer for multi-modal data collection, and feeding into a central intelligence layer. Here, the LLM acts as the core reasoning engine, integrating with digital twins and multi-agent systems to perform tasks like prediction, optimization, and decision-making before delivering actionable insights through an application layer. Such an architecture provides a conceptual model for the top-level design required to harness the potential of LLMs in future industrial IESs.
This diagram integrates five layers: the bottom layer includes physical industrial equipment and intelligent sensing, the middle layers involve AI-enhanced control systems and intelligent operations, while the top layer focuses on energy and industrial system synergy management.
Zero-carbon smart factory
Industry 4.0 is built on the automation of machines and production systems, emphasizing the realization of intelligent processes through technologies such as smart devices, the Internet of Things (IoT), big data analytics, and cloud computing. Initially, driven by advancements in IoT246, smart factories utilized real-time data monitoring of smart machines, logistics, and manufacturing processes to enhance energy management, leading to a closer integration between energy consumption and production activities. In this context, the accuracy of data and refined energy management are particularly critical. In practice, Guo et al.10 employed high-resolution databases to systematically manage energy infrastructure. Tibrewal et al.247, through a combination of survey data and remote sensing, identified significant disparities in energy use within brick production processes and proposed improvements to enhance energy efficiency.
Moreover, smart factories are increasingly adopting more sophisticated sensors and real-time analytics throughout the production process. By integrating AI technologies, smart factories enable real-time monitoring248 of energy and material flows, while also allowing data-driven operations to energy and production equipment249. For instance, Kanoun et al.250 and Li et al.251 investigated the application of energy-aware technologies based on wireless sensor networks (WSNs) to enhance factories' operational efficiency. Perera et al.252 reviewed the AI-driven soft sensors in process industries, which can monitor energy-related parameters that are otherwise difficult to measure directly. Leveraging cyber-physical systems (CPS), Matsunaga et al.253 explored real-time optimization of energy efficiency to improve smart manufacturing processes. Zhou et al.254 further demonstrated how machine learning can analyze real-time data to forecast future energy demands.
With the rise of Industry 5.0, human–machine collaboration has emerged as a central theme. Alongside improving production efficiency, it emphasizes personalized manufacturing and sustainable development. The synergy among machine intelligence, digital twins, and augmented reality (AR) technologies has opened new pathways for energy conservation and carbon reduction255. Akundi et al.256, for example, integrated AR and collaborative robotics to improve process flexibility, demonstrating how enhanced robot adaptability can simultaneously optimize energy management and reduce emissions. In parallel, AI-powered smart devices and networks offer more precise control over energy and carbon emissions257. Tao et al.258 further explored the potential of digital twin technologies in industrial energy management, highlighting their capacity for real-time monitoring, prediction, and process optimization. Nevertheless, significant challenges remain in system integration, cost control, and workforce development, and addressing the short-term risk of increased greenhouse gas emissions during smart factory deployment remains an urgent engineering issue259.
AI-energy-industrial nexus
With the development of renewable energy and the pursuit of carbon neutrality, industrial processes are increasingly integrating sustainable technologies and renewable sources such as hydrogen260, while advancing next-generation intelligent production systems aligned with Industry 4.0 and 5.0 paradigms261,262. AI technologies not only support the storage, conversion, and management of sustainable energy, but also facilitate the integrated optimization of regional industrial resources, thereby promoting low-carbon and green regional transitions263. As shown in Fig. 9, the integration of AI and renewable energy is mutually reinforcing, and this multidisciplinary digital evolution optimizes the management of energy, production, and carbon, further accelerating industrial decarbonization. AI-driven industrial energy-carbon optimization utilizes technologies such as machine learning, intelligent algorithms, and generative artificial intelligence (GAI) to optimize industrial processes. A key step is the accurate prediction of energy consumption and material usage. Common techniques used include machine learning (such as support vector machines and decision trees), DL264,265, and uncertainty modeling266. For example, Tan et al.267 combined tree algorithms, recurrent neural networks (RNNs), and regression models to predict machine activity states, production capacity, and energy allocation. Other work has merged AI with big data analytics. Majeed et al.268 developed a framework for sustainable additive manufacturing, while Liang et al.269 combined AI optimization with data envelopment analysis (DEA) to guide targeted energy-saving and carbon-reduction measures. Collectively, these prediction and optimization methods enable real-time analysis and precise adjustment of energy management and operational strategies270.

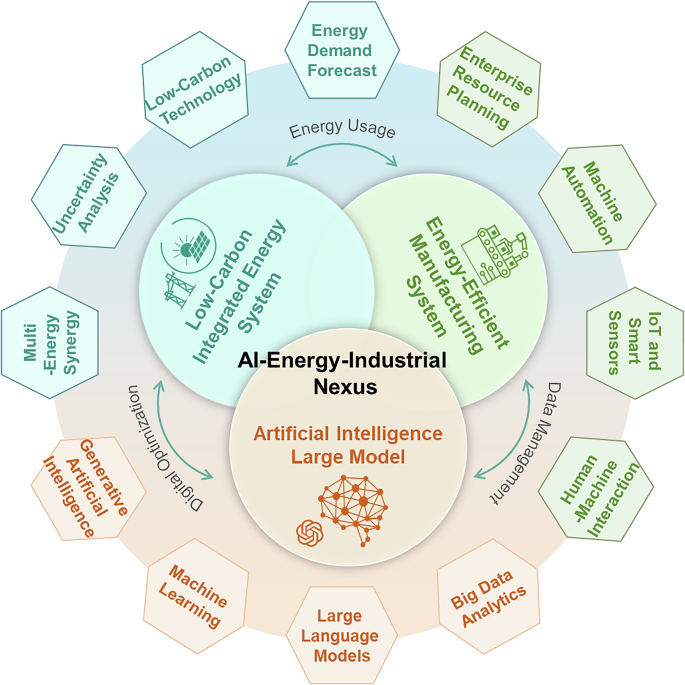

This diagram illustrates the intersection of AI, energy systems, and industrial processes, highlighting low-carbon integrated energy systems and energy-efficient manufacturing, along with supporting AI technologies.
A key direction for future industrial decarbonization lies in the integration of AI with low-carbon energy and sustainable technologies. In the chemical industry, Mallapragada et al.271 demonstrated how AI can optimize electricity conversion and distribution, significantly improving energy efficiency. Beyond electrification, AI-supported thermal process optimization offers further emission reduction potential272. And AI is expanding into more advanced sustainability technologies, such as carbon capture. Manikandan et al.273 demonstrated improvements in capture efficiency and energy use. Increasingly, such approaches are being applied at system and regional scales. Xie et al.274 proposed a comprehensive data-driven framework for low-carbon regional transitions to reconfigure industrial resources. Complementing this, Chinnathai et al.275 introduced an AI-supported life-cycle management model enabling real-time monitoring and adaptive control in energy-intensive sectors.
Meanwhile, rapid advances in LLM are opening new possibilities for scaled intelligent and low-carbon manufacturing276. By processing multimodal data—such as text, images, and sensor inputs, LLM can support various industrial scenarios and complex tasks. One key application is predictive maintenance, where equipment data is analyzed to detect potential failures in advance235, thereby minimizing unplanned downtime. LLM is beginning to play a role in optimizing operations within power systems277, further demonstrating its versatility in industrial contexts. With strong digital infrastructure, abundant data resources, and an innovation-driven industrial base, China is well-positioned to lead this transformation278. For instance, Huawei’s Pangu model targets sectors such as mining and railways, while Alibaba and 01.AI have co-founded the “Industrial Large Model Laboratory” to develop enterprise-focused LLM solutions. In summary, the AI-energy-industrial nexus represents a critical enabler of deep decarbonization, where advances in prediction, optimization, and control intersect with renewable integration and intelligent manufacturing, creating synergistic pathways toward zero-carbon industrial systems.
Conclusion
Despite significant advancements in the modeling, design, and operation of IESs, developing a smart operating system that fully integrates multi-energy flow theory with AI is still a promising area for future exploration. This review provides an overview and analysis of contemporary smart operation technologies for IESs from three viewpoints: modeling methods, operational strategies, and the nexus of AI, energy, and industry. In conclusion, the transition to clean and low-carbon energy, especially in the industrial sector, requires advanced modeling, design, and operational strategies for IESs. This review emphasizes the critical role of AI, ranging from improved modeling techniques and smart operations to the incorporation of LLMs for enhanced decision-making. Addressing the inherent complexities and uncertainties of future IESs requires continued interdisciplinary research, focusing on the synergistic integration of AI with domain expertise to unlock the full potential of smart, efficient, and sustainable energy solutions in pursuing carbon neutrality. As we focus on innovative IESs aimed at achieving carbon neutrality, future research needs to advance interdisciplinary integration with AI and leverage AI to address the challenges of collaborative operation in ultra-large-scale complex systems.
To bridge the gap between research and industrial IES application, two key technical challenges must be addressed: (1) There is a challenge in aligning data-driven AI models with physical laws governing energy systems. Current AI often overlooks thermodynamic principles and system dynamics, leading to unsafe decisions. Developing hybrid models that incorporate these physical constraints is crucial. (2) Future IES must manage various objectives (cost, reliability, flexibility, emissions) under uncertainties from renewable energy and market interactions. Current systems lack the real-time adaptive capabilities needed for efficient operation. Transitioning to AI-driven adaptive control within physical constraints is essential for advancing smart energy systems.
Addressing these bottlenecks will require a multi-stage effort with deep interdisciplinary collaboration:
(1) The immediate focus should be on creating a cross-scale, physics-constrained hybrid modeling framework. Utilize AI to accelerate multi-scale simulations and potentially discover unknown thermodynamic and dynamic equations from data. This endeavor requires a close collaboration between thermal and power systems engineers, who offer domain expertise, and AI and computer scientists, who can construct the necessary hybrid model architectures.
(2) The next step is to achieve intelligent and adaptive operation. Develop AI agents that can manage multiple operational objectives and significant load variations with high computational efficiency. These systems must intelligently orchestrate the flexibility of diverse resources across the entire IES. This phase requires the inclusion of control theorists to ensure system stability, as well as economists to integrate market dynamics and complex decision-making processes.
(3) The ultimate goal is to create a multi-modal cognitive engine for holistic system management. Develop a “Language-Physics-Spatio” multi-modal LLM. This framework would integrate physical laws via symbolic equation encoding, analyze real-time geospatial and meteorological data, and support natural language interaction for dispatchers. This visionary step will require an unprecedented synergy between energy experts, AI researchers (in NLP and computer vision), and geospatial scientists to create a truly intelligent human-AI partnership for managing complex energy systems.
Based on our analysis, we propose the following directions for future guidance:
(1) Advancements in AI models require large, high-quality datasets. It is important to create standardized data-sharing platforms across energy subsystems (electricity, heat, and gas) and prioritize the development of digital twin technology. By creating a real-time digital mirror of the IES, we can simulate various extreme scenarios safely.
(2) Future AI models should move beyond “black-box” correlations to systems that respect thermodynamics, fluid dynamics, and device characteristics. Focusing on hybrid models like PINNs and advancing explainable AI will foster trust among operators by ensuring transparent and interpretable AI-driven decisions.
(3) Technological breakthroughs require a supportive market and policy environment for their successful implementation. Future research must integrate technological innovation with market mechanism design and the refinement of policies and regulations. For example, how can the flexibility, reliability, and environmental benefits enabled by AI-driven dispatch be accurately priced? How can new electricity, carbon, and ancillary service markets be designed to incentivize IES operators to adopt smarter and lower-carbon operational strategies?
(4) The goal is to empower, not replace, human experts. Future work should develop domain-specific LLMs for the energy sector. These models can interpret natural language commands, clarify complex events, and propose operational strategies, creating a synergistic system where human oversight complements AI’s optimization capabilities.
Data availability
No datasets were generated or analyzed during the current study.
