Main

Over the past decade, the importance of microRNAs (miRNAs) in the regulation of cell functions has become more and more apparent. These small but potent regulators have important roles in a range of processes, including hematopoietic cell development, immunity, and carcinogenesis.1, 2, 3, 4, 5, 6, 7 MiRNAs are small (∼22 nucleotide), noncoding RNAs that can pair with complementary sequences within mRNA molecules. Its binding can trigger mRNA destabilization and/or translational repression, leading to a decrease in the protein encoded by their cognate mRNAs.8, 9 One of the miRNAs, namely miR-21, was identified as being significantly overexpressed in a wide range of solid tumors such as breast, lung, colon, gastric, and pancreatic cancers.10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20 In addition, miR-21 upregulation is associated with the development of a variety of inflammatory diseases including colitis and psoriasis.21, 22 MiR-21 acts as an antiapoptotic agent in a variety of cell types.23, 24 Recently, it was reported that miR-21 suppresses apoptosis of murine and human primary T cells and modulates cytokine production.25, 26, 27, 28

Proliferative expansion of lymphoid cells is required for effective immune responses against invading microorganisms, but the expanded effector cells must be eliminated to prevent overaccumulation of cells after the infection is controlled.29 The cell number, repertoire diversity, and self-tolerance of mature T lymphocytes are tightly controlled by a process called programmed cell death or apoptosis. Apoptosis of mature T lymphocytes is regulated by extensive networks of signal-transduction pathways. This ensures controlled activation and expansion of cells during immune responses and apoptotic deletion of lymphoid cells that are no longer needed at the end of immune responses.30 T-cell apoptosis occurs in at least two major forms: antigen-driven and lymphokine withdrawal-induced. Active antigen-driven death is mediated by the expression of death molecules such as Fas ligand. The transcription factor nuclear factor-κB (NF-κB) is activated by survival factors and cytokines such as tumor necrosis factor-α (TNF-α).31 In most cell types, NF-κB strongly inhibits apoptosis.32 Genetic deficiencies of the NF-κB transcription factor increase spontaneous and TNF-α-induced lymphocyte apoptosis.33 How this transcription factor promotes cell survival is not fully understood, but it presumably relates to the induction of survival genes or the inhibition of death genes.

Tipe2, or TNF-α-induced protein 8 (TNFAIP8)-like 2 (TNFAIP8L2), is a member of the TNFAIP8 family, which is preferentially expressed in hematopoietic cells.34, 35 It is significantly downregulated in patients with infectious or autoimmune disorders and its expression inversely correlates with disease progression.36 Germline deletion of Tipe2 results in fetal inflammation and hypersensitivity to Toll-like receptor and T-cell receptor stimulation.37 Tipe2 overexpression induced cell death and significantly inhibited Ras-induced tumorigenesis in mice.38

We report here that the three aforementioned factors, NF-κB, miR-21, and Tipe2, form a unique regulatory axis that controls T-lymphocyte apoptosis. This axis is involved in NF-κB-mediated inhibition of T-cell death and may serve as a unique target for the regulation of immune responses.

Results

Tipe2 expression is downregulated in T cells and macrophages after activation

Tipe2 is expressed preferentially by immune cells. To test the expression of Tipe2 in T cells, quantitative reverse-transcription PCR (qRT-PCR) analysis of Tipe2 mRNA level was performed for CD4+ T cells either untreated or treated with anti-CD3 plus anti-CD28 for various times (Figure 1a). We found that Tipe2 mRNA level in T cells was decreased by threefold as early as 4 h after activation. To test the expression of Tipe2 protein in T cells, western blot analysis were performed for naive CD4+ T cells either untreated or treated with anti-CD3 plus anti-CD28 for 5 h. Tipe2 protein level was markedly decreased in T cells after treatment (Figure 1b). In addition, blocking NF-κB activation with Bay 11-7082 in T cells treated with anti-CD3 plus anti-CD28 completely rescued the defect in Tipe2 expression (Figure 1c), indicating that TCR stimulation downregulates Tipe2 by NF-κB activation.

Figure 1
figure 1

NF-κB-dependent downregulation of Tipe2 in T cells and myeloid cells. (a) Murine naive CD4+ T cells were either untreated or treated with plate-bound anti-CD3 (1 μg/ml) and soluble anti-CD28 (1 μg/ml) for the indicated times, and Tipe2 mRNA levels were determined by quantitative PCR. (b) Murine naive CD4+ T cells were either untreated or treated with plate-bound anti-CD3 (1 μg/ml) and soluble anti-CD28 (1 μg/ml) for 5 h, Tipe2 protein levels were determined by western blot analysis. (c) Murine naive CD4+ T cells were treated as in (a) for 4 h in the absence or presence of NF-κB inhibitor Bay 11-7082. Tipe2 mRNA levels were determined by quantitative PCR. *P<0.02. The results are representative of three independent experiments

Full size image

NF-κB regulates miR-21 expression

Consistent with published data that miR-21 is a potential target of NF-κB,39, 40, 41 we found that miR-21 expression was induced by anti-CD3 plus anti-CD28 treatment in CD4+ T cells (Figure 2a) and LPS treatment in macrophages (Figure 2b), but was partially blocked by the NF-κB inhibitor Bay 11-7082 (Figures 2a and b). A close examination of miR-21 promoter region using the Transcription Element Search System (TESS, University of Pennsylvania, Philadelphia, PA, USA) software revealed two putative NF-κB binding sites (NF-κB no. 1, −20 to −12, and NF-κB no. 2, −205 to −196). Because data from several groups including ours showed that LPS resulted in the induction of miR-21 via NF-κB, macrophages were used to determine the roles of NF-κB during the induction of miR-21. Luciferase reporter assay was used to determine whether the two NF-κB sites were required for NF-κB action. Our data showed that while LPS induced miR-21 promoter activity, mutation of either NF-κB binding site almost completely diminished it (Figure 2c). These data indicate that both NF-κB no. 1 and NF-κB no. 2 sites were required for the NF-κB response.

Figure 2
figure 2

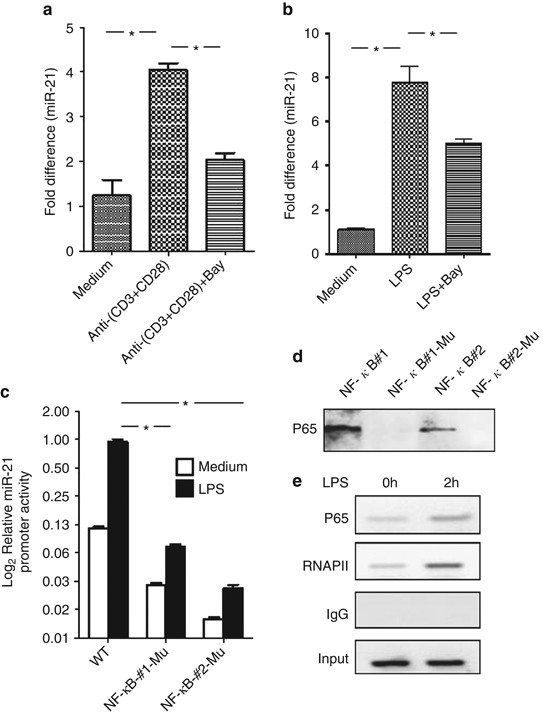

NF-κB binds to and activates the miR-21 promoter. (a) Murine naive CD4+ T cells were either untreated or treated with plate-bound anti-CD3 (1 μg/ml) and soluble anti-CD28 (1 μg/ml) for 6 h in the absence or presence of NF-κB inhibitor Bay 117-82, and miR-21 levels were determined by quantitative PCR. *P<0.01. (b) Murine bone marrow-derived macrophages were either untreated or treated with LPS (100 ng/ml) for 4 h in the absence or presence of NF-κB inhibitor Bay 117-82. MiR-21 levels were determined by quantitative PCR. *P<0.02. (c) RAW264.7 cells were transiently transfected with WT or NF-κB site-mutated murine miR-21 promoter luciferase construct. After 24 h, cells were either untreated or treated with LPS (100 ng/ml) for 6 h, and the luciferase activities measured. The promoter activity is presented as fold increase over untreated cells transfected with NF-κB site no. 2 mutated construct. To normalize the transfection efficiency across samples, the Renilla luciferase expression vector pRL-TK was included as an internal control. *P<0.01. (d) Nuclear extracts were prepared from mouse bone marrow-derived macrophages after stimulation for 2 h with LPS. Biotinylated miR-21 oligonucleotides containing NF-κB binding site nos. 1 or 2 or their mutants were absorbed by streptavidin–agarose beads, and then added to the nuclear extracts. The amount of p65 proteins in the precipitates were assessed by immunoblotting with anti-p65. (e) Mouse bone marrow-derived macrophages were treated with LPS (100 ng/ml). After 2 h, cells were fixed, and ChIP was performed using anti-p65, anti-RNA polymerase II (PolII), or control IgG. Immunoprecipitated DNA was analyzed by PCR using primers for NF-κB site on miR-21 promoter. Data are representative of two independent experiments

Full size image

To directly test NF-κB binding to the identified sequences of the miR-21 promoter, we performed nucleotide pull-down analyses using both wild-type (WT) and mutant nucleotides. We found that p65, one of the NF-κB family members, readily bound to the nucleotides of both NF-κB sites, but not their mutants (Figure 2d). To establish whether NF-κB binds to the miR-21 promoter in live cells, we performed chromatin immunoprecipitation (ChIP) analysis. The miR-21 DNA–protein complexes were precipitated using specific antibodies to p65 and RNA polymerase II in bone marrow-derived macrophages either untreated or treated for 2 h with LPS. The nature of the precipitated DNA was then defined by PCR using primers specific for NF-κB no. 1 site. We found that in untreated macrophages, the miR-21 promoter exhibited weak p65 or RNA polymerase II binding. At 2 h after LPS treatment, p65 and RNA polymerase II binding to the miR-21 promoter was noticeably increased (Figure 2e). These results are consistent with published data that miR-21 is transcribed by RNA polymerase II and indicate that miR-21 is a direct target of NF-κB.

Tipe2 is a direct target of miR-21

Our data presented above showed an inverse correlation between miR-21 and tumor suppressor Tipe2 expression in activated immune cells, which appears to be NF-κB dependent. This prompted us to speculate that Tipe2 could be a target of miR-21. A sequential three-step approach was used to test this possibility. First, putative miR-21 binding sites were identified by bioinformatic analysis; second, functional implications of miR-21 binding to Tipe2 mRNA was validated by luciferase reporter assay; and finally, the relationship between miR-21 and Tipe2 mRNA expression was examined in overexpression systems.

The potential miR-21 binding sites were predicted using MiRecords. However, we did not detect any putative miR-21 binding site within the 3′-untranslated region (3′-UTR) of TIPE2 mRNA. Instead, putative miR-21 binding site (+396 to +417), as well as miR-155 (+499 to +511) and miR-23b (+592 to +612) binding sites, was identified in the coding region of Tipe2. Like miR-21, miR-155 and miR-23b are also NF-κB target genes.

We next examined whether the coding region of Tipe2 (+307 to +644) could downregulate protein expression using Dual Luciferase Reporter Assay System (Promega, Madison, WI, USA). The luciferase reporter vectors contained either the 3′-UTR or Tipe2 coding region (+307 to +644) downstream of the firefly luciferase gene. Consistent with the bioinformatic result, Tipe2 coding region (+307 to +644), but not 3′-UTR, resulted in a significant downregulation of luciferase activity (Figure 3a). Co-transfection of p65 overexpression construct resulted in further downregulation of luciferase activity (Figure 3b). These data indicate that a regulatory element present in the Tipe2 coding region (+307 to +644) could downregulate Tipe2 gene expression. To narrow down the responsive region, we performed deletional analysis. We found that nucleotides +389 to +432 were required for the downregulation of luciferase activity, which contains the predicted miR-21 binding site (Figure 4a).

Figure 3
figure 3

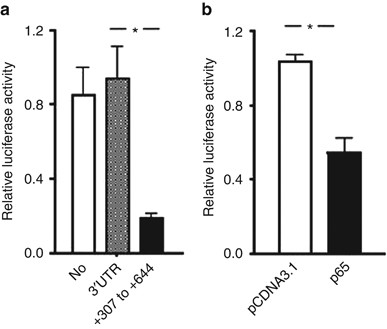

Tipe2 coding region, but not 3′-UTR, is responsible for the downregulation of Tipe2. EL4 cells were transiently transfected with murine Tipe2 promoter luciferase construct with Tipe2 3′-UTR (A) or coding region (+307 to +644) (a and b) inserted downstream of the luciferase gene but upstream of polyA signal sequence. For (b), expression vector for full-length p65, or the empty vector as indicated, was co-transfected. At 24 h after transfection, cells were treated with phorbol myristyl acetate (PMA) (50 ng/ml) and ionomycin (1 μM) for 5 h, and the luciferase activities measured. The promoter activity is presented as fold increase over cells transfected with murine miR-21 promoter only luciferase construct (a) or empty vector (b). To normalize the transfection efficiency across samples, the Renilla luciferase expression vector pRLTK was included as an internal control. *P<0.01. Data are representative of three independent experiments

Full size image
Figure 4
figure 4

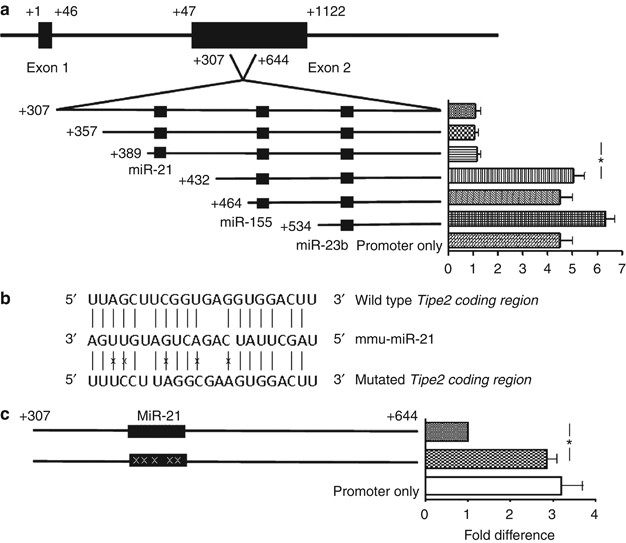

MiR-21 targets Tipe2 in a coding region-dependent manner. (a) Deletion mutants of Tipe2 coding region (+307 to +644) were analyzed in the luciferase reporter assay. Putative binding site for miR-21, miR-155 and miR-23b are indicated. (b) The predicted miR-21 binding site on murine Tipe2 coding region and the mutation strategy is shown. The ‘X’ indicates the mutated sites. (c) WT and miR-21 binding site-mutated Tipe2 coding region constructs were analyzed in the luciferase reporter assay. The ‘X’ indicates the mutated sites. *P<0.02. Data are representative of three independent experiments

Full size image

To validate the miRNA–target interactions, WT and miR-21 binding site-mutated Tipe2 (Figure 4b) were cloned into luciferase reporter plasmid downstream of the firefly luciferase gene. As shown in Figure 4c, miR-21 binding site-mutated Tipe2 coding region (+307 to +644) was unable to downregulate luciferase activity. These data further confirm that miR-21 targets Tipe2 in a coding region-dependent manner.

mRNA degradation is regarded as a major mechanism for miRNA regulation of target gene expression. To determine whether miR-21 suppresses endogenous Tipe2 expression through mRNA degradation, EL4 (Figure 5a) and RAW264.7 (Figure 5b) cells were transfected with miR-21 mimic, and the expression of Tipe2 and programmed cell death protein 4 (Pdcd4) mRNA was examined by qRT-PCR. We found that overexpression of miR-21 could significantly reduce the expression of both Tipe2 and Pdcd4 mRNA. These data suggest that miR-21 negatively regulates endogenous Tipe2 mRNA expression through mRNA degradation.

Figure 5
figure 5

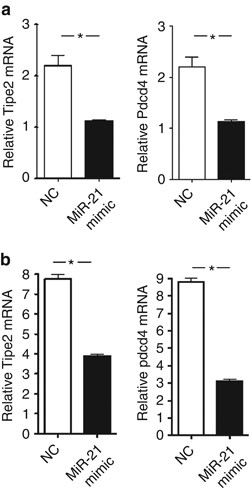

MiR-21 regulates endogenous Tipe2 expression. RAW264.7 (a) and EL4 (b) cells were transfected with miR-21 mimic or negative control as indicated. At 24 h after transfection, miR-21, Tipe2 and Pdcd4 mRNA levels were determined by real-time RT-PCR. *P<0.02. Data are representative of three independent experiments

Full size image

MiR-21 regulates T-cell apoptosis through Tipe2

Homeostatic balance within the immune system is maintained by a myriad of mechanisms, which include the regulation of immune cell activation and programmed cell death. Tipe2 is a new death-inducing protein that governs both apoptosis and immune cell function. Tipe2 binds to caspase-8 and inhibits activator protein-1 (AP-1) and NF-κB activation while promoting Fas-induced apoptosis.37 We found that Tipe2-deficient CD4+ T cells were resistant to apoptosis induced by TCR activation (Figure 6a).

Figure 6
figure 6

Tipe2 deficiency in T cells renders them resistant to death and miR-21 regulates T-cell apoptosis through Tipe2. (a) Splenic naive CD4+ T cells were isolated from WT and Tipe2−/− mice (n=3) and either untreated or treated with plate-bound anti-CD3 (1 μg/ml) and soluble anti-CD28 (1 μg/ml) for the indicated times. Cells were then stained with annexin V and 7AAD, and the degree of apoptosis was analyzed by flow cytometry. (b) EL4 cells were transfected with miR-21 mimic or negative control together with Tipe2-overexpressing construct or an empty vector. After 24 h, cells were either untreated or treated with plate-bound anti-CD3 (1 μg/ml) and anti-CD28 (1 μg/ml). After 48 h, cells were stained with annexin V and 7AAD, and the degree of apoptosis was analyzed by flow cytometry. *P<0.01. Data are representative of three independent experiments

Full size image

To explore the relevance of Tipe2 to miR-21-related functions, we performed a functional rescue experiment by overexpressing Tipe2 in cells ectopically expressing miR-21. As shown in Figure 5b, overexpression of Tipe2 reduced, but not fully eliminated, the antiapoptotic role of miR-21 (Figure 6b). These data indicate that although other possible mediators exist, one possible downstream target of miR-21 that has a role in activation-induced T-cell apoptosis is Tipe2.

Discussion

Tipe2 is expressed preferentially in lymphoid tissues and a small number of non-lymphoid tissues. Within the lymphoid compartment, T cells appear to express high level of Tipe2 protein. High levels of Tipe2 were also detected in monocyte/macrophage-derived cell lines.34, 35 Our data showed that Tipe2 expression is downregulated in T cells and macrophages after activation. This is consistent with reports that Tipe2 is downregulated in patients with chronic inflammatory diseases such as systemic lupus erythematosus and hepatitis, and its expression inversely correlates with disease progression.

Annotation of miRNA genes has revealed that the majority of the miRNAs are intergenic. Pri-miR-21 is one of the first human miRNA genes whose regulation was extensively studied. Pri-miR-21 has its own promoter region and miR-21 was one of the first miRNAs to be identified as transcribed by RNA polymerase II. Potential promoter regions of pri-miR-21 have been thoroughly studied. The actual size of pri-miR-21, the transcriptional start site and minimal promoter region of pri-miR-21 are still subjects of debate. It has been shown that multiple transcription factors such as STAT3, NF-κB, and AP-1 can regulate miR-21 expression.39, 40, 41, 42, 43, 44, 45 Our data indicate that NF-κB regulates miR-21 expression by directly binding to its promoter.

MiRNAs are small (∼22 nt) non-coding RNAs that regulate protein-coding genes through post-transcriptional gene silencing. A protein complex known as the RNA-induced silencing complex is guided to mRNAs with partial complementarity to the miRNA, leading to a reduced translation rate and/or increased mRNA degradation. To date, a large body of literature has provided evidence that the expression of miRNAs is dysregulated in cancer. MiR-21 is referred to as an ‘oncomiR’ because it downregulates tumor suppressor genes, such as Pdcd4, phosphatase and tensin homolog deleted on chromosome 10 (PTEN), transforming growth factor-β-induced (also known as Big-h3), BTG family member 2 (Btg2) and reversion-inducing-cysteine-rich protein with kazal motifs (Reck).46, 47, 48, 49, 50, 51, 52, 53, 54, 55 Our data showed that Tipe2 is a new direct target of miR-21. The identification of miR-21 binding site within Tipe2 coding region instead of 3′-UTR is not surprising because it has been reported that some miRNA species regulate gene expression by targeting coding regions.56, 57

MiR-21 acts as an antiapoptotic agent in a variety of cell types. Recently, it has been reported that miR-21 suppresses apoptosis of murine and human primary T cells and modulates cytokine production. Specific inhibition of miR-21 increased the apoptosis rate of activated T cells.26, 28, 58, 59 However, the molecular pathway by which miR-21 regulates T-cell apoptosis is still elusive. It has been shown that PTEN, a validated miR-21 target in various malignancies, was not involved in this process.28 T-cell apoptosis has an important role after antigen activation in governing immune homeostasis and tolerance. Identification of novel miR-21-regulated targets is a necessary step to understand miR-21 functions in activation-induced T-cell apoptosis. Our data indicate that miR-21 suppresses apoptosis in activated T cells at least in part through directly targeting tumor suppressor gene Tipe2, although it is possible that they could still act independent of each other.

In summary, we have shown that miR-21 could directly target tumor suppressor gene Tipe2, and NF-κB inhibits activation-induced T-cell apoptosis through the miR-21–Tipe2 axis (Figure 7). A large number of diseases such as diabetes, rheumatoid arthritis, and multiple sclerosis appear to have a T-cell component. Better understanding the molecular mechanism of activation-induced T-cell apoptosis may aid in the development of antigen-induced apoptosis therapies that reduce or eliminate pathogenic T cells.

Figure 7
figure 7

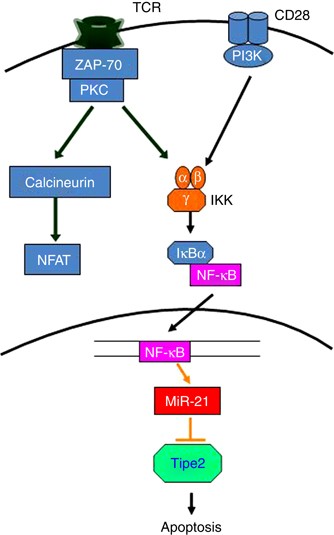

NF-κB inhibits activation-induced T-cell apoptosis through the miR-21–Tipe2 axis. TCR and anti-CD28 stimulation activate NF-κB through IKK (by degrading the inhibitor protein IκB). After activation, NF-κB translocates into the nucleus and turns on its target genes, including miR-21. MiR-21 in turn degrades Tipe2 and inhibits activation-induced T-cell apoptosis

Full size image

Materials and Methods

Mice

C57BL/6J (B6) mice that carry a Tipe2 gene null mutation were generated by backcrossing Tipe2−/− 129 mice to B6 mice for 12 generations. WT C57BL/6J mice and mir21−/− mice were purchased from the Jackson Laboratory (Bar Harbor, ME, USA). Mice were housed in the University of Pennsylvania Animal Care Facilities under pathogen-free conditions. All animal procedures used were preapproved by the Institutional Animal Care and Use Committee of the University of Pennsylvania.

RNA isolation and real-time PCR

Total RNA was extracted using TRIzol (Life Technologies, Grand Island, NY, USA) according to the manufacturer’s instructions. Reverse transcription was performed using oligo dT primers or specific primers for miR-21 and control U6 (Life Technologies). Quantitative real-time PCR was carried out in the Applied Biosystems 7500 system using Power SYBR Green PCR Master Mix (Life Technologies). Relative level of gene expression was determined using GAPDH (for Tipe2 and Pdcd4) or U6 (for miR-21) as the control. The primers used to amplify miR-21 and U6 were purchased from Life Technologies. Other primers used in this study are: Tipe2-F, 5′-AACATCCAAGGCCAGACTGG-3′; Tipe2-R, 5′-GAGATGCGCCACGGACCGA-3′. Pdcd4-F, 5′-ATGGATATAGAAAATGAGCAGAC-3′; Pdcd4-R, 5′-AAGAGTCTGGACCGCCTATC-3′. Gapdh-F, 5′-AGTATGACTCCACTCACGGCAA-3′; Gapdh-R, 5′-TCTCGCTCCTGGAAGATGGT-3′.

Flow cytometry and antibodies

Flow cytometric analyses were used to determine the rate of apoptosis of T cells. After treatment, cells were stained with annexin V and 7-aminoactinomycin D as per the manufacturer’s instruction (BD Biosciences, San Jose, CA, USA). Stained cells were analyzed on a FACSCalibur flow cytometer (BD Biosciences). Data were analyzed with FlowJo software (TreeStar Inc, Ashland, OR, USA).

Transient transfection

MiR-21 (miR-21 mimic; Life Technologies) and Tipe2 plasmid transfection of EL4 cell line was carried out using Amaxa electroporation apparatus (Amaxa Biosystems, Gaithersburg, MD, USA), as per the manufacturer’s protocols, for the cell line (Amaxa Cell Line Nucleofector Kit L, Amaxa Biosystems). Cells were collected 24 h later and subjected to further treatments.

Cell culture

Naive CD4+ T cells were isolated from the spleen of WT and Tipe2-deficient mice using MagCellect Mouse Naive CD4+ T Cell Isolation Kit (R&D Systems, Minneapolis, MN, USA). The purity of CD4+ T cells is about 95%. Cells were stimulated with plate-bound anti-CD3 (1 μg/ml) plus soluble anti-CD28 (1 μg/ml) with or without NF-κB inhibitor Bay 11-7082. Cells were collected at various time points and either used for RNA extraction or apoptosis analysis. Bone marrow-derived macrophages were stimulated with 100 ng/ml LPS with or without NF-κB inhibitor Bay 11-7082. After 4 h, cells were collected for RNA extraction or protein preparation.

Preparation of cell extract and immunoblotting

The nuclear and cytoplasmic extracts from bone marrow-derived macrophages were prepared, as per the manufacturer’s instruction (Active Motif, Carlsbad, CA, USA). Samples were loaded to 12% SDS-PAGE gels and subjected to electrophoresis. Proteins were transferred to nitrocellulose membranes and subsequently probed using antibody for Tipe2, β-actin (Sigma-Aldrich, St. Louis, MO, USA) or histone (Cell Signaling Technology, Danvers, MA, USA).

ChIP assay

ChIP was performed using the ChIP assay kit, as per the manufacturer’s instructions (Millipore, Billerica, MA, USA). In brief, cells were fixed with 1% formaldehyde at room temperature for 10 min and lysed in lysis buffer. DNA was then fragmented by sonication. After preclearance for 1 h at 4 °C with salmon sperm DNA-saturated protein A-agarose, chromatin solutions were immunoprecipitated overnight at 4 °C using 1 μg of rabbit antibodies to p65, RNA Polymerase II (Santa Cruz Biotechnology Inc., Santa Cruz, CA, USA), or control rabbit IgG. Input and immunoprecipitated chromatins were incubated for 4 h at 65 °C to reverse crosslinks. After proteinase K digestion, DNA was extracted with phenol/chloroform and precipitated with ethanol. ChIP DNA was then analyzed by PCR with the following primer set: miR-21-P-F, 5′-GACACAAGCATAAGTCATTTC-3′; miR-21-P-R, 5′-GCTGAGACTGCACACTGCTG-3′.

Nucleotide pull-down assay

Bone marrow-derived macrophages were stimulated with 100 ng/ml LPS for 4 h. The cells were resuspended in lysis buffer (20 mM HEPES, 420 mM NaCl, 1.5 mM MgCl2, 0.2 mM EDTA, 1 mM DTT and 0.1% Nonidet P-40) with protease inhibitors, and incubated on ice for 15 min. Insoluble materials were removed by centrifugation. Hundred micrograms of lysate protein was diluted with dilution buffer (which is the same as the aforementioned lysis buffer, but without NaCl) and incubated with 10 μg of poly(deoxyinosinic–deoxycytidylic acid) (Roche, Indianapolis, IN, USA) and 50 μl of streptavidin–agarose beads (Sigma-Aldrich) carrying biotinylated oligonucleotides (as described at the end of this section) for 3 h at 4 °C. The beads were washed two times with dilution buffer, resuspended in 50 μl 2 × SDS sample loading buffer (Bio-Rad Laboratories, Hercules, CA, USA), and heated to 95 °C for 10 min. The eluants were resolved by SDS-PAGE. P65 was detected by immunoblotting with specific antibodies against p65 (Santa Cruz Biotechnology Inc.). The oligonucleotides containing either the WT or mutated NF-κB binding sites (underlined sequences) used in this study are as follows: miR-21-NF-κB no. 1, 5′-GTGATAAATGTGGGACTTCTCAGAAGTCAT-3′; miR-21-NF-κB no. 1 mutant, 5′-GTGATAAATGTATAACTTCTCAGAAGTCAT-3′; miR-21-NF-κB no. 2, 5′-AGGATGACGCAGGGGTTGTCCTAATAAGGAC-3′; miR-21-NF-κB no. 2 mutant, 5′-AGGATGACGCAATAATTGTCCTAATAAGGAC-3′.

Luciferase assay

The fragments from miR-21 promoter containing either the WT or mutated NF-κB binding sites were cloned into the pGL3-basic vector (Promega). RAW264.7 cells were transiently transfected with the constructs mentioned above using Lipofectamine LTX transfection reagent (Life Technologies). After 24 h, cells were treated with or without 100 ng/ml LPS for 6 h, and the luciferase activities of total cell lysates were measured using the Dual-luciferase reporter assay system (Promega). To determine that Tipe2 is a target of miRNAs, a 500 bp fragment (−400 to +100) from Tipe2 promoter was cloned into pGL3-basic vector. Then, a 475 bp fragment from Tipe2 3′-UTR (+648 to +1122) or serial deleted fragments from Tipe2 coding region (+307 to +644) were cloned into the BglII and BamH1 site downstream of the firefly luciferase gene but upstream of the polyA signal. EL4 cells were transiently transfected with the constructs mentioned above using Lipofectamine LTX transfection reagent (Life Technologies). After 24 h, cells were treated with PMA and ionomycin for 4 h, and the luciferase activities of total cell lysates were measured as mentioned above. Co-transfection of the Renilla luciferase expression vector pRL-TK (Promega) was used as an internal control for all reporter experiments. Site-directed mutagenesis of miR-21 binding site was performed using the QuikChange kit (Agilent Technologies, Inc., Santa Clara, CA, USA) according to the manufacturer’s instructions. DNA sequencing was used to confirm the mutated nucleotides.

Statistical analysis

The significance of the differences in gene expression, luciferase activity, and rate of apoptosis was determined by Student’s unpaired t-test.
