Introduction

Hematopoietic stem cell (HSC) transplantation has been applied in the treatment of hematological malignancies in the clinic. However, its application has been hindered by the shortage of donors and the occurrence of graft-versus-host disease after transplantation1. Therefore, there is an urgent need to find alternative sources of HSCs in vitro. Human embryonic stem cells (hESCs), which are generated from the inner cell mass of human embryos, possess multipotent differentiation potential and self-renewal capabilities2. Hematopoietic differentiation of hESCs has emerged as a promising strategy for generating HSCs. Despite recent advances in inducing hESC differentiation, the production of HSCs with engraftment potential from hESCs remains highly challenging. Therefore, unraveling the mechanisms governing hESC hematopoietic differentiation will offer insights into early human hematopoietic development and could also enhance the generation of HSCs from hESCs for clinical applications.

Hematopoietic differentiation of hESCs imitates the progression of hematopoietic development in vivo3,4. Generally, hematopoietic differentiation from hESCs involves a sequential series of cell fate decisions: the production of the mesoderm, the generation of specialized endothelial cells, termed hemogenic endothelium progenitors (HEPs), and finally, the emergence of hematopoietic cells from HEPs through the process of endothelial-to-hematopoietic transition (EHT)5. Each stage is under the regulation of extrinsic factors, intracellular signaling pathways and transcription factors. In addition, accumulating evidence demonstrates that G protein-coupled receptors (GPCRs), the largest family of membrane protein, play critical roles in hematopoietic differentiation. For instance, G protein-coupled receptor 183 (Gpr183) has been identified as a crucial factor for the emergence of hematopoietic stem and progenitor cells by suppressing Notch signaling before the initiation of EHT6. LGR4 enhances hESC hematopoiesis by facilitating mesoderm induction through the activation of TGF-β signaling7. Zebrafish embryos with suppressed Gpr56 expression exhibit substantial decreases in the generation of aortic hematopoietic stem and progenitor cells during EHT8. As mentioned earlier, hematopoietic cells originate from a specialized group of endothelial cells with hemogenic potential, known as the HEPs9,10. However, numerous GPCRs and their functions, as well as the associated mechanisms, have not been elucidated in HEP generation so far. Therefore, identification of novel GPCRs in directing hematopoietic differentiation, especially at the stage of HEPs, is essential for a better understanding of hematopoiesis and, consequently, the de novo generation of clinical-grade HSCs.

Recently identified as a novel adhesion GPCR (aGPCR) member, the epidermal growth factor latrophilin and seven transmembrane domain-containing protein 1 (ELTD1) has been found to be involved in brain angiogenesis11,12 and exhibits specific expression in endothelial cells across various tissues, as indicated by the Human Protein Atlas database. However, it remains unclear whether ELTD1 plays a role in human hematopoiesis, particularly in HEP generation. In this study, using genome-wide transcriptomic analysis combined with genetic gain-of-function and loss-of-function studies, we find that ELTD1 is essential for the HEP specification. We also found that ELTD1 modulates HEP formation through the HPIP–LEF1–Wnt axis. Our findings unveil the role of ELTD1 in hematopoietic differentiation, shedding light on previously undiscovered mechanisms governing human hematopoiesis. Moreover, our discoveries offer fresh insights into the generation of hematopoietic cells from hESCs, thereby presenting promising prospects for regenerative medicine.

Materials and methods

Cell culture and hematopoietic differentiation

The hESC line H1 utilized in this study was sourced from our laboratory’s repository. In addition, the hESC line H9 and induced pluripotent stem cells (iPSCs) were obtained from Ubigene Biosciences and UniXell Biotechnology, respectively. hESCs and iPSCs were cultured on Matrigel-coated (Corning) plates in mTeSR1 medium (Stem Cell Technologies). HEK293T cells were cultured in Dulbecco’s modified Eagle medium (Corning) supplemented with 10% fetal bovine serum (Gibco). Hematopoietic differentiation of hESCs or hiPSCs was performed using STEMdiff Hematopoietic Kit (Stem Cell Technologies), as previously described13. To be more specific, hESCs or iPSCs were passaged as aggregates with diameters ranging from 100 to 200 µm using ReLeSR (Stem Cell Technologies). On day 0, adherence of 4–10 colonies/cm2 was confirmed. The culture medium was aspirated and replaced with 1 ml of medium A per well, followed by incubation at 37 °C for 48 h. On day 2, 0.5 ml of the medium was gently removed, and 0.5 ml of fresh medium A was added, with subsequent incubation for an additional 24 h. On day 3, the medium was aspirated and replaced with 1 ml of medium B, and the cells were incubated for 48 h. Medium exchange was repeated on days 5 and 7 by carefully removing 0.5 ml of medium and adding 0.5 ml of fresh medium B, ensuring the preservation of floating cells, followed by incubation for 48 h. Cells can be collected at specific time points to accommodate the experimental requirements of different studies.

Establishment of ELTD1-deleted hESC lines with iCRISPR–Cas9 system

The online CRISPR Design Tool (http://crispor.tefor.net/crispor.py) was used to design the single guide RNAs (sgRNAs) targeting ELTD1. Details of the inducible CRISPR (iCRISPR)–Cas9 system technology and ELTD1−/− 1# clone information can be obtained from our previous report14. A second homozygous ELTD1 deletion clone (ELTD1−/− 2#) was constructed using the same method, and its information and characteristics are shown in Supplementary Fig. 4f–h and Supplementary Fig. 5a–e.

Alkaline phosphatase staining

The cells were treated with 4% paraformaldehyde for 10 min, rinsed with Dulbecco's phosphate-buffered saline (D-PBS) and incubated with 5-bromo-4-chloro-3-indolyl-phosphate (BCIP)–nitro blue chloride (NBT) for 30 min. After 30 min, BCIP–NBT was discarded and D-PBS was added to abort the reaction. The cells were observed under a light microscope (Nikon).

Karyotype analysis

Karyotype analysis service was provided by VivaCell Biosciences.

siRNA synthesis, plasmid construction and lentivirus production

The small interfering RNAs (siRNAs) of ELTD1, ELTD1-short hairpin RNA (shRNA) and ELTD1-overexpression (OE) plasmids were constructed and obtained from Transheep, and the efficiency of knockdown or overexpression was confirmed. The sequences used in this study are listed in Supplementary Table 1. siRNAs were transfected into cells using Lipofectamine 2000 according to the manufacturer’s protocols. ELTD1 knockdown or overexpressing hESCs were generated using the lentivirus produced in HEK293T cells. In brief, HEK293T cells of 60–80% confluent confluency were transfected with the psPAX2, pMD2.G, ELTD1-shRNA or ELTD1-OE plasmids using polyethylenimine. The supernatants were collected after 48 h and concentrated by ultracentrifugation at 4 °C, 25,000 rpm for 1.5 h. The lentivirus of HPIP-shRNA and LEF1-OE was obtained from Transheep. hESCs were infected with lentivirus at a multiplicity of infection of 10 for 6 h. After 6 h, the viral supernatants were discarded and the infected hESCs were cultured in fresh mTeSR1 medium (Stem Cell Technologies). Puromycin (1 μg/ml, Selleck) was applied to select for positive cells after 48 h.

Flow cytometry and cell sorting

After dissociation with Accutase (Stem Cell Technologies), the cells were stained with the desired antibodies (Supplementary Table 2) for 20 min. Then, the cells were rinsed with D-PBS, filtered through a 70-μm cell strainer (Falcon) and analyzed by flow cytometry (DxFLEX, Beckman Coulter). Cell sorting was performed using a cell sorter (MoFlo Astrios EQ, Beckman Coulter). For apoptosis analysis, cells were stained with Annexin V and propidium iodide (PI) using an Annexin V-FITC apoptosis detection kit (BD Biosciences). Cells were dissociated into single-cell suspensions, washed twice with ice-cold PBS and resuspended in binding buffer at a concentration of 1 × 105 cells per 100 µl. Then, 5 µl of Annexin V-FITC and 5 µl of PI were added to the cell suspension and incubated for 10 min at room temperature (RT) in the dark. Subsequently, 400 µl of 1× Binding Buffer was added to each sample, and flow cytometry analysis was performed within 1 h.

Colony-forming unit (CFU) assay

A total of 1 × 104 hematopoietic cells derived from iCas9-H1 and ELTD1−/− hESCs were replated into MethoCult medium (Stem Cell Technologies). The cells were cultured for 12 days at 37 °C under 5% CO2 conditions to allow differentiation. Distinct hematopoietic lineage colonies were then counted and scored according to standard morphological criteria.

Hematoxylin and eosin staining

Teratomas were fixed in 4% paraformaldehyde (Solarbio) at 25 °C, embedded in paraffin wax and sectioned into 3-μm slices. The sections were deparaffinized with three xylene treatments and rehydrated through a graded ethanol series. After a 2-min tap water rinse, the sections were stained with Gill’s hematoxylin V for 5 min and washed in tap water for 5 min and then in 95% ethanol for 2 min. Subsequently, they were stained with eosin Y for 1 min, dehydrated in ethanol and xylene and mounted with Canada balsam. Photomicrographs were obtained using a Pannoramic DESK (3DHISTECH).

Immunofluorescence

The cells were fixed with 4% paraformaldehyde (Solarbio) for 20 min at RT, then permeabilized with a 0.1% Triton X-100 solution in PBS for an additional 20 min at RT. Subsequently, the cells were incubated with a blocking buffer containing 5% bovine serum albumin for 1 h at RT to prevent nonspecific binding of antibodies. After blocking, the cells were washed once with D-PBS, followed by incubation with the desired primary antibodies at 4 °C overnight. After primary antibody incubation, the cells were thoroughly washed three times with D-PBS for 5 min each. The cells were then incubated with the appropriate Alexa Fluor-conjugated secondary antibody (Thermo Fisher Scientific) for 1 h at RT in the dark to avoid photobleaching. Before observation, the cell nuclei were stained with 4′,6-diamidino-2-phenylindole (DAPI, Yeasen) for 10 min at RT, after which the cells were washed three times with D-PBS to remove excess DAPI. The cells were mounted with an anti-fade mounting medium to preserve fluorescence signals, and high-resolution images were captured using a confocal laser scanning microscope (LSM 880, Zeiss). Details regarding the antibodies used can be found in Supplementary Table 2.

Western blotting

Cell lysates were subjected to gel electrophoresis on sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS–PAGE) and western blotting with the desired antibodies. The signals of the individual bands in the immunoblots were observed using an image analyzer (Clinx). The information of antibodies is presented in Supplementary Table 2.

Real-time quantitative PCR (qPCR)

Total RNA was extracted using an RNA extraction kit (Vazyme) and transcribed into cDNA using a reverse transcription kit (Vazyme). All samples were tested with SYBR Green (Vazyme) in triplicate on a PCR cycler (CFX-96, Bio-Rad). The relative expression of individual genes was normalized to actin. The primers utilized in this study are detailed in Supplementary Table 1.

Teratoma formation

Teratoma formation experiments were approved by the Laboratory Animal Center of Zhejiang University. All mice were bred and treated ethically under specific-pathogen‐free conditions. In brief, 1 × 106 hESCs suspended in Matrigel diluted with D-PBS were injected into the gastrocnemius muscle of NOD-SCID mice. After 6–8 weeks, teratomas were collected and treated with 4% paraformaldehyde. Hematoxylin and eosin (H&E) staining was used to detect the three germ layer formation potentials of hESCs.

RNA sequencing and bioinformatic analyses

RNA sequencing (RNA-seq) analysis was accomplished by BGI Company. Bulk RNA-seq data were converted to Transcripts Per Million (TPM) for gene expression analysis. Heatmaps were generated using R language. Gene set enrichment analysis (GSEA) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway enrichment analyses were accomplished using the online tool of BGI.

Co-immunoprecipitation, mass spectrometry and data processing

Cells were collected and lysed at 4 °C for 30 min with GPCR extraction and stabilization reagent (Thermo Fisher Scientific) supplemented with protease inhibition cocktail. Co-immunoprecipitation (Co-IP) was conducted by following manufacturers’ instructions with anti-Flag M2 magnetic beads (Sigma) at 4 °C overnight. After this, the beads were washed with precold Tris-Buffered Saline (TBS), and the pellets were resuspended in 2× loading buffer without reducing agents, then boiled at 100 °C for 3 min. The resulting supernatants were collected and analyzed using western blotting. Proteins that were immunoprecipitated from cell lines expressing Flag-ELTD1 were isolated using anti-Flag M2 magnetic beads, separated by SDS–PAGE and then subjected to silver staining (Beyotime). After this, the gel was excised from the samples and subjected to tryptic digestion according to a standard protocol15. The tryptic peptides were dissolved and the separated peptides were analyzed using Orbitrap Exploris 480 with a nano-electrospray ion source (Thermo Fisher Scientific). Next, PD search engine (v.2.4) software was used to analyze the mass spectrometry (MS) data.

Molecular docking analysis

Rigid protein–protein docking was performed to investigate the relationship between ELTD1 and HPIP by using GRAMM-X (http://gramm.compbio.ku.edu/). The protein structural domains of ELTD1 and HPIP were obtained from the Protein Data Bank PDB database (http://www.rcsb.org/). Pymol (Version 2.4) and PDBePISA (https://www.ebi.ac.uk/pdbe/pisa/) were used to examine protein–protein interactions and further visual analysis.

Statistical analysis

Statistical analyses were performed using SPSS software. Statistical differences were examined using Student’s t-test or one-way analysis of variance. P < 0.05 was considered statistically significant.

Results

ELTD1 is a potential regulator of HEPs during early hematopoietic differentiation of hESCs

Hematopoietic differentiation of hES cells mimics human hematopoiesis in vivo and progresses through three sequential stages: mesoderm induction, HEP derivation and generation of hematopoietic cells16. These stages are distinguished by the expression of specific markers: CD30917 and APLNR18 for mesoderm induction, CD31 and CD347,19,20 for HEP derivation, and CD4321 for hematopoietic cell generation. Therefore, we induced directed hematopoietic differentiation of hESCs using a previously reported strategy13 and assessed the temporal expression of these markers through qPCR, which showed dynamic changes during hESC differentiation. In addition, we analyzed the expression of markers associated with axial mesoderm (SFRP2 and DCLK1), paraxial mesoderm (MESP2 and MSGN1), intermediate mesoderm (CDH5 and OSR1), lateral plate mesoderm (CD309 and HAPLN1) and extraembryonic mesoderm (IGF2 and LUM). Notably, with the exception of the lateral plate mesoderm marker, the expression levels of all other mesoderm subtype markers were either suppressed or remained inactive on day 3 of differentiation. Moreover, the expression of pluripotent markers (OCT4 and SOX2) exhibited a gradual decline as differentiation progressed (Supplementary Fig. 1a). These results validate the effectiveness of our hematopoietic differentiation method in this study. In addition, we tested the alkaline phosphatase activity in cells of different days, which further confirmed the differentiation of hESCs (Supplementary Fig. 1b).

To discover novel regulators of early hematopoietic differentiation of hESCs, we collected RNA samples at days 0, 3, 6 and 9 during the differentiation process for time-course RNA-seq analysis (Fig. 1a). Our transcriptome data showed high reproducibility among different biological replicates and reflected the continuity of hematopoietic differentiation process (Fig. 1b). To define the temporal characteristics of the transcript dataset during hESC hematopoietic differentiation, transcripts were grouped into six clusters by Mfuzz based on their expression levels (Fig. 1c and Supplementary Fig. 2). In these clusters, cluster 1 and 5 represented downregulated transcripts, while cluster 2, 3 and 6 represented upregulated transcripts. Transcripts in cluster 4 exhibited an increase from day 0 to day 3, subsequently decreasing significantly from day 3 to day 9. In short, the Mfuzz analysis showed notable differences in the relative abundance of transcripts across different days.

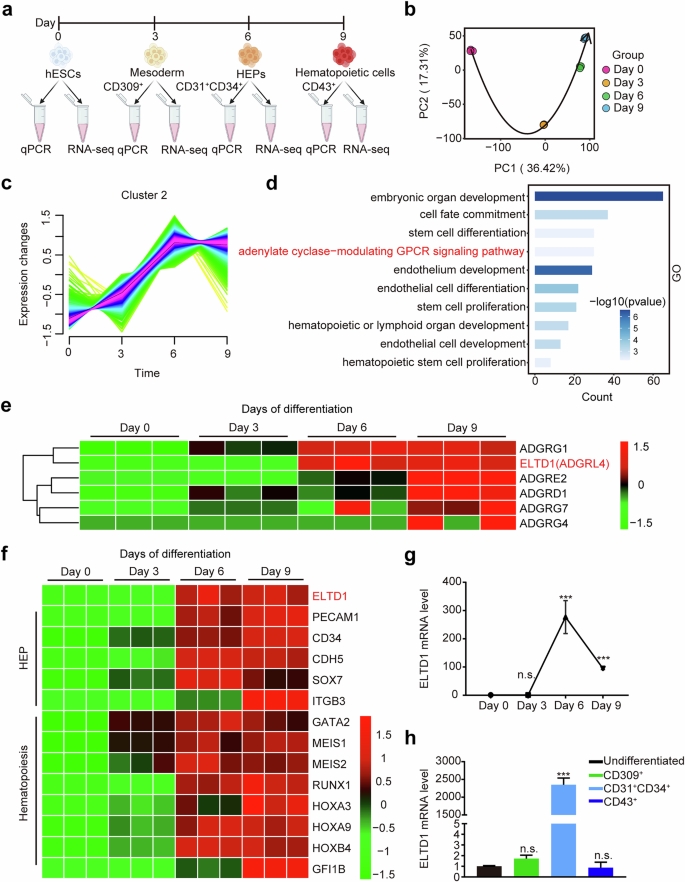

Fig. 1: ELTD1 is a potential regulator of HEPs during early hematopoietic differentiation of hESCs.
Fig. 1: ELTD1 is a potential regulator of HEPs during early hematopoietic differentiation of hESCs.
Full size image

a A schematic overview of early hematopoietic differentiation process from hESCs and our experimental workflow. The process typically begins with the formation of mesoderm, followed by the emergence of HEPs, which eventually give rise to hematopoietic cells. b Principal component analysis (PCA) was applied to the RNA-seq dataset to visualize the overall similarities and differences in gene expression profiles across various time points. c Mfuzz analysis identified the patterns of gene expression in the time-course datasets of cluster 2. d GO analysis was performed to identify the significantly enriched biological processes in cluster 2. e A heatmap of dynamic aGPCR expression levels in the enriched GPCR signaling pathway during early hematopoietic differentiation from hESCs. f A heatmap showing dynamic gene expression associated with HEPs (for example, PECAM1 and CD34) and hematopoiesis (for example, GATA2 and RUNX1) during early hematopoietic differentiation from hESCs. g Time course analysis of ELTD1 mRNA level with qPCR during hESC hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the day 0 group. h qPCR analysis of ELTD1 mRNA levels in undifferentiated hESCs, sorted CD309+ mesoderm, sorted CD31+CD34+ HEPs and sorted CD43+ hematopoietic cells derived from hESCs. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the undifferentiated group.

In the current study, we aim to identify potential regulators of HEP during hESC hematopoietic differentiation. Therefore, we focused on cluster 2 because the transcripts in this cluster showed a sharp upregulation from day 3 to day 6, corresponding to the stage of HEP generation (Fig. 1c). We then conducted a Gene Ontology (GO) analysis of cluster 2 and found that most of the transcripts in cluster 2 were associated with cell fate commitment, stem cell differentiation, endothelium development, GPCR signaling pathway, hematopoietic or lymphoid organ development, suggesting the reliability of candidate selection strategy (Fig. 1d). Among these, the GPCR signaling pathway was especially interesting because aGPCRs, the second-largest family of GPCRs, are broadly distributed and are crucial in regulating numerous developmental processes, including the orderly progression of hematopoiesis22. Approximately 30% of human aGPCRs are expressed in hematopoietic stem, progenitor or mature cells, where they define different cell populations23. Therefore, we analyzed aGPCRs of the enriched GPCR signaling pathway and found that ADGRG1 and ELTD1 were highly expressed at day 6, namely the HEP stage (Fig. 1e). As the indispensable effect of ADGRG1 in hematopoietic development has been previously reported24, we selected ELTD1 for further study.

ELTD1, also known as ADGRL4, is specifically expressed in endothelial cells of various tissues, as indicated by The Human Protein Atlas database (Supplementary Fig. 3a,b). We analyzed the dynamic changes of ELTD1 expression during hematopoietic differentiation and found that it differed from the other three members of the ADGRL family (Supplementary Fig. 3c). However, its expression pattern was parallel to the genes related to HEPs (ITGB320, PECAM125, CD3426 and SOX727), as well as genes associated with hematopoiesis (MEIS116, GATA228, MEIS229, RUNX130, HOXA331 and HOXA932) (Fig. 1f). In accordance with the RNA-seq results, ELTD1 is highly expressed at day 6 of differentiation, with a slight decrease thereafter, as confirmed by qPCR analysis (Fig. 1g). To further confirm the results, we sorted CD309+ mesoderm cells, CD31+CD34+ HEPs and CD43+ hematopoietic cells at days 3, 6 and 9 and performed qPCR (Fig. 1a). As shown in Fig. 1h, ELTD1 expression was low in hESCs and mesoderm cells, peaked in the HEPs and then began to downregulate in hematopoietic cells. Collectively, these results suggest that ELTD1 may act as a regulator of HEPs during early hematopoietic differentiation of hESCs.

ELTD1 suppression enhances hematopoietic differentiation of hESCs

To investigate the potential role of ELTD1 in HEP specification, we generated ELTD1-knockdown hESs (Supplementary Fig. 4a). We used the ELTD1-knockdown hESCs to undergo hematopoietic differentiation. Flow cytometric analysis showed that transgenic shELTD1-hESCs displayed increased production of CD31+CD34+ HEPs at day 6 compared with control hESCs (Fig. 2a). To further confirm the results, transgenic ELTD1-expressing hESC lines were generated using lentivirus infection. Stable ectopic expression of ELTD1 and pluripotency analysis were confirmed thereafter (Supplementary Fig. 4b–d). As expected, ELTD1 overexpression significantly inhibited the generation of CD31+CD34+ HEPs at day 6 (Fig. 2b), resulting in outcomes opposite to those observed with ELTD1 knockdown. These findings suggest that ELTD1 may play a key role in regulating HEP generation from hESCs.

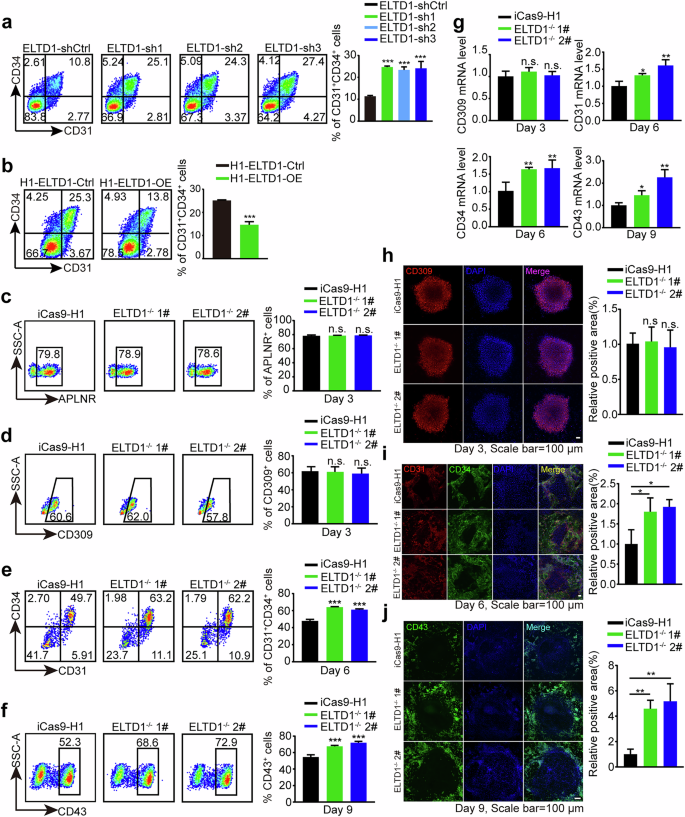

Fig. 2: ELTD1 suppression enhances hematopoietic differentiation of hESCs.
Fig. 2: ELTD1 suppression enhances hematopoietic differentiation of hESCs.
Full size image

a Flow cytometry analysis of HEPs at day 6 of early hematopoietic differentiation. The percentage of CD31+CD34+ cells was quantified to assess the efficiency of HEP formation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the ELTD1-shControl (shCtrl) group. b Flow cytometry analysis of HEPs at day 6 of early hematopoietic differentiation. The percentage of CD31+CD34+ cells was quantified to assess the efficiency of HEP formation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the H1-ELTD1-Ctrl group. c Flow cytometry analysis of APLNR+ mesoderm cells at day 3 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. d Flow cytometry analysis of CD309+ mesoderm cells at day 3 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. e Flow cytometry analysis of HEPs at day 6 of early hematopoietic differentiation. The percentage of CD31+CD34+ cells was quantified to assess the efficiency of HEP formation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. f Flow cytometry analysis of hematopoietic cells at day 9 of early hematopoietic differentiation. The percentage of CD43+ cells was quantified to assess the proportion of hematopoietic cells. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. g qPCR analysis of CD309 and APLNR at day 3, CD31 and CD34 at day 6, and CD43 at day 9 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. h Representative immunostaining of CD309+ (red) mesoderm cells and quantification of positive area (%) at day 3 of early hematopoietic differentiation. Nuclei were counterstained with DAPI (blue). Scale bar, 100 μm. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. i Representative immunostaining of CD31+ (red) and CD34+ (green) HEPs and quantification of positive area (%) at day 6 of early hematopoietic differentiation. Nuclei were counterstained with DAPI (blue). Scale bar, 100 μm. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. j Representative immunostaining of CD43+ (green) hematopoietic cells and quantification of positive area (%) at day 9 of early hematopoietic differentiation. Nuclei were counterstained with DAPI (blue). Scale bar, 100 μm. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group.

To gain a deeper understanding of ELTD1 in hematopoietic differentiation of hESCs, we disrupted ELTD1 in hESCs using the iCRISPR–Cas9 system, in which high expression of Cas9 protein can be induced by doxycycline treatment33. sgRNAs targeting exon 2 of ELTD1 were designed (Supplementary Fig. 4e), transfected and evaluated for genome editing efficacy using the T7E1 assay. By taking advantage of this system, two hESC homozygous ELTD1-deleted clones were constructed and named ELTD1−/− 1# and ELTD1−/− 2#, respectively. The deleted region of the sgRNA targeting site was confirmed using Sanger sequencing and PCR analysis. The results of ELTD1−/− 1# has been documented in our previous report14, and the results of ELTD1−/− 2# are shown in Supplementary Fig. 4f–h.

ELTD1−/− 1# and ELTD1−/− 2# exhibited compact and normal hESC morphologies (Supplementary Fig. 5a), and their pluripotency was retained by the high expression of OCT4, SOX2 and NANOG, which was assessed by qPCR (Supplementary Fig. 5b) and western blotting (Supplementary Fig. 5c). Moreover, ELTD1−/− 1# and ELTD1−/− 2# were injected into immunodeficient mice to form teratomas, verifying the multilineage differentiation potential after ELTD1 deletion (Supplementary Fig. 5d). Karyotype analysis was additionally performed on both cell lines. The results revealed a normal karyotype with no detectable chromosomal abnormalities in the analyzed cells (46, XY). We have previously documented the results of ELTD1−/− 1# in our report14, and the results for ELTD1−/− 2# are depicted in Supplementary Fig. 5e. These findings indicate that the gene knockout did not induce notable chromosomal alterations. In summary, ELTD1−/− 1# and ELTD1−/− 2# were considered suitable for subsequent studies on hESC hematopoietic differentiation.

To dissect the effect of ELTD1 deletion on hematopoiesis, we induced the iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs to go through hematopoietic differentiation and measured the generation of stage-specific cell populations. The expression of pluripotency genes was assessed and found to gradually decrease during hematopoietic differentiation, indicating a steady progression of differentiation (Supplementary Fig. 5f). Interestingly, no distinct discrepancy in the percentage of CD309+ and APLNR+ mesoderm cells was observed with ELTD1 ablation at day 3 (Fig. 2c, d). However, the generation of CD31+CD34+ HEPs at day 6, arising from mesoderm cells, was profoundly elevated by ELTD1 deletion (Fig. 2e), consistent with our prior observations in ELTD1-knockdown hESCs (Fig. 2a). As expected, flow cytometry analysis also showed an increase in CD43+ hematopoietic cells generated from HEPs (Fig. 2f). Moreover, the above results have also been confirmed by qPCR (Fig. 2g) and immunofluorescence analysis (Fig. 2h–j). To further validate this phenotype, we conducted knockdown and overexpression of ELTD1 in an additional hESC line H9 and in iPSCs. Subsequent hematopoietic differentiation experiments using the established stable cell lines consistently recapitulated the phenotypes observed previously, thereby further substantiating our findings (Supplementary Figs. 6 and 7). Together, these findings suggest that ELTD1 acts as a regulator of hematopoietic differentiation of hESCs, and its suppression could facilitate hematopoiesis.

Inhibition of ELTD1 promotes hematopoietic differentiation of hESCs, particularly HEP specification

To explore at which stage ELTD1 functions in hematopoietic differentiation of hESCs, we transfected siRNAs at day 0, 3 and 6 of hematopoietic differentiation, respectively (Fig. 3a). As shown in Fig. 3b, ELTD1 was effectively suppressed by ELTD1-siRNAs. We assessed the changes in specific cell populations at days 3, 6 and 9. The results revealed no changes in the generation of mesoderm cells at day 3 and hematopoietic cells at day 9 (Fig. 3c, e). However, there was an enhancement in HEP production at day 6 (Fig. 3d). To further investigate the effects of ELTD1 on HEPs, we examined the apoptosis levels of CD31+CD34+ HEPs on day 6 of hematopoietic differentiation in both knockout and overexpression models. The results showed that neither the knockout nor the overexpression of ELTD1 affected the apoptosis levels of CD31+CD34+ HEPs (Supplementary Fig. 8a). Next, we sorted CD31+CD34+ HEPs on day 6 of differentiation and assessed their capacity to differentiate into hematopoietic cells (Fig. 3f). Compared with the iCas9-H1 group, the sorted CD31+CD34+ HEPs from the knockout group exhibited a significantly increased capacity to generate hematopoietic cells (Fig. 3g and Supplementary Fig. 8b). Moreover, we performed CFU assays to assess the differentiation potential in each group. The results showed that the knockout group was able to completely differentiate into B/CFU-E (burst-forming unit-erythroid/CFU-erythroid), CFU-G/M (CFU-granulocyte/macrophage) and CFU-GEMM (CFU-granulocyte/erythroid/macrophage/monocyte), similar to the iCas9-H1 group (Fig. 3h, i). Overall, these findings indicate that suppression of ELTD1 enhances hematopoietic differentiation of hESCs by promoting HEP production, thereby improving the subsequent generation of hematopoietic cells and their differentiation into downstream blood cell lineages.

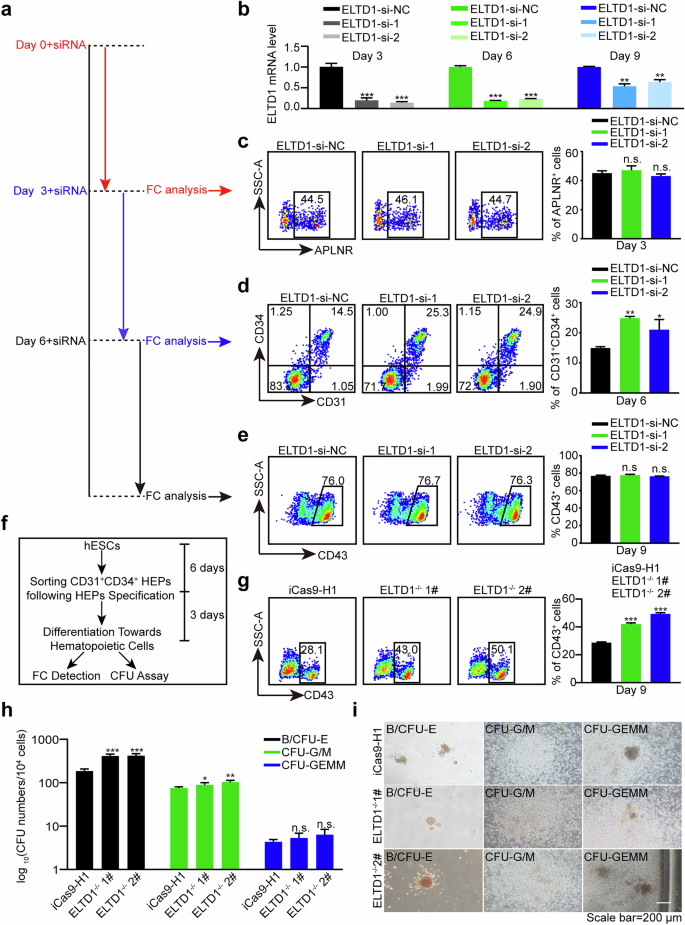

Fig. 3: Inhibition of ELTD1 promotes hematopoietic differentiation of hESCs, particularly HEP specification.
Fig. 3: Inhibition of ELTD1 promotes hematopoietic differentiation of hESCs, particularly HEP specification.
Full size image

a A schematic diagram of the experimental timeline and workflow. siRNAs targeting ELTD1 or nontargeting control (si-NC) were transfected into cells on day 0, day 3 and day 6. Flow cytometry analysis was performed on day 3, day 6 and day 9 to assess the effects of ELTD1 knockdown on the generation of mesoderm, HEPs and hematopoietic cells, respectively. b qPCR analysis of ELTD1 transcript knockdown efficiency in differentiated cells. The mRNA levels of ELTD1 were measured to confirm the efficiency of siRNA-mediated knockdown. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the si-NC group. c Flow cytometry analysis of APLNR+ mesoderm cells at day 3 after siRNA transfection. Cells were transfected with siRNAs on day 0, and the percentage of APLNR+ mesoderm cells was quantified by flow cytometry on day 3. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the ELTD1-si-NC group. d Flow cytometry analysis of CD31+CD34+ HEPs at day 6 after siRNA transfection. Cells were transfected with siRNAs on day 3, and the percentage of CD31+CD34+ HEPs was quantified by flow cytometry on day 6. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the ELTD1-si-NC group. e Flow cytometry analysis of CD43+ hematopoietic cells at day 9 after siRNA transfection. Cells were transfected with siRNAs on day 6, and the percentage of CD43+ hematopoietic cells was quantified by flow cytometry on day 9. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the ELTD1-si-NC group. f A schematic diagram of the experimental timeline and workflow. CD31+CD34+ HEPs were sorted at day 6 of differentiation and assessed for their capacity to differentiate into hematopoietic cells, as well as subsequent multilineage differentiation potential. g Flow cytometry analysis of CD43+ hematopoietic cells at day 9. These cells were derived from sorted CD31+CD34+ HEPs at day 6, after 3 days of hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. h The distribution of different colony types generated from iCas9-H1 or ELTD1−/− hESCs. B/CFU-E, CFU-G/M and CFU-GEMM were documented and calculated. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001, compared with the iCas9-H1 group. i Representative images of different colony types from CFU assay. Day 9 floating cells were seeded in MethoCult medium for 12 days. Scale bar, 200 μm.

ELTD1 deletion suppresses the Wnt signaling during HEP generation

To dissect the molecular mechanism underlying ELTD1 regulation of HEPs, the differentiated cells at day 6 were collected for RNA-seq analysis (Fig. 4a). A substantial number of differentially expressed genes (DEGs) were identified between iCas9-H1 and ELTD1-deleted hESCs. Among these DEGs, mesoderm-associated genes such as MIXL1, EOMES, APLNR and BMP4 were downregulated, whereas HEP or hematopoiesis-associated genes including HOXA9, ITGB3 and RUNX1 were upregulated in ELTD1-deleted hESCs compared with iCas9-H1 (Fig. 4b). Furthermore, GSEA analysis revealed a significant enrichment of genes related to hematopoietic cell lineage in ELTD1-deleted cells compared with iCas9-H1 hESCs (Fig. 4c), consistent with the observed augmentation of HEPs and hematopoietic cells resulting from ELTD1 deletion.

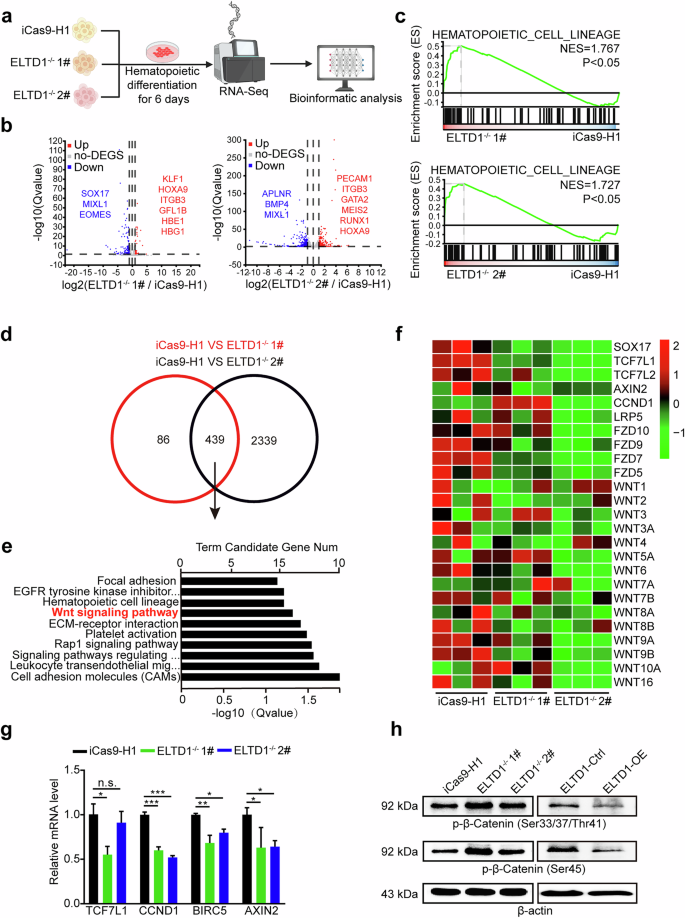

Fig. 4: ELTD1 deletion suppresses the Wnt signaling during HEP generation.
Fig. 4: ELTD1 deletion suppresses the Wnt signaling during HEP generation.
Full size image

a A schematic diagram of the experimental workflow. b A volcano plot displaying the DEGs between ELTD1-deleted and control groups. Genes with significant upregulation (red) or downregulation (blue) are displayed. c GSEA reveals the enrichment of gene sets associated with ‘hematopoietic cell lineages’ in ELTD1-deleted cells compared with controls. The normalized enrichment score (NES) and P value are indicated. d The strategy of screening potential genes for further analysis. e A bar plot showing the top enriched KEGG pathways enrichment analysis of the screened candidate genes. The significance of enrichment is indicated by the −log10(Q value). f A heatmap showing the expression levels of Wnt signaling-related genes in ELTD1-deleted and control groups at day 6 of differentiation. g The mRNA levels of key Wnt signaling-related genes quantified by qPCR. Results are shown as mean ± s.d. n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. h Protein levels of phosphorylated β-catenin (at serine 33, 37 and 45; tyrosine 41), an indicator of β-catenin degradation, were assessed by western blotting in ELTD1-KO or ELTD1-OE groups at day 6 of hematopoietic differentiation.

To narrow down the genes for further analysis, we identified 439 common differential genes between iCas9-H1 and the two ELTD1-deleted hESCs (Fig. 4d) and performed KEGG analysis (Fig. 4e). We found these DEGs to be primarily enriched in the Wnt signaling pathway. Mounting evidence suggests that the Wnt signaling pathway plays a pivotal role in stem cell differentiation. Therefore, we analyzed changes in Wnt-associated genes at day 6, with or without ELTD1 deletion. Our findings revealed a notable downregulation of Wnt-associated genes in ELTD1-deleted cells (Fig. 4f). Apart from Wnt-associated genes, SOX17, a master regulator defining the hemogenic endothelium, which should be downregulated during EHT to promote commitment to blood cells, was also markedly downregulated in ELTD1-deleted cells34. Next, several Wnt-associated genes (TCF7L1, CCND1, BIRC5 and AXIN2) were selected for verification by qPCR (Fig. 4g), indicating that ELTD1 might function by mediating Wnt signals.

To delve deeper into the status of Wnt signaling at day 6 of hESC hematopoietic differentiation, we conducted western blotting analysis to measure the levels of phosphorylated β-catenin (at serine 33, 37 and 45; tyrosine 41), which are downstream mediators of the Wnt signaling35. As depicted in Fig. 4h, the phosphorylation level of β-catenin, reflecting β-catenin degradation, was higher in ELTD1-deleted hESCs compared with iCas9-H1 hESCs, indicating that Wnt signaling was inhibited by ELTD1 deletion. By contrast, ELTD1 overexpression led to reduced β-catenin phosphorylation, suggesting enhanced Wnt signaling activity. In summary, both bioinformatic analysis and functional studies revealed that ELTD1 deletion inhibits Wnt signaling during HEP generation.

ELTD1 participates in HEP specification from hESCs via Wnt signaling

As the above results showed that ELTD1 deletion inhibits Wnt signaling during HEP generation, we next assessed the relationship between ELTD1 and Wnt signaling. To determine whether the downregulation of Wnt signaling is essential for the improved early hematopoietic differentiation resulting from ELTD1 deletion in hESCs, we treated ELTD1−/− 1# and ELTD1−/− 2# hESCs with the Wnt agonist CHIR9902136. Based on the previous results that ELTD1 functions from mesoderm induction to HEP specification, we thus added CHIR99021 from days 3 to 6 for subsequent studies. As anticipated, the administration of CHIR99021 inhibited the generation of CD31+CD34+ HEPs at day 6 (Fig. 5a, b) compared with ELTD1 deletion alone, as validated by flow cytometry. To further validate these results, we then treated ELTD1-overexpressing hESCs with or without the Wnt antagonist IWR137 from day 3 to 6 of differentiation. As depicted in Fig. 5c, d, ELTD1 overexpression robustly suppressed the proportion of CD31+CD34+ HEPs at day 6 but was reversed by treatment with the Wnt antagonist IWR1. These findings were further corroborated by immunofluorescence staining analysis (Fig. 5e–h). Consistent with these results, the proportion of CD43+ hematopoietic cells derived from HEPs at day 9 was significantly reduced after CHIR99021 treatment in the ELTD1 deletion group (Fig. 6a, b). Similarly, the addition of IWR1 markedly reversed the decline in CD43+ hematopoietic cells caused by ELTD1 overexpression (Fig. 6c, d). These findings were further supported by immunofluorescence staining experiments, which yielded consistent results (Fig. 6e–h). Furthermore, treatment with an alternative Wnt agonist (SKL2001) (Supplementary Fig. 9a, b and 9e, f) or Wnt antagonist (MSAB) (Supplementary Fig. 9c, d and 9g, h) from days 3 to 6 of differentiation produced identical outcomes. Collectively, these observations suggest that ELTD1 act as an upstream mediator of Wnt signaling in the regulation of HEP specification.

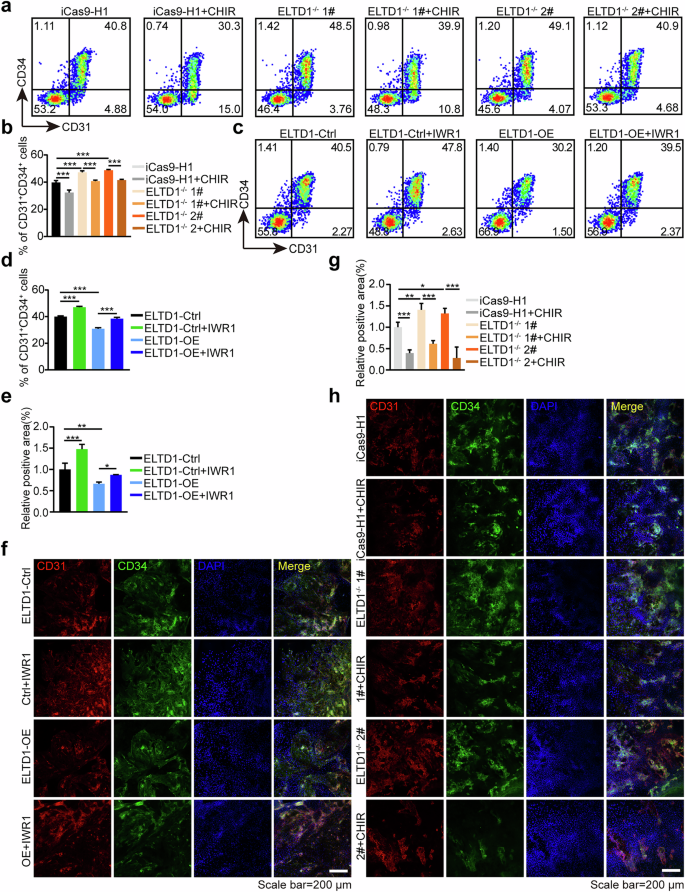

Fig. 5: ELTD1 participates in HEP specification from hESCs via Wnt signaling.
Fig. 5: ELTD1 participates in HEP specification from hESCs via Wnt signaling.
Full size image

a Flow cytometry detection of CD31+CD34+ HEPs generated from iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs at day 6 of early hematopoietic differentiation after CHIR99021 treatment (2 μM) or not. b Statistical analysis of the flow cytometry data presented in a showing the percentage of CD31+CD34+ HEPs generated from iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs at day 6 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. c Flow cytometry detection of CD31+CD34+ HEPs generated from H1-ELTD1-Ctrl and H1-ELTD1-OE hESCs at day 6 of early hematopoietic differentiation after IWR1 treatment (2.5 μM) or not. d Statistical analysis of the flow cytometry data presented in c showing the percentage of CD31+CD34+ HEPs generated from H1-ELTD1-Ctrl and H1-ELTD1-OE hESCs at day 6 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. e Quantitative analysis of the immunostaining results presented in f Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. f Immunostaining of CD31+ (red) and CD34+ (green) generated from H1-ELTD1-Ctrl and H1-ELTD1-OE hESCs at day 6 of early hematopoietic differentiation after IWR1 treatment (2.5 μM) or not. Nuclei were counterstained with DAPI (blue). Scale bar, 200 μm. g Quantitative analysis of the immunostaining results presented in h. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. h Immunostaining of CD31+ (red) and CD34+ (green) generated from iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs at day 6 of early hematopoietic differentiation after IWR1 treatment (2.5 μM) or not. Nuclei were counterstained with DAPI (blue). Scale bar, 200 μm.

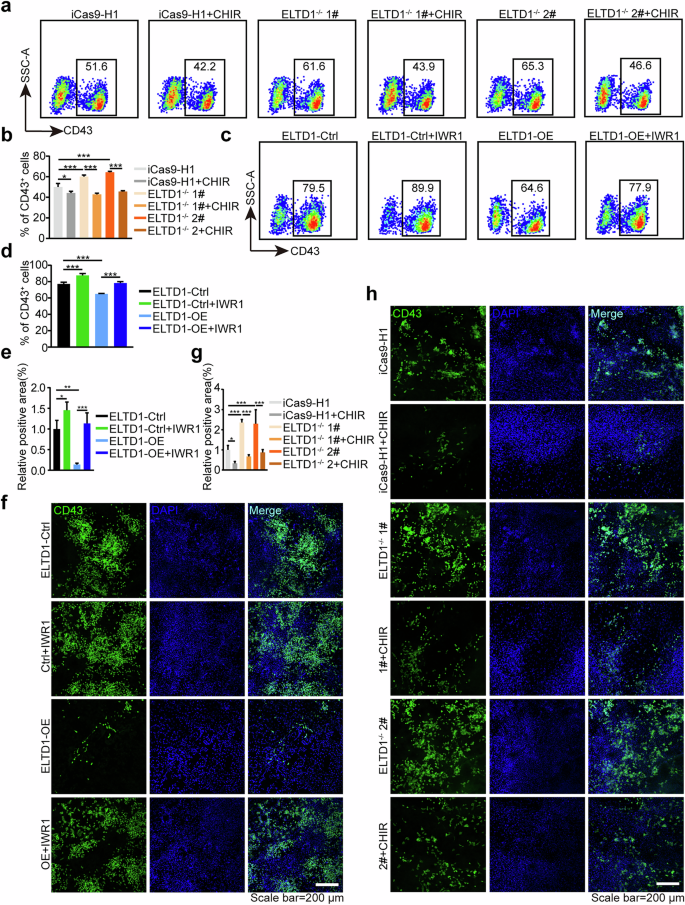

Fig. 6: ELTD1 negatively regulates HEP specification from hESCs through Wnt signaling and modulates subsequent hematopoietic cell generation.
Fig. 6: ELTD1 negatively regulates HEP specification from hESCs through Wnt signaling and modulates subsequent hematopoietic cell generation.
Full size image

a Flow cytometry detection of CD43+ hematopoietic cells generated from iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs at day 9 of early hematopoietic differentiation after CHIR99021 treatment (2 μM) or not. b Statistical analysis of the flow cytometry data presented in a showing the percentage of CD43+ hematopoietic cells generated from iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs at day 9 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. c Flow cytometry detection of CD43+ hematopoietic cells generated from H1-ELTD1-Ctrl and H1-ELTD1-OE hESCs at day 9 of early hematopoietic differentiation after IWR1 treatment (2.5 μM) or not. d Statistical analysis of the flow cytometry data presented in c showing the percentage of CD43+ hematopoietic cells generated from H1-ELTD1-Ctrl and H1-ELTD1-OE hESCs at day 9 of early hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. e Quantitative analysis of the immunostaining results presented in f. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. f Immunostaining of CD43+ (green) generated from H1-ELTD1-Ctrl and H1-ELTD1-OE hESCs at day 9 of early hematopoietic differentiation after IWR1 treatment (2.5 μM) or not. Nuclei were counterstained with DAPI (blue). Scale bar, 200 μm. g Quantitative analysis of the immunostaining results presented in h. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. h Immunostaining of CD43+ (green) generated from iCas9-H1, ELTD1−/− 1# and ELTD1−/− 2# hESCs at day 9 of early hematopoietic differentiation after IWR1 treatment (2.5 μM) or not. Nuclei were counterstained with DAPI (blue). Scale bar, 200 μm.

ELTD1 regulates Wnt signaling via the HPIP–LEF1 axis to modulate HEP generation

To investigate how ELTD1 regulates Wnt signaling pathway, we used co-IP coupled with mass spectrometry to identify its potential interaction partners. We screened the top 30 proteins based on the unique peptides and intensity analysis, respectively (Fig. 7a). Following our screening strategy, we identified 12 overlapped proteins that may interact with ELTD1 (Fig. 7b). Among them, HPIP (hematopoietic PBX1-interacting protein) attracted our attention (Fig. 7c) and was chosen for validation because it has been reported that HPIP deficiency could impair Wnt signaling in osteoarthritis (OA) chondrocytes38. Moreover, its dynamic expression pattern during hematopoietic differentiation is similar to that of ELTD1, with notable upregulation observed from day 3 to day 6 (Fig. 7d). To confirm this relationship, we subsequently conducted rigid protein–protein docking between ELTD1 and HPIP. As shown in Fig. 7e, ELTD1 and HPIP formed hydrogen bonds through amino acid residue sites such as ASN 180-THR 220 and GLN 181-THR 379, revealing that proteins ELTD1 and HPIP formed a stable protein docking model. Furthermore, we confirmed the formation of the ELTD1–HPIP complex through co-IP assays (Fig. 7f) and determined the subcellular localization of ELTD1 and HPIP using immunofluorescence staining. We found that ELTD1 and HPIP were primarily co-localized in the region where the cytoskeleton interacts with the cell membrane (Fig. 7g). These results suggested that ELTD1 might regulate Wnt signaling through interaction with HPIP.

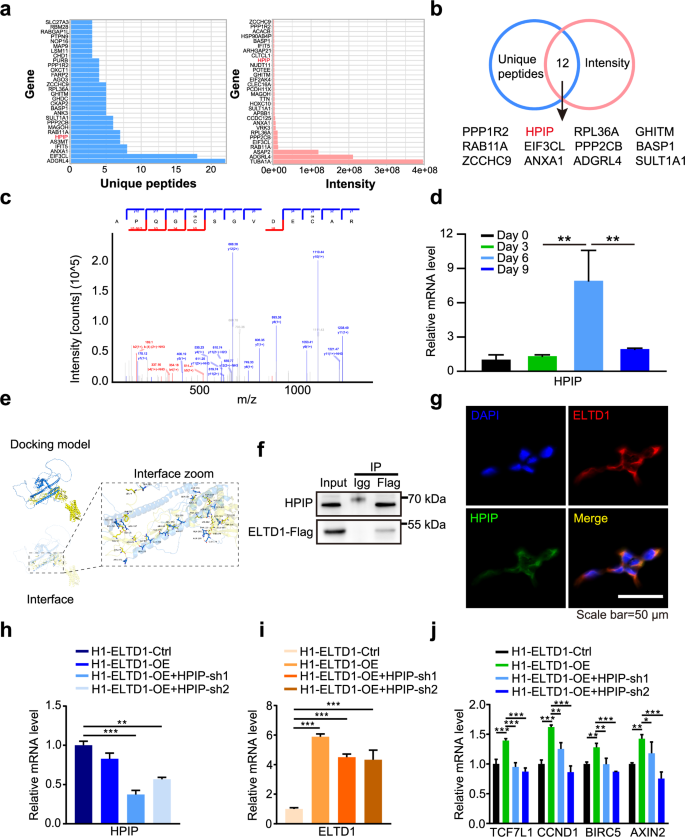

Fig. 7: ELTD1 regulate HEP generation via HPIP.
Fig. 7: ELTD1 regulate HEP generation via HPIP.
Full size image

a Identification of proteins that potentially interact with ELTD1 through mass spectrometry analysis. b A schematic representation of the strategy used to screen and validate potential protein interactions with ELTD1. c Detailed mass spectrometry analysis of HPIP protein fragments. The secondary mass spectrum of HPIP is displayed, highlighting the key peptides used for protein identification. d Time course analysis of HPIP mRNA level with qPCR during hESC hematopoietic differentiation. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. e A surface diagram of the docking model and their interfacing residues between ELTD1 and HPIP protein (ELTD1, yellow; HPIP, blue; hydrogen bond interaction, dotted line). f Co-IP analysis confirming the interaction between ELTD1 and HPIP proteins. g Immunofluorescence analysis was performed to visualize the colocalization of HPIP (green) and ELTD1 (red) in 293T cells. Nuclei were counterstained with DAPI (blue). Scale bar, 50 μm. h The mRNA levels of HPIP at day 6 of early hematopoietic differentiation in H1-ELTD1-Ctrl and H1-ELTD1-OE with or without HPIP knockdown. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. i The mRNA levels of ELTD1 at day 6 of early hematopoietic differentiation in H1-ELTD1-Ctrl and H1-ELTD1-OE with or without HPIP knockdown. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. j The mRNA level of representative Wnt signaling genes at day 6 of early hematopoietic differentiation in H1-ELTD1-Ctrl and H1-ELTD1-OE with or without HPIP knockdown. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001.

To investigate whether HPIP is required for ELTD1-mediated expression of Wnt target genes, we knocked down HPIP in ELTD1-overexpressing hESCs and performed hematopoietic differentiation. The results revealed that ELTD1 overexpression increased the expression of Wnt targets (TCF7L1, CCND1, BIRC5 and AXIN2), whereas knockdown of HPIP abolished the ability of ELTD1 to modulate Wnt target production (Fig.7h–j), indicating the importance of HPIP in ELTD1-mediated regulation of Wnt target gene expression.

Next, we asked whether HPIP knockdown could rescue the defects caused by ELTD1 overexpression. Indeed, knockdown of HPIP could rescue the negative effects of ELTD1 overexpression in HEP induction at day 6 (Fig. 8a). Moreover, inhibition of HPIP could further rescue the impaired CD43+ hematopoietic cells generation caused by ELTD1 overexpression at day 9 (Fig. 8b). Finally, we explored how ELTD1–HPIP regulates Wnt signaling. A prior study revealed that HPIP primarily mediates its biological effects by interacting with lymphoid enhancer binding factor 1 (LEF1) to activate Wnt signaling38. LEF1, a sequence-specific DNA-binding protein, is expressed in pre-B and T lymphocytes of adult mice, as well as in various embryonic tissues39. Therefore, we hypothesized that ELTD1–HPIP might promote Wnt signaling activation through LEF1 to mediate hematopoiesis. We overexpressed LEF1 in the aforementioned experiments and used flow cytometry to determine whether it could suppress the phenotypes induced by HPIP knockdown. As shown in Fig. 8c, overexpression of LEF1 attenuated the increase in the proportion of CD31+CD34+ HEPs at day 6 that was induced by HPIP knockdown in ELTD1-overexpressing hESCs. Consistent with these findings, LEF1 overexpression also inhibited the generation of CD43+ hematopoietic cells at day 9 (Fig. 8d). Taken together, these findings demonstrate that ELTD1 regulates the Wnt signaling pathway through the HPIP–LEF1 axis to modulate the generation of HEPs during hematopoietic differentiation of hESCs.

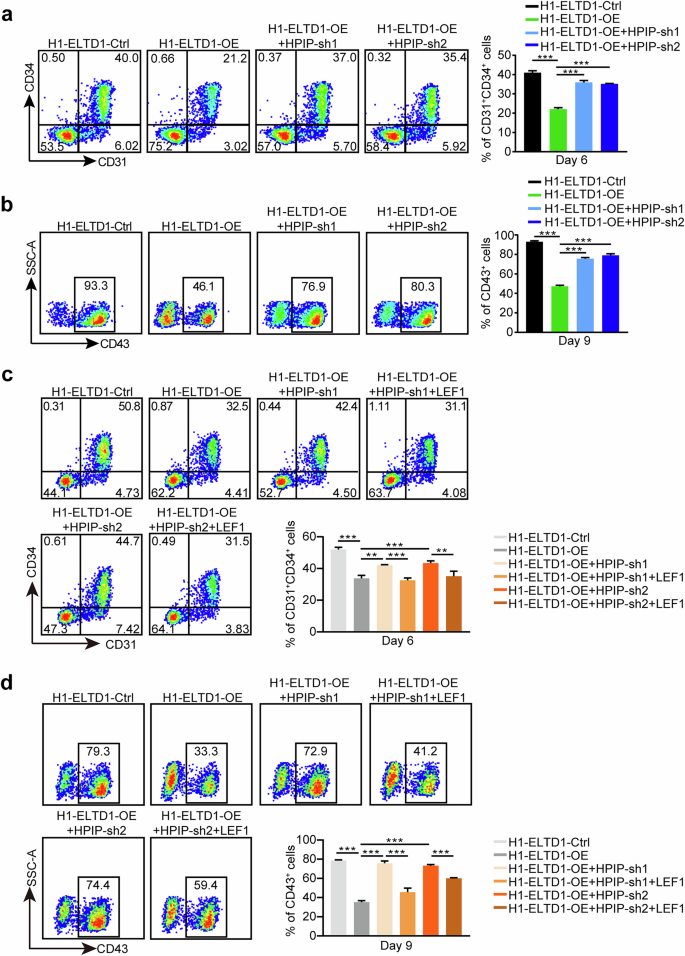

Fig. 8: ELTD1 regulates Wnt signaling via the HPIP–LEF1 axis to modulate HEP generation.
Fig. 8: ELTD1 regulates Wnt signaling via the HPIP–LEF1 axis to modulate HEP generation.
Full size image

a The percentage of CD31+CD34+ HEPs at day 6 derived from H1-ELTD1-Ctrl and H1-ELTD1-OE with or without HPIP knockdown detected by flow cytometry. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. b The percentage of CD43+ hematopoietic cells at day 9 derived from H1-ELTD1-Ctrl and H1-ELTD1-OE with or without HPIP knockdown detected by flow cytometry. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. c The percentage of CD31+CD34+ HEPs at day 6 derived from H1-ELTD1-Ctrl and H1-ELTD1-OE cells with or without HPIP knockdown and LEF1 overexpression, detected by flow cytometry. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001. d The percentage of CD43+ hematopoietic cells at day 9 derived from H1-ELTD1-Ctrl and H1-ELTD1-OE with or without HPIP knockdown and LEF1 overexpression, detected by flow cytometry. Results are shown as mean ± s.d.; n = 3. n.s., not significant, *P < 0.05, **P < 0.01, ***P < 0.001.

Discussion

Elucidating the novel mechanism that regulates the formation of the HEP and its transition to a hematopoietic fate is important for us to accurately understand hematopoietic development in the early embryo and ultimately generate functional HSCs from pluripotent stem cells in vitro. In this study, we identified ELTD1 as a potential regulator of HEPs in early hESC hematopoietic differentiation and revealed its fundamental role in hematopoiesis. Suppression of ELTD1 remarkably increased the generation of HEPs, thereby enhancing hematopoietic differentiation in vitro. Mechanistically, we found that ELTD1 modulates the generation of HEPs by regulating the Wnt signaling pathway via the HPIP–LEF1 axis. Our results reveal a new mechanism for human hematopoiesis and may provide fresh ideas for efficient production of blood cells from hESCs in the fields of developmental biology and regenerative medicine.

As discovered in 2001 by Nechiporuk et al.40, ELTD1 is an orphan member of the GPCR superfamily, which is also known as ADGRL4. Since its discovery, ELTD1 has been found to participate in cardiac hypertrophy, renal cancer, ovarian cancer, colorectal cancer and glioblastoma11,12,41,42,43. However, the role of ELTD1 in early human hematopoietic development remains elusive. In this study, we analyzed the contribution of ELTD1 to human embryonic hematopoietic differentiation using H1 hESCs as a model. We analyzed the dynamic expression of ELTD1 during hematopoietic differentiation by using a hESC hematopoietic differentiation system in vitro. Our analysis indicated that the expression of ELTD1 peaked at day 6, which is in parallel with the expression of HEP-related genes. We further indicated that ELTD1 is specifically expressed in CD31+CD34+ HEPs rather than in other cell populations. Therefore, we speculated that ELTD1 may participate in HEP generation of human hematopoiesis. Subsequent functional assays confirmed our hypothesis, showing that ELTD1 inhibition increased the generation of HEPs rather than mesoderm or hematopoietic cell production, thus confirming its critical role in HEP differentiation.

Interestingly, in this study, we found that ELTD1 expression gradually increased during early hematopoietic differentiation, paralleling the emergence of the HEP population. However, its effect on HEPs was negative in loss-of-function studies. In both ELTD1-knockdown and ELTD1-deleted H1 hESCs, there was an increase in the proportion of CD31+CD34+ HEPs at day 6 of early hematopoietic differentiation, which was in contrast to its role identified in other endothelium studies. A previous study demonstrated that ELTD1 acts as a key player in tumor angiogenesis. Silencing ELTD1 drastically reduces tumor growth by impairing endothelial sprouting and vessel formation both in vitro and in vivo44. The observed variation between our study and previous research may be attributed to the diverse functions of ELTD1 across different stages and tissues during ontogeny. Hemogenic endothelium, a specialized subset of the endothelium with hematopoietic potential, is known to generate hematopoietic stem and progenitor cells through EHT45,46. Both hemogenic endothelium and vascular endothelium are developmentally related cells that share a common endothelial precursor47,48. Thus, downregulation of ELTD1 expression may be beneficial for the generation of hemopoiesis-biased endothelium, rather than vascular endothelium. In addition, Favara et al. showed that the HSC regulator KIT, which is expressed in hematopoietic stem and progenitor cells49 and required for hemogenic endothelium specification50, can be significantly upregulated at both the mRNA and protein levels by ELTD1 silencing51, which further supports our findings.

Mechanistically, we performed RNA-seq of differentiated cells at day 6 combined with rescue experiments. As expected, GSEA showed the enrichment of hematopoietic cell lineages-associated genes in ELTD1-deleted cells compared with iCas9-H1 cells, and KEGG analysis also displayed the same results. Expanding on the current understanding of ELTD1, we subsequently identified and confirmed Wnt signaling as the downstream target of ELTD1 that mediates the hematopoiesis. Accumulating evidence indicates that the Wnt signaling pathway is a conserved intercellular communication system crucial for stem cell proliferation, renewal and differentiation during embryonic development52,53. For example, inhibition of Wnt signaling by retinoic acid signaling is essential for HSC development54. However, the relationship between ELTD1 and Wnt signaling has not yet been explored. It has been widely reported that GPCRs can exert their functions via Wnt signaling55,56. By treating ELTD1-deleted hESCs with the Wnt agonist CHIR99021 or SKL2001, we found that the induction of CD31+CD34+ HEPs and subsequent production of CD43+ hematopoietic cells was dramatically inhibited compared with that in ELTD1-deleted hESCs. Similarly, the addition of the Wnt antagonist IWR1 or MSAB could rescue the defects of hematopoietic differentiation caused by ELTD1 overexpression. Collectively, these observations raise the interesting possibility that ELTD1 acts as an upstream of Wnt signaling and regulates early human hematopoiesis.

To investigate how ELTD1 regulates Wnt signaling during hESC hematopoietic differentiation, we performed protein mass spectrometry assay and found 12 candidates that may interact with ELTD1 based on the unique peptides and intensity analyses. Among these candidates, HPIP captured our interest owing to its deficiency, which has been shown to inhibit Wnt signaling in osteoarthritis chondrocytes38, suggesting that ELTD1 may mediate Wnt signaling through HPIP. HPIP is a scaffolding protein known to interact with various signaling proteins and participate in diverse cellular functions, including cell differentiation, proliferation and migration57. For instance, as a downstream target of GATA1, HPIP can promote erythroid differentiation via the PI3K–AKT pathway58. Based on the findings above, we speculate that HPIP is required for ELTD1 to activate the Wnt signaling pathway in hematopoiesis, thus warranting further investigation. In the present study, we verified the interaction between ELTD1 and HPIP protein. Subsequent analysis demonstrated that ELTD1 overexpression increased the expression of Wnt targets, whereas knockdown of HPIP inhibited the expression of Wnt targets caused by ELTD1 overexpression. Besides, we presented evidence that HPIP knockdown was able to rescue the defects of ELTD1 overexpression in HEP induction at day 6 and subsequent CD43+ hematopoietic cell generation at day 9. These results confirm our speculation that ELTD1 primarily exerts its biological function through interaction with HPIP to activate Wnt signaling in human hematopoiesis. Next, we sought to elucidate how the ELTD1–HPIP complex regulates Wnt signaling. It has been reported that HPIP interacts with transcription factors such as LEF1 to activate Wnt signaling. LEF1, also known as lymphoid enhancer factor 1, is a critical transcription factor involved in the Wnt–β-catenin signaling pathway. It belongs to the TCF–LEF family of proteins and plays a key role in regulating the expression of genes involved in cell proliferation, differentiation and survival59,60. Through overexpression of LEF1 in HPIP-knockdown hESCs and subsequent functional analyses, we identified LEF1 as a downstream factor in the ELTD1–HPIP axis that regulates HEP generation. Although the role of HPIP in modulating the Wnt signaling pathway through its interaction with LEF1 has been previously reported, our study establishes a functional link between ELTD1, HPIP, LEF1 and Wnt signaling, uncovering a novel regulatory mechanism that governs early hematopoiesis. Our work highlights the ELTD1–HPIP–LEF1–Wnt axis as a regulatory pathway influencing hematopoietic differentiation. However, several unresolved issues remain. For instance, the precise mechanism by which the ELTD1–HPIP complex regulates Wnt signaling via LEF1 requires further investigation. We hypothesize that ELTD1 may enhance HPIP’s ability to interact with LEF1 or stabilize the HPIP–LEF1 complex, thereby potentiating Wnt signaling. To address this, future experiments, such as co-IP and chromatin immunoprecipitation assays, will be conducted to elucidate the molecular interactions among ELTD1, HPIP and LEF1 in greater detail.

In summary, the findings of this study identify a pivotal role of ELTD1 in early hESC hematopoietic differentiation. Besides, we provide evidence that it performs this function through Wnt signaling and revealed a molecular network around ELTD1, HPIP, LEF1 and Wnt signaling in early hematopoiesis. This study offers insights into the function of ELTD1 in regulating hematopoietic specification in vitro and may offer clues for optimizing in vitro differentiation methods for generating HSCs for future clinical applications.
