Introduction

Water pollution has intensified into a significant global environmental issue, driven primarily by the rapid expansion of industrialization and agricultural activities1. Large quantities of harmful substances, including dyes, antibiotics, and pesticides, are consistently being released into aquatic ecosystems, either directly or indirectly. Dyes disrupt aquatic habitats and bioaccumulate within the food chain, posing significant toxic risks to human health2. Residual antibiotics in water facilitate the development of antibiotic-resistant bacteria, exacerbating antimicrobial resistance and limiting treatment options. Pesticides not only poison aquatic organisms but also leach into groundwater, compromising the safety of drinking water sources3. The persistent, concealed and complex nature of these pollutants makes them challenging to completely eliminate or degrade using conventional water treatment technologies. Consequently, the development of multifunctional devices capable of efficient detection and remediation has become essential for effectively addressing water pollution.

Among various water quality monitoring technologies, surface enhanced Raman scattering (SERS) has emerged as a highly effective method for trace pollutant detection due to its high sensitivity and broad-spectrum detection capabilities4,5,6. Traditionally, SERS substrates rely on noble metals such as gold or silver, which enhance Raman signals through surface plasmon resonance7. However, the high cost and susceptibility to corrosion of these materials limit their practical application on a large scale. In contrast, semiconductor composite-based SERS substrates exhibit excellent chemical stability and biocompatibility. They are abundant resources, easy to prepare, and cost-effective, significantly reducing detection expenses compared to noble metal substrates, thus improving the accessibility and economic viability of SERS technology. Notably, certain semiconductor SERS substrates, when integrated with photocatalytic technology, can demonstrate substantial photocatalytic degradation potential.

By carefully selecting suitable semiconductor materials, it is possible to achieve dual functionalities within a single material, enabling both pollutant detection and degradation. Among various semiconductor materials, copper oxide (Cu2O) stands out as a p-type, narrow-bandgap semiconductor with a broad visible light response spectrum and high solar energy utilization, making it a commonly used photocatalytic material8. Additionally, Cu2O is both cost-effective and abundant, which further increases its potential for widespread application9. In terms of SERS, Cu2O not only exhibits intrinsic Raman activity but also possesses surface structures and chemical properties that can significantly enhance the Raman scattering signals of adsorbed molecules. However, Cu2O still encounters challenges in practical applications, such as the high recombination of photogenerated electron-hole pairs, which reduces both its photocatalytic and SERS performance, as well as its susceptibility to photocorrosion under light exposure10,11. Therefore, enhancing the long-term stability, SERS detection capability and photocatalytic degradation efficiency of Cu2O-based multifunctional water quality monitoring and purification devices remains a key focus of current research.

Graphitic carbon nitride (g-C3N4), an emerging n-type two-dimensional semiconductor, has been identified as an ideal material for modifying Cu2O due to its large surface area, excellent chemical stability, low cost, non-toxicity, and suitable bandgap structure12. The band alignment between Cu2O and g-C3N4 facilitates efficient electron transfer, reducing electron-hole recombination and thereby enhancing SERS sensitivity and photocatalytic efficiency. Moreover, the incorporation of g-C3N4 effectively mitigates the photocorrosion of Cu2O. Its expanded surface area improves the interaction with target molecules, further amplifying the SERS signals and boosting photocatalytic performance13. This composite material system offers new possibilities for developing high-performance multifunctional water quality monitoring devices. Currently, numerous studies have investigated ways to enhance SERS detection or photocatalytic degradation performance through composite approaches. For example, Jianhua Hou et al. 14 an oxygen vacancy-rich BiOI/g-C3N4 composite via a one-pot synthesis at room temperature, achieving a degradation rate under visible light that is 2.6 times higher than that of g-C3N4. M. Muthukumaran et al. 15 developed g-C3N4@Cu2O composites via hydrothermal synthesis, showing superior degradation rates for MB, Rh-B, TB, and Blue-I compared to pure Cu2O. Tong Wu et al. 16 used Ag nanocrystals onto Au@Cu2O for malachite green detection, reaching a limit as low as 10⁻9 M. Weiyang Tang et al.17 created Au@porous g-C3N4 substrates, detecting crystal violet at 2.7 × 10⁻9 M with an enhancement factor of 6.8 × 105. However, most of the research in the SERS detection field still focuses on noble metal-based composite substrates, with purely inorganic semiconductor composites as SERS sensors remaining relatively uncommon. Furthermore, studies utilizing non-noble metal semiconductor composites for simultaneous SERS detection, photocatalytic degradation, and self-cleaning of SERS substrates are exceedingly scarce.

Inspired by the above ideas, this study developed a multifunctional water quality monitoring and purification p–n heterojunction of Cu2O/g-C3N4 that integrates both SERS detection and photocatalytic degradation functions. The preparation of the Cu2O/g-C3N4 monitoring and purification p–n heterojunctions (MPHs) involved three straightforward steps: First, Cu2O microcubes, rounded-edge microcubes, and truncated microcubes were synthesized via a water bath method by adjusting the PVP content, denoted as Cu2O MCs, RMCs, and TMCs, respectively. Second, g-C3N4 with a lamellar flocculent morphology was prepared through high-temperature calcination. Finally, Cu2O MCs and g-C3N4 NSs were physically ground together in varying ratios, where g-C3N4 accounted for 10% to 50% of the total mass, resulting in composites denoted as Cu2O/g-C3N4-0.1 to 0.5. The SERS and photocatalytic performance of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-(0.1–0.5) MPHs were evaluated, with a particular focus on the effect of g-C3N4 content on the SERS and photocatalytic properties. Special emphasis was placed on assessing the stability, uniformity, self-cleaning ability, and charge transfer mechanism of the Cu2O/g-C3N4-0.2 MPH. In conclusion, the Cu2O/g-C3N4 MPHs exhibit significant potential for applications in photocatalysis, SERS detection, and photocatalytic self-cleaning, providing a promising pathway for the future development of efficient devices for environmental pollution monitoring and purification.

Results and discussion

Structural characterization

As shown in Fig. 1, the structure, chemical composition, surface properties, and chemical states of the synthesized materials were analyzed using X-ray diffraction (XRD), Fourier transform infrared spectroscopy (FT-IR), nitrogen adsorption-desorption isotherms (BET) and X-ray Photoelectron Spectroscopy (XPS). Figure 1a displays the XRD patterns of Cu2O MCs, Cu2O RMCs, Cu2O TMCs and Cu2O/g-C3N4-(0.1–0.5) MPHs. The sharp and narrow diffraction peaks of Cu2O MCs, Cu2O RMCs and Cu2O TMCs appear at 29.5°, 36.4°, 42.3°, 52.5°, 61.3°, 73.5° and 77.2°, corresponding to the (110), (111), (200), (211), (220), (310) and (311) crystal planes, respectively. These peaks match the standard JCPDS card (No. 05-0667) for Cu2O, confirming the excellent crystallinity and phase purity of the synthesized Cu2O18. Furthermore, in Cu2O/g-C3N4-(0.1–0.5) MPHs, a diffraction peak at 27.7°, which is not present in pure Cu2O, is associated with the (002) plane of g-C3N4. This peak is attributed to the interlayer stacking of conjugated aromatic systems19, highlighting the successful integration of g-C3N4 within the heterojunctions.

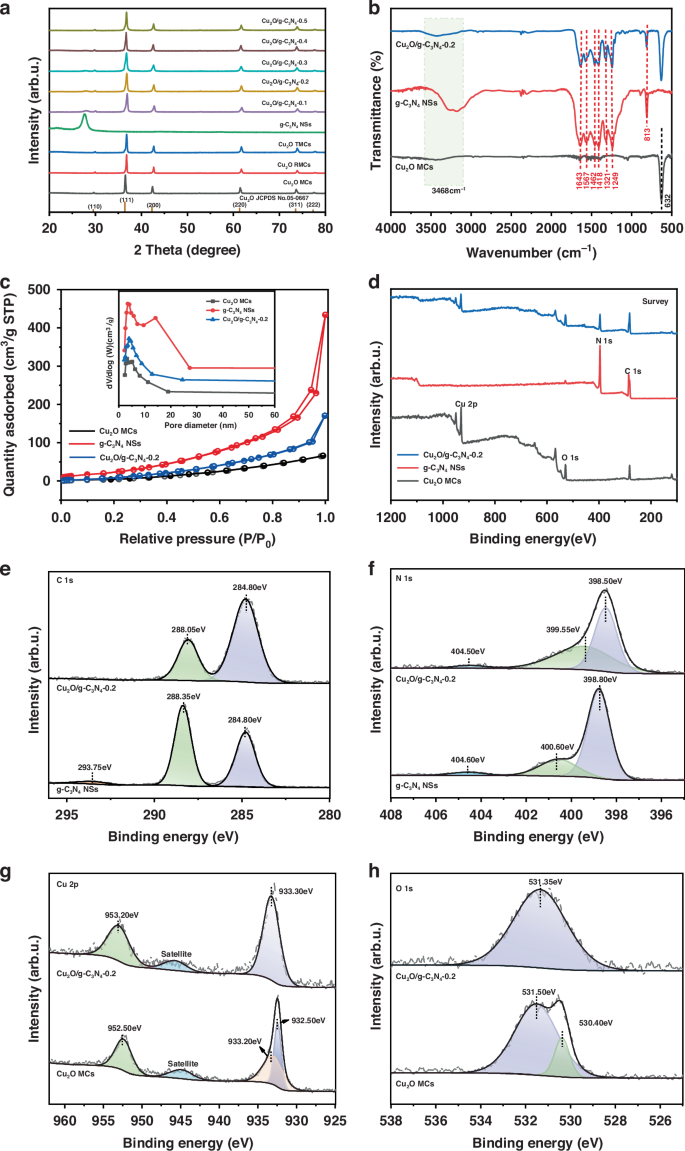

Fig. 1: Structural characteristics of prepared samples.
figure 1

a XRD patterns of Cu2O MCs, Cu2O RMCs, Cu2O TMCs, g-C3N4 NSs and Cu2O/g-C3N4-0.1–0.5 MPHs. b FT-IR spectra and (c) the surface area and pore size distribution of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH. d Survey XPS spectra of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH. e High-resolution XPS spectra of C 1s, (f) N 1s, (g) Cu 2p, and h O 1 s

Full size image

Figure 1b represents the FT-IR spectra of Cu2O MCs, g-C3N4 NSs and Cu2O/g-C3N4-0.2 MPHs. In the Cu2O MCs sample, the peak near 632 cm−1 corresponds to the stretching vibration of the Cu–O bond20. For g-C3N4 NSs, characteristic vibration peaks are observed at 813, 1249, 1321, 1418, 1462, 1644, and 3294 cm−1, with the 813 cm−1 peak representing the characteristic bending vibration of the tri-s-triazine rings units21. Peaks between 1100 cm−1 and 1700 cm−1 are associated with the stretching vibrations of C–N–C bonds22. A pronounced peak near 3468 cm−1, observed in the spectra of Cu2O MCs, g-C3N4 NSs and the Cu2O/g-C3N4-0.2 MPH, likely results from the stretching vibrations of the O–H bond from adsorbed water23. Together with the XRD results, the FT-IR analysis confirms the successful formation of Cu2O/g-C3N4 MPH.

Figure 1c shows the BET isotherms of Cu2O MCs, g-C3N4 NSs and Cu2O/g-C3N4-0.2 MPH. The results indicate that Cu2O MCs exhibit a type III isotherm with an H3 hysteresis loop, while g-C3N4 NSs show a type IV isotherm with an H3 hysteresis loop, indicating slit-like pores formed by layered packing, consistent with the layered structure of carbon nitride. The Cu2O/g-C3N4-0.2 MPH also displays a type IV hysteresis loop. The inset of Fig. 1c shows the pore size distribution for Cu2O MCs (9.378 nm), g-C3N4 NSs (21.352 nm), and Cu2O/g-C3N4-0.2 (10.180 nm), confirming the presence of mesoporous structure, which aligns with SEM observations. Additionally, the specific surface area of the Cu2O/g-C3N4-0.2 MPH (96.469 m2/g) lies between that of Cu2O MCs (43.352 m2/g) and g-C3N4 NSs (109.249 m2/g), indicating that the introduction of g-C3N4 NSs effectively increases the surface area of the Cu2O MCs. This provides more active sites for photocatalytic reactions, enhancing the photocatalytic activity of the Cu2O MCs.

Figure 1d presents the XPS survey spectra of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH, while Fig. 1e–h display the high-resolution XPS spectra of C, N, Cu and O elements, respectively. The binding energy values in the XPS spectra were calibrated using the C 1s peak at 284.8 eV as a reference. As shown in Fig. 1e, the peak of g-C3N4 NSs located at 288.35 eV corresponds to the C–(N)₃ bond, while the peak at 293.75 eV is attributed to π-π* interactions between graphitic layers24. In comparison to g-C3N4 NSs, the peak in the Cu2O/g-C3N4-0.2 MPH, centered at 288.05 eV, shifts by 0.3 eV toward lower binding energy, indicating electron transfer. Figure 1f shows the N 1s spectra of g-C3N4 NSs and Cu2O/g-C3N4-0.2 MPH. In g-C3N4 NSs, the characteristic peaks at 398.80 eV, 400.60 eV and 404.60 eV are associated with sp²-hybridized nitrogen C–N = C, tertiary nitrogen atoms (N–(C)3) and terminal amino groups (N-C-H), respectively24. In Cu2O/g-C3N4-0.2, these binding energies shift by about 0.1–0.3 eV towards lower energy, further confirming electron redistribution. Figure 1g presents the Cu 2p spectra for Cu2O MCs and Cu2O/g-C3N4-0.2 MPH. In Cu2O MCs, the peak near 933.0 eV is split into two at 932.50 eV and 933.20 eV. The peaks at 933.20 eV and 952.50 eV correspond to Cu 2p3/2 and Cu 2p1/2, respectively25. The peak at 932.50 eV is attributed to Cu+(Cu(I)), confirming the presence of Cu2O. In the Cu2O/g-C3N4-0.2 heterojunction, the Cu 2p3/2 and Cu 2p1/2 peaks slightly shift to higher binding energies (933.30 eV and 953.20 eV, respectively), reflecting the electron transfer effect between Cu2O and g-C3N4. The satellite peak near 945 eV indicates the presence of Cu2+, suggesting slight surface oxidation of Cu2O, leading to the formation of CuO, which can act as a protective layer to enhance the material’s stability and reduce photocorrosion. Figure 1h shows the O 1 s spectra for Cu2O MCs and Cu2O/g-C3N4-0.2 MPH. In Cu2O MCs, the peak at 530.40 eV is attributed to the Cu-O bond, while the peak at 531.50 eV is related to the free-absorbed OH−26. In Cu2O/g-C3N4-0.2 MPH, the peak at 531.35 eV shifts by 0.1 eV towards lower binding energy, further confirming electron transfer.

Morphological characterization

Scanning electron microscopy (SEM) was used to observe the morphology of Cu2O MCs, Cu2O RMCs, Cu2O TMCs, g-C3N4 NSs, and Cu2O/g-C3N4 MPHs, while Transmission Electron Microscopy (TEM), High-Resolution Transmission Electron Microscopy (HRTEM) and Energy Dispersive X-ray Spectroscopy (EDS) were employed to examine the microstructure and elemental composition of Cu2O/g-C3N4-0.2 MPH. As shown in Fig. 2a–c, the addition of 0.55 g of PVP results in minimal truncation of the cubic blocks, allowing the structure to largely retain its cubic geometry, predominantly composed of {100} facets, with particle sizes approximately 1 μm. As the PVP content increases to 0.95 g, truncated cubic blocks with both {100} and {111} facets are observed, and the particle size increases to about 1.2 μm. Further increasing the PVP content to 1.35 g results in a truncated cube structure mainly composed of {111} facets, with particle sizes around 1.5 μm. This morphological change is closely related to the role of PVP, a non-ionic surfactant containing polarizable functional groups such as “−C = O,” which serve as reactive sites27. The negatively charged oxygen atoms easily interact with positively charged copper on the surface. As the PVP content increases, the surface energy of the {111} facet decreases, leading to a reduction in {100} facets and an increase in {111} facets. Additionally, PVP acts as a capping agent, promoting charge transfer between g-C3N4 and Cu2O. As observed in Fig. 2d, g-C3N4 exhibits an irregular sheet-like morphology, with a size of approximately 200 to 500 nm. Figure 2e–i demonstrates that Cu2O MCs successfully couples with g-C3N4 while maintaining their original structure.

Fig. 2: Surface morphology, microstructure and element distribution of prepared samples.
figure 2

a–i SEM images of Cu2O MCs, Cu2O RMCs, Cu2O TMCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.1–0.5 MPHs. j–l TEM and HRTEM images of the Cu2O/g-C3N4-0.2 MPH, m–q EDS spectra of the Cu2O/g-C3N4-0.2 MPH

Full size image

The microstructure of the Cu2O/g-C3N4-0.2 MPH was further investigated using TEM and HRTEM. As shown in Fig. 2j, k, the Cu2O displays a cubic morphology with a particle size of approximately 1 μm, which is consistent with the SEM observations. The g-C3N4 exhibits a lamellar flocculent morphology, evenly dispersed on the surface and surrounding the Cu2O MCs. These observations confirm the successful formation of the Cu2O/g-C3N4-0.2 MPH. Additionally, the HRTEM analysis of the Cu2O/g-C3N4-0.2 MPH, illustrated in Fig. 2l, reveals lattice fringes with an interplanar spacing of 0.24 nm, which corresponds to the (111) plane of Cu2O MCs28. However, due to the poor crystallinity or high dispersion of g-C3N4 NSs, its lattice fringes are not easily discernible29. Figure 2m–q shows that the C, N, Cu, and O atoms are uniformly distributed throughout the Cu2O/g-C3N4-0.2 MPH. In summary, the Cu2O/g-C3N4 MPHs were successfully synthesized.

Photoelectrical performance

Figure 3a shows the UV–Vis diffuse reflectance spectra (DRS) in the presence of Cu2O MCs, Cu2O RMCs, Cu2O TMCs, g-C3N4 NSs and Cu2O/g-C3N4-(0.1 ~ 0.5) MPHs. The spectra reveal that Cu2O MCs, Cu2O RMCs and Cu2O TMCs exhibit strong absorption peaks in the 400–600 nm range, which aligns with the band structure of Cu2O and confirms its activity within the visible light region. The g-C3N4 NSs displays an absorption edge at 458 nm, corresponding to its bandgap. In the DRS spectra of the Cu2O/g-C3N4-(0.1–0.5) MPHs, as the Cu2O content increases, the absorption features of Cu2O become more prominent, and the absorption edge of the composites shifts progressively towards longer wavelengths. This red shift indicates that the coupling between Cu2O and g-C3N4 effectively extends the light absorption range of the heterojunctions.

Fig. 3: Optical properties and electrochemical performance of prepared samples.
figure 3

a UV-Vis diffuse reflectance spectra of Cu2O MCs, Cu2O RMCs, Cu2O TMCs, g-C3N4 NSs, Cu2O/g-C3N4-0.1–0.5 MPHs. b PL spectra, (c) i–t curves and (d) EIS Nyquist plots of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH

Full size image

The efficiency of photo-generated charge carrier separation, recombination and transport was investigated using photocurrent intensity (i-t) testing, photoluminescence (PL) spectroscopy, and electrochemical impedance spectroscopy (EIS)30,31,32. As shown in Fig. 3b, the i–t of Cu2O/g-C3N4-0.2 MPH is significantly higher than that of Cu2O MCs and g-C3N4 NSs, indicating that the Cu2O/g-C3N4-0.2 MPH has superior photo-generated charge carrier separation efficiency. Figure 3c displays the PL spectra of Cu2O MCs, g-C3N4 NSs, and the Cu2O/g-C3N4-0.2 MPH. As illustrated in the inset of Fig. 3c, the weak emission peak of Cu2O MCs observed in the range of 430–570 nm corresponds to bound excitons and defect states localized on their surfaces33. In Fig. 3c, the strong peak of g-C3N4 NSs observed at approximately 450 nm corresponds to its band gap34. Compared to g-C3N4 NSs alone, the markedly reduced PL intensity of the Cu2O/g-C3N4-0.2 MPH indicates that the formation of the heterojunction effectively suppresses the recombination of photo-generated charge carriers, leading to higher charge separation efficiency at the interface and enhancing the photocatalytic performance of the heterojunction. Figure 3d shows the EIS results of Cu2O MCs, g-C3N4 NSs, and the Cu2O/g-C3N4-0.2 MPH, where a smaller Nyquist arc indicates a higher charge transfer rate at the interface. The Nyquist arc radius of the Cu2O/g-C3N4-0.2 MPH is significantly smaller than those of Cu2O MCs and g-C3N4 NSs, suggesting enhanced conductivity and reduced charge transfer resistance. This superior electrochemical performance contributes to the improved photocatalytic efficiency of the heterojunction.

SERS detection

Figure 4a presents the preliminary evaluation of the SERS performance of Cu2O MCs, Cu2O RMCs, Cu2O TMCs, Cu2O/g-C3N4-(0.1–0.5) MPHs using 4-ATP as the probe molecule. The results demonstrate that all monomeric Cu2O with different morphologies and Cu2O/g-C3N4 MPHs exhibit SERS activity, with the Cu2O/g-C3N4-0.2 MPH displaying the highest SERS signal intensity at 1438 cm−1, indicating superior performance (Fig. 4b). The high Raman activity of the Cu2O/g-C3N4-0.2 substrate is primarily attributed to its mesoporous structure and large specific surface area (as shown in Fig. 1c), its enhanced light absorption properties (as shown in Fig. 3a), and its excellent charge separation and transport efficiency (as shown in Fig. 3b–d). The calculated enhancement factor (EF) for the Cu2O/g-C3N4-0.2 substrate is 2.43 × 106. The method for calculating the enhancement factor, along with the relevant parameters and data, can be found in the supporting literature35,36.

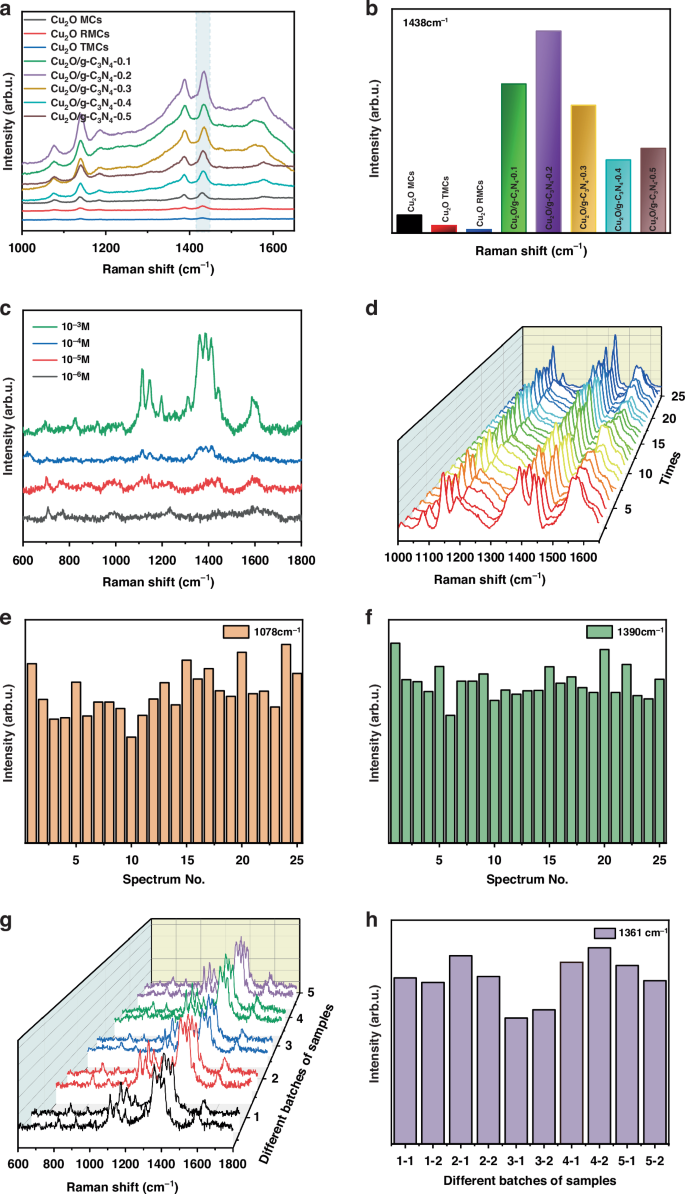

Fig. 4: SERS performance of prepared samples.
figure 4

a SERS spectra of 4-ATP adsorbed on Cu2O MCs, Cu2O RMCs, Cu2O TMCs, Cu2O/g-C3N4-0.1–0.5 MPHs. b SERS signal intensity at 1438 cm−1. c SERS spectra of Cu2O/g-C3N4-0.2 MPH detecting MO at concentrations of 10-3 M and 10⁻6 M. d 3D SERS spectra for 25 points on 4-ATP using the Cu2O/g-C3N4-0.2 MPH. e, f The intensity deviation histograms for SERS intensity at 1078 cm−1 and 1390 cm−1 across the 25 points, respectively. g 3D SERS spectra obtained from separate measurements of MO using five batches of Cu2O/g-C3N4-0.2 MPH prepared at different times. h The intensity deviation histograms at 1361 cm−1, illustrating the variation in peak intensity across the five batches

Full size image

To explore the practical application potential of the Cu2O/g-C3N4-0.2 substrate as a SERS sensor, it was used for the detection of the dye methyl orange (MO). As shown in Fig. 4c, the peaks at 1120 cm−1, 1194 cm−1, 1361 cm−1, 1389 cm−1, and 1418 cm−1 are attributed to δ(C-C), υ(=N-Ph2), υ(Ph-N), υ(N = N) and υ((C-)SO2(-O)), and υ(C-C)37, respectively, demonstrating that the Cu2O/g-C3N4-0.2 SERS sensor can successfully detect MO. Furthermore, as the concentration of MO decreases, the SERS intensity of the Cu2O/g-C3N4-0.2 SERS sensor decreases significantly weakens, with a minimum detection limit of 10⁻6 M. In addition, substrate uniformity is a critical parameter for ensuring the reliability of a SERS sensor.

To assess the uniformity of the Cu2O/g-C3N4-0.2 SERS sensor, 25 random points on the substrate were selected for SERS measurements. As shown in Fig. 4d, the SERS spectra of 4-ATP from these 25 points reveal no significant variation in peak positions. The relative standard deviations (RSD) of the peaks at 1078 cm-1 and 1390 cm-1 were calculated to be 14.9% and 9.8% (Fig. 4e-f), respectively, both less than 15%38, indicating that the Cu2O/g-C3N4-0.2 SERS sensor possesses excellent uniformity.

To assess the reproducibility and reliability of the Cu2O/g-C3N4-0.2 SERS sensor, five additional experimental batches were prepared and tested for MO detection. Figure 4g, h displays the 3D SERS spectra obtained from two separate measurements of MO using these five batches prepared at different times, as well as the intensity of the peak at 1361 cm⁻¹. As shown in Fig. 4g, the peak positions across all batches are highly consistent, with no significant shifts observed. Figure 4h illustrates that the RSD of the peak intensity at 1361 cm⁻¹ in the MO spectra was calculated to be 7.4%. These findings highlight the excellent reproducibility and reliability of Cu2O/g-C3N4-0.2 MPH as a highly effective SERS sensor for MO detection.

Photocatalytic performance

The preliminary evaluation of the photocatalytic performance of the Cu2O MCs, Cu2O RMCs, Cu2O TMCs and Cu2O/g-C3N4-(0.1–0.5) MPHs was assessed by degrading MO under visible light. The samples were stirred in the dark for 30 minutes prior to illumination to establish adsorption-desorption equilibrium. As illustrated in Fig. 5a, the photocatalytic degradation efficiencies of Cu2O MCs, Cu2O RMCs, Cu2O TMCs and g-C3N4 NSs are 14.5%, 10.0%, 5.1%, and 15.11%, respectively, while those of the Cu2O/g-C3N4-(0.1–0.5) MPHs are 79.2%, 98.3%, 81.2%, 87.0%, and 76.6%, respectively. The photocatalytic degradation efficiencies of the Cu2O/g-C3N4 (0.1-0.5) MPHs are significantly higher than those of the individual Cu2O samples with three different morphologies and g-C3N4 NSs, with the Cu2O/g-C3N4-0.2 MPH exhibiting the best performance, achieving a degradation efficiency that is 8 times higher than that of Cu2O MCs. This significant improvement is attributed to the synergistic effect between Cu2O MCs and g-C3N4 NSs, which effectively promotes the separation of photo-generated electron-hole pairs, thereby enhancing photocatalytic activity.

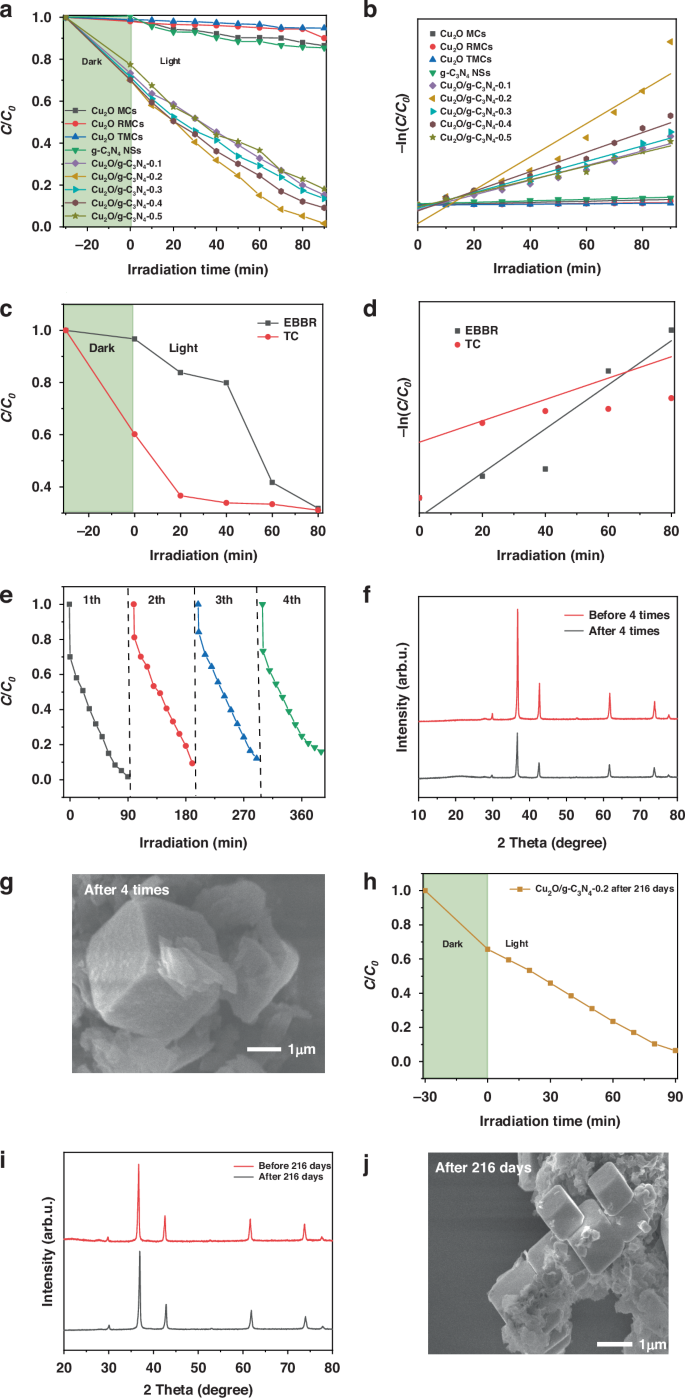

Fig. 5: Photocatalytic activity of prepared samples.
figure 5

a photocatalytic activity of the Cu2O MCs, Cu2O RMCs, Cu2O TMCs, g-C3N4 NSs, Cu2O/g-C3N4-0.1–0.5 MPHs for MO degradation under visible light and (b) their pseudo-first-order kinetics. c The photocatalytic performance of the Cu2O/g-C3N4-0.2 MPH for EBBR and TC degradation and (d) their kinetics. e The four-cycle MO degradation test using Cu2O/g-C3N4-0.2 MPH. f XRD patterns of Cu2O/g-C3N4-0.2 MPH before and after cycling. g SEM image of Cu2O/g-C3N4-0.2 MPH after four cycles. h The photocatalytic degradation curve of MO by Cu2O/g-C3N4-0.2 MPH after 216 days, and i-j XRD and SEM images of Cu2O/g-C3N4-0.2 MPH after photocatalysis at 216 days

Full size image

Figure 5b demonstrates the quantitative analysis of reaction kinetics using a first-order kinetic model to determine the overall photocatalytic reaction rate. The reaction kinetics are expressed by Eq. (1):

$${{{ln}}}({C}_{t}/{C}_{0})=-{Kt}$$
(1)

where K is the degradation rate constant, C0 is the initial pollutant concentration, and Ct is the pollutant concentration at time t32. The first-order reaction rate constants for MO degradation under visible light for Cu2O MCs and Cu2O/g-C3N4-0.2 MPH were KCu2O MCs = 0.00135 min-1 and K Cu2O/g-C3N4-0.2 = 0.038 min-1, representing a nearly 28-fold enhancement. This significant improvement in the efficiency of the Cu2O/g-C3N4-0.2 MPH can be attributed to the synergistic effect between Cu2O MCs and g-C3N4 NSs. This synergy leads to more efficient separation of photo-generated electron-hole pairs, reduced charge transfer resistance, and improved anti-photocorrosion properties due to the formation of a CuO passivation layer on the material surface. Meanwhile, the Cu2O/g-C3N4-0.2 MPH was further tested for the photocatalytic degradation of eriochrome blue-black R (EBBR) and tetracycline (TC). The results showed that under visible light irradiation, the Cu2O/g-C3N4-0.2 MPH achieved degradation efficiencies of approximately 80% for EBBR and 70% TC within 80 minutes (Fig. 5c), and both followed a first-order kinetic model (Fig. 5d). These findings demonstrate that Cu2O/g-C3N4-0.2 MPH exhibits excellent visible-light photocatalytic degradation performance for multiple pollutants.

Recyclability, structural stability, morphological stability and long-term durability are critical criteria for assessing the quality of a photocatalyst in practical applications. As shown in Fig. 5e, the Cu2O/g-C3N4-0.2 MPH maintained an MO degradation efficiency of 84.0% under visible light even after four cycles. The XRD patterns showed no peak shifts or formation of new phases after cycling, with only a slight decrease in peak intensity indicating a minor reduction in crystallinity, while the morphology remained nearly unchanged (Fig. 5f, g). These results highlight the excellent recyclability, structural stability, and morphological integrity of the Cu2O/g-C3N4-0.2 MPH in photocatalytic applications. Additionally, the photocatalytic performance, structural and morphological stability of the Cu2O/g-C3N4-0.2 MPH were re-evaluated after 216 days. As shown in Fig. 5h–j, the Cu2O/g-C3N4-0.2 MPH maintained a degradation efficiency of 93.7% for degradation MO within 90 minutes under visible light irradiation. The XRD pattern displayed no impurity peaks and the SEM images confirmed that the morphology remained as a Cu2O cubic structure combined with lamellar flocculent g-C3N4. These findings confirm that the Cu2O/g-C3N4-0.2 MPH is stable, reliable, and highly efficient over time.

Photocatalytic mechanism

The band structure is crucial for a deeper understanding the interfacial transport of photo-generated charge carriers. The semiconductor types and flat band potentials (EF) of Cu2O MCs, g-C3N4 NSs and Cu2O/g-C3N4-0.2 MPH were analyzed using Mott–Schottky (M–S) curves. As shown in Fig. 6a–c, Cu2O MCs show a negative slope and g-C3N4 NSs show a positive slope, which suggests that Cu2O MCs have p-type semiconductor properties and g-C3N4 NSs have n-type semiconductor properties. Moreover, we can also get the information that the EF potentials of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH are 0.50 V, −0.48 V, and 0.35 V, respectively. These values were converted to standard hydrogen electrode (NHE) potentials according to the following equation39:

$${E}_{{NHE}}={E}_{{Ag}/{AgCl}}+0.198\,{\rm{V}}$$
(2)

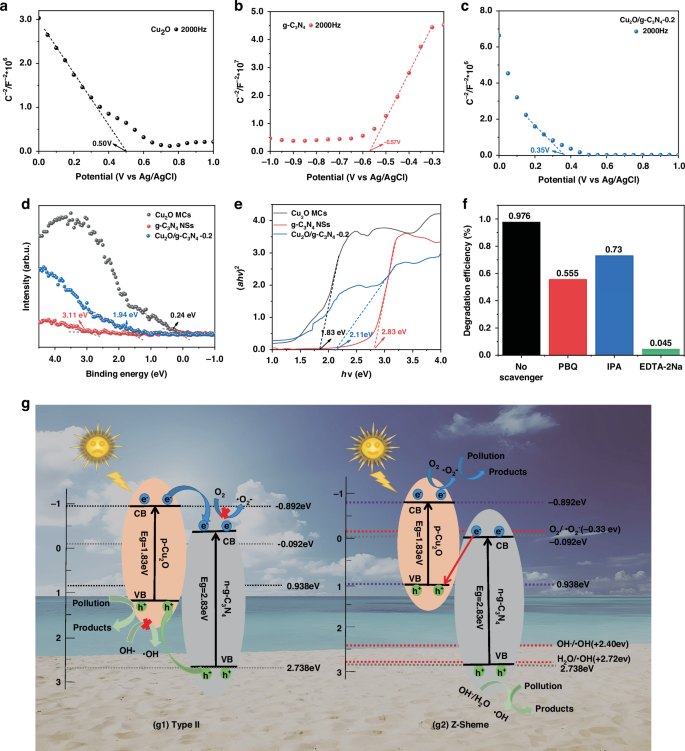

Fig. 6: photocatalytic mechanism of the Cu2O/g-C3N4-0.2 MPH.
figure 6

a–c MS spectra d XPS-VB spectra and e Tauc plots of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH. f Effects of different radical scavengers on the degradation of MO by the Cu2O/g-C3N4-0.2 MPH. g Mechanism for photocatalytic degradation of analytes with Cu2O/g-C3N4-0.2 MPH under visible light

Full size image

The calculated EF potentials of Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH are therefore 0.698 eV, -0.372 eV, and 0.548 eV vs. NHE (pH = 7.0), respectively. Furthermore, Fig. 6d illustrates that the energy differences between the valence band and EF for Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH were estimated using XPS-VB spectra, with values of 0.938 eV, 2.738 eV, and 2.488 eV, respectively. The bandgap energies (Eg) of Cu2O MCs and g-C3N4 NSs were determined using the Kubelka–Munk equation, as shown in the following equation40:

$${(\alpha h\nu )}^{1/n}=B(h\nu -{E_g})$$
(3)

Since both Cu2O MCs and g-C3N4 NSs are direct bandgap semiconductors, n is set to 1/2. As illustrated in Fig. 6e, the Eg of the Cu2O MCs and g-C3N4 NSs are found to be 1.83 eV, 2.11 eV, and 2.83 eV, respectively. According to the following formula41:

$${E}_{CB}={E}_{VB} - {E_g}$$
(4)

The conduction band (ECB) potentials of the Cu2O MCs, g-C3N4 NSs, and Cu2O/g-C3N4-0.2 MPH were calculated to be -0.892 eV, 0.378 eV, and -0.092 eV, respectively.

To further investigate the effect of different radicals on the photocatalytic degradation of MO, isopropanol (IPA), p-benzoquinone (BQ) and disodium ethylenediaminetetraacetate (EDTA-2Na) were used as scavengers to study the influence of hydroxyl radicals (·OH), superoxide radicals (·O₂⁻), and holes (h+) on the Cu2O/g-C3N4-0.2 MPH. Figure 6f shows that the photocatalytic degradation efficiency dropped from 97.6% to 72.97%, 55.48% or 4.5% after the adding of IPA, BQ or EDTA-2Na, respectively. In summary, the photocatalytic degradation of MO by the Cu2O/g-C3N4-0.2 MPH involves three types of active species: h+, ·O₂⁻, and ·OH, with h+ playing the dominant role, followed by ·O₂⁻ and ·OH.

Based on the previously described band structures and experimental results, two photocatalytic mechanisms under visible light irradiation are proposed in Fig. 6g. As depicted in Fig. 6g1, under visible light excitation, the electrons (e-) in the valence bands (VBs) of Cu2O and g-C3N4 are excited to their respective conduction bands (CBs), leaving h+ in their VBs. Subsequently, the photo-generated e- migrate from the higher-energy CB of Cu2O to the lower-energy CB of g-C3N4, while holes move from the lower-energy VB of g-C3N4 to the higher-energy VB of Cu2O. This charge transfer process represents a typical type II charge transfer mechanism. Although a type-II mechanism can facilitate efficient charge carrier separation, it is crucial to highlight that the accumulation of trapped electrons and holes may adversely affect the photocatalytic activity in terms of kinetics and thermodynamics42. Moreover, the VB of Cu2O (0.938 eV) is lower than the oxidation-reduction potentials of OH−/·OH (E = 2.40 eV vs NHE) and H₂O/·OH (E = 2.72 eV vs NHE)43, indicating that Cu2O. cannot oxidize OH⁻or H₂O. Furthermore, the CB of g-C3N4 (−0.092 eV) is more positive than the standard potential for O₂/·O₂− (E = -0.33 eV vs NHE)44, meaning it cannot reduce O₂ to generate ·O₂⁻. Consequently, in the type II charge transfer mechanism, the only active species would be h+. This contradicts the findings from the radical trapping experiments, suggesting that the type-II mechanism is not applicable in this case. Therefore, the Z-type charge transfer mechanism is proposed, as illustrated in Fig. 6g2. In this mechanism, when the n-type semiconductor g-C3N4 contacts the p-type semiconductor Cu2O, a p–n junction is formed, driving photo-generated e- in the CB of g-C3N4 to recombine with h+ in the VB of Cu2O until Fermi level equilibrium is achieved. An internal electric field is subsequently established at the interface, directed from g-C3N4 to Cu2O. This internal field effectively inhibits further recombination of e- in g-C3N4′s CB with h+ in Cu2O′s VB, simultaneously leading to the significant accumulation of e- in the CB of Cu2O and h+ in the VB of g-C3N4, thereby enhancing their powerful redox capabilities45. In this configuration, the photo-generated e− in Cu2O (−0.892 eV) possess a sufficiently negative potential to reduce O₂ to ·O₂⁻, while the h+ in g-C3N4 (2.738 eV) have a sufficiently positive potential to oxidize H₂O or OH− to ·OH. Thus, in the Z-type transfer mechanism, the active species are h+, ·OH, and ·O₂−. This aligns with the radical trapping experiments, confirming that the photocatalytic degradation mechanism follows the Z-type transfer mechanism.

SERS self-cleaning analysis

The self-cleaning performance of the Cu2O/g-C3N4-0.2 SERS sensor was evaluated by monitoring the reduction in intensity of the SERS characteristic peaks of 2,4-D, TC, MB and MO located at 704 cm−1, 1585 cm−1, 1622 cm−1 and 1361 ~ 1418 cm−1, respectively, under varying irradiation times (Fig. 7a–f). The results demonstrated that the Cu2O/g-C3N4-0.2 SERS sensor is highly sensitive in detecting individual pollutants such as 2,4-D, TC, MB, and MO. Additionally, it is also capable of accurately detecting and distinguishing mixed pollutants, including 2,4-D + MO and MO + MB mixtures. As shown in Fig. 7a–d and Fig. 7f, as irradiation time increased, the SERS signal intensities of these pollutants progressively diminished, indicating the effective degradation and removal of dye molecules adsorbed on the Cu2O/g-C3N4-0.2 SERS sensor. This observation confirms the superior photocatalytic self-cleaning capability of the sensor. Furthermore, Fig. 7d and Fig. 7f illustrate that after 180 s of irradiation, the cleaned Cu2O/g-C3N4-0.2 SERS sensor was successfully reused for MB detection. The characteristic MB peak at 1622 cm−1 reappeared clearly, further demonstrating that the Cu2O/g-C3N4-0.2 SERS sensor was fully regenerated and capable of detecting other pollutants post-cleaning. This further confirms the outstanding reusability and self-cleaning functionality of the Cu2O/g-C3N4-0.2 SERS sensor.

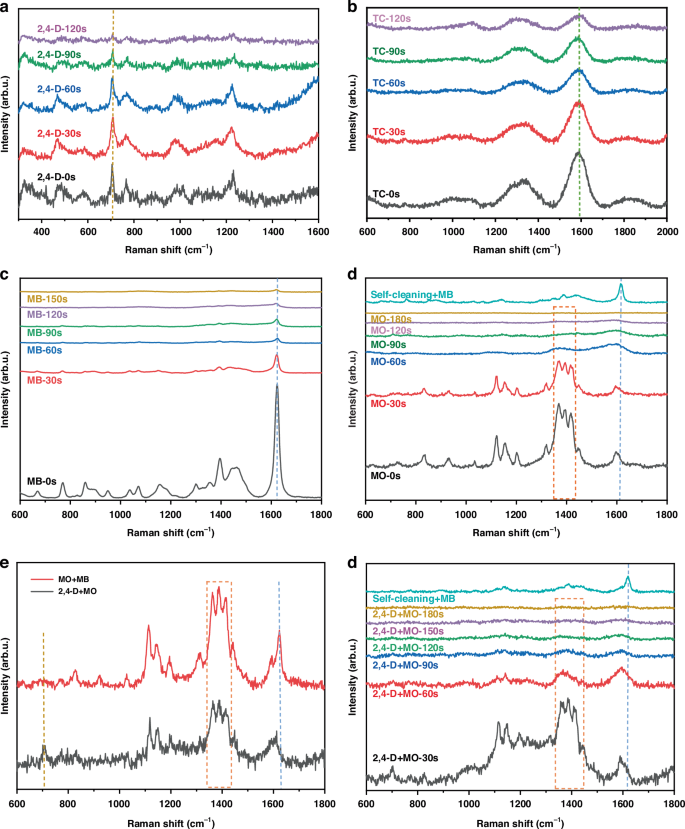

Fig. 7: The self-cleaning performance of the Cu2O/g-C3N4-0.2 SERS sensor.
figure 7

a–c SERS signal variations of 2,4-D, TC and MB (10-3 M) adsorbed on the Cu2O/g-C3N4-0.2 SERS sensor under different illumination times. d SERS signal changes of MO on the Cu2O/g-C3N4-0.2 SERS sensor with varying irradiation times, as well as the SERS signals of MB molecules detected on the SERS sensor after the self-cleaning treatment. e SERS signals of 2,4-D + MO and MO + MB adsorbed on the Cu2O/g-C3N4-0.2 SERS sensor. f SERS signal variations of 2,4-D + MO on the Cu2O/g-C3N4-0.2 SERS sensor under different illumination times, as well as the SERS signals of MB molecules detected on the sensor after the self-cleaning treatment

Full size image

To deepen the understanding of the self-cleaning and reusability mechanisms of the Cu2O/g-C3N4-0.2 SERS sensor, it is crucial to examine the physical and chemical enhancement processes that drive SERS signal amplification46,47. In plasmonic nanoparticles, these physical and chemical enhancement mechanisms typically work synergistically. However, for non-plasmonic substrates like Cu2O/g-C3N4-0.2, the SERS effect primarily stems from chemical enhancement48. Under visible light irradiation, the strong interaction between Cu2O and g-C3N4 generates numerous active sites on the Cu2O/g-C3N4-0.2 SERS sensor surface, enhancing the adsorption of target molecules. Concurrently, the Z-type heterojunction structure within the Cu2O/g-C3N4-0.2 SERS sensor facilitates efficient separation and transfer of photogenerated e− and h+, producing active radicals such as h+, ·OH, and ·O₂⁻. These radicals rapidly swiftly target and degrade organic pollutant molecules adsorbed on the surface of the SERS sensor, including MO, 2,4-D, TC, MB and their mixtures. The photocatalytic degradation process, sustained by continuous irradiation, gradually breaks down the dye molecules, leading to the complete removal of the pollutants. This process not only ensures the cleanliness of the sensor surface but also enhances its longevity. Furthermore, the efficient charge carrier separation at the heterojunction interface promotes effective charge transfer, which alters the electronic states and Raman scattering cross-sections of the adsorbed molecules, thereby further amplifying the Raman signals. Consequently, the Z-type heterojunction in the Cu2O/g-C3N4-0.2 SERS sensor not only facilitates self-cleaning through photocatalytic activity but also significantly enhances SERS signals via the charge transfer mechanism.

Conclusion

This study successfully developed a dual-functional Cu2O/g-C3N4-0.2 heterojunction system that integrates both SERS detection and photocatalytic degradation capabilities, demonstrating its potential as an efficient device for water pollution monitoring and remediation. The Cu2O/g-C3N4-0.2 SERS sensor exhibited high sensitivity with an EF of 2.43 × 106, achieving consistent and reproducible results with an RSD below 15%. Its detection capability extended to various pollutants, including MO, MB, 2,4-D, TC and their mixtures, demonstrating its high sensitivity and broad-spectrum detection potential. The Cu2O/g-C3N4-0.2 MPH also showed superior photocatalytic degradation performance, achieving 98.3% degradation efficiency for MO within 90 minutes under visible light. Remarkably, it retained an 84.0% efficiency even after four cycles and showed a long-term photocatalytic efficiency of 93.7% after 216 days, indicating excellent stability and durability. The study confirmed that the Z-type heterojunction structure plays a critical role in promoting efficient charge separation and preventing recombination, leading to the formation of active species such as h+, ·OH, and ·O₂⁻, which drive self-cleaning and photocatalytic degradation. Additionally, the interaction between Cu2O and g-C3N enhances the adsorption and interaction with target molecules, further amplifying SERS signals. Overall, the Cu2O/g-C3N4-0.2 MPH system not only provides a robust platform for pollutant SERS detection and photocatalytic degradation but also demonstrates exceptional reusability and self-cleaning capabilities. These findings provide a promising foundation for the development of multifunctional, sustainable, and efficient water quality monitoring devices.

Experimental

Experimental materials

Copper chloride (AR, CuCl2·2H2O), sodium citrate (99.0%, C6H6Na3O7·2H2O), l-ascorbic acid (>99.0%, C6H8O6), polyvinylpyrrolidone ((C6H9NO)n), and sodium hydroxide (AR, 96%, NaOH) isopropanol (IPA, AR, ≥99.5%), p-benzoquinone (PBQ), ethylenediaminetetraacetic acid disodium salt (EDTA-2Na) were supplied by Aladdin’s Reagent Co. Urea (>99.5%, H2NCONH2) and anhydrous ethanol (AR, 99%, C2H5OH) were sourced from McLean’s Reagent Co.

Preparation of composite materials

Preparation of Cu2O MCs/RMCs/TMCs

To synthesize Cu2O nanoparticles with varying morphologies, different amounts of PVP (0.55 g, 0.95 g, and 1.35 g) along with 0.1 g of C6H6Na3O7·2H2O were dissolved in 100 mL of a 0.01 M CuCl2·2H2O solution. Subsequently, 10 mL of 2 M NaOH aqueous solution was added, followed by stirring for 30 min. Following this, 10 mL of 0.6 M l-ascorbic acid was introduced, and the mixture was continuously stirred for an additional 2.5 h. The PVP concentration was found to determine the morphology of the resulting Cu2O nanoparticles: 0.55 g of PVP yielded Cu2O microcubes (MCs), 0.95 g produced rounded-edge microcubes (RMCs) and 1.35 g resulted in truncated microcubes (TMCs).

Preparation of g-C3N4 NSs

10 g of urea was placed in an alumina crucible and heated to 550°C at a rate of 10 °C/min, with the temperature maintained for 2 h in an air atmosphere. The sample was then allowed to cool naturally to room temperature before being washed three times with 0.1 M dilute sulfuric acid, followed by rinsing with deionized water. The washed sample was then dried in a vacuum oven at 80°C for 6 h. Finally, the product was ground using an agate mortar for 15 minutes to obtain pale yellow g-C3N4 nanosheets (NSs).

Preparation of Cu2O/g-C3N4 heterojunctions

Cu2O/g-C3N4 heterojunctions were prepared by combining Cu2O RMCs and g-C3N4 NSs in a total mass of 1 part, with g-C3N4 NSs comprising 0.1, 0.2, 0.3, 0.4, and 0.5 parts of the total mass, respectively. The mixtures were ground in an agate mortar while ethanol was added dropwise during a 90-minute grinding process. The resulting samples were then dried in a vacuum oven at 80°C for 6 h, yielding five distinct Cu2O/g-C3N4 heterojunctions, labeled as Cu2O/g-C3N4-0.1, Cu2O/g-C3N4-0.2, Cu2O/g-C3N4-0.3, Cu2O/g-C3N4-0.4 and Cu2O/g-C3N4-0.5.

Analytical and characterization methods

The samples’ phase structure was characterized using X-ray powder diffraction (XRD) (Bruker D2, Germany) with Cu-Kα radiation (λ = 1.5406 Å) in the 2θ range of 20°–80°. Functional groups were identified using a Shimadzu IRTracer-00 infrared absorption spectrometer in the 500–4000 cm-1 range. The morphology and elemental composition were analyzed using a Hitachi SU8010 scanning electron microscope (SEM) equipped with energy dispersive spectroscopy (EDS). Surface composition and chemical states were investigated through X-ray photoelectron spectroscopy (XPS) with monochromatic Al-Ka radiation (1486.68 eV). The optical properties were measured using UV-visible diffuse reflectance spectroscopy (DRS) with a UV-3600Plus spectrophotometer, spanning the 200–800 nm range. The specific surface area, pore volume, and pore size distribution were measured with a JW-BK200C surface and pore size analyzer (Beijing JWGB Scientific Technology Co., Ltd.). Photoluminescence (PL) spectra were obtained using a Hitachi F-7000 spectrofluorometer with a 320 nm excitation wavelength. Electrochemical measurements were performed on a CHI-760E workstation with a three-electrode system, using an Ag/AgCl reference electrode, a platinum sheet as the counter electrode, and the sample drop-coated onto a 10 mm\(\times\)10 mm conductive glass substrate. All electrochemical tests were performed in a 1 M Na2SO4 electrolyte solution. The experimental tests were conducted using a confocal Raman spectrometer manufactured by the French company HORIBA, equipped with a 532 nm laser.

Photocatalytic degradation experiments

To evaluate the photocatalytic degradation performance of Cu2O nanoparticles with different morphologies and Cu2O/g-C3N4 heterojunctions with different mass ratios under visible light, a 20 mg/L methyl orange (MO) solution was prepared. 50 mg of the Cu2O/g-C3N4-0.2 heterojunction was dissolved in 100 mL of deionized water and subjected to ultrasonic agitation for 10 min. The mixture was then stirred at 400 rpm for 30 min to reach adsorption-desorption equilibrium. The beaker was positioned 8 cm from a 300 W xenon lamp equipped with a 420 nm cutoff filter as the visible light source. The suspension was irradiated for 90 minutes, and the change in the absorption peak intensity of MO, EBBR and TC was recorded at 10-minute intervals. Approximately 1 mL of the suspension was sampled and centrifuged at each interval to determine pollutant concentration. The absorbance of the solution was measured using a UV-visible spectrophotometer. Additionally, the Cu2O/g-C3N4-0.2 sample was stored at room temperature in a vacuum drying oven for 216 days. After this period, it was retrieved and subjected to the same photocatalytic degradation experiment for MO under identical conditions to assess the sample’s long-term stability.

SERS detection

A 10-3 M 4-aminothiophenol (4-ATP) solution and a series of MO solutions with concentrations ranging from 10−3 M to 10−6 M were prepared. Five milligrams of the test material were immersed in the solutions and incubated overnight at room temperature. Then, 20 µL of the Cu2O/g-C3N4-0.2 heterojunction SERS substrate was gently dropped onto a glass slide and partially dried using a gentle air stream. The glass slide was placed on the detection stage, and the Raman signals of pollutants at different concentrations were measured using a Raman microscope. Raman spectra were collected with a 532 nm excitation wavelength, a 10x objective lens, a laser power of 15 mW, and an exposure time of 10 s.
