Introduction

Flexible electronics are becoming increasingly important with rising demands for surface-conformable and mechanically tolerant devices1. These technologies establish the stretchable interconnect and sensing platform required for mechanically resilient, high-fidelity wearable devices2,3,4,5, flexible displays6,7,8,9, medical sensors10,11,12 capable of maintaining electrical performance under mechanical deformations13,14. Consequently, the formation of reliable conductive patterns on elastomeric substrates has become a central challenge in the development of stretchable electronic systems15.

Common elastomeric substrates include polydimethylsiloxane (PDMS) and commercial polysiloxane rubbers like EcoflexTM provide high stretchability, low modulus, and biocompatibility. However, EcoflexTM’s surface energy is low (14.17 mJ m−2)16, even below Teflon’s (19.5 mJ m−2)17, hindering uniform deposition of metal films or conductive inks18. Although techniques like oxygen plasma, UV/ozone treatment, and silane primers can improve wettability, they introduce added complexity, require specialized equipment, may compromise substrate integrity, and tend to lose effectiveness over time. Direct printing of metal nanoparticle inks such as inkjet or aerosol-jet avoids lithographic masks, but they typically need thermal sintering above 150 °C, risking substrate deformation or degradation19. Liquid metal is also utilized in combination with elastomeric substrates to fabricate stretchable electronic electrodes. While these liquid metal systems exhibit impressive stretchability (>500%), they present several challenges. Due to their inherently high surface tension and propensity for oxidation, flexible electrodes based on liquid metal generally suffer from issues such as poor adhesion20,21, elevated resistivity22, and increased susceptibility to oxidation23,24.

While existing LISM techniques demonstrate feasibility as an alternative low-temperature method using activators, like Cr and Pd complexes (mixed with substrate material) and palladium or silver salts (wet-coating on the substrate surface), with electroless plating avoids thermal damage but involves activator-substrate composite preparing, generates waste and stress-prone delamination interfaces25,26,27,28, depends on expensive or toxic activators (e.g., Cr and Pd complexes29,30) and inadequately addresses long-term mechanical durability under repeated deformations31,32,33,34,35,36,37,38,39. An attempt using LISM on the EcoflexTM is performed in 202218, a conductive pattern is fabricated on a black flexible composite made of EcoflexTM and Cu2Cr2O5 powder through LISM process. However, most of the Cu2Cr2O5 powder is not utilized. Instead, it transforms the EcoflexTM from a transparent flexible material into pure black, resulting in a loss of some mechanical properties. Additionally, there is a potential risk of the Cu2Cr2O5 powder contaminating both the environment and the human body. Further comparisons of flexible electrodes produced by other methods and LISM are presented in Supplementary Tables 1 and 2. In summary, the ideal flexible electronic substrate material—EcoflexTM, urgently requires a method for electrode patterning that can ensure strong interface strength, be mask-free, non-toxic, and harmless in the process, and not alter the properties of the substrate material, while enabling rapid and free-form pattern formation. The objective of this study is to demonstrate the novel process that meets the mentioned requirements.

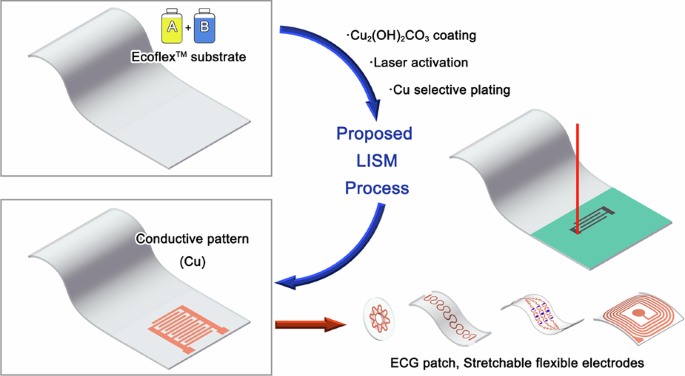

This study presents an innovative LISM approach, which offers a simple, mask-free, localized method to form freely designed metal patterns on pure polymers (not composites) at room temperature, utilizing spray-coated Cu2(OH)2CO3 as a single-step, eco-friendly activator on untreated EcoflexTM. Then, the NIR laser not only roughens the EcoflexTM surface but also directly reduces Cu2+ from Cu2(OH)2CO3 into Cu0 nanoparticles (confirmed by micro-area X-ray photoelectron spectroscopy Micro-XPS, time-of-flight secondary ion mass spectrometry ToF-SIMS), which serve as catalytic seeds for electroless copper plating (ECP). This direct laser seeding mechanism has not been demonstrated previously on pure silicone substrates. Furthermore, a sequence of ECP and electroplating (EP) produces dense, low-resistivity copper strongly adhered to an ultra-soft silicone. Notably, unreacted Cu2(OH)2CO3 activation material can be quantitatively recovered and reutilized without performance degradation across multiple processing cycles, demonstrating the approach’s inherent sustainability and material efficiency (Supplementary Movie S1).

Results and discussion

Characterization of LISM process and mechanism of laser activation

Figure 1 illustrates the proposed LISM process for creating a conductive pattern on the EcoflexTM surface. This process consists of five main steps: substrate preparation, activator spraying, laser activation, ECP, and EP, as shown in Fig. 1b. EcoflexTM 00-30 is selected as the substrate material due to its excellent stretchability, chemical stability, and biocompatibility.

Fig. 1: Schematic illustration of the laser-induced selective metallization (LISM) process.
Fig. 1: Schematic illustration of the laser-induced selective metallization (LISM) process.
Full size image

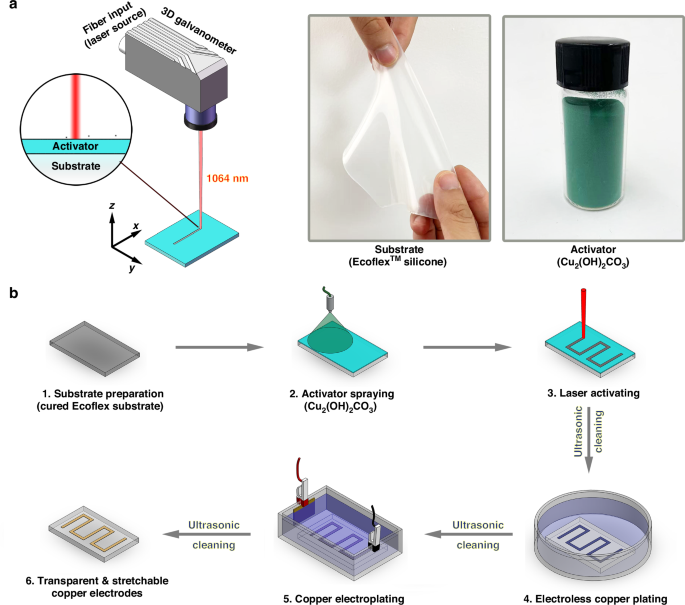

a Laser activation, featuring images of the substrate and activator in the proposed LISM. b Flowchart diagram of LISM procedure

The process begins with a pre-prepared EcoflexTM 00-30 substrate, which receives a manually sprayed layer of commercial activator to ensure uniform coverage (see Supplementary Figs. S1 and S2). Next, a 1064 nm laser irradiates the activator layer using optimized settings determined from copper deposition quality tests (see Supplementary Fig. S3). Following this, the selective metallization process starts with ECP, where a commercial bath solution is used to deposit a continuous copper layer on the areas activated by the laser through autocatalytic reduction. To further improve the thickness and conductivity of the copper layer, the sample undergoes an EP process, resulting in a denser copper layer. With the modified activator and LISM process, the laser directly irradiates the activator layer instead of the combined layer of the substrate and activator. This necessitates a deeper understanding of the laser activation process.

Copper is chosen as the primary conductive material due to its low resistivity (1.7 × 10−8 Ω m) compared to nickel (6.9 × 10−8 Ω m). The ECP-EP sequence produced adherent traces with a resistivity of 3.25 × 10−8 Ω m—significantly lower than single-step ECP layers (typically > 10−7 Ω m29). In addition, copper creates less interfacial stress with EcoflexTM, reducing the risk of delamination during deformation. While nickel may have advantages in terms of oxidation resistance, etc., selective nickel plating can be applied after ECP for other functions if needed.

Comparative analysis of the substrate surface profiles before and after laser activation reveals significant changes in surface roughness parameters. Specifically, the surface becomes noticeably rougher following laser activation. The variation of surface roughness (Sa and Sq) with laser output energy is shown in Supplementary Fig. S4a, b. A more detailed view of the activated area is presented in Fig. 2e. Additionally, contact angle tests indicate that the surface after laser activation exhibits a higher contact angle, as shown in Supplementary Fig. S4c, d. This suggests improved hydrophobicity of the activated surface.

Fig. 2: Multiscale characterizations of the copper deposition process.
Fig. 2: Multiscale characterizations of the copper deposition process.
Full size image

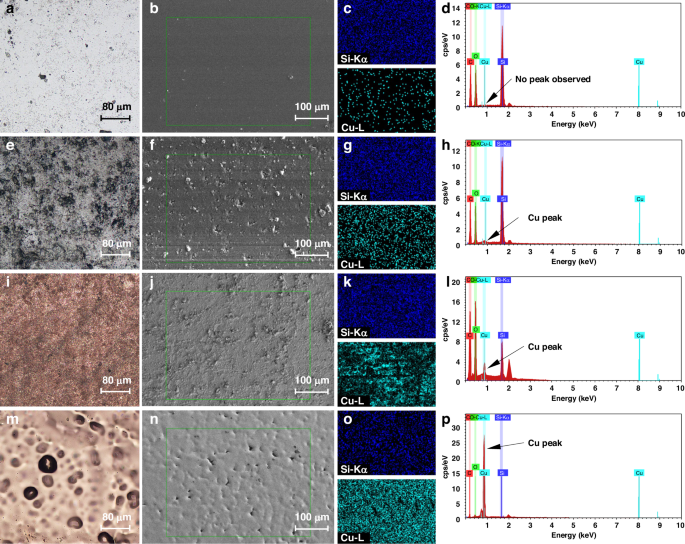

a Surface before laser activation. b FE-SEM image of substrate surfaces before laser activation. c EDS element mapping before laser activation. d EDS spectrum prior to laser activation. e Surface after laser activation. f FE-SEM image of substrate surfaces after laser activation. g EDS element mapping after laser activation. h EDS spectrum after laser activation. i Surface after ECP. j FE-SEM image of substrate surfaces after ECP. k EDS element mapping after ECP. l EDS spectrum after ECP. m Surface after EP. n FE-SEM image of substrate surfaces after EP. o EDS element mapping after EP. p EDS spectrum after EP

As shown in Fig. 2a, e, laser activation results in the ablation and alteration of material at the substrate’s surface, leading to a rougher texture. This change in surface morphology enhances the substrate’s ability to bond with subsequent coatings. After the ECP process, a thin copper layer forms on the laser-activated area, as illustrated in Fig. 2i. While this layer is electrically conductive, it has numerous microcracks and defects (see Supplementary Fig. S5), making it thin and fragile. Therefore, increasing its thickness is essential.

Figure 2m displays the surface after EP, where a thicker copper layer is evident. Although some defects remain, they do not significantly affect the electrochemical or mechanical properties of the copper layer. The fabrication process allows us to categorize the substrate surface into four distinct stages: before laser activation, after laser activation, after ECP, and after EP. The final thickness of the copper layer, achieved at the end of the LISM process, is approximately 32 μm (see Supplementary Fig. S6).

To evaluate the bond strength between the copper layer and the substrate, a cross-cut test is conducted (Supplementary Fig. S7a, b). The test result, 5B indicates a strong interfacial bond at the copper-EcoflexTM interface. Peel tests are also conducted, with results presented in Supplementary Fig. S7d. The peel strength between the copper trace and the substrate is measured at 460 N/m. For comparison, the peel strengths of two metal-based electrodes (Al-PVDF and Al-PU) with different binders are 53 N/m and 72 N/m, respectively40. The proposed LISM technique creates interlocking anchors within the EcoflexTM substrate, ensuring a strong and reliable bond between the copper layer and the substrate. For the serpentine design of the copper trace, the enhanced interface strength significantly improves the electrode’s stretchability and durability.

During the ECP and EP processes, copper is deposited in-situ on the rough surfaces, leading to the formation of strong bonds and connections with the textured substrate. The limits of pattern width and minimum spacing are approximately 160 µm and 130 µm, respectively, as shown in Supplementary Fig. S8. While the physical and chemical changes during the ECP and EP stages are well understood, it is crucial to investigate the changes occurring during the laser activation process. The substrate surfaces at various stages are examined using field emission scanning electron microscope (FE-SEM) and analyzed through energy-dispersive X-ray spectroscopy (EDS). Figure 2b, f, j, n presents FE-SEM images of the substrate surface at four stages: before laser activation, after laser activation, after ECP, and after EP, respectively. Figure 2b serves as a reference for the substrate’s surface, while Fig. 2f illustrates the rougher texture resulting from laser activation. Figure 2j, n shows the surface after ECP and EP, respectively. Figure 2c, g, k, o displays the corresponding EDS element mappings for silicon (Si) and copper (Cu) at each stage, covering the same area as the FE-SEM images. Additionally, Fig. 2d, h, l, p presents the EDS spectra for each stage.

Before laser activation, no significant copper distribution or Cu peak is observed, as shown in Fig. 2c, d. However, Fig. 2g indicates the presence of copper after laser activation, with a corresponding Cu peak in Fig. 2h. After ECP, Fig. 2k, l reveals increased copper deposition and a stronger Cu peak in both the element mapping and spectrum, confirming the formation of a copper layer with numerous defects on the rough substrate surface, as seen in Fig. 2i, j. Finally, Fig. 2o presents the element mapping after EP, showing denser copper deposition and a significant reduction in the Si element, while Fig. 2p displays the spectrum after EP, confirming the successful deposition of a complete copper layer, as observed in the optical and SEM images shown in Fig. 2m, n.

The Time-of-Flight secondary ion mass spectrometer (TOF-SIMS, ION TOF Model 5-100) is used to analyze the elemental composition of the substrate surface, specifically focusing on the effect of laser activation. Figure 3a shows the intensity sputter profiles of positive ions before and after laser activation on the substrate surface. Notably, Cu+ and 65Cu+ ions are detected following the laser activation. Figure 3b presents the TOF-SIMS mass spectrum, where peaks at mass-to-charge ratios around 62.9 and 64.9 are observed after laser activation, confirming the presence of Cu+ and 65Cu+ ions.

Fig. 3: Surface characterization before and after laser activation.
Fig. 3: Surface characterization before and after laser activation.
Full size image

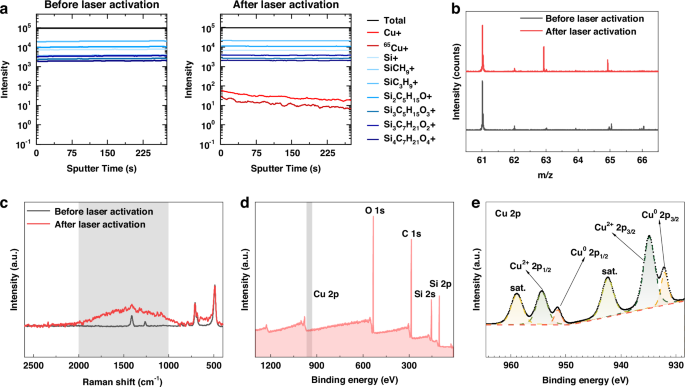

a Corresponding intensity sputter profiles of positive ions prior to laser activation and following laser activation measured by TOF-SIMS. b Mass spectrum obtained by TOF-SIMS of the surface before and after laser activation. c Micro-Raman spectra of the surface before and after laser activation. d XPS survey spectra of the surface after laser activation. e Cu 2p XPS spectra of the surface after laser activation

Micro-XPS spectra are obtained to investigate the valence of the copper element. Figure 3d shows the XPS survey spectra corresponding to the surface after laser activation and Fig. 3e shows the high-resolution Cu 2p XPS spectrum. The result is fitted using a Lorentzian-Gaussian function, with fitting peaks depicted as dashed lines and the raw data as a dotted line. This fitting process allows for a more accurate analysis of the spectral peaks. The spectrum reveals prominent Cu 2p1/2 and Cu 2p3/2 attributed to Cu2+ appear at 954.0 eV and 934.5 eV, respectively, along with the associated shake-up satellite peaks in the ranges of 957–963 eV and 938–945 eV. Notably, two peaks corresponding to Cu0 are observed, with Cu 2p1/2 and Cu 2p3/2 at 951.2 eV and 931.6 eV, respectively. The emergence of these Cu0 peaks suggests a reduction in the oxidation state of some copper atoms on the surface, which could have implications for the material’s properties and reactivity. Raman spectroscopic analysis of substrate surface is also performed. The results of Raman spectroscopic analysis for the surface before and after laser activation are shown in Fig. 3c, a broad band from 1000–2000 cm−1 is observed, which indicates the presence of amorphous carbon32.

In summary, FE-SEM imaging and EDS analysis show the presence of Cu on the substrate surface following the laser activation process. TOF-SIMS results further confirm the existence of Cu after laser activation. Additionally, Micro-XPS analysis indicates the presence of both Cu2+ and Cu0 on the laser-activated surface.

Based on Raman spectroscopy results, a potential laser activation mechanism is proposed. The activator, Cu2(OH)2CO3, absorbs the laser and generates high temperatures, causing ablation, gasification, and carbonization of the EcoflexTM substrate surface. This results in the formation of a rough surface and amorphous carbon. Concurrently, part of the Cu2+ is reduced to Cu0 due to laser irradiation. The Cu0 acts as the seed for the ECP process, with activation completing upon the reduction of Cu2+ to Cu0. This hypothesis is consistent with previous studies in the LISM literature29,41, which indicate that laser activation transforms the activator into metallic species. These metallic species then serve as active centers to initiate the ECP42. In addition, tests with other potential activators are performed, including Multi-Walled Carbon Nanotubes (MWCNT), basic copper phosphate and stannic oxide (Supplementary Fig. S9).

Performance of silicone flexible electrodes

Electromechanical testing of LISM-fabricated electrodes employs serpentine copper traces with three distinct turn geometries: V-curved, U-curved, and S-curved (refer to Fig. 4a–c). During tensile elongation to failure, resistance is monitored simultaneously, revealing that fractures consistently occur at the stress-concentrated turnarounds. Notably, the copper-EcoflexTM interface demonstrates no signs of delamination, which confirms the effectiveness of the laser-induced micro-roughened interlocking.

Fig. 4: Three types of samples and the images of their tensile test.
Fig. 4: Three types of samples and the images of their tensile test.
Full size image

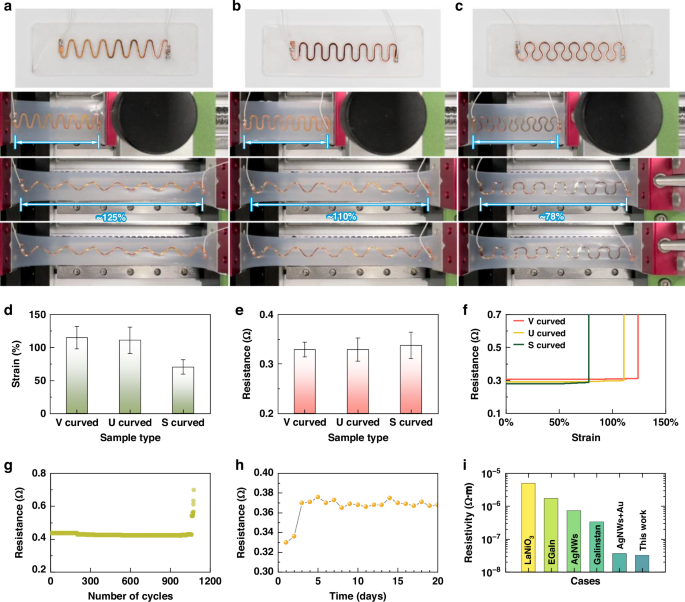

a The V-curved sample. b The U-curved sample. c The S-curved sample. d Maximum strain for V-curved, U-curved and S-curved samples in average. e Average resistance for V-curved, U-curved and S-curved samples. f Resistance changes during tensile testing of V-curved, U-curved and S-curved samples. g Resistance of the V-curved sample versus the tensile cycles. h Resistance of unencapsulated samples as a function of time (days). i Comparison of the resistivity regarding commonly reported

Furthermore, Fig. 4d, e demonstrates the average maximum strain and resistance for V-curved, U-curved, and S-curved samples. The V-curved electrodes achieve a maximum strain of 125% (see Fig. 4d), a significant enhancement made possible by the serpentine design and the LISM process. This improvement stands in contrast to the inherent ductility of copper, which typically fractures at strains below 5%43. During the stretching process, the change in resistance for all three types of samples remains minimal until complete rupture, as shown in Fig. 4f. Electrical stability is quantified during cyclic tensile fatigue testing (30% strain, 1083 cycles) on V-curved samples. Before 1050 cycles, the resistance fluctuates around 2%, but in the last few cycles, it increases sharply until fracture (Fig. 4g). Figure 4h illustrates the resistance of unencapsulated samples as a function of time when exposed to open air, the resistance increases rapidly initially, then stabilizes. The results of bending and twisting tests for electrical stability are shown in Supplementary Fig. S10. This observation highlights the ability of the LISM-fabricated electrodes to effectively handle mechanical stress, suggesting their suitability for applications that require flexibility and durability.

The resistivity ρ of LISM-fabricated traces is calculated using Eq. 1 as follows:

$$\rho =R\times \frac{A}{L}$$
(1)

where R is the resistance, A is the cross-sectional area of the circuit trace and L is the length of the circuit trace. The measured average resistivity of the circuit trace is 3.25 × 10−8 Ω m, while not reaching the resistivity of pure copper (1.7 × 10−8 Ω m), is significantly lower than that of conductive traces made from LaNiO344, liquid metal Galinstan45, EGaIn22, silver nanowire Ag NW46, and Ag NW with Au thin film47, as illustrated in Fig. 4i. Further tests to evaluate the durability of silicone flexible electrodes, including strain sweep tests, thermal aging, and sweat corrosion, are presented in Supplementary Figs. S12 and S13.

Application of silicone flexible electrodes

The flexible and stretchable electrodes produced through the LISM process have a wide range of applications, including electrocardiogram (ECG) patches, LED lights, and antennas. Using the LISM procedure, an ECG patch is designed and fabricated with a conductive pattern on a round, transparent EcoflexTM film. A central through-hole via allows copper traces to pass through and connect to soldering pads on the opposite side, facilitating interlayer connections without introducing soldering-induced stress. This patch works in conjunction with the customized ECG data acquisition device to create a three-lead ECG monitoring system, operating at a sampling rate of 0.32 kHz. As illustrated in Fig. 5a, b, when applied to specific locations on the torso of a 26-year-old healthy male, the Cu/EcoflexTM ECG patch adheres closely to the skin, minimizing foreign body sensation and discomfort. Figure 5c displays the ECG signals obtained over a 30-minutes period, with a detailed analysis of a single pulse revealing excellent signal integrity that allows for clear distinction of characteristic waveforms, including the P wave, R wave, and S wave. The direct fabrication of the patch on biocompatible EcoflexTM proves advantageous, as it eliminates the need for interfacial adhesives that can degrade signal quality. Additionally, Fig. 5d shows the comparison of ECG signals obtained under two conditions “Resting” and “Slow walking”. As a result of motion, the signal exhibits slight baseline drift and noise, but the overall integrity remains good, and the ECG signal with good quality can still be reconstructed through simple filtering. It suggests that the patch could provide an option for collecting ECG signals during mild skin deformation (<10% strain) associated with normal movement, demonstrating exceptional comfort, skin compatibility, and effective signal collection. A further comparison between the proposed ECG monitoring system and a commercial ECG monitoring system is shown in Supplementary Fig. S11.

Fig. 5: Applications for ECG monitoring and flexible and stretchable silicone circuit.
Fig. 5: Applications for ECG monitoring and flexible and stretchable silicone circuit.
Full size image

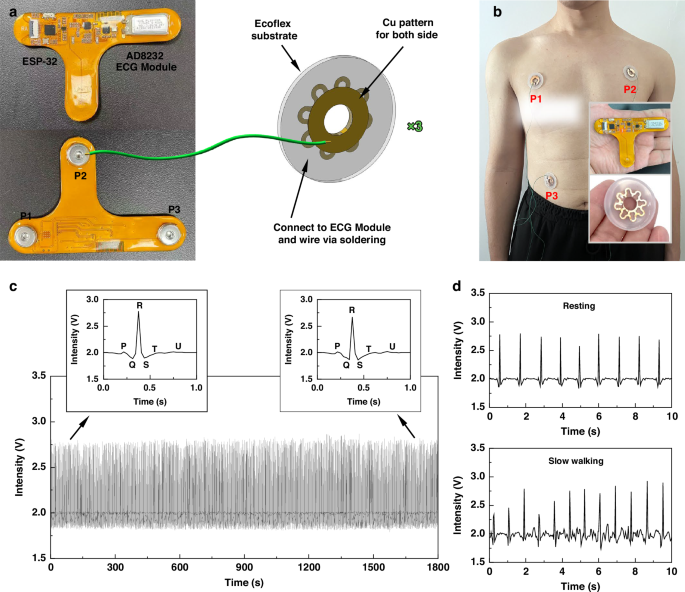

a The three-lead ECG monitoring system for basic ECG monitoring with ECG patch fabricated by proposed LISM. b Positions for ECG patches on the torso of a healthy male. c The ECG signals in 30 minutes that obtained from proposed ECG monitoring system. d The ECG signals for both “resting” and “slow walking” condition

Furthermore, a silicone circuit featuring curved traces and nine blue LEDs is designed and fabricated using the proposed LISM, as shown in Supplementary Fig. S14a. The LEDs are soldered in parallel on the circuit and the serpentine circuit sustains up to 30% bending and stretching without any dimming of the LEDs (Supplementary Movie S2), highlighting its stability under dynamic deformation. In addition to ECG patches and LED circuits, the LISM method enables the fabrication of various flexible electronic devices tailored to different application scenarios, such as flexible antennas. Supplementary Fig. S14b–d and Supplementary Movie S3 characterize a bendable wireless-charging antenna. The two antennas, functioning as the transmitting and receiving ends, can be simultaneously attached to the surface of a cylinder to transmit electrical energy. In Supplementary Movie S3, two bending conditions are shown for both transmitting and receiving ends: one with the antennas bent in the same direction (transmitting antenna curvature radius: 30 mm, receiving antenna curvature radius: 40 mm), and the other with the antennas bent in opposite directions (curvature radius of both antennas: 50 mm). This flexibility highlights the potential of LISM in advancing flexible electronics across various applications.

In reported studies, completing the LISM process typically only involved ECP. However, in our proposed LISM process, an EP step is added after ECP. This modification is necessary because the copper layer obtained through ECP alone did not exhibit optimal electrical and mechanical properties. Microscopic observations reveal numerous cracks, and the resistance is relatively high. While attempts to extend the ECP time exhibit some improvement, they also increase the risk of coating degradation, including the attachment of free-floating copper particles to the copper layer’s surface. Therefore, we introduce the EP process, which resulted in a copper layer with improved thickness and enhanced electrical and mechanical properties. The difference in performance of the copper layer after ECP regarding the present study and other reported studies may be attributed to the differences in the usage method of the activator. In comparison to the mixed activator combined with the base material, the activator coating that consists solely of the activator on the surface results in a lower nucleation density for copper crystallization following the laser activation process. This reduced nucleation density leads to a less compact copper layer being deposited on the activated surface48.

Conclusions and outlook

We demonstrate an updated LISM for fabricating flexible and stretchable copper electrodes directly onto EcoflexTM substrates. An eco-friendly Cu2(OH)2CO3 spray-coating is converted via laser processing to create micro-roughened carbonaceous surfaces and catalytic Cu0 sites. Subsequent ECP/EP produces highly conductive copper traces (≈3.25 × 10−8 Ω m) mechanically interlocked at the substrate interface, achieving 460 N/m peel strength and 5B adhesion. This architecture enables minimal resistance drift (<2.0%) under strain and sustains performance through 1000 stretch-release cycles at 30% strain. Serpentine designs attain 125% strain tolerance via geometric optimization rather than intrinsic copper ductility. Functional applications—including ECG patches with high-fidelity and skin conformality, stretchable/foldable LED arrays, and a wireless antenna—operate stably during deformation without toxic precursors or thermal sintering. While advancing the fabrication of flexible electrodes with an emphasis on simplicity and sustainability, future work will concentrate on several key areas. First, efforts will be directed toward addressing copper’s susceptibility to oxidation by developing oxidation-resistant coatings or conformal encapsulation strategies. Additionally, although we have a preliminary understanding that the proposed method can be roughly applied to PDMS, thermoplastic polyurethane (TPU), and polyimide (PI), the research will evaluate environmental stability for wearable applications, expanding the range of substrate materials. Finally, the study aims to scale the fabrication process for complex multi-layer circuits while integrating additional functional materials, thereby enhancing the overall performance and versatility of the electrodes.

Experimental section

Fabrication of activator-coated EcoflexTM substrates

EcoflexTM 00-30 platinum-cure silicone rubber (Smooth-On Inc.) serves as the substrate. Part A and Part B are mixed following manufacturer instructions, poured into an aluminum mold, and cured 24 h to form soft, stretchable films with a minimum 0.4 mm thickness. Copper carbonate hydroxide (Cu2(OH)2CO3, particle size 30–50 μm; Shanghai Macklin Biochemical Technology Co., Ltd) is applied as an activator via a commercial powder spraying system, achieving a controlled dosage of 11.5 mg/cm².

Laser-activated metallization

The activator layer is selectively irradiated using a pulsed near-infrared (NIR) laser scanning system (LRDB-FIB30, Xi’an Langrui) with a wavelength of 1064 nm, spot size of 50 μm, pulse duration of 20 ns, and adjustable power (0–30 W). Optimized parameters include a laser frequency of 40 kHz, output power of 10 W, and scanning speed of 1200 mm/s. After irradiation, ultrasonic cleaning then removes residual activator for reuse, the detailed process of reusing activator is shown in Supplementary Movie S1.

Selective metallization process

Following the laser activation, the substrate undergoes ECP using a commercial solution (Q/YS.118 A/B; Guangzhou Yi Shun Chemical Co., Ltd) at 45 °C and pH of 12.8 for 20 minutes. This process deposits a thin copper layer (approximately 21.3 μm) on irradiated regions. To enhance thickness, EP is performed using solution Q/YS.138 at room temperature. A copper anode and the sample (cathode) are subjected to a constant current of 0.2 A for 20 minutes and the copper layer reaches 31.3 μm thickness. The thickness of the copper layer is measured by Bruker Dektak XT step profilometry. Final ultrasonic cleaning eliminates residual processing compounds.

Characterization of interfacial properties, mechanical and electrical properties

Characterization of the substrate surface at different stages is performed by scanning electron microscopy surface imaging (SEM, ZEISS Gemini SEM 300), energy-dispersive X-ray spectroscopy (EDS, ZEISS Gemini SEM 300), Raman spectroscopy (Renishaw-inVia, 785 nm laser), and Micro-XPS (Thermo Fisher K-Alpha). The interfacial adhesion strength between copper traces and EcoflexTM is quantified via cross-cut tests (ASTM D3359-23 Method B) and peel tests, yielding an average peel strength of 460 N/m. Uniaxial tensile tests employs a custom ZSL-1200 mechanical testing platform (Yangling Zishi Electronic Technology Co.), stretching samples at 10 mm/min while monitoring resistance in real time. For cyclic durability, S-curved traces underwent 1000 stretching cycles at 30% strain. Electrical resistivity is measured using a Keithley DMM6500 6.5-digit multimeter.

Application devices manufacturing

ECG patches utilize proposed LISM to generate conductive patterns on 1.5 mm thick circular EcoflexTM films with central through-holes for vertical interconnects. AWG 30 wires are soldered to copper traces, interfacing with AD8232 ECG signal conditioning modules and ESP-32 microcontrollers. Three-lead systems acquire signals from human subjects (26-year-old male tested at 0.32 kHz sampling). LED arrays and wireless antennas—soldered onto LISM-patterned circuitry—maintain functionality under mechanical deformations.
