Introduction

The ferroelectric photovoltaic (PV) effect has gained widespread attention in the past decade1,2,3,4,5 because of its promising applications in solar energy harvesting6,7,8, self-powered photodetection9,10, and information storage11,12. Ferroelectric PVs exhibit many appealing features that are unavailable in conventional PVs, such as switchable photoresponse13,14, above-bandgap photovoltage15, and light polarization-dependent photocurrent16. Recently, great advances in boosting the power conversion efficiencies (PCEs) of ferroelectric PVs have been achieved, including the attainment of PCEs as high as 8.1% in Bi2FeCrO6 multilayered films with narrowed bandgaps (~1.4 eV)6 and the demonstration of PCE exceeding the Shockley–Queisser limit in BaTiO3 single crystals17. Interestingly, the high PCEs (>1%) of ferroelectric PVs were achieved mostly in thick films6,18, composite films19,20,21, and bulk crystals17, all of which have large thicknesses (several hundred nanometers and above). In these systems, severe recombination may occur because ferroelectrics have fundamentally low carrier mobilities and short lifetimes. Hence, reducing the thickness may further improve the PCEs if the reduced recombination could overcompensate for the loss in light absorption. Therefore, the investigation of the PV performances of ferroelectric ultrathin films (a few tens of nanometers and below) is of interest.

A PCE of up to ~18.7% has been theoretically predicted to exist in 8-nm La-doped Pb(Zr,Ti)O3 (PZT) ultrathin films22. However, experiments have shown that only PCEs much lower than 1% were obtained in PZT22, BiFeO3 (BFO)23, and BaTiO3 (BTO)24 ultrathin films. There is apparently a large gap between the predicted and experimental PCEs, and narrowing this gap forms the motivation of this work.

To realize high PCEs in ferroelectric ultrathin films, it is necessary to understand the PV mechanisms beforehand. Below, we will highlight several widely accepted PV mechanisms discovered in ferroelectric films:

  1. i.

    Bulk photovoltaic effect (BPVE). The BPVE manifests itself as a steady photocurrent generated in the homogeneous bulk region, which originates from the lattice noncentrosymmetry-induced asymmetric momentum distribution of photoexcited carriers24,25,26,27.

  2. ii.

    Depolarization field (Edp) effect. The Edp, which arises from the incomplete screening of polarization and exists across the whole film, can drive the separation of photoexcited carriers28,29.

  3. iii.

    Schottky barrier effect. A Schottky barrier is generally formed at the ferroelectric/electrode interface, and the barrier height and width can be modulated by polarization. The built-in field (Ebi) in the depletion region provides the driving force for the PV effect30,31,32,33,34,35, similar to that in typical junction-based solar cells.

  4. iv.

    Domain wall effect. The potential step developed at an individual ferroelectric domain wall can separate the photoexcited carriers, and the photovoltages of periodically ordered domain walls are additive15,36.

Adding to the complexity of PV effects in ferroelectric films, more than one of the above mechanisms may coexist in a single ferroelectric film37,38. Nevertheless, only one mechanism is suitable for realizing high PCEs in ferroelectric ultrathin films, which can be analyzed as follows. Because the BPVE and Edp are bulk effects, the open-circuit voltage (VOC) they generate would increase with thickness25,29. The VOC generated by the domain wall effect would also scale with thickness if the density of periodically ordered domain walls is uniform along the thickness direction. It therefore seems that the BPVE, Edp, and domain wall effects are all unable to retain a sizable VOC, a prerequisite for a high PCE, in ultrathin films.

Our focus thus turns to the Schottky barrier effect, which requires only a very small region (i.e., the depletion region) to induce the PV effect. Indeed, the photoexcited carriers are most efficiently separated in the depletion region where Ebi exists. Outside the depletion region, although light absorption and carrier generation still occur, carrier recombination may dominate because of the very small diffusion lengths of ferroelectrics (typically a few nanometers)36. Therefore, for the Schottky barrier-driven PV effect, reducing the film thickness down to a value comparable with the depletion width may lead to high PCEs, i.e., ferroelectric ultrathin films may have higher PCEs than their thicker counterparts.

Herein, to implement the above strategy, we chose to investigate Pb(Zr0.2Ti0.8)O3 (PZT 20/80) epitaxial thin films. PZT 20/80 is a prototype ferroelectric exhibiting large polarization (>60 µC/cm2), n-type semiconducting characteristics39, and strong photoresponse in the ultraviolet (UV) wavelength region31. Through a combination of polarization–voltage (P–V), capacitance–voltage (C–V), and dark current–voltage (I–V) measurements on Pt/PZT/SrRuO3 (SRO) structures with different PZT thicknesses, we revealed that the Schottky barriers play significant roles in polarization switching, dielectric response, and conduction; furthermore, we extracted the Schottky barrier parameters. Then, we observed switchable PV behaviors, where VOC depends weakly on thickness and photocurrent decreases with thickness, both of which can be well described by a Schottky barrier model. Based on the experimental and modeling results, we designed and fabricated a 12-nm PZT film whose thickness was close to the depletion width and demonstrated a PCE of 2.49%, which was extremely high for such thin ferroelectrics.

Materials and methods

The PZT 20/80 films with thicknesses ranging from 4 to 300 nm were grown on SRO-buffered SrTiO3 (STO) (001) substrates using pulsed laser deposition (PLD) (KrF excimer laser, λ = 248 nm). The SRO layers (~50 nm) were first deposited on the STO substrates at a temperature of 680 °C and an oxygen pressure of 15 Pa. Subsequently, the PZT layers were grown on top of the SRO layers at a lower temperature of 600 °C and the same oxygen pressure of 15 Pa. After growth, the films were cooled to room temperature at 10 °C/min in an oxygen atmosphere of 1 atm. The Pt electrodes (diameter: ~200 µm; thickness: ~10 nm) were ex situ deposited on the PZT films by PLD through a shadow mask at room temperature and under vacuum (~10−4 Pa). To reduce leakage currents in the ultrathin PZT films, Pt top electrodes of only ~5 µm in diameter were used and deposited by PLD through a mask patterned by electron beam lithography (EBL). We used Pt rather than SRO as top electrodes in this study to achieve both good conductivity and transmittance.

The crystal structures and epitaxial qualities were examined using X-ray diffraction (XRD) and reciprocal-space mapping (RSM) (X’Pert PRO, PANalytical, The Netherlands). Piezoresponse force microscopy (PFM), conductive atomic force microscopy (C-AFM), and scanning Kelvin probe microscopy (SKPM) characterizations were performed with a commercial atomic force microscope (Cypher, Asylum Research, UK) and Pt-coated silicon tips (EFM Arrow, Nanoworld, Switzerland). The P–V hysteresis loops, C–V, and I–V characteristics were measured using a ferroelectric workstation (Precision Multiferroic, Radiant, USA), an inductance–capacitance–resistance (LCR) meter (E4980A, Agilent, USA), and a source meter (6430, Keithley, USA), respectively. Voltages were applied to the top electrode while the bottom electrode was grounded. The photovoltaic properties were measured using a setup comprising the source meter and a UV light-emitting diode (LED) (light wavelength: 365 nm). The UV light was unpolarized, and it was illuminated along the normal direction of the sample surface.

Results and discussion

Crystalline phases

Figure 1a shows the XRD θ–2θ diffraction patterns of the PZT/SRO bilayers grown on the STO substrates. The diffraction peaks all arise from the (00l) reflections of PZT, SRO, and STO, indicating epitaxial growth and good phase purity. Furthermore, the PZT (002) peak splits into two, where one peak is located at 43.59° while the other one shifts from 42.35° to 42.63° as the thickness increases from 120 to 300 nm. The peak at 43.59° corresponds to an out-of-plane lattice constant of c1 = 4.143 Å, which is quite close to that of the bulk PZT (cbulk = 4.132 Å)40. However, the peaks in the range of 42.35° to 42.63° correspond to larger lattice constants: c2 = 4.232–4.259 Å. These results suggest that our PZT films may contain two tetragonal phases: a bulk-like T1 phase that exists near the top of the film and is almost strainfree and a strained T2 phase that exists near the bottom of the film and undergoes lattice relaxation as the film becomes thicker. To obtain the in-plane structural information, the (103) RSM was performed for the 120-nm PZT film (see Fig. 1b). There are two clear diffraction spots of the PZT (103) reflection, where one spot has almost the same H-coordinate as that of STO, while the other has a smaller H-coordinate. The RSM results also suggest the coexistence of two tetragonal phases: one is highly strained with an in-plane lattice constant of a2 = 3.912 Å (i.e., the T2 phase), while the other is strain-relaxed with a1 = 3.948 Å (i.e., the T1 phase). Our observation that two tetragonal phases coexist in the PZT 20/80 epitaxial films grown on the SRO-buffered STO substrates is consistent with previous reports40,41. Notably, the strain-induced phase inhomogeneity in the PZT films will not affect the question of interest in this study (i.e., thickness reduction for potentially high PCEs) because the strained and strain-relaxed phases have similar electrical and optical properties, e.g., polarization42 (to be shown later) and bandgap43.

Fig. 1: XRD and RSM results.
Fig. 1: XRD and RSM results.
Full size image

a XRD θ–2θ scans of the PZT films with thicknesses of 120, 180, 240, and 300 nm grown on the SRO-buffered STO substrates. The inset shows the magnified (002) diffraction peaks of PZT. b RSM around the (103) reflection for the 120-nm PZT film

Microscopic characterizations of ferroelectricity

Figure 2a–d shows the surface topography, out-of-plane PFM amplitude and phase images, and local PFM hysteresis loops of a representative 120-nm PZT film. The surface of the film is quite flat, with a small roughness of only 370 pm. Upon further examination of the topography and amplitude images (Fig. 2a, b), one can see a grid of needle-like a-domains embedded into the matrix of c-domains. This type of domain structure is a typical feature of PZT 20/80 epitaxial thin films41,44,45. In addition, two square regions of 5 × 5 µm2 (outer) and 3 × 3 µm2 (inner) were electrically written with +6 V and −6 V, respectively. The resultant PFM phase image (Fig. 2c) shows that the −6 V-written region and the as-grown region have the same phase contrast, but there is a phase difference of 180° between the +6 V-written and −6 V-written regions. Therefore, the as-grown PZT film is self-polarized, in which the polarization of the dominant c-domains is upward and can be switched by writing with +6 V. In addition, the out-of-plane PFM amplitude and phase loops (Fig. 2d) exhibit a butterfly-like shape and a sharp 180° switching, respectively, confirming the ferroelectricity of the PZT film.

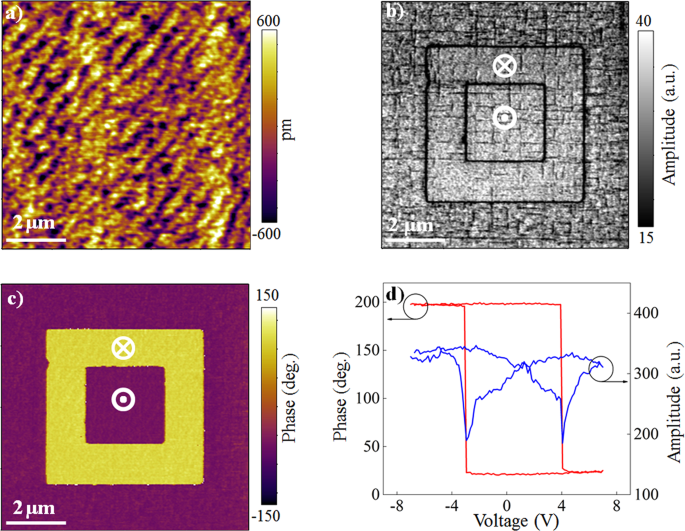

Fig. 2: Topography and nanoscale ferroelectricity.
Fig. 2: Topography and nanoscale ferroelectricity.
Full size image

a Topography, b out-of-plane PFM amplitude and c phase images, and d local PFM hysteresis loops of the 120-nm PZT film

P–V hysteresis loops

To further characterize ferroelectricity, macroscopic P–V hysteresis loops were measured for the Pt/PZT/SRO structures with PZT thicknesses of 120, 180, 240, and 300 nm. As shown in Fig. 3a, all the films exhibit square P–V loops with large remnant polarization (Pr) values up to ~80 µC/cm2. Previously, Pintilie et al.33,39,46 obtained record-high Pr values of ~100 µC/cm2 regardless of the film thickness in their defect-free PZT 20/80 epitaxial thin films. Their results are largely consistent with ours in spite of the lower Pr values in our PZT films, which may be ascribed to slightly lower crystallinity46. Recall that as the film thickness increases, the strain relaxation induces a phase transition in our PZT films. Nevertheless, Pr is found to be almost independent of thickness, which can be explained by the insensitivity of the Pb displacement to strain42.

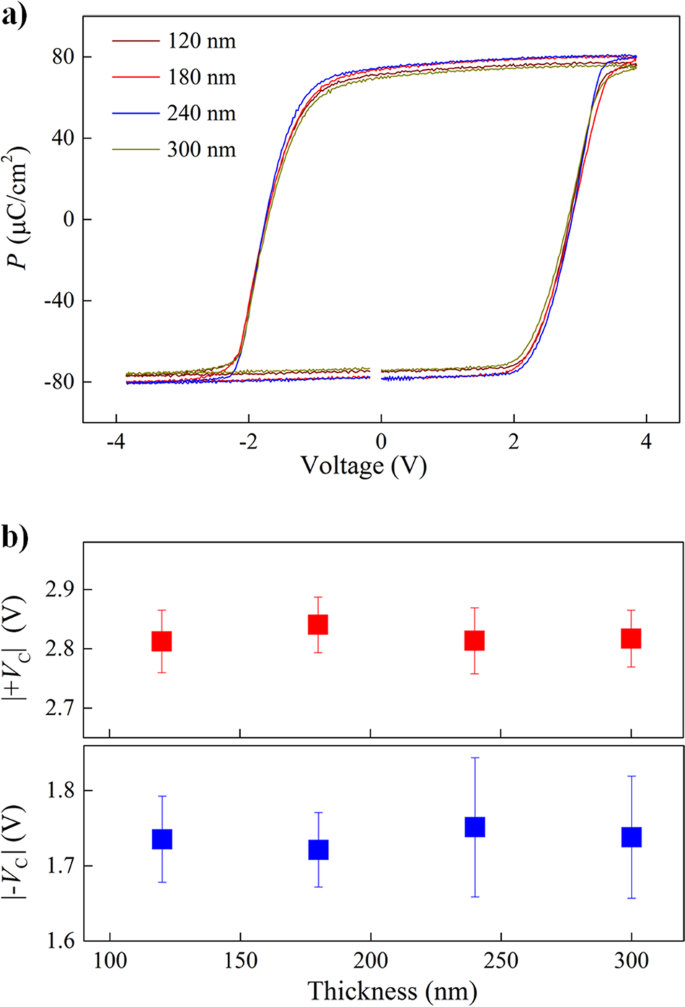

Fig. 3: Macroscopic ferroelectric properties.
Fig. 3: Macroscopic ferroelectric properties.
Full size image

a P–V hysteresis loops of Pt/PZT/SRO capacitors with different PZT thicknesses (frequency: 3.3 kHz). b Positive and negative coercive voltages as a function of thickness

Another interesting observation is that the coercive voltage (Vc) varies only slightly as the thickness increases (Fig. 3a, b), similar to other reports39,41. The weak dependence of Vc on thickness may be associated with interface-controlled domain nucleation. More specifically, the electrical field required for domain nucleation is generally much higher than that required for domain growth in ferroelectric films47,48; hence, domain nucleation is the critical step of polarization switching. On the other hand, for a metal–ferroelectric–metal (MFM) structure with two interfacial Schottky barriers, the voltage drop occurs mostly on the reverse-biased barrier rather than the bulk region. That is, the highest electric field appears at the interfacial Schottky barrier, and this field triggers domain nucleation. Therefore, Vc depends weakly on the dimension of the bulk region (i.e., the film thickness). In addition, the offset of Vc along the voltage axis (Fig. 3a) is related to the asymmetric Ebi in the top and bottom Schottky barriers (see detailed discussion in Sec. I in Supplementary Information).

C–V characteristics

The role of interfacial Schottky barriers was also probed by the C–V measurements. Figure 4a summarizes the thickness-dependent C–V characteristics. All the PZT films clearly exhibit butterfly-like C–V curves with two capacitance peaks, indicating polarization switching. Notably, the Vc values obtained from the C–V characteristics (+Vc = 1.4 V and −Vc = −1.1 V) are smaller than those obtained from the P–V loops (Fig. 3b), which is probably due to the different polarization switching dynamics in the different voltage sweeping modes (note: the DC and high-frequency AC voltages were applied in the C–V and P–V measurements, respectively). Nevertheless, the C–V characteristics show that the Vc values are largely independent of thickness and exhibit positive offsets, which is consistent with the results revealed by the P–V loops.

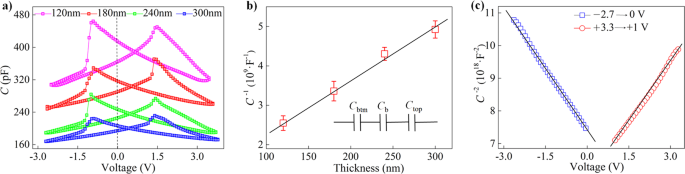

Fig. 4: Dielectric properties.
Fig. 4: Dielectric properties.
Full size image

a Thickness-dependent C–V characteristics of the PZT films. b Inverse zero-voltage capacitance as a function of thickness. c 1/C2–V relationships of a 120-nm film in the voltage regions of −2.7 V → 0 V and +3.3 V → +1 V, where the capacitance is least influenced by the polarization switching

Figure 4a also shows that the capacitance at zero voltage decreases as the film thickness increases (an average capacitance is taken if there are two intercepts on the capacitance axis). The reciprocal of the zero-voltage capacitance as a function of thickness (1/C-d) is plotted in Fig. 4b, which shows good linearity. By linearly extrapolating the 1/C-d curve to d = 0, a finite value of 1/C (9.7 × 108 F−1) is obtained. This finding indicates that there are dielectric responses from the interfacial Schottky barriers30, which is explained in detail in Sec. II in Supplementary Information.

In addition, Fig. 4a shows that capacitance continues to decrease with increasing |voltage| in the voltage regions where the polarization switching is completed (e.g., >2.5 V and <−1.5 V). This phenomenon may be attributed to the increase in the Schottky barrier width as the reverse bias increases49, further confirming the formation of Schottky barriers at both the top and bottom interfaces. Using the plots of 1/C2 versus V for a representative 120-nm film, as shown in Fig. 4c, one can estimate the free carrier concentration (nfree), an important Schottky barrier parameter (see Sec. II in Supplementary Information for details). The average value of nfree is 6.7 × 1024  m−3, which is close to the values reported for the PZT 20/80 epitaxial thin films41,50. Notably, we determined that our PZT is an n-type semiconductor (oxygen vacancies may act as donors)39; therefore, the free carriers are indeed electrons (see Fig. S1 in Supplementary Information for evidence).

Dark I–V characteristics

To gain more information about the Schottky barriers, we then investigated the conduction behavior. The dark I–V characteristics were measured for the Pt/PZT/SRO structures with PZT thicknesses of 120, 180, 240, and 300 nm. To avoid the polarization switching-induced negative differential resistance effect51, polarization was first switched to the Pdown (Pup) direction by a +4 V (−4 V) pulse, and then a DC voltage sweep of 0 → +4 V (0 → −3 V) was applied. The resultant I–V characteristics are displayed in Fig. 5a. The I–V characteristics of the PZT films with different thicknesses are surprisingly similar and are all asymmetric. This observation is consistent with that reported by Pintilie et al.39, and strongly indicates that the conduction mechanism is interface-limited rather than bulk-limited.

Fig. 5: Dark conduction behavior.
Fig. 5: Dark conduction behavior.
Full size image

a Dark I–V characteristics of the PZT films with different thicknesses. Before applying the DC voltage sweep of 0 → 4 V (0 → −3 V), the polarization was set to Pdown (Pup). b Plots of Ln(I) versus (V+V'bi)1/4 in both the positive and negative voltage regions for a 120-nm film

Furthermore, some typical interface-limited conduction models, including the Schottky emission and Fowler–Nordheim tunneling, were used to fit the experimental I–V data. The Fowler–Nordheim tunneling was excluded as the conduction mechanism, because the fitting based on this model yielded unreasonably small barrier heights. However, the Schottky emission model can fit the I–V characteristics well, as indicated by the good linearities of the Ln(I)–(V+V'bi)1/4 curves in both positive and negative voltage regions for a representative 120-nm film (see Fig. 5b). Here, V'bi is the apparent built-in voltage, and the detailed fitting procedures are presented in Sec. III in Supplementary Information. From the slopes of the Ln(I)–(V+V'bi)1/4 curves, the values of the effective charge concentration (Neff) are calculated to be 1.5 × 1027 and 4.6 × 1027 m−3 for the PZT/SRO and Pt/PZT barriers, respectively. These values are on the same order of magnitude as those reported for the PZT films50,52, and the difference in Neff between the top and bottom barriers implies a nonuniform distribution of charged defects (e.g., oxygen vacancies). In addition, the barrier heights resulting from the band alignment without considering the polarization modulation (Φ0B) can be extracted from the intercepts of the Ln(I)–(V+V′bi)1/4 curves to be 1.24 and 1.34 eV for the PZT/SRO and Pt/PZT barriers, respectively. These values are not equal to those obtained from the Schottky–Mott rule, which might be due to the Fermi-level pinning effect. (Note: the work functions of Pt and SRO are ~5.3 and ~5.2 eV, respectively. In addition, the electron affinity of PZT is ~3.5 eV53.)

Through the fittings, polarization-induced band modulation32,35,54,55,56 can also be revealed. For the PZT/SRO (Pt/PZT) barrier in the Pdown (Pup) state, the barrier is flattened with V'bi = 0. In contrast, for the PZT/SRO (Pt/PZT) barrier in the Pup (Pdown) state, the V'bi is increased to 2.28 V (2.48 V). Then, the depletion widths (W) can be calculated by

$$W = \sqrt {\frac{{2\varepsilon _0\varepsilon _{{\mathrm{st}}}(V + V\prime _{{\mathrm{bi}}})}}{{qN_{{\mathrm{eff}}}}}} ,$$
(1)

where q is the electron charge, ε0 is the vacuum permittivity, and εst is the static dielectric constant of the Pt/PZT/SRO structure. At V = 0, the W value of the PZT/SRO (Pt/PZT) barrier in the Pup (Pdown) state is estimated to be 5.4 nm (3.2 nm).

With these results, one can construct energy band diagrams for the Pt/PZT/SRO structure, as shown in Fig. 6. In the absence of polarization, two back-to-back Schottky barriers with moderate heights are formed at the PZT/SRO and Pt/PZT interfaces (bold dashed lines in Fig. 6a, b). In the Pup state, the built-in voltage of the PZT/SRO barrier is enhanced (V'bi_b = 2.28 V), and the depletion region becomes wider (Wb = 5.4 nm), while the Pt/PZT barrier is flattened (Fig. 6a). In the Pdown state, however, the reverse scenario occurs, i.e., the Pt/PZT barrier is enhanced (V'bi_t = 2.48 V and Wt = 3.2 nm), while the PZT/SRO barrier is flattened (Fig. 6b). The above Schottky barrier parameters (particularly the depletion width) provide guidance for optimizing thickness to achieve high PV performance. Before optimizing, the Schottky barrier effect should be confirmed as the major PV mechanism. The thickness-dependent PV characteristics were therefore investigated, and the results are shown below.

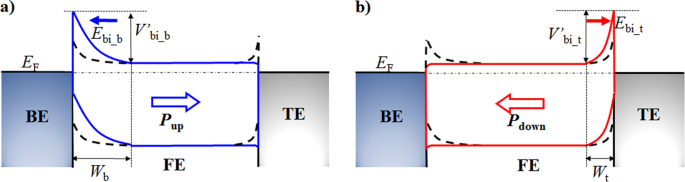

Fig. 6: Energy band modulation by polarization.
Fig. 6: Energy band modulation by polarization.
Full size image

Schematic energy band diagrams of the MFM structure in the a Pup and b Pdown states. The abbreviations BE, FE, and TE indicate the bottom electrode (SRO), ferroelectric film (PZT), and top electrode (Pt), respectively. The depletion widths of Wb and Wt are calculated to be 5.4 and 3.2 nm, respectively. The bold dashed lines indicate the energy band in the absence of polarization

Thickness-dependent PV characteristics

Figure 7a, b shows the I–V characteristics of the PZT films (120, 180, 240, and 300 nm) in the Pup and Pdown states under 365-nm UV illumination (intensity: 170 mW/cm2). Obviously, all the PZT films exhibit switchable PV behaviors, and the signs of open-circuit voltage (VOC) and short-circuit current (ISC) can be fully reversed. Table 1 summarizes the thickness-dependent VOC, ISC, JSC (i.e., ISC/A), fill factor (FF), and PCE values. VOC remains almost unchanged as thickness increases, i.e., ~−0.9 V in the Pup state and ~0.36 V in the Pdown state. JSC decreases monotonically with increasing thickness in both the Pup and Pdown states. The values of FF and PCE also show decreasing trends with thickness. The PCE value obtained in the Pup state of the 120-nm film reaches 0.51%, which is the highest among our samples. Figure 7c shows the photocurrents measured by applying cyclic ON/OFF illuminations, demonstrating that the photoresponses are fast, stable, and reproducible.

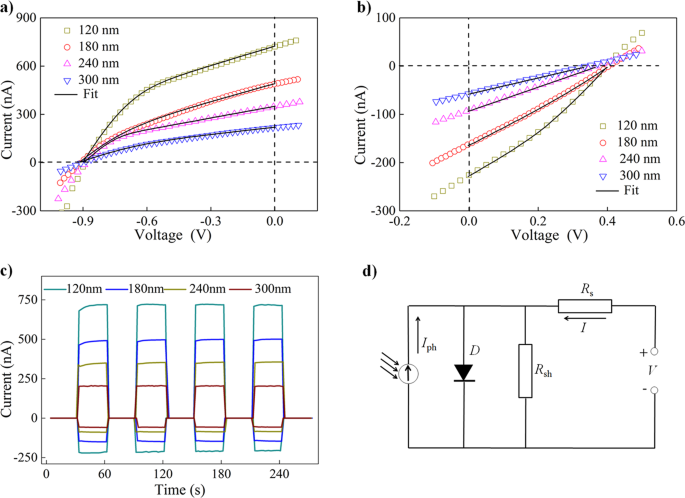

Fig. 7: Photovoltaic characteristics.
Fig. 7: Photovoltaic characteristics.
Full size image

Illuminated I–V characteristics of the PZT films (120, 180, 240, and 300 nm) in the a Pup and b Pdown states. c Time-resolved photocurrent responses of those PZT films under cyclic ON/OFF illuminations. d Schematic diagram of an equivalent circuit of the single-barrier solar cell model

Table 1 Thickness-dependent PV properties and fitting parameters of the PZT films
Full size table

We then analyzed the PV mechanism. Figure 7a, b shows that most of the I–V characteristics are curved rather than linear, suggesting that the Schottky barriers may play a role in the PV effect. Moreover, the weak dependence of VOC on thickness excludes BPVE and Edp as the major PV mechanisms. In addition, the number of domain walls in the poled states is very small (see Fig. 2b, c), which excludes the domain wall effect. Therefore, we deduced that the Schottky barrier effect is the dominant PV mechanism.

More specifically, the PZT/SRO and Pt/PZT Schottky barriers mainly contribute to the PV effects in the Pup and Pdown states, respectively (see Fig. 6 and Fig. S1 in Supplementary Information). The Ebi in the PZT/SRO (Pt/PZT) barrier is downward (upward), thus resulting in a negative (positive) VOC. This observation is consistent with the observed negative (positive) VOC in the Pup (Pdown) state (see Fig. 7a, b). In addition, the asymmetric PV behaviors can be explained by the asymmetry of the PZT/SRO and Pt/PZT barriers.

Therefore, the PV effects in both the Pup and Pdown states may be described by a single-barrier solar cell model. This model’s equivalent circuit is schematically drawn in Fig. 7d, which consists of a Schottky diode (D), a constant current source (Iph, i.e., the photocurrent, which should be distinguished from ISC), a series resistance (Rs) and a shunt resistance (Rsh). The I–V relationship is given by

$$I = I_0\left[ {\exp \left( {q\frac{{V - R_{\mathrm{s}}I}}{{nkT}}} \right) - 1} \right] + \frac{{V - R_{\mathrm{s}}I}}{{R_{{\mathrm{sh}}}}} - I_{{\mathrm{ph}}},$$
(2)

where I0 is the reverse saturation current, n is the ideality factor, T is temperature, and k is the Boltzmann constant. Equation (2) was used to fit the experimental illuminated I–V characteristics by employing the Lambert W function57,58,59. Figure 7a, b shows that the calculated I–V curves fit the experimental data fairly well, demonstrating the validity of the Schottky barrier model.

Using the above fittings, the parameters Iph, Rs, and Rsh can also be extracted, which are summarized in Table 1. In both the Pup and Pdown states, Iph decreases while Rs and Rsh increase as the film thickness increases. The decrease in Iph with thickness may be due to the enhanced recombination in the thicker films. As the thickness increases, the bulk region becomes wider to allow more occurrences of recombination. We also inferred from the decrease in Iph that the enhancement in recombination dominates over the gain in light absorption as the thickness increases. On the other hand, the increases in Rs and Rsh may be caused by the larger bulk resistances and fewer shunt paths, respectively, in the thicker films.

The dependences of Iph, Rs, and Rsh on thickness also help us to better interpret the thickness-dependent PV properties presented in Table 1. First, the output ISC decreases with thickness, which is well attributed to the decrease in Iph and the increase in Rs. In addition, VOC remains almost unchanged as thickness increases, probably because the reduction in Iph is offset by the increase in Rsh. Furthermore, the value of FF roughly decreases with thickness probably because the increasing rate of Rs is larger than that of Rsh. Finally, because PCE = JSC × VOC × FF/Plight, the PCE thus decreases with thickness.

High PCE in the 12-nm ultrathin film

The above thickness-dependent PV characteristics together with the fittings have revealed that the Schottky barrier effect is the dominant PV mechanism. For the Schottky barrier-driven PV effect, as proposed in the Introduction section, reducing the thickness to the depletion width may realize high PCEs mainly because the recombination outside the depletion region can be greatly suppressed (Fig. 8a). Moreover, the reduced recombination can overcompensate for the loss in light absorption, resulting in an enhancement in Iph, as evidenced by the increase in Iph with decreasing thickness (Table 1). In addition, reducing thickness also lowers Rs because the bulk resistance is lowered (Table 1). The high Iph together with the low Rs therefore results in a high output ISC. However, reducing thickness also lowers Rsh, which would deteriorate VOC. This problem may be addressed by using small-area top electrodes to avoid the shunt paths. Therefore, a high PCE could be achieved in a ferroelectric ultrathin film with thickness close to the depletion width covered by small-area top electrodes.

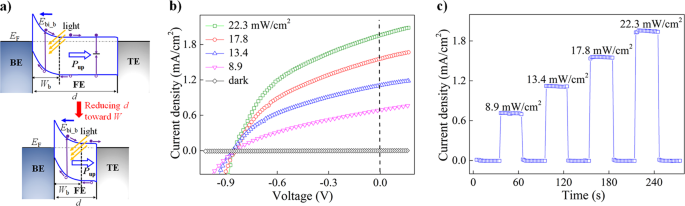

Fig. 8: Photovoltaic performance of ultrathin PZT films.
Fig. 8: Photovoltaic performance of ultrathin PZT films.
Full size image

a Schematics illustrating the effects of reducing the film thickness toward the depletion width on the PV process, where the recombination in the bulk region can be reduced. Here, only the bulk trap-assisted recombination is schematically drawn, but other types of recombination may also exist. b Illuminated J–V characteristics of the Pt/PZT (12 nm)/SRO structure at different light intensities. c Time-resolved photocurrent responses of the Pt/PZT (12 nm)/SRO structure under cyclic ON/OFF illuminations with different light intensities

To demonstrate the high PCE experimentally, we fabricated 12-nm PZT films covered by Pt top electrodes with ~5 µm in diameter (Fig. S2 in Supplementary Information). Notably, the thickness of 12 nm is close to the values of Wb and Wt (5.4 and 3.2 nm, respectively). The J–V characteristics at different light intensities are shown in Fig. 8b. As the light intensity increases from 8.9 to 22.3 mW/cm2, JSC increases correspondingly from 0.68 to 1.94 mA/cm2, while the VOC remains at ~−0.84 V. Compared with the 120-nm film, the 12-nm ultrathin film exhibits a nearly 6.5-fold enhancement in JSC per unit light intensity, which is well attributed to the reduced recombination and lower areal series resistance. On the other hand, VOC slightly decreases from −0.9 to −0.84 V as a result of the lower areal shunt resistance. In addition, as revealed by Fig. 8c, the photoresponses of the 12-nm PZT film are stable and reproducible.

The PCE of the 12-nm PZT film was calculated to be 2.49% (under the 22.3-mW/cm2 UV illumination), which is one order of magnitude higher than the highest PCE, previously reported for PZT films (~0.28%)22 under UV illumination. To confirm that the PCE enhancement was truly a result of the thickness reduction, four additional PZT films (4, 7, 30, and 60 nm) were prepared, and their PV properties were also characterized (see the results in Fig. S3 in Supplementary Information).

Note that according to the signs of VOC and JSC, we deduced that the PV effect in the Pt/PZT (12 nm)/SRO structure originates from the PZT/SRO barrier (see Fig. 8a). This phenomenon is because the initial polarization of the 12-nm PZT film is oriented upward, leading to band alignment with an enhanced PZT/SRO barrier and a flattened Pt/PZT barrier. Thus, an efficient PV effect can occur in the PZT/SRO barrier. Unfortunately, no switchable PV behavior is observed in the Pt/PZT (12 nm)/SRO structure because polarization can hardly be switched downward with the top electrode capping (see Fig. S4 in Supplementary Information). This difficulty is probably caused by leakage and insufficient screening.

Nevertheless, the PV effect in the bare 12-nm PZT film is indeed switchable, as demonstrated by C-AFM and SKPM. Figure 9a presents the short-circuit current map measured by C-AFM under UV illumination, which reveals a contrast between the +6 V-written region (2 × 1 μm2) and the as-grown region. The current profile along the section line (Fig. 9b) further shows that the +6 V-written region mainly exhibits negative ISC (~−0.31 pA at position A), while the as-grown region mainly exhibits positive ISC (~+0.18 pA at position B). Because the as-grown and +6 V-written regions correspond to the Pup and Pdown states, respectively (see Fig. S5 in Supplementary Information), the C-AFM results thus indicate that the photocurrent in the Pup state is flowing from top to the bottom, but its direction is flipped in the Pdown state (note: the average current at zero bias in the dark is set to zero, and almost no contrast is found in the dark current map, as shown in Fig. S5 in Supplementary Information; and the current direction is defined to be positive when it flows from top to the bottom).

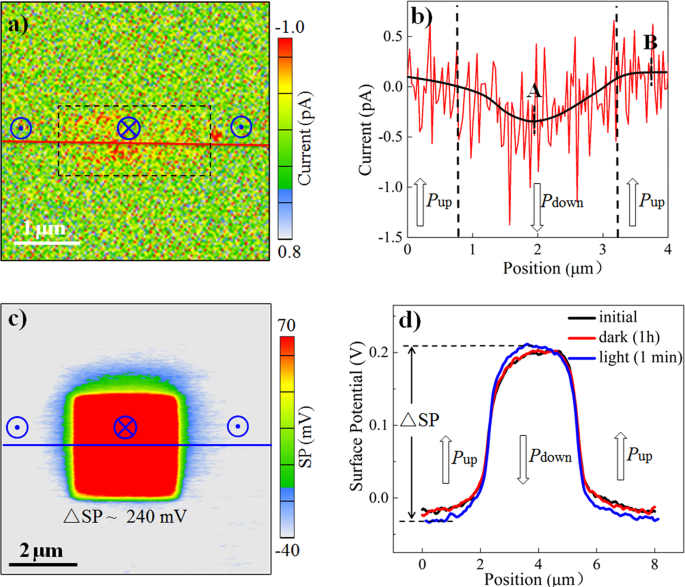

Fig. 9: C-AFM and SKPM mappings on the bare 12-nm PZT film.
Fig. 9: C-AFM and SKPM mappings on the bare 12-nm PZT film.
Full size image

a Short-circuit current map generated by C-AFM under UV illumination. b Current profile along the section line indicated in panel a. The black solid line is drawn for better visualization. c Surface potential map generated by SKPM after UV illumination for 1 minute. d Surface potential profiles along the section lines indicated in panel a and Fig. S6 in Supplementary Information. In panels a and c, the middle 2 × 1 and 3 × 3 μm2 regions, respectively, were written with +6 V beforehand

In addition, SKPM was conducted to monitor the variation in surface potential arising from the PV effect in the bare 12-nm PZT film. A 3 × 3-μm2 region was written with +6 V and subsequently scanned with a grounded tip to remove mobile charges. Then, SKPM was performed to generate a surface potential map. The +6 V-written region exhibits higher surface potential than that of the as-grown region, and the surface potential difference (ΔSP) is ~210 mV (see Fig. S6 in Supplementary Information). This ΔSP value remains almost unchanged after the film is left in the dark for 1 h (see Fig. S6 in Supplementary Information), but increases to ~240 mV after UV illumination for 1 min (see Fig. 9c, d), suggesting the occurrence of the PV effect under UV illumination. More specifically, the photoexcited holes (electrons) are driven to the film surface and trapped there in the +6 V-written (as-grown) region, thus raising (lowering) the surface potential. That is, the negative (positive) photocurrent is produced in the Pdown (Pup) state under UV illumination, consistent with the C-AFM results shown above. Therefore, the PV effect is confirmed to be indeed switchable in the bare 12-nm PZT film. Further research is still needed to address the nonswitchability of the PV effect in the Pt electrode-capped 12-nm PZT film.

Discussion on further improvement of PCE

To further improve the PCE requires a more thorough examination of the PV mechanism, i.e., the Schottky barrier model. From Eq. (2) and the fitting results (Table 1), one can infer that Iph is the key to the PCE. Assuming that the recombination is neglected, the Iph generated by a Schottky barrier is given by31

$$I_{\mathrm{t}} = A\eta n_{{\mathrm{ph}}}\theta _{\mathrm{t}}\left[ {1 - \exp ( - \alpha W_{\mathrm{t}})} \right]q,$$
(3)
$$I_{\mathrm{b}} = A\eta n_{{\mathrm{ph}}}\theta _{\mathrm{t}}\exp \left[ { - \alpha (d - W_{\mathrm{b}})} \right]\left[ {1 - \exp ( - \alpha W_{\mathrm{b}})} \right]q,$$
(4)

where η is the internal quantum efficiency (assuming that η = 1), nph is the incident photon flux, θt is the transmittance of the top electrode, and α is the absorption coefficient of the ferroelectric film. Equation (3) applies to the case of Pdown, where the photocurrent It is generated by the top barrier, whereas Eq. (4) applies to the reverse case.

For the ferroelectric ultrathin films where d ≈ Wb, the exp[α(d-Wb)] term in Eq. (4) may be neglected. Hence, both Eqs. (3) and (4) indicate that Iph depends strongly on the product of α and W. To enhance Iph and, consequently, the PCE, both the α and W of the PZT films need to be optimized. Our PZT films have a small α value (~1.15 × 104 cm−1 at 365 nm) because of their wide bandgap (~3.63 eV), as measured by UV-vis spectroscopy (Fig. S7 in Supplementary Information). Narrowing the bandgap and introducing gap states by methods such as forming solid solutions6,7 and doping60,61 may effectively enhance α. On the other hand, increasing W can enhance Iph according to Eqs. (3) and (4), but W cannot be too large; otherwise, the recombination in the depletion region becomes significant, making Eqs. (3) and (4) no longer applicable. An optimal value for W might be the mean free path of the ferroelectric film (~20 nm for PZT)39. In our PZT films, Wt and Wb were calculated to be 3.2 nm and 5.4 nm, respectively. Therefore, the depletion widths still need to be increased according to Eq. (1). Several approaches may be adopted: (i) reducing Neff by tuning the growth conditions of the PZT films (e.g., tuning the oxygen pressure during the PLD can modify the concentration of oxygen vacancies and, consequently, the Neff); (ii) enhancing polarization by improving the qualities of the PZT films46 to increase V’bi [see Eq. (S5) in Supplementary Information]; and (iii) using high-work-function metals as electrodes and, more interestingly, optimizing the terminations of electrode/ferroelectric interfaces62,63 to increase Vbi.

Note that by substituting the above α and W values of the PZT films and the θt value of the Pt electrode (~40%) into Eqs. (3) and (4), one can obtain the values of It and Ib, which are 2.3 × 10−8 and 3.4 × 10−8 A, respectively. These values are approximately one order of magnitude smaller than the Iph values extracted from the experimental I–V data (see Fig. 7a, b). The discrepancies may be mainly due to the following two issues: (i) there are errors in measuring the α value, although it seems to fall in the range of 104–105 cm−1 reported for the PZT films64,65,66; and (ii) the actual area that absorbs the photons and produces the photocurrent is larger than the electrode area. Nevertheless, our strategies to achieve high PCEs suggested by the Schottky barrier model [Eqs. (2–4)], including increasing α, optimizing W, and reducing the thickness to W, remain unaffected and may shed light on further research in the field of ferroelectric PVs. Our strategies may also synergize with other approaches, such as utilizing the flexoelectric effect arising from the nanoscale strain gradient67 and domain engineering68, to further enhance the PCEs.

Conclusion

In summary, we have demonstrated that a PCE as high as 2.49% (under 365-nm UV illumination) could be achieved in 12-nm PZT ultrathin films. Our strategy to realize such a high PCE consists of reducing the film thickness to be close to the depletion width, which can simultaneously suppress recombination and lower the series resistance. Our strategy is based on the fact that the PV effect originates from the Schottky barriers, which is confirmed by observations of the weak dependence of VOC on thickness and the increase in ISC with decreasing thickness, as well as the good fits of illuminated I–V characteristics to the Schottky barrier model. To implement our strategy, understanding the Schottky barrier parameters (particularly the depletion widths) is key. We therefore conducted a combination of P–V, C–V, and dark I–V measurements on the Pt/PZT/SRO structures with different PZT thicknesses, gaining detailed information on the Schottky barriers. The present study provides insightful guidance on how to design and tailor ferroelectric films to achieve high PCEs within the framework of the Schottky barrier-driven PV effect. Our study also demonstrates the great potential of ferroelectrics for use in ultrathin-film PV devices, which may benefit the development of high-efficiency, low-cost, and low-weight solar cells.
