Molecular structure and enzymatic mechanism of the human collagen hydroxylysine galactosyltransferase GLT25D1/COLGALT1

De Marco, Matteo; Rai, Sristi Raj; Scietti, Luigi; Mattoteia, Daiana; Liberi, Stefano; Moroni, Elisabetta; Pinnola, Alberta; Vetrano, Alice; Iacobucci, Claudio; Santambrogio, Carlo; Colombo, Giorgio; Forneris, Federico

doi:10.1038/s41467-025-59017-5

Download PDF

Article
Open access
Published: 16 April 2025

Molecular structure and enzymatic mechanism of the human collagen hydroxylysine galactosyltransferase GLT25D1/COLGALT1

Nature Communications volume 16, Article number: 3624 (2025) Cite this article

11k Accesses
12 Citations
9 Altmetric
Metrics details

Subjects

Abstract

During collagen biosynthesis, lysine residues undergo extensive post-translational modifications through the alternate action of two distinct metal ion-dependent enzyme families (i.e., LH/PLODs and GLT25D/COLGALT), ultimately producing the highly conserved α-(1,2)-glucosyl-β-(1,O)-galactosyl-5-hydroxylysine pattern. Malfunctions in these enzymes are linked to developmental pathologies and extracellular matrix alterations associated to enhanced aggressiveness of solid tumors. Here, we characterized human GLT25D1/COLGALT1, revealing an elongated head-to-head homodimeric assembly. Each monomer encompasses two domains (named GT1 and GT2), both unexpectedly capable of binding metal ion cofactors and UDP-α-galactose donor substrates, resulting in four candidate catalytic sites per dimer. We identify the catalytic site in GT2, featuring an unusual Glu-Asp-Asp motif critical for Mn²⁺ binding, ruling out direct catalytic roles for the GT1 domain, but showing that in this domain the unexpectedly bound Ca²⁺ and UDP-α-galactose cofactors are critical for folding stability. Dimerization, albeit not essential for GLT25D1/COLGALT1 activity, provides a critical molecular contact site for multi-enzyme assembly interactions with partner multifunctional LH/PLOD lysyl hydroxylase-glycosyltransferase enzymes.

Molecular basis of collagen galactosylation by GLT25D1

Article Open access 06 February 2026

The structural basis for the human procollagen lysine hydroxylation and dual-glycosylation

Article Open access 11 March 2025

Identification of potential modulators for human GPD1 by docking-based virtual screening, molecular dynamics simulations, binding free energy calculations, and DeLA-drug analysis

Article Open access 19 June 2024

Introduction

Collagens are highly conserved proteins, from invertebrates to higher vertebrates. Their amino acid composition, post-translational modification patterns, and supramolecular assembly confer a versatile spectrum of physical and mechanical properties, resulting in the most abundant protein family in the animal kingdom constituting essential components of several animal tissues including bones, cartilage, tendons, and dermis^1,2,3. During biosynthesis, collagens undergo extensive post-translational modifications to fold into right-handed triple helices. The repetitive unit consists of the Gly-Xaa-Yaa sequence motif, where positions Xaa and Yaa are frequently occupied by proline and hydroxyproline residues, respectively^4,5,6,7. The role of proline hydroxylation in the global process of collagen biosynthesis is the most studied and understood to date, and it is essential to the winding process of the collagen right-handed triple helix^8,9,10.

Lysine residues are less abundant than proline residues in collagen polypeptides, and are typically found at Yaa positions of the Gly-Xaa-Yaa motif¹¹. The role of lysine residues and their post-translational modifications is mainly linked to the cross-linking processes that occur between collagen molecules once secreted into the extracellular space. In collagens and collagen-like protein segments, lysine residues are modified sequentially by specific biosynthetic enzymes which catalyze the formation of a simple but very conserved post-translational modification pattern: the α-(1,2)-glucosyl-β-(1,O)-galactosyl-5-hydroxylysine (Glc-Gal-Hyl)^{12,13,14,15,16}. The path to the formation of Glc-Gal-Hyl starts with the formation of 5-hydroxylysine (Hyl) operated by Fe²⁺-dependent collagen lysyl hydroxylases (LH, also known as procollagen, lysyl 2-oxoglutarate dioxygenases (PLOD)). The LH/PLOD enzyme family is characterized in humans by three different isoforms (LH1/PLOD1, LH2/PLOD2, and LH3/PLOD3)^17,18,19. The LH reaction occurs in the C-terminal dimeric lysyl hydroxylase domain of LH/PLODs. Hyl residues are then glycosylated by Mn²⁺-dependent galactosyltransferase enzymes, through an inverting reaction that adds the galactose moiety of the uridine diphosphate-α-galactose (UDP-α-Gal) donor substrate to the Hyl hydroxyl group, generating β-(1,O)-5-hydroxylysine (Gal-T activity). Gal-Hyl is further glycosylated by the multifunctional LH/PLOD enzymes through a retaining reaction, that requires Mn²⁺ and uridine diphosphate-α-glucose (UDP-α-Glc) donor substrate (Glc-T activity), ultimately generating the Glc-Gal-Hyl. Initially, the multifunctional LH/PLOD enzyme(s) were thought to be responsible for the entire Lys–to–Glc-Gal-Hyl biosynthetic pathway^20,21. The subsequent identification of a specific family of collagen galactosyltranfserases (named GLT25D or COLGALT), underpinned their essential roles in collagen biosynthesis in vivo^{22,23,24,25,26,27}. Additional biochemical studies on human LH/PLOD and GLT25D/COLGALT enzymes ultimately ruled out the single enzyme hypothesis. The resulting picture shows how the concerted action of two enzyme systems (i.e., LH/PLOD and GLT25D/COLGALT), alternatively acting on the same substrate and possibly directly interacting with each other²⁸, leads to complete Glc-Gal-Hyl collagen post-translational modifications (Fig. 1a).

**Fig. 1: Biochemical and structural features of human GLT25D1/COLGALT1.**

While multifunctional lysyl hydroxylase and glucosyltransferase LH/PLOD enzymes have been the subject of extensive molecular and structural characterizations, much less is known regarding the GLT25D/COLGALT enzymes, which are responsible for the central galactosyltransferase reaction. Human GLT25D/COLGALT are soluble proteins anchored to the endoplasmic reticulum through a C-terminal Arg-Asp-Glu-Leu (RDEL) sequence, and have been found to co-localize with LH/PLOD enzymes^28,29. Three human GLT25D/COLGALT isoforms have been identified: GLT25D1/COLGALT1, constitutively present in all human tissues, GLT25D2/COLGALT2, expressed mostly in nervous tissue, and GLT25D3/COLGALT3, found in all secretory tissues such as salivary glands, pancreas, placenta, as well as in the nervous system. However, only the first two isoforms are active, whereas isoform 3 (also called CERCAM) is inactive in vitro and potentially not related at all to collagen lysine modification.

Of considerable relevance is the involvement of the colgalt genes and their protein products GLT25D/COLGALT enzymes in numerous pathological conditions, including cerebral small vessel disease, liver pathologies, osteoarthritis, musculoskeletal defects, and cancer^26,30,31,32. Liver fibrosis is a chronic pathological condition that sees an accumulation of proteins at the level of the extracellular matrix, whose evolution often leads affected subjects to develop cirrhosis and hepatocellular carcinoma. Recent work has observed high levels of GLT25D1/COLGALT1 in the plasma of cirrhosis patients compared to unaffected patients, and one of the proposed hypotheses is the stimulatory role of the enzyme against hepatic stellate cells³³.

Efforts to decipher the structure-function relationships underlying GLT25D/COLGALT activity on collagen molecules have yielded interesting insights, but highlighted the presence of multiple Asp-x-Asp (DxD) motifs along the polypeptide sequence potentially relevant for enzymatic activity, thus demanding more in-depth structure-based investigations.

In this work, we merged computational and experimental structural biology methods with biochemistry and biophysics to reveal the quaternary assembly of GLT25D1/COLGALT1. The X-ray crystal structures of full-length human GLT25D1/COLGALT1 in its substrate-free state as well as in complex with the donor substrate UDP-α-Gal were determined using experimental phasing. Small-angle X-ray scattering, negative stain electron microscopy and mass photometry jointly revealed an elongated quaternary structure reminiscent of that of LH/PLOD enzymes, characterized by a head-to-head dimer with each monomer composed of two similar domains with Rossman fold architecture, both of which support binding of metal ions and the donor substrate. Structure-guided site-directed mutagenesis, native mass spectrometry and molecular dynamics simulations ultimately identified the C-terminal domain as the functional site for enzyme catalysis, while the N-terminal domain retains UDP-α-Gal unusually bound to Ca²⁺ exclusively for folding stability purposes. Cross-linking mass spectrometry analysis showed that the enzyme’s homodimerization is crucial for interaction with partner LH/PLOD enzymes. Collectively, our results provide insights into the molecular architecture and functions of a key human enzyme of collagen biosynthesis.

Results

GLT25D1/COLGALT1 is a Mn²⁺ dependent galactosyltransferase

We established methods to recombinantly produce and purify human full-length GLT25D1/COLGALT1 in E. coli and obtained enzyme preparations suitable for evaluation of galactosyltransferase activity in vitro (Supplementary Fig. 1), through direct detection of Gal-T activity on synthetic collagen peptides using high-resolution mass spectrometry (HRMS), as well as by monitoring UDP generation from consumption of the UDP-α-Gal donor substrate in the presence of collagen hydroxylysines. Using luminescence-based detection of UDP as reaction product, we established a biochemical assay to evaluate steady-state enzyme kinetics (Supplementary Fig. 2). The results obtained from steady-state Michaelis-Menten analysis (Supplementary Table 5, Supplementary Fig. 2) were comparable to previously published investigations performed using radiolabeled UDP-α-Gal donor substrate³⁴. Using these assays, we firstly evaluated the enzyme’s strong preference for the Mn²⁺ metal ion cofactor, highlighting complete absence of enzymatic activity in presence of other divalent metal ions, with the exception of Mg²⁺, which nevertheless yielded lower enzymatic activity compared to Mn²⁺ (Supplementary Fig. 3a, b). Given the ability of closely-related multifunctional LH/PLOD enzymes to process multiple donor substrates also in absence of acceptor substrates, we probed GLT25D1/COLGALT1 and found that differently from LH/PLOD, GLT25D1/COLGALT1 is specific for UDP-α-Gal and displays limited processing of UDP-α-Gal in absence of acceptor substrates (i.e., uncoupled activity, Supplementary Fig. 3c).

GLT25D1/COLGALT1 features an elongated multi-domain architecture

The 2.8 Å crystal structure of human wild-type GLT25D1/COLGALT1 was obtained by experimental phasing, exploiting single wavelength anomalous dispersion (SAD) of a Hg²⁺ derivative (Supplementary Tables 2 and 3). The quality of the electron density was excellent for the globular region of the two monomers of enzyme found in the asymmetric unit (Supplementary Fig. 4), whereas flexible regions located at the N- (residues 30–41) and C-termini (residues 572–618) could not be modeled.

Each GLT25D1/COLGALT1 polypeptide is characterized by two globular domains, which we named GT1 and GT2 (Fig. 1b), both characterized by similar glycosyltransferase architectures, but different topological organization (Supplementary Fig. 5a). In GLT25D1/COLGALT1, the two GT domains contact each other through electrostatics and hydrophobic contacts along helix α7 (GT1) and α8 (GT2). A 25-amino acid linker interconnects the two domains by shielding otherwise surface-exposed hydrophobic patches with two phenylalanine residues (Phe327 and Phe340, respectively, Fig. 1c).

Although both domains are structurally divergent from previously determined Rossman fold topologies, the GT1 domain appears more similar to known glycosyltransferases, yielding Z-scores higher than 15 with few bacterial and human GT-A glycosyltransferases (Supplementary Fig. 5b) according to DALI³⁵, despite very limited sequence identity conservation. The closest structural homolog with an experimentally determined structure is human LH3/PLOD3, whose central accessory (AC) domain shares only 24% sequence identity, but shows very similar structural arrangement with RMSD of 1.2 Å (Supplementary Fig. 5c). This was further confirmed by extensive protein BLAST searches using the GLT25D1/COLGALT GT1 domain sequence as search query, which returned results including vertebrates, invertebrates, and giant viruses (Supplementary Fig. 6). The latter were of particular interest, as previous discoveries reported that Acanthamoeba polyphaga mimivirus is decorated with post-translationally modified collagens with high homology to mammalian orthologs³⁶. Nevertheless, BLAST searches excluding LH/PLOD homologs identified almost exclusively the additional enzyme isoforms GLT25D2/COLGALT2 and CERCAM in vertebrates and GLT25D/COLGALT orthologs in insects (Supplementary Fig. 6). Collectively, these data highlight the conservation of the GT-A fold architecture of the GT1 domain, yielding closely matching folding topologies despite very limited amino acid sequence conservation (Supplementary Fig. 5b).

The GLT25D1/COLGALT1 GT2 domain shares only distant structural homology with known glycosyltransferases, and the resulting superpositions are less clear compared those obtained for GT1 (Supplementary Fig. 5d). Likewise, when superimposed to LH3/PLOD3, the GLT25D1/COLGALT1 GT2 domain shows only limited structural similarity with the N-terminal LH3/PLOD3 GT domain, with superposition RMSD values of 4.7 Å and Z-score lower than 10 according to DALI³⁵ (Supplementary Fig. 5e). When subject to BLAST search, the sequence of this domain yielded more results compared to the GT1 domain, including vertebrates, invertebrates and giant viruses, but also bacteria (Supplementary Fig. 7). The presence of additional kingdoms in the BLAST alignment supports possible evolutionary ancestral gene fusion events ultimately leading to the two-domain GLT25D/COLGALT assembly.

GLT25D1/COLGALT1 is a dimeric enzyme

The asymmetric unit of the GLT25D1/COLGALT1 crystal structure is compatible with two enzyme molecules aligned in an antiparallel fashion through contacts mediated via their GT1 domain and wrapped around the unstructured N-terminal loop comprising residues 42–51 (Fig. 2a). This quaternary structure is characterized by a buried surface area of 1250 Å², with 22 hydrogen bonds and 5 salt bridges out of 35 residues per monomer involved in the dimeric interface. Such assembly was supported by mass photometry (MP) data, showing that GLT25D1/COLGALT1 in solution is present with a molecular weight of 140 kDa, equivalent to the expected molecular weight for enzyme dimers (Fig. 2b), with minimal dispersion. Consistent results of 131 ± 10 kDa were obtained using size exclusion chromatography coupled to multi-angle light scattering (SEC-MALS) and small-angle X-ray scattering (SEC-SAXS) (Supplementary Table 6, Supplementary Fig. 8a, b), the latter producing ab initio sphere models of elongated molecular ensembles matching the size and overall envelope shape of crystallographic GLT25D1/COLGALT1 dimers with 95% correlation (Supplementary Fig. 8c). Orthogonal comparison of the unmodified experimental crystal structure with solution SAXS data yielded initial χ² of 7.62, which further improved to 1.89 after modeling of flexible N- and C-termini (Fig. 2c). Furthermore, low-resolution 2D classes from a sample of GLT25D1/COLGALT1 analyzed using single particle negative staining electron microscopy revealed elongated objects highly comparable to the SEC-SAXS solution data and the crystallographic dimers (Fig. 2d).

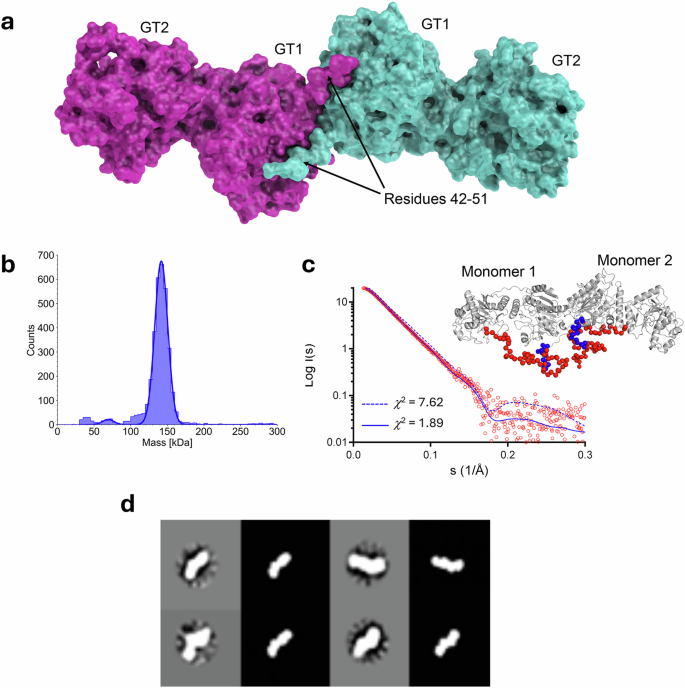

**Fig. 2: GLT25D1/COLGALT1 forms stable elongated dimers.**

Probing the role of GLT25D1/COLGALT1 dimerization

To evaluate the importance of dimerization on GLT25D1/COLGALT1 function, we searched for amino acid residues located at the crystallographic dimer interface: Trp158, whose side chain is embedded into a cavity shaped by Arg53, Ala85, His113, Met157 of the other enzyme monomer; and Asp160, forming a hydrogen bonding network with Arg53 from both monomers (Fig. 3a). Mutation Trp158Arg was enough to disrupt the dimer interface of GLT25D1, resulting in monomeric species in solution as assessed by mass photometry and SEC-MALS (Fig. 3b, c). When prompted for enzymatic activity using either indirect luminescence-based detection of free UDP in the presence of gelatin, as well as direct evaluation of galactosyl-hydroxylysine modification of synthetic peptides using high-resolution mass spectrometry (HRMS), this mutant showed activities comparable to wild-type GLT25D1/COLGALT1 (Fig. 3d, Supplementary Table 5), supporting the hypothesis that enzyme dimerization does not constitute an essential requirement for the enzyme’s catalytic activity in vitro.

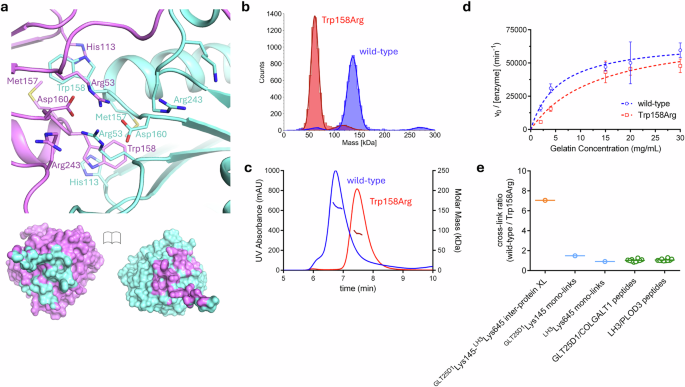

**Fig. 3: Probing GLT25D1/COLGALT1 dimeric architecture and its functional significance.**

Intrigued by this observation, we used cross-linking mass spectrometry to explore whether GLT25D1/COLGALT1 dimerization could contribute to molecular interactions with partner multifunctional lysyl hydroxylase-glucosyltransferase LH3/PLOD3. We cross-linked a 1:1 stoichiometric mixture of wild-type and Trp158Arg GLT25D1/COLGALT1 with disuccinimidyl dibutyric urea (DSBU), followed by in-solution digestion with trypsin. The resulting peptide mixtures were analyzed using nano-liquid chromatography-tandem mass spectrometry (LC-MS/MS), revealing in both cross-linked samples a clear inter-protein cross-link between Lys145 of GLT25D1/COLGALT1 (^GLT25D1Lys145) and Lys645 of LH3/PLOD3 (^LH3Lys645) (Supplementary Fig. 9). However, the abundance of this ^GLT25D1Lys145-^LH3Lys645 inter-protein cross-link was found to be approximately seven times higher using wild-type GLT25D1/COLGALT1 complex compared to the Trp158Arg mutant (Fig. 3e). Notably, this difference was not attributable to changes in protein concentration or lysine reactivity, as the overall abundance of both proteins, and the individual reactivity of ^GLT25D1Lys145 and ^LH3Lys645remained constant in both experiments (Fig. 3e). A nearly identical abundance of the ^GLT25D1Lys145 and ^LH3Lys645 mono-links, which occur when a lysine residue is covalently modified by DSBU without linkage to another residue, were measured in the two experiments (Fig. 3e). Collectively, these results show that GLT25D1/COLGALT1 dimerization critically contributes to macromolecular complex formation with multifunctional LH3/PLOD3 enzymes.

Both GT1 and GT2 domains bind donor substrates and metal ions

Analysis of the experimental electron density of GLT25D1/COLGALT1 revealed intense difference peaks in the GT1 domain of both enzyme monomers proximate to the DxD motif identified by residues Asp166 and Asp168, in a loop interconnecting strand β4 and helix α4, that could be modeled as UDP-α-Gal bound to a metal ion (Fig. 4a). The carboxylate group of Asp166 is not directly involved in the coordination of the metal ion. The donor substrate is surrounded by an extended amino acid network, characterized by a H-bonded interaction involving the side chains of Tyr126 with the C⁴ carbonyl of the uridine moiety, which is trapped by a pi-Sigma interaction with Arg61 and a pi-Alkyl interaction with Val143, in a hydrophobic cavity also shaped by residues Leu59, Asp91, Arg139. The ribose moiety is kept into a well-defined conformation by Trp135, and by hydrogen bonds with the main chain carbonyl and amino groups of residues Leu59, Arg61, and Ala167. Additional interactions involve the side chains of Arg147 and Asp265 with hydroxyl groups of the galactose moiety (Fig. 4a, b). Notably, Trp135 matches Trp130 in the GLT25D1/COLGALT1 mouse protein sequence, whose mutation (named fosse) has been associated to skeletal and muscular defects due to severely reduced expression of the mutated gene²². When co-crystallized with Mn²⁺ and UDP-α-Gal, the crystal structure of GLT25D1/COLGALT1 unexpectedly revealed electron density matching cofactors and donor substrates also in the GT2 domain of one of the two monomers in the asymmetric unit (Fig. 4c). In this domain the metal ion cofactor was found bound to a Glu-Asp-Asp motif adopting a conformation topologically equivalent to that found in Mn²⁺-dependent glycosyltransferases, with the carboxyl groups of Glu435 and Asp437 directly chelating the metal ion, while the side chain of Asp436 was interacting through H-bonded interactions with the hydroxyl groups of the ribose moiety of the cofactor (Fig. 4c, d). The uridine ring of the donor substrate was constrained by Gly408 and Gly411 of helix α10, in a hydrophobic groove defined by Cys412 of the same helix, plus Leu348 and Ala374 on the opposite side (Fig. 4c, d). No electron density could be observed for the galactose moiety, suggesting multiple conformations for the sugar possibly due to the absence of acceptor substrates in the wide crevice defined by residues Trp495, Leu497, Tyr567, and Pro558 (Fig. 4c, d).

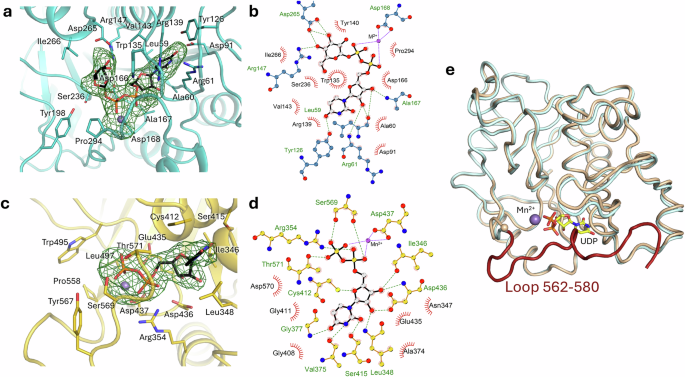

**Fig. 4: Structural insights into GLT25D1/COLGALT1 enzymatic activity and assembly.**

Comparison of GT2 domains with and without donor substrates highlighted a conformational rearrangement of the otherwise flexible C-terminus of the domain for residues 562–580, wrapping around the donor substrate binding cavity and positioning the backbone carbonyl of residue Ser569 and Thr571 in a productive conformation for hydrogen bonding with both phosphates of the UDP donor substrate (Fig. 4e). The presence of donor substrates and cofactors only in one of the two crystallographic monomers could be explained with the different crystal packing network surrounding the GLT25D1/COLGALT1 molecules, which prevents the rearrangement of the GT2 C-terminal loop in one of the two molecules due to crystal contacts (Supplementary Fig. 10).

Mutations in the GT1 domain impact on enzyme folding stability

Structure-guided point mutants designed to interfere with metal ion or UDP-α-Gal binding in the GT1 domain (Fig. 4a, b) such as Asp166Ala (abolishing interaction with the bound metal ion), Asp265Ala (removing H-bonding contacts with the galactose moiety), Ile266Gln (preventing rigid positioning of the galactose moiety in the GT1 cavity), did not produce any recombinant enzyme samples suitable for biochemical studies, and were consistent with previously published attempts describing a Asp166Ala-Asp168Ala double mutant, designed to abolish the GT1 DxD motif³⁴. We also attempted production of a Trp135Arg mutant, matching the homologous Trp130Arg fosse mutation in mouse²². The recombinant production yields for this mutant were significantly lower compared to wild-type GLT25D1/COLGALT1, consistent with the observed reduced expression levels reported for the fosse mutation²². SDS-PAGE analysis showed significant differences compared to wild-type GLT25D1/COLGALT1, suggesting severe folding stability issues (Supplementary Fig. 1). Control mutants such as Ile267Gln (in close proximity to Ile266, but not affecting UDP-α-Gal binding or positioning) instead resulted in well folded and active enzyme samples (Supplementary Fig. 1), matching the previously published Pro292Asn mutant, originally designed to generate a chimeric GLT25D1-CERCAM inactive galactosyltransferase, but still retaining enzymatic activity³⁴.

The GT2 domain is responsible for the catalytic activity

Our experimental structure investigations revealed that the GT2 domain of GLT25D1/COLGALT1 binds metal ions and donor substrates transiently compared to GT1, inducing conformational changes of the extended C-terminus of the enzyme that could have an impact on catalysis (Fig. 4). The identification of an unusual EDD motif rather than the canonical DxD motif coordinating the metal ion cofactor within this domain, together with the presence of a UDP-α-Gal donor substrate with a flexible sugar moiety (Fig. 4c, d), may ultimately provide insights for the identification of the enzyme’s catalytic site. Conservation maps for the amino acid residues shaping the two putative ligand binding sites in homologous vertebrate enzymes highlighted that the amino acids involved in metal ion and UDP-α-Gal binding are highly conserved in both GT1 and GT2 domains (Fig. 5a). Prompted by this observation, and by our insights suggesting structural roles for the enzyme’s N-terminal GT1 domain, we generated a series of point mutations affecting metal ion and donor substrate binding in the GT2 domain, as well as residues potentially involved in acceptor substrate binding during transfer of the galactose moiety. All mutants generated could be purified and showed biophysical features compatible with well-folded proteins (Supplementary Fig. 1). Mutants Glu435Ala and Asp437Ala, within the EDD sequence responsible for metal ion coordination, were found completely inactive in both luminescence and HRMS assays (Fig. 5b, Supplementary Fig. 3, Supplementary Table 5). Similar results could be obtained with mutant Cys412Ser, affecting productive positioning of the uridine-ribose moieties in a hydrophobic cavity (Fig. 5b, Supplementary Fig. 3, Supplementary Table 5). Inspired by the potential roles found for aromatic and charged residues located at precise positions in the catalytic cavity of inverting glycosyltransferase enzymes^37,38, we also generated mutants Trp495Ala and Asp522Ala, which both resulted in complete loss of GLT25D1/COLGALT1 Gal-T activity (Fig. 5b, Supplementary Fig. 3, Supplementary Table 5).

**Fig. 5: Structure-guided interpretation of GLT25D1/COLGALT1 functional features.**

The conformational rearrangement of the GT2 C-terminus suggested a potential role also for Arg351, rearranging its side chain to form a hydrogen bond with Asp570 when cofactors and donor substrates are bound (Fig. 5c). We therefore generated mutants Arg351Ala and Asp570Ala. While production of mutant Arg351Ala resulted in poor quality enzyme preparations and was not suitable for subsequent biochemical studies, production of mutant GLT25D1/COLGALT1 mutant Asp570Ala was successful (Supplementary Fig. 1). Consistent with our hypothesis, this mutant was inactive (Fig. 5b, Supplementary Table 5).

The structural data obtained also provided a rationale for previously investigated mutations: Asp336, located at the C-terminus of the linker segment connecting GT1 and GT2 domains, whose hydrogen bond with GT2 Lys445 does not seem to be dramatically impacted when being mutated into a serine residue; and residues Asp461 and Asp433, the latter being involved in a hydrogen bonding network with the side chains of Lys508 and His547, likely critical for GT2 domain folding stability. Taken together, our molecular structures and site-directed mutagenesis results enabled the unambiguous identification of GLT25D1/COLGALT1 catalytic site and its unusual features.

Molecular significance of GLT25D1/COLGALT1 pathogenic mutations

The molecular structure and the biochemical characterizations of several GLT25D1/COLGALT1 mutants enable correlating the possible impact of disease-causing mutations associated with this enzyme. The fosse mutation Trp130Arg, associated to a mouse phenotype with developmental defects, localizes on Trp135 of the human ortholog. Trp135 shapes the UDP-α-Gal binding cavity in the GT1 domain of the enzyme by interlocking its side chain between the uridine and the galactose moieties of the cofactor (Fig. 4a). We evaluated the impact of this mutation experimentally and observed significantly reduced expression levels for the recombinant enzyme variant in vitro, as well as stability issues that hampered subsequent biochemical characterizations (Supplementary Fig. 1a). Mapping of pathogenic mutations associated to cerebral small vessel disease^39,40 on the GLT25D1/COLGALT1 structure provided a rationale for the significance of these pathogenic enzyme variants (Fig. 5d). Mutations Leu151Arg and Ala154Pro localize at the C-terminus of the α3 helix in the GT1 domain. The hydrophobic side chains of Leu151 is buried into a hydrophobic pocket, therefore the introduction of a bulky Arg side chain at this position would likely induce severe perturbations to the stability of the GT1 domain. Likewise, replacing Ala154 with a Pro residue would likely impact on the structural stability of helix α3 near the homo-dimer interface. The possible effect of the Gly377Arg mutation³⁹ could be inferred by Gly377 shaping an alpha turn segment connecting the strand β14 with helix α9 in close proximity to the binding site for the uridine ring of the catalytic UDP-α-Gal donor substrate. Introduction of an Arg side chain at this position may severely perturb GT2 domain conformational stability, resulting in loss of function.

Mn²⁺ binds transiently in the GT2 domain during catalysis

Intrigued by the observation of a dimeric ensemble potentially characterized by four aligned catalytic sites, we wondered whether metal ions and donor substrates could possibly have structural, rather than functional roles. We therefore purified recombinant GLT25D1/COLGALT1 without any cofactor supplementation and attempted to characterize the possible bound metal ions. DSF experiments performed by incubating the enzyme with metal ion solutions showed significant stabilization of GLT25D1/COLGALT1 only in the presence of Mn²⁺ (Fig. 6a), supporting the biochemical data indicating Mn²⁺ as the metal ion cofactor transiently bound during catalysis. Comparison with DSF data collected on mutants Glu435Ala and Asp437Ala incubated with Mn²⁺ did not result in stabilization (Fig. 6a), consistent with the structural data showing transient binding of this catalytic metal ion in the GT2 domain (Fig. 4).

**Fig. 6: Probing the structural role of metal ions and cofactors in GLT25D1/COLGALT1 GT1 and GT2 domains.**

Roles of Ca²⁺ and UDP-α-Gal donor substrate in the GT1 domain

Parallel to Mn²⁺ binding experiments, we tested the effect of removal of the tightly bound metal ion in the GT1 domain by incubating GLT25D1/COLGALT1 with different concentrations of ethylenediaminetetraacetic Acid (EDTA). We consistently observed destabilization, with a differential scanning fluorimetry (DSF) thermal shift of 3.0–3.5 °C compared to untreated samples (Fig. 6b). We observed nearly identical destabilization effects by treating GLT25D1/COLGALT1 mutants Glu435Ala and Asp437Ala with EDTA (Fig. 6b). As these mutants were designed to interfere with transiently bound metal ions in the GT2 domain, we concluded that EDTA treatment impacts on protein stability by stripping the metal ion bound the GT1 domain. Nevertheless, EDTA-treated samples still showed DSF profiles compatible with a partially folded protein sample, thus we wondered whether removal of metal ions through EDTA treatment could impact on the enzyme’s conformational stability. EDTA-treated wild-type GLT25D1/COLGALT1 samples were therefore subject to mass photometry analysis and size exclusion chromatography. While mass photometry did not show significant alterations in the oligomeric state of the enzyme upon EDTA treatment (Fig. 6c), stripping of the metal ion altered the elution profile of the enzyme, compatible with alterations of the enzyme’s hydrodynamic radius (Fig. 6d). Surprisingly, ICP-MS experiments aimed at identifying Mn bound to enzyme in the GT1 domain did not reveal the presence of this transition metal ion. We therefore decided to further investigate the ligands consistently bound in the GLT25D1/COLGALT1 GT1 domain. Native mass spectrometry (Native-MS) analysis of recombinant wild-type and Trp158Arg GLT25D1/COLGALT1 samples under controlled partially unfolding conditions revealed the coexistence of free- and ligand bound-monomers, leading to the identification of Ca²⁺ as the most probable bound metal ion in the GT1 domain (Fig. 6e); ICP-MS confirmed the identification, indicating a 1:1 Ca²⁺:GLT25D1/COLGALT1 stoichiometry. Prompted by this unexpected finding, we performed DSF analysis of GLT25D1/COLGALT1 samples in the presence of the highly selective Ca²⁺ chelating agent ethyleneglycol-bis(β-aminoethyl)-N,N,Nʹ,Nʹ-tetraacetic acid (EGTA), obtaining a folding destabilization profile matching that observed using EDTA (Fig. 6b).

Taken together, these data highlight the presence of Ca²⁺ bound in the GLT25D1/COLGALT1 GT1 domain, supporting structural roles for this metal ion cofactor and the UDP-α-Gal donor substrate in this domain. The absence of direct functional roles during catalysis for the GT1 domain is consistent with previous hypotheses derived from chimeric studies of GLT25D1/COLGALT1 and the CERCAM inactive paralog³⁴, and is further supported by the absence of the essential negatively charged amino acid side chains near the galactose moiety of the UDP-α-Gal donor substrate (Fig. 5a, b) required for the enzymatic activity of inverting GT-A glycosyltransferases^37,38.

MD simulations support distinct roles for GT1 and GT2 domains

To better characterize the molecular features observed in GLT25D1/COLGALT1 GT1 and GT2 domains, we carried out a comparative molecular dynamics study of the individual domains in the presence or in absence of metal ions and donor substrates. Since the focus of this study is to investigate how UDP-Gal ligand and metal ion cofactor binding influence the structural stabilization of these domains rather than to observe conformational transitions, conventional MD simulations are sufficient to capture the relevant dynamics. To this end, three independent 1-microsecond all-atom MD simulations per system in explicit solvent were perfomed, yielding sufficient accuracy to describe atomic interactions and solvation effects on nanosecond to sub-microsecond timescales, typical of domain stabilization and conformational flexibility. To assess the impact of cofactors binding on GT1 and GT2 stability and dynamics, analyses focused on conformational ensembles rather than time-dependent trajectories, to ensure a statistically robust characterization of the different simulated states. Equilibration and independence from the initial configurations were evaluated by analyzing the root mean square deviations of the protein backbone in each independent simulation replicate separately. After verifying the convergence, metatrajectories were built by concatenating the equilibrated part of the three replicates, on which ensemble-based analyses were performed. Further details on equilibration and the assessment of initial configurations independence are provided in the Methods section and in the Supplementary Methods. Simulations indicated that no large conformational changes occur in the GT1 and GT2 domains upon ligand binding. However, analyses of internal dynamics reveal that the binding of donor substrates and metal ions in the GT1 domain significantly stabilizes its structure, while a less pronounced effect is observed for the GT2 domain. Principal component analysis (PCA) was used to identify the dominant modes of motion in simulations by capturing directions of the largest variance in the data. More specifically, for each domain, GT1 and GT2, the bound and unbound trajectories were combined and subjected to PCA. The first two principal components (PC1 and PC2), representing the majority of conformational variance were calculated, and snapshots of the bound and unbound trajectories were projected onto these components. Histograms of normalized projection frequencies provided a visual representation of the conformational space explored by each system, highlighting their dynamic differences (Supplementary Fig. 12a–d). For the GT1 domain, projections of bound and unbound conformations onto PC1 exhibit overlapping distributions, indicating access to similar conformational spaces. However, the unbound state displays broader and less pronounced peaks, reflecting greater conformational diversity and flexibility. In contrast, the bound state shows sharper and higher peaks, suggesting that cofactor binding restricts the GT1 domain to a narrower set of conformations (Supplementary Fig. 12a). Similarly, along PC2, the bound state maintains a more confined distribution compared to the broader, multi-peaked profile of the unbound state (Supplementary Fig. 12b). For the GT2 domain, projections of bound and unbound conformations along PC1 demonstrate that the unbound state predominantly samples a single conformational state, indicated by a single peak centered at zero, reflecting minimal movement and inherent structural stability. In contrast, the bound state exhibits a bimodal distribution with one peak overlapping the unbound state and a second, sharper peak, suggesting that cofactors binding induces an additional conformation (Supplementary Fig. 12c). Along PC2, the unbound state shows a narrow distribution centered around zero, whereas the bound state shows a slight shift toward negative values, indicating subtle conformational adjustments upon cofactors binding (Supplementary Fig. 12d). These results suggest that binding of metal ions and donor substrates contribute to the overall GT1 domain stabilization by limiting its structural dynamics. In contrast, the GT2 domain remains structurally stable also in the unbound state, while cofactor binding induces an additional conformational state, resulting in minor alterations to its internal dynamics without causing large-scale structural changes.

Hydrogen bond persistence analysis along the simulation time corroborates the PCA results. In the GT1 domain, the bound state exhibits more persistent hydrogen bonds (60–90% of the simulation time) compared to the unbound state (<60%) (Supplementary Fig. 12e, f), indicating greater rigidity and stability. Conversely, the GT2 domain shows minimal differences in hydrogen bond persistence between bound and unbound states, maintaining a dynamic hydrogen bond network with only slight variations (Supplementary Fig. 12g, h). This result suggests that cofactor binding has limited impact on the structural dynamics of the GT2 domain.

Distance fluctuation (DF) analysis, which characterizes the coordinated internal dynamics of the GT1 and GT2 domains, further supports these findings. In the GT1 domain unbound state, the loop hosting residues 130–140, the C-terminal portion of helix a7 of the GT1 domain and the linker between GT1 and GT2 domains are highly dynamic and less restricted to a well-defined conformation, losing their coordination with the rest of the domain, (Supplementary Fig. 13a). Ligand binding enhances internal coordination of these regions, restricting their dynamics to more stable conformations. In contrast, the GT2 domain shows minimal differences in DF between bound and unbound states, maintaining similar dynamic coordination patterns with only slight variations in flexible regions (Supplementary Fig. 13b). These observations suggest that cofactor binding increases the internal coordination of the GT1 domain while exerting a less pronounced effect on the GT2 domain. In particular, without the stabilizing effect induced by donor substrate and metal ion, the loop hosting residues 130–140, the C-terminal portion of helix a7 of the GT1 domain and the linker between GT1 and GT2 domains become highly dynamic and less restricted to a well-defined conformation (Supplementary Fig. 13c). GT1 and GT2 domains respond differently to ligand and cofactor binding within the simulated timescales, confirming that the relevant structural stabilization processes are well-characterized by the simulations performed.

Overall results from MD simulations and analysis support the hypothesis that cofactor binding significantly enhances the structural stability of the GT1 domain while exerting a less pronounced effect on the structural dynamics of the GT2 domain.

Discussion

Collagen hydroxylysine galactosylation is a fundamental step in the complex post-translational modification pathway that leads to Glc-Gal-Hyl, the most abundant O-linked glycosylation found in the animal kingdom^12,13,16. Following decades of intensive biochemical investigations addressing the enzymes involved in this process and their associated functions, recent years have witnessed increasing efforts to produce a comprehensive molecular description of these reactions and the actors involved, with particular attention to multifunctional LH/PLOD lysyl hydroxylases-glucosyltransferases^17,41. However, the lack of experimental structure data about GLT25D/COLGALT galactosyltransferases has limited our understanding of the molecular mechanisms of these glycosyltransferases, despite previous significant efforts^16,28,34. In this work, we have determined the experimental structure of full-length human GLT25D1/COLGALT1, and used a combination of biochemistry, biophysics and site-directed mutagenesis to characterize its functionality in vitro.

Our results reveal an elongated, multi-domain dimeric quaternary structure characterized by two Rossmann fold-type domains per monomer (named GT1 and GT2, respectively) interconnected through a rigid linker region, and with dimer contacts wrapping around the N-terminus of each monomer (Fig. 1b, c). Surprisingly, both GT1 and GT2 domains were found indispensable for catalysis and were capable of binding metal ions and UDP-α-Gal donor substrate (Fig. 4), with the ligand binding regions of both domains showing the highest degree of sequence conservation (Supplementary Figs. 6 and 7). The N-terminal domain GT1 is closely related to the inactive central accessory (AC) domain of LH/PLOD enzymes and shares features more similar those typical of inverting GT-A glycosyltransferases, whereas the GT2 domain features a distinctive topology not matched by well-characterized glycosyltransferase enzymes.

Previous work addressing the putative functional roles of GLT25D1/COLGALT1 DxD motifs showed that point mutations affecting residues involved in metal ion coordination Asp166 and Asp168 in the GT1 domain completely abolished the activity³⁴. The same work also indicated that replacing the entire N-terminus of the enzyme with that of inactive CERCAM did not impact on the ability of the enzyme to glycosylate collagen substrates³⁴. These results are consistent with the experimental identification of Ca²⁺ and UDP-α-Gal bound in the GT1 domain of the enzyme (Fig. 6b–e). Contrary to the frequent presence of Mn²⁺ and Mg²⁺ metal ion cofactors^37,38, we could not find evidence of other Rossman fold GT-A glycosyltransferases with bound Ca²⁺ in their catalytic site. Combined with the absence of negatively charged amino acid residues at key positions essential for inverting glycosyltransferase catalysis^37,38, the presence of a stably bound Ca²⁺ ion interacting with UDP-α-Gal rules out direct catalytic roles for the GLT25D1/COLGALT1 GT1 domain. In addition, MD simulations performed on ligand-free and ligand-bound GLT25D1/COLGALT1 GT1 domain further supported the structural roles for the bound metal ion and donor substrate, highlighting increased molecular flexibility around residues 130–140 and 310–330 of this domain in absence of metal ions and UDP-α-Gal (Supplementary Figs. 12 and 13). Notably, these regions encompass residues proximate to UDP-α-Gal binding such as Trp135, matching the site affected by the loss-of-function mouse fosse mutation²² and the main contact site of the GT1 domain with neighbor GT2, where mutations associated to cerebral small vessel disease can be mapped (Fig. 5d). Increased molecular flexibility in this portion of the GLT25D1/COLGALT1 polypeptide may significantly perturb the globular organization of this multi-domain enzyme. Such hypothesis is supported by our data showing that after EDTA/EGTA treatment, GLT25D1/COLGALT1 is characterized by folding instability and conformational alterations in solution without significant changes in the enzyme’s oligomeric state (Fig. 6b–d).

The GT2 domain displays amino acid sequence conservation for the residues surrounding the site transiently occupied by the Mn²⁺ cofactor and UDP-α-Gal during catalysis (Fig. 5a, Supplementary Fig. 7). Structural investigations proved essential to identify the GLT25D1/COLGALT1 catalytic site. Previous attempts to map the catalytic residues critical for GLT25D1/COLGALT1 enzymatic activity were not conclusive, likely due to the unusual EDD motif that we found responsible for binding Mn²⁺ in the GT2 domain, and the multiple DxD motifs within the enzyme polypeptide sequence (Supplementary Figs. 6 and 7). To ensure correct mapping of the GT2 catalytic network, we designed several point mutations surrounding the Mn²⁺ cofactor and the donor substrate observed in the crystal structures and found an extensive network of charged and hydrophobic side chains critically involved in UDP-α-Gal substrate recognition, activation, and catalysis (Fig. 5b, c).

Overall, substrate-free and substrate-bound structures for the GT2 catalytic cavity are almost identical (Fig. 4), except for the conformational rearrangement of the otherwise flexible C-terminal segment of the domain. This region is characterized by negatively charged amino acids, whose direct involvement in binding and processing of the donor substrate UDP-α-Gal has been demonstrated by our site-directed mutagenesis experiments. In this respect, our insights also support previous in silico hypotheses⁴².

The observed dimeric quaternary structure, confirmed by multiple orthogonal experiments in solution and by site-directed mutagenesis, does not appear to be a requirement for GLT25D1/COLGALT1 enzymatic activity in vitro (Fig. 3). Using cross-linking mass spectrometry we found that the dimeric architecture of GLT25D1/COLGALT1 shapes a direct molecular contact site for GLT25D1/COLGALT1-LH3/PLOD3 molecular interactions, providing experimental evidence to previous hypotheses regarding formation of multimeric biosynthetic hetero-complexes capable of fully converting collagen Lys residues into Glc-Gal-Hyl^29,31. These results are consistent with the recently reported cryo-electron microscopy structure of a GLT25D1/COLGALT1-LH3/PLOD3 complex⁴³. Notably, our biophysical data consistently indicate that a small fraction of our recombinant enzyme preparations is dispersed, possibly suggesting the need for further stabilizing homo- or hetero- protein-protein interactions with physiological relevance in vivo.

The elongated shape of the GLT25D1/COLGALT1 dimer resembles that of the tail-to-tail dimer observed for LH3/PLOD3, possibly facilitating extensive interactions among the two enzymes responsible for the subsequent processing of collagen lysines into Glc-Gal-Hyl and posing questions regarding the possible evolution of this two-enzyme system from a common ancestor. This is further supported by the structural similarity observed between the two non-functional domains of these enzymes (Supplementary Fig. 5c): the GLT25D1/COLGALT1 GT1 domain, unexpectedly found bound to Ca²⁺ and hosting UDP-α-Gal but only to preserve the conformational integrity of the domain, and the LH/PLOD AC domain, which cannot bind metal ions and/or co-substrates⁴¹. Such hypothesis prompts for extensive future work, also considering the unusual trafficking of multifunctional LH/PLOD enzymes through the secretory pathway due to absence of specific ER retention sequences^44,45,46,47.

Methods

Chemicals

All chemicals were purchased from Sigma-Aldrich unless otherwise specified.

DNA constructs

The sequence encoding for human GLT25D1/COLGALT1, deprived of the N-terminal signal peptide and the C-terminal RDEL retention sequence (UniProt Q8NBJ5, residues 30 to 618), was synthesized by Genewiz and sub-cloned into a pCR8 cloning vector with in-frame 5’-BamHI and 3’-NotI restriction sites. GLT25D1/COLGALT1 mutants were generated using the Phusion Site Directed Mutagenesis Kit (Thermo Fisher Scientific). The entire plasmid was amplified using the primers listed in Supplementary Table 1. The linear mutagenized plasmids were then phosphorylated using T4 polynucleotide kinase (Invitrogen) prior to ligation. All plasmids were checked by Sanger sequencing (Microsynth) prior to cloning into a modified pET28b-SUMO vector (Novagen). The recombinant plasmids include an N-terminal 8xHis-tag followed by a small ubiquitin-like modifier (SUMO) tag preceding the in-frame 5’-BamHI restriction site, as well as an in-frame stop codon after the 3’-NotI restriction site.

Production of recombinant GLT25D1/COLGALT1

Chemically competent E. coli BL21 cells (Invitrogen) were transformed with the pET28b-SUMO-GLT25D1 recombinant plasmid using heat shock. A single colony was inoculated into Lysogeny broth (LB) medium supplemented with 100 μg ml⁻¹ of kanamycin and grown overnight at 37 °C in a shaking incubator (New Brunswick). This pre-culture was then inoculated at a 1:50 ratio in 1 L of ZYP5052 autoinducing medium⁴⁸ in a 5 L Erlenmeyer flask. The culture was kept at 37 °C for 3 h at 180 r.p.m. shaking speed. The temperature was then lowered to 17 °C, and further incubated overnight. Bacterial cells were harvested by centrifugation at 5000 × g, resuspended at 1:10 w/v ratio in a lysis buffer composed of 25 mM 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES)/NaOH, 500 mM NaCl, 10 μM leupeptin, 10 μM pepstatin, 0.3 mg ml⁻¹ chicken egg white lysozyme, 500 μM MnSO₄, pH 8.0. The suspension was subject to sonication (16 cycles, 9 s on, 6 s off pulses). Cell debris was removed by centrifuging the cell lysate at 60,000 × g for 45 min, at 4 °C in an Avanti J26 super centrifuge (Beckman Coulter). The supernatant containing soluble His-SUMO-GLT25D1/COLGALT1 protein was filtered through a MiniSart GF 0.8 μm filter (Sartorius), loaded onto a 5 mL Ni Sepharose Excel column (Cytiva) and eluted using a stepwise gradient of an elution buffer composed of 25 mM HEPES/NaOH, 500 mM NaCl, 500 mM imidazole, pH 8.0. The fractions of the eluate containing His-SUMO-GLT25D1/COLGALT1, as assessed by SDS-PAGE analysis, were pooled and dialyzed overnight against 2 L of 25 mM HEPES/NaOH, 500 mM NaCl, pH 8.0. The N-terminal 8xHis-SUMO tag was simultaneously cleaved by incubating the protein with 1 mg mL⁻¹ His-tagged SUMO protease (1:300 v/v). Affinity-based removal of SUMO protease and 8xHis-SUMO-tag was achieved by passing the purified sample through a 5 mL Ni Sepharose Excel column (Cytiva) and collecting the flow-through fraction. The resulting sample was subject to buffer exchange in 30 kDa MWCO Vivaspin Turbo centrifugal filters (Sartorius) against 25 mM HEPES/NaOH, 100 mM NaCl, pH 8.0 and loaded into a HiScreen Capto Q column (Cytiva) pre-equilibrated with the same buffer. A linear NaCl gradient was then applied, resulting in GLT25D1/COLGALT1 elution with approximately 250 mM NaCl. The sample was concentrated using 30 kDa MWCO Vivaspin Turbo centrifugal filters (Sartorius) and subject to final polishing into a Superdex 200 Increase 10/300 GL (Cytiva), equilibrated with 25 mM HEPES/NaOH, 100 mM NaCl, pH 8.0. The final sample quality was assessed by reducing and non-reducing SDS-PAGE analysis. GLT25D1/COLGALT1-containing fractions were pooled, concentrated to 4 mg mL⁻¹, and stored at −80 °C prior to usage. Results of SDS-PAGE sample quality controls for all proteins used in this study are shown in Supplementary Fig. 1.

Protein crystallization

GLT25D1/COLGALT1 spherulites were initially found in various conditions of nanoliter-dispensed droplets (0.1 μL protein at 4 mg mL⁻¹ + 0.1 μL reservoirs), dispensed using a Gryphon crystallization robot (Art Robbins) using commercial crystallization screens in sitting-drop vapor diffusion drop plates (SwissSci). In particular, small microcrystals were initially identified after few days at 4 °C in conditions of the Morpheus crystallization screen⁴⁹ (Molecular Dimensions), indicating a preference for poly-ethylene-glycol (PEG) as precipitant and pH between 6.0 and 7.0. Crystal optimization was carried out by systematically varying the precipitating agent, buffering agent, pH and additives composition of the initial hits from the commercial screen. Diffraction-quality crystals were eventually obtained by manually mixing 0.5 μL of protein concentrated at 3.5 mg mL⁻¹ and 0.5 μL of an optimized reservoir solution composed of 8% PEG MW 4000, 100 mM 2-(N-morpholino)ethanesulfonic acid (MES)/NaOH, 20% glycerol, pH 6.5. Co-crystallization experiments were performed by setting up the same conditions and supplementing the protein solution with 500 μM MnCl₂ and 1 mM UDP-α-Gal. Crystals were harvested using mounted Litholoops (Molecular Dimensions), flash-cooled and stored in liquid nitrogen prior to data acquisition. Heavy atom derivatives were prepared by soaking the GLT25D1/COLGALT1 crystals in mother liquor conditions containing 1 mM K₂HgBr₄. Crystals were incubated with the heavy atom solution for at least 5 h at 4 °C prior to cryoprotection, harvesting and flash-cooling in liquid nitrogen.

X-ray data collection, structure determination and refinement

X-ray diffraction data from single crystals were collected at 100 K at various beamlines of the European Synchrotron Radiation Facility (ESRF) in Grenoble, France and the Swiss Light Source (SLS) in Villigen, Switzerland. Experimental phasing was achieved by collecting X-ray diffraction data at the mercury inflection point at the ID23-1 beamline of the ESRF synchrotron equipped with an Eiger 2 16 M (Dectris) detector. Data were indexed and integrated with XDS⁵⁰, followed by scaling and merging using AIMLESS⁵¹. Data collection statistics are given in Supplementary Table 2. Single wavelength anomalous dispersion (SAD) phasing was performed with the SHELXC/D/E pipeline and HKL2MAP⁵². A total of 13 heavy atom sites were identified at 4.0 Å resolution in SHELXD. Phasing with SHELXE resulted in non-ambiguous identification of the map handedness immediately after the initial rounds of density modification with phase extension to 2.80 Å, with 62% solvent content. The density modified experimental electron density map was used for tracing the initial model by combining multiple rounds of ARP/wARP and BUCCANEER⁵³. The model was completed and the structure was refined by alternating steps of manual building in COOT and automated refinement with phenix.refine⁵⁴ and REFMAC5⁵⁵. Crystal structures of GLT25D1/COLGALT1 in complex with donor substrates were subsequently determined using molecular replacement in PHASER, using the experimental structure of the enzyme as search model. Validation was carried out using MolProbity and the validation tools available on the Protein Data Bank server⁵⁶. Final refinement statistics are summarized in Supplementary Table 3. Structural figures were prepared with PyMol (http://www.pymol.org). Superpositions were performed using the “super” command in PyMol. All-atom root mean square deviation (RMSD) values were computed accordingly.

Mass photometry

Mass photometry measurements were carried out on a Refeyn Two Mass Photometer (Refeyn) using 24 × 50 mm² glass coverslips (Refeyn). Initial 200 nM stocks of purified human GLT25D1/COLGALT1 wild-type and mutants were diluted 1:10 using 25 mM HEPES/NaOH, 100 mM NaCl, pH 8.0, and analyzed under a field of view of 4 μm × 11 μm at a frame rate of 500 Hz. The data were collected using AcquireMP (Refeyn), then processed and plotted using DiscoverMP (Refeyn). Results of the data analysis are summarized in Supplementary Table 4.

Size exclusion chromatography coupled with multi-angle light scattering (SEC-MALS)

30 μl of 4 mg mL⁻¹ recombinant GLT25D1/COLGALT1 were injected into a Protein KW-802.5 analytical size-exclusion column (Shodex) and separated with a flow rate of 1 mL min⁻¹ in phosphate buffer saline using a Prominence high-pressure liquid chromatography (HPLC) system (Shimadzu). For molecular weight characterization, light scattering was measured with a miniDAWN multi-angle light scattering detector (Wyatt), connected to a RID-20A differential refractive index detector (Shimadzu) for quantitation of the total mass and to a SPD-20A UV detector (Shimadzu) for evaluation of the sole protein content. Chromatograms were collected and analyzed using the ASTRA7 software (Wyatt), using an estimated dn/dc value of 0.185 ml/g. The calibration of the instrument was verified by injection of 10 μL of 2.5 mg mL⁻¹ monomeric BSA.

Differential scanning fluorimetry (DSF)

DSF assays on recombinant GLT25D1/COLGALT1 samples (wild-type and mutants) at a concentration of 1 mg mL⁻¹ in 25 mM HEPES/NaOH, 100 mM NaCl, pH 8.0 were performed using a Tycho NT.6 instrument (NanoTemper Technologies GmbH). Data were analyzed and plotted using Graphpad Prism 7⁵⁷.

Evaluation of Gal-T activity through luminescence

Reaction mixtures (5 μL total volume in 25 mM HEPES/NaOH, 100 mM NaCl, pH 8.0) were prepared by initially incubating GLT25D1/COLGALT1 (final concentration 1 mg mL⁻¹) at 37 °C for 3 h with variable amounts of bovine skin gelatin, previously solubilized through heating denaturation at 95 °C for 10 min. After incubation, 100 μM of UDP-α-sugar and 50 μM MnCl₂ or MgCl₂ were added to start the enzymatic reactions. After a precise timing between 1 and 120 min the reactions were stopped by heating the samples at 95 °C for 2 min, then the samples were transferred into Proxiplate white 384-well plates (Perkin-Elmer). 5 μL of the UDP-Glo luminescence detection reagent (Promega) were added and let incubate for 1 h at 25 °C. The plates were then transferred into a GloMax Discovery plate reader (Promega) configured according to manufacturer’s instructions for luminescence detection. Initial velocities were measured through the determination of slopes from linear fit interpolation of individual time points using GraphPad Prism 7⁵⁷. After visual inspection of double reciprocal plots, which were linear (Supplementary Fig. 2c), the initial velocity values, expressed as apparent mean turnover values and associated errors, were directly fitted to the Michaelis-Menten equation using GraphPad Prism 7⁵⁷, obtaining the values of apparent k_cat and K_m accounting for propagation of statistical errors⁵⁸. All experiments were performed in triplicates. Control experiments were performed using identical conditions by selectively removing GLT25D1, donor or acceptor substrates. Results of the data analysis are summarized in Supplementary Table 5.

Evaluation of Gal-T activity through HR-LCMS

5 μM recombinant human LH3/PLOD3 (obtained in house as described in previous work) was incubated with 5 μM GLT25D1/COLGALT1 (wild-type or mutants), 50 μM FeCl₂, 100 μM 2-oxoglutarate (2-OG), 500 μM sodium ascorbate, 50 μM MnCl₂, 100 μM UDP-α-sugar, and 1 mM peptide (Ac-GIKGIKGIKGIK-COOH) substrate. The reactions were allowed to proceed for 3 h at 37 °C. 5 μL of each reaction were diluted with 43 μL of Milli-Q water and acidified by addition of 2 μL of formic acid, to reach a final volume of 50 μL, and then analyzed on an Exion LC AD UHPLC (AB Sciex) coupled to a X500B ESI-HRMS/MS system (AB Sciex) by a full scan acquisition. The column oven was kept at 40 °C, while the autosampler was cooled at 10 °C. Peptides were separated by reverse phase HPLC on a Hypersil Gold C18 column (150 × 2.1 mm, 3 μm particle size, 175 Å pore size, Thermo Fisher Scientific) using a linear gradient (2–50% solvent B in 15 min), with solvent A consisting of 0.1% aqueous formic acid and solvent B of acetonitrile (ACN) containing 0.1% formic acid. Flow rate was kept constant at 0.2 mL min⁻¹. Mass spectra were generated in positive polarity under constant instrumental conditions: ion spray voltage 4500 V, declustering potential 100 V, curtain gas 30 psi, ion source gas 1 40 psi, ion source gas 2 45 psi, temperature 350 °C, collision energy 10 V. Spectra analyses were performed using the SCIEX OS 2.1 software (AB Sciex). Results of the data analysis are summarized in Supplementary Table 5.

Size exclusion chromatography coupled with small-angle X-ray scattering (SEC-SAXS)

Solution scattering data were collected at ESRF BM29 using a sec⁻¹ frame rate on Pilatus 1 M detector located at a fixed distance of 2.87 m from the sample, allowing a global q range of 0.01–4.00 nm. SEC-SAXS experiments were carried out using Nexera High Pressure Liquid/Chromatography (Shimadzu) system connected online to SAXS sample capillary⁵⁹. For these experiments, 50 μL of GTL25D1/COLGALT1 concentrated at 4 mg mL⁻¹ were injected into a Superdex 200 PC 3.2/300 Increase column (GE Healthcare), pre-equilibrated with 25 mM HEPES/NaOH, 200 mM NaCl, pH 8.0. For SEC-SAXS data, frames corresponding to GTL25D1/COLGALT1 protein peak were identified, blank subtracted, and averaged using CHROMIXS⁶⁰.

SEC-SAXS modeling and data analysis

Radii of gyration (Rg), molar mass estimates and distance distribution functions P(r) were computed using PRIMUS⁶¹ within the ATSAS package⁶². Comparison of experimental SAXS data and 3D models from crystal structures was performed using CRYSOL⁶³. A summary of SAXS data collection and analysis results is reported in Supplementary Table 6. Ab initio sphere models were generated from the SAXS data using GASBOR, by providing the software with P(r) functions derived from experimental data and the number of residues defining GLT25D1/COLGALT1 monomers and without imposing any internal symmetry. 20 independent ab initio GASBOR runs were performed and subject to similarity analysis using SUPCOMB and DAMSEL from ATSAS, allowing selection of a representative individual model based on normalized spatial discrepancy. Superpositions were carried out using the SUPALM program available in the saspy ATSAS plugin in PyMol⁶⁴. For SAXS rigid-body modeling, the model of a GLT25D1/COLGALT1 monomer from the experimental crystal structure was subject to loop modeling using CORAL⁶⁵. Evaluation of the agreement between molecular models and experimental SAXS profiles was carried out using CRYSOL⁶³.

Single particle negative staining electron microscopy

200 mesh, Cu grids (Ted Pella) grids were negatively charged using a PELCO EasiGlow (Ted Pella) with the following parameters: pressure 40 mBar, power 15 mA, time 30 s. 2 μL of 1 mg mL⁻¹ GLT25D1/COLGALT1 were applied on each grid and left for 60 s. The excess sample was blotted using Whatman paper and then a 25 μL drop of 2% (w/v) uranyl acetate solution was applied, gently stirring for 1 min. The excess stain was blotted with filter paper and the grids were left dry overnight. 350 EM micrographs were acquired on a JEM 1200EXIII (JEOL) electron microscope equipped with a Mega View III CCD camera (Olympus). Data processing was carried out using RELION, including auto-picking and multiple rounds of 2D classification. Comparison of electron microscopy single particle analysis 2D classes and GLT25D1/COLGALT1 molecular models from crystal structures was carried out using AlignProjections within the COSMIC2 webserver⁶⁶.

GLT25D1/COLGALT1-LH3/PLOD3 cross-linking and enzymatic proteolysis

5 μM GLT25D1/COLGALT1 (wild-type and Trp158Arg) were mixed with 5 μM human LH3/PLOD3⁶⁷ (total protein concentration 10 μM) in 50 mM HEPES/NaOH, 100 mM NaCl, pH 8.0. The samples were incubated at room temperature for 1 h with 0.5 mM DSBU. The cross-linker was dissolved in neat dimethyl sulfoxide (DMSO) immediately before adding it to the peptide solution. The reaction was quenched by adding 2 μL of 1 M Tris/HCl solution. Cross-linked samples were loaded onto S-Trap microcolumns (Protifi) according to the manufacturer’s instructions. In brief, after loading, samples were washed with 90:10% methanol/50 mM ammonium bicarbonate. The samples were then digested with trypsin (Promega) (1:20 trypsin/protein) for 1.5 h at 47 °C. The digested peptides were eluted using 50 mM ammonium bicarbonate. Two additional elutions were made using 0.2% formic acid and 0.2% formic acid in 50% ACN. The three fractions were pooled together and vacuum-centrifuged to dryness. The resulting peptides were resuspended in 5% ACN, 0.1% trifluoroacetic acid for subsequent LC-MS/MS analyses.

Liquid chromatography coupled to mass spectrometry for cross-linking peptide analysis

Proteolyzed cross-linked samples were analyzed via LC-MS/MS on an UltiMate 3000 RSLC nano-HPLC system (Thermo Fisher Scientific) coupled to a timsTOF Pro mass spectrometer equipped with CaptiveSpray source (Bruker Daltonics). Peptides were trapped on a C18 column (precolumn Acclaim PepMap 100, 300 μm × 5 mm, 5 μm, 100 Å, Thermo Fisher Scientific) at 50 °C and separated on a self-packed Picofrit (New Objective) nanospray emitter (360 μm o.d. × 75 μm i.d. × 400 mm L, 15 μm Tip i.d.) with C18-stationary phase (3.0 μm, 120 Å, Dr. Maisch GmbH). After trapping, peptides were eluted by a linear 90 min water−ACN gradient from 3% (v/v) to 50% (v/v) ACN. For the timsTOF Pro MS settings, the following parameters were adopted. The values for mobility-dependent collision energy ramping were set to 95 eV at an inverse reduced mobility (1/k₀) of 1.6 V s/cm² and 23 eV at 0.73 V s/cm². Collision energies were linearly S-5 interpolated between these two 1/k₀ values and kept constant above or below. No merging of TIMS scans was performed. Target intensity per individual PASEF precursor was set to 20,000. The scan range was defined between 0.6 and 1.6 V s/cm² with a ramp time/accumulation time of 166 ms. 14 PASEF MS/MS scans were triggered per cycle (2.57 s) with a maximum of seven precursors per mobilogram. Precursor ions in an m/z range between 100 and 1700 with charge states ≥3+ and ≤8+ were selected for fragmentation. Active exclusion was enabled for 0.4 min (mass width 0.015 Th, 1/k₀ width 0.015 V s/cm²).

XL-MS data analysis

Cross-linked peptides were identified using MeroX⁶⁸ (version 2.0.1.7, https://stavrox.com). The search parameters were set as follows: tryptic cleavage C-terminal to Lys and Arg, allowing up to four missed cleavages; peptide length range 3–30 amino acids; fixed modification: Cys alkylation (iodoacetamide); variable modification: Met oxidation. The cross-linker was specified to react with Lys and N-termini. Cross-link identification was performed in RISEUP mode, allowing a maximum of three missing ions. The precursor and fragment mass tolerances were set to 10 ppm and 20 ppm, respectively. The signal-to-noise ratio was required to be >2.0. False discovery rate (FDR) filtering was applied at 1% at the peptide-spectrum match (PSM) level, with a minimum score cut-off of 100. To improve FDR estimation, a contaminant database (CRAP database) was included.

Proteomic data analysis was conducted using MaxQuant⁶⁹ (version 2.6.2.0) and Skyline⁷⁰ (version 24.1.1.339). Bruker raw files were processed using data-dependent acquisition (DDA) searches against the UniProt Human Reference Proteome (UP000005640), which includes 20,406 canonical proteins. Contaminants were filtered using the default MaxQuant contaminant database. The search parameters included tryptic cleavage C-terminal to Lys and Arg, allowing up to two missed cleavages. The peptide length was set to 6–25 amino acids. Fixed modifications included Cys alkylation (iodoacetamide), while variable modifications included Met oxidation and N-terminal acetylation. For label-free quantification (LFQ), a minimum of three unique peptides per protein was required. The MS1 and MS2 tolerances were set to 10 ppm and 20 ppm, respectively. The Match Between Runs (MBR) feature was enabled, with a retention time alignment window of 0.4 min and an ion mobility window of 0.05. PSM and protein-level FDR were controlled at 1%. MaxQuant and MeroX results were imported into Skyline for MS/MS spectrum inspection and peptide quantification at MS1 level. Protein quantification was based on the ten most abundant validated peptides per protein. MS/MS spectra for the PLOD3-GLT25D1 inter-protein cross-link and relevant dead-end products were imported into Skyline, following previously established workflows⁷¹, and quantified.

ICP-MS measurements

To quantify the possible presence and concentration of metal ions in GLT25D1/COLGALT1 recombinant preparations, 900 μL of a sample containing 4 mg mL⁻¹ GLT25D1/COLGALT1 (purified without usage of divalent ions) were treated with 300 μL 65% ultrapure HNO₃ and 200 μL 30% w/w H₂O₂, made up to 5 mL with ultrapure water and analyzed on a single quadrupole inductively coupled plasma mass spectrometer (SQ-ICP-MS, iCAP RQ Thermo Fisher Scientific), equipped with a quartz cyclonic chamber cooled at 3 °C, a MicroMist nebulizer 179 (400 μL min⁻¹), a quartz torch, a Ni sampler, skimmer cones, and a QCell pressurized with helium (3 V, KED mode). Quantitative determinations for manganese and calcium were obtained by the external standard calibration with four standards (0, 1, 5, 10 μg L⁻¹) prepared daily in the same buffer used for sample preparation, at the same dilution and HNO₃ concentration. While manganese could not be detected, calcium was detected with a 1:1 stoichiometry.

Native mass spectrometry (Native-MS)

Native-MS was employed to identify metal cofactors of GLT25D1/COLGALT1. Recombinant wild-type and Trp158Arg GLT25D1/COLGALT1 enzymes (20 μM) were analyzed under partially denaturing conditions (50 mM ammonium bicarbonate, 40% acetonitrile), in order to improve droplets desolvation and to minimize the adducts formation during electrospray. Samples were directly injected into an Orbitrap Fusion instrument (Thermo Fisher Scientific) using metal-coated borosilicate emitters (~1 μm internal diameter). The main instrumental parameters were set as follows: resolving power at m/z 200, 120,000; IRM pressure, 3 mTorr (intact protein mode); ion spray voltage, 1.1–1.2 kV; ion-transfer tube temperature, 275 °C; in-source fragmentation, 75 V; AGC target, 4 × 10⁵; maximum injection time, 100 ms. Final spectra were obtained by averaging the signal over 60 s acquisition. Ligand mass was calculated as the difference between detected bound- and free-protein signals over the entire charge state distribution of the spectra (Supplementary Fig. 10).

Molecular dynamics simulations

Molecular dynamics simulations were carried out using the AMBER software package (version 24) with the ff19SB force field, using its GPU-accelerated pmemd.cuda utility during equilibration and production, and sander otherwise. Comprehensive descriptions of the preparation of the simulated systems and molecular dynamics simulation protocols can be found in the Supplementary Information. Analyses of MD trajectories were carried out with the cpptraj program distributed within the ambertools suite (version 24) and in-house scripts.

Principal component analysis (PCA) was performed to identify the major modes of motion in the molecular dynamics simulations of the GT1 and GT2 domains, combining the trajectories of the ligand-free and ligand-bound states of each domain. The covariance matrix of the backbone atoms of the simulated systems was calculated, and diagonalized to obtain the principal components (eigenvectors) and their corresponding eigenvalues. The eigenvalues corresponding to each principal components were used to evaluate the percentage of the variance in the motion of the protein represented by each component. Since the first two components, PC1 and PC2, account for most of the variance in all the simulated systems, the snapshots of the trajectories were projected only onto these principal components, and histograms of the normalized frequency of the conformational states along PC1 and PC2 were generated.

Hydrogen bond persistence analysis was performed using the hbond command in the cpptraj module of AMBER24. A hydrogen bond was considered present based on geometric criteria: a donor–acceptor distance cutoff of 3.5 Å and a hydrogen-donor-acceptor angle cutoff of 135°. The persistence of each hydrogen bond was monitored throughout the simulation time, and the hydrogen bond frequencies were normalized based on the total number of hydrogen bonds to represent the percentage of time each bond was present during the trajectory. These results were then grouped into 10% frequency intervals to generate histograms, illustrating the persistence of hydrogen bonds over the course of the simulation.

The distance fluctuation (DF) parameter for each pair of residues i and j in a protein system is defined as D_ij = 〈(d_ij − 〈d_ij〉)²〉, where d_ij is the time-dependent distance between the Cα atoms of residues i and j, and the brackets indicates the time-averaged distance over the entire trajectory. This calculation results in a matrix that characterizes the extent of movement or flexibility between all residue pairs.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Unless otherwise stated, all data supporting the results of this study can be found in the article, supplementary, and source data files. Coordinates and structure factors have been deposited in the Protein Data Bank under accession codes 9EVJ, 9EVK, and 9EVL. In solution SEC-SAXS data have been deposited in the SASBDB under accession code SASDVZ2. XL-MS data have been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the project accession PXD061021. Native MS data have been deposited in the MassIVE database with dataset identifier MSV000097322 [https://doi.org/10.25345/C5TH8C06M]. MD simulation data, including initial coordinate files, simulation input files, and final output coordinate files have been deposited in Zenodo [https://doi.org/10.5281/zenodo.15020231]. The numerical source data for Supplementary Fig. 9 can be found in the raw data deposited on PRIDE under accession number PXD061021. The numerical source data for Supplementary Fig. 11 can be found in the raw data deposited on MassIVE under accession number MSV000097322 [https://doi.org/10.25345/C5TH8C06M]. Source data are provided with this paper.
