Introduction

B-cell acute lymphoblastic leukemia (B-ALL) is an aggressive hematological malignancy of B-lineage progenitors and is the commonest cancer in children1. Whilst the majority of children can be cured with multi-agent chemotherapy, patients with high-risk genetic subtypes, certain age groups and those who relapse remain a clinical challenge, such that B-ALL remains a leading cause of death in childhood. Furthermore, outcomes of adults with B-ALL remain dismal, even when fit enough to be treated intensively. There is therefore an urgent need to better understand drivers of high-risk B-ALL and to develop novel therapeutic approaches targeting these challenging patient cohorts.

Mutations in CREBBP (CREB-binding protein) are found in multiple hematological and solid malignancies, notably B-cell lymphomas2,3. Loss-of-function (LOF) mutations affecting CREBBP are also recurrent second-hit mutations across multiple genetic subtypes of B-ALL and are associated with adverse features, including high-risk genetic subtypes and persistent measurable residual disease (MRD)4,5,6,7. In addition, they have been mechanistically associated with chemoresistance and, in keeping with this, are enriched at relapse4,8,9,10,11,12. CREBBP mutations have also been described as an adverse prognostic factor in ALL, acute myeloid leukemia (AML) and follicular lymphoma13,14,15,16. CREBBP is a large protein with histone acetyltransferase (HAT) enzymatic activity alongside protein scaffolding function mediated through multiple protein-protein interaction domains, including a bromodomain responsible for binding acetylated lysine residues. Alongside its paralogue EP300, CREBBP is considered to primarily function as a transcriptional co-activator, responsible for acetylating histone residues at gene enhancers and promoters. CREBBP LOF mutations can include complete loss of the protein or recurrent point mutations affecting the HAT domain, which appear to exert a stronger phenotype4. During B-ALL evolution, CREBBP mutations frequently become bi-allelic and commonly co-associate with activating RAS pathway mutations, suggesting strong oncogenic co-operativity4,12,17.

Targeting cells harboring LOF mutations in tumor suppressor genes (TSG) principally relies on perturbing synthetic lethal dependencies acquired upon loss of TSG activity, commonly via inhibition of redundant pathways or protein paralogues. In the context of CREBBP, this has been demonstrated in models of B-cell lymphoma through inhibition of residual EP300 function using small molecule HAT or bromodomain inhibitors18. Global analyses of genetic co-dependencies have also implicated a dependency of CREBBP-mutated tumors on EXOC5 function19, whilst a number of mechanistic studies have identified potentially targetable roles for CREBBP in modulating key cellular processes including DNA damage response, signaling, apoptosis and metabolism3,12,17,20.

In this study we sought to develop treatment options targeting CREBBP-mutated high-risk B-ALL. We generated isogenic human B-ALL cell lines and undertook a synthetic lethal drug screen focusing on clinically-actionable agents targeting pathways mechanistically associated with CREBBP function. CREBBP LOF resulted in cell cycle and metabolic dysregulation, with prominent changes in lipid metabolism and marked sensitivity to ferroptotic cell death upon small molecule inhibition of the anti-apoptotic regulator BCL2. Inhibition of CREBBP function with small molecule inhibitors could phenocopy this synthetic lethal effect, sensitizing diverse subtypes of B-ALL to BCL2 inhibitors in-vitro and producing a significant survival advantage in-vivo, thus providing a potentially efficacious drug combination across a wider number of B-ALL genotypes.

Results

CREBBP-mutated B-ALL cell lines show increased sensitivity to Venetoclax

To identify candidate therapeutics that specifically target CREBBP-mutated high-risk B-ALL, we undertook a synthetic-lethal drug screen. The CREBBP wild-type (WT) B-ALL cell line 697 (derived from a patient with high-risk relapsed E2A::PBX1 B-ALL)21 was genome-engineered by CRISPR-Cas9 homologous recombination to introduce a recurrent hotspot mutation at arginine 1446 (CREBBPR1446C), which is implicated to exert a dominant-negative effect on CREBBP acetyltransferase activity4. Several clones were generated, including a homozygous CREBBPR1446C knock-in mutant clone (hereafter, 697KI) and a mutant clone containing two frameshift mutations resulting in a complete knockout of CREBBP protein (hereafter, 697KO) (Fig. 1a and Supplementary Fig. 1a). For use in validation studies, the ETV6::RUNX1-driven cell line REH (containing three WT copies of CREBBP) was also edited, resulting in two compound-heterozygous mutated clones, each including a single allele of the CREBBPR1446C HAT mutation, alongside presumed deleterious mutations of the other two alleles (Supplementary Fig. 1a).

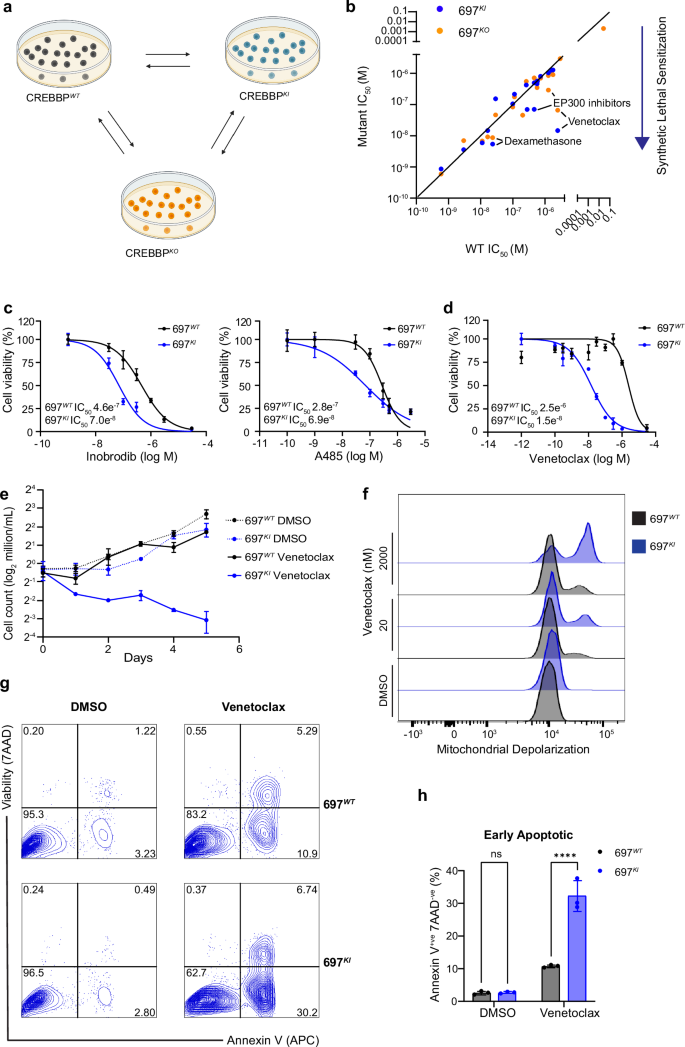

Fig. 1: CREBBP-mutated B-ALL cell lines show increased sensitivity to Venetoclax.
Fig. 1: CREBBP-mutated B-ALL cell lines show increased sensitivity to Venetoclax.
Full size image

a Schematic of genome editing strategy used to engineer 697WT (black) into isogenic CREBBP 697KI (blue) and 697KO (yellow) clones. Created in BioRender. Huntly, B. (2025) https://BioRender.com/s71p510. b Cell-based drug screening was performed using a panel of 32 small molecule compounds predicted to have differential sensitivity between CREBBP WT and mutant lines. 72 h viability was measured by MTS assays using a wide concentration range between 3pM and 30 µM in n = 3 technical replicates and repeated using narrower concentration ranges to define IC50 where appropriate. Results are presented as an IC50 ratio of 697KI (blue) and 697KO (yellow) clones compared to WT. c Dose response curves of two CREBBP/EP300 inhibitors Inobrodib (left) and A485 (right) showing enhanced sensitivity of 697KI (blue) compared to 697WT (black) in 72 h MTS viability assay. n = 3 technical replicates, mean ± SD. d Dose response curve of 697WT (black) and 697KI (blue) lines to Venetoclax in 72 h MTS viability assay. n = 3 technical replicates, mean ± SD. e Growth curve of 697WT (black) and 697KI (blue) grown in the presence of either DMSO vehicle (dotted lines) or 20 nM Venetoclax (solid lines). n = 3 independent replicates, mean ± SD. f Mitochondrial depolarization as assessed by staining for JC1 by flow cytometry (488 nm 530/30) in response to DMSO vehicle, or Venetoclax at 20 or 2000nM in 697WT (black) and 697KI (blue) cell lines. g Representative flow cytometry plots of externalization of Annexin-V (reported by APC) in response to 24 h exposure to DMSO vehicle (left) or Venetoclax 20 nM (right) in 697WT (top) and 697KI (bottom) cell lines. Viability is assessed by 7AAD exclusion. h Proportion of viable 7AAD-veAnnexin-V+ve early apoptotic cells. n = 3 independent replicates. Mean ± SD, 2-way ANOVA ****, P = 0.000009. Source data are provided as a Source Data file.

We subjected the 697 isogenic cell lines to a targeted drug screen, using a wide range of concentrations, focussed on clinically-actionable drugs in classes implicated or hypothesized to show differential sensitivity in published models of B-cell lymphoma and other CREBBP-mutated malignancies (Supplementary Data Table 1)3,4,10,11,12,18,20,22. CREBBP-mutated 697 cells were not differentially sensitive to traditional cytotoxic chemotherapy, and paradoxically showed a degree of sensitization to the glucocorticoid Dexamethasone, used in current ALL induction regimens (Fig. 1b and Supplementary Data Table 1 and Fig. 1b)4,11,12. As anticipated, and validating our screen design, inhibitors of CREBBP and its paralogue EP300 (the CREBBP/EP300-specific bromodomain inhibitor Inobrodib and the CREBBP/EP300 acetylase inhibitor A485) exhibited synthetic lethality, consistent with previous reports in B-cell lymphoma (Fig. 1b, c and Supplementary Data Table 1 and Fig. 1c)18.

Unexpectedly, the most potent hit identified from the screen was the clinical-grade BCL2 inhibitor Venetoclax, which showed a 2-log10-fold reduction in IC50, in both 697KI and 697KO clones (Fig. 1b, d and Supplementary Data Table 1 and Fig. 1d). These findings were validated in isogenic REH lines, with a 1-log10-fold reduction in IC50 in both mutant clones (Supplementary Fig. 1e). We confirmed this sensitization to Venetoclax in in-vitro proliferation assays by direct cell counting (Fig. 1e). Upon low-dose Venetoclax exposure, CREBBP-mutated 697 cells showed enhanced evidence of markers of programmed cell death, including mitochondrial depolarization, externalization of Annexin-V and induction of cleaved PARP and caspase-3 (Fig. 1f–h and Supplementary Fig. 1f), consistent with the known mechanism-of-action of Venetoclax in inducing apoptotic programmed cell death.

Overall, this focussed drug screen demonstrates that CREBBP-mutated B-ALL is: (i) not uniformly chemo-resistant, and (ii) identifies a number of clinically-actionable agents for use in CREBBP-mutated high-risk B-ALL, including Dexamethasone, EP300 inhibitors and a potent sensitization to the BCL2 inhibitor Venetoclax.

Venetoclax exerts its effect on CREBBP-mutated B-ALL cell lines by on-target inhibition of BCL2

We sought to explore the mechanism-of-action of Venetoclax. Venetoclax was developed to induce apoptosis through inhibition of BCL2 binding to the pro-cell death proteins BAK and BAX. However, recently, it has been shown to have alternative mechanisms-of-action, in particular on metabolism and self-renewal, including potential BCL2-independent effects23,24,25. To test whether the mechanism-of-action of Venetoclax in CREBBP-mutated B-ALL was through on-target BCL2 inhibition, we employed a doxycycline-inducible shRNA knock-down system, where shRNA expression was directly linked to a fluorescent reporter (Supplementary Fig. 2a–d)26.

Co-culture of 697WT or 697KI cells expressing one of two unique BCL2-targeting shRNAs (reported by mCherry) competed against cells expressing an shRNA targeting the negative-control renilla gene (reported by green fluorescent protein (GFP)) showed that 697KI cells exhibited a marked competitive disadvantage upon BCL2-knockdown, when compared to 697WT (Fig. 2a, b). This was associated with significant externalization of Annexin-V, consistent with the induction of programmed cell death (Fig. 2c, d).

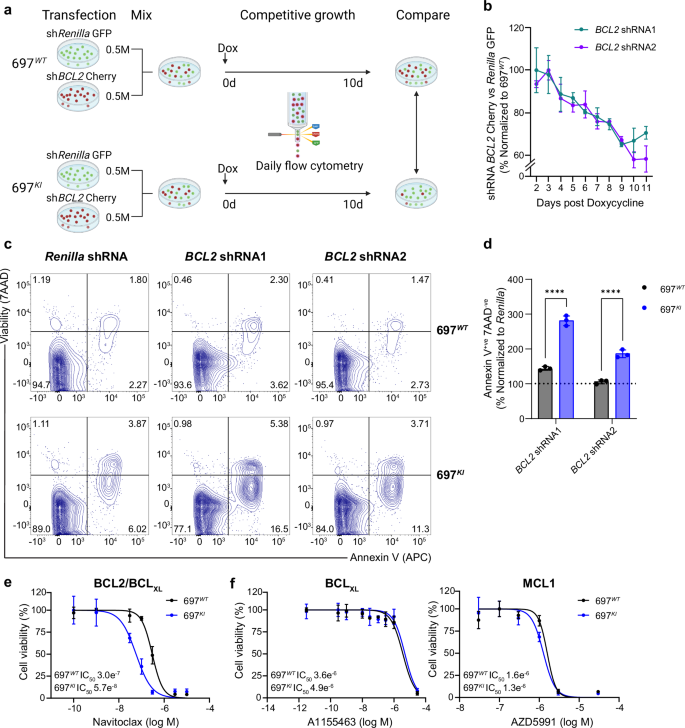

Fig. 2: Venetoclax exerts its effect on CREBBP-mutated B-ALL cell lines by on-target inhibition of BCL2.
Fig. 2: Venetoclax exerts its effect on CREBBP-mutated B-ALL cell lines by on-target inhibition of BCL2.
Full size image

a Schematic of doxycycline-inducible shRNA KD system competitive co-culture assay. 697WT and 697KI cells were stably transfected with two separate doxycycline-inducible shRNAs targeting BCL2, reported by mCherry, or a control shRNA targeting Renilla, reported by GFP. BCL2 and Renilla shRNA-expressing cells were mixed in equal numbers, doxycycline added to the media (500 ng/ml) to induce shRNA expression and the proportion of cells surviving BCL2/Renilla-KD analysed by daily flow cytometry. Created in BioRender. Huntly, B. (2025) https://BioRender.com/w63h764. b BCL2 shRNA KD competitive proliferation assay for two different BCL2-targeting shRNAs are presented, showing the ratio of BCL2-targeting shRNA (mCherry) vs. Renilla control (GFP), in 697KI normalized to 697WT as a percentage. n = 3 independent replicates, mean ± SD. c Representative flow cytometry plots of externalization of Annexin-V (APC) in 697WT (top) and 697KI (bottom) cell lines in response to doxycycline-induced shRNAs targeting Renilla (left), or two different BCL2-targeting shRNAs (middle and right). Day 6 post induction. Viability is assessed by 7AAD exclusion. d Proportion of viable 7AAD-veAnnexin-V+ve early apoptotic cells normalized to doxycycline-induced Renilla control. n = 3 independent replicates analysed 6 days after induction, mean ± SD, 2-way ANOVA ****, shRNA1 P = 0.0000003 and shRNA2 P = 0.00002. e Dose response curve of 697WT (black) and 697KI (blue) to Navitoclax in 72 h MTS viability assays. n = 3 technical replicates, mean ± SD. f Dose response curve of 697WT (black) and 697KI (blue) to A1155463 (BCLXL only inhibitor, left) and AZD5991 (MCL1 inhibitor, right) in 72 h MTS viability assays. n = 3 technical replicates, mean ± SD. Source data are provided as a Source Data file.

Furthermore, 697KI cells also showed differential sensitivity to the structurally-unrelated clinical-grade dual BCL2/BCLXL inhibitor Navitoclax (Fig. 2e and Supplementary Fig. 2e, f). Conversely, specific inhibitors of other antiapoptotic proteins (BCLXL and MCL1) showed no specificity for CREBBP-mutated cells (Fig. 2f), confirming a BCL2-specific effect. Collectively these studies demonstrate that Venetoclax induces programmed cell death in CREBBP-mutated B-ALL by on-target BCL2 inhibition and that the sensitivity of 697KI cells is specific to BCL2 and does not occur through other anti-apoptotic proteins.

CREBBP-mutated B-ALL cell lines show significant cell cycle and metabolic dysregulation

To further explore the mechanism of action of Venetoclax in CREBBP-mutated 697 cells, we undertook bulk RNA sequencing (RNAseq) of 697WT and 697KI cells, after 24 h exposure to either dimethyl sulfoxide (DMSO) vehicle, or low-dose Venetoclax (20 nM—the IC50 of 697KI cells). Consistent with the role of CREBBP as a transcriptional co-activator, the majority of differentially expressed genes (DEGs) between DMSO-vehicle treated 697WT and 697KI cells were down-regulated (Supplementary Fig. 3a). Gene Set Enrichment Analysis (GSEA) also showed marked down-regulation of published Crebbp target genes from a mouse lymphoma model (Supplementary Fig. 3b)27.

We explored this further using chromatin immunoprecipitation of H3K27ac marks alongside CUT&RUN assessment of CREBBP binding sites. 697KI showed a reduction in the total number of both CREBBP-bound loci and H3K27ac modified peaks (Supplementary Fig. 3c). Furthermore, the normalized read enrichment of CREBBP binding at transcriptional start sites (TSSs) was also consistently reduced in 697KI vs. 697WT, irrespective of differential gene expression, whereas H3K27ac was predominantly lost at TSSs of genes that were downregulated in 697KI (Fig. 3a). Binding and Expression Target Analysis (BETA) linking differential gene expression to CREBBP-bound enhancers confirmed a significant enrichment for gene downregulation near CREBBP-bound enhancers in 697KI, with a corresponding up-regulation of DEGs related to CREBBP-bound enhancers in 697WT (Fig. 3b)28. Collectively, these findings are consistent with the proposed mechanism of the CREBBPR1446C mutation as detrimental to CREBBP co-activator function4.

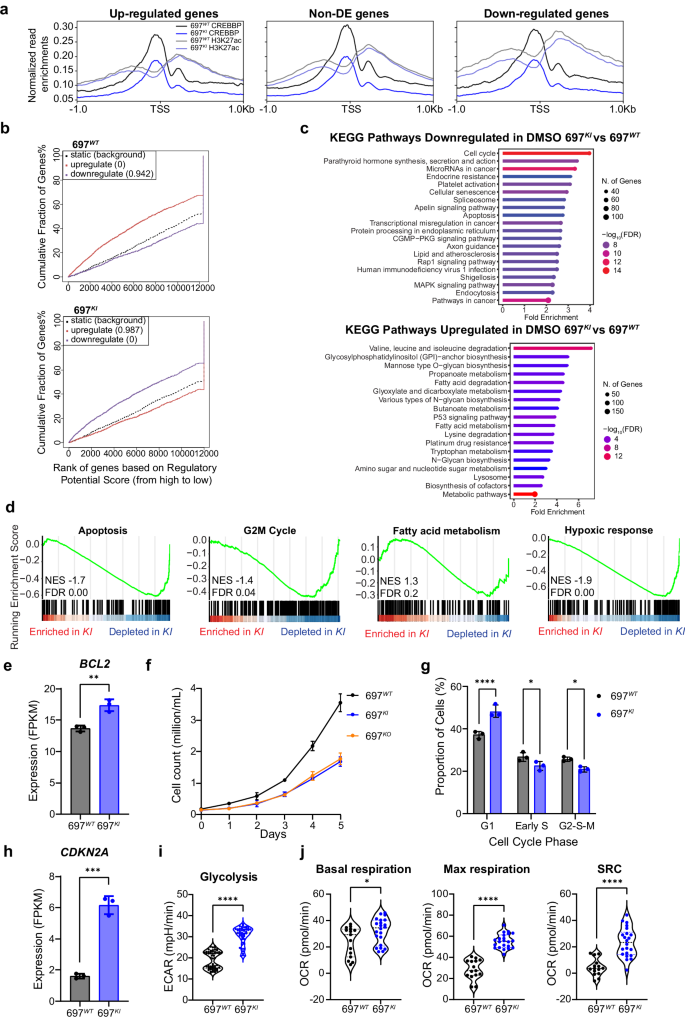

Fig. 3: CREBBP-mutated B-ALL cell lines show significant cell cycle and metabolic dysregulation.
Fig. 3: CREBBP-mutated B-ALL cell lines show significant cell cycle and metabolic dysregulation.
Full size image

a Normalized read enrichments of CREBBP binding (dark) and H3K27ac marks (light) in 697WT (black) and 697KI (blue) centered on transcriptional start sites (TSSs), separated on up-regulated (left), non-differentially expressed (center) and down-regulated genes (right). b BETA analysis of association of CREBBP-bound H3K27-acetylated enhancers with gene targets, showing association for active differential gene expression in 697WT (top) and repressive differential gene expression in 697KI (bottom). Reported P values shown in legend. P values comparing the UP/DOWN and non-differentially expressed gene sets calculated using the Kolmogorov-Smirnov test. c Summary of most significantly down-regulated (left) and up-regulated (right) KEGG pathways from DEGs of RNAseq analysis comparing DMSO vehicle-treated 697KI with 697WT. d GSEA analysis of ranked genes of RNAseq analysis comparing DMSO vehicle-treated 697KI with 697WT. NES normalized enrichment score, FDR false discovery rate. e Comparison of BCL2 expression in 697WT (black) and 697KI (blue) cells by RNAseq. Each dot represents one sample. Bars show mean fragments per kilobase of transcript per million fragments mapped (FPKM) value ± SD, n = 3 independent replicates, significance calculated by two-tailed unpaired t test, **P = 0.0038. f Proliferation of untreated 697WT (black), 697KI (blue) and 697KO (yellow) cells measured by direct counting. n = 3 independent replicates, mean ± SD. g Analysis of cell cycle stage by FUCCI reporter system. Percentage cells in G1, Early S and G2-S-M phases in 697WT (black) and 697KI (blue) cells. n = 3 independent replicates, bar shows mean average ± SD; significance calculated by 2-way ANOVA, ****P = 0.00004, Early S P = 0.0498; G2-S-M P = 0.0342. h Comparison of CDKN2A expression in 697WT (black) and 697KI (blue) cells by RNAseq. Each dot represents one sample. Bars show mean FPKM value ± SD, n = 3 independent replicates, significance calculated by two-tailed unpaired t test, ***P = 0.0002. i Glycolytic rate measured by extracellular acidification rate (ECAR) in 697WT (black) and 697KI (blue) cells. Summary of maximal ECAR. Each dot represents a single replicate acquired from two separate experiments. Significance calculated by two-tailed unpaired t test, ****P < 1 × 10–15. j Mitochondrial oxygen consumption rate (OCR). Summary of basal OCR (left), maximal OCR (middle) and spare respiratory capacity (SRC) (right). Each dot represents a single replicate acquired from two separate experiments. Significance calculated by two-tailed unpaired t test, *, P = 0.0315; ****, Maximal respiration P = 6.2 × 10–12, SRC P = 7.3 × 10–7. Source data are provided as a Source Data file.

KEGG pathway and GSEA analysis of DEGs showed significant down-regulation of signatures associated with apoptosis, in consonance with our functional experiments above (Fig. 1f–h and Fig. 3c, d). However, gene-specific examination of differential expression of apoptotic regulators by KEGG pathway analysis showed a mixed picture, affecting the expression of both pro- and anti-apoptotic genes, including a small but significant up-regulation of BCL2 itself (Fig. 3e and Supplementary Fig. 3d).

More broadly, KEGG and GSEA pathway analyses showed a differential down-regulation of cell cycle and signaling pathways in 697KI (Fig. 3c, d and Supplementary Fig. 3e). We confirmed a relative reduction in proliferative capacity in both 697KI and 697KO cells compared to 697WT by proliferation assays (Fig. 3f). This was associated with a significantly increased proportion of 697KI cells in G1 phase alongside reduced Early S/G2-S-M phases (Fig. 3g and Supplementary Fig. 3f) confirming a significant defect in cell cycle progression. Downregulation of cell cycle-associated transcriptional signatures was associated with a marked up-regulation of the tumor suppressor CDKN2A (encoding the negative cell-cycle regulator P16INK4a-ARF), which is commonly mutated in B-ALL (Fig. 3h). Consistent with this, we observed limited differences in proliferation in isogenic CREBBP-mutated REH cell lines, which carry biallelic loss of CDKN2A (Supplementary Fig. 3g).

The majority of transcriptionally up-regulated KEGG and Gene Ontology (GO) pathways were indicative of metabolic dysfunction, and GSEA showed dysregulation of fatty acid metabolism and hypoxic gene signatures (Fig. 3c, d and Supplementary Fig. 3h). Given the close association of cell cycle and metabolism, and the established role of BCL2 and Venetoclax in disturbing mitochondrial respiration25, we analysed baseline metabolic differences between 697WT and 697KI cells using in-vitro metabolic flux assays. Unexpectedly, and despite lower cell cycle progression, 697KI cells consistently showed increased rates of both glycolysis and oxidative phosphorylation (OxPhos), including higher rates of both basal and maximal respiration, and an increase in spare respiratory capacity (SRC) (Fig. 3i, j; Supplementary Fig. 3i, j).

Collectively our model suggests that loss of CREBBP acetyltransferase function results in significant transcriptional dysregulation, affecting multiple cellular processes including apoptosis, cell cycle and metabolism.

Venetoclax induces ferroptotic cell death in CREBBP-mutated B-ALL cell lines

To explore the transcriptional impact of low-dose Venetoclax treatment of 697KI cells, we employed a four-way interaction model to identify genes specifically dysregulated in 697KI cells upon Venetoclax treatment (Supplementary Fig. 4a). KEGG pathway analyses of these genes showed further down-regulation of cell cycle-associated genes and enrichment for metabolic pathways and ferroptosis in Venetoclax-treated 697KI cells (Fig. 4a). Furthermore, GSEA showed marked up-regulation of genes associated with multiple metabolic processes, including ROS scavenging, ferroptosis and the unfolded protein response (Fig. 4b).

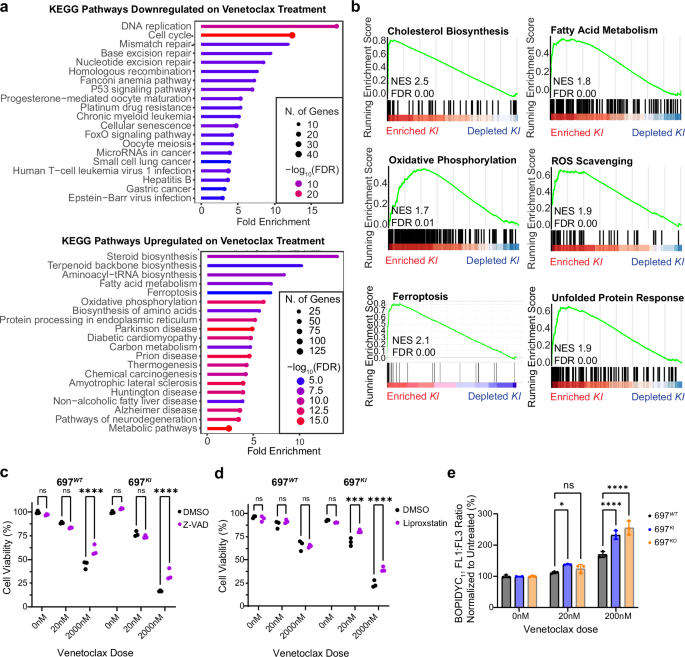

Fig. 4: Venetoclax induces ferroptotic cell death in CREBBP-mutated B-ALL cell lines.
Fig. 4: Venetoclax induces ferroptotic cell death in CREBBP-mutated B-ALL cell lines.
Full size image

a Summary of most significantly down-regulated (top) and up-regulated (bottom) KEGG pathways from DEGs of RNAseq analysis comparing Venetoclax-treated 697KI with 697WT. b GSEA analysis of ranked genes of RNAseq analysis comparing Venetoclax-treated 697KI with 697WT. c Cellular viability assessed by flow cytometry of 697WT (left) and 697KI (right) cells treated with increasing doses of Venetoclax at 24 h either with exposure to the cell-permeant pan-caspase inhibitor Z-VAD (purple) or DMSO control (black). n = 3 independent replicates, analysed by 2-way ANOVA, ****, 697WT P = 0.000006; 697KI P = 0.0000008. d Cellular viability assessed by flow cytometry of 697WT (left) and 697KI (right) cells treated with increasing doses of Venetoclax at 24 h, either with exposure to the ferroptotic inhibitor Liproxstatin 1 (purple) or DMSO control (black). n = 3 independent replicates, analysed by 2-way ANOVA; ***P = 0.0004; ****P = 0.000004. e Lipid peroxidation in Venetoclax-treated 697WT (black), 697KI (blue) and 697KO (yellow) cells assessed by BODIPYC11 expressed as a ratio of FL1:FL3 (488 nm 530/30:610/20) mean fluorescence intensity (MFI) normalized to untreated cells. n = 3 independent replicates, each dot represents a single sample, mean ± SD, two-way ANOVA, ****, 697WT vs. 697KI,P = 0.000003, 697WT vs. 697KO, P = 4 × 10–4; *P = 0.0179. Source data are provided as a Source Data file.

Ferroptosis is a distinct form of programmed cell death resulting from iron-catalyzed reactive oxygen species (ROS)-mediated damage to unsaturated fatty acids of membrane phospholipids29. It commonly co-associates with apoptosis and is associated with expression of cell death markers, including Annexin-V externalization30. We demonstrated evidence of ferroptosis upon Venetoclax treatment, specifically occurring in 697KI cells using in-vitro assays. Exposure to the cell-permeable pan-caspase inhibitor Z-VAD partially rescued viability to high-dose Venetoclax in both 697WT and 697KI cells, indicating a role for intrinsic, caspase-mediated apoptosis induced by high-dose Venetoclax in both lines (Fig. 4c). Conversely, exposure to Liproxstatin 1, which specifically inhibits ferroptosis-associated lipid peroxidation, showed significant rescue only in 697KI cells, consistent with ferroptosis being the predominant mechanism of cell death mediating sensitization to low dose BCL2 inhibition (Fig. 4d). BCL2 inhibition with either Venetoclax or Navitoclax was also associated with ferroptosis in 697KI/KO and REHMut cells, as shown by elevated BODIPYC11 staining, an indicator of lipid peroxidation (Fig. 4e and Supplementary Fig. 4b–d). Metabolically, low dose (20 nM) Venetoclax specifically resulted in a reduction in both basal and maximal OxPhos only in 697KI cells, with no effect seen in 697WT. In contrast, high-dose Venetoclax (2000nM) resulted in a marked reduction in OxPhos in both 697KI and 697WT cells, consistent with the role of BCL2 in regulating mitochondrial outer membrane permeabilization (Supplementary Fig. 4e).

Overall, these findings demonstrate that the major driver underlying the sensitivity of CREBBP-mutated 697KI cells to BCL2 inhibition at low doses is ferroptotic programmed cell death, associated with underlying metabolic dysregulation.

CREBBP-mutation affects the redox balance and lipid content of B-ALL cell lines

To better understand the mechanisms underlying ferroptosis susceptibility, we tested the intrinsic susceptibility of 697WT and 697KI cells to ferroptosis using direct inducers of Reduction-Oxidation (redox) stress. 697KI cells were slightly more susceptible to induction of ferroptosis by Erastin, which induces ferroptosis in RAS-mutated tumors, by both inhibiting system xc- (a cystine/glutamate antiporter upstream of glutathione production) and the VDAC family of mitochondrial outer membrane anion channels (Fig. 5a)31,32. Similarly, inhibition of glutathione phospholipid peroxidase activity using the GPX4 inhibitor, RSL3, induced significantly higher levels of lipid peroxidation in 697KI cells, further demonstrating their enhanced sensitivity to redox stress (Fig. 5b).

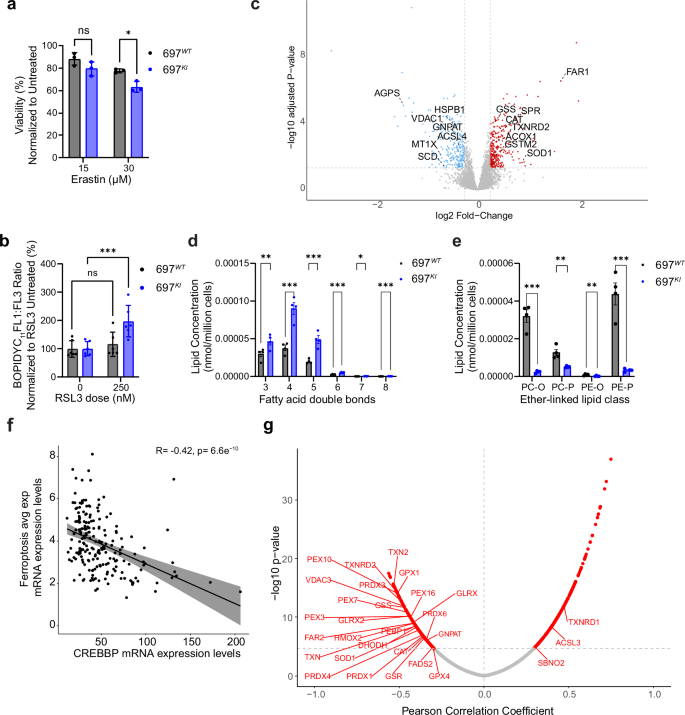

Fig. 5: CREBBP-mutation affects the redox balance and lipid content of B-ALL cell lines.
Fig. 5: CREBBP-mutation affects the redox balance and lipid content of B-ALL cell lines.
Full size image

a Viability of 697WT (black) and 697KI (blue) cells following 48 h exposure to Erastin at 15 or 30 µM. Viability assessed by 7AAD exclusion using flow cytometry. n = 3 independent replicates, mean ± SD. Two-way ANOVA; *, P = 0.014. b Lipid peroxidation in RSL3-treated 697WT (black) and 697KI (blue) cells assessed by BODIPYC11 expressed as a ratio of FL1:FL3 MFI normalized to untreated cells. Mean ± SD n = 6 each dot represents an individual passage from two independent experiments performed on separate days. Two-way ANOVA, ****P = 0.0005. c Volcano plot of total proteomic analysis showing differential protein abundance in 697KI vs. 697WT (red=increased expression in 697KI). Two-sided limma statistical test. To control for the false discovery rate (FDR), p values were adjusted using the Benjamini-Hochberg method for multiple testing correction. n = 4 independent replicates. d Total lipidomic analysis showing the concentration of polyunsaturated structural lipids in 697WT (black) vs. 697KI (blue) (nmol/million cells). Degree of unsaturation is categorized on the x axis. n = 4 independent replicates, mean ± SEM. * p value < 0.05, **p value < 0.01, ***p value < 0.001. e Total lipidomic analysis showing the concentration of ether-linked lipids in 697WT (black) vs. 697KI (blue) (nmol/million cells). PE-O Alkyl Ether-Linked Phosphatidyl ethanolamine, PE-P Alkenyl Ether-Linked Phosphatidyl ethanolamine (Plasmalogen), PC-O Alkyl Ether-Linked Phosphatidylcholine, PC-P Alkenyl Ether-Linked Phosphatidylcholine (Plasmalogen). n = 4 independent replicates, mean ± SEM. * p value < 0.05, **p value < 0.01, ***p value < 0.001. f Two-sided Pearson correlation with p value adjusted for multiple testing using Bonferroni correction of gene sets for ferroptosis compared to CREBBP expression in patients with RNAseq data in the TARGET Phase 2 cohort. Each dot represents an individual patient (n = 203). g Two-sided Pearson correlation with p value adjusted for multiple testing using Bonferroni correction of RPKM-normalized gene expression compared to CREBBP expression from patients with RNA-seq data in the TARGET Phase 2 cohort (n = 203). Significantly correlated genes are highlighted in red (Padj < 0.05) with significantly correlated genes related to ferroptosis annotated. Source data are provided as a Source Data file.

GPX4 is a key inhibitor of lipid peroxidation and has been identified as a recurrent genetic dependency in CRISPR screening of B-ALL cell lines33. However, despite the differential sensitivity of 697KI cells to the GPX4 inhibitor RSL3, no differences in GPX4 protein abundance were detectable by western blot analysis (Supplementary Fig. 5a). To investigate the abundance of ROS scavenging proteins more broadly, we performed total proteomics on 697WT and 697KI cells. To our surprise, 697KI cells were characterized by significant up-regulation of proteins in multiple antioxidant pathways, including GSS, GSTM2, SPR, SOD1, CAT and TXNRD2 (Fig. 5c; Supplementary Data Table 2), consistent with a compensatory adaptation to ROS-mediated stress. Concordantly, western blot analysis of 4-hydroxynonenal (4HNE) protein adducts, formed in response to lipid peroxidation, indicated lower baseline signal in 697KI cells compared to 697WT. However, whereas these adducts reduced in response to low dose Venetoclax in 697WT, they actually increased in 697KI, consistent with a differential ability between the isogenic cell lines to tolerate ferroptotic stress (Supplementary Fig. 5b).

Total proteomics also showed significant dysregulation of genes implicated in ferroptosis sensitivity, including down-regulation of VDAC1 and multiple enzymes involved in the synthesis of ether-linked lipids (AGPS, GNPAT, ACSL4) in the 697KI cell line (Fig. 5c; Supplementary Data Table 2). To assess potential alterations in lipid composition, we therefore performed comprehensive quantitative lipidomic analysis, using high-resolution mass spectrometry of 697WT and 697KI cell lines. Whilst the total levels of major structural membrane lipids were similar between the cell lines (Supplementary Data Table 3), 697KI cells had markedly higher levels of polyunsaturated fatty acids (PUFAs) in their structural lipid species, which are more vulnerable to ROS damage and lipid peroxidation (Fig. 5d; Supplementary Fig. 5c). Furthermore, consistent with the transcriptional down-regulation of AGPS, and low protein levels of GNPAT and ACSL4, 697KI cells had very low levels of ether-linked lipids: alkyl-acylphospholipids and alkenyl-acylphospholipids (plasmalogens) (Fig. 5e). Ether-linked lipids are synthesized in peroxisomes and the endoplasmic reticulum, and play key signaling roles in these compartments, as well as in the regulation of mitochondrial redox control, including the regulation of ROS balance and PUFA storage34,35, and their concentration is inversely correlated to ferroptosis sensitivity in different models35,36,37.

Lastly, we sought to cross-correlate the findings from our cell line models with transcriptional analysis from the large Phase 2 TARGET patient cohort38. Only a small number of patients were identified to carry CREBBP mutations, therefore to more holistically link CREBBP-activity to ferroptotic susceptibility, we correlated gene sets involved in ferroptosis with CREBBP expression, demonstrating a highly significant negative correlation (R = –0.42, p = 6.6e–10) (Supplementary Data Table 4, Fig. 5f). Consistent with the total proteomic analysis in Fig. 5c, low-CREBBP-expressing patients demonstrated upregulation of ROS scavenger genes, including GPX1, TXN2 and SOD1, peroxisomal/ether lipid regulators, including PEX7 and FAR2, and relative downregulation of anti-ferroptotic regulators such as ASCL3 (Fig. 5g).

Overall, these findings demonstrate that CREBBP-mutated 697KI cells exhibit up-regulation of ROS scavenging pathways, increased polyunsaturation of structural lipids and depletion of ether-linked signaling lipids. The analysis of patient transcriptional data corroborates that low CREBBP-expression correlates with these signatures, suggesting this may be conserved in multiple subtypes of B-ALL.

Acquisition of Venetoclax resistance results in transcriptional convergence

Treating cancer with single agents almost inevitably results in acquired treatment resistance, which can often be mitigated by combination therapies. Understanding resistance pathways can: (i) provide insight into pharmacological mechanism-of-action; (ii) identify agents effective in relapse and; (iii) identify novel sensitivities to prevent resistance and improve primary treatment efficacy.

Venetoclax-resistant 697WT-Res and 697KI-Res cells were generated in parallel, by escalated exposure to Venetoclax, to generate lines capable of proliferating in 2000nM Venetoclax (the IC50 dose of 697WT) (Supplementary Fig. 6a). Resistant cells were transcriptionally compared to sensitive parental lines by bulk RNAseq. Global profiling by principal component analysis showed the major transcriptional variance separating resistant from sensitive lines (PC1; 77% variance) (Fig. 6a). Venetoclax resistance resulted in a high degree of transcriptional concordance between resistant cell lines, with 697WT-Res/697KI-Res cells differing by only 31 (LFC > 1) (Supplementary Fig. 6b) compared to 559 DEGs between 697WT/697KI. Notably, the most differentially down-regulated genes in 697KI-Res/697WT-Res were the redox-sensing selenoprotein SELENON and the ether-linked lipid biosynthetic enzyme and ferroptosis regulator AGPS39, one of the most transcriptionally down-regulated genes in 697KI vs. 697WT, and which is derepressed in 697KI-Res (Supplementary Fig. 6c). Functionally, 697KI-Res cells also showed complete reversal of their sensitization to lipid peroxidation upon GPX4 inhibition with RSL3 (Fig. 6b).

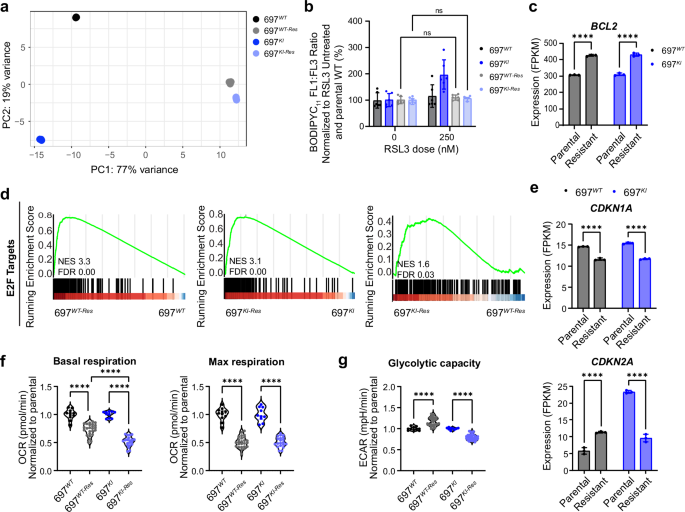

Fig. 6: Acquisition of Venetoclax resistance results in transcriptional convergence.
Fig. 6: Acquisition of Venetoclax resistance results in transcriptional convergence.
Full size image

a Principal component analysis of global transcriptional profile by RNAseq of 697WT (black), 697KI (blue), 697WT-Res (gray) and 697KI-Res (pale blue) cells by RNAseq. n = 3 independent replicates, each dot represents one sample. b Lipid peroxidation in RSL3-treated 697WT (black plain), 697KI (blue plain), 697WT-Res (black hashed) and 697KI-Res (blue hashed) cells assessed by BODIPYC11 expressed as a ratio of FL1:FL3 MFI normalized to untreated cells and expressed as a percentage of parental 697WT. Mean ± SD n = 6 each dot represents an individual passage from two independent experiments performed on separate days. Two-way ANOVA. c Comparison of BCL2 expression levels in 697WT (black) and 697KI (blue) cells comparing parental and Venetoclax-resistant lines. Each dot represents one sample. Bars show mean FPKM value ± SD, n = 3 independent replicates. Two-way ANOVA, ****, 697WT P = 4.8 × 10–8 and 697KI P = 4 × 10–8. d GSEA of ranked RNAseq expression for E2F cell cycle signatures in 697WT-Res vs. 697WT (left), 697KI-Res vs. 697KI (middle) and 697KI-Res vs. 697WT-Res (right). e Comparison of CDKN1A (left) and CDKN2A (right) expression levels in 697WT (black) and 697KI (blue) cells comparing parental and Venetoclax-resistant lines. Each dot represents one sample. Bars show mean FPKM value ± SD, n = 3 independent replicates. Two-way ANOVA, ****, left: 697WT P = 6 × 10–8 and 697KI P = 1.1 × 10–8; right: 697WT P = 0.00006 and 697KI P = 4.9 × 10–8. f Summary of basal (left) and maximal (right) mitochondrial OCR in 697WT (black) and 697KI (blue) cells comparing parental and resistant lines. Each dot represents a single replicate acquired from two separate experiments. One way ANOVA, ****, left: 697WT vs. 697WT-Res P = 2.1 × 10−10, 697WT-Res vs. 697KI-Res P = 1.2 × 10–9, 697KI vs. 697KI-Res P = 1.9 × 10–11; right: 697WT vs. 697WT-Res P = 2 × 10–11, 697KI vs. 697KI-Res P = 2 × 10–11. g Summary of glycolytic rate (ECAR) in 697WT (black) and 697KI (blue) cells comparing parental and resistant lines. Each dot represents a single replicate acquired from two separate experiments. One way ANOVA, ****, 697WT vs. 697WT-Res P = 8.7 × 10–7, 697KI vs. 697KI-Res P < 1 × 10–15. Source data are provided as a Source Data file.

Both 697WT-Res and 697KI-Res cells significantly up-regulated BCL2 (Fig. 6c), but showed no consistent changes in MCL1 or BCLXL (Supplementary Fig. 6d). GSEA showed prominent up-regulation of cell cycle signatures in both resistant lines, which was more marked in 697KI-Res cells compared to 697WT-Res (Fig. 6d). This was associated with down-regulation of CDKN1A (encoding the cellular senescence regulator P21) in both lines and a specific down-regulation of CDKN2A in the 697KI-Res cells40 (Fig. 6e).

Metabolic signatures were prominently up-regulated in both resistant cells, although distinct changes were seen for OxPhos, hypoxia and RAS pathway signatures (Supplementary Fig. 6e). Functional metabolic profiling demonstrated reduced basal and maximal respiration upon resistance in both lines (Fig. 6f and Supplementary Fig. 6f). Conversely, glycolytic rate increased upon resistance in 697WT cells, whereas it was markedly reduced in 697KI cells, indicating differential metabolic reprogramming upon Venetoclax resistance (Fig. 6g and Supplementary Fig. 6g).

Collectively, these findings identify multiple adaptations upon Venetoclax resistance that were shared by 697WT-Res and 697KI-Res cells, including transcriptional up-regulation of BCL2, a reduction in the rate of oxidative phosphorylation and transcriptional upregulation of VDAC1, alongside the reversal of specific phenotypes acquired upon CREBBP loss in 697KI cells, including normalization of CDKN2A expression40 and glycolytic rate, and re-expression of the plasmalogen lipid regulator AGPS.

Acquisition of Venetoclax resistance sensitizes cells to Erastin

KEGG pathway analysis showed significant transcriptional changes in ferroptotic and cellular senescence pathways specifically in 697KI-Res cells, driven by down-regulation of P16INK4A-ARF and up-regulation of multiple VDAC genes, notably VDAC1 (Fig. 7a and Supplementary Fig. 7a, b). VDAC proteins are macro-molecular anion channels located in the outer mitochondrial membrane that co-ordinate apoptosis, ferroptosis, mitochondrial metabolism and directly interact with BCL241. The ferroptosis inducer Erastin works in part by inhibition of VDAC members, including VDAC131,42. In contrast to RSL3 (Fig. 6b), we found a marked induction of Erastin sensitivity upon acquisition of Venetoclax resistance in both resistant cell lines (Fig. 7b). Moreover, co-exposure of 697WT, 697WT-Res and 697KI-Res cells to increasing doses of Venetoclax and/or Erastin demonstrated pharmacological synergy, indicating a potential route to both overcome and prevent Venetoclax resistance (Fig. 7c).

Fig. 7: Acquisition of Venetoclax resistance sensitizes cells to Erastin.
Fig. 7: Acquisition of Venetoclax resistance sensitizes cells to Erastin.
Full size image

a Comparison of VDAC1 expression levels by RNAseq in 697WT (black) and 697KI (blue) cells comparing parental and Venetoclax-resistant lines. Each dot represents one sample. Bars show mean FPKM value ± SD, n = 3 independent replicates. Two-way ANOVA, ****, 697WT P = 4.5 × 10–10 and 697KI P = 5 × 10–11. b Viability of 697WT (black), 697KI (blue) cells comparing parental (plain) and resistant (hashed) lines following 48 h exposure to Erastin at 15 or 30 µM. Viability assessed by 7AAD exclusion using flow cytometry. n = 3 independent replicates, mean ± SD. Two-way ANOVA, ****, 15 µM: 697WT vs. 697WT-Res P = 2.3 × 10–14, 697WT-Res vs. 697KI-Res P = 7.5 × 10–6, 697KI vs. 697KI-Res P = 2.4 × 10–14; 30 µM: 697WT vs. 697WT-Res P = 2.3 × 10–14, 697WT-Res vs. 697KI-Res P = 3.4 × 10–6, 697KI vs. 697KI-Res P = 2.3 × 10–14. c Three-dimensional diffusion plot of ZIP synergy score to combined doses of synchronous Erastin and Venetoclax in 697WT (left) (peak ZIP 41.37), 697WT-Res (middle) (peak ZIP 33.34)and 697KI-Res (right) (peak ZIP 22.69). Viability measured by 72 h MTS assay. Source data are provided as a Source Data file.

Pharmacological inhibition of CREBBP function can sensitize B-ALL cell lines to Venetoclax in-vitro

The majority of B-ALL patients do not have CREBBP-mutations. Given the strength of the association with Venetoclax sensitization we hypothesized that pharmacological inhibition of CREBBPWT function could sensitize CREBBPWT B-ALL to BCL2 inhibitors.

We first pre-treated 697WT or REHWT cells with the preclinical CREBBP/EP300 HAT inhibitor A485 for 3 days, aiming to generate a stable reduction of CREBBP-mediated acetylation. A485 exposure almost perfectly phenocopied the Venetoclax sensitization seen in our isogenic lines (Fig. 8a and Supplementary Fig. 8a). Furthermore, co-treatment with A485 and Venetoclax showed strong pharmacological synergy (Fig. 8b). Further corroborating our isogenic findings, A485-sensitized Venetoclax cytotoxicity was associated with enhanced lipid peroxidation, consistent with ferroptosis (Fig. 8c and Supplementary Fig. 8b). Similar results were also seen with the orally-available CREBBP/EP300-specific bromodomain inhibitor Inobrodib, which is currently in clinical trials (Supplementary Fig. 8c,d). In both 697WT and REHWT cells, A485-induced HAT inhibition was associated with increased basal and maximal OxPhos with an increase in SRC, similar to that seen in 697KI cells (Fig. 8d and Supplementary Fig. 8e–g). Single-agent A485-treated 697WT cells showed no loss of proliferation or evidence of programmed cell death by annexin-V externalization, strongly suggesting that, at these doses, A485 works by sensitizing cells to Venetoclax-induced cytotoxicity (Fig. 8e, f).

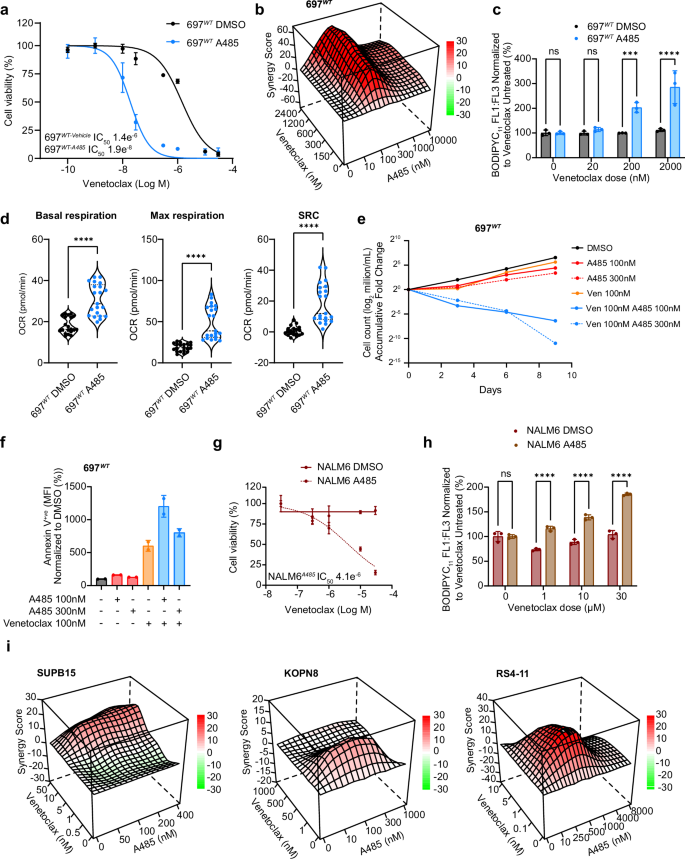

Fig. 8: Pharmacological inhibition of CREBBP function can sensitize B-ALL cell lines to Venetoclax in-vitro.
Fig. 8: Pharmacological inhibition of CREBBP function can sensitize B-ALL cell lines to Venetoclax in-vitro.
Full size image

a Dose response curve of 697WT (black) and 697WT pre-treated with 3 days of A485 (pale blue) to Venetoclax in 72 h MTS viability assays. n = 3 technical replicates, mean ± SD. b Three-dimensional diffusion plot of ZIP synergy score to combined doses of synchronous A485 and Venetoclax (peak ZIP 62.24) in 697WT cells. Viability measured by 72 h MTS assay. c Summary BODIPYC11 staining 697WT (black) and 697WT treated with A485 (pale blue) cells in response to Venetoclax. FL1:FL3 signal normalized to DMSO vehicle. n = 3 independent replicates, each dot represents a single sample, mean ± SD, two-way ANOVA, ***P = 0.0006, ****P = 1.2 × 10–6. d Summary of basal (left) and maximal (middle) mitochondrial oxygen consumption rate (OCR) and spare respiratory capacity (right) measured using Seahorse (Agilent) Mitostress test in 697WT cells treated with A485 (pale blue) or DMSO vehicle (black). Each dot represents a single replicate acquired from two separate experiments. Two-tailed unpaired t test ****, Basal respiration P = 9.2 × 10–8, Maximal respiration P = 5.5 × 10–8, SRC P = 7.3 × 10–7. e Growth curve of 697WT cells treated with Venetoclax 100 nM and/or A485 at two different doses (100 nM and 300 nM). Mean of duplicate independent replicates presented as log2 accumulative fold change. f Annexin-V (APC) externalization assessed by flow cytometry in 697WT cells treated with Venetoclax 100 nM and/or A485 at two different doses (100 nM and 300 nM). Duplicate measurements, each dot represents a single independent replicate, MFI ± SD normalized to DMSO control. g Dose response curve of NALM6WT (solid line) and NALM6WT pre-treated with 3 days of A485 (hashed line) to Venetoclax in 72 h MTS viability assays. n = 3 technical replicates, mean ± SD. h Summary BODIPYC11 staining NALM6WT (red) and NALM6WT treated with A485 (brown) cells in response to Venetoclax. FL1:FL3 signal normalized to DMSO vehicle. n = 3 independent replicates, each dot represents a single sample, mean ± SD, two-way ANOVA, ****1 µM P = 4.9 × 10–7, 10 µM P = 5.6 × 10–8, 30 µM P = 4 × 10–11. i Three-dimensional diffusion plot of ZIP synergy score to combined doses of A485 and Venetoclax. Viability measured by 72 h MTS assays in Venetoclax-sensitive cell lines: SUPB15 (BCR::ABL1) (peak ZIP 13.86), KOPN8 (MLL::ENL) (peak ZIP 12.66) and RS4-11 (MLL::AF4) (peak ZIP 27.08). Source data are provided as a Source Data file.

We extended these findings to other human B-ALL cell lines, across a range of genotypes. A485 sensitized the highly Venetoclax-resistant, BAX-mutated cell line NALM6 to Venetoclax (Fig. 8g). This was associated with increased lipid peroxidation, indicative of ferroptotic death (Fig. 8h and Supplementary Fig. 8h). Even in Venetoclax-sensitive B-ALL lines driven by high-risk genetic drivers, Venetoclax and A485 showed evidence of further pharmacological synergy (defined as a peak ZIP score ≥10), indicating that this interaction is conserved across diverse genetic subtypes of B-ALL (Fig. 8i).

Collectively, these data pharmacologically validate the findings of BCL2 sensitization identified in our CREBBP-mutated cell lines and support a possible drug combination for clinical translation in B-ALL more broadly.

Genetic or pharmacological inhibition of CREBBP sensitizes B-ALL to Venetoclax in-vivo

Finally, we sought to test whether Venetoclax could target CREBBP-mutated B-ALL in-vivo, where cell extrinsic factors and pharmacodynamic effects can result in reduced efficacy or highlight dose-limiting toxicities.

Luciferase-expressing 697WT and 697KI cell lines were engrafted into NOD-SCID-Gamma (NSG) mice (Supplementary Fig. 9a,b). Upon confirmation of engraftment by bioluminescent imaging (BLI), mice were treated with daily oral Venetoclax for up to 30 d (Fig. 9a). As anticipated, Venetoclax exposure was associated with limited disease control in 697WT cells (Fig. 9b, c) resulting in a small, but significant, prolongation of post-transplant overall survival (OS), with all Venetoclax-treated 697WT recipient animals succumbing within 15 d of treatment (median OS 19 vs. 22 d, p = 0.0011) (Fig. 9f). 697KI recipient mice treated with vehicle control succumbed to disease slightly later than 697WT, potentially reflecting the proliferation defect characterized in-vitro (median OS 25 vs. 19 d, p = 0.0004) (Fig. 9f). Nevertheless, all vehicle-treated 697KI mice succumbed by 19 d of treatment. Venetoclax-treated mice engrafted with 697KI cells demonstrated markedly improved disease control, as assessed by BLI (Fig. 9d, e and Supplementary Fig. 9c, d). Only one Venetoclax-treated 697KI recipient succumbed to disease within the treatment window, with the remaining 5 recipients gaining up to 2 weeks of survival after cessation of Venetoclax exposure (median OS 47 vs. 25 d, p = 0.0006) (Fig. 9f).

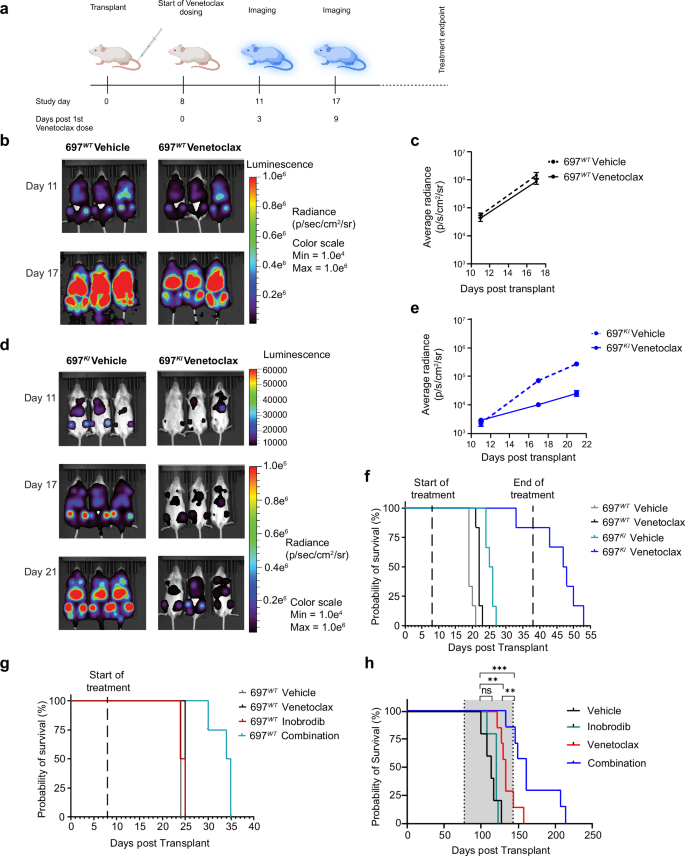

Fig. 9: Genetic or pharmacological inhibition of CREBBP sensitizes B-ALL to Venetoclax in-vivo.
Fig. 9: Genetic or pharmacological inhibition of CREBBP sensitizes B-ALL to Venetoclax in-vivo.
Full size image

a Schema of 697WT vs. 697KI in vivo drug dosing protocol. NSG mice were intravenously injected with 697WT vs. 697KI luciferase-expressing cell lines. At 8 days post injection animals were administered Venetoclax (100 mg/kg) or vehicle control by oral gavage. Mice were imaged by BLI as indicated. n = 6 per group. Created in BioRender. Huntly, B. (2025) https://BioRender.com/7ikpp8s. b Representative BLI images of mice engrafted with 697WT cells at days 11 and 17 of treatment. n = 6 mice per group. c Average BLI radiance of mice engrafted with 697WT cells at days 11 and 17 of treatment (log p/s/cm2/sr). Mean ± SEM. n = 6 mice per group. d Representative BLI images of mice engrafted with 697KI cells at days 11, 17 and 21 of treatment. n = 6 mice per group. e Average BLI radiance of mice engrafted with 697KI cells at days 11, 17 and 21 of treatment (log p/s/cm2/sr). Mean ± SEM. Vehicle (n = 5) and Venetoclax treated (n = 6). f Overall survival of NSG mice engrafted with 697WT vs. 697KI B-ALL cells treated with oral Venetoclax (100 mg/kg) or vehicle control. 30 day maximal treatment window is indicated. n = 6 per group. Significance calculated by Mantel Cox log-rank test. g Overall survival of NSG mice engrafted with 697WT B-ALL cells treated with oral Inobrodib (20 mg/kg) or a combination of Inobrodib (20 mg/kg) plus Venetoclax (100 mg/kg) (n = 4 per group). Engraftment control groups were treated with Venetoclax only (n = 2) or vehicle control (n = 1). Treatment began at day 8 post-transplant. Significance calculated by Mantel Cox log-rank test. h Overall survival of NSG mice engrafted with CREBBP-mutated B-ALL high-risk PDX cells orally treated with Vehicle control (black, n = 5), Inobrodib (20 mg/kg) (green, n = 5), Venetoclax (100 mg/kg) (red, n = 7) or a combination of Inobrodib (blue, 20 mg/kg) plus Venetoclax (100 mg/kg) (n = 7). Treatment began at day 77 post-transplant for 3 consecutive days per week for up to 10 weeks. Significance calculated by Mantel Cox log-rank test, **P = 0.0063; **P = 0.0024;***P = 0.0003. Source data are provided as a Source Data file.

We next tested whether co-administration of the orally-available, CREBBP bromodomain inhibitor Inobrodib, which is in early-phase trials in hematological malignancies, could sensitize 697WT cells to Venetoclax in-vivo (Supplementary Fig. 9e). Once-daily oral dosing of single-agent Inobrodib did not confer a survival benefit compared to recipients treated with either vehicle or single-agent Venetoclax. In contrast, recipient mice treated with both agents demonstrated a significant survival advantage (median OS combination 34.5 vs. Inobrodib only 24.5 d, p = 0.0084) (Fig. 9g).

Finally, we established a PDX from a diagnostic sample obtained from a child with High Hyperdiploid B-ALL, harboring a heterozygous deleterious insertion mutation in CREBBP, alongside an NRASG12C activating mutation, and who responded poorly to treatment, as evidenced by the presence of high-risk measurable residual disease (2.3%) at the end of induction. Engrafted NSG mice were treated with oral Vehicle control, Inobrodib, Venetoclax, or Combination treatment from 77 days after transplant for three consecutive days per week, up to a maximum of 10 weeks. Despite the deleterious CREBBP mutation, Inobrodib monotherapy failed to show a significant OS advantage over Vehicle-treated mice (median OS 120 vs. 114 d, p = 0.2) (Fig. 9h). Conversely, Venetoclax showed a highly significant OS advantage (133 vs. 114 d p = 0.0024), although the majority of animals still succumbed to disease within the 10-week treatment window. In contrast, 6/7 Combination-treated animals survived until the end of the treatment window (161 vs. 114 d p = 0.0003), resulting in a significant OS advantage compared to the Venetoclax only arm (p = 0.0063). Histological examination of B-ALL-infiltrated splenic tissue from a separate cohort of mice engrafted with this PDX and that received just two treatment doses showed evidence of 4HNE adducts in the treated mice, consistent with the induction of ferroptosis in vivo (Supplementary Fig. 9f).

Overall, these findings demonstrate that: (i) oral Venetoclax can be highly efficacious in controlling CREBBP-mutated B-ALL in preclinical in-vivo models; and (ii) pharmacological inhibition of CREBBP is a tolerable and effective means of sensitizing B-ALL to Venetoclax in-vivo.

Discussion

There is a pressing clinical need to develop novel treatments for patients with high-risk B-ALL, such as those harboring mutations in CREBBP. Using a highly-curated panel of clinically-tractable small molecules in an isogenic human cell line model, we demonstrate that CREBBP mutation sensitizes cells to Dexamethasone, inhibitors of residual CREBBP/EP300 function and most potently BCL2 inhibition. CREBBP LOF profoundly alters metabolism and upon BCL2 inhibition results in ferroptotic cell death, which can be phenocopied by pharmacological CREBBP inhibition in genetically diverse B-ALL cell lines, providing a readily translatable synergistic drug combination for B-ALL more broadly.

Our model shows a number of significant similarities to previously published work. The global transcriptional profile of our CREBBP-mutated cells strongly overlaps with those seen in murine Crebbp-/- germinal-center B-cells27. Other models of CREBBP-mutated B-ALL and B-cell lymphoma have implicated changes in cell cycle, metabolism, DNA damage response and apoptosis3,10,20. We also note that hypodiploid B-ALL, a genetic subtype highly associated with CREBBP mutations, has been linked with Venetoclax sensitivity22. Moreover, preliminary results from an early phase clinical trial of Venetoclax in relapsed pediatric malignancies (NCT03236857) have highlighted responses in high-risk patients, including the small number of CREBBP-mutated B-ALL patients enrolled, providing supportive evidence that our results will be clinically translatable43.

Our CREBBP-mutated model did not show significant differential sensitivity to cytotoxic chemotherapy in the ex-vivo setting. Our cell lines also showed a small but significant sensitization to Dexamethasone, suggesting that CREBBP LOF does not significantly alter responses to glucocorticoids4,11,12. Previous reports have shown variable association of CREBBP LOF with chemoresistance in-vitro10,12,20 and overall, our findings add to a growing body of evidence that CREBBP LOF does not in itself provoke significant cell-intrinsic chemoresistance.

We show that BCL2 inhibition results in ferroptotic cell death in the context of CREBBP LOF. Unlike apoptosis, ferroptosis is not mediated by a defined biochemical pathway, rather is the output of a combination of underlying metabolic state, ROS scavenging capacity and lipid composition44. B-cell progenitors are exquisitely sensitive to redox balance45 and recent genetic perturbation data has highlighted an underlying propensity for ferroptotic cell death in B-ALL33. Reflecting its pleiotropic role in biology46, how CREBBP loss alters this balance is likely to be multifactorial, including by direct transcriptional changes, as well as post translational regulation of proteins affecting metabolism and redox balance. Our functional experiments show significant increases in both glycolytic and mitochondrial metabolism upon CREBBP LOF, associated with enhanced sensitivity to inhibition of ROS scavenging pathways. Thus, in contrast with studies in AML, we show an association between enhanced metabolic state and BCL2 dependence, likely relating to a B-cell-state specific susceptibility to oxidative stress25,33. Surprisingly, our proteomic analysis identified up-regulation of multiple antioxidant defense pathways, which we hypothesize to be a compensatory adaptation to the enhanced sensitivity to redox stress induced by CREBBP loss of function. Consistent with this, lipidomic analysis of our 697WT and 697KI cell lines confirmed a significant increase in the number of ferroptosis-predisposing PUFAs in structural membrane lipids upon CREBBP mutation. Intriguingly, we also identify a marked lack of ether-linked lipid species, consistent with the transcriptionally-mediated down-regulation of AGPS and protein level reduction of GNPAT and ACSL4, accompanied by increased levels of FAR1, which is post-translationally negatively regulated by plasmalogens47. Concordantly, acquired resistance to Venetoclax is associated with reduced rates of oxidative phosphorylation and transcriptional de-repression of AGPS, which would be expected to directly affect plasmalogen biosynthesis48. Using CREBBP expression level as a surrogate for its activity, we also identified highly significant correlations with ROS scavenging pathways and peroxisomal lipid regulators in patients with low CREBBP expression. A number of recent papers have linked the enzymatic regulators of plasmalogens to ferroptosis, with variable effects depending on cell type and species studied36,37,39. Our unexpected association of ether-linked lipid dysregulation with ferroptosis susceptibility in B-ALL provides a potential new avenue for further therapeutic investigation.

Lastly, we demonstrate that small molecule inhibition of CREBBP can sensitize genetically-diverse B-ALL cell lines to Venetoclax. This potentially widens the paradigm of our combination to multiple ALL genotypes. Furthermore, the clinically-actionable combination of Venetoclax and Inobrodib was tolerable and highly efficacious in cell lines and PDX in-vivo models. We are aware of preliminary reports of this combination being trialed in other related hematological malignancies49,50 and propose this as a rational drug combination across a wide range of B-ALL patients.

Methods

Cell lines

The B-ALL cell lines 697 (ACC 42), REH (ACC 22) and NALM6 (ACC 128) were purchased from DSMZ. RS411, KOPN8 and SUPB15 were provided by Prof. Owen Williams (UCL, UK). 697, REH, KOPN8, RS4-11 were cultured at 37 °C with 5% CO2 in IMDM (ThermoFisher, 12440053) supplemented with 10% v/v heat-inactivated fetal bovine serum (HI-FBS) (Sigma Aldrich, F7524), Penicillin-Streptomycin 100U/ml (Sigma Aldrich, P0781) and 1% v/v L-glutamine (Sigma Aldrich, G7513). NALM6 and SUPB15 were cultured in IMDM 20% serum. HEK-293T cells were maintained in DMEM (Sigma D0819), 10% FBS, L-glutamine, and penicillin/streptomycin. Cell lines were tested for mycoplasma by PCR (CSCI Core Facility) and STR genotyped using Promega Powerplex 16-HS kit (performed by Genetica LabCorp). Cells were routinely passaged to 1×106/ml every 2–4 days. Venetoclax-resistant 697WTand 697KI cells were generated over 10 weeks by exposure to increasing concentrations of Venetoclax (Selleckchem, S8048) until stable growth in 2000nM Venetoclax. Resistant cells were washed to remove Venetoclax at least 24 h prior to functional experiments.

Generation of CREBBP Mutant Lines

697 and REH cells were lentivirally-transfected with Cas9, single cell cloned and tested for high Cas9 activity by GFP/BFP reporter assay. CREBBPR1446C gene-editing reagents were introduced by nucleofection (Nucleofector II, Kit R, Lonza) consisting of a gRNA/Cas9 RNP complex (IDT 1072532, 1081060: target sequence CATGGTAAACGGCTGTGCGG), two AltR ssDNA Ultramers silently mutating the PAM sequence with or without insertion of the R1446C mutation (50:50 mix: T*T*CACATACTCTAAATATCCAATAAGGATCTCATGGTAAACGGCTGTGCAGAGACAACGTGGCCGGAAGAAATGAATACTATCCAGATAAGAAATGTA*C*A; T*T*CACATACTCTAAATATCCAATAAGGATCTCATGGTAAACGGCTGTGCGGAGACAACGTGGCCGGAAGAAATGAATACTATCCAGATAAGAAATGTA*C*A), 3 mM homology directed repair enhancer (IDT, 1081072) and IDT nucleofection enhancer oligonucleotide (IDT 1075915) according to manufacturer’s protocol. At 48 h ATTO550+ve single cells were FACS sorted into 96-well plates (BD FACSAria Fusion cell sorter) and, upon growth, colonies screened for successful editing by HpyCH4V amplicon digestion (F:GAGCACCTGGAAAGAGGAGC; R:CCCACAGGCGTGTGTACATT). Clones were validated by Sanger sequencing of the bulk screening amplicon and 10xTOPO-TA-cloned PCR products (ThermoFisher, K4575J10).

MTS

All drugs were purchased from Selleckchem, except A1155463 (Cayman Chemicals), and reconstituted to 10 mM in DMSO. 72-h viability assays were performed using CellTiter 96® AQueous One Solution Cell Proliferation Assay (Promega, G3580) following manufacturer recommendations and 490 nM absorbance measured using a CLARIOstar plate reader (BMG Labtech). Drug synergy scores were calculated using SynergyFinder web tool (https://synergyfinder.fimm.fi)51. We defined a peak ZIP threshold of +10 for synergism.

Mitochondrial depolarization using JC1

Mitochondrial depolarization was assessed on cells exposed to Venetoclax for 24 h using the MitoProbeTM JC-1 assay kit (ThermoFisher, M34152) following manufacturer recommendations. Cells were analysed by flow cytometry (BD Fortessa) for 488nm-excitied 530/30 filter signal. Viable cells were gated by DAPI (BD, 564907) exclusion. During flow cytometry cells were routinely handled in DPBS (Gibco, 14190-094) 2% HI-FBS and 2 mM EDTA (Invitrogen, 15575038).

Annexin-V staining by flow cytometry

Annexin-V externalization was assessed using anti-AnnexinV-APC kit from (eBioscienceTM 88-8007-74) following manufacturer protocol. Briefly, after incubation with drug/vehicle, cells were washed in DPBS, resuspended in Annexin binding buffer and incubated with 1/40 Annexin-V-APC dilution for 15 min at room temperature (RT) in the dark. Cell pellet was resuspended in 7-AAD (BD, 559925) diluted 1/100 in 1x binding buffer and analyzed by flow cytometry.

Western blot

Protein lysates were obtained from 1 × 106 cells after resuspending the pelleted cells in 50 µl boiling lysis buffer (31 mg/ml DTT, 10% SDS, 10% Glycerol, 1% Bromophenol blue and 12.5% 1MTris-HCL) or RIPA buffer (50 mM Tris pH8, 1 mM EDTA 0.5 M, 150 mM NaCl 5 M, 1% NP40(10%), 0.1% SDS(20%) and 0.5% DOC). RIPA buffer lysates were resuspended in boiling loading control with DTT (Cell Signaling Technology, 7722). Cell lysates were separated by SDS-PAGE electrophoresis (NuPAGE 3–8%TRIS acetate protein gels (Invitrogen) or 4-20% Mini-PROTEAN TGX protein gel (Bio-Rad)). Precision-plus protein dual color ladder (Bio-Rad, #1610374) or HiMark™ Pre-stained Protein Standard (Invitrogen, LC5699) were used as a size marker. Proteins were transferred to a methanol pre-activated membrane (Merck, IPFL00010) and then blocked with 5% BSA (ThermoFisher, BP1600) or powdered milk in TBS-0.05% Tween20 (TBST) before proceeding to antibody staining. Primary and secondary antibodies were diluted in 5% BSA or milk in TBST. Primary antibodies were incubated overnight at 4oC or 1 h at RT; secondary antibodies were incubated for 1 h at RT. Washes were performed with TBST. Membrane fluorescence was acquired using Odyssey imager (LI-COR).

Antibodies used: Caspase 3/PARP (Abcam, Ab136812, 1/250), BCL2 (E17) (Abcam, ab32124, Lot: GR3232704-4, 1/1000), β-Tubulin (Sigma-Aldrich, T8328, 1/2000), 4HNE (Abcam, ab46545, Lot: 1073022-2, 1/1000), GPX4 (Abcam, ab41787, Lot: 1047829-4, 1/1000), CREBBP (A22) (Santa Cruz biotechnology, SC369, Lot: G1613, 1/500) and Vinculin (H-10) (Santa Cruz biotechnology, sc25336, Lot: I2718, 1/250).

Lentiviral production

Lentiviral vectors were produced in HEK-293T cells by co-transfection of the previously sequenced vector constructs with psPAX and pMDG.2 packaging plasmids using Trans-IT LT-1 (Mirus, MIR2700). HEK293T cells were incubated overnight at 37 °C and the next day medium was changed for IMDM 10% HI-FBS. Viral particles were harvested at 48 and 72 h by centrifugation and 45μm filtration. 250 µl of viral particles were used to transfect 1x106 B-ALL cells by spinoculation (900 g for 2 h at 32 °C) in the presence of 10 μg/ml Polybrene (sc-134220). Subsequently, the cultures were diluted in fresh media and washed three times the following morning.

Transfection efficiencies were assessed by flow cytometric reporters and transfected cells selected using either 0.5 μg/ml of Puromycin (Gibco) for three days or FACS cell sorting as appropriate to achieve >90% transfection.

shRNA Knockdown of BCL2

Doxycycline-inducible reported shRNA knockdown constructs (pLT3GEPIR_GFP/Cherry_Stuffer) were provided by Dr Thomas Mercher (originally from Prof Johannes Zuber), EcoRI/XhoI double digested and the vector backbone purified by gel purification as previously described26. BCL2 targeting shRNAs were synthesized as Ultramers (IDT) based on the following recommended sequences (BCL2_1: TGCTGTTGACAGTGAGCGCCCGGGAGATAGTGATGAAGTATAGTGAAGCCACAGATGTATACTTCATCACTATCTCCCGGTTGCCTACTGCCTCGGA; BCL2: TGCTGTTGACAGTGAGCGCGAGGATCATGCTGTACTTAAATAGTGAAGCCACAGATGTATTTAAGTACAGCATGATCCTCTTGCCTACTGCCTCGGA; Renilla: TGCTGTTGACAGTGAGCGCAGGAATTATAATGCTTATCTATAGTGAAGCCACAGATGTATAGATAAGCATTATAATTCCTATGCCTACTGCCTCGGA)26. Complementary oligonucleotides were resuspended to 500 ng/µl, boiled and hybridized, ligated using T4 ligase (NEB) (5 ng insert:50 ng vector) and transformed into chemically-competent E. coli. Bacterial colonies were screened by PCR (F:CTCGACTAGGGATAACAGGG R:CAAAGAGATAGCAAGGTATTCAG) and successful plasmid clones miniprepped (Qiagen) and sequence verified by Sanger sequencing. Cells were selected with puromycin 0.5 μg/ml. Cells were incubated with 500 ng/ml of doxycycline and mCherry positive cells FACS sorted to confirm knock-down by qPCR and western blot.

Competitive co-culture assays were performed by mixing an equal number of renilla shRNA-GFP and one of two BCL2 shRNA-mCherry transfected 697WT or 697KI cells in triplicate. BCL2 knockdown was induced with doxycycline and aliquots of cell culture analyzed daily by flow cytometry. Results are presented as the ratio of 697KI Cherry:GFP events normalized to the mean ratio of 697WT Cherry:GFP events.

Gene expression by reverse transcriptase quantitative PCR (RT-qPCR)

Total RNA was extracted using the RNeasy kit (Qiagen) and 1 μg was used to synthesize cDNA using TaqMan Reverse transcription (Applied Biosystems, N8080234) following manufacturer’s instructions. RT-qPCR was carried out with SYBR Green PCR master mix (Agilent, 600882) on cDNA (diluted 1:5 in water). The expression level of RNA was calculated using the standard curve method, normalized to the expression of GAPDH. Primer pairs: BCL2F:ATTGGGAAGTTTCAAATCAGC; BCL2R:TGCATTCTTGGACGAGGG; GAPDHF:CCACATCGCTCAGACACCAT; GAPDHR:CCAGGCGCCCAATACG.

Cell cycle analysis by FUCCI reporter

CSII-EF-MCS vectors encoding mCherry-hCdt1(30/120) and mVenus-hGeminin(1/110) were obtained from Atsushi Miyawaki, RIKEN BioResource Research Center52,53. Lentiviral vectors were made and dual transfected into 697 isogenic cell lines as above. mCherry/mVenus dual-positive cells were enriched by FACS cell sorting (BD Influx) to generate high-expressing stable cell lines and analyzed by flow cytometry.

Seahorse metabolic assays

Oxphos and glycolysis assays were performed using the Seahorse XFe96 analyser (Agilent) according to manufacturer’s instructions. Briefly, cells were analysed at 48-72 h post passage and in drug concentrations/DMSO vehicle as stated in figure legends. For glycostress experiments, cells were harvested and counted in Seahorse XF base medium, pH7.4 supplemented with 2mM L-Glutamine (Sigma Aldrich, G7513). The final concentration of the injected drugs in the glycostress test is 10 mM glucose (Sigma, G7021), 1 µM Oligomycin A and 50 mM of 2-deoxyglucose (2-DG) (Sigma, D3179). For mitostress tests, Seahorse XF base media was supplemented with 2mM L-Glutamine, 10 mM Glucose and 1 mM Sodium pyruvate (Sigma, S8636). The final concentration of the injected drugs was 1 µM Oligomycin, 1 µM FCCP supplemented with 1 µM Sodium pyruvate and 1 µM Antimycin. For experiments using Venetoclax or A485 pretreatment drug exposure continued in the Seahorse media. Cells were plated at a density of 70000 cells/well in XFp tissue culture plates previously coated with CellTak (Corning, 354240) and incubated for 45 mins at 37 °C in a CO2-free incubator prior to analysis. Seahorse experiments were performed with multiple biological replicates on at least two separate occasions to account for technical failures or gross outliers, which were excluded based on the independent judgment of two researchers.

Lipid peroxidation assays

Lipid peroxidation was assessed using the lipid peroxidation sensor BODIPYC11-581/591 (ThermoFisher, D3861) according to manufacturer’s instructions. Briefly, cells were washed in DPBS and stained with 4 µM BODIPY dye for 30 min at 37 °C with gentle shaking in the dark. After washing with DPBS, cells were analyzed by flow cytometry. Replicate data is presented as the ratio of 488nm-excited 530/30 (FL1) to 610/20 (FL3) filtered signal.

Proteomics

Pellets were lysed in a buffer containing 100 mM triethylammonium bicarbonate (TEAB) (Sigma, #T4708), 1% sodium deoxycholate (SDC), 10% isopropanol, 50 mM NaCl, protease and phosphatase inhibitors (Halt, #78441) and universal nuclease (Pierce, #88700), and the protein concentration was measured with Bradford assay (Bio-Rad, Quick StartTM). 100 µg total protein per sample were reduced and alkylated simultaneously by adding tris-2-carboxyethyl phosphine (ΤCEP, Sigma) at a final concentration of 5 mM, and freshly prepared iodoacetamide at a final concentration of 10 mM followed by 1 h incubation at RT in the dark. Then, the samples were digested overnight at 37 °C with trypsin (Pierce #90058) and peptides were labeled with the TMTpro-16plex reagents according to manufacturer’s instructions (Thermo Scientific). The TMT mixture was fractionated on a Dionex UltiMate 3000 system at high pH using the X-Bridge C18 column (3.5μm 2.1x150mm, Waters). Twenty-two https://www.thermofisher.com/order/catalog/product/A44520 fractions were collected and 10% was transferred on different tubes for the TMT whole-proteome analysis.

Whole proteome analyses were performed on a Dionex UltiMate 3000 UHPLC system coupled with the nano-ESI Fusion-Lumos (Thermo Scientific) mass spectrometer. The MS2 scans were performed in the ion trap with collision energy 32%. Peptides were isolated in the quadrupole with isolation window 0.7 Th. The 10 most intense fragments were selected for Synchronous Precursor Selection (SPS) HCD-MS3 analysis with MS2 isolation window 2.0 and HCD collision energy 50%. Raw files were processed with the SequestHT search engine on Proteome Discoverer 2.4 software. The SequestHT node included the following parameters: Precursor Mass Tolerance 20 ppm, Fragment Mass Tolerance 0.5 Da for the CID spectra and 0.02 Da for the HCD spectra, Dynamic Modifications were Oxidation of M ( + 15.995 Da), Deamidation of N, Q ( + 0.984 Da) and Static Modifications were TMTpro at any N-Terminus, K ( + 304.207 Da) and carbamidomethyl at C ( + 57.021). Only unique peptides filtered for FDR < 1% were used for quantification and the consensus workflow included calculation of TMT signal-to-noise.

Data processing, normalization, and statistical analysis of peptide intensities were performed using the qPLEXanalyzer package from Bioconductor (cite: https://www.nature.com/articles/s41467-018-04619-5). Peptide intensities were normalized using median scaling. Protein-level quantification was then determined by summing the normalized peptide intensities. A statistical analysis of differentially regulated proteins was subsequently conducted using the two-sided limma statistical test. To control for the false discovery rate (FDR), p values were adjusted using the Benjamini-Hochberg method for multiple testing correction.

Lipidomics

Lipids were extracted using the protein‑precipitation liquid extraction protocol has been described previously54. At each pellet of cells, 650 µL of Chloroform, 100 µL of Lipids internal standard (5 µM in methanol) was added. Then 250 µL of methanol was added to each sample and finally 400 µL of acetone was added. The samples were vortexed for 60 s and then centrifuged for 10 min. The single-phase supernatant was transferred in other multiwall plate. The extract (~1.4 mL) of each sample was dried using gentle flow of N2 at 60 °C. The samples were reconstituted in 100 µL of 2:1:1 (propan-2-ol, acetonitrile and water, respectively) then thoroughly vortexed. The samples were analysed using LC-MS, with reversed phase chromatography and high-resolution mass spectrometry in both positive and negative mode electrospray ionization. Full chromatographic separation of the lipids was performed using a Waters HPLC system. 10 µL of sample extraction was injected onto a Waters Acquity UPLC CSH C18 column (1.7 µm, I.D. 2.1 mm × 50 mm), maintained at 55 °C. Two mobile phase have been used: mobile phase A consists of acetonitrile, and water 6:4 with 10 mM ammonium formate; mobile phase B consists of propan-2-ol, and acetonitrile 9:1, with 10 mM ammonium formate. The flow was maintained at 500 µL per minute through the gradient54.

The raw data was processed using MS-DIAL software (version 4.9). This process included peak selection, alignment and data annotation55 (see Supplementary Data Table 3 for parameters). The database of the lipid was validated against Lipid Maps (http://www.lipidmaps.org/tools/ms). The annotation of lipid molecular species was performed using the accurate mass data acquired with mass spectrometry (MS) and specific retention time acquired from the liquid chromatography. Lipid semi-quantification was performed using the deuterated internal standard for each lipid class and was based on the known concentrations of the standards added to the samples (Supplementary Data Table 3). At the end of this analytical step, a set of matrices was produced containing the expressive concentrations in nmol/1 million cells of the lipid molecular species previously annotated. For the lipidomic data analysis and data matrices preparation LipidOne 2.0 web-platform was utilized56,57.

RNA sequencing library preparation

697WT and 697KI treated with 20 nM Venetoclax or DMSO vehicle for 24 h (Fig. 4) or 697WT, 697KI, 697WT-VenR or 697KI-VenR cells removed from Venetoclax for 24 h (Fig. 5) were harvested, washed and RNA was extracted from 4 × 106 cells using the RNeasy kit (Qiagen) (performed in biological triplicate). Libraries were prepared using NEBNext Poly(A) mRNA magnetic Isolation module (NEB, E7490) starting with 1 µg DNA-free RNA, as per manufacturer’s instructions. RNA fragmentation, double-strand cDNA synthesis, end repair, adapter ligation and PCR amplification (9 cycles) was performed using NEBNext Ultra II directional RNA library prep kit for Illumina protocol (NEB, E7760) according to manufacturer’s protocol. Library quality and molarity was measured by Qubit (ThermoFisher) and TapeStation (Agilent). Samples were 50-bp paired-end sequenced on the NovaSeq (Illumina) instrument (CRUK CI Genomics Core Facility).

RNAseq analysis

The quality of the paired-end RNA-seq reads were assessed using FastQC (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/). All RNA-seq libraries were found to be above the minimum quality thresholds across quality control metrics. Adapter sequences were trimmed using TrimGalore package (https://github.com/FelixKrueger/TrimGalore), and were next mapped against the human genome version 38 (Hg38) using STAR Version=2.7.10a58. Only uniquely-mapping high confidence reads (flags NH:i:1 and MAPQ = 255) were retrieved and used for transcriptome quantification with featureCounts version 2.0.159. Genes with a minimum of 10 reads or more in a minimum of two samples were considered for all downstream analysis. Differential expression analysis was based on either a single factor model ( ~ genotype/treatment/sensitivity) or an interaction model when two factors were considered ( ~ genotype * treatment), and the interaction term was used to determine the difference of the effect of treatment across genotypes. The interaction model was chosen over the additive model for two-factor analysis of differential expression based on the clustering of normalized RNA-seq libraries on a PCA plot and the number of statistically significant differentially-expressed genes across both models using likelihood-ratio test (LRT). Differential expression analysis was conducted using gene level transcriptomic reads using the Bioconductor package DESeq260. KEGG Pathway enrichment, Gene Set Enrichment Analyses (GSEA) and Gene Ontology (GO) Analyses were all performed using the R package ‘clusterProfiler’ version 4.4.461. A minimum p value (corrected for multiple testing) and FDR of 0.05 were used across all tests to establish statistical significance.

The correlation of CREBBP expression in human patients with genes/pathways of interest was based on the RNA-seq cohort of B-ALL patients from the Therapeutically Applicable Research to Generate Effective Treatments (TARGET) Phase II initiative (https://www.cancer.gov/ccg/research/genome-sequencing/target)38. Reads-per-kilobase-million (RPKM) normalized reads from 203 patients were obtained from TARGET’s Genomic Data Commons (https://portal.gdc.cancer.gov) portal along with associated clinical and sample metadata. The median average expression of all genes in pathways of interest was compared with CREBBP expression for each patient, and the results were collated for correlation across all patients. All p values were corrected for multiple-testing using the Bonferroni formula.

ChIP-Seq/CUTandRUN

7 million 697WT and 697KI were cross-linked with 1% formaldehyde for 10 min at RT, reaction that was stopped by Glycine (final concentration 125 mM). Cells were washed twice with ice-cold PBS and finally resuspended in cold PBS with 1x Protease inhibitors (PI) (Roche, 11836170001). After this step all buffers contained PI. Cell pellets were lysed with cell lysis buffer (10 nM Tris-Cl, 10 mM NaCl, 0.2% NP40) for 10 min at 4 °C. After centrifugation at 2400 rpm at 4 °C, nuclei were resuspended in 100 µl of Sonication buffer (0.5% SDS, 20 mM Hepes, 5 mM EDTA) and incubated on ice for 10 min. Chromatin was sheared by sonication (three cycles of 30 s ON and 30 s OFF). Prior to immunoprecipitation, the sonicated chromatin was diluted with 400 µl of dilution buffer (20 mM Tris pH8.1, 2 mM EDTA, 150 mM NaCl, 1% TritonX100 and 0.01% SDS). Immunoprecipitation was performed overnight in 20% Tx-100 using 2.5 µg of antibody (IgG, Proteintech, 30000-0-AP; H3 (1B1B2), Cell Signaling Technology, 14269S and H3K27ac, Active motif, 39133). Immunocomplexes were captured using the protein A (10002D) and protein G (10004D) Dynabeads (Invitrogen). After 4 h, the immunocomplexes were magnetized and repeatedly washed in the following buffers: RIPA buffer (20 mM Hepes, 150 mM NaCl, 1 mM EDTA, 0.1% SDS, 1% Tx-100), RIPA-500 (20 mM Hepes, 500 mM NaCl, 1 mM EDTA, 0.1% SDS, 1% Tx-100, 0.1% DOC) and LiCl wash buffer (10 mM Tris-HCl, 1 mM EDTA, 150 mM LiCl, 0.5% NP40, 0.5% DOC).

To perform reverse crosslinking, ChIP samples were incubated overnight at 65 °C with ChIP elution buffer (10 mM Tris-HCl, 5 mM EDTA, 300 mM NaCl, 0.4% SDS) with 2 µl of Proteinase K (Thermo Scientific EO0491). Samples were cleaned up using a Qiagen PCR Minelute column.

To perform CUTandRUN, 0.3 million cells per sample of 697WT and 697KI cell lines were harvested and washed in wash buffer (20 mM HEPES, 150 mM NaCl, 0.5 mM Spermidine, 1x cOmpleteTM EDTA-free PI). Cells were incubated for 10 min at RT with activated Concavalin A beads (EpiCypher, 21-1401). The suspension was magnetized, supernatant removed and the cells were resuspended in 1 µg of the corresponding antibody (CREBBP, Santa cruz technologies, sc369(A22), lot: G1613; IgG, Epicypher, cat 13-0042) diluted in antibody buffer (wash buffer plus 0.01% digitonin and 2 mM EDTA) on a nutator overnight at 4 °C. After incubation, the suspension was magnezited and beads were washed and finally resuspended with digitonin buffer (wash buffer plus 0.01% digitonin) prior to the 10 min incubation of the nuclei with CUTANA pAG-MNase (EpiCypher, 15-1016). Beads were washed again with digitonin buffer and the targeted chromatin was digested and released with the addition of 100 mM CaCl2 that activates the MNase tethered to chromatin. After 2 h at 4 °C, stop buffer (40 mM NaCl, 20 mM EDTA, 4 mM EGTA, 50 µg/ml RNase A and 50 µg/ml Glycogen) was added. Cleaved DNA was purified using the Monarch PCR DNA clean up kit (NEB).

Library preparation was performed using the NEBNext Ultra II DNA library preparation kit for Illumina (NEB, E7645) according to manufacturer’s protocol. Library quality and molarity was measured by Qubit (ThermoFisher) and TapeStation (Agilent). Samples were 50-bp paired-end sequenced on the NovaSeq (Illumina) instrument (CRUK CI Genomics Core Facility).

ChIP-Seq/CUTandRUN analysis

Sequencing libraries that passed the minimum quality requirements, as determined by the quality metrics of the tool FastQC (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/), were considered for downstream analysis and processed using either the ChIP-seq or CUTandRUN pipelines. For ChIP-seq libraries, paired end reads were first trimmed for Trueseq adaptors using trimmomatic62 (version 0.36) with the following parameters (PE -phred33 ILLUMINACLIP:Truseq3.PE.fa:2:15:4:4:true LEADING:20 TRAILING:20 SLIDINGWINDOW:4:15 MINLEN:25). Adaptor-trimmed reads were then aligned to the human genome version hg38 using Bowtie 263 (version 2.4.5) using the following parameters (--very-sensitive-local --phred33 -I 10 -X 700). Aligned reads in SAM format were converted to BAM format, sorted then indexed using Samtools64 (version 1.11). Duplicate reads in aligned BAM files were marked using the Picard tool MarkDuplicates, and the resulting duplicate reads were subsequently removed by Samtools. The aligned, de-duplicated read files were converted to BigWig files for genome browser visualization and analysis of co-occupancy with CREBBP libraries using the bamCoverage function of the deeptools65 (version 3.5.1), normalizing by counts-per-million (CPM) and a bin size of 10. CUTandRUN libraries were processed using the CUT&RUNTools pipeline (available at: https://github.com/fl-yu/CUT-RUNTools-2.0)66, using the same human reference genome version (hg38). We ran the pipeline without spike-in controls, or filtering for short fragments ( < 120 bp) to maximize the capture of CREBBP binding.

Genomic occupancy of CREBBP/H3K27ac were established by peak-calling against matched input controls using the PCR-duplicate filtered, aligned paired-end BAM files from the ChIP-seq and the CUT&RUNTools pipeline. MACS267 (version 2.2.7.1) was used to call peaks with the callpeak function and the following parameters (-p 0.05 -B --SPMR --keep-dup all). Black-listed regions were subsequently removed from the called peaks using bedops68 (version 2.4.41) and a list of version-specific blacklisted region list from the human genome. Peaks with a minimum q-value of 0.05 were utilized for all downstream analysis.

CREBBP and H3K27ac were annotated to their associated genes by their proximity to transcription start sites (TSSs) using the R package ChIPseeker69. Promoter regions were defined as the ±3 kb window around TSSs, with any region acetylated by H3K27ac outside of that window and within a ± 100 kb window of a TSS as an enhancer element. Co-occupancy of CREBBP and H3K27ac was determined by intersecting the two peak sets using the R package IntersectionSet70, and the Venn diagrams of those intersection were generated using the R package eulerr.

Profile plots showing genomic signal enrichment of simultaneous CREBBP/H3K27ac occupancy around TSSs of differentially expressed genes from the RNA-seq experiments of 697WT vs. 697KI were generated using scores calculated by the computeMatrix function of the deeptools package with the parameters (--binSize 10 --skipZeros). Score files inputs (in BigWig format) for this analysis were generated by converting the total BigWig signal files from the ChIP-seq/CUTandRUN pipelines to Wig format using bigWigToWig from the UCSC utilities71, then converted to BED format using wig2bed from bedops, followed by selecting those regions that were established to be common between 697WT vs. 697KI or those with co-bound CREBBP-H3K27ac sites in the previous step, and saved as bedgraph files, to be converted next to BigWig again using bedGraphToBigWig from the UCSC utilities.

The integration of CREBBP binding with the differential gene expression data from 697WT vs. 697KI to deduce co-regulation of target genes was done using the Binding and Expression Target Analysis (BETA) package28. For 697KI, the entire list of expressed genes with the adjusted p values and log2 fold-change of the difference of their expression to their 697WT counterparts, along with the list of CREBBP-H3K27ac enhancer-associated peak regions, were used as input for the BETA plus function with the following parameters (-g hg38 --df 0.05 --da 1 --mn 10). The same analysis was repeated for the 697WT, but with reversing the signs for the log2 fold-change in gene expression values to account for the directionality in differential gene expression.

In-vivo dosing studies

All experiments were conducted under a UK Home Office project (under the Animals (Scientific Procedures) Act 1986, Amendment Regulations (2012)) and following ethical review by the University of Cambridge Animal Welfare and Ethical Review Body. Primary patient samples for PDX derivation were supplied by the VIVO Biobank (REC reference 23/EM/0130). Parental consent was obtained and no compensation provided.

For the in-vivo dosing experiments in Fig. 9a–f, 0.25 × 106 luciferase expressing cells (isogenic cell lines 697WT & 697KI) were injected by tail vein injection into sub-lethally (2 Gy) irradiated 13-15 week-old female NSG (NOD.Cg-Prkdcscid Il2rgtm1Wjl/SzJ) mice. Mice received a daily dose of Venetoclax (100 mg/kg)(LC Labs) or vehicle control (15% Kolliphor HS15 (Sigma 42966), 60% Phosal propylene glycol (MP, 151957) and 10% ethanol), by means of Oral Gavage (FTP-20-30, INSTECH) for thirty days or until the experimental endpoints were reached. Disease progression was tracked by IVIS bioluminescence imaging (PerkinElmer); in brief, D-luciferin (Perkin Elmer, 122799) was administered by intraperitoneal (IP) injection (10 µl/g body weight of a 15 mg/ml solution) followed by inhalation anesthesia (isoflurane) and IVIS bioluminescence imaging ( ~10 min post-luciferin injection). Tumor burden was quantified using Living Image Software (v4.7.2, PerkinElmer). One mouse engrafted with 697KI treated with Vehicle was excluded due to imaging failure.

For the in-vivo dosing experiments in Fig. 9g, 0.25 × 106 697WT cells were injected by tail vein injection into sub-lethally (2 Gy) irradiated 11-13 week-old old male NSG mice. Mice received a daily dose of Venetoclax (100 mg/kg) and/or Inobrodib (20 mg/kg) or vehicle control (as above), by means of oral gavage until the experimental endpoints were reached.

For the in-vivo dosing experiments in Fig. 9h, the CREBBP-mutated male, pediatric patient presented was genomically and genetically characterized by the VIVO Biobank as having a high hyperdiploid karyotype alongside heterozygous CREBBP p.(Glu1551_Ser1552insArgArgPro) and NRAS p.(Gly12Cys) mutations. High quality primary diagnostic cells were obtained from the VIVO Biobank and engrafted by tail vein injection into sub-lethally irradiated NSG mice. For the dosing experiments, 1.2 million secondary PDX cells were engrafted into sub-lethally irradiated NSG mice. Recipients were 17-23 week-old old male and female NSG mice. Animals were randomized by sex and weight (Vehicle 2 M/3 F; Inobrodib 2 M/3 F; Venetoclax 2 M/5 F; Combination 3 M/4 F). Dosing was performed as above from day 77, except the schedule was 3 consecutive days per week for a maximum of 10 weeks. For the histology presented in Supplementary Fig. 9f, mice received two daily doses from D107 after transplantation.

Mice were housed in a pathogen-free animal facility and were allowed unrestricted access to food and water, including irradiated complete universal diet for rats, mice and hamsters (SAFE R105-25), supplemented by DietGel 76 A (Clear H2O 72-07-5022), NutraGel (BioServ NGB) and/or peanut butter provided across all groups during drug dosing. Housing and care of all animals included in this study were according to the UK’s Home Office CoP with a 7am-7pm light/dark cycle (with a dawn/dusk cycle incorporated). Ambient temperature and relative humidity parameters were kept within 19–23 oC & 45–55%, respectively. Mice showing any clinical signs or weight loss (more than 20% of its reference weight post irradiation or 15% after administration of therapeutics), or sustained signs of compromised wellbeing such as reduced activity, piloerection and hunching that persisted for more than 6 h (or 2 health checks separated by at least three hours) were humanely sacrificed. One mouse engrafted with 697KI treated with Vehicle was excluded from summary BLI measurements due to imaging failure. No other animals were excluded from analysis. The investigator was not blinded to the group allocation, however, the animal technicians who provided the majority of animal care and who decided upon which animals to sacrifice (according to defined endpoints) were blinded to the allocation.

Sample sizes were based on pilot studies showing median survival times for 697 cells. For the Venetoclax dosing studies in Fig. 9a–f, a sample size of 6 was chosen to detect a 5 ± 3 day OS benefit in the treatment arm, based on an alpha of 0.05 and a power of 80% and an anticipated engraftment time of 24 days in the control group. For the combination studies in Fig. 9g, minimal control numbers were used for Venetoclax or vehicle dosing in line with three R principles. The number of mice used for treatment of either Inobrodib or Inobrodib with Venetoclax was calculated as four per arm, based on an anticipated survival benefit of 6 ± 3 days in the dual treatment arm, based on an alpha of 0.05 and a power of 80% and an anticipated engraftment time of 24 days in the control group. For the combination dosing studies in PDX in Fig. 9h a minimal sample size of 5 was chosen to detect a 35 ± 20 day OS benefit in the treatment arms, based on an alpha of 0.05 and a power of 80% and a predicted latency of 120 days. Power calculations were calculated using ClinCalc.com.

Histology

Formalin fixed embedded splenic tissue was deparaffinized, rehydrated, antigen retrieved in citrate buffer (pH 6.0) and blocked with hydrogen peroxide. Washes were performed with TBS/Tween20 (0.05%). Primary antibodies (4HNE (Abcam, ab46545, Lot: 1073022-2), GPX4 (Abcam, ab41787, Lot: 1047829-4)) were diluted 1:200 in milk and detected by HRP-conjugate. Nuclei were stained with Harris’s Haematoxylin counterstain. Images were obtained on a Zeiss Axioimager M2.

Statistics

Flow cytometric data was analyzed using FlowJo (v10). Statistical analysis was performed in GraphPad Prism-v9 and Microsoft Excel. Seahorse data was processed on Wave software (2.6.3). Significance tests are stated in figure legends

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
