Naturalistic acute pain states decoded from neural and facial dynamics

Nature Communications volume 16, Article number: 4371 (2025) Cite this article

14k Accesses
4 Citations
30 Altmetric
Metrics details

Subjects

Abstract

Pain remains poorly understood in task-free contexts, limiting our understanding of its neurobehavioral basis in naturalistic settings. Here, we use a multimodal, data-driven approach with intracranial electroencephalography, pain self-reports, and facial expression analysis to study acute pain in twelve epilepsy patients under continuous neural and audiovisual monitoring. Using machine learning, we successfully decode individual participants’ high versus low pain states from distributed neural activity, involving mesolimbic regions, striatum, and temporoparietal cortex. Neural representation of pain remains stable for hours and is modulated by pain onset and relief. Objective facial expressions also classify pain states, concordant with neural findings. Importantly, we identify transient periods of momentary pain as a distinct naturalistic acute pain measure, which can be reliably discriminated from affect-neutral periods using neural and facial features. These findings reveal reliable neurobehavioral markers of acute pain across naturalistic contexts, underscoring the potential for monitoring and personalizing pain interventions in real-world settings.

Brain imaging signatures of neuropathic facial pain derived by artificial intelligence

Article Open access 03 July 2023

First-in-human prediction of chronic pain state using intracranial neural biomarkers

Article 22 May 2023

Computational and neural mechanisms of statistical pain learning

Article Open access 03 November 2022

Introduction

Pain disorders represent a major burden of disease and severely reduce patients’ quality of life¹. Medically refractory pain syndromes are treated with intracranial neurostimulation, though with limited efficacy². Recent rodent studies utilizing closed-loop neurostimulation paradigms were effective in providing analgesia in models of both acute and chronic pain^3,4. Translating this concept to the bedside requires a detailed understanding of neurobehavioral markers of pain, particularly in naturalistic settings. Much of our current knowledge about central pain processing stems from neuroimaging studies examining healthy individuals exposed to transient, experimentally induced painful stimuli^5,6,7. These efforts identified neural markers of physical pain^5,8, pain-related negative affect^6,9, and pain-induced facial expressions⁷. While the sensory aspects of painful stimuli appear encoded in early sensory networks^5,6, the generalized negative affect associated with pain is represented in a distributed set of regions, including the thalamus, orbitofrontal cortex (OFC), insula, and anterior cingulate cortex (ACC)^5,6. However, the extent to which experimentally induced pain accurately represents the heterogeneous and persistent pain experienced in everyday life remains an important question¹⁰. For example, while tonic pain induced by capsaicin may better mimic natural pain compared to phasic thermal stimuli¹¹, the extent to which experimental stimuli mirror real-life pain experiences remains uncertain. Investigating pain in unconstrained settings is crucial for bridging the gap between experimental paradigms and naturalistic pain experiences.

Behaviorally, facial expressions serve as reliable indicators of pain across mammalian species^12,13. These automatic changes in facial behavior likely stem from the complex integration of nociceptive, sensory, cognitive, and affective processes¹⁴. Moreover, pain-related facial expressions are thought to encode multidimensional pain experiences and may in part reflect activity within the spino-thalamo-cortical network¹⁵. While much research has focused on facial expressions in response to experimental pain, there is increasing recognition of the value in understanding how these dynamics unfold during naturalistic acute pain. This understanding is particularly valuable for aiding pain recognition in non-communicative individuals, and for characterizing facial expressions as a meaningful output channel of pain-related neural activity in everyday scenarios.

The inpatient epilepsy monitoring unit (EMU) provides a unique opportunity in studying the neurobehavioral underpinnings of naturalistic acute pain states. Patients undergoing invasive monitoring for seizure localization often encounter varying degrees of acute pain during their stay¹⁶. Two forms of acute pain can be assessed: (1) quantifiable routine verbal rating scales using patients’ self-reported assessments of their current or ongoing acute pain¹⁷ and (2) episodes of momentary pain observable through behavioral cues such as changes in facial expression and vocalization¹⁷. Notably, intracranial electroencephalography (iEEG) recorded in the EMU offers exceptional spatiotemporal resolution, capturing direct neuronal activity over prolonged periods ranging from days to weeks¹⁸. Simultaneous video recording allows for the concurrent quantification of facial expressions alongside neural recordings on similar timescales. While intracranial recordings have advanced our understanding of pain processing by revealing precise networks responsive to thermal stimuli¹⁹, enabling migraine intensity decoding in a single patient²⁰, and demonstrating orbitofrontal and anterior cingulate cortex involvement in chronic pain states²¹, the neural and facial behavioral dynamics underlying naturalistic acute pain remain poorly studied.

Employing a naturalistic, data-driven approach, we evaluated two forms of acute pain in the EMU setting: (1) longitudinal acute pain as measured by pain self-reports and (2) transient episodes of momentary pain as identified by observational cues. First, we delineated the physiological and behavioral characteristics of self-reported pain states. High pain states were characterized by higher blood pressure, more frequent pain medication use, and differential activation of facial muscles. Using spectro-spatial features derived from intracranial recordings, we then constructed a binary classifier capable of decoding self-reported pain states. Classifier interrogation revealed that pain decoding relied upon a distributed pattern of brain activity involving the mesolimbic regions, thalamus, and temporoparietal cortices. Classifier output was temporally stable in between similar self-reported pain states and was sensitive to pain onset or analgesia of pain. Pain decoding based on objective facial behaviors performed worse but was positively correlated with electrophysiological decoding performance. We then extended these findings to transient episodes of momentary pain, demonstrating that momentary pain can be reliably decoded from periods of neutral affect using either neural or facial features. Notably, the neural and facial markers of momentary pain were distinct from those of self-reported pain states. Taken together, we find that distributed brain activity forms a reliable representation of naturalistic acute pain states and is closely mirrored by changes in facial dynamics.

Results

Study participants and naturalistic pain states

We designed a naturalistic paradigm to study the neurobehavioral markers of acute pain states in an unconstrained manner, involving participants with implanted depth electrodes for seizure localization (Fig. 1A). The study included regular pain self-reports, intracranial electrophysiology, and simultaneous audiovisual recordings. On average, we analyzed 6.3 days (SD = 2.1) of behavioral and electrophysiological data per participant, with channel coverage spanning cortico-thalamo-limbic networks (Supplementary Table 1). In addition to pain self-reports, we manually annotated periods of momentary pain based on video as another measure of naturalistic acute pain.

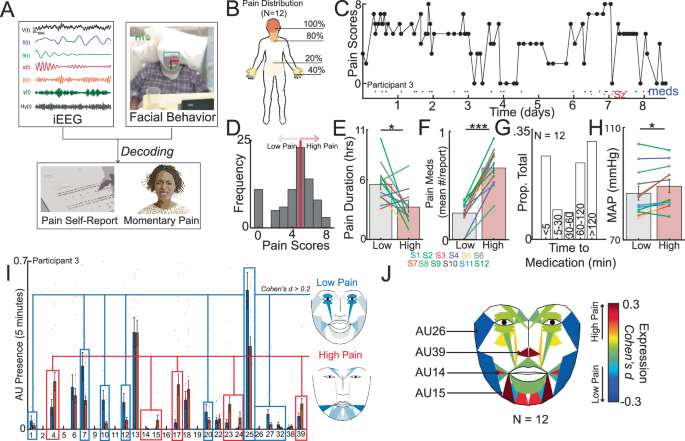

**Fig. 1: Naturalistic study design and inpatient tracking of acute pain states.**

To characterize acute pain states, we first analyzed regular pain self-reports obtained from participants. An average of 58 (SD = 21) pain self-reports were documented per participant, with a median frequency of every 2 h (IQR = 0.3) (Supplementary Table 3). Pain predominantly localized to the cranial region, with patients reporting headaches from scalp incisions and electrode placement, as well as jaw pain from lead traversal of the temporalis muscle. Less common sites included the hands, resulting from IV placement and blood draws, and the lower back due to extended bed rest (Fig. 1B). While patients primarily characterized their pain as aching, some also described sharp sensations, pressure, or soreness (Supplementary Table 2). In an example participant, visualizing all reported pain scores over time revealed fluctuations within and across days (Fig. 1C; Supplementary Fig. 1 for other participants). We subsequently defined low and high acute pain states using the median pain score as the division threshold (Fig. 1D). This approach was motivated by findings that most individuals do not reliably rate pain on a linear scale²², binary decoding of chronic pain performs better²¹, and a dichotomized signal threshold might be more clinically practical. Across participants, the median duration of pain states was 4.3 h (IQR = 7.1) based on when pain scores transitioned from one state to another, with participants spending more time in low compared to high pain states (Fig. 1E; paired t-test; t(11) = 2.6, P = 0.02). We also evaluated pain medication use surrounding the times of pain self-reports. A variety of pain medications were given, including opioid, non-steroidal anti-inflammatory medications, and acetaminophen, in both intravenous or oral routes (Supplementary Fig. 2). More pain medications were administered within a 1-h window centered on high pain states compared to low pain states (Fig. 1F; paired t-test; t(11) = 10.1, P < 0.001). The timing of pain medications was heterogeneous, with some scheduled and others given as needed, resulting in a large distribution of medication timing relative to pain self-report times (Fig. 1G). Participants in high pain states experienced higher blood pressure compared to low pain states (Fig. 1H; paired t-test: t(11) = 2.7, P = 0.02), but no significant changes were observed for heart rate (Supplementary Fig. 3A; one-sample t-test; t(11) = −1.50, P = 0.16) or respiratory rate (Supplementary Fig. 3B; t(11) = −1.93, P = 0.08).

Moreover, we quantified changes in facial behaviors using continuous video recordings to understand behavioral aspects underlying self-reported pain states. Facial behaviors were derived from frame-by-frame estimates of facial action units (AUs), which taxonomize human facial movements (see Methods). In an example participant, low pain states had higher expression of facial AUs denoting positive affect, whereas high pain states had higher expression of facial AUs denoting negative affect (Fig. 1I). Across participants, several facial AUs were differentially expressed between acute pain states, with AU14, AU15, AU26, and AU39 exhibiting consistent effect sizes (Fig. 1J; Cohen’s d > 0.2).

Self-reported acute pain states can be decoded from distributed intracranial activity

To explore the neural mechanisms underlying self-reported acute pain states, we leveraged multi-site semi-chronic iEEG recordings (Fig. 2A). Five-minute windows prior to pain self-report times were used to construct spectro-spatial features, which were subsequently employed to train an Elastic-Net classifier for decoding acute pain states (Fig. 2B). We utilized a nested k-fold CV scheme to ensure that model performance was purely determined on unseen test data for each individual participant (Fig. 2B, C, see Methods). At the group level, we achieved a mean classification AUC of 0.70 ± 0.06 and a mean accuracy of 66% ± 5.5 for discriminating between low and high acute pain states (Fig. 2D). We also evaluated the classification performance of a non-linear model (Random Forest, see Methods), as discrepancies in performance may suggest underlying non-linear data statistics. RF models performed slightly better, with a mean classification AUC of 0.72 ± 0.06 and a mean accuracy of 69% ± 6.3 (Supplementary Fig. 4). To evaluate if the choice of pain threshold affected classification, we divided pain states based on 25th and 75th percentiles, and only using observations either below 25th percentile or above 75th percentile. The mean AUC for quartile based decoding was 0.71 ± 0.13, with an accuracy of 70% (Supplementary Fig. 5), which was similar to median-based decoding. Moreover, we performed Elastic-Net based decoding of continuous pain scores (Supplementary Fig. 6). Median Pearson’s R between actual and predicted pain scores was 0.29 (range: 0.01 to 0.70), with six out of twelve participants achieving significant decoding. In contrast, eleven participants exhibited significant binary decoding based on confidence interval (Supplementary Table 5). Given the highly variable performance with continuous decoding, these results supported pain dichotomization, and subsequent analyses focused on results from the binary classifiers.

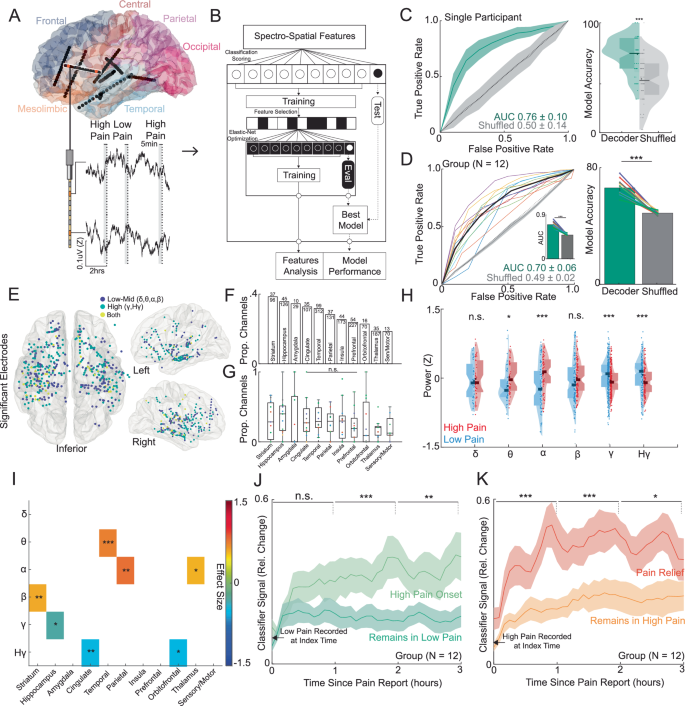

**Fig. 2: Intracranial neural activity sufficient for decoding of self-reported acute pain states are spatially distributed, temporally stable and modulated by pain onset or pain relief.**

Intracranial neural activity sufficient for decoding of self-reported acute pain states are spatially distributed, temporally stable and modulated by pain onset or pain relief

To elucidate the spectro-spatial contributions to the classification of self-reported acute pain states, we examined the spatial profiles of significant neural features (see Methods). We visualized the locations of each recruited electrode and its associated spectral content (Fig. 2E), revealing a distributed spatial recruitment pattern with a mix of low-to-mid frequency bands (delta, theta, alpha, beta powers) and high-frequency bands (gamma, high-gamma). Fewer electrodes contained predictive spectral content spanning both low-to-mid and high frequencies for pain states. The anatomical distribution of significant electrodes was widespread, with the striatum, hippocampus, amygdala, cingulate cortex, and temporal cortex harboring the highest proportion of features predictive of pain states (Fig. 2F). To limit the bias due to individual sampling heterogeneity, we evaluated the proportions on a per-participant basis as well. Across participants, the proportion of significant features did not differ significantly across regions (Fig. 2G; Kruskal Wallis test: χ2 = 7.2, P = 0.7), highlighting the distributed nature of acute pain encoding. Irrespective of feature normalization or classifier type, the gamma band was the most common predictive frequency band (Supplementary Fig. 7). Across all significant spectro-spatial features, high pain states exhibited a consistent increase in theta power (linear regression coefficient adjusted for participant; t(85) = 2.44, P = 0.02) and alpha power (t(137) = 4.81, P < 0.001) compared to low pain states, accompanied by a decrease in gamma (t(509) = 3.26, P < 0.001) and high-gamma power (Fig. 2H; t(233) = 3.21, P < 0.001). When stratified by anatomical region, the aggregate increase in theta and alpha power was driven by temporal, parietal, and thalamic regions, while the decrease in gamma and high-gamma power originated from mesolimbic regions (Fig. 2I; linear regression coefficient adjusted for participant: * < 0.05, ** < 0.01, *** < 0.001, FDR-correction for multiple test comparisons). Note that while other regions did not exhibit consistent directional changes in power, they were still important in predicting acute pain states. To assess the consistency of these neural feature patterns, we performed feature analysis using random forest classifiers (see Methods). The random forest classifier relied on distributed neural activity, with a similar pattern of increased theta (t(173) = 2.1, P = 0.04) and alpha (t(241) = 5.8, P < 0.001) power, as well as decreased gamma (t(427) = 3.5, P < 0.001) and high-gamma (t(231) = 4.4, P < 0.001) power (Supplementary Fig. 8A, B). However, we also noted a decrease in delta power (t(221) = 5.6, P < 0.001) and an increase in beta power (t(271) = 6.2, P < 0.001). Anatomically, similar decreases in high-frequency activity were observed in the hippocampus and anterior cingulate cortex, while increases in theta and alpha power were seen in the temporal and parietal cortices (Supplementary Fig. 8C; linear regression coefficient adjusted for participant: * < 0.05, ** < 0.01, *** < 0.001, FDR-correction for multiple test comparisons). In summary, neural activity underlying self-reported acute pain decoding is distributed and exhibits regionally specific spectral profiles.

We next evaluated the temporal stability of acute pain neural encoding between pain self-reports. We hypothesized that if self-reported pain states last on a timescale of hours, the output of the pain state classifier should remain relatively stable when using unseen spectro-spatial features over a similar time period. Additionally, if participants underwent a self-reported pain state transition, the classifier should be sensitive to that change. Starting with observations recorded as low pain across participants, when the next pain measurement remained in a low pain state, the relative change in classifier signal was fairly stable (mean % change across time: 0.19; Fig. 2J), indicating that neural features encoding pain states are stable in the absence of state change. In contrast, when the next pain measurement transitioned to a high pain state, we observed a larger change in classifier signal over time (mean % change across time: 0.31), which was significantly different compared to when the pain measurement remained stable (Fig. 2J; paired t-test: t(11) = 2.64, P = 0.02). Similar findings were observed when starting with high pain state observations (Fig. 2K). The classifier signal remained stable over time when the next measurement stayed in a high pain state (mean % change across time: 0.25). However, when pain relief was experienced (i.e., the next measurement transitioned to a low pain state), a significantly larger change in classifier signal was observed (mean % change across time: 0.39; t(11) = 3.0, P = 0.01). Since pain medications were often administered during high pain states, we evaluated the effect of medications given at the time of a high pain self-report (Supplementary Fig. 9). We found that medications alone did not change the classifier signal. For instance, medications given without a self-reported change in pain state did not result in a classifier signal change (t(11) = 1.82, P = 0.1). Medications given with associated pain relief produced a signal change similar to that of pain relief achieved through non-pharmacologic means, such as rest, elevation, verbal reassurance, or physical comfort (t(11) = 1.1, P = 0.3). Notably, pain scores were rated on average 1 point higher across participants in high pain states when pain medication was given compared to high pain states in which non-pharmacologic interventions were used (Supplementary Fig. 10). These results indicate that neural features underlying self-reported pain states change slowly, are tuned to state transitions, and are not directly altered by pain medications.

Facial behavior reflects self-reported acute pain states

Mirroring the analytical approach for neural-based acute pain decoding, we trained a classifier using five minutes of video-based facial features immediately prior to pain self-report (Fig. 3A). Using facial features alone, we achieved a group AUC of 0.62 ± 0.09 in classifying self-reported pain states (Fig. 3B). The group AUC for quartile-based decoding was 0.59 ± 0.15 (Supplementary Fig. 11). Specifically, four participants (S3, S4, S11, S12) exhibited significant binary decoding based on confidence interval. We also conducted additional analyses to understand if alternative facial features influenced model performance. First, instead of computing the frequency of AU occurrences, we averaged the AU probabilities within a 5 min window, which produced a similar group AUC of 0.60 ± 0.12 (Supplementary Fig. 12A). Second, using mean AU intensities produced a group AUC of 0.55 ± 0.10 (Supplementary Fig. 12B). These results indicate relatively modest decoding of pain states regardless of types of facial features used. We did, however, find that model performance based on facial dynamics was concordant with neural-based decoding at the group level; participants who demonstrated high AUC using neural activity to predict self-reported pain states also had high AUC using facial data to predict self-reported pain states (Fig. 3C; Pearson’s R = 0.70, P = 0.01). We also evaluated the temporal stability of facial features in encoding pain states (Fig. 3D). Starting with high pain state observations, the facial feature-based classifier demonstrated a greater signal change when the next measurement indicated pain relief compared to remaining in a high pain state (paired t-test; * <0.05, ** <0.01, *** <0.001). However, the facial feature-based classifier was not sensitive enough to detect differences between remaining in a low pain state and pain onset (Supplementary Fig. 13). Recent medication use did not appear to influence the classifier signal across time, similar to our observations in the neural-based model (Supplementary Fig. 14). Given the observed correlation between facial and neural-based decoding, which suggests a relationship between neural features and facial expression changes, we investigated whether facial features contributed unique predictive value or redundant information. We compared the classifier AUC using neural features alone to the AUC when neural and facial features were combined. The inclusion of facial features did not improve the decoding of self-reported pain states (Supplementary Fig. 15; paired t-test: t(11) = 2.2; P = 0.05 favoring neural features only). These findings demonstrate that facial dynamics alone can be used to classify acute pain states, albeit with lower performance compared to neural-based decoding. The concordance between facial and neural-based decoding at the group level suggests a shared underlying representation of pain states.

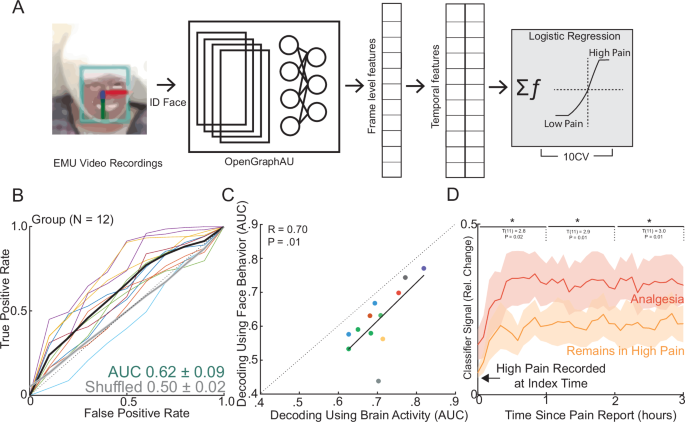

**Fig. 3: Facial dynamics predict acute pain states.**

Facial action units can be decoded from neural activity

Given the concordance between neural and facial features in decoding acute pain, and that facial features did not provide additional predictive value beyond what is already captured by neural activity, we reasoned that a subset of neural activity likely explains variations in facial expressions. We performed multivariate linear regression using neural activity as spectro-spatial features to decode the mean presence of facial AUs in a 5 min window prior to the pain self-report. We found that across participants, the presence of certain facial AUs were more easily decoded than others, such as AU5, AU11, AU16 and AU19 (Supplementary Fig. 16). In addition, we found that amygdala activity was predictive of most facial AUs, followed by the insula and parietal cortex. These results indicate that at least a subset of neural activity during pain self-report corresponds to changes in facial expression.

Neurobehavioral markers of momentary pain can be identified

As another measure of naturalistic acute pain, we manually annotated transient episodes of momentary pain based on observational cues (Fig. 4A; Supplementary Fig. 4 see Methods). Across participants, we identified a total of 377 behavioral events (N_{momentary pain} = 203; N_neutral = 174), which occurred on average 34 min from the closest pain self-report (Supplementary Fig. 17A). Labeled behavioral events were found to be equally close to either low or high self-reported pain states (Supplementary Fig. 17B; χ² = 0.084, P = 0.77). Analysis of facial expression changes during momentary pain revealed several consensus changes across participants, including AU5, AU6/7, AU9/10, AU11/12, and AU25/26 (Fig. 4B; Cohen’s d > 0.2). Notably, these action units have been previously identified as pain-related facial markers in studies of elicited pain¹³. In contrast, the facial action units associated with different self-reported pain states were AU14, AU15, AU26, and AU39 (Fig. 1J), which have been associated with general changes in positive and negative affect. This difference in facial expression patterns suggests that momentary pain episodes may be more similar to conventionally elicited pain in experimental conditions, while self-reported pain states reflect a more complex and integrative experience of pain.

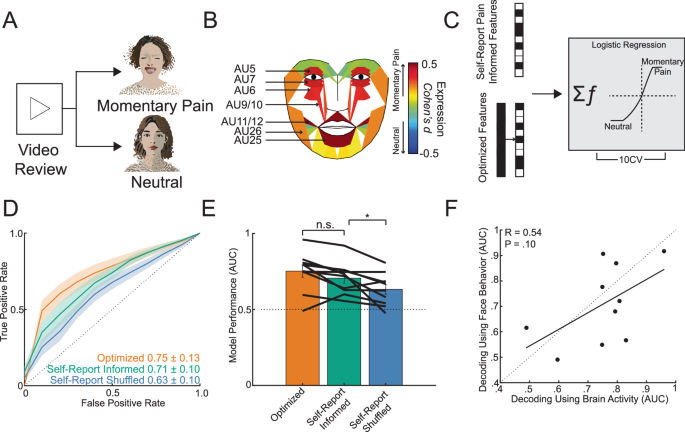

**Fig. 4: Transient episodes of momentary pain can be decoded using neural and facial activity.**

To investigate the similarities and differences in neural features underlying momentary pain compared to self-reported pain, we trained three different classifier models (Fig. 4C): (1) an optimized model using all available spectro-spatial features, (2) a self-report pain informed model using spectro-spatial features previously retained in the index self-report pain state classifier, and (3) a self-report pain shuffled model using spectro-spatial features previously retained in the index self-report pain state classifier but with shuffled pain labels. The self-report pain shuffled model represents a random set of neural features that are approximately equal in length to the features in the self-reported informed model and serves as a control. The optimized model achieved a group mean AUC of 0.75 ± 0.13 for classifying momentary pain periods from neutral affect (Fig. 4D), while the self-report pain informed model achieved a group mean AUC of 0.71 ± 0.10. In contrast, the self-reported pain shuffled model achieved a lower group mean AUC of 0.63 ± 0.10. Although the optimized model did not significantly outperform the self-report pain informed model (Fig. 4E; paired t-test: t(9) = −2.0, P = 0.08), the self-reported pain shuffled model performed significantly worse than the informed model (t(9) = −2.7, P = 0.03). This finding indicates that neural features supervised to pain self-reports are more effective in classifying momentary pain than randomly selected neural features. To identify the spectral markers of momentary pain, we evaluated significant features in the optimized model. On an aggregate level, momentary pain states exhibited a decrease in theta (linear regression coefficient adjusted for participant; t(125) = 7.7, P < 0.001), alpha (t(93) = 4.6, P < 0.001), beta (t(107) = 5.8, P < 0.001), gamma (t(478) = 3.8, P < 0.001), and high-gamma (t(244) = 2.8, P = 0.01) power (Supplementary Fig. 18A). Regionally, the decrease in gamma and high-gamma power was driven by hippocampal and prefrontal activity, whereas the decrease in theta, alpha, and beta power was observed in the cingulate, parietal, temporal, insular, prefrontal, and sensory/motor cortices (Supplementary Fig. 18B). As an outlier to this pattern, the insular cortex demonstrated an opposite pattern, with increased gamma and high-gamma activity during momentary pain. We also assessed the decoding of momentary pain using facial dynamics (mean group AUC: 0.71 ± 0.15) and compared it with neural-based decoding employing the optimized models. There was moderate correlation between the neural and facial dynamic based decoding performance, but it was not statistically significant (Fig. 4F; Pearson’s R = 0.54, P = 0.10). Of note, using AU intensities as features worsened the model performance (mean AUC 0.61 ± 0.21; Supplementary Fig. 12C). To determine whether neural activity patterns during momentary pain were selective to pain rather than reflecting general changes in affect, we conducted two control analyses. First, we demonstrated that momentary pain periods could be distinguished from smile periods with high accuracy (mean AUC = 0.78; Supplementary Fig. 19A), indicating distinct electrophysiological signatures. Second, we tested whether a classifier trained to discriminate momentary pain from neutral periods would also detect smile periods, which would suggest a general non-neutral affect response. The classifier performed poorly in identifying smile periods (mean AUC = 0.28; Supplementary Fig. 19B), confirming that the neural patterns we observed were pain-selective rather than indicators of general changes in affect. Furthermore, incorporating facial features alongside neural features did not result in a significant improvement in model performance across participants (Supplementary Fig. 20; paired t-test: t(9) = 1.3; P = 0.22). These findings demonstrate that momentary pain states can be reliably decoded, with some of the informative neural features overlapping with those involved in representing self-reported pain. However, the spectral markers of momentary pain differed from those of self-reported pain. This difference in spectral patterns suggests that momentary pain and self-reported pain may engage distinct neural processes, reflecting the multifaceted nature of pain experience in naturalistic settings. Finally, the lack of significant improvement in decoding performance when combining neural and facial features suggests that these modalities may capture overlapping information about momentary pain states.

Discussion

The neural and behavioral correlates underlying everyday pain experiences are of significant clinical interest due to the substantial burden of pain disorders. While previous studies have provided insight in experimental contexts, there remains a paucity of studies evaluating naturalistic pain experiences in unconstrained real-world settings. Here, we examined the neural and facial correlates underlying acute pain using a purely naturalistic paradigm. This approach enabled us to longitudinally study the ecologically valid pain experience in a manner that would be ethically challenging to replicate experimentally. Our findings demonstrate that self-reported acute pain states over time can be accurately decoded using intracranial brain activity across participants. Neural features recruited for pain decoding were distributed across cortico-thalamo-limbic regions, with a bias towards high-frequency neural activity. Notably, high pain states were associated with increased low-frequency (theta, alpha power) activity in temporal and parietal areas alongside reduced gamma and high-gamma activity in mesolimbic regions including the hippocampus, cingulate, and orbitofrontal cortex. Furthermore, the self-reported pain classifier output was temporally stable and sensitive to changes in pain state. Complementary facial analysis revealed discernible differences between self-reported acute pain states, concordant with neural decoding performance across participants. We also identified transient periods of momentary pain as a distinct naturalistic acute pain measure. Similar to self-reported pain, momentary pain could be reliably decoded from neutral states using intracranial and facial features, though with distinct neural spectral patterns compared to self-reported pain. These findings highlight robust neurobehavioral markers of naturalistic pain states across contexts and timescales, motivating further research into diagnostics and interventions of pain in unconstrained settings.

The distributed pattern of brain activity contributing to naturalistic pain decoding aligns with prior neuroimaging studies highlighting the involvement of various regions in pain processing^5,6,7,9. These regions are thought to contribute to several circuit activations. First, pain processing recruits the somatosensory network, including the thalamus, posterior insula, and primary sensory cortex^23,24 for encoding nociception. Second, regions responsible for general affect and salience such as the dorsolateral and ventromedial prefrontal cortices, parietal cortex, anterior insula, cingulate, and amygdalo-hippocampal complex^5,6 are active for producing emotional responses to pain. Third, complex cognitive responses to pain, such as stoicism, can recruit frontal cortex activity. Recently, a recent intracranial study found that temporal gyri activity predicted thermal pain onset¹⁹. Similarly, our findings also revealed engagement of the medial and lateral temporal regions. The temporal cortex has been proposed to encode memories associated with painful experiences, suggesting its involvement in the experiential aspects of pain processing^25,26. Additionally, striatal regions like the caudate nucleus and putamen have been implicated in modulatory pain systems²⁷. Furthermore, various behavioral factors may contribute to the distributed neural representations of pain^28,29,30. For instance, sympathetic arousal reflected by blood pressure elevations during self-reported pain³¹, as well as unmeasured states like changes in mood, verbal output, or motor movement, can often co-occur with pain³². Given these potential behavioral co-occurrences, we interpret our intracranial findings as biomarkers of naturalistic pain experiences rather than specific neural signatures of nociceptive processing. The distributed patterns likely reflect the sensory, affective, and cognitive-evaluative components inherent to acute pain states.

The spectral patterns associated with pain states remain an active area of investigation. Scalp EEG studies have suggested that alpha and beta oscillations may encode the intensity of noxious stimuli, while gamma oscillations in the prefrontal region could represent prolonged experimental pain experiences^33,34,35,36. However, intracranial studies examining spectral power in relation to pain are scarce. Caston et al. found predominantly increased high-frequency power in several regions, notably the lateral temporal cortex and hippocampus, in response to thermal pain onset¹⁹. Conversely, Shirvalkar et al. demonstrated that chronic pain states were largely inversely related to oscillatory activity in the anterior cingulate (ACC) and orbitofrontal cortices (OFC), with a mixed relationship for experimental pain²¹. In our study, we observed differential spectral patterns associated with different measures of naturalistic acute pain. High self-reported pain states were linked to increased low-to-mid frequency power in the striatum, thalamus, and temporo-parietal regions, alongside decreased high-frequency power in the hippocampus, cingulate, and OFC. This coupled simultaneous change in different frequency bands are frequently observed for motor activations³⁷, but have also been reported for affective behavior changes³⁸. Momentary pain was associated with broadly decreased power across frequencies, particularly high-frequencies in the hippocampus and prefrontal regions, and low-to-mid frequencies in other areas. These spectral differences may reflect the nature of the pain experience: self-reported pain states represent temporally stable, integrated processing of pain-related sensations, emotions, and cognitive processes, whereas momentary pain captures immediate, highly salient pain events akin to experimental stimuli. Indeed, facial analyses indicated differential muscle activations during high self-reported pain versus momentary pain, suggesting distinct experiential qualities. Together, these findings highlight the complex spectral dynamics underlying naturalistic acute pain experiences.

The naturalistic design of our study provided a unique opportunity to investigate the temporal dynamics of neurobehavioral pain markers. We found that between stable pain self-reports, both the neural and facial markers of pain remained relatively constant, without exhibiting rapid fluctuations. In contrast, when the subsequent pain self-report indicated either pain onset or pain relief, these pain-related markers demonstrated gradual changes, with neural markers showing greater sensitivity compared to facial markers. These results suggest that self-reported pain states over time operate on longer timescales, likely reflecting integrated processing of the current aversive state rather than rapid encoding of sensory/nociceptive information. The temporal stability of pain markers between self-reports, coupled with their gradual modulation preceding state changes, highlights the sustained neural and behavioral representations of the subjective experience of acute pain over time in naturalistic settings.

Behaviorally, we used quantitative facial mapping to assess the facial correlates of self-reported pain states as well as momentary pain. While many prior studies have evaluated facial action unit (AU) differences in relation to pain in controlled settings^39,40, we found that facial expression changes underlying self-reported pain states had little overlap with conventionally reported pain-related AUs. Instead, these AUs (AU14, AU15, AU26) may reflect more general changes in affect⁴¹. In contrast, facial expressions associated with momentary pain exhibited many of the canonical pain-related AUs (AU5, AU6/7, AU9/10, AU11/12, AU25/26), suggesting immediate pain onset. Notably, we observed concordance between the facial and neural decoding of acute pain states, implying that some of the informative neural activity is related to the outward manifestation of pain. This is further supported by our finding that facial features did not independently contribute substantial performance gains, indicating that the neural features likely explained much of the variance in facial behavior. Prior literature has demonstrated that medial frontal activity is inversely related to facial expressions during pain^14,15. Additionally, the activity of regions such as the cingulate and amygdala is known to influence the regulation of emotional expressions⁴². Indeed, we found that frequency of facial AUs can be decoded from underlying activity, most notably from the amygdala. These results highlight the tight coupling between the neural and facial representations of naturalistic acute pain experiences.

Limitations and future directions

The recording locations in our study were solely determined by clinical requirements for epilepsy localization, resulting in variable electrode coverage across participants. This variability poses a challenge for sampling all anatomical areas and for developing generalizable models that can predict pain states across individuals. An intriguing future direction would be to explore whether models trained on standardized scalp EEG data or large datasets of intracranial recordings with similar brain coverage could effectively predict pain states in diverse individuals. The current study also reports modest classification accuracy (~70%); additional improvement is needed for clinical translation. This can include higher data quality by increasing pain self-reports, more robust classifier type by incorporating deep learning techniques, and greater external validity by testing on other institutional data. Social interaction could also be quantified through a wider field camera that captures the entire room, as this may influence expression of pain-related behaviors. Furthermore, our naturalistic study design precludes direct causal inferences, raising the possibility that the observed correlations between intracranial activity and acute pain states may be influenced by unmeasured variables such as sympathetic arousal, altered verbal output, or motor activity, as discussed previously. To address this limitation, future studies could employ direct electrical brain stimulation to causally manipulate specific regions across varying timescales while closely monitoring pain experiences. Such interventional approaches, combined with neural recordings, could elucidate the causal mechanisms underlying the neurobehavioral markers of naturalistic acute pain identified in our study. Additionally, incorporating multimodal physiology data such as skin conductance and pupillary tracking could provide a more comprehensive characterization of the multidimensional pain experience. We also acknowledge that precisely characterizing medication effects on neural activity would require additional experimental controls, including time-locked administration and standardization of medication types and delivery routes. Our analysis focused on assessing whether medications broadly impacted classifier performance rather than delineating specific pharmacological effects on neural activity. A dedicated follow-up study systematically investigating the relationship between pain medications and neural dynamics is being planned. Finally, although participants in the hospital can more or less perform normal actions, they are confined to their room with frequent intrusion of hospital staff. As such, brain states under this circumference might be different than in truly naturalistic conditions such as at home. Future studies enrolling patients with chronically implanted recording devices will bridge the gap to home settings.

Methods

Participants

The study included 12 human participants (5 females, ages 27–58; Supplementary Table 1) who underwent surgical implantation of intracranial electroencephalography (iEEG) recording electrodes for clinical seizure localization. All participants provided informed consent, monitored by the Stanford University Institutional Review Board, in accordance with the ethical standards of the Declaration of Helsinki. The decisions regarding electrode implantation, targets, and duration were made entirely based on clinical grounds, independent of this investigation. Participants were informed that their involvement in the study would not affect their clinical treatment, and they could withdraw at any time without compromising their care. While no statistical method was used to predetermine the sample size, the final sample size is comparable to contemporary iEEG literature^38,43,44.

Pain self-report

Nursing staff regularly assessed participants’ pain using a 0–10 numeric rating scale (0 = no pain, 10 = most intense pain imaginable) and documented the location, quality, and source of pain (Supplementary Table 2). The median frequency of pain reporting for each participant was every two hours (Range: 1.5–2.5 h; Supplementary Table 3). When patients experienced pain at multiple sites simultaneously, we recorded separate pain scores for each location and used the highest score to represent overall pain intensity for that time period.

Participant inclusion criteria

We selected participants for the study who had (1) at least thirty measurements of self-reported pain (2) a nonzero median pain score which would indicate a mostly pain-free monitoring period thus precluding further analysis, (3) a pain score range of at least 50% of the total possible pain range during the monitoring period thereby providing sufficient variation in self-reported pain scores, and (4) absence of large structural abnormalities (encephalomalacia, mass lesion, hematoma) as identified on MRI. Across participants, the mean range of pain scores was 74% of total possible pain range. (Supplementary Table 3).

Pain medications

In addition to pain scores, nursing staff routinely asked participants if they would like to take as-needed pain medication. Pharmacological interventions administered included: acetaminophen, hydromorphone, gabapentin, ketorolac, lidocaine patch, acetaminophen-hydrocodone, oxycodone, acetaminophen-oxycodone, and tramadol. The names of medications, dosages, route of administration, and administration times were documented. Alternatively, non-pharmacological approaches to pain management could be utilized at the nurses’ discretion or participants’ requests, including repositioning, ice packs, heat packs, or verbal reassurance.

Physiology

Heart rate, respiratory rate, and blood pressure were measured every 4 to 6 h as a part of routine care. Physiological measurements taken within 5 min of pain assessments were matched. Any physiological measurements falling outside this 5-minute window were excluded from the analysis.

Electrode registration and anatomical parcellation

Electrode location in 3D space was obtained from post-implant CT co-registered with the subject’s pre-operative MRI^43,44. Anatomic location of each contact was determined using automated parcellation using the Freesurfer software based on the ‘FSLabel_aparc_aseg’ atlas⁴⁵. Electrodes were further anatomically categorized into the following regions: parietal cortex, lateral and basal temporal cortex, hippocampus, amygdala, thalamus, lateral prefrontal cortex, orbitofrontal cortex, anterior cingulate cortex, striatum, and the insular cortex. Electrodes located outside of the brain were excluded. Electrodes located in the occipital cortex were also excluded due to infrequent sampling. For electrode visualization, the FreeSurfer average brain was used with coordinates in standard Montreal Neurologic Institute (MNI) 305 space.

Data acquisition and signal preprocessing

Using stereoelectroencephalography (sEEG), neural recordings from implanted depth electrodes (Adtech Medical; center-to-center contact spacing of 3 mm) were sampled at 1024 Hz (Nihon Koden). sEEG preprocessing and analysis were performed using FieldTrip⁴⁶. Preprocessing consisted of notch filtering, re-referencing, and bandpass filtering. Specifically, a fourth order notch filter was first used to attenuate line noise (60, 120, and 180 Hz), followed by a laplacian re-referencing scheme to minimize far-field volume conduction⁴⁷. Delta (1–4 Hz), theta (4–8 Hz), alpha (8–12 Hz), beta (15–25 Hz), gamma (25–70 Hz) and high-gamma (70–170 Hz) signals were obtained by using an 8th order zero-phase IIR Butterworth filter⁴⁸. The filtered signals were subsequently downsampled to 100 Hz for further processing.

Behavioral annotation of momentary pain episodes

Raw video footage was reviewed by two evaluators for episodes of momentary pain. All footage review was completed during periods of wakefulness. Momentary pain was considered present if any of the following observational cues were met: (1) facial grimace, (2) verbal statements reflecting pain such as “ouch”, “that really hurts”, (3) defensive behaviors such as bringing a hand to the site of pain and (4) pausing an ongoing activity due to pain¹⁷. No minimum duration was specified. Periods of ‘neutral’ affect were also labeled for comparison. Neutral periods were defined as any periods where there was an absence of any affective facial expressions (happy, sad, tearful), and absence of any of the above criteria for painful behaviors. For both momentary pain and neutral events, if the start and end time of the painful or neutral periods were different between the two evaluators, then the average time was taken. If a particular event was only labeled by one evaluator, then this event was re-reviewed by the other evaluator to reach consensus. A minimum of five momentary pain events was required for each participant to be included for subsequent analysis. The mean number of momentary pain events identified was 20 with a mean duration of 18 s (Supplementary Table 3). Only participants #5 and #10 did not exhibit the minimum number of momentary pain events, and they were excluded from this analysis. To establish a control condition that was neither neutral nor painful, we identified facial expressions of smiling in the video recordings. Smiles were selected as an ideal control affect for several reasons: they occurred frequently during participants’ inpatient stays, could be reliably identified by video raters, and represented a distinctly positive affective state. We applied the same annotation protocol used for pain labeling to mark smile events, with raters identifying clear facial expressions of smiling.

Acute pain state classifier construction, training, and evaluation

To investigate whether intracranial activity can predict self-reported pain states, we constructed a pain decoder based on spectro-spatial features. We primarily approached this as a binary classification problem by dividing pain reports into low versus high pain states on an individual participant level based on the median pain score. This was motivated by the observations that (1) people provide self-report ratings on a non-linear scale²², (2) decoding of non-binary linear pain distributions performed much worse than binary pain classes in a cohort of chronic pain patients²¹ and (3) current clinical systems utilize a dichotomized signal threshold for closed loop stimulation paradigms (Medtronic Activa PC + S, Medtronic Percept). In addition to the primary median-based threshold, we used the 25th and 75th percentile as another criteria for binarization. We constructed the spectro-spatial intracranial feature set by obtaining the log spectral power (root mean square) of the filtered signals for each channel and frequency band 5 min prior to the pain report. We evaluated signals prior to the report to avoid confounding of the neural signal being altered while participants reflected on their pain level. The 5-min duration was chosen as a reasonable timeframe in which pain level is not expected to fluctuate dramatically. Due to the large number of potential spectro-spatial features present in the data (e.g., channels and powerband combinations), we employed Elastic-Net regression, a hybrid of ridge regression and lasso regularization favored in the presence of highly correlated variables, which is often the case with intracranial recordings⁴⁹. To avoid data leakage while optimizing hyperparameters in the feature pruning process, we used a nested k-fold cross-validation (CV) scheme (Fig. 2B). The number of folds, k, was either five or ten, ensuring that each fold contained at least five observations (pain measurements). In this scheme, data is split into a training set comprising k-1 folds of spectro-spatial features and pain state and a test set of the remaining folds. We used Synthetic Minority Over-sampling Technique to upsample the class with fewer observations when present to account for class imbalance in the training set⁵⁰. As a part of the inner k-fold CV scheme, we optimized the regularization strength of the Elastic-Net model. The optimal model based on the training set was then evaluated in the left-out test set. This process was repeated k times as a part of the outer k-fold CV scheme. Finally, a bootstrap was performed to allow for performance stability by repeating the process with random selection of cross-validation indices each time for a total of 100 bootstraps. The null distribution is constructed by repeating the process with the pain label shuffled. Area under the curve (AUC) and accuracy were obtained as performance measures. As an ancillary analysis, we also trained multivariate linear models to predict continuous pain scores using the same k-fold CV scheme, with Elastic-Net models trained on continuous pain outcomes rather than binary outcomes. Pearson’s correlation value between actual and predicted pain scores and the coefficient of determination (R²) were used as the performance measure.

Neural classifier feature analysis

To evaluate the importance of iEEG spectro-spatial features, we analyzed the model coefficients obtained from the Elastic-Net trained models. Each feature’s coefficient can be either a non-zero number, indicating its inclusion in the model, or zero, indicating its exclusion. We sorted the mean feature coefficients from all 100 runs in descending order and estimated the change point in the cumulative summation curve based on mean and slope using the ‘findchangepts.m’ function in Matlab. The cumulative set of features leading up to the change point were considered important. Furthermore, we assessed feature stability by determining the number of times each feature was selected across all 100 model runs. To ensure the robustness of the selected features, we compared the distribution of feature coefficients from the trained models with those from permuted models. Features whose coefficient distributions did not differ significantly between the trained and permuted models were discarded. This procedure was used previously to analyze intracranial neural features in the context of behavioral state classification analysis³⁸. To investigate the relationship between spectro-spatial features and the underlying acute pain state, we first normalized the raw power values within each participant. We then computed the median power value for each feature across low and high pain states on an individual participant level. Finally, we pooled the median values across participants to derive the group average of feature values, stratified by either spectral band or anatomical region. This approach allowed us to identify the selective spectral and spatial characteristics of iEEG features that were most informative for decoding pain states.

Neural classifier state timescale analysis

Next, we evaluated the stability of brain activity for making pain state classifications by calculating serial inferences using the index model trained on 5 min of spectro-spatial features immediately prior to pain self-reports. For each patient, we tested the stability of these neural features by using progressively distant non-overlapping 5-min windows of data to calculate pain state probabilities without further model training. Rapidly changing neural activity since the index time should result in changes in the model output probabilities over time, whereas slowly changing neural activity should lead to relatively stable model output probabilities. To calculate the null serial probabilities, we trained the index model using shuffled pain state levels and subsequently used this model to make inferences. As the median time interval between pain self-reports ranged from 1.5 to 2.5 h across participants, we limited the inferences to 3 h after the time of pain self-report to prevent the model from encountering data on which it had already been used for training. We stratified the pain state probabilities over time by the outcome class (low and high pain states) and categorized observations based on whether the subsequent pain measurement remained the same or changed. If a low pain state was followed by a high pain state, it indicated pain onset; conversely, if a high pain state was succeeded by a low pain state, it indicated pain relief or analgesia. Furthermore, we assessed the interventions used to alleviate pain within high pain states, including both pharmacologic and non-pharmacologic means.

Non-linear pain state classification

To assess the performance of non-linear classification methods for pain states, we employed a random forest (RF) model, which utilizes multiple decision trees to converge on a classification output. RF models have been previously used successfully in decoding naturalistic affect³⁸. For the RF classifiers, we specified the following hyperparameters based on a prior study³⁸: 300 trees, the maximum number of samples per leaf between 1 and 20, and the number of features at each node between 1 and the total number of features minus 1. Similar to the Elastic-Net classification, we utilized a k-fold cross-validation scheme to evaluate the RF model’s performance. To determine feature importance, we used the out-of-bag error estimate derived from the RF models. This approach assesses the significance of individual spectro-spatial features by constructing each tree using bootstrap samples from the original dataset while reserving one-third of the data as a test set. Subsequently, the tree is constructed, and the omitted samples are classified, measuring the frequency of misclassification termed as the ‘prediction error’. This process is a standard method for assessing feature importance in RF models⁵¹. To rank the features based on their importance, we performed change point identification on the prediction error for each feature, similar to the approach used for Elastic-Net features. We then compared each feature’s prediction error to its null distribution, which was obtained by shuffling the outcome labels across 100 runs. This process allowed us to identify the most informative spectro-spatial features for non-linear pain state classification using the RF model.

Facial dynamic analysis

To investigate behavioral changes underlying naturalistic pain states, we evaluated facial dynamics, which have been extensively studied in the context of experimental and clinical pain¹³. We estimated moment-to-moment facial action units (AUs) from clinical videos recorded simultaneously with iEEG recordings. All participants in the EMU were routinely recorded with high-definition audio at 48 kHz and RGB video (640 × 480 pixels at 30 fps) 24 h a day. The camera, located on the room ceiling, was manually centered on the participants’ faces by video technologists throughout their stay. This face-centered video capture is ideal for automated facial quantification approaches, which leverage deep learning models trained on large databases of mostly frontal-facing faces⁵². We partitioned the videos into non-overlapping 5-minute windows to mirror the parameters used for neural analysis. In each window, we computed estimates for common facial AUs using a multi-step process. First, we identified all faces in each video frame using a facial detection model (MTCNN). As family and staff were frequently present in the participant’s room, we isolated the participant’s face from the list of detected faces using a facial recognition model (DeepFace, https://github.com/serengil/deepface). We then applied a facial AU model (OpenGraphAU⁵³) to make inferences on a set of 27 facial AUs (AU1, AU2, AU4, AU5, AU6, AU7, AU9, AU10, AU11, AU12, AU13, AU14, AU15, AU16, AU17, AU18, AU19, AU20, AU22, AU23, AU24, AU25, AU26, AU27, AU32, AU38, AU39). This model provided the probability of each AU being present on the target face. As an alternative to a deep-learning based model, we also applied OpenFace (https://github.com/TadasBaltrusaitis/OpenFace), which computes the probability of facial AUs being present as well as their intensity of expression. From these frame-level features, we generated temporal-level features by computing the presence and average duration of each AU within a 5-min time window. An AU was considered active if its inference probability was >0.5 and lasted for at least 1 s, helping to eliminate spurious inferences on isolated frames. We used the Py-Feat toolbox to visualize the facial AUs that differed between low and high self-reported pain states.

Mirroring the classification approach used with electrophysiology, we trained an Elastic-Net regularized logistic regression model using facial features to classify between low and high self-reported pain states, as defined previously. We employed a k-fold cross-validation scheme to determine model performance. To evaluate the stability of facial activity in making pain state classifications, we calculated serial inferences based on the index model trained on 5 min of facial features immediately prior to pain self-reports. For each participant, we used progressively distant non-overlapping 5-min windows of facial data to make serial inferences, representing facial expression activity across increasingly distant video timeframes in 5-minute increments after the pain report. To calculate the null serial probabilities, we trained the index model using shuffled pain reports and subsequently used this model to make inferences.

Momentary pain classification

To classify between periods of momentary pain and neutral activity, we split the labeled time periods into one-second bins and trained three models for comparison. First, we trained an optimized model using an Elastic-Net regularized logistic regression, as defined previously, utilizing all spectro-spatial features. The outcome variable was the one-second bins, labeled as either momentary pain or neutral activity. We employed a conservative sequential 5-fold cross-validation scheme to account for the temporal dependency of behavioral timepoints occurring close together, which could artificially increase model performance. In this scheme, bins used for training and testing were grouped in time, ensuring that all one-second bins belonging to a labeled event (momentary pain or neutral) were not split between folds. To address the imbalance between the number of one-second bins for neutral events and momentary pain (Supplementary Table 4), we randomly down-sampled the neutral bins to match the number of momentary pain bins during model training for each participant. Second, we hypothesized that spectro-spatial features encoding self-reported pain states would also contain shared information representing periods of momentary pain. Consequently, we trained a logistic regression model using only the spectro-spatial features retained by the index binary pain self-report state classifier (trained on 5 min of data prior to the pain report). As the number of features was sparse due to pre-selection by the index classifier, we employed a logistic regression model without regularization. Third, we repeated the procedure using features retained by the index binary pain state classifier trained on shuffled pain reports. These features were not supervised by the self-reported pain states. Each model condition underwent 100 bootstrap iterations to ensure robustness. Similarly, we performed classification of momentary pain and neutral periods based on facial dynamics. We created features using facial AU probabilities averaged within one-second time bins and employed an Elastic-Net regularized logistic regression with a sequential 5-fold cross-validation scheme, as described above. To further validate the specificity of our findings, we conducted two control analyses. First, we developed logistic regression models using spectro-spatial features to distinguish between periods of momentary pain and smile expressions. Second, we tested whether neural patterns associated with momentary pain detection generalized to other affective states by applying our momentary pain-versus-neutral classifier to smiling periods. The rationale was that if neural activity during pain simply reflected general changes in affect rather than pain-selective patterns, the model would incorrectly classify smiling periods as pain.

Comparison of neural and facial features-based pain state decoding

We performed analyses to evaluate the relationship between acute pain decoding based on spectro-spatial features and facial dynamics, as well as to determine whether facial features provided additional information for acute pain decoding. First, we assessed the correlation between the decoding performances of the two modalities by conducting Pearson’s correlation analysis on the AUC values obtained from the spectro-spatial and facial dynamics models across participants. Next, we investigated whether the integration of facial features with spectro-spatial features could improve acute pain decoding performance. To do this, we integrated the facial features into the neural feature set and evaluated the classifier performance using the combined set of neural and facial features, employing cross-validation as described above. To evaluate the extent to which facial expression changes can be decoded from neural activity, we trained multivariate linear models to predict the average presence of facial AUs within a 5-min time window prior to pain self-report, using the same k-fold CV scheme as described above.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The processed electrophysiology and facial data generated in this study have been deposited in the publicly available Stanford Digital Repository database under accession link https://doi.org/10.25740/wq693ff9381.

Code availability

Electrophysiologic code specific to this study is available at https://github.com/YuhaoHuangMD/NaturalisticPain. Code for facial feature inference is available at https://github.com/JayRGopal/FaceEmotionDetection.

References

Dahlhamer, J. et al. Prevalence of chronic pain and high-impact chronic pain among adults - United States, 2016. MMWR Morb. Mortal. Wkly. Rep. 67, 1001–1006 (2018).
Article PubMed PubMed Central Google Scholar
Huang, Y. et al. Rates and predictors of pain reduction with intracranial stimulation for intractable pain disorders. Neurosurgery 95, 1245–1262 (2024).
Article PubMed Google Scholar
Sun, G. et al. Closed-loop stimulation using a multiregion brain-machine interface has analgesic effects in rodents. Sci. Transl. Med. 14, eabm5868 (2022).
Article PubMed PubMed Central CAS Google Scholar
Zhang, Q. et al. A prototype closed-loop brain-machine interface for the study and treatment of pain. Nat. Biomed. Eng. 7, 533–545 (2023).
Article ADS PubMed Google Scholar
Wager, T. D. et al. An fMRI-based neurologic signature of physical pain. N. Engl. J. Med. 368, 1388–1397 (2013).
Article PubMed PubMed Central CAS Google Scholar
Čeko, M., Kragel, P. A., Woo, C.-W., López-Solà, M. & Wager, T. D. Common and stimulus-type-specific brain representations of negative affect. Nat. Neurosci. 25, 760–770 (2022).
Article PubMed Google Scholar
Picard, M.-E. et al. Facial expression is a distinctive behavioural marker of pain processing in the brain. bioRxiv https://doi.org/10.1101/2023.07.26.550504 (2023).
Article PubMed PubMed Central Google Scholar
Krishnan, A. et al. Somatic and vicarious pain are represented by dissociable multivariate brain patterns. Elife 5, e15166 (2016).
Article PubMed PubMed Central Google Scholar
Woo, C.-W. et al. Quantifying cerebral contributions to pain beyond nociception. Nat. Commun. 8, 14211 (2017).
Article ADS PubMed PubMed Central CAS Google Scholar
Rainville, P., Feine, J. S., Bushnell, M. C. & Duncan, G. H. A psychophysical comparison of sensory and affective responses to four modalities of experimental pain. Somatosens. Mot. Res. 9, 265–277 (1992).
Article PubMed CAS Google Scholar
Lee, J.-J. et al. A neuroimaging biomarker for sustained experimental and clinical pain. Nat. Med. 27, 174–182 (2021).
Article PubMed PubMed Central CAS Google Scholar
Zych, A. D. & Gogolla, N. Expressions of emotions across species. Curr. Opin. Neurobiol. 68, 57–66 (2021).
Article PubMed PubMed Central CAS Google Scholar
Kunz, M., Meixner, D. & Lautenbacher, S. Facial muscle movements encoding pain-a systematic review. Pain 160, 535–549 (2019).
Article PubMed Google Scholar
Kunz, M., Chen, J.-I., Lautenbacher, S., Vachon-Presseau, E. & Rainville, P. Cerebral regulation of facial expressions of pain. J. Neurosci. 31, 8730–8738 (2011).
Article PubMed PubMed Central CAS Google Scholar
Kunz, M., Chen, J.-I. & Rainville, P. Keeping an eye on pain expression in primary somatosensory cortex. Neuroimage 217, 116885 (2020).
Article PubMed Google Scholar
Wang, Y.-C. et al. Comparison of narcotic pain control between stereotactic electrocorticography and subdural grid implantation. Epilepsy Behav. 103, 106843 (2020).
Article PubMed Google Scholar
Frampton, C. L. & Hughes-Webb, P. The measurement of pain. Clin. Oncol. 23, 381–386 (2011).
Article CAS Google Scholar
Parvizi, J. & Kastner, S. Promises and limitations of human intracranial electroencephalography. Nat. Neurosci. 21, 474–483 (2018).
Article PubMed PubMed Central CAS Google Scholar
Caston, R. M. et al. Characterization of spatiotemporal dynamics of binary and graded tonic pain in humans using intracranial recordings. PLoS ONE 18, e0292808 (2023).
Article PubMed PubMed Central CAS Google Scholar
Zhao, H. et al. A pilot study on a patient with refractory headache: personalized deep brain stimulation through stereoelectroencephalography. iScience 27, 108847 (2024).
Article ADS PubMed PubMed Central Google Scholar
Shirvalkar, P. et al. First-in-human prediction of chronic pain state using intracranial neural biomarkers. Nat. Neurosci. 26, 1090–1099 (2023).
Article PubMed PubMed Central CAS Google Scholar
Kersten, P., White, P. J. & Tennant, A. Is the pain visual analogue scale linear and responsive to change? An exploration using Rasch analysis. PLoS ONE 9, e99485 (2014).
Article ADS PubMed PubMed Central Google Scholar
DaSilva, A. F. M. et al. Somatotopic activation in the human trigeminal pain pathway. J. Neurosci. 22, 8183–8192 (2002).
Article PubMed PubMed Central CAS Google Scholar
Kross, E., Berman, M. G., Mischel, W., Smith, E. E. & Wager, T. D. Social rejection shares somatosensory representations with physical pain. Proc. Natl. Acad. Sci. USA 108, 6270–6275 (2011).
Article ADS PubMed PubMed Central CAS Google Scholar
Houde, F. et al. Perturbing the activity of the superior temporal gyrus during pain encoding prevents the exaggeration of pain memories: a virtual lesion study using single-pulse transcranial magnetic stimulation. Neurobiol. Learn. Mem. 169, 107174 (2020).
Article PubMed Google Scholar
Godinho, F., Magnin, M., Frot, M., Perchet, C. & Garcia-Larrea, L. Emotional modulation of pain: is it the sensation or what we recall? J. Neurosci. 26, 11454–11461 (2006).
Article PubMed PubMed Central CAS Google Scholar
Azqueta-Gavaldon, M. et al. Implications of the putamen in pain and motor deficits in complex regional pain syndrome. Pain 161, 595–608 (2020).
Article PubMed PubMed Central Google Scholar
Salomons, T. V., Iannetti, G. D., Liang, M. & Wood, J. N. The ‘Pain Matrix’ in Pain-Free Individuals. JAMA Neurol. 73, 755–756 (2016).
Article PubMed Google Scholar
Liberati, G. et al. Nociceptive local field potentials recorded from the human insula are not specific for nociception. PLoS Biol. 14, e1002345 (2016).
Article PubMed PubMed Central Google Scholar
Legrain, V., Iannetti, G. D., Plaghki, L. & Mouraux, A. The pain matrix reloaded: a salience detection system for the body. Prog. Neurobiol. 93, 111–124 (2011).
Article PubMed Google Scholar
Muehlhan, M. et al. Enhanced sympathetic arousal in response to FMRI scanning correlates with task induced activations and deactivations. PLoS ONE 8, e72576 (2013).
Article ADS PubMed PubMed Central CAS Google Scholar
Mercier, C. & Léonard, G. Interactions between pain and the motor cortex: insights from research on phantom limb pain and complex regional pain syndrome. Physiother. Can. 63, 305–314 (2011).
Article PubMed PubMed Central Google Scholar
Kisler, L. B. et al. Abnormal alpha band power in the dynamic pain connectome is a marker of chronic pain with a neuropathic component. Neuroimage Clin. 26, 102241 (2020).
Article PubMed PubMed Central Google Scholar
May, E. S. et al. Prefrontal gamma oscillations reflect ongoing pain intensity in chronic back pain patients. Hum. Brain Mapp. 40, 293–305 (2019).
Article PubMed Google Scholar
Teixeira, M. et al. Beta electroencephalographic oscillation is a potential GABAergic biomarker of chronic peripheral neuropathic pain. Front. Neurosci. 15, 594536 (2021).
Article PubMed PubMed Central Google Scholar
Nickel, M. M. et al. Brain oscillations differentially encode noxious stimulus intensity and pain intensity. Neuroimage 148, 141–147 (2017).
Article PubMed Google Scholar
Miller, K. J. et al. Spectral changes in cortical surface potentials during motor movement. J. Neurosci. 27, 2424–2432 (2007).
Article PubMed PubMed Central CAS Google Scholar
Bijanzadeh, M. et al. Decoding naturalistic affective behaviour from spectro-spatial features in multiday human iEEG. Nat. Hum. Behav. 6, 823–836 (2022).
Article PubMed PubMed Central Google Scholar
Lucey, P. et al. Automatically detecting pain using facial actions. Int. Conf. Affect Comput Intell. Interact. Workshops 2009, 1–8 (2009).
ADS PubMed PubMed Central Google Scholar
Dawes, T. R. et al. Objectively measuring pain using facial expression: is the technology finally ready? Pain. Manag 8, 105–113 (2018).
Article PubMed Google Scholar
Snoek, L. et al. Testing, explaining, and exploring models of facial expressions of emotions. Sci. Adv. 9, eabq8421 (2023).
Article ADS PubMed PubMed Central Google Scholar
Gothard, K. M. The amygdalo-motor pathways and the control of facial expressions. Front. Neurosci. 8, 43 (2014).
Article PubMed PubMed Central Google Scholar
Huang, Y. et al. Spectro-spatial features in distributed human intracranial activity proactively encode peripheral metabolic activity. Nat. Commun. 14, 2729 (2023).
Article ADS PubMed PubMed Central CAS Google Scholar
Huang, Y. et al. The insulo-opercular cortex encodes food-specific content under controlled and naturalistic conditions. Nat. Commun. 12, 3609 (2021).
Article ADS PubMed PubMed Central CAS Google Scholar
Destrieux, C., Fischl, B., Dale, A. & Halgren, E. Automatic parcellation of human cortical gyri and sulci using standard anatomical nomenclature. Neuroimage 53, 1–15 (2010).
Article PubMed Google Scholar
Oostenveld, R., Fries, P., Maris, E. & Schoffelen, J.-M. FieldTrip: open source software for advanced analysis of MEG, EEG, and invasive electrophysiological data. Comput. Intell. Neurosci. 2011, 156869 (2011).
Article PubMed Google Scholar
Li, G. et al. Optimal referencing for stereo-electroencephalographic (SEEG) recordings. Neuroimage 183, 327–335 (2018).
Article PubMed Google Scholar
Sani, O. G. et al. Mood variations decoded from multi-site intracranial human brain activity. Nat. Biotechnol. 36, 954–961 (2018).
Article PubMed CAS Google Scholar
Zou, H. & Hastie, T. Regularization and variable selection via the elastic net. J. R. Stat. Soc. Ser. B Stat. Methodol. 67, 301–320 (2005).
Article MathSciNet Google Scholar
Chawla, N. V., Bowyer, K. W., Hall, L. O. & Kegelmeyer, W. P. SMOTE: synthetic minority over-sampling technique. jair 16, 321–357 (2002).
Article Google Scholar
Sohil, F., Sohali, M. U. & Shabbir, J. An introduction to statistical learning with applications in R. Stat. Decis. 6, 87–87 (2021).
Google Scholar
Zhang, K., Zhang, Z., Li, Z. & Qiao, Y. Joint face detection and alignment using multitask cascaded convolutional networks. IEEE Signal Process. Lett. 23, 1499–1503 (2016).
Article ADS Google Scholar
Luo, C., Song, S., Xie, W., Shen. L. & Gunes, H. Learning multi-dimensional edge feature-based AU relation graph for facial action unit recognition. arXiv [cs.CV]. (2022).

Download references

Acknowledgements

We would like to thank all the patients who participated in this study, as well as the clinical staff who provided excellent care. This study was funded by NIH R21 (1R21MH134172-01A1) and Society of Neurological Surgeons Neurosurgeon Scientist in Training program (NSTP Year 1 and Year 2).

Author information

These authors contributed equally: Josef Parvizi, Vivek P. Buch, Corey J. Keller.

Authors and Affiliations

Department of Neurosurgery, Stanford University School of Medicine, Palo Alto, CA, USA
Yuhao Huang, Bina Kakusa, Amit Persad, Ashwin Ramayya & Vivek P. Buch
Brown University, Providence, RI, USA
Jay Gopal
Department of Anesthesiology, Perioperative and Pain Medicine, Stanford University School of Medicine, Palo Alto, CA, USA
Alice H. Li
Department of Neurology, Stanford University School of Medicine, Palo Alto, CA, USA
Weichen Huang & Josef Parvizi
Department of Anesthesia and Critical Care Medicine, The Johns Hopkins University School of Medicine, Baltimore, MD, USA
Jeffrey B. Wang
Department of Psychiatry and Behavioral Sciences, Stanford University School of Medicine, Palo Alto, CA, USA
Corey J. Keller
Wu Tsai Neuroscience Institute, Stanford University School of Medicine, Palo Alto, CA, USA
Corey J. Keller
Veterans Affairs Palo Alto Healthcare System, and the Sierra Pacific Mental Illness, Research, Education, and Clinical Center (MIRECC), Palo Alto, CA, USA
Corey J. Keller

Authors

Yuhao Huang
View author publications
Search author on:PubMed Google Scholar
Jay Gopal
View author publications
Search author on:PubMed Google Scholar
Bina Kakusa
View author publications
Search author on:PubMed Google Scholar
Alice H. Li
View author publications
Search author on:PubMed Google Scholar
Weichen Huang
View author publications
Search author on:PubMed Google Scholar
Jeffrey B. Wang
View author publications
Search author on:PubMed Google Scholar
Amit Persad
View author publications
Search author on:PubMed Google Scholar
Ashwin Ramayya
View author publications
Search author on:PubMed Google Scholar
Josef Parvizi
View author publications
Search author on:PubMed Google Scholar
Vivek P. Buch
View author publications
Search author on:PubMed Google Scholar
Corey J. Keller
View author publications
Search author on:PubMed Google Scholar

Contributions

Y.H., J.P., V.P.B., and C.J.K. made substantial contributions to the conceptualization and methodology of the work. Y.H., J.G., B.K., A.H.L., W.H., J.B.W., A.P., and A.R. provided data collection, data curation, and formal analysis. All authors contributed to writing the original draft and provided substantially to manuscript review and editing. All authors have approved and agree to be personally accountable for the submitted version.

Corresponding authors

Correspondence to Yuhao Huang or Corey J. Keller.

Ethics declarations

Competing interests

Y.H. holds a patent for decoding peripheral metabolism from brain signals and for using neural signals to treat eating-related disorders. C.J.K. holds equity in Alto Neuroscience, Inc, is a consultant for Flow Neuroscience and holds patent for use of brain-based signals for predicting and guiding brain stimulation treatment in depression.

Peer review

Peer review information

Nature Communications thanks the anonymous reviewer(s) for their contribution to the peer review of this work. A peer review file is available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Supplementary Information (download PDF )

Reporting Summary (download PDF )

Transparent Peer Review file (download PDF )

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Reprints and permissions

About this article

Cite this article

Huang, Y., Gopal, J., Kakusa, B. et al. Naturalistic acute pain states decoded from neural and facial dynamics. Nat Commun 16, 4371 (2025). https://doi.org/10.1038/s41467-025-59756-5

Download citation

Received: 09 January 2025
Accepted: 05 May 2025
Published: 11 May 2025
Version of record: 11 May 2025
DOI: https://doi.org/10.1038/s41467-025-59756-5
