Abstract

Engulfment and cell motility 2 (ELMO2) is a cytoskeletal adaptor protein necessary for cell migration and apoptotic cell removal. Loss-of-function mutations in ELMO2 cause intraosseous vascular malformation (VMOS), a human disease involving progressive expansion of craniofacial bones in combination with anomalies in blood vessels that emerge from the external carotid artery, as well as aneurysms in the internal carotid artery. Here we show that global inactivation of Elmo2 in mice leads to midgestation embryonic lethality due to dilation of the 3^rd pharyngeal arch arteries and aneurysm formation in the common carotids. These vascular malformations are associated to defects in vascular smooth muscle cell organization and are phenocopied upon neural crest-specific deletion. In vitro experiments further confirm that ELMO2 regulates vascular smooth muscle cell adhesion, spreading and contractility through Rac1 activation and modulation of actin dynamics. Our findings provide new insights into the biological function of ELMO2 with relevant implications for understanding VMOS pathogenesis and raise the possibility of vessel-targeted diagnostic and treatment strategies.

In vivo transplantation of mammalian vascular organoids onto the chick chorioallantoic membrane reveals the formation of a hierarchical vascular network

Article Open access 28 February 2025

A standardized approach for the isolation of vascular smooth muscle cells from carotid atherosclerotic plaques

Article Open access 10 January 2026

Circulating small extracellular vesicles promote proliferation and migration of vascular smooth muscle cells via AXL and MerTK activation

Article 30 November 2022

Introduction

Defective regulation of blood vessel growth and patterning is the cause of numerous hereditary but also spontaneous human diseases, and recent insight into the underlying molecular defects has enabled targeted therapeutic approaches¹. Intraosseous vascular malformation (VMOS) is a very rare and poorly understood autosomal-recessive disorder involving progressive overgrowth of the mandible, maxilla, and other craniofacial bones. Defects also involve vascular alterations inside the affected skeletal elements^2,3 and in the carotid artery or its side branches, which are found enlarged or affected by aneurysms⁴. The causal relationship between vascular and skeletal malformations in VMOS remains unknown, but it has been suggested that dilated blood vessels inside lesions are insufficiently covered by vascular smooth muscle cells (VSMCs)^3,5. Similar VSMC defects are associated with dilation and aneurysm formation in the dorsal aorta⁶.

The identification of loss-of-function mutations in the human gene ELMO2 (Engulfment and cell motility 2) as a cause of VMOS was an important milestone for understanding the disease^2,7,8. ELMO2 is a cytoplasmic protein known to regulate cytoskeletal dynamics by Rho-Rac regulation⁹. It belongs to the ELMO domain containing (ELMOD) family¹⁰ and is conserved across different species^9,10. Mammalian ELMO proteins (ELMO1, 2, and 3) share multiple homology domains such as Ras binding domain (RBD), Armadillo repeats, ELMO domain, pleckstrin homology (PH) domain, and C-terminal proline-rich repeats^9,10, which allow binding to Rho^2,9,10,11,12, integrin-linked kinase (ILK)^13,14,15, dedicator of cytokinesis (DOCK)^{2,9,10,11,12,16,17}, and spectraplakin^18,19,20. These interactions link ELMO proteins to Rac1 signaling and the control of cytoskeletal dynamics during cell adhesion, junction formation, establishment of cell polarity, and cell migration^{9,12,13,14,15,16,21,22}.

While all ELMO proteins show high sequence homology and partially redundant functions^{2,10,22,23,24}, global deletion of Elmo1 in mice only affects Sertoli cells in the male reproductive system¹¹, whereas Elmo2 knockout mice die during embryonic gestation due to a yet uncharacterized phenotype¹⁷. The roles of Elmo2 in the vascular and skeletal system remain unexplored although it is known that signaling defects in functionally-associated proteins such as integrins, Ilk and Rac1 are responsible for cardiovascular and craniofacial abnormalities^{25,26,27,28,29,30}.

Vascular malformations are non-neoplastic congenital anomalies affecting blood vessels. They result from errors in the development program of the vascular system due to somatic or germline prenatal mutations³¹. Most sporadic vascular malformations are caused by somatic mutations that activate the RAS/MAPK/ERK and/or the PI3K/AKT/mTOR signaling pathways. Familial malformations are caused by loss-of-function mutations in genes related to TGFβ signaling, RASA1, glomulin, or CCMs (cerebral cavernous malformations)³². Interestingly, vascular anomalies frequently occur in the head and neck³³, and usually involve defects in the control of endothelial or mural cells, which together form the vascular wall.

The vasculature of the head and neck region derives mostly from the pharyngeal arch arteries (PAAs), which are a series of six paired arteries that sequentially emerge from embryonic day (E) 9.5 to E10.0 in mice and connect the aortic sac to the paired dorsal aortae³⁴. During development, the PAAs undergo complex remodeling to form the major arteries supplying the head, neck, and upper thorax. The endothelial cells (ECs) of the PAAs are derived from Mesp1-lineage positive mesoderm²⁶, while the surrounding mural cells, namely pericytes and vascular smooth muscle cells (VSMCs), arise from the neural crest³⁵. In addition, neural crest cells (NCCs) also give rise to most connective tissues in the head and neck region, including bone and cartilage.

Here, we have used mouse genetics, advanced confocal and light-sheet microscopy, single-cell RNA-sequencing (scRNA-seq), in vitro cell culture, and biochemistry approaches to systematically investigate the functional role of Elmo2 during mouse embryonic development. We show that the gene product is indispensable for vascular morphogenesis of the 3^rd PAA through the control of the contractile properties of neural crest-derived VSMCs and highlight that vascular defects may be a primary cause of the lesions observed in VMOS patients.

Results

Loss of Elmo2 leads to carotid artery aneurysm and embryonic lethality

In order to understand the in vivo function of Elmo2, global knockout mice (Elmo2^−/−), obtained after ubiquitous Cre-mediated recombination of a “knockout-first” allele (Supplementary Fig. 1a, b), were compared to control littermates (Elmo2^+/+) at different embryonic stages. Efficient deletion of Elmo2-encoded transcripts and protein were confirmed by RT-qPCR and Western blot, respectively (Supplementary Fig. 1c, d). The first macroscopic evidence of deleterious phenotypic alterations (Fig. 1a) was detected in E12.5 Elmo2^-/- embryos, which show small vascular lesions in the head and neck region. These lesions worsened during the following days of development, giving rise to subcutaneous edema and severe hemorrhages in the cervical region by E13.5 and E14.5. No surviving embryos were obtained beyond this point.

Fig. 1: Global deletion of Elmo2 leads to carotid artery aneurysm and embryonic lethality. — **Fig. 1: Global deletion of *Elmo2* leads to carotid artery aneurysm and embryonic lethality.**

Taking advantage of β-galactosidase expression from the targeted allele, heterozygous (Elmo2^+/−) embryos, which develop normally, were assessed by X-Gal staining at E12.5. This approach revealed expression of Elmo2 in different structures including the dorsal aorta, laryngotracheal groove, vagus nerve, sympathetic chain ganglia, trachea, esophagus and pharyngeal arch arteries (Fig. 1b and Supplementary Fig. 1e). In line with this expression pattern, the histological analysis of transverse sections from the cervical region of mutant embryos revealed a severe dilation of the third pharyngeal arch artery (3^rd PAA) at E12.5 and of the carotid arteries at E13.5 (Fig. 1c–e and Supplementary Fig. 1f), which in some embryos lead to compression and collapse of the jugular vein as well as presence of blood-filled lymph sacs (Supplementary Fig. 1g).

The complex and dynamic morphogenetic program that shapes hierarchical blood vessel organization in the trunk and cervical area³⁶ prompted us to analyze the three-dimensional organization of the vascular tree in control and Elmo2^−/− embryos from E11.5 to E13.5 using whole-mount staining and light-sheet microscopy. This analysis showed that the first vascular defect in global knockout embryos, namely the dilation of the 3^rd PAA, arises at E12.5. This vessel further remodels giving rise to the common carotid arteries³⁷, which are severely dilated resulting in fusiform aneurysm formation in E13.5 mutants (Fig. 1f). It is worth noting that these defects in vascular shape and diameter are rather specific to the 3^rd PAA and only mildly affect other major vessels, including neighboring pharyngeal arch arteries (Supplementary Fig. 2a–e).

Loss of Elmo2 leads to alterations in endothelial and vascular smooth muscle cells

To characterize the vascular defects in Elmo2^−/− embryos in greater detail, the 3^rd PAA and carotid arteries were analyzed by immunofluorescence staining and high-resolution confocal microscopy. This revealed discontinuities in the endothelial lining (Supplementary Fig. 3a) and significant changes in the size and morphology of ECs and their nuclei (Fig. 2a, b) in mutant embryos relative to littermate controls. In addition, defects in the polarized expression of the luminal marker Podocalyxin were observed (Fig. 2c) as well as ectopic expression of the VSMC marker α-smooth muscle actin (αSMA) in ECs (Fig. 2d, e). Despite normal and domain-specific expression of markers for lymphatic vessels (Prox1) and arteries (SOX17) (Figs. 1e and 2a), clusters of ECs in the dilated carotid arteries of Elmo2^−/− embryos express detectable levels of Endomucin (Fig. 2f, g), a marker that at early embryonic stages is expressed in the dorsal aorta³⁸ but quickly becomes restricted to veins and is normally absent from the arterial endothelium.

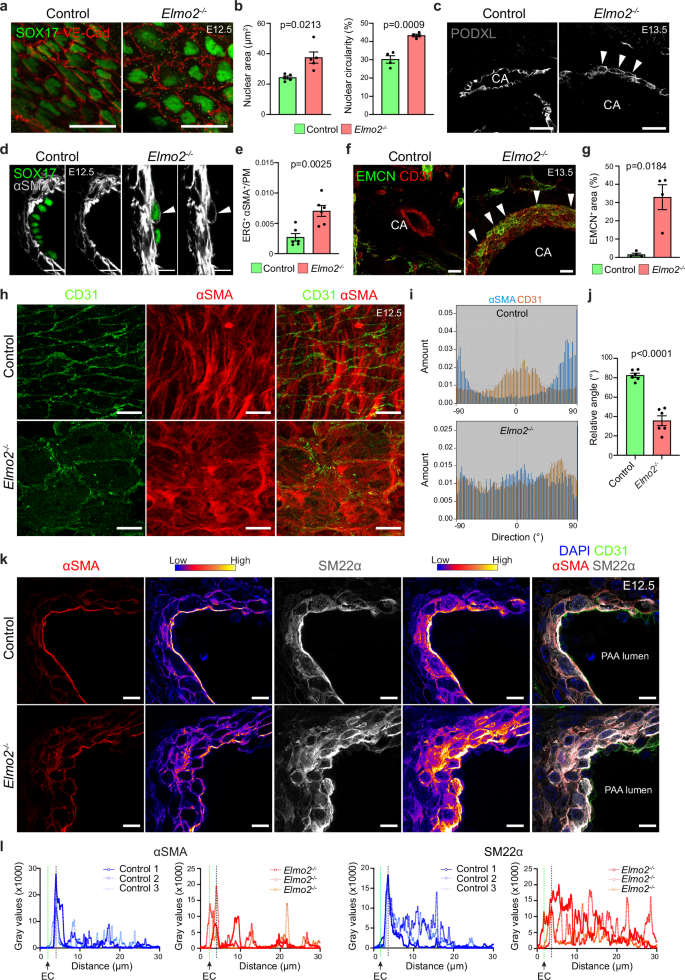

Fig. 2: Loss of Elmo2 causes defects in the third pharyngeal arch (3rd PAA) and carotid arteries (CAs). — **Fig. 2: Loss of *Elmo2* causes defects in the third pharyngeal arch (3^rd PAA) and carotid arteries (CAs).**

VSMC contractility is an important regulator of vascular tone in the adult organism, but also in the embryo³⁹. We therefore analyzed VSMCs around the 3^rd PAA and carotid arteries by immunostaining against proteins associated with the contractile phenotype. This revealed that the expression levels of SM22α, αSMA, and Calponin1, among other markers, are comparable between control and Elmo2^−/− embryos (Supplementary Fig. 3b–i), arguing against major defects in VSMC abundance and differentiation. Likewise, no overt differences were detected for Nestin (Supplementary Fig. 3f), whose expression has been associated to the synthetic VSMC phenotype⁴⁰. The staining intensity and distribution pattern of phospho-myosin light chain 2 and 9, functional markers of VSMC contractility, also failed to show obvious changes in the wall of mutant carotid arteries relative to littermate controls (Supplementary Fig. 3g, h).

Although the expression of VSMC identity and differentiation markers appears unaffected, super-resolution confocal microscopy revealed that the normal alignment of αSMA⁺ bundles with respect to the longest axis of the underlying endothelium is severely compromised in Elmo2^−/− embryos (Fig. 2h–j). Whereas αSMA⁺ fibers are oriented perpendicular to elongated ECs and thereby to the direction of blood flow in the control E12.5 3^rd PAA, both EC elongation and the orientation of αSMA⁺ bundles are disorganized after loss of Elmo2. Furthermore, αSMA and SM22α immunosignals, which are strongly concentrated near the subendothelial basement membrane in VSMCs of control carotid arteries, have lost their normal polarization, and multiple peaks of high staining intensity can be detected throughout the Elmo2^−/− vessel wall (Fig. 2k, l). The same analysis also confirmed the abnormal expression of VSMC markers in the Elmo2^−/− carotid artery endothelium (Fig. 2l).

Next, we assessed whether significant changes in EC or VSMC proliferation are associated with the vessel enlargement in Elmo2^−/− mutants. To this end, we labeled mitotic cells in vivo by injection of 4-Ethynyl-2’-deoxyuridine (EdU) into pregnant females. This approach revealed strong increases in the absolute number of EdU⁺ ECs and VSMCs in the 3^rd PAA of E12.5 mutant embryos (Supplementary Fig. 4a, b). However, the magnitude of these changes is related to vessel enlargement and no longer statistically significant when normalized to vessel perimeter (Supplementary Fig. 4c). In addition, the number of proliferating ECs and VSMCs in mutants at E11.5 is not altered (Supplementary Fig. 4d–f), suggesting that the increase in proliferation may be a consequence of vessel dilation and disturbed flow rather than the underlying cause of the vascular malformation.

Altogether, these results establish that ELMO2 is required for the normal development of the 3^rd PAA and common carotid artery during embryogenesis.

Transcriptomic analysis of Elmo2 mutants at single cell resolution

To gain insight into the molecular changes resulting from the inactivation of Elmo2, we performed scRNA-seq analysis of the 3^rd PAA and surrounding mesenchyme dissected from control (Elmo2^+/+), heterozygous (Elmo2^+/−), and mutant homozygous (Elmo2^−/−) E12.5 embryos. Integrated analysis of the transcriptome from these samples allowed identification of seven major cell populations with distinct expression signatures and enrichment of specific markers (Fig. 3a and Supplementary Fig. 5a). The most abundant cell type is the mesenchymal stromal cell (MSC) population, which represents more than 70% of all cells analyzed. MSCs are followed by endothelial, immune, and muscle cells, which are found in similar proportions and together represent ~20% of total cells. The remaining cell types are mostly erythrocytes, neurons and epithelial cells (Supplementary Fig. 5b). As expected, Elmo2 transcript expression is proportionally reduced in heterozygotes and is below the detection threshold in Elmo2^−/− samples (Fig. 3b). Among the members of the Elmo family, Elmo2 has the highest expression, followed by Elmo1 and Elmo3 (Supplementary Fig. 5c), which do not show significant compensatory upregulation upon deletion of Elmo2 (Supplementary Fig. 5d). Furthermore, expression of Elmo2 is rather homogeneous across the different cell clusters with the highest level found in neurons and the lowest in the erythroid lineage (Fig. 3c).

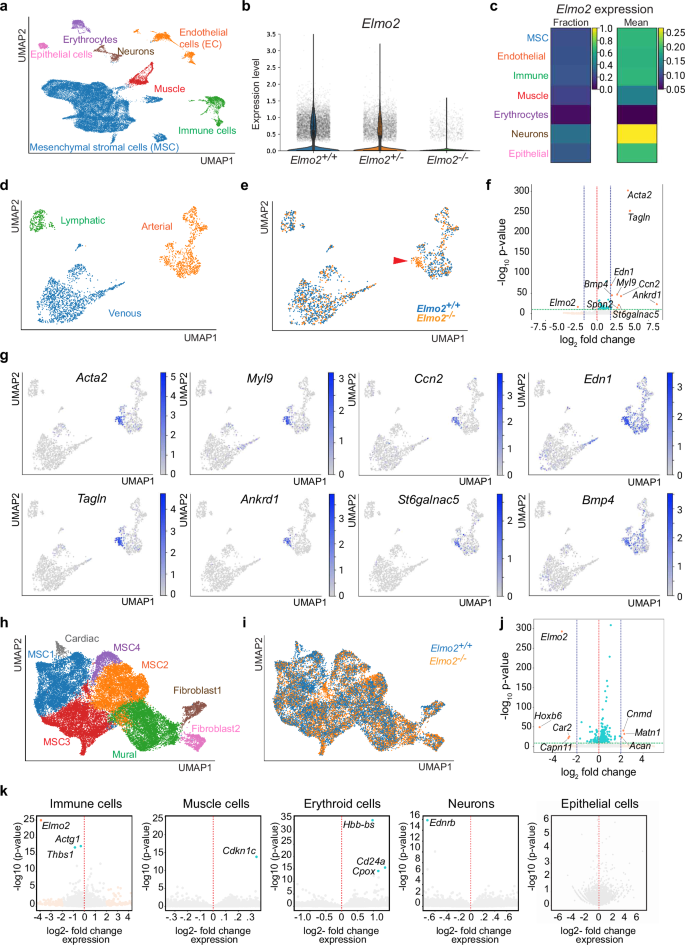

**Fig. 3: scRNA-seq analysis of the E12.5 cervical region.**

Considering that the phenotypic changes in Elmo2^−/− mutants affect mostly the vascular compartment, the control and homozygous mutant EC populations in our scRNA-seq data were subclustered for deeper analysis. Three main subsets with distinct markers were identified in a two-dimensional (2D) Uniform Manifold Approximation and Projection (UMAP) representation, namely venous, arterial and lymphatic ECs (Fig. 3d and Supplementary Fig. 5e). Interestingly, color-labeling of cells corresponding to the control (Elmo2^+/+) or knockout (Elmo2^−/−) samples within the subclustered EC dataset highlighted an area characterized by overrepresentation of mutant cells in a specific 2D spatial location within the arterial subcluster (Fig. 3e). In addition, differential gene expression analysis (DEG) allowed the identification of de-regulated genes in Elmo2^−/− cells relative to control. Interestingly, when a stringent selection criterion for highly statistically significant values is used (p-adjusted < 1⁻¹⁰), only a single gene (Elmo2) is downregulated. In contrast, 38 genes are upregulated, 9 of them with a log2 fold change above 2 (Fig. 3f). Notably, all these upregulated genes are either exclusively or primordially expressed in the mutant cell hotspot within the arterial subcluster (Fig. 3g). Among the upregulated genes, Acta2 and Tagln were previously identified during our histological analysis because of their ectopic expression in arterial ECs of mutant embryos (Fig. 2d, e and Supplementary Fig. 3e).

Next, we followed a similar approach for the identification of subpopulations within the mesenchymal stromal cells (MSCs), which are a source of VSMCs during development^41,42. Both the UMAP representation (Fig. 3h) and marker analysis (Supplementary Fig. 5f) indicate that the differences between the 8 identified MSC subtypes are less defined than those found during the EC subclustering, potentially reflecting ongoing differentiation and incomplete terminal phenotypic specification. Likewise, cellular distribution of control and Elmo2 mutant cells within the MSC UMAP plot is rather homogeneous (Fig. 3i) and only a few genes were found to be de-regulated (log2 fold change > 2 or < − 2) when a cut-off for highly statistically significant differences (p-adjusted < 1⁻¹⁰) is applied (Fig. 3j). Using this criteria, 4 downregulated (Elmo2, Hoxb6, Car2 and Capn11) and 3 upregulated genes (Cnmd, Matn1 and Acan) were identified, without clear functional relationships among them. A similar profile of very limited or non-significant changes in gene expression was found for the other cell populations in our scRNA-seq data (Fig. 3k).

With the aim of gaining a broader understanding of biological processes potentially affected by gene expression changes in Elmo2^−/− ECs and MSCs, a gene set enrichment analysis including all de-regulated genes with a (less stringent) p-adjusted cut-off value of 0.01 and a log2 fold change > 0.5 or < − 0.5 was performed. From the top gene ontology terms found (Supplementary Fig. 5g) there is no explicit relation to blood vessel development either in the ECs or MSCs population, yet different aspects related to extracellular matrix organization are highlighted for both cell types. Thus, unexpectedly, the analysis of the scRNA-seq data reveals rather limited changes in gene expression and provides no clear explanation for the dramatic changes in the mutant common carotid arteries.

Inactivation of Elmo2 in endothelial and smooth muscle cells

For cell type-specific loss-of-function experiments, a conditional (loxP-flanked) allele of Elmo2 (Supplementary Fig. 1a) was established and validated by breeding it to homozygosity in a PGK-Cre^+/T background⁴³. As expected, ubiquitous and constitutive Cre activity in these mutants led to widespread Elmo2 inactivation and phenocopied the vascular defects seen Elmo2^−/− embryos generated with the “knockout-first” approach (Supplementary Fig. 6a–d). Next, we generated EC-specific mutants by interbreeding of mice carrying the loxP-flanked Elmo2 allele and Tek-Cre transgenic animals⁴⁴. Analysis with the R26-mTmG Cre-reporter⁴⁵ confirmed successful Tek-Cre-mediated recombination in the embryonic endothelium (Supplementary Fig. 7a). However, EC-specific Elmo2 mutants (Elmo2^ΔEC) showed no observable defects in vascular development (Supplementary Fig. 7b). In particular, the size and morphology of Elmo2^ΔEC carotid arteries (Supplementary Fig. 7b, c) as well as the expression of known EC or VSMC markers (Supplementary Fig. 7d) are indistinguishable from control littermates. These results argue that the vascular malformations observed in global Elmo2 knockout embryos are not caused by cell-autonomous defects in the endothelium.

Next, we conducted genetic experiments to address whether Elmo2 is required in VSMCs. To this end, a transgene expressing constitutive Cre under the transcriptional control of Transgelin (SM22α) (Tagln-Cre⁴⁶) was introduced into the Elmo2 conditional (floxed) background, and embryos at specific developmental stages were collected. Unexpectedly, the resulting smooth muscle cell-specific knockout embryos (Elmo2^ΔSMC) were macroscopically indistinguishable from control littermates at E13.5 (Fig. 4a). Immunostaining-assisted analysis of histological sections revealed subtle, yet statistically significant dilation of the carotid arteries at E13.5 and E15.5 (Fig. 4b, c and Supplementary Fig. 8a). Despite the carotid artery dilation, other relevant features of the global knockout phenotype were not reproduced after Tagln-Cre-mediated deletion of Elmo2. In particular, there were no signs of aneurysm formation, disorganized VSMC alignment, or altered endothelial morphology, polarity, and gene expression (Fig. 4d and Supplementary Fig. 8b).

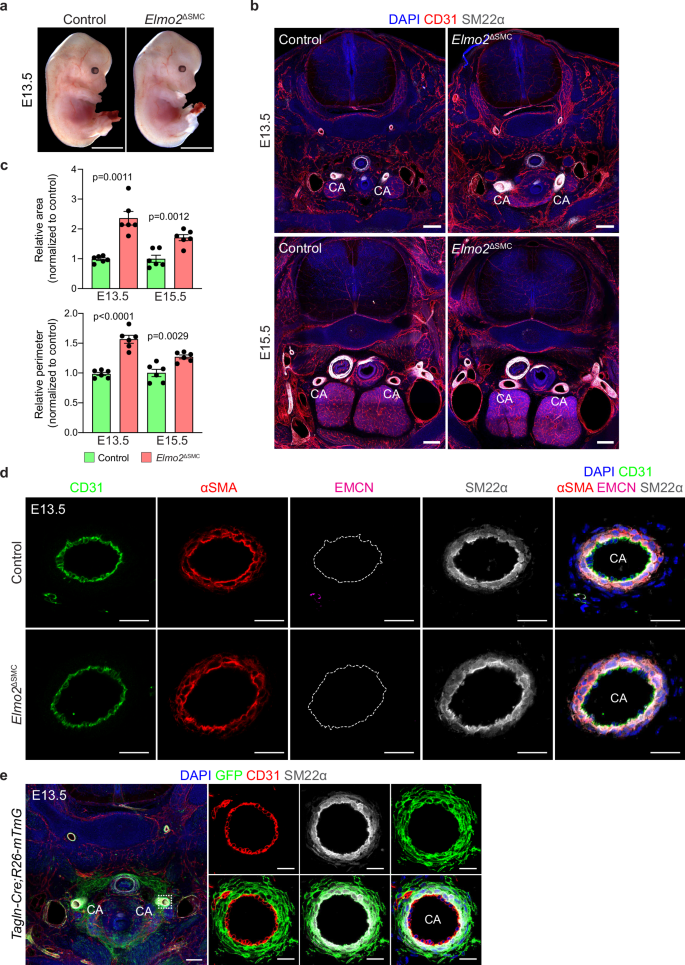

Fig. 4: Deletion of Elmo2 using Tagln-Cre leads to subtle carotid artery dilation. — **Fig. 4: Deletion of *Elmo2* using *Tagln-Cre* leads to subtle carotid artery dilation.**

To rule out that the failure to reproduce the global knockout phenotype is caused by suboptimal Elmo2 deletion in VSMCs, the recombination efficiency of Tagln-Cre in E13.5 embryos was assessed with the R26-mTmG Cre-reporter. Analysis of GFP expression as a surrogate marker of recombination clearly showed that the vast majority of VSMCs and mesenchymal cells around the carotid arteries (Fig. 4e) and neighboring vessels (Supplementary Fig. 8c) are efficiently targeted by the Tagln-Cre. In summary, these results argue that Elmo2 deletion in VSMCs by means of a Transgelin-driven constitutive Cre-recombinase is not able to fully phenocopy the effects elicited upon global gene inactivation.

Neural crest-specific deletion of Elmo2 phenocopies the global Elmo2 KO

Neural crest cells contribute to many craniofacial tissues and are an important source of mural cells in the 3^rd PAA and thereby the common carotid arteries^35,47. We chose Wnt1-Cre2 transgenic mice⁴⁸ to study NCCs and their progeny, which would also address potential roles of Elmo2 early in mural cell differentiation, whereas Tagln-Cre targets more differentiated VSMCs.

In order to assess if Wnt1-Cre2 allows targeting of neural crest-derived VSMCs progenitors and compare the recombination timing with that of Tagln-Cre, lineage tracing analysis using the R26-mTmG reporter allele was carried out for both lines. Notably, Wnt1-Cre2-mediated labeling allows detection of a large number of GFP⁺ cells that cluster around the vascular plexus giving rise to the 3^rd PAA by E9.5, whereas Tagln-Cre-mediated recombination is restricted to the heart at the same stage (Supplementary Fig. 9a). In line with this result, expression of the VSMC markers αSMA and SM22α is limited to the heart and cannot be detected in mural cells around the blood vessels in the branchial arches (Supplementary Fig. 9b). Expression of SM22α in mural cells or the 3^rd PAA is first detected at E10.5, which coincides with the emergence of Tagln-Cre-labeled GFP⁺ cells in this structure (Supplementary Fig. 9c). In contrast, at this timepoint, a much larger number of Wnt1-Cre2-traced cells wrap around the 3^rd PAA forming a surrounding layer that consists of both SM22α⁺ VSMCs and as yet undifferentiated cells (Supplementary Fig. 9c). At E11.5, recombination with both Cre lines generates robust perivascular GFP labeling in the relevant region (Supplementary Fig. 9d).

We further analyzed the recombination pattern elicited by Wnt1-Cre2 in E13.5 embryos with special interest to the carotid arteries and neighboring vascular structures. Wnt1-Cre2-mediated recombination targeted VSMCs around the carotid arteries with high efficacy but, as expected, spared the mesoderm-derived smooth muscle surrounding the vertebral arteries, dorsal aorta, and jugular veins, as well as the endothelial lining of blood vessels (Fig. 5a and Supplementary Fig. 10a–c). Taken together, these results prove that Wnt1-Cre2 efficiently targets NCC-derived VSMCs and their progenitors in the early mouse embryo.

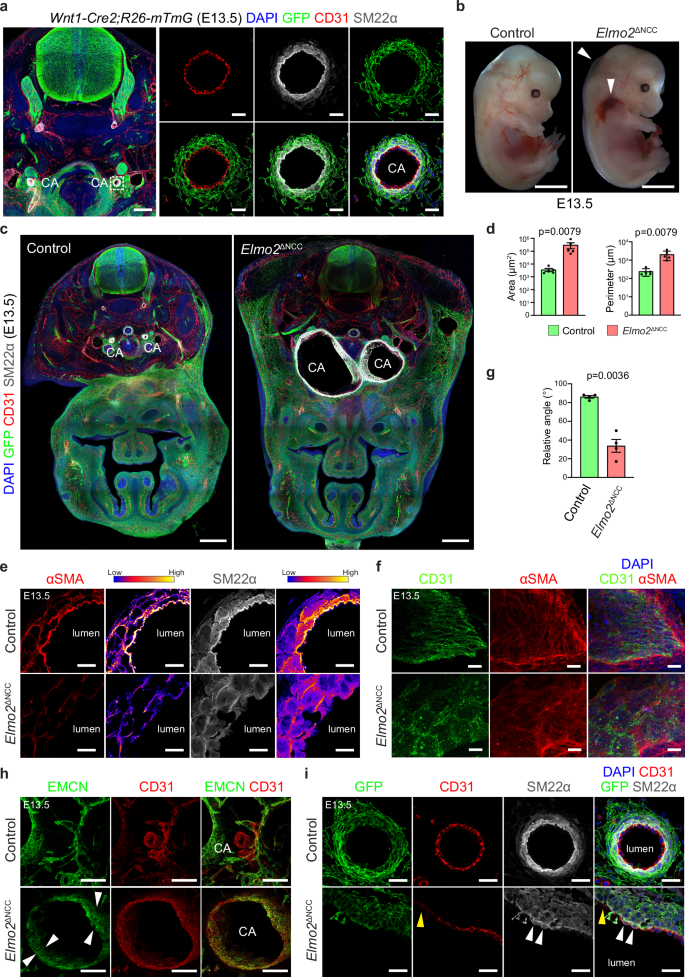

Fig. 5: Neural crest-specific deletion of Elmo2 phenocopies the global Elmo2 knockout. — **Fig. 5: Neural crest-specific deletion of *Elmo2* phenocopies the global *Elmo2* knockout.**

Remarkably, neural crest-specific mutants (Elmo2^ΔNCC), generated by interbreeding of the Elmo2 conditional line with Wnt1-Cre2, reproduce the vascular defects observed in the global knockout model. Macroscopic observation of E13.5 Elmo2^ΔNCC embryos revealed severe hemorrhaging in the cervical region and dorsal edema (Fig. 5b) as well as massive dilation of the carotid arteries with aneurysm formation (Fig. 5c, d). Moreover, the defects in the hierarchical expression pattern of αSMA and SM22α found in Elmo2^−/− embryos are also present upon neural crest-specific deletion (Fig. 5e), as well as the disorganized alignment of αSMA⁺ actin bundles with respect to the longest EC axis (Fig. 5f, g).

Strikingly, phenotypic changes observed in the ECs of the global knockout, such as retained expression of Endomucin in arterial territories, discontinuous endothelial lining, and ectopic expression of mesenchymal markers, were also seen upon neural crest-specific Elmo2 deletion (Fig. 5h, i). Given that Wnt1-Cre2-driven recombination spares the endothelium, this result is further evidence that the EC defects in Elmo2 mutants are secondary and probably a consequence of the severe vessel dilation.

Since neural crest cells give rise to parts of the autonomic nervous system and might therefore control vascular tone through VSMC innervation⁴⁹, we interbred the Elmo2 conditional knockout mice with the TH-IRES-Cre line⁵⁰, which directs Cre recombination to catecholaminergic sympathetic neurons. Efficient and precise targeting of the paravertebral sympathetic ganglia was confirmed by GFP expression in the R26-mTmG Cre reporter background (Supplementary Fig. 11a, b). Nevertheless, Elmo2 deletion in these structures did not induce relevant phenotypic alterations (Supplementary Fig. 11b–d). The resulting mutants survived to term and were obtained slightly above the expected ratio at birth (27.3% instead of 25%). Altogether, these results indicate that Elmo2 is essential for vascular diameter control in the developing carotid artery by regulating the properties of NCC-derived VSMC progenitors.

ELMO2 controls contractile ability and actin dynamics of human VSMCs in vitro

To gain insight into the cellular function of ELMO2, we conducted experiments in cultured VSMCs. We opted for human brain vascular smooth muscle cells (HBVSMCs) because these cells, just like those wrapping around the 3^rd PAA and carotid artery, are of neural crest origin⁵¹. Moreover, HBVSMCs express ~1000-fold higher levels of ELMO2 compared to ELMO1 (Supplementary Fig. 12a).

Silencing RNA (siRNA)-mediated knockdown (KD) of ELMO2 in HBVSMCs significantly decreased transcript abundance already by 24 h after treatment and this effect was maintained over several days (Fig. 6a). At the protein level, significant reduction of ELMO2 was obvious at 48 h after siRNA treatment, with the highest depletion achieved at 72–96 h (Fig. 6b), suggesting a slow protein turnover rate. In vitro, siELMO2-treatment induced a compensatory ~ 2-fold increase in ELMO1 transcription, which coincides with the timepoints of highest ELMO2 protein depletion (Supplementary Fig. 12b), yet this upregulation may be of limited functional significance given the much higher endogenous expression of ELMO2 in HBVSMCs.

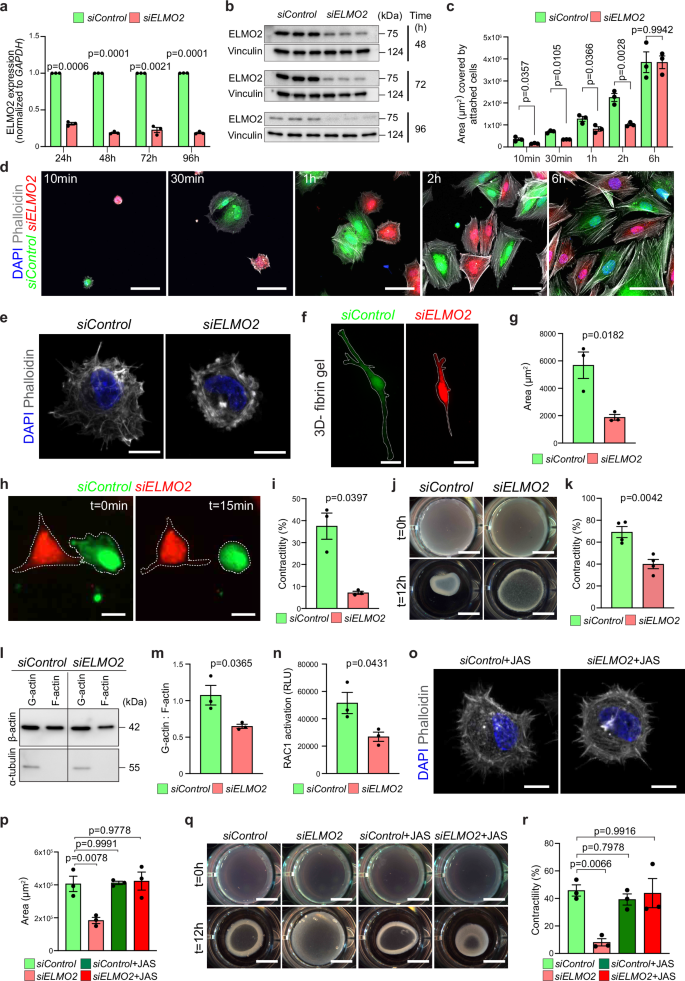

Fig. 6: Loss of ELMO2 in human brain vascular smooth muscle cells (HBVSMCs) impairs actin dynamics and contractility. — **Fig. 6: Loss of *ELMO2* in human brain vascular smooth muscle cells (HBVSMCs) impairs actin dynamics and contractility.**

Similar to our in vivo observations, siELMO2-treated cells did not show relevant changes in the expression of known VSMC markers relative to siControl cells (Supplementary Fig. 12c, d). Likewise, the overall abundance of previously described ELMO2 interaction partners or downstream effectors relevant for cell adhesion, extracellular matrix binding and cell contractility were unchanged at the protein level (Supplementary Fig. 12e). The subcellular localization of integrin-linked kinase, a well described interactor of ELMO2, and the phosphorylation of myosin light chain 2 and 9, which are key regulators of cell contractility, were comparable in KD and control cells (Supplementary Fig. 12d, f). However, analysis of F-actin by phalloidin staining (Supplementary Fig. 12d) revealed a slight reduction in the intensity and abundance of stress fibers in siELMO2 HBVSMCs, whereas cortical actin appeared unaffected.

Next, we analyzed the functional performance of siELMO2 HBVSMCs in assays requiring active remodeling of the cytoskeleton. Loss of ELMO2 reduced cell attachment and spreading in Collagen I-coated culture plates at early timepoints (10 min to 2 h) relative to siControl cells. Yet, these defects were no longer detectable at 6 h after seeding, when both the area and number of cells attached are indistinguishable between the KD and control conditions (Fig. 6c, d and Supplementary Fig. 12g). Time-lapse video recordings from live-imaging co-culture experiments confirmed the delayed adhesion of siELMO2 cells (Supplementary Fig. 12h, i). Contrary to control cells, which extend filopodia-like cytoplasmic projections, spherical protrusions (blebs) were continuously formed and retracted in the membrane of KD cells (Fig. 6e and Supplementary Movie 1). Moreover, culture of siELMO2 HBVSMCs in 3D fibrin hydrogels led to a similar reduction in cell spreading and cellular area relative to siControl cells, consistent with the results seen in 2D experiments (Fig. 6f, g).

In order to test the contractile capacity of VSMCs in vitro, we treated co-cultured control and KD cells with carbachol, a cholinergic agonist that increases cytoplasmic calcium levels and stimulates the RhoA/ROCK (Rho-associated kinase) pathway⁵². Live-imaging analysis showed significantly impaired contractility of ELMO2 KD cells, which were not able to efficiently retract their cellular projections upon carbachol treatment (Fig. 6h, i and Supplementary Fig. 12j). Further verifying this observation, 3D collagen gel contraction assays confirmed that siELMO2-treatment drastically impaired the contractile capacity of HBVSMCs (Fig. 6j, k). These results point out to an important role for ELMO2 in the regulation of HBVSMC actin dynamics in the context of cell adhesion, spreading, and contraction.

With the aim of uncovering the reasons behind the deficient regulation of actin dynamics after ELMO2 downregulation, the ratio of globular (G)-actin to filamentous (F)-actin was determined as a readout of actin polymerization. F-actin abundance was found to be significantly decreased in siELMO2 HBVSMCs relative to siControl cells (Fig. 6l), which showed a higher F-actin to G-actin ratio (Fig. 6m). These changes in the functional state of the actin cytoskeleton may be, at least in part, a consequence of reduced active Rac1 in ELMO2 KD cells, as shown by a G-LISA-based activation assay (Fig. 6n).

The reduced abundance of F-actin prompted us to test the impact of pharmacological actin filament stabilization. For this, siControl and siELMO2 HBVSMCs were analyzed after treatment with jasplakinolide (JAS), a cyclic peptide known to bind and stabilize filamentous actin in vitro⁵³. Notably, JAS allowed efficient formation of filopodia-like structures and improved adhesion and spreading of siELMO2 cells to an extent that was undistinguishable from control cells (Fig. 6o, p and Supplementary Fig. 12k). Likewise, siELMO2 cells recovered their contractile ability after JAS treatment in the collagen gel contraction assays (Fig. 6q, r). Altogether, these data indicate that promoting actin polymerization and stabilization restores functional features of ELMO2-deficient HBVSMCs.

Timing of global Elmo2 deletion is determinant for aneurysm formation

Our in vitro data point to contractility defects as the most likely cause for the vascular dilation phenotype in vivo. Yet, the most severe phenotypic alterations are only triggered upon Elmo2 deletion in neural crest-derived progenitors (Wnt1-Cre2-mediated recombination) and do not reach the same extent when contractile VSMCs are targeted (through Tagln-Cre). In this regard, the early onset of Wnt1-Cre2-mediated recombination in the 3^rd PAA (Supplementary Fig. 9) and the mild phenotype of Tagln-Cre-generated Elmo2 mutants raise the possibility that the gene product is required during an early stage of vessel wall assembly.

In order to directly assess this hypothesis, we bred the Elmo2 conditional knockout model with mice expressing an inducible recombinase (CreERT2) under control of the ubiquitously expressed Rosa26 locus⁵⁴ (R26-CreERT2). Pregnant dams were treated with 4-hydroxytamoxifen (4-OHT) at defined stages of embryonic development in order to resemble the recombination timing achieved with Wnt1-Cre2 and Tagln-Cre lines.

4-OHT treatment at E8.5 and E9.5, which coincides with the timing of Wnt1-Cre2 activity, induced severe vascular defects, including carotid artery aneurysm by E13.5 (Fig. 7a–c). These defects are identical to those observed upon global or NCC-specific Elmo2 inactivation and correspond to a complete depletion of ELMO2 protein (Fig. 7d). In contrast, 4-OHT administration from E10.5 to E11.5, mimicking the later recombination by Tagln-Cre, did not lead to aneurysm formation by E13.5 but induced a milder dilation of the carotid arteries (Fig. 7e–g). Given that the short time period between 4-OHT treatment and analysis in this treatment regime results in incomplete depletion of ELMO2 protein (Fig. 7h), we tested whether a longer waiting interval could increase the severity of the resulting phenotype. Interestingly, 4-OHT administration from E10.5 to E11.5 with embryo collection at E15.5 (Fig. 7i–k) did not aggravate the arterial dilation despite efficient ELMO2 reduction (Fig. 7l).

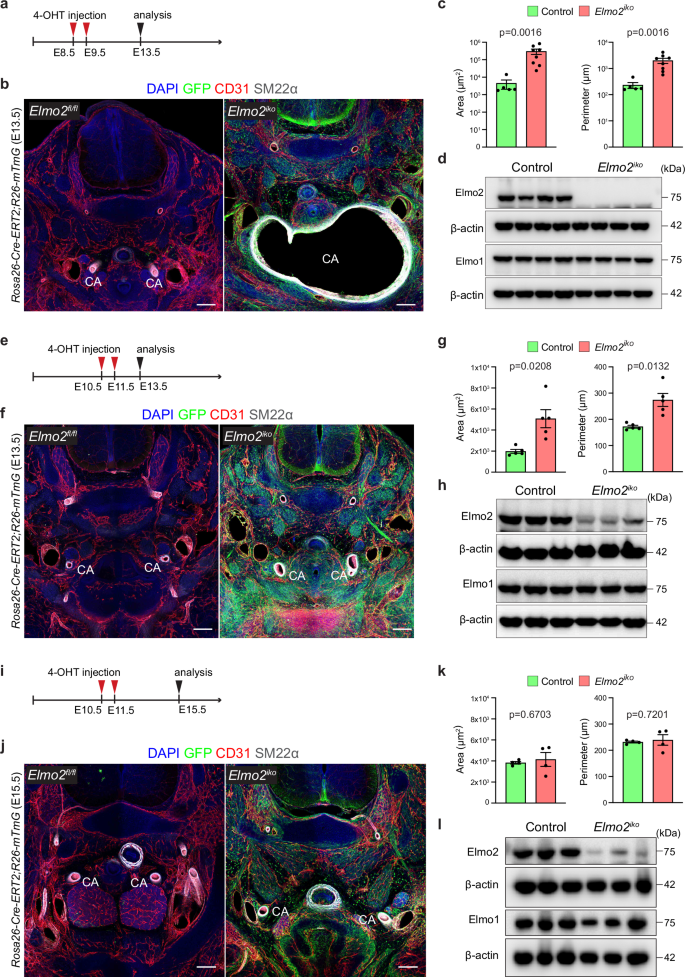

Fig. 7: Timing of global Elmo2 deletion controls aneurysm formation. — **Fig. 7: Timing of global *Elmo2* deletion controls aneurysm formation.**

These results indicate that the ELMO2 function is essential in the 3^rd PAA in the early embryo, but no longer required for carotid artery development in the second half of gestation. The early emergence of these defects in global and NCC-specific mutants establishes that ELMO2 is directly involved in the regulation of vascular morphogenesis, which argues that vascular defects are probably not secondary to skeletal overgrowth in VMOS patients. Furthermore, it is striking that ELMO2 is specifically required in the vessels supplying the mandible and maxilla, which raises the possibility that the defects in these skeletal elements are a consequence of the vascular dilation.

Discussion

ELMO family proteins and, in particular, the C. elegans ortholog CED-12, were initially identified as regulators of phagocytosis and cell migration, which act in concert with Dock family guanine nucleotide exchange factors (GEFs) and the Rac1 small GTPase^12,55,56,57. Later studies have added integrin-linked kinase as an interaction partner of ELMO with relevance for processes such as endosome trafficking, actin remodeling, and the regulation of microtubule dynamics^15,21,58. While all three mammalian ELMO family members share a similar domain architecture and are established interaction partners of DOCK family members that regulate Rac1 activity^59,60, mice carrying a global deletion of Elmo1 or Elmo3 are viable, whereas the inactivation of Elmo2 leads to lethality after midgestation¹⁷. The latter, as we show here, is a consequence of the essential role of ELMO2 in the 3^rd PAA and common carotid artery development.

Despite of massive vessel dilation and endothelial defects that probably reflect overstretching of the Elmo2 mutant arterial wall, alterations in gene expression, detected by scRNA-seq analysis, are unexpectedly minor. This applies to mutant ECs but also to MSCs, the largest cell cluster in our scRNA-seq data, which also encompasses different populations of mural cells. The transcriptomic results are consistent with our phenotypic characterization of mutants, which shows that ELMO2 is not necessary for NCC migration into the pharyngeal arches nor for VSMC specification, as indicated by persisting expression of key markers in mutant cells. Accordingly, it should be considered whether the reported reduction or absence of VSMCs inside VMOS lesions² might be a consequence of vessel dilation and not a primary defect caused by ELMO2 loss-of-function mutations.

Our in vitro experiments also support that ELMO2 is not controlling VSMC identity or survival but rather regulates cell contractility and spreading through Rac1 and the modulation of actin dynamics. In this context, it is worth noting that NCC-specific deletion of ILK and Rac1, two critical interaction partners of ELMO2 and well-established regulators of cytoskeletal dynamics, leads to impaired PAA development^29,61. Neural crest cell migration, however, is not compromised in these mutants, similar to what we report for Elmo2-deficient embryos. Interestingly, inactivation of Ilk in NCCs impairs VSMC differentiation inside branchial arches⁶¹, which might reflect ELMO2-independent roles of ILK in cell adhesion and specification. On the other hand, NCC-specific deletion of Rac1 results in aberrant patterning of pharyngeal arch arteries, defective outflow tract septation, and aneurysms in the vessels branching from the common arterial trunk, without impairing VSMC specification²⁹. These phenotypic similarities argue that ELMO2 might act in concert with Rac1 and ILK, consistent with previous reports^9,13,14.

Given that the ELMO2 function appears to be critically required for the contractile and vessel-stabilizing function of NCC-derived smooth muscle cells surrounding the 3^rd PAA, the absence of defects in other vascular structures is highly surprising. Strikingly, even the neighboring Elmo2^−/− PAAs remain normal or are affected to a very low degree. Although these differences cannot be explained by the ontogeny of the vascular components, as endothelial and mural cells of all PAAs are derived from the secondary heart field (SHF)⁶² and the neural crest^47,63,64,65, respectively, we cannot rule out that distinct embryonic origins in combination with local factors or mechanical forces play a role in the specificity of the vascular lesions. Of particular interest, vessel dilation in VMOS patients directly affects the external carotid arteries, whereas bilateral ophthalmic internal carotid artery aneurysms have also been reported⁴, suggesting that potentially overlapping mechanisms may be responsible for the increased susceptibility of these vessels in humans and the 3^rd PAA in mice. Redundant activity of other ELMO family members in unaffected vessels might be one explanation and future studies involving compound mutants might be able to address this question.

During embryonic development, the PAAs undergo large-scale asymmetric morphogenesis to form critical structures of the aorta-associated arterial network. The extensive transformation of the pharyngeal arch vessels occurs within a dynamic biomechanical environment that is fundamentally influenced by blood flow and hemodynamic forces. Quantitative analysis of blood flow, velocity, and wall pressure in avian embryos has shown that the 3^rd PAA receives the largest amount of flow during stages that are equivalent to E10.5-E11.5 of mouse development⁶⁶. In addition, it needs to be considered that the 3^rd PAAs persist and significantly contribute to the formation of the common carotid arteries, whereas the other PAAs partially or completely regress, which implies that their contribution to the adult vasculature is comparably minor³⁷. These may be important factors explaining the locally restricted phenotypic alterations.

With regard to VMOS, our work establishes that vascular malformations emerge before the development of the craniofacial skeleton and therefore independently from bone defects. This finding is important because osteoblast lineage cells are a source of vascular endothelial growth factor A (VEGF-A), a master regulator of blood vessel growth and patterning, which might trigger vessel dilation and increased permeability in settings of bone overgrowth^67,68. Thus, while the analysis of VMOS patients is usually confined to subjects with fully established lesions, more attention should be given to the detection of vascular alterations during the onset and early development of the disease. In addition, our findings raise the possibility that carotid artery defects, altered blood flow, and increased vascular permeability may be potential underlying causes of craniofacial bone overgrowth. This might also explain the strong involvement of the mandible and maxilla, which are supplied by arteries, namely the maxillary and facial arteries, that branch off from the external carotid arteries.

The embryonic lethality of global and NCC-specific Elmo2 mutants currently precludes a direct investigation of the interplay between bone growth and the side branches of the carotid artery system. Moreover, there are limitations for experimental approaches involving inducible Cre recombinase systems because, as our results with R26-CreERT2 mice show, timing is critical and only early activation of Cre activity will induce the full range of defects in the 3^rd PAA and common carotid artery.

Human VMOS patients appear unaffected at birth and exhibit their first symptoms during childhood, which progressively worsen during development to adulthood^3,69. Future work should try to address whether mutations in human ELMO2 could lead to partial lethality during embryonic development. It should be also considered whether the previously reported residual activity of mutated ELMO2 gene products² might facilitate fetal survival but cause milder vascular defects that can trigger bone overgrowth.

The sum of our in vivo findings (summarized in Supplementary Table 1) firmly establishes that ELMO2 is necessary for normal formation of the 3^rd PAA and the common carotid arteries. Moreover, our results raise important new questions regarding the etiology of VMOS and the potential benefit of vessel-targeting therapies for the treatment of this devastating disease.

Methods

Animals models

Mice used in this study were housed in the animal facility of the Max Planck Institute for Molecular Biomedicine, Münster. Animals were kept in individually ventilated cages under controlled temperature (22 °C + /− 1.5 °C) and humidity (55% +/− 5%), with a 14 h light:10 h dark cycle, and ad libitum supply of food and water. All animal procedures were conducted in accordance with the guidelines of the Max Planck Institute and approved by the Landesamt für Natur, Umwelt und Verbraucherschutz Nordrhein-Westfalen (LANUV, Az. No. 81-02.04.2023.A383).

Mouse lines were maintained in a C57BL/6 J background. Elmo2^LacZ embryonic stem cells were obtained from the European Mouse Mutant Cell Repository (EMMCR- clone H08) and injected to blastocysts. Chimeras were selected based on coat color and genotype, and were further inbred to obtain Elmo2^LacZ/+ animals. The Elmo2^LacZ allele has an internal ribosome entry site (IRES) sequence followed by the LacZ reporter gene and a polyadenylation signal (pA) upstream of the Elmo2 exon 7. To generate Elmo2 global knockout mice, female Elmo2^LacZ heterozygotes were bred to PGK-Cre⁴³ males. Offspring was backcrossed to wildtype animals, and Cre-negative progeny carrying one copy of the Elmo2 knockout allele (Elmo2^+/−) was selected to maintain the line. For global deletion experiments, embryos were obtained by crossing heterozygous Elmo2 knockout (Elmo2^+/−) males and females. The Elmo2 floxed allele was generated by Flp-mediated excision of FRT flanked sequences in Elmo2^LacZ, resulting in loxP sites flanking exon 7. In order to drive conditional deletion of Elmo2, Cre-positive males from tissue-specific or tamoxifen-inducible mouse lines, bearing one copy of the Elmo2 floxed allele, were interbred with homozygous Elmo2 floxed females. The following Cre lines were used for the conditional deletion of Elmo2 in different cell types: Tek-Cre⁴⁴ for targeting the endothelium, Tagln-Cre⁴⁶ to induce recombination in committed VSMCs, Wnt1-Cre2 ⁴⁸ for deletion in neural crest cells, and TH-IRES-Cre⁵⁰ to drive recombination in neuronal subpopulations. For global tamoxifen-inducible recombination, the R26-CreERT⁵⁴ model was used, and the R26-mTmG reporter⁴⁵ was utilized to monitor the efficiency and specificity of the different Cre-drivers.

Embryos at specific developmental stages were obtained from timed matings. The day in which the vaginal plug is detected is considered as embryonic day (E) 0.5. For sample collection, pregnant females were sacrificed by CO₂, the whole uterus removed and transferred to ice-cold PBS. Each embryo was carefully dissected out from the amnion and kept in ice-cold PBS for macroscopic imaging (AxioObserver, Zeiss). For immunostaining approaches, embryos were fixed in 2% PFA overnight at 4 °C with gentle agitation after severing off the head. For biochemistry experiments, embryos were flash frozen in liquid nitrogen.

Tamoxifen administration

4-hydroxytamoxifen (4OHT, Sigma, Cat#H7904) was dissolved in a 1:1 mixture of ethanol-Kolliphor EL and stored in 1 mg aliquots at −20 °C. On the day of administration, 1 mg 4OHT was thawed at 37 °C and diluted with 200 µL of prewarmed PBS. 1 mg of progesterone (Sigma, Cat#P3972) dissolved in 200 µL of a 1:10 mixture of ethanol-peanut oil was mixed with the 4OHT and administered to pregnant females by oral gavage on the specified days.

Immunofluorescence and microscopy

Vibratome sections with a thickness of 100-200 µm were permeabilized and blocked by incubation in 0.5% Triton-X-100, 1% BSA dissolved in PBS (blocking buffer) at 4 °C for 48 h. A blocking buffer was used for dilution of primary and secondary antibodies, which were incubated at 4 °C for 48 h with gentle agitation. Sections were mounted with Fluoromount-G (Southern Biotech, Cat#0100-01) between two 60 mm coverslips separated by a 0.2 mm spacer. Whole-mount staining of early-stage embryos (E9.5 to E11.5) was performed in the same manner. Image acquisition was carried out using a confocal microscope (Zeiss, LSM880). Details of the primary and secondary antibodies used in this study are provided in Supplementary Table 2.

Whole-mount immunostaining and clearing of embryos from E11.5 to E13.5 was performed following the iDISCO protocol⁷⁰, and images were obtained using a light sheet microscope (M2Lasers, AURORA).

Super-resolution microscopy images were obtained with a Zeiss LSM880 confocal microscope equipped with an Airyscan module allowing improved spatial resolution and signal to noise ratio (https://pages.zeiss.com/rs/896-XMS-794/images/ZEISS-Microscopy_The-Basic-Principle-of-Airyscanning.pdf). All image stacks were acquired with Fast Airyscan mode using a Plan-Apochromat 63X oil objective (NA 1.4, Zeiss) with a voxel size of 0.04 µm − 0.04 µm – 0.19 µm and processed with Airyscan 3D processing function of ZEN Black (v2.31, Zeiss).

Proliferation assay

For labeling of proliferating cells, a 10 mg/mL EdU solution was intraperitoneally injected to pregnant females (50 mg/Kg body weight) 2 h before sample collection. Embryos were fixed in 2% PFA and processed as previously described for immunostaining of vibratome sections. EdU⁺ cells were detected using the Click-iT EdU Alexa-647 imaging kit (Invitrogen, cat. #C10340) following the manufacturer’s instructions.

X-gal staining

Embryos were fixed with X-gal fixative (1.5% paraformaldehyde, 0.2% glutaraldehyde, 5 mM EGTA (pH 8.0), 2 mM MgCl₂, and 1X PBS, dissolved in water) for 90 min at room temperature (RT) and washed 3 times with washing buffer (1X PBS, 2 mM MgCl₂, 0.001% sodium deoxycholate, 0.02% Nonidet P40 dissolved in water) for 30 min. Samples were stained in prewarmed X-gal solution (1 mg/mL X-gal (dissolved in dimethylformamide), 5 mM K₃Fe(CN)₆, 5 mM K₄Fe(CN)₆-3H₂O, dissolved in washing buffer) and incubated at 37 °C with gentle agitation. After overnight incubation, X-gal staining developed as the visible blue signal. Samples were washed with PBS for 3 times at RT and counterstained with Eosin.

Single cell RNA sequencing

The 3^rd PAA, together with the surrounding mesenchyme, was microdissected from freshly harvested E12.5 mouse embryos and immediately transferred to collection buffer (25 mM HEPES in DMEM) in a 48-well plate. Samples were transferred to 1.5 mL tubes containing 100 µL of pre-warmed digestion buffer (50 mg/mL Liberase TM and 0.1 mg/mL DNAse-1 in collection buffer) and incubated at 37 °C for 15 min with occasional mixing and cell disaggregation by pipetting with 200 µL sterile filter tips. Enzymatic activity was stopped by adding 1 mL of inactivation buffer (10% fetal calf serum in DMEM) followed by filtering the cell suspension through a 40 µm strainer. To increase the cell yield, the filter was further washed with 400 µL of collection buffer, and the flow-through was collected. Samples were next centrifuged at 300 × g and RT for 7 min. After careful aspiration of the supernatant, 100 µL of red blood cell-lysis buffer were used to resuspend the pellet. After a 1 min-RT incubation, 1.5 mL of FACS buffer (0.22 µm-filtered 2% heat-inactivated fetal calf serum in PBS) was added, and the samples were centrifuged (300 × g for 7 min at 4 °C) to pellet down the cells. Next, the supernatant was carefully aspirated and 100 µL of FACS buffer were used to gently resuspend the cells. Cell yield was assessed with an automated cell counter (Logos Biosystems, LUNA-II^TM), and single cells were further captured with the BD Rhapsody Express Single-Cell Analysis System (BD Biosciences). Library preparation was performed following the manufacturer’s instructions (BD Rhapsody™ system mRNA WTA library preparation protocol) and sequenced using Illumina NextSeq 500.

Raw FASTQ reads were quality and adapter trimmed using fastp (version 0.23.2, length cutoff 20, quality cutoff 15). The UMI and complex barcode were extracted and demultiplexed using custom scripts. The GRCm39 reference genome was merged with the reporter vector sequence to create a custom reference. STAR version 2.7.10a was used to generate a reference genome index, with reporter features and Gencode annotations vM29, subset to lncRNA and protein-coding genes. FASTQ reads were mapped against the reference genome index using STAR with the settings “--soloType CB_UMI_Simple --soloCellFilter None --outSAMtype BAM SortedByCoordinate --soloFeatures GeneFull_Ex50pAS --soloCBstart 1 --soloCBlen 27 --soloUMIstart 28 --soloUMIlen 8 --soloCBwhitelist rhapsody_whitelist.txt --runRNGseed 1 --soloMultiMappers EM --readFilesCommand zcat”. Raw counts were imported as AnnData objects. Low complexity barcodes were removed with the knee plot method, and cells with a mitochondrial mRNA content were further filtered out, as well as cells with unusually high total and gene counts, using manually determined cutoffs for each sample. Doublets were scored with Scrublet 0.2.3. Finally, each sample’s gene expression matrix was normalized using Scran 1.22.1 with Leiden clustering input at resolution 0.5. G2M and S phase scores were assigned to each cell using gene lists from and the Scanpy 1.9.1 sc.tl.score_genes_cell_cycle function.

For embedding, clustering, and annotation, the normalized expression matrix was subset to the 3000 most highly variable genes (HVG, sc.pp.highly_variable_genes, flavor “seurat”). The top 100 principal components (PCs) were calculated and batch-corrected using Harmony 0.0.5. The PCs served as the basis for k-nearest neighbor calculation (sc.pp.neighbors, n_neighbors = 30), which were used as input for UMAP layout (sc.tl.umap, min_dist = 0.3). Cell populations were clustered using scanpy.tl.leiden, and a suitable resolution was chosen for the main cell type annotation. Cluster marker genes were calculated using a pseudobulk approach, comparing aggregate counts with 2 pseudo-replicates for each cluster to all remaining cells (pyDeSEQ2 0.4.8). Finally, expression of select marker genes was plotted using Matplotlib 3.8.4 (“imshow”), and clusters were annotated accordingly. The AnnData object was subset to MSCs and ECs, respectively, and the process detailed above for clustering and annotation was repeated, using the top 2000 HVGs and 50 PCs. Clusters were annotated at Leiden resolutions 0.05 and 0.3, for ECs and MSCs, respectively.

Differentially expressed genes were calculated using a pseudobulk approach, comparing aggregate counts with 2 pseudoreplicates for WT and KO each (pyDeSEQ2 0.4.8). DE results were filtered for sex-specific genes due to the presence of cells from mixed-sex samples, and 7 genes were masked accordingly (Gm47283, Xist, Tmsb4x, Ddx3y, Eif2s3y, Uty, Kdm5d). Enrichr (https://maayanlab.cloud/Enrichr/) was used to calculate gene set enrichment via the gseapy 0.10.8 “enrich” API. Up-, (P < 0.01, log2FC > 0.5), down- (P < 0.01, log2FC < −0.5), and deregulated (up or down) gene sets were tested separately.

Cell culture

All cell culture experiments were in compliance with S1 regulations. Cultured cells were maintained in a 37 °C incubator with 5% CO₂. Human brain vascular smooth muscle cells (HBVSMCs, ScienCell, cat. #1100) were obtained as passage 0 (P0) and stored in liquid nitrogen. Cells were thawed and subcultured according to the manufacturer’s instructions.

Cells were expanded up to passage 2 (P2) and frozen at this stage (stock). Freezing media was the usual Smooth Muscle cell Complete Media (SMCM; ScienCell, cat. no. #1101) supplemented with 10% FCS and 10% DMSO. From each T75 plate, 4 stock vials were prepared and frozen. For all experiments, a P2 vial was thawed in a poly-lysine coated T75 plate and expanded with complete media. From P4 to the end of experiments, cells were cultured with smooth muscle cell differentiation media (SMCM supplemented with 2% FCS and 20 ng/mL TGFβ−1). Passage 4 and 5 were used to increase the number of cells and to allow smooth muscle cell contractile differentiation. This was achieved by seeding 15000 cells/cm² in poly-lysine coated T75 dishes and culturing them until reaching confluency with smooth muscle cell differentiation media. Functional experiments were performed at P6-P7.

Quantitative RT-PCR (qPCR)

Whole mouse embryos were flash frozen in liquid nitrogen, 400 µL of lysis buffer were added to each sample before mechanical dissociation (Ultra-Turrax, IKA T25) and centrifugation (300 × g for 10 min). The supernatant was collected for RNA isolation. For in vitro samples, cells grown in multi-well 24 cell culture plates were washed twice with sterile PBS, and 200 µL of freshly prepared 1X RNA protection buffer per well were added. Cells were manually disrupted with a pipette tip, collected in 2 mL round-bottom tubes, and stored at − 80 °C until RNA isolation. RNA isolation was performed using the Monarch Total RNA Miniprep Kit (New England Biolabs, cat. #T2010S) according to the manufacturer’s instructions.

After RNA isolation, the concentration of RNA was measured (NanoDrop 8000, ThermoFisher). cDNA was synthesized from 1 µg of RNA by reverse transcription (LunaScript RT SuperMix kit, New England Biolabs, cat. #T2010S). For gene expression analysis in HBVSMCs, the following Taqman probes were used: Human GAPDH-VIC (ThermoFisher, 4326317E), Human ELMO2-FAM (ThermoFisher, Hs00223006_m1), Human ELMO1-FAM (ThermoFisher, Hs00404992_m1), Human ACTA2-FAM (ThermoFisher, Hs00426835_g1), Human TAGLN-FAM (ThermoFisher, Hs01038777_g1), Human NES-FAM (ThermoFisher, Hs04187831_g1), Human PDGFRB-FAM (ThermoFisher, Hs01019589_m1).

Two different pairs of custom-designed primers flanking exon 7 of Elmo2 were used for SYBR Green-based analysis of gene expression in control and mutant mouse embryos. Primer 1 forward: CTGATGGAAAGGACCCAGTCA; reverse: AACTCCGTGGCGAAAGTCAC. Primer 2 forward: GAGAGTGGGACCAAGCTCCT; reverse: CTCTCTAGGATGGCCAGGGA. Gapdh was used as the housekeeping gene. Forward primer: CCAATGTGTCCGTCGTGGAT; reverse primer: TGCCTGCTTCACCACCTTCT).

Protein isolation

Whole embryos were flash frozen in liquid nitrogen and stored at − 80 °C. Immediately before protein isolation, 400 µL of lysis buffer (20 mM Tris-HCl; pH 8.0, 150 mM NaCl, 0.5% TritonX-100, 0.1% SDS, 0.1% Na-DOC, 2 mM EDTA, 0.1 mg/mL DNase supplemented with protease and phosphatase inhibitors) were added to frozen samples and subjected to mechanical disruption with Ultra-Turrax (IKA T25) followed by incubation at 4 °C for 30 min on a rotating wheel. Samples were centrifuged at full speed for 15 min to obtain the lysate. The supernatant was collected in a 2 mL tube, and 10 µL of lysate were used for protein quantitation using ADV02 precision red advanced protein assay reagent (Cytoskeleton, cat. # ADV02). Equal protein concentrations were obtained by diluting the samples with lysis buffer. 3x Laemmli buffer (0.25 M Tris base, 8%SDS, 40% glycerol, 20% β-mercaptoethanol, and 4 mg/mL of bromophenol blue) was added to samples (1/3 volume of sample), mixed well, and boiled at 95 °C for 5 min. After allowing the samples to cool down for 5 min, they were stored at − 20 °C until Western blotting.

For in vitro samples, cells were placed on ice and washed twice with ice-cold PBS, followed by the addition of lysis buffer and incubation at 4 °C for 20 min. For a multiwell-6 plate (mw6), 2 mL of PBS per well were used for washing, and 150 µL of lysis buffer per well were used for lysis. Cells were scraped using a precooled cell scraper, and lysates were collected in 1.5 mL tubes. Lysates were sonicated with an amplitude of 80 with 10 pulses per sample, followed by centrifugation at full speed for 10 min at 4 °C. Supernatant was collected in a 1.5 mL tube. Quantitation and storage were performed as described above.

Western blotting

For Western blotting, upper stacking gel (1.5 M Tris HCL, 0.4% SDS dissolved in water, pH 8.8) and lower resolving gel (0.5 M Tris HCl, 0.4% SDS dissolved in water, pH 6.8) were prepared. 20 kDa to 124 kDa proteins were separated in 10% resolving gels, whereas 125 kDa to 250 kDa proteins were separated in 8% resolving gels. Equal amounts of protein sample were briefly heated at 95 °C, cooled down at RT for 2 min, spined down for 15 sec, and loaded into the wells of the gel. During the electrophoresis run along the stacking gel, the voltage was set to 80 V and to 120 V once the samples reached the resolving gel. After obtaining the required size separation, samples were transferred to an activated PVDF membrane (activated in methanol for 15 sec) over 1.5 h at 25 V. The membrane was blocked with 1% skim milk for 1 h at RT and probed with primary and HRP-conjugated secondary antibodies. ECL prime reagent was used for the detection of bands.

Gene knockdown

Silencer select siELMO2 (ThermoFisher, cat. #Hs00223006_m1), which covers most of the ELMO2 splice variants, was used for knockdown experiments by forward transfection. Cells were seeded at a density of 6000 cells/cm² and cultured overnight. The following day media was exchanged before transfection. A mixture of DMEM-diluted siRNA (24 nM) and lipofectamine RNAiMax (Invitrogen, cat. #13778150) was added drop-wise to the cells, and the plate was placed in the incubator overnight after proper mixing. The following day, the media was refreshed, and cells were kept in culture until the collection time, with media changes every other day.

Immunofluorescence for cell culture

Cells were washed twice with PBS (without Ca²⁺ and Mg²⁺) and fixed with 2% PFA (filtered through 0.22 µm syringe) at RT for 15 min. Permeabilization was achieved by incubating cells with 2% Triton X-100 for 15 min at RT. At the end of incubation cells were washed once with PBS and blocked with 1% BSA in PBS for 30 min. Primary and secondary antibody incubations were done at 4 °C overnight.

Gel contraction assay

Control and ELMO2 knockdown cells were trypsinized 96 h after siRNA treatment and counted. 5 × 10⁰⁵ cells from each sample were transferred to 1.5 mL tubes placed on ice, and the final volume was adjusted to 500 µL with media. In a 2 mL round-bottom tube placed on ice, 500 µL of collagen-gel forming media (250 µL of 8.69 mg/mL Collagen I, 190 µL of SMC- differentiation media, and 60 µL of 0.1 M NaOH) were prepared. Cells and collagen-gel forming media were mixed in a 1:1 ratio, and 500 µL of this mixture were immediately added to a well of an mw24 plate kept at RT. After 1 h, solidified gels were dislodged from the walls of the wells, and 500 µL of media were added on top. Images of gels at t = 0 were acquired with a stereo microscope. After a 12 h incubation at 37 °C, gel contraction was observed and the corresponding images acquired (t = 12 h).

For the rescue experiment, 96 h after knockdown, siControl and siELMO2 cells were treated with 100 nM Jasplakinolide (Sigma, cat. #J4580) for 1 h. Subsequently cells were washed twice with PBS and cultured in normal media. After 2 h cells were trypsinized and collected for gel contraction assay as described above.

The area of the gels at t = 0 and t = 12 h was measured with Fiji, and the percentage of gel contraction was calculated.

Carbachol-induced contraction

siControl and siELMO2 knockdown cells were labelled 48 h after transfection with 1 nM CellTracker-Green (Invitrogen, cat. #C7025) and CellTracker-Orange (Invitrogen, cat. #C34551), respectively. After a 24h-long incubation, cells were trypsinized and counted. 6000 cells from each sample were mixed and added to a polylysine-coated Ibidi 8-well µ-slide (Ibidi, cat. #80806) and allowed to attach. 96 h after transfection, the media was refreshed and the µ-slide was transferred to a live-imaging microscope equipped with controlled temperature (37 °C) and CO₂ levels (5%). Once the imaging positions and focal plane were defined, media supplemented with 1 mM carbachol was added, and the contraction response of the cells imaged during 15 min. The area of individual cells before carbachol stimulation (t = 0) and 15 min after treatment (t = 15 min) was measured using Fiji to calculate the percentage of contraction.

Spreading and attachment assay (2D)

siControl and siELMO2 treated cells were labelled 48 h post-transfection with CellTracker reagents as described before. 96 h after transfection, cells were trypsinized and counted. 6000 cells from each condition were mixed and added to an ibidi 8-well µ-slide coated with 2% collagen. Attached cells were fixed at different time points (10 min, 30 min, 1 h, 2 h, and 6 h) after seeding. For live-imaging experiments, 6000 cells treated with siControl or siELMO2 siRNA were mixed and added to a collagen-coated ibidi 8-well µ-slide, which was imaged overnight under usual cell culture conditions (37 °C with 5% CO₂).

For the rescue experiment, 96 h post-transfection, siControl and siELMO2 cells were treated with 100 nM Jasplakinolide (Sigma, cat. #J4580) for 1 h. Subsequently cells were washed twice with PBS and fresh media was provided. After 30 min cells were trypsinized and collected for attachment assay. Cells were seeded into collagen-coated wells and, after 10 min, attached cells were fixed.

Morphology analysis of cells in fibrin gels (3D)

siControl and siELMO2 treated cells were labelled 48 h post-transfection with CellTracker reagents as described before. Cells were trypsinized 96 h after transfection and counted. 6000 cells from each condition were mixed and resuspended in 1 mL of media. Fibrinogen (Sigma, cat. #F8630) was prepared at a final clottable concentration of 10 mg/mL and sterilized by passing the solution through a 0.22 µm syringe filter before further dilution to the final working concentration (2 mg/mL in PBS). 968 µL of fibrinogen were mixed with 32 µL of aprotinin (Sigma, cat. #A1153, 4 U/mL) and the whole volume (1 mL) mixed with the cell suspension. 250 µL of this mixture were added to each well of an ibidi 8-well µ-slide, which is pre-loaded with 2 µL of thrombin (Sigma, cat. #T4648, 0.1U/µL). Gel polymerizes after a 30 min incubation at RT. 100 µL of media were added on top of the gels, and the plates were incubated overnight at 37 °C and 5% CO₂. The next day, the gels were fixed with 2% PFA and imaged.

Rac1 activation assay

For the analysis of Rac1 activation, the luminescence-based G-LISA Rac-1 activation assay biochem kit (Cytoskeleton Inc., cat. #BK126) was used. Protein samples were collected from siControl and siELMO2-treated cells and snap frozen in liquid nitrogen until the day of experiment. 10 µL of protein lysate were used for assessing protein concentration using the AVD02 reagent or the reagent included in the kit. Protein sample preparation and G-LISA was performed according to the manufacturer’s instructions.

Analysis of G-actin to F-actin ratio

For G-actin to F-actin ratio analysis cells were lysed in an actin-stabilizing lysis buffer (50 mM PIPES, pH 6.9, 50 mM NaCl, 5 mM MgCl₂, 5 mM EGTA, 0.2 mM dithiothreitol, 0.1% NP40, 0.1% Tween 20, 5% glycerol, 1 mM ATP, and protease inhibitors). Lysates were subjected to ultracentrifugation (150,000 × g) at 4 °C for 70 min. The supernatant (G-actin fraction) was collected to pre-labelled tubes and stored at 4 °C until protein quantitation. 200 µL of actin depolymerizing buffer (50 mM PIPES, pH 6.9, 5 mM MgCl₂, 10 mM CaCl₂, 5 μM cytochalasin D) were added to the pellet (F-actin fraction), and this was solubilized by sonication. An equal amount of G-actin and F-actin fractions from control and knockdown cells were loaded to an SDS-PAGE gel, transferred to a PVDF membrane, and stained for β-actin to determine the amount of G-actin and F-actin.

Quantification and statistical analysis

In all quantifications, the entity of “n” is biological replicates. For in vivo data, each biological replicate corresponds to a single individual (i.e., mouse embryo). In all cases, control and mutant embryos from at least 2 different litters were analyzed. For in vitro data, each biological replicate corresponds to independently treated and processed cell culture samples. Quantitative data is reported as mean ± SEM and is derived from the analysis of multiple samples or technical replicates from each biological replicate. All the data presented in the manuscript without direct quantification was obtained from at least three independent biological replicates.

Statistical analyses were performed with Graphpad Prism10 v.10.2.1 (Perkin Elmer). Analysis of distribution was done using the D’Agostino & Pearson, Anderson-Darling, Shapiro-Wilk or Kolmogorov-Smirnov normality tests, depending on sample size. Based on these results, two-tailed parametric or non-parametric tests were used for the comparison of two groups. For groups with normal distribution and equal variance, the unpaired t-test was used, whereas Welch’s t-test was used for groups with normal distribution and unequal variance. The Mann-Whitney test was used for comparing groups in which at least one did not show a normal distribution. Comparisons among multiple groups were done using either one-way ANOVA or Browne-Forsythe and Welch ANOVA with a specific post-hoc test for multiple comparisons. In the case of repeated measures (time-lapse in vitro), a paired t-test was used. Statistical significance was assessed with a 95% confidence interval. Effect sizes were calculated using eta squared for unpaired and Welch’s t-tests, partial eta squared for paired t-test, R squared for ANOVA (both one-way or Browne-Forsythe and Welch), and rank-biserial correlation (r) for Mann-Whitney tests. The source data used for quantitative analysis, as well as detailed statistical results including effect sizes and degrees of freedom, are provided in the Source Data file. In exceptional cases (Fig. 6a and Supplementary Fig. 12a, b, 72 h timepoint), Welch’s t-test was used for comparison of in vitro samples in which the control group failed to show a normal distribution due to low variance and small sample size (n = 3). Distribution was assumed to be normal based on the analysis of the technical replicates of each biological replicate.

Image analysis, processing, and quantitation was performed with Fiji (ImageJ) using basic segmentation tools and morphometry. Evaluation of VSMCs’ actin filaments orientation with respect to the ECs’ longest axis was done using the Directionality plugin. In the resulting histogram, the bar’s height (Amount) represents the frequency of data points corresponding to a given relative directionality angle (°) between the actin filaments and the EC plane. The values shown are normalized based on the assumption that the largest possible angle from the intersection of the planes corresponds to a perpendicular orientation (90°).

Statistics and reproducibility

All qualitative data presented in this manuscript were obtained from a minimum of three independent biological replicates. Microscopy-based experiments were independently repeated at least three times with consistent results. Western blot experiments were independently performed at least twice, yielding similar outcomes. For all quantitative data, the number of biological replicates (n) is explicitly stated in the corresponding figure legends.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The single-cell RNA-seq data generated in this study is deposited in the NCBI GEO repository under accession number GSE278960. All measurements used for quantification are provided in the Source Data file along with the results of the different statistical analysis performed. Source data are provided in this paper.

Code availability

The custom code used for scRNA-seq analysis in this study is based on existing packages and own contributions. It is deposited in a publicly available database and can be accessed through the following link: https://keeper.mpdl.mpg.de/d/c6072badc24b42e5b138/. Dependencies “scrna-tools” and “anndataview” can be found at https://github.com/Bioinformatics-Service-MPI-Munster.
