Introduction

A classical thermally-activated process in metallurgy is the glide of screw dislocations in body-centered cubic (BCC) metals1. Despite its importance, this process has so far been primarily treated phenomenologically2, assuming a simple expression for the activation entropy and a linear relation between the applied stress tensor and the critical resolved shear stress at 0K. In particular, the interplay between applied stress and temperature, i.e. the stress- and temperature-dependence of the Gibbs activation energy for dislocation glide, remains a theoretical obstacle where assumptions are commonly used without appropriate justification

Dislocation glide can be simulated by direct molecular dynamics (MD) simulations3,4,5 (as illustrated in Fig. 1 (a) and left track in Fig. 1 (b)), but only at high temperatures and/or high strain rates. To access more general conditions, one can use the Transition State Theory (TST)6, which expresses the average forward dislocation velocity v at a temperature T under an applied stress tensor [σ]:

$$v=\nu L\exp \left(-\frac{\Delta G([\sigma ],T)}{{{{\rm{k}}}}_{{{\rm{B}}}}T}\right),$$
(1)

with ν an attempt frequency, L the dislocation length, kBT the thermal energy and ΔG the Gibbs activation energy for kink-pair nucleation. In BCC metals, the activation free enthalpy, ΔG, depends a priori on all components and sign of the applied stress tensor due to non-Schmid effects7,8. However, in this work, we will only focus on the effect of a resolved shear stress applied in the dislocation glide plane.

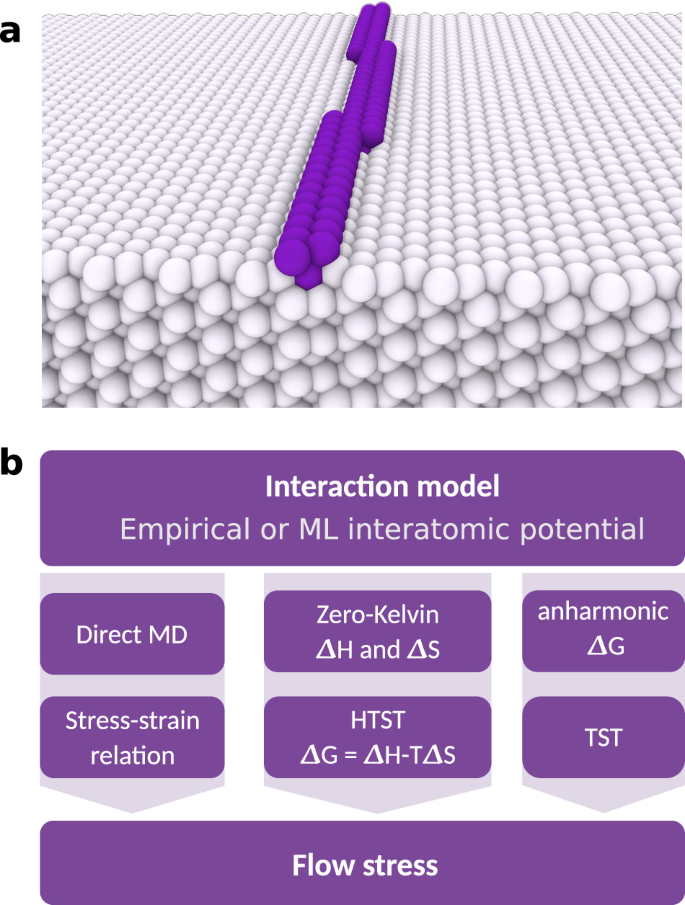

Fig. 1: Overview of dislocation glide simulations and associated computational methods.
figure 1

a A screw dislocation migrating from one Peierls valley to the next by a kink-pair mechanism. The 3D atomic structure was rendered with Ovito9. The upper part of the crystal is not shown for clarity. b Overview of different computational approaches to predict the flow stress.

Full size image

Due to the difficulty in computing Gibbs activation energies, ad hoc simplifications are often used. The most classical is the harmonic TST (HTST)10 (see central track in Fig. 1 (b)). Both the activation entropy ΔSh and enthalpy ΔHh are then independent of T. ΔSh is computed by diagonalizing the Hessian matrix of the system in its zero-Kelvin initial state (a straight screw dislocation in a Peierls valley) and activated state (an unstable double-kinked dislocation in-between Peierls valleys, illustrated in Fig. 1a)11. However, the diagonalizations are very demanding in computational resources for systems containing the N ~ 105 atoms needed to model dislocations11. As a result, further approximations are commonly applied. The most common is to simply neglect the stress dependence of ΔSh, which becomes a constant that can be absorbed into the attempt frequency \({\nu }^{*}=\nu \exp (\Delta {S}_{h}/{{{\rm{k}}}}_{{{\rm{B}}}})\). However, there is evidence that activation entropies in dislocation-related processes may exhibit a stress dependence, including dislocation nucleation12,13, obstacle bypass14, cross-slip15, and the glide of straight dislocations16. It is important to note here that these calculations were performed using empirical interatomic potentials. An alternative approach to incorporate stress dependence without explicitly computing ΔS is to invoke the Meyer-Neldel (MN) law, or compensation rule17, which states that the activation entropy of a process is proportional to its activation enthalpy, ΔS = ΔH/TMN, where TMN is a characteristic temperature. Despite its widespread use, the MN law lacks a firm physical foundation, and counterexamples have been reported in both experiments18 and computational simulations19,20,21,22. Here also, it should be emphasized that these computational studies were based on empirical potentials.

Empirical potentials, such as embedded atom method (EAM) potentials, have significantly advanced the modeling of BCC screw dislocations. However, most fail to accurately reproduce the potential energy landscape of screw dislocations obtained from density functional theory (DFT) calculations7 and the temperature dependence of elastic constants compared to experimental data23. Machine-learning interatomic potentials (MLIPs) provide a promising alternative to overcome these limitations24 at a computational cost that has now become manageable. However, while some recently developed MLIPs for Fe have been explicitly trained on dislocation configurations25,26,27, their datasets remain limited and often focus primarily on zero-Kelvin properties.

In this work, we investigate the influence of vibrational entropy on dislocation mobility without relying on a priori simplifications, using state-of-the-art interatomic potentials. We modeled isolated dislocations in BCC metals and directly computed their (possibly anharmonic) Gibbs activation energy for kink-pair nucleation using the linear-scaling projected average force integrator (PAFI)28. This offers an alternative computational route to estimate the flow stress, following the path highlighted in Fig. 1b. To accurately capture activation thermodynamics, we developed MLIPs for two common BCC metals, Fe and W, by refining the models from ref. 26 and expanding the training dataset to include a wider variety of dislocation configurations. Further details on the simulation setup, computational methods, and MLIPs are provided in the Methods section.

Results

Machine-learning interatomic potentials

We begin by examining the Gibbs activation energy for kink-pair nucleation in Fe. To this end, we developed a MLIP for Fe, building upon the framework established in ref. 26 and successfully applied to free energy calculations of defects in BCC metals23,29. The training dataset was significantly expanded to include a wide range of dislocation configurations. Notably, in addition to the Peierls barrier, the dataset incorporates the hard-to-split path7 and single-kink configurations30, which are considered for the first time. These configurations were evaluated both at 0 K and finite temperatures, with non-equilibrium states sampled using constrained MD simulations (see Supplementary Material for details). The resulting MLIP accurately reproduces the Peierls mechanism, core trajectory, and kink-pair nucleation enthalpy (see Fig. 2 (a-c)), as well as core eigenstrains (see Supplementary Material), demonstrating excellent agreement with DFT data. For comparison, we included in Fig. 2 predictions of a classical EAM potential for Fe11, which will be further used in “EAM potentials”.

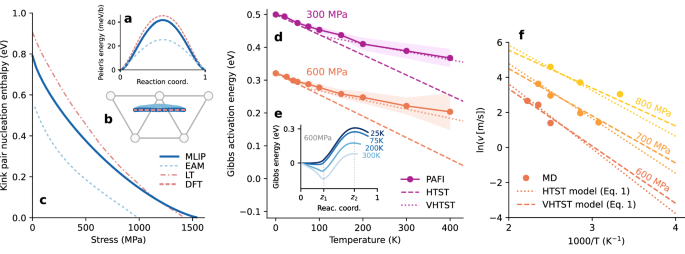

Fig. 2: MLIP predicts a harmonic behavior and a stress-independent activation entropy.
figure 2

a Peierls barrier for a 1/2[111] straight screw dislocation and (b) corresponding core trajectory, computed with the present MLIP for Fe and a classical EAM potential11, compared to DFT data31. c Kink-pair nucleation enthalpy computed with the EAM and MLIP, compared to a line tension (LT) model parameterized on DFT calculations32. d Gibbs activation energy for kink-pair nucleation computed with the MLIP. PAFI calculations are compared to variational and non-variational HTST predictions. Shaded regions represent the error estimation of the PAFI method, as described in Supplementary Material. e Examples of Gibbs energy profiles at 600 MPa showing a shift of the minimum Gibbs energy configuration. f Dislocation velocity computed by direct MD simulations with the MLIP (circles) under a constant applied shear stress, compared to Eq. (1) parameterized with data from (c-d) with ν = 3.8 × 109 Hz for HTST (dotted lines) and 9.2 × 1010 Hz for variational HTST (dashed lines).

Full size image

Using the MLIP, we employed the PAFI method to compute minimum Gibbs energy paths (MGEP) without any a priori assumptions. The resulting Gibbs activation energies, obtained at 300 and 600 MPa, are shown in Fig. 2d. At low temperatures, the enthalpy decreases linearly with increasing temperature, indicating a harmonic regime that extends up to T0 ≃ 100 K. Beyond this threshold, the Gibbs activation energy deviates from the harmonic extrapolation and decreases more gradually. The discrepancy between HTST and anharmonic calculations is further illustrated in Fig. 2e and discussed in Supplementary Material. This difference primarily arises from a change in the Gibbs energy profile: above T0, the position of the barrier minimum shifts from z = 0 to a finite coordinate z1, while the barrier maximum remains mostly fixed at a coordinate z2 (see Fig. 2e). Unfortunately, we could not identify any apparent structural changes that may account for the lowering of the Gibbs free energy in the finite-temperature configurations generated by PAFI. In Supplementary Material, we detail a statistical outlier analysis of the shifted transition pathway sampled by PAFI, demonstrating that the sampled configurations remain in the interpolation domain of the MLIP.

To test the validity of the harmonic assumption along the transition path and extend the harmonic regime, we use the variational HTST (VHTST)33, where the Gibbs energy barrier is computed harmonically between the configurations that maximize the barrier height, a method recently employed to model dislocation nucleation kinetics34. We thus approximate ΔGVHTST  =  ΔHh(z2) − TΔSh(z2) if T < T0 and ΔGVHTST = ΔHh(z2) − ΔHh(z1) − T(ΔSh(z2) − ΔSh(z1)) if T > T0, where ΔHh(z) and ΔSh(z) are the 0K enthalpy and entropy differences between the configuration at reaction coordinate z and the initial configuration (at z = 0). The result is reported in Fig. 2d as dotted lines, showing a very good agreement with the anharmonic PAFI calculations over the entire temperature range considered here.

Perhaps the most striking result is the remarkably weak dependence of the activation entropy on the applied stress: at low temperature, in the harmonic regime, ΔS(z2) = 6.3 kB, while above T0, ΔS(z2) − ΔS(z1) = 1.6 kB. In the harmonic regime, the activation entropy is thus independent of both temperature and applied stress, providing, for the first time, a direct justification for the commonly used simplification of a constant entropy.

To further validate our calculations, we conducted MD simulations with the MLIP for different resolved shear stresses and temperatures. The measured average dislocation velocities are presented in Fig. 2 (f) and compared to the predictions of both HTST, \(v \,=\, \nu L\exp (-\Delta {G}_{h}/{{{\rm{k}}}}_{{{\rm{B}}}}T)\), and VHTST, \(v=\nu L\exp (-\Delta {G}_{{{\rm{VHTST}}}}/{{{\rm{k}}}}_{{{\rm{B}}}}T)\), where ν is the only fitting parameter. Both approximations yield nearly identical velocity predictions, as differences in entropy are absorbed into the fitted prefactor ν, while the enthalpic change is negligible, given that ΔHh(z1) ≪ ΔHh(z2). The strong agreement between MD and theoretical predictions confirms the harmonic nature of the glide transition and the absence of significant stress dependence of the activation entropy for this MLIP.

To evaluate the generality of the activation enthalpy and entropy behavior observed in Fe, we developed a second MLIP for W. As in Fe, a database built in previous works23,26,35 was enriched with finite-temperature dislocation configurations. The corresponding results, presented in Supplementary Material, confirm the existence of a harmonic regime up to at least 100 K with an activation entropy independent of the applied stress. Remarkably, despite the significant differences between Fe and W -such as their elastic constants - the harmonic activation entropy in W is found to be approximately 8kB, closely matching the value obtained for Fe. This unexpected similarity suggests a degree of universality in the contribution of vibrational entropy to kink pair nucleation across BCC metals.

EAM potentials

The strikingly constant entropy obtained with the MLIPs for Fe and W contrasts with the results obtained in the literature using empirical potentials and mentioned in the Introduction. To verify this point, we used two EAM potentials, one for Fe11, the other for W36, widely used to simulate dislocation glide at the atomic scale. We computed their Gibbs activation energies for kink-pair nucleation, and since the calculations were much faster than with the MLIPs, we could consider a wide range of applied stresses. Figure 3 considers the case of Fe, while the results in W are shown in Supplementary Material. Figure 3a shows the Gibbs activation energies at 200 and 500 MPa. We see that ΔG exhibits a temperature dependence more complex than with the MLIP, with a drastic departure from the harmonic prediction (dashed lines) above temperatures as low as 20 K. Note that we have checked that for the moderate stresses and temperatures considered here, classically discussed anharmonic effects, temperature dependence of the elastic moduli13 and thermal dilatation22 do not affect the energy barriers (see Supplementary Material). The main effect is rather a widening of the activated kink pair28, which reflects a deviation of the MGEPs at finite temperature, as detailed in Supplementary Material.

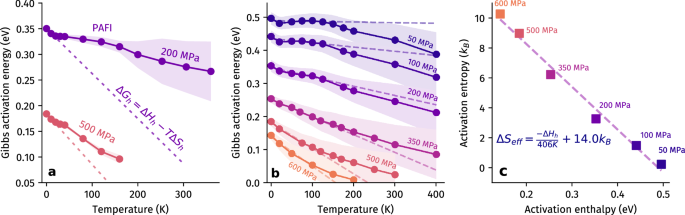

Fig. 3: Empirical potential predicts strong anharmonicity and an inverse Meyer-Neldel relation.
figure 3

a Gibbs activation energy as a function of temperature at 200 and 500 MPa, obtained with PAFI (circles and full lines) and the HTST approximation using Hessian matrix diagonalizations (dashed lines). Shaded regions represent the error estimation of the PAFI method, as described in Supplementary Material. Lines are colored based on the associated stress value. b Gibbs activation energy as a function of temperature for a large range of stresses and temperatures. Linear fits up to 100 K with slope  − ΔSeff are shown as dashed lines. Note that calculations presented in (a) were performed with a high number of independent samplings (ranging from 150−250), in order to accurately capture subtle variations of Gibbs activation energy at very low temperature. c Effective entropy ΔSeff as a function of enthalpy.

Full size image

Although the HTST approximation appears inapplicable beyond about 20 K with the present EAM potential, the evolution of ΔG shown in Fig. 3b can still be approximated by a linear relation with reasonable accuracy below 100 K (dashed lines in Fig. 3b). This defines an effective temperature-independent entropy, ΔSeff(τ). Interestingly, we see in Fig. 3 (b) that the initial slope of ΔG becomes steeper at higher stresses, which means that ΔSeff(τ) increases with the applied stress. Plotted against ΔHh(τ) in Fig. 3c, we find a linear variation, which follows an inverse Meyer-Neldel law, or reinforcement effect: ΔSeff decreases with increasing ΔHh, instead of increasing as assumed by the MN compensation law. Note also that ΔSeff varies by about 10kB between 0 and 700 MPa, in stark contrast with the results obtained with the MLIPs. The emergence of an inverse Meyer-Neldel law is consistent with recent works presented in refs. 21,22, indicating that it might be a general trend of EAM potentials. This conclusion is reinforced by calculations performed with the EAM potential for W. As presented in Supplementary Material, the potential also predicts a harmonic regime limited to very low temperatures with again an inverse MN rule between the enthalpy and a strongly varying entropy.

From Gibbs energy to yield stress

To illustrate the direct impact of entropic effects on macroscopic properties, we employed the analytical model from ref. 37 to predict the thermally activated yield stress in Fe and W. The predictions are compared with experimental data from refs. 38,39 for Fe and ref. 40 for W. The model requires no fitting parameters apart from the attempt frequency and can be fully parameterized using either MLIPs or EAM potentials (see the Methods section for details). For calculations using EAM potentials, we incorporated the inverse MN relation, ΔS = − ΔH/TMN, with characteristic temperatures of 406 K for Fe and 1078 K for W as obtained in the PAFI calculations “EAM potentials”. In contrast, for calculations using MLIPs, and in agreement with the results presented in “Machine-learning interatomic potentials”, we assumed a constant activation entropy of ΔS = 6.3kB for both metals. To apply the model under conditions representative of experimental settings, one parameter difficult to evaluate is the density of mobile dislocations. To address this, we considered a range of densities from 106 to 1011 m−2, using 108 m−2 as a reference value, in agreement with estimates from the literature41,42,43.

The results are presented in Fig. 4. As with all previous EAM and DFT calculations, the present MLIPs overestimate the Peierls stress at 0 K compared to experiments. To eliminate this well-known discrepancy11,44,45, all curves were normalized by the extrapolated zero-Kelvin yield stress. Both MLIP predictions exhibit excellent agreement with experimental data. Notably, they accurately capture the athermal temperature, above which plasticity ceases to be thermally activated. For the EAM potentials, it is interesting to observe that the prediction for Fe is rather accurate, although with deviations at both low and high temperatures, whereas in W, the EAM potential significantly underestimates the temperature dependence of the yield stress. We believe that the agreement of the EAM potential in Fe results from a compensation effect: the kink-pair nucleation enthalpy is underestimated, as seen in Fig. 2, while the entropy is overestimated, as shown in Fig. 3. In W, the enthalpy is better reproduced, but the entropy remains overestimated, leading to a slower decrease in the yield stress. Regardless, these results clearly highlight the ability of MLIPs to predict macroscopic yield stress without the need for fitting parameters.

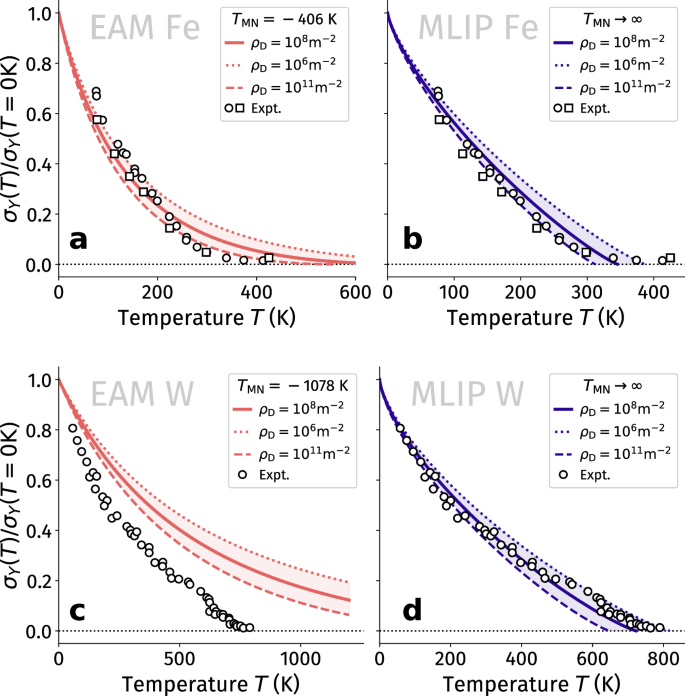

Fig. 4: Yield stress model parameterized on atomistic calculations, compared to experimental data.
figure 4

The model from ref. 37 was parameterized using EAM potentials or MLIPs, in Fe and W. Experimental data are reproduced from refs. 38,39 for Fe and ref. 40 in W. Shaded areas indicate the variation range due to changes in dislocation density.

Full size image

Discussion

The main conclusion of this work may seem unremarkable at first: MLIPs reveal that the activation entropy for dislocation glide in BCC Fe and W is constant, as assumed in the simplest models. However, this finding contrasts sharply with previous studies based on EAM potentials12,13,14,15,16,21,34, suggesting a strongly varying activation entropy indicative of pronounced anharmonic effects. The present calculations indicate that this variability is likely an artifact of EAM potentials, which tend to produce a more rugged energy landscape compared to MLIPs and DFT. Nevertheless, we emphasize that potential energy landscape artifacts may still arise even with MLIPs46, and care must be taken to validate their reliability in each application.

Vibrational entropy arises from subtle variations in the vibrational density of states, which EAM potentials struggle to capture due to their simplified formulation. In contrast, MLIPs exhibit a consistently harmonic behavior, as demonstrated by the accurate entropy predictions across the entire temperature range when using a variational HTST approach. This stands in stark contrast to the pronounced anharmonicity inherent in EAM potentials.

While our results highlight several limitations of classical EAM potentials compared to MLIPs, we acknowledge that a formal demonstration of the origin of these limitations remains elusive. What is clear, however, is that the central-force nature of EAM potentials leads to enhanced shear softening. Additional artifacts have also been reported, such as a non-monotonic temperature dependence of elastic constants23 and an early departure from harmonicity28. Although some rugged features in energy landscapes, such as those reported in recent studies on metallic glasses47,48, may correspond to real physical phenomena, our findings highlight the need for caution in interpreting such features, as they may also stem from artifacts due to the potential. This underscores the importance of validating potential energy landscapes against DFT data or using well-trained MLIPs, and calls for more systematic cross-comparisons between different potential formalisms in future works.

As a final note, we recall that early theories on entropic effects49,50,51 proposed a connection between entropy and the temperature dependence of macroscopic properties, particularly the shear modulus μ. Zener49, for instance, suggested that ΔS ∝ dμ/dT. To investigate this hypothesis, we computed the temperature dependence of the shear modulus using both the EAM potential and the MLIP for Fe (see Supplementary Material). While the EAM potential predicts an anomalous increase in shear modulus with temperature-potentially aligning with an inverse compensation effect in Zener’s theory-the MLIP predicts a decreasing shear modulus, a trend inconsistent with the absence of entropic effects in this potential. These findings thus suggest that inferring an enthalpy-entropy relationship from macroscopic property variations is challenging. Instead, entropy changes likely emerge from complex changes in vibrational spectra, as previously observed in amorphous solids20.

Although this study focuses on metal plasticity, the results are expected to extend to other crystalline defects, such as point defects and grain boundaries, whose kinetics may also be influenced by entropic effects. Caution must therefore be exercised when analyzing finite-temperature kinetics predicted from the atomic scale.

Methods

Machine-learning interatomic potentials

The machine-learning interatomic potentials are based on the Quadratic Noise Machine Learning (QNML) formalism introduced in refs. 23,26,29. This approach provides a balanced compromise between computational efficiency and predictive accuracy. Local atomic environments are represented by bispectrum SO(4) descriptors with maximum angular momentum \({J}_{\max }=4\) and dimension K = 55. The cutoff distance is set to 4.7 Å for Fe and 5.3 Å for W. The fitting of the potentials was carried out using the MILADY package52. We used weights in the objective loss function to control accuracy in different subsets of the database and optimize properties of interest. We extended existing general-purpose fitting databases for Fe and W23,26 with dislocation configurations. For consistency, we ensured that the new configurations were computed with the same DFT parameterization as the original databases, using the VASP code. The Mahalanobis outlier distance is used in Supplementary Material to detect out-of-distribution configurations53.

Atomistic simulations of screw dislocations

The simulation cell contains a screw dislocation of length L = 40 b, where b is the Burgers vector of the dislocation, defined as \(b=\frac{1}{2}[111]\). The dislocation glides in a {110} central plane with a glide distance D ~ 50 b and a cell height perpendicular to the glide plane of H ~ 30 b. Periodic boundary conditions were applied in the glide plane to form a periodic array of dislocations54. The total number of atoms in the simulation cell is 96,000.

Stress-controlled molecular dynamics simulations were performed using LAMMPS55 with the MLIPs. The simulations lasted from 0.2 to 0.6 ns to ensure the computation of well-converged average dislocation velocities. The simulation time step was set to 1 fs, with a total computational cost between 3 × 104 and 9 × 104 CPU hours per condition.

Computation of Gibbs energy barriers

Gibbs energy barriers were calculated using the linear-scaling Projected Average Force Integrator (PAFI) method28. Transition pathways were first relaxed using the nudged elastic band (NEB) method56 to a force tolerance of 10−3 eV Å−1. A custom parallel nudging force, designed to promote equidistant energy differences along the path, was implemented in LAMMPS55.

The PAFI approach enables the calculation of the anharmonic Gibbs activation energy at \({{\mathcal{O}}}(N)\) cost for kink-pair nucleation in bcc metals under finite applied stress along the 0 K reaction coordinate, without requiring any a priori assumptions about finite temperature changes of the pathways. Anharmonic Gibbs energy calculations were performed using the PAFI package28,57,58. Within this method, the configurations at a given applied stress and specific reaction coordinate are sampled at all temperatures from the same hyperplane, which is perpendicular to the initial NEB path. Furthermore, after sampling, configurations are relaxed in their hyperplanes to eliminate trajectories that might have escaped their initial potential energy valley. The computational cost ranged from 5 × 104 to 2.5 × 105 CPU hours per condition, mainly depending on the number of independent samplings, which typically ranges from 5 to 40 and was optimized to control numerical errors (see Supplementary Material for a discussion of error estimation in PAFI calculations).

Hessian matrix diagonalizations were used to compute the harmonic activation entropy within the framework of the harmonic transition state theory. The Hessian matrices were generated using LAMMPS and subsequently diagonalized with the Phondy code to evaluate the phonon spectrum59,60,61. The total computational cost for these calculations amounted to approximately 5 × 104 CPU-hours per atomic system using the MLIP.

Analytical yield stress model

The thermally activated yield stress in Fe and W was predicted using the analytical model developed in ref. 37, which expresses the normalized yield stress as:

$$\frac{{\sigma }_{Y}(T)}{{\sigma }_{Y}(T=0K)}={\left(1-{\left(\frac{{{{\rm{k}}}}_{{{\rm{B}}}}T}{\Delta {H}_{0}\left(1-\frac{T}{{T}_{{{\rm{MN}}}}}\right)}\ln \left(\frac{{\dot{\epsilon }}_{p}}{\sqrt{{\rho }_{D}}{\nu }_{D}{\lambda }_{P}}\right)\right)}^{\frac{1}{q}}\right)}^{\frac{1}{p}}.$$
(2)

This expression derives from a Kocks representation of the activation enthalpy:

$$\Delta H=\Delta {H}_{0}{\left(1-{\left(\frac{{\sigma }_{Y}(T)}{{\sigma }_{Y}(T=0K)}\right)}^{p}\right)}^{q}$$
(3)

and a MN law for the activation entropy:

$$\Delta S=\frac{\Delta H}{{T}_{{{\rm{MN}}}}}.$$
(4)

Activation enthalpies were fitted to NEB calculations using the different potentials. For Fe, we used ΔH0 = 0.6 eV, p = 0.53 and q = 1.06 for the EAM potential, and ΔH0 = 0.8 eV, p = 0.87 and q = 1.33 for the MLIP. For W, we used ΔH0 = 1.6 eV, p = 0.68 and q = 1.02 for the EAM potential, and ΔH0 = 1.54 eV, p = 0.86 and q = 1.43 for the MLIP. The harmonic behavior predicted by the MLIPs was obtained in the limit TMN → ∞ while the inverse MN law predicted by the EAM potentials was represented with TMN = − 406 K in Fe and  −1078 K in W. The strain rates were set to the experimental values, \({\dot{\epsilon }}_{P}=5.6\times 1{0}^{-4}\,{{{\rm{s}}}}^{-1}\) in Fe, and 8.5 × 10−4 s−1 in W. The distance between Peierls valleys is λD = 2.31 Å in Fe, 2.6 Å in W. The attempt frequency was set to νD = 6.15 × 1013 s−1 in Fe and 1 × 1013 s−1 in W.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
