Abstract

RNAs engage diverse protein partners and localize to specific subcellular compartments, yet dissecting proteomes associated with low-abundance or dispersed RNA molecules remains a challenge. We present an enhanced hybridization-proximity labeling (HyPro) technology for in situ proteome profiling of endogenously expressed RNA microcompartments. We re-engineer the HyPro enzyme and optimize proximity biotinylation conditions to identify proteins associated with compact RNA-containing nuclear bodies, small pre-mRNA clusters, and individual transcripts. Applying this approach to pathogenic G4C2 repeat–containing C9orf72 RNAs, retained as single-molecule foci in the nuclei of amyotrophic lateral sclerosis (ALS) patient-derived pluripotent stem cells, we reveal extensive interactions with disease-linked paraspeckle markers and a specific set of pre-mRNA splicing factors. These findings highlight early RNA processing and localization defects in ALS that may contribute to this late-onset neurodegenerative disorder. Overall, HyPro provides a broadly applicable platform for mapping RNA-protein interactions, enabling insights into RNA biology and its dysregulation in disease.

Multiomic characterization of RNA microenvironments by oligonucleotide-mediated proximity-interactome mapping

Article 28 October 2024

Large-scale RNA-Seq mining reveals ciclopirox olamine induces TDP-43 cryptic exons

Article Open access 25 July 2025

ALS-linked TDP-43 mutations interfere with the recruitment of RNA recognition motifs to G-quadruplex RNA

Article Open access 12 April 2023

Introduction

RNA transcripts exist in crowded intracellular environments, engaging in interactions with diverse protein ligands^1,2,3,4,5. These molecular contacts are dynamically remodeled as RNAs are processed or transported to different cellular locations^6,7,8. Disease-associated mutations can disrupt the RNA-protein interactome, altering RNA processing, localization, and stability^9,10,11,12.

A prominent example of such deregulation is the genetic expansion of the simple GGGGCC (G4C2) repeat in the C9orf72 gene, which underlies many cases (C9) of amyotrophic lateral sclerosis (ALS) and frontotemporal dementia (FTD) – neurodegenerative disorders characterized by the progressive loss of motor and cortical neurons, respectively^13,14,15. This mutation gives rise to aberrant repeat-containing transcripts that tend to accumulate in the nucleus, either as individual RNA molecules or in small clusters^16,17,18. Earlier studies have used recombinant G4C2-containing transcripts to model C9orf72-linked pathologies^19,20,21,22. However, a systematic analysis of proteins associated with endogenous C9orf72 transcripts in C9-ALS/FTD patient cells – which could refine our understanding of the molecular mechanisms driving neurodegeneration – has been hindered by the lack of proteomics approaches applicable to low-abundance RNA targets in genetically unperturbed cells.

RNA-centric protein interactome discovery methods, such as those utilizing antisense oligonucleotide pull-down or RNase H enrichment of cross-linked endogenous ribonucleoprotein complexes, have been successfully applied to highly abundant RNAs, including the pre-ribosomal RNA 47S/45S, small nuclear RNA (snRNA) U1, and the long non-coding RNAs (lncRNAs) XIST and NORAD^23,24,25,26. Comparable sensitivity has been achieved using hybridization-based proximity labeling approaches, which enable the discovery of proteins neighboring unmodified RNA molecules of interest. One such method, O-MAP, has been recently used to analyze the proteomes associated with 47S/45S, snRNA 7SK, and lncRNA XIST²⁷. Similarly, we have developed a hybridization-proximity labeling (HyPro) technology, applying it to 47S/45S, the well-expressed lncRNA NEAT1, and the cancer-specific perinucleolar compartment (PNC)^28,29. The PNC, the smallest RNA-based entity analyzed by the HyPro-based proteomics (HyPro-MS) to date, still contains several dozen copies of the lncRNA PNCTR^28,29.

The ability to dissect protein interactomes of substantially smaller RNA-containing compartments could provide insights into C9-ALS/FTD mechanisms and facilitate a broader range of studies, including those focused on the mechanisms of transcription site-proximal RNA processing^30,31,32. Interestingly, newly synthesized protein-coding transcripts have been shown to transiently accumulate near their transcription sites, where they can complete splicing before being exported from the nucleus to the cytoplasm as mature mRNAs³³. The steady-state number of pre-mRNA molecules localized near transcription sites likely depends on promoter activity, RNA processing efficiency, and diffusion rates. However, published RNA-FISH analyses indicate that even for actively transcribed genes, such as ACTB (which encodes β-actin), the number of pre-mRNA molecules near a transcription site may be considerably smaller than the number of PNCTR molecules in the PNC³⁴. Analyzing the proteomes of such ribonucleoprotein (RNP) microcompartments – which we define as those containing < 10 RNA molecules – remains a major technical challenge.

With this in mind, we have developed an enhanced version of the HyPro technology by redesigning its key reagent, the recombinant HyPro enzyme, and introducing critical changes to the labeling procedure. We demonstrate that the improved method can refine our understanding of the perinucleolar compartment and provide insights into substantially smaller RNA-containing structures, such as the ACTB transcription site and endogenously expressed individual C9orf72 transcripts containing pathologically expanded G4C2 hexanucleotide repeats.

Results

Modified HyPro enzyme improves labeling of RNA-containing microcompartments

HyPro technology involves recruiting a proximity biotinylation domain (APEX2 derivative of APX peroxidase) to an RNA target of interest in fixed and permeabilized cells via a digoxigenin (DIG)-binding domain, which interacts with DIG-modified antisense oligonucleotide probes^28,35,36 (Fig. 1A). We reasoned that adapting this proximity labeling approach to RNA microcompartments would require enhancing the activity of the two-domain HyPro enzyme to ensure efficient labeling with a limited number of DIG-modified, target-specific oligonucleotides.

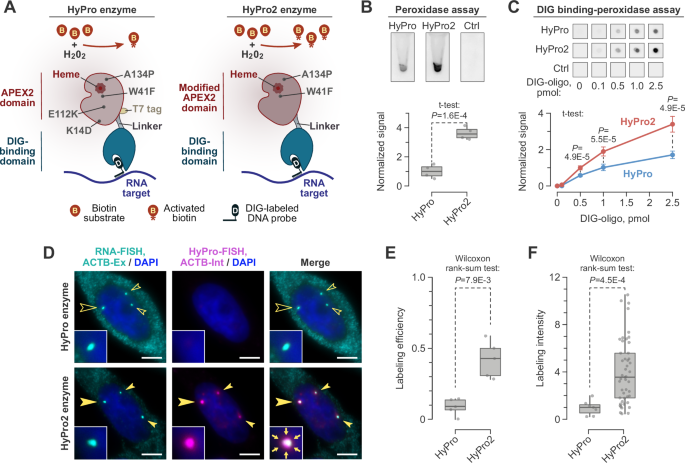

**Fig. 1: HyPro2 enzyme enables efficient labeling of an RNA-containing microcompartment.**

It has been noted that the K14D and E112K mutations introduced into the wild-type soybean ascorbate peroxidase (APX) sequence to generate its APEX and APEX2 derivatives – optimized for monomeric behavior – may reduce enzymatic activity due to less efficient heme incorporation^35,37. Since HyPro labeling is performed in vitro using a diluted solution of the HyPro enzyme, we hypothesized that reverting these mutations might enhance its activity without promoting multimerization. Introducing the D14K and K112E mutations and removing the N-terminal T7 tag present in the original construct (Fig. 1A) did not affect protein expression or solubility (Supplementary Fig. 1A). Size-exclusion chromatography showed that the modified enzyme was in fact, less prone to multimerization in vitro compared to its original counterpart (Supplementary Fig. 1B, C).

Notably, the modified enzyme exhibited consistently higher peroxidase activity than the original when tested at identical concentrations in solution (Fig. 1B). This improvement was also observed in peroxidase assays where the enzyme was recruited to immobilized DIG-modified probes through its DIG-binding domain (Fig. 1C). We refer to the modified enzyme as HyPro2 throughout this study.

To test whether HyPro2 improves proximity biotinylation of RNA microcompartments, we turned to the ACTB transcription site. We first estimated the number of ACTB transcripts associated with this compartment in HeLa cells using single-molecule RNA fluorescence in situ hybridization (RNA-FISH). ACTB-specific probe sets were designed to detect mature mRNAs and full-length or nearly full-length pre-mRNAs (24 antisense oligonucleotides annealing to the last and penultimate exons; ACTB-Ex), as well as all pre-mRNA transcripts (34 antisense oligonucleotides annealing to all introns; ACTB-Int) (Supplementary Fig. 2A and Supplementary Data 1).

The ACTB-Ex probe set identified numerous ACTB mRNA spots in the cytoplasm, which were typically negative for ACTB-Int staining (Supplementary Fig. 2A). In the nucleus, the ACTB-Ex probes revealed 2-3 RNA foci colocalizing with the ACTB-Int probes (Supplementary Fig. 2A). Given that HeLa cells tend to contain three complements of chromosome 7³⁸, which encodes ACTB, these nuclear foci likely correspond to clusters of newly synthesized RNAs near ACTB transcription sites. Using the mRNA spots (arrow in Supplementary Fig. 2A close-up) as single-molecule intensity standards, FISH-quant (v2)³⁹ analysis estimated a median of only 6 pre-mRNA molecules per ACTB transcription site.

As a control, we stained HeLa cells with non-repetitive and UC-repeat-specific probes against the lncRNA PNCTR (PNCTR-NR and PNCTR-UC, respectively; Supplementary Fig. 2B and Supplementary Data 1). The PNCTR-containing perinucleolar compartments (PNCs) were visibly larger than the nuclear ACTB foci (Supplementary Fig. 2B). FISH-quant analysis of these compartments, along with diffraction-limited spots occasionally observed nearby and likely corresponding to individual PNCTR molecules (arrow in Supplementary Fig. 2B close-up), suggested a median of > 100 PNCTR molecules per PNC, significantly exceeding the RNA occupancy at ACTB transcription sites (Supplementary Fig. 2C, D).

Importantly, when we co-stained ACTB transcription sites by RNA-FISH with ACTB-Ex probes and HyPro-FISH (where HyPro-deposited biotinylation marks are visualized by fluorescent streptavidin²⁸) with ACTB-Int probes, HyPro2 significantly outperformed the original enzyme (Fig. 1D–F). In particular, HyPro2 biotinylated a significantly larger fraction of RNA-FISH-positive transcription sites (Fig. 1E). Moreover, the intensity of biotinylated sites was significantly higher for HyPro2 compared to the original HyPro enzyme (Fig. 1F).

These results demonstrate that the modified HyPro enzyme significantly improves proximity labeling of a compartment containing just a few RNA molecules.

Optimized conditions limit the diffusion of activated biotin while maintaining labeling efficiency

Enhanced proximity labeling of ACTB transcription sites highlighted another challenge in adapting the HyPro technology to small compartments: a detectable spread of the biotin label beyond the compartment boundaries delineated by RNA-FISH (arrows in Fig. 1D close-up). This spread likely resulted from the diffusion of activated biotin after its release from the peroxidase domain⁴⁰. Given the small compartment size, such diffusion could substantially compromise labeling specificity by biotinylating a relatively large proportion of proteins not directly neighboring the RNA target.

The spread of biotin was also detectable when we proximity-biotinylated the PNC with the PNCTR-UC probe set and either the original HyPro or HyPro2, while simultaneously co-staining the compartment with the PNCTR-NR RNA-FISH probe (LVB samples in Fig. 2A, B). To address the diffusion issue, we first increased labeling buffer viscosity by adding 50% sucrose, as suggested previously (TSA-seq⁴⁰). While this approach successfully eliminated biotin diffusion, it caused a significant loss of HyPro and HyPro2 activity (sucrose samples in Fig. 2A, B and Fig. 2C, D).

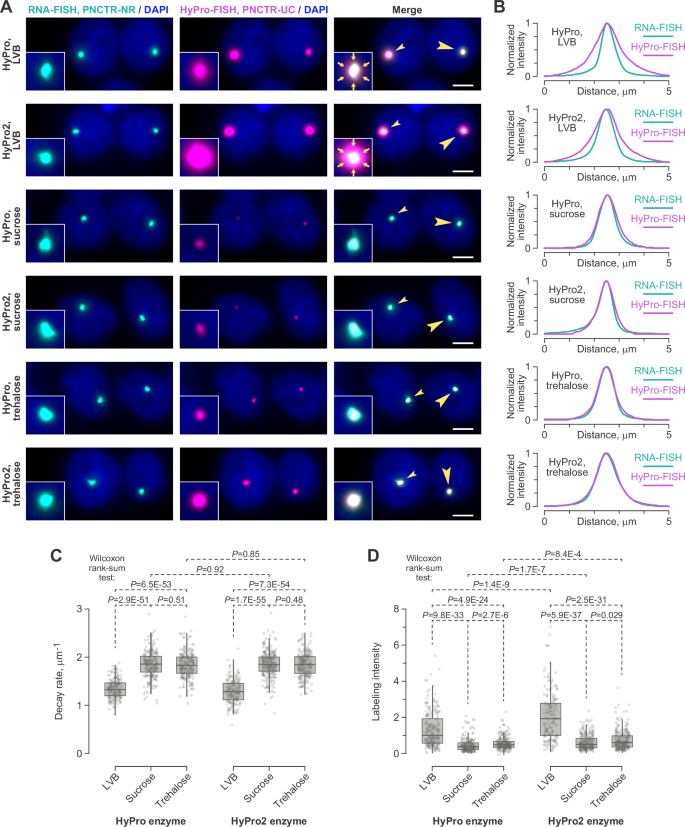

**Fig. 2: Trehalose-containing buffer suppresses biotin diffusion while maintaining relatively high activity of proximity-labeling enzymes.**

Trehalose, another compound known to increase solution viscosity⁴¹, proved to be a better alternative. Supplementing the labeling buffer with 50% trehalose, instead of sucrose, suppressed biotin diffusion with a significantly milder inhibitory effect on HyPro and HyPro2 activity (trehalose samples in Fig. 2A–D). Of note, HyPro2 gave rise to consistently stronger labeling compared to the original HyPro across all tested conditions, including those with trehalose-containing buffer (Fig. 2D).

While trehalose was less inhibitory than sucrose, we aimed to further enhance HyPro2 activity in the presence of trehalose to ensure efficient labeling of RNA microcompartments. Like other peroxidases, APX derivatives are heme-dependent enzymes. Although HyPro purifies from E. coli in a heme-bound form⁴², we wondered if supplementing the purified enzyme with additional heme might stimulate its activity. Indeed, pre-incubating HyPro and HyPro2 with the heme-related compound hemin significantly boosted their peroxidase activity in a concentration-dependent manner (Fig. 3A, B). Consistent with an earlier report⁴³, some background peroxidase activity was observed in negative control samples (Ctrl) pre-incubated with ≥ 20 μM hemin, but not at lower concentrations (Fig. 3A). Notably, HyPro2 retained its activity advantage over the original HyPro enzyme across the entire range of hemin concentrations (Fig. 3B).

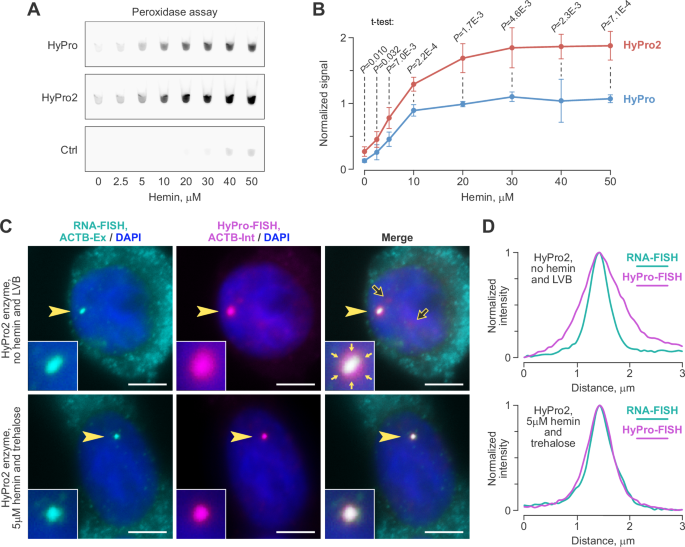

**Fig. 3: Pre-incubation with hemin increases proximity-labeling efficiency.**

These findings suggested the use of HyPro2 pre-incubated with < 20 μM hemin, along with the trehalose-containing buffer, for subsequent labeling experiments. A side-by-side comparison of proximity biotinylation patterns using HyPro2, with or without hemin pre-incubation (0, 5, and 15 μM), and either the low-viscosity buffer (LVB) or the trehalose-containing buffer, showed comparable labeling efficiency and intensity between the no-hemin/LVB and 5 μM hemin/trehalose conditions (Supplementary Fig. 3). The key advantage of 5 μM hemin/trehalose over no-hemin/LVB was the elimination of biotin spread beyond the RNA-FISH signal (Fig. 3C, D). Labeling efficiency and intensity further increased with 15-μM hemin/trehalose (Supplementary Fig. 3). However, this improvement was so pronounced that it became difficult to prevent over-saturation of ACTB transcription sites with biotin during the 1 min incubation period used throughout our study (Supplementary Fig. 3A). Interestingly, the nonspecific background staining occasionally observed in LVB was reduced under the 5 μM hemin/trehalose conditions (Fig. 3C), possibly due to the protein-stabilizing properties of trehalose⁴⁴.

This part of our work establishes optimized conditions for proximity biotinylation of RNA compartments, balancing efficient labeling with minimal signal diffusion.

Enhanced labeling protocol successfully maps proteomes of compact RNA compartments

To test the ability of the optimized protocol to uncover compartment-specific proteomes, we labeled PNCs and ACTB transcription sites by hybridizing fixed and permeabilized HeLa cells with the PNCTR-UC or ACTB-Int probes, using the HyPro2 enzyme with 5 μM hemin/trehalose during the proximity-labeling step. Label-free mass spectrometry analysis of the biotinylated samples (enhanced HyPro-MS) showed that the PNCTR-UC and ACTB-Int probes labeled distinct sets of proteins compared to each other and to the no-probe control (Ctrl) (Fig. 4A).

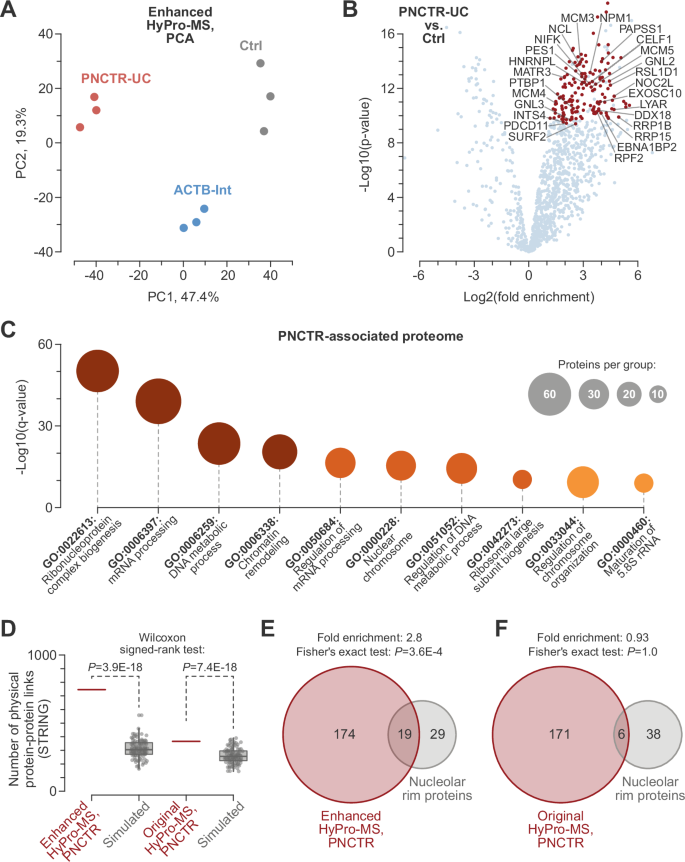

**Fig. 4: Enhanced HyPro-MS enables specific labeling of the PNCTR-proximal proteome.**

The PNCTR-proximal proteome included known markers and cellular neighbors of the perinucleolar compartment (PNC), including RNA-binding proteins PTBP1, CELF1, and HNRNPL and DNA-associated MCM-complex subunits^28,29,45 (Fig. 4B and Supplementary Data 2). Consistent with the PNC proximity to the nucleolus⁴⁵, we also detected a subset of nucleolus-enriched proteins (e.g., GNL3, EBNA1BP2, NIFK, and PDCD11; Fig. 4B). Keeping this in mind, we focused on proteins known to localize to the nucleus in our subsequent analyses (see “Methods” for details). Functional annotation of PNCTR-proximal nuclear proteome in Metascape⁴⁶ revealed significant enrichment of proteins involved in both general RNA and DNA metabolism and specific steps of ribosome biogenesis in the nucleolus (Fig. 4C and Supplementary Data 3).

We evaluated the labeling specificity of the enhanced procedure by comparing the new data with the PNCTR-proximal proteome mapped by the original version of HyPro-MS²⁸ (Fig. 4D–F). Given that many RNA-associated proteins can interact with each other⁴⁷, we reasoned that an increased HyPro-MS specificity should improve the detection of protein complexes. Indeed, STRING data⁴⁸ suggested that the 193 nuclear proteins identified by the enhanced PNCTR-UC HyPro-MS could form as many as 746 physical protein-protein interactions passing the recommended score > 0.7 cutoff (Fig. 4D). In comparison, only 366 such interactions were detected for the comparably sized nuclear proteome (177 proteins) identified by the original PNCTR-UC HyPro-MS using the same bioinformatics workflow (Fig. 4D).

Importantly, the number of interactions in both the enhanced and original shortlists was significantly greater compared to simulated proteomes, where the corresponding numbers of proteins were repeatedly sampled (n = 100) at random from the entire pool of mass-spec-detectable nuclear proteins. Yet, the enrichment of interacting protein pairs was noticeably more robust for the enhanced HyPro-MS (2.4-fold over the simulated median; P = 3.9E-18; two-sided Wilcoxon signed rank test) than for the original HyPro-MS (1.4-fold over the simulated median; P = 7.4E-18; two-sided Wilcoxon signed rank test) (Fig. 4D). Similar trends were observed when we used more relaxed ( > 0.4) or more stringent ( > 0.9) STRING score cutoffs (Supplementary Fig. 4A, B). Furthermore, the enhanced HyPro-MS fared strikingly better than its predecessor in identifying the interactions from the recently published RNA-aware protein-protein interactome (PPI) resource⁴⁷ (Supplementary Fig. 4C).

Of the several nucleolar sub-compartments, the outermost structure, known as the nucleolar rim⁴⁹, directly underlies the PNC located at the nucleolar periphery⁴⁵ (Supplementary Fig. 2D). Notably, the enhanced PNCTR-UC HyPro-MS proteome was significantly enriched for nucleolar rim-localized proteins (Fig. 4E). No such enrichment was detected amongst the original PNCTR-UC HyPro-MS data (Fig. 4F). Combined with the increased detection of protein-protein interactions (Fig. 4D and Supplementary Fig. 4), this points to a substantially improved ability of the enhanced HyPro-MS to identify immediate protein neighbors of a transcript of interest.

Inspection of the ACTB transcription site-proximal proteome (47 nuclear proteins; see “Methods” for details) revealed several factors involved in pre-mRNA splicing (e.g., DBR1, SF3A2, SNRNP70, SFSWAP, and USP39) and mRNA export from the nucleus to the cytoplasm (e.g., MAGOH, RANGAP1, SEC13, and several nucleoporins (NUPs)) (Fig. 5A and Supplementary Data 4). These observations were confirmed by Metascape (Fig. 5B and Supplementary Data 5). Interestingly, the disease-associated summary group “Papillary craniopharyngioma”, which was also enriched in the Metascape analysis, comprised member terms associated with different aspects of tumor biology and the “Transcription by RNA polymerase II” (GO:0006366) function (Supplementary Data 5). A notable example of this functional category was the transcription factor STAT3, which is involved in the regulation of genes associated with cytoskeletal dynamics⁵⁰ and contains binding sites in the ACTB-overlapping enhancer region GH07J005523 (https://www.genecards.org⁵¹;). Other examples included the STAT3 regulator RAC1⁵² and the modulators of RNA polymerase II activity MEN1/Menin and RPAP1^53,54,55.

**Fig. 5: Enhanced HyPro-MS identifies proteins associated with *ACTB* transcription sites.**

A surprising aspect of the ACTB transcription site-associated proteome was the abundance of nuclear pore-associated factors (Fig. 5A and Supplementary Data 5), including those known to regulate transcription (e.g., NUP62, NUP88, and SEC13) and those not previously implicated in this process (e.g., NUP43 and NUP155)^56,57,58,59. This contributed to a significantly higher than expected incidence of protein-protein interactions in the ACTB transcription site-associated proteome (Fig. 5C). To determine if the enrichment of nucleoporins might reflect the physical proximity of ACTB transcription sites to nuclear pores, we analyzed the distribution of these sites along the nuclear center-periphery axis in RNA-FISH-stained samples (see ACTB-Ex staining in Fig. 1D). This showed a significant bias of ACTB transcription sites toward the nuclear periphery, as compared to PNCTR/PNC RNA-FISH (Fig. 5D; see PNCTR-NR staining in Fig. 2A).

Taken together, these data suggest that the enhanced HyPro protocol can identify proteomes of compartments containing a limited number of RNA molecules with high specificity and sensitivity.

Enhanced HyPro technology is suitable for individual RNA molecules

To find out if the enhanced labeling procedure can be used to investigate even smaller RNA-containing compartments, we focused on endogenous C9orf72 transcripts with a C9-ALS/FTD-linked expansion of the G4C2 hexanucleotide repeat in the first intron (Supplementary Fig. 5A). We first characterized the expression of C9orf72 transcripts in induced pluripotent stem cells (iPSCs) derived from a healthy donor (C53) and a C9-ALS patient (DN19V4) containing ~638 copies of the G4C2 repeat in at least one C9orf72 allele⁶⁰ (Supplementary Fig. 5A–C). In line with earlier studies^14,61,62, the total levels of C9orf72 mRNA detected by reverse transcription-quantitative PCR (RT-qPCR) with exon-2- and exon-3-specific primers (MLO3996/MLO3997; Supplementary Fig. 5A) were somewhat lower in DN19V4 than in C53 (Supplementary Fig. 5D). Since the expanded G4C2 repeat has been reported to promote the retention of the first intron in C9orf72 transcripts initiated at the upstream promoter⁶³ (V1 and V3 isoforms in Supplementary Fig. 5A), we included RT-qPCR analyses with primers amplifying the intron-1-exon-2 junction (MLO3994/MLO3995; Supplementary Fig. 5A). This revealed a ~ 6-fold increase in the abundance of intron 1-containing C9orf72 transcripts in DN19V4 compared to C53 (Supplementary Fig. 5E).

We then compared C53 and DN19V4 iPSCs using dual-color RNA-FISH with probes against C9orf72 exons (C9-Ex; a mixture of 48 antisense oligonucleotides) and G4C2 repeats (G4C2; an 18-mer with up to ~ 212 annealing sites in the expanded hexanucleotide repeat in DN19V4) (Fig. 6A and Supplementary Data 1). The main type of RNA signals detected in the C53 cells was C9-Ex-positive, G4C2-negative foci, which were evenly distributed across the nucleus and the cytoplasm (Supplementary Fig. 6A). Conversely, a large fraction of C9-Ex-positive foci in DN19V4 iPSCs was also G4C2-positive (Supplementary Fig. 6A). These double-positive foci predominantly localized to the nucleus, although some were occasionally observed in the cytoplasm. The C9-Ex-positive/G4C2-negative foci detected in DN19V4 iPSCs potentially originated from the wild-type C9orf72 allele or represented productively spliced transcripts of the mutant C9orf72 allele. In both C53 and DN19V4 cells, the G4C2 probe additionally detected a few C9-Ex-negative foci, which likely corresponded to nonspecific transcripts and were less abundant than the C9orf72-specific signals (Supplementary Fig. 6A).

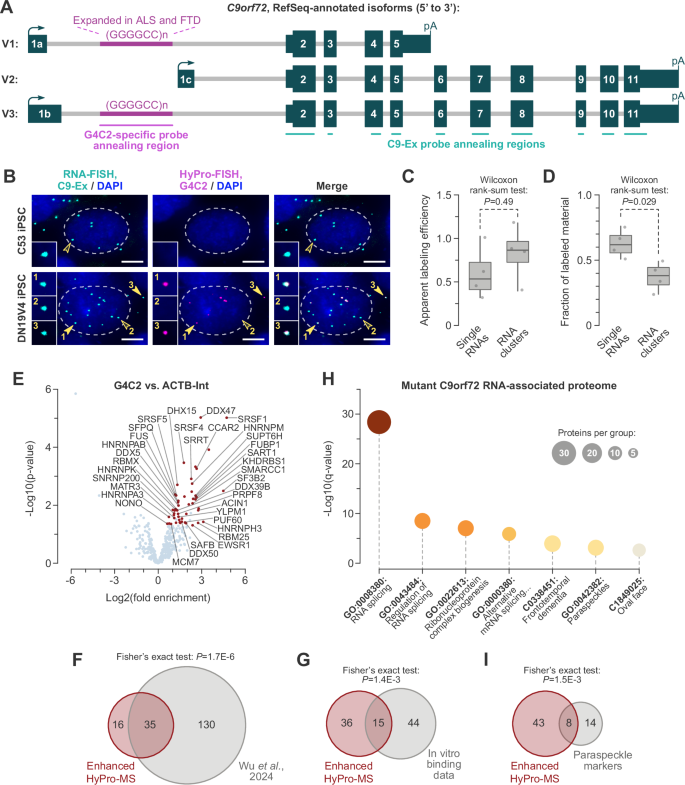

**Fig. 6: Enhanced HyPro-MS reveals the interactome of endogenous C9orf72 transcripts with expanded G4C2 repeats.**

Our FISH-quant analyses suggested that most C9-Ex-positive foci were single RNA molecules, regardless of the iPSC origin or the presence or absence of expanded G4C2 repeats in the transcripts (Supplementary Fig. 6B). Most of the remaining RNA-FISH foci contained two RNA molecules, with some of these signals potentially corresponding to C9orf72 transcription sites (Supplementary Fig. 6B). Thus, the endogenous expression of C9orf72 in iPSCs provided an excellent system for evaluating the sensitivity and biomedical utility of the enhanced HyPro technology (Supplementary Fig. 6C).

Combined staining of iPSCs with C9-Ex RNA-FISH and G4C2 HyPro-FISH using HyPro2 and the 5 μM hemin/trehalose conditions revealed robust biotinylation of a substantial fraction of C9-Ex-positive RNA signals in DN19V4 but not in C53 cells (Fig. 6B). Importantly, both single RNAs and small RNA clusters containing expanded G4C2 repeats were biotinylated with comparable efficiencies, with the single-RNA foci accounting for a majority of the total biotinylation signal (Fig. 6C, D).

Thus, the enhanced HyPro technique successfully biotinylates microcompartments containing single RNA molecules.

Enhanced HyPro-MS illuminates early molecular events linked to C9-ALS pathology

To identify the protein interactome of nucleus-retained G4C2 repeat-containing transcripts originating from the mutant C9orf72 allele, we analyzed DN19V4 iPSCs using enhanced HyPro-MS (using HyPro2 with 5 μM hemin/trehalose) with the G4C2 probe. The ACTB-Int probe set was used as a negative control to minimize contributions from nuclear proteins broadly associated with transcription sites. To control for nonspecific G4C2-labeling occasionally observed in healthy iPSCs (Fig. 6B), we additionally performed enhanced HyPro-MS with both G4C2 and ACTB-Int probes in the C53 iPSC line.

This approach identified 51 top-scoring candidates specifically associated with mutant C9orf72 transcripts in DN19V4 iPSC nuclei (Fig. 6E and Supplementary Data 6). These hits showed a robust overlap with proteins identified in a recent in vivo proximity-labeling study using a genetically engineered G4C2 repeat-containing “bait” (²⁰; Fig. 6F). We additionally compiled a list of proteins consistently interacting with synthetic G4C2 repeat-containing transcripts in published studies^{62,64,65,66,67} (Supplementary Data 7). Many of these proteins were also present in our G4C2 HyPro-MS data (Fig. 6G).

In line with the incompletely spliced nature of mutant C9orf72 transcripts (Supplementary Fig. 5E), Metascape analysis of the enhanced HyPro-MS hits revealed robust enrichment of RNA splicing-related functions (Fig. 6H and Supplementary Data 8). Another significantly enriched category included proteins linked to FTD and related neurodegenerative disorders, such as Pick’s disease, frontotemporal lobar degeneration (FTLD), and ALS (Fig. 6H and Supplementary Data 8).

Many proteins in this disease-associated summary group have been studied as components of membraneless nuclear bodies known as paraspeckles⁶⁸. “Paraspeckles” was also identified as an enriched Metascape summary group (Fig. 6H and Supplementary Data 8). Furthermore, proteins previously localized to paraspeckles using microscopy approaches^69,70 were significantly overrepresented in our shortlist (Fig. 6I). Importantly, several paraspeckle-associated proteins – including FUS, NONO, and SFPQ (Supplementary Data 6) – have been shown to associate with G4C2 repeat-containing transcripts in HEK293T overexpression models, as well as in fibroblasts and cerebellar cells from patients with C9orf72 mutations⁷¹. Furthermore, SFPQ has been directly implicated in the formation of G4C2 RNA foci⁷².

To find out if mutant C9orf72 transcripts interact with paraspeckle proteins in pluripotent stem cells, we selected FUS and SFPQ – two paraspeckle markers with well-established links to ALS/FTD (Fig. 6E and Supplementary Data 8^{69,71,72,73,74,75,76};) – for experimental validation. We co-stained DN19V4 iPSCs with RNA-FISH using G4C2 and C9-Ex probes, combined with immunofluorescence using FUS- and SFPQ-specific antibodies. Notably, C9orf72 transcripts with G4C2 hexanucleotide repeat expansion (HRE +) but not their normal counterparts (HRE-) frequently colocalized with or neighbored FUS- and SFPQ-positive protein densities dispersed across the nucleoplasm (Fig. 7A–D).

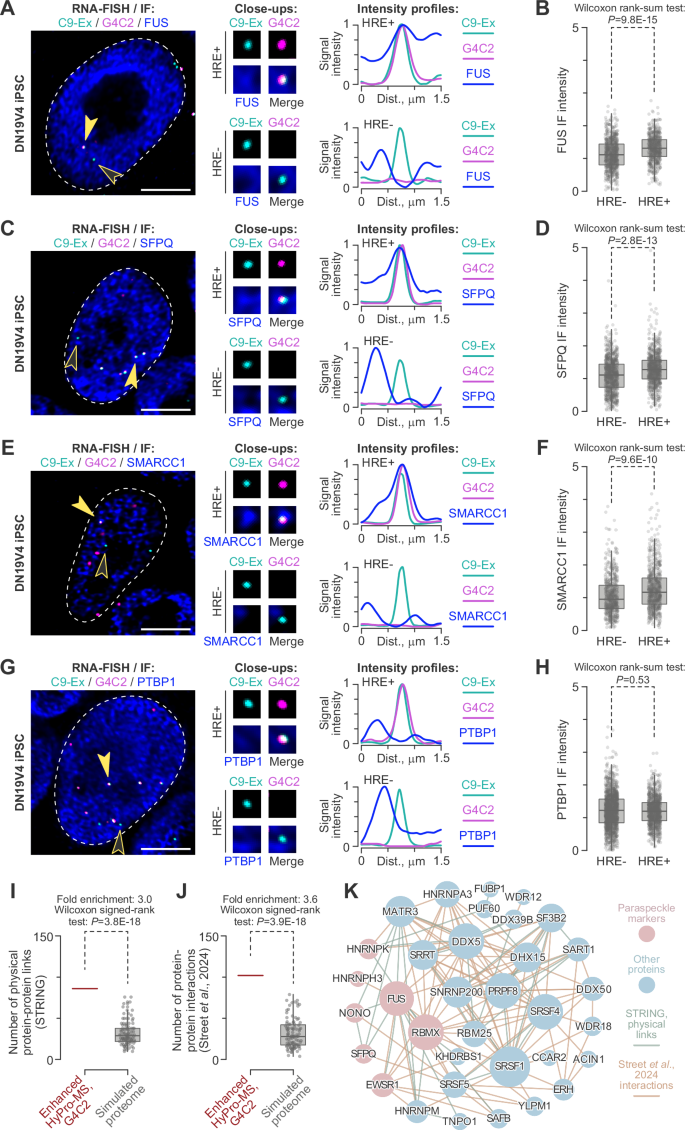

**Fig. 7: Mutant C9orf72 transcripts colocalize with protein complexes containing paraspeckle markers in C9-ALS iPSCs.**

Importantly, a similar distribution was observed for SMARCC1/BAF155 (Fig. 7E, F), another paraspeckle marker⁷⁰ (Supplementary Data 8), which – to the best of our knowledge – had not previously been linked to C9-ALS. No difference between the HRE + and HRE- transcripts was observed in their proximity to the RNA-binding protein PTBP1, a negative control absent from the mutant C9orf72 proteome shortlist (Fig. 7G, H). Both previously uncharacterized (SMARCC1) and characterized (SFPQ) interactors formed preferential contacts with HRE+ transcripts in two additional C9-ALS iPSC lines, AST2 and M211R2 (Supplementary Figs. 7–9). This preference was not observed for the negative controls, PTBP1 and OCT4/ POU5F1, a well-known nuclear iPSC marker (Supplementary Figs. 8 and 9).

Given the limited information on the interaction between HRE + C9orf72 transcripts and SMARCC1, we further investigated this relationship using an orthogonal biochemical approach. To facilitate this, we constructed two C9orf72 minigenes (miniC9): one lacking (miniC9-CS) and one containing (miniC9-G4C2x100) an expanded G4C2 repeat within the natural exon 1-intron 1-exon 2 context (Supplementary Fig. 10A). These constructs were expressed in wild-type C53 iPSCs, and the resulting minigene-specific transcripts were analyzed by formaldehyde crosslinking and RNA immunoprecipitation using a SMARCC1-specific antibody (Supplementary Fig. 10B). An antibody against the known HRE + C9orf72 RNA interactor SFPQ and non-immune IgG served as a positive and negative controls, respectively (Supplementary Fig. 10B, C). RT-qPCR analysis of the immunoprecipitated fractions revealed that HRE+ miniC9-G4C2 x 100 transcripts interacted more efficiently with SMARCC1 and SFPQ compared to their HRE- miniC9-CS counterparts (Supplementary Fig. 10D–F). This effect was evident regardless of the normalization method used (Supplementary Fig. 10D, E). Omission of reverse transcriptase confirmed the specificity of the assay in detecting RNA-protein interactions (Supplementary Fig. 10F).

Finally, to systematically understand the relationship between the paraspeckle proteins and the numerous pre-mRNA splicing factors associated with mutant C9orf72 transcripts (Fig. 6E, H), we examined protein-protein interactions within the enhanced G4C2 HyPro-MS shortlist using both STRING⁴⁸ and RNA-aware⁴⁷ physical protein-protein interaction data (Fig. 7I–K). This analysis identified a strongly interconnected network, with the number of edges significantly exceeding those observed in randomly sampled proteomes (Fig. 7I, J). Remarkably, high-density connections were detectable not only within the splicing and paraspeckle protein modules but also between these two modules. This included, e.g., contacts between the paraspeckle proteins FUS, SFPQ, NONO, and RBMX and the SR protein SRSF5; between FUS and the splicing helicase DHX15; and between RBMX and the SR proteins SRSF1 and SRSF4, the spliceosomal components SNRNP200 and PRPF8, as well as the nuclear speckle marker RBM25 (Fig. 7K).

Overall, these results reveal the protein interactome of mutant C9orf72 transcripts endogenously expressed in patient-derived pluripotent stem cells, highlighting the utility of the enhanced HyPro-MS for single-molecule studies and advancing our understanding of early molecular events in C9-ALS.

Discussion

The enhanced HyPro technology described in this study represents a significant advance in mapping protein interactomes of small, naturally occurring RNA-containing compartments and single RNA molecules. By modifying the previously designed HyPro enzyme to boost its peroxidase activity in vitro and optimizing labeling conditions with hemin and trehalose, we have lowered the detection limit of our method, enabling proteomics analyses of these challenging RNA targets. The improved performance of the HyPro2 enzyme is consistent with earlier observations suggesting that the K14D and E112K mutations can reduce APX activity under specific (though not all) experimental conditions, potentially by weakening heme incorporation as a result of decreased thermal stability of the enzyme³⁷.

The enhanced technology is similar to our original HyPro-labeling approach²⁸, in that it can be applied to genetically unperturbed samples with modest cell number requirements (0.5-1.0 × 10⁷ cells per enhanced HyPro-MS analysis). Compared to RNA-protein interactome mapping methods that rely on recombinant enzyme expression in living cells^77,78,79, both enhanced HyPro and its predecessor shorten experimental time, reduce toxicity and mislocalization artifacts associated with recombinant proteins, and broaden the range of biomedical applications.

What sets enhanced HyPro apart from earlier counterparts is its ability to rapidly generate a strong biotinylation signal with a limited number of target-specific probes, while efficiently limiting unspecific diffusion of activated biotin. For example, we used 34 intronic antisense oligonucleotides (ACTB-Int probe set; Supplementary Data 1), and only a 1 min incubation with the HyPro2 enzyme under 5 μM hemin/trehalose conditions, to specifically label ACTB transcription sites containing ~ 6 pre-mRNA molecules. Moreover, a 1 min incubation proved sufficient for robust detection of individual C9orf72 transcripts using a probe with a reasonable number (up to 212) of annealing sites in the expanded G4C2 repeat region. Increasing the hemin concentration at the pre-incubation step to 15 μM oversaturated the ACTB transcription site labeling signals (Supplementary Fig. 3). This suggests that our procedure can be readily adapted to investigate protein neighbors of relatively short RNAs or specific mRNA isoforms, where designing multiple probes per target would be impractical.

For comparison, the recently published O-MAP proteomics approach was tested for only highly abundant RNA targets: 47S, 7SK, and XIST²⁷. Interestingly, microscopy imaging of lower-abundance RNAs (e.g., transgenic transcripts expressed from strong eukaryotic promoters or endogenous lncRNA Kcnq1ot1 and repeat-containing pre-mRNA WDR7) using O-MAP biotinylation required up to 120 min-long proximity-labeling reactions, using up to 200 target-specific probes and showing no evidence of single RNA molecule detection under these conditions²⁷. This points to substantially greater sensitivity of enhanced HyPro-labeling compared to O-MAP. Moreover, the reliance of O-MAP on a low-viscosity labeling buffer (1 × PBS with 0.1% Tween-20), combined with extended reaction times, can result in unacceptably high background signals for microcompartments containing a limited number of RNA molecules.

We directly demonstrate that the enhanced HyPro technology can dissect protein interactomes of RNA compartments of varying sizes and complexities. Our proof-of-concept analyses identify both known and additional protein interactors, underscoring the potential of this approach for biomedical discovery. For instance, enhanced HyPro-MS successfully identified classical PNC markers PTBP1 and CELF1⁴⁵, as well as PNC-associated proteins, such as HNRNPL and MCM-complex subunits²⁸ (Fig. 4B). The newly mapped PNCTR interactome further included nucleolar rim proteins (Fig. 4B, E), which are expected to neighbor the PNC in the cell (Supplementary Fig. 2D⁴⁵;). Notably, PNCTR analysis using the original HyPro method²⁸ did not detect CELF1 or the nucleolar rim signature (Fig. 4F), likely due to the “dilution” of immediate PNCTR neighbors by diffusive labeling of a more distant proteome in the low-viscosity buffer. Furthermore, proteomes identified by enhanced HyPro-MS were strongly enriched for protein-protein interactions (Figs. 4D, 7I, J, and Supplementary Fig. 4), a hallmark of RNA-associated protein networks⁴⁷.

The identification of splicing and transport factors in the ACTB transcription site-associated proteome (Fig. 5A, B and Supplementary Data 5) reinforces the notion of transcription site-proximal RNA processing in preparation for nucleocytoplasmic export^30,31,32,33. Moreover, the association of ACTB transcription sites with nucleoporins suggests a degree of spatial coordination between RNA polymerase II transcription and nuclear export. This effect could result from (1) the physical proximity of the ACTB transcription site to a nuclear pore or (2) the recruitment of nuclear pore proteins to the ACTB transcription site as part of their non-canonical nucleoplasmic functions^56,57,58,59. While future studies will be needed to distinguish between these possibilities, the preferential localization of ACTB transcription sites to the nuclear periphery (Fig. 5D) is consistent with the first scenario.

Our data suggest that, in C9-ALS patient-derived iPSCs, the mutant C9orf72 allele with a genetically expanded G4C2 repeat gives rise to aberrantly spliced mRNA products. Evidence for bona fide retention of the G4C2-encoding intron 1 in these transcripts (Supplementary Fig. 5E), combined with their predominantly nuclear localization (Fig. 6B and Supplementary Fig. 6A), suggests that these transcripts are distinct from the alternative exon-1 isoforms recently identified in the cytoplasm of C9-ALS motor neurons⁸⁰. Consistent with earlier studies¹⁶, we demonstrate that the nuclear foci formed by G4C2 repeat-containing C9orf72 transcripts typically contain one RNA molecule (Supplementary Fig. 6).

Notably, most of the signal in our enhanced HyPro experiments corresponds to these single-molecule foci (Fig. 6D). By capturing RNA-binding proteins and nuclear neighbors specifically associated with these microcompartments in C9-ALS iPSCs, our results shed light on molecular mechanisms that may underlie early RNA processing and localization defects, occurring long before the onset of neuronal degeneration. In particular, we detect extensive contacts between mutant C9orf72 transcripts and nuclear proteins previously implicated in ALS/FTD pathology, including paraspeckle markers and pre-mRNA splicing factors (Fig. 6H, I and Supplementary Data 8). Notably, mutant C9orf72 transcripts have been shown to colocalize with a subset of paraspeckle-specific proteins in patient-derived fibroblasts and cerebellar cells^71,72. A more recent study, also conducted in differentiated cells, identified an association between G4C2-containing transcripts and nuclear speckles²⁰, which neighbor paraspeckles in cells containing both types of these nuclear compartments⁶⁸.

Our work extends these observations by demonstrating that naturally expressed C9orf72 transcripts containing expanded G4C2 repeats come into contact with paraspeckle markers – including SMARCC1/BAF155, a SWI/SNF chromatin remodeling complex component⁷⁰ – already in pluripotent stem cells (Fig. 7A–H). Interestingly, these cells do not assemble bona fide paraspeckles and feature a distinctive nuclear speckle system^81,82,83. The analysis of the protein-protein interaction network associated with mutant C9orf72 transcripts (Fig. 7I–K) suggests that, in this biological context, paraspeckle proteins can form complexes with pre-mRNA splicing factors and/or pluripotent stem cell-specific nuclear speckles. Future work investigating these possibilities could improve our understanding of molecular mechanisms at early, pre-symptomatic stages of ALS, potentially informing therapeutic strategies aimed at intervening before the clinical onset of the disease.

In conclusion, the enhanced HyPro technology enables sensitive, high-specificity profiling of protein interactomes of RNA-containing microcompartments and individual RNA molecules. We believe this tool has the potential to advance studies of diverse RNA-mediated processes in both basic and translational research.

Methods

Ethics statement

This study complies with international, national, and institutional ethical regulations. Work with human iPSC lines was approved by the UK National Research Ethics Service (REC reference 14/EM/1088). All iPSC lines used in this study were fully anonymized.

Cell culture

HeLa cells (ATCC CCL-2) were maintained in a humidified incubator at 37 °C with 5% CO₂ in DMEM medium containing 4.5 g/L glucose, GlutaMAX™, and 110 mg/L sodium pyruvate (Thermo Fisher Scientific, cat# 11360070). The medium was supplemented with 10% fetal bovine serum (FBS; HyClone, cat# SV30160.03) and 100 units/ml Penicillin-Streptomycin (PenStrep; Thermo Fisher Scientific, cat# 15140122). For passaging, cells were washed with 1 × PBS and dissociated using 0.05% Trypsin-EDTA (Thermo Fisher Scientific, cat# 15400054) for 5 min at 37 °C.

Human induced pluripotent stem cells (iPSCs) derived from a healthy donor (C53)⁸⁴ or C9-ALS patients (DN19V4, AST2, and M211R2)⁶⁰ were cultured in a humidified incubator at 37 °C with 5% CO₂, in Essential 8 medium (Thermo Fisher Scientific, cat# A1517001) supplemented with 100 units/ml PenStrep, on plates coated with 1 µg/cm² Vitronectin-N (VTN-N; Thermo Fisher Scientific, cat# A14700). For passaging, cells were washed with DPBS (without calcium or magnesium; Thermo Fisher Scientific, cat# 14190094), incubated with 0.5 mM EDTA (Thermo Fisher Scientific, cat# 15575020) for 7 min at room temperature, and gently triturated in Essential 8 medium. Both HeLa cells and iPSCs displayed characteristic morphologies. iPSCs were further authenticated by assessing OCT4 expression and the G4C2 repeat expansion status in the C9orf72 locus.

In C9orf72 minigene transfection experiments, C53 cells were dissociated with Accutase (Thermo Fisher Scientific, cat# 00-4555-56) for 5 min at 37 °C, and the single-cell suspension (0.9-1.2 × 10⁶ cells in total) was seeded into 10 cm dishes. On the following day, the cells were transfected with the appropriate constructs using Lipofectamine Stem Transfection Reagent (Thermo Fisher Scientific, cat# STEM00008).

DNA constructs

DNA fragments used for cloning were amplified using either KAPA HiFi HotStart DNA Polymerase (Roche Diagnostics, cat# KK2502) or Platinum SuperFi II DNA Polymerase (Thermo Fisher Scientific, cat# 12361010). All restriction enzymes and T4 DNA Ligase (NEB, cat# M0202S) were from New England Biolabs. We used TOP10 E. coli (Thermo Fisher Scientific, cat# C404003) for routine cloning steps and either Stbl3 (Thermo Fisher Scientific, cat# C737303) or Stable (NEB, cat# C3040I) strains when dealing with repeat-containing constructs. Both pML752 (miniC9-CS) and pML753 (miniC9-G4C2x100) constructs, described below, were propagated in NEB Stable E. coli for consistency.

To facilitate stable maintenance of expanded repeats⁸⁵, we first inverted the origin of replication in the pEM157 cloning vector⁸⁶ using NEBuilder® HiFi DNA Assembly Master Mix (NEB, cat# E2621S) and the following primer pairs:

MLO4487, TCCACTGAGCGTCAGACCCCAGGAACCGTAAAAAGGCC and

MLO4488, CAAAAGGCCAGCAAAAGGCCGTAGAAAAGATCAAAGGATCTTC; and

MLO4489, GGCCTTTTGCTGGCCTTTTG and

MLO4490, GGGGTCTGACGCTCAGTG.

We then cloned a fragment of the C9orf72 gene containing the alternative exon 1, intron 1 and constitutive exon 2 sequences into the inverted-origin pML679 vector backbone in two consecutive steps: (1) The 5’ portion of the fragment was amplified from C53 iPSC genomic DNA using primers MLO4255 (GCTAGAATTCTGCGTCAAACAGCGACAA) and MLO4175 (GCTAACTAGTGACCTCCCTCCTGTTTCTGA), and inserted into pML679 at the EcoRI-SpeI sites. (2) The 3’ portion was amplified from the same genomic DNA using primers MLO4176 (GCTAACTAGTTGGGAATACTGCGGGTCTA) and MLO4177 (GCTACAATTGGAGTGTGGTTGGCAAGAAAAG), and inserted at the SpeI-MfeI sites. The wild-type (non-expanded) G4C2 sequences were then replaced with MluI-PstI cloning sites using the KLD site-directed mutagenesis with T4 DNA ligase, T4 Polynucleotide Kinase (NEB, cat# M0201S) and DpnI (NEB, cat# R0176S), resulting in pML752 (miniC9-CS).

The G4C2x100 sequence was generated using the RepEx-PCR method⁸⁵ with MLO4437 (/5Phos/GGGGCCGGGGCCGGGGCC) and MLO4438 (/5Phos/GGCCCCGGCCCCGGCCCC) primers. The repeat fragment was first cloned into the pGEM-T Easy vector (Promega), amplified using MLO4485 (GGTCTTCACGCGTGCGACGTCGGGCCCAATTC) and MLO4486 (GAGACGCTGCAGTGGATGCATAGCTTGAGTATTCT) primers. The repeat-containing fragment was then subcloned into pML752 (miniC9-CS) at MluI-PstI, giving rise to pML753 (miniC9-G4C4x100). Sequences of both pML752 and pML753 were verified by whole plasmid sequencing (Full Circle Labs).

Repeat-primed PCR genotyping

Genomic DNA was extracted from iPSCs using the GF-1 Tissue DNA Extraction Kit (Vivantis, GF-TD-050). Repeat-primed PCR was performed based on a previous study¹⁴. Each 15 μl reaction contained 1 × SuperFi II Buffer, 1 unit of Platinum SuperFi II DNA Polymerase (Thermo Fisher Scientific, cat# 12361010), 0.2 mM each of 7-deaza-dGTP (New England Biolabs, cat# N0445S), dATP, dCTP, and dTTP (Roche, cat# 11969064001), 1 M betaine (Sigma-Aldrich, cat# B0300-1VL), 5% DMSO (Sigma-Aldrich, cat# D2650-100ML), 100 ng of genomic DNA, and 0.6 μM of each of the following primers:

MLO3654, CAGGAAACAGCTATGACC;

MLO3655, CAGGAAACAGCTATGACCGGGCCCGCCCCGACCACGCCCCGGCCCCGGCCCCGG;

MLO3683, /56-FAM/TGTAAAACGACGGCCAGTCAAGGAGGGAAACAACCGCAGCC.

The PCR was carried out using a Bio-Rad C1000 Touch Thermal Cycler, with the ramp rate set to 0.5 °C/second. After an initial denaturation step at 98 °C for 10 min, a two-stage thermocycling program was used. In the first stage, the denaturation step was at 97 °C for 35 s, the primer annealing step was at 65 °C for 2 min, and the elongation step was at 68 °C for 8 min. This stage was run for 10 cycles. In the second stage, the denaturation and annealing steps were the same as in the first stage, but the elongation step was extended to 68 °C for 8 min and 20 s, with an additional 20 s added for each successive cycle. This stage was run for 25 cycles. A final elongation step was carried out at 68 °C for 7 min.

The PCR products were treated with ExoSAP-IT (Thermo Fisher Scientific, cat# 78250.40.UL) as recommended, followed by capillary-based fragment analysis by Genewiz.

Reverse transcription-quantitative PCR (RT-qPCR)

Total RNA was extracted from iPSCs using the EZ-10 DNAaway RNA Mini-Preps Kit (Bio Basic, cat# BS88136) as recommended, and reverse-transcribed in 20 μl reactions. Prior to reverse transcription (RT), traces of genomic DNA were removed by treating 600 ng of total RNA with 1 μl of RQ1 RNase-Free DNase (Promega, cat# M6101) in a 9 μl reaction, which also contained RQ1 DNase buffer and 1 μl of murine RNase inhibitor (New England Biolabs, cat# M0314; 40 units/μl). The reaction was incubated at 37 °C for 45 min. RQ1 DNase was inactivated by adding 1 μl of the Stop Solution from the RQ1 kit and incubating the mixture at 65 °C for 10 min. The reaction was then placed on ice and supplemented with either 1 μl of 100 μM random decamer (N10) or 1 μl of a mixture containing 4 μM each of the following C9orf72 and YWHAZ sense strand-specific RT primers:

MLO4000, TTATCAGGTCTTTTCTTGTT;

MLO4002, CACCAGTCGCTAGAGG;

MLO4035, GTAGCTGCTAATAAAGGTGA;

MLO4004, GGGAGTTCAGAATCTCATA;

followed by incubation at 70 °C for 10 minutes and subsequent cooling on ice.

Next, 1 × buffer from the SuperScript IV kit, 10 mM DTT, 1 mM of each of the four dNTPs, 1 μl murine RNase inhibitor, and 1 μl of SuperScript IV Reverse Transcriptase (Thermo Fisher Scientific, cat# 18090200; 200 units/μl) were added to the final volume of 20 μl. In RT-minus controls, reverse transcriptase was replaced with nuclease-free water (Thermo Fisher Scientific, cat# AM9939). cDNA was synthesized by incubating the reaction at 50 °C for 40 minutes, followed by 70 °C for 10 min. The samples were then diluted 10-fold with 180 μl of nuclease-free water and stored at − 80 °C until needed.

Quantitative PCR (qPCR) was performed in 20 μl reactions containing 10 μl of qPCRBIO SyGreen Master Mix Lo-ROX (PCR Biosystems, cat# PB20.11-51), 5 μl of diluted cDNA, and 100 nM of each primer. The following primer pairs were used:

C9orf72 expression analysis of N10-primed cDNA:

MLO3996, CGCAGCACATATGGACTATCA;

MLO3997, TTCCATTCTCTCTGTGCCTTC;

C9orf72 intron 1 retention analysis of cDNA primed by gene-specific RT primers:

MLO3994, CATTTGGGGTTTTGATGGAT;

MLO3995, GGTGATTTGCCACTTAAAGCA;

YWHAZ housekeeping gene expression analysis of cDNA primed by either N10 or gene-specific primers:

MLO3668, ACCGTTACTTGGCTGAGGTTGC;

MLO3669, CCCAGTCTGATAGGATGTGTTGG.

All reactions were performed on a LightCycler 96 Instrument (Roche). The thermocycling program included an initial DNA denaturation step at 95 °C for 120 s, followed by 45 cycles of 95 °C for 5 s and 60 °C for 20 s. Data were analyzed using LightCycler 96 software (Roche; version 1.1.0.1320).

Formaldehyde-RNA immunoprecipitation assays

We used formaldehyde fixation–immunoprecipitation approaches described in earlier studies^87,88 with modifications. C53 iPSCs were transfected with minigene constructs in 10-cm dishes, cultured for 24 h, fixed with 1% formaldehyde (Thermo Fisher Scientific, cat# 28909) in 1 × PBS for 10 min, and quenched with 125 mM glycine for 5 min at room temperature.

Cells were then washed twice with ice-cold 1× PBS, lysed in 300 μl of the lysis buffer (20 mM Tris-HCl, 150 mM NaCl, 10 mM EDTA, 1% NP-40, 0.1% SDS, 0.5% sodium deoxycholate, 1 × protease inhibitor cocktail [Merck, cat# 04693132001], and 1 mM PMSF), and scraped into microfuge tubes. Lysates were sonicated using a Diagenode Bioruptor Plus for 10 cycles of 30 s on and 30 s off at high power. Sonicated lysates were centrifuged at 15,000 × g at 4 °C for 10 min, and the supernatants were transferred to new tubes.

Protein G Dynabeads (Thermo Fisher Scientific, cat# 10003D) were pre-washed twice with 1 × PBS containing 0.1% Tween-20 and used for both lysate pre-clearing and immunoprecipitation steps. Lysates were pre-cleared by incubating them with the washed Protein G Dynabeads (0.3 mg per sample from each 10-cm dish) for 30 minutes at 4 °C. Beads were pelleted using a magnetic rack (Thermo Fisher Scientific, cat# 12321D), and the supernatants were transferred to new microfuge tubes.

For the immunoprecipitation step, 0.75 mg of washed Protein G Dynabeads were incubated with 6 μg of rabbit anti-SMARCC1 (Abcam, cat# ab172638; RRID: AB_3697426), rabbit anti-SFPQ (Abcam, cat# 38148; RRID:AB_945424), or non-immune rabbit IgG isotype control antibodies (Thermo Fisher Scientific, cat# 10500 C) for 1 h at 4 °C with rotation. The antibody-loaded beads were collected using the magnetic rack and washed twice with 1 × PBS containing 0.1% Tween-20.

Small aliquots (5%) of pre-cleared lysates were set aside as input controls. The remaining lysate was diluted with 4 volumes of 20 mM Tris-HCl, pH 7.5, 150 mM NaCl, and 5 mM EDTA and incubated with the antibody-loaded beads overnight at 4 °C with gentle rotation. Beads were then collected using the magnetic rack, washed twice with the original lysis buffer and twice with a high-salt buffer (20 mM Tris-HCl, pH 7.5, 500 mM NaCl, 5 mM EDTA, 0.5% sodium deoxycholate, 1% NP-40, 0.1% SDS, 1 mM DTT, 1 × protease inhibitor cocktail, and 1 mM PMSF), and resuspended in 106 µl of 20 mM Tris-HCl, pH 7.5.

Beads were then treated with 3 µl Turbo DNase (Thermo Fisher Scientific, cat# AM2238) and 1 µl recombinant RNase inhibitor (NEB, cat# M0314L) at 37 °C for 30 min. DNA digestion was stopped by adding 3.6 µl of 500 mM EDTA. Crosslinks were reversed by adding 4.8 µl of 5 M NaCl and 1.2 µl of 10% SDS, followed by incubation at 70 °C for 1 h. Subsequently, 6 µl of ~ 20 mg/ml Proteinase K (Thermo Fisher Scientific, cat# 10181030) was added, and the suspension was incubated at 55 °C for 30 min. Immunoprecipitated RNAs were extracted using Trizol-LS (Thermo Fisher Scientific, cat# 10296010) and purified with the Zymo RNA Clean & Concentrator kit (Cambridge Bioscience, cat# R1016), as recommended.

The purified RNAs were reverse-transcribed and analyzed by qPCR as described above, using C9mini-specific primers (MLO357: GCTACCGGACTCAGATCTCG and MLO4499: AGCAAGTAGTGGGGAGAGAGG) and Neo-specific primers (MLO851: TGGATTCATCGACTGTGGCC and MLO852: CGGTCATTTCGAACCCCAGA). MiniC9 RT-qPCR signals were normalized using the ΔCt method to either Neo marker mRNA levels (Supplementary Fig. 10D–E) or to minigene-specific Ct averages across all RT + pull-down samples, including non-immune IgG, anti-SMARCC1, and anti-SFPQ immunoprecipitations (Supplementary Fig. 10F). In Supplementary Fig. 10D, data were further normalized to the non-immune IgG control, while in Supplementary Fig. 10E, additional normalization was performed using input samples collected prior to immunoprecipitation.

Expression and purification of HyPro and HyPro2 enzymes

The pML625 construct for HyPro2 expression in bacteria was derived from the HyPro expression plasmid pML433^28,42 (Addgene, #177190). To generate this construct, two amino acid positions in the APEX2 domain were reverted to the original soybean ascorbate peroxidase (APX) sequence (D14K and K112E) by stepwise QuikChange mutagenesis with KAPA HiFi DNA polymerase (Roche Diagnostics, cat# KK2101) and the following primers:

MLO3802, GTGGAATGGCACCTCTGGGCCACCTGTTAC;

MLO3803, GTAACAGGTGGCCCAGAGGTGCCATTCCAC;

MLO3804, CTTTTTGGCCTTTTCAACTGCTTTCTGATAGTCTGCGCTGACAG;

MLO3805, CTGTCAGCGCAGACTATCAGAAAGCAGTTGAAAAGGCCAAAAAG.

We additionally removed the N-terminal T7 expression tag present in the original HyPro enzyme using the following primers:

MLO2541, GTTTAACTTTAAGAAGGAGATATAGAATTCATGATTCCTCTGT;

MLO2542, ACAGAGGAATCATGAATTCTATATCTCCTTCTTAAAGTTAAAC.

SoluBL21 E. coli cells (Amsbio), transformed with either pML433 or pML625, were grown overnight in LB broth (VWR) containing 25 μg/ml kanamycin at 37 °C with shaking at 250 rpm. Four milliliters of the overnight culture were diluted into 600 ml of fresh LB broth containing 25 μg/ml kanamycin, and incubation was continued in a 2-liter flask at 37 °C with shaking until the culture reached an OD600 of 0.6 (~ 3 h). The cultures were then chilled on ice for 10 min, supplemented with 1 mM isopropyl β-D-1-thiogalactopyranoside (IPTG, Promega), and shaken for 24 h at 25 °C to express the HyPro and HyPro2 proteins.

Cells were harvested by centrifugation at 10,000 × g for 10 minutes at 4 °C. The bacterial pellet was resuspended in 45 ml of BugBuster protein extraction reagent (Merck Millipore) supplemented with 1500 units/ml rLysozyme (Merck Millipore) and 25 units/ml benzonase (Merck Millipore) and incubated at room temperature for 30 min with constant rotation. The lysate was clarified by centrifugation at 16,000 × g for 20 min at 4 °C.

The supernatant was filtered through a 0.45 µm low-protein-binding syringe filter and loaded onto two sequentially connected 1 ml HisTrap FF Crude Columns (GE Healthcare) pre-equilibrated with buffer A (20 mM Tris, pH 8.0, 100 mM NaCl, 25 mM imidazole, and 14 mM β-mercaptoethanol (β-ME)). The column was washed with 20 ml of buffer A, and proteins were step-eluted with 50% buffer B (20 mM Tris, pH 8.0, 100 mM NaCl, 500 mM imidazole, and 14 mM β-ME).

The eluted fractions were then loaded onto a HiLoad 26/60 Superdex 75 column (GE Healthcare) equilibrated with buffer C (20 mM Tris, pH 8.0, 100 mM NaCl, and 1 mM DTT). Protein elution was monitored by UV absorbance at 280 nm, and protein concentrations in the fractions were measured using a Pierce BCA Kit (Thermo Fisher Scientific, cat# 23225) as recommended. Fractions containing the highest concentrations of HyPro and HyPro2 and showing no major contaminating protein bands on Coomassie R-250-stained SDS-PAGE gels were pooled, aliquoted, snap-frozen in liquid nitrogen, and stored at −80 °C for up to one year.

Peroxidase activity assays

To assess the peroxidase activity of HyPro and HyPro2 enzymes, 1 µl of 2.7 µg/µl protein sample was mixed with 10 µl of reconstituted Enhanced Chemiluminescence (ECL) substrate (Thermo Fisher Scientific, cat# 32109) in thin-wall 0.2 ml PCR tubes (Axygen, cat# AX-PCR-0208-CP-C-CS). The mixture was incubated for 1 min and subsequently imaged using an Odyssey FC system (LI-COR). Bovine serum albumin (BSA) served as a negative control. In some experiments, proteins were pre-incubated with 0–50 µM hemin-HCl (Sigma-Aldrich, cat# H9039-1G) for 10 minutes at room temperature before assaying their activity.

To evaluate both digoxigenin binding and peroxidase activities of HyPro and HyPro2, serial dilutions of digoxigenin-labeled PNCTR-UC oligonucleotides (Supplementary Data 1; and see below) were spotted onto a 0.45 μm nitrocellulose membrane (Sigma-Aldrich, cat# GE10600016) and UV-crosslinked at 120 mJ/cm² using a Stratalinker. The membrane was rinsed with 1 × TBST buffer (20 mM Tris-HCl, pH 7.6, 150 mM NaCl, and 0.2% Tween 20), blocked with 1 × TBST containing 5% BSA at room temperature for 1 hour, and then incubated with HyPro or HyPro2 in 1 × TBST containing 1% BSA at room temperature for 1 hour. The membrane was finally washed three times with 1 × TBST, soaked in reconstituted Immobilon ECL reagent (Millipore, cat# WBKLS0500), and imaged using an Odyssey FC system (LI-COR).

DNA probes for RNA-FISH and hybridization-proximity labeling

DNA oligonucleotide probe sets (Supplementary Data 1) were designed using the Stellaris® probe designer program (LGC Biosearch Technologies, v4.2). For RNA-FISH experiments, we typically used Quasar 570- or Quasar 670-labeled probe sets from Biosearch Technologies. The G4C2-specific probe was ordered from IDT with either the /3AlexF488N/ or the /3AlexF647N/ modification.

For hybridization-proximity labeling and some RNA-FISH experiments, unmodified oligonucleotides purchased from IDT were labeled using a 2nd-generation DIG Oligonucleotide 3′-End Labeling Kit (Sigma-Aldrich; cat# 3353575910) to yield 5 µM digoxigenin-labeled mixtures. Some oligonucleotides, including the repeat-specific PNCTR-UC and G4C2 probes (Supplementary Data 1), were ordered from IDT with a 3’-terminal digoxigenin modification (/3Dig_N/).

RNA-FISH and immunofluorescence

Cells grown on 18 mm coverslips (VWR International, cat# HECH1015/18) were rinsed once with 1 × PBS and fixed with 4% formaldehyde (ThermoFisher Scientific; cat# 28908) for 15 min at room temperature. The coverslips were then washed three times with 1 × PBS for 5 min each, permeabilized with 70% ethanol for 1 h at room temperature or overnight at 4 °C, and rinsed again with 1 × PBS.

For experiments combining RNA-FISH with immunofluorescence, fixed and permeabilized cells were blocked with IF blocking buffer (1 × PBS supplemented with 1% BSA, 0.2% Tween-20, and 20 units/ml murine RNase inhibitor) for 30 min at room temperature. The cells were then incubated with an appropriate primary antibody diluted in IF blocking buffer for 1 hour at room temperature or overnight at 4 °C. We used the following primary antibodies: rabbit anti-FUS (Proteintech, cat# 11570-1-AP; RRID:AB_2247082; 1:200 dilution), rabbit anti-OCT4 (Abcam, cat# ab19857; RRID: AB_445175; 1:500 dilution), rabbit anti-PTBP1 (Abcam, cat# ab133734; RRID:AB_2814646; 1:250 dilution), rabbit anti-SFPQ (Abcam, cat# ab38148; RRID:AB_945424; 1:300 dilution), and rabbit anti-SMARCC1 (Abcam, cat# ab22355; RRID:AB_2191988; 1:500 dilution).

Following incubation with primary antibodies, the coverslips were washed three times with 1 × PBS and incubated with Alexa Fluor-conjugated secondary antibodies (Alexa Fluor488-conjugated anti-rabbit IgG (H + L) (ThermoFisher Scientific, cat# A-21206; RRID: AB_2535792; 1:300 dilution) or Alexa Fluor647-conjugated anti-mouse IgG (H + L) (ThermoFisher Scientific, cat# A31571; RRID:AB_162542; 1:300 dilution)) for 1 h at room temperature. This was followed by three additional washes with 1 × PBS, signal fixation with 4% formaldehyde for 15 min at room temperature, and three final washes with 1 × PBS.

RNA-FISH staining was performed after completing these optional immunofluorescence steps. Coverslips were typically washed with 2 × SSC containing 10% formamide and incubated overnight at 37 °C with 100–400 nM antisense oligonucleotide probes diluted in hybridization buffer (2 × SSC, 10% formamide, and 10% dextran sulfate). After hybridization, the samples were washed at 37 °C with 2 × SSC containing 10% formamide for 30 min, followed by a wash in 1 × SSC at room temperature for 15 min. Somewhat more stringent hybridization and washing conditions were used for the G4C2 repeat-speciﬁc probe, as explained in the Hybridization-proximity labeling section.

For fluorophore-labeled probes, the samples were subsequently rinsed with 1 × PBS, stained with 0.5 μg/ml DAPI in 1 × PBS for 3 min at room temperature, and mounted onto microscope slides using ProLong Gold Antifade Reagent (ThermoFisher Scientific; cat#P36934). When digoxigenin probes were used for RNA-FISH, the 1 × SSC washing step was followed by blocking the coverslips in 4 × SSC supplemented with 1% BSA and 100 units/ml murine RNase inhibitor at room temperature for 30 min. The coverslips were then incubated with mouse anti-digoxigenin antibody (Jackson Laboratories, cat# 200-002-156; RRID:AB_2339005; 1:500 dilution) in the same buffer overnight at 4 °C. After incubation, the coverslips were washed sequentially with 4 × SSC, 4 × SSC containing 0.1% Triton-X100, and 4 × SSC for 10 minutes each. Subsequently, they were incubated with an Alexa Fluor-conjugated anti-mouse secondary antibody in IF blocking buffer for 1 h at room temperature or overnight at 4 °C. For biotin-labeled RNA-FISH probes, used in some of our optimization experiments, the signal was detected using Alexa Fluor647-conjugated streptavidin (Biolegend, cat# 405237; 1:500 to 1:200 dilution) in IF blocking buffer for 1 h at room temperature.

The samples were then washed sequentially with 4 × SSC, 4 × SSC containing 0.1% Triton-X100, and 4 × SSC for 10 miutes each. They were briefly rinsed with 1 × PBS, stained with 0.5 μg/ml DAPI in 1 × PBS for 3 min at room temperature, and mounted onto microscope slides using ProLong Gold Antifade Reagent (ThermoFisher Scientific; cat#P36934). Images were acquired using a ZEISS Axio Observer Z1 inverted microscope equipped with an alpha Plan-Apochromat 100 ×/1.46 oil immersion objective. Z-stacks were captured at 0.22 μm intervals. Routine image analysis was done using ZEISS ZEN 2.5 Pro (https://www.zeiss.com/microscopy/en/products/software/zeiss-zen.html), FIJI⁸⁹, and Cellpose 2.2.3⁹⁰. Images in Fig. 7 and Supplementary Figs. 8 and 9 were deconvolved using “Constrained Iterative” algorithm of ZEISS ZEN 2.5 Pro, with the point spread function experimentally determined using 0.1 μm TetraSpeck Fluorescent Microspheres (Thermo Fisher Scientific, cat# T7284).

To estimate the number of RNA molecules per compartment, we used FISH-quant (v2)³⁹. Briefly, RNA-FISH spots were first detected using the detection.spots_thresholding() function with manually adjusted intensity threshold to include single molecules. We then used the detection.decompose_dense() function to convert RNA-FISH spots into single-molecule equivalents and the detection.detect_clusters() function to allocate single molecules to individual compartments. The identities of single molecules in dual-color RNA-FISH experiments were determined using the multistack.detect_spots_colocalization() function.

Hybridization-proximity labeling

Cells grown in 12-well plates with 18-mm coverslips (1-2 × 10⁵ cells per well) or 10-cm dishes (0.5-1.0 × 10⁷ cells per dish) were fixed with 0.5 mg/ml dithiobis(succinimidyl propionate) (DSP; Thermo Fisher Scientific, cat# 22585) in 1 × PBS for 30 min at room temperature. The cells were then washed three times with 1 × PBS and 20 mM Tris-HCl, pH 8.0, for 5 min per wash and permeabilized with 70% ethanol at room temperature for 1 h. We typically equilibrated fixed and permeabilized samples in 2 × SSC and 10% formamide (Thermo Fisher Scientific) for 5 min and hybridized them overnight at 37 °C with 50–200 nM (adjusted based on RNA target abundance) of digoxigenin-labeled probes in 2 × SSC, 10% formamide, and 10% dextran sulfate. For the G4C2 repeat-specific probe, hybridizations were carried out in 2 × SSC, 15% formamide, and 10% dextran sulfate at 42 °C.

After hybridization, the samples were washed with 2 × SSC containing 10% formamide at 37 °C (or 15% formamide at 42 °C for the G4C2 repeat-specific probe) for 30 minutes, followed by 1 × SSC at room temperature for 15 min. Samples were then blocked with 0.8% BSA in 4 × SSC (HyPro blocking buffer) supplemented with 100 units/ml murine RNase inhibitor at room temperature for 30 min.

Next, the samples were incubated with 2.7 μg/ml HyPro or HyPro2 enzyme, with or without hemin pre-incubation, in HyPro blocking buffer at room temperature for 1 h. Unbound enzyme was removed by sequential washes with 4 × SSC, 4 × SSC containing 0.1% Triton-X100, and 4 × SSC for 10 min each, followed by a single rinse with 1 × PBS. The samples were then equilibrated in 1 × PBS, 50% sucrose in 1 × PBS, or 50% trehalose in 1 × PBS for 5 min.

Proximity biotinylation was performed by adding an equal volume of 1 × PBS, 50% sucrose, or 50% trehalose containing 1 mM biotin-phenol (Caltag Medsystems, cat# CDX-B0270) and 0.2 mM hydrogen peroxide (Sigma-Aldrich, cat# H1009), followed by gentle agitation for 1 min at room temperature. The reaction was quenched by rapidly rinsing the samples three times with 5 mM Trolox (Sigma-Aldrich, cat#238813) and 10 mM sodium ascorbate (Sigma-Aldrich, cat#A4034) in 1 × PBS. Samples on coverslips were used for HyPro-FISH, while those processed in dishes were analyzed by mass spectrometry.

HyPro-FISH

Proximity-labeled samples on 18-mm coverslips, prepared as described above, were rinsed with 1 × PBS and 4 × SSC, then incubated with A647- (Biolegend, cat# 405237; 1:500 dilution) or A555-conjugated streptavidin (Thermo Fisher Scientific, cat# S32355; RRID:AB_2571525; 1:500 to 1:200 dilution) in HyPro blocking buffer supplemented with 80 units/ml murine RNase inhibitor at room temperature for 1 h. The samples were washed sequentially with 4 × SSC, 4 × SSC containing 0.1% Triton-X100, and 4 × SSC for 10 minutes per wash.

After washing, the samples were briefly rinsed in 1 × PBS, stained with 0.5 μg/ml 4′,6-diamidino-2-phenylindole (DAPI) in 1 × PBS for 3 min at room temperature, and mounted onto microscope slides using ProLong Gold Antifade Reagent (Thermo Fisher Scientific, cat# P36934). In experiments where HyPro-FISH was combined with RNA-FISH, HyPro-FISH-labeled samples were typically post-fixed with 4% PFA for 10 min, washed with 1 × PBS and stained using the RNA-FISH procedure described above.

Images were acquired using a ZEISS Axio Observer Z1 inverted microscope equipped with an alpha Plan-Apochromat 100 ×/1.46 oil immersion objective. Z-stacks were captured at 0.22 μm intervals.

Purification of biotinylated proteins

Proximity-labeled cells in 10-cm dishes were lysed in 600 μl of high-SDS RIPA buffer supplemented with 10 mM sodium ascorbate, 5 mM Trolox, 50 mM DTT, cOmplete EDTA-free protease inhibitor cocktail (Sigma-Aldrich, cat# 4693132001), and 1 mM phenylmethanesulfonyl fluoride (PMSF; Cell Signaling Technology, cat# 8553). Lysates were incubated on ice for 10 min, scraped from the plates, and incubated for an additional 10 min on ice. Samples were then sonicated using a Diagenode Bioruptor Plus for 10 cycles (30 s on, 30 s off) at high power and de-crosslinked by incubation at 37 °C for 1 h. The lysates were clarified by centrifugation at 15,000 × g for 10 min at 4 °C, transferred to fresh tubes, and stored at −80 °C until further use.

Sixty microliters of MyOne streptavidin C1 magnetic beads were pre-washed twice with RIPA buffer (150 mM NaCl, 1 mM EDTA, pH 8.0, 50 mM Tris-HCl, pH 8.0, 1% NP-40, 0.5% sodium deoxycholate, and 0.1% SDS), resuspended in 3 ml of RIPA buffer, and combined with de-crosslinked lysates in three separate aliquots. The mixture was incubated at room temperature for 2 h with gentle agitation.

After incubation, the beads were collected using a DynaMag™−2 Magnet and washed sequentially to remove nonspecifically bound proteins: twice with RIPA buffer, once with 1 M KCl, once with 0.1 M Na₂CO₃, once with 2 M urea in 10 mM Tris-HCl, pH 8.0, and twice more with RIPA buffer. Finally, the beads were collected using the DynaMag™−2 Magnet and analyzed by mass spectrometry as described below.

Label-free mass spectrometry

Protein-loaded beads were washed three times with 50 mM ammonium bicarbonate (pH 8.0) and resuspended in 45 μl of 50 mM ammonium bicarbonate (pH 8.0) containing 1.5 μg of Trypsin/Lys-C protease mix (Promega). On-bead proteolysis was performed by incubating the suspension overnight at 37 °C with agitation. The following day, an additional 0.75 μg of Trypsin/Lys-C in 15 μl of 50 mM ammonium bicarbonate (pH 8.0) was added to the suspension, and the incubation was continued for another 4 h at 37 °C.

After digestion, the beads were collected using a DynaMag™−2 Magnet, and the hydrolysates were transferred to fresh microfuge tubes. The beads were washed twice with 45 μl aliquots of mass spectrometry-grade water, and these washes were combined with the original supernatants, bringing the final volume to ~ 150 μl and the ammonium bicarbonate concentration to ~ 20 mM. The samples were cleared by centrifugation at 16,000 × g for 10 min at 4 °C and transferred to fresh tubes. All conditions were analyzed in triplicate, processing labeled samples in parallel (technical triplicates).

The subsequent sample preparation and label-free mass spectrometry steps were performed by the CEMS Proteomics Core Facility at King’s College London, UK. Peptides were purified using Pierce C18 spin columns (Thermo Fisher Scientific, UK) according to the manufacturer’s instructions, eluted in 70% acetonitrile, and dried in a SpeedVac (Thermo Fisher Scientific, UK). The samples were then resuspended in 2% acetonitrile in 0.05% formic acid (both from Fisher Scientific, UK) and analyzed by LC-MS/MS.

Chromatographic separation was performed using a U3000 UHPLC NanoLC system (Thermo Fisher Scientific, UK). Peptides were resolved by reversed-phase chromatography on a 50 cm-long, 75 μm I.D. C18 PepMap column using a linear gradient formed by buffers A (0.1% formic acid) and B (80% acetonitrile in 0.1% formic acid). The gradient was delivered at a flow rate of 250 nL/min, starting at 5% buffer B (0–5 min), gradually increasing the percent of buffer B to 40% (5–40 min), followed by a 99% buffer B wash (40–45 min), and re-equilibrating the column at 5% buffer B (45–60 min).

The eluates were ionized by electrospray ionization using an Orbitrap Fusion Lumos Tribrid mass spectrometer (Thermo Fisher Scientific, UK) controlled by Xcalibur v4.1.5 software. The instrument was programmed to acquire data in data-dependent mode using a “universal” Orbitrap-Ion Trap method, with a 3-second cycle time between a full MS scan and MS/MS fragmentation. Orbitrap spectra (FTMS1) were collected at a resolution of 120,000 over a scan range of m/z 375-1500, with an automatic gain control (AGC) setting of 4 × 10⁵ and a maximum injection time of 35 ms. Monoisotopic precursor ions were filtered by charge state ( + 2 to + 7) with an intensity threshold set between 5.0 × 10³ and 1 × 10²⁰, and a dynamic exclusion window of 35 s with ± 10 ppm. MS2 precursor ions were isolated in the quadrupole with a mass width filter of 1.2 m/z. Ion trap fragmentation spectra (ITMS2) were collected with an AGC target setting of 1 × 10⁴, a maximum injection time of 35 ms, and CID collision energy set at 35%. This method takes advantage of the multiple analyzers on the Orbitrap Fusion Lumos, utilizing all available parallelizable time and minimizing dependence on method parameters.

Mass spectrometry data analyses

Raw mass-spec data files were processed using Proteome Discoverer (v2.2; Thermo Fisher Scientific, UK) to search against Uniprot Swissprot Homo sapiens Taxonomy (49,974 entries) using Mascot (v2.6.0; www.matrixscience.com) and the Sequest search algorithms⁹¹. Precursor mass tolerance was set to 20 ppm with fragment mass tolerance set to 0.8 Da with a maximum of two missed cleavages. Variable modifications included carbamidomethylation (Cys) and oxidation (Met). Searching stringency was set to 1% False Discovery Rate (FDR). In total, 3056 proteins were detected in HeLa samples and 1439 proteins were detected in iPSC samples.

Label-free quantification (LFQ) intensity data were imported into R. Keratins and proteins appearing in > 50% of all the control experiments in the CRAPome database (https://reprint-apms.org/), with > 15 average spectral count among the protein-positive control samples, were excluded from further analyses. The filtered data were then analyzed using the DEP package (v1.26.0)⁹². We also filtered the data to include proteins only identified in all 3 replicates of at least one condition (either compartment-specific or control HyPro-MS) and used default imputation settings (fun = “MinProb”, q = 0.01).

Proteins enriched in the comparison between a specific probe and control ≥ 1.5-fold with a P-value < 0.05 and a P-value-based Z-score > 1 were shortlisted for further analysis. When comparing the PNCTR-UC and ACTB-Int HyPro-MS data, we additionally required that compartment-specific Z-scores exceeded the Z-scores of the same proteins in the other compartment. Similarly, when shortlisting proteins neighboring C9orf72 transcripts with expanded G4C2 repeats, we required that Z-scores for C9-ALS iPSCs (DN19V4) exceeded the Z-scores for the healthy control (C53).

Given that a subset of incompletely spliced ACTB transcripts and expanded G4C2 repeat-containing C9orf72 transcripts can escape to the cytoplasm (e.g., see Fig. 6B), we excluded HyPro-MS hits potentially interacting with target transcripts in the cytoplasmic compartment from downstream bioinformatics analyses. To achieve this, known nuclear proteins were shortlisted using subcellular localization data from the Human Protein Atlas (https://www.proteinatlas.org/), applying filters for nuclear localization and nuclear components (e.g., nucleoli, nuclear bodies, nucleoplasm, etc.) as either the “main” or “additional” localization. Functional annotation of target RNA-associated proteins was performed using Metascape⁴⁶ (v3.5; https://metascape.org), incorporating GO Biological Processes, GO Cellular Components, and DisGeNET terms, while maintaining QC as part of the enrichment calculations.

Statistics and reproducibility

All statistical analyses were performed in R. Biochemical and gene expression data were analyzed using a two-sided Student’s t-test, assuming unequal variance. Quantified microscopy images were compared using a two-sided Wilcoxon rank-sum test. The numbers of edges in protein-protein interaction networks were compared with those in simulated proteomes using a two-sided Wilcoxon signed-rank test. Fisher’s exact test was applied for protein set enrichment analyses. The number of experimental replicates, the statistical tests used, and the corresponding P-values are provided in the Figures and/or Figure legends. Data reproducibility was confirmed by performing at least 2, and typically ≥ 3, independent experiments. No statistical method was used to predetermine sample size, and no data were excluded from the analyses. The experiments were not randomized, and the investigators were not blinded to allocation during experiments and outcome assessment. Unless indicated otherwise, data are shown as mean with error bars representing ± SD. In all box plots, the box bounds indicate the first and third quartiles, and the horizontal line within the box represents the median. Whiskers extend from the quartiles to the minimum and maximum data points, or to 1.5 times the interquartile range in the presence of outliers.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The proteomics data generated in this study have been deposited to PRIDE as projects PXD063191 and PXD063192. Uncropped microscopy images have been uploaded to figshare (https://doi.org/10.6084/m9.figshare.29282240)⁹³. Other types of. Source data are provided in this paper.

Code availability

Publicly available computer programs used in this study are described in the Methods section. In-house image analysis code is available through figshare (https://doi.org/10.6084/m9.figshare.29282240)⁹³.

References

Bhat, P., Honson, D. & Guttman, M. Nuclear compartmentalization as a mechanism of quantitative control of gene expression. Nat. Rev. Mol. Cell Biol. 22, 653–670 (2021).
Article PubMed PubMed Central CAS Google Scholar
Corley, M., Burns, M. C. & Yeo, G. W. How RNA-binding proteins interact with RNA: molecules and mechanisms. Mol. Cell 78, 9–29 (2020).
Article PubMed PubMed Central CAS Google Scholar
Hirose, T., Ninomiya, K., Nakagawa, S. & Yamazaki, T. A guide to membraneless organelles and their various roles in gene regulation. Nat. Rev. Mol. Cell Biol. 24, 288–304 (2023).
Article PubMed CAS Google Scholar
Lyon, A. S., Peeples, W. B. & Rosen, M. K. A framework for understanding the functions of biomolecular condensates across scales. Nat. Rev. Mol. Cell Biol. 22, 215–235 (2021).
Article PubMed CAS Google Scholar
Roden, C. & Gladfelter, A. S. RNA contributions to the form and function of biomolecular condensates. Nat. Rev. Mol. Cell Biol. 22, 183–195 (2021).
Article PubMed CAS Google Scholar
Das, S., Vera, M., Gandin, V., Singer, R. H. & Tutucci, E. Intracellular mRNA transport and localized translation. Nat. Rev. Mol. Cell Biol. 22, 483–504 (2021).
Article PubMed PubMed Central CAS Google Scholar
Muller-McNicoll, M. & Neugebauer, K. M. How cells get the message: dynamic assembly and function of mRNA-protein complexes. Nat. Rev. Genet. 14, 275–287 (2013).
Article PubMed Google Scholar
Singh, G., Pratt, G., Yeo, G. W. & Moore, M. J. The clothes make the mRNA: Past and present trends in mRNP fashion. Annu. Rev. Biochem. 84, 325–354 (2015).
Article PubMed PubMed Central CAS Google Scholar
Alberti, S. & Hyman, A. A. Biomolecular condensates at the nexus of cellular stress, protein aggregation disease and ageing. Nat. Rev. Mol. Cell Biol. 22, 196–213 (2021).
Article PubMed CAS Google Scholar
Gebauer, F., Schwarzl, T., Valcarcel, J. & Hentze, M. W. RNA-binding proteins in human genetic disease. Nat. Rev. Genet 22, 185–198 (2021).
Article PubMed CAS Google Scholar
Nussbacher, J. K., Tabet, R., Yeo, G. W. & Lagier-Tourenne, C. Disruption of RNA metabolism in neurological diseases and emerging therapeutic interventions. Neuron 102, 294–320 (2019).
Article PubMed PubMed Central CAS Google Scholar
Ripin, N. & Parker, R. Formation, function, and pathology of RNP granules. Cell 186, 4737–4756 (2023).
Article PubMed PubMed Central CAS Google Scholar
Balendra, R. & Isaacs, A. M. C9orf72-mediated ALS and FTD: multiple pathways to disease. Nat. Rev. Neurol. 14, 544–558 (2018).
Article PubMed PubMed Central CAS Google Scholar
DeJesus-Hernandez, M. et al. Expanded GGGGCC hexanucleotide repeat in noncoding region of C9ORF72 causes chromosome 9p-linked FTD and ALS. Neuron 72, 245–256 (2011).
Article PubMed PubMed Central CAS Google Scholar
Renton, A. E. et al. A hexanucleotide repeat expansion in C9ORF72 is the cause of chromosome 9p21-linked ALS-FTD. Neuron 72, 257–268 (2011).
Article PubMed PubMed Central CAS Google Scholar
Liu, J. et al. c9orf72 Disease-related foci are each composed of one mutant expanded repeat RNA. Cell Chem. Biol. 24, 141–148 (2017).
Article ADS PubMed PubMed Central Google Scholar
Swinnen, B., Robberecht, W. & Van Den Bosch, L. RNA toxicity in non-coding repeat expansion disorders. EMBO J. 39, e101112 (2020).
Article PubMed CAS Google Scholar
Mayl, K., Shaw, C. E., Lee, Y. B. Disease Mechanisms and Therapeutic Approaches in C9orf72 ALS-FTD.Biomedicines 9, https://doi.org/10.3390/biomedicines9060601 (2021).
Rossi, S. et al. Nuclear accumulation of mRNAs underlies G4C2-repeat-induced translational repression in a cellular model of C9orf72 ALS. J. Cell Sci. 128, 1787–1799 (2015).
PubMed CAS Google Scholar
Wu, R. et al. Disruption of nuclear speckle integrity dysregulates RNA splicing in C9ORF72-FTD/ALS. Neuron 112, 3434–3451 e3411 (2024).
Article PubMed CAS Google Scholar
Lee, Y. B. et al. Hexanucleotide repeats in ALS/FTD form length-dependent RNA foci, sequester RNA binding proteins, and are neurotoxic. Cell Rep. 5, 1178–1186 (2013).
Article PubMed PubMed Central CAS Google Scholar
Swinnen, B. et al. A zebrafish model for C9orf72 ALS reveals RNA toxicity as a pathogenic mechanism. Acta Neuropathol. 135, 427–443 (2018).
Article PubMed CAS Google Scholar
Chu, C. et al. Systematic discovery of Xist RNA binding proteins. Cell 161, 404–416 (2015).
Article PubMed PubMed Central CAS Google Scholar
Dodel, M. et al. TREX reveals proteins that bind to specific RNA regions in living cells. Nat. Methods 21, 423–434 (2024).
Article PubMed PubMed Central CAS Google Scholar
McHugh, C. A. et al. The Xist lncRNA interacts directly with SHARP to silence transcription through HDAC3. Nature 521, 232–236 (2015).
Article ADS PubMed PubMed Central CAS Google Scholar
Munschauer, M. et al. The NORAD lncRNA assembles a topoisomerase complex critical for genome stability. Nature 561, 132–136 (2018).
Article ADS PubMed CAS Google Scholar
Tsue, A. F. et al. Multiomic characterization of RNA microenvironments by oligonucleotide-mediated proximity-interactome mapping. Nat. Methods 21, 2058–2071 (2024).
Article PubMed PubMed Central CAS Google Scholar
Yap, K., Chung, T. H. & Makeyev, E. V. Hybridization-proximity labeling reveals spatially ordered interactions of nuclear RNA compartments. Mol. Cell 82, 463–478 (2022).
Article PubMed PubMed Central CAS Google Scholar
Yap, K. et al. A short tandem repeat-enriched RNA assembles a nuclearcompartment to control alternative splicing and promote cell survival. Mol. Cell 72, 525–540 e513 (2018).
Article PubMed PubMed Central CAS Google Scholar
Carrocci, T. J. & Neugebauer, K. M. Emerging and re-emerging themes in co-transcriptional pre-mRNA splicing. Mol. Cell 84, 3656–3666 (2024).
Article PubMed PubMed Central CAS Google Scholar
Merens, H. E., Choquet, K., Baxter-Koenigs, A. R. & Churchman, L. S. Timing is everything: advances in quantifying splicing kinetics. Trends Cell Biol. 34, 968–981 (2024).
Article PubMed CAS Google Scholar
Shenasa, H. & Bentley, D. L. Pre-mRNA splicing and its cotranscriptional connections. Trends Genet 39, 672–685 (2023).
Article PubMed PubMed Central CAS Google Scholar
Cote, A. et al. Post-transcriptional splicing can occur in a slow-moving zone around the gene.Elife 12, https://doi.org/10.7554/elife.91357 (2024).
Chen, F. et al. Nanoscale imaging of RNA with expansion microscopy. Nat. Methods 13, 679–684 (2016).
Article PubMed PubMed Central CAS Google Scholar
Lam, S. S. et al. Directed evolution of APEX2 for electron microscopy and proximity labeling. Nat. Methods 12, 51–54 (2015).
Article ADS PubMed CAS Google Scholar
Tinberg, C. E. et al. Computational design of ligand-binding proteins with high affinity and selectivity. Nature 501, 212–216 (2013).
Article ADS PubMed PubMed Central CAS Google Scholar
Martell, J. D. et al. Engineered ascorbate peroxidase as a genetically encoded reporter for electron microscopy. Nat. Biotechnol. 30, 1143–1148 (2012).
Article PubMed PubMed Central CAS Google Scholar
Landry, J. J. et al. The genomic and transcriptomic landscape of a HeLa cell line. G3 3, 1213–1224 (2013).
Article PubMed PubMed Central Google Scholar
Imbert, A. et al. FISH-quant v2: a scalable and modular tool for smFISH image analysis. RNA 28, 786–795 (2022).
Article PubMed PubMed Central CAS Google Scholar
Chen, Y. et al. Mapping 3D genome organization relative to nuclear compartments using TSA-Seq as a cytological ruler. J. Cell Biol. 217, 4025–4048 (2018).
Article PubMed PubMed Central CAS Google Scholar
Galmarini, M. V., Baeza, R., Sanchez, V., Zamora, M. C. & Chirife, J. Comparison of the viscosity of trehalose and sucrose solutions at various temperatures: Effect of guar gum addition. LWT Food Sci. Technol. 44, 186–190 (2011).
Article CAS Google Scholar
Yap, K., Chung, T. H. & Makeyev, E. V. Analysis of RNA-containing compartments by hybridization and proximity labeling in cultured human cells. STAR Protoc. 3, 101139 (2022).
Article PubMed PubMed Central CAS Google Scholar
Brown, S. B., Dean, T. C., Jones, P. & Kremer, M. L. Catalytic activity of haemin. Influence of dissolution conditions on activity. Trans. Faraday Soc. 66, 1485–1490 (1970).
Article CAS Google Scholar
Ahlgren, K., Olsson, C., Ermilova, I. & Swenson, J. New insights into the protein stabilizing effects of trehalose by comparing with sucrose. Phys. Chem. Chem. Phys. 25, 21215–21226 (2023).
Article PubMed CAS Google Scholar
Makeyev, E. V. & Huang, S. The perinucleolar compartment: structure, function, and utility in anti-cancer drug development. Nucleus 15, 2306777 (2024).
Article PubMed PubMed Central Google Scholar
Zhou, Y. et al. Metascape provides a biologist-oriented resource for the analysis of systems-level datasets. Nat. Commun. 10, 1523 (2019).
Article ADS PubMed PubMed Central Google Scholar
Street, L. A. et al. Large-scale map of RNA-binding protein interactomes across the mRNA life cycle. Mol. Cell 84, 3790–3809 e3798 (2024).
Article PubMed PubMed Central CAS Google Scholar
Szklarczyk, D. et al. The STRING database in 2023: protein-protein association networks and functional enrichment analyses for any sequenced genome of interest. Nucleic Acids Res. 51, D638–D646 (2023).
Article PubMed CAS Google Scholar
Stenstrom, L. et al. Mapping the nucleolar proteome reveals a spatiotemporal organization related to intrinsic protein disorder. Mol. Syst. Biol. 16, e9469 (2020).
Article PubMed PubMed Central Google Scholar
Teng, Y., Ross, J. L. & Cowell, J. K. The involvement of JAK-STAT3 in cell motility, invasion, and metastasis. JAKSTAT 3, e28086 (2014).
PubMed PubMed Central Google Scholar
Fishilevich, S. et al. GeneHancer: genome-wide integration of enhancers and target genes in GeneCards.Database 2017, https://doi.org/10.1093/database/bax028 (2017).
Simon, A. R. et al. Regulation of STAT3 by direct binding to the Rac1 GTPase. Science 290, 144–147 (2000).
Article ADS PubMed CAS Google Scholar
Lynch, C. J. et al. The RNA polymerase II factor RPAP1 is critical for mediator-driven transcription and cell identity. Cell Rep. 22, 396–410 (2018).
Article PubMed PubMed Central CAS Google Scholar
Matkar, S., Thiel, A. & Hua, X. Menin: a scaffold protein that controls gene expression and cell signaling. Trends Biochem. Sci. 38, 394–402 (2013).
Article PubMed PubMed Central CAS Google Scholar
Wienerroither, S. et al. Cooperative transcriptional activation of antimicrobial genes by STAT and NF-kappaB pathways by concerted recruitment of the mediator complex. Cell Rep. 12, 300–312 (2015).
Article PubMed PubMed Central CAS Google Scholar
Capelson, M. et al. Chromatin-bound nuclear pore components regulate gene expression in higher eukaryotes. Cell 140, 372–383 (2010).
Article PubMed PubMed Central CAS Google Scholar
Kalverda, B., Pickersgill, H., Shloma, V. V. & Fornerod, M. Nucleoporins directly stimulate expression of developmental and cell-cycle genes inside the nucleoplasm. Cell 140, 360–371 (2010).
Article PubMed CAS Google Scholar
Raices, M., D’Angelo, M. A. Structure, maintenance, and regulation of nuclear pore complexes: the gatekeepers of the eukaryotic genome.Cold Spring Harb. Perspect. Biol. 14, https://doi.org/10.1101/cshperspect.a040691 (2022).
Sumner, M. C. & Brickner, J. The nuclear pore complex as a transcription regulator.Cold Spring Harb. Perspect. Biol. 14, https://doi.org/10.1101/cshperspect.a039438 (2022).
Selvaraj, B. T. et al. C9ORF72 repeat expansion causes vulnerability of motor neurons to Ca(2+)-permeable AMPA receptor-mediated excitotoxicity. Nat. Commun. 9, 347 (2018).
Article ADS PubMed PubMed Central Google Scholar
Almeida, S. et al. Modeling key pathological features of frontotemporal dementia with C9ORF72 repeat expansion in iPSC-derived human neurons. Acta Neuropathol. 126, 385–399 (2013).
Article PubMed PubMed Central CAS Google Scholar
Donnelly, C. J. et al. RNA toxicity from the ALS/FTD C9ORF72 expansion is mitigated by antisense intervention. Neuron 80, 415–428 (2013).
Article PubMed PubMed Central CAS Google Scholar
Sznajder, L. J. et al. Intron retention induced by microsatellite expansions as a disease biomarker. Proc. Natl. Acad. Sci. USA 115, 4234–4239 (2018).
Article ADS PubMed PubMed Central CAS Google Scholar
Haeusler, A. R. et al. C9orf72 nucleotide repeat structures initiate molecular cascades of disease. Nature 507, 195–200 (2014).
Article ADS PubMed PubMed Central CAS Google Scholar
Xu, Z. et al. Expanded GGGGCC repeat RNA associated with amyotrophic lateral sclerosis and frontotemporal dementia causes neurodegeneration. Proc. Natl. Acad. Sci. USA 110, 7778–7783 (2013).
Article ADS PubMed PubMed Central CAS Google Scholar
Mori, K. et al. hnRNP A3 binds to GGGGCC repeats and is a constituent of p62-positive/TDP43-negative inclusions in the hippocampus of patients with C9orf72 mutations. Acta Neuropathol. 125, 413–423 (2013).
Article PubMed CAS Google Scholar
Cooper-Knock, J. et al. Sequestration of multiple RNA recognition motif-containing proteins by C9orf72 repeat expansions. Brain 137, 2040–2051 (2014).
Article PubMed PubMed Central Google Scholar
Fox, A. H. & Lamond, A. I. Paraspeckles. Cold Spring Harb. Perspect. Biol. 2, a000687 (2010).
Article PubMed PubMed Central Google Scholar
Naganuma, T. et al. Alternative 3’-end processing of long noncoding RNA initiates construction of nuclear paraspeckles. EMBO J. 31, 4020–4034 (2012).
Article PubMed PubMed Central CAS Google Scholar
Kawaguchi, T. et al. SWI/SNF chromatin-remodeling complexes function in noncoding RNA-dependent assembly of nuclear bodies. Proc. Natl. Acad. Sci. USA 112, 4304–4309 (2015).
Article ADS PubMed PubMed Central CAS Google Scholar
Česnik, A. B. et al. Nuclear RNA foci from C9ORF72 expansion mutation form paraspeckle-like bodies.J. Cell Sci. 132, https://doi.org/10.1242/jcs.224303 (2019).
Malnar, M. & Rogelj, B. SFPQ regulates the accumulation of RNA foci and dipeptide repeat proteins from the expanded repeat mutation in C9orf72.J. Cell Sci. 134, https://doi.org/10.1242/jcs.256602 (2021).
An, H. et al. ALS-linked FUS mutations confer loss and gain of function in the nucleus by promoting excessive formation of dysfunctional paraspeckles. Acta Neuropathol. Commun. 7, 7 (2019).
Article ADS PubMed PubMed Central Google Scholar
Ishigaki, S. et al. Aberrant interaction between FUS and SFPQ in neurons in a wide range of FTLD spectrum diseases. Brain 143, 2398–2405 (2020).
Article PubMed Google Scholar
Gordon, P. M., Hamid, F., Makeyev, E. V. & Houart, C. A conserved role for the ALS-linked splicing factor SFPQ in repression of pathogenic cryptic last exons. Nat. Commun. 12, 1918 (2021).
Article ADS PubMed PubMed Central CAS Google Scholar
Taylor, R. et al. Prematurely terminated intron-retaining mRNAs invade axons in SFPQ null-driven neurodegeneration and are a hallmark of ALS. Nat. Commun. 13, 6994 (2022).
Article ADS PubMed PubMed Central CAS Google Scholar
Jin, H., Li, C., Jia, Y., Qi, Y. & Piao, W. Revealing the hidden RBP-RNA interactions. Wiley Interdiscip. Rev. RNA 15, e1863 (2024).
Article PubMed PubMed Central CAS Google Scholar
Qin, W., Cho, K. F., Cavanagh, P. E. & Ting, A. Y. Deciphering molecular interactions by proximity labeling. Nat. Methods 18, 133–143 (2021).
Article PubMed PubMed Central CAS Google Scholar
Ramanathan, M., Porter, D. F. & Khavari, P. A. Methods to study RNA-protein interactions. Nat. Methods 16, 225–234 (2019).
Article PubMed PubMed Central CAS Google Scholar
Yang, S. et al. Aberrant splicing exonizes C9orf72 repeat expansion in ALS/FTD. Nat Neurosci. https://doi.org/10.1038/s41593-025-02039-5 (2025).
Butler, J. T., Hall, L. L., Smith, K. P. & Lawrence, J. B. Changing nuclear landscape and unique PML structures during early epigenetic transitions of human embryonic stem cells. J. Cell Biochem. 107, 609–621 (2009).
Article PubMed PubMed Central CAS Google Scholar
Chen, L. L. & Carmichael, G. G. Altered nuclear retention of mRNAs containing inverted repeats in human embryonic stem cells: functional role of a nuclear noncoding RNA. Mol. Cell 35, 467–478 (2009).
Article PubMed PubMed Central CAS Google Scholar
Modic, M. et al. Cross-regulation between TDP-43 and paraspeckles promotes pluripotency-differentiation transition. Mol. Cell 74, 951–965 e913 (2019).
Article PubMed PubMed Central CAS Google Scholar
Yang, F. et al. Reactive astrocytes secrete the chaperone HSPB1 to mediate neuroprotection. Sci. Adv. 10, eadk9884 (2024).
Article PubMed PubMed Central CAS Google Scholar
Isiktas, A. U., Eshov, A., Yang, S. & Guo, J. U. Systematic generation and imaging of tandem repeats reveal base-pairing properties that promote RNA aggregation. Cell Rep. Methods 2, 100334 (2022).
Article PubMed PubMed Central Google Scholar
Makeyev, E. V., Zhang, J., Carrasco, M. A. & Maniatis, T. The MicroRNA miR-124 promotes neuronal differentiation by triggering brain-specific alternative pre-mRNA splicing. Mol. Cell 27, 435–448 (2007).
Article PubMed PubMed Central CAS Google Scholar
Hendrickson, D. G., Kelley, D. R., Tenen, D., Bernstein, B. & Rinn, J. L. Widespread RNA binding by chromatin-associated proteins. Genome Biol. 17, 28 (2016).
Article Google Scholar
Iannone, C. et al. PTBP1-activated co-transcriptional splicing controls epigenetic status of pluripotent stem cells. Mol. Cell 83, 203–218 (2023).
Article PubMed CAS Google Scholar
Schindelin, J. et al. Fiji: an open-source platform for biological-image analysis. Nat. Methods 9, 676–682 (2012).
Article PubMed CAS Google Scholar
Pachitariu, M. & Stringer, C. Cellpose 2.0: how to train your own model. Nat. Methods 19, 1634–1641 (2022).
Article PubMed PubMed Central CAS Google Scholar
Eng, J. K., McCormack, A. L. & Yates, J. R. An approach to correlate tandem mass spectral data of peptides with amino acid sequences in a protein database. J. Am. Soc. Mass Spectrom. 5, 976–989 (1994).
Article ADS PubMed CAS Google Scholar
Zhang, X. et al. Proteome-wide identification of ubiquitin interactions using UbIA-MS. Nat. Protoc. 13, 530–550 (2018).
Article PubMed CAS Google Scholar
Yap, K. et al. Enhanced hybridization-proximity labeling discovers protein interactomes of single RNA molecules. figshare. Dataset. https://doi.org/10.6084/m9.figshare.29282240 (2025).
Article Google Scholar

Download references

Acknowledgements

We thank Siddharthan Chandran, Ivo Lieberam, Snezhka Oliferenko, Tatyana Shelkovnikova, and Selina Wray for reagents and valuable discussions, and Steven Lynham for assistance with mass spectrometry analyses. This work was supported by the Biotechnology and Biological Sciences Research Council (grants BB/Y009304/1, BB/V006258/1, and BB/R001049/1 to E.V.M.), the Medical Research Council (MR/Z506187/1 to E.V.M.), and the Motor Neurone Disease Association (Shaw/Mar19/893-792 and Nishimura/Dec20/942-793).

Author information

These authors contributed equally: Karen Yap, Tek Hong Chung.

Authors and Affiliations

Centre for Developmental Neurobiology, King’s College London, London, UK
Karen Yap, Tek Hong Chung & Eugene V. Makeyev
Maurice Wohl Clinical Neuroscience Institute, Institute of Psychiatry, Psychology and Neuroscience, King’s College London, London, UK
Erin C. Hedges, Agnes L. Nishimura & Christopher E. Shaw
UK Dementia Research Institute Centre, Institute of Psychiatry, Psychology and Neuroscience, King’s College London, London, UK
Erin C. Hedges, Agnes L. Nishimura & Christopher E. Shaw
Blizard Institute, Barts and The London School of Medicine and Dentistry, Queen Mary University of London, London, UK
Agnes L. Nishimura

Authors

Karen Yap
View author publications
Search author on:PubMed Google Scholar
Tek Hong Chung
View author publications
Search author on:PubMed Google Scholar
Erin C. Hedges
View author publications
Search author on:PubMed Google Scholar
Agnes L. Nishimura
View author publications
Search author on:PubMed Google Scholar
Christopher E. Shaw
View author publications
Search author on:PubMed Google Scholar
Eugene V. Makeyev
View author publications
Search author on:PubMed Google Scholar

Contributions

Conceptualization: K.Y., T.H.C. and E.V.M. Methodology: K.Y., T.H.C., E.C.H., A.L.N., C.E.S. and E.V.M. Investigation: K.Y., T.H.C. and E.V.M. Visualization: K.Y., T.H.C., and E.V.M. Funding acquisition: A.L.N., C.E.S., and E.V.M. Project administration: E.V.M. Writing - original draft: K.Y., T.H.C. and E.V.M. Writing - review and editing: K.Y., T.H.C., E.C.H., A.L.N., C.E.S. and E.V.M. Supervision: C.E.S. and E.V.M.

Corresponding author

Correspondence to Eugene V. Makeyev.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Communications thanks Ralf Jansen, Maurice Swanson, and the other anonymous reviewer(s) for their contribution to the peer review of this work. A peer review file is available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Supplementary Information

Description of Additional Supplementary Information

Supplementary Data 1

Supplementary Data 2

Supplementary Data 3

Supplementary Data 4

Supplementary Data 5

Supplementary Data 6

Supplementary Data 7

Supplementary Data 8

Reporting Summary

Transparent Peer Review file

Source data

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Cite this article

Yap, K., Chung, T.H., Hedges, E.C. et al. Enhanced hybridization-proximity labeling discovers protein interactomes of single RNA molecules. Nat Commun 16, 9257 (2025). https://doi.org/10.1038/s41467-025-64282-5

Download citation

Received: 20 January 2025
Accepted: 09 September 2025
Published: 20 October 2025
Version of record: 20 October 2025
DOI: https://doi.org/10.1038/s41467-025-64282-5
