Spatial N-glycan rearrangement on α5β1 integrin nucleates galectin-3 oligomers to determine endocytic fate

Shafaq-Zadah, Massiullah; Dransart, Estelle; Hamitouche, Ilyes; Wunder, Christian; Chambon, Valérie; Valades-Cruz, Cesar A.; Leconte, Ludovic; Sarangi, Nirod Kumar; Robinson, Jack; Bai, Siau-Kun; Regmi, Raju; Di Cicco, Aurélie; Hovasse, Agnès; Bartels, Richard; Nilsson, Ulf J.; Cianférani-Sanglier, Sarah; Leffler, Hakon; Keyes, Tia E.; Lévy, Daniel; Raunser, Stefan; Roderer, Daniel; Johannes, Ludger

doi:10.1038/s41467-025-64523-7

Download PDF

Article
Open access
Published: 27 October 2025

Spatial N-glycan rearrangement on α₅β₁ integrin nucleates galectin-3 oligomers to determine endocytic fate

Nature Communications volume 16, Article number: 9461 (2025) Cite this article

7801 Accesses
3 Citations
8 Altmetric
Metrics details

Subjects

Abstract

Membrane glycoproteins frequently adopt different conformations when altering between active and inactive states. Here, we discover a molecular switch that exploits dynamic spatial rearrangements of N-glycans during such conformational transitions to control protein function. For the conformationally switchable cell adhesion glycoprotein α₅β₁ integrin, we find that only the bent-closed state arranges N-glycans to nucleate the formation of up to tetrameric oligomers of the glycan-binding protein galectin-3. We propose a structural model of how these galectin-3 oligomers are built and how they clamp the bent-closed state to select it for endocytic uptake and subsequent retrograde trafficking to the Golgi for polarized distribution in cells. Our findings reveal the dynamic regulation of the glycan landscape at the cell surface to achieve oligomerization of galectin-3. Galectin-3 oligomers are thereby identified as functional decoders of defined spatial patterns of N-glycans on specifically the bent-closed conformational state of α₅β₁ integrin and possibly other integrin family members.

Growth factor-triggered de-sialylation controls glycolipid-lectin-driven endocytosis

Article 21 February 2025

GlyContact analyzes glycan 3D structures at scale

Article Open access 12 December 2025

Novel glycan-related biomarker discovery by total glycomic and focused protein glycomic analyses

Article Open access 06 August 2025

Introduction

Integrins are heterodimeric glycoproteins that are made up of one out of 18 α and one out of 8 β subunits, with key functions in the adhesion of cells to extracellular matrix ligands such as fibronectin^1,2,3. Integrins exist in a continuum of conformations between bent-closed non-ligand-bound (also termed inactive) and extended ligand-bound (also termed active) states⁴. N-glycans affect the equilibrium between these two conformers⁵, but the underlying mechanisms remain largely unexplored.

Glycosylation is required for integrin functions^{5,6,7,8,9,10,11,12,13}. Membrane distal N-glycosylation sites within the β-propeller domain of α₅ and at the βI domain of β₁ integrins are required for heterodimerization and efficient cell surface expression^7,9. Membrane proximal N-glycosylation sites are needed for the biological activities of integrins, including interactions with other membrane proteins such as the epidermal growth factor receptor^9,14.

Both clathrin-dependent and independent endocytic mechanisms have been documented for integrin internalization^{15,16,17,18,19,20,21,22,23}. Clathrin, clathrin adapters such as Dab2, Numb, Eps8, AP2, and the scission GTPase dynamin-2^{16,17,24,25,26} have all been linked to the dynamic turnover of focal adhesions and in the regulation of active β₁ integrin endocytosis near ventral focal adhesions and in the leading edge of migrating cells^17,18,25.

While the clathrin pathway remains the best characterized endocytic route^27,28,29, mechanisms by which membranes are bent and cargoes selected without the clathrin coat are also under investigation^{21,23,30,31,32}. Glycans on proteins and lipids, as well as glycan-binding proteins of the galectin family, are at the center stage in one of the proposed models, termed glycolipid-lectin (GL-Lect) driven endocytosis^{33,34,35,36,37}. Notably, galectin-3 (Gal3) has been analyzed in depth in this context^22,23,38. For building endocytic pits, Gal3 recognizes N-glycans on glycoproteins (including integrins) and oligomerizes. Only oligomerization competent Gal3 acquires the capacity to induce the glycosphingolipid (GSL) dependent formation of tubular endocytic pits from which clathrin-independent endocytic carriers (CLICs) emerge²³. Of note, Gal3 has also been described to form lattice assemblies at the plasma membrane that negatively affect endocytosis³⁹. The interplay between GL-Lect and lattice processes controls the cell surface dynamics of glycoproteins, including integrins, in an intertwined manner^40,41,42,43.

Gal3 has proinflammatory activity, and its expression has been associated with many pathophysiological situations. For example, increased levels of Gal3 are associated with heart failure due to fibro-inflammation in myocardium remodeling^44,45,46 and with chronic kidney disease, including defects in glomerular filtration, proteinuria, and high risk of chronic renal fibrosis^47,48. Other fibrotic diseases, including Alzheimer’s and Huntington’s neuroinflammation, and pulmonary infections such as idiopathic pulmonary fibrosis, Hermansky-Pudlak syndrome, and COVID-19, also implicate altered Gal3 expression levels^{49,50,51,52,53}, identifying the protein as a potential therapeutic target. The mechanisms by which Gal3 regulates the underlying biological functions remain poorly explored.

The oligomerization capacity of Gal3 has been shown to be important for its function in endocytosis²³. However, the shapes and assembly mechanisms of Gal3 oligomers remained controversial^54,55. Here, we have found that a conformational state-specific spatial arrangement of N-glycans on α₅β₁ integrin sets its capacity to nucleate Gal3 oligomers that range up to tetramers. This determines the integrin’s endocytic fate and ensuing intracellular compartmentalization. We have termed this glycan pattern recognition mechanism the conformational glycoswitch, which may also apply to other members of the integrin family. The conformational glycoswitch positions glycosylation as a highly dynamic regulator of integrin function at the cell surface.

Results

Retrograde trafficking of inactive bent-closed α₅β₁ integrin depends on Gal3

We have previously described that only the inactive bent-closed non-ligand-bound conformational state of α₅β₁ integrin (Fig. 1A), and not the active extended ligand-bound state, follows the retrograde trafficking route from the plasma membrane to the Golgi apparatus, from where the protein then undergoes polarized secretion for its dynamic localization to the leading edge of migrating cells⁵⁶. We discovered this dichotomic behavior using well-characterized conformational state-specific antibodies^57,58,59,60, i.e., mAb13 against the βΙ domain of the β₁ chain of inactive bent-closed α₅β₁ integrin⁶¹, and 9EG7 against the EGF-repeat leg domain of the β₁ chain of active ligand-bound α₅β₁ integrin⁶². These antibodies were modified with benzylguanine (BG) to be captured in live cell antibody uptake experiments by a GFP-labeled SNAP-tag fusion protein that was localized to the lumen of the Golgi apparatus, using a HeLa cell line that expresses endogenous Gal3 (Fig. 1B and Supplementary Fig. 1A)^56,63.

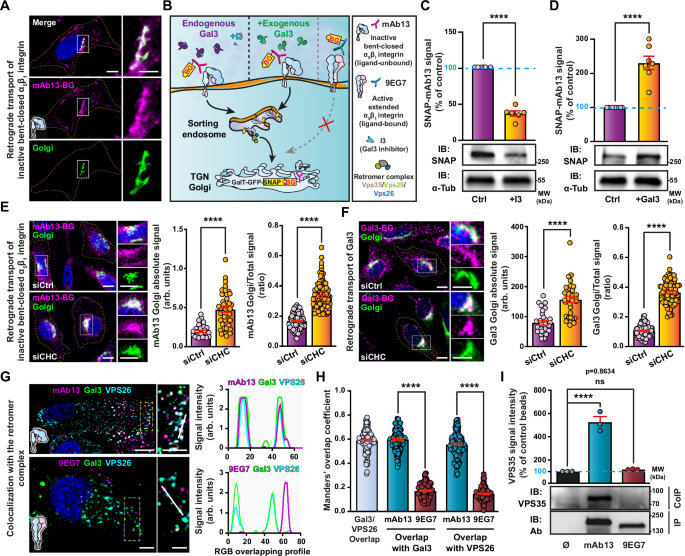

Fig. 1: Retrograde trafficking of inactive bent-closed α5β1 integrin. — **Fig. 1: Retrograde trafficking of inactive bent-closed α₅β₁ integrin.**

Here, we found that retrograde transport of inactive bent-closed α₅β₁ integrin (mAb13) from the plasma membrane to the Golgi apparatus was strongly decreased by a membrane impermeable inhibitor of Gal3 (GB0149-03) that we termed I3 in the current study^64,65 (Fig. 1C), and stimulated by exogenous Gal3 (Fig. 1D). In contrast, the depletion of clathrin heavy chain (CHC) did not inhibit but rather increased retrograde trafficking of inactive bent-closed α₅β₁ integrin (mAb13) (Fig. 1E and Supplementary Fig. 1B). This was not due to a possible effect of CHC depletion on Golgi exit, since BG-tagged mAb13 that undergoes retrograde trafficking was irreversibly captured in the Golgi apparatus by the GalT-GFP-SNAP-tag fusion protein (Fig. 1A, B). CHC depletion slightly inhibited endocytic uptake of inactive bent-closed α₅β₁ integrin (Supplementary Fig. 1C, mAb13)⁶⁶ without a major effect on cell surface integrin levels (Supplementary Fig. 1D). As controls, we showed that the endocytic uptake of the clathrin pathway marker transferrin was strongly inhibited under CHC depletion conditions (Supplementary Fig. 1E)⁶⁷, while Gal3 inhibition with I3 had no effect on Tf uptake (Supplementary Fig. 1F).

Using the BG/SNAP-tag assay, we demonstrate that exogenously added BG-modified Gal3 also undergoes retrograde trafficking (Supplementary Fig. 1G, H). Its accumulation in the Golgi apparatus was found to be increased upon CHC depletion (Fig. 1F), while its endocytosis was partly inhibited under these conditions (Supplementary Fig. 1I). Taken together, our findings strongly suggest that only the fractions of inactive bent-closed α₅β₁ integrin and of Gal3 that enter cells by clathrin-independent endocytosis gain access to the retrograde route.

Internalized inactive bent-closed α₅β₁ integrin (mAb13) and Gal3 both strongly colocalized on endosomal membranes with the Vps26 component of the retromer complex (Fig. 1G, H), a retrograde sorting machinery⁶⁸. The colocalization of internalized active ligand-bound α₅β₁ integrin (9EG7) with Gal3 and Vps26 was much lower (Fig. 1G, H), as expected from the inability of this conformer to undergo retrograde trafficking⁵⁶. Furthermore, inactive bent-closed endosomal α₅β₁ integrin (mAb13) specifically co-immunoprecipitated both the retromer subunit Vps35 and Gal3, while active ligand-bound α₅β₁ integrin (9EG7) did not (Fig. 1I and Supplementary Fig. 1J).

These data demonstrate that retrograde trafficking of inactive bent-closed α₅β₁ integrin is Gal3-dependent and independent of the clathrin pathway, and further suggest that the inactive α₅β₁ integrin conformer and Gal3 traffic together to the Golgi apparatus.

Specifically the inactive bent-closed α₅β₁ integrin is internalized by GL-Lect driven endocytosis

Human retinal pigment epithelial cells (RPE-1) express endogenous Gal3 (Supplementary Fig. 1A). A functional link between α₅β₁ integrin and Gal3 was shown previously in these highly polarized and migratory cells^{22,23,69,70,71}. Here, we investigated whether the Gal3 dependency for retrograde trafficking of inactive bent-closed α₅β₁ integrin was already set at the plasma membrane. This integrin conformer efficiently interacted with Gal3 in co-immunoprecipitation experiments (Fig. 2A, mAb13), and colocalized with Gal3 by immunofluorescence at the plasma membrane (mAb13 for β₁ integrin, Fig. 2B top; mAb16 for α₅ integrin, Supplementary Fig. 2A left) and in endocytic structures (Fig. 2C, top). Both at the plasma membrane (Supplementary Fig. 2B) and in endocytic structures (Supplementary Fig. 2C), colocalization was much reduced with a Gal3 mutant whose N-terminal oligomerization domain was deleted (Gal3∆Nter)⁷². Gal3∆Nter is deficient in all functions that have been attributed to Gal3, including GL-Lect driven endocytosis²³. This finding indicates that Gal3 oligomerization is required for its efficient co-distribution with the inactive bent-closed α₅β₁ integrin conformer.

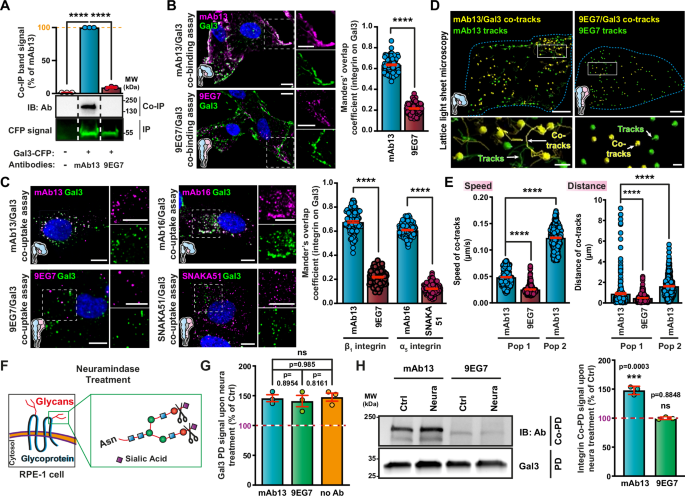

Fig. 2: Gal3 specifically interacts with inactive bent-closed α5β1 integrin. — **Fig. 2: Gal3 specifically interacts with inactive bent-closed α₅β₁ integrin.**

For active ligand-bound α₅β₁ integrin, interaction (Fig. 2A, 9EG7) and colocalization (9EG7 for the β₁ chain, Fig. 2B bottom; SNAKA51 for the α₅ chain, Supplementary Fig. 2A right) with Gal3 were very low. This dichotomic colocalization behavior with Gal3 between inactive bent-closed (mAb13) and active ligand-bound (9EG7) α₅β₁ integrin was even more pronounced at the leading edge of migrating cells (Supplementary Fig. 2D for plasma membrane, and Supplementary Fig. 2E for endosomes). To what extent other components of the membrane domains to which these conformers are localized also contribute to trafficking remains to be studied. Time-resolved imaging by lattice light sheet microscopy furthermore demonstrated the exclusive association of inactive bent-closed α₅β₁ integrin (mAb13) and Gal3 onto dynamic population 2 (Pop 2) co-tracks, when compared to the active ligand-bound state (9EG7) (Fig. 2D, E and Supplementary Fig. 2F; Supplementary Movies 1 and 2).

Terminal modification of N-glycans by α2-6-linked sialic acids has been shown to prevent Gal3 binding^73,74. Using neuraminidase to remove sialic acids from plasma membrane glycans (Fig. 2F and Supplementary Fig. 2G, SiaFind), we indeed measured a 50% increase in global cell surface Gal3 binding (Supplementary Fig. 2G, Gal3), as described previously³⁸. This increase in Gal3 binding was robustly observed and unaffected by the presence of the integrin conformational state-specific antibodies employed in our study (Fig. 2G). However, the neuraminidase treatment only enhanced the pulldown of mAb13-labeled bent-closed α₅β₁ integrin with Gal3, and not that of 9EG7-labeled extended ligand-bound α₅β₁ integrin (Fig. 2H). This again underlined the dichotomic relationship between the two conformational states. Of note, the binding capacity of both antibodies to their specific conformers was not or only very little affected upon surface desialylation (Supplementary Fig. 2H), making it unlikely that these antibodies recognize different α₅β₁ integrin glycoforms.

In accordance with its strong interaction and colocalization with Gal3, the endocytosis of inactive bent-closed α₅β₁ integrin (mAb13) turned out to be GL-Lect driven, since uptake was (i) inhibited by the Gal3 inhibitor I3 (Fig. 3A, B, top); (ii) stimulated by exogenously added wild-type Gal3 (Fig. 3A, C, D, top), but not by Gal3∆Nter (Supplementary Fig. 3A); and (iii) inhibited by the depletion of another component of the GL-Lect machinery, GSLs, using the glucosylceramide synthase inhibitor Genz-123346⁷⁵ (Fig. 3E, F, top), that also inhibited the endocytosis of Gal3 itself (Supplementary Fig. 3B). In contrast, all these treatments did not affect the uptake of active ligand-bound 9EG7-labeled α₅β₁ integrin (Fig. 3B–D, F, bottom), nor that of transferrin (Supplementary Figs. 1F and 3C). The dichotomic behavior between inactive bent-closed and active ligand-bound α₅β₁ integrin was thereby also observed for GL-Lect driven endocytosis.

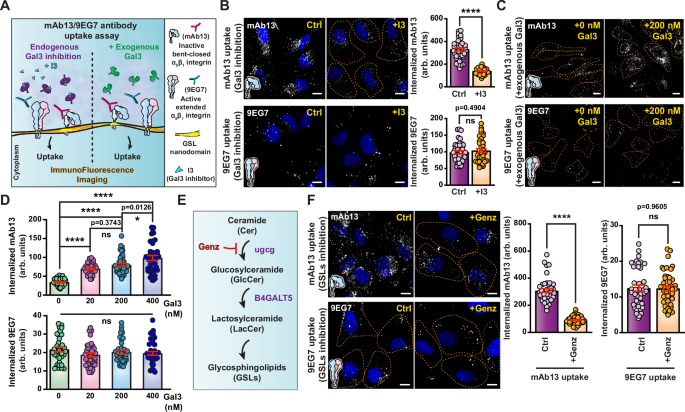

Fig. 3: Gal3 specifically drives the endocytosis of inactive bent-closed α5β1 integrin. — **Fig. 3: Gal3 specifically drives the endocytosis of inactive bent-closed α₅β₁ integrin.**

One of the hallmarks of GL-Lect driven endocytosis is the formation of tubular, often crescent-shaped CLICs²³. To analyze the structures via which inactive bent-closed and active ligand-bound α₅β₁ integrins are internalized, respectively, mAb13 and 9EG7 were coupled to horseradish peroxidase (HRP) and incubated with cells at 37 °C for a time course between 6 and 9 min. Endocytic carriers were then analyzed by electron microscopy (EM) for the presence of these markers. Inactive bent-closed α₅β₁ integrin (mAb13) was found predominantly in short tubular CLICs, and much less in vesicles (Fig. 4A), which corroborates the conclusion that a substantial fraction of this conformer enters cells by GL-Lect driven endocytosis. We also found that the dynein inhibitor ciliobrevin (CBD), which interferes with friction-driven scission that specifically operates during clathrin-independent endocytosis^76,77, strongly reduced the endocytosis of inactive bent-closed α₅β₁ integrin (mAb13) (Fig. 4B). This effect was further potentiated when exogenous Gal3 was added to cells (Fig. 4B). CBD also strongly inhibited the uptake of Gal3 (Supplementary Fig. 3D) but only weakly that of transferrin (Supplementary Fig. 3E).

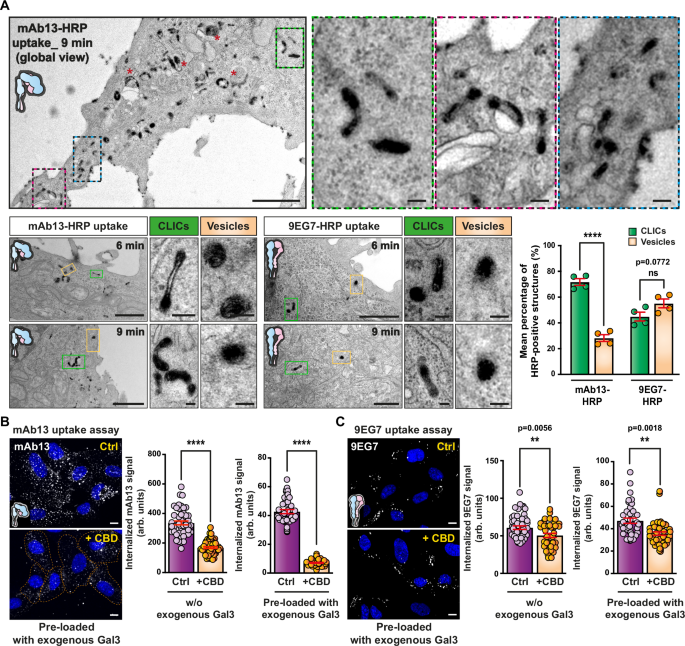

Fig. 4: Endocytosis of the inactive bent-closed α5β1 integrin via CLICs. — **Fig. 4: Endocytosis of the inactive bent-closed α₅β₁ integrin via CLICs.**

The presence of some inactive bent-closed α₅β₁ integrin (mAb13) in vesicles (Fig. 4A) is consistent with a previous report on the contribution of clathrin-dependent endocytosis to the cellular uptake of this conformer close to focal adhesions⁶⁶, and with our finding that depletion of CHC and expression of a dominant negative mutant of the clathrin accessory protein Eps15 (EPS15DN)⁷⁸ had both measurable effects on the cellular uptake of inactive bent-closed α₅β₁ integrin (mAb13, Supplementary Figs. 1C and 3F, top) and Gal3 (Supplementary Figs. 1I and 3G, top).

Active ligand-bound α₅β₁ integrin (9EG7) was almost equally distributed between CLICs and vesicles (Fig. 4A). The vesicular fraction likely reflects clathrin-dependent uptake, based on: (i) previous findings^17,18,20; (ii) vesicle size (120 nm ±29 nm, n = 95)⁷⁹; (iii) the observation of a substantial inhibition of uptake of this conformer (9EG7; Supplementary Fig. 3F, bottom) and of transferrin (Supplementary Fig. 3G, bottom) in EPS15DN expressing cells; (iv) co-immunoprecipitation with CHC (Supplementary Fig. 3H); and (v) the pronounced colocalization of endocytic tracks of active ligand-bound α₅β₁ integrin (9EG7) with the clathrin pathway component adapter protein 2 (AP2), as monitored under unperturbed conditions^80,81 using lattice light sheet microscopy (Supplementary Fig. 3I–L and Supplementary Movies 3–6). The presence of a fraction of active ligand-bound α₅β₁ integrin in CLICs is consistent with a previous report²¹ and the observation of a slight inhibition of uptake by ciliobrevin (Fig. 4C), suggesting that Gal3-dependent and independent mechanisms exist for the generation of CLICs.

The cell-based experiments from above on interaction, co-distribution at the plasma membrane and in endosomes, molecular mechanisms of endocytic uptake and retrograde trafficking to the Golgi apparatus led to the discovery of a dichotomic imprint of Gal3 onto specifically the inactive bent-closed conformational state of α₅β₁ integrin. To understand the molecular basis for this dichotomic behavior, we set out to combine biophysical and structural techniques applied to different biochemical reconstitution systems.

Specifically the inactive bent-closed α₅β₁ integrin nucleates the formation of Gal3 oligomers

α₅β₁ integrin was extracted and purified from rat liver in detergent micelles⁸² (Fig. 5A and Supplementary Fig. 4A) and reconstituted into microcavity array-suspended lipid bilayers (MSLBs) in which α₅β₁ integrin heterodimers could diffuse laterally (Fig. 5B), as described previously⁸³. In this reductionist model of the plasma membrane, electrochemical impedance spectroscopy (EIS) allowed the label-free measurement of Gal3 binding to α₅β₁ integrin through changes in membrane resistance and capacitance. At low nanomolar concentrations of Gal3, the capacitance signal ∆Q increased for membranes containing inactive bent-closed α₅β₁ integrin and plateaued at Gal3 concentrations above 5 nM (Fig. 5C, circles), pointing to highly efficient Gal3 binding. In contrast, the capacitance signal remained unchanged on incubation with Gal3 concentrations as high as 37 nM on membranes containing α₅β₁ integrin that had been activated with Mn²⁺ and the minimal fibronectin mimicking cRGD peptide⁸⁴ (Fig. 5C, triangles).

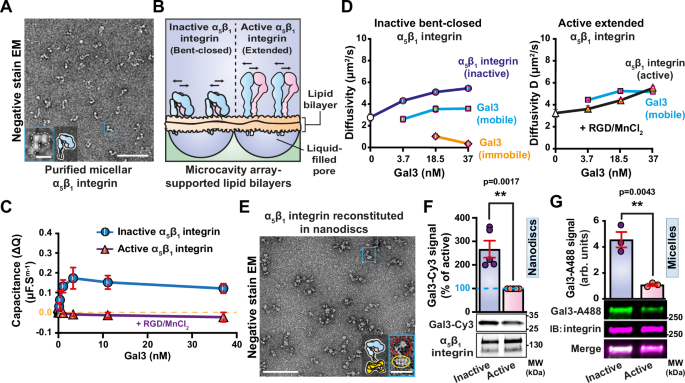

Fig. 5: Gal3 preferentially interacts with purified bent-closed α5β1 integrin. — **Fig. 5: Gal3 preferentially interacts with purified bent-closed α₅β₁ integrin.**

This preferred binding of Gal3 to inactive bent-closed α₅β₁ integrin reconstituted in MSLBs was confirmed by fluorescence lifetime imaging microscopy (FLIM) (Supplementary Fig. 4B). Interestingly, co-diffusivity measurements at high Gal3 concentrations revealed a biphasic behavior in the presence of inactive bent-closed α₅β₁ integrin (Fig. 5D, left). This indicated the existence of both a dynamic Gal3 binding process (Gal3 mobile fraction), likely on individual α₅β₁ integrin heterodimers, and the formation of an immobile fraction that may have resulted from lateral cross-linking between several α₅β₁ integrins (i.e., lattices³⁹, Gal3 immobile fraction). Of note, for the inactive bent-closed conformer, two α₅β₁ integrin-Gal3 velocity populations had also been measured by lattice light sheet microscopy on cells (Fig. 2D, E, and Supplementary Fig. 2F). In contrast, such biphasic behavior was not observed with active ligand-bound α₅β₁ integrin (Fig. 5D, right). These findings establish that, also in a minimal model of the plasma membrane, inactive bent-closed α₅β₁ integrin is the preferred interacting partner for Gal3.

As in the microcavity array-suspended lipid bilayer system, purified α₅β₁ integrin in micelles (Fig. 5A), nanodiscs⁸² (Fig. 5E), or peptidiscs (Supplementary Fig. 4C, D) was switchable from the inactive bent-closed to the extended ligand-bound conformation upon incubation with MnCl₂ and cRGD peptide (Supplementary Fig. 4D). Importantly, Gal3 again interacted to a significantly greater extent with the inactive bent-closed α₅β₁ integrin, as revealed by pulldown (for nanodiscs, Fig. 5F) or cross-linking (for micelles, Fig. 5G) assays.

These experiments in different model membrane systems establish the preferred interaction of Gal3 with inactive bent-closed α₅β₁ integrin as an intrinsic property of the system.

To dissect the structural basis for this finding, we used single-molecule photobleaching as a first approach to assess the formation of native complexes between Gal3 and inactive bent-closed α₅β₁ integrin. For this, biotinylated peptidisc-embedded integrin was complexed with fluorescently labeled Gal3. This preparation was immobilized on neutravidin-coated substrates (Supplementary Fig. 4E). Up to four photobleaching steps could be monitored (Supplementary Fig. 4F, G). In the absence of biotin from the peptidiscs (Supplementary Fig. 4G, H, no biotin) or of integrin altogether (Supplementary Fig. 4I, Gal3 alone), primarily one-step photobleaching was observed, indicative of non-specific Gal3 monomer binding to the neutravidin surface. Together, these data suggested the presence of possible Gal3 oligomers up to tetramers on α₅β₁ integrin.

This prediction was tested by breaking the glycan-dependent interaction between nanodisc-embedded α₅β₁ integrin and Gal3 using the Gal3 inhibitor I3 (Supplementary Fig. 4J), followed by negative stain EM analysis of eluted Gal3 molecules (Fig. 6A). Interestingly, while Gal3 was monomeric in the absence of α₅β₁ integrin (Fig. 6A, bottom right, purple box), about 40% had transformed into ring-shaped oligomers when incubated with the inactive bent-closed conformer (Fig. 6A, top left, blue box), as quantified both by visual (Fig. 6B) and automated (Supplementary Fig. 4K) particles picking approaches (schematic of experimental outcomes in Fig. 6C). The nucleation of these oligomers was dependent on Gal3 concentrations (Supplementary Fig. 4L). Of note, Gal3 oligomer elution occurred at much higher I3 concentrations than that of Gal3 monomers (Fig. 6D and Supplementary Fig. 4M), indicative of multiple-bond (avidity) oligomer interactions with bent-closed α₅β₁ integrin. Gal3 oligomers disassembled over time into monomers (Supplementary Fig. 4N), thereby documenting that their formation was reversible.

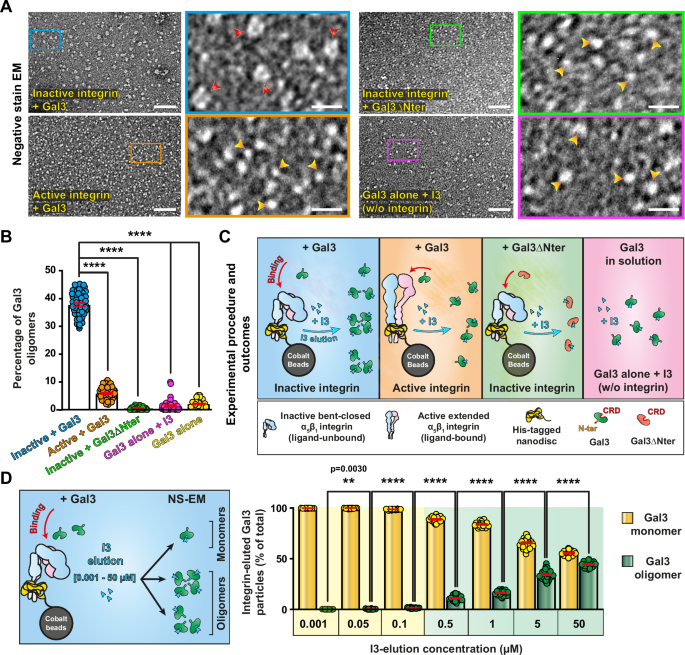

Fig. 6: Only inactive bent-closed α5β1 integrin nucleates the formation of Gal3 oligomers. — **Fig. 6: Only inactive bent-closed α₅β₁ integrin nucleates the formation of Gal3 oligomers.**

In contrast, the vast majority of Gal3 eluted as small spherical (i.e., <5 nm) particles from active ligand-bound α₅β₁ integrin (Fig. 6A, bottom left, orange box; Fig. 6B, C, and Supplementary Fig. 4K), likely representing monomers. As for Gal3 that had not been in contact with α₅β₁ integrin (Fig. 6A, bottom right, purple box; Fig. 6B, C), the Gal3∆Nter mutant was also mostly monomeric, even when the latter was eluted from the inactive bent-closed α₅β₁ integrin conformer (Fig. 6A, top right, green box; Fig. 6B, C). This correlated with the mutant’s reduced efficiency for binding to the integrin (Supplementary Fig. 4O).

These experiments led to the discovery of regular ring-shaped Gal3 oligomers. In line with the dichotomy theme from the cell-based and the in vitro interaction experiments, these oligomers were nucleated only upon Gal3 binding to the inactive bent-closed conformational state of α₅β₁ integrin, and their nucleation required Gal3’s N-terminal oligomerization domain (Fig. 6C).

Gal3 oligomers are also nucleated on the plasma membrane

We then investigated whether these Gal3 oligomers also formed within the complex environment of the plasma membrane glycocalyx, comprised of a great diversity of glycoproteins, including α₅β₁ integrin and other integrins, proteoglycans, and GSLs. For this, lactose-washed RPE-1 cells were first incubated on ice with exogenous Gal3, and Gal3 species eluted with the competitive inhibitor I3 were then analyzed by negative stain EM (Fig. 7A). Remarkably, ring-shaped oligomer structures were again abundantly detected (Fig. 7B), similar in both shape and size to those eluted from nanodisc-reconstituted bent-closed α₅β₁ integrin (Fig. 6A, top left, blue box).

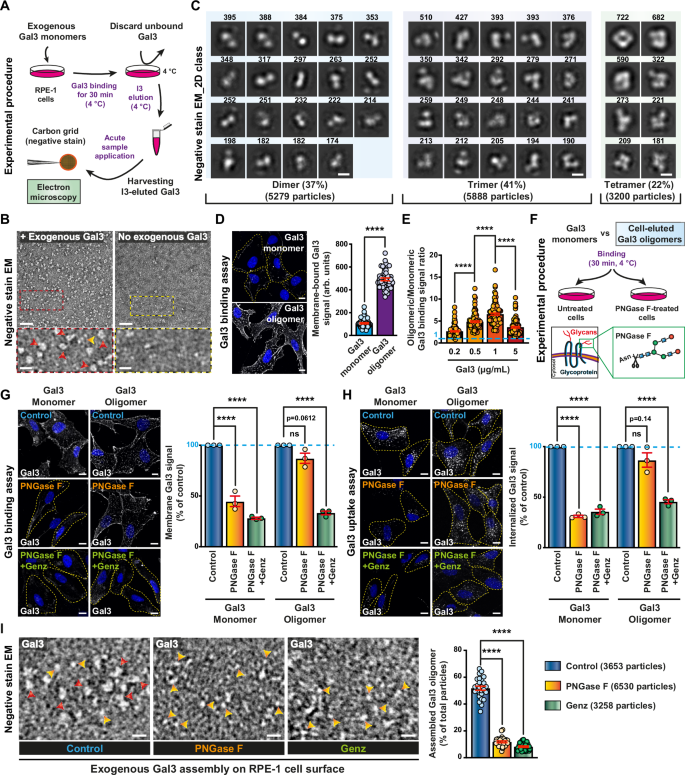

**Fig. 7: Characterization of Gal3 oligomers from cells.**

By 2D classification analysis of these cell-derived Gal3 oligomers, we found that out of 14,367 particles, 5279 (37%) resembled dimers in size and shape, 5888 (41%) trimers, and 3200 (22%) tetramers (Fig. 7C). Among the tetramers, the most prevalent groups of particles had annular organization, which were the largest 2D classes among all of the classified subpopulations (722, 682, and 590 particles, respectively, Fig. 7C).

The binding properties of these cell-derived Gal3 oligomers were then assessed. At the same mass equivalents, their rebinding to cells was much more efficient than that of monomeric Gal3 (Fig. 7D, E, and Supplementary Fig. 5A). The rebinding process was inhibited by I3 (Supplementary Fig. 5B), strongly suggesting that Gal3 itself and no other contaminating cellular component was required here. This conclusion was further strengthened by the finding that qualitatively similar differences in binding efficacy over monomers were obtained with Gal3 oligomers that had been eluted from purified bent-closed α₅β₁ integrin (Supplementary Fig. 5C).

The N-glycan sensitivity of binding was assessed by incubating cells with PNGase F (Fig. 7F), which strongly reduced cell surface N-glycan levels, as validated using the PhaL lectin⁸⁵ (Supplementary Fig. 5D). For monomeric Gal3, binding (Fig. 7G, left) and internalization (Fig. 7H, left) were significantly impaired on PNGase F-treated cells, whereas cell-derived Gal3 oligomers performed almost indiscriminately under both conditions (Fig. 7G, H, right). Similar results were obtained with Gal3 that had been pre-oligomerized on purified bent-closed α₅β₁ integrin (Supplementary Fig. 5E, F). We hypothesized that while monomeric Gal3 needs protein N-glycans for initial recruitment to the cell surface, as indeed described before²³, pre-oligomerized Gal3 can also be recruited to the cell surface by GSLs. In agreement with this hypothesis, binding onto and internalization of preformed Gal3 oligomers into PNGase F-treated cells were significantly decreased when the cells were also GSL-depleted using Genz (Fig. 7G, H). Of note, surface removal of N-glycans (PNGase F) or depletion of GSLs (Genz) both resulted in strongly reduced numbers of defined Gal3 oligomers scaffolded after binding of exogenous monomeric Gal3 (Fig. 7I), suggesting that at the cell surface, both types of glycoconjugates participate in oligomer nucleation.

These findings document that Gal3 oligomers have key properties as expected from the GL-Lect model, i.e., the capacity to functionally interact not only with N-glycans on glycoproteins, but also with glycans of GSLs.

Gal3 oligomers link the head and leg pieces of inactive bent-closed α₅β₁ integrin

To explore the molecular mechanism underlying the conformational state-specific dichotomic Gal3 oligomerization process, we set out to reveal the assembly state of Gal3 directly on inactive bent-closed α₅β₁ integrin via cryogenic electron microscopy (cryo-EM). We first vitrified peptidisc-embedded α₅β₁ integrin alone (Supplementary Fig. 6A–C) and refined the structure of the inactive bent-closed conformation to resolutions of 3.7 Å in the headpiece and 4.7 Å in the leg piece, respectively (Supplementary Fig. 6D–J). A homology model of rat α₅β₁ integrin⁸⁶ was fitted individually into the density maps of the headpiece (flexible fit, Supplementary Fig. 6K, L) and leg piece (rigid-body fit, Supplementary Fig. 6M). The structure revealed a bent-closed conformation with an angle between head and leg pieces that is similar to human α₅β₁ integrin⁸⁷, and larger than for other integrins⁸⁸.

Next, inactive bent-closed α₅β₁ integrin was inserted into GSL-containing nanodiscs, immobilized on beads, desialylated to increase affinity for Gal3^73,74, complexed with Gal3, detached from the beads, and immediately vitrified to minimize complex dissociation and aggregation (Supplementary Fig. 7A, B). The cryo-EM density map of all particles (3.9 Å resolution, Supplementary Fig. 7C) revealed the presence of fragmented density between head and leg pieces of α₅β₁ integrin, indicative of Gal3 binding in this region (Supplementary Fig. 9A, red dashed circles). To precisely position Gal3, we carried out sequential rounds of 3D variability analysis, heterogeneous refinement, and focused 3D classification. Thereby, we identified three subsets with densities at slightly different positions (Supplementary Fig. 7C, D).

Three subsets with the highest levels of density (7.4, 8.5, and 7.6 Å resolution, respectively; Fig. 8A–C and Supplementary Fig. 7D–F) comprised 6% of all particles, indicating a high level of heterogeneity. The size and shape of the density maps allowed us to fit 2, 3, or 4 Gal3 carbohydrate recognition domains (CRDs, in color; originating from PDB 1KJL) as rigid bodies between head and leg pieces of α₅β₁ integrin (gray) (Fig. 8A–C, top panels). Segmentation of cryo-EM density outside the α₅β₁ integrin heterodimer from these structures (Fig. 8A–C, bottom panels) revealed that additional densities were present (translucent red), which likely correspond to the N-termini of the Gal3 monomers, even if at the present resolution other interpretations cannot be excluded. These additional densities were oriented towards the center, where they overlap. The Gal3 molecules, therefore, appeared to be interconnected to form dimers (Fig. 8A, bottom panel), trimers (Fig. 8B, bottom panel) or tetramers (Fig. 8C, bottom panel).

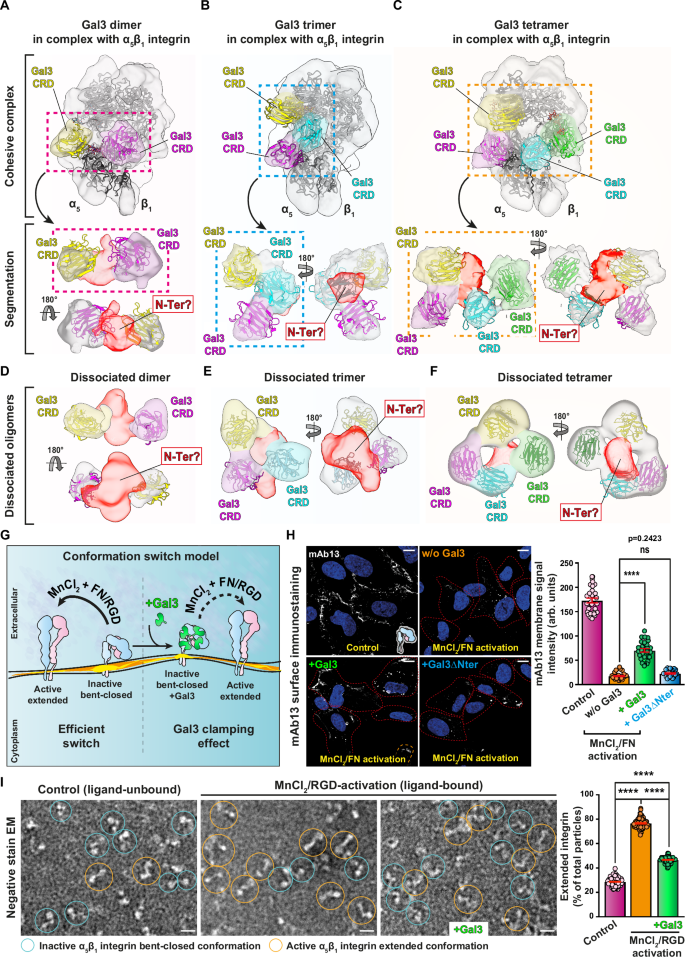

Fig. 8: Gal3 oligomers on inactive bent-closed α5β1 integrin and in isolation. — **Fig. 8: Gal3 oligomers on inactive bent-closed α₅β₁ integrin and in isolation.**

In support of this Gal3 oligomer formation hypothesis, we also detected in our vitrified preparation further particles of smaller size compared to the aforementioned complexes, into which again 2, 3, or 4 Gal3 CRDs could be fitted (Fig. 8D–F). Of note, the Gal3 arrangements resembled the oligomeric structures found in the corresponding complexes in overall shape and size (Fig. 8A–C). Notably, the overlapping densities (translucent red) were again oriented towards the center in agreement with overlapping Gal3 N-termini, thereby compatible with the notion that these structures were Gal3 oligomers that likely had detached from the integrin during sample preparation. They were comparable in size and shape with the ones revealed by negative stain EM after elution from cells (Fig. 7B, C, and Supplementary Fig. 9B).

Intriguingly, in peptidisc-embedded α₅β₁ integrin, a cryo-EM density map of a complex with Gal3 (13% of all particles, 6.9 Å resolution, Supplementary Fig. 8) revealed that only two CRDs could be fitted (Supplementary Fig. 9C), suggesting a requirement for membrane characteristics in complex stability.

The Gal3 oligomer models of the current study are compatible with two key functional properties of the protein. First, oligomerization is dependent on the N-terminal domain (Fig. 6A, B) and possibly involves biomolecular condensate formation⁸⁹. Second, the capacity to interact with several spatially separated galactoses on both protein N-glycans and GSLs is favored. Such a relative orientation of glycan-binding pockets towards the membrane surface has also been predicted by molecular dynamics simulations⁹⁰. In contrast, a tetramer model obtained by x-ray crystallography with N-terminally truncated versions of Gal3 assembled under non-natural conditions appears too compact to fit the EM density of the current study, and orients the glycan-binding pockets inwards, which is incompatible with simultaneous interaction with cargo and GSL glycans⁹¹ (Supplementary Fig. 9D).

Our data thereby represent the first 3D models of Gal3 oligomers that were made of full-length protein, and that were nucleated on glycoproteins from physiological sources.

Gal3 clamps the inactive bent-closed conformational state of α₅β₁ integrin

Our structural data pointed to the intriguing possibility that Gal3 oligomers might physically bridge membrane-proximal (leg piece) and distal (headpiece) parts of α₅β₁ integrin that face each other in the inactive bent-closed conformer (Fig. 8A–C). α₅β₁ integrin in its bent-closed state would thereby be stabilized by a Gal3-mediated clamping effect. To address this possibility, the propensity of α₅β₁ integrin to undergo the MnCl₂ and cRGD/fibronectin-triggered switch from the bent-closed to the extended ligand-bound conformational state was assessed upon pre-binding of Gal3, either on cells or on individual α₅β₁ integrin (Fig. 8G).

Incubation of cells with MnCl₂/fibronectin led to a strong increase of extended conformation-specific labeling (9EG7) (Supplementary Fig. 9E), and a concomitant decrease of inactive bent-closed conformation-specific labeling (mAb13) (Supplementary Fig. 9F). Preincubation of cells with Gal3 reduced this decrease of mAb13 labeling under MnCl₂/fibronectin incubation conditions (Fig. 8H), indicating that α₅β₁ integrin activation was inhibited. This was not observed with the Gal3∆Nter mutant (Fig. 8H), which reinforces the notion that oligomerization is required for this integrin clamping effect.

On purified α₅β₁ integrin, the conformational switch was directly monitored by negative stain EM (Fig. 8I) or by electrophoretic mobility (Supplementary Fig. 9G). In both cases, Gal3 again reduced the MnCl₂/cRGD-induced switch to the extended conformational state. Of note, a slight decrease in the angle between head and leg pieces occurred when clearly visible Gal3 densities were present on α₅β₁ peptidisc-embedded integrin (Supplementary Fig. 9H), which is also in support of a clamping effect.

To identify the glycans that are involved in the functional recognition of the bent-closed conformational state of α₅β₁ integrin by oligomerization competent Gal3, we combined cross-linking proteomics, molecular modeling, and site-directed mutagenesis in subsequent experiments.

Specifically the inactive bent-closed α₅β₁ integrin requires defined glycans for endocytic uptake

In the following, we use “r” or “h” tags in front of each N-glycosylation site to indicate their position in the α₅β₁ integrin of rat or human origins, respectively.

Cross-linking mass spectrometry revealed the proximity between position K227 in the CRD of Gal3 with positions in the membrane distal and membrane-proximal calf regions of the leg piece of α₅ integrin (Supplementary Fig. 10A, B). Several N-glycans at sites close to cross-linking positions, i.e., rN642, rN761, rN773, rN822, and rN917/rN918 of the α₅ chain, are complex-type multi-antennae structures that are of galectin-binding competent nature, as determined by site-specific glycoproteomics on the same α₅β₁ integrin preparation from rat liver as used in the current study⁸⁶. Using GlycoSHIELD⁹², possible conformations of these N-glycans were projected onto the α₅β₁ integrin model (Supplementary Fig. 10C, D).

Notably, the glycan at α₅-rN918 protrudes towards the head/leg interspace (Supplementary Fig. 10E), and its terminal galactose residues allowed for the fitting of a Gal3 CRD into the additional cryo-EM densities of dimeric, trimeric, and tetrameric Gal3 oligomers complexed with nanodisc-embedded α₅β₁ integrin (Fig. 9A–C). Interestingly, in the Gal3-integrin complexes that we have identified in peptidiscs, the glycan at position α₅-rN918 also appeared to be highly compatible for the fitting of one Gal3 CRD (Supplementary Fig. 10F, left panel). In this situation, a second Gal3 CRD could be placed into this additional density for interaction with a galactose residue on the α₅-rN773 glycan on the membrane-distal calf (Supplementary Fig. 10F, left panel, bottom, zoom with purple dashed line).

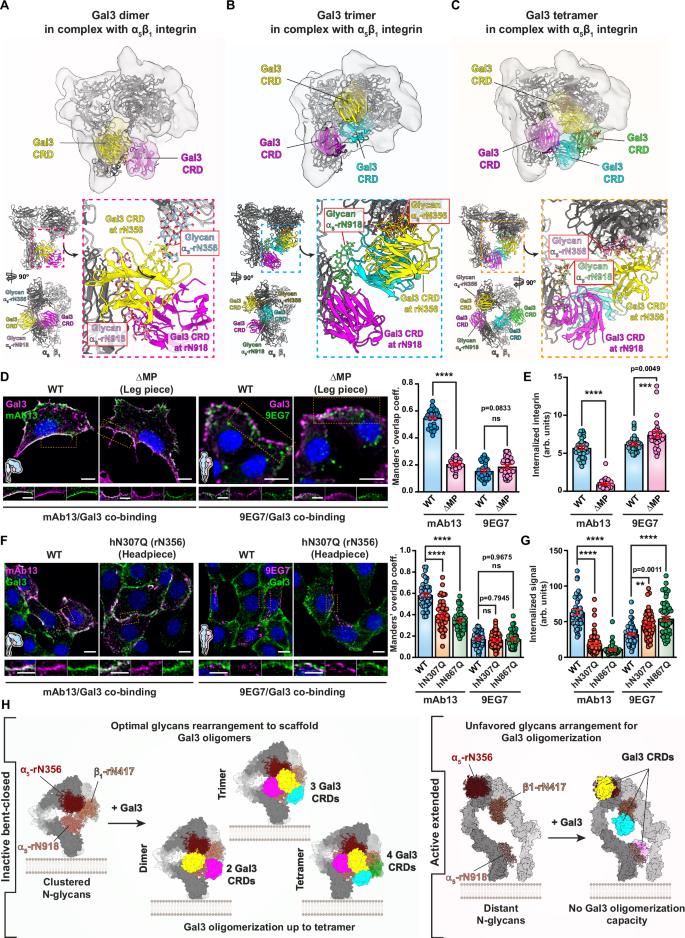

Fig. 9: Glycans for the functional recognition of bent-closed α5β1 integrin by Gal3. — **Fig. 9: Glycans for the functional recognition of bent-closed α₅β₁ integrin by Gal3.**

From these structural and cross-linking proteomics data, we deduced the N-glycans that might be involved in Gal3 binding and oligomerization. To assess their functional relevance, the corresponding glycosylation sites were mutated in human α₅ integrin (Supplementary Fig. 10G, H), and expressed together with wildtype human β₁ integrin in mouse kidney fibroblasts with a double knockout for α₅β₁ integrin (dKO-MKF) (Supplementary Fig. 10I). These cells endogenously express Gal3 (Supplementary Fig. 1A), and we demonstrated their capacity to assemble defined Gal3 oligomers even in the absence of endogenous α₅β₁ integrin (Supplementary Fig. 10J). As for RPE-1 cells (Fig. 7G, and Supplementary Fig. 5D, F), we validated the efficiency of PNGase F treatment in dKO-MKF cells (Supplementary Fig. 10K–M) and demonstrated that both N-glycans and GSLs were required to scaffold such defined Gal3 oligomers (Supplementary Fig. 10N), which reproduced our findings on RPE-1 cells (Fig. 7I).

With this tool in hand, we first investigated glycosylation sites in the membrane-proximal calf region of α₅ integrin by generating the ∆MP mutant (Supplementary Fig. 10H). α₅β₁ integrin cell surface levels were similar (mAb13) or even superior (9EG7) in ∆MP-expressing cells, when compared to wild-type α₅β₁ integrin-expressing cells (Supplementary Fig. 10O). This documents efficient ∆MP-mutant α₅β₁ integrin export from the endoplasmic reticulum and trafficking to the plasma membrane. The increased levels of active ligand-bound α₅β₁ integrin at the cell surface of ∆MP-expressing cells may explain the observed increase in cell area at short (30–180 min) (Supplementary Fig. 11A) or long (24 h) (Supplementary Fig. 11B) times after plating, with the appearance of thick fibrillar-shaped 9EG7 and vinculin-positive focal adhesions (Supplementary Fig. 11C). In contrast, wild-type α₅β₁ integrin-expressing cells mainly exhibited discrete adhesion sites, likely corresponding to nascent focal adhesion with dynamic assembly and disassembly rates, prone to sustain efficient cell migration^93,94.

Despite efficient localization of ∆MP-mutant α₅β₁ integrin to the cell surface, the overlap of mAb13 (inactive bent-closed α₅β₁ integrin) with Gal3 dropped to similarly low levels on these ∆MP cells (Fig. 9D) as observed with the oligomerization-deficient Gal3∆Nter mutant on wild-type α₅β₁ integrin-expressing cells (Supplementary Fig. 12A). This result suggests that the removal of the membrane-proximal glycosylation sites on the α₅ chain diminished the capacity of bent-closed α₅β₁ integrin to bind Gal3. Consistently, we found that the weak overlap of Gal3 with active ligand-bound α₅β₁ integrin (9EG7), which does not nucleate Gal3 oligomers (Fig. 6A, B), was not reduced any further on ∆MP-expressing cells (Fig. 9D). Furthermore, the endocytic uptake of the inactive bent-closed conformational state (mAb13) of α₅β₁ integrin ∆MP mutant was also much reduced, when compared to that of wildtype α₅β₁ integrin, while no difference was observed for the active ligand-bound conformational state (9EG7) (Fig. 9E). The fact that the cell surface levels of the latter, and not the former, increased in ∆MP mutant expressing cells (Supplementary Fig. 10O) suggested that endocytically constrained inactive bent-closed ∆MP mutant may have been shifted into the active state.

These results again demonstrate a dichotomic relationship in which the membrane proximal glycosylation sites on the α₅ chain are critical for efficient colocalization with Gal3 and endocytic uptake of specifically the inactive bent-closed conformational state of α₅β₁ integrin. We then addressed the role of glycosylation sites in the headpiece.

From the glycans of the α₅ chain headpiece that point towards the additional cryo-EM density that we ascribed to Gal3 (Fig. 9A–C), the one at position rN356 (hN307 in human α₅, Supplementary Fig. 10G) is a Gal3-binding competent complex-type glycan⁸⁶. Based on GlycoSHIELD modeling, it was indeed possible to position another Gal3 CRD for interaction with a galactose residue on the α₅-rN356 (α₅-hN307) glycan. With α₅-rN918 (α₅-hN867), α₅-rN356 (α₅-hN307) constitutes the core glycan pair, which is common to Gal3 dimers, trimers, and tetramers that all bridge the head and leg pieces of bent-closed α₅β₁ integrin (Fig. 9A–C, and Supplementary Figs. 9C and 10F, left panel, top, blue dashed line zoom). The corresponding human α₅ chain glycosylation site mutant hN307Q, when co-expressed with wildtype human β₁ integrin in dKO-MKF-cells, was again efficiently localized at the cell surface (Supplementary Fig. 12B), with increased levels of active ligand-bound α₅β₁ integrin (9EG7) that may explain the increase in cell area (Supplementary Fig. 11A, B) and thickening of focal adhesions in α₅-hN307Q cells (Supplementary Fig. 11C). Yet, for the inactive bent-closed conformational state (mAb13), the overlap with Gal3 was significantly reduced (Fig. 9F), and mAb13 uptake was largely inhibited (Fig. 9G), similar to ∆MP (Fig. 9D, E) and α₅-hN867Q mutants (α₅-rN918Q; Fig. 9F, G). In contrast, for the active ligand-bound conformational state (9EG7), overlap with Gal3 (Fig. 9F) and endocytosis (Fig. 9G) were similar between α₅-hN307Q or α₅-hN867Q mutant expressing cells and wild-type α₅β₁ integrin-expressing cells.

Although thigh-located tri and tetra-antennary glycan carrying glycosylation sites α₅-rN642 (α₅-hN593) and α₅-rN822 (α₅-hN773)⁸⁶ were robustly identified in our cross-linking proteomics (Supplementary Fig. 10A, B), their mutation (α₅-hN593Q or α₅-hN773Q) neither affected the surface levels (Supplementary Fig. 12C) nor the endocytic uptake (Supplementary Fig. 12D) of the inactive bent-closed conformational state of α₅β₁ integrin (mAb13). Very clearly, not all glycans had the same capacity to impact GL-Lect-driven endocytosis.

Interestingly, in the complex between dimeric Gal3 and nanodisc-embedded α₅β₁ integrin (Fig. 9A), the existence of an alternative to the α₅-rN356/α₅-rN918 glycan pair can be proposed, in which the glycan at rN417 of β₁ integrin also fits with one Gal3-ascribed electron density, in addition to glycan α₅-rN356 (Supplementary Fig. 12E). Gal3 binding to glycan β₁-rN417 is also compatible with additional densities within the trimer and tetramer complexes (Supplementary Fig. 12F), and cross-linking mass spectrometry indeed suggested proximity of β₁-rN417 with cross-linked lysines in α₅β₁ integrin and Gal3 (Supplementary Fig. 10B).

These mutational data consolidate the dichotomy notion between inactive bent-closed and active extended ligand-bound conformational states of α₅β₁ integrin as to their interaction with Gal3. Specifically, it appears that only on bent-closed α₅β₁ integrin N-glycans from head and leg pieces are arranged such that Gal3 oligomerization can be nucleated (Fig. 9H, left). In contrast, in extended ligand-bound α₅β₁ integrin, these glycans are too distant from each other to enable such oligomerization (Fig. 9H, right).

Also, α_V and α₃ integrins were found to be strong Gal3 interactors and cargoes of the retrograde route (Supplementary Fig. 12G). In both cases, N-glycosylation sites are present at equivalent positions as the key α₅ integrin sites α₅-rN356 and α₅-rN918 (Supplementary Fig. 12H). In contrast, for α integrins that were weakly enriched in our retrograde and Gal3 interaction proteomics lists, such as α₂ and α₆ integrins (Supplementary Fig. 12G), no strict structural conservation could be detected for the α₅-rN356 and α₅-rN918 sites (Supplementary Fig. 12H). The N-glycan signature that we have identified here as a trigger for Gal3 oligomerization may therefore apply beyond α₅β₁ integrin.

Discussion

Based on extensive structural and functional data, we demonstrate that the active-inactive conformational state switch of α₅β₁ integrin takes advantage of rearranging the spatial positioning of N-glycans to nucleate Gal3 oligomers and direct the integrin’s endocytic fate. Thus, only the non-ligand-bound bent-closed conformational state positions α₅β₁ integrin N-glycans for Gal3 oligomerization and ultimately GL-Lect driven endocytosis (Fig. 9H, left). Here, we focused on α₅β₁ integrin, but other known Gal3 binding partners, such as other integrins, CD44^95,96, and epidermal growth factor receptor⁹⁷, also undergo critical conformational changes that potentially result in similar spatial rearrangement of their N-glycans. We propose spatial rearrangement of N-glycans on proteins undergoing major conformational changes during ligand-binding (or switching between activity states) as a more general mechanism for directing interactions and oligomeric assemblies of galectins and determine their specific endocytic fates. We think that our structural determination of the first example of Gal3 nucleation on spatially arranged N-glycans in the inactive bent-closed state of α₅β₁ integrin provides a guide for the N-glycan arrangement pattern needed to nucleate Gal3 oligomers and ultimately for predicting glycoproteins that are capable of doing so.

The concept of obtaining biological specificity in interactions with otherwise commonly expressed glycan structures through recognition of assemblies of multiple glycans (also referred to as clustered saccharide patches) by glycan-binding receptors was originally proposed by Ajit Varki^98,99. The Gal3 oligomer nucleation competent glycan arrangement on bent-closed α₅β₁ integrin (Fig. 9H, left) befits this concept and extends it by adding the dynamic switching of the glycan landscape through functional states of a glycoprotein. Molecular insights into recognition of clustered saccharide patches are only emerging now, with the example of a bacterial mucin-binding module that interacts with a distinct cluster of O-glycans¹⁰⁰, and a bacterial toxin requiring multiple N-glycans for binding¹⁰¹. Our study provides an unprecedented structural insight into the recognition of multiple N-glycans and constitutes a pioneering example of dynamic changes in the spatial arrangements of glycan-binding motifs. Most importantly, our study clearly illustrates how one of the most common structural elements in human glycans, the LacNAc disaccharide unit, in fact can serve as the ligand for directing specific biological functions through the context of presentation, as previously proposed^98,99. Our findings are likely to have a great impact not only on other members of the galectin family, but also on the many other types of endogenous glycan-binding proteins, such as siglecs and selectins, that seemingly bind common glycans and for which the natural endogenous ligands have remained elusive^102,103,104.

Our work sheds new light on the nature and shape of Gal3 oligomers, which may have wider relevance to the large family of galectins and other glycan-binding proteins. Based on biochemical evidence, Gal3 oligomers have been proposed to exist as ill-defined pentamers⁵⁵, as higher order assemblies⁵⁴, or as tetramers with inconsistent features made from N-terminally truncated protein⁹¹. Here, using tissue-derived reconstituted α₅β₁ integrin or the surface of living cells for assembly, we demonstrate that full-length Gal3 can form well-defined dimers, trimers, and tetramers. Pentamers were not found, which could either mean that they are absent altogether, have very low abundance, and/or are very unstable.

According to our current model of the Gal3 tetramer, glycan-binding sites point in the same outward direction. Such molecular architecture is also found for GSL-binding subunits of bacterial Shiga and cholera toxins and the VP1 protein of simian virus 40, which, like Gal3, drive GSL-dependent narrow membrane bending and the biogenesis of tubular endocytic pits from which CLICs are formed^105,106,107. These elements may represent the structural signature of GL-Lect driven endocytic processes. How the molecular organization of Gal3 oligomers on inactive bent-closed α₅β₁ integrin, as revealed here, reaches onto the membrane to drive GSL-dependent membrane deformation remains to be established in future studies.

While our study reveals the mechanism of Gal3 oligomer assembly at the cell surface, it remains to be established how oligomer disassembly is operated. Our observation that both Gal3 and bent-closed α₅β₁ integrin are found together in the same endocytic structures and are transported to the Golgi apparatus points to the possibility that Golgi-specific functions may contribute to the disassembly process, e.g., acidification¹⁰⁸ and resialylation on N-glycans^38,109. This would then free α₅β₁ integrin and reset the protein for de novo activation after its polarized secretion to the leading edge^{9,11,12,56,110}.

Our study identifies the bent-closed conformational state of α₅β₁ integrin as a nucleator of Gal3 oligomerization to selectively drive endocytosis. This finding provides a hitherto undescribed scenario for the recognition of patterns of glycans on glycoproteins and the importance of considering the rearrangement of glycans for the acute regulation of functions and dynamics at the cell surface. Elsewhere, we propose a complementary mechanism for galectin-driven endocytosis of membrane glycoproteins, including integrins, in which acute desialylation at the cell surface by growth factor signaling exposes high-affinity ligands for galectin binding³⁸. These two mechanisms, the conformational glycoswitch (this study) and the desialylation glycoswitch³⁸, are indeed complementary and not mutually exclusive as they may function in a staged manner, i.e., growth factor-induced N-glycan desialylation (desialylation glycoswitch) followed by conformational state-specific rearrangements in the N-glycan landscape to drive nucleation of galectin oligomers (conformational glycoswitch). Sialylation would thereby set the fraction of inactive bent-closed α₅β₁ integrin that is available for nucleating Gal3 oligomers.

In conclusion, our work highlights a dynamic nature of the glycan landscape at the cell surface, which calls for profound rethinking of interactions with glycans and the roles and functions of the glycans on membrane glycoproteins.

Methods

Cells and tissues

HeLa cells, HeLa cells stably expressing the TGN-localized GalT-GFP-SNAP fusion protein¹¹¹, RPE-1 cells, genome-edited RPE-1 cells stably expressing AP2-mTag-GFP (see below), α₅β₁ integrin double KO mouse kidney fibroblast (dKO-MKF, kindly provided by Reinhard Fässler). Rat livers (Charles Rivers), E. coli strain Rossetta2-pLysS (Novagen).

Reagents

WGA-agarose column (Sigma-Aldrich, Ref. 61768-5 mL), FNIII₉_-10-agarose column (GE Healthcare), cRGD (CliniSciences, Ref. A8164), soluble fibronectin (Sigma, Ref. F0895-2mg), recombinant FNIII 9-10 fibronectin fragment⁸², NHS-HiTrap (GE Healthcare, Ref. 17071701), HisPur™ Cobalt Resin (Thermofisher, Ref. 89965), protein G-sepharose beads (Sigma, Ref. P3296), GFP-Trap MA beads (Chromotek, Ref. gtma-20), Bio-Beads™ SM2 adsorbent media (Biorad, Ref. 152-3920), 300-400 mesh carbon-coated copper grids for electron microscopy (Delta Microscopy, Ref. DG400-Cu), Quantifoil Cu 300 mesh QF2/1 grids for cryo-EM, protease inhibitors (Sigma-Aldrich, Ref. P8849), chicken egg phosphatidylcholine (ePC, Avanti Polar, Ref. 840051C), Brain PS (Avanti Polar, Ref. 840032P), brain porcine gangliosides total extract (GSLs) (Avanti Polar 860053P), Transferrin-Alexa546 (Tf-A546) (Invitrogen, Ref. T23364), recombinant purified Gal3, Gal3-His, Gal3∆Nter²³, Ingenio® electroporation buffer (Mirus, Ref. MIR 50111), HiPerFect transfection reagent (Qiagen), siCHC (Qiagen, Refs. SI00299880S1; SI00299873S1), hamster anti-rat α₅ and β₁ integrin primary antibody (BioLegend, Ref. 103902/102202), HRP-coupled secondary anti-hamster antibody, mAb13 antibody (BD Bioscience, Ref. 552828), 9EG7 antibody (BD Bioscience, Ref. 553715), mAb16 and SNAKA51 antibodies (kindly provided by Patrick Caswell), anti-SNAP-tag antibody (New England Biolabs, Ref. P9310S), anti-CHC antibody (BD Bioscience, Ref. 610500), mouse anti-vinculin antibody (Sigma, Ref. V9131), anti-α tubulin antibody (BD Bioscience, Ref. T5168), anti-vps35 antibody (kind gift from Juan Bonifacino), anti-vps26 antibody (Abcam, ab23892), NHS-ATTO-488 (ATTO-TEC, Ref. AD488-31), NHS-Alexa647 (Invitrogen, Ref. A20006), secondary anti-mouse-HRP (Beckman Coulter, Ref. 715-035-151), secondary anti-rabbit-HRP (Beckman Coulter, Ref. 711-035-152), secondary anti-rat-HRP (Beckman Coulter, Ref. 712-035-153), secondary anti-rat Cy3 (Beckman Coulter, Ref. 712-166-153), secondary anti-mouse Alexa488 (Molecular probes Invitrogen, Ref. A-21202), HRP-NHS (AAT Bioquest, Ref. 11025), sialidase (neuraminidase from Arthrobacter ureafaciens, Roche Ref. 10269611001), glycerol-free PNGase F (New England Biolabs, Ref. P0705L), Alexa488-conjugated PHA-L lectin (Thermofisher, ref. L11270), Alexa488-conjugated SiaFind Pan-specific Lectenz® lectin (Lectenz, Ref. SK0501F), BG-GLA-NHS (New England Biolabs, Ref. S0151S), ciliobrevin D (CBD) (Merck, Ref. 250401), Genz-123346 (Sigma, Ref. 5382850001), Gal3 inhibitor compound GB0149-03 (Galecto Biotech; 1,1′-sulfanediyl-bis-{3-deoxy-3-[4-(butylaminocarbonyl)−1H-1,2,3-triazol-1-yl]-β-D galactopyranoside}, referred to as I3), β-D-lactose (Sigma, Ref. L3750), NHS-Cy3 (GE, PA23001), Cy3 mono-reactive succinimidyl ester (Cytivia, Ref. GEPA23001), BS3-d0/BS3-d4 (bis(sulfosuccinimidyl)suberate-d0/d4, Thermoscientific, Ref. 21590 and 21595), DSBU (Disuccinimidyl Dibutyric Urea, Thermoscientific, Ref. A35459), SNAP-Cell® Block (New England Biolabs Ref. S9106S), glutaraldehyde, protein ladder (Thermoscientific, Ref. 26619), Triton X-100™ (Anatrace, Ref. T1001-500 mL), DAB (Sigma-Aldrich, Ref. D8001), ascorbic acid, Nonidet P-40 (NP40, Sigma, Ref. 21-3277), MSP1D1 protein scaffold (MSP1D1-His, Cube Biotech, Ref. 26112), peptidiscs (MSP1D1-derived scaffold peptidisc-His/Biotin, Peptidisc Lab), dialysis cassettes 10 kDa molecular weight cut-off (Thermo Scientific), 100 kDa molecular weight cut-off concentrator (GE Healthcare), Vivaspin 500 (Merck, Ref. Z614092-25EA), PD10 desalting column (GE, Ref. 17-0851-01), Zeba spin column 7 kDa cut-off (Thermo Fisher, Ref. 89882), 4-15% Stain-Free™ pre-casted polyacrylamide gels (BioRad, Ref. 4561084), ECL reagent, 5 mm cover glass (Electron Microscopy Sciences, Ref. 72195-05); clathrin (CHC) siRNAs Hs CLTC 9 and 10 (Qiagen, Ref. 1027417/SI00299880S1 and 1027417/SI00299873S1); Gal3-CFP mammalian expression vector was obtained by sub-cloning human Gal3 sequence in peCFP-C1/2/3 vector (Clontech); cDNA sequences of the different N-glycosylation mutants of α5 integrin were synthetized by GenScript and cloned in pCI-neo mammalian expression vector.

Media and buffers

DMEM high glucose (Thermofisher, Ref. 41965039), DMEM-F12 Gibco (Thermofisher, Ref. 11320033), 1 M HEPES pH 7–7.4 (Sigma-Aldrich, Ref. H0887), EDTA pH 8, PBS++ (PBS supplemented with 1 mM MgCl₂ and 0.5 mM CaCl₂, pH 7.4), HEPES buffer (20 mM HEPES, 150 mM NaCl), Hepes-Tx-100 buffer (HEPES buffer supplemented with 0.2% (v/v) Triton X-100), β-D-lactose solution (150 mM, iso-osmolarized), I3 solution (10 μM or 50 μM), TNE buffer (10 mM Tris, 150 mM NaCl and 5 mM EDTA), low-salt TNE (TNE with 50 mM NaCl), lysis buffer (TNE with 1% NP40, supplemented with proteases inhibitor cocktail), low-salt lysis buffer (lysis buffer with low-salt TNE), acid wash buffer (glycine 0.5 M, pH 2.2). 4% PFA solution (Electron Microscopy Sciences, Ref. 1570), 3x non-reducing SDS sample buffer (2 M Tris/HCl, pH 6.8, 20% SDS, 30% glycerol, 0.03% phenol red), 3x non-reducing low SDS sample buffer (2 M Tris/HCl, pH 6.8, 2% SDS, 30% glycerol, 0.03% phenol red), BSA-saponin buffer (0.5% saponin, 2% BSA, in PBS), HEPES buffer (20 mM HEPES, 150 mM NaCl), HEPES/Tx-100 buffer (HEPES buffer supplemented with 0.2% (v/v) Triton X-100).

Equipment

Transmission electron microscope (TEM) 80 kV (Tecnai Spirit, Thermo Fisher, USA), equipped with QUEMESA camera (Olympus), TEM 80 kV (TEM 900, Zeiss) equipped with a Morada G2 camera (Olympus), TEM 120 kV (Talos L120C, Thermo Fisher), equipped with Ceta16M camera (Thermo Fisher), TEM 300 kV (Titan Krios, Thermo Fisher), equipped with K3 direct electron detector with energy filter (Gatan), TEM 300 kV (Titan Krios, Thermo Fisher), equipped with Falcon3 direct electron detector (Thermo Fisher), cryoplunger (Vitrobot Mark IV, Thermo Fisher), confocal microscope (A1RHD25 microscope, Nikon Imaging Center, Curie Institute), lattice light sheet microscope LLSM 40 from 3i (Intelligent Imaging Innovations). Custom-built TIRF Microscope (with 100 x objective, 1.45 NA), equipped with an ORCA-Flash 4.0 V3 Digital CMOS camera (Hamamatsu). BioRad ChemiDoc for protein detection (chemiluminescence and fluorescence detection). Microtime 200 system (PicoQuant GmbH, Germany) for fluorescence lifetime imaging and correlation spectroscopy measurements. CHI760e Electrochemical Workstation (CH Instruments, USA) for EIS. nanoAcquity UPLC device (WatersCorporation, Milford, MA, USA), Q-Exactive HF-X mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA).

Recombinant protein expression

Human recombinant Gal3-6xHis and Gal3∆Nter-6xHis with aa115-250 of BC053667 were cloned into pHis-Parallel2 and purified as described^23,112. Briefly, for cloning, Gal3 and 6xHis were separated by a Leu-Glu linker at the C-terminus. Proteins were expressed overnight at 20 °C in Rossetta2-pLysS using LB media with 60 μM IPTG, and purified with cobalt resin affinity chromatography and gel filtration (Superdex75 16 × 60) in PBS at pH 7.4. Coupling with Alexa488 sulfodichlorophenol ester (Alexa488-Gal3) or Cy3 mono-reactive succinimidyl ester (Gal3-Cy3) was performed overnight at 16 °C using a 4-fold molar dye excess in PBS and purified with PD10 columns. The labeling efficiency was 1–1.5. Human recombinant Gal3-TEV-6xHis was cloned into pHis-Parallel2 without a linker between Gal3 and TEV cleavage site, and 26 amino acids between the TEV site and 6xHis (FW:5′ GGAATTCCATATGGCAGACAATTTTTCGCTCCATGATGCG, RV:5′ CTGGATCCGCCCTGAAAATACAGGTTTTCTATCATGGTATATGAAGCACTGG). Protein expression was performed as for Gal3-6xHis. The bacterial pellet was resuspended in buffer-A (20 mM HEPES, pH 7.8, 200 mM NaCl, 80 mM lactose, 10 mM imidazole, 1 mM TCEP), sonicated, centrifuged for 60 min at 75,000 × g, and the supernatant was incubated for 1 h at 4 °C with Ni-Sepharose-Fast Flow beads (Cytiva). The beads were then washed with buffer-A containing 300 mM NaCl, and eluted in buffer-B (20 mM HEPES, pH 7.8, 20 mM NaCl, 40 mM lactose, 0.5 mM TCEP, 500 mM imidazole, pH 7.8). The eluted protein was diluted to 2 mg/mL and dialyzed in buffer-C (20 mM HEPES, 25 mM NaCl, 40 mM lactose, 0.5 mM TCEP, 0.5 mM EDTA) to remove imidazole. 20 µg shTEV-His protease per mg of Gal3 was injected into the dialysis chamber. After 24 h at 4 °C, the dialysis chamber was transferred for 8 h to a lactose and EDTA-free buffer-D (20 mM HEPES 7.3, 150 mM NaCl, 50 μM TCEP). ShTEV-His and non-cleaved Gal3-TEV-6xHis were removed by incubation with a cobalt resin. We noticed that highly purified Gal3 was very sticky to Ni-NTA. The non-bound protein fraction was concentrated and purified by FPLC-gel filtration (Superdex75 16 × 60) using buffer-D without TCEP, with an elution peak at 68 mL. When required, Gal3 was fluorophore-labeled as for Gal3-6xHis using 20 mM HEPES, 150 mM NaCl, pH 7.3, snap-frozen, and stored at −80 °C.

Preparation of antibody-HRP conjugates

One hundred micrograms of mAb13 or 9EG7 antibodies were added to lyophilized HRP-NHS (300 μg) at a final molar ratio of 1/9 and incubated for 2 h at 21 °C. Unreacted HRP was removed using a 100 kDa cut-off concentrator.

mAb13-HRP/9EG7-HRP internalization and sample preparation for electron microscopy

Ten micrograms per milliliter of HRP-conjugated mAb13 or 9EG7 antibody were continuously incubated for 6 to 9 min at 37 °C with HeLa cells. Cells were immediately placed on ice, washed once with DMEM supplemented with 15 mM HEPES and 1% BSA, and twice with DMEM supplemented with 15 mM HEPES without BSA. Surface-bound antibodies were removed by incubation for 10 min at 4 °C with ascorbic acid solution of DAB (in DMEM, 15 mM HEPES, 1% BSA). Enzymatic reaction of internalized HRP was developed by incubation for 20 min at 4 °C with the same solution supplemented with H₂O₂. The cells were washed three times at 4 °C with DMEM supplemented with 15 mM HEPES, and fixed overnight at 4 °C with 2.5% glutaraldehyde in PBS. Cells were washed three times at room temperature during 70 min with 0.1 M Na-cacodylate in water. Membrane fixation was performed with 1% OsO₄ in 0.1 M Na-cacodylate in water. After one wash with 0.1 M Na-cacodylate in water and two washes with water, contrast was obtained by incubation for 45 min with aqueous 4% uranyl acetate solution. Cells were again washed with water. Samples were then dehydrated for 10 min at room temperature by incubation with increasing concentration of aqueous ethanol solutions (1 × 50% 5 min, 1 × 70% 5 min, 2 × 90% 10 min) and 3 × 100% anhydrous ethanol solution. Cells were finally embedded in LX112 resin, ultrathin 65 nm sections were obtained using a Reichert Leica UCT ultramicrotome, and mounted on Ni/formvar/carbon-coated grids for observations. Micrographs were acquired by electron microscopy.

Clathrin heavy chain (CHC) cell surface co-immunoprecipitation

mAb13 or 9EG7 antibodies (10 μg/mL) were incubated for 30 min at 4 °C with RPE-1 cells. Excess antibody was removed by washing with ice-cold PBS⁺⁺, and cells were lysed with lysis buffer. Antibodies were pulled down from cleared lysates (post-nuclear supernatants) by overnight incubation with 40 μl bed volume protein G-sepharose at 4 °C. Beads were washed three times with TNE 0.1% NP40, and immunoprecipitated proteins were denatured by boiling (95 °C) in SDS sample buffer. Eluted proteins were separated on denaturing non-reducing SDS-PAGE gels and immunoblotted against mAb13 or 9EG7 (anti-rat-HRP) and CHC (anti-mouse-HRP).

Antibody binding or uptake

For plasma membrane labeling (binding), 10 μg/mL of mAb13 or 9EG7 antibodies were incubated for 30 min at 4 °C with RPE-1 cells. These were then washed three times with ice-cold PBS⁺⁺, fixed with 4% PFA for further immunofluorescence detection. For uptake, 3 or 10 μg/mL of mAb13 or 9EG7 antibodies, respectively, were continuously incubated for 5 or 10 min at 37 °C with RPE-1 cells, according to experimental conditions. Cells were shifted to 4 °C and an excess of antibodies removed by washing with ice-cold PBS⁺⁺. Cell surface-bound antibodies were removed with three acid washes of 45 s each. Acidic pH was then neutralized with three times ice-cold PBS⁺⁺ washes, and cells were fixed in 4% PFA, followed by secondary antibody labeling (see below) and confocal microscopy.

Concentrations of exogenous Gal3

200 nM (5 μg/mL) of Gal3 were typically used for cellular binding and uptake assays, as analyzed by confocal microscopy imaging. For experiments in which cargo internalization was stimulated by Gal3 addition (Fig. 3C, D and Supplementary Fig. 3A), we have used a range of concentrations from 20 nM to 400 nM. Note that a substantial increase in mAb13 uptake was already observed with 20 nM of Gal3. All these experiments were performed in the presence of endogenous Gal3. In microcavity array-suspended lipid bilayer (MSLB) experiments, Gal3 concentration from 0.2 to 37 nM was used (Fig. 5C, D, and Supplementary Fig. 4B). In a previous study, the endocytosis of CD44 was indeed stimulated with as little as 0.3 nM of exogenous Gal3 on mouse embryonic fibroblasts that had been depleted for endogenous Gal3²³. For the Gal3 oligomer experiments on reconstituted α₅β₁ integrin (Fig. 6A, B) and on cells (Fig. 7), Gal3 concentrations were tuned to obtain maximal amounts of oligomer material.

Transferrin and Gal3 uptake

5 µg/mL of Tf-A546 or 200 nM of Alexa488-Gal3 were continuously incubated for 5 or 10 min at 37 °C with RPE-1 cells, according to experimental conditions.

Immunofluorescence

Cells were fixed with 4% PFA at 4 °C for 5 min and an additional 5 min at room temperature. Excess of PFA was then quenched with 50 mM NH₄Cl, followed by incubation for 30 min at room temperature with BSA-saponin saturation/permeabilization solution (intracellular immunostaining), or only with 0.2% BSA (saturation for plasma membrane labeling). Cells were incubated for 30 min at room temperature either with primary and secondary antibodies for the labeling of cellular antigens, or only with secondary antibody to detect primary antibodies that had been put in contact with living cells (uptaken antibody). Coverslips were mounted on slides with Mowiol supplemented with DAPI. All fixed cell immunofluorescence images were acquired with a Nikon A1RHD25 confocal microscope. Signals were quantified using the ImageJ program and displayed as mean intensity per cell after maximal projection of Z-stacked images. For colocalization analysis, the JACoP plugin run in ImageJ was used to measure Manders’ coefficient signal co-occurrences. This quantification method calculates the percentage of the signal from one channel that overlaps with the signal from the other channel. To do so, it is of importance to image samples with high signal-to-noise ratios, and to select pixels from both channels that are relevant from the biological perspective¹¹³.

siCHC transfection

HeLa cells stably expressing Golgi-localized GalT-GFP-SNAP were transfected with 8 nM of siCHC (or of siCtrl) to inhibit CHC expression, using HiPerFect reagent. Antibody uptake and retrograde trafficking experiments were performed 48 h after transfection. Inhibition level of CHC expression was assessed by immunoblotting.

EPS15DN-GFP transfection

RPE-1 cells were electroporated with 10 μg EPS15DN-GFP encoding plasmid 24 h prior to performing antibody uptake experiments. GFP-positive signal (GFP+) served to identify cells that expressed the dominant negative EPS15 mutant, and GFP-negative cells (GFP^-) served as internal controls.

CRISPR of RPE-1 AP2-eGFP

CRISPR-Cas9 genome editing of RPE-1 cells to generate isogenic mTagGFP-labeled AP2 was performed by electroporation of the following molecules. Homology directed repair template: Purified AP2-mTagGFP fragment after Snf-I digestion of pMK-RQ AP2M1-mTagGFP (vector: gift of Guillaume Montagnac, mTagGFP inserted between Ser236 and Gly237 of AP2M1 (NM_004068.4), mTagGFP-spacer at N-term: GSTGGS, at C-term: AGSGT), and four gRNAs in pX330-Cas9, designed with CHOPCHOP¹¹⁴. gRNA-2-FW: 5′CACCgagaagaggtctcattggtac, gRNA-2-RV: 5′AAACgtaccaatgagacctcttctC, gRNA-3-FW CACCgattgcttcccgctgcaagc, gRNA-3-RV AAACgcttgcagcgggaagcaatcC. Transfected cells were expanded for 2 weeks. The genome-edited population was identified by three cycles of FACS sorting and expansion, and finally tested for colocalization between AP2-mTagGFP and Tf-Alexa647 (Thermo Fisher Scientific) during endocytic pit formation.

mAb13-ATTO488 and 9EG7-ATTO488 conjugates

A 10-fold molar excess of NHS-ATTO488 compound was incubated for 2 h at 21 °C in preservative-free PBS buffer with the corresponding antibodies. Unreacted NHS-ATTO488 was first neutralized for 10 min at 21 °C with 10 mM Tris, and further eliminated using 7 kDa cut-off Zeba spin desalting columns.

Dynamic mAb13 and 9EG7 tracking by lattice light sheet microscopy (LLSM)

Endocytosis experiments were performed in RPE-1 cells stably expressing AP2-GFP (RPE-1 AP2-mTagGFP), as previously described with minor modifications⁸¹. In brief, RPE-1 AP2-mTagGFP cells were seeded 24 h before imaging on a 5 mm #1.5 thickness cover glass. The medium was changed to CO₂-independent lattice light sheet (LLS) imaging medium (phenol-red-free DMEM, high glucose, glutamax, supplemented with sterile 1% BSA, 0.01% penicillin and streptomycin, 1 mM pyruvate, and 20 mM HEPES, pH 7.3). Cells were dipped for 2 min at room temperature in a tube either containing 5 μg/mL of mAb13-Cy3, 9EG7-Cy3, or Tf-Alexa546, diluted in LLS-imaging medium. After one wash in LLS-medium, coverslips were transferred into the imaging chamber of the LLS-microscope, kept at 27 °C. mAb13-Cy3/AP2-GFP and 9EG7-Cy3/AP2-GFP co-tracks were dynamically monitored by LLSM.

Gal3/mAb13 and Gal3/9EG7 dynamic co-tracking by lattice light sheet microscopy (LLSM)

Galectin-3/integrin co-binding was performed in RPE-1 cells. These experiments were imaged as previously established with minor modifications⁸¹. 5 mm #1.5 thickness coverslips seeded with RPE-1 cells were sequentially dipped for 2 min at 4 °C in a solution of Gal3-Cy3 (200 nM, in LLS-imaging medium), once washed in LLS-imaging medium, and then plunged at 4 °C in a tube either containing 5 μg/mL of mAb13-ATTO488 or 9EG7-ATTO488, diluted in LLS-imaging medium. After one LLS-medium wash, coverslips were transferred into the imaging chamber. Co-tracks of Gal3-Cy3/mAb13-ATTO488 and Gal3-Cy3/9EG7-ATTO488 were dynamically monitored by LLSM and further processed.

LLSM acquisition

Acquisitions in LLS-imaging medium were performed at 27 °C for increased stability of the optical system. 4D acquisition started within 2–4 min using a commercial LLSM of 3i (Denver, USA), as previously described¹¹⁵. Cells were scanned incrementally with a 20 µm light sheet in 600 nm steps using a fast piezoelectric flexure stage equivalent to ∼325 nm with respect to the detection objective, and were imaged using two sCMOS cameras (Orca-Flash 4.0; Hamamatsu, Bridgewater, NJ). Excitation was achieved with 488 nm (Sapphire Coherent) or 560 nm (MPB Communications) diode lasers at 10–20% acousto-optic tuneable filter transmittance with 300 mW (initial box power) through an excitation objective (Special Optics 28.6 × 0.7 NA 3.74-mm water-dipping lens) and detected via a Nikon CFI Apo LWD 25 × 1.1 NA water-dipping objective with a 2.5× tube lens. LLSM imaging was performed using an excitation pattern of outer NA equal to 0.55 and inner NA equal to 0.493. A composite volumetric dataset of 60 slices per cell was acquired within 1.5–1.8 s using 10 ms exposure per slice and channel for mAb13-Cy3/AP2-GFP or 9EG7-Cy3/AP2-GFP co-tracking experiments, and within 2–3 s using 10–20 ms exposure time per slice and channel for Gal3-Cy3/mAb13-ATTO488 and Gal3-Cy3/9EG7-ATTO488 co-tracking experiments. Eighty to one hundred twenty time points were acquired per cell. Raw images of the obtained datasets were quantitatively analyzed using an adapted version of the previously published cmeAnalysis3D software⁸¹, as described in the following section.

Quantitative analysis and visualization of mAb13/AP2 or 9EG7/AP2 co-tracking experiments

Post-processing of raw data volumes was carried out as described previously⁸¹. Automated detection of AP2-coated structures or punctate structures of fluorescently labeled cargoes in 3D (mAb13-Cy3 antibody, 9EG7-Cy3 antibody, and Tf-Alexa546) was performed by numerical fitting with a model of the microscope point spread function (PSF), as described previously¹¹⁶. Automated tracking of cargo and clathrin was calculated using the u-track software package¹¹⁷, as part of the cmeAnalysis3D software¹¹⁶, which was implemented in Matlab 2021b. AP2 and cargo positions were exploited to map the membrane shape, using the Matlab function of alphaShape⁸¹. We then calculated the displacement of each cargo from the plasma membrane. The distinction between point-like structures moving inside the plasma membrane and internalized molecules, whether AP2-positive or AP2-negative, was made using membrane position detection. An event was counted as endocytic uptake if an object underwent a net displacement of at least 150 nm from the initial position inside the membrane proximal zone⁸¹. The membrane proximal zone was limited by the contour of the alphaShape and a line 400 nm inwards of the cell⁸¹. To calculate the number of AP2-positive and AP2-negative events, the presence of AP2 was assessed for each qualified internalization event of the cargo channel using the cmeAnalysis3D software. Only tracks with durations of more than 8 s were used for this analysis. The calculation of the lifetime distributions and intensity cohorts was performed as described previously¹¹⁶. The raw LLSM images, used in Supplementary Fig. 3I and L, and Supplementary Movies 3–6 were deconvolved using LLSpy v0.4.8 (https://doi.org/10.5281/zenodo.3554482). Supplementary Movies 3 and 4 were rendered and visualized using Imaris software 9.82. Supplementary Movies 5 and 6 were rendered and visualized using ImageJ¹¹⁸/Fiji 1.53c¹¹⁹. The analysis code can be found as part of the GitHub repository of llsmtools in https://github.com/francois-a/llsmtools/. Statistical analyses were performed using Prism v9.4.1 software (Graphpad Inc.).

Quantitative analysis and visualization of mAb13/Gal3 or 9EG7/Gal3 co-tracking experiments

Post-processing of raw data volumes was carried out as described⁸¹. Automated detection of punctate structures of Gal3-Cy3 and cargoes (mAb13-ATTO488 and 9EG7-ATTO488 antibodies) in 3D was performed by numerical fitting with a model of the microscope PSF as described previously¹¹⁶. Automated tracking of cargo and Gal3 was calculated using the u-track software package^116,117, which was implemented in Matlab 2021b. To calculate the number of Gal3-positive and Gal3-negative events, the presence of Gal3 was assessed for each qualified internalization event of the cargo channel using the cmeAnalysis3D software. Cargo tracks were considered Gal3-positive if they colocalized more than 10 s with Gal3. Only tracks with a duration of more than 10 time points were used for the analysis. Speed and distance of co-tracks were estimated using positions from the cmeAnalysis3D software. The raw LLSM images, used in Fig. 2D and Supplementary Movies 1 and 2, were deconvolved using LLSpy (v0.4.8) (https://doi.org/10.5281/zenodo.3554482) before video rendering and visualization using napari (v0.4.12) (doi: 10.5281/zenodo.3555620). Statistical analyses were performed using Prism v9.4.1 software (Graphpad Inc.).

Ciliobrevin D (CBD) treatment

RPE-1 cells were pre-treated for 30 min at 37 °C with 50 μM CBD. CBD was then kept during all subsequent incubations at 37 °C. For uptake experiments with pre-loaded exogenous Gal3, CBD pre-treatment was followed by sequential incubation of 200 nM Gal3 and 10 μg/mL of mAb13 or 9EG7 antibodies on RPE-1 cells for 30 min at 4 °C, before further incubation for 10 min at 37 °C.

I3 treatment

Cells were pre-treated with 10 μM I3 for 5 min at 37 °C. I3 was washed out with PBS⁺⁺ for acute endocytosis assays, or kept during subsequent incubations for retrograde trafficking experiments.

Genz treatment

RPE-1 cells were continuously incubated for 2 days with 5 μM Genz-123346 in DMEM-F12 medium containing 5% FCS, prior to performing mAb13 and 9EG7 antibody uptake assays.

PNGase F treatment

RPE-1 or dKO-MKF cells were incubated for 24 h at 37 °C with 5000 units/mL of glycerol-free PNGase F in DMEM-F12 or DMEM supplemented with 1% FCS, to remove N-linked glycans on membrane glycoproteins. Efficient removal of N-glycans from the cell surface was assessed by incubating PNGase F-treated or untreated RPE-1 cells for 15 min at 4 °C with 0.3 μg/mL of Alexa488-conjugated PHA-L lectin and subsequent confocal microscopy analysis.

Sialidase treatment

RPE-1 cells were incubated for 40 min at 37 °C with 75 mU/ml of sialidase (neuraminidase from Arthrobacter ureafaciens) in serum-free DMEM-F12 medium. Efficient removal of sialic acids was assessed by incubating sialidase-treated or untreated RPE-1 cells for 15 min at 4 °C with 10 μg/mL of Alexa488-conjugated SiaFind lectin and subsequent confocal microscopy analysis.

Incubations with exogenous Gal3/Gal3∆Nter

For antibody binding and uptake assays, 10 μg/mL of mAb13 or 9EG7 antibodies were incubated for 30 min at 4 °C with RPE-1 cells. Excess antibodies were removed by washing with PBS⁺⁺, and cells were then shifted to 37 °C in the presence of the indicated concentrations of exogenous Gal3 or Gal3∆Nter in serum-free DMEM-F12 medium. For retrograde transport assays, HeLa cells stably expressing GalT-GFP-SNAP were continuously co-incubated for 3 h at 37 °C with 10 μg/mL of BG-coupled mAb13 antibody and 200 nM of Gal3 in serum-free DMEM medium.

Gal3/Gal3∆Nter and mAb13/9EG7 or mAb16/SNAKA51 co-binding and co-uptake assays

Exogenous Gal3 or Gal3∆Nter (200 nM) were incubated for 30 min at 4 °C with RPE-1 cells in serum-free DMEM-F12 medium. Excess of Gal3 or Gal3∆Nter was removed by washing with the same ice-cold medium. 10 µg/mL of integrin antibodies (mAb13 or 9EG7 for β₁ integrin, mAb16 or SNAKA51 for α₅ integrin) were then incubated for 30 min at 4 °C with the same cells that had already been pre-incubated with Gal3. Excess antibodies were removed by washing, and cells were either fixed in 4% PFA (co-binding assay) or shifted for 10 min to 37 °C (co-uptake assay). For the latter, residual cell surface accessible Gal3 was removed by incubations at 4 °C with 150 mM β-D-lactose (three times, 5 min), and residual cell surface accessible integrin antibodies by acid washes. Immunofluorescence was then performed as described above.

Gal3 and mAb13/9EG7 co-binding and co-uptake assays on micropatterned RPE-1 cells

Line patterns were produced, and cells were seeded as previously described⁵⁶. Coverslips (25 mm) were micropatterned with 9 μm-wide lines and covered with 5 μg/mL fibronectin. RPE-1 cells (30,000 per well) were seeded onto these coverslips and left to adhere in the incubator for at least 5 h before further manipulations. Gal3 and mAb13 or 9EG7 co-binding and co-uptake were performed as described above.

Gal3-CFP/mAb13 or 9EG7 cell surface co-immunoprecipitation experiments

10 µg/mL of mAb13 or 9EG7 antibodies were incubated for 30 min at 4 °C with transiently Gal3-CFP expressing HeLa cells. Excess of antibodies was removed with three times ice-cold PBS⁺⁺ washes, and cells were lysed in lysis buffer. Cleared lysates were incubated with 30 μl slurry of GFP-Trap beads for an overnight pulldown at 4 °C. After 3 washes in TNE 0.1% NP40, bound proteins were eluted from beads, and denatured at 95 °C heating in SDS sample buffer. Samples were loaded onto SDS-PAGE gels, immunoblotted with anti-rat HRP antibodies against the bound antibodies (co-IP mAb13 and 9EG7). Antibody levels were quantified. Gal3-CFP fluorescence signals (pulldown) served as loading controls.

Gal3/mAb13 or 9EG7 cell surface co-immunoprecipitation upon sialidase treatment

RPE-1 cells were seeded in 5 cm dishes 24 h before the experiment. After sialidase treatment (see “sialidase treatment” section), SETA-555 labelled His-tagged Gal3 (5 μg/mL) and mAb13 or 9EG7 (5 μg/mL) were sequentially bound at 4 °C to RPE-1 cells, as described above. Cells were then lysed for 30 min at 4 °C, and the post-nuclear supernatants were applied onto 30 μl slurry of pre-washed cobalt-coated beads for an overnight incubation at 4 °C. Proteins were eluted from beads and denatured by boiling in SDS sample buffer, run onto SDS-PAGE, and directly analyzed by fluorescence for the detection of Gal3, or immunoblotted with anti-rat IgG-HRP antibody for the detection of mAb13 or 9EG7.

mAb13-BG and Gal3-BG conjugates

BG-GLA-NHS compound was incubated for 6 h at 4 °C in preservative-free PBS buffer with a 10-fold molar excess over antibodies, or for 2 h at 21 °C with a 3-fold molar excess over Gal3. For antibodies, unreacted BG was eliminated by overnight dialysis against PBS using 10 kDa cut-off dialysis cassettes. For Gal3, unreacted BG was removed using 7 kDa cut-off Zeba spin desalting columns. For fluorescence microscopy analysis of retrograde trafficking, mAb13-BG and Gal3-BG were further incubated for 1 h at 21 °C with a 3-fold molar excess of Cy3-NHS. Unreacted Cy3 was removed using 7 kDa cut-off Zeba spin desalting columns.

Biochemical retrograde trafficking analysis

HeLa cells stably expressing GalT-GFP-SNAP were continuously incubated for 2–3 h at 37 °C with 10 μg/mL mAb13-BG or 200 nM Gal3-BG conjugates in the indicated conditions. Excess of antibody or Gal3 was removed by washing with DMEM, and the unreacted GalT-GFP-SNAP was quenched for 20 min at 37 °C with 10 μM SNAP-cell®-Block. Cells were lysed for 30 min at 4 °C with lysis buffer, and cleared lysates were loaded on a 30 μl slurry bed of either G-sepharose (for mAb13-BG or 9EG7-BG pulldown) or GFP-Trap (for Gal3-BG pulldown) beads for overnight pulldown at 4 °C on a rotating wheel. Samples were washed three times with TNE 0.1% NP40 buffer. Proteins were eluted by boiling in SDS sample buffer, loaded on denaturing non-reducing SDS-PAGE gels, and immunoblotted with anti-SNAP antibody. When mAb13-BG or Gal3-BG reached the Golgi compartment, a covalent reaction with the SNAP-tag occurred, resulting in the formation of covalent mAb13 or Gal3/GalT-GFP-SNAP protein species that were detected by western blotting (anti-SNAP immunoblots) and termed SNAP-mAb13 and SNAP-Gal3, respectively.

Retrograde trafficking analysis by fluorescence microscopy

10µg/mL Cy3-mAb13-BG was continuously incubated for 1 h at 37 °C with GalT-GFP-SNAP expressing HeLa cells. Cells were then prepared for fluorescence imaging by confocal microscopy. For investigation of clathrin-dependent endocytosis contribution to retrograde trafficking, 200 nM Cy3-Gal3-BG or 10 μg/mL Cy3-mAb13-BG were incubated as described above, either under siCtl or siCHC depletion conditions.

mAb13/9EG7 colocalization with Gal3 and retromer complex

Gal3 and mAb13 or 9EG7 were sequentially bound at 4 °C onto RPE-1 cells, as described above. Cells were then shifted for 15 min to 37 °C, placed at 4 °C, and successively washed with β-D-lactose and acid buffers (see co-binding/co-uptake assays section) to remove cell surface accessible ligands. After PFA fixation, cells were permeabilized and further immunolabeled with anti-VPS26 antibody (see immunofluorescence section).

mAb13/9EG7 and Gal3 co-immunoprecipitation with the retromer complex

Gal3 (5 μg/mL) and mAb13 (5 μg/mL) or 9EG7 (10 μg/mL) were sequentially bound at 4 °C onto RPE-1 cells seeded in 10 cm dishes 24 h before experiments, as described above. Cells were shifted for 20 min to 37 °C, then cooled to 4 °C, and successively washed with β-D-lactose and acid buffers (see co-binding/co-uptake assays section) to remove cell surface accessible ligands. Cells were lysed for 30 min at 4 °C in low-salt lysis buffer, and the post-nuclear supernatants were applied onto 30 μl slurry of pre-washed G-Sepharose beads for an overnight incubation at 4 °C. Proteins were eluted from beads and denatured by boiling in SDS sample buffer, loaded onto SDS-PAGE gels, and then immunoblotted with anti-VPS35 antibody, or directly with anti-rat IgG-HRP antibody for the detection of mAb13 or 9EG7. Co-precipitated Gal3 was detected by fluorescence.

Purification of α₅β₁ integrin from rat livers

Micellar α₅β₁ integrin was solubilized and purified as described previously⁸². Protein purity was analyzed by Stain-Free™ SDS-PAGE. α₅β₁ integrin-enriched fractions were then pooled, and the final concentration was determined by the colorimetric Bradford assay. α₅β₁ integrin was snap-frozen and stored at −80 °C.

Negative stain EM of purified α₅β₁ integrin

α₅β₁ integrin in micelles or reconstituted in lipid nanodiscs or peptidiscs, as described below, was incubated for 30 s on freshly glow-discharged carbon-coated EM grids before staining with 2% of uranyl acetate. Micrographs were recorded at 80 kV on a TEM 900 (Zeiss) equipped with a Morada G2 camera (Olympus) or a Tecnai Spirit equipped with a QUEMESA camera.

Negative stain EM of Gal3 oligomers

Gal3 oligomers eluted from α₅β₁ integrin-Gal3 complexes in nanodiscs, peptidiscs, or from RPE-1 cells (1:3 dilution in PBS) were incubated for 3 min on freshly glow-discharged carbon-coated EM grids before staining with 2% of uranyl acetate. 20 µg/mL of Gal3 alone (monomer) was used as a control. Micrographs were recorded on a Talos L120C TEM equipped with a Ceta16M CCD detector at a pixel size of 1.58 Å per pixel in low-dose mode.

Sialidase treatment of purified α₅β₁ integrin

When specified, purified α₅β₁ integrin was treated with sialidase (neuraminidase from Arthrobacter ureafaciens) at a ratio of 0.08 U of enzyme for 100 μg of α₅β₁ integrin to remove terminal sialic acids from integrin glycans.

Gal3 interaction with α₅β₁ integrin in microcavity array-suspended lipid bilayers

α₅β₁ integrin was reconstituted into microcavity array-suspended lipid bilayers at a lipid to protein ratio of 10:1. The microcavity array-suspended lipid bilayers were prepared at gold or PDMS polymer substrates for EIS or FLIM (FCS), respectively, according to procedures described previously⁸³. Membrane capacitance and FLIM measurements were then performed in the presence of increasing concentrations of Gal3. Both FLIM and EIS studies were conducted with microcavity array-suspended lipid bilayers filled with and in contact with 10 mM HEPES buffer. Integrin activation was accomplished through sequential addition of 5 mM Mn²⁺, with 30 min incubation, then 1 mM cRGD with 90 min incubation, to the contacting solution. Addition of Gal3 at the indicated concentrations was followed by an equilibration time of 30 min. These times were confirmed to be sufficient for protein binding/equilibration in all cases. All measurements were carried out at room temperature (22 ± 1 °C) and in triplicate. Capacitance values were extracted from EIS data by fitting to an equivalent circuit model reported previously and analyzed using Z-View software (Scribner Associates, v3.4e). Fits were assessed from both, visual inspection of the fit residuals, and from χ² (typically ~0.001). As absolute membrane resistance and capacitance can vary with substrate, the average relative changes to membrane resistance (\(\Delta R\)) and capacitance (\(\Delta Q\)) are reported as (\({R}_{M}^{X}-{R}_{M}^{0}\)) and (\({Q}_{M}^{X}-{Q}_{M}^{0}\)); where \({R}_{M}^{0}\) and \({Q}_{M}^{0}\) represents respectively the absolute membrane resistance and capacitance in the absence of lectin, and \({R}_{M}^{X}\) and \({Q}_{M}^{X}\) are the respective values of membrane resistance and capacitance values in presence of lectin. For FLIM and FCS measurements, α₅β₁ integrin and Gal3 were fluorescently labeled with ATTO488 and Alexa647, respectively. Out of a 20% weight of the total integrin, 5% weight was fluorescently labeled with ATTO488. FLIM/FCS measurements were carried out in triplicate at 20 °C. Data collection, analysis, and extraction of D values were conducted as described previously⁸³.

Direct Gal3 interaction with α₅β₁ integrin conformers in Triton X-100 micelles

The shift from the inactive bent-closed α₅β₁ integrin to the active extended ligand-bound conformational state was achieved as follows: 0.5 μg α₅β₁ integrin was sialidase-treated as described above, and further incubated for 1 h at 21 °C under gentle agitation at a final concentration of 10 μg/mL in 45 μl HEPES/Triton X-100 buffer, supplemented with 5 mM MnCl₂. cRGD peptide was then added at a final concentration of 100 μM, and incubated overnight at 4 °C under gentle agitation. This freshly activated α₅β₁ integrin, or the inactive bent-closed one, was then incubated for 1 h at 21 °C under gentle agitation with 200 nM of Alexa488-labeled Gal3 (Alexa488-Gal3). Samples were chilled for 10 min on ice, and α₅β₁ integrin-Alexa488-Gal3 complexes were cross-linked for 20 min at 4 °C with 2.5 mM glutaraldehyde. Reactions were stopped by incubation for 20 min at 4 °C with 20 mM Tris, pH 7.4. Samples were supplemented with 3x non-reducing SDS sample buffer (2% SDS), run for PAGE at 100 V without SDS (semi-native conditions). Alexa488-Gal3 signal was directly detected on gels (Alexa488 channel). Proteins were then transferred onto nitrocellulose membranes and immunoblotted for rat β₁ integrin.

α₅β₁ integrin reconstitution in nanodiscs

Reconstitutions were performed at a R1 = lipid/MSP1D1 ratio of 50 mol/mol, and a R2 = α₅β₁ integrin/nanodisc ratio of 1 mol/mol, as described previously⁸². For one reconstitution reaction (50 μl final volume), His-tagged MSP1D1 scaffold protein was diluted to 4 μM (100 μg/mL) in HEPES buffer supplemented with 0.06% Triton X-100 and incubated for 10 min at 21 °C under gentle stirring. ePC/bPS (90/10, mol/mol) lipid mix was added at a final concentration of 90 μg/mL, still under stirring, and further incubated for 10 min at 21 °C under gentle stirring. α₅β₁ integrin in HEPES/Triton X-100 buffer was added at a final concentration of 0.25 mg/mL, and incubated for 20 min at 4 °C under gentle stirring. Triton X-100 detergent was finally removed by incubation under gentle stirring for 30 min at 4 °C with 6 mM of Heptakis (2,6-di-O-methyl)-β-cyclodextrin. For Cryo-EM of nanodisc-embedded α₅β₁ integrin-Gal3 complexes, ePC/bPS/GSLs (85/10/5, mol/mol/mol) lipid mix was used instead.

Direct Gal3 interaction with α₅β₁ integrin conformers in nanodiscs

For in vitro activation, α₅β₁ integrin in nanodiscs was first incubated for 30 min at 21 °C with 5 mM MnCl₂, followed by an additional 2 h incubation at 21 °C with 10 μM FNIII_9-10 fibronectin fragment. This freshly activated α₅β₁ integrin, or the untreated inactive bent-closed one, was adjusted to 500 μl HEPES buffer (supplemented with 5 mM MnCl₂ and 10 μM FNIII_9-10 fibronectin fragment for the active condition) and incubated with 200 nM Cy3-Gal3-His for 15 min at 18 °C on a rotating wheel. The mixture was then incubated for 1 h at 4 °C with 30 μl bed volume of cobalt beads. Beads were washed three times with 500 μl HEPES buffer, and α₅β₁ integrin-Gal3 complexes were eluted by incubation for 1 h at 21 °C with 40 μl of HEPES buffer supplemented with 10 mM EDTA. Samples were denatured with 3x concentrated non-reducing SDS sample buffer, boiled for 5 min at 95 °C, and run on SDS-PAGE. α₅β₁ integrin and Gal3 were detected using the Stain-Free™ and fluorescence (Cy3 channel) modes, respectively.

Glycan-dependent binding of Gal3 to purified α₅β₁ integrin

Gal3 was pre-incubated or not for 10 min at room temperature with either 50 mM β-D-lactose or 100 μM I3 inhibitor. Binding to α₅β₁ integrin in Triton X-100 micelles or reconstituted in nanodiscs was then performed as described above. Samples were denatured with 3x concentrated non-reducing SDS sample buffer, boiled for 5 min at 95 °C, and run on SDS-PAGE. α₅β₁ integrin and Gal3 were detected using the Stain-Free™ SDS-PAGE.

Elution of Gal3 or Gal3∆Nter from α₅β₁ integrin in nanodiscs

Four reconstitution reactions as described above were incubated overnight at 4 °C on a rotating wheel with 30 μl cobalt bead bed volume in 500 μl HEPES buffer. Beads were washed three times with 500 μl HEPES buffer. The cobalt bead-immobilized α₅β₁ integrin in nanodiscs was incubated in 500 μl HEPES buffer for 2 h at 21 °C on a rotating wheel, either with 4 μM of Gal3 or Gal3∆Nter. Beads were washed three times with 500 μl HEPES buffer. Gal3/Gal3∆Nter were specifically eluted with 40 μl of 50 μM I3 inhibitor diluted in HEPES buffer. Elution was performed by gentle manual shaking for 10 min at 21 °C, and samples were immediately negatively stained for EM as previously described. As control, monomeric Gal3 in solution (0.8 μM) was incubated with 50 μM I3 inhibitor for 10 min at 21 °C, and negatively stained for EM. For the oligomer stability study, eluted samples were kept for the indicated times at 4 °C until loading onto EM grids.

Gal3 titration for oligomer assembly

Cobalt bead-immobilized α₅β₁ integrin in nanodiscs was incubated in 500 μl HEPES buffer for 2 h at 21 °C on a rotating wheel, with 0.1, 0.4, 1.2, and 4 μM of Gal3 to reach 1, 4, 12, and 40 molar ratios between Gal3 and α₅β₁ integrin, respectively. Beads were washed three times with 500 μl HEPES buffer. Gal3 was specifically eluted with 40 μl of 50 μM I3 inhibitor diluted in HEPES buffer. Elution was performed by gentle manual shaking for 10 min at 21 °C. Samples were immediately negatively stained for EM as described above, and analyzed by Stain-Free™ SDS-PAGE.

I3 titration for Gal3 elution from α₅β₁ integrin

Cobalt bead-immobilized α₅β₁ integrin in nanodiscs was incubated in 500 μl HEPES buffer with 4 μM of Gal3 for 2 h at 21 °C on a rotating wheel. Beads were washed three times with 500 μl HEPES buffer, and Gal3 was successively eluted with 40 μl of 0.001, 0.05, 0.1, 0.5, 1, 5, and 50 μM I3 inhibitor solutions, under gentle manual shaking for 10 min at 21 °C. At each elution step, the supernatant was harvested, and the beads were immediately resuspended in solution with the next higher I3 concentration. Samples were instantly analyzed by negative stain EM and SDS-PAGE.

α₅β₁ integrin reconstitution in peptidiscs

For each reconstitution reaction, 10 μg of purified α₅β₁ integrin was incubated for 20 min at 21 °C at a final concentration of 0.5 mg/mL with 4.5 μg of peptidisc/peptidisc-His mixture (1:1, w/w). Triton X-100 detergent was removed by the addition of 15 mM of Heptakis (2,6-di-O-methyl)-β-cyclodextrin. Four reconstitution reactions were pooled in 500 μl HEPES buffer, mixed with 30 μl bed volume cobalt beads, and incubated overnight at 4 °C on a rotating wheel. Beads were then washed three times with 500 μl of HEPES buffer. Peptidisc-reconstituted α₅β₁ integrin was finally eluted by incubation for 20 min at 21 °C under shaking in 40 μl of the same buffer supplemented with 10 mM EDTA. Samples were further analyzed by Blue Native PAGE and negative stain EM to qualitatively assess mono-insertion of α₅β₁ integrin heterodimers in peptidiscs.

α₅β₁ integrin activation in peptidiscs

α₅β₁ integrin in peptidisc (two reconstitution reactions as above) was incubated for 1 h at 21 °C with 5 mM MnCl₂, and 100 μM cRGD peptide. Samples were then incubated for 2 h at 4 °C on a rotating wheel with 30 μl bed volume of cobalt beads. Beads were washed three times with HEPES buffer, supplemented with 5 mM MnCl₂, and integrin eluted for 20 min at 21 °C with 250 mM imidazole HEPES solution, 5 mM MnCl₂. Imidazole was removed using 7 kDa cut-off Zeba spin desalting columns equilibrated with HEPES buffer, 5 mM MnCl₂. Efficient switch from the inactive bent-closed to the active extended ligand-bound conformation was monitored by negative stain EM and Blue Native PAGE.

Preparation of α₅β₁ integrin-Gal3 complexes in peptidiscs for photobleaching experiments

α₅β₁ integrin was reconstituted into peptidiscs as described above, except that a peptidisc/peptidisc-His/peptidisc-biotin (1/1/1, w/w/w) mixture was used. After overnight incubation with cobalt beads, immobilized peptidiscs were resuspended in 500 μl of HEPES buffer and incubated with sialidase on a rotating wheel according to conditions described above. Beads were washed three times with 500 μl of HEPES buffer and further incubated for 2 h at 21 °C on a rotating wheel with 4 μM of Gal3-Cy3. Beads were washed three times with 500 μl of HEPES buffer, α₅β₁ integrin-Gal3-Cy3 complexes were eluted for 10 min with 40 μl of HEPES buffer supplemented with 10 mM EDTA under manual and gentle resuspension of beads, and immediately analyzed in photobleaching experiments.

Photobleaching analysis of α₅β₁ integrin-Gal3 complexes in peptidiscs

Glass coverslips (Menzel-Gläser, thickness #1) were first washed for 20 min under sonication with chloroform, followed by 5 min washes with water. The coverslips were then sonicated for 20 min with 1 M KOH buffer, followed by three times rinsing with water, and a final sonication for 20 min with water. The clean coverslips were then dried under a gentle nitrogen stream and plasma cleaned for 1 min. A double-sided tape mask was used to create a micro chamber for sample incubation to generate surface-immobilized peptidisc samples for fluorescence imaging¹²⁰. To immobilize the freshly prepared α₅β₁ integrin-Gal3 complexes, chambers were first incubated for 1 h with silane-PEG2000 mixed with 1.5% of silane-PEG3400-biotin (LaysanBio) at 5 mM concentration, for 10 min with neutravidin solution at 20 µg/mL, and for 15 min with β-casine at 0.5 mg/mL. The chambers were thoroughly rinsed at each incubation step by injecting 100 µL of buffer. Finally, the α₅β₁ integrin-Gal3 complexes in peptidiscs were incubated for 10 min in the chamber and were imaged under glucose oxidase oxygen scavenger conditions. For photobleaching experiments, a custom-built TIRF Microscope (with 100× objective, 1.45 NA) was used to excite Gal3-Cy3 with a 532 nm laser. Fluorescence images were recorded with 50 ms exposure time using an ORCA-Flash 4.0 V3 Digital CMOS camera (Hamamatsu). All experiments were performed at 21 °C. The recorded fluorescence stream was processed using Matlab-based open-source iSMS and AutoStepfinder software^121,122. α₅β₁ integrin reconstituted in biotin-free peptidiscs, as well as Gal3-Cy3 alone, were used as controls.

Gal3 oligomers elution from RPE-1 and dKO-MKF cells

RPE-1 or dKO-MKF cells (knockout for α₅ and β₁ chains) were cooled for 10 min on ice and then washed three times for 5 min with ice-cold 150 mM β-D-lactose solution to remove endogenous surface-bound Gal3. Cells were then extensively washed with ice-cold PBS⁺⁺ and further incubated for 30 min at 4 °C with 50 μg/mL exogenous Gal3 diluted in serum-free DMEM-F12. Unbound Gal3 was removed by 3 washes with PBS⁺⁺. Surface-bound Gal3 was eluted for 30 min at 4 °C with 20 μM of I3. Samples were analyzed by negative stain EM for 2D classification as described below. For binding and uptake assays (see below), parts of the RPE-1 cell samples were desalted two times with 7 kDa cut-off spin-columns to remove the I3 compound. Non-desalted Gal3 sample (I3 present) was used as a negative control to assess glycan-dependency in the rebinding experiment, as described below. For binding and uptake assays with eluted oligomers, Cy3-labeled Gal3 was used.

The importance of N-glycans and GSLs in the Gal3 oligomerization process was investigated using PNGase F or Genz treatments, respectively, as described in previous sections. Experimental procedures for Gal3 binding and oligomerization analysis by negative stain EM are equally described in previous sections, except that Gal3 was used at 10 μg/mL instead of 50 μg/mL.

Characterization of cell-eluted Gal3 oligomer binding strength

RPE-1 cells were cooled for 10 min on ice and then incubated for 10 min at 4 °C with increasing concentrations (0.2–5 μg/mL) of either Gal3-Cy3 oligomers eluted from cells, or monomeric Gal3-Cy3. Cells were then washed with cold PBS⁺⁺, immediately fixed with 4% PFA, and analyzed by confocal fluorescence microscopy.

Glycan and GSL-dependent binding and uptake of Gal3 oligomers that were eluted from cells or from α₅β₁ integrin

RPE-1 cells were untreated (control) or PNGase F-treated (see above) to remove N-linked glycans from membrane glycoproteins. For binding assays, cells were cooled for 10 min on ice. Five micrograms per milliliter 5 µg/mL of cell-eluted Gal3-Cy3 oligomers (see above) or monomeric Gal3-Cy3 were incubated for 10 min at 4 °C with PNGase F-treated or untreated RPE-1 cells. These cells were then washed with cold PBS⁺⁺, immediately fixed with 4% PFA, and analyzed by immunofluorescence. For uptake experiments, cells were continuously incubated for 2 min at 37 °C with Gal3 oligomers or monomers at 5 μg/mL, placed on ice, incubated with cold β-D-lactose to remove non-internalized Gal3-Cy3, washed with cold PBS⁺⁺, and immediately fixed with 4% PFA. In some conditions, these experiments were performed on RPE-1 cells from which GSLs had also been depleted using Genz-123346. In some experiments, I3 was not removed from cell-eluted Gal3-Cy3 oligomers to ascertain that binding specificity was maintained and that differences in binding efficiency between cell-eluted Gal3-Cy3 oligomers and Gal3-Cy3 monomers do not come from contaminating factors. In some experiments, Gal3 oligomers were eluted from α₅β₁ integrin. Their interaction with PNGase F-treated or untreated RPE-1 cells was then studied as above.

Data processing of Gal3 oligomers

Autopicking method for Gal3 oligomers eluted from nanodics-embedded α₅β₁ integrin-Gal3 complexes

Monomers and oligomers on negative stain EM micrographs of Gal3 eluted from inactive and active α₅β₁ integrin were automatically picked and quantified using crYOLO¹²³. First, Gal3 monomers and oligomers, distinguishable by their different size, were manually picked on 11 micrographs of inactive α₅β₁ integrin and used to train two autopicking models. 100 and 145 negative stain EM micrographs of Gal3 eluted from inactive and active α₅β₁ integrin, respectively, were then automatically picked with the two models.

Manual picking method for Gal3 oligomers eluted from nanodics-embedded α₅β₁ integrin-Gal3 complexes

Auto-quantification may include irrelevant objects that resemble Gal3 oligomers, but which don’t have the defined ring-shaped structure. For example, free nanodiscs can erroneously be selected as Gal3 oligomers. We therefore also provided additional quantification by manually counting structures that rigorously meet our defined criteria. From EM micrographs of 1 × 0.665 μm size, four smaller fields of 0.4 × 0.25 μm were selected to facilitate the counting of individual objects. Percentages of defined oligomers and monomers per rectangle were quantified.

Autopicking method for Gal3 oligomers eluted from RPE-1 cells

Eighty-three negative stain micrographs were imported into cryoSPARC¹²⁴. An initial set of 16,640 particles was picked using the blob picker, followed by two rounds of 2D classification to generate templates for autopicking. Template-based autopicking then identified 29,789 particles, which were extracted at a size of 3.16 Å per pixel and subjected to 2D classification. The obtained 2D classes were inspected and sorted into Gal3 dimers, trimers, and tetramers. Monomers and oligomers, including dimers, trimers, and tetramers, were automatically re-picked using Topaz¹²⁵. Initially, 13,565 particles were selected, and 12,728 particles were retained after the first round of 2D classification. Subsequently, three 3D models were generated in cryoSPARC from these 12,728 particles using 3D classification, with four Gal3 CRDs manually fitted to represent the Gal3 tetramer.

Cryo-EM of peptidisc-embedded α₅β₁ integrin

Peptidisc-embedded and sialidase-treated α₅β₁ integrin was vitrified on Quantifoil 2/1 Cu 300 mesh grids using a Vitrobot Mark IV set to a blot force of −1, blotting time of 3.0 s, 100% humidity, and temperature of 12 °C. 2905 micrographs were acquired using a FEI Titan Krios G3i microscope (Thermo Fisher Scientific) operated at 300 kV equipped with a FEI Falcon 3EC detector (Thermo Fisher Scientific) running in counting mode at a nominal magnification of 96,000×, giving a calibrated pixel size of 0.832 Å/px. Movies were recorded for 40.78 s, accumulating a total electron dose of 42 e⁻/Å² fractionated into 33 frames. EPU 2.8 was utilized for automated data acquisition with AFIS enabled using a nominal defocus between −0.8 and −2 µm.

Data processing of peptidisc-embedded α₅β₁ integrin

Data processing is outlined in Supplementary Fig. 6D. 2905 movies were aligned in MotionCor2¹²⁶ and imported into cryoSPARC for subsequent patch CTF estimation. After sorting out bad images, 2884 micrographs were chosen for further processing. 45,681 particles were selected and extracted using the blob picker for initial 2D classification and generation of autopicking templates. Subsequent template-based autopicking identified 2,005,236 particles. After particle curation, 1,444,502 particles were extracted (2x binning) for 2D classification. 470,092 particles in integrin-shaped 2D classes were re-extracted without binning, an initial model was generated from 66,630 particles, and all particles were processed in a further round of 2D classification, after which 432,656 particles were selected. 3D refinements of these particles resulted in anisotropic density maps because of preferred orientation; therefore, “Rebalance 2D classes” was executed with two different rebalance factors, resulting in 320,816 and 277,162 remaining particles, respectively. These were subjected to heterogeneous 3D refinement with three classes each. In both cases, the 3D class with the least pronounced preferred particle orientation also showed the most well-defined head and upper leg parts. Particles from these two classes were combined, duplicates removed (101,741 remained), and subjected to homogeneous refinement, followed by non-uniform refinement. The headpiece of the density (3.8 Å overall resolution) was well-resolved, whereas the leg piece was fragmented. Therefore, we subtracted the density of the leg piece and carried out local refinement of the remaining headpiece, followed by local CTF refinement. The resolution of the headpiece density map was 3.7 Å according to the gold-standard Fourier shell correlation (FSC) criterion (Supplementary Fig. 6D, E, G). DeepEMhancer¹²⁷ was applied for map sharpening. For the leg piece, homogeneous refinement of 277,162 particles after “Rebalance 2D classes” yielded a density map (4.3 Å resolution) in which headpiece and leg piece were equally pronounced. Here, we subtracted the signal of the headpiece and carried out local refinement of the remaining leg piece, yielding a resolution of 4.7 Å according to the gold-standard FSC criterion (Supplementary Fig. 6D, F, H). This map was filtered according to local resolution. Finally, the individually processed maps of headpiece and leg piece were fitted into the 4.3 Å global map of α₅β₁ integrin.

Atomic modeling of α₅β₁ integrin

A previously generated homology model of the extracellular domain of rat α₅β₁ integrin (residues 94–1041 and 23–719, respectively)⁸⁶ based on human α₅β₁ integrin (PDB 7NXD)⁸⁷ was used as the starting model. The homology model was split into headpiece and leg piece (α₅, residues 94 − 691 and 692 − 1041; β₁, residues 23–504 and 505–720, respectively) and rigid-body fitted into the sharpened density maps of headpiece and leg piece using UCSF Chimera¹²⁸, followed by flexible fitting with imodfit¹²⁹. The model of the headpiece was then manually adjusted in Coot¹³⁰ and ISOLDE¹³¹, and refined by real-space refinement in Phenix¹³² in an iterative manner (Supplementary Fig. 6K, L). Cryo-EM data processing and model refinement statistics are summarized in Supplementary Table 1.

Glycan attachment to the atomic model with GlycoShield

Glycans were added to the glycosylation sites in α₅β₁ integrin using the reductionist molecular dynamics simulation method described in GlycoSHIELD⁹². Glycans were added as identified in ref. ⁸⁶ (α₅ integrin, biantennary at N136, N231, N356, N642, N761, N773, N918, triantennary at N822, hybrid at N346, high mannose at N365, N657, N724; β₁ integrin, complex biantennary at N50, N97, N212, N269, N363, N406, N417, N482, N521), and models were obtained in coarse grain mode. 100 conformations for every glycan were then combined on the α₅β₁ integrin model.

Preparation of peptidisc-embedded α₅β₁ integrin-Gal3 complexes for cryo-EM

α₅β₁ integrin was reconstituted in peptidiscs as described above and immobilized onto cobalt beads by overnight incubation. Cobalt beads were then washed and further resuspended in 500 μl of HEPES buffer supplemented with sialidase according to conditions described earlier. Beads were washed three times with 500 μl of HEPES buffer and further incubated for 2 h at 21 °C on a rotating wheel with 4 μM of Gal3. Beads were washed three times with 500 μl of HEPES buffer, and α₅β₁ integrin-Gal3 complexes were rapidly eluted for 10 min with 40 μl of HEPES buffer supplemented with 10 mM EDTA, with manual and gentle resuspension of beads. Eluted complexes were immediately used for subsequent negative stain and cryo-EM analysis.

Cryo-EM of peptidisc-embedded α₅β₁ integrin-Gal3 complexes

Immediately after elution from cobalt beads, samples were vitrified on Quantifoil 2/1 Cu 300 mesh grids using a Vitrobot Mark IV set to a blot force of −1, blotting time of 3.5 s, 100% humidity, and temperature of 12 °C. Micrographs were acquired using a FEI Titan Krios G3i microscope (Thermo Fisher Scientific) operated at 300 kV equipped with a Bioquantum K3 direct electron detector and energy filter (Gatan) running in CDS super-resolution mode at a slit width of 20 eV and at a nominal magnification of 81,000×, giving a calibrated physical pixel size of 1.06 Å/px. Movies were recorded for 3.0 s, accumulating a total electron dose of 61 e⁻/Å² fractionated into 60 frames. EPU 2.12 was utilized for automated data acquisition with AFIS enabled using a nominal defocus between −1.0 and −2.8 µm. Two datasets (6028 and 10,325 movie images, respectively) were recorded under identical conditions and merged after the initial processing steps.

Data processing of peptidisc-embedded α₅β₁ integrin-Gal3 complexes

Drift correction and estimation of CTF parameters of movies of both datasets were carried out in cryoSPARC (version 3.3.2) using the built-in patch motion correction and patch CTF estimation algorithms. After sorting out bad images, 5614 and 10,225 micrographs remained from the datasets for subsequent processing steps, respectively. Using the blob picker on 1000 images of the first dataset and subsequent 2D classification in cryoSPARC, autopicking templates were generated and used to pick 1,327,764 and 3,894,571 particles from the datasets, respectively. These were subjected to two subsequent rounds of 2D classification with 8× and 4× binning (pixel sizes of 4.24 and 2.12 Å/pixel, respectively), leaving 289,613 and 556,786 integrin-shaped particles, respectively. These were combined for the subsequent processing steps. Non-uniform refinement¹³³ in cryoSPARC with 2x binned data (1.06 Å/pixel) using an initial model generated from the second dataset resulted in a density map with 4.1 Å overall resolution, according to the gold-standard FSC criterion. Different 3D sorting approaches in cryoSPARC (version 3.3 and 4.0.3) and Relion (version 4.0)¹³⁴ were applied, with the best final results achieved by 3D classification in cryoSPARC (version 4.03) in combination with starting models generated by previous 3D classifications in Relion and a focused mask on the space between headpiece and leg piece. Transfer of particles between cryoSPARC and Relion was performed by pyem (DOI: 10.5281/zenodo.3576630). Two rounds of 3D classification were carried out with four classes each, the first round in input mode, the second round in simple mode. For the first round, the 3D map originating from all particles (see above) and three different 3D maps originating from Relion 3D classifications served as input models, low-pass filtered to 20 Å resolution. 387,525 particles from the two classes with the most pronounced densities outside α₅β₁ integrin were transferred to a second round of 3D classification in simple mode. This resulted in two classes with 111,868 and 112,569 particles, respectively, that showed more density outside α₅β₁ integrin than the others. The class with 111,869 particles (termed subset 1) that has the most pronounced extra density was then refined (non-uniform refinement), resulting in a final resolution of 6.9 Å, according to the gold-standard FSC criterion (Supplementary Fig. 8A, D, E).

Preparation of nanodisc-embedded α₅β₁ integrin-Gal3 complexes for cryo-EM

α₅β₁ integrin was reconstituted in GSLs-containing nanodiscs as described above (4 reconstitution reactions) and immobilized onto cobalt beads by overnight incubation. Bead-immobilized nanodiscs were resuspended in 500 μl of HEPES buffer and incubated with sialidase on a rotating wheel according to conditions described earlier. Beads were washed three times with 500 μl of HEPES buffer and further incubated for 2 h at 21 °C on a rotating wheel with 4 μM of Gal3. Beads were then washed three times with 500 μl of HEPES buffer, and α₅β₁ integrin-Gal3 complexes were rapidly eluted for 10 min with 40 μl of HEPES buffer supplemented with 10 mM EDTA, with manual and gentle resuspension of beads. Eluted complexes were immediately used for subsequent negative stain and cryo-EM analysis.

Cryo-EM of nanodisc-embedded α₅β₁ integrin-Gal3 complexes

Immediately after elution from cobalt beads, samples were vitrified on Quantifoil 1.2/1.3 Cu 300 mesh grids using a Vitrobot Mark IV set to a blot force of 0, blotting time of 3.0 s, 100% humidity, and temperature of 8 °C. Micrographs were acquired using a FEI Titan Krios G3i microscope (Thermo Fisher Scientific) operated at 300 kV equipped with a Bioquantum K3 direct electron detector and energy filter (Gatan) running in CDS super-resolution mode at a slit width of 20 eV and at a nominal magnification of 81,000×, giving a calibrated physical pixel size of 1.06 Å/px. Movies were recorded for 1.7 s, accumulating a total electron dose of 80.3 e⁻/Å² fractionated into 42 frames. EPU 2.12 was utilized for automated data acquisition with AFIS enabled using a nominal defocus between −1.3 and −2.6 µm. Three datasets (7188, 5139, and 9695 movie images, respectively) were recorded under identical conditions. Particles of them were merged after the initial processing steps.

Data processing of nanodisc-embedded α₅β₁ integrin-Gal3 complexes

Drift correction and estimation of CTF parameters of movies of both datasets were carried out in cryoSPARC (version 4.2.1) using the built-in patch motion correction (bin factor 2 of super-resolution movies) and patch CTF estimation algorithms. After sorting out bad images, 6831, 5082, and 9526 micrographs remained from the datasets for subsequent processing steps, respectively. With the blob picker on the first dataset and subsequent 2D classification in cryoSPARC, autopicking templates were generated and used to pick 1,393,918, 1,198,669, and 2,149,500 particles from the three datasets, respectively. These were extracted with 2.35× binning (pixel size of 2.48 Å/pixel, respectively) and subjected to two subsequent rounds of 2D classification and one hetero refinement, leaving 330,842, 589,145, and 1,081,636 integrin-shaped particles, respectively. Moreover, the cryoSPARC blob picker was used on all micrographs from the three datasets, resulting in 1,626,764, 1,482,629, and 2,983,868 particles, respectively. These were extracted and processed in 2D classification and 3D hetero refinement as described for the template-picked particles, resulting in 279,906, 636,367, and 1,153,552 integrin-shaped particles, respectively. All particles from the two picking methods were combined, duplicates removed, and extracted unbinned (320 px box size) for the subsequent processing steps. A non-uniform refinement¹³³ in cryoSPARC resulted in a density map with 3.9 Å overall resolution, according to the gold-standard FSC criterion (Supplementary Fig. 7C). 3D variability analysis¹³⁵, hetero refinement and focused 3D classification (simple mode, hard classification activated) approaches in cryoSPARC (version 4.2.1) were carried out and combined as outlined in Supplementary Fig. 7C. Particles from several 3D classes with most pronounced density between head and leg of α₅β₁ integrin were combined and duplicates removed to yield 104,728, 21,425, and 41,848 particles for density maps corresponding to a bound Gal3 dimer, trimer, and tetramer, respectively, with final resolutions of 7.4, 8.5, and 7.5 Å, respectively, according to the gold-standard FSC criterion (Supplementary Fig. 7D, E).

Gal3 modeling on α₅β₁ integrin

For fitting Gal3 into the map of the nanodisc-embedded α₅β₁ integrin-Gal3 complexes, the head and leg piece maps of α₅β₁ integrin, including the fitted atomic models, were placed into the respective domains of the nanodisc-embedded complex maps first. Subsequently, Gal3 CRDs (PDB 1KJL)¹³⁶ were placed into well-defined densities between head and leg pieces. For the map of α₅β₁ integrin-Gal3 dimeric complex, the density is compatible to fit 2 Gal3 CRDs that interacted with glycans at α₅-N356 and α₅-N918, or at β₁-N417 and α₅-N356. For the α₅β₁ integrin-Gal3 trimeric complex, the density is compatible to fit 3 Gal3 CRDs that interact with glycans at α₅-N356, α₅-N918, and at β₁-N417. Gal3 CRDs were manually placed in densities outside the α₅β₁ integrin model such that the following requirements were fulfilled: (i) match of galactose in the Gal3 PDB with terminal galactose of glycan chains (α₅-N356 and α₅-N918, or α₅-N918 and β₁-N417), (ii) close spatial proximity of Gal3 K227 with α₅-K965/K1028 (Gal3 contacting glycan at α₅-N918), or Gal3 K227 with β₁-K100/K122/K130 (Gal3 contacting glycan at β₁-N417), (iii) N-terminal ends of Gal3 CRDs protruding to the same directions to allow for oligomerization via the N-terminal domain, (iv) no overlap/clashes of Gal3 CRDs with each other and the α₅β₁ integrin model. In the cryo-EM density map corresponding to α₅β₁ integrin-Gal3 tetrameric complex, 1 further Gal3 CRD was fitted into a further density between headpiece and leg piece without being modeled on a terminal galactose of glycan chains, in agreement with points (iii)—(iv) above.

For fitting Gal3 into the map of the peptidisc-embedded α₅β₁ integrin-Gal3 dimeric complexes, the same methodology was applied to fit two Gal3 CRDs that interacted with glycans α₅-N356 and α₅-N918, or α₅-N356 and α₅-N773.

For representation of the glycan distribution on active extended ligand-bound α₅β₁ integrin (Fig. 9H), α₅ and β₁ integrin headpiece and leg piece of the glycosylated homology model were rigid-body fitted into the cryo-EM density of the active extended ligand-bound conformation of human α₅β₁ integrin (EMDB 12634, working map including the low-resolution parts)⁸⁷. Gal3 CRDs were placed on glycans at α₅-N356, α₅-N918, and β₁-N417 (see above).

Micellar α₅β₁ integrin-Gal3 complex cross-linking and mass spectrometry analysis

α₅β₁ integrin at 40 μg/mL and His-tagged Gal3 (Gal3-His) at 400 nM in 500 μl HEPES/Triton X-100 buffer were co-incubated for 20 min on a rotating wheel. Samples were chilled for 10 min on ice, and α₅β₁ integrin-Gal3-His complexes cross-linked for 2 h at 4 °C using a 40 μM BS3-d0/-d4 mixture (20 μM each), or 100 μM DSBU. Excess cross-linkers were quenched for 20 min on ice with 20 mM Tris, pH 7.4. Gal3 and excess cross-linkers were removed by loading samples on 40 kDa cut-off 2 ml desalting spin-columns equilibrated with HEPES/Triton X-100 buffer. Two reactions as described above were pooled and incubated with 25 μl bed volume of cobalt beads prepared according to the manufacturer’s instructions. Beads were washed three times with 500 μl HEPES/Triton X-100 buffer. After the last wash, beads were resuspended in HEPES/Triton X-100 buffer, supplemented with deglycosylation denaturing buffer and boiled for 5 min at 95 °C. Samples were chilled for 10 min on ice and supplemented with 1% (v/v) NP40. Deglycosylation was achieved upon addition of 2 μl of PNGase F and incubation for 2 h at 37 °C. Reactions were stopped by the addition of 3x non-reducing SDS sample buffer and boiling for 5 min at 95 °C. For biochemical characterization of cross-linked complexes, samples were loaded on SDS-PAGE and proteins were detected in the Stain-Free™ mode. For mass spectrometry, samples were run on SDS-PAGE at 100 V until the migration front reached half of the 4% acrylamide stacking gel. Proteins were fixed by incubating gels for 30 min at room temperature in ethanol/acetic acid 50/3 (v/v) solution. After 3 washes with ultra-pure water, gels were stained for 1 h at room temperature with Coomassie blue solution. Stained protein bands that remained after washing in water were cut, washed with 25 mM NH₄HCO₃ before reduction and alkylation with 10 mM DTT and 55 mM iodoacetamide. In-gel digestion was performed overnight with trypsin. Peptides were recovered and injected on a nanoLC-MS/MS system. XL-BSA was used as a quality control. NanoLC-MS/MS analyses were performed with a nanoAcquity UPLC device coupled to a Q-Exactive HF-X mass spectrometer. Peptide separation was performed on an Acquity UPLC BEH130 C18 column (250 mm × 75 μm with 1.7-μm-diameter particles) and a Symmetry C18 precolumn (20 mm × 180 μm with 5-μm-diameter particles, Waters). The solvent system consisted of 0.1% formic acid (FA) in water and 0.1% FA in acetonitrile (ACN). The system was operated in data-dependent acquisition mode with automatic switching between MS and MS/MS modes. The ten most abundant ions were selected on each MS spectrum for further isolation. The HCD fragmentation method was used with different collision energies (NCE 27, 30, and 33). The dynamic exclusion time was set to 60 s. Raw data were processed and converted into *.mgf format. The MS/MS data were analyzed using MeroX software v2.0.1.4¹³⁷. Mass tolerances of 5 ppm for precursor ions and of 10 ppm for product ions were applied. A 5% FDR cut-off and a signal-to-noise >2 were applied. Lys and Arg residues were considered as protease sites with a maximum of three missed cleavages. Carbamidomethylation of cysteine was set as a static modification and oxidation of methionine as a variable modification (max. mod. 2). Primary amino groups (Lys side chains and N-termini) as well as primary hydroxyl groups (Ser, Thr, and Tyr side chains) were considered as cross-linking sites. An in-house database comprising rat α₅ and β₁ integrin, human galectin-3, and bovine serum albumin was used. Cross-links composed of consecutive amino acid sequences were ignored. Each cross-linked product automatically annotated with MeroX was manually validated. Two biological replicates with technical triplicate were made for the DSBU experiment (a total of six samples). For BS3, three different experiments were performed. Cross-linked peptides were validated when seen in two out of six experiments and two out of three experiments for DSBU and BS3, respectively. The XL-MS dataset has been deposited to the ProteomeXchange Consortium via the PRIDE partner repository with the dataset identifier PXD041522¹³⁸.

Monitoring of α₅β₁ integrin’s conformational switch on cells

RPE-1 cells were cooled for 10 min on ice, and integrins were activated or not for 1 h at 4 °C with 1 mM MnCl₂ and 5 μg/mL of soluble fibronectin mixture. The efficiency of activation was monitored by surface binding and immunostaining using mAb13 (inactive bent-closed) and 9EG7 (active extended) antibodies.

Gal3-induced clamping of α₅β₁ integrin in the inactive bent-closed conformational state

Cellular approach: RPE-1 cells were cooled for 10 min on ice and incubated for 30 min at 4 °C in the presence or absence of 200 nM Gal3 or Gal3ΔNter. Cells were then washed, and integrins were activated for 1 h at 4 °C with 1 mM MnCl₂ and 5 μg/mL of soluble fibronectin mixture. The efficiency of activation was monitored by surface immunostaining using mAb13 or 9EG7 antibody, whose labeling intensity decreased and increased respectively, in the absence of exogenous Gal3 addition. In vitro approach using α₅β₁ integrin in micelles: 100 μg/mL of sialidase-treated α₅β₁ integrin in micelles were pre-incubated or not for 3 h at 18 °C with 2 μM of Alexa488-Gal3, and then activated by incubation with 5 mM MnCl₂ and 100 μM cRGD. Samples were supplemented with 3x non-reducing SDS (2% SDS) sample buffer, and run for PAGE at 100 V without SDS (semi-native conditions). Alexa488-Gal3 signal was directly detected on gels (Alexa488 channel). Proteins were then transferred onto nitrocellulose membranes and immunoblotted against rat β₁ integrin. In vitro approach using α₅β₁ integrin in peptidiscs: α₅β₁ integrin was reconstituted into peptidiscs using peptidisc/peptidisc-His (1/1, w/w) mix as described above. After overnight incubation with cobalt beads, immobilized peptidiscs were resuspended in 500 μl of HEPES buffer and incubated with sialidase on a rotating wheel according to conditions described above. Beads were washed three times with 500 μl of HEPES buffer and further incubated with 4 μM Gal3 for 2 h at 21 °C on a rotating wheel. Unbound Gal3 was then removed before activation of α₅β₁ integrin according to conditions described above. α₅β₁ integrin-Gal3 without activation and α₅β₁ integrin activation without Gal3 incubation were used as control conditions. Beads were washed three times either with 500 μl HEPES buffer (no integrin activation) or HEPES buffer supplemented with 5 mM MnCl₂ and 100 μM cRGD (integrin activation). α₅β₁ integrin was finally eluted from beads with HEPES buffer supplemented with 0.5 M imidazole (±5 mM MnCl₂ and 10 μM cRGD) for 30 min under manual shaking. Imidazole was eliminated using 7 kDa cut-off Zeba spin desalting columns equilibrated with HEPES buffer ±5 mM MnCl₂ and 10 μM cRGD. Samples were immediately loaded on grids for negative stain EM analysis.

Expression of human α₅β₁ integrin N-glycosylation mutants in dKO-MKF cells

N-to-Q substitutions of key N-glycosylation sites of human α₅ integrin were designed, and both α₅ integrin (wildtype or N/Q mutants) and β₁ integrin (wildtype) cDNAs (GeneScript, 3.5 μg of each) were co-electroporated into dKO-MKF cells. All experimental procedures on these cells were performed 24 h post-transfection.

Gal3 and mAb13 or 9EG7 co-binding and uptake assays on dKO-MKF cells expressing wild-type or glycosylation site-mutated human α₅β₁ integrin

mAb13 or 9EG7 antibody uptake and Gal3/mAb13 or 9EG7 co-binding experiments and confocal imaging were performed as described above, except that for binding conditions, glass coverslips were coated with 10 μg/mL fibronectin for 30 min at room temperature prior to cell seeding.

Cell adhesion/spreading assay on dKO-MKF cells expressing wild-type or glycosylation site-mutated human α₅β₁ integrins

dKO-MKF cells expressing wild-type or N-glycosylation site mutants of human α₅β₁ integrin were detached with PBS complemented with 0.5 mM EDTA. Cells were then allowed to adhere for the indicated times at 37 °C onto fibronectin-coated glass coverslips (see above). mAb13 and 9EG7 antibody binding assays were then performed as described above. Focal adhesions and actin were labeled using anti-vinculin antibody and phalloidin, respectively.

Statistics and reproducibility

Student’s t-test was used to compare the differences between two independent groups, one-way analysis of variance (ANOVA) was used for comparisons among three or more groups, and results are presented as the mean values ± SEM. All statistical tests were two-sided. Unless specified in the figure legend, experiments were performed at least three times independently (biological replicates), and representative images and quantifications are shown. Statistical analyses and plots were generated using Prism version 10.1.1 software (Graphpad Inc.). All graphs and schematic drawings in the article were done using Adobe Illustrator software version 29.4.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The relevant raw data from each figure or table (in the main manuscript and in the Supplementary Information) are represented by a single Excel file labeled “Source Data File,” provided with this paper. The proteomic XL-MS dataset (Supplementary Data 1) has been deposited to the ProteomeXchange Consortium via the PRIDE partner repository¹³⁸ with the dataset identifier PXD041522. The Cryo-EM density maps of peptidisc-embedded α₅β₁ integrin have been deposited in the Electron Microscopy Data Bank (EMDB) under accession codes EMD-17269 (headpiece), EMD-17270 (leg piece), and EMD-54200 (complex with Gal3), respectively. The atomic coordinates of peptidisc-embedded α₅β₁ integrin have been deposited in the PDB under accession code 8OXZ. The Cryo-EM density maps of nanodisc-embedded α₅β₁ integrin in complex with Gal3 have been deposited in the EMDB under accession codes [EMD-51027] (Dimer, Supplementary Data 2), EMD-51028 (Trimer, Supplementary Data 3), and EMD-51029 (Tetramer, Supplementary Data 4). The cryo-EM datasets generated in this work are available from the corresponding authors on request. Source data are provided with this paper.

References

Moreno-Layseca, P., Icha, J., Hamidi, H. & Ivaska, J. Integrin trafficking in cells and tissues. Nat. Cell Biol. 21, 122–132 (2019).
Article PubMed PubMed Central CAS Google Scholar
Marsico, G., Russo, L., Quondamatteo, F. & Pandit, A. Glycosylation and Integrin Regulation in Cancer. Trends Cancer 4, 537–552 (2018).
Article PubMed CAS Google Scholar
Bridgewater, R. E., Norman, J. C. & Caswell, P. T. Integrin trafficking at a glance. J. Cell Sci. 125, 3695–3701 (2012).
Article PubMed PubMed Central CAS Google Scholar
Li, J. et al. Conformational equilibria and intrinsic affinities define integrin activation. EMBO J. 36, 629–645 (2017).
Article PubMed PubMed Central CAS Google Scholar
Hang, Q. et al. A key regulator of cell adhesion: Identification and characterization of important N-glycosylation sites on integrin alpha5 for cell migration. Mol. Cell Biol. 37, e00558–00516 (2017).
Article PubMed PubMed Central CAS Google Scholar
Gu, J. & Taniguchi, N. Regulation of integrin functions by N-glycans. Glycoconj. J. 21, 9–15 (2004).
Article PubMed CAS Google Scholar
Isaji, T. et al. N-glycosylation of the beta-propeller domain of the integrin alpha5 subunit is essential for alpha5beta1 heterodimerization, expression on the cell surface, and its biological function. J. Biol. Chem. 281, 33258–33267 (2006).
Article PubMed CAS Google Scholar
Isaji, T., Sato, Y., Fukuda, T. & Gu, J. N-glycosylation of the I-like domain of beta1 integrin is essential for beta1 integrin expression and biological function: identification of the minimal N-glycosylation requirement for alpha5beta1. J. Biol. Chem. 284, 12207–12216 (2009).
Article PubMed PubMed Central CAS Google Scholar
Hou, S., Hang, Q., Isaji, T., Lu, J. & Fukuda, T. Gu J. Importance of membrane-proximal N-glycosylation on integrin beta1 in its activation and complex formation. FASEB J. 30, 4120–4131 (2016).
Article PubMed CAS Google Scholar
Pretzlaff, R. K., Xue, V. W. & Rowin, M. E. Sialidase treatment exposes the beta1-integrin active ligand binding site on HL60 cells and increases binding to fibronectin. Cell Adhes. Commun. 7, 491–500 (2000).
Article PubMed CAS Google Scholar
Seales, E. C. et al. Hypersialylation of beta1 integrins, observed in colon adenocarcinoma, may contribute to cancer progression by up-regulating cell motility. Cancer Res. 65, 4645–4652 (2005).
Article PubMed CAS Google Scholar
Pan, D. & Song, Y. Role of altered sialylation of the I-like domain of beta1 integrin in the binding of fibronectin to beta1 integrin: thermodynamics and conformational analyses. Biophys. J. 99, 208–217 (2010).
Article ADS PubMed PubMed Central CAS Google Scholar
Lagana, A. et al. Galectin binding to Mgat5-modified N-glycans regulates fibronectin matrix remodeling in tumor cells. Mol. Cell Biol. 26, 3181–3193 (2006).
Article PubMed PubMed Central CAS Google Scholar
Caswell, P. T. et al. Rab-coupling protein coordinates recycling of alpha5beta1 integrin and EGFR1 to promote cell migration in 3D microenvironments. J. Cell Biol. 183, 143–155 (2008).
Article PubMed PubMed Central CAS Google Scholar
Sottile, J. & Chandler, J. Fibronectin matrix turnover occurs through a caveolin-1-dependent process. Mol. Biol. Cell 16, 757–768 (2005).
Article PubMed PubMed Central CAS Google Scholar
Ezratty, E. J., Partridge, M. A. & Gundersen, G. G. Microtubule-induced focal adhesion disassembly is mediated by dynamin and focal adhesion kinase. Nat. Cell Biol. 7, 581–590 (2005).
Article PubMed CAS Google Scholar
Chao, W. T. & Kunz, J. Focal adhesion disassembly requires clathrin-dependent endocytosis of integrins. FEBS Lett. 583, 1337–1343 (2009).
Article PubMed PubMed Central CAS Google Scholar
Ezratty, E. J., Bertaux, C., Marcantonio, E. E. & Gundersen, G. G. Clathrin mediates integrin endocytosis for focal adhesion disassembly in migrating cells. J. Cell Biol. 187, 733–747 (2009).
Article PubMed PubMed Central CAS Google Scholar
Shi, F. & Sottile, J. MT1-MMP regulates the turnover and endocytosis of extracellular matrix fibronectin. J. Cell Sci. 124, 4039–4050 (2011).
Article PubMed PubMed Central CAS Google Scholar
Almeida-Souza, L. et al. A flat BAR protein promotes actin polymerization at the base of clathrin-coated pits. Cell 174, 325–337.e14 (2018).
Article PubMed PubMed Central CAS Google Scholar
Moreno-Layseca, P. et al. Cargo-specific recruitment in clathrin- and dynamin-independent endocytosis. Nat. Cell Biol. 23, 1073–1084 (2021).
Article PubMed PubMed Central CAS Google Scholar
Furtak, V., Hatcher, F. & Ochieng, J. Galectin-3 mediates the endocytosis of beta-1 integrins by breast carcinoma cells. Biochem. Biophys. Res. Commun. 289, 845–850 (2001).
Article ADS PubMed CAS Google Scholar
Lakshminarayan, R. et al. Galectin-3 drives glycosphingolipid-dependent biogenesis of clathrin-independent carriers. Nat. Cell Biol. 16, 595–606 (2014).
Article PubMed CAS Google Scholar
Calderwood, D. A. et al. Integrin beta cytoplasmic domain interactions with phosphotyrosine-binding domains: a structural prototype for diversity in integrin signaling. Proc. Natl. Acad. Sci. USA 100, 2272–2277 (2003).
Article ADS PubMed PubMed Central CAS Google Scholar
Nishimura, T. & Kaibuchi, K. Numb controls integrin endocytosis for directional cell migration with aPKC and PAR-3. Dev. Cell 13, 15–28 (2007).
Article PubMed CAS Google Scholar
Wang, Y., Cao, H., Chen, J. & McNiven, M. A. A direct interaction between the large GTPase dynamin-2 and FAK regulates focal adhesion dynamics in response to active Src. Mol. Biol. Cell 22, 1529–1538 (2011).
Article PubMed PubMed Central CAS Google Scholar
Mettlen, M., Chen, P. H., Srinivasan, S., Danuser, G. & Schmid, S. L. Regulation of clathrin-mediated endocytosis. Annu. Rev. Biochem 87, 871–896 (2018).
Article PubMed PubMed Central CAS Google Scholar
Kaksonen, M. & Roux, A. Mechanisms of clathrin-mediated endocytosis. Nat. Rev. Mol. Cell Biol. 19, 313–326 (2018).
Article PubMed CAS Google Scholar
Robinson, M. S. Forty Years of Clathrin-coated Vesicles. Traffic 16, 1210–1238 (2015).
Article PubMed CAS Google Scholar
Boucrot, E. et al. Endophilin marks and controls a clathrin-independent endocytic pathway. Nature 517, 460–465 (2015).
Article ADS PubMed CAS Google Scholar
Caldieri, G. et al. Reticulon3-dependent ER-PM contact sites control EGFR nonclathrin endocytosis. Science 256, 617–624 (2017).
Article ADS Google Scholar
Sathe, M. et al. Small GTPases and BAR domain proteins regulate branched actin polymerisation for clathrin and dynamin-independent endocytosis. Nat. Commun. 9, 1835 (2018).
Article ADS PubMed PubMed Central Google Scholar
Kenworthy, A. K. et al. Cholera toxin as a probe for membrane biology. Toxins 13, 543 (2021).
Article PubMed PubMed Central CAS Google Scholar
Pezeshkian, W., Shillcock, J. C. & Ipsen, J. H. Computational approaches to explore bacterial toxin entry into the host cell. Toxins 13, 449 (2021).
Article PubMed PubMed Central CAS Google Scholar
Renard, H. F. & Boucrot, E. Unconventional endocytic mechanisms. Curr. Opin. Cell Biol. 71, 120–129 (2021).
Article PubMed CAS Google Scholar
Johannes, L., Wunder, C. & Shafaq-Zadah, M. Glycolipids and lectins in endocytic uptake processes. J. Mol. Biol. 428, 4792–4818 (2016).
Article CAS Google Scholar
Johannes, L., Parton, R. G., Bassereau, P. & Mayor, S. Building endocytic pits without clathrin. Nat. Rev. Mol. Cell Biol. 16, 311–321 (2015).
Article PubMed CAS Google Scholar
MacDonald, E. et al. Growth factor-triggered desialylation controls glycolipid-lectin driven endocytosis. Nat. Cell Biol. 27, 449–463 (2025).
Article PubMed CAS Google Scholar
Nabi, I. R., Shankar, J. & Dennis, J. W. The galectin lattice at a glance. J. Cell Sci. 128, 2213–2219 (2015).
Article PubMed CAS Google Scholar
Dennis, J. W. Many light touches convey the message. Trends Biochem. Sci. 40, 673–686 (2015).
Article PubMed CAS Google Scholar
Mathew, M. P. & Donaldson, J. G. Glycosylation and glycan interactions can serve as extracellular machinery facilitating clathrin independent endocytosis. Traffic 20, 295–300 (2019).
Article PubMed PubMed Central CAS Google Scholar
Zhang, C. et al. SLC3A2 N-glycosylation and Golgi remodeling regulate SLC7A amino acid exchangers and stress mitigation. J. Biol. Chem. 299, 105416 (2023).
Article PubMed PubMed Central CAS Google Scholar
Shafaq-Zadah, M. et al. Exploration into galectin-3 driven endocytosis and lattices. Biomolecules 14, 1169 (2024).
Article PubMed PubMed Central CAS Google Scholar
Sonkawade, S. D. et al. Small endogeneous peptide mitigates myocardial remodeling in a mouse model of cardioselective galectin-3 overexpression. Circ. Heart Fail. 14, e008510 (2021).
Article PubMed PubMed Central CAS Google Scholar
Horiuchi, Y. U. et al. Galectin-3, acute kidney injury and myocardial damage in patients with acute heart failure. J. Card. Fail. 29, 269–277 (2023).
Article PubMed CAS Google Scholar
Li, X., Tang, X., Lu, J. & Yuan, S. Therapeutic inhibition of galectin‑3 improves cardiomyocyte apoptosis and survival during heart failure. Mol. Med. Rep. 17, 4106–4112 (2018).
PubMed CAS Google Scholar
Ou, S. M. et al. Urinary galectin-3 as a novel biomarker for the prediction of renal fibrosis and kidney disease progression. Biomedicines 10, 585 (2022).
Ou, S. M. et al. Identification of galectin-3 as potential biomarkers for renal fibrosis by rna-sequencing and clinicopathologic findings of kidney biopsy. Front. Med. 8, 748225 (2021).
Article Google Scholar
Boza-Serrano, A. et al. Galectin-3, a novel endogenous TREM2 ligand, detrimentally regulates inflammatory response in Alzheimer’s disease. Acta Neuropathol. 138, 251–273 (2019).
Siew, J. J. et al. Galectin-3 is required for the microglia-mediated brain inflammation in a model of Huntington’s disease. Nat. Commun. 10, 3473 (2019).
Article ADS PubMed PubMed Central Google Scholar
Nishi, Y. et al. Role of galectin-3 in human pulmonary fibrosis. Allergol. Int. 56, 57–65 (2007).
Article PubMed CAS Google Scholar
Cullinane, A. R. et al. Dysregulation of galectin-3. Implications for Hermansky-Pudlak syndrome pulmonary fibrosis. Am. J. Respir. Cell Mol. Biol. 50, 605–613 (2014).
Article PubMed PubMed Central Google Scholar
Portacci, A. et al. Galectin-3 as prognostic biomarker in patients with COVID-19 acute respiratory failure. Respir. Med. 187, 106556 (2021).
Article PubMed PubMed Central Google Scholar
Lepur, A., Salomonsson, E., Nilsson, U. J. & Leffler, H. Ligand induced galectin-3 self-association. J. Biol. Chem. 287, 21751–21756 (2012).
Article PubMed PubMed Central CAS Google Scholar
Ahmad, N. et al. Galectin-3 precipitates as a pentamer with synthetic multivalent carbohydrates and forms heterogeneous cross-linked complexes. J. Biol. Chem. 279, 10841–10847 (2004).
Article PubMed CAS Google Scholar
Shafaq-Zadah, M. et al. Persistent cell migration and adhesion rely on retrograde transport of beta1 integrin. Nat. Cell Biol. 18, 54–64 (2016).
Article PubMed CAS Google Scholar
Su, Y. et al. Relating conformation to function in integrin alpha5beta1. Proc. Natl. Acad. Sci. USA 113, E3872–3881 (2016).
Article PubMed PubMed Central CAS Google Scholar
Mould, A. P., Akiyama, S. K. & Humphries, M. J. The inhibitory anti-beta1 integrin monoclonal antibody 13 recognizes an epitope that is attenuated by ligand occupancy. Evidence for 1624 allosteric inhibition of integrin function. J. Biol. Chem. 271, 20365–20374 (1996).
Article PubMed CAS Google Scholar
Byron, A. et al. Anti-integrin monoclonal antibodies. J. Cell Sci. 122, 4009–4011 (2009).
Article PubMed CAS Google Scholar
Campbell, I. D. & Humphries, M. J. Integrin structure, activation, and interactions. Cold Spring Harb. Perspect. Biol. 3, a004994 (2011).
Mould, A. P., Garratt, A. N., Askari, J. A., Akiyama, S. K. & Humphries, M. J. Identification of a novel anti-integrin monoclonal antibody that recognises a ligand-induced binding site epitope on the beta 1 subunit. FEBS Lett. 363, 118–122 (1995).
Article PubMed CAS Google Scholar
Lenter, M. et al. A monoclonal antibody against an activation epitope on mouse integrin chain beta 1 blocks adhesion of lymphocytes to the endothelial integrin alpha 6 beta 1. Proc. Natl. Acad. Sci. USA 90, 9051–9055 (1993).
Article ADS PubMed PubMed Central CAS Google Scholar
Johannes, L. & Shafaq-Zadah, M. SNAP-tagging the retrograde route. Methods Cell Biol. 118, 139–155 (2013).
Article PubMed CAS Google Scholar
Stegmayr, J. et al. Extracellular and intracellular small-molecule galectin-3 inhibitors. Sci. Rep. 9, 2186 (2019).
Article ADS PubMed PubMed Central Google Scholar
Salameh, B. A., Cumpstey, I., Sundin, A., Leffler, H. & Nilsson, U. J. 1H-1,2,3-triazol-1-yl thiodigalactoside derivatives as high affinity galectin-3 inhibitors. Bioorg. Med. Chem. 18, 5367–5378 (2010).
Article PubMed CAS Google Scholar
Kyumurkov, A. et al. Force tuning through regulation of clathrin-dependent integrin endocytosis. J. Cell Biol. 222, e202004025 (2023).
Article PubMed CAS Google Scholar
Hopkins, C. R., Miller, K. & Beardmore, J. M. Receptor-mediated endocytosis of transferrin and epidermal growth factor receptors: a comparison of constitutive and ligand-induced uptake. J. Cell Sci. Suppl. 3, 173–186 (1985).
Article PubMed CAS Google Scholar
Seaman, M. N. Cargo-selective endosomal sorting for retrieval to the Golgi requires retromer. J. Cell Biol. 165, 111–122 (2004).
Article PubMed PubMed Central CAS Google Scholar
Priglinger, C. S. et al. Galectin-3 induces clustering of CD147 and integrin-beta1 transmembrane glycoprotein receptors on the RPE cell surface. PLoS ONE 8, e70011 (2013).
Article ADS PubMed PubMed Central CAS Google Scholar
Zhou, Z., Feng, Z., Sun, X., Wang, Y. & Dou, G. The role of galectin-3 in retinal degeneration and other ocular diseases: a potential novel biomarker and therapeutic target. Int. J. Mol. Sci. 24, 15516 (2023).
Article PubMed PubMed Central CAS Google Scholar
Obermann, J. et al. Proteome-wide identification of glycosylation-dependent interactors of galectin-1 and galectin-3 on mesenchymal retinal pigment epithelial (RPE) cells. Mol. Cell. Proteom. 16, 1528–1546 (2017).
Article CAS Google Scholar
Nieminen, J., Kuno, A., Hirabayashi, J. & Sato, S. Visualization of galectin-3 oligomerization on the surface of neutrophils and endothelial cells using fluorescence resonance energy transfer. J. Biol. Chem. 282, 1374–1383 (2007).
Article PubMed CAS Google Scholar
Zhuo, Y., Chammas, R. & Bellis, S. L. Sialylation of beta1 integrins blocks cell adhesion to galectin-3 and protects cells against galectin-3-induced apoptosis. J. Biol. Chem. 283, 22177–22185 (2008).
Article PubMed PubMed Central CAS Google Scholar
Krzeminski, M. et al. Human galectin-3 (Mac-2 antigen): defining molecular switches of affinity to natural glycoproteins, structural and dynamic aspects of glycan binding by flexible ligand docking and putative regulatory sequences in the proximal promoter region. Biochim. Biophys. Acta 1810, 150–161 (2011).
Article PubMed CAS Google Scholar
Zhao, H. et al. Inhibiting glycosphingolipid synthesis improves glycemic control and insulin sensitivity in animal models of type 2 diabetes. Diabetes 56, 1210–1218 (2007).
Article PubMed CAS Google Scholar
Renard, H.-F. et al. Endophilin-A2 functions in membrane scission in clathrin-independent endocytosis. Nature 517, 493–496 (2015).
Article ADS PubMed CAS Google Scholar
Simunovic, M. et al. Friction mediates scission of tubular membrane scaffolded by BAR proteins. Cell 170, 172–184 (2017).
Article PubMed PubMed Central CAS Google Scholar
Benmerah, A. et al. AP-2/Eps15 interaction is required for receptor-mediated endocytosis. J. Cell Biol. 140, 1055–1062 (1998).
Article PubMed PubMed Central CAS Google Scholar
Kirchhausen, T., Owen, D. & Harrison, S. C. Molecular structure, function, and dynamics of clathrin-mediated membrane traffic. Cold Spring Harb. Perspect. Biol. 6, a016725 (2014).
Article PubMed PubMed Central Google Scholar
Kural, C. et al. Asymmetric formation of coated pits on dorsal and ventral surfaces at the leading edges of motile cells and on protrusions of immobile cells. Mol. Biol. Cell 26, 2044–2053 (2015).
Article PubMed PubMed Central CAS Google Scholar
Renard, H. F. et al. Endophilin-A3 and galectin-8 control the clathrin-independent endocytosis of CD166. Nat. Commun. 11, 1457 (2020).
Article ADS PubMed PubMed Central CAS Google Scholar
Dransart, E. et al. Solubilization and purification of alpha5beta1 integrin from rat liver for reconstitution into nanodiscs. Methods Mol. Biol. 2507, 1–18 (2022).
Article PubMed CAS Google Scholar
Sarangi, N. K. et al. Galectin-3 binding to apha5beta1 integrin in pore suspended biomembranes. J. Phys. Chem. B 126, 10000–10017 (2022).
Article PubMed PubMed Central CAS Google Scholar
Bazzoni, G., Shih, D. T., Buck, C. A. & Hemler, M. E. Monoclonal antibody 9EG7 defines a novel beta 1 integrin epitope induced by soluble ligand and manganese, but inhibited by calcium. J. Biol. Chem. 270, 25570–25577 (1995).
Article PubMed CAS Google Scholar
Schwarz, R. E., Wojciechowicz, D. C., Park, P. Y. & Paty, P. B. Phytohemagglutinin-L (PHA-L) lectin surface binding of N-linked beta 1-6 carbohydrate and its relationship to activated mutant ras in human pancreatic cancer cell lines. Cancer Lett. 107, 285–291 (1996).
Article PubMed CAS Google Scholar
Mirgorodskaya, E. et al. Site-specific N-glycan profiles of a5b1 integrin from rat liver. Biol. Cell 114, 160–176 (2022).
Article PubMed CAS Google Scholar
Schumacher, S. et al. Structural insights into integrin α(5)β(1) opening by fibronectin ligand. Sci. Adv. 7, eabe9716 (2021).
Article ADS PubMed PubMed Central CAS Google Scholar
Adair, B. D., Xiong, J. P., Yeager, M. & Arnaout, M. A. Cryo-EM structures of full-length integrin αIIbβ3 in native lipids. Nat. Commun. 14, 4168 (2023).
Article ADS PubMed PubMed Central CAS Google Scholar
Zhao, Z. et al. Galectin-3 N-terminal tail prolines modulate cell activity and glycan-mediated oligomerization/phase separation. Proc. Natl. Acad. Sci. USA 118, e2021074118 (2021).
Article PubMed PubMed Central CAS Google Scholar
Lete, M. G., Franconetti, A., Delgado, S., Jiménez-Barbero, J. & Ardá, A. Oligosaccharide presentation modulates the molecular recognition of glycolipids by galectins on membrane surfaces. Pharmaceuticals 15, 145 (2022).
Article PubMed PubMed Central CAS Google Scholar
Flores-Ibarra, A., Vertesy, S., Medrano, F. J., Gabius, H. J. & Romero, A. Crystallization of a human galectin-3 variant with two ordered segments in the shortened N-terminal tail. Sci. Rep. 8, 9835 (2018).
Article ADS PubMed PubMed Central Google Scholar
Tsai, Y. X. et al. Rapid simulation of glycoprotein structures by grafting and steric exclusion of glycan conformer libraries. Cell 187, 1296–1311.e1226 (2024).
Article PubMed CAS Google Scholar
Beningo, K. A., Dembo, M., Kaverina, I., Small, J. V. & Wang, Y. L. Nascent focal adhesions are responsible for the generation of strong propulsive forces in migrating fibroblasts. J. Cell Biol. 153, 881–888 (2001).
Article PubMed PubMed Central CAS Google Scholar
Yamaguchi, N. & Knaut, H. Focal adhesion-mediated cell anchoring and migration: from in vitro to in vivo. Development 149, dev200647 (2022).
Suzuki, T. et al. Mechanical force effect on the two-state equilibrium of the hyaluronan-binding domain of CD44 in cell rolling. Proc. Natl. Acad. Sci. USA 112, 6991–6996 (2015).
Article ADS PubMed PubMed Central CAS Google Scholar
Jamison, F. W. II, Foster, T. J., Barker, J. A., Hills, R. D. Jr & Guvench, O. Mechanism of binding site conformational switching in the CD44-hyaluronan protein-carbohydrate binding interaction. J. Mol. Biol. 406, 631–647 (2011).
Article PubMed CAS Google Scholar
Kaplan, M. et al. EGFR dynamics change during activation in native membranes as revealed by NMR. Cell 167, 1241–1251 (2016).
Article PubMed CAS Google Scholar
Varki, A. Selectin ligands. Proc. Natl. Acad. Sci. USA 91, 7390–7397 (1994).
Article ADS PubMed PubMed Central CAS Google Scholar
Cohen, M. & Varki, A. Modulation of glycan recognition by clustered saccharide patches. Int. Rev. Cell Mol. Biol. 308, 75–125 (2014).
Article PubMed CAS Google Scholar
Jaroentomeechai, T. et al. Microbial binding module employs sophisticated clustered saccharide patches to selectively adhere to mucins. Nat. Commun. (in press).
Chen, J. et al. Vibrio MARTX toxin binding of biantennary N-glycans at host cell surfaces. Sci. Adv. 11, eadt0063 (2025).
Article ADS PubMed PubMed Central CAS Google Scholar
Smith, B. A. H. & Bertozzi, C. R. The clinical impact of glycobiology: targeting selectins, Siglecs and mammalian glycans. Nat. Rev. Drug Discov. 20, 217–243 (2021).
Article PubMed PubMed Central CAS Google Scholar
Duan, S. & Paulson, J. C. Siglecs as immune cell checkpoints in disease. Annu. Rev. Immunol. 38, 365–395 (2020).
Article PubMed CAS Google Scholar
McEver, R. P. Selectins: initiators of leucocyte adhesion and signalling at the vascular wall. Cardiovasc. Res. 107, 331–339 (2015).
Article PubMed PubMed Central CAS Google Scholar
Römer, W. et al. Shiga toxin induces tubular membrane invaginations for its uptake into cells. Nature 450, 670–675 (2007).
Article ADS PubMed Google Scholar
Ewers, H. et al. GM1 structure determines SV40-induced membrane invagination and infection. Nat. Cell Biol. 12, 11–18 (2010).
Article PubMed CAS Google Scholar
Kabbani, A. M., Raghunathan, K., Lencer, W. I., Kenworthy, A. K. & Kelly, C. V. Structured clustering of the glycosphingolipid GM1 is required for membrane curvature induced by cholera toxin. Proc. Natl. Acad. Sci. USA 117, 14978–14986 (2020).
Article ADS PubMed PubMed Central CAS Google Scholar
von Mach, T. et al. Ligand binding and complex formation of galectin-3 is modulated by pH variations. Biochem. J. 457, 107–115 (2014).
Article Google Scholar
Zhuo, Y. & Bellis, S. L. Emerging role of alpha2,6-sialic acid as a negative regulator of galectin binding and function. J. Biol. Chem. 286, 5935–5941 (2011).
Article PubMed CAS Google Scholar
Yu, S. et al. Caveolin-1 up-regulates integrin α2,6-sialylation to promote integrin α5β1-dependent hepatocarcinoma cell adhesion. FEBS Lett. 587, 782–787 (2013).
Article PubMed CAS Google Scholar
Shi, G. et al. SNAP-tag based proteomics approach for studying retrograde transport. Traffic 13, 914–925 (2012).
Article PubMed CAS Google Scholar
Ivashenka, A., Wunder, C., Chambon, V., Johannes, L. & Shafaq-Zadah, M. Transcytosis of galectin-3 in mouse intestine. Methods Mol. Biol. 2442, 367–390 (2022).
Article PubMed CAS Google Scholar
Pike, J. A., Styles, I. B., Rappoport, J. Z. & Heath, J. K. Quantifying receptor trafficking and colocalization with confocal microscopy. Methods 115, 42–54 (2017).
Article PubMed CAS Google Scholar
Labun, K., Krause, M., Torres Cleuren, Y. & Valen, E. CRISPR genome editing made easy through the CHOPCHOP website. Curr. Protoc. 1, e46 (2021).
Article PubMed CAS Google Scholar
Chen, B. C. et al. Lattice light-sheet microscopy: imaging molecules to embryos at high spatiotemporal resolution. Science 346, 1257998 (2014).
Article PubMed PubMed Central Google Scholar
Aguet, F. et al. Membrane dynamics of dividing cells imaged by lattice light-sheet microscopy. Mol. Biol. Cell 27, 3418–3435 (2016).
Article PubMed PubMed Central CAS Google Scholar
Jaqaman, K. et al. Robust single-particle tracking in live-cell time-lapse sequences. Nat. Methods 5, 695–702 (2008).
Article PubMed PubMed Central CAS Google Scholar
Schneider, C. A., Rasband, W. S. & Eliceiri, K. W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 9, 671–675 (2012).
Article PubMed PubMed Central CAS Google Scholar
Schindelin, J. et al. Fiji: an open-source platform for biological-image analysis. Nat. Methods 9, 676–682 (2012).
Article PubMed CAS Google Scholar
Damm, A. Interplay Between the Conformational Dynamics of a Transmembrane Protein and the Mechanical Properties of Its Surrounding Membrane. Doctoral dissertation, Sorbonne Université (2019).
Preus, S., Noer, S. L., Hildebrandt, L. L., Gudnason, D. & Birkedal, V. iSMS: single-molecule FRET microscopy software. Nat. Methods 12, 593–594 (2015).
Article PubMed CAS Google Scholar
Loeff, L., Kerssemakers, J. W. J., Joo, C. & Dekker, C. AutoStepfinder: A fast and automated step detection method for single-molecule analysis. Patterns 2, 100256 (2021).
Article PubMed PubMed Central CAS Google Scholar
Wagner, T. et al. SPHIRE-crYOLO is a fast and accurate fully automated particle picker for cryo-EM. Commun. Biol. 2, 218 (2019).
Article PubMed PubMed Central Google Scholar
Punjani, A., Rubinstein, J. L., Fleet, D. J. & Brubaker, M. A. cryoSPARC: algorithms for rapid unsupervised cryo-EM structure determination. Nat. Methods 14, 290–296 (2017).
Article PubMed CAS Google Scholar
Bepler, T. et al. Positive-unlabeled convolutional neural networks for particle picking in cryo-electron micrographs. Nat. Methods 16, 1153–1160 (2019).
Article PubMed PubMed Central CAS Google Scholar
Zheng, S. Q. et al. MotionCor2: anisotropic correction of beam-induced motion for improved cryo-electron microscopy. Nat. Methods 14, 331–332 (2017).
Article PubMed PubMed Central CAS Google Scholar
Sanchez-Garcia, R. et al. DeepEMhancer: a deep learning solution for cryo-EM volume post-processing. Commun. Biol. 4, 874 (2021).
Article PubMed PubMed Central Google Scholar
Pettersen, E. F. et al. UCSF Chimera—a visualization system for exploratory research and analysis. J. Comput Chem. 25, 1605–1612 (2004).
Article ADS PubMed CAS Google Scholar
Lopez-Blanco, J. R. & Chacon, P. iMODFIT: efficient and robust flexible fitting based on vibrational analysis in internal coordinates. J. Struct. Biol. 184, 261–270 (2013).
Article PubMed Google Scholar
Emsley, P., Lohkamp, B., Scott, W. G. & Cowtan, K. Features and development of Coot. Acta Crystallogr. D Biol. Crystallogr. 66, 486–501 (2010).
Article ADS PubMed PubMed Central CAS Google Scholar
Croll, T. I. ISOLDE: a physically realistic environment for model building into low-resolution electron-density maps. Acta Cryst. D74, 519–530 (2018).
Google Scholar
Afonine, P. V. et al. Real-space refinement in PHENIX for cryo-EM and crystallography. Acta Crystallogr. D Struct. Biol. 74, 531–544 (2018).
Article ADS PubMed PubMed Central CAS Google Scholar
Punjani, A., Zhang, H. & Fleet, D. J. Non-uniform refinement: adaptive regularization improves single-particle cryo-EM reconstruction. Nat. Methods 17, 1214–1221 (2020).
Article PubMed CAS Google Scholar
Scheres, S. H. RELION: implementation of a Bayesian approach to cryo-EM structure determination. J. Struct. Biol. 180, 519–530 (2012).
Article PubMed PubMed Central CAS Google Scholar
Punjani, A. & Fleet, D. J. 3D variability analysis: Resolving continuous flexibility and discrete heterogeneity from single particle cryo-EM. J. Struct. Biol. 213, 107702 (2021).
Article PubMed CAS Google Scholar
Sörme, P. et al. Structural and thermodynamic studies on cation-Pi interactions in lectin-ligand complexes: high-affinity galectin-3 inhibitors through fine-tuning of an arginine-arene interaction. J. Am. Chem. Soc. 127, 1737–1743 (2005).
Article ADS PubMed Google Scholar
Götze, M. et al. Automated assignment of MS/MS cleavable cross-links in protein 3D-structure analysis. J. Am. Soc. Mass Spectrom. 26, 83–97 (2015).
Article ADS PubMed Google Scholar
Perez-Riverol, Y. et al. The PRIDE database resources in 2022: a hub for mass spectrometry-based proteomics evidences. Nucleic Acids Res. 50, D543–D552 (2022).
Article PubMed CAS Google Scholar

Download references

Acknowledgements

The authors acknowledge the Cell and Tissue Imaging core facility (PICT IBiSA), Institut Curie, member of the French National Research Infrastructure France-BioImaging (ANR-10-INBS-04) for help with microscopy, the Recombinant Protein core facility CNRS-Institut Curie for protein purification, the Curie Cytometry core facility, Reinhard Fässler and Jakob Reber (Max Planck Institute of Biochemistry, Munich, Germany) for the dKO-MKF cell line and helpful comments on the manuscript, Guillaume Montagnac and Nathalie Ly (Institut Gustave Roussy) for help with the generation of AP2-mTagGFP CRISPR cell lines, Jean Salamero for help with LLSM experiments and data analysis, Fredrik Zetterberg (Galecto Biotech Inc.) for I3 compound, Ewan MacDonald for helpful discussion, and Henrik Clausen for extremely thoughtful comments on the manuscript. The authors also acknowledge access to electron microscopic equipment at the core facility BioSupraMol of Freie Universität Berlin, supported through grants from the Deutsche Forschungsgemeinschaft (DFG) and the state of Berlin for large equipment according to Art. 91b GG (INST 335/588-1 FUGG, INST 335/589-1 FUGG, INST 335/590-1 FUGG), Tarek Hilal for cryo-EM data collection of α₅β₁ integrin, and Thiemo Sprink of the Core Facility for cryo-Electron Microscopy (CFcryoEM) of the Charité—Universitätsmedizin Berlin, supported by DFG (INST 335/588-1 FUGG) for cryo-EM data collection of α₅β₁ integrin-Gal3. Finally, the authors acknowledge the use of resources of the French Proteomic Infrastructure ProFI ANR-10-INBS-08–03. This work was supported by grants from Fondation ARC ARCPGA2024110009062_9628 (L.J.), Mizutani Foundation reference n° 200014 (L.J.), Agence National de la Recherche ANR-19-CE13-0001-01, ANR-20-CE15-0009-01, ANR-22-CE11-0030-03, ANR-25-CE11-0988-01 (L.J.), DALLISH-ANR-16-CE23-0005 (C.A.V.-C., L.L., L.J.), Fondation pour la Recherche Médicale EQU202103012926 (L.J.), LabEx Cell(n)Scale (ANR-11-LABX-0038) as part of the Idex PSL (ANR-10-IDEX-0001-02) (C.A.V.-C., L.L., L.J.), ITMO Cancer (18CQ091) (C.A.V.-C., L.L.), Science Foundation Ireland (19/FFP/6428) and (14/IA/2488) (T.E.K.). RR acknowledges funding from the European Union’s Horizon 2020 research and innovation program under the Marie Skłodowska-Curie grant agreement no: 101025342.

Author information

Cesar A. Valades-Cruz
Present address: Institute of Hydrobiology, Chinese Academy of Sciences, Wuhan, China
These authors contributed equally: Massiullah Shafaq-Zadah, Estelle Dransart.

Authors and Affiliations

Chemical Biology of Cancer Unit, Institut Curie, U1339 INSERM, UMR3666 CNRS, PSL Research University, Paris, France
Massiullah Shafaq-Zadah, Estelle Dransart, Ilyes Hamitouche, Christian Wunder, Valérie Chambon, Cesar A. Valades-Cruz, Siau-Kun Bai & Ludger Johannes
Chemical Biology of Cancer Unit, SAIRPICO Team, U1339 INSERM, Institut Curie, Inria Center at University of Rennes, Paris, France
Massiullah Shafaq-Zadah, Estelle Dransart, Ilyes Hamitouche, Christian Wunder & Ludger Johannes
Leibniz-Forschungsinstitut für Molekulare Pharmakologie (FMP), Berlin, Germany
Ilyes Hamitouche, Richard Bartels & Daniel Roderer
SERPICO Project Team, Inria-UMR144 CNRS Institut Curie, PSL Research University, Paris, France
Cesar A. Valades-Cruz & Ludovic Leconte
SERPICO Project Team, Inria Centre Rennes-Bretagne Atlantique, Rennes, France
Cesar A. Valades-Cruz & Ludovic Leconte
School of Chemical Sciences and INSIGHT Centre for Data Analytics, Dublin City University, Dublin, Ireland
Nirod Kumar Sarangi, Jack Robinson & Tia E. Keyes
Physique des Cellules et Cancer, Institut Curie, UMR168 CNRS, PSL Research University, Paris, France
Raju Regmi, Aurélie Di Cicco & Daniel Lévy
BioOrganic Mass Spectrometry Laboratory, IPHC UMR 7178, CNRS, Strasbourg University, Strasbourg, France
Agnès Hovasse & Sarah Cianférani-Sanglier
National Proteomic Infrastructure ProFI – FR2048, Strasbourg, France
Agnès Hovasse & Sarah Cianférani-Sanglier
Department of Chemistry, Lund University, Lund, Sweden
Ulf J. Nilsson
Section MIG (Microbiology, Immunology, Glycobiology), Department of Laboratory Medicine, Lund University, Lund, Sweden
Hakon Leffler
Department of Structural Biochemistry, Max Planck Institute of Molecular Physiology, Dortmund, Germany
Stefan Raunser

Authors

Massiullah Shafaq-Zadah
View author publications
Search author on:PubMed Google Scholar
Estelle Dransart
View author publications
Search author on:PubMed Google Scholar
Ilyes Hamitouche
View author publications
Search author on:PubMed Google Scholar
Christian Wunder
View author publications
Search author on:PubMed Google Scholar
Valérie Chambon
View author publications
Search author on:PubMed Google Scholar
Cesar A. Valades-Cruz
View author publications
Search author on:PubMed Google Scholar
Ludovic Leconte
View author publications
Search author on:PubMed Google Scholar
Nirod Kumar Sarangi
View author publications
Search author on:PubMed Google Scholar
Jack Robinson
View author publications
Search author on:PubMed Google Scholar
Siau-Kun Bai
View author publications
Search author on:PubMed Google Scholar
Raju Regmi
View author publications
Search author on:PubMed Google Scholar
Aurélie Di Cicco
View author publications
Search author on:PubMed Google Scholar
Agnès Hovasse
View author publications
Search author on:PubMed Google Scholar
Richard Bartels
View author publications
Search author on:PubMed Google Scholar
Ulf J. Nilsson
View author publications
Search author on:PubMed Google Scholar
Sarah Cianférani-Sanglier
View author publications
Search author on:PubMed Google Scholar
Hakon Leffler
View author publications
Search author on:PubMed Google Scholar
Tia E. Keyes
View author publications
Search author on:PubMed Google Scholar
Daniel Lévy
View author publications
Search author on:PubMed Google Scholar
Stefan Raunser
View author publications
Search author on:PubMed Google Scholar
Daniel Roderer
View author publications
Search author on:PubMed Google Scholar
Ludger Johannes
View author publications
Search author on:PubMed Google Scholar

Contributions

L.J., M.S.-Z., E.D., D.R. are listed for conceptualization; L.J., M.S.-Z., E.D., D.R., I.H., S.R., C.W., V.C., C.A.V.-C., R.R., L.L., D.L., A.H., N.K.S., J.R., U.J.N. for methodology; M.S.-Z., E.D., I.H., C.A.V.-C., L.L., R.R., D.L., A.D.C., A.H., N.K.S., J.R., R.B. for investigation; M.S.-Z., E.D., D.R., I.H., V.C., D.L., A.D.C., R.R., A.H., N.K.S., J.R. for visualization; L.J. for funding acquisition; L.J. for project administration; L.J., M.S.-Z., E.D., T.E.K., S.C.S., S.R., D.R. for supervision; L.J., M.S.-Z., E.D., D.R. for writing of the original draft; and D.L., C.W., H.L., V.C., R.R., C.A.V.-C., L.L., T.E.K. for review and editing.

Corresponding authors

Correspondence to Massiullah Shafaq-Zadah, Daniel Roderer or Ludger Johannes.

Ethics declarations

Competing interests

H.L. and U.J.N. are shareholders in Galecto Biotech Inc., a company that develops galectin inhibitors. The other authors declare that they have no conflict of interest with the contents of this article.

Peer review

Peer review information

Nature Communications thanks the anonymous reviewers for their contribution to the peer review of this work. A peer review file is available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Supplementary Information (download PDF )

Description of Additional Supplementary File (download PDF )

Supplementary movie 1 (download MP4 )

Supplementary movie 2 (download MP4 )

Supplementary movie 3 (download MP4 )

Supplementary movie 4 (download MP4 )

Supplementary movie 5 (download MP4 )

Supplementary movie 6 (download MP4 )

Supplementary Data 1 (download XLSX )

Supplementary Data 2 (download PDF )

Supplementary Data 3 (download PDF )

Supplementary Data 4 (download PDF )

Reporting summary (download PDF )

Transparent Peer Review file (download PDF )

Source data

Source data (download XLSX )

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Cite this article

Shafaq-Zadah, M., Dransart, E., Hamitouche, I. et al. Spatial N-glycan rearrangement on α₅β₁ integrin nucleates galectin-3 oligomers to determine endocytic fate. Nat Commun 16, 9461 (2025). https://doi.org/10.1038/s41467-025-64523-7

Download citation

Received: 20 December 2024
Accepted: 16 September 2025
Published: 27 October 2025
Version of record: 27 October 2025
DOI: https://doi.org/10.1038/s41467-025-64523-7

This article is cited by

Beyond the membrane: rethinking EGFR signaling in physiology and cancer
- Gorana Jendrisek
- Deborah Mesa
- Sara Sigismund
Cellular and Molecular Life Sciences (2026)
