Introduction

Obtaining a description of strong-interaction matter based on the underlying theory of quantum chromodynamics (QCD) is one of the most important challenges of theoretical physics. The development of effective field theories (EFTs) of QCD has revolutionized our understanding of nuclear forces1,2,3. By employing a separation of scales between typical nucleon momenta and high-energy degrees of freedom, indicated by the breakdown scale of the theory, EFTs provide a systematic expansion for inter-nucleon interactions which can be improved order by order. Consequently, a natural hierarchy emerges among the interactions between two (NN), three (3N), and many nucleons, the strengths of which are parameterized by low-energy couplings (LECs) that need to be determined from data or from the underlying theory. In the absence of direct calculations of the LECs from QCD, the LECs are commonly adjusted to reproduce nuclear experiments. For example, LECs that govern NN interactions are fit to NN scattering data, whereas 3N forces are fit to properties of light nuclei. The LECs governing the two-pion exchange contribution to the 3N forces4, c1 and c3, describe pion-nucleon (πN) interactions and can be constrained using laboratory πN scattering data to c1 = −0.74 ± 0.02 GeV−1 and c3 = −3.61 ± 0.05 GeV−1 at one-sigma level; see Hoferichter et al.5 and Siemens et al.6 for an analysis using Roy-Steiner equations. EFT-based interactions with LECs calibrated this way have enjoyed significant success in applications to nuclear structure and nuclear astrophysics7,8,9,10,11,12,13,14,15,16,17,18. However, an open question is which data with A ≥ 3 one should use to infer LECs describing three-nucleon interactions. For example, recently the calibration of certain LECs to medium-mass nuclei, such as oxygen isotopes, has resulted in increased success for nuclear structure phenomenology, enabling EFT-based Hamiltonians to successfully describe nuclei up to 208Pb (see, e.g., Hu et al.12 and Arthuis et al.19). These developments emphasize that it is key to identify critical experimental constraints for the calibration of powerful nuclear interactions.

Interestingly, the microscopic interactions that govern atomic nuclei also dictate the macroscopic properties of neutron stars. Neutron stars are fascinating systems that access higher densities and greater neutron excess than nuclei accessible in terrestrial experiments. Therefore, they offer an unparalleled laboratory for nuclear matter in regions of high density and isospin asymmetry (the ratio of neutrons to protons)20,21,22,23,24,25,26,27. However, significant challenges arise in modeling the equation of state (EOS) of neutron stars, such as the involved computational cost of solving the quantum many-body problem. Initial steps have been taken to constrain 3N interactions from astrophysical observations28,29,30, but none of these studies have attempted to calibrate the nuclear Hamiltonian directly to such data. While Maselli et al.28 and Sabatucci et al.29 explore the sensitivity of neutron star observables to a single parameter governing the strength of the short-range 3N contribution to the EOS, they do not solve the quantum many-body problem at each step in the sampling but instead make simplifying assumptions to connect the single parameter to neutron star observables. Furthermore, these studies do not fully model variations in the EOS from low to high densities, beyond the nuclear regime, where the density dependence can change from that dominated by 3N forces. For example, phase transitions to non-nuclear degrees of freedom are possible. Rose et al.30 use astrophysical observations to distinguish between two Hamiltonians that model the 3N force in different ways but do not infer the LECs themselves.

Here, we develop a framework that allows us to constrain LECs directly from observations of neutron stars via Bayesian inference and, thus, explore EFT-based interactions for the densest neutron-rich systems in the cosmos. We consider a Hamiltonian at next-to-next-to-leading order (N2LO) in the EFT expansion and focus on the leading (N2LO) 3N forces that provide a strong contribution to the EOS of neutron matter. As LEC values obtained from two entirely distinct sources (neutron star observations versus atomic nuclei) can be checked against each other for consistency, our framework will provide a unique test for the domain of applicability of nuclear interactions and of the convergence of the EFT expansion in dense matter.

Results

Machine-learning-based inference framework

Our Bayesian inference setup to constrain c1 and c3 from astrophysical data involves sampling over the microphysical LECs using a Markov chain Monte Carlo (MCMC) stochastic sampling algorithm. Every iteration of the sampler requires the solution of the many-body Schrödinger equation, which yields the neutron star EOS. The EOS is subsequently translated to astrophysical observables, such as radii or tidal deformabilities, by solving the Tolman-Oppenheimer-Volkoff (TOV) equations and the equations for a stationary quadrupolar tidal deformation31,32. Given the large number of iterations required to sample the posterior distribution function—\({\mathcal{O}}(1{0}^{6})\)—this is a computationally intractable problem given that a single iteration requires \({\mathcal{O}}(1{0}^{2})\) CPU-h.

We overcome this challenge by employing recent advances in machine-learning-based algorithms that act as surrogate models to more complex high-fidelity calculations. First, for rapid calculation of the EOS, we employ the recently proposed parametric matrix model (PMM)33,34, which is trained on third-order many-body perturbation theory (MBPT) calculations18 of the neutron-matter EOS. In the left panel of Fig. 1, we show results for 70 validation samples for a PMM trained on 30 high-fidelity MBPT calculations. We find emulator uncertainties to be well under control, with predictions of the EOS at nuclear saturation density nsat = 0.16 fm−3 differing from the high-fidelity results by 0.04% on average. This emulator uncertainty is much smaller than the LEC variation, indicated by the spread of samples, as well as the uncertainty in the MBPT calculations themselves (see Methods). We then extend these neutron-matter results to neutron star matter in beta equilibrium. We model the neutron star EOS using three different parameterizations (see Methods), the first and simplest of which only uses the emulator results based on c1 and c3 to characterize the EOS up to 10nsat.

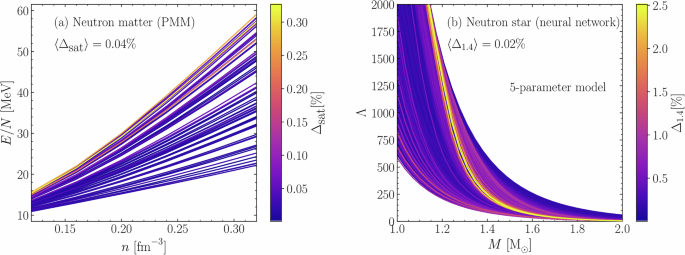

Fig. 1: Validation results for our machine-learning-based emulators.
figure 1

In both panels, the color of the curves corresponds to the percentage uncertainty in the emulators' prediction. a Shows 70 results for the neutron-matter EOS up to 2nsat predicted by a PMM built using a training set of 30 different samples. At nuclear saturation density, individual validation uncertainties Δsat are below 0.3%, with the average uncertainty being 0.04%. b Shows ~60,000 tidal deformability-mass curves predicted by an ensemble of 50 neural networks trained on the 5-parameter EOS model. The uncertainty at 1.4M⊙, Δ1.4, is at most 2.5% with an average of 0.02%. We note that less than 0.1% of EOSs have emulator uncertainties of around 2%, making these very rare occurrences. Source data for this figure are provided as a Source Data file.

Full size image

The nucleonic description of dense matter eventually breaks down, and exotic phenomena such as QCD phase transitions in high-density matter might appear. Therefore, in the following, we assume the validity of the EFT expansion up to 2nsat18,35,36, and hence, the LECs c1 and c3 determine the EOS only up to this density. An important aspect of our framework is to find a suitable parameterization and marginalization over uncertainties in the high-density EOS. Here, we use two different models based on the speed of sound that allow for a physics-agnostic extension of the EOS above 2nsat37. These models employ either 5 or 7 parameters, including the two LECs. Comparing these models with the 2-parameter model illustrates the importance of the marginalization over the high-density EOS.

For a given EOS model, we use an ensemble of neural networks to predict the tidal deformability of neutron stars38. Results obtained from validating our emulator on ~60,000 samples are shown in the right panel of Fig. 1 for the 5-parameter model, but the emulator performance is similar for the other EOS models. We find that both the PMM and neural-network emulators provide highly accurate and rapid emulation of the underlying complex calculations that are required to compute neutron star properties starting from microscopic LECs. The use of machine-learning algorithms in this manner is a key part of our analysis that allows us to sample complex posterior distribution functions in our astrophysical Bayesian analysis framework.

Inference based on GW170817 and NICER data

We condition the LECs c1 and c3 on the LIGO/Virgo Collaboration’s first GW observation of a binary neutron star merger, GW17081739,40, as well as X-ray observations of three pulsars made by NASA’s Neutron Star Interior Composition Explorer (NICER) mission: PSR J0030+045141,42, PSR J0740+662043,44, and PSR J0437–471545. For these observations, we employ likelihood functions of the source parameters (neutron star masses, binary tidal deformabilities, radii, etc.) that are proportional to the posteriors computed in Abbott et al.40 for GW170817, and Riley et al.41, Salmi et al.46, and Choudhury et al.45 for the three NICER observations. With wide uniform priors between zero and twice the mean of their laboratory values on the LECs c1 and c3, the posterior conditioned on GW170817 is sampled using MCMC, and the posterior samples are weighted according to the product of the NICER likelihoods. Each likelihood evaluation is carried out by evaluating our two emulators consecutively, thus converting microscopic LECs to macroscopic neutron star observables.

The marginalized two-dimensional posterior distribution on c1 and c3 is shown in Fig. 2. We find essentially no influence of the neutron star observations on the parameter c1 since the effect of c1 on the EOS of neutron matter is subdominant compared to that of c347. On the other hand, given the GW and X-ray observations, we see a clear preference for less repulsive 3N forces. We attribute this to c3 being negatively correlated with the pressure inside neutron stars13. Since GW170817, as well as the X-ray observation of PSR J0470 favor more compact neutron stars, this translates to smaller pressures in neutron star interiors. The upper bound of the posterior is set by the prior boundary at c3 = 0 GeV−1; however, this boundary is physically motivated since positive values of c3 correspond to an attractive 3N force, which would lead to the collapse of neutron matter. Although the posterior median of c3 = −2.52 GeV−1 deviates from the laboratory value of c3 = −3.61 ±0.05 GeV−1, the laboratory and astrophysical determinations are consistent at the 90% confidence level, albeit with the latter constraint currently having large uncertainties. Existing neutron star observations do not offer high-precision constraints on the LECs, given the significant statistical uncertainties present in these observations.

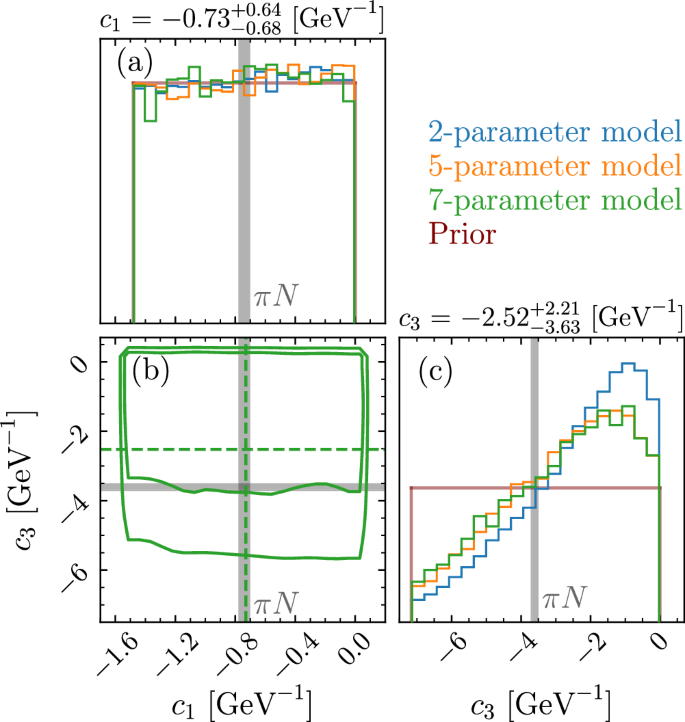

Fig. 2: Constraints from GW170817 and NICER data.
figure 2

a Shows the posterior distribution function of the LEC c1. c Shows the posterior distribution function of the LEC c3. a, c Results are shown for the 2- (blue), 5- (orange), and 7-parameter (green) models. The quoted errors are for the 7-parameter model evaluated at the 90% confidence level. b Depicts the correlation between c1 and c3 and displays iso-probability contours at the 68% and 90% confidence levels. The laboratory values for c1 and c3 from pion-nucleon (πN) scattering experiments are shown in gray. Source data for this figure are provided as a Source Data file.

Full size image

Constraints from next-generation GW observatories

In the next decade, two upcoming next-generation ground-based GW detectors are expected to begin operations, namely the Einstein Telescope (ET) in Europe48,49 and Cosmic Explorer (CE) in the United States50,51. These detectors will provide a sensitivity that is improved by an order of magnitude over current GW detectors. Consequently, they are expected to observe \({\mathcal{O}}(100)\) events with signal-to-noise (SNR) ratios above 100 per year52,53,54,55,56,57. Here, we demonstrate how such observations, at the level of populations of events, can provide stringent constraints on 3N couplings.

We simulate a population of neutron star merger events that can potentially be observed within a year-long observing run by a network of three next-generation detectors. Our detector network consists of two CEs, each with a 40 km arm length, and one ET with its fiducial 10 km triangular design. For our population model, we assume a uniform distribution in the range 1–2 M⊙ for the component masses and a random pairing into binary systems. Furthermore, we assume a constant local merger rate of 170 Gpc−3 yr−1, which is consistent with the merger rate inferred in Abbott et al.58, and a uniform distribution of sources in co-moving volume. This results in a total of approximately 400 events within a redshift z of 0.2 observed by the detector network within one year. A lower merger rate would only affect our results by increasing the time required to observe the same number of events. There are many additional events with z > 0.2 that are detected with lower SNR; however, here we focus on the loudest signals in the detected population. The underlying EOS explored by our population, i.e., the EOS that relates the component masses of our simulated binaries to the corresponding component tidal deformabilities, is generated from our 5-parameter model with c3 = −3.68 GeV−1, which is in agreement with the laboratory value at the 90% confidence level6.

From the detected events in our simulated population, we select the N = 20 highest-SNR events to analyze. This most informative subset is large enough that its chirp masses span the entire range allowed by the population model, with at least one event in every chirp mass bin of width 0.1M⊙. This choice amounts to a selection cut at an SNR of about 225. Because the SNR depends primarily on the chirp mass, whose distribution is independent of the EOS in our assumed population model, this selection cut does not bias the recovery of EOS parameters. GW selection effects can thus be neglected in our inference.

The evolution of the uncertainties in c3 as a function of the number N of observed events, represented at the 90% confidence level, is shown in Fig. 3. The N events are analyzed using a Bayesian hierarchical approach59,60 for N = 1, 3, 5, 10, 15, and 20, within the Fisher matrix approximation61,62. For N = 20, the analysis is repeated using parameter estimation on zero-noise injections63,64. The zero-noise realization of Gaussian noise is, in the statistical sense, the most likely realization56 and, furthermore, the effect of any non-zero Gaussian noise generally weakens drastically with the SNR. The result matches well with the corresponding Fisher matrix result (see Fig. 3). This is consistent with other findings in the literature, see, for example, Vallisneri65, which demonstrate that, for a four-dimensional Fisher matrix analysis, an SNR above 20 is typically sufficient for robust parameter estimation. We find that a single event among the 20 loudest ones observed by next-generation GW detectors in a year decreases uncertainties by only, on average, a factor of two compared with uncertainties obtained from present astrophysical data. However, as the number of detections increases, we find that the statistical uncertainties in c3 decrease approximately as \(1/\sqrt{N}\), and thus converge remarkably well to the injected value. We see how inference performed at the level of populations of events can potentially provide high-precision constraints on nuclear interactions within a year, competitive with and complementary to terrestrial laboratory data. These constraints would improve further if events with lower SNR are also considered. In contrast, the constraints could weaken in the same time frame if, for example, the observed merger rate is lower than expected.

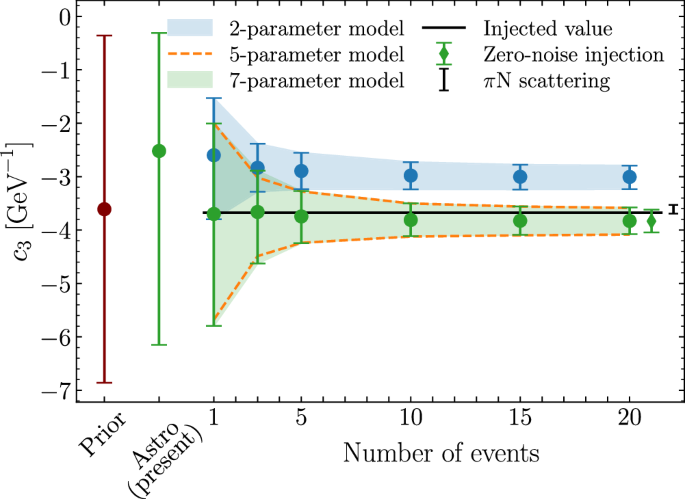

Fig. 3: Evolution of the obtained constraints on c3.
figure 3

We show the prior on c3 (purple) as well as the present astrophysical constraints, which include GW170817 and the NICER X-ray observations of millisecond pulsars but exclude simulated data from next-generation GW observatories. The inferred c3 for our population study is then shown as a function of the number of events observed by a network of next-generation GW detectors for the 2-parameter (blue), 5-parameter (orange-dashed), and 7-parameter (green) EOS models. We observe that the constraints are well converged at 20 observations. For the 7-parameter model, the diamond error bar is obtained by analyzing 20 observations using parameter estimation on zero-noise injections, whereas the circle error bars are obtained within a Fisher matrix approximation. We compare the resulting constraints to the injected value and to the uncertainties in the laboratory result from πN scattering (black). All error bars represent 90% confidence levels. Source data for this figure are provided as a Source Data file.

Full size image

Figure 3 also demonstrates the importance of the marginalization over uncertainties in the high-density EOS, implemented in our framework in the 5- and 7-parameter models. We find excellent agreement between the results obtained from these two models. However, the very simple 2-parameter model—which does not account for such uncertainties—is in significant tension with the injected value, as it converges toward an incorrect c3. This underscores the importance of allowing for general high-density extensions in order to avoid systematic uncertainties in the inference of LECs.

Discussion

In this paper, we introduce a framework that allows for the inference of couplings describing microscopic 3N interactions from astrophysical observations of neutron stars. Naively, one would assume that the complex multi-physics calculations required to compute neutron star observables starting from microscopic Hamiltonians are too computationally expensive to allow for a full stochastic sampling of the posterior distribution. We have overcome this challenge by enhancing our Bayesian inference approach with machine learning. In particular, we employ two machine-learning methods—the parametric matrix model33,34 and the ensemble neural-network method38,66—that circumvent this challenge by drastically speeding up our likelihood evaluations.

The inference of LECs from neutron star observations provides several benefits. While LECs can be adjusted to data on atomic nuclei or scattering, our novel approach makes it possible to constrain interactions using the densest and most neutron-rich system in the cosmos. Furthermore, it is possible that improved nuclear interactions involve not only higher orders in the EFT expansion, but the addition of new degrees of freedom, such as the Δ resonance67 or hyperons68. Even existing EFTs that include such degrees of freedom suffer from a lack of experimental data for their calibration and verification. For all these cases, astrophysical data provide a viable option for the calibration of the LECs.

While we have chosen to study only the 3N LECs c1 and c3, our framework is applicable to any sector of the Hamiltonian, provided that it correlates sufficiently well with the EOS of neutron-rich matter. This enables consistency checks between constraints from neutron star observations and from nuclear experiments, which provides a nontrivial verification of the EFT expansion and its applicability to calculations of neutron star observables. Our framework also enables sensitivity analyses of neutron-rich matter that will allow for the identification of the most important LECs in chiral Hamiltonians for neutron star observables. In Fig. 3, the extracted value of c3 is in good agreement with laboratory data by choice. Such a result with actual GW data would demonstrate consistency of the EFT approach between nuclei and dense matter. However, a hypothetical convergence of c3 to a value incompatible with laboratory data—similar to the result for the 2-parameter model—might indicate the breakdown of the EFT and the appearance of new physics in neutron stars. Our framework also permits us to compare different implementations of EFTs as well as various many-body methods for strongly correlated quantum systems. With the advent of next-generation neutron star observations in the near future, we therefore expect our framework to be a key tool for inferring LECs and improvements to the EFTs themselves. Our work thus also demonstrates the importance of building a global network of next-generation ground-based gravitational-wave observatories.

Methods

High-fidelity EOS model

We require EOS models, connecting the nuclear Hamiltonian to neutron star structure, to generate training data for the machine learning-based algorithms employed in our Bayesian inference framework. In this work, we keep the NN part of the Hamiltonian fixed using the N2LO NN interactions of Entem, Machleidt, and Nosyk (EMN) with cutoff Λc = 450 MeV69, as this part is very well determined from NN scattering experiments. At N2LO, a given nuclear Hamiltonian for neutron matter is then parameterized by the values of the LECs c1 and c3. To generate the EOS from this Hamiltonian, the first step is to solve the many-body Schrödinger equation. Here, we use MBPT at third order16,18 to calculate the energy per particle of neutron matter between 0.12 fm−3 and 0.32 fm−3 in steps of 0.04 fm−3 for 100 randomly selected sets of LEC combinations. For symmetric nuclear matter, which is not as important but is needed to include the small fraction of protons, we use empirical properties. We estimate the uncertainty of the MBPT approach by comparing the difference in results at the second and third orders. The average (maximum) size of the third-order MBPT correction is 252 (790) keV across all densities and for all LEC combinations, which is much smaller than the overall range of the energy per particle; see Fig. 1. The correction generally increases with density away from saturation density. Based on this, we conclude that the MBPT calculations are sufficiently converged so as not to significantly impact our results. For this work, we use an MBPT code that is based on 3N operators in a single-particle basis, as in Drischler et al.16. This makes it computationally feasible to perform the calculations required for training our emulators.

Using an MBPT calculation of the EOS of neutron matter, we compute the EOS for neutron star matter in beta equilibrium up to 2nsat (10nsat) using the metamodel of Margueron et al.70,71 for our 5- and 7- (2-) parameter models. The metamodel provides a smooth density-functional-based interpolation between the discrete density-grid points of the MBPT calculation and allows for a straightforward extrapolation from the EOS of neutron matter to the EOS of matter in beta equilibrium, including leptons. The model parameters of the metamodel are the so-called nuclear empirical parameters (NEPs) that govern the density dependence of the EOSs of neutron matter and symmetric matter via a Taylor expansion about nuclear saturation density, see Margueron et al.70 for more details. Here, we fix the iso-scalar NEPs to be Esat = −16 MeV, nsat = 0.16 fm−3, Ksat = 230 MeV, and Qsat = Zsat = 0 MeV, i.e., we do not consider variations in the EOS of symmetric matter in this work. On the other hand, the iso-vector parameters are fit to the MBPT calculation of the energy per particle up to 2nsat in neutron matter. For the 5- and 7-parameter models, the fit includes the iso-vector parameters Esym, Lsym, Ksym, and Qsym, i.e., all the iso-vector NEPs excluding Zsym, which is fixed at 0 MeV, in order to reliably reproduce the MBPT calculation. We found that the difference between the MBPT calculation and the metamodel result, averaged over density and different LEC samples, is ~10 keV. For the 2-parameter model, the NEP Qsym is fixed to Qsym = 500 MeV, which results in a slight loss in the quality of the fit but allows for an extension of the neutron-star EOS up to 10nsat using the metamodel alone while ensuring that the symmetry energy remains positive up to this density. Finally, for all three of our EOS models, the crust EOS of Douchin and Haensel72 is added below 0.08 fm−3 following the approach of Koehn et al.73.

For the 5- and 7-parameter models, we account for phenomena beyond the EFT breakdown scale—such as the appearance of non-nucleonic degrees of freedom at high densities—by extending the EOS above 2nsat using the speed-of-sound parameterization15,37. This parameterization is agnostic towards the composition of matter; the model parameters are the values of the squared speed of sound, defined on a discrete density grid. For the 5- (7-) parameter model, we use three (five) grid points located at [3, 5, 7] nsat ([3, 4, 5, 6, 7] nsat). Then, for a given set of sound speeds on the specified grid, the full sound-speed curve is obtained by interpolating linearly between the grid points. In both models, the speed of sound at n > 7nsat is taken to be a constant equal to its value at 7nsat. The full density-dependent speed of sound can then be integrated to obtain the pressure, energy density, and baryon chemical potential15,37.

Using the neutron star EOS generated in this manner, we obtain the neutron star radius R and tidal deformability Λ as a function of the neutron star mass by solving the TOV equations and the equation for the quadrupolar tidal perturbation31,32.

Machine learning the EOS model

The sequence of steps required to convert a set of EOS parameters to neutron star observables, such as the tidal deformability, is computationally expensive and requires \({\mathcal{O}}(1{0}^{2})\) CPU-h for a single evaluation. This is prohibitively expensive given that the total number of iterations required in this work is \({\mathcal{O}}(1{0}^{9})\). We overcome this bottleneck by using machine-learning approaches to emulate the two steps necessary to obtain the high-fidelity EOS model and connect it to neutron stars.

The first and most expensive step of generating an EOS model is the computation of the neutron matter EOS using MBPT. To emulate this computation, we use the PMM33,34 that combines ideas of both machine learning and reduced-order modeling. In our implementation of the PMM, the energy per particle in neutron matter at a given density is represented by the lowest eigenvalue of a 2 × 2 matrix M given as

$${\bf{M}}={{\bf{M}}}_{0}+{c}_{1}{{\bf{M}}}_{1}+{c}_{3}{{\bf{M}}}_{3},$$
(1)

where M0 is a diagonal matrix, M1 and M3 are symmetric matrices, and c1 and c3 are the two LECs of interest. While the dependence of M is inspired by the theory of reduced-order modeling and the affine structure of chiral Hamiltonians, the matrix elements of M0, M1, and M3 need to be learned from data. To achieve this, we sample 100 different LEC combinations from their uniform prior distribution and calculate the EOS of neutron matter using MBPT. Then, we divide the set of 100 samples into 30 training and 70 validation samples, and fit the real matrix elements of M0, M1, and M3 at each density such that the lowest eigenvalues of M agree with the MBPT results for the training set. Results from validating the PMM on the remaining 70 samples are shown in Fig. 1. To verify the accuracy of our PMM in the posterior parameter space, we averaged the emulator uncertainty using only those samples that lie within the span of the posterior on c3 and found an average of 0.03%. The average (maximum) deviation between the PMM and the MBPT calculation, averaged over density and the 70 validation samples, is 15 keV (158 keV).

The second step is to solve the TOV equations and the equation for the quadrupolar tidal perturbation in order to calculate neutron star observables. This process takes only \({\mathcal{O}}(1)\) seconds for each EOS sample. This computational cost, while far cheaper than the MBPT calculations, remains a significant hurdle in Bayesian inference frameworks. To overcome the hurdle, we follow the approach of Reed et al.38 and use an ensemble of feed-forward neural networks66 to emulate solutions to the stellar-structure equations. To generate training and validation data, we first sample a set of 200,000 model parameters from their uniform priors and generate the neutron star EOS for each EOS model. During this process, we employ the PMM to calculate the corresponding EOSs of neutron matter for the various draws for c1 and c3 and use the meta- and sound-speed models for the neutron star EOSs. For each of the 200,000 EOS models, we solve the TOV equations using a high-fidelity solver. The resulting data is then used to train the neural-network emulator, since each sample corresponds to a well-defined input (the EOS model parameters) and output (the neutron star tidal deformabilities). In this work, the neural-network emulator is only used to predict the Λ-M curve and not the M-R curve. The latter does not require an emulator, as we perform significantly fewer calculations of this quantity.

We evenly split our set of 200,000 samples into training and validation data and discard all samples that do not reach 2 M⊙, i.e., the neural-network emulator is trained to predict the Λ-M curve only for those EOS parameters for which the maximum mass MTOV ≥ 2M⊙. For all EOS models, the network architecture is such that it accepts the EOS parameters as input via the input layer, and then outputs the Λ-M curve on a grid of 30 points uniformly spaced between 1–2 M⊙. We use five hidden layers to emulate the 5- and 7-parameter models, whereas we use two hidden layers for the 2-parameter model. All hidden layers consist of 64 nodes. Similar to Reed et al.38, we use an ensemble of 50 (5) neural networks for the 5- and 7-parameter (2-parameter) models, with all neural networks trained independently and the final output obtained by averaging over all neural networks in the ensemble.

Validation results for our neural-network-based emulation are shown in the right panel of Fig. 1. However, since the validation data is computed using the PMM emulator and not high-fidelity MBPT calculations, the results of Fig. 1 capture only the accuracy of the neural-network emulator alone and not the full compound emulation uncertainty that also includes the PMM. Therefore, in Fig. 4, we have computed the compound uncertainty using the 70 MBPT samples that were not used when training the PMM. Each of these samples was extended to higher densities using the 5-parameter model, and the Λ−M sequence was subsequently obtained using our high-fidelity TOV solver. We have checked that our results do not change if the 2- or 7-parameter models are used instead. The error in the predicted tidal deformability at 1.4M⊙, Δ1.4, while somewhat larger than in Fig. 1, is sufficiently small for our machine-learning-based analyses to remain unbiased. Quantitatively, an event with an SNR of ~4000—far higher than any event considered here—would be required for the average compound error of 0.2% to be detectable with 90% confidence.

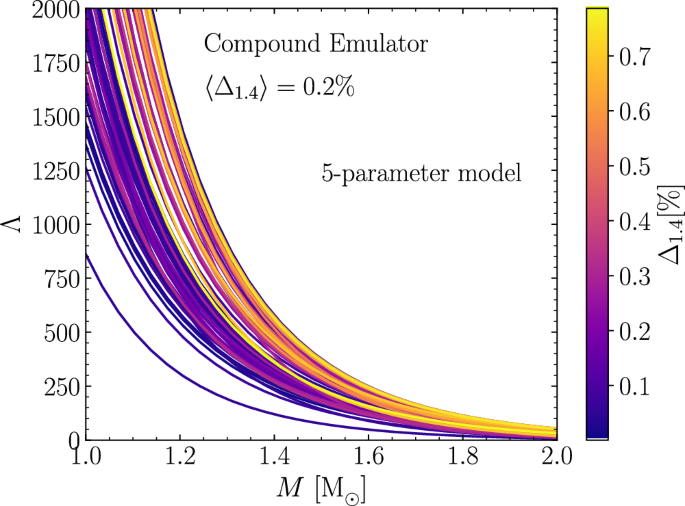

Fig. 4: Compound emulator uncertainty.
figure 4

The figure shows the accuracy of our emulators, where the validation is performed using both high-fidelity solvers: MBPT and the full TOV solver. The quoted average error for 1.4M⊙, 〈Δ1.4〉 = 0.2%, is an estimate of the total compound emulator uncertainty, including both the PMM and the neural network, instead of only the latter. Source data for this figure are provided as a Source Data file.

Full size image

Since the emulator is trained on only those EOS parameter values that satisfy MTOV ≥ 2M⊙, and therefore capable of making predictions only for those samples, we require an additional machine-learning tool, trained and validated on the same sets as above, to identify whether a sampled set of EOS parameters satisfies this criterion. We train an ensemble of ten neural networks to perform this binary classification, where each network accepts the EOS parameters as input and outputs the probability that the required constraint is satisfied. The final classification is obtained by averaging over the outputs of all ten neural networks. We found that for the 5-parameter and 7-parameter models, our classifier successfully identifies samples that satisfy MTOV ≥ 2M⊙ with an accuracy of 99.9%. In the very few cases where the classifier fails, the maximum mass is usually very close to the 2 M⊙ threshold, and the emulator nevertheless provides a reasonable emulation. The 2-parameter model does not require such a classifier since the maximum mass constraint is satisfied for all values of c1 and c3 by construction (because the density dependence of the symmetry energy for the 2-parameter model is stiff enough to support 2 M⊙ stars).

Bayesian analysis of GW170817 and X-ray pulse-profile data

To obtain the posterior P(θ∣d) presented in Fig. 2, we use Bayes’ theorem:

$$P({\boldsymbol{\theta }}| {\bf{d}})\propto \left[{\mathcal{L}}({d}_{{\rm{J0030}}}| {\boldsymbol{\theta }}){\mathcal{L}}({d}_{{\rm{J0740}}}| {\boldsymbol{\theta }}){\mathcal{L}}({d}_{{\rm{J0437}}}| {\boldsymbol{\theta }}){\mathcal{L}}({d}_{{\rm{GW170817}}}| {\boldsymbol{\theta }})\right]\pi ({\boldsymbol{\theta }}).$$
(2)

Here, θ is a set of EOS parameters, π(θ) is the corresponding prior, and the likelihood function is obtained as the product of the likelihoods for different sources of data d: the NICER observations of PSRs J0030, J0740, and J0437, as well as the gravitational-wave observation GW170817. We do not consider the event GW190425 given its low SNR74 and negligible impact on the EOS (see, e.g., Dietrich et al.21).

As priors, we use uncorrelated uniform distributions for all EOS parameters. For c1 and c3, the uniform priors span the range between 0 and twice the laboratory value obtained using the Roy-Steiner analysis6. For the speed-of-sound parameters, the uniform priors span the range between 0 and the speed of light c. Before analyzing the gravitational-wave and NICER data, we additionally impose the constraint MTOV ≥ 2M⊙ as a hard cut, i.e., π(θ) ∝ Θ(MTOV(θ) − 2M⊙), where Θ denotes a step function. This prior constraint accounts for the radio observations of heavy pulsars with masses around 2M⊙75,76,77 and is implemented implicitly when training the neural-network emulator for the stellar-structure equations.

In order to evaluate Eq. (2), we first sample the distribution \({\mathcal{L}}({d}_{{\rm{GW170817}}}| {\boldsymbol{\theta }})\pi ({\boldsymbol{\theta }})\) using MCMC78. The relevant likelihood is given by

$${\mathcal{L}}({d}_{{\rm{GW170817}}}| {\boldsymbol{\theta }})= \int\,d{m}_{1}d{m}_{2}{\mathcal{L}}({d}_{{\rm{GW170817}}}| {m}_{1},{m}_{2},{\Lambda }_{1}({m}_{1},{\boldsymbol{\theta }}),{\Lambda }_{2}({m}_{2},{\boldsymbol{\theta }}))\\ \times \pi ({m}_{1},{m}_{2}).$$
(3)

The prior on the component masses is taken to be uniform in the 1–2 M⊙ range. We do not perform a parameter estimation for GW170817 starting from the GW strain data, as sampling over the LEC parameters would dramatically increase the computational cost of such an analysis, and instead take the likelihood \({\mathcal{L}}({d}_{{\rm{GW170817}}}| {m}_{1},{m}_{2},\tilde{\Lambda })\)—where \(\tilde{\Lambda }\) is the binary tidal deformability—to be proportional to the posterior computed in Abbott et al.40. We use a Gaussian kernel density estimator (KDE) to construct the probability density function from the samples calculated in Abbott et al.40. The use of a KDE might introduce uncertainties as the probability density function is not always reconstructed accurately by this method. However, we did not see any significant change in our results when the bandwidth of the KDE was varied to within 30%. This is consistent with the general findings in the literature that KDE-induced uncertainties are subdominant for events that are only moderately informative, such as GW17081759,79. At each iteration of the MCMC sampler, the factor Θ(MTOV(θ) − 2M⊙) is evaluated by the neural-network classifier, and the dependence of the binary tidal deformability \(\tilde{\Lambda }\) on θ in the above equation is determined by the emulator of the TOV equations.

To account for the NICER observations, the samples obtained from the MCMC sampling above are given a weight proportional to \({\prod }_{i}{\mathcal{L}}({d}_{i}| {\boldsymbol{\theta }})\), where i indexes the pulsar. The individual NICER likelihoods are given as

$${\mathcal{L}}({d}_{i}| {\boldsymbol{\theta }})=\int\,dM{\mathcal{L}}({d}_{i}| M,R(M,{\boldsymbol{\theta }}))\pi (M),$$
(4)

where the prior π(M) is taken to be uniform between 1 M⊙ and the maximal TOV mass MTOV. The function R(M, θ) is determined by solving the TOV equations using a high-fidelity solver. We approximate the likelihood functions \({\mathcal{L}}({d}_{i}| M,R)\) to be proportional to the M-R posteriors for PSRs J003041, J074046, and J043745, respectively, and we use the hot-spot models corresponding to the main result in each publication. Note that this approximation is not strictly valid for J0740 because a Gaussian prior on the pulsar’s mass, informed by radio observations, was used to obtain the M-R posterior in Salmi et al.46. Consequently, the existence of heavy pulsars is effectively accounted for twice in our analysis: first by applying a hard cut in π(θ) and then by the term \({\mathcal{L}}({d}_{J0740}| M,R)\). However, since the Gaussian prior on the pulsar’s mass used in Salmi et al.46 lies above 2 M⊙ at the 68% CL and our hard-cut term is constant in this region, we conclude that the double counting of the pulsar’s mass measurement has only a minor effect on our results. Our main results for the marginal posteriors on c1 and c3 obtained in this manner are shown in Fig. 2.

Recently, the NICER collaboration published a reanalysis of PSR J0030 using additional data80. In Figs. 5 and 6, we present results on c1 and c3 using two results of this reanalysis: one with the hot-spot model ST+PDT with mass and radius of about [1.4M⊙, 11.5 km] (reanalysis I) and the other with the hot-spot model PDT-U with a mean at about [1.7M⊙, 14.5 km] (reanalysis II). While the results of reanalysis I are in agreement with Fig. 2, reanalysis II leads to a notable difference in the posterior on c3. However, when considering the 90% CL given in Fig. 3 for the present astrophysical data, this only changes the allowed c3 range from [−6.15, −0.31] GeV−1 to [−6.75, −0.94] GeV−1.

Fig. 5: Updated constraints from NICER reanalysis I.
figure 5

a Shows the posterior distribution function of the LEC c1. c Shows the posterior distribution function of the LEC c3. b Depicts the correlation between c1 and c3 and displays iso-probability contours at the 68% and 90% confidence levels. These distributions are obtained by applying constraints from GW170817 and results from the recent reanalysis of NICER X-ray observations of PSR J003080. Here, we use the mode with mass and radius of ~[1.4M⊙, 11.5 km], i.e., using the hot-spot model ST+PDT. Source data for this figure are provided as a Source Data file.

Full size image
Fig. 6: Updated constraints from NICER reanalysis II.
figure 6

a Shows the posterior distribution function of the LEC c1. c Shows the posterior distribution function of the LEC c3. b Depicts the correlation between c1 and c3 and displays iso-probability contours at the 68% and 90% confidence levels. These distributions are obtained by applying constraints from GW170817 and results from the recent reanalysis of NICER X-ray observations of PSR J003080. Here, we use the mode with mass and radius of ~[1.7M⊙, 14.5 km], i.e., using the hot-spot model PDT-U. Source data for this figure are provided as a Source Data file.

Full size image

Hierarchical analysis of next-generation events

For our study of the impact of next-generation gravitational-wave networks, we analyze the N loudest simulated events in a hierarchical approach using Bayes’ theorem59,60, i.e.,

$$P({\boldsymbol{\theta }}| d)\propto \left[\mathop{\prod }\limits_{i=1}^{N}\int\,d{m}_{1,i}d{m}_{2,i}{\mathcal{L}}({d}_{i}| {m}_{1,i},{m}_{2,i},{\tilde{\Lambda }}_{i}({m}_{1,i},{m}_{2,i},{\boldsymbol{\theta }}))\pi ({m}_{1,i},{m}_{2,i})\right]\pi ({\boldsymbol{\theta }}).$$
(5)

In such an approach, EOS parameters are simultaneously informed by all of the events, and the full multidimensional posterior is calculated to properly account for correlations between the various inferred parameters. While one in principle also has to infer the parameters of the source population simultaneously with θ, we here circumvent this issue by choosing the priors on the component masses π(m1, m2) to be the same as the distribution used to generate the population of events, i.e., a uniform distribution in the range 1–2 M⊙ for both m1 and m2. Because the population model is fixed and independent of the EOS, the GW selection bias towards detecting more massive systems has no impact on the recovery of the EOS parameters and can be neglected59.

The single-event likelihoods \({\mathcal{L}}({d}_{i}| {m}_{1,i},{m}_{2,i},{\tilde{\Lambda }}_{i})\) are computed within the Fisher matrix approximation61,62,81, which is valid for high-SNR events, using the TaylorF2 waveform model82,83 and the next-generation detector network described in the main text. This results in uncorrelated Gaussian likelihoods on the chirp masses, symmetric mass ratios, and the binary tidal deformabilities. Given that the quietest event in our sample has an SNR of about 225, we do not expect the results of our inference—performed at the level of a population of events—to be impacted significantly by the Fisher matrix approximation. In order to verify this, we re-computed all 20 single-event likelihoods (proportional to the single-event posteriors) with Bayesian parameter estimation63. For each event, a zero-noise injection was created, and the binary parameters were recovered using the heterodyne likelihood model84 implemented in PYCBC64. In Fig. 3, we see that the results obtained using the Fisher matrix approximation (circle) are very similar to those obtained using parameter estimation on zero-noise injections (diamond) for the 7-parameter model at N = 20. This indicates the validity of employing the Fisher matrix approximation for the 20 single-event likelihoods.

As in the analysis of GW170817 and the NICER data, the prior π(θ) is taken to be uniform on all the EOS parameters, along with the constraint that π(θ) ∝ Θ(MTOV(θ)−2M⊙). The posterior distribution defined in Eq. (5) is sampled using MCMC for different values of N, with the relation between \(\tilde{\Lambda }\) and θ in all 20 single-event likelihoods being evaluated by the neural-network emulator.

In Fig. 3, our results for the three EOS models are shown for N = 1, 3, 5, 10, 15, and 20. The marginal posteriors on c3 are obtained by integrating Eq. (5) over all EOS parameters except c3. We average over a large number of orderings of our N events, i.e., for a given N, the MCMC sampling of Eq. (5) is repeated for 100 different permutations of N events drawn from our pool of 20 events. Upon performing this average, we find that the statistical uncertainties of the posteriors approximately obey a \(1/\sqrt{N}\) behavior, similar to the findings of Landry et al.59 and Kunert et al.85.

We found that, even at N = 20, the marginal posterior on c1 is uninformative and is fully determined by the prior in the case of the 5- and 7-parameter models. This highlights that c1 cannot be constrained from astrophysical data, even with next-generation detectors, given the lack of sensitivity of the EOS of neutron matter to c1. For the 2-parameter model, we found a small but noticeable shift of the posterior towards smaller values of c1. However, this is a consequence of the limitations of the 2-parameter model and further highlights the importance of the marginalization over the high-density EOS.

Finally, we note that our constraints on c3 are sensitive to the assumed value of the EFT breakdown density. In Fig. 7, we have re-computed our constraints by decreasing the breakdown density from 2nsat to 1.5nsat. The employed high-density model is similar to the 7-parameter model, but with an additional parameter for the squared sound speed at 2nsat. We find that, when only 20 events are used, the marginal posterior on c3 significantly broadens, compared to the case with a breakdown density of 2nsat. However, the constraint tightens as more events are added. When analyzing almost all 400 events observed within one year, we find that the posterior shows a remarkable convergence towards the 2nsat result. This indicates that a lower value of the EFT breakdown density still allows for significant constraints on c3, only with more events required, and that no major qualitative shift in EFT behavior occurs between the two breakdown densities. This approach can potentially allow us to constrain the breakdown density in future work.

Fig. 7: Results with lower EFT breakdown scale.
figure 7

A reanalysis of our projected constraints for c3 in the era of third-generation GW detectors, but assuming the validity of the EFT expansion up to 1.5nsat rather than 2nsat with a different number of events. Source data for this figure are provided as a Source Data file.

Full size image
