Abstract
Living cell-triggered reversible addition-fragmentation chain-transfer (RAFT) polymerization is of great value for construction of living materials with diverse applications. However, microorganisms-activated polymerization without end-group heterogeneity is not yet established. Here, we develop an electroactive microorganism-triggered polymerization system using Shewanella oneidensis-secreted flavins (as electron shuttles) to directly reduce chain transfer agents (CTAs) to continuously generate radicals, thus initiating RAFT polymerization. This S. oneidensis-triggered polymerization integrates microbial extracellular electron transfer pathway and photoinduced electron transfer to reduce CTAs for continuous radical generation. We then genetically engineer S. oneidensis to enhance flavins biosynthesis and transport, accomplishing increased conversion ratio ( > 90%) of poly(N, N-dimethylacrylamide) with low polydispersity (Ð < 1.20). In addition, the S. oneidensis-triggered RAFT polymerization is effective for various monomers and CTAs, being able to synthesize diverse block copolymers. Synergistic integration of synthetic biology and RAFT polymerization provides a sustainable and controllable polymerization platform.
Similar content being viewed by others
Introduction
Reversible deactivation radical polymerization (RDRP) technologies, including atom transfer radical polymerization (ATRP) and reversible addition-fragmentation chain-transfer (RAFT) polymerization, are powerful tools for synthesizing well-defined polymers with controlled molecular weight and its distributions, chemical composition, and chain topology and architecture1,2,3,4. Since these techniques enable appropriate controllability of polymers with various monomers, they have been adopted in numerous applications, including surface and interface engineering5,6, 3D printing7,8, polymer networks preparation9,10,11, molecular imprinting12,13, and polymer-biomolecule bioconjugation14,15,16. Living cell-mediated RDRP is of great value for the construction of engineered living materials, since it combines biotechnology and polymer chemistry to eco-friendly produce precisely controlled polymers under mild conditions17,18,19,20. In particular, due to excellent biocompatibility of the radical polymerization processes, the application of RDRP for the modification of living cells has attracted widespread attention17, e.g., extracellularly synthesized polymers via RDRP were used for cellular encapsulation or engineering cell surfaces21,22,23, and intracellularly synthesized polymers were employed to modulate the function and behavior of living organisms and create biohybrids or engineered living materials with adaptive, programmable capabilities to facilitate cellular therapy17,19,22,24,25,26,27,28,29. In most of these cases, polymerization occurred in cells is triggered by external stimuli (e.g., light), while metabolism of the cells has negligible impact or regulation on the polymerization processes. In this regard, it is of utmost importance to construct microorganisms triggered in-situ RDRP polymerization systems that harness metabolic pathways to initiate and produce synthetic polymers, which would promote the development of synthetic materials with living functions18,30,31,32,33,34.
A number of living cells-activated ATRP processes were achieved by employing the metal reducing activity of bacteria, which could mediate the active and dormant states of the copper, iron, or other metallic catalysts, thus activating the alkyl bromide initiators to enable ATRP, as demonstrated by the pioneering works of the Alexander, Keitz and Rawson groups20,35,36,37,38,39. On the other hand, RAFT polymerization employed chain-transfer agents (CTAs, i.e., the thiocarbonylthio compounds) to achieve an equilibrium between propagating and dormant species via a degenerative chain-transfer mechanism1,40. RAFT polymerization essentially required continuous supply of radicals to initiate and sustain polymerization1, which posed challenges for the development of living organisms-activated RAFT. The Qiao group pioneered the living microorganism-activated RAFT polymerization, demonstrating that the bacterial terminal electron pathway can be harnessed to reduce the exogenous aryl diazonium initiators, which generated aryl radical species to initiate RAFT polymerization41. Although living organisms can activate exogeneous radical initiators to produce radicals for RAFT polymerization, the use of exogenous radical initiators led to end-group heterogeneity and chain termination, which was an inherent issue of using free radical initiators in RAFT polymerization42,43,44,45. Radicals generated from exogenous initiators could not only cause continuous generation of new chains (initiator-derived polymer chains) to reduce the molecular weight of target polymers, but also lead to gradual accumulation of terminated chains to increase the dispersity of polymers46,47. These side effects could be further amplified in the synthesis of block copolymers, hampering the preparation of pure block polymers48,49. In addition, in order to achieve high polymerization conversion ratio in RAFT polymerization, a high concentration of radical initiators was generally required, which would lead to serious cytotoxicity and restrict development of living cells-activated RAFT polymerization systems41,50. To eliminate the impact of initiators on the quality of the synthesized polymers, a number of external stimulus methods were recently developed to regulate RAFT polymerization, such as light or electricity, which could trigger electron transfer to reduce the CTA to form radicals that subsequently initiated RAFT polymerization46,51. Exploring bio-reduction of CTAs as the radical initiation system is thus expected as an alternative strategy for the construction of living cells-activated RAFT polymerization processes. Nevertheless, under physiological conditions, the reduction potential of the electron shuttles produced by microorganisms was generally higher than that of CTAs52,53,54,55, which made the electron shuttles thermodynamically infeasible to reduce CTAs (i.e., the thiocarbonylthio compounds) that generally had lower reduction potentials56,57. Consequently, this issue posed challenge to the development of living cells-activated in situ RAFT polymerization.
In this study, we developed an electroactive microorganism-triggered RAFT polymerization system using Shewanella oneidensis-secreted electron shuttles, i.e., flavins (including riboflavin and flavin mononucleotide (FMN)) as the electron mediators to reduce CTAs to continuously generate radicals, which then initiated RAFT polymerization via the combined processes of bioreduction and photoexcitation. As illustrated in Fig. 1, this S. oneidensis-triggered RAFT polymerization system was comprised of three components: 1) flavins as the electron mediators were electrically reduced to its fully reduced form of flavins hydroquinone (FLhq) by the endogenous EET pathway of S. oneidensis, which eliminated the need of exogenous addition of radical initiators in the RAFT polymerization process; 2) FLhq as the electron mediators to generate the excited form FLhq* under photo-irradiation, displaying high reduction potential that could reduce CTAs via photoexcited electron transfer, thus, overcoming the thermodynamic hurdle of the electron transfer from FLhq to CTAs; and 3) an genetically engineered S. oneidensis strain with enhanced biosynthesis and transport ability of flavins to increase the monomer conversion ratio of RAFT polymerization, which also avoided the need of exogenous addition of flavins.
First, the engineered S. oneidensis was constructed by synthetic biology approach to heterologously express the flavins synthesis pathway from Bacillus subtilis and the pore protein OprF from Pseudomonas aeruginosa in S. oneidensis, which enhanced flavins biosynthesis and transportation. Second, flavins acted as the electron mediators that integrated microbial extracellular electron transfer (EET) and photoinduced electron transfer (PET) to reduce the chain transfer agent (CTA, i.e., thiocarbonylthio) for generation of free radicals, which triggered the microorganism-mediated RAFT polymerization. In this process, the electron transfer pathways included three steps: (i) production of electrons by engineered S. oneidensis through D-lactate metabolism via intracellular electron transfer process; (ii) flavins reduction via the EET process; and (iii) CTA reduction via PET. Specifically, the electrons produced by metabolizing D-lactate in S. oneidensis transferred via the cytoplasmic membrane protein CymA, which reduced periplasmic proteins that transferred electrons to the Mtr-pathway (i.e., electrons transferred through MtrA to MtrC and OmcA). Then, electrons transferred to the endogenously secreted flavins. Bioreduction of flavins (FL) via EET generated the fully reduced flavins hydroquinone (FLhq). Photoexcitation of FLhq led to the formation of a photoexcited intermediate FLhq*, which reduced CTA via PET to produce free radicals, initiating the RAFT polymerization.
Firstly, we investigated the electrical and photophysical properties of flavins, demonstrating that FLhq, the reduced form of flavins generated by the extracellular electron transfer (EET) of S. oneidensis, can overcome the thermodynamic barrier of electron transfer from FLhq to CTAs upon photoexcitation. Therefore, flavins, as electron mediators, can effectively shuttle intracellular electrons from microbial cells to CTAs, thereby initiating RAFT polymerization under light irradiation. Secondly, we used synthetic biology approaches to heterologously incorporate the flavins biosynthesis pathway from Bacillus subtilis and the pore protein OprF from Pseudomonas aeruginosa into S. oneidensis, which enabled endogenous secretion of flavins at ~21 μM. The engineered S. oneidensis strain with increased flavins concentration could thus significantly promote the RAFT polymerization reaction rate and synthesize predictable polymer products with consistently low dispersity (Đ < 1.20) and high monomer conversion ratio ( > 90%). Thirdly, we showed that the S. oneidensis-triggered RAFT polymerization system was effective for a variety of monomers and CTAs as well as for the preparation of well-defined block copolymers. Overall, this constructed S. oneidensis-triggered RAFT polymerization system utilizes D-lactate as the electron source via cellular metabolism, and employs endogenously synthesized flavins as electron mediators to reduce CTAs under light irradiation. This enables continuous radical generation, exhibiting high electron transfer efficiency from the S. oneidensis cells to the extracellular electron acceptors (thiocarbonylthio-based CTAs), thereby initiating and sustaining the RAFT polymerization. This system is a proof-of-concept demonstration of achieving living microorganism-triggered RAFT polymerization without the need of exogenous radical initiators, avoiding end-group heterogeneity and chain termination of the resulting polymers.
Results and discussion
Construction of flavins-mediated RAFT polymerization system with photoexcited extracellular electron transfer of S. oneidensis
In traditional RAFT polymerization, exogenous radical initiators may cause cytotoxicity to cells and lead to end-group heterogeneity in polymer products. Thus, to eliminate the need for exogenous addition of radical initiators, we constructed an electroactive microorganism-triggered RAFT polymerization system, in which S. oneidensis, an extensively studied model exoelectrogen58,59,60,61, metabolizes D-lactate (serving as both the carbon source and the electron donor) to continuously generate electrons to trigger radical polymerization. In this system, flavins (riboflavin and FMN) synthesized by S. oneidensis act as the electron mediators. Flavins synthesized and secreted from S. oneidensis were proven to play a key role as electron shuttles to mediate EET58. We thus examined whether flavins as the redox mediators could shuttle electrons from cells to the thiocarbonylthio CTAs to initiate the radical polymerization (Fig. 2a). We tried to conduct the radical polymerization of N, N-dimethylacrylamide (DMA) by using exogenously added flavins (oxidized state) as the redox mediator, 2-ethylsulfanylthiocarbonylsulfanyl-propionic acid methyl ester as the CTA (denoted as CTA1), and the wild-type S. oneidensis MR-1 as the living electrode under anaerobic condition.

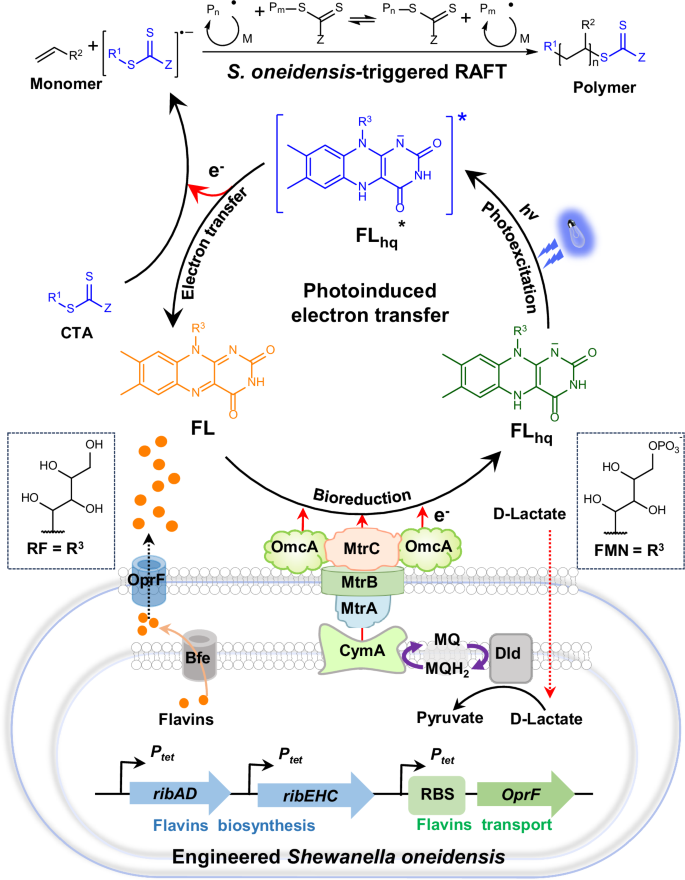

a Electrons generated from S. oneidensis reduce flavins from the oxidized flavins to the fully reduced FLhq. The reduced electron mediator FLhq reacts with CTA1 (2-ethylsulfanylthiocarbonylsulfanyl-propionic acid methyl ester) to produce radical (black arrow, left), whereas the reduction reaction was thermodynamically infeasible. Upon the blue light irradiation, FLhq was excited to its excited state FLhq*, which enabled transfer of the electrons to CTA1 to generate radicals via PET (green arrow, right). b 1H NMR spectra of the monomer N, N-dimethylacrylamide (DMA) in the mixture of S. oneidensis, DMA, CTA1, and exogenously added flavins (riboflavin (RF) or FMN), where no radical polymerization was observed. And 1H NMR spectra of the Poly(N, N-dimethylacrylamide) (PDMA) polymer synthesized in the polymerization system upon photoexcitation using riboflavin or FMN as the electron mediator, respectively. c Calculated Gibbs energy profile of the electron transfer pathways from flavins (riboflavin or FMN) to CTA1. Source data were provided as a Source Data file.
However, the polymerization reaction could not occur using either riboflavin or FMN as the redox mediator under this condition (Fig. 2b). We firstly examined the electron transfer process from the cells to flavins using the UV-vis absorption spectroscopy, which suggested that the yellow-colored riboflavin or FMN was reduced to its fully reduced form of flavin hydroquinone (FLhq) in the culture media of S. oneidensis62 (Supplementary Fig. 1). We then analyzed the electrochemical properties of flavins and a series of CTAs by cyclic voltammetry (CV) (Supplementary Figs. 2 and 3). The reduction potential of the fully reduced flavins hydroquinone (FLhq) (Ered (Riboflavinhq) = −0.45 V vs. Ag/AgCl; and Ered (FMNhq) = −0.49 V vs. Ag/AgCl)63,64) was more positive than that of CTAs (Ered (CTA) = −0.7 V - −0.99 V vs. Ag/AgCl), and the calculated Gibbs free energy of electron transfer (ΔGEET) from FLhq to CTAs was positive (ΔGEET > 0) (Fig. 2c, and Supplementary Table 1), suggesting the reduction reaction of CTAs by flavins was thermodynamically infeasible, thus initiating radicals could not be generated under this condition.

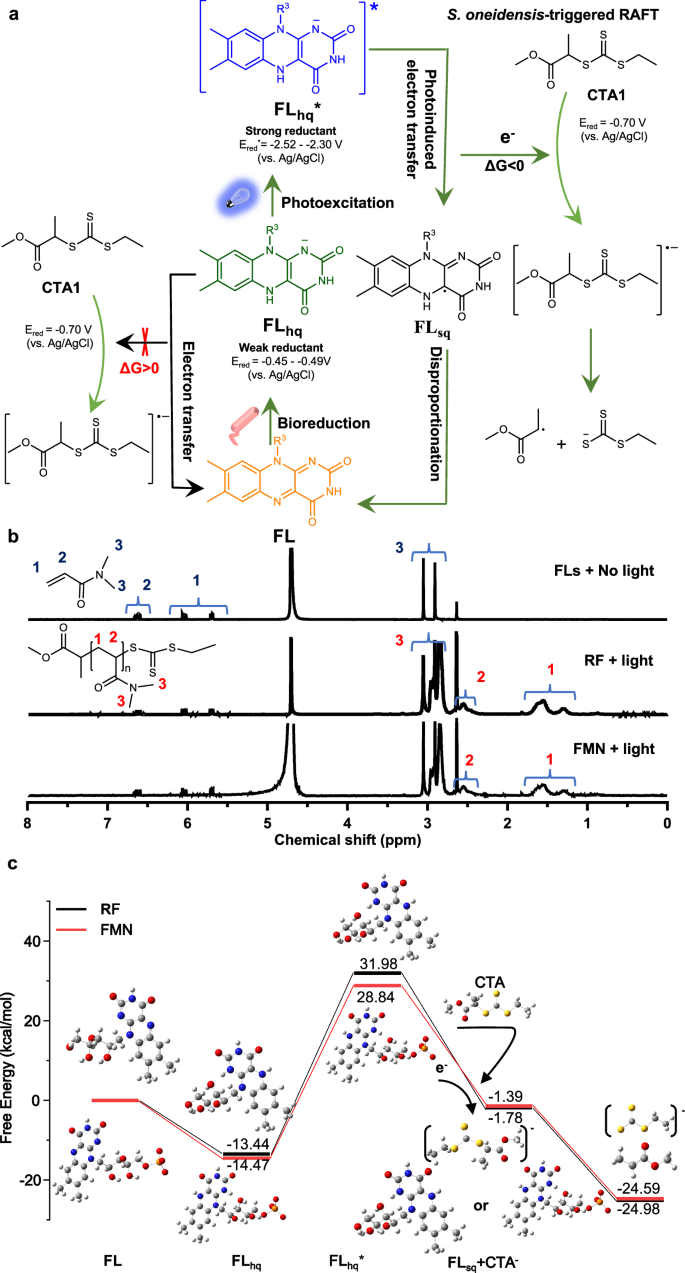

Photoinduced electron transfer (PET) is a widely utilized mechanism that enables electron transfer events that are otherwise unattainable for molecules in their ground state65,66. It was recently found that flavoenzymes can utilize highly reducing excited flavin hydroquinone to participate in PET reactions, thereby initiating radical reactions within the enzyme active site63,67,68,69. Inspired by these findings, to overcome the thermodynamic barrier of electron transfer, we hypothesized that FLhq maybe act as a photocatalyst capable of reducing the CTA through the PET process, which may lead to the initiation of the radical polymerization reaction. Thus, we used blue light to irradiate the culture media of S. oneidensis MR-1 with DMA (as the monomer), CTA1 and flavins, which resulting in radical polymerization to form PDMA with high conversion ratio ( > 90%) of DMA, as detected by the 1H NMR spectra (Fig. 2b). To elucidate the reaction mechanism, density functional theory (DFT) was employed to calculate the excited-state reduction potentials of flavins hydroquinone (FLhq*) (Ered (Riboflavinhq*) = −2.52 V vs. Ag/AgCl, and Ered (FMNhq*) = −2.30 V vs. Ag/AgCl63), which were more negative than that of the CTAs (−0.7 V - −0.99 V vs. Ag/AgCl). This difference in reduction potentials provided sufficient driving force to enable electron transfer from the excited state of FLhq* to CTA (Supplementary Fig. 4, Supplementary Tables 2–4, and Supplementary Data 1; for details, see Supplementary Information). In addition, the Gibbs free energy ΔGPET of the PET from the excited FLhq* to CTA1 were calculated to be −33.76 kcal mol-1 (from Riboflavinhq*) and −30.23 kcal mol-1 (from FMNhq*), respectively (Fig. 2c), which supported the hypothesis that the reduction of CTAs by FLhq* was thermodynamically feasible. Thus, upon accepting electrons from microbial metabolism of lactate, flavins are then photoexcited and subsequently reduce CTA via PET.
Then, a set of control experiments were conducted, revealing that the necessary components, including monomer (DMA), CTA, S. oneidensis, flavins and light, were required for the RAFT polymerization to occur (Supplementary Table 5, and Supplementary Figs. 5–8). In the absence of CTA1, the polymerization was uncontrollable (Đ = 2.6), since the reduction potential of FLhq* was more negative than that of DMA, thus the reduction of DMA to generate radicals could initiate polymerization of the monomers. Especially, no polymerization was detected when using the free oxidation state of flavins in lieu of S. oneidensis-reduced flavins, which was consistent with the previously reported literatures70,71. This observation convincingly evidenced that flavins, as the electron mediator, gained its photocatalytic capability only after reduction to FLhq by S. oneidensis. When FLhq was supplied alone, the monomer conversion ratio was rather low ( < 25%), indicating that FLhq was consumed in the course of PET and could not be regenerated to sustain polymerization. This observation demonstrated that the continuous secretion of extracellular electrons by the viable cells to regenerate FLhq is a crucial step. Furthermore, we conducted time-staged cell-killing experiments at different time points (0.5 h, 1 h, and 2 h) in the polymerization reaction. When the cells were killed in the course of polymerization process, the reaction stopped immediately, confirming that live cells were essential not only at the initiation stage but also throughout the entire polymerization process (Supplementary Fig. 9). We then evaluated the cell viability of S. oneidensis under optimized polymerization conditions. With riboflavin or FMN serving as the electron mediator, the cell viability determined by the colony-forming units (CFU) assay showed a slow decline to 89% and 90% of its original cell viability after 2 hours’ polymerization, and to 81% and 80% after 6 hours’ polymerization, during which the monomer conversion ratios exceeded 90% (Supplementary Fig. 10). Thus, this RAFT polymerization reaction system was essentially biocompatible with S. oneidensis. Taken together, these results supported the successful construction of the S. oneidensis-triggered polymerization system that was capable of initiating and sustaining radical polymerization.
To validate the S. oneidensis-triggered radical initiation system for the radical polymerization, we investigated the electron transfer process of EET and PET from the cells to CTA. Firstly, we demonstrated the EET process from microbial cells to flavins using UV-vis absorption spectroscopy. Flavins could be reduced to its fully reduced form FLhq via the MtrCAB-based EET pathway of S. oneidensis (as shown in the bioreduction step in Figs. 1, and 2a), in which the electrons were generated from the cell metabolism of D-lactate (the carbon source). Secondly, to prove that the PET between FLhq and CTA could indeed occur, fluorescence quenching experiments were performed. With the addition of CTA, significant change in the fluorescence intensity proved the electron transfer between FLhq and CTA (Supplementary Figs. 12a and 14a). However, only a slight change in fluorescence intensity was observed with the addition of DMA (Supplementary Figs. 12b and 14b), suggesting that the electrons preferentially transfer from flavins to CTA, thereby enabling controlled polymerization. Additionally, due to the very weak fluorescence emissions of FLhq in the solution, time-resolved fluorescence spectroscopy was further used to analyze the electron transfer in the dynamic quenching process. When oxidation state flavins were reduced by sodium dithionite (Na2S2O4, as the electron donor) and excited at 405 nm, the fluorescence lifetimes of RFhq and FMNhq were 3.52 ns and 3.38 ns, respectively (Supplementary Figs. 15 and 16). In the presence of CTA1, the fluorescence lifetimes of RFhq and FMNhq decreased to 3.01 ns and 2.23 ns, strongly indicating CTA1 was reduced by FLhq in the PET process. Moreover, the electron spin resonance (ESR) experiment was conducted to confirm the radical formation. 5,5-dimethyl-1-pyrroline N-oxide (DMPO) was mixed with riboflavin, Na2S2O4 and DMA in H2O (with a molar ratio of RF: Na2S2O4: DMA: DMPO = 1: 10: 100: 10). In the blue irradiation experiment, a weak six-line ESR signal emerged with hyperfine splitting constants of αN = 15.2 G and αH = 22.9 G, which represented a characteristic ESR pattern of the DMPO-alkyl radical adduct and revealed radical generation during the polymerization (Supplementary Fig. 17)25,70.
Thus, in this constructed S. oneidensis-triggered RAFT polymerization system, flavins accepted electrons from S. oneidensis and was converted to the reduced FLhq via microbial EET, followed by photoexcitation to form the excited FLhq*, which had sufficiently low electrical potential to reduce the CTA via PET to form radicals, initiating radical polymerization. FLhq lost one electron to form flavins semiquinone (FLsq) through oxidative quenching, which was consistent with the predominant involvement of single-electron processes in the photocatalysis of flavins62,63,69. However, due to the inherent instability of FLsq in the solution62,64,72, we proposed that the majority of FLsq reverted to the oxidized state of flavins through a disproportionation reaction, thereby completing the catalytic cycle. The formation of the oxidized state of flavins was further confirmed through fluorescence quenching experiments. As shown in Supplementary Figs. 12 and 14, along with the increase in the CTA concentration, the fluorescence intensity of the solution also increased, which was attributed to the strong fluorescence emission of the oxidized state of flavins (Supplementary Figs. 11 and 13).
Controlled radical polymerization enabled by flavins-mediated polymerization
To examine the controllability of the RAFT polymerization reaction, the polymerization kinetic studies were performed using riboflavin or FMN as the electron mediator, respectively. As shown in Fig. 3a, a linear correlation of ln([M0]/[M]) with the reaction time corresponded to pseudo first-order polymerization kinetics for polymerization reactions, which indicated a constant radical concentration of propagating radicals for this RAFT polymerization system73,74. Notably, the two mediators (riboflavin and FMN) exhibited similar polymerization rates (determined by the slope of ln([M0]/[M]) vs. reaction time), indicating that riboflavin and FMN possess comparable catalytic activities. The molecular weight exhibited a linear increase with the conversion and aligned well with the theoretical value (Fig. 3b). The gel permeation chromatography (GPC) traces indicated a narrow molecular weight distribution (Fig. 3c, and Supplementary Table 6). These kinetic data suggested that the microorganism-triggered polymerization corroborated well with the characteristics of the controlled radical polymerization. Notably, an induction period prior to the polymerization reaction was not observed as monitored in the previous PET-RAFT studies50, further highlighting that the system could enhance the free radical initiation process in RAFT polymerization.

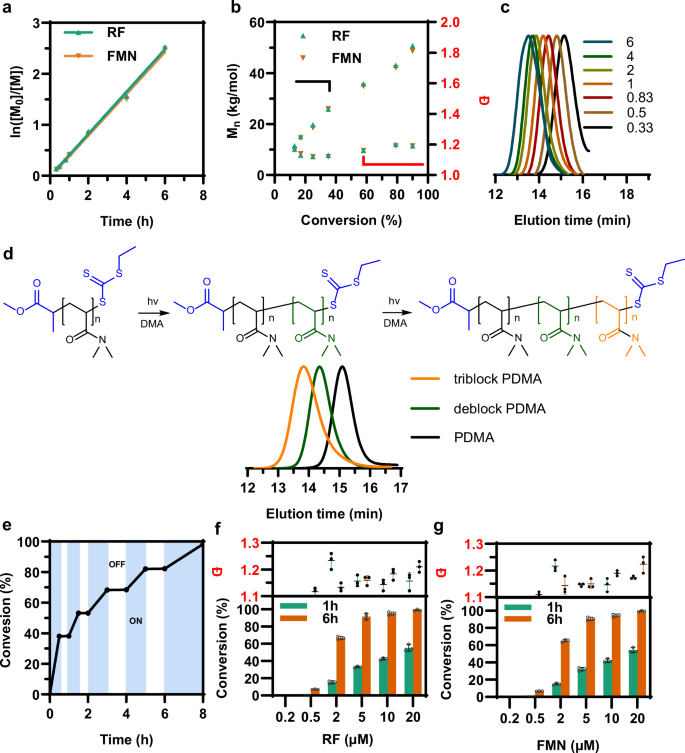

a First-order kinetics of the microorganism-triggered RAFT polymerization. b Molecular weight (black circles) and dispersity (red squares) evolution. c GPC traces of PDMA synthesized at various polymerization time. d Gel permeation chromatography (GPC) traces of block copolymer. e Temporal control of the S. oneidensis-triggered RAFT polymerization with intermittent light. f Monomer conversion ratio and polydispersity (Ð) by employing different riboflavin (RF) concentrations upon 1 h and 6 h polymerization reaction. g Monomer conversion ratio and polydispersity (Ð) by employing different FMN concentrations upon 1 h and 6 h polymerization reaction. Data showed mean ± SD of three independent experiments. Data in (f, g) were shown as the mean ± standard deviation (SD) (n = 3). Source data were provided as a Source Data file.
To further determine the terminal fidelity, in situ chain extensions of PDMA polymers were performed using DMA as the monomer to yield the block copolymer PDMA-b-PDMA. Initially, using riboflavin as the electron mediator, the polymerization of DMA was carried out to produce a starting PDMA homopolymer (Mn = 10.3 kg mol-1, Đ = 1.12) (Supplementary Table 7). Then, the deblock copolymer was synthesized by sequential monomer addition in one pot to produce a PDMA-b-PDMA (Mn = 21.7 kg mol−1, Đ = 1.15), which mitigated the need for elaborate polymer purification to afford efficient chain extension. Subsequently, we focused on in situ synthesis of triblock copolymers, achieving molecular weight of 29.3 kg mol−1 with dispersity of 1.37. GPC traces showed a clear shift of the starting macroinitiators to high molecular weight with narrow distribution (Fig. 3d). These results confirmed that the polymers synthesized via S. oneidensis-triggered RAFT polymerization maintained high terminal fidelity25,50. It is important to note that this S. oneidensis-triggered RAFT polymerization operates by using CTA instead of an initiator, thereby suppressing the end-group heterogeneity of polymers and the termination of the propagating chain42.
In the S. oneidensis-triggered RAFT polymerization, light activation is necessary to invoke the PET from FLhq to CTA. To demonstrate the photo-mediated temporally controlled polymerization, we exposed the polymerization system to an alternating light ON and OFF environment. As shown in Fig. 3e, no polymerization occurred in the absence of light (light OFF). When the light was turned ON, polymerization proceeded as anticipated. GPC analysis of the PMA polymers produced in the course of the light ON/OFF experiment demonstrated good control over polymerization (Supplementary Fig. 18), consistent with the results from the uninterrupted light experiments. The final monomer conversion ratio of 98% was achieved, with a narrow dispersity (Đ = 1.15) (Supplementary Table 8). In addition, to assess the long-term controllability of the polymerization process, we extended the duration of the light ON/OFF intervals (Supplementary Fig. 19). After 24-h reaction, the final monomer conversion reached 91%, confirming the robustness and temporal controllability of this microorganism-triggered RAFT polymerization system. To further assess the viability of S. oneidensis over the course of long-term reaction, we performed colony-forming unit (CFU) assays. The CFU results showed that approximately 65% of the S. oneidensis cells remained viable, indicating that the polymerization system maintains good biocompatibility, allowing S. oneidensis to sustain sufficient viability over extended timeframes to support continuous electron transfer and efficient biocatalytic polymerization.
Radical polymerization usually requires strictly anoxic conditions since the initial radicals could be quenched in the presence of oxygen75. S. oneidensis is a facultative anaerobe and preferentially respires on oxygen, which has been reported to quickly consume dissolved oxygen by microbial metabolism in ATRP37. Therefore, to verify the dissolved oxygen tolerance of our method without degassing the reaction mixtures to retain the active RAFT polymerization, we measured the feasibility of aerobic polymerization. As shown in Supplementary Fig. 20, the Vial-1 (anaerobic condition) achieved increased monomer conversion ratio (37%) compared to the Vial-2 (32% in aerobic condition) within the initial reaction of 1 h. The initial polymerization rate of the system without oxygen removal was slightly lower than that of the de-oxygenated system, due to dissolved oxygen in the mixture quenched radicals to inhibit polymerization. With the elimination of oxygen by the respiration of S. oneidensis cells in the polymerization media, the polymerization rate of Vial-2 reached a similar level to that of Vial-1, and both eventually achieved monomer conversion ratio of ~80% after 4 h reaction. These results suggested that the S. oneidensis-triggered RAFT system had good oxygen tolerance due to fast consumption and elimination of dissolved oxygen by S. oneidensis.
After successfully establishing the flavin-mediated RAFT polymerization system, we studied the impact of the concentration of exogenously added flavins on the RAFT polymerization. As shown in Fig. 3f, g, increasing the flavins concentration from 0.2 to 20 µM, the polymerization reaction rate increased linearly. Remarkably, when the riboflavin or FMN concentration was above 5 µM, the monomer conversion ratio reached 33% or 32% after 1 hour’s polymerization, and 95% or 90% after 6 h polymerization, respectively. It is worth mentioning that an increase in flavins concentration accelerated polymerization rates with minor effect on the polydispersity (Đ < 1.25) and molecular weight control. These results suggested that the concentration of flavins used in the microorganism-triggered RAFT polymerization was low, which may eliminate the need for flavins removal as a post-polymerization process. Since the cell-secreted flavins have been demonstrated to dominate the EET of S. oneidensis58, we further assessed the polymerization activity using the S. oneidensis secreted flavins as the electro-photocatalyst to replace the exogenously added flavins. Since S. oneidensis secretes a mixture of riboflavin and FMN58,76, we examined the effect of varying ratios of riboflavin and FMN mixtures on the polymerization rate. As shown in Supplementary Fig. 21, the results showed that the flavin mixtures with different ratios enabled similar polymerization rates, further suggesting that riboflavin and FMN possess comparable catalytic activities. However, the concentration of endogenously synthesized flavins by the wild-type S. oneidensis MR-1 was low ( ~ 0.54 µM), which resulted in low monomer conversion ratio ( < 17%). Although exogenous addition of commercially available riboflavin or FMN in the RAFT polymerization reaction could significantly elevate the conversion, the cost of riboflavin or FMN as an expensive additive would restrict their use in large-scale polymerization applications. Therefore, it is crucial to develop an engineered S. oneidensis strain with enhanced endogenous flavins production to control the RAFT polymerization performance.
Enhanced flavins biosynthesis and transport to accelerate monomer conversion ratio of S. oneidensis-triggered RAFT polymerization
To increase the flavins level in the S. oneidensis-triggered RAFT polymerization system, we developed a modular synthetic biology strategy to improve the de novo biosynthesis and transport of flavins. Accordingly, the biosynthesis pathway of flavins from Bacillus subtilis was heterologously expressed in S. oneidensis (Fig. 4a). Several promoters compatible with S. oneidensis were systematically studied to strengthen the expression of the flavin biosynthesis pathway and boost flavins production. The synthetic flavins biosynthesis gene cluster ribADEHC was constructed under the regulation of multiple inducible promoters, including ArcA, Bad, Tac, and Tet, which resulted in the construction of recombinant S. oneidensis strains named ParcA, Pbad, Ptac, Ptet, respectively (Supplementary Table 9). As shown in Fig. 4b, the recombinant S. oneidensis strains Pbad, Ptac, and Ptet could produce higher concentration of flavins than the recombinant strains of the constitutive promoter ParcA and the wild-type S. oneidensis MR-1. In particular, the S. oneidensis strain Ptet could produce 17.6 μM flavins, which was 1.5-fold higher than that of the strain Pbad (4.1 μM) and 4.3-fold higher than that of the strain Ptac (11.8 μM) (Fig. 4b, and Supplementary Fig. 22). Since the polymerization rate depended linearly on the flavins concentration, the engineered strain Ptet exhibited higher monomer conversion ratio (37% within 1 hour) compared to that of the engineered strains Ptac and Pbad (Fig. 4c). Hence, the elevated expression levels of the flavin biosynthetic cluster significantly increased flavins production, which consequently accelerated the S. oneidensis-triggered RAFT polymerization.

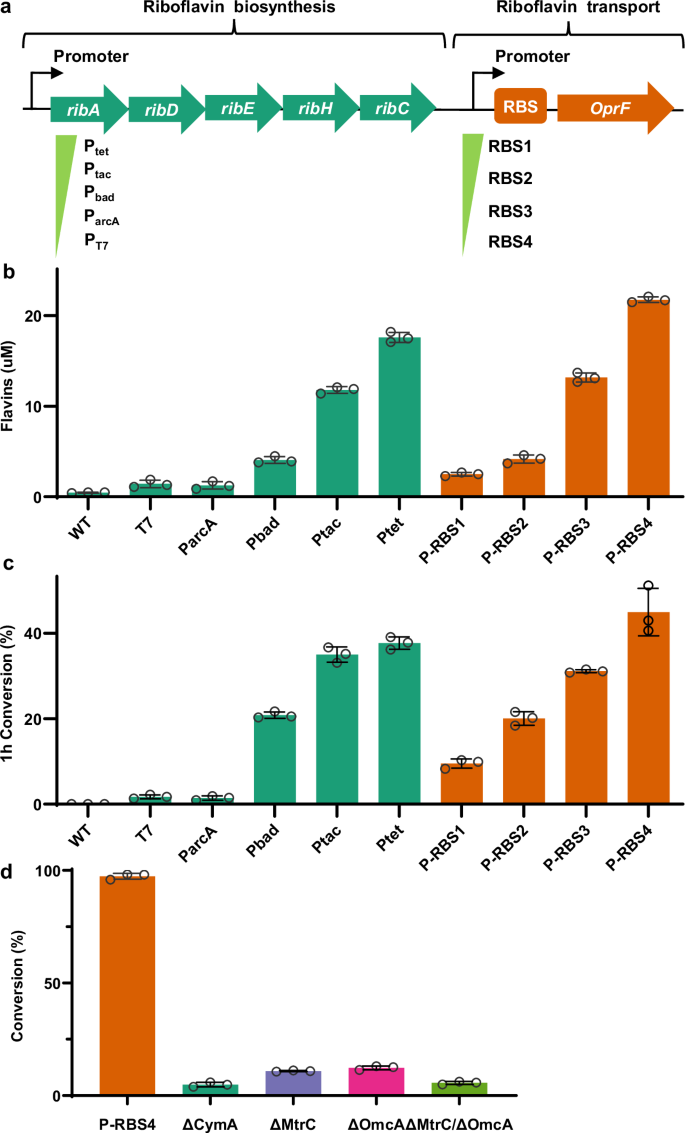

a Plasmid map of the plasmid expressing the flavin biosynthesis gene cluster (ribADEHC) under the control of different inducible promoters (Ptet, Ptac, Pbad, ParcA), and the porin gene OprF under the control of different ribosomal binding sites (RBS). RBS1: BBa_B0034, iGEM; RBS2: BBa_B0030, iGEM; RBS3: BBa_B0032, iGEM; RBS4: BBa_B0031, iGEM. b Quantification of flavins produced by the genetically engineered S. oneidensis harboring different promotors and RBS, respectively. c Comparison of monomer conversion ratio in the RAFT polymerization by the engineered S. oneidensis strains with different promoters at optimal inducer concentrations and optimal RBS, respectively. d The effect of gene knockouts of c-Cyts on the monomer conversion ratio of the S. oneidensis-triggered RAFT polymerization. Data showed mean ± SD of three independent experiments. Data in (b–d) were shown as the mean ± SD (n = 3). Source data were provided as a Source Data file.
In addition, increased cell membrane permeability could facilitate flavins transport across cell membrane and secretion outside of S. oneidensis cells, thus enabling higher flavins level in the polymerization solution. The pore protein OprF from Pseudomonas aeruginosa was thus incorporated into the recombinant S. oneidensis strain to enhance flavins transport. To prevent expression of the porin protein that caused cytotoxicity, we designed several ribosome binding sites (RBSs) to regulate the expression level of OprF (Fig. 4a, and Supplementary Table 9). RBS is an effective regulatory element to initiate DNA translation, whose sequence affects the translation initiation rate77. We observed that the decrease in the RBS strength increased the extracellular level of flavins (as shown in Fig. 4b, and Supplementary Fig. 22). The strong RBS1 that controlled the strong translation of the OprF porin protein decreased the flavins biosynthesis level (2 µM) and weakened the conversion ratio (9%) of the polymerization compared to that of the strain Ptet (conversion ratio of 37%). This was probably because overexpression of porin protein OprF was toxic to the cells and reduced cell growth. We then identified a weak RBS4 in the recombinant S. oneidensis strain P-RBS4 that led to a higher flavins concentration (21.7 µM) and polymerization conversion rate (44%) than that of the strain Ptet (Fig. 4c). These results suggested that optimizing expression of the porin protein OprF accelerated flavins transport across the cell membrane to increase extracellular flavins concentration, consequently increasing the monomer conversion ratio of the polymerization. Through RT-qPCR analysis (Supplementary Fig. 23), we found that the transcription levels of the genes ribA, ribD, ribE, ribH, ribC, and OprF were upregulated in strain P-RBS4 compared to that of the WT. Furthermore, to assess the kinetic of the P-RBS4-mediated polymerization, a linear correlation of conversion ratio vs. reaction time and MWD vs. conversion was observed, suggesting the living character of the P-RBS4-triggered polymerization (Supplementary Fig. 24, and Supplementary Table 10).
The intracellular electrons generated from the metabolism of D-lactate flow through c-type cytochromes (c-Cyts) CymA, MtrA and MtrB to reach the outer membrane c-Cyts, OmcA and MtrC, forming the EET pathway of S. oneidensis. Subsequently, the electrons diffuse to and reduce flavins (the electron shuttles) to form the reduced form of FLhq58,76. To understand the impact of the EET components (i.e., c-Cyts) on RAFT polymerization, we further studied the effect of knocking out the selected c-Cyts on the polymerization kinetics. The ΔOmcA or ΔMtrC knockout strain lacked the efficient EET pathway led to significantly reduced polymerization activity (conversion ratio <12%) in comparison to the strain P-RBS4 (Fig. 4 d), supporting the participation of S. oneidensis in discharging electrons to flavins. Specifically, the double genes-mutant strain with knockout of MtrC and OmcA (ΔMtrCΔOmcA) showed dramatically attenuated monomer conversion ratio (5%). Additionally, the inner membrane c-Cyt (ΔCymA) knockout strain exhibited very low polymerization activity (monomer conversion ratio 4%). However, complete abolishment of polymerization activity was not observed because other c-Cyts might perform the complementary function of EET in S. oneidensis. Taken together, these results highlighted the critical role of c-Cyts in delivering electrons from bacterial cells to extracellular flavins, which can be effectively modulated through genetic modifications.
To better understand the reaction process of the S. oneidensis-triggered RAFT polymerization, its reaction mechanism is analyzed. The S. oneidensis cells played an essential role in initiating and sustaining the RAFT polymerization reaction system: (i) as a living electrode or electron donors to continuously supply electrons to sustain the polymerization process; (ii) as an efficient flavins (the electro-photocatalyst) producer to obviate the need of external flavins addition; and (iii) as an oxygen scavenger to eliminate dissolved oxygen in the reaction mixture to reduce radicals quenching37. Subsequently, the flavins acted as an electron relay, which shuttled the intracellular electrons from the cells to CTAs. The electron transfer pathways in the radical polymerization can be modularized into three steps (Fig. 1): (i) production of intracellular electrons via lactate metabolism by the S. oneidensis cells; (ii) flavins reduction to form FLhq via EET; and (iii) CTA reduction by FLhq* to form radicals via PET. Based on the electron transfer pathways, we proposed a mechanism of the S. oneidensis-triggered RAFT polymerization (as shown in Fig. 1). Four electron equivalents per lactate molecule were generated intracellularly in S. oneidensis, which were transferred through the inner membrane c-Cyt (CymA), periplasmic c-Cyt (MtrA) and outer membrane c-Cyts (MtrC and OmcA) to the endogenously secreted electron mediators flavins. Bioreduction of the yellow-colored flavins via microbial EET generated the fully reduced colorless state of FLhq. Finally, photoexcitation of FLhq led to the generation of a strong reducing intermediate FLhq*, which can reduce CTAs via PET to form free radicals to initiate radical polymerization with concomitant generation of flavins, thus completing the biocatalytic cycle.
Monomer diversity and block copolymer synthesis in S. oneidensis-triggered RAFT polymerization
To broaden the scope, we subsequently explored the compatibility of the S. oneidensis-triggered RAFT polymerization with a variety of monomers and CTAs (Table 1). Firstly, utilizing 2-ethylsulfanylthiocarbonylsulfanyl-propionic acid methyl ester (CTA1) as the thiocarbonylthio CTA, the water-soluble monomers including poly (ethylene glycol) methyl ether acrylate (PEGA, average Mn = 480 g mol−1), 2-hydroxyethyl methacrylate (HEMA), methacrylatoethyl trimethyl ammonium chloride (TMAEMA), 2-aminoethyl methacrylate hydrochloride (AOMA), 4-acryloylmorpholine (AML), N-isopropylacrylamide (NIPAM), and sodium methacrylate (MAA), were examined. The RAFT polymerization for most of the monomers attained high polymerization conversion ratio ( > 93% within 6 h polymerization) and favorable dispersities (Ð < 1.23), except for the monomer MAA (Supplementary Figs. 31–39). For the monomer MAA, the conversion ratio can only reach a moderate level (86%), possibly due to the high concentration of MAA causing a decrease in the pH of the polymerization system. Notably, for the synthesis of the specific functional polymer, we successfully synthesized the temperature-sensitive polymer PNIPAM (23.2 kg mol−1, Ð = 1.15) with a lower critical solution temperature (LCST), which was measured to be 27 °C. Additionally, the water-insoluble monomer methyl methacrylate (MMA) could also be polymerized via the emulsion polymerization with a near-quantitative conversion ratio (99%) and low dispersity (Ð = 1.25).
We further examined application of the S. oneidensis-triggered RAFT polymerization to synthesize PDMA polymers using a few CTAs with different reduction potentials. Relatively good control over molecular weight and low dispersity were obtained for 4-cyano-4-[(ethylsulfanylthiocarbonyl)sulfanyl] pentanoic acid (CTA2) and S,S’-bis(α,α’- dimethyl-α”-acetic acid) trithiocarbonate (CTA3), except for ethyl 2-ethoxycarbothioylsulfanylacetate (CTA4) with a high dispersity (Ð = 2.76) which was attributed to its lower chain-transfer kinetic constant78. Taken together, these results suggested that the polymerization is suitable for a variety of monomers and CTAs.
In addition, based on the terminal fidelity and the range of monomers compatible with the S. oneidensis-triggered RAFT polymerization, we further investigated the synthesis of block copolymers (Supplementary Table 7). A PDMA macroinitiator was initially synthesized using CTA1. Then, adding monomer AML in situ, the target diblock copolymer PDMA-b-PAML (Mn,GPC = 14.7 kg mol−1, Ð = 1.24) can be obtained (Supplementary Fig. 25). Similarly, the chain extension of PDMA was also successful with PEGA to yield well-defined PDMA-b-PPEGA (Mn,GPC = 18.5 kg mol−1, Ð = 1.20) (Supplementary Fig. 26). In both cases, the GPC traces showed a clear shift of the MWDs with minimal tailing in the homopolymer region. Furthermore, using CTA2 as the chain-transfer agent, the chain extension and block copolymers were also investigated with this polymerization system. As predicted, the chain extensions of the macroinitiator with DMA were successful, yielding deblock polymer PDMA-b-PDMA and triblock polymer PDMA-b-PDMA-b-PDMA with increased molecular weight from 21.8 kg mol−1 to 30.6 kg mol−1 (Supplementary Fig. 27). And block copolymerization products (PDMA-b-PAML and PDMA-b-PPEGA) can also be synthesized, which all displayed controlled dispersities (Ð = 1.13–1.16) as supported by the shifts of the GPC curves (Supplementary Figs. 28 and 29). Taken altogether, these results manifested the versatility of the S. oneidensis-triggered RAFT polymerization.
However, due to the complex physiological activity of microbial cells and their responses to external stimuli, the rational design of functional polymer materials via microorganism-triggered RAFT polymerization remains a significant challenge. High-throughput polymer synthesis and screening emerged as an attractive alternative strategy, enabling the rapid identification of structure-property relationships and the discovery of novel materials46. However, one of the key challenges in high-throughput polymerization was to conduct efficient reactions in small volumes and under ambient conditions. Our S. oneidensis-triggered RAFT polymerization system had the feature of oxygen tolerance and high polymerization efficiency, which were thus explored to facilitate high-throughput polymer synthesis.
To assess whether RAFT polymerization could proceed efficiently without deoxygenation in small-volume systems, we initially evaluated the polymerization kinetics of DMA in 96- and 384-well microtiter plates, with reaction volumes of 200 µL and 50 µL, respectively. Under blue light illumination, all polymerizations reached high conversion ratios with low dispersity (Fig. 5a). The polymerization kinetics exhibited a linear correlation of ln([M0]/[M]) versus reaction time, indicating the livingness of the well plate polymerization (Supplementary Fig. 30). Notably, there was no significant difference in polymerization rates between the 50 µL and 200 µL polymerization reactions (Supplementary Fig. 30), demonstrating the robustness of the system across various scales. To further demonstrate the applicability of S. oneidensis-triggered RAFT polymerization for synthesizing polymers with a range of molecular weights, we constructed a PDMA library targeting degrees of polymerization (DPs) from 100 to 2000 in a 96-well format. As shown in Fig. 5, all polymerizations achieved high monomer conversions. The molecular weight dispersity showed a slight increase with the growth of polymer molecular weight, which was maintained at a well-controlled fashion even at high DPs (Ð < 1.27) (Supplementary Table 11). GPC characterization showed a monomodal peak with a small tail, confirming that well-defined polymers with a wide range of molecular weights can be achieved. Taken together, these results suggested that the S. oneidensis-triggered polymerization system provided a robust and efficient platform for high-throughput RAFT polymerization, offering a promising approach for the rapid synthesis and screening of polymer libraries.

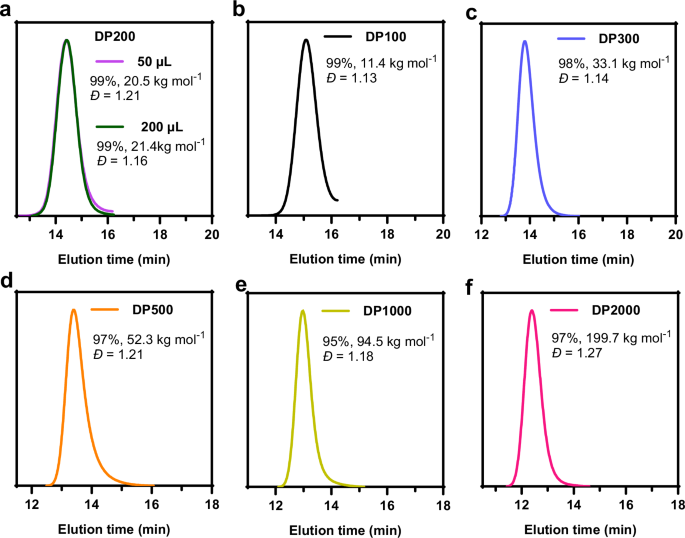

a Polymers PDMA (DP200) obtained from the corresponding 96 and 384-well plates. b–f The PDMA library targeting degrees of polymerization (DPs) from 100 to 2000 in a 96-well plate. b DP100. c DP300. d DP500. e DP1000. f DP2000. Source data were provided as a Source Data file.
In conclusion, we developed a S. oneidensis-triggered RAFT polymerization system that was able to avoid end-group heterogeneity via directly reduction of CTAs by microorganisms and light irradiation to continuously generate radicals to initiate and sustain RAFT polymerization. This microorganism-triggered RAFT polymerization system used genetically engineered S. oneidensis to synthesize and secrete flavins (riboflavin and FMN) as the electron mediators, harnessed lactate metabolism of S. oneidensis to generate electrons and the extracellular electron transfer pathway of S. oneidensis to regenerate the fully reduced flavins hydroquinone (FLhq), and utilized the concomitant visible light irradiation to excite the reduced form FLhq to form the photoexcited FLhq*, which consequently transferred an electron to CTAs via photoinduced electron transfer, ultimately generating radicals to initiate RAFT polymerization. Mechanistically, the RAFT polymerization reaction proceeded through a photo-excited extracellular electron transfer process that combined bioreduction and photoexcitation, utilizing flavins as the electron mediator to promote electron transfer from the cell to the CTA. This dual catalytic mechanism overcame the thermodynamic hurdle associated with the CTA reduction by cell-secreted flavins, ensuring a steady supply of radicals and suppressing end-group heterogeneity and chain termination of the RAFT polymerization reaction. The engineered S. oneidensis-triggered RAFT polymerization was successfully applied to various monomers and CTAs to produce a range of homopolymers, block copolymers with high monomer conversion ratio (as high as 99%) and low dispersity (Ð as low as 1.11). We believe the microorganism-triggered RAFT polymerization system could be as a powerful means to achieve living microorganisms-mediated RAFT polymerization, as well as expanding to many living organisms.
Methods
General conditions of electroactive microorganism-triggered polymerization
Homogeneous polymerizations were conducted via the following general procedure. For most experiments, [riboflavin] or [FMN] = 5 µM, S. oneidensis [OD600] = 1, [monomer] = 1 M, [CTA] = 2 mM, [DMSO] = 5% (v/v), unless otherwise stated. Each of the reagents for polymerization were then added into the M9 culture to a 10 mL reaction flask to make a final solution 2 mL. The vessel was sealed, covered with aluminum foil, and purged with nitrogen for 5 minutes. The reaction solution was then illuminated blue LED light (10 W, 460 nm) at room temperature. Samples were taken periodically to monitor monomer conversion ratio and molecular weight dispersity of the resulting polymer using 1H NMR and gel permeation chromatography (GPC) analysis, respectively.
Synthesis of block copolymers
Block copolymers were prepared using a one-pot procedure, where the first block was synthesized to complete monomer conversion before adding the second monomer. The synthesis of block polymer was described below as a representative procedure. In the synthesis of the first block polymer, each of the reagents were added to a 10 mL reaction flask. After purging the solution with nitrogen for 5 min, polymerization was conducted at room temperature under blue LED light. After 6 h of polymerization, the vessel was transferred into the anaerobic glove box and the second monomer was added to the first block polymer solution. After 6 h of blue light exposure, an aliquot was withdrawn for analyses by GPC and 1H NMR spectroscopy.
Polymerization procedure for light on-off experiment
Light on-off experiments of microorganism-triggered RAFT polymerizations were conducted via the following general procedure. [riboflavin] = 5 µM, S. oneidensis OD600 = 1, [DMA] = 0.5 M, [CTA] = 2 mM and a certain amount of M9 culture were added to a 10 mL reaction flask to make a final solution 2.0 mL. The vessel was sealed, covered with aluminum foil, and purged with nitrogen for 5 min. The polymerization solution was then illuminated by blue LED light (10 W, 460 nm) at room temperature. The samples were irradicated for a set period of time, after which the vessel was transferred into the anaerobic glove box and an aliquot was taken for 1H NMR analysis. The lights were switched off, and the reaction vial was analyzed again by 1H NMR. The lights were switched back on, and the sample was irradiated for another period of time, followed by aliquot collection for further characterization. The light on-off cycle was repeated multiple times until monomer conversion ratio exceeded 95%.
Characterization of synthesized polymers
Polymer samples were analyzed directly using gel permeation chromatography (GPC) with an inline differential refractive index (DRI) detector, and nuclear magnetic resonance (1H NMR) spectroscopy. For the water-soluble polymers, the GPC analysis was performed in a Shimadzu LC-20A GPC system using Milli-Q water with 0.5 mM NaNO3 as eluent. The GPC system comprises a TSKgel guard column PWXL (6.0 mm I.D. × 4 cm) followed by a TSKgel GMPWXL (7.8 mm I.D. × 30 cm, 13 µm) and a refractive-index detector. The flow rate of water was 0.6 mL min−1 and the test temperature was 35 °C. Molecular weight and dispersity values were determined with the Shimadzu software package and comparison with low dispersity poly(ethylene glycol) standards. For the water-insoluble polymers, the GPC analysis was conducted on a Waters 1515 GPC system using THF as eluent and polystyrene with narrow dispersity as standards. The GPC system comprises three Agilent columns (7.8 × 300 mm) and a refractive-index detector. The water flow rate was set to 0.6 mL/min and the test temperature was 35 °C. Nuclear magnetic resonance (NMR) spectroscopy was performed on a Bruker AVANCE III 400 MHz spectrometer for 1H and 13C, using D2O, DMSO-d6 or CDCl3 as the solvent.
Conversion ratio calculation
Estimated conversion ratio was calculated by 1H NMR using the ratio of integrals for monomer: polymer peaks. For PDMA, the monomer CH2 from the CH2 acrylate peak (5.68-5.71 ppm) and CH2 polymer backbone peak (1.29-1.54 ppm) were compared with Eq. (1)50.
The theoretical molecular weight (Mn,th) was calculated by Eq. (2)50.
where \({\left[{{{\rm{D}}}}{{{\rm{MA}}}}\right]}_{0}\), \({\left[{{{\rm{C}}}}{{{\rm{TA}}}}\right]}_{0}\), \({{{{\rm{MW}}}}}^{{{{\rm{DMA}}}}}\), \({{{\rm{\alpha }}}}{{{\rm{and}}}}\) \({{{{\rm{MW}}}}}^{{{{\rm{CTA}}}}}\) correspond to DMA and CTA concentration, molar mass of DMA, monomer conversion ratio, and molar mass of CTA.
Testing viability of bacteria
To quantify viable bacterial concentration, a count of colony forming units (CFU) was undertaken. 100 µl of bacterial culture was diluted in PBK and then plated on LB agar plates to determine the CFU mL−1. The plates were incubated at 30 °C overnight and colonies were manually counted.
Culture conditions and flavins measurement
Overnight cultures of S. oneidensis MR-1 (harboring the empty vector pYYD, Pbad, Ptac, Ptet, and ParcA, respectively) was transferred to M9 broth at a ratio of 1:100, supplemented with 50 μg mL−1 kanamycin and various concentrations of inducer. After approximately 12 h of growth at 30 °C with shaking at 200 rpm, flavin levels were quantified.
Determination of flavins
Flavins were measured by using a Shimadzu LC-20A GPC system with a UV detector. All standard solutions and samples supernatants were filtered and analyzed using a reverse-phase C18 column (5 μm particle size, 250 × 4.6 mm2, Thermo Fisher Scientific). Chromatographic separations were done using a mobile phase of methanol and 0.01 M NaH2PO4 at 30 °C with an elution rate of 0.6 ml min−1. Flavins concentrations were determined by monitoring signals at 445 nm.
In vitro gene synthesis, plasmid construction and transformation
The ribADEHC genes from B. subtilis and the OprF gene from P. aeruginosa were identified, and their coding sequences were retrieved from KEGG database. Codon optimization for expression in S. onedensis was performed using the online tool (http://www.jcat.de/), avoiding EcoRI, XbaI, SpeI, SdaI (SbfI) restriction sites. The finalized sequences were synthesized in vitro (GENEWIZ, China), featuring EcoRI and XbaI at the upstream prefix, an RBS site, and SpeI and SdaI at the downstream suffix. The promoter Pbad, Ptac, Ptet, ParcA, along with the ribADEHC genes, were also synthesized in vitro (GENEWIZ, China). These constructs were individually cloned into the PYYD vector, which has been created earlier by our group. The resulting plasmids were introduced into the dap-auxotrophic strain E. coli WM3064 and subsequently transferred into S. onedensis via conjugation. To support E. coli WM3064 growth, 100 μg mL−1 2, 6-diaminopimelic acid (DPA) was provided.
Construction of S. oneidensis mutant strains
The procedure for gene deletion is briefly described. The gene knockout of c-type cytochromes in S. oneidensis MR-1 was performed using a suicide vector-based strategy, as previously described79. The left and right homology arms flanking the target gene-each containing the attB site-were PCR-amplified from the genome and subsequently fused via overlap extension PCR. The fused fragment was cloned into the suicide plasmid pHG1.0 using the Gateway BP Clonase enzyme mix (11789021, Invitrogen, USA). The resulting construct was transferred into S. oneidensis MR-1 by conjugation. Transconjugants carrying the first homologous recombination event were selected using gentamicin (15 μg/mL) and verified by colony PCR. These single-crossover integrants were then plated on LB agar supplemented with 10% sucrose to select for the second recombination event, which resulted in the excision of the plasmid and successful deletion of the target gene. Final deletion mutants were confirmed by PCR and Sanger sequencing. This method was used to generate single and multiple knockouts of key c-type cytochromes, including mtrC, omcA, and cymA.
Polymerization conditions of RAFT triggered by engineered Shewanella oneidensis strain
Homogeneous polymerizations were conducted via the following general procedure. After 12 h of culturing the engineered strain, the concentration of cell in the culture fluid was measured. Then, a certain amount of the culture fluid containing the bacteria was taken to achieve a final concentration of [OD600] = 1 in the polymerization reaction mixture. The reagent of [DMA] = 1 M, [CTA] = 2 mM, the culture fluid and a certain amount of M9 culture were added to a 10 mL reaction flask to make a final solution 2 mL. The vessel was sealed, covered with aluminum foil, and purged with nitrogen for 5 min. The reaction solution was then illuminated blue LED light (10 W, 460 nm) at room temperature.
Electrochemical measurements
Cyclic voltammetry experiments were conducted using a CHI660D electrochemical workstation (Shanghai) with a one-compartment electrolysis cell. The setup included a typical glassy carbon working electrode (3 mm diameter), a platinum wire counter electrode, and an Ag/AgCl (KCl saturated) reference electrode, all at 25 °C. The measurements were performed in acetonitrile with 0.1 M tetrabutylammonium as the supporting electrolyte, at a scan rate of 50 mV s−1, or in PBK (0.1 M) aqueous solution under the same scan rate.
UV-vis absorption spectroscopy and fluorescence spectroscopy
UV-vis absorption spectra and fluorescence spectra were measured on a Thermo Scientific Varioskan LUX multimode microplate reader.
Fluorescence lifetime measurement by time-resolved fluorescence spectroscopy
All samples were prepared in a MBraun glovebox with oxygen levels <0.1 ppm. Each sample was prepared in 100 mM PBK buffer pH7.5 with 0.1 mM flavins. To reduce the flavins to hydroquinone form FLhq, we added 4 mM Na2S2O4, followed by addition with and without 10 mM CTA. During the course of the experiment samples were stirred and translated continuously in a 2 mm quartz cuvette, which was capped to ensure no introduction of oxygen. The transient photoluminescence measurement was conducted on a time-resolved spectrometer equipped with a time correlated single photon counting (TCSPC) module (HiLight 990, Oriental Spectra). A picosecond 405 nm laser (pulse width <250 ps, PLD405, Oriental Spectra) was used for optical excitation. The time traces were fitted to single or multi-exponential decays through re-convolution with the measured instrument response function (IRF).
Electron spin resonance (ESR) spectroscopy
An ESR spectrometer (JEOL, JES-FA200) was applied to identify radicals generated during photo-reaction. The following parameters were used for ESR detection: Center field, 329 mT, sweep width 7.5 mT, microwave power, 1 mW, sweep time, 60 s, time constant, 0.03 ms, modulation frequency, 100 kHz, modulation amplitude, 2 mT. DMPO (20 µM), RF (5 µM), sodium dithionate (50 µM), CTA (1 mM) were added into PBK buffer. The vessel was sealed, wrapped with aluminum foil, and purged with nitrogen for 20 min, then irradiated under blue light at room temperature with stirring for 30 min. The solution was then quickly transferred to a capillary tube for ESR measurement.
Computation details
The computations were carried out employing Gaussian 16 Rev. C.01, utilizing the Density Functional Theory (DFT) methodology for the ground state and Time-Dependent DFT (TD-DFT) for the excited state. Initially, an approximate optimization of the ground-state geometry was executed at the B3LYP/6-31 G level, incorporating a supplementary quadratic convergence threshold. Subsequently, the ground-state geometry underwent further refinement at the B3LYP/6-311 G + +(d,p) level, employing a force-minimization procedure and employing a self-consistent field convergence threshold of 10−10 atomic units. This optimization process encompassed the inclusion of bulk solvent effects through the polarizable continuum model, with the dielectric permittivity set to that of water. Subsequent to the geometry optimization, frequency calculations were conducted to verify that the obtained geometry corresponded to an energy minimum. This procedure was also used to calculate the thermodynamic correction of Gibbs free energy. Consequently, the first 25 lowest-energy excited states were determined by means of TD-DFT calculations at the CAM-B3LYP/6311 + G(2 d, p) level of theory. This calculation employed a stringent self-consistent field convergence threshold of 10−10 atomic units. All visual representations of the computed species were generated using the Gauss View software, facilitating the visualization of quantum chemistry computations. The change in free energy (ΔG) for each step in a reaction pathway is determined by the difference in the sum of energies between the reactants (or initial state) and products (or final state) of that step.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
The data supporting the findings of this study are available within the paper and its Supplementary Information/Source Data files. A reporting summary for this article can also be found as a Supplementary Information file. Source data are provided with this paper.
References
Truong, N. P., Jones, G. R., Bradford, K. G. E., Konkolewicz, D. & Anastasaki, A. A comparison of RAFT and ATRP methods for controlled radical polymerization. Nat. Rev. Chem. 5, 859–869 (2021).
Gao, Y. et al. Complex polymer architectures through free-radical polymerization of multivinyl monomers. Nat. Rev. Chem. 4, 194–212 (2020).
Corrigan, N. et al. Reversible-deactivation radical polymerization (Controlled/living radical polymerization): from discovery to materials design and applications. Prog. Polym. Sci. 111, 101311 (2020).
Lutz, J.-F., Lehn, J.-M., Meijer, E. W. & Matyjaszewski, K. From precision polymers to complex materials and systems. Nat. Rev. Mater. 1, 16024 (2016).
Zoppe, J. O. et al. Surface-initiated controlled radical polymerization: state-of-the-art, opportunities, and challenges in surface and interface engineering with polymer brushes. Chem. Rev. 117, 1105–1318 (2017).
Romio, M. et al. Dispersity within brushes plays a major role in determining their interfacial properties: the case of oligoxazoline-based graft polymers. J. Am. Chem. Soc. 143, 19067–19077 (2021).
Bagheri, A., Fellows, C. M. & Boyer, C. Reversible deactivation radical polymerization: from polymer network synthesis to 3D printing. Adv. Sci. 8, 2003701 (2021).
Zhang, L. et al. Porphyrinic zirconium metal-organic frameworks (MOFs) as heterogeneous photocatalysts for PET-RAFT polymerization and stereolithography. Angew. Chem. Int. Ed. 60, 5489–5496 (2021).
Seo, M. & Hillmyer, M. A. Reticulated nanoporous polymers by controlled polymerization-induced microphase separation. Science 336, 1422–1425 (2012).
Belluati, A. et al. Artificial cell synthesis using biocatalytic polymerization-induced self-assembly. Nat. Chem. 16, 564–574 (2024).
Huang, X., Nakagawa, S., Li, X., Shibayama, M. & Yoshie, N. A simple and versatile method for the construction of nearly ideal polymer networks. Angew. Chem. Int. Ed. 59, 9646–9652 (2020).
Chen, L., Wang, X., Lu, W., Wu, X. & Li, J. Molecular imprinting: perspectives and applications. Chem. Soc. Rev. 45, 2137–2211 (2016).
Daoud Attieh, M., Zhao, Y., Elkak, A., Falcimaigne-Cordin, A. & Haupt, K. Enzyme-initiated free-radical polymerization of molecularly imprinted polymer nanogels on a solid phase with an immobilized radical source. Angew. Chem. 56, 3339–3343 (2017).
Theodorou, A. et al. Protein-polymer bioconjugates via a versatile oxygen tolerant photoinduced controlled radical polymerization approach. Nat. Commun. 11, 1486 (2020).
Lathwal, S. et al. Engineering exosome polymer hybrids by atom transfer radical polymerization. Proc. Natl. Acad. Sci. USA 118, e2020241118 (2021).
Zhang, T., Wu, Z., Ng, G. & Boyer, C. Design of an oxygen-tolerant photo-RAFT system for protein-polymer conjugation achieving high bioactivity. Angew. Chem. Int. Ed. 62, e202309582 (2023).
Zhang, A., Zhao, S., Tyson, J., Deisseroth, K. & Bao, Z. Applications of synthetic polymers directed toward living cells. Nat. Synth. 3, 943–957 (2024).
Tang, T.-C. et al. Materials design by synthetic biology. Nat. Rev. Mater. 6, 332–350 (2020).
Peyton, S. R. et al. Synthetic living materials in cancer biology. Nat. Rev. Bioeng. 1, 972–988 (2023).
Graham, A. J. et al. Transcriptional regulation of living materials via extracellular electron transfer. Nat. Chem. Biol. 20, 1329–1340 (2024).
Zhong, Y. et al. Site-selected in situ polymerization for living cell surface engineering. Nat. Commun. 14, 7285 (2023).
Liu, J. & Liu, B. Living cell-mediated in-situ polymerization for biomedical applications. Prog. Polym. Sci. 129, 101545 (2022).
Niu, J. et al. Engineering live cell surfaces with functional polymers via cytocompatible controlled radical polymerization. Nat. Chem. 9, 537–545 (2017).
Geng, J. et al. Radical polymerization inside living cells. Nat. Chem. 11, 578–586 (2019).
Zhu, M. et al. Tyrosine residues initiated photopolymerization in living organisms. Nat. Commun. 14, 3598 (2023).
Zhang, X. et al. Synthesizing biomaterials in living organisms. Chem. Soc. Rev. 52, 8126–8164 (2023).
Zhang, Y. et al. Controlled intracellular polymerization for cancer treatment. JACS Au 2, 579–589 (2022).
Baghdasaryan, O. et al. Synthetic control of living cells by intracellular polymerization. Trends Biotechnol. 42, 241–252 (2024).
Abdelrahim, M. et al. Light-mediated intracellular polymerization. Nat. Protoc. 19, 1984–2025 (2024).
Srubar, W. V. Engineered living materials: taxonomies and emerging trends. Trends Biotechnol. 39, 574–583 (2021).
Jung, K., Corrigan, N., Wong, E. H. H. & Boyer, C. Bioactive synthetic polymers. Adv. Mater. 34, e2105063 (2022).
Graham, A. J. & Keitz, B. K. Living synthetic polymerizations. in Engineered Living Materials. (ed. W.V. Srubar lii) 27–49 (Springer International Publishing, Cham 2022).
Liu, A. P. et al. The living interface between synthetic biology and biomaterial design. Nat. Mater. 21, 390–397 (2022).
An, B. et al. Engineered living materials for sustainability. Chem. Rev. 123, 2349–2419 (2023).
Magennis, E. P. et al. Bacteria-instructed synthesis of polymers for self-selective microbial binding and labelling. Nat. Mater. 13, 748–755 (2014).
Fan, G., Dundas, C. M., Graham, A. J., Lynd, N. A. & Keitz, B. K. Shewanella oneidensis as a living electrode for controlled radical polymerization. Proc. Natl Acad. Sci. USA 115, 4559–4564 (2018).
Fan, G., Graham, A. J., Kolli, J., Lynd, N. A. & Keitz, B. K. Aerobic radical polymerization mediated by microbial metabolism. Nat. Chem. 12, 638–646 (2020).
Qi, G. et al. Bacterium-templated polymer for self-selective ablation of multidrug-resistant bacteria. Adv. Funct. Mater. 30, 2001338 (2020).
Bennett, M. R., Gurnani, P., Hill, P. J., Alexander, C. & Rawson, F. J. Iron-catalysed radical polymerisation by living bacteria. Angew. Chem. Int. Ed. 59, 4750–4755 (2020).
Chiefari, J. et al. Living free-radical polymerization by reversible addition-fragmentation chain transfer: the RAFT process. Macromolecules 31, 5559–5562 (1998).
Nothling, M. D. et al. Bacterial redox potential powers controlled radical polymerization. J. Am. Chem. Soc. 143, 286–293 (2021).
Antonopoulou, M.-N. et al. Acid-triggered radical polymerization of vinyl monomers. Nat. Synth. 3, 347–356 (2024).
Zhou, H. et al. Initiator-activation strategy-enabled organocatalyzed reversible-deactivation radical polymerization driven by light. Angew. Chem. 62, e202304461 (2023).
Matyjaszewski, K. Discovery of the RAFT process and its impact on radical polymerization. Macromolecules 53, 495–497 (2020).
McKenzie, T. G. et al. Beyond traditional RAFT: alternative activation of thiocarbonylthio compounds for controlled polymerization. Adv. Sci. 3, 1500394 (2016).
Lee, Y., Boyer, C. & Kwon, M. S. Photocontrolled RAFT polymerization: past, present, and future. Chem. Soc. Rev. 52, 3035–3097 (2023).
Postma, A. & Skidmore, M. How to do a RAFT polymerization. in RAFT Polymerization: Methods, Synthesis, and Applications, Vol. 2. (eds Moad, G. & Rizzardo, E.) 25–58 (Wiley-VCH, Weinheim, Germany 2021).
Gody, G., Maschmeyer, T., Zetterlund, P. B. & Perrier, S. Rapid and quantitative one-pot synthesis of sequence-controlled polymers by radical polymerization. Nat. Commun. 4, 2505 (2013).
Lorandi, F., Fantin, M. & Matyjaszewski, K. Redox-initiated RAFT polymerization and (electro)chemical activation of RAFT agents. in RAFT Polymerization: Methods, Synthesis, and Applications, Vol. 2. (eds Moad, G. & Rizzardo, E.) 647–677 (Wiley-VCH, Weinheim, Germany 2021).
Xu, J., Jung, K., Atme, A., Shanmugam, S. & Boyer, C. A robust and versatile photoinduced living polymerization of conjugated and unconjugated monomers and its oxygen tolerance. J. Am. Chem. Soc. 136, 5508–5519 (2014).
Zhou, Y.-N., Li, J.-J., Wang, T.-T., Wu, Y.-Y. & Luo, Z.-H. Precision polymer synthesis by controlled radical polymerization: fusing the progress from polymer chemistry and reaction engineering. Prog. Polym. Sci. 130, 101555 (2022).
Kaneko, M., Ishihara, K. & Nakanishi, S. Redox-active polymers connecting living microbial cells to an extracellular electrical circuit. Small 16, e2001849 (2020).
Melin, F. & Hellwig, P. Redox properties of the membrane proteins from the respiratory chain. Chem. Rev. 120, 10244–10297 (2020).
Shi, L. et al. Extracellular electron transfer mechanisms between microorganisms and minerals. Nat. Rev. Microbiol. 14, 651–662 (2016).
Thapa, B. S. et al. Overview of electroactive microorganisms and electron transfer mechanisms in microbial electrochemistry. Bioresour. Technol. 347, 126579 (2022).
Strover, L. T. et al. Electrochemical behavior of thiocarbonylthio chain transfer agents for RAFT polymerization. ACS Macro Lett. 8, 1316–1322 (2019).
Lorandi, F. et al. Toward electrochemically mediated reversible addition-fragmentation chain-transfer (eRAFT) polymerization: can propagating radicals be efficiently electrogenerated from RAFT agents? Macromolecules 52, 1479–1488 (2019).
Marsili, E. et al. Shewanella secretes flavins that mediate extracellular electron transfer. Proc. Natl. Acad. Sci. USA 105, 3968–3973 (2008).
Fredrickson, J. K. et al. Towards environmental systems biology of Shewanella. Nat. Rev. Microbiol. 6, 592–603 (2008).
Li, F. et al. Modular engineering to increase intracellular NAD(H/(+)) promotes rate of extracellular electron transfer of Shewanella oneidensis. Nat. Commun. 9, 3637 (2018).
Zhang, J., Li, F., Liu, D., Liu, Q. & Song, H. Engineering extracellular electron transfer pathways of electroactive microorganisms by synthetic biology for energy and chemicals production. Chem. Soc. Rev. 53, 1375–1446 (2024).
Sikorski, M., Khmelinskii, I. & Sikorska, E. Spectral properties of flavins. in Flavin-Based Catalysis: Principles and Applications (Cibulka, R. & Fraaije, M. eds) 67–96 (Wiley-VCH, Weinheim, Germany; 2021).
Biegasiewicz Kyle, F. et al. Photoexcitation of flavoenzymes enables a stereoselective radical cyclization. Science 364, 1166–1169 (2019).
Black, M. J. et al. Asymmetric redox-neutral radical cyclization catalysed by flavin-dependent ‘ene’-reductases. Nat. Chem. 12, 71–75 (2020).
Romero, N. A. & Nicewicz, D. A. Organic photoredox catalysis. Chem. Rev. 116, 10075–10166 (2016).
Emmanuel, M. A. et al. Photobiocatalytic strategies for organic synthesis. Chem. Rev. 123, 5459–5520 (2023).
Huang, X. et al. Photoenzymatic enantioselective intermolecular radical hydroalkylation. Nature 584, 69–74 (2020).
Li, M., Harrison, W., Zhang, Z., Yuan, Y. & Zhao, H. Remote stereocontrol with azaarenes via enzymatic hydrogen atom transfer. Nat. Chem. 16, 277–284 (2023).
Sandoval, B. A. et al. Photoenzymatic Reductions Enabled by Direct Excitation of Flavin-Dependent “Ene”-Reductases. J. Am. Chem. Soc. 143, 1735–1739 (2021).
Zhou, F., Li, R., Wang, X., Du, S. & An, Z. Non-natural photoenzymatic controlled radical polymerization inspired by DNA photolyase. Angew. Chem. Int. Ed. 58, 9479–9484 (2019).
Zaborniak, I. & Chmielarz, P. Riboflavin-mediated radical polymerization – Outlook for eco-friendly synthesis of functional materials. Eur. Polym. J. 142, 110152 (2021).
Graml, A., Nevesely, T., Jan Kutta, R., Cibulka, R. & Konig, B. Deazaflavin reductive photocatalysis involves excited semiquinone radicals. Nat. Commun. 11, 3174 (2020).
Allison-Logan, S. et al. From UV to NIR: A Full-Spectrum Metal-Free Photocatalyst for Efficient Polymer Synthesis in Aqueous Conditions. Angew. Chem. 132, 21576–21580 (2020).
Shanmugam, S, Xu, J & Boyer, C Light-Regulated Polymerization under Near-Infrared/Far-Red Irradiation Catalyzed by Bacteriochlorophyll a. Angew. Chem. Int. Ed. 55, 1036–1040 (2016).
Parkatzidis, K., Wang, H. S., Truong, N. P. & Anastasaki, A. Recent Developments and Future Challenges in Controlled Radical Polymerization: A 2020 Update. Chem 6, 1575–1588 (2020).
Okamoto, A., Hashimoto, K. & Nealson, K. H. Flavin redox bifurcation as a mechanism for controlling the direction of electron flow during extracellular electron transfer. Angew. Chem. Int. Ed. 53, 10988–10991 (2014).
Pfleger, B. F., Pitera, D. J., Smolke, C. D. & Keasling, J. D. Combinatorial engineering of intergenic regions in operons tunes expression of multiple genes. Nat. Biotechnol. 24, 1027–1032 (2006).
Moad, G. et al. Living free radical polymerization with reversible addition – fragmentation chain transfer (the life of RAFT). Polym. Int. 49, 993–1001 (2000).
Xie, P., Wang, J., Liang, H. & Gao, H. Shewanella oneidensis arcA Mutation Impairs Aerobic Growth Mainly by Compromising Translation. Life (Basel) 11, 926 (2021).
