Bipolar and schizophrenia risk gene AKAP11 encodes an autophagy receptor coupling the regulation of PKA kinase network homeostasis to synaptic transmission

Abstract

Human genomic studies have identified protein-truncating variants in AKAP11 associated with both bipolar disorder (BD) and schizophrenia (SCZ), implicating a shared disease mechanism driven by loss-of-function. AKAP11, a protein kinase A (PKA) adapter, plays a key role in degrading the PKA-RI complex through selective autophagy. However, the neuronal functions of AKAP11 and the impact of its loss-of-function remains largely uncharacterized. Through multi-omics approaches, cell biology, and electrophysiology analysis in mouse models and human induced neurons, we delineate a central role of AKAP11 in coupling PKA kinase network regulation to synaptic transmission. Loss of AKAP11 distorts compartment-specific PKA and GSΚ3α/β activities and impairs cellular functions that significantly overlap with pathways associated with BD and SCZ. Moreover, we identify the interactions between AKAP11, the PKA-RI adapter SPHKAP, and the ER-resident autophagy-related proteins VAPA/B, which co-adapt and mediate PKA-RI complex degradation in neurons. Notably, AKAP11 deficiency impairs neurotransmission, providing key insights into the mechanism underlying AKAP11-associated psychiatric diseases.

Introduction

A meta-analysis combining exome sequencing uncovered a link of rare protein-truncating variants (PTVs) to increased risk of BD and identified AKAP11 as a definitive risk gene for BD shared with SCZ¹. Two independent meta-analyses of whole exome sequencing also revealed that AKAP11-coding or truncating variants enhanced the risk of SCZ across diverse human populations^2,3. Thus, the human genetic evidence demonstrates AKAP11 as a common risk gene for both BD and SCZ and implicates a potential disease mechanism involving the loss-of-function in the AKAP11. However, the biology and pathophysiology of AKAP11 in the central nervous system (CNS) remains poorly understood.

AKAP11 (A-kinase Anchoring Protein 11), known also as AKAP220, is a member of the protein family that anchors Protein Kinase A (PKA) complex to specific subcellular locations, modulating PKA and GSK-3β activity^4,5,6,7,8. We previously reported a cellular function of AKAP11 as an autophagy receptor, which mediates the selective degradation of the regulatory RI subunits (RIα and RIβ) of PKA, while sparing RII subunits, through binding autophagy protein LC3 and controls PKA activity⁹. We recently documented the conserved autophagy function of AKAP11 in human neurons and demonstrated a critical role of AKAP11 in maintaining the homeostasis of PKA-RI protein complex in the soma and neurites through autophagy degradation¹⁰. Interestingly, Akap11 knock-out (KO) mice exhibit behavioral abnormalities in electroencephalogram (EEG) recording, in common with symptoms of SCZ¹¹, supporting potential synaptic dysfunction¹². Given the notion that neuronal autophagy regulates synaptic function^{13,14,15,16,17,18,19}, it raises a question for how AKAP11-mediated autophagy is linked to the regulation of synaptic activity. The knowledge of the mechanism whereby AKAP11 controls PKA-RI complex homeostasis and synaptic functions in neurons is expected to provide insight into the pathogenesis of BD and SCZ.

Here, we reported an interdisciplinary study of AKAP11 neuronal function and the consequence of the loss-of-function in AKAP11 in both genetic mouse models and human pluripotent stem cell (PSC)-induced neurons (iNeurons) by integrating multi-omics, cell biology, and electrophysiology approaches. We observed an extensive distortion of PKA kinase network and altered PKA and GSK3α/β kinase activities in neurons from AKAP11-deficient neurons. Furthermore, loss of AKAP11 results in a compartment-specific change of PKA activity in neurons. Our study demonstrated the role of AKAP11 in coupling PKA kinase network regulation to synaptic transmission. Finally, our data revealed that AKAP11 mediates a previously uncharacterized autophagic function in neurons through interacting with the PKA adapter SPHKAP and the ER-resident autophagy-related proteins VAPA/B. Our current report offers a comprehensive view of AKAP11-regulated neuronal pathways and insight into the pathogenic mechanisms underlying psychiatric diseases.

Results

Integrated proteomics identified profound changes of PKA kinase network and synaptic proteins in AKAP11-deficient neurons

We previously reported that AKAP11 knockdown (KD) leads to an increase of protein level in the regulatory subunits RIα and RIβ of PKA in iNeurons¹⁰, confirming its role as autophagy receptor. Here we sought to determine AKAP11-targeted proteins and cellular pathways by performing a systematic search in neurons through integrated proteomics profiling, as we described in the study of autophagy cargo identification¹⁰(Fig. 1a). For this purpose, we established Akap11-conditional knock-out (cKO) (Cre-LoxP) and whole-body knock-out (wKO) mice (Supplementary Fig. 1a). Together with human AKAP11 KO iNeuron, we conducted quantitative mass spectrometry-based proteomics (Tandem Mass Tag (TMT) and Data-independent Acquisition (DIA))^20,21,22 and analyzed the changes of proteins and cellular pathways in neurons from mutant mouse brains and iNeurons compared to control neurons. In total, 7427 proteins (54 up-regulated, 124 down-regulated), 5619 proteins (86 up-regulated, 29 down-regulated), and 11,392 proteins (175 up-regulated, 13 down-regulated) were detected in Akap11-cKO, iNeuron-KO, and wKO datasets, respectively (Fig. 1b,c, Supplementary Fig. 1b and Supplementary Data 1-3).

Fig. 1: Integrated proteomic analysis of brain lysate from Akap11-cKO mouse brains and AKAP11-KO iNeurons.

a An overview of the study workflow, which integrates multiple-omics, bioinformatics, cell imaging, electrophysiology, and protein biochemistry, and investigates multiple genetic mouse models of AKAP11 and human iNeurons. Created in BioRender. Lee, Y. (2025) https://BioRender.com/b6wot8z. b Volcano plot of the differentially expressed proteins (DEPs) detected by mass-spectrometry in Akap11-cKO mouse brains. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence FDR (adjusted P-value) for each x axis point. Enriched proteins, defined by FDR < 0.05 and |Log2FC | > 2 SD are colored in red. FDR was calculated with the moderated two-sided t-test in the LIMMA package (R Studio) for multiple comparisons. c Volcano plot of the differentially expressed proteins (DEPs) detected by mass-spectrometry in AKAP11-KO human iNeurons. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence P-value for each x axis point. Enriched proteins, defined by P-value < 0.05 and |Log2FC | > 2 SD are colored in red. P-value was calculated with the moderated two-sided t-test in the LIMMA package. d Gene Ontology (GO) annotations of the DEPs in (b), displaying the top 10 enriched pathways (P-value < 0.05, one-sided hypergeometric test). e The enrichment levels for the proteins as shown in (b) with log2 transformed DIA intensities across Akap11^F/F and Akap11^F/F; Syn-cre mice (n = 4 per genotype). Each dot represents the median expression from one biological replicate. Box plots show the median (center line), interquartile range (box), and minima and maxima (whiskers). Statistical significance was determined between cKO and WT groups using FDR-adjusted P-values calculated with the moderated two-sided t-test in the LIMMA package for multiple comparisons. f Immunoblotting using antibodies against AKAP11 and PKA subunits and quantification of the blot results. Data are presented as mean ± SEM (n = 3 per genotype). Statistical significance was performed using an unpaired two-tailed t-test (RIα, RIβ, PKA-Cα: p < 0.0001; RIIα: p = 0.0652). Each experiment was independently repeated three times with similar results. g Immunofluorescence (IF) imaging of the cortex and hippocampus from Akap11^F/F and Akap11^F/F; Syn-cre mice, stained with anti-RIα, anti-RIβ and DAPI. Each experiment was independently repeated three times with similar results. Scale bars, 5 μm. h Immunoblotting using antibodies against ADRA2A, SPHKAP, and SYP and quantification of the blot results. Data are presented as mean ± SEM (n = 3 per genotype). Statistical significance was performed using an unpaired two-tailed t-test (ADRA2A: p = 0.0159; SPHKAP: p = 0.0151; SYP: p = 0.0049). Each experiment was independently repeated three times with similar results. i DisGeNET annotations of the DEPs through ToppGene in (b) (P-value < 0.05, one-sided hypergeometric test).

We next annotated the differential expression of proteins (DEPs) in the AKAP11-cKO neurons. For the upregulated DEPs, functional annotation with clusterProfiler²³ identified cAMP-dependent PKA binding related pathways as the dominant GO terms, including protein kinase regulator activity and PKA catalytic subunit binding under the Molecular Function (MF) category. In Cellular Component (CC) category, examples of significantly enriched GO terms include negative regulation of phosphorus metabolic process and negative regulation of kinase activity (Fig. 1d and Supplementary Fig. 1c). Indeed, we observed a significant enrichment of PKA-RIα (log2FoldChange (FC) 1.84) and RIβ (FC 1.88) levels as well as PKA-Cα (FC 0.91) and Cβ (FC 0.92) levels in Akap11-cKO dataset, and similar patterns in other two datasets (Fig. 1b, c, e and Supplementary Fig. 1b,d). Furthermore, multiple negative regulators of PKA activity are among the significantly upregulated DEPs in Akap11-cKO mouse brains, such as ADRA2A (FC 1.06), PDE4B (FC 1.38), PDE3A (FC 0.80), and PKIB (FC 0.83) (Fig. 1b, e and Supplementary Fig. 1b). ADRA2A inhibits adenyl cyclase (AC), leading to a decrease in PKA activity^24,25,26. PDE3A and PDE4B inhibit PKA activity by breaking down cAMP, and PDE4B is a major binding partner of DISC1 and a risk gene for SCZ and BD^27,28,29. PKIB belongs to cAMP-dependent protein kinase inhibitor family, and it regulates PKA pathway by interacting with the PKA-C subunit³⁰. Additionally, we observed an enrichment of SPHKAP (FC 0.57, SD = 0.41), which is a PKA-RI subtype-specific anchoring protein³¹ (Fig. 1e). The increase of PKA-RIα/β, PKA-C (with a lesser degree than PKA-RI), ADRA2A, and SPHKAP proteins in Akap11-cKO brains was validated through immunoblot. The RIα/β proteins were accumulated in large, discrete puncta in Akap11-deficient neurons, as shown through immunofluorescence (IF) imaging (Fig. 1f, g, h).

In the downregulated DEPs, the annotation identified neural or synapse-related functions as the primarily affected terms, including synaptic vesicle (SV) membrane, exocytic vesicle membrane, SV, and myelin sheath (CC). Significant GO terms also include regulation of neurotransmitter transport and SV endocytosis in Biological Process (BP). Additionally, G protein activity, GTPase regulator activity, and transmembrane transporter binding are the main GO terms (MF) (Supplementary Fig. 1e). We noticed the downregulation of CREB1 (FC −0.92), a downstream target of PKA signaling pathway³², and synaptophysin (FC −1.09), a SV-associated protein important for synaptic trafficking and neurotransmitter release³³. Additionally, the downregulated expression of calcium/calmodulin-dependent protein kinases, CAMKIIA (FC −0.51) indicates reduced neuronal calcium signaling, which plays a pivotal role in synaptic plasticity and memory formation³⁴ (Fig. 1b).

To verify the changes of synaptic proteins identified in the proteomics analysis, we performed immunoblotting in Akap11-cKO brain lysates. We observed that the levels of synaptophysin were decreased in mutant brains (Fig. 1h). Using SynGO³⁵ to screen the DEPs in Akap11-cKO mouse and AKAP11-KO iNeuron, we found an enrichment in both pre- and postsynaptic compartments, sharing multiple “sub-synaptic” terms, including regulation of synapse assembly, SV exocytosis and endocytosis, postsynaptic membrane neurotransmitter receptor levels, and chemical synaptic transmission (Supplementary Fig. 2a). The above evidence suggests that AKAP11-deficiency affects synaptic homeostasis and perhaps synaptic transmission.

We next performed transcriptome analysis of Akap11-cKO mouse brains. The number of differential expression genes (DEGs) in mutant mice is significantly less than that of DEPs (Supplementary Fig. 2b). Even with diminishing Akap11 transcripts, Akap11-cKO brains showed little change in mRNA levels coding for PKA complex or its regulators as described above, supporting the regulatory role of AKAP11 in regulating PKA complex proteins post-transcriptionally. Meanwhile, Gene Set Enrichment Analysis (GSEA)^36,37 indicates the down-regulated DEGs associated with synapse, including pre- and postsynaptic membrane, dendrite development, axonogenesis, actin and filament binding, etc. (Supplementary Fig. 2c).

Furthermore, through a comprehensive platform integrating information on human disease-associated genes and variants (DisGeNET)³⁸, we found that SCZ as the top-ranked disease based on the protein count (Fig. 1i), suggesting a convergence of AKAP11-regulated cellular functions and potential SCZ-inflicted disease pathways.

Identification of PKA subunits as central hubs in network modules for synapse formation regulated by AKAP11

To gain an insight of the relationship among cellular pathways/functions affected by the loss-of-function in AKAP11 as an autophagy receptor, we employed the modified Weighted Gene Co-expression Network Analysis (WGCNA)^39,40 to dissect proteomics data from Akap11-cKO mouse brains and human AKAP11-KO iNeurons. WGCNA construction identified 13 and 18 modules in mutant mouse brains and human iNeurons, respectively (Fig. 2a,e).

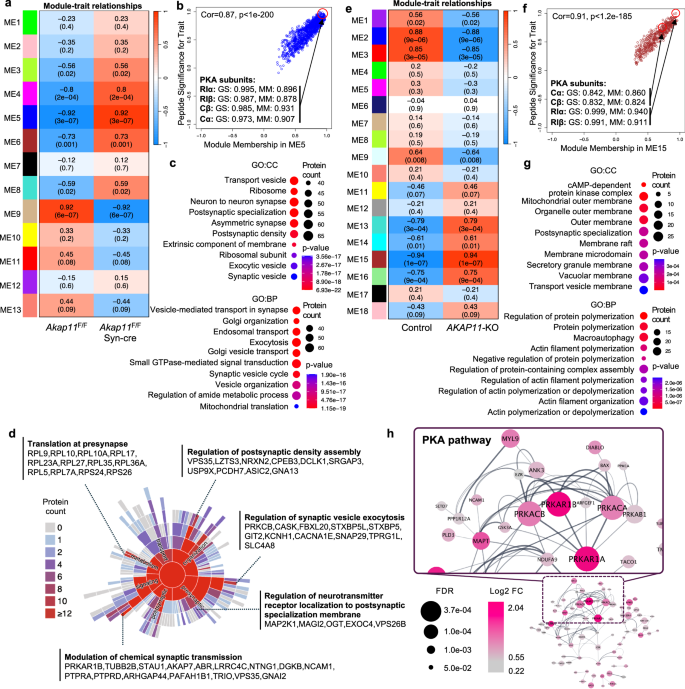

Fig. 2: Identification of co-regulation of cellular pathways upon AKAP11-deficiency through WGCNA.

a,e Heatmap of the correlation between the module eigengenes and traits in Akap11-cKO mouse brains (16 samples) (a) or in AKAP11-KO iNeurons (16 samples) (e). Red represents positive correlation, and blue represents negative correlation to the trait. The Pearson correlation and two -sided t-test P-value are presented in each module. b, f Scatter plot of the module membership (x axis) and peptide significance (y axis) in ME5 from Akap11-cKO mouse brains with P-value < 1e-200 (b) or ME15 from AKAP11-KO iNeurons with P-value < 1.2e-185 (f). P-value was calculated with two-sided t-test. c, g Gene Ontology (GO) annotations of the proteins in ME5 from Akap11-cKO mouse brains (c) or ME15 from AKAP11-KO iNeurons (g), displaying the top ten enriched pathways (P-value < 0.05, one-sided hypergeometric test). d Sunburst plots depicting SynGO Biological Process pathways with a two-sided t-test P-value < 0.05. For selected ontologies, representative proteins from ME5 within the ontology are displayed. h PPI network analysis of proteins in ME5 in (a) (only FDR < 0.05). The color gradience represents from low (gray) to high (red) fold enrichment. Dot size represents statistical significance. FDR was calculated with the moderated two-sided t-test in the LIMMA package for multiple comparisons.

In Akap11-cKO brain dataset, module ME5 (1146 proteins) and ME4 (106 proteins) (Supplementary Data 4), are top-ranked and positively correlated with the trait (mutant) with a P-value of 3e-07 and 2e-04, respectively. We found PKA-RIα/β and PKA-Cα/β are the hub proteins in the ME5 based on their highest scores in Peptide Significance (PS) and Module Membership (MM) (Fig. 2b). Interestingly, the GO term analysis reveals that ME5 is highly enriched in transport vesicle, postsynaptic density, SV and neuron to neuron synapse (Fig. 2c). Detailed analysis of “subsynaptic” processes of the ME5 showed the translation at presynapse, regulation of postsynaptic density assembly, SV exocytosis, chemical synaptic transmission, and neurotransmitter receptor localization of postsynaptic specialization membrane (Fig. 2d). In ME4, the proteins GOLPH3, PGM3, SSB, and CHMP2B are hub proteins and involved in protein metabolic process (Supplementary Fig. 3a). GO term analysis shows that ME4 is enriched in protein catabolic process, cytoplasmic translation, and proteasome complex (Supplementary Fig. 3b).

In AKAP11-KO iNeuron dataset, the ME15 (482 proteins) and ME13 (344 proteins) are the top two positively correlated modules (Supplementary Data 5). Similarly, PKA-RIα/β subunits were identified as hub proteins followed by PKA-Cα/β in the ME15 (significant PS and MM), while the ME15 showed enrichment in macroautophagy, postsynaptic specialization, transport vesicle, and protein polymerization or depolymerization (Fig. 2f, g). In ME13, NUP35, NMT2, MTM1, and BCL2 are hub proteins, which are involved in the endomembrane system, while GO term analysis reveals the association of ME13 with endosomal transport, early endosome, and lysosomal membrane (Supplementary Fig. 3c, d). Therefore, the data from both mouse brains and human iNeuron show a strong consensus where PKA subunits are the hub proteins in the synapse-related modules. The results demonstrate a functional accordance of PKA signaling pathways with synaptic function, which are co-regulated by AKAP11. Moreover, the data indicated a functional correlation of PKA signaling, autophagy, and vesicle trafficking pathway through AKAP11, in agreement with our early observation⁹.

We next employed STRING⁴¹ to analyze protein-protein interaction (PPI) network of the PKA-centered protein module (ME5) (only FDR < 0.05 proteins). While PKA-RIα/β as the most significant DEPs (increase) in Akap11-cKO brains and as the main hub proteins (upregulated) in the ME5 (Fig. 1b), they are found as the central nodes in the PPI network, which interact with MAPT, GSK3A, ARFGEF1, ANK3, EZR, NDUFA9, and PRKAB1 (Fig. 2h). Indeed, those interacting proteins are the known PKA targets or mediators of PKA signaling pathways in various cellular functions or neural activity^{6,31,42,43,44,45,46,47,48,49,50}. The evidence indicated a significant alteration of PKA signaling network, including PKA holoenzyme subunits, upstream regulators, and downstream targets, in AKAP11-deficient neurons.

Disruption of neuronal AKAP11 altered protein phosphorylation landscape and compartment-specific PKA activities

The increase of protein levels in PKA regulatory subunits RIα/β as well as in multiple PKA activity inhibitors (Fig. 1e, f, h and Supplementary Fig. 1d) led to a hypothesis that PKA activity is disrupted in AKAP11-deficient neurons. To test the hypothesis, we analyzed phosphoproteomics data obtained from the brains of Akap11-cKO mice and determined changes of potential PKA phosphorylation sites. We identified 289 differentially abundant phosphoprotein sites (DAPPSs) between the Akap11-cKO and control brain lysates (91 upregulated and 198 downregulated) (Fig. 3a and Supplementary Data 6). Strikingly, given the finding of genetic risk of AKAP11 variants in SCZ and BD, the enrichment analysis of the DAPPSs corresponding proteins through the DisGeNET³⁸ database reveals an enrichment of diseases, such as SCZ, BD, intellectual disability, neurodevelopmental disorders, and unipolar depression in Akap11-cKO brains (Fig. 3b).

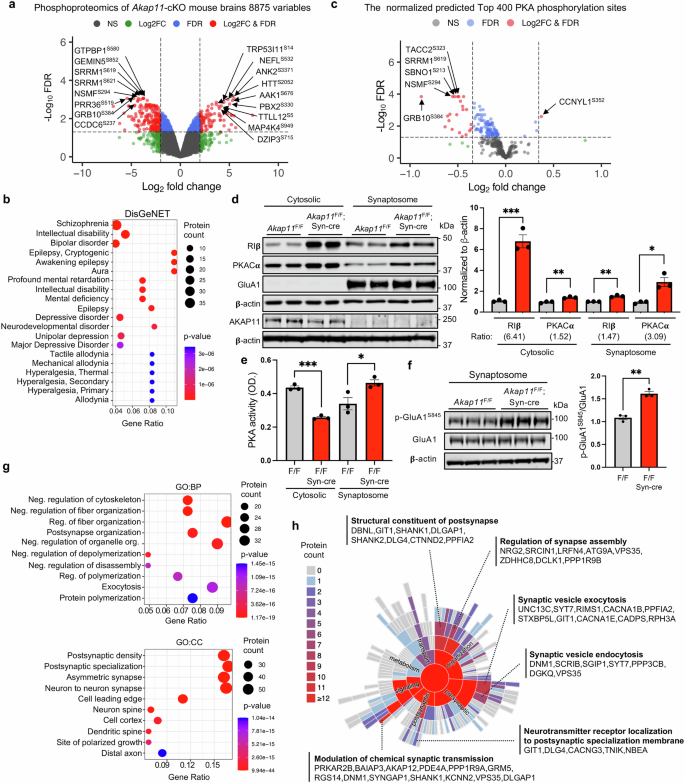

Fig. 3: Phosphoproteomics and PKA activity analysis of Akap11-cKO brain lysates.

a Volcano plot of the differentially abundant phosphoprotein sites (DAPPSs) detected by mass-spectrometry in Akap11-cKO mouse brains. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence FDR for each x axis point. Enriched proteins, defined by FDR < 0.05 and |Log2FC | > 2 SD, are colored in red. FDR was calculated with the moderated two-sided t-test in the LIMMA package for multiple comparisons. b DisGeNET annotations of the DEPPSs through ToppGene in (a) (P-value < 0.05, one-sided hypergeometric test). c Volcano plot of the top 400 predicted PKA phosphorylation sites (normalized by the total protein level) detected by mass-spectrometry in Akap11-cKO mouse brains. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence FDR for each x axis point. Enriched proteins, defined by FDR < 0.05 and |Log2FC | > 2 SD, are colored in red. FDR was calculated with the moderated two-sided t-test in the LIMMA package for multiple comparisons. d Immunoblotting using antibodies against RIβ, PKA-Cα, GluA1, and AKAP11 in cytosolic and synaptosome fractions and quantification of the results. Data are presented as mean ± SEM (n = 3 per genotype). Statistical significance was performed using an unpaired two-tailed t-test (cytosolic RIβ: p = 0.0008; cytosolic PKA-Cα: p = 0.0011; synaptosomal RIβ: p = 0.0026; synaptosomal PKA-Cα: p = 0.0108). Each experiment was independently repeated three times with similar results. e Bar graphs of the ELISA results measuring PKA activity in the cytosol and synaptic fractions from Akap11^F/F and Akap11^F/F; Syn-cre mice. Data are presented as mean ± SEM. Statistical analysis using an unpaired t-test. (n = 3 per genotype). Statistical significance was performed using an unpaired two-tailed t-test (cytosolic, p = 0.0001; synaptosome, p = 0.0385). Each experiment was independently repeated three times with similar results. f Immunoblotting using antibodies against p-GluA1^S845 and GluA1 in synaptosome and quantification of the results. Data are presented as mean ± SEM (n = 3 per genotype). Statistical significance was performed using an unpaired two-tailed t-test (p = 0.0014). Each experiment was independently repeated three times with similar results. g Gene Ontology (GO) annotations of the predicted PKA substrates, displaying the top ten enriched pathways (P-value < 0.05, one-sided hypergeometric test). h Sunburst plots depicting SynGO Biological Process pathways with a two-sided t-test P-value < 0.05. For selected ontologies, representative proteins from predicted PKA substrates within the ontology are displayed.

We next employed a comprehensive pipeline PhosR⁵¹ to delineate the kinase and substrate relationship. The PhosR utilizes the PhosphoSitePlus⁵² as a reference database and a set of tools and methodologies implemented in R to allow the comprehensive analysis of the phosphoproteomic data⁵³. The predicted top three phosphorylation sites of the corresponding kinases are shown in a heatmap (Supplementary Fig. 4a). Additionally, we analyzed the top 400 predicted PKA phosphosites and found 39 significantly downregulated DAPPSs and 41 phosphorylation sites with a trend of decrease (Supplementary Fig. 4b). After normalizing against the levels of corresponding proteins from proteomics results (Supplementary Data 1), we identified 22 downregulated DAPPSs (Fig. 3c) associated potentially with PKA activity in Akap11-cKO neurons.

In a parallel analysis, we mapped the phosphoproteomic data against the PKA consensus substrates from PhosphoSitePlus⁵² and identified 30 phosphosites (of which 20 were found as predicted PKA phosphosites from the PhosR analysis). Among them, 6 show a trend of increase while 9 display a trend of reduction (FDR < 0.2, 1*SD) (Supplementary Fig. 4c).

To validate PKA activity changes, we first assessed the protein levels of PKA subunits in cytosol and synaptosome fractions and found an increase of PKA-C and PKA-RI in both fractions from Akap11-cKO brain lysates by immunoblot. We noticed that the increase of RIβ was much greater in cytosol (6.41-fold) than in synaptosome (1.47-fold), while PKA-C changed in the opposite direction within cytosolic (1.52-fold) and synaptosome (3.09-fold) (Fig. 3d). We then performed an enzyme-linked immunosorbent assay (ELISA) to analyze PKA activity^54,55. The assay sensitivity was verified using forskolin (FSK, a PKA activator) and H89 (a PKA inhibitor) (Supplementary Fig. 4d). Remarkably, the ELISA results showed a reduction PKA activity in the cytosol but an increase in the synaptosome (Fig. 3e). The increase of PKA activity in the synaptosomes were supported by increased phosphorylation of the PKA substrate p-GluA1^S845 and of PKA-Cα^T197 (Fig. 3f and Supplementary Fig. 4e). The reduced PKA activity in the cytosol occurred in different brain regions, such as the cerebral cortex and hippocampus, in Akap11-wKO mice (Supplementary Fig. 4f). These findings indicate that the loss of AKAP11 induces compartment-specific alterations of PKA activities. It is conceivable that the greater elevation of regulatory subunit of PKA-RI levels causes repression of PKA activity in the cytosol, while the increase of PKA-C in the synaptosome fraction, which escapes from binding to a moderate enhancement of PKA-RI, could result in the increase of PKA activity in the synapse.

Moreover, we performed the GO term analysis of the 399 predicted PKA substrates based on PhosR (Supplementary Data 7), the top enriched pathways were postsynaptic density and specialization, asymmetric synapse, and neuron spine axon (CC), post-synapse organization and exocytosis (BP), and actin binding (MF) (Fig. 3g and Supplementary Fig. 4g). The SynGO³⁵ analysis further showed the enrichment of the predicted PKA substrates in structural constituent of postsynapse, regulation of synapse assembly, SV exocytosis and endocytosis, and modulation of chemical synaptic transmission (Fig. 3h). These evidences corroborate the results from WGCNA showing the accordance of PKA network with synaptic activity (Fig. 2c, d, h).

Loss-of-function in AKAP11 impaired GSK3α/β kinase activity in neurons

The PhosR further predicted a reduction in the kinase activities of GSK3β, PKC isoforms (α, γ, δ, ι, θ), and CaMKIIα alongside PKA, while AKT1 activity exhibits an increase (Fig. 4a).

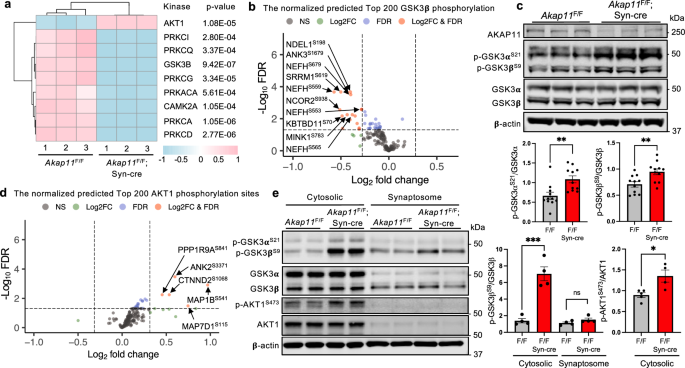

Fig. 4: GSK3α/β kinase activity analysis in Akap11-cKO brain lysates.

a The predicted kinase activity scores for representative kinases. The scores were generated by PhosR based on the phosphorylation levels of predicted substrates. Statistical significance was determined using two-sided t-test. b, d Volcano plot of the top 200 predicted GSK3β (b) / AKT1 (d) phosphorylation sites (normalized by the total protein level) detected by mass-spectrometry in Akap11-cKO mouse brains. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence for each x axis point. Enriched proteins, defined by FDR < 0.05 and |Log2FC | > 2 SD, are colored in red. FDR was calculated with the moderated two-sided t-test in the LIMMA package for multiple comparisons. c Immunoblotting using antibodies against AKAP11, GSK3α/β and p-GSK3α/β (S21/S9) and quantification of the results. Data are presented as mean ± SEM (n = 11 per genotype). Statistical analysis was performed using an unpaired two-tailed t-test (p-GSK3α/GSK3α, p = 0.0036; p-GSK3β/ GSK3β, p = 0.0053). Each experiment was independently repeated three times with similar results. e Immunoblotting using antibodies against p-GSK3α/β (S21/S9), GSK3α/β, p-Akt1^S473, and Akt1 in cytosolic and synaptosome fractions and quantification of the results. Data are presented as mean ± SEM (p-GSK3β: n = 4 per genotype; p-Akt1: n = 5 for Akap11^F/F and n = 4 for Akap11^F/F; Syn-cre). Statistical analysis was performed using an unpaired two-tested t-test (cytosolic p-GSK3β: p = 0.0007; synaptosome p-GSK3β: p = 0.1206; synaptosome p-Akt1: p = 0.0154). Each experiment was independently repeated three times with similar results.

Because GSK3α/β are known AKAP11-binding proteins⁵, we then analyzed GSK3α/β activities using PhosR and examined the specific phosphorylation sites of the kinase as a proxy through immunoblot. From the top 200 predicted GSK3β sites normalized by corresponding protein levels from proteomics results, we identified 17 DAPPSs, which were all downregulated (Fig. 4b), suggesting a decrease in GSK3β activity in Akap11-cKO neurons. Immunoblot with anti-phospho-GSK3α/β antibodies (Ser21 in GSK3α and Ser9 in GSK3β) showed enhanced phosphorylation levels of GSK3α/β in both cytosolic and synaptosome fractions in Akap11-cKO mouse brain (Fig. 4c, e) as well as Akap11-whole body KO mouse brains (Supplementary Fig. 5a). Our findings revealed that both AKAP11 and GSK3α/β were predominantly distributed in the cytosol relative to synaptosome fractions (Figs. 3d, 4e), which aligns with the report that AKAP11directly binds GSK3α/β⁵. These above results demonstrate a reduction of GSK3α/β activities in AKAP11-deficient neurons.

Additionally, we analyzed AKT1 kinase activity based on the normalized predicted top 200 AKT1 substrates. We identified 5 DAPPSs, all of which were upregulated. Among the rest of the predicted substrates, many exhibited a trend of increased phosphorylation levels (Fig. 4d). Immunoblot of the p-AKT1 Ser473 with a specific antibody, which detects phosphorylation of Ser 473 within the carboxyl-terminal hydrophobic motif that is required for Akt/PKB activation⁵⁶, showed an increase in the cytosolic fraction in Akap11-cKO neurons (Fig. 4e). Note that p-AKT1 is nearly undetectable in the synaptosome fraction (Fig. 4e). The results corroborate an increase in AKT1 activity in the cytosol in Akap11-cKO neurons. Given that AKT1 can phosphorylate GSK3α (Ser 21) and GSK3β (Ser 9)⁵⁷, our data are consistent with an idea that the loss of AKAP11 causes AKT1 activation, leading to the elevated phosphorylation of unbound GSK3α/β kinase and their inhibition.

Furthermore, our expanded analysis of the kinase network and substrate module pattern showed that AKAP11-deficiency causes a distortion of PKA, GSK3α/β, and AKT1 activities in neurons (Supplementary Fig. 5b, c). Taken together, our results reveal a fundamental role of AKAP11 in controlling PKA, GSK3a/b, and AKT1 activities in neurons.

AKAP11-interactome analysis identifies new partners in PKA-RI adapting and autophagy function

To further elucidate AKAP11 function, we investigated the interactome of AKAP11 in CNS neurons. To this end, we generated transgenic mice with Cre-dependent expression of AKAP11-eGFP fusion protein. Crossing the transgenic with Synapsin-Cre mice enabled neuron-specific expression of AKAP11-eGFP fusion in the mouse brain (Fig. 5a). Western blotting confirmed the expression of the AKAP11-eGFP fusion protein in the mice with AKAP11-eGFP allele carrying Synapsin-cre (Supplementary Fig. 5d). In addition, AKAP11-eGFP co-localizes with anti-AKAP11 antibody signals in the discrete puncta in neurons (Fig. 5b). Examination of the transgenic showed a wide distribution of the fluorescent AKAP11 fusion in the neurons across the mouse brain. AKAP11-eGFP was expressed strongly in the cortex (particularly in layers 2 and 5/6), hippocampus (CA3 and DG), and the thalamus, and detected in the pons and the cerebellum (e.g., Purkinje neuron) (Fig. 5c).

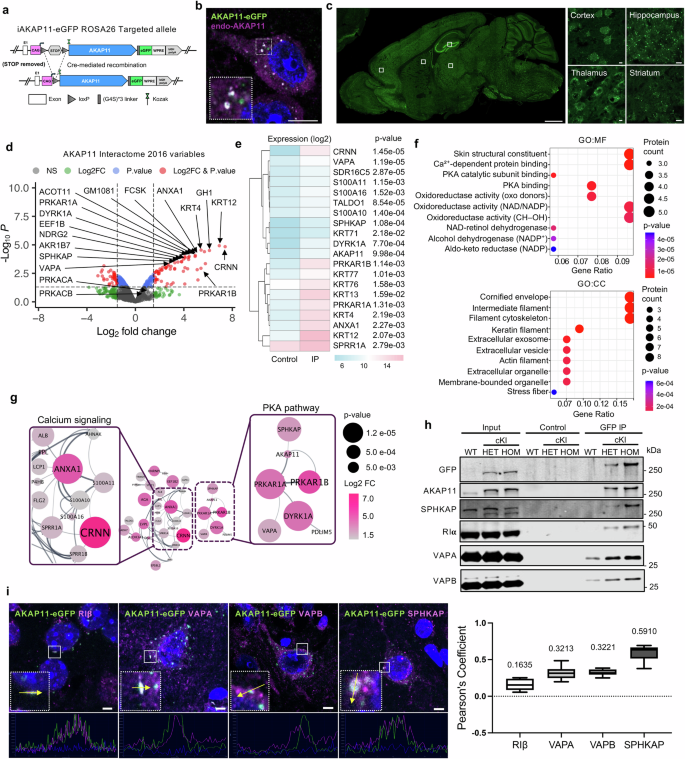

Fig. 5: Characterization of AKAP11 interactome in mouse CNS neurons.

a Schematic illustration of the generation of AKAP11-eGFP; Syn-cre mice producing the fusion protein in CNS neurons. Created with BioRender.com. b IF images of AKAP11-eGFP; Syn-cre brain slices stained with anti-GFP (green), anti- AKAP11 antibodies (magenta), and DAPI. Each experiment was independently repeated three times with similar results. Scale bar, 5 μm. c IF images of sagittal sections from AKAP11-eGFP; Syn-cre mouse brains, showing AKAP11 expression in various brain regions. Inset images provide magnified views of cortex, hippocampus, thalamus, and striatum. Each experiment was independently repeated three times with similar results. Scale bars, 1000 μm (main images); 5μm (inset images). d Volcano plot of the co-Immunoprecipitated (IP) proteins detected by mass-spectrometry in AKAP11-eGFP mouse brain lysates. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence P-value for each x axis point. Enriched proteins, defined by P-value < 0.05 and |Log2FC | > 1.5 SD are colored in red. P-value was calculated with the moderated two-sided t-test in the LIMMA package. e Enrichment levels of the specific proteins in d with log2 transformed DIA intensities across control and AKAP11-eGFP groups. P-value was calculated with the moderated two-sided t-test LIMMA package. f Gene Ontology (GO) annotations of the proteins shown in d displaying the top ten enriched pathways (P-value < 0.05, one-sided hypergeometric test). g PPI network analysis of proteins shown in d. The color gradience represents from low (gray) to high (red) fold enrichment. Dot size represents statistical significance. P-value was calculated with the moderated two-sided t-test LIMMA package. h, IP was performed using Chromotek GFP-trap® particle from heterozygous and homogenous of AKAP11-eGFP transgenic mice and non-transgenic mouse brains and immunoblotting with antibodies against GFP, AKAP11, SPHKAP, RIα, VAPA, and VAPB. Each experiment was independently repeated three times with similar results. i Representative IF images of AKAP11-eGFP mouse brain slices stained with anti-RIβ, anti-VAPA, anti-VAPB, and anti-SPHKAP antibodies in the cortex, showing co-localization of these proteins. Scale bars, 5μm. Co-localization of AKAP11-eGFP with RIβ (n = 11), VAPA (n = 15), VAPB (n = 8), and SPHKAP (n = 9) quantified using Pearson’s correlation coefficient calculated with the JACoP plugin in ImageJ. Box plots show the median (center line), interquartile range (box), and minima and maxima (whiskers). No statistical test was performed. Each experiment was independently repeated three times with similar results.

We then performed anti-GFP affinity purification, visualized by silver staining (Supplementary Fig. 5e), and conducted mass spectrometry analysis of co-purified proteins with AKAP11. The anti-GFP-bead uncovered over 2000 proteins, of which 59 were significantly enriched compared to the control. As anticipated, we observed significant enrichments of PKA RIα/β (FC 4.08/5.41) (Fig. 5d, e and Supplementary Data 8). The GO terms of the significantly enriched proteins highlight protein kinase A binding and calcium-dependent protein binding (MF), intermediate filament cytoskeleton, extracellular exosome and vesicle, and actin filament (CC), cytoskeleton organization and intermediate filament-based process (BP) (Fig. 5f and Supplementary Fig. 5f). The PPI analysis reveals two distinct clusters, including PKA pathway and calcium signaling, with AKAP11, PKA-RIα/β, SPHKAP, VAPA, and DYRK1A forming an interacting network within PKA cluster, and ANXA1 emerging as the central node in the calcium-dependent protein binding cluster (Fig. 5g). The identification of SPHKAP as a AKAP11-binding protein is intriguing, as SPHKAP protein levels were significantly increased in AKAP11-deficient neurons, and it exhibits a strong accordance with PKA subunits within the same protein module (Figs. 1b, 2h). Moreover, VAP proteins are endoplasmic reticulum (ER)-resident proteins that directly interact with multiple autophagy-related (ATG) proteins. The interaction between ATG proteins and VAPA/B is a prerequisite for autophagosome formation^58,59. Furthermore, the interaction between VAPA/B and SPHKAP was recently shown to result in the concentration of PKA-RI complex between stacked ER cisternae associated with ER-PM junctions, which is important for the reciprocal regulation of PKA and Ca2+ signaling and the coupling of excitation and transcription^60,61. Through co-IP experiments, we verified the interactions of AKAP11-eGFP with RIα/β, SPHKAP, and VAPA/B (Fig. 5h) in mouse brains with immunoblot analysis.

To understand the nature of the interactions between AKAP11, SPHKAP, and VAPA/B in neurons, we next examined their subcellular localization using the transgenic mice expressing AKAP11-eGFP (Supplementary Fig. 6a). Immunofluorescence (IF) imaging showed co-localization of AKAP11-eGFP with the endogenous RIα/β, SPHKAP, and VAPA/B in a fraction of discrete puncta in mouse CNS neurons (Fig. 5i and Supplementary Fig. 6b). Note the low score of the Pearson’s coefficient for RIβ, which could reflect the poor specificity of anti-RIβ antibody. Given VAPA/B as ER-residents^62,63 and SPHKAP-VAPA/B complex known for the adaptation of PKA-RI at the ER-PM junction⁶¹, it raises a possibility that both AKAP11 and PKA-RI are recruited to the ER through interacting with SPHKAP and/or VAPA/B. We also observed a partial co-localization of AKAP11-eGFP with autophagy adapters p62/SQSTM1 and LC3B in neurons, in agreement with its role in autophagy adapting (Supplementary Fig. 6b).

Together, the above findings showed the AKAP11 interactome associated with various cellular pathways. Importantly, the results from the analysis of PKA cluster offer additional support to the function of AKAP11 in regulating PKA protein homeostasis and autophagy process likely through interacting with SPHKAP and VAPA/B adapter proteins, which are involved in adapting PKA-RI and autophagosome biogenesis^58,60,61.

Degradation of PKA adapter SPHKAP depends on AKAP11-mediated autophagy

We found that the overall staining intensity of SPHKAP protein was enhanced in the cortex and hippocampus of Akap11-cKO brains, compared to the control. For instance, a substantial accumulation of SPHKAP protein was seen in the CA2, CA3, and DG of the hippocampus in Akap11-cKO brain (Fig. 6a and Supplementary Fig. 6c). High magnification of IF images showed that the SPHKAP puncta were significantly larger and more abundant in the neurons of Akap11-cKO brains than those in control mouse brains (Fig. 6a). Considering the increase of SPHKAP protein levels in Akap11-cKO brain (Fig. 1b), the observation suggests that the loss of AKAP11 disrupts the SPHKAP homeostatic levels in neurons.

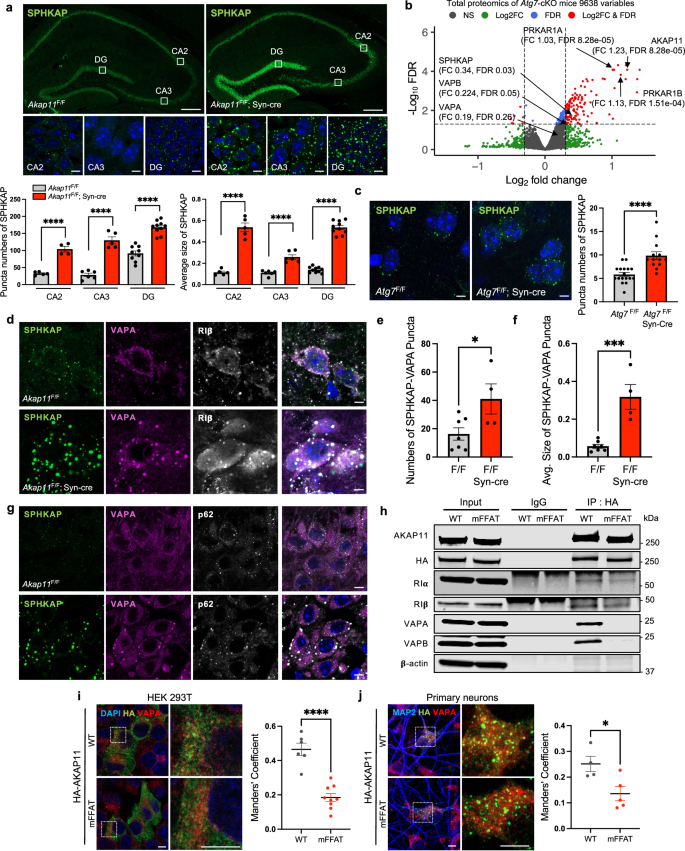

Fig. 6: Characterization of SPHKAP and VAP proteins in neurons from Akap11-cKO and Atg7-cKO mouse brains.

a IF imaging of the hippocampal CA2, CA3, and DG of the brains slices from Akap11^F/F and Akap11^F/F; Syn-cre mice, stained with anti-SPHKAP and DAPI. Inset images provide magnified views of cortex, hippocampus, thalamus, and striatum. Scale bars, 200 μm (main images); 5 μm (inset images). Bar graph as the quantification of SPHKAP puncta numbers and average size in DAPI-positive cells using Analyze Particles in ImageJ. Data are presented as mean ± SEM. For puncta numbers: CA2: n = 5 for Akap11^F/F and n = 4 for Akap11^F/F; Syn-cre; CA3: n = 6 and n = 5; DG: n = 9 and n = 10. For average puncta size: CA2: n = 5 for Akap11^F/F and n = 5 for Akap11^F/F; Syn-cre; CA3: n = 6 and n = 6; DG: n = 10 and n = 10. Statistical significance was performed using an unpaired two-tailed t-test (p < 0.0001). Each experiment was independently repeated three times with similar results. b Volcano plot of the differentially expressed proteins (DEPs) detected by mass-spectrometry in Atg7^F/F and Atg7^F/F; Syn-cre mouse brains. A positive score indicates enrichment, a negative score indicates depletion. The y axis represents statistical confidence FDR for each x axis point. Enriched proteins, defined by FDR < 0.05 and |Log2FC | > 2 SD, are colored in red. FDR was calculated with the moderated two-sided t-test in the LIMMA package for multiple comparisons. c IF imaging of the cortex from Atg7^F/F and Atg7^F/F; Syn-cre mice, stained with anti-SPHKAP and DAPI. Scale bars, 5 μm. Bar graph as the quantification of SPHKAP puncta numbers per DAPI-positive cell using Analyze Particles in ImageJ. Data are presented as mean ± SEM (Atg7^F/F: n = 17; Atg7^F/F; Syn-cre: n = 13). Statistical significance was performed using an unpaired two-tailed t-test (p < 0.0001). Each experiment was independently repeated three times with similar results. d, e, f IF imaging of the cortex from Akap11^F/F and Akap11^F/F; Syn-cre mice, stained with anti-SPHKAP, anti-VAPA, anti-RIβ, and DAPI. Scale bars, 5 μm. Bar graph as the quantification of SPHKAP-VAPA (e) puncta numbers and (f) average size in DAPI-positive cells using Analyze Particles in ImageJ. Data are presented as mean ± SEM. For puncta numbers (e): Akap11^F/F, n = 7; Akap11^F/F; Syn-cre, n = 4 (p = 0.0310). For average size (f): Akap11^F/F, n = 7; Akap11^F/F; Syn-cre, n = 4 (p = 0.0005). Statistical significance was performed using an unpaired two-tailed t-test. Each experiment was independently repeated three times with similar results. g IF imaging of the cortex from Akap11^F/F and Akap11^F/F; Syn-cre mice, stained with anti-SPHKAP, anti-VAPA, anti-p62, and DAPI. Each experiment was independently repeated three times with similar results. Scale bars, 5 μm. h Co-immunoprecipitation was performed using anti-HA antibody from HEK293T cells expressing HA-tagged AKAP11 WT or FFAT motif mutant (mFFAT), followed by immunoblotting with antibodies against HA, AKAP11, RIα, RIβ, VAPA, and VAPB. Each experiment was independently repeated three times with similar results. i HEK293T cells expressing HA-AKAP11 WT or mFFAT were stained with antibodies against HA, VAPA, and DAPI. The bar graph shows quantification of HA–VAPA co-localized signal using Manders’ coefficient. Data are presented as mean ± SEM (WT: n = 6; mFFAT: n = 9). Statistical significance was performed by an unpaired two-tailed t-test (p < 0.0001). Each experiment was independently repeated three times with similar results. Scale bars, 5 μm. j Primary neurons expressing HA-AKAP11 WT or mFFAT were stained with antibodies against HA, VAPA, and MAP2. The bar graph shows quantification of HA–VAPA co-localized signal using Manders’ coefficient. Data are presented as mean ± SEM (WT: n = 4; mFFAT: n = 5). Statistical significance (p = 0.0245) was performed using an unpaired two-tailed t-test. Each experiment was independently repeated three times with similar results. Scale bars, 5 μm.

Given the role of AKAP11 as autophagy receptor in PKA-RI degradation^9,10, we next asked if SPHKAP, like PKA-RI, is selectively degraded through autophagy. Examination of our previous proteomics study of Atg7-cKO brains (deficient in autophagy)¹⁰ showed a significant enrichment of SPHKAP, RIα/β, and AKAP11 protein levels (but not VAP proteins) (Fig. 6b). Furthermore, SPHKAP protein was accumulated in Atg7-cKO neurons with increased number of puncta compared to the control (Fig. 6c). Thus, the evidence from both Akap11-cKO (Fig. 1b) and Atg7-cKO neurons suggests that AKAP11 mediates selective degradation of SPHKAP through autophagy.

To ask if AKAP11 regulates the function of SPHKAP and VAPA/B in adapting PKA-RI at ER, we assessed the subcellular localization of SPHKAP, VAPA/B, and PKA-RI in Akap11-cKO brains. IF staining showed that SPHKAP and VAPA were accumulated and colocalized in the large puncta, with a significant increase in both the SPHKAP-VAPA puncta number and size in the neurons of Akap11-cKO brains, compared to the control. RIβ exhibited extensive co-localization with SPHKAP-VAPA puncta (Fig. 6d–f). The results suggest that the loss of AKAP11 does not disrupt the interactions between SPHKAP, VAP proteins, and RIβ. Instead, lacking AKAP11 resulted in the expansion of the SPHKAP-VAPA-RIβ puncta structures, suggesting an impairment of the clearance. Furthermore, IF staining showed a partial colocalization of p62 signal with the SPHKAP-VAPA puncta, evidenced in the hippocampus from Akap11-cKO brain (Fig. 6g). Similar results of the enhanced co-localization for the three proteins were observed in primary neurons from Akap11-wKO mice (Supplementary Fig. 6d, e). Taken together, these data suggest that AKAP11 is not required for the function of SPHKAP/VAP proteins in adapting PKA-RI to ER; rather AKAP11 mediates the degradation of SPHKAP alongside PKA-RI through selective autophagy.

To evaluate whether AKAP11 regulates VAPA degradation through direct interaction, we generated a mutant AKAP11 lacking a functional FFAT motif, which is known to mediate binding to VAP proteins⁶⁰. Immunoprecipitation (IP) showed that the FFAT-mutant AKAP11 failed to interact with VAPA and VAPB, while wild-type AKAP11 exhibited robust binding in transfected HEK293T cells (Fig. 6h). In addition, co-localization between AKAP11 and VAPA was significantly disrupted by the FFAT mutant, as shown by IF imaging in both HEK 293 T cells and primary neurons (Fig. 6i, j and Supplementary Fig. 6f). These findings suggest that the FFAT motif is required for the AKAP11-VAPA interaction, potentially enabling the recruitment of the AKAP11 to the ER.

Impaired spontaneous neurotransmitter release in AKAP11-deficient neuron

To investigate whether AKAP11-deficiency affects synaptic function, we performed electrophysiological recordings to measure miniature excitatory postsynaptic currents (mEPSCs) in AKAP11-cKO mice under the presence of tetrodotoxin (TTX) and GABAA receptor blocker picrotoxin (PTX). Given the critical role of the PFC in SCZ and BD pathophysiology^{64,65,66,67,68}, we investigated neuronal transmission in layer 5/6 PFC of Akap11-cKO mice (Fig. 7a). Compared to the controls, Akap11-cKO neurons exhibited a significant decrease in mEPSC frequency and amplitude (Fig. 7b, c), indicating impaired excitatory synaptic transmission. To further investigate the underlying mechanisms, we also analyzed mEPSC kinetics and found no significant differences in rise time, decay, or half-width between groups (Supplementary Fig. 7a). However, both peak amplitude and area under the curve were significantly decreased in Akap11-cKO mice (Fig. 7d), suggesting diminished AMPA receptor-mediated synaptic responses.

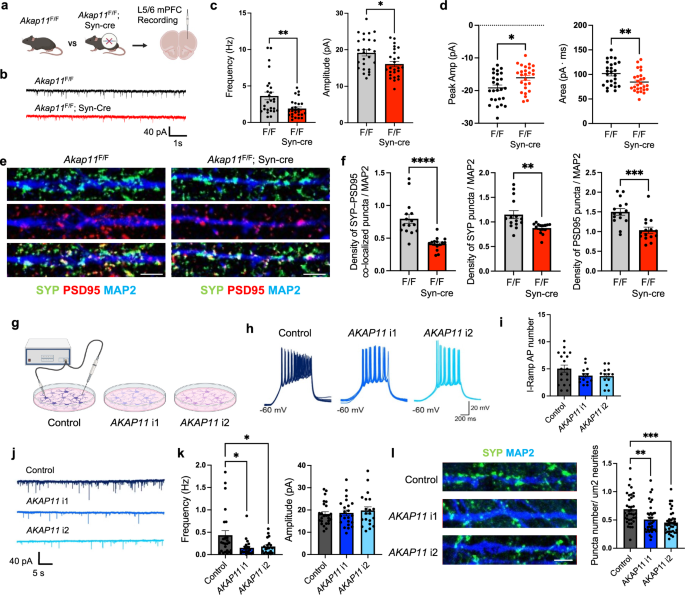

Fig. 7: Electrophysiology analysis of Akap11-cKO mouse neurons and human AKAP11-KD iNeurons.

a Schematic images illustrating the electrophysiology experiments in Akap11^F/F and Akap11^F/F; Syn-cre brain slices. Created in BioRender. Lee, Y. (2025) https://BioRender.com/qjq4ch8. b Representative traces of mEPSC in the PFC of Akap11^F/F and Akap11^F/F; Syn-cre mouse brains. c Quantification of mEPSC frequency (left) and amplitude (right) in the PFC of Akap11^F/F and Akap11^F/F; Syn-cre brain slices. Data are presented as mean ± SEM (Akap11^F/F: n = 26 neurons; Akap11^F/F; Syn-cre: n = 26 neurons; from three independent biological replicates). Statistical significance was performed using an unpaired two-tailed t-test (frequency, p = 0.0047; amplitude, p = 0.0103). Each experiment was independently repeated three times with similar results. d Quantification of mEPSC peak amplitude (left) and total charge transfer (area, right) in the PFC of Akap11^F/F and Akap11^F/F; Syn-cre brain slices. Data are presented as mean ± SEM (Akap11^F/F: n = 26 neurons; Akap11^F/F; Syn-cre: n = 26 neurons; from 3 independent biological replicates). Statistical significance was performed using an unpaired two-tailed t-tests (peak amplitude, p = 0.0103; Area, p = 0.0081). Each experiment was independently repeated three times with similar results. e, f, IF imaging of the primary cortical neurons from Akap11^F/F and Akap11^F/F; Syn-cre mice, stained with anti-Synaptophysin, anti-PSD95, and anti-MAP2. Scale bars, 5μm. The bar graph shows quantification of SYP-PSD co-localized puncta, SYP puncta, and PSD95 puncta number normalized to MAP2. Data are presented as mean ± SEM (Akap11^F/F: n = 15 neurons; Akap11^F/F; Syn-cre: n = 15 neurons; from 3 independent biological replicates). Statistical significance was performed using an unpaired two-tailed t-tests (SYP-PSD95 co-localized puncta, ****p < 0.0001; SYP puncta, **p = 0.0029; PSD95 puncta, ***p = 0.0004). Each experiment was independently repeated three times with similar results. g Schematic illustration of the electrophysiology experiments in human AKAP11-KD iNeurons. Created in BioRender. Lee, Y. (2025) https://BioRender.com/qjq4ch8. h, i Representative traces (h) and quantification (i) of induced action potentials (APs) number induced by a ramp depolarization protocol. Data are shown in mean ± SEM (Control: n = 19 neurons; AKAP11 i1: n = 13 neurons; AKAP11 i2: n = 13 neurons; from three independent biological replicates). Statistical analysis was performed using one-way ANOVA followed by Tukey’s multiple comparisons test, and no significant difference was detected among groups. j, k Representative traces (j) and quantification of mEPSC (k) (with 1uM TTX and 50uM PTX) frequency (left) and amplitude (right) in control and two clones of AKAP11-KD human iNeurons. Data are shown in mean ± SEM (Control: n = 25 neurons; AKAP11 i1: n = 22 neurons; AKAP11 i2: n = 20 neurons; from three independent biological replicates). Statistical significance was evaluated using one-way ANOVA followed by Tukey’s multiple comparisons test. Frequency: p < 0.05 (Control vs AKAP11 i1 and Control vs AKAP11 i2); Amplitude: no significant difference among groups. l IF imaging and quantification of the AKAP11-KD or Control iNeurons, stained with anti-Synaptophysin and anti-MAP2. Scale bars, 2 μm. The bar graph shows quantification of puncta number per MAP2-positive neurite. Data are presented as mean ± SEM (Control: n = 37 neurons; AKAP11 i1: n = 37; AKAP11 i2: n = 38; from three independent biological replicates). Statistical significance was determined using one-way ANOVA followed by Tukey’s multiple comparisons test (Control vs AKAP11 i1, **p = 0.0045; Control vs AKAP11 i2, ***p = 0.0001).

To test whether the reduced mEPSC frequency was due to a loss of synapses, we performed IF staining in primary neurons. We found a significant reduction in the density of synaptophysin (SYP), PSD95, and co-localized SYP-PSD95 puncta in both Akap11-cKO and Akap11-wKO neurons compared to the control (Fig. 7e, f and Supplementary Fig. 7b), indicating a reduction in the number of mature excitatory synapse, which could explain the reduced mEPSC frequency.

Next, we investigated whether AKAP11-KD affects synaptic transmission in human iNeurons. To quantify changes in excitatory synaptic function, we recorded miniature excitatory postsynaptic currents (mEPSCs) under the same conditions as in Akap11-cKO mice. Our analysis revealed a large decrease ( ~ 3 fold) in the frequency of mEPSCs in AKAP11-KD human iNeurons, while the amplitude remained unaffected (Fig. 7g–k). Consistent with this, IF staining revealed a decrease in SYP-labeled signal density in AKAP11-KD iNeurons (Fig. 7l), phenocopying those in Akap11-cKO neurons, indicating disrupted SV protein homeostasis and impaired presynaptic transmission caused by AKAP11 deficiency.

Discussion

Our current study reports a comprehensive analysis of autophagy receptor AKAP11’s cellular pathways and functions by employing multi-omics approaches, cell biology study, and electrophysiology analysis. Our data delineate a landscape of AKAP11-regulated proteome, kinome, transcriptome, and interactome, which reveals a central role of AKAP11 in coupling the type I PKA complex regulation to synaptic transmission in both human neurons and mouse models. Our findings reveal new mechanistic insights into the autophagic role of AKAP11 in neurons through its interaction with PKA-RI adapters SPHKAP and VAPA/B. Given the genetic evidence linking AKAP11-coding variants to the shared risk of BD and SCZ^2,3,65, our studies shed a light on the molecular and cellular mechanisms underlying the psychiatric diseases.

Our study demonstrates a pivotal role of AKAP11 in controlling homeostasis and activity of the type I PKA kinase and GSK3α/β in neurons. Multiple lines of evidence from our data reveal that AKAP11-deficiency leads to a disruption of homeostasis of PKA activity in neurons. Firstly, the proteomics study of AKAP11-KO neurons reveals the increase of regulatory subunits RIα/β and multiple inhibitors of PKA activity, including ADRA2A, PDE4B, PDE3A, and PKIB (Fig. 1b, e and Supplementary Fig. 1b); secondly, phosphoproteomics analysis identifies altered abundancy of predicted PKA phosphorylation sites (Fig. 3c); thirdly, the direct measurement of PKA activity showed a decrease of PKA activity in cytosol but an increase in synaptosome fractions of the brains of Akap11-cKO mice (Fig. 3d, e, f). The compartment-specific changes of the PKA activity in AKAP11-depleted neurons are not surprising, considering the functions of various AKAP in adapting PKA complex and regulating PKA activity in specific cellular compartments⁶⁹. Interestingly, AKAP11 is highly enriched in cytosol and rarely detectable in synaptosomes fraction (Fig. 3d), consistent with the IF images of AKAP11 localization in the soma (Fig. 5b), whereas PKA-RIα/β and PKA-C are abundantly distributed in both cytosol and synaptosomes (Fig. 3d). The above data suggests the action of AKAP11 occurs primarily in the cytosol or soma, while the loss of AKAP11 impairs the selective autophagic degradation of PKA-RIα/β and PKA-C in the cytosol, resulting in an overflow of PKA-RIα/β and PKA-C proteins in multiple compartments including synaptosomes (Fig. 3d). However, the increase of RIβ is much robust in the cytosol (6.41-fold) than in synaptosome (1.47-fold); in contrast, the PKA-C shows a stronger accumulation in the synaptosome (3.09-fold) than in the cytosolic (1.52-fold) (Fig. 3d, e). The observation explains the differential changes of PKA activity in the cytosol vs. synaptosomes.

Moreover, our data from phosphoproteome and experimental validation demonstrated a role for AKAP11 in regulating GSK3α/β kinase activity, which is also implicated in psychiatric disease^70,71,72. AKAP11 directly binds GSK3α/β⁵; given GSK3α/β as substrates of AKT1^5,57,73, the loss of AKAP11 may expose GSK3α/β protein and render the increase of phosphorylation of GSK3α/β by the elevated AKT1 activity (Fig. 4b, e). Therefore, it remains possible that the binding of AKAP11 prevents GSK3α/β from the inhibitory phosphorylation by AKT1, maintaining the active form of GSK3α/β. Interestingly, PKA was also shown to phosphorylate GSK3α/β at the same sites as by AKT1^6,57,74. While the identification of the exact kinase responsible for GSK3α/β phosphorylation awaits future investigation, our data reveals an insight for AKAP11 in regulating GSK3α/β kinase activity through their direct binding. Further, our study suggests that AKAP11 level affects kinase activities beyond PKA and GSK3α/β. But the predicted, extensive interactions among PKA, GSK3α/β, and those detected kinases (Fig. 4a and Supplementary Fig. 5b,c) raises a question that the changes of other kinase activities in AKAP11-deficient neurons could be a consequence of altered PKA and GSK3α/β activities.

Our study shows an important finding that AKAP11 couples the regulation of PKA signaling networks to synaptic transmission. The notion is supported by the evidence that a network module (WGCNA) shows a strong accordance of PKA-RI complex proteins with synaptic proteins, which are co-regulated by AKAP11(Fig. 2b, c, d, h). In Akap11-cKO neurons, the 399 phospho-proteins that are altered and predicted as PKA substrates display a significant enrichment in synaptic proteins (Fig. 3g, h), and the transcriptomics analysis reveals an enrichment of downregulated synapse-related genes (Supplementary Fig. 2b, c). Furthermore, the depletion of AKAP11 proteins leads to impaired spontaneous synaptic transmission in both human and mouse neurons (Fig. 7c, d, k), demonstrating that an intact AKAP11 is critical for maintaining proper synaptic function through controlling type I PKA kinase and GSK3α/β activities. While these findings support a role for AKAP11 in regulating synaptic function via PKA, the mechanistic link between dysregulated PKA activity and synaptic impairment remains to be clarified. Additionally, the altered activities of other kinases, such as GSK3α/β and AKT1 observed in AKAP11-deficient neurons may also contribute to synaptic dysfunction, providing a valuable direction for future investigation.

Through AKAP11-interactome analysis, we uncovered the interactions between AKAP11 and SPHKAP as well as VAP proteins in neurons. SPHKAP interacts with RIα/β and plays a role in adapting type I PKA to ER-PM junction through binding VAP proteins, which are ER-resident proteins^62,75,76 and important for autophagosome biogenesis^58,59,77. The interaction and colocalization of AKAP11 with VAP proteins therefore suggest the recruitment of AKAP11 to ER through VAP, which is involved in autophagosome biogenesis^59,62,77. Our study shows that AKAP11 is not required for the function of SPHKAP/VAP proteins in adapting PKA-RI to ER, but instead mediates SPHKAP degradation through autophagy, coinciding with the autophagic degradation of RIα/β (Fig. 6a, d, e, f). Together, our study provides an insight into AKAP11-mediated degradation of PKA-RI complex through autophagy and supports a model where AKAP11-SPHKAP interaction co-adapt PKA-RI complex to ER for degradation, while AKAP11-VAP interaction facilitates autophagosome biogenesis by recruiting ATG proteins to ER^58,59. Thus, the AKAP11-SPHKAP-VAP complex offers an assembly platform to adapt type I PKA complex and recruit autophagy machinery at ER or ER-PM junction, leading to the selective degradation of PKA-RI complex. Such a coordinated action enables a precision control of PKA network homeostasis and compartmental activity coupled with calcium signaling, which dictates the synaptic transmission in neurons (Fig. 8a)^60,61.

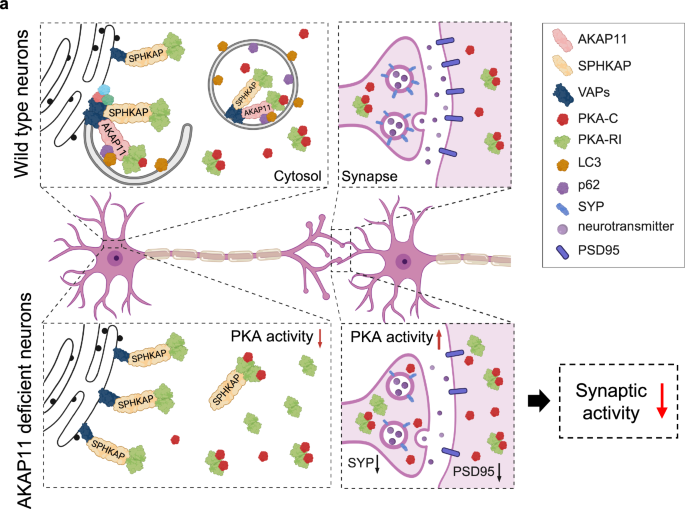

Fig. 8: Graphical summary of AKAP11-regulated PKA signaling and synaptic function.

a In WT neurons, AKAP11 interacts with SPHKAP and VAPs at the ER to facilitate autophagic degradation of the PKA-RI complex, thereby maintaining compartment-specific PKA activity and normal expression of synaptic markers such as SYP and PSD95. In AKAP11-deficient neurons, impaired degradation leads to accumulation of PKA-RI and PKA-C, resulting in reduced cytosolic and increased synaptic PKA activity. This dysregulation is associated with decreased synaptic marker levels and impaired synaptic activity, highlighting AKAP11’s role in compartment-specific PKA regulation and synaptic function. Created in BioRender. Li, X. (2026) https://BioRender.com/wxwy6to.

Although both mouse and human iNeuron models showed reduced mEPSC frequency following AKAP11 loss, only the mouse model exhibited a decrease in amplitude. This suggests that AKAP11-deficiency impairs presynaptic function or synapse number in human iNeurons, rather than postsynaptic strength. The differences may reflect species- or model-specific factors, such as neuronal maturity, synaptic structure, or compensatory mechanisms. While our current study focuses on excitatory neurons, the potential contribution of inhibitory neurons to AKAP11-related phenotype remains an important and open question. Future studies will be necessary to investigate whether AKAP11 loss also impacts inhibitory synaptic function.

Finally, the DisGeNET annotation of the proteomics and phosphoproteomics data from Akap11-cKO neurons demonstrates an enrichment of psychiatric diseases, including SCZ (top ranked), BD, and other mental disorders (Figs. 1i, 3b). Given the link of PTVs of AKAP11 to the significant risk of SCZ and BD, the current characterization of the loss-of-function in autophagy receptor AKAP11 thus sheds light on a shared molecular mechanism underlying both SCZ and BD.

Methods

Animal models

All animal experiments were approved by the Institutional Animal Care and Use Committee (IACUC) of the Icahn School of Medicine at Mount Sinai and conducted in accordance with relevant ethical guidelines. Mice were housed in social cages under a 12-hour light/dark cycle with ad libitum access to food and water, and their food and water intake were monitored daily.

Akap11 whole-body knockout (wKO) mice (B6.Cg-Akap11<tm1.3Jsco/J > , strain #028921, discontinued) were obtained from The Jackson Laboratory. These mice were generated with Floxed exons 6 and 7 in Akap11 allele. However, the mice suffered germline deletion of exons 6 and 7 without crossing Cre mice for an unknown reason. Thus, the mutant mice were used as constitutive KO.

Akap11 conditional knockout (cKO) mice were generated with exon 6 flanked by loxP sites. The original mice were first generated using FLP recombinase (C57BL/6N-A^tm1BrdAKAP11^{tm1a(EUCOMM)Hmgu}/J-Mmucd, Stock number 046552-UCD, MMRRC) to remove the lacZ and Neo cassette, producing floxed (Akap11^flox/flox) mice. These floxed mice were then crossed with Synapsin-Cre mice to generate Akap11-cKO mice, which were used to investigate the neuron-specific functions of Akap11.

Akap11-eGFP knock-in mice were generated by fusing Akap11 with eGFP and inserting it into the ROSA26 locus of B6.129S4-Gt(ROSA)26^{Sortm2(FLP*)Sor}/J (strain #012930, Jackson lab) mice using a CRISPR/Cas9-based knock-in (KI) strategy, resulting in the targeted allele. These mice were then crossed with Synapsin-Cre mice to generate AKAP11-eGFP expressing mice for pan-neuronal expression. The strategy is based on the transcript NM_016248.4 and the design for the Cre reporter strains follows Srinivas et al. (2001) (BMC Dev Biol, 1:4). These mice were used to study the expression and localization of Akap11 in neurons.

Primary neuronal culture

Mouse cortices from E16-18 embryos of pregnant females were dissected, and tissues were dissociated by incubating in 0.25% trypsin for 30 min at 37 °C. The dissociated cells were plated on poly-L-lysine-coated coverslips in cell plates with growth medium composed of B27, Gluta-max, penicillin-streptomycin, and Neurobasal. After 18 days in vitro (DIV18), the cultures were fixed and prepared for immunostaining.

Cell culture

All human PSCs were maintained on Geltrex-coated plates in feeder-free Stemflex medium and incubated at 37 °C with 5% CO₂. Cells were passaged using 0.5 mM EDTA/PBS in Stemflex supplemented with 50 nM Chroman1 for one day. Research performed on samples of human origin was conducted according to protocols approved by the Institutional Review Boards of Icahn School of Medicine at Mount Sinai. The i3N PSC line (from the WTC11 iPSC parental cell line, male) was kindly provided by Dr. Martin Kampmann’s lab⁷⁸.

Mouse glial cultures were prepared from cortical hemispheres of postnatal day 3 pups. Briefly, cortices from three pups were incubated in 5 mL of HBSS containing 20 U/mL papain, 0.5 mM EDTA, and 1 mM CaCl₂ for 15 min. Following enzymatic digestion, tissues were dissociated mechanically by vigorous trituration and passed through a 70 μm cell strainer. The resulting cell suspension was cultured in MEF medium at 37 °C in a humidified atmosphere with 5% CO₂.

sgRNA design and cloning of knock-down or KO AKAP11 human PSCs

The small guide RNAs (sgRNAs) for AKAP11 were designed using the Broad Institute CRISpick web-based tool (https://portals.broadinstitute.org/gppx/crispick/public). Then cloned into the Lenti-U6-dcas9-krab-Puro (Addgene #71236) plasmid through the Golden Gate DNA Assembly kit (NEB, E1602S) and confirmed by Sanger sequencing. WT human i3N PSC was transduced with lentiviruses overexpressing sgRNA-dcas9-krab-puro and puromycin (1 μg/ml) for at least 3 days to select the infected cells and confirmed by Western blotting. sgRNAs cloning were used the following oligo pairs (IDT):

NTC sgRNA, Forward oligo: 5’-CACCGTATTACTGATATTGGTGGG3’,

reverse oligo: 5’-AAACCCCACCAATATCAGTAATAC-3’,

AKAP11-KD sgRNA#1, Forward oligo: 5’- CACCGTCGGCGCCCGGCTCACCTGG −3’, reverse oligo: 5’- AAACCCAGGTGAGCCGGGCGCCGAC −3’,

AKAP11-KD sgRNA#2, Forward oligo: 5’- CACCGTCGGCGCCCGGCTCACCTG −3’,

reverse oligo: 5’- AAACCAGGTGAGCCGGGCGCCGAC −3’.

Similar strategy was used to generate AKAP11-KO cell lines (WTC11 cell line) using CRISPR/Cas9 KO strategy. Piggy-bac Teto and ngn2-puro genes were introduced into WT, AKAP11-KO clone #1 and #2 using transfection and screening.

AKAP11-KO sgRNA#1, Forward oligo: 5’- CACCGGTATGAGATCTCACGTGAT −3’,

reverse oligo: 5’- AAACATCACGTGAGATCTCATACC −3’,

AKAP11-KO sgRNA#2, Forward oligo: 5’- CACCGAGACGGTTACTGGTCATCAT −3’, reverse oligo: 5’- AAACATGATGACCAGTAACCGTCTC −3’.

Differentiation of iNeuron from human PSCs

Human PSCs were maintained and differentiated into glutamatergic neurons using the Ngn2 overexpression system. PSCs were dissociated and plated in N2 medium supplemented with 50 nM Chroman1, followed by transduction with FUW-TetO-Ngn2-P2A-puromycin and FUW-rtTA lentiviruses. Doxycycline was added to induce Ngn2 expression, and puromycin selection was applied to enrich transduced cells. Neurons were plated with mouse glial cells on Geltrex-coated plates and maintained in Neurobasal A medium with supplements, as previously described¹⁰. Mature neurons were used for experiments 5 weeks after co-culture initiation.

Immunocytochemistry

Cells were fixed in 4% paraformaldehyde (PFA) in PBS for 20 min at room temperature and then washed three times with PBS. Permeabilization was performed with 0.3% Triton X-100 for 15 min and blocked with blocking solution (PBS containing 5% goat serum) for 1 h at room temperature. Primary antibodies, Rabbit anti-AKAP11 (LS-Bio, LS-C374339), Rabbit anti-MAP2 (Abcam, ab5392), Sheep anti-RIβ (R&D, AF4177), Mouse anti-SPHKAP⁶⁰, Guinea pig anti-Synaptophysin (Synaptic Systems, 101004), Guinea pig anti-p62 (PROGEN, GP62-C), diluted in blocking solution (PBS containing 5% goat serum and 0.2% Triton X-100), were incubated overnight at 4 °C. After washing three times with PBS, secondary antibodies, diluted in PBS, were incubated for 2 h at room temperature. Images were captured using an LSM 900 confocal microscope, with 10X, 20X, 40X, 63X objectives and the images were processed using ImageJ.

Immunohistochemistry

Mouse brains (2–5 months old) were perfused with 4% PFA, fixed overnight, and then transferred to 30% sucrose for 2 days at 4 °C. After sucrose removal, the brains were embedded in OCT compounds for cryosectioning and incubated at −80 °C. The blocks were transferred to the cryostat 30 minutes before sectioning for equilibration. The blocks were cut into 30 µm thick sections at −20 °C. The sections were placed in the 24-well plate with PBS to remove the OCT compound for 1 h at room temperature. Permeabilization was performed with 0.3% Triton X-100 for 30 min and blocked with blocking solution (PBS containing 0.3% Triton X-100 and 10% goat serum) for 1 h at room temperature. Primary antibodies, Rabbit anti-AKAP11 (LS-Bio, LS-C374339), Rabbit anti-RIα (Cell signaling, 5675S), Sheep anti-RIβ (R&D, AF4177), Mouse anti-SPHKAP⁶⁰, Guinea pig anti-Synaptophysin (Synaptic Systems, 101004), Rabbit anti-VAPA (Proteintech, 15275-1-AP), Rabbit anti-VAPB (Proteintech, 14477-1-AP), Guinea pig anti-p62 (PROGEN, GP62-C), diluted in blocking solution (PBS containing 5% goat serum and 0.2% Triton X-100), were incubated overnight at 4 °C. After washing three times with PBS, secondary antibodies diluted in PBS containing 0.03% Triton X-100, were incubated for 2 hours at room temperature. Images were captured using an LSM 900 confocal microscope, with 10X, 20X, 40X, and 63X objectives using Z-stack and tile scan tools and analyzed with ImageJ.

RNA extraction and Bulk RNA-seq DE analysis

Mouse brains, excluding the olfactory bulb and cerebellum, were transferred into RNase-free RINO tubes (Next Advance, Cat# PILR1-RNA) containing 1 mL of RLT buffer from RNeasy Mini Kit (Qiagen). The tissues were homogenized using a Bullet Blender (Next Advance). After a brief centrifugation, the homogenates were diluted with additional RLT buffer. Total RNA was isolated by adding 70% ethanol to the homogenates and following the manufacturer’s protocol (RNeasy Mini Kit, Qiagen, Cat# 74016). All the RNA libraries were made and sequenced in Experimental Department of Novogene, USA, Sacramento, CA. Sequencing adapters were removed using Trimmomatic⁷⁹, and the resulting reads were aligned to the GRCm39 primary assembly using HISAT2⁸⁰. Gene counts for all samples were aggregated into a count matrix, which was subsequently used as input for DESeq2⁸¹ for statistical analysis. Principal component analysis (PCA) of the normalized, variance-stabilized count matrix revealed no outliers. Log2 fold changes (FC) and differential expression analysis were estimated using the DESeq function. A false discovery rate (FDR) threshold of 0.05 was applied to identify significantly differentially expressed genes.

Western blot analysis of mouse brain lysate

After perfusion with PBS, whole brains were collected from mice, and the olfactory bulb and cerebellum were removed. The remaining brain tissue was homogenized using a Dounce homogenizer in lysis buffer containing 50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 1% Triton X-100, and proteinase/phosphatase inhibitor. The homogenate was incubated on ice for 30 minutes and centrifuged at 1200 × g for 10 min at 4 °C. The supernatant was transferred to a new tube and centrifuged again at 15,000 × g for 20 min at 4 °C. The final supernatant was collected on ice, and protein concentrations were measured by the Pierce BCA Protein Assay Kit following the manufacturer’s protocol.

Equal amounts of total proteins were loaded on 4–12% Bis-Tris gel for SDS-PAGE and transferred to a 0.45 µm PVDF membrane. Membranes were blocked in LI-COR Blocking Buffer (LI-COR, 927-60001) for 1 hour at room temperature. Primary antibodies, Rabbit anti-AKAP11 (LS-Bio, LS-C374339), Rabbit anti-RIα (Cell signaling, 5675S), Sheep anti-RIβ (R&D, AF4177), Mouse anti-RIIα (BD, 612242), Rabbit anti-PKACα (Cell signaling, 4782S), Rabbit anti-p-PKACα^T197 (Cell signaling, 5661S), Mouse anti-β-actin (Cell signaling, 3700S), Rabbit anti-ADRA2A (Proteintech, 14266-1-AP), Rabbit anti-SPHKAP (Thermo, PA5-27581), Rabbit anti-Synaptophysin (Thermo, MA5-14532), Rabbit anti-GSK3α/β (Cell signaling, 5676S), Rabbit anti-p-GSK3α/β (S21/S9) (Cell signaling, 9331S), Rabbit anti-p-GluA1^S845 (Cell signaling, 8084), Rabbit anti-GluA1 (Cell signaling, 13185), Rabbit anti-Akt1 (Cell signaling, 4691S), Rabbit anti-p-Akt1^S473 (Cell signaling, 4060S), Chicken anti-GFP (Invitrogen, A10262), Rabbit anti-VAPA (Proteintech, 15275-1-AP), Rabbit anti-VAPB (Proteintech, 14477-1-AP), Guinea pig anti-p62 (PROGEN, GP62-C), Rabbit anti-LC3A/B (Cell signaling, 12742S), were diluted in blocking buffer with 0.2% Tween-20 and incubated overnight at 4 °C. Secondary antibodies were diluted in blocking buffer with 0.2% Tween-20 and 0.01% SDS, followed by a 1 h incubation at room temperature. Membranes were imaged using LI-COR imaging system and processed with ImageJ software.

Immunoprecipitation

Brain tissue, excluding the olfactory bulb and cerebellum, was homogenized in sucrose buffer containing 250 mM sucrose, 20 mM Tris-HCl (pH 7.5), 0.5 mM MgCl2, 0.5 mM CaCl2, and protease/phosphatase inhibitors using a Dounce homogenizer. The homogenate was centrifuged at 1000 × g for 10 min at 4 °C. The supernatant was transferred to a prechilled tube and an equal volume of 2X RIPA buffer (40 mM Tris-HCl, pH 7.5, 300 mM NaCl, 2% NP-40, 1% sodium deoxycholate, and protease/phosphatase inhibitors) was added. The mixture was incubated at 4 °C for 1 h with rotation and then centrifuged at 15,000 × g for 20 min at 4 °C. The supernatant was collected, and an aliquot was reserved as input.

For GFP-IP, 1 mg of protein lysate was incubated overnight at 4 °C with GFP-trap® magnetic particles (Chromotek, Cat# gtdk) under rotation. Beads were washed with RIPA buffer and bound proteins were eluted using 50 µL of 1X SDS buffer by heat shock at 70 °C for 10 min, repeated twice. The eluted proteins were subjected to SDS-PAGE. Subsequent steps followed the Western blot protocol described above.

For HA-IP, 500 µg of protein lysates were incubated overnight at 4 °C with anti-HA antibody (Santa Cruz, sc-7392) and anti-IgG antibody (Santa Cruz, sc-2025) under rotation. The next day, the lysates were incubated with Dynabeads^TM Protein G (Thermo, 10003D) for 2 h at 4 °C. After washing the beads with RIPA buffer, bound proteins were eluted with 30 µL of 2X SDS sample buffer by heating at 95 °C for 5 min. The eluted proteins were analyzed by SDS-PAGE followed by Western blotting as described above.

Purification of synaptic fractions

Synaptic fractions were isolated following a previously established protocol⁸². Briefly, mice brains were mechanically homogenized on ice using glass homogenizer (20 slow strokes) in a homogenization buffer containing 5 mM HEPES (pH 7.4), 1 mM MaCl₂, 0.5 mM CaCl₂, and protease and phosphatase inhibitors. The homogenate was first centrifuged at 1400 g for 10 min at 4 °C, and the resulting supernatant was further centrifuged at 13,800 g for 10 min at 4 °C to obtain the pellet. The resulting supernatant was collected as the cytosolic fraction. The pellet was resuspended in 0.32 M sucrose, 6 mM Tris-HCl (pH 7.5) and carefully layered onto a discontinuous sucrose gradient (0.85 M, 1 M, and 1.2 M sucrose, all in 6 mM Tris-HCl, pH 7.5). Ultracentrifugation was performed at 82,500 g for 2 h at 4 °C, and the synaptic fraction, located at the interface between the 1 M and 1.2 M sucrose layers, was collected. To extract synaptic proteins, the collected synapse was mixed with an equal volume of 1% Triton X-100 (in 6 mM Tris-HCl, pH 7.5), incubated on ice for 15 min, and centrifuged at 32,800 g for 20 min at 4 °C. The final pellet, representing the synaptic fraction, was resuspended in lysis buffer for downstream analysis.

Measurement of PKA activity

To measure PKA activity, perfusion with PBS was performed prior to tissue collection. Brain lysates from Akap11-cKO mice (excluding the olfactory bulb and cerebellum) and cortex/hippocampus lysates from Akap11-wKO mice were analyzed using the PKA activity kit (EIAPKA, Invitrogen) according to the manufacturer’s instructions.

Briefly, PKA standards or diluted samples, along with reconstituted ATP, were added to a PKA substrate-coated 96-well plate. The plate was incubated at 30 °C for 90 min while shaking. After incubation, a Donkey anti-Rabbit IgG HRP-conjugated antibody was added, followed by the phospho-PKA substrate antibody, as per the protocol. The plate was incubated at room temperature while shaking for 60 min. TMB substrate was then added, and the reaction proceeded for 30 min at room temperature. Finally, stop solution was added, and the absorbance at 450 nm was measured using a microplate reader.

Protein extraction and digestion for mouse brain and iNeurons

Proteins in the tissues of mouse brains or human PSC cells were extracted into the lysis buffer by bead beating in a Bullet Blender at a speed of 6 for 30 s with an interval of 10 s at 4 °C for six cycles. The lysis buffer contained 8 M urea, 0.5% sodium deoxycholate, phosphatase inhibitor cocktails (Roche) and 50 mM HEPES pH 8.5. The proteins were digested with LysC (200:1 protein: enzyme ratio by weight, Wako) in the presence of 10 mM DTT and 5% acetonitrile for 3 h, followed by a 4-fold dilution with 50 mM HEPES buffer pH 8.5 and overnight trypsin digestion (50:1 protein: enzyme ratio by weight, Promega) at room temperature. The peptides were desalted on C18 SPE column and dried under vacuum.

Phosphopeptides enrichment of Akap11-cKO mouse brain samples

The phosphopeptide enrichment was carried out on TiO2 beads as previously described⁸³. Briefly, ~ 300 µg peptides were dissolved in 30 μL of binding buffer (65% acetonitrile, 2% TFA, and 1 mM KH2PO4). TiO2 beads ( ~ 1 mg) were washed twice with washing buffer (65% acetonitrile, 0.1% TFA), mixed with the peptide solution, and incubated with end-over-end rotation at room temperature for 20 min. The phosphopeptide-bound beads were collected by brief centrifugation, washed twice with 200 μL washing buffer, and transferred to a C18 StageTip (Thermo Fisher Scientific). The phosphopeptides were eluted from StageTip with elution buffer (15 μL, 15% NH⁴OH, 40% acetonitrile). The eluents were dried under vacuum and stored at −80 °C before MS analysis.

Liquid chromatography-tandem mass spectrometry (LC-MS/MS) analysis

For MS analysis, the dried peptides were dissolved in 5% formic acid and separated on a reverse phase column (50 µm × 15 cm, 1.7 µm C18 resin from CoAnn Technology) interfaced with a timsTOP SCP MS (Bruker Daltonics) using nano-Elute 2 liquid chromatography system. Peptides were eluted at 55 °C by 5 − 27% buffer B gradient in 45 min (buffer A, 0.1% formic acid in water; buffer B, 0.1% formic acid in acetonitrile, flow rate of 0.25 μL/min). The peptides were ionized by a CaptiveSpray nanoelectrospray ion source, introduced into the MS and analyzed by a DIA-PASEF approach. The mass range was set as 100 − 1700 m/z and the ion mobility range was 0.70−1.30 1/K0.

DIA-based protein and phosphopeptides identification and quantification

To detect and quantify peptides and proteins, the raw data were searched by Spectronaut (version 18) against a mouse database that contains 55,260 entries or a human database with 81,791 entries. Fixed and variable modifications included carbamidomethyl, methionine oxidation and N-termini acetylation. Additional phosphorylation at serine/threonine/tyrosine (S/T/Y) was enabled as variable modification for phosphoproteomic analysis. Both peptide and protein FDRs were controlled under 1%. Differentially expressed proteins/peptides were determined using both FDR and log2 FC calculated by the limma⁸⁴ R package. The significance of differential expression was evaluated based upon statistical criteria, with FDR < 0.05 and Log2(FC) > 2 SD, or P-value < 0.05 and Log2(FC) > 2 SD/1.5 SD, followed by FDR estimation through permutation (FDR < 0.05). The SD of proteins was estimated by fitting to a Gaussian distribution to evaluate the magnitude of experimental variations.

TMT-based protein identification and quantification

The TMT-based proteomics analysis was performed as described before⁸⁵. Briefly, the digested peptides were resuspended in 50 mM HEPES (pH 8.5) for TMTpro labeling, then were equally mixed and fractionated by offline basic pH reverse phase LC. Each of these fractions was analyzed by the acidic pH reverse phase LC-MS/MS on Q Exactive HF Orbitrap mass spectrometer. For mass spectrometer settings, positive mode and data-dependent acquisition were applied with one full MS scan followed by 20 MS/MS scans. MS1 scans were collected at a resolution of 60,000, 1 × 10⁶ AGC and 50 ms maximal ion time; MS2 spectra were acquired at a resolution of 60,000, fixed first mass of 120 m/z, 410–1600 m/z, 1 × 10⁵ AGC, 110 ms maximal ion time, and ~15 s of dynamic exclusion. The TMT dataset was processed by the JUMP software suite. The raw files were searched against a mouse database with 59,423 entries downloaded from Swiss-Prot, TrEMBL, and UCSC databases. Main search parameters were set at precursor and product ion mass tolerance ( ± 15 ppm), full trypticity, maximal modification sites (n = 3), maximal missed cleavage (n = 2), static mass shift including carbamidomethyl modification ( + 57.02146 on Cys), TMT tags ( + 304.20714 on Lys and N-termini), and dynamic mass shift for oxidation ( + 15.99491 on Met). Peptide-spectrum matches (PSM) were filtered by mass accuracy, clustered by precursor ion charge, and the cutoffs of JUMP-based matching scores (J-score and ΔJn) to reduce FDR below 1% for proteins.

Weighted Gene Correlation Network Analysis (WGCNA)

The analysis was carried out with the WGCNA³⁹ R package. For the Akap11-cKO mouse brain proteomic data, we used the blockwiseModules function to generate the network, with the settings soft-threshold power = 16, minimum module size = 30, network type = “signed”, TOMType = “signed”, randomSeed = 1234, pamRespectsDendro = FALSE, maxBlockSize = 20,000, and merge cut height = 0.25. The partitioning around medoids-like (PAM-like) stages of module detection was disabled to ensure that module assignments adhered strictly to the hierarchical clustering dendrogram (pamRespectsDendro = FALSE). The soft-threshold power of 16 was chosen based on the fitted signed scale-free topology model (R2) approaching an asymptote of 0.85 at that threshold. Furthermore, the mean connectivity at that power was less than 100. The maximum block size was set at 20,000 to complete all clustering within a single block. To get a more robust result, combined our Akap11-cKO mouse brain proteomic dataset with our previous work¹⁰. While for the AKAP11-KO iNeuron proteomic data, the settings were: soft-threshold power = 18, minimum module size = 80, network type = “signed”, TOMType = “signed”, randomSeed = 1234, pamRespectsDendro = FALSE, maxBlockSize = 20,000. We also combined our AKAP11-KO iNeuron proteomic data with our previous work¹⁰.

Protein-protein interaction (PPI) network analysis

The protein-protein interaction network analysis was performed using the STRING⁴¹ plugin in CytoScape⁸⁶, with the fold changes and FDR/P-values obtained from the differentially expressed proteins analysis. Briefly, for the Akap11-cKO mouse brain proteomic data in ME15, we analyzed the PPI network among these proteins using STRING. Subsequently, we adjusted the node colors and sizes based on the fold changes and FDR obtained from differentially expressed protein analysis presented in Fig. 1b. We performed a similar analysis with the enriched proteins from the AKAP11 interactome data.

Pathway enrichment analysis

GO term and GSEA were performed with the R Bioconductor package clusterProfiler²³. Briefly, we first transfer the proteins symbols to Entrez IDs based on Bioconductor annotation data package (org.Hs.eg.db/org.Mm.eg.db) and used the clusterProfiler::enrichGO or clusterProfiler::gseGO with the pvalueCutoff = 0.05, qvalueCutoff = 0.05 to do pathway enrichment analysis. For human disease enrichment analysis, we utilized the ToppGene Suite⁸⁷ in conjunction with the DisGeNET³⁸ database to do enrichment analysis and generate the dot plot utilizing the ggplot2⁸⁸ package. All the volcano plots were generated by EnhancedVolcano⁸⁹ R package.

Phosphoproteomic data analysis

The analysis of phosphoproteomic data was generally followed as outlined in the paper introducing PhosR⁵¹, which employs a multi-step framework comprising two major components: the first component is the kinaseSubstrateScore function, which evaluates a given phosphosite by integrating kinase recognition motifs and phosphoproteomic dynamics, and the second component is the kinaseSubstratePred function, which combines the scores from the first component for predicting kinase-substrate relationships using an adaptive sampling-based positive-unlabeled learning method⁹⁰. Briefly, we first did the PCA analysis and deleted the outlier one sample in each group (3 Control vs. 3 Akap11_cKO) and modified the format of our phosphoproteomic data to conform to the input requirements for PhosR^51,53. The general analysis workflow comprises the following steps: log transformation, imputation, differentially abundant phosphoprotein site analysis, identifying stably phosphorylated sites, normalization and batch correction of datasets, predicting kinase substrates, and constructing signaling networks (signalomes).

Slice electrophysiology

Electrophysiological recordings from acute prefrontal slices were performed essentially as described previously⁹¹. Briefly, slices were prepared from Akap11-cKO mice aged 2–3 months. Coronal brain slices (300 μm thickness) were cut in a high-sucrose cutting solution containing (in mM): 85 NaCl, 75 sucrose, 2.5 KCl, 1.3 NaH₂PO₄, 24 NaHCO₃, 0.5 CaCl₂, 4 MgCl₂, and 25 D-glucose. Slices were equilibrated in artificial cerebrospinal fluid (ACSF) at 31 °C for 30 min, followed by an additional hour at room temperature. Slices were then transferred to a recording chamber containing ACSF with the following composition (in mM): 120 NaCl, 2.5 KCl, 1 NaH₂PO₄, 26.2 NaHCO₃, 2.5 CaCl₂, 1.3 MgSO₄·7H₂O, and 11 D-glucose ( ~ 290 mOsm), supplemented with 50 μM picrotoxin and 0.5 μM TTX. Miniature excitatory postsynaptic currents (mEPSCs) from Layer 5–6 cells in the medial prefrontal cortex (mPFC) were recorded in whole-cell voltage-clamp mode (holding potential = −70 mV) using an internal solution with the following composition (in mM): 117 Cs-methanesulfonate, 15 CsCl, 8 NaCl, 10 TEA-Cl, 0.2 EGTA, 4 Na₂-ATP, 0.3 Na₂-GTP, and 10 HEPES, pH 7.3 adjusted with CsOH ( ~ 300 mOsm). All recordings were acquired using Clampex 10 data acquisition software (Molecular Devices) and a Multiclamp 700B amplifier (Molecular Devices). Miniature events were manually identified using a 5 pA threshold in the Clampfit software.

Patch clamp electrophysiology in human iN cells

Whole-cell patch-clamp electrophysiology for iNeurons cells was performed as described⁹². To examine intrinsic membrane properties and record action potentials, K-gluconate internal solution (in mM): 126 K-gluconate, 4 KCl, 10 HEPES, 0.05 EGTA, 4 ATP-magnesium, 0.3 GTP-sodium, and 10 phosphocreatine was used. Miniature postsynaptic currents were recorded at a holding potential of −70 mV in the presence of 1 μM tetrodotoxin (TTX) and 50 μM Picrotoxin (PTX). The Cs-based internal solution used for this purpose contained the following components (in mM): 40 CsCl, 3.5 KCl, 10 HEPES, 0.05 EGTA, 90 K-gluconate, 1.8 NaCl, 1.7 MgCl₂, 2 ATP-magnesium, 0.4 GTP-sodium, and 10 phosphocreatine.

The external solution used during recordings consisted of (in mM): 140 NaCl, 5 KCl, 10 HEPES, 2 CaCl₂, 2 MgCl₂, and 10 Glucose, with a pH of 7.4. All recordings of cell culture experiments were performed at room temperature.

To ensure data quality, any cells exhibiting a change in series resistance (Rs) exceeding 20% during the recording were excluded from the analysis. Additionally, recordings with an access resistance greater than 25  MΩ were also excluded. The electrophysiological data were collected using pClamp 10.5 software (Molecular Devices) and the MultiClamp 700B amplifier (Molecular Devices). The detection of miniature excitatory postsynaptic currents (mEPSCs) was performed using the template search algorithm in Clampfit 10.5 software (Molecular Devices).

Quantification and statistical analysis

Unless otherwise specified, all data are presented as the means of at least three biological replicates, each derived from a minimum of three independent experiments. Statistical significance between two groups was evaluated using an unpaired, two-tailed Student’s t-test. For comparisons involving multiple means, statistical significance was assessed using one-way analysis of variance (ANOVA) followed by Dunnett’s multiple comparisons test, conducted in GraphPad Prism (version 10.2.3; GraphPad Software, CA, USA). Data are reported as mean ± SEM, with specific details regarding statistical tests provided in the respective figure legends. Error bars represent the standard deviation of all replicates. Graphs and plots were generated using GraphPad Prism (version 10.2.3) or RStudio (version 2024.09.1).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
