Introduction

The growing demand for portable bio-healthcare diagnostic devices is driven by the need for high energy efficiency, compact chip design, and efficient computation tailored to the diagnosis of various diseases. This increasing interest is further fueled by an aging population and the rising need for real-time diagnostic capabilities that are not constrained by time or location. Electrochemical biosensor systems, among the most prominent portable diagnostic devices, have been actively researched using various semiconductor devices and nanomaterials to detect serious diseases, such as influenza, diabetes, cancer, cardiovascular conditions, and digestive disorders1,2,3,4,5. The biosensor systems generally consist of analytes, transducers, signal processing modules (SPs) like readout integrated circuits (ICs) and digital signal processing (DSP), and displays. These systems operate by converting the biochemical signals from the analytes into electrical signals through transducers, which are then either processed by the SPs within the devices or transmitted wirelessly via Bluetooth to a computer for processing by software programs6,7. The processed signals are compared to unique reference values for each disease, allowing the system to determine whether the disease is present or to assess the level of risk, which is then communicated via the display.

Many electrochemical biosensors operate based on a threshold-sensing (TS) method, which determines the presence of a disease when the concentration or amount of a biomarker in the analyte exceeds a predetermined, disease-specific threshold8,9,10. For example, COVID-19 has key biomarker thresholds, such as lactate dehydrogenase < 365 U/L, lymphocytes > 14.7%, and high-sensitivity C-reactive protein < 41.2 mg/L8. The diagnostic efficiency of acute myocardial infarction is improved when the troponin T concentration is higher than 1 ng/mL9,10. Efficient implementation of the TS function in biosensor systems is of critical importance. Typically, TS is performed in the SP module or an external computer; however, this approach inevitably increases power (or energy) consumption and system complexity due to the reliance on power-hungry ICs, such as analog-to-digital converters, comparators, digital signal processors (DSPs), and computer. If the TS function can be embedded directly into the transducer itself rather than in the SP or computer, a more scalable and efficient biosensor system can be achieved. To date, there have been no reports on bio-to-electrical transducers with the TS function.

A memristor device with a simple structure of metal-insulator-metal (MIM) is a next-generation memory device with non-volatility and variable resistance characteristics, using a mechanism of production and rupture for conductive filaments due to the intrinsic redox reaction11. Owing to the dense cell size of 4F2 and low set/reset voltage of less than 1 V of the memristors, they have been used as cells in cross-bar arrays of neuromorphic systems and have reduced power consumption and improved energy efficiency of the system12,13. For a neuromorphic system to reach levels comparable to the human brain, which consumes 20 W of power, the memristor devices must ultimately be able to consume less than 10 fJ per synaptic operation and more research is underway to reduce operating current, voltage and latency while having the compatibility with CMOS process, which is essential to be co-integrated with peripheral circuits in the systems14,15,16. Meanwhile, the non-volatility and variable resistance characteristics of the memristor allow it to be used as a bio-to-electrical transducer in the electrochemical biosensor system17,18,19. Ref. 17 exposed an analyte solution to an insulator region of an ITO/TiO2/Al MIM memristor and showed a change in the device’s on/off resistance ratio in response to variations in the concentration of the biomarker, nonstructural protein 1 (NS1 protein). When the well diameter in the insulator region exceeded 1.5 mm, a fairly linear relationship between NS1 protein concentration and the on/off resistance ratio characteristics was observed. Ref. 18 exposed a PSA analyte to the Pt metal region of a Pt/Al2O3/TiO2/Pt memristor, where the resistance value of the device itself changed in response to the concentration of the biomarker, although the relationship was not linear. These previous results were iterative implementations for the conventional bio-to-electrical transducers without any TS functionality and revealed the limitations to the reusability of biosensors by directly exposing the memristors built with expensive semiconductor processes to the analyte solutions17,18,19. Furthermore, prior studies have often assumed the availability of precise pulse generation, a requirement that may pose challenges for low-cost home-diagnostic devices employing crystal-less microcontroller units20. Also, the stochastic nature of resistive random-access memory (RRAM) can lead to inaccurate readings and compromised diagnostic results in actual deployments21.

To address the above-mentioned constraints, we propose a memristor-based bio-to-electrical transducer with integrated TS functionality, designed to ensure reusability for electrochemical biosensor applications. Here, RRAM-based TaOX/Ta2O5 memristor devices were fabricated using a stable 8-inch Si CMOS process line. By controlling an oxygen reservoir layer of TaOX, a memristor species were tailored to meet the proposed transducer requirements, including high on/off ratio and stable operation under long pulse widths. By applying the developed memristor, a complete electrochemical biosensor system was implemented by integrating a sensor electrode, an SP module, and a display with the proposed transducer. The intended TS function of the proposed transducer was experimentally demonstrated by confirming that the resistance of the memristor (RM) changed from high resistance state (HRS) to low resistance state (LRS) at a specific value of pH solution (named threshold pH point), and thereby the output voltage changed immediately from low to high values. The threshold pH point (TP) of the system can be tuned to any desired pH level by adjusting the integrated reference voltage (VREF), demonstrating that the system is capable of not only diagnosing diseases but also providing prognostic insights. Using this approach, a simplified biosensor system was developed by replacing bulky components with compact ICs. Therefore, the proposed memristor-based electrochemical transducer technology represents a promising candidate for highly portable point-of-care diagnostic devices.

Results

Proposed memristor-based electrochemical biosensor transducer

Figure 1a shows a circuit diagram of the proposed bio-to-electrical transducer with TS functionality. The transducer consists of a sensor electrode, two FETs, a memristor with a resistance of RM, and an output resistor with a resistance of RO. A gate terminal of an upper FET is extended and connected to the sensor electrode. An analyte solution is dropped onto the extended gate region (i.e., the sensor electrode), not on the memristor, so that the reusability issue of the previous memristor-based transducers is addressed17,18,19. The lower FET provides a variable resistor with a resistance of RT by controlling a gate voltage (VGS). While previous studies have used memristors with multi-bit characteristics17,18,19, this work utilizes a single-bit memristor with only two resistances: high resistance state (RHRS) and low resistance state (RLRS), as shown in Fig. 1b, which enables the transducer to exhibit TS functionality. The single-bit memristor is characterized by the change of RM from RHRS (or RLRS) to RLRS (or RHRS) through the SET (or RESET) process by applying a set voltage (VSET) (or reset voltage (VRST)), while a forming process with a forming voltage (VFORM) is required to initially form conductive filaments of the memristor22,23,24.

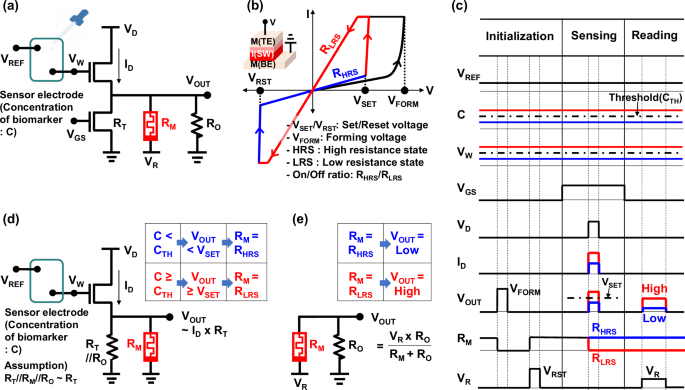

Fig. 1: Circuit diagram and timing diagram of the proposed memristor-based bio-to-electrical transducer with threshold-sensing functionality.
Fig. 1: Circuit diagram and timing diagram of the proposed memristor-based bio-to-electrical transducer with threshold-sensing functionality.
Full size image

a A circuit diagram of the transducer, consisting of a sensor electrode, two field effect transistors (FETs), a memristor with a resistance of RM, and an output resistor with a resistance of RO. A gate terminal of an upper FET is extended to the sensor electrode and exposed to an analyte solution. A lower FET provides a variable resistor with a resistance of RT. b An operation of a memristor with a single-bit property. A set voltage (VSET) (or reset voltage (VRST)) is defined as the voltage applied for the set process (or reset process), changing from the high resistance state (HRS) (or low resistance state (LRS)) to LRS (or HRS). A forming voltage (VFORM) refers to the voltage applied during the forming process that initially forms conductive filaments in the memristor. An on/off ratio is defined as the ratio between the resistance of HRS (RHRS) and the resistance of LRS (RLRS). c A timing diagram of the proposed memristor-based transducer, consisting of initialization, sensing, and reading stages. At the initialization stage, the forming and reset processes of the memristor are performed so that the RM value becomes RHRS. At the same time, an analyte solution with a biomarker concentration of C drops to the sensor electrode, and a reference voltage (VREF) is applied. As C increases, the surface potential of the extended gate (VW) increases compared to VREF. At the sensing stage, a gate voltage of the lower FET (VGS) and a drain voltage (VD) are applied. The upper FET converts from the C to a drain current (ID). An output voltage (VOUT) is formed as the product of ID and an equivalent resistance of RT, RM, and RO. When VOUT exceeds VSET, RM is converted from RHRS to RLRS. At the reading stage, VGS and VD are grounded to turn off the two FETs, and a reading voltage (VR) is applied. Consequently, VOUT exhibits either a high or low level, corresponding to RLRS or RHRS. d An equivalent circuit of the transducer at the sensing stage. e An equivalent circuit of the transducer at the reading stage.

The key operation of the proposed transducer with TS functionality is set up with its timing diagram in Fig. 1c, which consists of three stages: initialization, sensing, and reading. In the initialization stage, RM is set to RHRS by the forming and reset processes of the memristor. When an analyte solution with a biomarker concentration of C is introduced and a reference voltage (VREF) is applied, the surface potential of the gate electrode (VW) changes due to an intrinsic chemical reaction. At the sensing stage, VGS and VD are applied. The change in VW modulate the drain current (ID) according to the current–voltage characteristics of the upper FET. The output voltage (VOUT) is formed as the product of ID and the equivalent value (REQ) of the bottom three bottom resistors with RT, RM, and RO. Because RT is designed to be considerably lower than RM and RO, VOUT is approximately given by ID × RT, and is almost independent of changes in RM, as seen in Fig. 1d. When VOUT exceeds VSET of the memristor, RM abruptly changes from RHRS to RLRS if C exceeds the threshold concentration (CTH) (Fig. 1c, d). Here, the turn-on time of VD determines the sensing duration and is made as short as possible to minimize stress on the memristor. In the reading stage, VGS and VD are grounded to turn off the two FETs, and a reading voltage (VR) is applied. After turning off the two FETs, a voltage divider circuit is formed by RM, RO, and VR, as shown in Fig. 1e. Based on an inherent equation of VOUT = VR × RM/(RM + RO), VOUT exhibits a threshold function of high or low output levels corresponding to RLRS and RHRS, respectively. Although there is a time interval between the sensing and reading stages, the unique memory function of the memristor allows the RM value obtained in the sensing stage to be effectively utilized in the reading stage without any loss of resistance values.

It is paramount to develop a memristor customized for the transducer with TS functionality. The transducer’s TS function is successfully conducted when the high VOUT is at least 0.1 V higher than the low VOUT. Since we aimed to implement a proof-of-concept transducer prototype that integrates a fabricated memristor through wire bonding and does not include ESD protection techniques, the performance degradation caused by wire bonding and the absence of ESD protection should be considered when defining the memristor specifications22. Accordingly, under the condition that VR and RO were 0.3 V and 560 Ω, respectively, the on/off ratio (i.e., the ratio of RHRS and RLRS) of the memristor that satisfies the VOUT difference of 0.1 V was targeted as 30. In developing the transducer, real-time monitoring of the TS performance is crucial, necessitating the display of values on the VOUT node in real-time. To achieve this, a commercial ADC with a sampling rate of 200 kilo samples per second (kS/s) was interfaced between the VOUT node and the display. Consequently, voltage pulses with a minimum duration of 10 μs, corresponding to the sampling rate, were applied to the VOUT node, which required a reliable memristor capable of withstanding such extended pulse durations. Moreover, for the envisioned mass production of a self-diagnostic device, although monitoring VOUT is not required for data extraction, generating precise short-duration High pulses (<10 μs) in a cost-effective, crystal-less manner remains a challenge. Thus, our study presents a high-performance memristor device specifically engineered to achieve an on/off ratio surpassing 30, even when subjected to pulse durations exceeding 10 μs. This optimization renders the device well-suited for deployment in bio-to-electrical transducers, ensuring reliable performance in real-world applications.

CMOS process-compatible TaOX/Ta2O5 memristors for the biosensor transducers

A switching layer (SW) stack of TaOX/Ta2O5 has been largely utilized as memristors23,25,26,27, because of their stable switching operation by means of low Gibbs-energy-based redox reactions28 and excellent CMOS process compatibility23,25,26,27. TaOX/Ta2O5 memristors were fabricated on 8-inch Si wafers, with an SW stack having a reactive sputtered 40 nm-thick TaOX layer as an oxygen reservoir and a 4 nm-thick atomic layer deposition (ALD)-deposited Ta2O5 layer. The top (TE) and bottom (BE) electrodes of the two species were made of TiN metal with a thickness of more than 100 nm, and their device fabrication is detailed in the “Methods” section. The O2/Ar gas mixture ratio of the 40 nm-thick TaOX layer was varied with 9 (S1), 6 (S2), and 3% (S3), which corresponds to the O2/Ar gas amounts with 3/30.3 sccm (S1) to 2/31.3 sccm (S2), and 1/32.3 sccm (S3), respectively. As determined from measured electrical results shown in Fig. 2a–c, the S1, S2, and S3 species exhibited average RLRS values of 141, 151, and 158 Ω; average RHRS values of 1231, 2276, and 3401 Ω; and corresponding average on/off ratios of 8.8, 15.1, and 21.6, respectively. As the O2/Ar gas mixture ratio in the TaOX layer decreased from 9 to 3%, the RLRS slightly increased, and the RHRS significantly increased, resulting in an increase in the on/off ratio from 8.8 to 21.6. This increase in on/off ratio is attributed to the decrease in the size of the filament, as seen in the proposed current switching mechanism (Table 1). From EDS scan results of fully fabricated memristors (Supplementary Fig. S1), TaOX layers of S1 and S3 exhibited O/Ta ratios of 1.04 and 0.39, respectively, while the corresponding Ta2O5 layers showed 2 and 0.71, which indicate that the TaOX/Ta2O5 SW stack of S3 was more oxygen-deficient than that of S1. As the oxygen-deficient characteristic becomes stronger (i.e., Ta becomes richer), the electrical resistance of the SW stack itself decreases, which lowers the breakdown voltage for filament formation and results in thinner filaments28. The reduction in forming voltage (VFORM_mean) and current (IFORM_mean) of S3 compared to ones of S1 (Supplementary Fig. S2) is a piece of evidence supporting the generation of the thinner filaments. The thin filaments undergo stronger filament rupture than the thick filaments29, assuming that the same number of oxygen anions contribute to filament rupture, as shown in the filament rupture (Reset) column in Table 1. The stronger filament rupture means higher RHRS, leading to a higher on/off ratio. As all fabricated memristors exhibited Schottky emission characteristics in voltage ranges from 0.15 to 0.55 V in the HRS, as described by measured logarithmic I–V curves for the conduction mechanism in Supplementary Fig. S3, it can be inferred that the filament rupture initiates near the TaOX/Ta2O5 interface, where a Schottky barrier exists between the two layers.

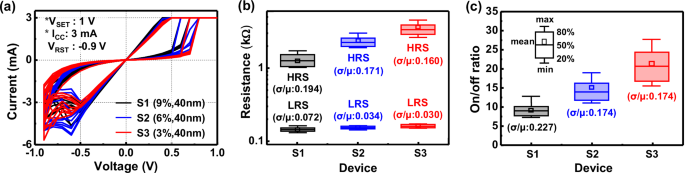

Fig. 2: Measured electrical characteristics of CMOS process-compatible TaOX/Ta2O5 memristors with different O2/Ar gas mixture ratios in TaOX.
Fig. 2: Measured electrical characteristics of CMOS process-compatible TaOX/Ta2O5 memristors with different O2/Ar gas mixture ratios in TaOX.
Full size image

a–c Measured I–V curves, LRS/HRS resistances, and on/off ratios of the memristors based on 40 nm-thick TaOX layers with O2/Ar gas mixture ratios of 9 (S1), 6 (S2), and 3% (S3). The thickness of Ta2O5 layers in S1–S3 species is 4 nm. For each species, ten devices were randomly selected on an 8-inch wafer. LRS/HRS resistances were measured at a read voltage of 0.3 V.

Table 1 Conceptual switching mechanisms of CMOS process-compatible TaOX/Ta₂O₅ memristors with different O₂/Ar gas mixture ratios in TaOX
Full size table

The TaOX thickness was reduced from 40 to 20 nm while maintaining the thickness of Ta2O5 at 4 nm. The O2/Ar gas mixture ratio of TaOX was varied at 9 (S4), 6 (S5), and 3% (S6). Measured RLRS/RHRS values for S4, S5, and S6 were 160/3133, 185/6525, and 224/3364 Ω on average, and their on/off ratio values were 19.7, 35.2, and 15.6 on average, respectively (Supplementary Fig. 3a–c). The on/off ratio values (19.7 and 35.2) obtained at O2/Ar gas mixture ratios of 9 and 6% were more than twice those (8.8 and 15.1) of 40 nm-thick TaOX-based samples. This on/off ratio increase is also attributed to the decrease in filament size, as shown in the proposed current switching mechanism in Table 2. The electrical resistance of 20 nm-thick TaOX layers was smaller compared to the 40 nm-thick species due to their less thickness. For example, in the case of TaOX layers with an O2/Ar gas mixture ratio of 6%, 20 nm-thick and 40 nm-thick TaOX layers showed average resistances of 19 and 36 mΩ (see Supplementary Fig. S4a), respectively, while achieving the same x mole fraction value of TaOX of 0.54 (see Supplementary Fig. S4b, c). The reduced resistance results in a smaller soft breakdown voltage in TaOX during forming or set operation, leading to thinner filaments, stronger filament ruptures, and higher on/off ratios28,29. The IFORM_mean reduction (from 2.2 to 1.6 mA) and RLRS increase (from 151 to 185 Ω) of S5 species compared to ones of S2 species (Supplementary Fig. 3d) provide evidence for the formation of thinner filaments.

Table 2 Conceptual switching mechanisms of CMOS process-compatible TaOX/Ta₂O₅ memristors with different TaOX thicknesses
Full size table

As a result, by optimizing the oxygen reservoir layer thickness of TaOX and the O2/Ar gas mixture ratio, the high on/off ratio of 35.2 with slight current reduction (i.e., RLRS/RHRS increase to 224/3364 Ω) of CMOS process-compatible TaOX/Ta2O5 memristors was achieved for S5 species. While previous reports achieved current reduction in CMOS-incompatible memristors by adjusting only the O2/Ar ratio28,30 or only the oxygen reservoir thickness31,32, our study is, to the best of our knowledge, the first to demonstrate both an enhanced on/off ratio and a reduced current in CMOS-compatible memristors by simultaneously tuning the O2/Ar ratio and the oxygen reservoir thickness. Meanwhile, the significant reduction in the on/off ratio value of S6 compared to S5 (from 35.2 to 15.6) was due to a dramatic decrease in RHRS value from 6525 to 3364 Ω with a slight increase in RLRS value from 185 to 224 Ω (Fig. 3b, c). In this study, TaOX/Ta2O5 memristors based on 10 nm-thick and 5 nm-thick TaOX layers with various O2/Ar gas mixture ratios of 3–9% were also fabricated, which showed worse on/off ratio values of 6.4–12.8 and 1–2, respectively, stemming from RHRS degradation. Therefore, it is strongly believed that the on/off ratio reduction of S6 compared to S5 is due to the insufficient oxygen content in TaOX to function as an oxygen reservoir.

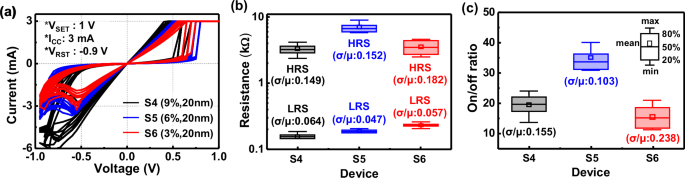

Fig. 3: Measured electrical characteristics of CMOS process-compatible TaOX/Ta2O5 memristors with different TaOX thicknesses.
Fig. 3: Measured electrical characteristics of CMOS process-compatible TaOX/Ta2O5 memristors with different TaOX thicknesses.
Full size image

a–c Measured I–V curves, LRS/HRS resistances, and on/off ratios of the memristors based on 20 nm-thick TaOX layers with O2/Ar gas mixture ratios of 9 (S4), 6 (S5), and 3% (S6). The thickness of Ta2O5 layers in S4–S6 species is the same as 4 nm. Ten devices per species were randomly selected on an 8-inch wafer. LRS/HRS resistances were measured at a read voltage of 0.3 V.

Pulse measurements were performed for the S5 species, which showed the highest on/off ratio value (Fig. 4a). On a long-pulse program/erase (P/E) cycling measurement with a unit pulse time (TPULSE) of 50 μs, an on/off ratio value remained above 30 until the number of pulses reached 5000 (Fig. 4b), which satisfied the device requirements for the proposed biosensor transducer (i.e., the on/off ratio and pulse duration of more than 30 and 10 μs, respectively). For reference, a short-pulse P/E cycling measurement with a TPULSE of 2 μs was conducted to check the usability of neuromorphic application, exhibiting a measured on/off ratio value of more than 35 up to several pulses of 30000 (Fig. 4c), which was a good value among the previously reported same CMOS process-compatible memristor stacks of TiN/TaOX/Ta2O5/TiN that did not use noble metals, such as Pt, Au as electrodes23,25,26. Meanwhile, another representative CMOS-compatible memristor stack, TiN/Ti/HfO2/TiN22,33,34, labeled S7, was also fabricated (Fig. 4d) and its long-pulse P/E cycling measurement was performed. It should be noted that the S7 was SET stuck after several pulses of more than 4000 (Fig. 4e), which is attributed to the worse TDDB characteristics of HfO2 compared to Ta2O5. For example, a TDDB value of the HfO2 layer at an electric field (E-field) of 5 × 108 V/m was measured to be about 33 times shorter than that of the Ta2O5 layer at the same E-field (Fig. 4f).

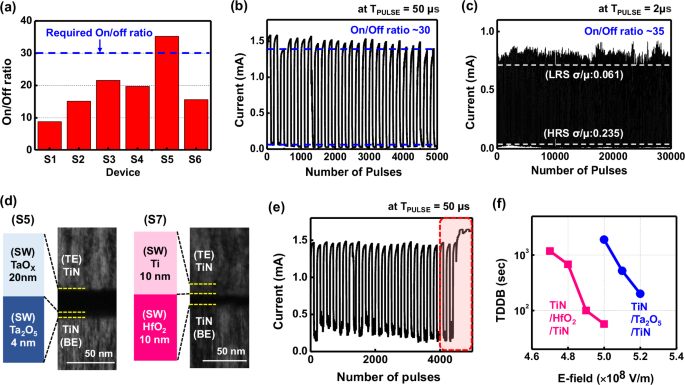

Fig. 4: Pulse measurement results of the CMOS process-compatible memristors.
Fig. 4: Pulse measurement results of the CMOS process-compatible memristors.
Full size image

a On/off ratio performance of fabricated all CMOS process-compatible TaOX/Ta2O5 memristors, indicating that the on/off ratio of S5 species reaches its target value required for the biosensor b Measured long-pulse program/erase(P/E) cyclings of the TaOX/Ta2O5 memristor (S5) based on a 20 nm-thick TaOX layer with an O2/Ar gas mixture ratio of 6% under a condition of a unit pulse time (TPULSE) of 50 μs, exhibiting an on/off ratio over 30 until the pulse numbers reaches 4000. One hundred consecutive SET pulses (1 V for 50 μs) followed by 100 consecutive RESET pulses (−1.5 V for 50 μs) are applied to the S5 memristor, and the current value is read by read pulses (0.3 V for 10 μs). c Measured short-pulse P/E cyclings of the TaOX/Ta2O5 memristor (S5) under a condition of TPULSE of 2 μs, showing an on/off ratio of more than 35 until the number of pulses of 30000. One hundred consecutive SET pulses (1 V for 2 μs) followed by 100 consecutive RESET pulses (−1.5 V for 2 μs) for a P/E cycling are applied to the S5 memristor, and the current value was read by read pulses (0.3 V for 10 μs). d Measured TEM images of two types of fabricated memristors with different switching layer stacks of TaOX/Ta2O5 and Ti/HfO2. In addition to the TaOX/Ta2O5 memristors of S1–S6, Ti/HfO2 memristors of S7 are also fabricated. The Ti/HfO2 consists of dc sputtered 10 nm-thick Ti and ALD-deposited 10 nm-thick HfO2. e Measured long-pulse LTP-LTD curves of the S7 memristor with a TPULSE of 50 μs. The specific pulse conditions are the same as those for S5 in Fig. 4d. f Measured time-dependent dielectric breakdown (TDDB) characteristics of TiN/HfO2/TiN and TiN/Ta2O5/TiN devices.

Implementation of the memristor-based electrochemical biosensor transducer and its operation verification in a pH sensor

The memristor-based transducer (Fig. 1a) was practically implemented, as illustrated by the dotted red line in Fig. 5a. Three switches, S/W1, S/W2, and S/W3, were introduced to enable different circuit wiring in the three operational stages: initialization, sensing, and reading. After dropping the analyte solution on the sensor electrode, it took at least 0.5 to 1 min for the electrochemical reaction to stabilize. Repeated accumulation of this reaction time caused deterioration of the device due to voltage and current stresses on the memristors. Therefore, S/W1 was introduced to ensure that these stresses were applied to the memristors only during the sensing stage, which lasts for only a few milliseconds. A parallel two-memristor cell, in which two memristors are connected in parallel, was inserted into the transducer. The variation factor (σ/μ) of resistance of the S5 devices reached approximately 20%, as shown in Figs. 3b;4c and Supplementary Fig. S5. The parallel memristor cell, previously adopted in memory and logic applications35, was employed to minimize the influence of resistance variation of the transducer, thereby reducing the variation of VOUTR, which means a more stable transducer operation (see Supplementary Fig. S6). An electrochemical biosensor system shown in Fig. 5a was designed by integrating a SP block, such as a 12-bit ADC, an MCU, and an organic light-emitting diode (OLED) display with the proposed transducer. ADC monitored the change in VOUT, which was processed by the MCU and displayed on the OLED. The MCU not only determined the RM value by processing the VOUT but also controlled the transducer. The timing diagram and detailed operation of the biosensor are depicted and explained in Fig. 5b, respectively.

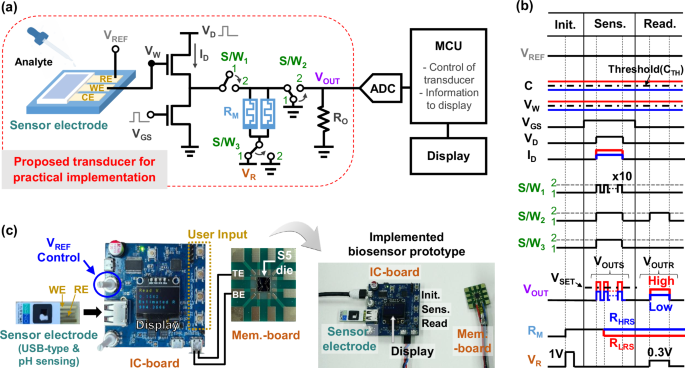

Fig. 5: Block, timing diagrams, and implementation of a proposed electrochemical biosensor system.
Fig. 5: Block, timing diagrams, and implementation of a proposed electrochemical biosensor system.
Full size image

a A block diagram of the system, consisting of the proposed memristor-based transducer for practical implementation, a signal processing (SP) block, such as an ADC, an MCU, and a display. b A timing diagram of the biosensor, comprising initialization (init.), sensing (sens.), and reading (read.) stages. In the initialization stage, the switches of S/W1, S/W2, and S/W3 are connected in positions 1, 1, and 1, respectively. 1 V was applied to VR for 40 ms, initializing the memristors to a high resistance state (HRS). During the sensing stage, S/W1, S/W2, and S/W3 were connected in positions 2, 2, and 2, respectively. More precisely, S/W1 was switched to position 2 only during ten consecutive pulses with a unit pulse time (TPULSE) of 20 μs to minimize voltage stress on the memristors. 1.2 V was applied to VD, along with the necessary voltages to VREF and VGS. If the voltage (VOUT) across the memristors exceeded the threshold level of about 0.7 V (VSET), the memristor shifts to a low resistance state (LRS); otherwise, it remained in HRS. In the reading stage, S/W1, S/W2, and S/W3 were connected in positions 1, 2, and 1, respectively. 0.3 V was applied to VR for 80 μs. A voltage drop occurred across the memristors, and the potential at VOUT was sensed through the ADC and processed via the MCU to determine the memristor resistance of RM. c Images of an implemented prototype of the biosensor system, comprising a sensor electrode, an IC-board, a mem.-board, and an organic light-emitting diode (OLED) display.

A prototype of the fully-integrated biosensor system was implemented, consisting of a sensor electrode, an IC-board, a mem.-board, and an OLED display (Fig. 5c). The sensor electrode was fabricated in a disposable USB form and consisted of a reference electrode and a working electrode, on which patterned Ti/Al metals were formed to function as a potentiometric pH sensor. The mem.-board consisted of a fabricated 5 × 5 mm2 single die with S5 memristors (named as S5 die), which was mounted on a printed circuit board (PCB). The IC-board consisted of the proposed transducer excluding the sensor electrode and memristors, the SP block, and various components, such as operational amplifiers, LDO regulators, capacitors, resistors, switches, and buttons. Several USB ports were provided for interconnection with the sensor electrode, power supply, and UART communication. Two potentiometers were included for controlling VREF. All operations were user-controlled via buttons. When the three user buttons of init., sens., and read. were pressed, the display provided information about the device’s RM and the IC’s VOUT values. The implementation of the biosensor system is described in detail in the “Methods” section.

The functionality of the transducer itself was evaluated by applying an external voltage to the VW node, i.e., instead of connecting the sensor electrode to the transducer. With VW and VGS each fixed to 2 V, the VOUT in the sensing stage (VOUTS) was measured by applying a pulse train to position 2 of S/W1, which consisted of ten consecutive pulses with a TPULSE of 20 μs, exhibiting that the VOUTS slightly decreased from 0.69 to 0.62 V up to the eighth pulse (Fig. 6a). This decrease in VOUTS indicated successful resistance (RMP) transition from HRS to LRS of the parallel memristor cells. The VOUTS was given by ID × REQ, where REQ is RT//RMP//RO, as shown in Fig. 6b. Although RT was designed to be small, less than 20 Ω, REQ decreased by 10 to 20% with the change in RMP from HRS to LRS, resulting in a slight decrease in VOUTS. As VW was swept from 1.4 to 2.2 V, the changes in VOUTS and RMP were observed (Fig. 6c). VOUTS transitioned linearly at VW values from 1.4 to 2 V, following the transfer curve characteristic of the upper FET designed to operate in the linear region (Fig. 6b). When VW changed from 2.0 to 2.1 V, RMP decreased abruptly from an RHRS of about 700 Ω to an RLRS of ~80 Ω, along with a decrease in VOUTS from 0.75 to 0.62 V. When VW changed from 2.1 to 2.2 V, RMP maintained the RLRS. This abrupt RMP transition, with a clear transition point at VW of 2.1 V, was an experimental result that demonstrated the TS function of the implemented transducer. Although the memristors exhibited device-to-device resistance variation, the resistance parallelization scheme, by employing variation-tolerant REQ instead of directly using RMP, effectively suppressed this variation and enabled a stable VOUTS response with a clearly defined resistance switching characteristic of the parallel memristor cell (see Supplementary Figs. S5 and S7).

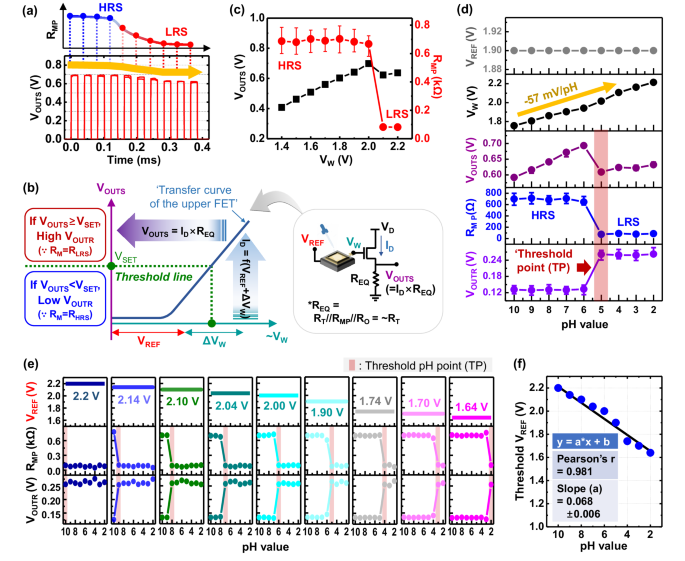

Fig. 6: Experimental demonstration of the proposed electrochemical biosensor system.
Fig. 6: Experimental demonstration of the proposed electrochemical biosensor system.
Full size image

a Measured output voltage waveform at the sensing stage (VOUTS) of the system without the sensor electrode, when the working electrode voltage (VW) and a VGS were both fixed at 2 V. The VOUTS value decreased up to the eighth pulse of a total of ten pulses, indicating a noticeable change in the parallel memristor resistance (RMP) to LRS. b Theoretical operation mechanism of the proposed transducer. ΔVW is the potential difference in VW before and after dropping pH solutions (pH 2 and 10) onto a fabricated USB-type sensor electrode, ID is the drain current of the upper FET, and VOUTR is the output voltage waveform at the reading stage. c Measured VOUTS and RMP characteristics with respect to VW of the system without the sensor electrode, indicating that the memristors remain in HRS at a low VW, and the transition to LRS occurs at 2.0 V. d pH measurement results of the system under a fixed VREF of 1.9 V, indicating that the threshold pH point (TP) of the pH sensor is pH 5. e pH measurement results of the system with respect to VREF, showing that the TP shifts in units of pH 1 by controlling the VREF value. f Threshold VREF versus pH characteristic of the system, exhibiting good linearity with a Pearson’s correlation coefficient of 0.985. The threshold VREF is defined as the VREF corresponding to each TP. Experimental repetitions: a, c, d were obtained from different memristor cells (n = 3), and e, f from a memristor cell (n = 1). Error bars indicate min–max values (n = 3).

The unique operation of the proposed transducer-based biosensor system was verified in a pH sensor platform by connecting the sensor electrode to the system, i.e., the WE to the VW node and the RE to the VREF node. With the VREF fixed at a value, i.e., 1.9 V, performance parameters of the system, such as VW, VOUTS, RM, and VOUT at the reading stage (VOUTR), were measured in response to the change in pH value (Fig. 6d; Supplementary Fig. S8 and Supplementary Video 1). As the pH decreased from 10 to 2 (i.e., as the acidity increased), the VW increased linearly from 1.76 to 2.22 V, exhibiting a close-to-linear behavior with a slope of −57 mV/pH, which is within the range of the slope values of previously reported pH sensors36,37,38,39 and is close to the theoretical Nernst value for the extended-gate FET pH sensor (−59.12 to −59.16 mV/pH)38,39. RMP and VOUTR were maintained at HRS (above 600 Ω) and low voltage (<140 mV) for pH values from 10 to 6, and at LRS (below 90 Ω) and high voltage (above 260 mV) for pH values from 5 to 2. When the pH decreased from 6 to 5, RMP transitioned from HRS to LRS, and the corresponding VOUTR changed from low to high voltage, experimentally indicating a threshold pH point (TP) for pH sensing was pH 5.

Because VW equals the sum of VREF and potential difference in VW (ΔVW), which are input parameters of the system, is VW, where VW is linearly proportional to VOUTS (Fig. 6b), VREF can serve as an input variable that controls TP. Figure 6e shows pH measurement results of the system with respect to VREF, exhibiting that the TP changed from pH 10 to 2 in step of 1 pH 1 unit increments when VREF was changed from 2.2 to 1.64 V. A TP versus corresponding VREF (called threshold VREF) graph showed good linearity with a Pearson’s correlation coefficient of 0.981 (Fig. 6f). The slope deviation of about 6 mV/pH in the graph was attributed to the variation in the sensor electrode utilized. The graph strongly correlated with another graph for ΔVW before and after dropping pH solutions with values between 2 and 10 onto a fabricated sensor electrode (Supplementary Fig. S9). In this study, no surface treatment was performed on the Ti/Au electrodes, and thereby the slope deviation could be significantly reduced through additional surface treatment of the electrode40,41. Furthermore, to substantiate the applicability of the proposed memristor technology towards electrochemical biosensing, we extended its use to the detection of glucose and ascorbic acid with appropriate sample preprocessing (see Supplementary Figs. S10–S12; Supplementary Videos 2 and 3). The memristor device successfully switched its resistance state upon reaching the predefined threshold concentrations of these analytes, further validating the demonstration of the proposed memristor-based biosensor with real biomarkers.

In addition, we implemented a simplified version of the biosensor by replacing the bulky components of the ADC and display with a comparator, hold circuit, and LED (Supplementary Fig. S13a). The comparator detected and compared the VOUTR to a 0.2 V reference voltage during the read stage. When the user pressed the button for a read operation, if VOUTR was less than 0.2 V, the memristor went into the HRS; otherwise, VOUTR went high, and a hold circuit maintained this voltage for approximately 1 s, causing the LED to turn on (Supplementary Fig. S13b). The user could easily check the status of the memristor repeatedly by pressing the button for the read stage. The TP value of the pH sensor was successfully detected at intervals of 1 pH unit by checking the LED turning on and off while varying the change in VREF (Supplementary Fig. S13c). The simplified system achieved approximately a 4-fold reduction in IC board size and a 12.4-fold reduction in power consumption, relative to the fully-integrated version (Supplementary Table S1).

Our sensor technology is compared with previously reported semiconductor-based sensors (see Supplementary Table S2). To the best of our knowledge, the sensors developed in this work are the first demonstration of a semiconductor device-based electrochemical biosensor that exhibits TS functionality at the transducer level together with complete system-level integration. Unlike prior transducing devices, our memristor device also offers full CMOS compatibility, which is readily extendable to monolithic integration with SP blocks and thereby facilitating the realization of miniaturized sensor systems. Moreover, our transducer is the only one that simultaneously exhibits intrinsic TS functionality and long-term non-volatility (Supplementary Fig. S14), which is potentially valuable for miniaturized sensors with self-diagnosis capability requiring data retention.

Owing to its simplicity, scalability, and functionality, the proposed memristor-based technology shows promise for future integration into portable sensing platforms, including point-of-care and health-monitoring systems. Furthermore, in miniaturized electronic devices, such as ingestible capsule prototypes, this approach could offer advantages, such as miniaturization, non-volatile memory, scalability, and ultra-low power consumption, potentially contributing to future efforts aimed at monitoring internal physiological environments in a safe and minimally invasive manner (Supplementary Fig. S15).

Although this study was conducted as a proof-of-concept for the proposed biosensor transducer, effective control of VSET variation of the memristors is critical for ensuring reliable biosensor operation. Possible mitigation strategies at the device, circuit, and system levels are summarized in Supplementary Fig. S16 and Supplementary Note 1.

Furthermore, further efforts are required to validate the sensing functionality under realistic biochemical conditions. The proposed memristor-based transducer was evaluated for biosensing applications using pH, glucose and ascorbic acid, as representative analytes. Among these, glucose detection currently operates effectively only under strong alkaline conditions, indicating the need for further material and interface optimization. Future studies should therefore assess device performance in complex biofluid environments to understand the influence of factors such as biofouling, signal drift, and cross-sensitivity. Ultimately, comprehensive validation with clinically relevant samples under real-world operating conditions will be essential to establish the broader translational potential of this technology.

Discussion

In this study, we demonstrated a bio-to-electrical transducer with TS functionality by leveraging a memristor with single-bit memory characteristics for electrochemical biosensor applications. To this end, a CMOS-compatible RRAM-based TaOX/Ta2O5 memristor was developed. By tuning the oxygen reservoir layer in TaOX with an O2/Ar gas mixture ratio of 6% and a thickness of 20 nm, the memristor achieved a high on/off ratio (>30) and maintained a long unit pulse width exceeding 10 μs, meeting the device requirements for the intended operation of the proposed transducer. Using this memristor, a complete electrochemical biosensor system was implemented by integrating a sensor electrode, an SP module, and a display with the proposed transducer. The intended TS function of the proposed transducer was experimentally demonstrated. With the VREF fixed to a value, i.e., 1.9 V, RM switches from HRS (>600  Ω) to LRS (<90 Ω) at a TP of pH 5, with the corresponding output voltage shifting immediately from low (<140 mV) to high (>260 mV) values. These experimental results confirm the feasibility of the proposed memristor devices for electrochemical biosensing applications. Furthermore, by varying VREF from 1.64 to 2.2 V, the TP was tunable to any desired pH value between pH 2 and 10 in step of 1, showing strong linearity between TP and pH with a Pearson’s correlation coefficient of 0.981. In addition, the biosensor architecture was streamlined by substituting the bulky ADC and display modules with a comparator, a hold circuit, and an LED, enabling a compact and portable device design. To the best of our knowledge, this memristor-based system represents the first experimental demonstration of a semiconductor device-based electrochemical biosensor that integrates TS functionality directly at the transducer level while preserving system-level complexity. Owing to its simplicity, scalability, and functionality, the proposed memristor-based technology shows promise for future integration into portable sensing platforms and miniaturized devices that could benefit from inherent memory retention.

Methods

Device fabrication

A 100 nm SiO2 layer on 8-inch Si wafers was thermally oxidized in a furnace. A BE stack of Ti/Al/Ti/TiN with a thickness of 10/450/10/120 nm was sputtered on the SiO2 layer. A 4 nm-thick Ta2O5 layer was deposited on the sputtered TiN BE by thermal ALD at 200 °C using a tantalum precursor, TBTDET. The TaOX layers with varying thicknesses of 5, 10, 20, and 40 nm and O2/Ar gas mixture ratios of 3, 6, and 9% were deposited on the Ta2O5 layer using a reactive sputtering system at 400 °C. A 12 nm TiN TE layer was sputtered on the TaOX layer. The active region (4 μm2) was defined by dry etching with Cl2 and BCl3 gases. Subsequent processes followed the standard back-end-of-line procedure, as shown in Fig. S1c. An 800 nm-thick inter-metal dielectric layer of SiO2 was formed by high-density plasma chemical vapor deposition with a process temperature at 350 °C, plasma-enhanced CVD at 400 °C, and chemical mechanical polishing. Metal vias and plugs were sequentially formed by dry etching with CFX gases and tungsten-based molecular organic CVD at 300 °C. Finally, the metal interconnection (M1) of the Ti/Al/Ti/TiN stack was patterned to form TE and BE pads for contacting microprobes during electrical measurements.

Biosensor implementation

The memristor-based biosensor system consists of a USB-type sensor electrode, a mem.-board, an IC-board, and a display as shown in Fig. 5c. For the USB-type sensor electrode, an 800 nm-thick SiO2 layer was thermally oxidized on an 8-inch Si substrate, 20 nm-thick Ti and 200 nm-thick Au layers were patterned using an evaporator, optical lithography, and dry etching processes. The wafer with the patterned Ti/Au metals was then diced into 5 × 5 mm2 chip including electrodes. Each chip was installed on a PCB substrate using wire bonding and epoxy passivation in a USB-A form factor. For the mem.-board, an 8-inch wafer with S5 memristors was diced into 5 × 5 mm2 (named as S5 die), and Au electrodes were formed on a 30 × 30 mm2 PCB. TE and BE electrodes of the S5 die and the Au electrodes of the PCB were connected through Au wire bonding. Two memristors used in the parallel two-memristor cell configuration were interconnected on the S5 die through a standard metal formation process involving sequential photolithography and metal deposition steps, in which two TEs and two BEs were connected to each other. Electrical components on the IC board include nMOS transistors (ALD212902SAL, Advanced Linear Devices) for forming ID and RT of the transducer and an MCU (nRF52832, Nordic Semiconductor) for SP, operational amplifiers (LMP7721MA, Texas Instruments), linear voltage regulators (LTC3025, Analog Devices), diodes, resistors, capacitors, buttons, switches, and various connectors. The IC board was assembled on a 2-layer FR4 PCB, with each component placed using a soldering iron (FX-951, Hakko) and a heat gun (861DW, Quick). To implement a prototype of the biosensor, the mem.-board and the IC-board were connected with alligator clips (JM-013), a commercial OLED display (SSD1306, Solomon Systech), and a 5 V charger were used. The firmware was developed in Segger Embedded Studio and uploaded to the MCU for portability
