Abstract
Straightforward synthetic approach for direct constructing functionalized γ-lactams is highly valuable given their ubiquity in bioactive molecules yet challenging due to instability of the products and difficulties in controlling diastereoselectivity. We herein report the design and synthesis of a naphthyl-based pyrene-containing covalent organic framework and utilize it as heterogeneous photocatalyst in visible-light catalytic cascade reactions between tryptamine-derived isocyanides and phosphine oxides. A broad range of 3-(2-aminophenyl)-γ-lactams are isolated in good yields under mild conditions and 3-(2-isocyanobenzyl)-indoles are also tolerated, giving (2-aminophenyl)-tetrahydroquinolines in moderate yield. Experimental studies and theoretical calculations reveal that a proton-coupled electron transfer process occurs between the excited covalent organic framework and phosphine oxide, which subsequently triggers a series of cascade reactions involving cyclization, semipinacol rearrangement, and dehydrogenation/hydration processes. Notably, the in situ generated spiroindolenine is identified to be the key intermediate. Illustrated by the efficient synthesis of 3-(2-aminophenyl)-γ-lactams, this work sets a precedent for the development of heterogeneous photocatalytic strategies for constructing complex bioactive molecules.
Similar content being viewed by others
Introduction
Cyclic amides are core pharmacophores found across natural products and clinically used drugs. β-lactams anchor the antibiotic arsenal1,2, whereas the five-membered γ-lactam ring continues to serve as the critical scaffold in marketed agents for cancer, depression, and other diseases3,4,5,6,7,8,9,10,11,12,13,14,15,16. As an essential structural framework of functionalized γ-lactams, the 3-(2-aminophenyl)-γ-lactams are known for their pronounced biological activity (Fig. 1a)17,18,19. Several examples involving the synthesis of α-OH substituted (2-aminophenyl)-γ-lactams such as chimonamidine and donaxaridine, have been developed through a multi-step functionalization process of 3-hydroxy-2-oxindoles20,21,22,23,24. Ren et al. developed a copper/iodine co-catalyzed oxygenation transannulation, providing direct access to the donaxaridine and its derivatives25. Owing to the intrinsic lability of the target intermediates, extra functional groups must be pre-embedded in the substrates, a requirement that inevitably compromises both atom economy and overall cost efficiency21. Therefore, the development of a sustainable and straightforward synthetic approach for synthesizing this subclass of functionalized γ-lactams from widely available starting materials would provide significant insights and inspiration in this domain.

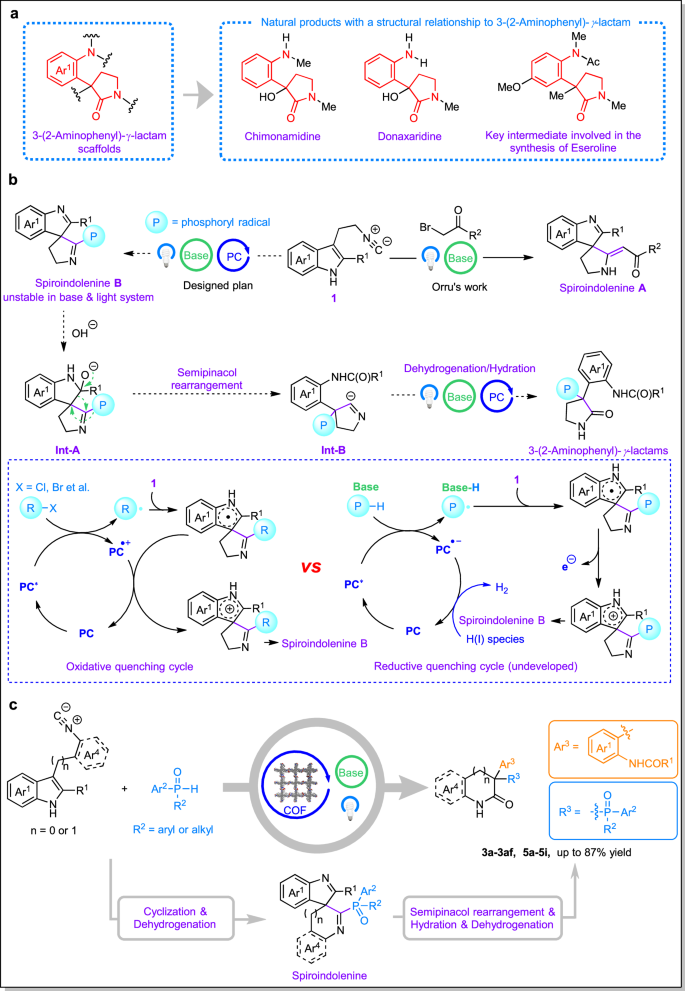

a 3-(2-Aminophenyl)-γ-lactams and several relevant natural products. b The synthesis of spiroindolenines via photoinduced cyclizations and designed plan involving the synthesis of 3-(2-aminophenyl)-γ-lactams via photocatalytic cascade reactions. c This work: The synthesis of 3-(2-aminophenyl)-γ-lactams and derivatives via NPy-DMTP-COF photocatalytic cascade reactions.
Our initial proposal for constructing 3-(2-aminophenyl)-γ-lactams was transformation from spiroindolenines, which can be formed via a photocatalytic cascade reaction between tryptamine-derived isocyanide and nucleophilic radical via dearomatization reactions26,27,28,29,30,31,32,33,34. Tryptamine-derived isocyanides, featured an indole core with an isocyanide chain at the C3 position, have exhibited exceptional efficacy in various chemical reactions. Diverging from conventional catalytic methods, Orru et al. innovated a catalyst-free dearomatization under visible light that yields a series of spiroindolenines A (Fig. 1b, black solid arrow)35. The crux of this process is primarily attributed to the formation of an imidoyl radical intermediate, arising from the interaction between phenacyl radical and tryptamine-derived isocyanide. Despite these advances, the development of a photocatalytic cascade reaction between tryptamine-derived isocyanide and radical precursor initiated by a single electron transfer (SET) oxidation or PCET process involving reductive quenching cycle, such as the reaction with in-situ generated phosphoryl radical from phosphine oxides, remains a significant challenge (Fig. 1b, blue dashed-line box). Notably, Yu et al. have developed a photocatalytic synthesis of phosphorylated N-heteroarenes from aryl isocyanides and phosphine oxides via a 4CzIPN-catalyzed PCET mechanism36. Wu et al. achieved similar outcomes using cobaloxime photocatalysis with H2 as byproduct37. Building on existing examples of photocatalytic cascade reactions involving aryl isocyanides38,39,40,41,42,43,44, we envision that spiroindolenine B could be constructed via a photocatalytic cascade reaction between the tryptamine-derived isocyanide and phosphine oxide (Fig. 1b, black dashed arrow). Subsequently, Int-B could be generated through hydration of spiroindolenine B, followed by a semipinacol rearrangement, which would be a powerful method for constructing ketones with quaternary centers and can occur in both acidic45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62 and basic63 environments. Ultimately, the Int-B would undergo a dehydrogenation/hydration process, forming the (2-aminophenyl)-γ-lactams. Realizing the above transformation critically depends on the development of an efficient photocatalyst.
Covalent organic frameworks (COFs) are porous crystalline materials composed of organic building blocks, known for their tunable porosity, extended π-conjugation, adjustable bandgaps, high surface areas and stability. These properties make COFs highly attractive for photocatalysis64,65,66,67,68,69,70,71,72,73,74,75. Recently, two-dimensional COFs (2D-COFs) have shown exceptional performance as heterogeneous photocatalysts, driving various chemical transformations under light irradiation76,77,78,79,80,81. Among them, benzyl-based pyrene-containing COFs (Py-COFs) synthesized by the condensation between 4,4’,4”,4”‘-(pyrene-1,3,6,8-tetrayl)tetraaniline (Py) and diarylglyoxal has demonstrated impressive photocatalytic activity in a range of organic reactions82,83,84,85,86,87. One of the key advantages of Py-COFs lies in their broad π-conjugated systems, which possess electron-withdrawing characteristics that readily enable the capture of electrons in PCET events. Moreover, the photocatalytic properties of pyrene-containing COFs can be precisely tuned by introducing aryl groups with diverse conjugated systems. In addition, Py-COFs have demonstrated remarkable efficacy as photocatalysts in reducing H(I) species to hydrogen gas88,89,90. It is believed that meticulously engineered pyrene-based COF catalysts, featuring optimized conjugation systems and pore structures, will significantly enhance the efficiency and sustainability of our designed cascade catalytic pathways.
Herein, we substituted the phenyl group with a naphthyl group at the 1,3,6,8 positions of pyrene and synthesized NPy-DMTP-COF. A series of heterogeneous photocatalytic cascade reactions between tryptamine-derived isocyanides and phosphine oxides mediated by NPy-DMTP-COF was established. This reaction affords a broad range of 3-(2-aminophenyl)-γ-lactams in moderate to high yields with excellent diastereoselectivities ( > 20: 1) (Fig. 1c). Specifically, 3-(2-isocyanobenzyl)-indoles are also tolerated, delivering a variety of (2-aminophenyl)-tetrahydroquinolines in moderate yield. Comprehensive mechanistic investigations indicate that the in-situ generated spiroindolenine serves as a pivotal intermediate in the cascade reaction, which encompasses cyclization, semipinacol rearrangement, hydration and dehydrogenation processes.
Results and discussion
Synthesis and characterizations of NPy-DMTP-COF
Initially, NPy-DMTP-COF was synthesized via a condensation reaction between 1, 3, 6, 8-tetrakis(2-aminonaphthyl)pyrene (NPy) and 2, 5-dimethoxyterephthalaldehyde (DMTP) (Fig. 2a and Supplementary Fig. 1). Compared to the reported Py-DMTP-COF (Fig. 2b), NPy-DMTP-COF (Fig. 2c) exhibits stronger electron-withdrawing characteristics, suggesting a greater ability to accept electrons during the PCET process. Additionally, we envisage that its more extensively conjugated π-system would enhance visible-light absorption, making NPy-DMTP-COF a promising photocatalyst. The PXRD pattern of NPy-DMTP-COF exhibits four prominent diffraction peaks, with the most-intensive one at 3.28° and the three other peaks at 5.12°, 6.60°, and 23.64°. These peaks are assigned to the (100), (110), (220), and (001) facets, respectively (Supplementary Fig. 2a). The simulated PXRD pattern of the eclipsed AA stacking conducted by Materials Studio Software is in good agreement with the experimental PXRD patterns with a P1 space group. The Pawley refinement cell parameters are a = 26.9 Å, b = 3.8 Å, c = 27.0 Å, α = 90°, β = 90° and γ = 90°, with good agreement factors Rwp = 5.00% and Rp = 2.73% for NPy-DMTP-COF (Supplementary Table 1). The NPy-DMTP-COF shows remarkable chemical and structural stability, as almost identical PXRD patterns are obtained after treatment with 14 M NaOH, triethylamine, conc. HCl, trifluoroacetic acid and boiling water (Supplementary Fig. 2b). Scanning electron microscopy (SEM) images reveal that NPy-DMTP-COF adopts a uniform rod-like morphology with an average diameter of approximately 65 nm (Supplementary Fig. 3). High resolution transmission electron microscopy (HR-TEM) images show distinct ordered fringes, confirming its high crystallinity and revealing a quadrilateral pore structure with a periodicity of approximately 2.6 nm and particle size of around 60 nm (Supplementary Fig. 4). Dynamic light scattering (DLS) measurements, performed on NPy-DMTP-COF dispersed in acetonitrile at room temperature, reveal a Z-average size of 41.05 nm and a polydispersity index (PDI) of 0.115 (Supplementary Fig. 5). The formation of imine linkage of NPy-DMTP-COF was confirmed by Fourier transform infrared (FT-IR) spectra. The disappearance of the N−H vibration at 1630, 3460 and 3370 cm-1 and appearance of the C=N vibration at 1590 cm-1 confirm the high condensation degree of NPy-DMTP-COF (Supplementary Fig. 6). The chemical structure was further elucidated using solid-state 13C cross-polarization/total sideband suppression (13C-CP/TOSS) spectroscopy. Chemical shifts at 152.4 ppm assigned to 13C signal of C=N bond indicate the successful formation of NPy-DMTP-COF with the imine linkage (Supplementary Fig. 7). Nitrogen adsorption-desorption isotherms demonstrate that the NPy-DMTP-COF has a mesoporous structure with a BET surface area of 1334 m2/g, a pore volume of 1.27 cm3/g and a pore width of 2.35 nm (Supplementary Fig. 8 and Supplementary Fig. 9), matching well with the simulated values and HR-TEM results. Thermogravimetric analysis (TGA) shows that NPy-DMTP-COF remains stable up to a temperature of 350 °C under both nitrogen and oxygen atmospheres, confirming its excellent thermal stability (Supplementary Fig. 10).

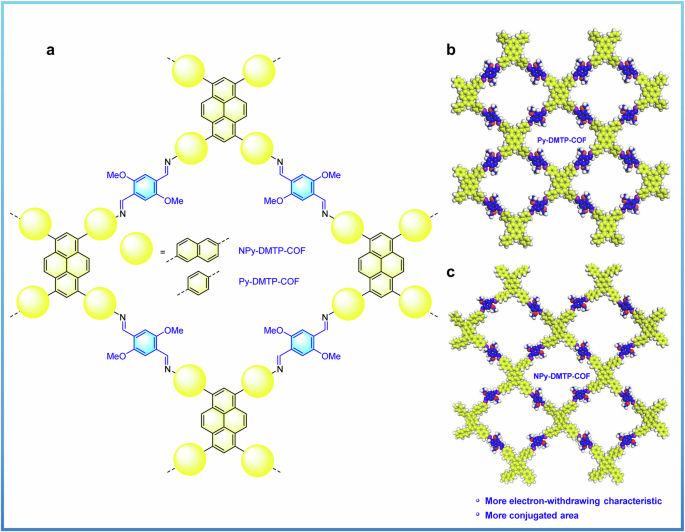

a Chemical structures of Py-DMTP-COF and NPy-DMTP-COF. b, c Graphic view of one layer of Py-DMTP-COF and NPy-DMTP-COF simulated by Material Studio. (blue, yellow, C; purple, N; red, O; white, H).
Reaction optimizations
Upon successfully synthesizing the NPy-DMTP-COF, we next evaluated its photocatalytic activity in the cascade reaction. The tryptamine-derived isocyanide 1a was selected the as model substrate, along with 2.0 equivalents of diphenylphosphine oxide 2a as the radical precursor and 2.0 equivalents of NaHCO3 as the base. The reaction was carried out under a 40 W blue LED light source with a wavelength of 420 nm at room temperature (Table 1). The cascade reaction catalyzed by NPy-DMTP-COF yielded the γ-lactam 3a as the predominant product with a satisfactory yield of 73% in CH3CN at ambient temperature (Table 1, entry 1). Py-DMTP-COF, obtained through the condensation between 4,4’,4”,4”‘-(pyrene-1,3,6,8-tetrayl)tetraaniline (Py) and 2, 5-dimethoxyterephthalaldehyde (DMTP) according to Yang’s procedure82 produced 3a in a yield of only 23% (Table 1, entry 2). Several representative homogeneous photocatalysts displayed disappointing results (Table 1, entries 3–5). We speculate that the photocatalyst primarily facilitates the generation of phosphoryl radicals from compound 2a. Diffuse-reflectance UV0-vis spectroscopy (UV-vis DRS) indicates that NPy-DMTP-COF and Py-DMTP-COF exhibit comparable absorption maxima around 420 nm (Supplementary Fig. 11). Therefore, the underlying rationale behind this disparity may be attributed to the redox potential of the photocatalysts. Based on an excitation energy (E0−0) of 2.28 eV obtained through absorption and emission spectra of NPy-DMTP-COF (Supplementary Fig. 12 and Supplementary Table 2, the excitation and emission spectra of Py-DMTP-COF are shown in Supplementary Fig. 13), the excited-state redox potential of the PC*/PC− couple is calculated to be 1.56 V. Cyclic voltammetry (CV) studies reveal that NPy-DMTP-COF possesses a redox potential of −0.72 V, stemming from the PC/PC− redox couple (Supplementary Fig. 14, orange line). Electrochemical measurements further reveal that compound 2a exhibits an oxidation potential of 1.20 V (Supplementary Fig. 15). These results imply the potential for an electron transfer from 2a to the excited-state COF (COF*), coupled with a proton transfer from 2a to the base (HCO3−), resulting in the formation of the phosphoryl radical and the COF radical anion COF•−. The inefficacy of Py-DMTP-COF and representative homogeneous photocatalysts further supports this mechanistic rationale. For instance, fac-Ir(ppy)3 and [Ir(ppy)2(dtbbpy)]PF6 exhibit excited-state redox potentials of only + 0.31 V (vs. SCE) and + 0.66 V (vs. SCE)91, respectively, which are insufficient to oxidize 2a (E1/2(PC*/PC−) = + 1.20 V vs. SCE) to generate the phosphoryl radical. Similarly, Py-DMTP-COF shows a relatively low excited-state potential (E1/2(PC*/PC−) = 1.04 V vs. SCE), accounting for its poor catalytic performance. In addition, 4CzlPN displays a reduction potential of −1.21 V92, implying that its radical anion (4CzlPN•−) is less prone to return to the ground state via electron transfer, further limiting its activity under these conditions. To evaluate the structural contribution of the extended COF, we tested the activity of the discrete molecular analog (NPy-MP) and the monomer (NPy). Neither exhibited noticeable catalytic activity, highlighting the importance of the ordered, porous framework in promoting the photocatalytic cascade reaction (Table 1, entries 6 and 7). Moreover, commercially available g-C3N4 and graphene oxide also failed to produce detectable amounts of 3a (Table 1, entries 8 and 9), probably owing to their lack of well-defined porosity and extended π-conjugation.
The optical band gap of NPy-DMTP-COF is determined to be 2.12 eV through a Tauc plot analysis (Supplementary Fig. 16). Furthermore, electrochemical Mott-Schottky plots, combined with the optical band gaps, reveal that the conduction band (CB) and valence band (VB) positions of NPy-DMTP-COF are well aligned to facilitate the PCET process (Supplementary Fig. 17 and Supplementary Fig. 18).
Subsequently, a series of bases were evaluated for their ability to facilitate the generation of the phosphoryl radical. Among them, only NaHCO3 and Na2HPO4 produced the desired lactams with satisfactory results (Table 1, entry 1 vs entries 10-13). The solvent screening further revealed that the catalytic reactions proceeded efficiently in polar solvents, with acetonitrile affording the optimal yield (Table 1, entry 1 vs entries 14-17). The essential role of the base for the cascade reaction was confirmed by control experiments (Table 1, entry 18), and a significant reduction in yield was observed when using 1.0 equivalent of NaHCO3 (Table 1, entry 19). These results indicate that the base might participate in both the cyclization and subsequent processes. As anticipated, no product was formed in the absence of light or under air atmosphere (Table 1, entries 20 and 21). Therefore, the optimized conditions involved the use of NPy-DMTP-COF as catalyst and NaHCO3 as the base in CH3CN at room temperature (Table 1, entry 1).
Substrate scope

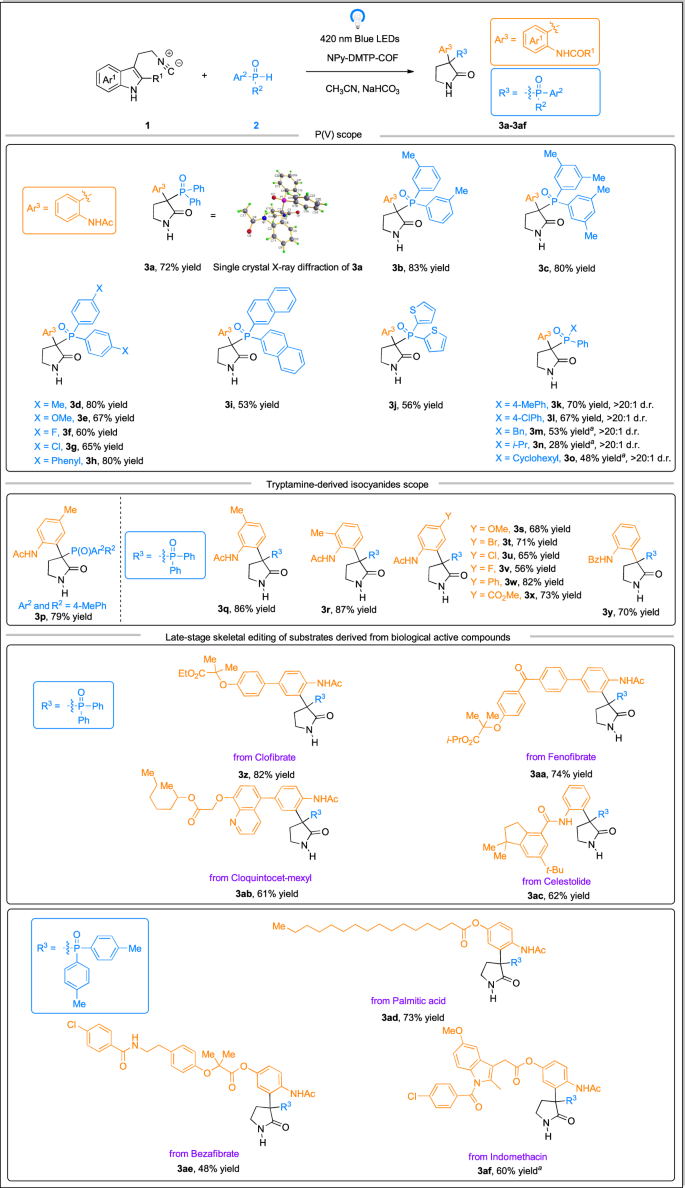

Under the optimized reaction conditions, we next explored the substrate scope with various phosphine oxides and tryptamine-derived isocyanides to investigate the generality of this photocatalytic cascade reaction (Fig. 3). The protocol proved applicable to a broad range of diarylphosphine oxides bearing diverse substituents, including methyl, halogens, alkoxy groups and phenyl (3a−3i), affording the corresponding lactams in 53-83% yields. Both electron-donating and electron-withdrawing substituents at either the para- or meta-positions of the benzene ring were well tolerated. In addition, a 2-thienyl substituted phosphine oxide also participated smoothly, affording the desired lactam 3j in 56% yield. Furthermore, phosphine oxides featuring two different aryl substituents demonstrated excellent reactivity, successfully yielding products 3k and 3 l in good yields with d.r. values exceeding 20: 1. Notably, alkylphenylphosphine oxides were identified as suitable phosphorus reagents for this protocol, affording the corresponding products 3m–3o in moderate yields while maintaining d.r. values exceeding 20: 1. In contrast, dialkylphosphine oxides remained unreactive toward 1a, probably because the required PCET process between dialkylphosphine oxide and NPy-DMTP-COF* is disfavored (Supplementary Fig. 19). Single-crystal X-ray diffraction analysis of 3a verified the structure.
All reactions were carried out on a 0.3 mmol scale with 1.0 eq. isocyanides 1, 2.0 eq. phosphine oxides 2, 2 mol% NPy-DMTP-COF and 2.0 eq. NaHCO3 in 4.0 mL CH3CN under irradiation of 420 nm blue LEDs with N2 protection at room temperature for 48–96 h. Isolated yield. a2.0 eq. Na2HPO4 served as base instead of NaHCO3.
After establishing the scope of phosphine oxides, the effects of tryptamine-derived isocyanides on the reaction outcome were subsequently evaluated. As shown in Fig. 3, a wide range of tryptamine-derived isocyanides bearing different substituted aryl groups reacted smoothly with diarylphosphine oxides, affording the corresponding 3-(2-aminophenyl)-γ-lactams 3p−3x in moderate to good yields (56-86%). In particular, 2-phenyl substituted tryptamine-derived isocyanide was well tolerated, affording the product 3y in 70% yield.
The mild reaction conditions and high functional group tolerance could facilitate the late-stage functionalization of complicated drug or bioactive molecules. The reactions were highly compatible with tryptamine-derived isocyanides from Clofibrate, Fenofibrate and Cloquintocet-mexyl, giving the desired lactams 3z−3ab in 61-82% yields. In addition, the 2-aryl substituted Celestolide-derived isocyanide was proved to be suitable for the reaction, affording the lactam 3ac in 62% yield. Furthermore, acyloxy substituted isocyanides from Palmitic acid, Bezafibrate and Indomethacin were also well tolerated in the optimized conditions and the corresponding lactams 3ad−3af were obtained in 48-73% yield. These results demonstrate that the current method provides a reliable and powerful protocol for access to functionalized lactams.

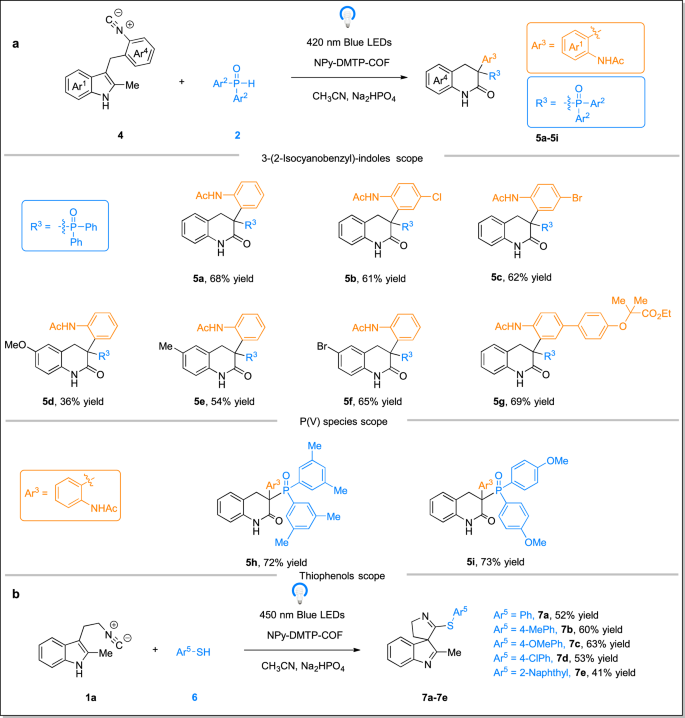

The substrates scope of the cascade reactions was further extended to 3-(2-isocyanobenzyl)-indoles (Fig. 4a). A variety of 3-(2-aminophenyl)-tetrahydroquinolines 5a−5 f were successfully synthesized via a cascade reaction between a diverse array of 3-(2-isocyanobenzyl)-indoles and diphenylphosphine oxide 2a. The reaction was highly compatible with 3-(2-isocyanobenzyl)-indole from Clofibrate, yielding the desired tetrahydroquinoline 5 g with a 69% yield. Moreover, diarylphosphine oxides with different groups demonstrated high efficacy in the reaction, giving tetrahydroquinolines 5 h or 5i with high yields. To further demonstrate the versatility of this catalytic platform, the scope was expanded to include additional radical precursors (Supplementary Fig. 19). Notably, a diverse set of thiophenols 6a−6e proved competent after optimization, delivering the corresponding spiroindolenines 7a−7e in moderate yields (Fig. 4b).
a All reactions were carried out on a 0.3 mmol scale with 1.0 eq. isocyanides 4, 2.0 eq. phosphine oxides 2, 2 mol% NPy-DMTP-COF and 2.0 eq. Na2HPO4 in 4.0 mL CH3CN under irradiation of 420 nm blue LEDs with N2 protection at room temperature for 48–96 h. b All reactions were carried out on a 0.3 mmol scale with 1.0 eq. isocyanides 1, 2.0 eq. thiophenols 6, 2 mol% NPy-DMTP-COF and 2.0 eq. Na2HPO4 in 4.0 mL CH3CN under irradiation of 450 nm blue LEDs with N2 protection at room temperature for 48–96 h. Isolated yield.
Practicality of the reactions

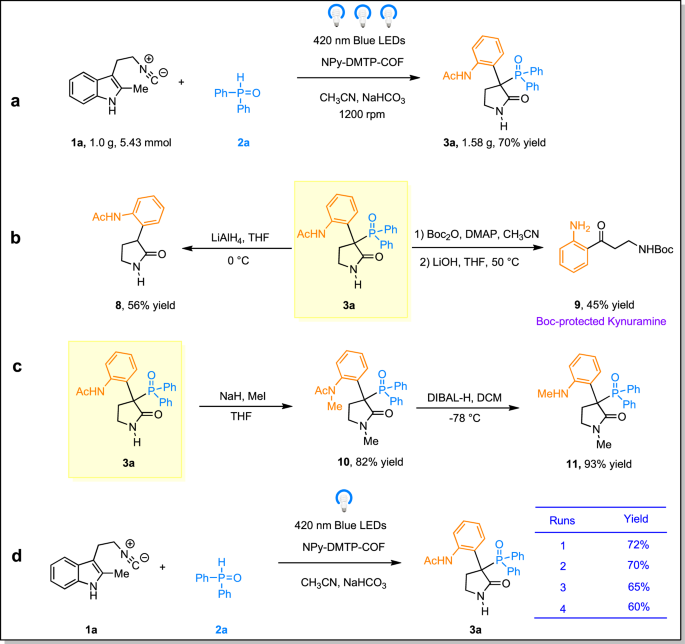

To further demonstrate the practicality of this reaction, the cascade reaction between 1a and 2a was carried out on a gram scale under three blue LED lamps and 1200 rpm. The corresponding product 3a, could be obtained in a 70% yield (Fig. 5a). To assess the synthetic utility of this methodology, lactam 3a was subjected to a reduction with LiAlH4, delivering the lactam 8 with a yield of 56% (Fig. 5b). Moreover, the Boc-protected Kynuramine 9, identified as a potential inhibitor of neural nitric oxide synthase, was synthesized with a yield of 45% via a deprotection of the Boc-protected precursor 3a using lithium hydroxide (Fig. 5b). Functionalized lactam 11, which shares a structural resemblance with Chimonamidine, was successfully synthesized through the reduction of the N-methyl protected intermediate 3a using DIBAL (Fig. 5c). Finally, the heterogeneous nature of COF endowed it with recyclability and reusability. After the completion of the reaction, NPy-DMTP-COF could be readily recovered by simple centrifugation. In the reaction between 1a and 2a, NPy-DMTP-COF was successfully retrieved and reused across four subsequent cycles, with little diminution in its catalytic performance (Fig. 5d). PXRD analysis of the recycled NPy-DMTP-COF displays only a slight decline in crystallinity (Supplementary Fig. 20), while BET measurements confirm the preservation of its porous architecture, with a surface area of 1214 m2/g, pore volume of 0.85 cm3/g, and pore width of 2.27 nm (Supplementary Fig. 21, Supplementary Fig. 22 and Supplementary Table 3).
a Gram scale reaction. b, c Synthetic transformation. d Yields of 3a with recovered NPy-DMTP-COF in four consecutive runs.
Mechanistic studies

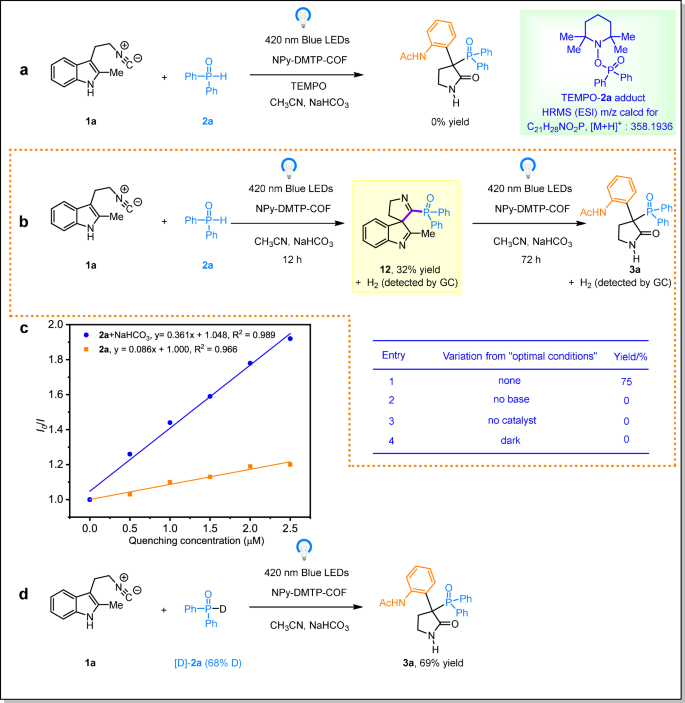

To gain insight into the reaction mechanism, a series of mechanistic studies were carried out (Fig. 6). Initially, 2.0 equiv of 2,2,6,6-tetramethylpiperidin-1-yl)-oxidanyl (TEMPO) was enough to quench the reaction of 1a and 2a (Fig. 6a). A TEMPO-2a adduct was detected by high-resolution mass spectrometry, indicating that phosphoryl radical might be generated photochemically (Supplementary Fig. 23). Furthermore, when the reaction between 1a and 2a was carried out under optimal conditions for 12 h, the spiroindolenine 12 was isolated with a yield of 32% (Fig. 6b) and H2 was detected by gas chromatography (GC) (Supplementary Fig. 24). Spiroindolenine 12 was then employed as a substrate in a photocatalytic reaction, successfully yielding lactam 3a with a 75% yield, and H2 was again identified by GC analysis (Supplementary Fig. 25). The reaction could not proceed in the absence of base, photocatalyst or blue LEDs. These experiments indicate that spiroindolenine 12 is the key intermediate in this cascade reaction. Moreover, it suggests that the HCO3− may act as an electron acceptor, abstracting an electron from COF − to regenerate the ground state COF, while simultaneously producing H2 as a byproduct. Subsequently, to elucidate the interaction between NPy-DMTP-COF and the phosphine oxide, fluorescence quenching experiments (Supplementary Figs. 26-28) and Stern-Volmer analysis (Fig. 6c) were performed. The luminescence emission of NPy-DMTP-COF was quenched effectively by [2a + NaHCO3] mixture instead of 2a, indicating that an interaction between NPy-DMTP-COF and [2a + NaHCO3] mixture might exist to promote this reaction. The results above hint at an exclusive PCET process between NPy-DMTP-COF and phosphine oxide. Moreover, an isotope-labeling study was carried out using deuterated D-P(O)Ph2 and isocyanide 1a under standard reaction conditions, leading to the synthesis of 3a in a 69% yield with no hydrogen atom being deuterated (Fig. 6d, Supplementary Fig. 29 and Supplementary Fig. 30). It suggests that the deuterium atom in D-P(O)Ph2 is likely captured by NaHCO3.
a Radical prevention experiment. b The experiment involving in the isolation of intermediate 12 and the synthesis of 3a from 12 via photocatalytic reaction. c Stern-Volmer quenching studies. d Deuterium labeling experiment.

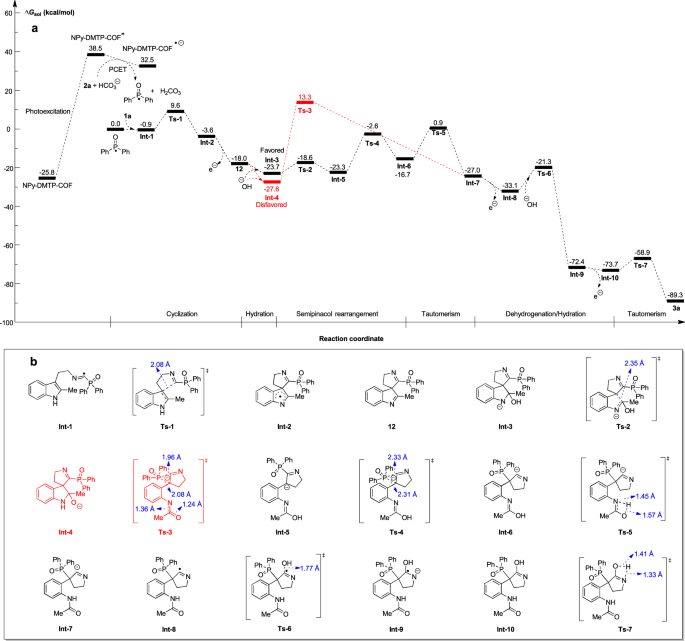

To explore the potential pathways involved in the photocatalytic cascade reaction, we employed DFT calculations, incorporating Grimme’s D3 dispersion correction (Fig. 7). All calculations were carried out with the Gaussian16 program package93. All the structures were fully optimized based on PBE0-D3/6-311 G(d,p) basis set level94,95. All optimized geometries were characterized as either local minima (no imaginary frequencies) or transition states (one imaginary frequency) through vibrational frequency analysis at the same level of theory. The connection of each transition state was validated by intrinsic reaction coordinate (IRC) calculations. Subsequently, Gibbs free energies were computed via M06-2X-D3/def2TZVP single-point energy calculations on the optimized structures, incorporating thermal corrections at 298.15 K and 1.0 atm. TD-DFT study was conducted at same level within the adiabatic approximation to predict the excitation energies. The Marcus theory was applied to evaluate the PCET process and the single electron transfer process. To evaluate solvation effects of acetonitrile, the IEFPCM model was applied based on the gas-phase optimized structures of all the species.
All energies were calculated at the M06-2X-D3 functional level, utilizing the def2-TZVP basis set. a Gibbs free energy of reaction paths. b Intermediates and transition states for this catalytic system.
Initially, NPy-DMTP-COF is selectively excited under blue LEDs, with a free energy excitation of 64.3 kcal/mol, which is significantly lower than that of the reactants 1a and 2a, at 126.3 kcal/mol and 145.1 kcal/mol, respectively. This initiates a PCET process, where an electron is transferred from 2a to NPy-DMTP-COF, accompanied by a proton transfer from 2a to HCO3−. This results in the formation of a phosphoryl radical and a COF radical anion, NPy-DMTP-COF•−. The phosphoryl radical then reacts with 1a to form Int-1, with a Gibbs free energy change of –0.9 kcal/mol. Potential energy surface (PES) scanning confirms that this reaction step is barrier-free. Int-1 subsequently undergoes cyclization to form Int-2 via the transition state Ts-1, requiring an activation energy of 10.5 kcal/mol. Int-2 undergoes an electron transfer with NPy-DMTP-COF* and HCO3− to yield spiroindolenine 12, a spontaneous process with a Gibbs free energy change of 14.4 kcal/mol (Fig. 7a). The formation of spiroindolenine 12 has been confirmed experimentally (Fig. 6b).
A nucleophilic addition then occurs, where a hydroxide anion attacks spiroindolenine 12, followed by semipinacol rearrangement and tautomerism to yield Int-7. This reaction pathway splits into two routes. The favored route (black line) involves the formation of Int-3, followed by a ring-opening reaction via Ts-2, with an energy barrier of 5.1 kcal/mol, leading to Int-5. The subsequent rate-determining step involves 1,2-phosphonyl migration through Ts-4, with an energy barrier of 20.7 kcal/mol, leading to the formation of Int-6. Tautomerization through Ts-5, with an energy barrier of 17.6 kcal/mol yields amide Int-7. The alternative route (red line), involving a one-step rearrangement from Int-4 to Ts-3, is less favored due to a high energy barrier of 40.9 kcal/mol.
Int-7 undergoes a SET process to generate the radical intermediate Int-8. Nucleophilic attack by a hydroxide anion at the radical center then proceeds via Ts-6 with an energy barrier of 11.8 kcal/mol to afford the stabilized anionic species Int-9. A subsequent SET process from Int-9 yields the neutral intermediate Int-10, which tautomerizes through Ts-7 with an energy barrier of 14.8 kcal/mol to deliver the final product 3a. All the intermediates and transition states for this catalytic system are illustrated in Fig. 7b.
Here, we report the construction of a well-ordered framework, NPy-DMTP-COF, with designed porosity that can be efficiently excited under visible light. This catalyst facilitates a photocatalytic cascade reaction between tryptamine-derived isocyanides and phosphine oxides, yielding a diverse array of 3-(2-aminophenyl)-γ-lactams with moderate to high yields and excellent diastereoselectivities ( > 20:1). 3-(2-isocyanobenzyl)-indoles are also tolerated, giving (2-aminophenyl)-tetrahydroquinolines in moderate yield. Notably, NPy-DMTP-COF could be readily recovered via simple centrifugation and reused over four consecutive cycles without noticeable loss of catalytic activity, highlighting its advantage over conventional homogeneous catalysts. The controlled experiments and DFT studies reveal that a PCET process occurs between the excited NPy-DMTP-COF* and phosphine oxide, initiating a cascade reaction including cyclization, semipinacol rearrangement and dehydrogenation/hydration processes. Notably, the in situ generated spiroindolenine serves as the key intermediate in this reaction. The current work not only expands the repertoire of 3-(2-aminophenyl)-γ-lactams and (2-aminophenyl)-tetrahydroquinolines but also establishes a COF-based photocatalytic system for cascade reactions.
Methods
General information
Reactions were monitored by thin layer chromatography (TLC), and column chromatography purifications were carried out using silica gel. Column chromatography was performed on silica gel (300–400 mesh). 1H, 13C, 19F and 31P NMR spectra were collected on a Bruker AV 400, 600 or 700 MHz NMR spectrometer using residue solvent peaks as an internal standard (1H NMR: CDCl3 at 7.26 ppm, DMSO-d6 at 2.50 ppm; 13C NMR: CDCl3 at 77.00 ppm, DMSO-d6 at 30.92 ppm). Data for 1H and 13C NMR were recorded as follows: chemical shift (δ, ppm), multiplicity (s = singlet; d = doublet; t = triplet; q = quarter; m = multiplet; br = broad), coupling constant (Hz), integration. High resolution mass spectra for all the new compounds were done by an LTQ-Orbitrap instrument (ESI) (Thermo Fisher Scientific, USA). Catalysts and substrates 2 and 6 were purchased from J&K Scientific (China) Co., LTD. Substrates 1 and 4 were synthesized by following the published procedures35.
Powder X-ray powder diffraction (PXRD) patterns were measured on a Rigaku RINT Smartlab SE powder diffraction system, equipped with Cu Kα radiation (λ = 1.54 Å). Fourier-transform infrared spectrometer (FT-IR) data were collected using a Bruker VERTEX 70 spectrophotometer with KBr disks. Solid-state 13C-CP/TOSS NMR spectra were performed on a Bruker 500 MHz spectrometer. Nitrogen sorption isotherms were recorded on a Quantachrome Autosorb 1 at 77 K. Prior to the measurements, the samples were outgassed for 12 h at 120 °C under high vacuum. Scanning electron microscopy (SEM) was performed using a ZEISS Gemini 560 operated at an accelerating voltage of 2.0 kV. High resolution transmission electron microscopy (HR-TEM) was performed using a JEM-2100F instrument (JEOL, Japan) operated at 200 kV. Dynamic light scattering (DLS) was performed on Zeta-potential & Particle size analyzer (Malvern ZS90). NPy-DMTP-COF was dispersed in CH3CN (0.05 mg/mL), sonicated for 60 min, and left to stand for 10 min prior to DLS measurements. Thermal gravimetric analyses (TGA) were performed on a Mettler Toledo’s TGA/DSC 3+ Synchronous Thermal Analyzer. The process of simulating COF structure was performed by the Materials Studio software. The triclinic lattice with P1 symmetry group was set as the initial eclipsed COF structure. After the smallest asymmetric fragment was filled into the blank cell, the Forcite tools package was employed to optimize the cell geometry including energy minimization. The cell optimized from the Universal force fields was subsequently refined using the Pawley refinement method in Reflex tools.
Preparation of NPy-DMTP-COF
6,6’,6”,6”‘-(pyrene-1,3,6,8-tetrayl)tetrakis(naphthalen-2-amine) (NPy) (38.3 mg, 0.05 mmol) and 2,5-dimethoxyterephthalaldehyde (DMTP) (19.4 mg, 0.1 mmol) and CH3COOH (0.1 mL, 6 M) were mixed in a mixture of solvents containing 0.25 mL of o-dichlorobenzene and 0.75 mL of 1-butanol in a sealed tube. The mixture was ultrasonicated for 10 min and then flash frozen at 77 K (liquid N2 bath) and degassed through three freeze-pump-thaw cycles. The mixture was then heated at 120 °C for 72 h under an N2 atmosphere. The resulting solid product was recovered by filtration, washed with methanol and DCM, and subjected to Soxhlet extraction using THF for 24 h. After drying under vacuum for 6 h, a brown solid was obtained with a yield of 87%. This material was designated as NPy-DMTP-COF.
General experimental procedure of photocatalytic cascade reaction
At N2 atmosphere, NPy-DMTP-COF (5.3 mg, 0.006 mmol based on the repeating unit), 1 or 4 (0.3 mmol), 2 (0.6 mmol), and NaHCO3 (50.4 mg, 0.6 mmol) were mixed in acetonitrile (4.0 mL) in a Schlenk tube. The resulting mixture was stirred under blue LED irradiation (420 nm) at room temperature for 48–96 h. Upon completion, the reaction mixture was filtered through celite pad and the filtrate was concentrated. The mixture was purified by silica gel flash chromatography (petroleum ether:ethyl acetate, 1:3) to afford the desired product 3 or 5.
Data availability
Crystallographic data for the structures reported in this article have been deposited at the Cambridge Crystallographic Data Center, under deposition numbers CCDC 2368727 (3a). Copies of the data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/. The characterizations of NPy-DMTP-COF, spectral data of products and cartesian coordinates generated in this study are provided in the Supplementary Information and Source Data file. All data are available from the corresponding author upon request. Source data are provided with this paper.
References
Ojima, I. Recent advances in the.beta.-lactam synthon method. Acc. Chem. Res. 28, 383–389 (1995).
Ojima, I. & Delaloge, F. Asymmetric synthesis of building-blocks for peptides and peptidomimetics by means of the β-lactam synthon method. Chem. Soc. Rev. 26, 377–386 (1997).
Hong, S. Y. et al. Selective formation of γ-lactams via C−H amidation enabled by tailored iridium catalysts. Science 359, 1016–1021 (2018).
Caruano, J., Muccioli, G. G. & Robiette, R. Biologically active γ-lactams: Synthesis and natural sources. Org. Biomol. Chem. 14, 10134–10156 (2016).
Hayashi, M., Bachman, S., Hashimoto, S., Eichman, C. C. & Stoltz, B. M. Ni-catalyzed enantioselective C-acylation of α-substituted lactams. J. Am. Chem. Soc. 138, 8997–9000 (2016).
Chen, C. et al. Rhodium/Yanphos-catalyzed asymmetric interrupted intramolecular hydroaminomethylation of trans-1,2-disubstitutedalkenes. J. Am. Chem. Soc. 138, 9017–9020 (2016).
Wang, C. & Ge, S. Versatile cobalt-catalyzed enantioselective entry to boryl-functionalized all-carbon quaternary stereogenic centers. J. Am. Chem. Soc. 140, 10687–10690 (2018).
Wang, Z., Yin, H. & Fu, G. C. Catalytic enantioconvergent coupling of secondary and tertiary electrophiles with olefins. Nature 563, 379–383 (2018).
Jette, C. et al. Palladium-catalyzed construction of quaternary stereocenters by enantioselective arylation of γ-lactams with aryl Chlorides and Bromides. Angew. Chem. Int. Ed. 58, 4297–4301 (2019).
Park, Y. & Chang, S. Asymmetric formation of γ-lactams via C−H amidation enabled by chiral hydrogen-bond-donor catalysts. Nat. Catal. 2, 219–227 (2019).
Xing, Q., Chan, C.-M., Yeung, Y.-W. & Yu, W.-Y. Ruthenium(II)-catalyzed enantioselective γ-lactams formation by intramolecular C-H amidation of 1,4,2-dioxazol-5-ones. J. Am. Chem. Soc. 141, 3849–3853 (2019).
Wang, H. et al. Iridium-catalyzed enantioselective C(sp3)−H amidation controlled by attractive noncovalent interactions. J. Am. Chem. Soc. 141, 7194–7201 (2019).
Bartoszewicz, A., Matier, C. D. & Fu, G. C. Enantioconvergent alkylations of amines by alkyl electrophiles: Copper-catalyzed nucleophilic substitutions of racemic α-halolactams by indoles. J. Am. Chem. Soc. 141, 14864–14869 (2019).
Ashida, K. et al. Enantioselective synthesis of polycyclic γ-lactams with multiple chiral carbon centers via Ni(0)-catalyzed asymmetric carbonylative cycloadditions without stirring. J. Am. Chem. Soc. 142, 1594–1602 (2020).
Wu, X., Qu, J. & Chen, Y. Quinim: A new ligand scaffold enables nickel-catalyzed enantioselective synthesis of α-alkylated γ-lactam. J. Am. Chem. Soc. 142, 15654–15660 (2020).
Li, Y. et al. Carbamoyl fluoride-enabled enantioselective Ni-catalyzed carbocarbamoylation of unactivated alkenes. J. Am. Chem. Soc. 142, 19844–19849 (2020).
Rhuzhaev, V. U., Tashkhodzhaev, B. & Aripova, S. F. Alkaloids of Arundo donax III. Reconsideration of the structures of donaxarine and donaxadidine. Chem. Nat. Compd. 31, 604–609 (1995).
Takayama, H. et al. Isolation, structure elucidation, and total synthesis of two new chimonanthus alkaloids, chimonamidine and chimonanthidine. Tetrahedron 60, 893–900 (2004).
Takano, S., Moriya, M.& Ogasawara, K. Enantiocontrolled total syntheses of (-)-physovenine and (-)-physostigmine. J. Org. Chem. 56, 5982–5984 (1991).
Subba Reddy, U. V. et al. Diamino alcohol catalyzed enantioselective crossed aldol reaction of acetaldehyde with isatins−aconcise total synthesis of antitumor agents. Eur. J. Org. Chem. 2017, 3874–3885 (2017).
Braire, J., Dorcet, V., Vidal, J., Lalli, C. & Carreaux, F. BINOL derivatives-catalysed enantioselective allylboration of isatins: Application to the synthesis of (R)-chimonamidine. Org. Biomol. Chem. 18, 6042–6046 (2020).
Chen, W.-B., Du, X.-L., Cun, L.-F., Zhang, X.-M. & Yuan, W.-C. Highly enantioselective aldol reaction ofacetaldehyde and isatins only with 4-hydroxydiarylprolinol as catalyst: Concise stereoselective synthesis of (R)-convolutamydines B and E, (−)-donaxaridine and (R)-chimonamidine. Tetrahedron 66, 1441–1446 (2010).
Zhu, B. et al. Direct asymmetric vinylogous aldol reaction of allyl ketones with isatins: divergent synthesis of 3-hydroxy-2-oxindole derivatives. Angew. Chem. Int. Ed. 52, 6666–6670 (2013).
Peng, Y.-S. et al. Copper-catalyzed oxygenative skeletal rearrangement of tetrahydro-β-carbolines using H2O and O2 as oxygen sources. Angew. Chem. Int. Ed. 62, e202313687 (2023).
Sun, Y.-Z. et al. Copper/iodine Co-catalyzed oxygenative transannulation of tryptamines enables direct synthesis of donaxaridine and its derivatives. Org. Lett. 26, 625–630 (2024).
Zhao, X. et al. Asymmetric dearomatization of indoles through a Michael/Friedel–Crafts-type cascade to construct polycyclic spiroindolines. Angew. Chem. Int. Ed. 54, 4032–4035 (2015).
Saya, J. M. et al. Iodospirocyclization of tryptamine-derived isocyanides: Formal total synthesis of aspidofractinine. Angew. Chem. Int. Ed. 57, 15232–15236 (2018).
Chen, G.-S. et al. Tandem cross-coupling/spirocyclization/Mannich-type reactions of 3-(2-isocyanoethyl) indoles with diazo compounds toward polycyclic spiroindolines. Angew. Chem. Int. Ed. 59, 614–621 (2020).
Jiang, S., Cao, W.-B., Li, H.-Y., Xu, X.-P. & Ji, S.-J. Convenient synthesis of spiroindolenines from tryptamine-derived isocyanides and organic azides by cobalt catalysis in pure water. Green. Chem. 23, 2619–2623 (2021).
Cao, W.-B. et al. Syn-Stereoselective C3-spirocyclization and C2-amination of 3-(2-isocyanoethyl)indole using C, N-cyclic azomethine imines. Org. Lett. 24, 4620–4624 (2022).
Wang, X., Dong, J., Wu, T., Xu, X. & Tang, B. Divergent synthesis of chromenoindoles and spiroindolines via domino reaction of indolyl-substituted isocyanides with quinone esters. Org. Lett. 24, 6700–6704 (2022).
Zhu, Y.-M., Xu, X.-P. & Ji, S.-J. Divergent synthesis of pentacyclic isoindolinones enabled by sequential insertion of two different isocyanides and acid promoted cyclization of ketenimines. Org. Lett. 25, 2041–2046 (2023).
Zheng, J. et al. Diastereodivergent synthesis of pentacyclic spiroindolines via a magnesium(II)-catalyzed cascade reaction of N, N′-cyclic azomethine imines with indolyl-substituted isocyanides. Org. Lett. 25, 3829–3834 (2023).
Yuan, L.-R., Ji, S.-J. & Xu, X.-P. Coupling-spirocyclization cascade of tryptamine-derived isocyanides with iodonium ylides and despirocyclization reactions. Org. Lett. 25, 7858–7862 (2023).
Wu, M. et al. Shining light on tryptamine-derived isocyanides: Access to constrained spirocylic scaffolds. Chem. Sci. 15, 6867–6873 (2024).
Liu, Y. et al. 4CzIPN-tBu-catalyzed proton-coupled electron transfer for photosynthesis of phosphorylated N-heteroaromatics. J. Am. Chem. Soc. 143, 964–972 (2021).
Yu, J.-X., Cheng, Y.-Y., Chen, B., Tung, C.-H. & Wu, L.-Z. Cobaloxime photocatalysis for the synthesis of phosphorylated heteroaromatics. Angew. Chem. Int. Ed. 61, e202209293 (2022).
Jiang, H. et al. Synthesis of 6-alkylated phenanthridine derivatives using photoredox neutral somophilic isocyanide insertion. Angew. Chem. Int. Ed. 52, 13289–13292 (2013).
Li, C.-X., Tu, D.-S., Yao, R., Yan, H. & Lu, C.-S. Visible-light-induced cascade reaction of isocyanides and N-arylacrylamides with diphenylphosphine oxide via radical C−P and C−C bond formation. Org. Lett. 18, 4928–4931 (2016).
Wang, C.-H., Li, Y.-H. & Yang, S.-D. Autoxidation photoredox catalysis for the synthesis of 2-phosphinoylindoles. Org. Lett. 20, 2382–2385 (2018).
Cao, W.-B. et al. Hydrogen-bonding-promoted cascade rearrangement involving the enlargement of two rings: Efficient access to polycyclic quinoline derivatives. Angew. Chem. Int. Ed. 59, 21425–21430 (2020).
Zhang, Y. et al. Selective C(sp3)–H activation of simple alkanes: Visible light-induced metal-free synthesis of phenanthridines with H2O2 as a sustainable oxidant. Green. Chem. 23, 6926–6930 (2021).
Ye, H.-B., Zhou, X.-Y., Li, L., He, X.-K. & Xuan, J. Photochemical synthesis of succinic ester-containing phenanthridines from diazo compounds as 1, 4-dicarbonyl precursors. Org. Lett. 24, 6018–6023 (2022).
Banjare, S. K. et al. Thermal and photoinduced radical cascade annulation using aryl isonitriles: an approach to quinoline-derived benzophosphole oxides. Angew. Chem. Int. Ed. 63, e202404275 (2024).
Zhang, E., Fan, C.-A., Tu, Y.-Q., Zhang, F.-M. & Song, Y.-L. Organocatalytic asymmetric vinylogous α-ketol rearrangement: Enantioselective construction of chiral all-carbon quaternary stereocenters in spirocyclic diketones via semipinacol-type 1,2-carbon migration. J. Am. Chem. Soc. 131, 14626–14627 (2009).
Zhang, Q.-W. et al. Brønsted acid catalyzed enantioselective semipinacol rearrangement for the synthesis of chiral spiroethers. Angew. Chem. Int. Ed. 48, 8572–8574 (2009).
Chen, Z.-M. et al. Organocatalytic asymmetric halogenation/semipinacol rearrangement: Highly efficient synthesis of chiral α-oxa-quaternary β-haloketones. J. Am. Chem. Soc. 133, 8818–8821 (2011).
Li, H. et al. Enantioselective bromination/semipinacol rearrangement for the synthesis of β-bromoketones containing an all-α-carbon quaternary center. Chem. Sci. 2, 1839–1841 (2011).
Chai, V. & Rainey, T. J. Pd(II)/Brønsted acid catalyzed enantioselective allylic C–H activation for the synthesis of spirocyclic rings. J. Am. Chem. Soc. 134, 3615–3618 (2012).
Romanov-Michailidis, F., Guénée, L. & Alexakis, A. Enantioselective organocatalytic fluorination-induced Wagner-Meerwein rearrangement. Angew. Chem. Int. Ed. 52, 9266–9270 (2013).
Romanov-Michailidis, F., Guénée, L. & Alexakis, A. Enantioselective organocatalytic iodination-initiated Wagner-Meerwein rearrangement. Org. Lett. 15, 5890–5893 (2013).
Chen, D.-F., Wu, P.-Y. & Gong, L.-Z. Rhodium/chiral urea relay catalysis enables an enantioselective semipinacol rearrangement/Michael addition cascade. Org. Lett. 15, 3958–3961 (2013).
Yin, Q. & You, S.-L. Asymmetric chlorination/ring expansion for the synthesis of α-quaternary cycloalkanones. Org. Lett. 16, 1810–1813 (2014).
Romanov-Michailidis, F., Pupier, M., Besnard, C., Bürgi, T. & Alexakis, A. Enantioselective catalytic fluorinative aza-semipinacol rearrangement. Org. Lett. 16, 4988–4991 (2014).
Yang, B.-M. et al. Organocatalytic asymmetric tandem Nazarov cyclization/semipinacol rearrangement: Rapid construction of chiral spiro [4.4] nonane-1,6-diones. J. Am. Chem. Soc. 137, 8344–8347 (2015).
Wu, H., Wang, Q. & Zhu, J. Organocatalytic enantioselective vinylogous pinacol rearrangement enabled by chiral ion pairing. Angew. Chem. Int. Ed. 55, 15411–15414 (2016).
Yu, Y., Li, J., Jiang, L., Zhang, J.-R. & Zu, L. Catalytic enantioselective aza-pinacol rearrangement. Angew. Chem. Int. Ed. 56, 9217–9221 (2017).
Lukamto, D. H. & Gaunt, M. J. Enantioselective copper catalyzed arylation-driven semipinacol rearrangement of tertiary allylic alcohols with diaryliodonium salts. J. Am. Chem. Soc. 139, 9160–9163 (2017).
Liu, Y., Tse, Y.-L. S., Kwong, F. Y. & Yeung, Y.-Y. Accessing axially chiral biaryls via organocatalytic enantioselective dynamic kinetic resolution semipinacol rearrangement. ACS Catal. 7, 4435–4440 (2017).
Shim, S. Y., Choi, Y. & Ryu, D. H. Asymmetric synthesis of cyclobutanone via Lewis acid catalyzed tandem cyclopropanation/semipinacol rearrangement. J. Am. Chem. Soc. 140, 11184–11188 (2018).
Xie, Y.-Y. et al. Lewis base/Brønsted acid co-catalyzed enantioselective sulfenylation/semipinacol rearrangement of di- and trisubstituted allylic alcohols. Angew. Chem. Int. Ed. 58, 12491–12496 (2019).
Yang, J. et al. Enantioselective catalytic aldehyde α-alkylation/semipinacol rearrangement: Construction of α-quaternary-δ-carbonyl cycloketones and total synthesis of (+)-cerapicol. Angew. Chem. Int. Ed. 59, 8471–8479 (2020).
Gong, F. et al. Asymmetric semipinacol rearrangement enabled by copper-catalyzed propargylic alkylation. ACS Catal. 12, 12036–12044 (2022).
Côté, A. P. et al. Porous, crystalline, covalent organic frameworks. Science 310, 1166–1170 (2005).
Feng, X., Ding, X. & Jiang, D. Covalent organic frameworks. Chem. Soc. Rev. 41, 6010–6022 (2012).
Ding, S.-Y. & Wang, W. Covalent organic frameworks (COFs): From design to applications. Chem. Soc. Rev. 42, 548–568 (2013).
Das, S., Heasman, P., Ben, T. & Qiu, S. Porous organic materials: Strategic design and structure-function correlation. Chem. Rev. 117, 1515–1563 (2017).
Rogge, S. M. J. et al. Metal–organic and covalent organic frameworks as single-site catalysts. Chem. Soc. Rev. 46, 3134–3184 (2017).
Jin, Y., Hu, Y. & Zhang, W. Tessellated multiporous two-dimensional covalent organic frameworks. Nat. Rev. Chem. 1, 56–67 (2017).
Diercks, C. S. & Yaghi, O. M. The atom, the molecule, and the covalent organic framework. Science 355, 923–931 (2017).
Zhao, W., Xia, L. & Liu, X. Covalent organic frameworks (COFs): Perspectives of industrialization. CrystEngComm 20, 1613–1634 (2018).
Ding, S. Y. et al. Construction of covalent organic framework for catalysis: Pd/COF-LZU1 in Suzuki−Miyaura coupling reaction. J. Am. Chem. Soc. 133, 19816–19822 (2011).
Xu, H., Gao, J. & Jiang, D. Stable, crystalline, porous, covalent organic frameworks as a platform for chiral organocatalysts. Nat. Chem. 7, 905–912 (2015).
Wang, X. et al. Homochiral 2D porous covalent organic frameworks for heterogeneous asymmetric catalysis. J. Am. Chem. Soc. 138, 12332–12335 (2016).
Pang, Z. F. et al. Construction of covalent organic frameworks bearing three different kinds of pores through the heterostructural mixed linker strategy. J. Am. Chem. Soc. 138, 4710–4713 (2016).
Wei, P.-F. et al. Benzoxazole-linked ultrastable covalent organic frameworks for photocatalysis. J. Am. Chem. Soc. 140, 4623–4631 (2018).
Kang, X. et al. Rational synthesis of interpenetrated 3D covalent organic frameworks for asymmetric photocatalysis. Chem. Sci. 11, 1494–1502 (2020).
Wang, K. et al. Porous 2D and 3D covalent organic frameworks with dimensionality-dependent photocatalytic activity in promoting radical ring-opening polymerization. Angew. Chem. Int. Ed. 60, 19466–19476 (2021).
Wu, C.-J. Natural sunlight photocatalytic synthesis of benzoxazole-bridged covalent organic framework for photocatalysis. J. Am. Chem. Soc. 144, 18750–18755 (2022).
Wang, G.-B. et al. Construction of covalent organic frameworks via a visible-light-activated photocatalytic multicomponent reaction. J. Am. Chem. Soc. 145, 4951–4956 (2023).
Parvatkar, P. T. et al. A tailored COF for visible-light photosynthesis of 2,3-dihydrobenzofurans. J. Am. Chem. Soc. 145, 5074–5082 (2023).
Guo, M. et al. The promotion effect of π-π interactions in Pd NPs catalysed selective hydrogenation. Nat. Commun. 13, 1770–1779 (2022).
Gutierrez, L. et al. Low oxidation state cobalt center stabilized by a covalent organic framework to promote hydroboration of olefins. ACS Catal. 13, 3044–3054 (2023).
Fang, Y. et al. Design and synthesis of broadband absorption covalent organic framework for efficient artificial photocatalytic amine coupling. Nat. Commun. 15, 4856–44865 (2024).
Zhu, Y. et al. Sequential oxidation/cyclization of readily available imine linkages to access benzoxazole-linked covalent organic frameworks. Angew. Chem. Int. Ed. 63, e202319909 (2024).
Cheng, C. et al. Construction of benzoxazine-linked one-dimensional covalent organic frameworks using the Mannich reaction. Angew. Chem. Int. Ed. 63, e202403473 (2024).
Yang, M.-Y. et al. Three-motif molecular junction type covalent organic frameworks for efficient photocatalytic aerobic oxidation. J. Am. Chem. Soc. 146, 3396–3404 (2024).
Cheng, J. et al. Fully conjugated 2D sp2 carbon-linked covalent organic frameworks for photocatalytic overall water splitting. Adv. Mater. 36, 2305313 (2024).
He, H. et. al. Double enhancement of protonation and conjugation in donor–imine–donor covalent organic frameworks for photocatalytic hydrogen evolution. Chem. Sci. 15, 20002–20012 (2024).
Gao, R. et. al. 2D/2D hydrogen-bonded organic frameworks/covalent organic frameworks S-scheme heterojunctions for photocatalytic hydrogen evolution. Angew. Chem. Int. Ed. 64, e202414229 (2025).
Prier, C. K., Rankic, D. A. & MacMillan, D. W. C. Visible light photoredox catalysis with transition metal complexes: Applications in organic synthesis. Chem. Rev. 113, 5322–5363 (2013).
Luo, J. & Zhang, J. Donor-acceptor fluorophores for visible-light-promoted organic synthesis: Photoredox/Ni dual catalytic C(sp3)–C(sp2) cross-coupling. ACS Catal. 6, 873–877 (2016).
Frisch, M. J. et al. Gaussian 16 Rev. C.01, Wallingford, CT, 2016.
Adamo, C. & Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 110, 6158–6170 (1999).
Ernzerhof, M. & Scuseria, G. E. Assessment of the Perdew−Burke−Ernzerh of exchange-correlation functional. J. Chem. Phys. 110, 5029–5036 (1999).
Acknowledgements
This research was supported by the Department of Science and Technology of Fujian Province (No.2022H6021) from Z.Y., the Forestry Science and Technology Project of Fujian Province (No. 2023FKJ27) from Z.Y. We also acknowledge financial support from the JST-ERATO Yamauchi Materials Space-Tectonics Project (JPMJER2003) and the ARC Laureate Fellowship (FL230100095) from Y.Y. and the ARC Discovery Early Career Researcher Award (DECRA) (DE220101577) from J.W. This work used the Queensland node of the NCRIS-enabled Australian National Fabrication Facility (ANFF) from Y.Y. We demonstrate our appreciation for English editing software such as ChatGPT, Grammarly, etc.
Author information
Authors and Affiliations
Contributions
X.L. conceived the idea, executed most experiments and wrote the article. J.L. and J.Z. revised the article. X.C. synthesized several substrates. R.S. conducted the DFT studies. D.J. performed HR-TEM, BET measurements and revised the article. Y.K. and J.W. performed the SEM and BET measurements. L.W.; C.S.; Y.Y., and Z.Y. supervised the research project. All authors discussed the results and were engaged in revising and completing the final version of the manuscript.
Corresponding authors
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature Communications thanks the anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary information
Source data
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Lin, X., Li, J., Zheng, J. et al. Straightforward construction of functionalized γ-lactams via conjugated-engineered covalent organic framework photocatalysed cascade reactions. Nat Commun 16, 10818 (2025). https://doi.org/10.1038/s41467-025-66469-2
Received:
Accepted:
Published:
Version of record:
DOI: https://doi.org/10.1038/s41467-025-66469-2
