Nuclear actin and DNA replication stress regulate telomere maintenance by telomerase

Nature Communications volume 16, Article number: 10193 (2025) Cite this article

9020 Accesses
3 Citations
38 Altmetric
Metrics details

Subjects

Abstract

The recruitment of telomerase to telomeres is a tightly regulated process which is stimulated by replication stress and the DNA damage response regulatory kinase ATR, via an unknown mechanism. Here, we demonstrate that nuclear filamentous actin is important for the stable interaction of telomerase with telomeres in immortal human cells, resulting in productive telomere elongation by telomerase in an actin-dependent manner. This process is regulated by both ATR and mTOR kinases, and employs other regulators of actin structure and function, such as WASP, ARP2/3 and myosin. Nuclear filamentous actin serves as a site for telomerase recruitment, which is mediated by telomere tethering on actin fibers in response to replication stress, allowing telomerase to localize to telomeres containing stalled replication forks. Overall, these data demonstrate that, in human cells which express telomerase, telomeric replication stress triggers the recruitment of telomerase to telomeres via a nuclear actin network, enabling telomere length maintenance.

TERRA transcription destabilizes telomere integrity to initiate break-induced replication in human ALT cells

Article Open access 18 June 2021

Structures of telomerase at several steps of telomere repeat synthesis

Article 12 May 2021

Structures of nucleotide-bound human telomerase at several steps of its telomeric DNA repeat addition cycle

Article Open access 21 January 2026

Introduction

Telomeres are nucleoprotein complexes comprised of tandem DNA repeats, TTAGGG in vertebrates, which cap the ends of linear chromosomes to maintain the integrity of the genome and ensure cellular survival¹. Given their resemblance to damaged DNA, exposed telomeres activate the DNA damage response (DDR) which can result in chromosome end-to-end fusions. To suppress this response, telomeres are bound by the six-protein complex shelterin, which includes TRF1 and TRF2, which directly bind to duplex telomeric repeats and mediate binding of the remaining subunits: POT1, TPP1, RAP1, and TIN2^2,3. Shelterin proteins perform various functions to maintain telomere structure and function, including regulating telomere length.

In human stem and germline cells and ~85% of cancers, telomere synthesis is performed by the ribonucleoprotein enzyme telomerase⁴. Human telomerase associates with a large number of different proteins⁵; however, the minimal catalytic core is the telomerase reverse transcriptase (hTERT) and telomerase RNA (hTR)^5,6,7. Recruitment of telomerase to telomeres is a highly regulated process^4,8, predominantly occurring during S phase^9,10; this cell cycle control is at least partially regulated by TRF1, which negatively regulates telomerase recruitment outside S phase^11,12. TPP1 is also critical for telomerase recruitment, as it binds hTERT via an exposed N-terminal domain termed the TEL patch¹³. The interactions between TPP1, POT1, and TIN2 are also necessary to facilitate telomerase recruitment and processivity at telomeres^14,15,16.

If telomeres become critically short, they can trigger activation of a DDR through either ATR or ATM¹⁷, PIKK (phosphatidylinositol-3 kinase-related) family kinases which govern the DDR. Shelterin typically represses the activation of both ATR and ATM at telomeres, specifically via POT1 and TRF2, respectively^18,19,20,21. Furthermore, replication fork stalling within the telomere results in ATR activation²². Almost paradoxical, however, is the emerging evidence that the DDR is also crucial for regulation of telomerase presence at telomeres. In yeast, telomerase preferentially extends the shortest telomeres in a manner dependent on Tel1 (the yeast homolog of ATM)^23,24,25,26. Furthermore, Tel1 is required for telomerase recruitment in budding yeast²⁷, and both Tel1 and Rad3 (the fission yeast homolog of ATR) are required in fission yeast^28,29,30. In human cells, ATR or ATM deficiency or mutation results in telomere shortening or instability^31,32. Telomerase regulation by ATM/ATR may rely upon TRF1 displacement, as phosphorylation of TRF1 at an ATM/ATR target site results in its depletion from telomeres and heightened telomerase recruitment^11,33. Furthermore, the depletion or inhibition of ATR or ATM results in reduced telomerase presence at telomeres^11,34. This axis is supported by the finding that induced replication stress promotes telomerase recruitment^11,35 and ultimately causes telomere lengthening^11,22. These studies together suggest a tightly regulated process for telomerase recruitment which is coordinated by DNA replication, the DDR and the telomere maintenance machinery. However, the downstream substrate(s) of ATR involved in recruiting human telomerase to telomeres have not yet been identified, and the link between replication stress and telomerase recruitment has not been mechanistically characterized.

An emerging body of research has illustrated that a key regulator of the DDR is nuclear filamentous actin (F-actin). Although classically considered cytoplasmic, nuclear F-actin forms in response to double strand breaks (DSBs) and replication stress, where it facilitates the DDR by re-localization of damaged sites to the nuclear periphery for repair or fork restart^{36,37,38,39,40,41}. This occurs globally in response to DNA damage, but also specifically at telomeres undergoing replication stress^38,42. Under replication stress conditions, the polymerization of nuclear F-actin is dependent on ATR, whose activity is required for downstream phosphorylation of another PIKK family kinase, mTOR³⁸, in turn regulating F-actin through the Wiskott-Aldrich syndrome protein (WASP) family⁴³.

The convergence of these data suggests there is controlled actin-mediated interplay between DNA replication, the DDR, and telomere maintenance. Here we demonstrate that nuclear F-actin regulates telomerase recruitment in an ATR- and mTOR-dependent manner in response to replication stress. This recruitment results in productive telomere lengthening by telomerase, which is upregulated by replication stress and dependent on F-actin polymerization. Specifically, nuclear actin filaments appear to act as sites for telomerase recruitment, potentially due to telomere tethering on F-actin under conditions of replication stress. Furthermore, the recruitment of telomerase to telomeres occurs in proximity to stalled replication forks and F-actin. These data reveal a new function for the nuclear F-actin network in telomere maintenance.

Results

F-actin polymerization facilitates telomerase recruitment to telomeres

To better visualize hTR presence at telomeres, we modified an existing fluorescence in situ hybridization (FISH) protocol^11,44 by generating SABER (signal amplification by exchange reaction) probes⁴⁵ targeting both hTR and telomere sequences, greatly amplifying the intensity of the foci (Supplementary Fig. 1a-b), particularly hTR. Cells were also labeled with EdU to identify S phase cells for quantification, as this is predominantly when telomerase recruitment to telomeres occurs within the cell cycle^9,10,11. The hTR SABER FISH signal is highly specific, as hTR foci were not detected in the hTR-negative WI-38 VA13⁴⁶ cell line (Supplementary Fig. 1c). In untreated HEK293T cells, the number of co-localizing hTR and telomere foci ranged from 0 – 5 per S phase cell with a mean of ~1 (Fig. 1a, c, and Supplementary Fig. 2a-b), consistent with previous quantitation using standard FISH^9,10,11; this small number of co-localizing foci in fixed cells reflects a “snapshot” of the dynamic interactions between telomerase and telomeres across S phase^35,47. To exclude the possibility of these events being stochastic associations, we performed a rotation control⁴⁸ to simulate random distribution of foci within nuclei. One fluorescence channel (telomeres) was rotated 90°; this resulted in significantly less hTR/telomere co-localizations (Supplementary Fig. 1d-e), demonstrating that while these events are infrequent, they occur more often than would be expected by chance.

Given that the recruitment of mammalian telomerase to telomeres is promoted by replication stress^11,49, and the emerging understanding that F-actin is involved in resolution of stalled replication forks^38,41,50, we explored whether actin polymerization is also involved in telomerase recruitment. Treatment of 293T cells with two inhibitors of actin polymerization, latrunculin A and latrunculin B (LatA and LatB), which both bind to monomeric F-actin to prevent its polymerization^51,52, resulted in a significant reduction in telomerase recruitment to telomeres in S phase cells (Fig. 1a-c, Supplementary Fig. 2a-b). Furthermore, while short-term treatment (30 min) with the polymerase inhibitor aphidicolin (APH) is sufficient to induce a DDR (as measured by phosphorylation of the ATR substrate Chk1; Fig. 1d) and promote an increase in telomerase recruitment, this increased recruitment was prevented by inhibiting actin polymerization using either LatA or LatB (Fig. 1c, Supplementary Fig. 2a-b). Treatment with the latrunculins (with or without APH) did not cause substantial perturbation to cell cycle progression (Supplementary Fig. 2c), suggesting that the observed effects on telomerase are due to F-actin facilitating recruitment, and not due to fluctuations in the cell cycle.

While we have previously demonstrated that replication stress promotes nuclear F-actin formation in S phase³⁸, this was after 24 h incubation with low dose (0.4 μM) APH, unlike the short period of higher dose (1.5 μM) APH used above to induce telomerase recruitment without causing DNA DSBs¹¹. To confirm that a short incubation with APH also promotes nuclear F-actin formation, we quantified the number of S phase cells with nuclear F-actin. This was performed by visualizing either endogenous nuclear actin using an actin chromobody⁵³, tagged with both blue fluorescent protein (BFP) and a nuclear localization signal (NLS; nuclear-actin-ChB), or by overexpressing mCherry and NLS-tagged actin^36,38. Using either approach, approximately 10% of unperturbed S phase 293T cells possess visible nuclear F-actin, which increased threefold after treatment with APH for 30 min (Fig. 1e, f, Supplementary Fig. 2d-e), confirming that this dose of replication stress is sufficient to induce nuclear F-actin polymerization.

These results support the hypothesis that replication stress promotes telomerase recruitment through activation of the DNA replication stress response and subsequent F-actin polymerization. The requirement of ATR for telomerase recruitment has only been previously examined in 293T cells¹¹, so to validate the generality of this pathway, the requirement of ATR for recruitment was also confirmed in the cervical cancer cell line HeLa. Knockdown of ATR by siRNA resulted in a significant reduction in telomerase recruitment in HeLa cells (Fig. 1g, Supplementary Fig. 2f-g), which was not accompanied by an observable perturbation to cell cycle profiles (Supplementary Fig. 2h). To further confirm that ATR-mediated telomerase recruitment employs the canonical ATR response to replication stress, ATR interacting protein (ATRIP)^54,55 was also depleted (Supplementary Fig. 2i). Following ATRIP knockdown in 293T cells, both with and without replication stress, there was a significant reduction in telomerase recruitment without major cell cycle perturbations (Fig. 1h, Supplementary Fig. 2j-l), confirming that ATR functions in this pathway via its canonical DDR signaling role.

Subsequently, the levels of telomerase recruitment in response to replication stress was examined in a panel of telomerase positive human cell lines, including HeLa, lung adenocarcinoma A549, fibrosarcoma HT1080, and colorectal carcinoma HCT116 cells. Following APH treatment to induce replication stress, all cell lines displayed a significant increase in telomerase recruitment with no substantial alteration to their cell cycle profile (Fig. 1i, j, Supplementary Fig. 2m-n). Treatment of this panel of cell lines with LatB to inhibit actin polymerization also recapitulated the reduction in telomerase recruitment observed in 293T cells (Fig. 1k, l, Supplementary Fig. 2o-p). Overall, these results provide evidence that the polymerization of actin in telomerase positive human cell lines is important for telomerase recruitment to telomeres, and that replication stress-induced recruitment requires ATR-mediated F-actin formation.

F-actin polymerization facilitates telomere extension by telomerase

Given that inhibition of nuclear F-actin polymerization affected the recruitment of telomerase to telomeres, we investigated whether this would also impact telomere synthesis by telomerase. To address this, we utilized an in situ telomere extension assay which employs a variant of hTR with a mutated template sequence, TSQ1-hTR (tolerated sequence 1), that results in addition of GTTGCG repeats to telomeres instead of the canonical TTAGGG⁵⁶. We adapted this assay to detect TSQ1-positive telomeres in 293T cells via SABER FISH⁴⁵ following overexpression of hTERT, dyskerin and TSQ1-hTR. This system only detects TSQ1-positive telomeres after transfection of the TSQ1-hTR variant, but not wild type (WT) hTR, and does not require endogenous hTR (Supplementary Fig. 3a-d).

Following TSQ1 telomerase overexpression, the number of TSQ1-positive telomeres significantly increased following short-term (30 or 60 min) induction of replication stress in a time-dependent manner (Fig. 2a, b). There was also an increased presence of telomerase at TSQ1-positive telomeres following replication stress (Fig. 2c).

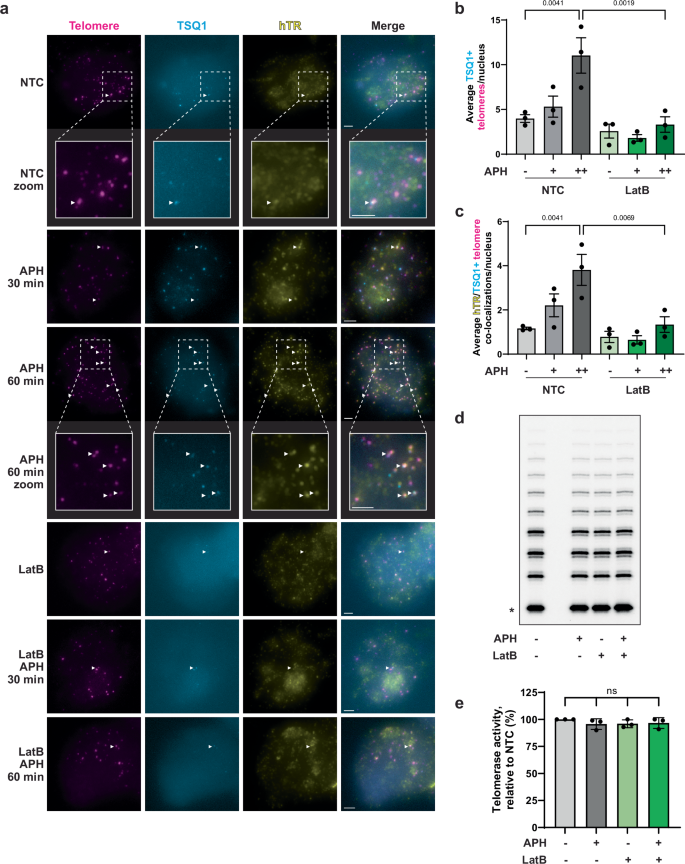

**Fig. 2: F-actin polymerization is required for in situ telomere extension by telomerase.**

To investigate the role of F-actin in this process we treated cells with LatB and observed a slight reduction in the number of TSQ1-positive telomeres (with and without telomerase), although this was not statistically significant (Fig. 2a–c). However, when cells were treated with APH after inhibition of F-actin polymerization, there was no increase in TSQ1-positive telomeres, or telomerase at those telomeres. These results were not due to variable levels of telomerase expression, as the number of hTR foci did not change between conditions (Supplementary Fig. 3e).

To exclude the possibility that the changes in TSQ1-positive telomeres were a by-product of altered telomerase assembly or activity, we treated 293T cells with APH and/or LatB and purified the endogenous telomerase to perform a direct telomerase activity assay (Fig. 2d). Regardless of APH or LatB treatment, there was no change in the total activity of telomerase in these cells (Fig. 2d, e), indicating that the results observed in the TSQ1 assay were specifically due to changes to telomerase recruitment. Taken together, these data demonstrate that replication stress results in increased productive telomere extension in situ, which is governed by nuclear F-actin-mediated telomerase recruitment.

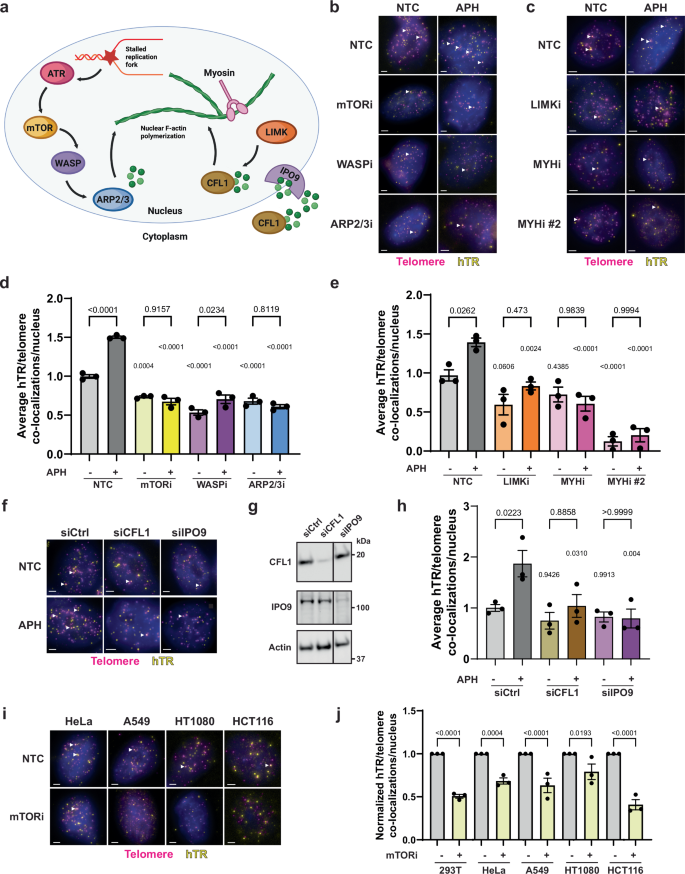

Telomerase recruitment is facilitated by known regulators of nuclear F-actin

Nuclear actin polymerization and function is controlled and regulated by a wide array of proteins (Fig. 3a). Monomeric actin is transported into the nucleus by importin 9; this transport is regulated by cofilin 1^57,58. Branching of both nuclear and cytoplasmic actin fibers is mediated by ARP2/3, which is regulated by WASP through mTOR^43,59. Consistent with our previous work³⁸, we observed that the nuclear F-actin network (visualized by either chromobody or exogenous mCherry-NLS-actin expression) includes fibers that branch at angles of ~70° (Supplementary Fig. 4a), supporting that ARP2/3 and its regulation through WASP are required for formation of a branched nuclear actin network which facilitates telomerase recruitment. F-actin depolymerization is necessary for fiber reorganization, and can be performed by cofilin 1^60,61, which is regulated by LIM kinase 1 (LIMK)⁶². Furthermore, myosin motor proteins aid F-actin function by transporting cargo and aid remodeling of the F-actin network⁶³.

Given that these proteins are all established actin regulatory elements which have been demonstrated to function in nuclear F-actin polymerization in response to replication stress, or in the import of actin into the nucleus, we decided to confirm whether actin-mediated telomerase recruitment utilizes these known regulatory elements. 293T cells were treated with small molecule inhibitors of five key actin regulators: the mTOR inhibitor INK128⁶⁴, the ARP2/3 inhibitor CK-666⁶⁵, the WASP inhibitor wiskostatin⁶⁶, the LIMK inhibitor LIMKi 3⁶⁷, and the myosin inhibitors BDM (2,3-butanedione monoxime)⁶⁸ and BTS (N-benzyl-p-toluene sulfonamide)⁶⁹. Chemical inhibition of these actin regulators resulted in decreased telomerase presence at telomeres (Fig. 3b–e). The decrease observed after LIMKi treatment was not statistically significant, but this is likely because it regulates cofilin, which has both positive and negative effects on nuclear actin polymerization; indeed, there was no significant difference in the proportion of nuclear F-actin-positive S phase cells after LIMKi treatment alone (Supplementary Fig. 4b). The cells were also treated with APH briefly to induce replicative stress; while inhibition of these regulatory elements did not impair Chk1 phosphorylation or cell cycle progression (Supplementary Fig. 4c-d), all inhibitors prevented the increase in telomerase recruitment induced by replication stress (Fig. 3d, e), and for LIMKi treatment there was a concomitant inhibition of the replication stress-induced increase in S phase nuclear F-actin (Supplementary Fig. 4b).

We next tested the role of two regulators of nuclear actin import by siRNA knockdown in 293T cells, specifically cofilin 1 (encoded by the gene CFL1) and importin 9 (IPO9). Knockdown of these proteins resulted in a decrease in telomerase recruitment, although this was not statistically significant (Fig. 3f–h, Supplementary Fig. 4e-g). For cofilin, this was likely because the reduction in F-actin-positive S-phase cells was also not significant (Supplementary Fig. 4h). However, cells treated with APH following knockdown retained a normal cell cycle profile (Supplementary Fig. 4i) and functional DDR (Supplementary Fig. 4j), but showed no significant increase in telomerase recruitment upon replication stress (Fig. 3h, Supplementary Fig. 4f), which for cofilin was paralleled by no significant increase in F-actin-positive S phase cells (Supplementary Fig. 4h). Overall, these data demonstrate that the increased telomerase recruitment induced by replication stress requires a functional regulatory system to promote nuclear import and polymerization of actin.

To establish the universality of this pathway, the selected panel of telomerase positive cell lines (HeLa, A549, HT1080, and HCT116) was treated with INK128 to assess its effect on telomerase recruitment. Following mTOR inhibition, all cell lines displayed decreased telomerase recruitment without major changes to cell cycle progression (Fig. 3i, j, Supplementary Fig. 4k-l). Overall, the results from these experiments indicate that the known nuclear actin regulatory network is important for facilitating telomerase localization to telomeres, both under endogenous conditions and following induction of exogenous replication stress.

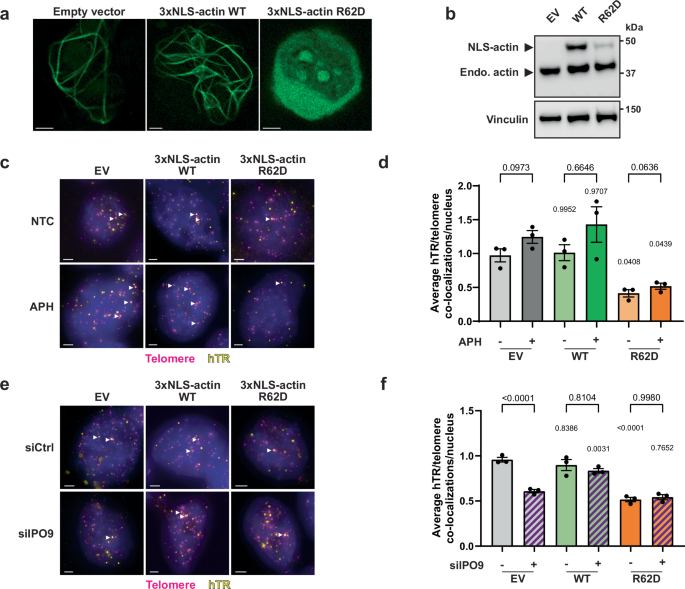

Nuclear F-actin polymerization is required for telomerase recruitment

The role of nuclear F-actin in resolving replication stress^38,41, in combination with our observation that knockdown of IPO9 impacted telomerase recruitment (Fig. 3h, Supplementary Fig. 4f), suggested that it is the nuclear pool of F-actin that specifically regulates telomerase recruitment, rather than an indirect effect of perturbations to cytoplasmic actin. To directly test this hypothesis, we utilized expression constructs encoding WT actin or a polymerization-deficient actin mutant (R62D) tagged with an NLS^36,38. Both constructs, along with an empty vector as a control, were transfected into 293T cells, where only R62D actin disrupted the polymerization of nuclear F-actin, without impacting cytoplasmic F-actin (Fig. 4a, b, Supplementary Fig. 5a–c). Expression of exogenous WT actin did not impact telomerase recruitment under endogenous or stressed conditions; however, expression of the R62D mutant significantly decreased recruitment in both conditions (Fig. 4c, d). To further validate this result, expression of WT and R62D actin was then repeated with simultaneous siRNA knockdown of IPO9 to reduce the nuclear pool of endogenous actin (Supplementary Fig. 5d–f). IPO9 knockdown reduced telomerase recruitment in cells transfected with empty vector as expected; however, expression of exogenous WT actin was able to rescue this phenotype by replenishing the nuclear actin pool (Fig. 4e, f). Conversely, expression of the mutant R62D mutant significantly reduced telomerase recruitment, regardless of IPO9 knockdown. These data provide evidence that the regulation of telomerase recruitment specifically involves nuclear F-actin filaments.

Telomerase recruitment to telomeres occurs in proximity to F-actin filaments

One of the emerging functions of nuclear F-actin in resolving genomic stress is the re-localization of stalled replication forks or sites of DNA damage to the nuclear periphery^37,38,40. It has also been demonstrated that telomeres undergoing replicative stress are repositioned toward the nuclear periphery in an F-actin dependent manner^38,42. Given this, one potential hypothesis for replication stress-mediated telomerase recruitment is that it occurs closer to the periphery following induction of replication stress and re-localization of telomeres. To investigate this, the nuclear periphery was first identified by DAPI staining of 293T cells. Individual hTR or telomere foci, as visualized by FISH, were then identified alongside co-localized hTR/telomere foci indicating telomerase recruitment (Fig. 5a). To account for changes in nucleus size, nuclei were divided into six equal segments, with foci scored according to which segment they were located within (Fig. 5b). There was no significant difference in localization between hTR or telomeres; however, telomerase interacting with telomeres was significantly further from the nuclear periphery than telomeres or hTR alone (Fig. 5c). This suggests that while the nuclear periphery serves as a site for DNA repair, it is not where telomerase recruitment predominately occurs under basal conditions. Short-term exposure to APH also failed to induce movement of telomeres towards the nuclear periphery (Supplementary Fig. 6a); instead telomeres moved slightly closer to the nuclear interior. While it remains possible that re-localization occurred but was not detected due to invaginations in the nuclear envelope, we favor the interpretation that telomere re-localization to the nuclear periphery requires prolonged exposure to replication stress^38,42.

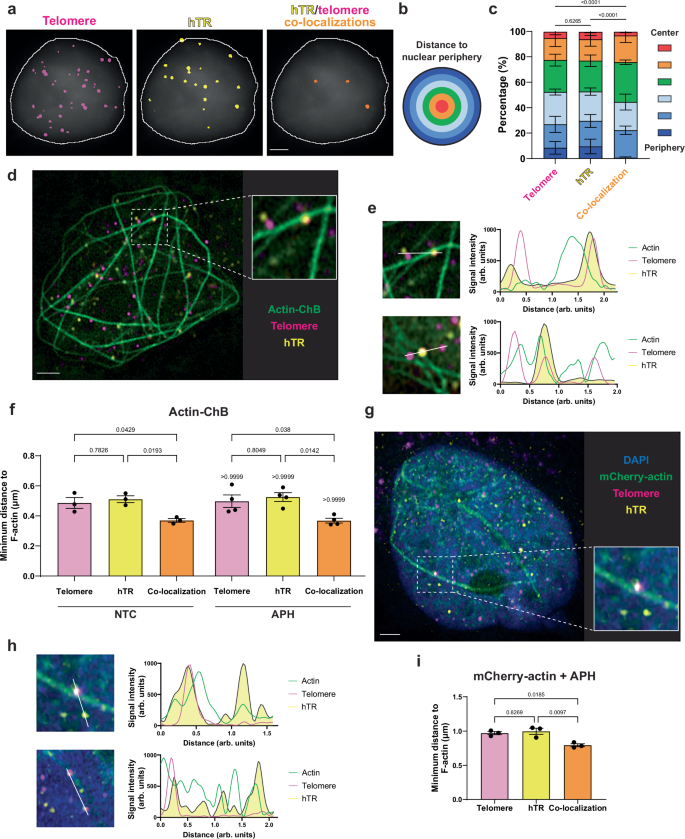

**Fig. 5: Telomerase recruitment to telomeres occurs in proximity to F-actin.**

We instead hypothesized that F-actin might serve as a direct site of interaction between telomeres and telomerase. To test this, FISH against hTR and telomeres was performed on HeLa cells expressing nuclear-actin-ChB, with or without brief treatment with APH to promote F-actin formation. Neither nuclear-actin-ChB expression nor APH treatment impacted the cell cycle progression of the BFP-positive cells (Supplementary Fig. 6b-c). Cells were visualized by confocal laser scanning microscopy using an Airyscan super-resolution detector (Carl Zeiss), where co-localized hTR/telomere foci were observed residing on F-actin (Fig. 5d, e). To quantify this, individual and co-localizing hTR/telomere foci were identified along with F-actin, and the minimum distance between each focus and the nearest actin fiber was then calculated (Supplementary Fig. 6d). While the mean distance of hTR and telomere foci from actin fibers were not significantly different, telomerase foci co-localizing with telomeres were on average significantly closer to F-actin than either unbound telomerase or telomeres in cells treated with or without APH (Fig. 5f). These results were due to more foci residing directly on or adjacent to F-actin, as well as fewer foci which were distant (>1 μm) from F-actin (Supplementary Fig. 6d-h). While APH treatment increases the number of F-actin-positive nuclei (Fig. 1e, f), it did not affect the mean distance of hTR and telomere foci from nuclear F-actin compared to untreated cells (Fig. 5f), indicating that exogenous replication stress increases the frequency of F-actin formation and telomerase recruitment events, but not their underlying mechanism.

While it has been demonstrated that the actin chromobody stains canonical, dynamic nuclear F-actin structures that can form and dissociate in the presence of the chromobody^37,38,60, and we also see cells with few, short, or thin actin fibers (Supplementary Fig. 6i), we nevertheless validated this result by overexpressing mCherry and NLS-tagged actin³⁶ and repeating this analysis. Overexpression of this NLS-tagged actin (without mCherry) alone does not promote telomerase recruitment (as would be expected following nuclear F-actin stabilization; Fig. 4c, d), and mCherry-tagged actin can form both long and short nuclear actin fibers (Supplementary Fig. 6j), which can also dissociate³⁸. hTR/telomere co-localizations were again observed residing on nuclear F-actin (Fig. 5g, h). Although the minimum distance was larger than we observed with the chromobody, co-localizations were on average significantly closer to nuclear F-actin than foci which did not co-localize (Fig. 5i). The distribution of foci was also comparable (Supplementary Fig. 6k-m). Taken together, these results demonstrate that telomerase recruitment to telomeres occurs in proximity to nuclear F-actin, which likely serves as a direct site for their interaction.

Telomerase recruitment occurs via tethering of telomeres to F-actin

To explore the dynamics of telomerase recruitment further, live cell imaging was performed using CRISPR-modified HeLa cells expressing endogenous hTERT tagged with a FLAG-HaloTag and endogenous TRF2 tagged with the fluorescent protein HA-mEOS3.2, to allow visualization of telomerase and telomeres, respectively⁴⁷. These cells were transfected with the nuclear-actin-ChB, synchronized by double thymidine block (Supplementary Fig. 7a), and released into S phase for 3–5 h prior to live cell imaging using super-resolution microscopy (Fig. 6a, Supplementary Movies 1 and 2). Synchronization by double thymidine block also causes replication stress and therefore promotes formation of nuclear F-actin filaments of varying lengths (Fig. 6a, Supplementary Fig. 7b). Telomerase is known to rapidly bind and dissociate from telomeres in S phase, while longer interactions with telomeres are rarer^35,47. These longer interactions are known to represent successful recruitment of telomerase, leading to engagement of telomerase with the 3′ DNA overhang and productive telomere extension⁷⁰. Given this, we assessed these long telomerase/telomere interactions to determine whether proximity to F-actin would help mediate this process. Stable interactions (> 30 s) between telomerase and telomeres (Fig. 6b) were classified based on where they occurred relative to F-actin; this included on or adjacent to a fiber, or in proximity to F-actin (~1 μm maximum distance), with all other events classified as distal (Fig. 6c). Stable interactions were also separately classified based on whether the initial interaction between telomerase and the telomere had already occurred prior to the start of the movie (Fig. 6d, “Previously recruited”), or if the recruitment event was observed occurring during the movie (i.e. at least one focus was observed prior to it co-localizing with its partner; Fig. 6d, “Observed recruitment”). Using these classifications, ~45% of observed recruitment events occurred directly on F-actin, with ~35% of the remaining events occurring adjacently (Fig. 6d). By comparison, previous recruitment events were imaged directly on or adjacent to F-actin only ~15% and ~25% of the time, respectively. The distribution of these events was significantly different, which suggests that recruitment may occur in proximity to F-actin, but this is not required for the continued interaction between telomerase and a telomere.

**Fig. 6: Nuclear F-actin facilitates telomerase recruitment to telomeres in live cells.**

It was also observed by live cell imaging that telomeres displayed a similar profile to observed recruitment events; a majority of telomeres which were never bound by telomerase were on or adjacent to F-actin (Fig. 6d). In contrast, telomerase foci which never interacted with a telomere were primarily located distally from F-actin. When the position of the telomere and telomerase foci relative to actin fibers was examined, in ~50% of observed recruitment events the telomere was located closer to F-actin than telomerase, while telomerase was closer only ~10% of the time (the remaining ~40% were equidistant) (Fig. 6e, f). We also determined which focus arrived at the actin filament first for these events, which revealed that in ~80% of observed recruitment events, the telomere was located at or near F-actin before telomerase (Fig. 6g). These data together suggest that under replication stress conditions, telomeres are the first to interact with actin filaments, which ultimately could facilitate the ability of telomerase to interact with those telomeres.

We observed that telomeres located on F-actin were less mobile than those distant from fibers (Fig. 6h, Supplementary Movie 3); this was quantified by measuring the mean squared displacement (MSD) of each individual telomere on a frame-by-frame basis and classifying each focus as “on” or “off” F-actin based on the intensity of nuclear-actin-ChB signal within the focus (examples of individual telomeres in Fig. 6i, Supplementary Fig. 7c-e). From this analysis, telomeres which were on F-actin were ~40% less mobile than other telomeres (Fig. 6j, Supplementary Fig. 7f). We subsequently performed the same analyses for individual hTERT foci but also determined whether each focus was “on” or “off” TRF2 at any given time point using the same approach as for F-actin. For hTERT foci which did not overlap with TRF2 there was a slight, but significant, increase in hTERT mobility when located on F-actin (Fig. 6k, Supplementary Fig. 7g). Conversely, hTERT foci interacting with TRF2 were less mobile on average, and this did not depend on actin fibers (Fig. 6k, Supplementary Fig. 7g-k), consistent with previous observations^35,47 that stable telomerase recruitment to telomeres significantly reduces its movement. Furthermore, hTERT foci were overall more mobile than telomeres (Fig. 6j, k, Supplementary Fig. 7f-g), even when co-localizing with TRF2 foci on F-actin, which is consistent with the scanning behavior of telomerase at telomeres³⁵. Overall, these data suggest that under replicative stress, telomeres are restrained by F-actin and that these telomeres may serve as a site for telomerase recruitment to facilitate telomere elongation.

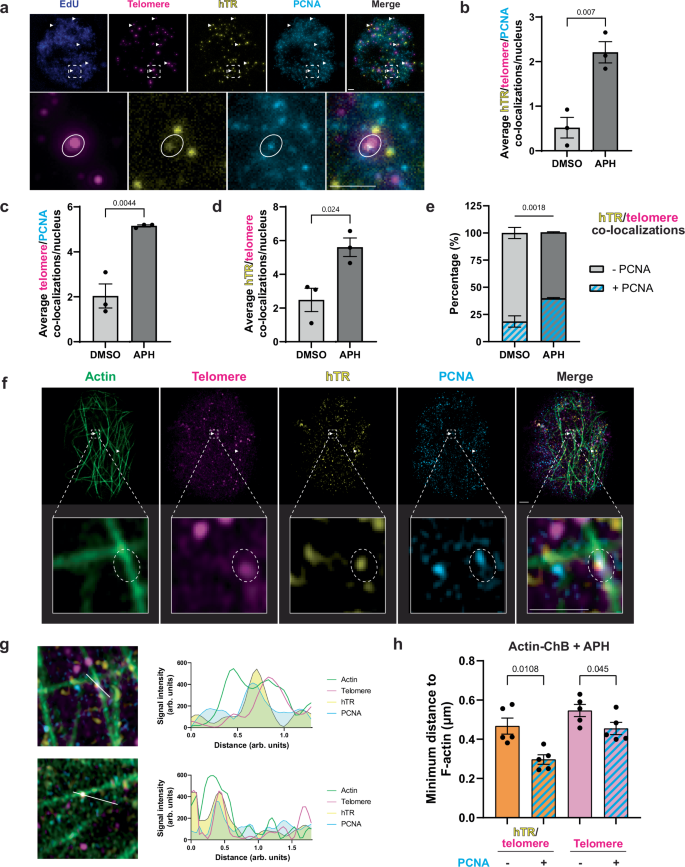

Stalled replication forks promote telomerase recruitment at F-actin

While it is known that replication stress promotes telomerase recruitment¹¹, the exact mechanism behind this process remains unclear. One possible explanation for this phenomenon is that replication fork stalling within a telomere triggers telomerase recruitment to that same telomere. To examine the hypothesis that telomerase recruitment occurs in proximity to stalled replication forks, PCNA (proliferating cell nuclear antigen) foci were used as a marker of DNA replication⁷¹. Immunofluorescence (IF) against PCNA was combined with SABER FISH for hTR and telomeres (Fig. 7a) in 293T cells in the presence or absence of a 30 min incubation with APH. While a basal level of co-localization between all three elements was observed in untreated cells, APH treatment resulted in ~4-fold more hTR-telomere co-localizations that overlapped with PCNA foci (Fig. 7b, Supplementary Fig. 8a-b). As expected, APH treatment also increased telomere-PCNA or hTR-telomere co-localizations ~twofold (Fig. 7c, d), indicative of increased telomeric replication stress and stress-induced telomerase recruitment, respectively. Interestingly, when hTR-telomere co-localizations were compared according to their overlap with PCNA, the proportion of recruitment events which coincided with PCNA approximately doubled following APH treatment (Fig. 7e, Supplementary Fig. 8c), supporting the hypothesis that replication fork stalling may promote telomerase recruitment.

Given the convergence between replication, telomerase recruitment and actin polymerization, we also performed SABER IF-FISH against PCNA, hTR and telomeres in HeLa cells expressing the nuclear-actin-ChB to assess the spatial relationship between these factors. PCNA foci which reside along nuclear F-actin have been demonstrated to extensively co-localize with FANCD2³⁸, indicating they are undergoing replication stress and may represent stalled replication forks⁷². Cells were briefly treated with APH to induce F-actin polymerization and imaged by super-resolution microscopy, in which hTR/telomere/PCNA co-localizations were observed residing on F-actin (Fig. 7f, g). Using the same strategy as described above (Fig. 5), the minimum distance from F-actin for each focus alone and co-localizing with other foci was quantified. Both telomeres and hTR/telomere co-localizations which overlapped with PCNA were significantly closer to F-actin than those that did not overlap with PCNA (Fig. 7h, Supplementary Fig. 8d–f), while there was no significant difference in the distance from F-actin between PCNA, telomerase, or telomeres which did not co-localize with each other (Supplementary Fig. 8g-h). Together, these data indicate that F-actin directly facilitates telomerase recruitment to telomeres undergoing replication stress.

Discussion

In this study, we have demonstrated that nuclear F-actin is necessary for the recruitment of telomerase to telomeres in immortal human cell lines. This process is regulated by the kinases ATR and mTOR, and relies upon a network of known actin regulators to facilitate nuclear actin polymerization. Telomeres are tethered on nuclear F-actin, limiting their random movement around the nucleus, and thereby serve as a site for telomerase recruitment and ultimately productive telomere extension. Telomerase interactions with telomeres predominately occur near stalled telomeric replication forks which are tethered to nuclear actin fibers. Overall, this suggests a tightly regulated process which governs the occurrence and timing of DNA replication, the replication stress response, and telomere maintenance. Our data support a model wherein telomeric replication stress, a natural occurrence in the highly repetitive telomere sequence^22,73,74, triggers the DDR and nuclear F-actin polymerization (Fig. 8a), ultimately resulting in telomere length maintenance. We hypothesize that this occurs via telomere tethering to nuclear F-actin (Fig. 8b), which subsequently promotes telomerase recruitment (Fig. 8c), ultimately resulting in telomere extension by telomerase (Fig. 8d).

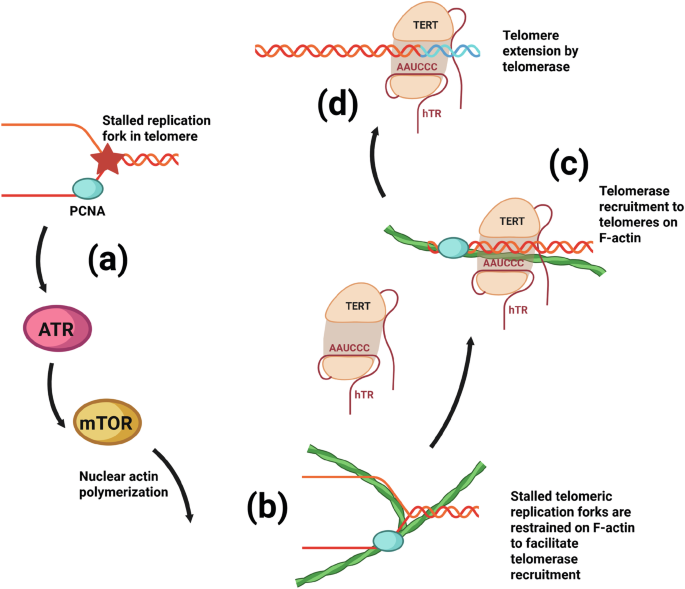

**Fig. 8: Model for replication- and actin-mediated telomerase recruitment.**

One potential outcome of replication stress is the sudden loss of telomeres^75,76,77; a mechanism cancer cells may use to overcome this is targeting telomerase to those telomeres to ensure that telomere length is maintained. This is supported by the finding that, in yeast and human cells, telomerase expression aids cell survival following replication stress^78,79,80. Telomerase can interact with telomeres through short ‘probing’ or long static interactions, and while we did not examine ‘probing’ telomerase molecules, other work has shown these molecules possess diffusive searching movement^35,47. This could suggest that telomerase does not itself track along actin filaments to locate a critically stressed or shortened telomere, but instead that telomeres are restrained to facilitate encounters with telomerase as it diffuses through the nucleus. This is supported by our findings that telomeres residing on F-actin are less mobile than other telomeres (Fig. 6h–j), while telomerase mobility is actually higher in proximity to F-actin (Fig. 6k). Furthermore, the long static interactions of telomerase with telomeres, which represent productive interactions with telomeric DNA⁷⁰, predominately occur in proximity to F-actin (Fig. 6d) and are typically preceded by a telomere arriving at nuclear F-actin first (Fig. 6g).

While it was initially surprising that telomerase mobility on nuclear F-actin slightly increased in the absence of telomeres (Fig. 6k), we hypothesize that telomerase is incapable of stably binding to (or being bound by) F-actin, and its diffusive behavior^35,47 results in its rapid interaction and dissociation from F-actin in search of telomeres. This is supported by our observation that telomerase mobility is dampened by stable interaction with telomeres, regardless of whether it occurs at nuclear F-actin (Fig. 6k). Furthermore, while we observed recruitment events occurring closer to F-actin, already established telomerase-telomere interactions displayed a distribution closer to that of telomerase foci alone (Fig. 6d). This suggests that while F-actin serves as a site for telomerase recruitment, it is likely not required for telomere elongation following successful recruitment. Also surprising was the fact that telomerase mobility, even when bound to telomeres, is ~2–3-fold higher than telomere mobility (Fig. 6j, k). However, we hypothesize this is due to the diffusion of telomerase along telomeres³⁵ as it interacts with TPP1 at telomeres, likely until it is either recruited to the telomeric end or dissociates from the telomere.

Stalled replication forks move along actin filaments towards the nuclear periphery to facilitate the recovery of DNA replication after stalling³⁸. Under mild long-term replicative stress conditions (24 h) telomeres are also re-localized to the nuclear periphery^38,42, unlike the tethering we observed following short-term (30 min) APH treatment (Fig. 6j). Cells treated briefly with APH also show no difference in telomere distribution within the nucleus (Supplementary Fig. 6a). We therefore hypothesize that telomeres tether to F-actin rapidly in response to replication stress (Fig. 8b), which would both facilitate resolution by fork restart³⁸ and help position telomerase at telomeres, ready to extend telomeres whose replication reaches the end. However, if replication stress cannot be resolved, the interaction between telomeres and nuclear F-actin could instead promote telomeres to re-locate to the nuclear periphery for repair^38,42, taking telomerase with them. At least in yeast, stalled replication forks are not thought to re-localize to the nuclear periphery unless they collapse^81,82; however, stalled forks within DNA capable of forming secondary structures can be re-localized⁸². Therefore, it is possible that, in human cells, particularly difficult substrates requiring repair, such as collapsed forks or stalled forks in difficult to replicate regions, are repositioned to facilitate this process⁴².

This re-localization could also result in fork restart and subsequent telomerase-mediated telomere extension. Alternatively, if actin-tethered forks instead collapse and result in DSBs, the presence of telomerase would allow rapid de novo telomere addition; this model is supported by the demonstration in yeast that telomerase is bound to DSBs which re-localize to the nuclear periphery⁸³. This approach would allow the maintenance of telomere length and genome integrity by either resolving the replication stress, freeing telomeres for telomerase activity, or alternatively allowing telomerase to add de novo telomeres as a failsafe in the event that the DSB could not be repaired. This is supported by our observation of telomerase recruitment at nuclear F-actin after both short-term (Fig. 5d–i) and long-term (Fig. 6a–d) replication stress.

Although it is unknown exactly how stalled telomeric replication forks might restart, it potentially involves the CST complex, which is well established to maintain telomeres⁸ but also aids in global replication fork restart⁸⁴ through its ability to protect stalled forks from degradation by the nuclease Mre11⁸⁵. Another possible mechanism for overcoming stalled telomeric forks is the activation of dormant replication origins. While unperturbed telomere replication is thought to largely occur from subtelomeric regions, origins have been observed within telomeres^86,87. Furthermore, fork stalling using APH can lead to TRF2-mediated dormant origin firing within telomeres⁸⁸. This is a potential mechanism by which cells can ensure that telomeres are completely replicated if fork stalling occurs and cannot be restarted, which could in turn allow telomerase recruitment to the replicated telomere.

Our model for replication stress-mediated telomerase recruitment is supported by other studies, as long-term treatment of cells with APH to induce mild replication stress ultimately results in telomere lengthening²². Expression of mutant POT1 (POT1-ΔOB), which cannot bind to the single-stranded telomeric overhang, results in telomere-specific replication stress, which causes telomere re-localization to the nuclear periphery⁴², telomerase recruitment³⁵ and telomere extension^11,89. Furthermore, depletion of mouse POT1b (which regulates single-stranded telomere overhang length) results in initial telomere shortening accompanied by a telomeric DDR which results in ATR-dependent telomerase recruitment^49,90. However, long term growth of POT1b-deficient tumors ultimately causes telomere hyper-elongation in a telomerase-dependent manner⁴⁹.

While chemically-induced replication stress using APH heightens recruitment, the inhibition of ATR¹¹, actin polymerization, or actin regulators (Figs. 1, 3) result in a significant reduction in telomerase presence at telomeres under both endogenous and stressed conditions, which supports the notion that these are not two separate pathways, but one pathway which is overstimulated by exogenous induction of replication stress. While nuclear actin fibers are not detectable in every individual cell in unperturbed conditions, ~10–20% of unperturbed S phase human cancer cells possess observable nuclear actin filaments (Fig. 1e, f and^38,41). It is also possible that more transient or thinner nuclear actin filaments, below the limits of detection of the methods of visualization used here, may contribute to telomerase recruitment, which is supported by our observation that cells without visible nuclear F-actin can also have hTR/telomere co-localizations (Supplementary Fig. 9). Elevated replication stress is a hallmark of cancer cells^91,92, so it can be concluded that cancer cells likely utilize the same mechanisms to bring telomerase to telomeres under endogenous and exogenous stress-induced conditions. This is further supported by our finding that telomerase foci at telomeres were located approximately the same distance from nuclear F-actin in the presence or absence of exogenous replication stress (Fig. 5f). One outstanding question from this and earlier work⁴² is the mechanism by which F-actin facilitates telomere movement. Inhibition of myosin decreased telomerase recruitment (Fig. 3e) and reduced movement of stalled replication forks³⁸. This suggests that the motor function of myosins in actin filament movement or transport of cargo along actin fibers plays a direct role in the re-localization of stressed telomeres, although the mechanism of myosin involvement in this process remains unknown.

One aspect we did not explore in this work is the specific mechanism(s) by which the actin regulatory elements (Fig. 3a) function in the context of replication stress-induced nuclear F-actin formation and telomerase recruitment. Both importin and cofilin are involved in nuclear import of actin, and several proteins we examined (mTOR, WASP and LIMK) regulate downstream effectors of actin function. However, the specific role of the actin nucleator ARP2/3 in this process remains to be determined. ARP2/3 is involved in polymerization of branched F-actin⁹³ and has been implicated in nuclear F-actin polymerization in response to DNA damage⁵⁰. This is likely regulated by Arpin, an ARP2/3 inhibitory regulator, as its depletion promotes homologous DNA repair⁹⁴. We observe a branched nuclear F-actin network (Supplementary Fig. 4a), which suggests ARP2/3-mediated polymerization of actin branches, although it has been reported that ARP2/3 can also facilitate linear F-actin polymerization⁹⁵. It is therefore possible that ARP2/3 performs multiple functions in mediating telomerase recruitment via nuclear F-actin regulation, and may work in concert with other regulators or actin nucleators.

The factor(s) that specifically facilitate binding between stalled replication forks at telomeres and F-actin to allow telomere tethering to nuclear F-actin (Fig. 6j) have also not yet been identified. Both ARP2/3 and WASP associate with replication forks and facilitate the accumulation of RPA at stalled forks⁵⁰, suggesting a more direct role in the DDR outside their canonical role in regulation of nuclear F-actin polymerization. While the latter study did not examine telomeres specifically, it is likely that this process also occurs at stalled telomeric forks to maintain their integrity, which may consequently result in telomere tethering to F-actin. Whether ARP2/3 and/or WASP facilitate telomere tethering, either directly or indirectly, remains to be elucidated.

Overall, our data reveal a mechanism by which telomerase responds to telomeric replication stress in order to maintain telomere integrity and length. We have shown that telomerase recruitment to telomeres requires ATR- and mTOR-mediated nuclear actin filament formation, and that stable, long-lived telomerase interactions with telomeres occur in the vicinity of these filaments, ultimately allowing for productive telomere synthesis. We hypothesize that stressed telomeres are restrained by F-actin, allowing scanning telomerase molecules to find these telomeres and extend their length following complete DNA replication (Fig. 8b–d). Facilitation of telomerase recruitment would also allow telomerase to rescue any stressed telomeres that could not restart and thereby resulted in a DSB. Overall, this work suggests that there is a tight balance between replication stress and telomere maintenance, where the natural stress generated from telomere replication is exploited to facilitate telomerase recruitment, while telomerase can also protect cells from critical replication stress and sudden telomere loss.

Methods

Cell lines

HEK293T (T. Adams, CSIRO), WI-38 VA13/2RA (American Type Culture Collection), A549 (American Type Culture Collection), HT1080 (American Type Culture Collection), HCT116 (G. Chenevix-Trench), HeLa-EM2-11ht (J. Schmidt, Michigan State University) and CRISPR-modified HeLa-EM2-11ht cells expressing FLAG-Halo-tagged hTERT and HA-mEOS3.2-tagged TRF2⁴⁷ were all grown in a humidified 37 °C incubator with 5% CO₂. HCT116 cells were cultured in McCoy’s 5A medium, supplemented with 10% fetal bovine serum (FBS) and 2 mM L-glutamine. All other cells were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% FBS. Cell Bank Australia validated all cell line identities by short-tandem-repeat profiling and tested all cells for mycoplasma.

Cell culture

Where necessary, cells were treated with chemical inhibitors of actin-associated proteins for 16 h prior to harvesting or sample preparation. APH (Sigma-Aldrich, A4487) treatment (1.5 μM) was performed for 30–60 min immediately prior to harvesting or sample preparation, while maintaining chemical inhibition of other proteins where appropriate. Dimethylsulfoxide (DMSO; Sigma-Aldrich, D2650) was used as a vehicle control for all non-treated controls. LatB (Cayman Chemical, 10010631), LatA (Calbiochem, 428021), INK128 (Cayman Chemical, 11811), CK-666 (Sigma-Aldrich, SML0006), Wiskostatin (Sigma-Aldrich, W2270), LIMKi 3 (Calbiochem, 435930), BDM (Sigma-Aldrich, B0753) and BTS (Calbiochem, 1576-37-0) were used in cell treatments at concentrations indicated in figure legends.

siRNA transfection

siRNA transfections were performed according to the manufacturer’s instructions. Briefly, for knockdown by individual siRNAs (Qiagen), cells were transfected with 30 pmol siRNA and 5.5 μl Lipofectamine RNAiMAX (Thermo Fisher Scientific) in 200 μl Opti-MEM. For knockdown using Dharmacon pooled siRNAs, cells were transfected with 50 pmol pooled siRNA and 4 μl of DharmaFECT 1 (Dharmacon) each added separately to 200 μl of Opti-MEM, before combining with 1600 μl DMEM + 10% FBS. Cells were grown for 48 h after transfection to allow for knockdown. siRNAs and catalog numbers are listed in Supplementary Table 1.

Plasmid transfection

The hTR-TSQ1 encoding plasmid was generated from pApex-3-dyskerin-U3-hTR⁹⁶ by replacing the 5′ end of hTR with the TSQ1 variant sequence. Telomerase overexpression was performed by transfecting dyskerin-hTR plasmids (WT or TSQ1) with an hTERT encoding plasmid (pApex-3-hTERT-SV40-puro)⁹⁶. 2 μg total plasmid (19:1 dyskerin-hTR:hTERT plasmids) was transfected with 3.75 μl Lipofectamine 3000 (Thermo Fisher Scientific) in 250 μl Opti-MEM. Cells were grown for 24–72 h after transfection to allow for telomerase expression.

Nuclear WT and R62D mutant actin expression vectors were generated from pmCherry-C1 actin-3×NLS P2A mCherry and pmCherry-C1 R62D actin-3×NLS P2A mCherry vectors (D. Mullins, University of California)³⁶, respectively, by removing mCherry to enable hTR-telomere SABER FISH. BFP- and NLS-tagged actin chromobody (nuclear-actin-ChB) was generated from the NLS-GFP-actin chromobody vector (Chromotek) by replacing green fluorescent protein (GFP) with BFP. For expression of either exogenous actin (with or without mCherry) or the nuclear-actin-ChB, cells were transfected with 1–2.5 μg plasmid DNA and 3.75 μl Lipofectamine 3000 in 250 μl Opti-MEM. Cells were grown for 48 h after transfection to allow for expression.

Flow cytometry

Following treatment or transfection, cells were harvested with trypsin, pelleted at 500 g for 5 min and washed twice with phosphate buffered saline (PBS). Cells were resuspended in 1 ml PBS, before adding 5 ml of cold 70% ethanol dropwise while vortexing. Cells were left at 4 °C at least overnight to fix. The day before analysis, cells were repelleted and washed twice with PBS. Cells were resuspended in fresh propidium iodide (PI) solution (50 μg/ml PI, 0.5 μg/ml RNase A, 5% Triton X-100 in PBS) and left overnight at 4 °C to stain. Cells were then analyzed using an LSRII flow cytometer and FACSDiva software (Becton Dickinson). Cell cycle profiles were generated using FlowJo analysis software (Version 10.8). An example of the gating strategy is shown in Supplementary Fig. 10.

Fluorescence microscopy

All fixed samples (unless otherwise stated) were imaged by fluorescence microscopy using an AxioImager Z.2 microscope (Carl Zeiss), using a ×63/1.4NA oil-immersion objective, appropriate filters, an Axiocam 506 monochromatic camera (Carl Zeiss) and Zen Blue Pro v.2.3.69.01015 (Carl Zeiss). Samples were imaged with 13 Z-stacks at 0.25 μm intervals using consistent exposure times between all treatments and experiments. Pixel intensity histograms were adjusted equally across figure panels for presentation only.

SABER FISH for hTR and telomeres, with immunofluorescence

FISH against hTR and telomeric DNA, with or without IF, was adapted from existing hTR-telomere FISH^11,44 and SABER (signal amplification by exchange reaction) FISH protocols⁴⁵. SABER probes were extended by primer extension reaction (1X PBS, 10 mM MgSO₄, 6 mM dNTPs [dATP, dCTP, dTTP], 8 U/μl Bst LF polymerase [New England Biolabs, M0275S], 2 μM target hairpin, 5 μM target probe) at 37 °C for 2 or 6 h, for telomere or hTR probes, respectively. Reactions were heat inactivated at 80 °C for 20 min, evaluated by agarose gel electrophoresis, and then stored at −20 °C until required. All probe and hairpin sequences are listed in Supplementary Table 2.

Cells were seeded on poly-L-lysine coated coverslips for 24 h prior to transfection, inhibitor treatment, or fixation. Cells were labeled with 20 μM EdU for 15–30 min immediately prior to fixation (with subsequent APH treatment where appropriate). Cells were washed once with PBS before permeabilization with 0.5% IGEPAL (in PBS) for 10 min, then fixed with 2% paraformaldehyde (PFA, in PBS) for 15 min. Cells were washed twice with MilliQ water, before further permeabilization with 1:1 methanol:acetone solution for 10 min. Cells were washed once with PBS, then EdU was labeled with AF488 using the Click-iT® Plus reaction kit (Thermo Fisher Scientific). Cells were then washed once with PBS before gradient ethanol dehydration (70%, 90% and 100% ethanol) for 2 min each and brief air drying. Probe mastermix was prepared by diluting extended hTR and telomere probes 1:100 in RNAse-free water, before denaturing at 90 °C for 2 min, followed by cooling on ice for 3 min. For each coverslip, 1 μl probe mastermix was added to 30 μl FISH hybridization buffer (2X SSC [0.3 M NaCl, 30 μM Tri-sodium citrate, pH 7], 10% dextran sulfate, 2 mM vanadyl-ribonucleoside complex, 0.02% bovine serum albumin (BSA), 1 μg/μl E. coli tRNA, 50% deionized formamide) before pipetting onto slides and covering with coverslips containing cells. Slides were then heated at 80 °C for 5 min before hybridizing overnight at 37 °C in a humidified chamber. Coverslips were then washed twice with FISH wash 1 (2× SSC, 50% formamide, 0.1% sodium dodecyl sulfate [SDS]) for 30 min, three times with FISH wash 2 (4× SSC, 0.1% Tween-20) for 5 min, and once with PBS briefly before allowing to air dry. Coverslips were placed onto slides containing imager probes (1 μM in PBS) and incubated in a humidified chamber at 37 °C for 1–1.5 h. Coverslips were washed with pre-warmed (37 °C) PBS for 15 min, twice for 5 min, and then rinsed twice with MilliQ water before air drying. Coverslips were mounted with Prolong Gold with DAPI and left overnight to cure.

For IF-FISH, the same protocol was followed until the EdU labeling step; EdU was instead labeled with AF350. Following this, the coverslips were blocked with ABDIL buffer (20 mM Tris [pH 7.5], 2% BSA, 0.2% fish skin gelatin, 120 mM NaCl, 0.1% Triton X-100, 0.1% sodium azide) in a humidified chamber at room temperature (RT) for 1 h. Anti-PCNA antibody (Cell Signaling Technology, 2586T) was then diluted in ABDIL (1:1000) and added to coverslips, which were incubated overnight in a humidified chamber at 4 °C. Coverslips were washed with PBS for 5 min three times, before incubating with Anti-mouse Alexa Fluor 488 (Thermo Fisher Scientific, A-11001) secondary antibody diluted in ABDIL (1:2000) for 1 h at RT in a humidified chamber. Coverslips were washed three times with PBS for 5 min, re-fixed with 2% PFA for 15 min, washed twice with MilliQ water, before continuing with gradient ethanol dehydration and the remaining steps outlined above. Finally, coverslips were mounted with Prolong Gold.

TSQ1, telomere and hTR SABER FISH

SABER probe extension reactions were performed as described above, except that TSQ1 probes and SABER branches were extended for 12 h at 37 °C. For TSQ1 SABER FISH, unextended telomere probes were used instead of extended probes, while the hTR probe was unchanged. All probe and hairpin sequences are listed in Supplementary Table 2.

Cells were seeded on poly-L-lysine coated coverslips for 24 h prior to transfection with TSQ1-hTR-DKC1 and hTERT expression plasmids. Samples were left to recover for 8 h before LatB treatment, at which point the cells were left for 16 h. Cells were then incubated with 20 μM EdU for 30 min, following which cells were treated with 1.5 μM APH for 30–60 min. Cells were fixed and permeabilized as above, before EdU was labeled with AF350 and samples were ethanol dehydrated. Probe mastermix was prepared by diluting unextended telomere probes and extended TSQ1 and hTR probes 1:100 in RNAse-free water, before denaturing at 90 °C for 2 min, followed by cooling on ice for 3 min. For each coverslip, 1 μl probe mastermix was added to 30 μl FISH hybridization buffer before pipetting onto slides and covering with coverslips containing cells. Slides were then heated at 80 °C for 5 min before hybridizing overnight at 37 °C in a humidified chamber.

Coverslips were washed four times with 60 °C SSCT (2X SSC, 0.1 % Tween-20) for 5 min, twice with RT SSCT for 2 min, then briefly with PBS before allowing to air dry. Extended secondary SABER branch probe (for TSQ1) was diluted 1:100 in RNAse-free water, before denaturing at 90 °C for 2 min, followed by cooling on ice for 3 min. For each coverslip, 1 μl probe mastermix was added to 30 μl FISH branch hybridization buffer (2X SSC, 10% dextran sulfate, 30% deionized formamide) before pipetting onto slides and covering with coverslips and hybridizing in a humidified chamber at 37 °C for 1.5 h. Coverslips were then washed as per above (SSCT/SSCT/PBS) before drying. The tertiary SABER branch probe was prepared and hybridized as per the secondary, except that hybridization was at 30 °C for 60 min. Coverslips were washed again as above, except that 55 °C SSCT was used instead of 60 °C SSCT, before drying. The quaternary SABER branch probe was prepared and hybridized as per the tertiary probe. Coverslips were washed again as above using 55 °C and RT SSCT, before being held overnight at 4 °C in PBS.

The following day, PBS was removed before air drying the coverslips. Coverslips were then placed onto slides containing imager probes (1 μM in PBS) and incubated in a humidified chamber at 37 °C for 1–1.5 h. Coverslips were washed with pre-warmed (37 °C) PBS for 15 min, twice for 5 min, and then rinsed twice with MilliQ water before air drying. Coverslips were mounted with Prolong Gold and left overnight to cure.

Nuclear F-actin imaging, with FISH/IF-FISH

Cells were seeded on poly-L-lysine coated coverslips for 24 h prior to transfection with nuclear-actin-ChB or mCherry-tagged-NLS-actin. Samples were subsequently transfected with siRNAs or treated with chemical inhibitors where appropriate. For S phase identification, cells were incubated with 20 μM EdU for 30 min before fixation with ice-cold 4% PFA for 15 min, washing with PBS, and permeabilization with 0.5% Triton X-100 (in PBS) for 10 min. EdU was then labeled using either AF594 (for nuclear-actin-ChB samples) or AF488 (for mCherry-actin samples), before ethanol dehydration, drying and then mounting with Prolong Gold (with DAPI for mCherry-actin samples). Samples were imaged by fluorescence microscopy (described above).

For FISH/IF-FISH, cells were treated with 1.5 μM APH for 1 h to promote F-actin formation immediately before fixing with ice-cold 4% PFA for 15 min. Cells were then washed with PBS, permeabilized with 0.5% Triton X-100 (in PBS) for 10 min and washed with PBS before ethanol dehydrating. Cells were then prepared for FISH or IF-FISH as above, excluding EdU steps, and mounted with Prolong Gold before being left to cure overnight. For samples transfected with mCherry-actin, the telomere SABER FISH imager was changed from Cy3 to FAM to allow visualization alongside mCherry. Samples were imaged by super-resolution microscopy (described below).

Phalloidin staining

Cells were seeded on poly-L-lysine coated coverslips for 24 h prior to staining. Cells were washed once with PBS, then fixed with ice-cold 4% PFA for 15 min, washed with PBS, permeabilized with 0.5% Triton X-100 (in PBS) for 10 min and washed with PBS. Cells were stained using phalloidin (fluorescein isothiocyanate labeled), diluted to 2% in PBS, overnight at 4 °C in a humidified chamber. Coverslips were then washed four times with PBS for 5 min each, before gradient ethanol dehydration (70%, 90% and 100% for 2 min each), air drying, and then mounting with Prolong Gold with DAPI. Samples were imaged by super-resolution microscopy (described below).

Immunopurification of telomerase

Cells (1–2 × 10⁷) were harvested with trypsin, pelleted at 500 g for 5 min in a LoBind microcentrifuge tube (Eppendorf) and washed once with PBS before flash-freezing in liquid nitrogen. All subsequent steps were performed at 4 °C unless otherwise stated. Cells were lysed on ice using 1 ml of cold Buffer A (20 mM HEPES-KOH [pH 8], 300 mM KCl, 2 mM MgCl₂, 0.1% Triton X-100, 10% glycerol) supplemented with 1 mM phenylmethanesulfonyl fluoride (PMSF) before rotating for 1 h. Cell debris was removed by centrifugation at 16,000 g for 30 min. hTERT antibody⁹⁷ (20 μg) was added to cell lysate before rotating for 30 min, following which 20 μl of Protein G agarose beads was added and rotated for 1 h. Agarose beads were collected in a micro-spin column (GE Healthcare) by vacuum suction and washed with 5 ml of cold Buffer A. Columns were transferred to a microcentrifuge tube and centrifuged at 2000 × g for 10 s to remove residual buffer. The remaining steps were performed at RT.

The column was plugged before addition of 100 μl of Buffer A, supplemented with 1 mM dithiothreitol (DTT) and 2.5 μl of 1 mM hTERT peptide antigen solution (ARPAEEATSLEGALSGTRH). The solution was rotated for 30 min to allow dissociation of telomerase from the agarose beads; eluate was collected in a LoBind tube by centrifuging at 2000 × g for 10 s.

Direct telomerase activity assay

Telomerase extension reactions were performed in LoBind microcentrifuge tubes; 86 μl of telomerase containing eluate was used for a 100 μl reaction containing 50 mM KCl (300 mM final concentration including KCl from eluate), 1 mM dNTPs (dATP, dGTP, dTTP), 10 mM DTT, 50 μCi α−³²P-dGTP, and 1 μM biotinylated telomeric DNA substrate (biotin- CTAGACCTGTCATCA(TTAGGG)₃). Reaction was incubated overnight at 37 °C before stopping the reaction with 50 μl of stop mix (20 mM EDTA, 250 cpm ³²P-end-labeled loading control [³²P-CTAGACCTGTCATCACTAGACCTGTCATCA-biotin]) and briefly vortexing.

Dynabead M-280 Strepavidin suspension (20 μl) was added to a fresh LoBind tube, which was then placed onto a DynaMag-2 magnet to pellet beads before removing supernatant. The tube was removed from the magnet before washing beads with 200 μl of bind/wash buffer (10 mM Tris-Cl [pH 7.5], 1 mM EDTA, 2 M NaCl), brief vortexing, a pulse-spin, before placing the tube on the column again for 30 s before removing the supernatant. Bind/wash buffer (100 μl) was added to the beads, before addition of the telomerase extension reaction and mixing by rotation at RT for 1 h. Beads were washed as above with 200 μl of bind/wash buffer three times, before washing once in 200 μl TE buffer and then resuspending beads in 10 μl elution buffer (81% deionized formamide, 0.9 x TBE, 0.009% bromophenol blue, 0.009% xylene cyanol, 500 μM D-biotin). The beads were heated at 80 °C for 10 min before placing on the magnet and collecting the supernatant. Samples were run on a 10% polyacrylamide/ 8 M urea sequencing gel using 1 x TBE (90 mM tris base, 90 mM boric acid, 1 mM EDTA) for ~75 min. The gel was then transferred to thin Whatman filter paper, covered with plastic wrap, dried at 70 °C for 1 h and then imaged by phosphorimaging using a Typhoon FLA 9500 (Amersham).

Preparation of nuclear and cytoplasmic extracts

Cells were washed with PBS, harvested with trypsin, pelleted at 500 g for 5 min and washed once with PBS. 1 × 10⁶ cells were aliquoted into a fresh microcentrifuge tube for each sample, pelleted and then resuspended in ~20 volumes (200 μl) of hypotonic buffer (10 mM HEPES-KOH [pH 8], 10 mM KCl, 1 mM MgCl₂, 1 mM DTT). Cells were placed on ice for 5-10 min to swell, as observed by microscopy, before adding 1/20 volume of 10% Triton X-100 to lyse cell membranes. Tubes were mixed by inversion and kept on ice to observe cell membrane lysis by microscopy. Nuclei were then pelleted at 1000 × g for 1 min at 4 °C. The cytoplasmic fraction was collected in a separate tube, and the nuclei were washed twice with 1 ml hypotonic buffer. Fractionation purity was determined by western blot using vinculin and histone H2A as cytoplasmic and nuclear markers, respectively. 4× cell equivalents of nuclei were loaded relative to cytoplasmic fractions for all blots.

Western blot

Cells were harvested with trypsin and washed with PBS. Cell lysates were prepared at 1 × 10⁴ cells/μl in 4× LDS (106 mM Tris-HCl, 141 mM Tris-base, 2% lithium dodecyl sulfate, 10% glycerol, 0.22 mM Brilliant Blue G250, 0.175 mM Phenol Red) supplemented with 50 mM DTT and 2% Benzonase for 15 min at RT. Lysates were denatured at 68 °C for 10 min, before loading 7 × 10⁴ cell equivalents onto Nu-PAGE 4-12% gradient Bis-Tris gels and electrophoresed in MES SDS running buffer at 150 V for 70 min. Proteins were transferred to Amersham 0.45 μm nitrocellulose (GE Healthcare) in transfer buffer (25 mM Tris-Base, 192 mM glycine, 10% methanol) at 30 V overnight at 4 °C. Membranes were blocked in 5% skim milk powder or BSA in TBST (15 mM Tris-HCl, 4.6 mM Tris-Base, 137 mM NaCl, 0.1% Tween-20) for 1 h before incubation with gentle rotation overnight at 4 °C with primary antibodies diluted in either 5% skim milk powder or BSA in TBST. Antibodies used were anti-Chk1 (1:1000, Cell Signaling Technology, 2360S), anti-Chk1 (p345) (1:1000, Cell Signaling Technology, 2348S), anti-Vinculin (1:10000, Sigma-Aldrich, V9131), anti-Cofilin1 (1:1000, Cell Signaling Technology, 5175S), anti-Importin9 (1:1000, Thermo Fisher Scientific, PA141395), anti-Actin (1:2500, Sigma-Aldrich, A5441), anti-p70 (1:1000, Cell Signaling Technology, 2708S), anti-p70 (T389) (1:1000, Cell Signaling Technology, 9234S), anti-Histone 2 A (1:1000, Cell Signaling Technology, 12349S), anti-ATR (1:1000, Cell Signaling Technology, 2790S) and anti-ATRIP (1:1000, Thermo Fisher Scientific, PA1-519). Membranes were washed three times for 10 min with TBST, before probing for 1 h at RT with secondary antibodies (anti-mouse HRP, Dako, P0447; anti-rabbit HRP, Dako, P0448) diluted 1:2000 in 5% skim milk powder in TBST. Membranes were washed three times for 10 min with TBST, before developing signal using either Amersham ECL or ECL prime detection reagent. Blots were imaged using a BioRad ChemiDoc™ MP imaging system.

Live cell imaging

HeLa cells expressing FLAG-Halo-tagged hTERT and HA-mEOS3.2-tagged TRF2⁴⁷ were seeded on sterile 35 mm FluoroDish plates (Coherent Scientific) with cover glass bottoms. Cells were allowed to settle overnight before transfecting with nuclear-actin-ChB. Cells were left for 8 h and then synchronized by addition of 2 mM thymidine for 15 h, releasing for 9 h, and addition of 2 mM thymidine for 16 h. Cells were released into S phase with fresh DMEM ( + 10% FBS) for 3–5 h before labeling FLAG-HaloTag-hTERT. HaloTag ligand (Promega, P6711) was prepared by coupling with Janelia Fluor 646 (Tocris, 6148)⁹⁸ following the ligand manufacturer’s instructions, followed by purification using liquid chromatography/mass spectrometry (LC/MS) on a C18 column (3.5 µm, 21.2 mm×150 mm) with a 3-90% acetonitrile/water gradient at 2 mL/min and detection at 656 nm. JF-646-Halo ligand (50 nM) in DMEM was added to cells for 1–5 min, before washing the cells three times with DMEM and returning cells to the incubator in DMEM ( + 10% FBS) for 15 min. Cells were washed 3 times with DMEM, before addition of DMEM without phenol red (+ 10% FBS) prior to imaging. Cells were imaged by super-resolution microscopy (described below).

Super-resolution microscopy

Super-resolution imaging was performed using an LSM 880 AxioObserver confocal laser scanning fluorescent microscope (Carl Zeiss) fitted with a super-resolution Airyscan detector using a Plan-Apochromat ×63/1.4NA M27 oil-immersion objective and ZEN Black 2.3 Pro v14.0.20.201 (Carl Zeiss). All samples/cells were imaged using ‘Resolution versus sensitivity’ mode, appropriate filter sets, unidirectional scanning, 1×1 binning and frame averaging (4 frames for fixed samples, 2 frames for live cell imaging).

Fixed samples were imaged using 405 nm (0.2% excitation power, 790 detector gain), 488 nm (1.16% excitation power, 790 detector gain), 561 nm (0.5% excitation power, 913 detector gain), and 633 nm (2.66% excitation power, 860 detector gain) lasers. Live cells were imaged at 37 °C, 20% O₂ and 5% CO₂, using 405 nm (0.2% excitation power, 790 detector gain), 561 nm (0.5% excitation power, 913 detector gain) and 633 nm (5% excitation power, 903 detector gain) lasers. Cells were briefly (10–20 s) exposed to the 405 nm laser immediately before imaging to convert HA-mEOS3.2-TRF2 from green to red wavelength. Imaging frame time was ~0.5 s per channel, with all channels imaged consecutively for 250–1000 frames.

Quantification and statistical analysis

Automated FISH/IF-FISH image analysis

Microscopy images were converted into extended projections of Z-stacks using ZEN blue desk software v2.3 (Carl Zeiss) and exported as TIFF files for analysis using CellProfiler v2.2.0⁹⁹ or v4.2.6¹⁰⁰. Individual nuclei and foci were identified using intensity-based thresholding strategies. Individual foci were considered overlapping with another focus if at least 25% of the first focus was contained within the second. Triple co-localization events (hTR and telomere with TSQ1 or PCNA) were counted if 25% of an hTR focus was within a telomere focus, and if either also overlapped (any amount) with a TSQ1 or PCNA focus. At least 100 S phase cells were quantified per treatment, with each treatment performed in triplicate.

Rotation control for FISH co-localization

CellProfiler was used to identify nuclei based on DAPI staining; nuclear masks were then exported as binary images for identification with a custom Python script. Each nucleus was identified, and the largest symmetrical circle or square completely contained within the mask was determined. Each circle and square was used to rotate that region of the original telomere channel image 90°. Each image was exported and analyzed, alongside the unmodified telomere channel, using the same CellProfiler strategy as described above.

Measurement of minimum distance to nuclear periphery or F-actin

Measurement of the minimum distance to the nuclear periphery or F-actin was performed using custom scripts for Fiji v1.53q¹⁰¹. Individual nuclei, foci, and co-localizations were identified using CellProfiler v2.2.0 as above, and all identified objects were exported as binary images for import into Fiji. F-actin was detected using the FilamentDetector plugin (v2.0.0) for Fiji. For each focus/co-localization, the distance between the centroid and each point along the nuclear periphery or the nuclear F-actin network was calculated, with the lowest value returned. For measuring the minimum distance to the nuclear periphery, each nucleus was separated into six equal segments based on its radius.

Classification of live cell imaging recruitment events

Prior to analysis, live cell imaging data was processed using a custom Fiji script to improve foci clarity. CZI files were imported into Fiji, and each channel was separated for frame averaging and processing. Images were averaged on a 10-frame basis, before background subtraction (2 pixel rolling ball radius by sliding paraboloid) and Gaussian blur (sigma 1). Channels were merged and exported as TIFF files for analysis in Imaris software v9.9.1. Recruitment events were classified manually where hTERT and TRF2 foci overlapped at least 25% for a minimum of 2 consecutive averaged frames (~30 s). Recruitment events were classified as ‘observed’ only if one of the two foci was observed in at least the two previous consecutive averaged frames prior to recruitment; all other events were classified as ‘previously recruited’. Recruitment events and individual hTERT or TRF2 foci were sub-classified based on the distance to a visible actin fiber. Foci and events were classified as ‘on fiber’ if one (or both) focus was at least ~10% overlapping with F-actin. Anything under ~10%, with no observable gap between focus and F-actin was classified as ‘adjacent’. Foci/co-localizations within ~1.5 μm were classified as ‘proximal’, with everything else classified as ‘distal’.

MSD analysis

Telomere tracking was performed using live cell imaging data without any processing; hTERT tracking was performed on frame-averaged imaging data (as described above). Data were imported into Imaris v9.9.1, where the nuclei were identified using the ‘Surfaces’ function and the nuclear-actin-ChB channel. To correct for cell shifting or migration, we utilized previously written code for MATLAB R2023b to ‘register’ and align nuclei consistently within the frame³⁸. The registration operation from MATLAB was returned to Imaris, which was completed using the ‘Align image without interpolation’ function. Following registration, foci were identified using the ‘Spots’ function in Imaris (0.5 μm focus diameter, >20 quality for TRF2 foci, >10 quality for hTERT foci). Foci were then tracked using ‘Autoregressive Motion’ tracking. Tracks were generated based on ~0.5 μm maximal distance movement between frames, 0 gaps within each track, and a minimum track length of 15–30 s for TRF2 foci, and 60 s for hTERT foci. The MSD was calculated for each timepoint (except T0) within each track and classified based on the intensity of nuclear-actin-ChB signal within the focal mask; hTERT foci were also classified based on the intensity of TRF2 signal within the focal mask. All timepoints from cells within an experiment were pooled together to generate a single average MSD value per classification (“On fiber” or “Off fiber”).

Statistics and reproducibility

Statistical analyses were performed using GraphPad Prism 10.5.0. One-way ANOVA with Šídák’s multiple comparisons test was used for all experiments unless otherwise noted. Experiments with only two sample conditions (Fig. 1e, f, Fig. 6j, Supplementary Fig. 7f, Fig. 7b–d, Supplementary Fig. 8a-b, e-f) were analyzed using two-tailed t tests. Segment or percentage-based data (Fig. 5c, Supplementary Fig. 6a, e, g, m, Fig. 6d, Fig. 7e, Supplementary Fig. 8h) were analyzed using χ² tests.

The number of independent biological replicates of each experiment are provided in the figure legends and source data. In most cases n = 3 independent biological replicates, with at least 100 cells in each experiment, were used for quantitation. No data were excluded from analysis. These numbers were selected based on literature within the field, including our previously published work. Representative experiments were analyzed using WebPower¹⁰² to determine statistical power (Supplementary Table 3). All representative blots and images shown in the figures were obtained from at least three independent experiments.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All data generated or analysed during this study are included in this published article and its supplementary information files. Source data are provided with this paper.

Code availability

Custom scripts are available at GitHub (https://github.com/ash-harman/Harman_2025_Nature_Comms).
