Silencing PCSK9 reshapes the spatiotemporal activation of STING for safe and effective cancer immunotherapy

Abstract

The cyclic GMP–AMP synthase (cGAS)–stimulator of interferon genes (STING) pathway is a central regulator of innate immunity and a promising target for cancer immunotherapy. However, the clinical translation of STING agonists is limited by suboptimal response rates and dose-limiting toxicities, particularly in the liver. These challenges highlight the presence of endogenous inhibitors of STING signaling and underscore the need for strategies that enable tissue-specific modulation of STING activity. Here, we identify proprotein convertase subtilisin/kexin type 9 (PCSK9), a key regulator of cholesterol metabolism, as a negative modulator of STING activation. Mechanistically, PCSK9 competes with STING for binding to a shared cargo receptor, which is critical for STING trafficking. PCSK9 deficiency markedly enhances the immunostimulatory effects of STING agonists. Capitalizing on the elevated expression of PCSK9 in the liver relative to tumors, we develop a formulation that delivers a low-dose STING agonist alongside PCSK9-targeting siRNA, thereby achieving tumor-selective STING activation while minimizing hepatotoxicity. These findings reveal an unanticipated role for PCSK9 in innate immune regulation and establish a therapeutic approach to enhance the safety and efficacy of STING-based immunotherapies, with broader implications for other STING-associated modalities, including radiotherapy and chemotherapy.

Introduction

Against an invading pathogen, the body’s first line of defense is the innate immune system, which recognizes foreign pathogens and initiates the appropriate adaptive immune response. As such, the innate immune system plays a crucial role in cancer therapeutics by shaping the tumor microenvironment and determining the therapeutic efficacy of treatments¹. One important innate immune pathway is the cGAS-STING pathway², whose activation produces various cytokines, including type I interferons that promote adaptive T cell-mediated antitumor immunity^3,4,5,6,7,8.

While STING agonists have shown great initial success in preclinical studies^9,10,11, they suffer from low objective response rates and severe adverse events, including exacerbated liver function in clinical trials^12,13. These clinical challenges suggest the existence of key negative regulators of STING signaling, yet clinically translatable modulators remain elusive. Equally pressing is the need to selectively enhance STING activation within tumors while limiting off-target activation in the liver—a goal complicated by the ubiquitous expression of STING across tissues. Although various STING agonist-based cancer immunotherapies have been developed to enhance tumor-targeted drug delivery and improve therapeutic efficacy, they often accumulate in the liver, contributing to hepatic toxicity^11,14. Thus, a strategy capable of reprogramming the spatiotemporal activation of STING is urgently needed.

Cholesterol has been shown to impair type I interferon responses in a STING-dependent manner¹⁵. One key regulator of cholesterol homeostasis is PCSK9, which is highly expressed in the liver^16,17. Interestingly, tumors also express PCSK9¹⁸, although at a lower level than the liver. Moreover, intratumoral PCSK9 levels negatively correlate with survival and type I interferon responses across multiple cancers^19,20. These findings motivate us to hypothesize that PCSK9 may negatively regulate STING signaling. Importantly, because PCSK9 expression in the liver is higher than in tumors²¹, a formulation containing low-dose PCSK9 siRNA and STING agonists may completely knock down PCSK9 in the tumor to amplify STING activation, while the remaining PCSK9 in the liver can still suppress STING activation. These features will ultimately lead to enhanced therapeutic efficacy and reduced toxicity that can not be achieved by STING agonists alone.

Here, we demonstrate that PCSK9 is an endogenous suppressor in STING signaling. Mechanistically, the STING signaling involves the anterograde trafficking of STING from the endoplasmic reticulum (ER) to the Golgi apparatus, which requires surfeit locus protein 4 (SURF4), a bidirectional cargo receptor that mediates protein transport. PCSK9 competes with STING for binding to SURF4 during their anterograde trafficking and, therefore, limits STING signaling. These findings reveal a critical and multifaceted role for PCSK9 at the interface of maintaining metabolic and innate immune homeostasis, uncovering a rate-limiting mechanism in STING signal transduction. Strikingly, systemic administration of nanoparticles (NP) containing a low-dose STING agonist and PCSK9-siRNA induces potent antitumor immunity without inducing hepatic immune toxicity that is typically seen for STING agonists alone at the effective dose. Because PCSK9-siRNA has already been approved to treat hyperlipidemia¹⁶, we envision that our strategy may have immediate and broad clinical applications for cancer immunotherapy in the future.

Results

PCSK9 silencing potentiates STING activation

To initially explore the potential correlation between PCSK9 and innate immune signaling, we analyzed its mRNA expression alongside six immune-related genes in tumors from 42 rectal cancer patients (GEO: GSE15781, Fig. 1a)²². PCSK9 levels negatively correlate with IFN-β or ISG20, but not with STING, mitochondrial antiviral signaling protein (MAVS), IL-6, or IL-1β (Fig. 1b–g). These findings suggest that elevated PCSK9 expression may impair type I interferon responses, but this effect is not associated with the expression of key adapter proteins (STING or MAVS).

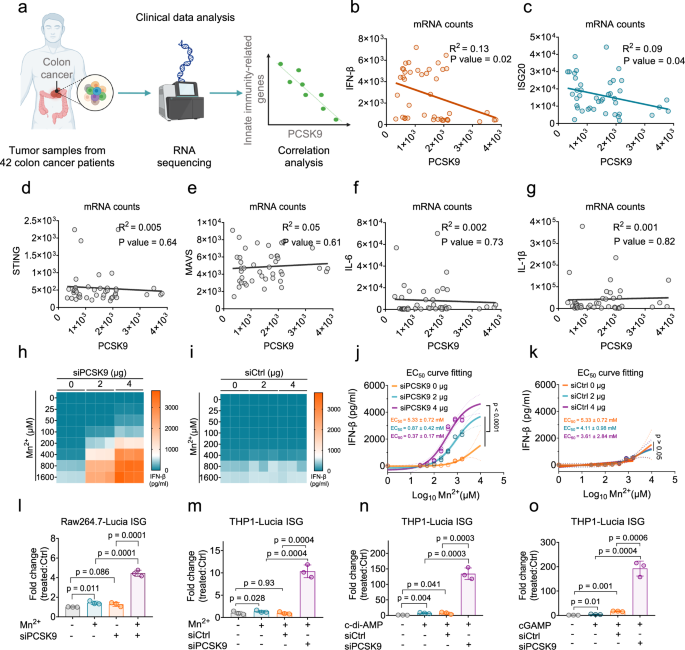

Fig. 1: PCSK9 silencing enhances cGAS-STING activation.

a Schematic illustrating the aim and strategy of the clinical data analysis. b–g Correlations between PCSK9 and indicated innate immune signaling-related genes. Shown are mRNA levels of b PCSK9 and IFN-β, c PCSK9 and ISG20, d PCSK9 and STING, e PCSK9 and MAVS, f PCSK9 and IL-6, and g PCSK9 and IL-1β (GEO dataset: GSE15781, n = 42 patients). h, i BMDCs were incubated with siPCSK9 (h) or siCtrl (i) and/or different concentrations of Mn²⁺. After 24 h, IFN-β secretion was quantified by ELISA (n = 3 independent experiments). j, k Dose-response curves of the IFN-β response in BMDCs after siPCSK9 or siCtrl treatment (n = 3 independent experiments). The EC₅₀ values are shown for the indicated formulations. l Raw264.7 ISG luciferase reporter cells were exposed to Mn²⁺(50 μM), and/or siPCSK9 (7.5 µg/ml) for 24 h before measuring the luciferase signal. m, THP1 ISG luciferase reporter cells were exposed to Mn²⁺ (50 μM), and/or siPCSK9/siCtrl (7.5 µg/ml) for 24 h before measuring the luciferase signal (n = 3 independent experiments). n THP1-Luica ISG reporter cells, were exposed to c-di-AMP (1 μM), and/or siPCSK9/siCtrl (7.5 µg/ml) for 24 h before measuring the luciferase signal (n = 3 independent experiments). o THP1-Lucia ISG reporter cells were exposed to cGAMP (1 μM), and/or siPCSK9/siCtrl (7.5 µg/ml) for 24 h before measuring the luciferase signal (n = 3 independent experiments). Data represent mean ± SD. Data were analyzed by one-way analysis of variance (ANOVA) with Tukey’s multiple comparisons post-test (l–o) or two-way ANOVA with Bonferroni’s multiple comparisons post-test (j, k). Source data are provided as a Source Data file. Panel (a) was created in BioRender. Kuai, R. (2025) https://BioRender.com/28bogc8.

To confirm whether PCSK9 affects STING activation, we treated bone marrow-derived dendritic cells (BMDCs) with a weak STING agonist²³ Mn²⁺ and PCSK9-siRNA (siPCSK9) or control siRNA (siCtrl), and then measured IFN-β production to assess STING activation. To reduce double-stranded RNA-induced immunostimulation, both siPCSK9 and siCtrl were chemically modified¹⁶ in our study. Surprisingly, treating BMDCs with siPCSK9 and Mn²⁺ (siPCSK9/Mn²⁺) induced a 40-fold increase in IFN-β production. This effect was not observed in BMDCs treated with siCtrl/Mn²⁺ (Fig. 1h, i). Mn²⁺ alone had an EC₅₀ of 5.35 ± 0.72 mM, while combining with 10 or 20 μg/ml of siPCSK9 reduced the EC₅₀ to 0.87 ± 0.42 mM and 0.37 ± 0.17 mM, respectively. In contrast, Mn²⁺ combined with siCtrl showed no increase in activity, confirming that the enhanced STING activation was PCSK9-dependent (Fig. 1j, k). BMDCs treated with siPCSK9/Mn²⁺ and siCtrl/Mn²⁺, or THP1^{PCSK9 KO} and THP1^WT cells treated with Mn²⁺, showed similar levels of cGAMP (Supplementary Fig. 1a, b), indicating siPCSK9 did not change the ability of Mn²⁺ to catalyze cGAS to produce cGAMP²⁴. Moreover, mouse and human IFN reporter monocytes, including Raw264.7-Lucia ISG and THP1-Lucia ISG cells, exhibited stronger IFN responses upon exposure to siPCSK9/Mn²⁺ (Fig. 1l, m). This pattern was further validated by combining siPCSK9 with other STING agonists such as c-di-AMP and cGAMP (Fig. 1n, o). These results indicate that PCSK9 plays an important role in limiting STING activation, and silencing PCSK9 amplifies the activity of STING agonists. We also tested the PCSK9 antibody Evolocumab in BMDCs and found that it failed to enhance IFN-β production with either Mn²⁺ or cGAMP (Supplementary Fig. 2a, b).

PCSK9 suppresses type I interferon production in a STING-dependent manner

We next sought to understand whether PCSK9 regulates other innate immune pathways, such as the Toll-like receptor 3 and 4 (TLR3 and 4) pathways, which have also been shown to induce type I interferon secretion²⁵. Interestingly, compared with siCtrl, siPCSK9 only slightly changed IFN response upon mixing with the TLR3 agonist Poly(I:C) (Fig. 2a–c) or TLR4 agonist Lipopolysaccharide (LPS) (Fig. 2d, e). Based on these results, PCSK9 appears to inhibit the STING signaling more substantially. Indeed, knocking out STING in BMDC abrogated the ability of siPCSK9/Mn²⁺ to induce type I interferon secretion (Fig. 2f), and a similar pattern was observed in THP^{STING KO} cells (Fig. 2g). Moreover, interferon-stimulated genes (Ifnb, Cxcl10, Ccl5, ISG15, IFIT3, and TNFα) were also substantially decreased in BMDC^{STING KO} but not in BMDC^WT (Fig. 2h–m). Altogether, these results indicate that PCSK9 restrains Mn²⁺-induced type I interferon responses in a STING-dependent manner.

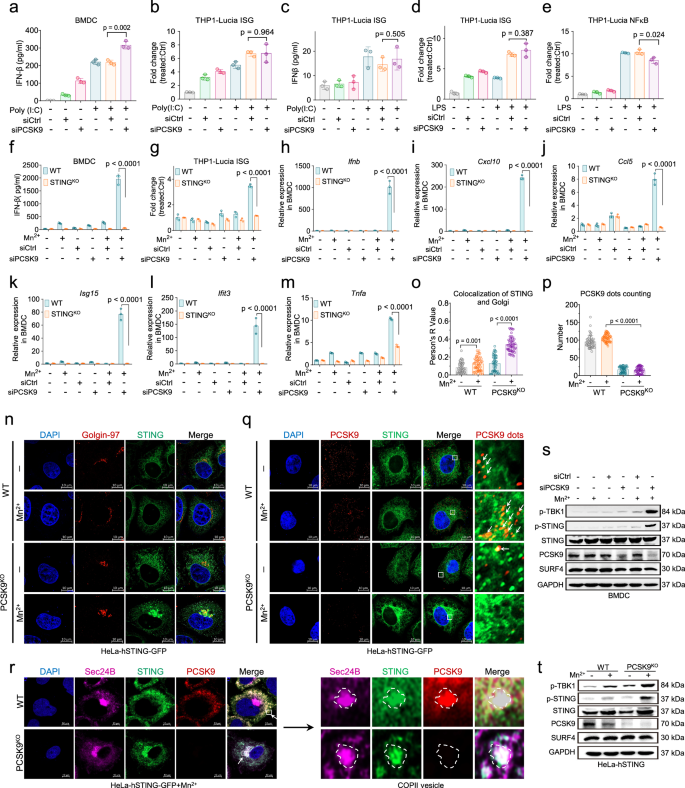

Fig. 2: siPCSK9 boosts Type I interferon secretion in a cGAS-STING-dependent manner.

a BMDCs were incubated with siPCSK9 or siCtrl (4 µg/well) and/or 10 μg/ml Poly (I: C). After 24 h, the IFN-β secretion was quantified by ELISA (n = 3 independent experiments). b THP1-Lucia ISG reporter cells were exposed to 10 μg/ml Poly (I: C) and/or siPCSK9/siCtrl (7.5 µg/ml) for 24 h (n = 3 independent experiments) before measuring the luciferase signal. c THP1-Lucia ISG reporter cells were incubated with siPCSK9 /siCtrl (7.5 µg/ml) and/or 10 μg/ml Poly (I:C). After 24 h, the IFN-β secretion was quantified by ELISA (n = 3 independent experiments). d THP1-Lucia ISG reporter cells were exposed to 500 ng/ml LPS and/or siPCSK9/siCtrl (7.5 µg/ml) for 24 h before measuring the luciferase signal (n = 3 independent experiments). e THP1-Lucia ISG NF-κB reporter cells were exposed to 500 ng/ml LPS and/or siPCSK9/siCtrl (7.5 µg/ml) for 24 h before measuring the luciferase signal (n = 3 independent experiments). f WT or STING^−/− BMDCs were incubated with siPCSK9/siCtrl (4 µg/well) and/or Mn²⁺ (400 µM). After 24 h, the IFN-β secretion was quantified by ELISA (n = 3 independent experiments). g WT or STING^−/− THP1-Lucia ISG reporter cells were exposed to Mn²⁺(50 μM), and/or siPCSK9 /siCtrl (7.5 µg/ml) for 24 h before measuring the luciferase signal (n = 3 independent experiments). h–m Relative expression of h Ifnb, i Cxcl10, j Ccl5, k Isg15, l Ifit3, and m Tnfa mRNA in WT or STING^−/− BMDCs treated with siPCSK9/siCtrl (4 µg/well) and/or Mn²⁺ (400 µM) for 24 h (n = 3 independent experiments). n Representative confocal images of STING (Green) translocation to Golgi (Red) in WT HeLa-hSTING-GFP or PCSK9-knockout HeLa-hST-GFP (HeLa-hSTING-GFP^PCSK9KO) treated with 500 µM Mn²⁺for 3 h (Scale bars 10 μm). This experiment was repeated independently three times with similar results. o Pearson’s correlation coefficient of STING and Golgi colocalization of HeLa cells in (n) (n = 50 cells). This experiment was repeated independently three times with similar results. p Quantification of the number of PCSK9 dots/cell in (q) (n = 50 cells). q Representative confocal images of STING (Green) translocation and PCSK9 (Red) secretion in HeLa-hSTING-GFP^WT or HeLa-hSTING-GFP^PCSK9KO treated with 500 µM Mn²⁺for 3 h (scale bar 10 μm). r Representative confocal images of Sec24B (Violet), STING (Green), and PCSK9 (Red) colocalization in HeLa-hSTING-GFP^WTorHeLa-hSTING-GFP^{PCSK9 KO}cells treated with 500 µM Mn²⁺ for 3 h (scale bar 10 μm). This experiment was repeated independently three times with similar results. s, t SURF4, PCSK9, STING, and phosphorylated STING/TBK1 expression in BMDCs treated with siPCSK9/siCtrl (20 µg/ml) and/or Mn²⁺ (400 µM) for 24 h (s) or in HeLa^WT/HeLa-hSTING^{PCSK9 KO} cells treated with 500 µM Mn²⁺ for 12 h (t). This experiment was repeated independently three times with similar results. Data represent mean ± SD. NS not significant. Data were analyzed by one-way analysis of variance (ANOVA) with Tukey’s multiple comparisons post-test. In the immunofluorescence images shown in 2n, 2q, and 2r, PCSK9 was labeled with fluorescence by using a commercially available antibody, and STING was tagged with GFP. Source data are provided as a Source Data file.

PCSK9 limits STING signaling by interfering with STING anterograde trafficking

A key rate-limiting step in cGAS-STING signaling transduction is STING trafficking from the ER to the Golgi (anterograde trafficking)^{26,27,28,29,30,31}. Thus, we next monitored the formation of STING puncta, a hallmark of trafficked STING on the Golgi, in HeLa^WT and PCSK9-knockout HeLa (HeLa^{PCSK9 KO}) cells under Mn²⁺ stimulation. HeLa^{PCSK9 KO} cells exhibited faster STING puncta formation than HeLa^WT cells (Fig. 2n, o), suggesting PCSK9 deficiency promoted the anterograde STING trafficking.

We next sought to understand the mechanism by which PCSK9 regulates STING trafficking. Previous studies have shown that the anterograde STING trafficking was mediated by COP II vesicles, and the retrograde STING trafficking from Golgi to ER was mediated by COP I vesicles to maintain the delicate balance and avoid autoimmunity^32,33. Moreover, SURF4 on the COP I vesicle was responsible for binding to STING and facilitating the retrograde trafficking^32,34,35,36. Interestingly, SURF4 on the COP II vesicles also mediates the anterograde trafficking of various secretory proteins³⁷, including PCSK9³⁸. In light of these observations, we hypothesized that SURF4 might also mediate anterograde trafficking of STING, and PCSK9 might compete with STING for binding to SURF4, thereby limiting the anterograde transport of STING in COPII vesicles.

To confirm the role of SURF4 in STING anterograde trafficking, we generated SURF4-overexpressing HeLa (HeLa^{SURF4 OE}) and SURF4-knockout HeLa (HeLa^{SURF4 KO}) cells. After cGAMP stimulation, we observed strong colocalization of STING with SURF4, and anterograde STING trafficking was enhanced in HeLa-hSTING^{SURF4 OE} cells (Supplementary Fig. 3a, b). Moreover, cGAMP treatment induced stronger STING activation in THP1^{SURF4 OE} and 293T ^{SURF4 OE} cells (Supplementary Fig. 3c, d). In contrast, SURF4-knockout HeLa cells exhibited impaired STING and PCSK9 anterograde trafficking and reduced STING signaling activation compared to HeLa^WT or HeLa^{SURF4 OE} cells. Meanwhile, a basal activation of STING was also observed in SURF4-knockout cells (Supplementary Fig. 3e–j). These results indicate that SURF4 is involved not only in the retrograde trafficking of STING but also in the anterograde trafficking and activation of STING.

To directly analyze this possible vesicle transport-mediated signaling crosstalk, we investigated the intracellular distribution of PCSK9 and STING in HeLa cells. Interestingly, the enhanced STING anterograde trafficking appears to be associated with decreased PCSK9 transport, as measured by counting fluorescence antibody-labeled PCSK9 protein puncta (dots) (Fig. 2p). PCSK9 was strongly colocalized with GFP-labeled STING in a vesicle-like structure upon STING activation (Fig. 2q). Further immunostaining analysis confirmed that the vesicle-like structure contained SEC24 Homolog B (Sec24B) (Fig. 2r), a hallmark of COPII vesicles^37,39, indicating that PCSK9 and STING are co-packaged and transported by COPII vesicles. The observed changes in STING trafficking were positively associated with the activation of cGAS-STING signaling, as evidenced by the stronger activation of phospho-STING (Ser366) and phospho-TBK1 (Ser172) following STING agonist treatment. Moreover, the unchanged expression of STING and SURF4 further suggests that PCSK9 restricts STING signaling by modulating its anterograde trafficking efficiency (Fig. 2s–t).

PCSK9 limits STING anterograde trafficking through competitive binding to SURF4

We next investigated the interactions among STING, PCSK9, and SURF4. THP1^{PCSK9 KO}, L929^{PCSK9 KO}, and HeLa^{PCSK9 KO} cells exhibited faster and stronger STING/TBK1/IRF3 phosphorylation than the corresponding wild-type cells upon exposure to low-dose STING agonists (Mn²⁺ or cGAMP) (Fig. 3a–d). We also found increased STING phosphorylation at early time points in THP1^{PCSK9 KO} cells following cGAMP treatment (Supplementary Fig. 4). We further assessed the kinetics of STING puncta formation in HeLa cells by confocal microscopy under the treatment of a low concentration of cGAMP. STING puncta formed rapidly within 60 min in HeLa^{PCSK9 KO} cells, while in HeLa^WT cells, it took at least 120 min (Fig. 3e), which is consistent with the pattern of STING signaling activation in Fig. 3d. In contrast, the overexpression of PCSK9 (OE) significantly inhibited STING activation in THP1 cells at 0.5, 1, 2, and 4 h after cGAMP treatment, compared to THP1^WT cells (Fig. 3f). Similarly, cGAMP or plasmid-induced cGAS-STING activation was also significantly reduced by transfection with different doses (1.5–5 µg) of PCSK9 plasmids (Fig. 3g and Supplementary Fig. 5a). These results indicate that PCSK9 inhibits STING anterograde trafficking from the earliest stages and throughout the entire process, likely by affecting the initiation of SURF4-mediated COPII vesicle assembly.

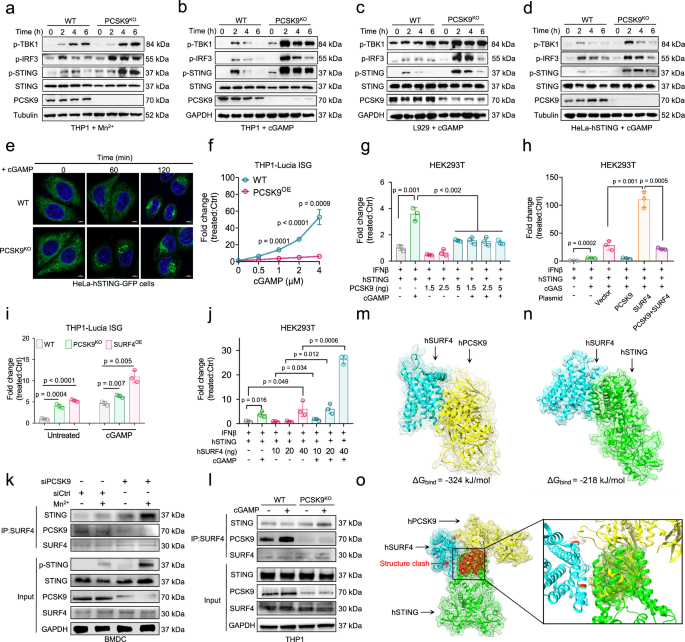

Fig. 3: PCSK9 limits anterograde STING trafficking by competing with the cargo receptor SURF4.

a–d SURF4, PCSK9, STING, and phosphorylated STING /TBK1/IRF3 expression in THP1^WT/ THP1^{PCSK9 KO}-Lucia ISG reporter cells treated with 50 µM Mn²⁺, or in THP1^WT/THP1^{PCSK9 KO} (b), L929^WT/ L929^{PCSK9 KO} (c), HeLa^WT / HeLa-hSTING^{PCSK9 KO} cells (d), cells treated with 1 μM cGAMP for 0, 2, 4, and 6 h. This experiment was repeated independently three times with similar results. e Representative confocal images of STING (Green) translocation in HeLa-hSTING-GFP^WT or HeLa-hSTING-GFP^{PCSK9 KO} cells treated with 100 nM cGAMP for 0, 1, and 2 h. This experiment was repeated independently three times with similar results. f THP1^WT or THP1^{PCSK9 OE}-Lucia reporter cells were exposed to different concentrations of cGAMP for 24 h (n = 3 independent experiments). g HEK293T cells were transfected with STING, different concentrations of PCSK9 plasmid (1.5, 2.5, and 5 ng), and IFN-β promoter-driven luciferase reporter (IFN-β-luc) together with or without 0.5 μM cGAMP treatment for 24 h (n = 3 independent experiments). h HEK293T cells were transfected with cGAS, STING, SURF4, PCSK9 alone or indicated combinations and IFN-β promoter-driven luciferase reporter (IFN-β-luc) together for 24 h (n = 3 independent experiments). i THP1^WT, THP1^{PCSK9 KO}, or THP1^{SURF4 OE} -Lucia ISG reporter cells were exposed to 1 µM cGAMP for 24 h (n = 3 independent experiments). j HEK293T cells were transfected with STING, different concentrations of SURF4 plasmid (10, 20, and 40 ng), and IFN-β promoter-driven luciferase reporter (IFN-β-luc) together with or without 0.5 μM cGAMP treatment for 24 h (n = 3 independent experiments). k Co-IP analysis of SURF4 and PCSK9/STING interactions in lysates from BMDC cells treated with siPCSK9/siCtrl (20 µg/ml) and Mn²⁺ alone or indicated combinations for 6 h. This experiment was repeated independently three times with similar results. l Co-IP analysis of SURF4 and PCSK9/STING interactions in lysates from THP1^WT and THP1^{PCSK9 KO} cells treated with cGAMP 1 µM for 4 h. This experiment was repeated independently three times with similar results. Predicted conformation and Gibbs binding energy of SURF4/PCSK9 complex (m) and SURF4/STING complex (n) via molecular dynamics simulation. o Structural clash model of PCSK9 and STING via molecular dynamics simulation. Data represent mean ± SD. Data were analyzed by one-way analysis of variance (ANOVA) with Tukey’s multiple comparisons post-test or two-way ANOVA with Bonferroni’s multiple comparisons post-test (f). Source data are provided as a Source Data file.

To investigate the potential interaction among PCSK9, SURF4, and STING, we conducted a competitive binding and inhibition assay in HEK293T cells. Here, PCSK9 transfection significantly inhibited the cGAMP-induced STING activation. By contrast, SURF4 expression promoted cGAMP-induced STING activation, which is impaired by PCSK9 overexpression in SURF4-transfected HEK293T cells (Fig. 3h). Next, we compared the effects of SURF4 overexpression and PCSK9 knockout on STING activation in THP1 cells with the same cGAMP stimulation using the IFN reporter assay. Overexpressing SURF4 induced stronger STING activation than knocking out PCSK9, suggesting that adequate SURF4 can counteract the inhibitory effect of PCSK9 on STING signaling (Fig. 3i). Similarly, SURF4 and STING-transfected HEK293T cells also showed enhanced cGAS-STING activation upon cGAMP treatment (Fig. 3j). However, this enhanced activation was abolished in HEK293T cells that received the same treatment but without STING transfection, confirming that this process is STING-dependent (Supplementary Fig. 5b). The co-immunoprecipitation (Co-IP) revealed that in the process of STING activation and anterograde trafficking, PCSK9 competitively interacts with STING, ultimately preventing STING from binding to SURF4. We observed the stronger binding of SURF and STING, both in siPCSK9/Mn²⁺-treated BMDC (Fig. 3k) and cGAMP-treated THP1^{PCSK9 KO} cells (Fig. 3l). Notably, HeLa^{PCSK9 KO} cells and THP1^{PCSK9 KO} cells had similar levels of intracellular cholesterol compared with their WT counterparts (Supplementary Fig. 6a, b), thus excluding the potential influence of cholesterol on STING activation⁴⁰.

To further explain our findings, molecular dynamics (MD) simulations of the SURF4-STING and SURF4-PCSK9 complexes (Fig. 3m) revealed a lower binding free energy (ΔG_bind = −324 kJ/mol) for the SURF4-PCSK9 complex, suggesting a more favorable interaction compared to the SURF4-STING complex (ΔG_bind = −218 kJ/mol) (Fig. 3n). Further analysis identified a steric clash when both PCSK9 and STING bind to SURF4 simultaneously (Fig. 3o). Additionally, AlphaFold2-predicted structures of human and mouse SURF4, PCSK9, and STING dimers showed high similarity across species (Supplementary Fig. 7). AlphaFold3 predictions for the SURF4-PCSK9 and SURF4-STING complexes revealed similar binding patterns in both species, with high confidence (pTM > 0.5) (Supplementary Fig. 8 and 9). However, pTM scores for the SURF4-PCSK9-STING ternary complexes were below 0.5, suggesting the instability and low likelihood of ternary complex formation (Supplementary Fig. 10). Altogether, the above results indicate that PCSK9 negatively regulates the cGAS-STING pathway by competitively binding to SURF4 and limiting STING anterograde trafficking (Supplementary Fig. 11).

NP containing PCSK9 siRNA and STING agonists enable safe and effective cancer immunotherapy

Given the promising results and mechanistic rationale of amplified cGAS-STING signaling following PCSK9 silencing, we sought to translate this effect into a viable therapeutic approach. To this end, we developed a facile method for encapsulating siPCSK9 and STING agonists (e.g., Mn²⁺ or cGAMP) into hyaluronic acid (HA)-coated lipid NP^11,41 (Fig. 4a and Supplementary Fig. 12a). Dynamic light scattering (DLS) showed that NP^{siPCSK9/cGAMP} had an average diameter of 66 nm (Fig. 4b and Supplementary Fig. 12b). The encapsulation efficiency was over 95% for siPCSK9 and approximately 10% for cGAMP (Supplementary Fig. 12c, d). The sizes and encapsulation efficiencies of NP^cGAMP and NP^siPCSK9 were comparable to those of NP^{siPCSK9/cGAMP}(Supplementary Fig. 12e, f). Additionally, we used a similar method to prepare NP^siPCSK9/Mn2+, which had a size and structure similar to NP^{siPCSK9/cGAMP} (Supplementary Fig. 12g), with Mn²⁺ exhibiting a pH-responsive release profile due to its pH-dependent binding to siRNA (Supplementary Fig. 12h). We next analyzed the in vitro activity of these NP. As expected, NP^{siPCSK9/cGAMP} and NP^siPCSK9/Mn2+ showed significantly enhanced IFN-β release compared to their respective controls (Supplementary Fig. 12i–j), suggesting that siPCSK9 significantly potentiates the effect of low-dose STING agonists. Cryo-EM analysis revealed that NP^cGAMP had one lipid bilayer, whereas NP^siPCSK9 and NP^{siPCSK9/cGAMP} exhibited two lipid bilayers (Fig. 4c and Supplementary Fig. 13). This structural difference was likely due to the strong negative charge of siRNA, which influences lipid organization. RNA-seq analysis revealed that NP^{siPCSK9/cGAMP} treatment broadly activated the cGAS-STING signaling-related genes in BMDCs (Fig. 4d and Supplementary Fig. 14a, d). Moreover, the expression of structural proteins related to COPI and COPII vesicles was similar for NP^cGAMP and NP^{siPCSK9/cGAMP} (Supplementary Fig. 14e), thus excluding the effect of vesicle number on STING trafficking.

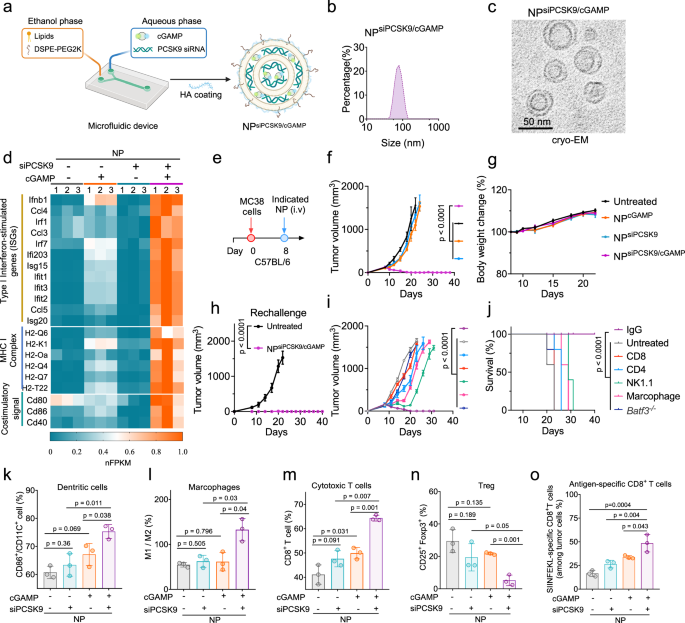

Fig. 4: Engineered NP co-delivering PCSK9 siRNA and STING agonists for safe and effective cancer immunotherapy.

a Schematic showing PCSK9-mediated suppression of STING activation and the design of bioinspired NP. b Size distribution of NP^{siPCSK9/cGAMP} measured by DLS. This experiment was repeated independently three times with similar results. c Cryo-electron microscopy (cryo-EM) images of NP^{siPCSK9/cGAMP}, Scale bar = 50 nm. This experiment was repeated independently three times with similar results. d Heatmap analysis of type I interferon, MHC I complex, and co-stimulatory signals from RNA sequencing data (n = 3 independent experiments). e C57BL/6 mice were subcutaneously injected with 300,000 MC38 cells on day 0. On day 8, tumor-bearing mice were intravenously injected with indicated NP formulations containing 100 µg/dose siPCSK9 and/or 1.5 µg/dose cGAMP (n = 5 mice). Shown are (f) average tumor growth curves, g body weight changes, and h tumor growth curves post rechallenge (n = 5 mice). i, j C57BL/6 or C57BL/6^Batf3−/− mice were inoculated subcutaneously with 3 × 10⁵ MC38 tumor cells on day 0 and intravenously injected with NP^{siPCSK9/cGAMP} on day 8. Average tumor growth curves (i) and survival curves (j) for animals treated with NP^{siPCSK9/cGAMP} and antibodies that deplete indicated populations of immune cells (n = 5 mice). k Percentage of CD86⁺ cells among CD11C⁺ dendritic cells, l percentage of CD8⁺ T cells among CD3⁺ T cells, m M1/M2 macrophage ratio, n percentage of CD25⁺Foxp3⁺ T cells among CD4⁺ T cells in the tumor microenvironment on day 11 (n = 3 mice). o Percentage of SIINFEKL-specific T cells among CD8⁺ T cells in the tumor microenvironment on day 11 (n = 3 mice). Data are presented as mean ± SD. Data were analyzed by one-way ANOVA with Tukey’s multiple comparisons test (k–o). Data were analyzed by two-way ANOVA with Dunnett’s multiple comparisons test (f–i). Source data are provided as a Source Data file. Panel (a) was created in BioRender. Kuai, R. (2025) https://BioRender.com/b04l005.

Intravenously injected hyaluronic acid-coated NP accumulated in the tumor as early as 1 h and remained for over 72 h (Supplementary Fig. 15a), indicating these NP are suitable for in vivo therapeutic studies. A single dose of NP^{siPCSK9/cGAMP} led to complete tumor regression in 100% of treated mice, while NP^siPCSK9 or NP^cGAMP failed to inhibit tumor growth (Fig. 4e–g and Supplementary Fig. 16a–c). Notably, animals cured with NP^{siPCSK9/cGAMP} were protected from rechallenge with MC38 cells (Fig. 4h). NP^siCtrl/cGAMP failed to inhibit tumor growth (Supplementary Fig. 17a, b), further indicating the enhanced therapeutic effect was PCSK9-dependent. Combination of the PCSK9 antibody Evolocumab and NP^siCtrl/cGAMP also failed to inhibit tumor growth (Supplementary Fig. 18), implying that blocking extracellular PCSK9 does not affect the STING activation. Moreover, NP^{siPCSK9/cGAMP} lost the therapeutic effect in C57BL/6^STING−/− mice bearing MC38^WT tumor cells (Supplementary Fig. 19a–c), but it maintained the strong therapeutic effect in C57BL/6^WT mice bearing MC38^STING−/− tumor cells (Supplementary Fig. 19d–g), suggesting that host STING signaling plays a critical role in NP^{siPCSK9/cGAMP} treatment. The immune cell depletion in C57BL/6 or C57BL/6^Batf3−/− mice revealed that dendritic cells, macrophages, NK, CD4⁺, and CD8⁺ T cells all contributed to the therapeutic effect (Fig. 4i, j).

A single dose of NP^{siPCSK9/cGAMP} induced higher levels of mature dendritic cells (mDCs), M1 macrophages, cytotoxic CD8⁺ T lymphocytes, and natural killer (NK) cells within the tumor microenvironment compared with other groups. In contrast, the frequencies of immune-suppressive regulatory T cells (Tregs) and myeloid-derived suppressor cells (MDSCs) were significantly reduced in the NP^{siPCSK9/cGAMP} group compared to control NP (Fig. 4k–n and Supplementary Fig. 20a–h). Additionally, NP^{siPCSK9/cGAMP} induced a marked increase in OVA-specific CD8⁺ T cells (SIINFEKL) in the MC38-OVA model (Fig.4o and Supplementary Fig. 20i–j), indicating enhanced priming and expansion of cytotoxic T lymphocytes (CTLs). Similarly, NP^siPCSK9/Mn2+ induced stronger antitumor responses than control groups (Supplementary Figs. 21–23).

Notably, a single-dose systemic administration of NP^{siPCSK9/cGAMP} (1.5 µg/dose cGAMP) achieved not only potent antitumor effects but also exhibited excellent safety profiles, without body weight changes at 24 h and 48 h post-administration (Fig. 5a–c). In contrast, NP^cGAMP at the effective dose (5 µg/dose) induced over 15% body weight loss at 24 h post intravenous administration, although this dose also induced robust antitumor immune responses and therapeutic effects. It should be noted that lower doses (1.5 µg and 2.5 µg/dose cGAMP) of NP^cGAMP failed to show strong therapeutic effects.

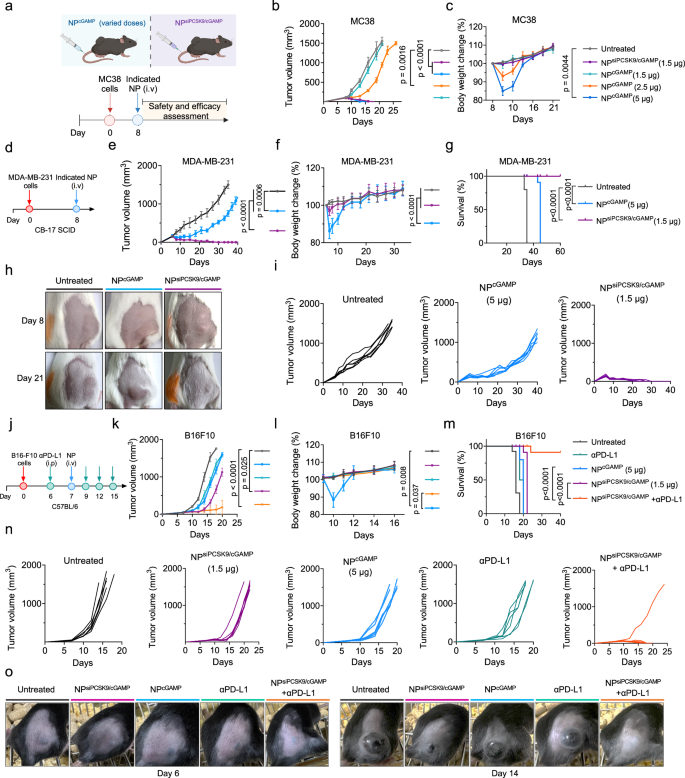

Fig. 5: Reshaping the spatiotemporal activation of STING for safe and effective cancer immunotherapy.

a Dosing regimen for the treatment of mice bearing MC38 tumors. b Average tumor growth curves and c body weight changes of MC38-bearing mice treated with NP formulations containing 100 µg/dose siPCSK9 and 1.5 µg/dose cGAMP or 1.5, 2.5, 5 µg/dose cGAMP (n = 5 mice). d CB-17 SCID mice were inoculated subcutaneously with 1 × 10⁶ MDA-MB-231 tumor cells on day 0 and intravenously treated with the indicated formulations on day 8. e Average tumor growth curves for animals treated with indicated formulations (n = 6 mice). f Body weights of animals treated with the indicated formulations. g The survival curves of animals treated with the indicated formulations (n = 6 mice). h Representative images of tumor-bearing mice treated with the indicated formulations on days 8 and 21. i Individual tumor growth curves for animals treated with indicated formulations (n = 6 mice). j C57BL/6 mice were inoculated subcutaneously with 2 × 10⁵ B16-F10 tumor cells on day 0, intraperitoneally injected with αPD-L1 on days 6, 9, 12, and 15, and intravenously injected with the indicated formulations on day 7. k Average tumor growth curves for animals treated with indicated formulations (n = 6 mice). l Body weights of animals treated with indicated formulations. m The survival curves of animals treated with indicated formulations (n = 6 mice). n Individual tumor growth curves for animals treated with indicated formulations (n = 6 mice). o Representative images of tumor-bearing mice treated with indicated formulations on days 6 and 14. Data are presented as mean ± SEM. Data were analyzed by two-way ANOVA with Dunnett’s multiple comparisons test (b, c, e, f, k, and l). Data were analyzed by log-rank (Mantel–Cox) test (g, m) or two-way analysis of variance (ANOVA) with Dunnett’s multiple comparisons test (c). Source data are provided as a Source Data file. Panel (a) was created in BioRender. Kuai, R. (2025) https://BioRender.com/28bogc8.

We next evaluated the therapeutic efficacy and safety of systemic NP^{siPCSK9/cGAMP} and NP^cGAMP in the MDA-MB231 xenograft models. A single dose of NP^{siPCSK9/cGAMP} resulted in complete tumor regression in 100% of treated mice without significant weight loss. In contrast, high-dose NP^cGAMP failed to induce tumor regression in any of the six animals and caused significant weight loss (>15%) at 24 h post-administration (Fig. 5d–i). Moreover, combining NP^{siPCSK9/cGAMP} with αPD-L1 resulted in complete tumor remission in five out of six B16F10 tumor-bearing mice, without significant body weight loss (Fig. 5j–o). Altogether, these results indicate that a low dose of NP^{siPCSK9/cGAMP} is highly effective and safe for cancer immunotherapy, while NP^cGAMP was only effective at a relatively high dose that induces severe side effects.

NP^{siPCSK9/cGAMP} induces stronger STING activation in the tumor than in the liver

NP^{siPCSK9/cGAMP} and high-dose NP^cGAMP had similar biodistribution profiles at 24 h post administration, with both formulations demonstrating ~80% liver accumulation (Supplementary Fig. 24a–c), indicating the liver may experience stronger off-target STING activation than other organs. However, the liver has a higher basal level of PCSK9 than the tumor (Fig. 6a), making it possible to silence PCSK9 for achieving differential activation of STING in the liver and tumor. Interestingly, NP^{siPCSK9/cGAMP} induced a significantly lower liver IFN-β production and serum AST (the liver injury marker) than high-dose NP^cGAMP between 12 and 72 h (Fig. 6b–c). Moreover, NP^{siPCSK9/cGAMP} induced a lower serum IFN-β than NP^cGAMP, although IFN-β in the spleen was similar. Compared with NP^cGAMP, NP^{siPCSK9/cGAMP} induced a slightly higher peak concentration of IFN-β, which remained in the tumor for about 72 h (Supplementary Fig. 25a–c). In parallel with these changes, NP^{siPCSK9/cGAMP} did not induce inflammation or vascular damage in the liver, but high-dose NP^cGAMP induced large areas of inflammatory damage in the liver, including inflammation in the hepatic artery and portal vein (Fig. 6d and Supplementary Fig. 26). Meanwhile, NP^{siPCSK9/cGAMP} treatment induced more extensive inflammatory damage and erythrocyte infiltration in the tumor than NP^cGAMP (Fig. 6e and Supplementary Fig. 27). Additionally, NP^{siPCSK9/cGAMP} and high-dose NP^cGAMP treatments exhibited no difference in the recruitment of immune cells to the periarteriolar lymphoid sheaths surrounding the splenic arterioles (Supplementary Fig. 28).

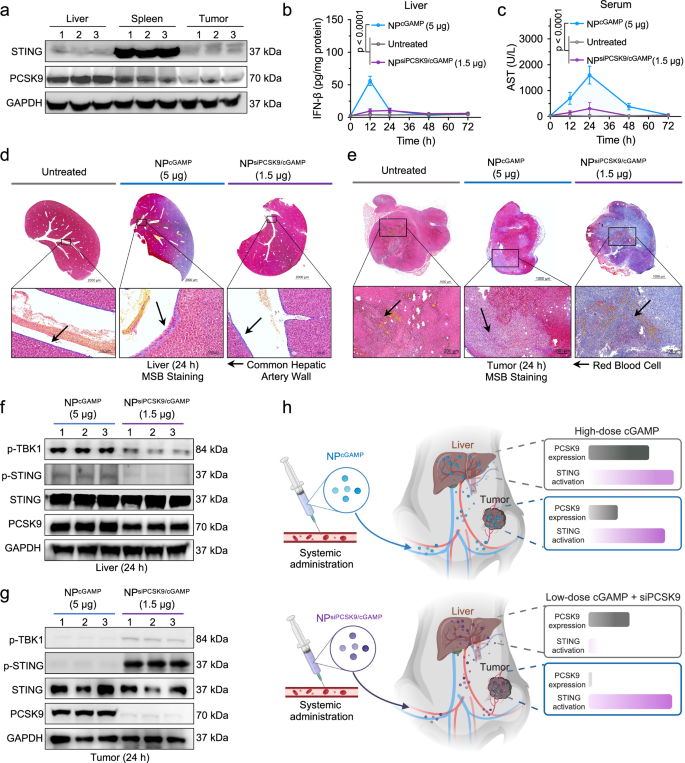

Fig. 6: PCSK9 silencing promotes tumor-specific STING activation and spares the liver from toxicity.

a STING and PCSK9 expression levels in the liver, spleen, and tumor of untreated mice (n = 3 mice). b, c C57BL/6 mice (n = 3 mice) were treated with NP^cGAMP and NP^{siPCSK9/cGAMP} on day 8. Shown are e liver IFN-β levels and f serum concentrations of aspartate aminotransferase (AST) at the indicated time points (0, 12, 24, 48, and 72 h post-treatment, n = 3 mice). d, e Martius Scarlet Blue (MSB) staining of the liver (d) and tumor (e) after 24 h of treatment with indicated NP formulations containing 100 µg/dose siPCSK9 and 1.5 µg/dose cGAMP, or 5 µg/dose cGAMP (n = 3 mice), and expression of PCSK9 and key proteins related to the STING pathway in the liver (f) and tumor (g). h Schematic showing differential activation patterns of STING in the liver and tumor following systemic administration of NP^cGAMP and NP^{siPCSK9/cGAMP}. Systemic delivery of NP^cGAMP (high dose) leads to a lack of differential STING regulation in the tumor and liver, providing effective cancer immunotherapy but also causing uncontrollable hepatotoxicity. However, systemic delivery of NP^{siPCSK9/cGAMP} induces differential STING regulation of low-dose cGAMP and siPCSK9 in the tumor and liver, offering the potential for safe and effective cancer immunotherapy. Data are presented as mean ± SD. AUC data were calculated from the corresponding curves and subsequently analyzed by one-way ANOVA with Tukey’s multiple comparisons test (b, c). Source data are provided as a Source Data file. Panel (h) was created in BioRender. Kuai, R. (2025) https://BioRender.com/obym8jd.

We next sought to understand the mechanism underlying the differential STING activation in the liver and tumor. Low-dose NP^{siPCSK9/cGAMP} almost completely knocked down PCSK9 in the tumor to amplify STING activation, while the liver still had remaining PCSK9 to suppress STING activation (Fig. 6f, g). This is because the liver has a higher basal level of PCSK9 than the tumor. Although high-dose NP^cGAMP-treated mice also had PCSK9 in the liver, PCSK9 failed to fully suppress the STING activation as ~80% of the high-dose NP^cGAMP was in the liver (Fig. 6f). Moreover, NP^cGAMP-treated mice had intratumoral PCSK9 that suppressed the STING activation, as shown by the lower level of phosphorylated STING and TBK1 (Fig. 6g). The proposed working model is presented in Fig. 6h. The single-cell sequencing data (sourced from the Human Protein Atlas⁴²) revealed high PCSK9 expression in hepatocytes and liver-resident macrophages (Kupffer cells) (Supplementary Fig. 29a). In line with this, both CD45⁺ and CD45⁻ cells exhibited high PCSK9 in the liver. As a result, NP^{siPCSK9/cGAMP} only partially reduced PCSK9 and exhibited less STING activation compared with the therapeutically effective dose of NP^cGAMP. In the tumor, CD45⁺ cells showed stronger STING phosphorylation after NP^{siPCSK9/cGAMP} treatment, whereas CD45⁻ cells displayed a similar but less pronounced trend (Supplementary Fig. 29b). Interestingly, the structures of PCSK9, STING, and SURF4 were conserved across different species (Fig. 7), suggesting that the inhibition of STING trafficking by PCSK9 may be an ancient and evolutionarily conserved regulatory process. These results suggest that the patterns identified in mice may be relevant for future clinical trials, supporting the potential clinical translation of our findings.

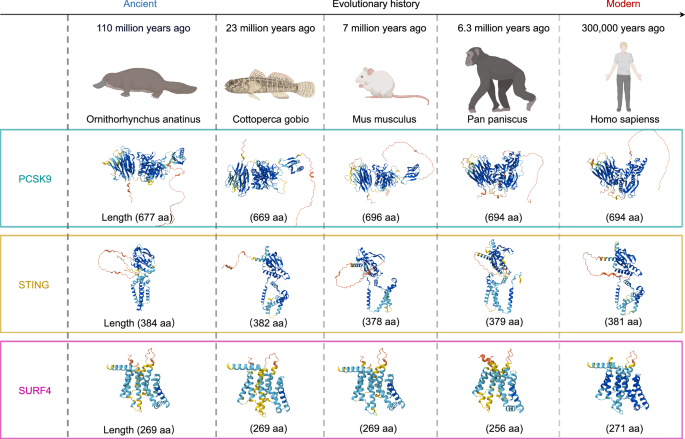

Fig. 7: Evolutionarily conserved structures of SURF4, STING, and PCSK9 across species.

Alphafold2-predicted structures of PCSK9, STING, and SURF4 in Homo sapiens, Pan paniscus, Mus musculus, Cottoperca gobio, and Ornithorhynchus anatinus, spanning a time range from 300,000 years to 110 million years.

Discussion

Our findings reveal that PCSK9 inhibits activation of the cGAS–STING pathway by restricting anterograde trafficking of STING from the ER to the Golgi apparatus. This mechanism not only offers a potential explanation for the limited clinical efficacy of STING agonists but also suggests a strategy to unlock their therapeutic potential for safe and effective cancer immunotherapy. While recent studies have shown that targeting extracellular PCSK9 enhances tumor cell-surface MHC I stability⁴³, the role of intracellular PCSK9 in regulating innate immunity has remained largely unexplored. Our study addresses this gap and underscores the multifaceted functions of PCSK9 across innate and adaptive immune responses.

Moreover, we demonstrate that co-delivery of siPCSK9—an FDA-approved therapeutic—with a low-dose STING agonist via bioengineered NP markedly enhances antitumor efficacy. This approach may help overcome key barriers that have hampered STING agonist-based therapies, providing a broadly applicable and translationally feasible strategy for cancer immunotherapy. Furthermore, this ‘biological switch-like’ strategy for tissue-specific immune modulation may also have broad applications in radiotherapy and chemotherapy, both of which involve STING activation.

Methods

Preparation of immature BMDCs

BMDCs were isolated by flushing the femur and tibia from C57BL/6 or C57BL/6^STING−/− mice and cultured in RPMI 1640 media (Gibco) supplemented with 10% FBS (Biological Industry (BI)), 1% penicillin/streptomycin (Gibco), 20 ng/ml of GM-CSF (Genscript), and 50 μM β-mercaptoethanol at 37 °C and 5% CO₂. Half of the medium was removed and supplemented with 20 ng/ml GM-CSF-containing medium on days 3 and 6, and the non-adherent cells were harvested on day 7 and used immediately.

Synthesis of siRNA

The sequence and modification of PCSK9 and Ctrl siRNA were designed as described previously¹⁶. siRNA was customized from General Biol. (Anhui) Co., Ltd. The synthesis and deprotection of Oligonucleotides were carried out with a standard solid-phase synthesis procedure. Then, single-stranded RNAs were purified from crude oligonucleotides by reversed-phase HPLC. Double-stranded siRNAs were generated by annealing equal amounts of sense and antisense strands.

Preparation of NP containing siRNA and/or STING agonist

The hyaluronic acid-coated lipid nanoparticle (NP) formulation was prepared by using a microfluidic device (INano^TM E, Micro&Nano, Shanghai, China) to mix the ethanol phase containing selected lipids and aqueous phase containing selected siRNA and/or STING agonists. Briefly, to obtain the lipid-containing ethanol phase, 60.84 mM 1,2-Dioleoyl-3-trimethylammonium-propane chloride (DOTAP), 57.12 mM 1,2-Dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE), and 5.35 mM 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-[methoxy(polyethylene glycol)-2000] (DSPE-PEG2000) (all purchased from AVT Pharmaceutical Tech Co., Ltd, Shanghai) were dissolved in ethanol. To obtain the aqueous phase, 100–500 µg/ml siPCSK9 or siCtrl was dissolved in sterile normal saline (for NP^siPCSK9or NP^siCtrl preparation); or 100–500 µg/ml siPCSK9 or siCtrl, and 20 mM MnCl₂ (Sigma, Cat#M3634) were dissolved in sterile normal saline (for NP^siPCSK9/Mn2+ and NP^siCtrl/Mn2+ preparation); or 100–500 µg/ml siPCSK9 and 40 µg/ml cGAMP (MCE, Cat# HY-100564) were dissolved in sterile normal saline (for NP^{siPCSK9/cGAMP} preparation). The ethanol phase containing indicated lipids and the aqueous phase containing indicated molecules were mixed at a volume ratio of 3:1 (aqueous: ethanol) via the microfluidic device at a flow rate of 8 ml/min for nanoparticle production. Finally, the hyaluronic acid (HA) was added dropwise into the prepared liposome under constant vortexing to achieve a final HA concentration of 1 mg/ml, followed by dialysis for 4–6 h in normal saline at 4 °C to remove ethanol and unloaded molecules. NP^Blank, NP^Mn2+, and NP^cGAMP were all prepared using the same methods by adjusting the content of the aqueous phase accordingly. All NP formulations were sterilized through a 220 nm filter before use.

To simplify the in vitro mechanism study, all siRNAs used in Figs. 1–3 were delivered by HA-coated NP: namely, NP^siPCSK9 was used in the siPCSK9 group, and NP^siCtrl was used in the siCtrl group, with STING agonists physically mixed with these NP formulations for in vitro studies. However, to facilitate the codelivery of siRNA and STING agonists in vivo. All the siRNA and STING agonists were encapsulated into NP for in vivo use.

Antibodies and reagents

Rabbit antibodies against p-TBK1 (#5483), STING (#13647), p-STING (#19781), p-IRF3 (#4947), Golgin-97 (#13192S), Sec24B (#12042), and GAPDH (#5174) were purchased from Cell Signaling Technology. Rabbit antibodies against SURF4(#PA5-110450) were purchased from Thermofisher. Rabbit antibodies against PCSK9 (#Ab185194) were purchased from Abcam. Rabbit antibodies against PCSK9 (#A21909, A24478) were purchased from ABclonal Technology. Antibodies against Tubulin (HC101-01) and GADPH (HC301-01) were obtained from TransGen biotech.

LPS (L3024) was purchased from Sigma. Human IFN-β bioluminescent ELISA kit (luex-hifnbv2), 2'3’-cGAMP (tlrl-nacga23), and c-di-AMP (tlrl-nacda) were purchased from InvivoGen. Polyethylenimine (PEI, #23966-2) was obtained from Polysciences. Poly (I: C) LMW (#tlrl-picw-250) was purchased from Invivogen.

Cell culture and treatment

Throughout the studies, all cells were tested negative for mycoplasma contamination and morphologically confirmed. THP1-Lucia ISG cells (InvivoGen, No. thpl-isg) and THP1-Lucia NF-κB Cells (InvivoGen, No. thpl-nfkb) were cultured in RPMI 1640 medium (Gibco) supplemented with 10% (v/v) fetal bovine serum (FBS, Gemini), 1% (v/v) penicillin (100 U/ml, Solarbio), and streptomycin (100 μg/ml, Solarbio). Raw264.7 (ATCC, TIB-71), HEK293T cells (ATCC, CRL-3216), HeLa cells (ATCC, CCL-2), and L929 cells (ATCC, CCL-1) were cultured in Dulbecco’s Modified Eagle’s Medium (DMEM, Gibco) containing 10% FBS and penicillin-streptomycin. All these cells mentioned above were maintained in a humidified incubator containing 5% CO₂ at 37 °C. To facilitate cGAMP delivery in vitro, perfringolysin O (PFO, 0.02 μg/mL) was utilized to improve the entry of the indicated concentrations of cGAMP into HeLa, HEK293T, and L929 cells. After treatment, cells were incubated at 37 °C with 5% CO₂ for 24 h for the Luciferase reporter assay. For western blotting, cells were treated and cultured for the indicated lengths of time, as shown in the figure legends.

Construction of stable cell lines

To generate stable cell lines overexpressing SURF4 or PCSK9, human Surf4 and Pcsk9 genes were inserted into the pCDH-CMV-MCS-IRES vector, followed by virus packing and lentiviral plasmid transduction of parent cells described below. To generate PCSK9-knockout L929 cells, PCSK9-knockout THP1-Lucia ISG, SURF4-knockout THP1-Lucia ISG, PCSK9-knockout HeLa-hSTING-GFP cells, PCSK9-knockout-HeLa-hSTING cells, SURF4-knockout HeLa-hSTING cells, or SURF4-knockout HeLa-hSTING-110GFP cells, the parent cells were transduced by lentiviral plasmids consisting of gRNA and plentiCRISPR v2 (Addgene Plasmid). For virus packaging, 14 μg of constructed plasmids with the two packaging plasmids, psPAX2 (6 μg) and pMD2.G (4 μg) were co-transfected into HEK293T cells by the PEI transfection reagent. After 72 h, the supernatant was collected and filtered through a 0.22-μm membrane filter. The filtrate was then added to the indicated cells with polybrene (Sigma Aldrich) for another 48 h. The transfected cells were selected by 2 µg/ml puromycin or 5 µg/ml blasticidin (Thermo Fisher Scientific), determined by the selection markers on the plentiCRISPR backbone. The purified cells were used for further western blotting or immunostaining. All gRNA sequences for gene knockout and primer sequences for gene overexpression are provided in Supplementary Tables S1 and S2. The gRNAs demonstrating optimal knockout efficiency, as determined by functional screening, are indicated in bold, and the corresponding knockout cell lines generated with these gRNAs were used for subsequent experiments.

Enzyme-linked immunosorbent assay (ELISA)

For human IFN-β detection after PCSK9 silencing, THP1 cells were seeded in 12-well plates and treated with formulations containing 7.5 μg/ml siCtrl or 7.5 μg/ml siPCSK9 or 10 μg/ml Poly (I: C) (transfected with PEI), or indicated combinations and incubated for 24 h at 37 °C in 5% CO₂. Then the supernatant was collected and the concentration of secreted IFN-β was measured by the human IFN-β bioluminescent ELISA kit following the manufacturer’s instructions. The optical density (OD) in each well was read at 450 nm.

For murine IFN-β detection after PCSK9 silencing, BMDCs seeded in 96-well plates were treated with siCtrl or siPCSK9 (10 and 20 µg/ml), or Mn²⁺ (0–1600 µM), or indicated combinations for 24 h. In some experiments, BMDCs were seeded in 96-well plates and treated with 20 µg/ml siCtrl or siPCSK9, or 10 μg/ml Poly(I: C) (transfected with PEI) alone, or indicated combinations for 24 h. The supernatant was collected, and the concentration of secreted IFN-β was measured by the LumiKine™ Xpress mIFN-β 2.0 (InvivoGen, Cat# luex-mifnbv2) following the manufacturer’s instructions.

To assess the cGAS-STING pathway activation induced by siRNA and STING agonists co-delivered by NP. BMDCs were seeded in 96-well plates and treated with NP^Blank(Blank vesicle), NP^Mn2+ (NP containing 400 µM Mn²⁺), NP^cGAMP (NP containing 100 nM cGAMP), NP^siCtrl (NP containing 20 μg/ml siCtrl), NP^siPCSK9 (NP containing 20 μg/ml siPCSK9), NP^siCtrl/Mn2+ (NP containing 20 μg/ml siCtrl and 400 µM Mn²⁺), NP^siPCSK9/Mn2+ (NP containing 20 μg/ml siPCSK9 and 400 µM Mn²⁺), andNP^{siPCSK9/cGAMP} (NP containing 20 μg/ml siPCSK9 and 100 nM cGAMP) for 24 h. The supernatant was collected, and the concentration of secreted IFN-β was measured by the LumiKine™ Xpress mIFN-β 2.0 (InvivoGen, Cat# luex-mifnbv2).

Luciferase reporter assay

THP1-Lucia ISG cells are derived from THP1 cells by stably transfecting the luciferase reporter gene under the control of interferon-stimulated response elements (ISRE). THP1-Lucia NF-κB cells were derived from THP1 cells by stably integrating the NF-κB-inducible Luc reporter element for monitoring the NF-κB activation. RAW-Lucia ISG cells were derived from Raw264.7 cells. For the luciferase assay, THP1-Lucia ISG, STING^{CRISPR−/−} THP1-Lucia ISG, and RAW-Lucia ISG cells were seeded in 96-well plates at a density of 3 × 10⁶ cells/well and treated with 50 μM Mn²⁺ with or without 7.5 μg/ml NP^siPCSK9 at 37 °C for 24 h. Then, 20 μl cell suspension was mixed with 60 μl luciferase buffer (50 mM NaCl, 50 mM HEPES pH 7.0, 10 mM EDTA, 0.05% CHAPS, 1 μM Coelenterazine) and incubated in darkness for 5 min at room temperature. Luminescence was measured by Cytatio3^TM Cell Imaging Reader (BioTek).

THP1-Lucia ISG cells were also treated with another two STING agonists (1 μM cGAMP, 10 μM c-di-AMP) or TLR agonists (500 ng/ml LPS, 10 μg Poly(I: C)) with or without 7.5 μg/ml siCtrl or siPCSK9 at 37 °C for 24 h. THP1-Lucia NF-κB cells were treated with 500 ng/ml LPS and/or siCtrl or siPCSK9. The luciferase reporter activity was determined following the standard protocol.

RNA isolation and quantitative RT-PCR

BMDCs were treated with 400 μM Mn²⁺ or 20 µg/ml siCtrl or siPCSK9 for 24 h. Total RNA was extracted by M5 HiPer Total RNA Extraction Reagent (MF034-01, Mei5 Biotechnology) according to the manufacturer’s protocol. Then, 1 μg RNA was reverse transcribed into cDNA by utilizing the M5 Super plus qPCR RT kit (MF166-plus-01, Mei5 Biotechnology). Real-time quantitative PCR was performed using HiPer SYBR Premix EsTaq (MF787-T, Mei5 Biotechnology). The primer sequences detecting the indicated genes are shown in Table S3. All the indicated siRNAs we used in this study were delivered by HA-coated NP as described above.

Western blotting

Cells were lysed by lysis buffer (20 mM Tris-HCl, 150 mM NaCl, 10% glycerol, 1% Triton X-100, 0.1% SDS, 1 mM EDTA-Na₂, 1 mM Na₃VO₄, 25 mM β-glycerophosphate) supplemented with 0.5% PMSF and 0.05% Leupeptin on ice for 30 min and then centrifuged at 13,000 rpm for 15 min at 4 °C. Supernatant was retained and boiled with 4X SDS loading buffer at 95 °C for 10 min. The denatured protein samples were separated by 10% or 12% SDS-PAGE gels and transferred to PVDF membranes (Millipore). These membranes were blocked with 5% skim milk for 1 h at room temperature and incubated with the specific primary antibodies at 4 °C overnight. After being washed by TBS-T for 30 min, the membranes were incubated with appropriate HRP-conjugated secondary antibodies at room temperature for 1 h. The bands were visualized by the automatic chemiluminescence/fluorescence Imaging System (Tanon 5200).

Interferon β-luciferase reporter assay

HEK293T cells (seeded in 96-well plates) were transfected with IFN-β-luciferase (50 ng/well), human STING (50 ng/well) plasmids, different doses of human PCSK9 plasmid (1.5, 2.5, 5 ng/well) or human SURF4 plasmid (10, 20, 40 ng) for 12 h. The HEK293T cells were stimulated with 0.5 μM cGAMP in the presence of 0.02 mg/mL PFO for another 12 h. Alternatively, HEK293T cells were transfected with IFN-β-luciferase (50 ng/well), human cGAS (30 ng/well), and STING (50 ng/well) plasmids with vector (20 ng), PCSK9 (5 ng or 20 ng), and SURF4 (20 ng) for 24 h. The IFN-β reporter activity was detected according to the standard protocol.

Immunofluorescence microscopy

For immunofluorescence staining, HeLa cells stably expressing STING-110-GFP or STING-GFP were cultured on coverslips in 24-well plates and treated as described in the figure legends. After removing the medium, cells were fixed with 4% paraformaldehyde (Solarbio) for 10 min at room temperature and then washed with PBS three times. Cells were blocked by staining buffer containing 3% BSA and 0.05% Triton X-100 for 1 h and then incubated with specific primary antibodies overnight at 4 °C. After washing three to four times in PBS, cells were incubated with secondary antibodies conjugated to Alexa Fluor 488 or 568 (Invitrogen) and 4’,6-diamidino-2-phenylindole (DAPI) for nuclear staining for 2 h at room temperature. The confocal images were acquired with a Zeiss LSM980 laser scanning microscope. Zen Blue 3.2 software and Image J software were used for image processing.

Co-IP of SURF4

BMDCs were seeded at 3 × 10⁶ cells/well in 6-well plates. After overnight culture, BMDCs were pretreated with 20 μg/ml siRNA siPCSK9 or siCtrl for 24 h and then treated with 400 µM Mn²⁺ for 3 h. SURF4 Co-IP samples were prepared by Pierce^TM Direct Magnetic IP/Co-IP Kit (Thermofisher, Cat# 88828) following previously reported methods with slight modifications³⁴. Briefly, cells were lysed by IP buffer in IP/Co-IP Kits supplemented with 1% 3-[(3-Cholamidopropyl) dimethylammonio]-1-propanesulfonate (CHAPS), and beads were washed by wash buffer IP/Co-IP Kits supplemented with 0.7% CHAPS (MCE, Cat# HY-15435) for stabilized protein-protein complexes and retained the biochemical activity of proteins in solution.

Protein-protein molecular docking and MD simulation

The molecular docking assays of human PCSK9 (PDB id:6U2F) and human STING (PDB id:6NT5) with human SURF4 (AlphaFold:AF-B7Z1G8-F1) were performed by HDOCK, and the top three structures with the best docking scores were chosen for subsequent molecular dynamics (MD) simulation. The protein–protein complex was placed in a cubic box filled with solvent (TIP3P water molecules), and the complex was simulated by Gromacs 2022.1 under constant temperature (310 K, V-rescale temperature coupling method), pressure (1 bar, Berendsen method), and Charmm36 force field for a 50 ns MD simulation, and finally visualized by Pymol.

MM-PBSA (Molecular Mechanics Poisson Boltzmann Surface Area) methods were used to calculate the binding free energy of the docked complexes between PCSK9/STING and SURF4. A stable segment of the RMSD (Root mean square deviation) was selected as a frame for PCSK9 (11.5 ns to 37.5 ns) and STING (6.5 ns to 32.5 ns) for the MM-PBSA estimation. As SURF4 is a membrane protein, the membrane protein parameters were used for the free energy calculation in this system. The membrane center position was set as T36, the upper side of the membrane was L25, and the lower side was F46.

Cryogenic electron microscopy (Cryo-EM)

Copper carbon grids (Quantifoil R 1.2/1.3, 300 mesh) were pre-treated with a 30-s glow discharge at a medium level using a Harrick plasma cleaner (PDC-32G-2). Liposome samples were applied to the grids in a Vitrobot Mark IV (Thermo Fisher) under conditions of 100% humidity and 8 °C. After a 10-s equilibration, an excess sample was blotted on both sides of the grid using filter paper with a blot force of −1 to 1 for 3.5 s. The grids were then vitrified by plunging into liquid ethane and subsequently stored in a liquid nitrogen-cooled container until further evaluation. Grid quality was assessed using a Talos Arctica 200 kV electron microscope equipped with a K2 camera (Gatan).

Animal studies

The mice used in this research include C57BL/6 mice (6–8 weeks, purchased from Laboratory Animal Resources Center of Tsinghua University), CB-17 SCID mice (6 weeks, purchased from Vital River, China), and BALB/c mice (6-8 weeks, purchased from Vital River, China). All animals were housed under controlled conditions (constant temperature: 22 ± 2 °C; constant humidity: 50 ± 10%; 12 h dark/light cycle).To evaluate the tissue distribution of indicated formulations, tumor-bearing mice were intravenously injected with the NP^siPCSK9/Mn2+, NP^siPCSK9, or NP^Mn2+ (labeled by DiR, 20 µg/ml, MCE, Cat# HY-D1048) on day 3 post inoculation of 3 × 10⁵ tumor cells in the right flank of C57BL/6 mice. The mice were monitored using the IVIS Spectrum 3D system (Caliper Life Sciences) at 0, 1, 6, 24, 48, and 72 h after intravenous injection. After whole body imaging at the last time point, animals were euthanized, and the DiR fluorescence signals in the heart, liver, spleen, lung, kidney, and tumor were imaged by the IVIS Spectrum 3D system (Caliper Life Sciences).

To evaluate the therapeutic efficacy of siPCSK9 and STING agonist-containing NP with right flank MC38 tumors, female C57BL/6 mice of age 6–8 weeks or female C57BL/6^STING−/− mice (GemPharmatech) of age 6–8 weeks were subcutaneously inoculated with 3 × 10⁵ MC38 cells on the right flank on day 0. Tumor-bearing mice were intravenously injected with NP^siPCSK9/Mn2+, NP^siPCSK9, or NP^Mn2+ (containing 100 µg/dose siPCSK9 and/or 40 µg/dose Mn²⁺), or intravenously injected with the control formulation NP^siPCSK9/Mn2+ (containing 100 µg/dose siCtrl and 40 µg/dose Mn²⁺) on days 8, 11, and 14. In some experiments, animals were treated with NP^{siPCSK9/cGAMP}, NP^siPCSK9, or NP^cGAMP (containing 100 µg/dose siPCSK9 and/or 1.5 µg/dose cGAMP) on day 8. Tumor size was monitored every 3 days, and tumor volume was calculated by the following equation: tumor volume = length × width² × 0.5.

To evaluate the safety of siPCSK9 and STING agonist-containing, MC38 tumor-bearing mice were intravenously injected with indicated formulations NP^Blank, NP^siPCSK9, NP^Mn2+, or NP^siPCSK9/Mn2+ on day 8, and serum samples were collected at 24, 48, and 96 h post-injection. Serum aspartate transaminase (AST), alanine aminotransferase (ALT), creatinine (CR), and creatine kinase (CK) levels were detected by an automatic clinical chemistry analyzer (Rayto Chemary-800). Plasma cytokines (IL-6, IFN-β, and TNFα) were detected by mouse IL-6 ELISA Kit (Cat# GEM0001), mouse IFN-beta ELISA Kit (Cat# GEM0018), and mouse TNF-alpha ELISA Kit (Cat# GEM0004), respectively. Animals were euthanized, and major organs such as the heart, liver, spleen, lung, and kidney were collected at 72 h for H&E staining.

For studies with right flank B16F10 tumors, female C57BL/6 mice of age 6–8 weeks (From the Laboratory Animal Resources Center of Tsinghua University) were subcutaneously inoculated with 2 × 10⁵ B16F10 tumor cells on the right flank on day 0. When tumor volumes reached approximately 50 mm³ (day 6), mice were intravenously administered with NP^cGAMP (containing 5 µg/dose cGAMP) or NP^{siPCSK9/cGAMP} (containing 100 µg/dose siPCSK9 and 1.5 µg/dose cGAMP). In some experiments, animals receiving NP^{siPCSK9/cGAMP} on day 7 were intraperitoneally injected with 200 µg/dose anti-mouse PD-L1 antibody (10 F.9G2, Selleck, Cat# A2115) on days 6, 9, 12, and 15. Body weight was recorded on days 9, 10, and 11, and subsequently every 3 days thereafter. Tumor size was measured every 3 days to evaluate tumor progression.

For studies using the xenograft model, CB-17 SCID mice were subcutaneously inoculated with 1 × 10⁶ MDA-MB-231 cells on day 0. On day 8, the mice were intravenously administered a single dose of NP^{siPCSK9/cGAMP} (containing 100 µg/dose siPCSK9 and 1.5 µg/dose cGAMP) or NP^cGAMP (containing 5 µg/dose cGAMP), along with the indicated formulations. Mice were monitored for tumor growth and body weight throughout the study. Body weight was recorded on days 9, 10, and 11, and subsequently every 3 days thereafter. Tumor size was measured every 2-3 days to evaluate tumor progression.

For the evaluation of the safety and efficacy of NP^{siPCSK9/cGAMP}, 3 × 10⁵ MC38 cells were subcutaneously inoculated into C57BL/6J mice. On day 8, the mice were intravenously administered a single dose of NP^{siPCSK9/cGAMP} (containing 100 µg/dose siPCSK9 and 1.5 µg/dose cGAMP) and various doses of NP^cGAMP (containing 1.5, 2.5, and 5 µg/dose cGAMP), along with the indicated formulations. Mice were monitored for tumor growth and body weight throughout the study. Body weight was recorded on days 9, 10, and 11, and subsequently every 3 days thereafter. Tumor size was measured regularly to assess tumor progression. The liver, spleen, tumor, and serum were collected at 0, 12, 24, 48, and 72 h post-treatment for IFN-β detection. Additionally, the liver, spleen, and tumor tissues were collected at 24 h post-treatment for Western blot analysis, MSB staining, and H&E staining.

To examine the in vivo antitumor immune responses, 5 × 10⁵ MC38 cells were inoculated into C57BL/6J mice. When the tumor size reached ~150 mm³, NP^{siPCSK9/cGAMP}, NP^siPCSK9, or NP^cGAMP (containing 100 µg/dose siPCSK9 and/or 1.5 µg/dose cGAMP) were intravenously injected into the mice. Tumor tissues were harvested on the indicated days and cut into small pieces, followed by dissociation using the digestion buffer (1 mg/ml collagenase and 100 μg/ml deoxyribonuclease I in serum-free RPMI) for 30 min at 37 °C with gentle shaking. The obtained suspension was passed through a 70-μm cell strainer to obtain the single-cell suspension. For surface marker staining, the cells were incubated with anti-mouse CD16/32 (92, Biolegend, Cat# 101302) for 10 min at room temperature, and then incubated with PerCP anti-mouse CD45 (30-F11, Biolegend, Cat# 103130), APC anti-mouse CD11c (N418, Biolegend, Cat# 117310), APC/Cy7 anti-mouse F4/80 (BM8, Biolegend, Cat# 123118), FITC anti-mouse CD80 (16-10A1, Biolegend, Cat# 104706), PE/Cy7 anti-mouse CD86 (GL-1, Biolegend, Cat# 105014), PE anti-mouse CD206 (MMR) (C068C2, Biolegend, Cat# 141706), FITC anti-mouse CD3 (17A2, Biolegend, Cat# 100204), APC/Cy7 anti-mouse CD4 (GK1.5, Biolegend, Cat# 100414), PE anti-mouse CD8α (53-6.7, Biolegend, Cat# 100708), FITC anti-mouse CD45 (30-F11, Biolegend, Cat# 103108), PE/Cy7 anti-mouse NK-1.1 (PK136, Biolegend, Cat# 108714), BV605-anti-mouse CD69 (H1.2F3, Biolegend, Cat# 104530), APC anti-mouse/human CD11b (M1/70, Biolegend, Cat# 101212), PE anti-mouse Ly-6G/Ly-6C (Gr-1) (RB6-8C5, Biolegend, Cat# 108408), PE anti-mouse CD3 (17A2, Biolegend, Cat# 100206) and PerCP anti-mouse CD25 (PC61, Biolegend, Cat# 102028) at 4 °C for 1 h. For intracellular marker staining, the single-cell suspension was fixed and permeabilized using the Foxp3/Transcription Factor Fixation/Permeabilization kit (eBioscience), and then stained with PE anti-mouse FOXP3 antibody (MF-14, Biolegend, Cat# 126404) at 4 °C for 1 h. Cells were washed twice before flow cytometry analysis (BD LSRFortessa SORP). Data were collected using BD FACSDiva Software v8.0 and analyzed using BD FlowJo™ Software (v10.6.2).

To investigate which population of immune cells contributed to the therapeutic efficacy of NP^{siPCSK9/cGAMP}, 200 µg/dose anti-mouse CD4 (GK1.5, Selleck, Cat# A2101), anti-mouse CD8α (2.43, Selleck, Cat# A2102), anti-mouse NK1.1 (PK136, Selleck, Cat# A2114) and clodronate liposomes (LIPOSOMA, Cat# C-005) were intraperitoneally injected into MC38 tumor-bearing mice on day-1, 1, 3, 5, 7 post the first injection of NP^{siPCSK9/cGAMP} (2 injections in total at 3-day intervals) to specifically deplete endogenous CD4⁺ T cells, CD8⁺ T cells, NK cells, and macrophages, respectively. Batf3^−/− mice were used to test the contribution of cDC1s in the therapeutic effect of NP^{siPCSK9/cGAMP}. Rat IgG2b (LTF-2, Selleck, Cat# A2116) was used as the isotype control for those in vivo depleting antibodies.

To measure antigen presentation on dendritic cells, female C57BL/6 mice of age 6–8 weeks (Vital River) were subcutaneously inoculated with 1.5 × 10⁶ MC38-OVA tumor cells on the right flank on day 0. On day 10, tumor-bearing mice were intravenously injected with the indicated formulations. On day 12, tumor tissues were harvested and cut into small pieces, followed by dissociation using a digestion buffer (1 mg/ml collagenase and 100 μg/ml deoxyribonuclease I in serum-free RPMI) for 30 min at 37 °C with gentle shaking. The obtained suspension was passed through a 70-μm strainer to obtain the single-cell suspension. Then the cells were incubated with anti-CD45 (30-F11), anti-CD11c (N418), and anti-mouse SIINFEKL/H-2K^b antibody (25-D1.16) on ice for 20 min before flow cytometry (BD LSRFortessa SORP). Flow cytometric data were collected using BD FACSDiva Software v8.0.The frequency of antigen-specific CD8α⁺T cells in the tumor was analyzed following previously reported protocols. Briefly, female C57BL/6 mice of age 6–8 weeks (Vital River) were subcutaneously inoculated with 1.5 × 10⁶ MC38-OVA tumor cells on the right flank on day 0. On day 10, tumor-bearing mice were intravenously injected with the indicated formulations. On day 16, animals were euthanized, and tumors were harvested and prepared into single-cell suspensions as described above. The cells were incubated with CD16/32 (1:20) for 10 min and then incubated with peptide-MHC tetramer (H-2K^b-restricted SIINFEKL) for 30 min at room temperature and stained with anti-CD45 (30-F11), anti-CD3 (17A2), and anti-CD8α (53-6.7) on ice for 20 min. Cells were washed twice with FACS buffer and resuspended in DAPI before flow cytometry.

Statistical analysis

All quantitative data are presented as mean ± standard deviation (SD). Statistical analyses were performed using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparisons post hoc test, unless otherwise specified. The n number indicates the number of independent experiments, animals, or cell samples, as defined in each figure legend. For all representative images (e.g., immunofluorescence or blots), the number of independent experiments with similar results is indicated in the legend. Assumptions of normality and homogeneity of variance were confirmed prior to statistical analysis. Exact p-values are provided in the figures, legends, or Source Data file. Independent experiments rather than technical replicates were used for all statistical analyses unless otherwise stated.

Ethics statement

All animal experiments were in accordance with and approved by the University Committee on Use and Care of Animals at Tsinghua University (Approved Animal Protocol 22-KR-1). Animals were euthanized when the tumor reached 15 mm in any dimension or when they became moribund with severe weight loss (defined as >20% body weight loss) or unhealing ulceration. This limit was not exceeded at any point.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
