Introduction

The rise of lead halide thin-film perovskite has brought about an increasing interest in the corresponding nanostructured materials like quantum dots, nanoplates, nanowires1,2,3,4. Among them, three-dimensional confined perovskite quantum dots (PQDs) offering near perfect photoluminescent quantum yield, slow hot-carrier cooling time, high defect tolerance, especially their colloidal synthesis and processing using industrially friendly solvents5,6,7, have been revolutionizing the sectors of light-emitting diodes8, photovoltaic (PV)9 and photodetectors10. Particularly in PQD based solar cells, the first report of inorganic CsPbI3 PQDs reached an efficiency of 10.77% in 201611, and the highest reported efficiency boosted to a certified value of 18.1% for organic-inorganic hybrid FAPbI3 (FA: formamidinium) PQDs in a very short period of time12. Given this increasing rate at device performances, PQD-integrated PV have attracted more attentions.

Currently, among all reported PQDs, the organic-inorganic hybrid FAPbI3 is considered as the most promising candidate and recently dominate the research for high-efficiency and stable PQD PV due to its ideal optical bandgap, stable crystal, and phase structure13,14,15,16. Different from the bulk thin-film perovskites, PQD decouples crystallization from film deposition, therefore, the dispersibility and colloidal stability of PQD solutions are crucial for the quality of the active layer and PV performance of resultant PQD solar cells17,18. Unfortunately, the organic-inorganic hybrid FAPbI3 PQDs are prone to aggregate due to the detachment of surface ligands and hydrogen bonding between organic cations during purification and storage process19,20,21. The dispersibility of PQD at solution state is primarily determined by the interactions between the organic ligand tail and the surrounding solvent. Therefore, the packing structure of the organic ligand tail is crucial for the colloidal stability22. Besides, unlike conventional metal chalcogenide quantum dots, FAPbI3 PQDs with an organic-inorganic hybrid core exhibit greater complexity of core-core interactions. During the past few years, most efforts have been dedicated into the research of correlation between ligand head anchoring group and FA cations, with very few attentions to the tail groups and the structure of the ligand shell23,24. To further enhance the PV efficiency of FAPbI3 PQD solar cells, it is important to achieve well-dispersed PQD solution for high-quality active layer fabrication. Inspired by the synthetic progress of conventional cadmium selenide quantum dots, the introduction of ligands with branched chains (entropy ligands) could restrict the packing of organic tails in solution, such an entropy ligand shell allows easier penetration of the surrounding solvent, therefore enhancing the dispersibility25,26.

Along this line, we first reported the in-situ entropic ligand-anchoring for the synthesis of metal halide PQDs. To address the challenges in current hybrid PQDs, we introduced a branched entropy ligand, bis(2-ethylhexyl) phosphate (DEHP), into the hot-injection synthesis of FAPbI3 PQDs. The two 2-ethylhexyl tail groups exhibit a branching and spreading nature. This structural characteristic would increase the spatial rotation of ligand tail at solution state to enhance interaction with the solvent and thereby enhancing the dispersibility. In addition, the head anchoring phosphinic acid group exhibits stronger binding strength to the surface relative to the native capping ligands oleic acid (OA) and oleate ammonium (OAm), thus suppressing core-core interactions at solution state. Through changing the mixing ratio of DEHP, the size of PQDs can be adjusted from ~13 to ~20 nm, and the optimal FAPbI3 PQDs show greatly enhanced dispersibility and colloidal stability even at concentrated condition. To demonstrate the application of the entropic ligand engineered PQDs, we fabricated solar cells, delivering a best power conversion efficiency (PCE) of 18.68% with improved storage stability.

Results

Entropy ligand anchoring for PQD synthesis

As shown in Fig. 1a, the configurational entropy (Sconf, Supplementary Eq. 1) of different ligands was estimated according to their chain length and branching number. Linear ligands such as octanoic acid (OctOA) and OA exhibit relatively low configurational entropy due to limited conformational freedom. In contrast, the branched DEHP displays a much higher configurational entropy, attributed to its asymmetric side chains that increase the number of accessible conformations. This structural feature not only prevents dense ligand packing but also enhances colloidal stabilization and solvent penetration. Building upon these thermodynamic considerations, Fig. 1b illustrates the impact of different ligands on the dispersion and charge transport of FAPbI3 PQDs. Long-chain OA ensures good colloidal stability in solution but severely limits charge transport due to large interparticle spacing. Short-chain OctOA reduces this spacing and thereby enhances charge transport27, but its insufficient steric hindrance results in poor dispersion and aggregation. By contrast, DEHP provides a balanced solution: its strong phosphoric acid anchoring group secures surface passivation28, while the branched alkyl tails introduce entropy-driven stabilization. Consequently, DEHP enables both good dispersion and efficient charge transport, effectively overcoming the limitations of conventional linear ligands.

Fig. 1: Entropy-driven ligand design.
Fig. 1: Entropy-driven ligand design.
Full size image

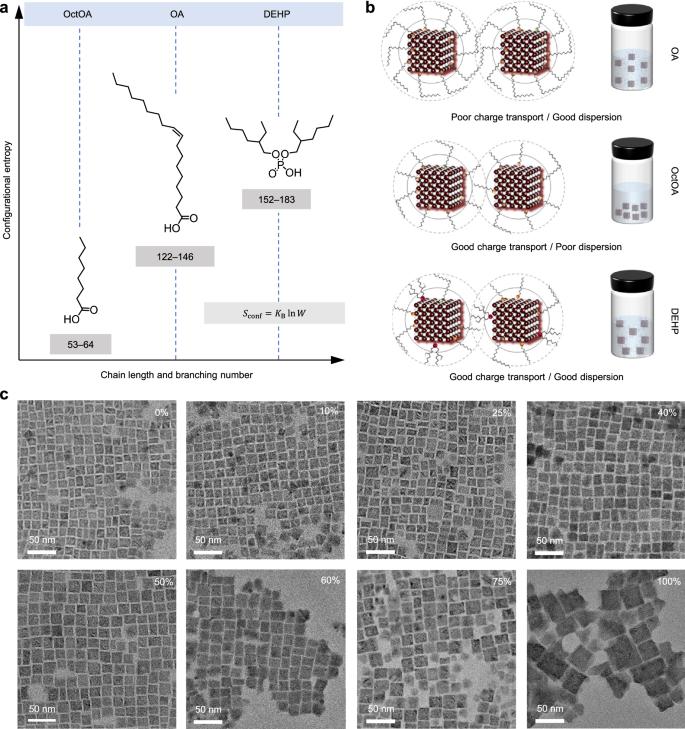

a The configuration entropy of different ligands (OctOA, OA, DEHP) as a function of chain length and branching number. The inserted equation, where Sconf is the configurational entropy per molecule (J·K−1), kB is the Boltzmann constant, and W is the dimensionless number of accessible conformational microstates. b Schematic illustration of the ligand-dependent trade-off between charge transport and colloidal dispersion of PQDs. c The TEM images of FAPbI3 PQDs that the native OA-OAm ligands partially replaced by DEHP-OctOAm from 0% to 100%.

To validate the entropy-driven design, we systematically replaced native OA/OAm with DEHP/OctOAm and examined morphological evolution. As shown in Fig. 1c, we first investigated the morphological properties of FAPbI3 PQDs after replacing OA-OAm with DEHP-OctAm at molar ratios of 0%, 10%, 25%, 40%, 50%, 60%, 75%, and 100% using transmission electron microscopy (TEM), with the corresponding size distribution summarized in Supplementary Fig. 1a. When the replacement ratio ranges from 0% to 75%, the average size of the PQDs gradually increases from 14.03 nm to 19.18 nm. This effect may result from the combined influence of reduced steric hindrance29, the acid-base equilibrium30, and changes in nucleation and crystallization dynamics effected by DEHP, as revealed by the following in-situ characterizations. Further increasing the replacement ratio to 100%, the morphology and size of the PQDs is significantly changed. High angle annular dark field-scanning TEM (HAADF-STEM) elemental mapping in Supplementary Fig. 1b reveals the presence of phosphorus in these DEHP-capped FAPbI3 PQDs. Supplementary Fig. 1c shows the ultraviolet-visible (UV-vis) and photoluminescence (PL) spectra of different FAPbI3 PQD solutions. As the substitution ratio increases, the PL peak gradually redshifts, which is consistent with the observed increase in particle size from TEM measurements. For the PL quantum yields (PLQY) measurements, the 50% replacement ratio reaches a PLQY value of 98.4%, which is in line with the time resolved PL (TRPL) characterizations (Supplementary Fig. 2), suggesting that the 50% replacement ratio yields the optimal FAPbI3 PQDs. All these results indicate that the both the steric hindrance of capping ligands and ligand-core/ligand-ligand interaction play a crucial role in controlling the size and morphology of the as-prepared PQDs in the hot-injection synthesis.

Growth kinetics and colloidal dispersity

To understand the impact of different ligand environments (OA, OctOA, and DEHP) on the PQD nucleation and growth processes, a set of characterizations were performed. In-situ PL, as depicted in Fig. 2a, is first employed to monitor the evolution of the synthesis of FAPbI3 PQDs. Upon injecting FA-oleate into the PbI2 precursor, the PL peak of FAPbI3 PQDs appears immediately, indicating a rapid nucleation process. The PL intensity of OA-capped PQDs reaches its maximum within 10 s, while DEHP exhibits a slower process, with the PL intensity reaching its maximum at ~40 s (Fig. 2b). Such a difference indicates that DEHP-capped FAPbI3 PQDs undergo a slower growth process relative to OA-capped PQDs. The delayed PL maximum in DEHP-capped PQDs suggests moderated growth kinetics, favoring mono-dispersion. In contrast, OctOA-capped FAPbI3 PQDs exhibits a different trend. After the maximum, the PL intensity quickly decreases. This may be attributed to insufficient surface coverage of the FAPbI3 PQDs, leading to aggregation of PQDs. After the same purification process, the absorption and PL spectra are shown in Fig. 2c. In comparison with DEHP, OctOA exhibits a more significant redshift relative to OA. The TEM analysis (Supplementary Fig. 3-4) reveals an average size of ~19 nm for OctOA-capped PQDs, which is similar with DEHP. Therefore, the further redshift of PL peak may be attributed to the PQD aggregation caused by the poorer dispersibility compared to DEHP-capped PQDs. X-ray diffraction (XRD) characterization shows that changes in the surface environment has negligible impact on the crystal structure, with all samples maintaining the cubic phase (Supplementary Fig. 5). The narrowing of the full-width at half maximum (FWHM) in the XRD peaks may be attributed to the increase in PQD size, which leads to reduced strain and improved crystallinity in the PQDs31.

Fig. 2: Dispersibility and stability of PQDs.
Fig. 2: Dispersibility and stability of PQDs.
Full size image

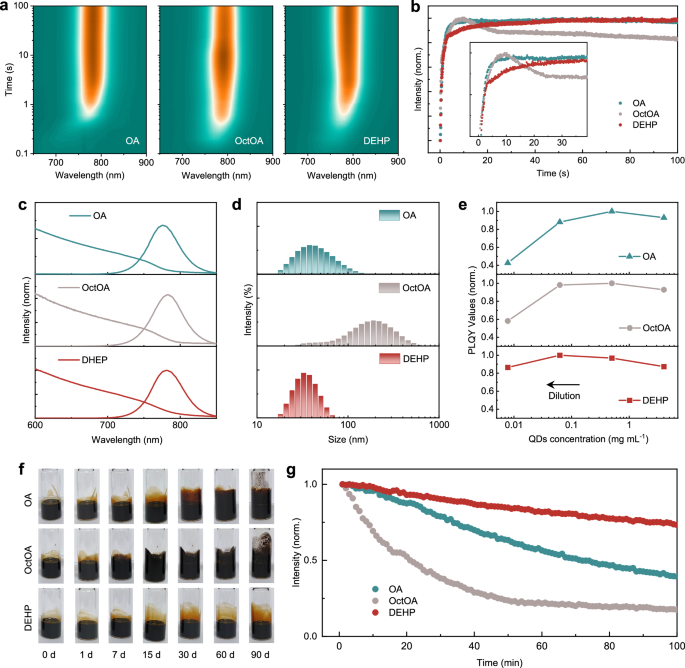

a In-situ PL monitoring of the synthesis of OA, OctOA and DEHP-capped FAPbI3 PQDs. b Time evolution curves of the PL intensity. c The absorption and PL spectra for the OA, OctOA and DEHP-capped PQD solution. d DLS spectra of FAPbI3 PQD solutions in n-Hexane. e Normalized PLQY value as a function of the concentration for FAPbI3 PQD solutions in n-Hexane. f Images of FAPbI3 PQD solutions for storage stability test with the concentration of 80 mg/mL in n-octane under an air atmosphere. g The evolution of PL intensity of PQD solutions under continuous irradiation (405 nm, 0.1 W).

Dynamic light scattering (DLS) measurements were further conducted (Fig. 2d), where DEHP capped PQDs show a relatively narrow hydrodynamic size distribution, indicating better dispersion in solution, and the DEHP could effectively prevent aggregation. In contrast, OctOA-capped PQDs exhibit a broader size distribution with large hydrodynamic diameter, suggesting more aggregation and less uniform dispersion18. It is worth noting that, to maintain the acid–base equilibrium in the reaction system, a certain amount of OctOAm needs to be added after partial substitution of OA (Supplementary Fig. 6). In addition, to exclude any possible effect of OctOAm on the observed PQD properties, we conducted control experiments and characterized the resulting samples, as shown in the Supplementary Fig. 7. These results confirm that the improvements in dispersibility and device performance are specifically attributable to DEHP rather than the presence of OctOAm. To further study the colloidal stability of different FAPbI3 PQDs, the change their PLQY value as a function of PQD concentration was measured and compared, with the results shown in Fig. 2e and Supplementary Fig. 8. After approximately 1000-fold dilution, the PLQY values of OA and OctOA capped FAPbI3 PQDs display a significant decrease, whereas the DEHP-capped PQDs maintain a high PLQY value (over 85% of initial value). Similar results have been observed for the colloidal storage stability test, as shown in Fig. 2f, for a storage period of 90 days, the DEHP-capped PQD solution displays significantly improved colloidal stability. These results indicate that DEHP exhibits stronger adsorption energy, which could prevent ligand detachment from the PQD surface during the dilution process, therefore, suppress the formation of surface defects and non-radiative recombination, maintaining higher PLQY32. In order to further confirm the better surface passivation and solution stability, we also investigated the photostability of PQD solutions by monitoring their PL emission under continuous irradiation (405 nm). As presented in Fig. 2g and Supplementary Fig. 9, DEHP-capped PQD film exhibits a more significantly stable PL intensity compared to both OA and OctOA capped ones, retaining over 80% of their initial value after prolonged exposure. The enhanced photostability of DEHP-capped PQD films under 405 nm irradiation arises from the stronger binding of the phosphate group to Pb2+ surface sites and the higher configurational entropy of the branched ligand, which together suppress ligand desorption and mitigate photoinduced surface defects.

Surface chemistry of FAPbI3 PQDs

Furthermore, more characterizations were performed to assess the change of surface chemistry. Figure 3a shows the electrostatic surface potential (ESP) of DEHP ligand. The molecular polarity of DEHP is slightly higher than that of OA, owing to the differences in their head groups: (-PO4H) for DEHP and (-COOH) for OA (Supplementary Fig. 10). The change in polarity could affect the interaction between the ligand and FAPbI3 PQD surface. To clarify the differences in interactions, we first performed Fourier-transform infrared (FTIR) spectroscopy characterization (Fig. 3b). Both samples exhibit a strong C=N stretching vibration at ~1710 cm−1, which is attributed to the organic FA cation19. The intensity of the C-H stretching vibrations (2800–3000 cm−1), primarily originating from the aliphatic chains of OA/OAm ligands, decreased from 69.8% to 56.6% (relative to the FA peak intensity) after DEHP capping of the PQDs. This is due to the replacement with short-chain DEHP ligands, which can enhance electronic coupling between adjacent PQDs33. To further elucidate the binding motif of DEHP, we performed 31P nuclear magnetic resonance (NMR) analysis. As shown in Fig. 3c, the 31P NMR spectrum indicates that the DEHP acts as an electron-donating ligand anchoring onto the FAPbI3 PQD surface. Such an interaction further leads to a downfield shift in the 31P NMR peak of the DEHP PQDs relative to the pristine DEHP molecules14.

Fig. 3: Surface chemical properties.
Fig. 3: Surface chemical properties.
Full size image

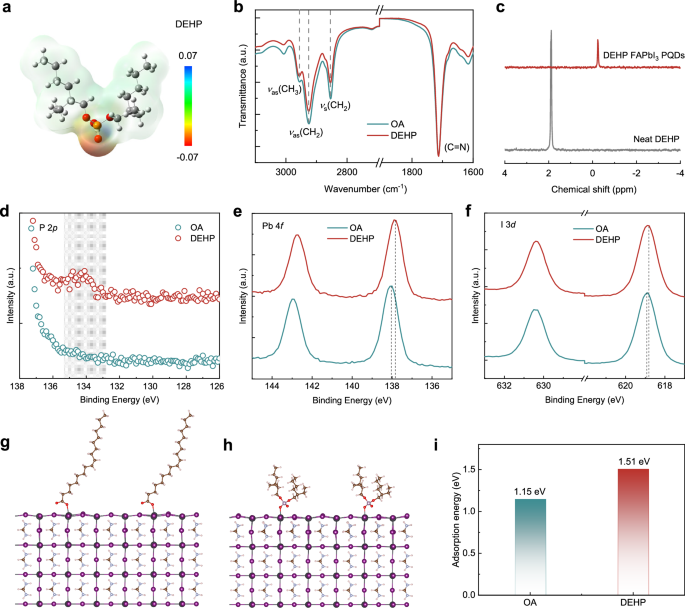

a Electrostatic potential distribution in DEHP molecule. b FTIR spectra of OA and DEHP capped FAPbI3 PQDs. c 31P NMR spectra of as-synthesized DEHP PQDs and neat DEHP. XPS core-level spectra of (d) P 2p, (e) Pb 4f, and (f) I 3d. DFT-simulated surface structure of (g) OA and (h) DEHP capped FAPbI3 PQDs. i The calculated surface absorption free energy of OA and DEHP.

Then, we characterized both samples using X-ray photoelectron spectroscopy (XPS), as presented in the Fig. 3d–f and Supplementary Fig. 11. The appearance of the P 2p peak again confirms the adsorption of the DEHP ligand to the FAPbI3 PQD surface. The Pb 4f and I 3d core-level spectral shift to lower binding energies for the DEHP-capped PQDs compared to the control OA-capped ones, suggesting that the interaction between the DEHP ligand and the FAPbI3 PQD surface leads to changes in the electronic environment of both Pb and I atoms. The electron-donating nature of DEHP would increase the electron density around these atoms, leading to a downfield shift in binding energy34. To further understand the bonding nature between the DEHP, OA ligands, and the QD surface, we then conducted density functional theory (DFT) calculations, with the results shown in Fig. 3g, h. The DFT results indicate that the DEHP ligand binds more strongly to the FAPbI3 QD surface, primarily through the formation of a bond between the DEHP-P and FAPbI3-Pb atoms. In specific, the calculated adsorption energy (Ead) of DEHP is 1.51 eV, which is higher compared to OA (1.15 eV), confirming that DEHP exhibits a stronger binding affinity relative to the native OA ligand (Fig. 3i). The enhanced binding strength of DEHP to the FAPbI3 surface could form a more robust interaction with the surface, reducing surface defects and promoting better charge transport35.

Film morphology and charge transport

The solution and optical properties of PQDs significantly impact the morphology of the corresponding solid films, which is closely related to the performance of resultant solar cell devices. To evaluate the effect of the three different ligands on the solid-state film morphology, we first conducted scanning electron microscopy (SEM) characterization. As is shown in Fig. 4a, for OA- capped control FAPbI3 PQDs, the film exhibits a relatively smooth surface with numerous pin-holes. This is primarily attributed to removal of the long-chain ligands during the post-treatment, which causes film shrinkage and the formation of voids due to the loss of surface coverage. In contract, the SEM image of OctOA-capped PQDs reveal the presence of large cracks and pores, indicating poor self-assembly and a tendency for aggregation (Fig. 4b). As expected, DEHP-capped PQDs with good colloidal dispersibility yield a smoother film with reduced surface cracks (Fig. 4c). The improved surface morphology may result from the fact that DEHP can prevent excessive aggregation of PQDs, and the ligand with short length could suppress volume shrinkage. Similar trend was also observed from the atomic force microscopy (AFM) (Supplementary Fig. 12) characterizations, further confirming that the DEHP-capped FAPbI3 PQDs could deliver a smoother and denser PQD film. The DEHP-capped PQD film displays a uniform and narrow distribution of PL intensity; in contrast, the control OA-capped PQD film shows a lower intensity (Supplementary Fig. 13). A homogeneous distribution of the PL intensity was beneficial for effective charge carrier extraction to suppress reduced nonradiative recombination16.

Fig. 4: Film morphology and optoelectronic properties.
Fig. 4: Film morphology and optoelectronic properties.
Full size image

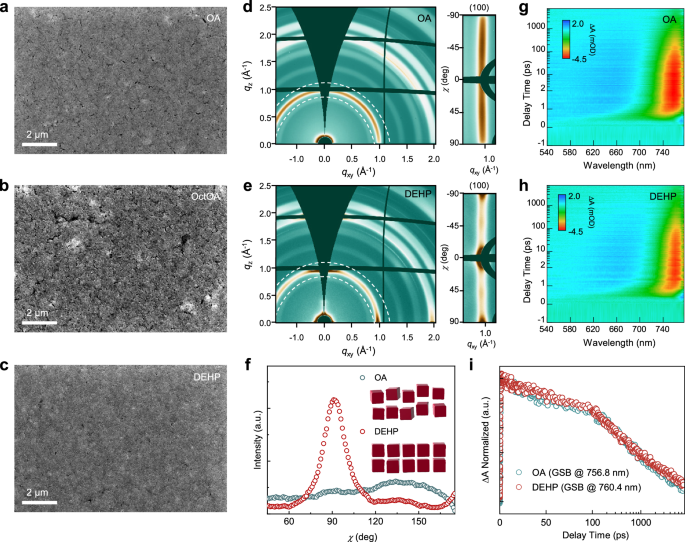

a–c SEM images of FAPbI3 PQD film with different surface ligand environment. 2D-GIWAXS patterns of (d) OA and (e) DEHP capped FAPbI3 PQD films. f The corresponding (100) azimuthal integration of the (100) characteristic peak. Pseudocolour TA maps of (g) OA and (h) DEHP-capped FAPbI3 PQD films. i The corresponding GSB decay spectra of OA and DEHP capped FAPbI3 PQD films.

Two-dimensional grazing incidence wide-angle X-ray scattering (2D-GIWAXS) was employed to investigate the crystal structure and stacking order of the FAPbI3 PQD films. For the GIWAXS patterns shown in Fig. 4d-e, distinct diffraction rings corresponding (100), (110), (111), (200), and (210) planes are observed in both samples13. And the line-cut spectra extracted from the patterns (Supplementary Fig. 14) did not show apparent difference of peak position, indicating the same cubic crystal structures. In comparison, the DEHP-capped PQD film exhibits sharp and scattered Bragg peaks, besides, the sample displays stronger peak intensity in the radial integration intensity curve along the (100) direction at a 90° azimuthal angle (Fig. 4f). These observations indicate that the DEHP-capped PQDs exhibit improved ordering and stacking in the solid films, which is more favorable for charge transport along the vertical direction9. To gain more insight and an in-depth understanding of the charge carrier dynamics, we conducted femtosecond transient absorption (fs-TA) measurements, with the results shown in Fig. 4g, h and Supplementary Fig. 15. In the pseudo-color TA plot, a distinct negative signal corresponding to the ground-state bleaching (GSB) is observed at 756.8 nm for OA and 760.4 nm DEHP-capped PQDs, respectively. The carrier dynamics were extracted from the GSB decay data (Fig. 4i and Supplementary Table 1) using a triple exponential fitting model. The components τ1, τ2, and τ3 correspond to the timescale of hot-phonon bottleneck, Auger recombination, and charge transport, respectively14,36. The overall lifetime of the DEHP PQD film is longer (τ2: 664.0 ps, τ3: 6964.8 ps) compared to that of OA (τ2: 508.3 ps, τ3: 6262.6 ps), indicating a lower trap-state density and more efficient carrier transport in the DEHP-coated PQDs.

High-efficiency FAPbI3 PQD solar cells

Finally, FAPbI3 PQD solar cells with a planar N-i-P device structure of glass/fluorine-doped tin oxide (FTO)/TiO2 (40 nm)/FAPbI3 PQD ( ~400 nm)/ poly[bis(4-phenyl)(2,4,6-trimethyl-phenyl)amine] (PTAA) (60 nm)/MoO3 (8 nm)/Ag (120 nm) were fabricated. The cross-sectional SEM image in Fig. 5a clearly shows each corresponding layer of the device. The performance of the FAPbI3 PQD solar cells was evaluated by measuring the current-voltage (J–V) characteristics under standard AM 1.5 G solar illumination at 100 mW cm−2. Figure 5b presented the J–V curves of best-performing solar cells based on control OA and DEHP-capped FAPbI3 PQDs, with corresponding device parameters listed Supplementary Table 2. For the OA-based control device, the optimal device shows a PCE of 15.92%, with a short-circuit current density (JSC) of 19.83 mA cm−2, an open-circuit voltage (VOC) of 1.121 V, and a fill factor (FF) of 0.716. In contrast, the DEHP-based device exhibits a notable enhancement with a champion PCE of 18.68% (certified 18.23%; Supplementary Fig. 16). This is accompanied by an increased JSC of 21.66 mA cm−2, a VOC of 1.153 V, and a FF of 0.748. It should be noted that this represents one of the highest certified efficiencies of PQD solar cells (Supplementary Table 3), highlighting the significance of entropic ligand mixing in the synthesis of high-quality hybrid PQDs with improved solution dispersibility and charge transport, ultimately leading to more efficient photovoltaic applications13,14,15,37,38,39. To assess the reproducibility of device performance, we evaluated the PCE distribution across 15 individual solar cells for each condition. The inset in Fig. 5b shows the histograms of the PCE values, where the DEHP-based devices consistently exhibit higher average efficiency and narrower distribution relative to OA-based control devices. For comparison, devices fabricated using OctOA-capped PQDs exhibit lower efficiency, reflecting the limited dispersibility and poor film quality of these PQDs (Supplementary Fig. 17). In addition, DEHP-based device shows negligible J–V hysteresis (Supplementary Fig. 18). All these device results indicate a more uniform and reliable performance in the DEHP-based PQD solar cells. Furthermore, to demonstrate the universality of this strategy, we further apply it to hybrid MAPbI3 PQDs, which exhibits similar enhancements with better dispersibility and a highest reported PCE over 16% for MAPbI3 PQD solar cells (Supplementary Fig. 19).

Fig. 5: Device performance.
Fig. 5: Device performance.
Full size image

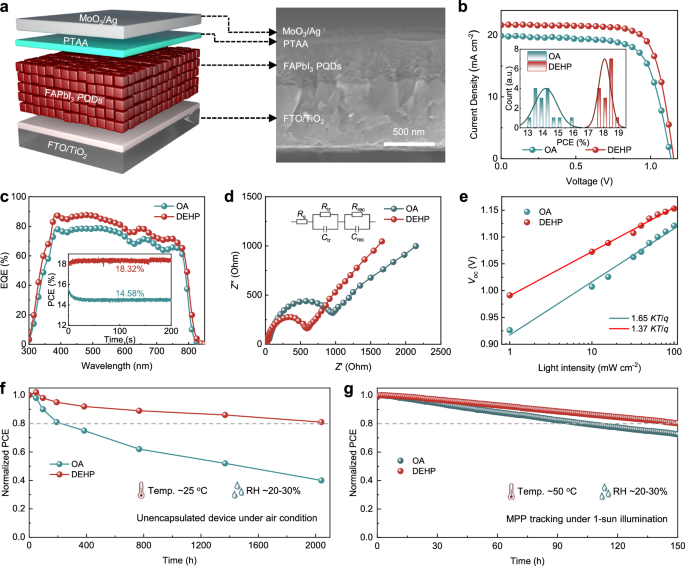

a Schematic of N-i-P structure and corresponding cross-sectional SEM image of FAPbI3 PQD solar cells. b J-V curves of best-performing OA and DEHP-capped FAPbI3 PQD devices measured under the AM 1.5 G solar spectrum at 100 mW cm-2, the inset shows the PCE distribution for 15 individual solar cells. c EQE and SPO curves of optimal OA and FDEHP -capped FAPbI3 PQD devices. d Nyquist plots and e light intensity-dependent VOC plots of OA- and DEHP-based FAPbI3 PQD devices. f Long-term stability of unencapsulated FAPbI3 PQD solar cells monitored under ambient conditions with a relative humidity between 20 and 30%. g MPP tracking of OA- and DEHP-based devices (unencapsulated) measured under 1-sun illumination (100 mW cm−2) and ambient conditions (temperature of ~50 °C and relative humidity of 20–30%).

Meanwhile, JSC integrated (Supplementary Fig. 20) from the external quantum efficiency (EQE) measurement well matches the values with the corresponding J–V curves, and the EQE of DEHP-based device (Fig. 5c) is enhanced in the whole photo-response region from 400 to 800 nm, suggesting better charge collection and reduced non-radiative recombination pathways, which is attributed to the enhanced surface passivation, electronic coupling and charge transport40. The inset of Fig. 5c shows the steady-state power output (SPO) at the maximum power point of both devices, where the DEHP devices also demonstrate a higher stable output, further confirming the reliability of enhanced performance. To elucidate the fundamental mechanisms underlying the enhanced photovoltaic performance of DEHP-based PQD solar cells, we further investigated their charge carrier dynamics. Electrochemical impedance spectroscopy reveals distinct differences between OA- and DEHP-based devices through Nyquist plots (Fig. 5d). The DEHP-based device exhibits significantly reduced charge transport resistance (Rtr) and enhanced recombination resistance (Rrec), demonstrating improved charge transfer efficiency at the heterointerfaces. Further analysis of VOC-light intensity dependence (Fig. 5e) shows a decrease in the diode ideality factor from 1.65 (OA-based) to 1.37 (DEHP-based), indicating suppression of trap-assisted recombination. Moreover, the long-term stability was evaluated under different conditions. As shown in Fig. 5f, unencapsulated FAPbI3 PQD solar cells were monitored under ambient conditions at a temperature of ~25 °C and a relative humidity of 20–30%. The DEHP-based device maintains over 81% of its initial efficiency after ageing for 2000 h, whereas that of the OA-based device retains ~40% of its original PCE. For the maximum power point tracking (Fig. 5g), unencapsulated devices were tested under continuous 1-sun illumination in ambient conditions (~50 °C, relative humidity 20–30%). The DEHP-based device exhibited a relatively lower PCE decay (20%) after 150 h, whereas the OA-based device showed a greater decay of approximately 28% over the same period. The long-term stability data indicate that DEHP-based devices exhibit significantly better retention of efficiency over time relative to OA-based devices. This suggests that the DEHP ligand enhances surface passivation and mitigate surface degradation, thereby contributing to more durable solar cell devices. In summary, these joint advancements of solution and optoelectronic properties demonstrate that DEHP ligand could prevent the aggregation of FAPbI3 PQDs and assist their self-assembling through functional tail group, and the stronger anchoring head group effectively suppress the formation of defect states, promoting the DEHP-coated FAPbI3 PQDs as ideal candidate for high-efficiency PQD solar cells.

Discussion

In summary, we reported an in-situ entropic ligand engineering strategy to synthesize high-quality and well-dispersed hybrid PQDs, addressing major challenges in current FAPbI3 PQDs: colloidal dispersibility and charge transport. The 2-ethylhexyl tail groups exhibit a branching nature, further increasing the spatial rotation of ligand tail at solution state and thereby improving the dispersibility of the FAPbI3 PQDs. The addition of entropic ligands not only mitigates non-radiative recombination but also promotes the dispersion of PQDs to achieve desired colloidal stability. Our results also demonstrate that the entropic ligand could form a robust ligand shell around PQD surfaces, which prevents degradation and maintains the cubic phase of FAPbI3 over prolonged exposure. Finally, we have fabricated PQD solar cells, achieving a champion efficiency of 18.68% (certified value 18.23%), which is among the highest reported value to date. We believe these findings represent a critical advancement in the synthesis of high-quality organic-inorganic hybrid PQDs, which is essential for various optoelectronic applications.

Methods

Synthesis of FAPbI3 PQDs

2.605 g of FAAc and 50 mL of OA were added to a 100 mL three-necked flask. The mixture was then subjected to vacuum stirring at 50 °C for 1 h to remove moisture and by-products. Subsequently, the flask was filled with N₂ and further heated to 120 °C, where it was maintained for 30 min. Finally, the resulting FA-OA was cooled to 70 °C and stored in an N2-filled glovebox for the synthesis of FAPbI3 PQDs. 0.344 g of PbI2 and 20 mL of ODE were added to a 100 mL three-necked flask, followed by degassing at 90 °C for 30 min. Subsequently, different ratios of ligands were injected into the reaction mixture under a N2 atmosphere, specifically: 4 mL of OA and 2 mL of OAm; 3.6 mL of OA, 1.8 mL of OAm, 0.2 mL of DEHP, and 0.1 mL of OctOAm; 3 mL of OA, 1.5 mL of OAm, 0.5 mL of DEHP, and 0.25 mL of OctOAm; 2.4 mL of OA, 1.2 mL of OAm, 0.8 mL of DEHP, and 0.4 mL of OctOAm; 2 mL of OA, 1 mL of OAm, 1 mL of DEHP, and 0.5 mL of OctOAm; 1.6 mL of OA, 0.8 mL of OAm, 1.2 mL of DEHP, and 0.6 mL of OctOAm; 1 mL of OA, 0.5 mL of OAm, 1.5 mL of DEHP, and 0.75 mL of OctOAm; 2 mL of DEHP and 1 mL of OctOAm, corresponding to replacement ratios of 0%, 10%, 25%, 40%, 50%, 60%, 75%, 100%, respectively. The mixture was degassed under vacuum until the reaction mixture became clear. Then, the temperature of the reaction mixture was lowered to 80 °C under a N2 atmosphere, and 5 mL of the FA-OA solution was rapidly injected into the flask. After approximately 5–8 s, the reaction was quenched using an ice-water bath. After cooling to room temperature, the crude FAPbI3 PQD solution was transferred into two centrifuge tubes. To each tube, 1 mL of toluene and 5 mL of MeOAc were added, and the mixture was centrifuged at 6780 × g (8000 rpm) for 30 min. Subsequently, the precipitate was redispersed in 7 mL of toluene, reprecipitated with 5 mL of MeOAc as an anti-solvent, and then centrifuged at 6780 × g (8000 rpm) for 10 min. The final precipitate was redispersed in 10 mL of n-hexane and stored at 4 °C for over 12 h for film deposition.

PQD Solar Cell Fabrication

A compact TiO2 electron transporting layer of ~40 nm was deposited on cleaned glass/FTO substrate by chemical bath deposition at 70 °C, and then annealed at 200 °C for 30 min. Then, the FAPbI3 PQD films were fabricated by layer-by-layer deposition. Each PQD layer was deposited using PQDs by spin coating at 1000 rpm for 15 s and 2000 rpm for 20 s. Then, 150 μL of FAI-IPA solution (3 mg mL−1) was dropped onto the PQD solid for 5 s to remove the ligands, following by spinning at 2000 rpm for 20 s to remove the excess IPA and dry film. This process, operating in an air glove box with relative humidity of 15% and room temperature, was repeated three times to prepare a conductive PQD film for device fabrication. Subsequently, 15 mg mL−1 PTAA-toluene solution doped by LAD was spin coated on PQD film to deposit hole transporting layer. Finally, MoO3 (8 nm) and Ag (120 nm) electrode was deposited by thermal evaporator. The active area of 0.0725 cm2 was defined by a shadow mask, and an aperture mask of 0.04 cm2 was used during the test of the 0.0725-cm2-sized cells.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
