Computational design of dynamic biosensors for emerging synthetic opioids

Nature Communications volume 17, Article number: 1234 (2026) Cite this article

5548 Accesses
10 Altmetric
Metrics details

Subjects

Abstract

Nitazenes are an emergent class of synthetic opioids that often rival or exceed fentanyl in their potency. These compounds have been detected internationally in illicit drugs and are the cause of increasing numbers of hospitalizations and overdoses. New analogs are consistently released, making detection challenging — new ways of testing a wide range of nitazenes and their metabolic products are urgently needed. Here, we develop a computational protocol to redesign the plant abscisic acid receptor PYR1 to bind diverse nitazenes and maintain its dynamic transduction mechanism. The best design has a low nanomolar limit of detection in vitro against nitazene and menitazene. Deep mutational scanning yielded sensors able to recognize a range of clinically relevant nitazenes and the common metabolic byproduct in a complex biological matrix with limited cross-specificity against unrelated opioids. Application of protein design tools on privileged receptors like PYR1 may yield general sensors for a wide range of applications in vitro and in vivo.

Rapid biosensor development using plant hormone receptors as reprogrammable scaffolds

Article Open access 20 June 2022

An orthogonalized PYR1-based CID module with reprogrammable ligand-binding specificity

Article Open access 23 October 2023

Collaborative harm reduction efforts lead to the first detection of 5-cyano isotodesnitazene in illicit street drugs

Article Open access 13 January 2026

Introduction

The rise in overdose deaths from synthetic opioids has been well-documented in the US and worldwide, with prevalence rising in the 2010s to account for well over half of documented overdose deaths in the US in 2022^1,2,3. Synthetic opioids such as fentanyl are inexpensive to produce and highly potent, with fentanyl 50 to 100 times more potent than heroin and morphine^2,4, and thus are often mixed with other drugs to cheaply increase strength and addictivity^2,3. An emerging class of novel synthetic opioids are 2-benzyl benzimidazole compounds known as nitazenes. First identified in the US and Canadian drug supply in 2019, nitazenes are up to 40 times more potent than fentanyl^5,6,7,8. Furthermore, the molecular structures of synthetic opioids, including nitazenes, are consistently altered to skirt laws banning known compounds^3,7,9. While commercial tests exist for fentanyl, including lateral flow assay test strips^10,11,12, there is an immediate need for diagnostic assays that surpass the sensitivity and breadth of current nitazene test strips to detect the range of nitazenes in the drug supply and enable the rapid detection of nitazene metabolites to assist medical providers in treating exposed patients¹³.

Diagnostic assays often contain a biomolecule to specifically recognize the drug(s). To develop nitazene biosensors, we chose to redesign the binding pocket of the plant abscisic acid (ABA) receptor PYR1^14,15,16. PYR1 binds a phosphatase HAB1 in the presence of ABA through an allosteric gate-latch lock mechanism¹⁷, representing a natural chemical induced dimerization (CID) module. This CID module presents a built-in transduction mechanism coupling protein interactions to a diverse range of signal outputs^16,18,19. This is additionally advantageous because the molecular ratchet mechanism of the PYR1-HAB1 CID allows highly sensitive readouts from lower affinity ligand-receptor pairs^14,20. Immunoassays with antibodies or other binding molecules can be developed by brute force screening, but the relatively small surface area of drugs limits the affinity and ability to bind multiple related drug variants. While drug host receptors can be modified into a sensor²¹, the same receptor can bind chemically dissimilar drugs, hampering unique identification of a drug class. Computational design has recently been used to create moderate affinity binders for largely apolar, rigid molecules^{22,23,24,25,26}. However, binders are not sensors: the transduction of the binding event into a measurable signal must typically be engineered for each bespoke design, limiting generality and throughput. In contrast, repurposing the PYR1 binding pocket, while keeping its transduction mechanism intact, promises to be a more generalizable solution.

In this study, we use computational design of the PYR1 binding pocket to identify biosensors suitable for detection of nitazenes and their byproducts. We use deep mutational scanning, directed evolution, and computational modeling to create a pan-nitazene sensor that can detect multiple nitazene derivatives, including the common variant isotonitazene and its 4-hydroxy nitazene byproduct. We then develop a luciferase-based in vitro diagnostic platform that is label-free, fast, sensitive, and can be performed in a complex biological matrix like urine. The computational-experimental methodology represents a general way to rapidly develop biosensors to address the emergence of new synthetic opioids that can circumvent existing detection modalities.

Results

A computational design protocol for sensing the nitazene family of synthetic opioids

Design of an allosteric biosensor requires solving the challenge of protein-ligand binder design consistent with, and constrained by, a structural definition of the transduction mechanism²⁷. A major advantage of redesigning PYR1 for new ligand sensing is that the receptor has an exceptionally well understood and characterized CID mechanism, where a bound water maintains hydrogen bonds between the ligand, the PYR1 receptor, and the HAB1 protein¹⁷ (Fig. 1A, B). We hypothesized that successful designs would recapitulate the spatial orientation of this ligand hydrogen bond acceptor.

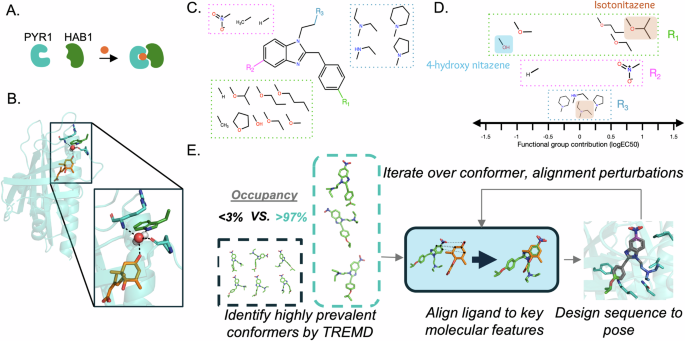

**Fig. 1: Computational design of a pan-nitazene biosensor.**

To guide our design efforts, we first sought to understand the relationship between the molecular features of nitazenes and their potency. The nitazene family of 2-benzyl benzimidazole compounds contains substitutions observed at three positions (R₁, R₂, R₃; Fig. 1C)⁷. We evaluated several regression models, including ordinary least squares, Ridge, Lasso, and elastic net, to assess the relative importance of nitazene substitutions on potency (Supplementary Fig. 1) using a previous study of nitazene substitutions on cell-based activation of the μ-opioid receptor⁷. This analysis showed that a nitro group at R₂ and several larger aliphatic ethers at R₁—instead of a hydroxyl group—increased potency significantly (Fig. 1D), consistent with known potent synthetic opioids like isotonitazene^7,28, which contains an isopropoxy branched ether group at R₁. Substitutions of different N-containing heterocycles or secondary and tertiary amine groups at R₃ have less effects on molecular potency. Finally, isotonitazene and other nitazenes are metabolized at R₁ to an hydroxyl^7,29,30,31, forming 4-hydroxy nitazene and related metabolites. This leaves the R₂ group as a defining feature of nitazene potency. Thus, a biosensor that can detect a range of nitazenes containing an R₂ nitro group and with limited cross-reactivity to other opioids is imperative for sensing nitazenes in the drug supply. Note that nitazenes with hydrogen at R₂ group may in some contexts be as potent as fentanyl. Thus, a secondary goal would be to sense such nitazenes.

Repurposing an existing pocket to sense nitazenes requires a way to down-select the astronomical number of possible ligand-protein conformations. We separated the design problem into two components: (1) defining the structural pose (the rigid body orientation of the ligand relative to the PYR1 backbone); and (2) identifying a likely PYR1 sequence for that pose. To define the structural pose, we developed a computational design protocol to identify likely ligand-protein conformations and ligand orientations in the receptor binding pocket that maintain the transduction mechanism (Fig. 1B,E). Sequences for these poses are then designed using the physically based algorithm Rosetta FastDesign³² followed by physics-based filtering metrics.

To identify likely conformers of isotonitazene, which contains 9 rotatable bonds, we performed temperature replica exchange MD simulations in solution. Three isotonitazene conformers were observed greater than 97% of the time (Supplementary Fig. 2). To orient these conformers in the binding pocket, we reasoned that likely configurations occur where the important nitro group hydrogen binds to the bound water critical to the dynamic transduction mechanism. Performing the alignment revealed that two isotonitazene conformers could dock without steric clashing when all 21 allowable positions in the binding pocket are mutated to glycine. These results match ligand docking experiments in a deeply mutagenized PYR1 library biased toward hydrophobic ligands (HMH³³), which contains sequences that allow docking of nitazenes in the binding pocket (Supplementary Fig. 3).

To test these initial steps of our computational design process, we screened a nitazene panel (Supplementary Table 1) against the HMH library using a yeast two-hybrid (Y2H) assay^34,35, identifying sensors for six nitazene family members with differences in R₁, R₂, and R₃ groups (although not isotonitazene; see Supplementary Fig. 4 and Supplementary Table 1, 2). Initial nitazene hits were identified with a geometric mean minimum dose response (MDR) of 61 µM in the Y2H growth selection, suggesting that their sequences were not optimized for binding. The hits had a mean of 6.4 mutations from the parental receptor; a previous computationally designed double site saturation mutagenesis library¹⁸ yielded no sensors when the same panel was screened (Supplementary Table 1), highlighting that many PYR1 mutations are necessary to repurpose this receptor for recognizing nitazenes.

Computational design protocol yields a nM-responsive nitazene binder

The insights from screening and structural modeling were integrated into the design process for a nitazene-specific PYR1 library. We used the perturbed alignments of predicted conformations of isotonitazene for Rosetta sequence redesign (see Methods, Supplementary Table 3), fixing the identity of residues known to be essential for the allosteric transduction mechanism^17,34. After manual curation, the library was ordered as an oligo pool and constructed by a four part Golden Gate assembly³⁶ in a thermally stabilized PYR1 background, PYR1^HOT5³⁷ (Supplementary Table 4–5 and Supplementary Fig. 5). The library contained a mean of 9 mutations from the PYR1^HOT5 background. We screened this library using Y2H assays against a panel of nitazenes (Fig. 2A), identifying 49 unique ligand-responsive sequences for six nitazene analogs, including isotonitazene (Supplementary Fig. 6 and Supplementary Table 6). Sensors with the lowest MDR for each compound are shown in Fig. 2B. Across all hits, the MDR was 19 µM, representing a significant improvement over that of the previous HMH library (61 µM; two-sided Wilcoxon rank-sum test, p value 8.5e-5).

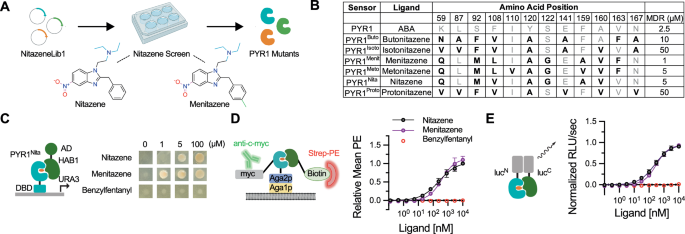

Fig. 2: Isolation of PYR1nita, a nanomolar sensor for the synthetic opioid nitazene. — **Fig. 2: Isolation of PYR1^nita, a nanomolar sensor for the synthetic opioid nitazene.**

From this screen, we identified PYR1^nita (PYR1^{HOT5/H60P/N90S} with K59Q, S92M, F108V, Y120A, S122G, F159A, A160V) as the lead candidate. This mutant appeared in screens for nitazene (MDR: 5 µM), menitazene (MDR: 1 µM), and protonitazene (MDR: 50 µM), and showed no detectable binding to the structurally unrelated synthetic opioid benzylfentanyl (Fig. 2C and Supplementary Fig. 6). To further characterize PYR1^nita, we displayed it on the surface of yeast and performed cell surface titrations. No binding was observed in the presence of a designed thermostable HAB1 (ΔN-HAB1^T+)¹⁸ alone or in the presence of the structurally unrelated ligand benzylfentanyl. Saturable responses were observed for nitazene EC₅₀ 250 nM (95% c.i. 177–390 nM) and menitazene EC₅₀ 383 nM (95% c.i. 277–588 nM), with a limit of detection (LOD) for nitazene of 43 nM (Fig. 2D). To test binding in vitro, we optimized a previously described ex vivo split luciferase detection system¹⁸ using the NanoBiT complementation reporter system³⁸. Here, LgBiT is fused to a PYR1 receptor construct, and SmBiT is fused to HAB1³⁹ (Supplementary Fig. 7). Ligand titrations showed no activation with benzylfentanyl and nanomolar sensitivity to both nitazene EC₅₀ 243 nM (95% c.i. 216–276 nM) and menitazene EC₅₀ 306 nM (95% c.i. 240–405 nM), with a LOD for nitazene of 3.2 nM (Fig. 2E). Thus, the computational design pipeline enabled the isolation of a nitazene sensor with low nM sensitivity in vitro.

Optimization of nitazene biosensors by deep mutational scanning

Next, we used deep mutational scanning coupled with a directed evolution strategy to develop two distinct nitazene biosensors (Fig. 3A). The first of these is for the detection of 4-hydroxy nitazene, the major metabolite byproduct of isotonitazene. While the current needed LOD is unknown⁴⁰, an effective sensor should exhibit a low nM LOD and function in a complex biological matrix like urine. The second sensor is a pan-sensor capable of detecting nitazenes even in complex mixtures of powders. While the sensitivity requirement of this sensor is less strenuous, it must be specific for nitazenes compared with other synthetic opioids, fillers, or recreational drugs.

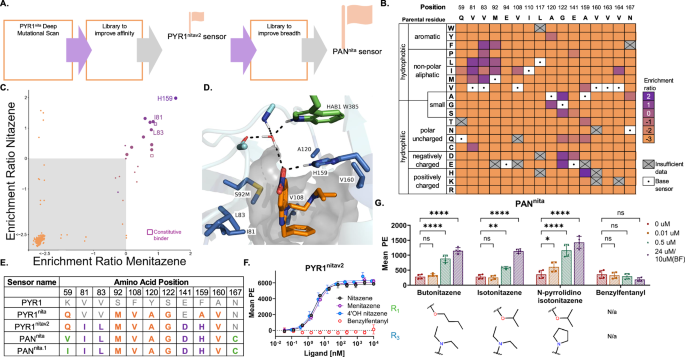

**Fig. 3: Optimization of nitazene sensor breadth and sensitivity using deep mutational scanning.**

In a first step to designing these sensors, we performed a deep mutational scan (DMS) of 16 positions inside of the PYR1^nita binding pocket using yeast display screening coupled to fluorescence activated cell sorting. Libraries were screened at 250 nM of nitazene and menitazene (approx. 20% of the EC₅₀). Additionally, a constitutive (no ligand but in the presence of 500 nM HAB1^T+ binding protein) and a reference control (sorting on all gates except the gate associated with binding) were included. Example sorting gates are shown in Supplementary Fig. 8.

Following short-read deep sequencing of these populations, the frequencies of each mutant were assessed and normalized to the parental sequence by an enrichment ratio (Fig. 3B and Supplementary Fig. 9). Most mutations (298/320) were depleted, indicating a restricted sensor pocket. Nitazene and menitazene shared 10 non-constitutive beneficial mutations (V81CLI, V83ML, M92FL, A120G, A159H, V164I; Fig. 3C), largely in the aliphatic central cavity near the predicted binding site of the benzylbenzimidazole nitazene scaffold (Fig. 3D). The largest enriched mutation for both ligands was A159H. Our original design models did not include a residue which delocalizes the partial charge on the nitro group; we hypothesize that H159 satisfies this requirement (Fig. 3D). Indeed, redesigning the PYR1 sequence using the deep learning algorithm LigandMPNN⁴¹ identifies H159 in 8% of designs (Supplementary Fig. 10). This finding by an orthogonal design method is consistent with the proposed binding pose; additionally, the incorporation of a newer, deep learning packing algorithm for sequence design hints at future avenues to build on our ligand docking method to improve the computational design process. Overall, the mutational profile is largely consistent with the designed binding mode.

To develop a sensor capable of binding the major metabolite byproduct 4-hydroxy nitazene, we used the DMS output to create a focused combinatorial library of 4608 members largely containing the beneficial mutations shared between nitazene and menitazene (Supplementary Table 7). Screening this library on nitazene and menitazene yielded two sensors, PYR1^nitav2.1 (PYR1^nita with V81I, M92F, A120G, G122E, E141D, A159H) and PYR1^nitav2 (PYR1^nita with V81I, V83L, E141D, A159H), containing 4-6 additional mutations from PYR1^nita (Fig. 3E and Supplementary Fig. 10). Both sensors recognized 4-hydroxy nitazene, menitazene, and nitazene at an average LOD of 100 pM and EC₅₀ of approximately 2 nM (Fig. 3F and Supplementary Fig. 11), representing a more than 100-fold improvement in affinity over the originally designed PYR1^nita sensor. Neither sensor recognized the unrelated synthetic opioid benzylfentanyl at the highest concentration tested, indicating highly specific recognition of nitazene, its metabolic byproduct 4-hydroxy nitazene, and a close analog menitazene over a competing synthetic opioid.

Our underlying hypothesis in the design process was the importance of the nitro group in molecular recognition by the PYR1-based sensors. One prediction resulting from this hypothesis is that two nitazenes that differ only by the nitro group should have very different affinities. To examine this, we used yeast display to determine the EC₅₀ for the PYR1^nita, PYR1^nitav2, and PYR1^nitav2.1 sensors against metonitazene and metodesnitazene. Metonitazene and metodesnitazene are identical except the presence or absence of a nitro group at R₂. All three sensors had markedly reduced or no responsiveness to metodesnitazene compared with metonitazene (Supplementary Fig. 12). For example, PYR1^nitav2 showed at least a 650-fold difference in EC₅₀ values for metonitazene compared with metodesnitazene. Overall, these results are consistent with the importance of the nitro group in the ligand-induced latch closure, consistent with the design poses. We note that there is small but measurable binding signal present at the higher desnitazene concentrations for the engineered sensors, suggesting that a pan sensor may be capable of recognizing even nitazenes lacking a nitro group at R2.

To develop a sequence able to sense structurally diverse nitazenes, we used the structural model of PYR1^nita to identify mutations which could allow binding breadth by increasing the pocket space for diverse functional R1 and R3 groups. We created a focused combinatorial library of 2048 variants encoding differences at positions 59, 141, 163, 164, & 167 to the PYR1^nitav2.1 and PYR1^nitav2 sensors (Supplementary Table 8). After screening against constitutive binders, the library was split and screened in parallel against butonitazene, isotonitazene, and N-pyrrolidino isotonitazene (Supplementary Fig. 13). These populations were deep sequenced; sequences that were enriched in all three ligand populations were individually tested (Supplementary Fig. 14). The best sensors, PAN^nita and PAN^nita.1, recognized the three diverse nitazenes and did not recognize benzylfentanyl (Fig. 3G and Supplementary Fig. 15). PAN^nita has in total 11 mutations in the receptor binding pocket out of 18 total mutable positions. Combined, computational design coupled to protein engineering can access a more diverse functional sequence space than accessed by previous libraries.

Engineered PYR1 sensors can discriminate nitazenes and metabolites in relevant diagnostic scenarios

To test whether PYR^nitav2.1 and PAN^nita are capable of sensing nitazenes under relevant conditions, we repurposed our in vitro luminescence assay. Luminescence detection assays are susceptible to errors from varying experimental conditions including fluctuating activity in diverse biological matrices⁴². For these reasons, ease of single-sample detection is limited by the need for external calibration. A previously described calibrator luciferase⁴³ enables single-sample ratiometric quantitative readouts (Fig. 4A). This assay compares the ratio of ligand dependent luminescence to background GFP fluorescence to mitigate experimental variance. We tested this new calibrator assay with the parental PYR1 sensor and a range of synthetic cannabinoid sensors¹⁸. All tested sensors had nearly identical dynamic range, LOD, and EC₅₀ values between buffer and urine (Supplementary Fig. 16). Using this assay, PYR1^nitav2.1 could recognize the metabolic byproduct 4-hydroxy nitazene with a LOD of 1 nM (0.37 ng/mL) in urine, its most clinically relevant biological matrix, and with no cross-reactivity to the unrelated opioids benzylfentanyl, codeine, or heroin (Fig. 4B).

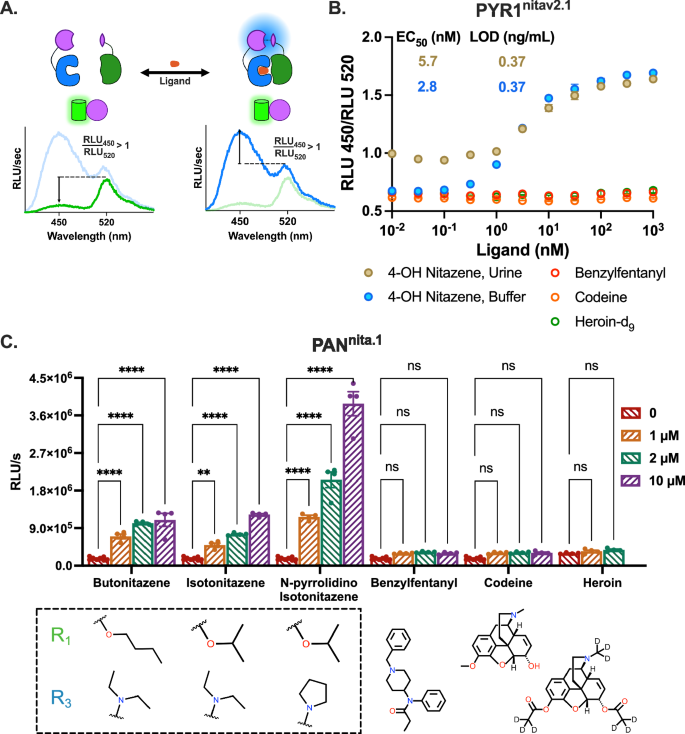

**Fig. 4: A ratiometric luminescent assay can sense nitazenes specifically in relevant diagnostic scenarios.**

Another diagnostic use for sensors is discriminating nitazenes in unknown powders. To assess this use case, we tested whether PAN^nita.1 could recognize diverse nitazenes relative to these other opioids. PAN^nita.1 bound the nitazene variants butonitazene, isotonitazene, and N-pyrrolidino isotonitazene while exhibiting minimal perception of benzylfentanyl, codeine, and heroin. Ligands were dissolved in aqueous buffer with a cosolvent consisting of 0.42 (v/v) % methanol and 0.58 (v/v) % DMSO except for heroin, which was dissolved in 1 (v/v) % acetonitrile. At their highest tested concentration, this assay was able to detect a 6.4x, 7.2x, and 23x fold-change respectively for the target ligands butonitazene, isotonitazene, and N-pyrrolidino nitazene, with limited activation of off-target opioids (2-way ANOVA, p < 0.0001) (Fig. 4C). Similar results were obtained for the PAN^nita sensor (Supplementary Fig. 17). To determine the wider range of efficacy of the PAN sensors, PAN^nita and PAN^nita.1 were tested against ten structurally diverse nitazenes (at 10 μM) not used in sensor engineering. These included desnitazenes lacking the nitro group, and 5-aminoisotonitazene not yet detected by nitazene test strips⁴¹. Remarkably, these pan sensors combined to recognize five of these nitazenes, including two of the three desnitazenes and ethyleneoxynitazene (Supplementary Figs. 18–19). Pan sensors failed to recognize 5-aminoisotonitazene which contains an amine at R2 that is likely incompatible with the water-mediated latch closure. Additionally, pan sensors did not recognize some nitazenes (ethylene nitazene, ethylene isotonitazene) likely because of steric clashes. Still, the ability to sense diverse nitazenes, including desnitazenes, distinct from those used in the engineering process suggests that these or closely related engineered sensors may be able to identify the overwhelming majority of nitazenes in the drug supply.

In directed evolution, it is well established that optimizing for affinity and breadth can impact other properties like protein expression yields, stability against thermal challenge, and kinetic activation⁴⁴. We assessed these properties in the pan-nitazene sensors and PYR1^nitav2.1 compared with HOT5^mandi³⁷, the most stable engineered PYR1-based sensor developed thus far. All proteins had identical expression yields of 19 mg/L under standard E. coli expression conditions when expressed as LgBiT and MBP-tagged fusion proteins (Supplementary Fig. 20). To test stability against thermal challenge, we developed a luminescence-based thermal inactivation assay. All sensors showed a 44.8 °C or higher temperature at which a 20 min incubation resulted in 50% loss in activity \(({T}_{50}^{20})\). The \({T}_{50}^{20}\) for PYR1^nitav2.1 was 48.0 ^oC (95% c.i. 47.3–48.6 °C), which was not significantly different (p value = 0.13) than that for HOT5^mandi (\({T}_{50}^{20}\) = 48.5, 95% c.i. 47.3–48.6 °C)³⁷ (Supplementary Fig. 21). We also tested the time the luminescence assay takes to equilibrate. At 10 μM ligand and at room temperature, all sensors reached 90% of steady-state luminescence values within 17 min. Notably, PYR1^nitav2.1 reached equilibrium faster than HOT5^mandi (11 vs. 14 min, p value 0.0458) (Supplementary Fig. 22). Although the PAN sensors are intended for testing unidentified powders in vitro, we also tested whether they retain the ability to sense N-pyrrolidino isotonitazene in a biological matrix. In urine, both sensors maintained the ability to discriminate between benzylfentanyl and N-pyrrolidino isotonitazene (Supplementary Fig. 23). Thus, the tested sensors increased breadth and affinity for nitazenes without appreciably changing their underlying kinetic activation, expression yields, or stability against thermal challenge.

Discussion

Computational protein design has advanced towards relevant and pressing societal needs⁴⁵. Here we designed and engineered protein biosensors for a range of clinically relevant synthetic opioids. These sensors can discriminate between different nitazenes and structurally unrelated opioids; we show that one sensor is functional in a pooled urine sample. Notably, nitazenes cannot currently be differentiated from other synthetic opioids using cell-based assays measuring μ-opioid receptor activation⁴⁶. Commercial test strips for nitazenes exist but cannot sense desnitazenes, among other variants. We focused on demonstrating urine efficacy of the PYR1^nita sensors because these sensors recognize a R1 hydroxyl group present in metabolite products of common nitazenes^7,29,30,31, thus enabling detection of nitazenes post-consumption. The PAN^nita sensors, which were optimized for binding of a wide range of variants, are best deployed to detect nitazenes in environmental samples (e.g. dry powders and other forms). Overall, the designed nitazene sensors in this study are a strong starting point for additional development into reliable point-of-care diagnostic devices. A promising application to pursue is lateral flow assays in which the PYR1-sensing system would replace antibody detection modalities.

There are current limitations that must be addressed before real world deployment of this technology. Full validation of LOD in the appropriate biological matrix is required, including different urine samples spiked at different opioid concentrations to evaluate potential for false positives and false negatives. A lower and/or more consistent background signal in urine samples is needed for standardized testing. While we tested the ability of our sensors to detect nitazenes relative to different drugs, further testing of more complicated mixtures is necessary. In addition, further study of the PYR1 binding pocket will help identify sequences that better recognize emerging designer drugs including the desnitazene and ethylene nitazene variants tested here.

Our computational design process involved repurposing the plant hormone receptor PYR1. Variants of the PYR1 receptor are able to sense an unusually broad spectrum of drug-like molecules⁴⁷. This suggests that PYR1 sensors can be developed for a wide range of molecules, ultimately enabling new medical diagnostics, chemically-responsive cell therapies, environmental sensors¹⁹, and biotechnologies for cell engineering³³. Our design process allows navigation to a search space largely inaccessible to random site saturation mutagenesis libraries, and when coupled with our conformer selection and alignment protocol creates a powerful design approach for ligand binding. The designed sensors, the best of which exhibit pM responsiveness and low nM EC₅₀s, are orders of magnitude more sensitive than has been achieved than other computational approaches for small molecule binders^22,24,25. We speculate that one reason our designs were successful was that we had a quantitative, molecular understanding of the transduction mechanism, which was worked out by biochemical and structural studies of abscisic acid perception in plants^{17,34,48,49,50,51}. By analogy, a deeper mechanistic insight into the more complicated and varied allosteric transduction mechanisms of ligand-dependent molecules like GPCRs or bacterial transcription regulators²⁷ could improve biosensor hit rates for these classes of proteins.

Our design process, while successful, had some limitations. First, we used a combinatorial library rather than discrete designs, resulting in larger libraries with many undesired mutational combinations. While our Y2H screening platform is robust, larger libraries entail greater screening effort. Second, our design process was separated into pose generation and sequence generation. The advance of our method is the generation of realistic poses themselves through conformer generation and alignment sampling. This is essential for keeping the transduction mechanism of PYR1-based sensors intact. However, we used physically-based packing algorithms and filtering strategies to identify designs. This established process has largely been supplanted with deep learning approaches^50,51 (e.g. ProteinMPNN/LigandMPNN followed by AlphaFold2 filtering). We anticipate that emerging and future deep learning algorithms will further improve design and overall hit rates in designing PYR1 receptors for new target ligands, which could be incorporated into our protocol in the future as pose selection is independent of sequence generation. The inability of the PAN sensors to bind ligands like ethylene nitazene and ethylene etonitazene — likely because of steric clashes — point to the limitations of designing against a fixed backbone. Other ligands may simply not be able to be accommodated in the PYR1 pocket. To extend this approach for other ligands, we anticipate the exciting possibility of generating de novo proteins which maintain the PYR1 transduction mechanism. These efforts would be enabled by new computational and experimental tools to test and predict motions of designed proteins^52,53.

Methods

Chemicals

Nitazenes and other pharmaceutically active molecules for use in yeast surface display and split luciferase assays were purchased through Cayman Chemical, including 4’ hydroxy nitazene (#30218), benzyl fentanyl (hydrochloride, #19883), butonitazene (exempt preparation, #38653), codeine (CRM, #ISO60140), ethyleneoxynitazene (citrate, #34947), heroin-d9 (exempt preparation, #42070), isotonitazene (CRM, #30880), menitazene (citrate, #36634), metonitazene (citrate, CRM, #40808), N-desethyl etonitazene (#32512), nitazene (citrate, #36635), N-pyrrolidino etonitazene (CRM, #42194), N-pyrrolidino isotonitazene (citrate, #34909), protonitazene (hydrochloride, CRM, #38143), metodesnitazene (hydrochloride, #43513), etodesnitazene (CRM, #43092), isotodesnitazene (citrate, #30286), N-pyrrolidino isotonitazene (citrate, #34909), N,N-dimethylamino etonitazene (citrate, #34452), ethylene etonitazene (citrate, #35166), 5-aminoisotonitazene (#29318), ethylene nitazene (citrate, #34946), metonitazene (CRM, #43158), and (+)-WIN 55,212-2 (mesylate, #10009023). Chemicals acquired from Sigma include mandipropamid (#32805-100 mg), JWH-015 (#J4252-5MG), JWH-016, and JWH-072. Abscisic acid was purchased from GoldBio (#A-050-2.5). Diazinon was acquired from Chem Service Inc. (#N-116121-250MG). Hikarazine-108 was a gift from Dr. Yves Janin, Centre National de la Recherche Scientifique. Dry Hikarazine-108 was resuspended in 200 μL DMSO and then diluted with 300 μL of acidic ethanol. Acidic ethanol is prepared by adding 100 μL of 37% hydrochloric acid to 12 mL of 100% ethanol. This resulted in a 4.22 mM stock that can be stored at −20 °C indefinitely.

Computational design protocol

The mutational library NitazeneLib1 was generated using a structural replacement computational docking protocol to generate high-quality plausible protein-ligand alignments of simulated low-energy ligand conformers.

To generate ligand conformers by molecular dynamics, an initial 3D conformer was downloaded from Pubchem⁵⁴. Conformers were generated by temperature replica exchange molecular dynamics simulations (TREMD)⁵⁵ as described in Leonard et al⁵⁶. Briefly, we used the default implemented settings which run 27 temperature replicas ranging from 300 to 450 K and all simulations were run for 100 ns with replica exchange occurring every 2 ps. The conformer with the highest observed occupancy in the lowest temperature replica was given a relative free energy of 0.0 kcal/mol, and the free energy of other conformers were calculated relative to the highest observed occupancy assuming a Boltzmann weighted ensemble. Generated conformers were plotted sequentially by free energy relative to the lowest energy conformer, categorizing conformers as either “high occupancy” (greater than 4% occupancy cutoff used for menitazene and isotonitazene) or “low occupancy” (less than 1% occupancy cutoff used for menitazene and isotonitazene) (Supplementary Fig. 2). Low-energy conformers only were exported as a single sdf file for ligand docking. For this paper, we developed an automated protocol with open-source code (https://github.com/ajfriedman22/SM_ConfGen).

Low-energy ligand conformers generated by TREMD were docked into the PYR1 protein ligand binding pocket using the “dock to sequence” approach of our method “Structural Replacement Biosensor Design”, available as custom python scripts at https://github.com/alisoncleonard/Structural-Replacement-Biosensor-Design. In the dock to sequence method, the wild-type protein sequence to design is mutated to match the sequence of a known low-affinity ligand binding sequence identified through library screening in yeast two-hybrid (Supplementary Fig. 4), enabling visualization of ligand alignments that could accommodate the known binding sequence. Each nitazene conformer was docked in space using a Singular Value Decomposition (SVD)-based superposition method to align the 3D dimensional coordinates of a given novel query ligand with a target molecule. To engineer PYR1, the PDB structure 3QN1⁵⁷ was used as the template, with atoms surrounding the conserved nitro group at nitazene position R₂ superimposed on the target molecule abscisic acid ketone, with the nitro group acting as the required hydrogen bond acceptor needed for binding⁵⁸.

The alignment process begins with two sets of atomic coordinates: one from the query molecule to be aligned and the other from the target molecule. These do not need to be the full set of atomic coordinates for the molecules but must include at least three atoms that are not collinear. Each coordinate set is arranged into a matrix, where each row in the matrix is the x, y, and z coordinates of an atom, and the corresponding row in the other matrix is the corresponding atom in the other molecule. To obtain a set of transformation matrices, each coordinate set is translated so that its center of mass (mean) is positioned at the origin, then a covariance matrix is calculated between the two centered coordinate sets, and finally the covariance matrix is decomposed into three components: two orthogonal matrices and a diagonal matrix of singular values which are used to calculate a rotation matrix. Once the rotation matrix is computed, the original query compound undergoes transformations applied using the apply_transform_Rx_plus_v function available in PyRosetta, where the query coordinates are first translated so that their center of mass is at the origin, to ensure that the rotation is applied correctly, next the computed rotation matrix is applied to the coordinates of the query compound, to put it in plane with the target molecule, and finally the query is translated to the center of mass of the target molecule coordinates, completing the alignment.

As it is unlikely that a novel ligand would dock in exactly the same orientation as abscisic acid, the aligned ligand was next perturbed in space using the PyRosetta Rigid Body Perturbation mover. The moved ligand was verified both to not clash with the protein backbone coordinates, determined using a fast-grid search of PYR1 subjected to a poly-glycine shave, and to contain a nitrogen or oxygen close enough to the latch water molecule of the PYR1 structure to form a hydrogen bond. If these conditions were satisfied, the PYR1-ligand complex was relaxed and repacked using the PyRosetta Packer function, and the repacked complex was checked for collisions with the full protein including both backbone and side chains by fast-grid search. Finally, complexes that pass clash check were scored using the standard PyRosetta scorefunction, with complexes below −300 REU generally considered to be realistic protein-ligand complexes. This process can be repeated as many times as desired to appropriately map plausible ligand alignments in the protein pocket (Supplementary Table 2). The number of alignments tested per conformer and total per ligand are listed in Supplementary Table 3, along with the number of alignments passing clash check taken forward.

Modeled protein-ligand structures were used as inputs for Rosetta FastDesign³² (scripts available at https://github.com/alisoncleonard/Structural-Replacement-Biosensor-Design) for structure-informed rational design to select mutations for inclusion in the library NitazeneLib1. The results presented in Supplementary Fig. 10 were a LigandMPNN⁴¹ sequence redesign of a similar set of modeled protein-ligand structures using (https://github.com/dauparas/LigandMPNN). The temperature was set to 0.2 and the noise level used was 0.1 Angstrom Gaussian noise using ligandmpnn_v_32_010_25.pt.

Plasmids and plasmid library generation

A full list of primer sets (Supplementary Table 9) and plasmids (Supplementary Table 10) used in the work are included. All plasmids were sequence verified using Oxford NanoPore (Plasmidsaurus).

To construct NitazeneLib1, libraries containing desired combinations of mutations were encoded in oligo pools (Agilent) divided into 3 cassettes (Supplementary Table 4), along with 2 constant region cassettes flanking the PYR1 gene, to be cloned into the PYR1 yeast two-hybrid destination vector pND005⁵⁹. Three sub-libraries were prepared by Golden Gate assembly⁵⁹, with each containing 2 of the 3 variable portions and one constant cassette (e.g. Library A contained variable cassettes 1 and 2, plus a constant cassette 3). Transformation efficiencies (Supplementary Table 5) were estimated using serial dilution, and library quality (Supplementary Fig. 5) determined by short-read deep sequencing (Azenta Amplicon-EZ). PYR1^nita was assembled into pND003 to make pRMC075 by Golden Gate assembly; this plasmid was subsequently transformed into EBY100 S. cerevisiae cells (ATCC Catalog Number MYA-4941^TM)⁶⁰.

A single site saturation mutagenesis (SSM) library at 16 positions (59, 81, 83, 92, 94, 108, 110, 117, 120, 122, 141, 159, 160, 163, 164, and 167) was prepared for PYR1^nita (PYR1^{HOT5/H60P/N90S/K59Q/S92M/F108V/Y120A/S122G/F159A/A160V}) by nicking mutagenesis⁶¹ using pRMC075 as a plasmid template. NNK mutagenic primers were designed using published SUNi mutagenesis scripts⁶². Cells were transformed into XL1-Blue electrocompetent E. coli. Plasmid DNA was extracted with a ZymoPURE II Plasmid midiprep kit. The library was transformed into EBY100 S. cerevisiae cells using the lithium acetate method⁶⁰.

A pan-nitazene library (Nitazene Library 2, Supplementary Table 7) of 4608 members was made with mutations encoded into ultramers (IDT) with constrained degenerate mixed base codons and assembled according to⁵⁹. A single forward ultramer (Nitz_Combo_Lib2_for) spanning residues 58 to 119 and encoding V81VIL (VTT), V83VILM (VTK), M92MILF (WTK), V108VI (RTH) was amplified with a mix of two reverse ultramers (Nitz_Combo_Lib2_rev_159AV, Nitz_Combo_Lib2_rev_159H) spanning residues 109-168 and encoding A120GA (GSS), G122DEAG (GVN), E141DE (GAW), and either A159GA (GYG) or A159H (CAT) generating a full length Golden Gate ready cassette. A single gBlock (IDT) (Nitz_ComboLib2_Block_1_3) encoding both N-terminal sequence (before residue 58) and C-terminal sequence (after residue 168) with appropriate Golden Gate cut sites was used to generate the full length CDS in the library with pND003 destination vector. The library was prepared for YSD as described above. PYR1^nitav2 and PYR1^nitav2.1 were isolated as colonies to obtain plasmids P8 and P5 after sorting, respectively.

Two libraries based off of PYR1^nitav2 and PYR1^nitav2.1 were constructed via combinatorial mutagenesis essentially according to (15) to make Nitazene Library 3 and Nitazene Library 4 (Supplementary Table 8), respectively. Each library had the following mutations added by long ultramers (IDT) (pZB717-pZB720) encoding Q59QVASLIMT (DYR), D141EDAG (GVN), A159VA (GYT) or A159H, V163VA (GYN), V164VILM (VTK), and N167SACGN (KSY), where A159VA and A159H were encoded on two separate ultramers, for a total of 2560 library members each. After Nitazene Libraries 3 and 4 were prepared for YSD as described above, they were pooled together to create Nitazene Library 5 containing 5120 library members total, which was screened according to conditions listed below. NGS was performed as described below to identify pan-nitazene contenders. Select individuals were cloned into pND003 with constant cassettes cass1_pND003_ACL and cass5_pND003_ACL and gBlocks (IDT) containing the corresponding mutations for each contender 1_Cas_2-4_Nit_pan_contender through 6_Cas_2-4_Nit_pan_contender were created via Golden Gate assembly according to Daffern et al., 2023³⁶.

pYTK047 was a gift from John Dueber (Addgene plasmid # 65154; http://n2t.net/addgene:65154; RRID:Addgene_65154)⁶³.

Yeast two-hybrid screening of mutant biosensor libraries

Selection experiments for mutant receptors that respond to new ligands were conducted as previously described by Beltrán⁵⁸. Briefly, the indicated pBD-PYR1 mutant library was transformed into MAV99 (MATa trp1-901 leu2-3,112 hisΔ200 ade2-101 gal4Δ gal80Δ can1rcyh2rLYS2::(GAL1::HIS3) GAL1::lacZ SPO13::10xGAL4site::URA3) harboring pAD-HAB1. Mav99 was a gift from Jeff Bachant and is authenticated by functional controls. A minimum transformation efficiency of 1 million CFU was achieved, typically by pooling two transformations. After transformations, negative selections were conducted twice to remove receptors that bind HAB1 in a ligand-independent fashion (i.e., constitutive receptors) by growing the library on solid media containing 1 g/L 5-FOA; the purged library was collected and stored as 30 (v/v) % glycerol stocks until use⁵⁸.

These glycerol stocks were used in subsequent selections for cells responsive to 100 μM nitazene ligands described in Supplementary Table 1 on SD-Trp,-Leu,-Ura media. Colonies supporting uracil-independent growth at 30 °C were isolated after 3 days, regrown on SD-Trp,-Leu,+1 g/L 5-FOA to screen out constitutive biosensors, retested to confirm ligand-dependent growth on SD-Trp,-Leu,-Ura plates with and without test chemical. The minimum dose response was determined by growth validation after 3 days, in which yeast cells were grown as spot assays by suspending a colony in 100 µL of 1X TE and dropping 2 µL onto SD-Trp,-Leu,-Ura plates containing various concentrations of the target ligand.

Library sorting by yeast surface display

Sorting of the PYR1 yeast displayed libraries was performed as done in Steiner et al.⁶⁴ except for the following differences. Cells were induced in SD/GCAA media containing a 9:1 ratio of galactose:dextrose. Induction was carried out at 22 °C and 250 rpm for 20 h. Cells were washed in citrate-buffered saline (20 mM trisodium citrate dihydrate, 147 mM NaCl, 4.5 mM KCl) supplemented with 0.1% w/v BSA adjusted to pH 8.0 with 1 M NaOH (CBSF), while prepared ΔN-HAB1^T+ from plasmid pJS723⁵⁸ was resuspended in CBSF plus 1 mM DTT and 5 mM TCEP.

For the SSM library sort, each labeling condition had 250 µL of OD₆₀₀ = 2 cells, 3 µL of ligand dissolved in DMSO for an overall solvent of 1 v/v%, ΔN-HAB1^T+ to 500 nM, and the volume of the reaction brought to 300 µL with CBSF. Binding and labeling were performed as in Leonard et al.⁵⁶. Cells were collected at approximately half of EC₅₀ in a diagonal gate, excluding background, selecting 200,000 cells each of the top 10–15% of binders, a reference population, and non-binders. Cells were grown and stocks prepared according to⁵⁶. Next generation sequencing (NGS) was performed on these screened cells as described below.

Nitazene Library 2 was screened with 250 µl of OD₆₀₀ = 2 cells and maintained solvent at 1 v/v%, 100 nM of ΔN-HAB1^T+, and a total volume of 300 µl attained by adding CBSF in order to obtain PYR1^nitav2 sensors. First, 200,000 cells of the top 10% of binders were sorted using 250 nM menitazene. The second sort used identical reaction conditions, but only 200,000 cells of the top 5% of binders were collected. The final sort for the PYR1^nitav2 sensors differed from the previous sort only by using 100 nM menitazene, which yielded PYR1^nitav2 and PYR1^nitav2.1 sensors, isolated as individual colonies. DNA was extracted from PYR1^nitav2 and PYR1^nitav2.1 and plasmid sequenced (Plasmidsaurus) to identify sensor sequences.

A total of 250 µl of OD₆₀₀ = 2 cells of the combinatorial mutagenesis libraries of PYR1^nitav2 and PYR1^nitav2.1 was screened with 100 nM ΔN-HAB1^T+ and the first sort was performed with no ligand and 1% (v/v) DMSO to collect 200,000 cells that did not bind constitutively. The resulting cells were grown and screened against three ligands in parallel, butonitazene, isotonitazene, and N-pyrrolidino isotonitazene at 2.5 µM, 2.5 µM, and 23.8 µM, respectively, where butonitazene and isotonitazene were dissolved in methanol and the final volume of solvent was maintained at at 1 (v/v)% in all samples. The top 5% of binders were collected to get 200,000 cells and DNA was prepared for NGS as described below.

The top performing contenders for the PAN^nita sensor were identified as those that had the highest enrichment ratios for each ligand and gBlocks cassettes containing the identified mutations were cloned into pND003 via Golden Gate assembly to make pRMC079-084. These sensors were tested with yeast surface display with 100 nM ΔN-HAB1^T+ and various concentrations of butonitazene, isotonitazene, N-pyrrolidino isotonitazene, and benzylfentanyl, maintaining a solvent concentration of 1% v/v.

Next generation sequencing of collected cell populations

DNA was extracted using freeze/thaw cycles and zymolase according to Medina-Cucurella & Whitehead⁶⁰, except for the following differences. Instead of utilizing a Qiagen mini-prep column, an NEB miniprep column was utilized and DNA was washed with 550 µL DNA wash buffer two times and eluted in 30 µL nuclease free water. Product from the purification of plasmid with exonuclease I and lambda nuclease was cleaned using an NEB DNA & PCR cleanup kit according to the manufacturer’s instructions.

Plasmid DNA was prepared for NGS by amplifying with either primer sets RMC-P1035 and RMC-P1036 (length of 383 bp) or RMC-P1037 and RMC-P1038 (length of 388 bp). 10 µL of plasmid DNA was amplified using 12.5 µL Q5® High-Fidelity 2X Master Mix, 1.25 µL 10 µM forward primer, 1.25 µL 10 µM reverse primer, and 25 µL nuclease free water (NFW) and placed in the thermocycler with the following cycles: 30 s at 98 °C, 18 cycles of 5 s at 98 °C, 20 s at 57.5 °C, and 30 s at 72 °C, followed by a final extension of 2 minutes at 72 °C and a hold at 10 °C. PCR product was purified using an NEB Monarch DNA Gel Extraction kit. DNA was pooled for nitazene and menitazene top binders, then reference populations, and non-binding populations at equal masses and sent to Quintara for AmpExpress next generation sequencing. Resulting sequences were merged with FLASh⁶⁵, filtered for appropriate read length and amino acid start sequence, and heat maps of calculated enrichment ratios were created as in Medina-Cucurella & Whitehead⁶⁰.

Protein expression and purification

Proteins were expressed in E. coli BL21(DE3) under control of a T7 promoter, autoinduced, lysed using B-PER surfactant, and purified by Ni-NTA affinity chromatography⁵⁸.

Split Luciferase in vitro Assay

Proteins, stored as ammonium sulfate precipitates, were pelleted at 17,000xg for 10 minutes and then resuspended in desalting buffer (50 mM HEPES-KOH, 10% w/v glycerol, 200 mM KCl, 1 mM DTT, 5 mM TCEP, pH 8.0). A 7 K MWCO Zeba™ spin desalting column (ThermoFisher, Cat. No. 89882) was equilibrated with desalting buffer and then used to buffer equilibrate the resuspended protein, which was then stored on ice until use. Protein concentration was measured by diluting 20 μL of desalted proteins into 180 μL of 8 M urea in a UV-Star plate (Item No. 655801). An absorbance value at 280 nm was taken using a plate reader (BioTek Synergy™ H1 Microplate Reader), background subtracted from a blank, and scaled 10x to account for the dilution. The concentration was measured by the Edelhoch method⁶⁶ using calculated extinction coefficients.

Ligand was diluted to 10x working concentration in desalting buffer and 20 μL of this dilution was added to the bottom of Greiner™ 96-well, white, flat bottom plate (Cat. No. 655075). In a separate tube, desired proteins are combined with the Hikarazine-108, and diluted with desalting buffer to reach a final volume of 180 μL per well. Add the prosubstrate, Hikarazine-108, last, just before adding the mixture to the wells to minimize its depletion before the reaction has begun in the plate. For bioassay measurements, 40 μL urine was supplemented to this master mix per well such that the final concentration of urine was 20% v/v when combined with the ligand. Pooled human urine was sourced from Innovative Research Inc. (SKU# IRHUURE50ML) and was sterile filtered before use to remove any aggregates. Typical working concentrations for LgBiT-PYR1 and SmBiT-HAB1 are in the low nM range (2 and 20 nM are an appropriate starting point for LgBiT-PYR1 and SmBiT-HAB1, respectively) while Hikarazine-108 is always used at 10 μM. This 180 μL master mix was scaled to encompass all wells and replicates. Using a multichannel pipette, 180 μL of this mixture are added to each well. The wells are mixed up and down using the pipette, not aspirating to avoid bubbles.

The plate was placed in a plate reader (BioTek Synergy™ H1 Microplate Reader) and an autogain feature was used to adjust the gain at a wavelength of 450 nm for the brightest anticipated well, so that overflow does not occur. An integration time of 1 s and a read height of 7 mm was used. The plate was then run, and data was output in units of relative luminescence units (RLU) per second. While we used the readout at time = 0, we observed luminescence at intervals for one hour. Doing so offered greater resolution into the kinetics of our system and was helpful for monitoring its behavior.

For ratiometric detection, inclusion of the calibrator luciferase includes mNeonGreen fused to the full length NanoBiT luciferase, enabling bioluminescence resonance energy transfer (BRET) between the pair⁴³. This protein sequence was ordered as an eBlock from IDT (Supplementary Table 11) and cloned into a protein expression backbone from pJS723 using Gibson Assembly⁶⁷. The NanoBiT luminesces blue light (λ_max ~ 450 nm) while mNeonGreen fluoresces with a λ_max ~ 520 nm, such that the optimized system yields two distinct spectrum peaks.

To resolve two distinct peaks, we ran a spectral scan of each well. With this method, samples volumes of 180 μL (without the luminescence prosubstrate) were added to the plate and then covered and placed on a plate shaker at 25 °C and 750 rpm. After 30 min, the foil was removed, and 20 μL of Hikarazine-108 was added to bring the well up to a volume of 200 μL and samples were mixed using a multichannel pipette. On the plate reader, we specified a range of wavelengths from 415 to 555 with a step size of 35 nm. For each sample we obtained RLU/s at these 5 defined wavelengths. Complex formation is measured as the RLUs/sec at λ₄₅₀ divided by the RLUs/sec at λ₅₂₀. The specific concentration of calibrator used varied based upon the concentrations of LgBiT-PYR1 and SmBiT-HAB1 and typically requires adjustment for each PYR1-ligand pair with the working concentration typically being mid-high pM. An appropriate starting point for optimizing this concentration would be 100-fold less than the concentration of your limiting protein (LgBiT-PYR1 or SmBiT-HAB1).

For testing the PAN^nita sensors in the SpLuc assay (Fig. 4C and Supplementary Fig. 17), a 1 (v/v) % cosolvent of 42% methanol and 58% DMSO was used for all ligands except for heroin, which was dissolved solely in acetonitrile. Similarly, for testing these sensors versus the extended nitazene variants set (Supplementary Fig. 18–19), a cosolvent of 57% v/v DMSO, 39% v/v methanol, and 4% v/v acetonitrile was used for all ligands. Limit of detection (LOD) was calculated as the lowest ligand concentration at which the mean luminescence measurement exceeded three standard deviations above that of the corresponding blank luminescence measurement.

All measurements collected as distinct technical replicates by running multiple wells in parallel within the same plate. All statistical analyses were performed using GraphpadPrism.

Titrations via yeast surface display

Ligand-specific titrations of nitazene sensors were carried out through yeast surface display, run similarly to library sorting, but with the following differences. A total of 10 µL of OD₆₀₀ = 2 were labeled with various dilutions of ligand such that the ligand’s solvent was <1% of the reaction volume and ΔN-HAB1^T+ was added to 500 nM in the final reaction volume of 50 µL. Data from 25,000 labeled cells was collected after resuspending cell pellets in 100 µL CBSF, processed in FlowJo v10 software, and fitted to a specific binding curve with Hill slope in GraphPad Prism 10 to find EC₅₀ values.

Thermal inactivation assay

This assay was adapted from Daffern et al³⁷ for utilization within the split luciferase in vitro assay. 72 µL of LgBiT-PYR1 variants at 20 nM in desalting buffer were aliquoted to 12 PCR tubes with reducing agents. These tubes were placed in a thermocycler for 20 min with a gradient of temperatures spanning 38 °C to 60 °C after which each tube was brought back down to 4 °C and placed on ice. 20 µL of each was pipetted into a white, flat bottom plate using a multichannel pipette. 180 µL of desalting buffer with SmBiT-HAB1, Hikarazine-108, and ligand were added to these wells to bring them up to a final volume of 200 µL and reach working concentrations of 20 nM, 2 nM, 4.22 µM and 10 µM for SmBiT-HAB1, LgBiT-PYR1, Hikarazine-108, and each ligand respectively. Wells were pipetted up and down to mix, bubbles were removed, and luminescence was measured for each well using a plate reader in accordance with the split luciferase in vitro assay protocol as previously outlined.

Statistics and reproducibility

For replication, we used 3 or 4 replicates (two technical per day, two replicates on separate days) for all experimental data reported in the paper, except where noted. Deep mutational scanning was performed once. No statistical method was used to predetermine sample size. No data were excluded from the analyses. The experiments were not randomized. The Investigators were not blinded to allocation during experiments and outcome assessment.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Raw deep sequencing data are deposited in the SRA (BioProject ID PRJNA1256820), and analyzed deep sequencing data are on Zenodo (https://doi.org/10.5281/zenodo.15298584)⁶⁸. PDB ID of structure used for structural replacement code: 3QN1 All other data are available in the main text or the supplementary materials. Source Data are provided with this paper as “Source Data.xlsx”. Primers, plasmids, and synthetic DNA fragments used in this paper are provided as Supplementary Data 1–3, respectively. Source data are provided with this paper.

Code availability

An automated protocol for the TREMD conformer generation protocol is available on GitHub https://github.com/ajfriedman22/SM_ConfGen. PyRosetta scripts for biosensor design by structural replacement are available at https://github.com/alisoncleonard/Structural-Replacement-Biosensor-Design. Scripts used to generate Supplementary Figs. 1 and 10 and to process raw deep sequencing data are available at https://github.com/WhiteheadGroup/Leonard_ComputationalDesign_Supplemental⁶⁹.
