In situ visualization of Clostridioides difficile phenotypic heterogeneity and single-cell morphology during gut infection

DiBenedetto, Nicholas V.; Donnelly-Morell, M. Lauren; Kumamoto, Carol A.; Shen, Aimee

doi:10.1038/s41467-026-68411-6

Download PDF

Article
Open access
Published: 14 January 2026

In situ visualization of Clostridioides difficile phenotypic heterogeneity and single-cell morphology during gut infection

Nature Communications volume 17, Article number: 1716 (2026) Cite this article

3287 Accesses
62 Altmetric
Metrics details

Subjects

Abstract

Phenotypic heterogeneity refers to the ability of clonal populations of the same species to display distinct phenotypes despite experiencing the same environment. Bacteria exhibit phenotypic heterogeneity across diverse cellular processes, which can provide competitive fitness advantages both within the host and against surrounding microbiota. However, visualizing phenotypic heterogeneity at single-cell resolution within dense microbial communities is technically challenging. Here, we present a method for visualizing this heterogeneity by combining spectrally compatible reporters to track the spatial distribution of gene expression in individual bacterial cells in the mammalian gut. Using toxin gene expression in Clostridioides difficile as a model for visualizing phenotypic heterogeneity, we demonstrate that, while C. difficile primarily occupies the lumen, a subpopulation of C. difficile associates with the colonic epithelium independent of toxin production. We further show that heterogeneity in C. difficile toxin gene expression is independent of location in the gut and that a toxin gene overexpressing mutant unexpectedly forms filamentous cells during the acute phase of infection. Thus, our reporter system provides quantitative, single-cell resolution of bacterial behavior within the intact gut environment and establishes a broadly applicable platform for investigating phenotypic heterogeneity in dense microbial communities.

Capturing the environment of the Clostridioides difficile infection cycle

Article 25 April 2022

Elucidating human gut microbiota interactions that robustly inhibit diverse Clostridioides difficile strains across different nutrient landscapes

Article Open access 28 August 2024

Clostridioides difficile pathogenesis and control

Article 02 October 2025

Introduction

Localizing bacteria in their native context within a host has provided critical insights into host-microbe interactions and bacterial behavior in complex environments^1,2,3,4,5. While methods such as fluorescence in situ hybridization (FISH) have visualized the spatial organization of bacterial species within tissues^6,7, these analyses do not provide information on the locations of phenotypically distinct sub-populations of a given species. Notably, fluorescent reporter strains have allowed phenotypic variation at the single-cell level in bacteria to be visualized in situ with minimal handling relative to techniques like RNA-FISH⁸. For example, Vibrio cholerae upregulates toxin genes during biofilm formation in the small intestine⁹, Yersinia pseudotuberculosis spatially regulates virulence and detoxification gene expression in deep tissue sites^10,11, and Mycobacterium tuberculosis exhibits differential replication rates depending on its location within a caseous lesion^12,13. While these analyses have revealed how specific bacterial sub-populations adapt to and interact with distinct microenvironments, the tissues infected by these bacteria have considerably lower microbial complexity than that found in the colon.

Historically, localizing bacteria in situ in the colon has been challenging due to the high density and dynamic nature of bacterial populations within this site^14,15. While most FISH analyses have not localized specific bacterial species within the gut^7,16, fluorescent reporters have achieved visualization of individual Bacteroides spp. at the single-cell level in situ during colonization^17,18. However, this work was done either in germ-free or weaning mice, which does not fully model the microbial complexity or immunocompetency of a conventional mouse model. Other studies have used fluorescent reporters to localize colonic pathogens like Shigella sonnei during infection, but these analyses have used non-natural infection routes and inocula¹⁹ to facilitate the visualization of pathogens in situ.

Developing methods for visualizing phenotypic heterogeneity in situ in the colon would significantly advance our understanding of how specific bacterial species adapt to this densely populated and competitive environment²⁰. Indeed, immense selective pressures promote the generation of phenotypically heterogeneous sub-populations²¹. For example, bacterial capsule genes in Bacteroides²² and flagella and Type III secretion system genes in Salmonella^23,24 are heterogeneously expressed to promote colonization and virulence, respectively. Unfortunately, it has been technically challenging to reliably visualize phenotypic heterogeneity in situ in the colon, leaving questions about the frequency, spatial distribution, and selection of specific phenotypes during infection.

Visualizing phenotypic heterogeneity in the major nosocomial pathogen, Clostridioides difficile, is particularly relevant because numerous traits, such as flagellar motility, cell chaining, and sporulation, are heterogeneously expressed by this pathogen^21,25,26. In addition, C. difficile expresses toxin genes in a bimodal manner in vitro²⁷, although the dynamics of toxin gene expression at the single-cell level during infection remain unclear. Understanding the location, frequency, and magnitude of toxin gene expression during infection is critical because toxin production is essential for disease²⁸, and the ability of toxins to bind their receptors on the colonic epithelium likely impacts disease severity²⁹. In addition, toxin production is a critical factor for diagnosing C. difficile infection^30,31, but the location of its production could impact the progression of the disease.

To address these challenges, we developed fluorescent reporter strains for visualizing toxin gene expression at the single-cell level during the natural infection of conventional mice by C. difficile. We found that toxin gene expression is heterogeneously distributed in situ and that C. difficile is found in diverse anatomic regions in colonic sections, including in close association with the epithelial cell layer, a spatial localization that has not been previously described for C. difficile in conventional mice. Moreover, we discovered that (i) the relative localization of C. difficile within the colon does not strongly impact the frequency or magnitude of toxin gene expression and (ii) toxin production did not affect where C. difficile localizes in the colon. Remarkably, these imaging analyses revealed that a toxin gene overexpressing mutant forms filamentous cells during the acute phase of infection. Thus, our methodology provides a robust and streamlined workflow for visualizing phenotypic heterogeneity in C. difficile, which can likely be applied to other clostridial species. Our analyses further highlight how visualizing bacteria in situ can reveal previously unknown morphologies that are not captured in vitro, enhancing our understanding of microbial behavior and disease pathogenesis.

Results

Optimization of constitutive fluorescent reporters for visualizing Clostridioides difficile

To visualize the subset of Clostridioides difficile cells that express toxin genes during infection, we first developed spectrally compatible, constitutive fluorescent reporters that allow individual C. difficile cells to be visualized within a colonic section. Building upon chromosomally encoded constitutive mNeonGreen (mNG) reporters previously developed for C. difficile³², we first sought to reduce the amount of mNG produced by the P_slpA::LP-mNG strain because its high-level mNG production caused toxicity at late stages of growth in vitro. To this end, we deleted the sequence encoding a leader peptide (LP) (Fig. 1a), which was previously shown to enhance the fluorescence of reporter constructs in Bacteroides spp¹⁷. Loss of the LP reduced P_slpA::mNG reporter fluorescence by 8-fold (Fig. 1b, c). We also tested a P_gluD::mNG reporter construct because RNA-Seq analyses indicated that this promoter is highly expressed during murine infection³³. Indeed, gluD encodes a glutamine dehydrogenase that is used in diagnostic tests for detecting C. difficile infections³¹. The P_gluD::mNG reporter was 3-fold dimmer than the P_slpA::mNG reporter developed here, and it was also dimmer than the P_cwp2::LP-mNG reporter we previously developed³² (Fig. 1b, c). Notably, aside from the P_slpA::LP-mNG strain, the mNG reporter strains exhibited uniform fluorescence and WT growth during broth culture (Fig. 1b–d).

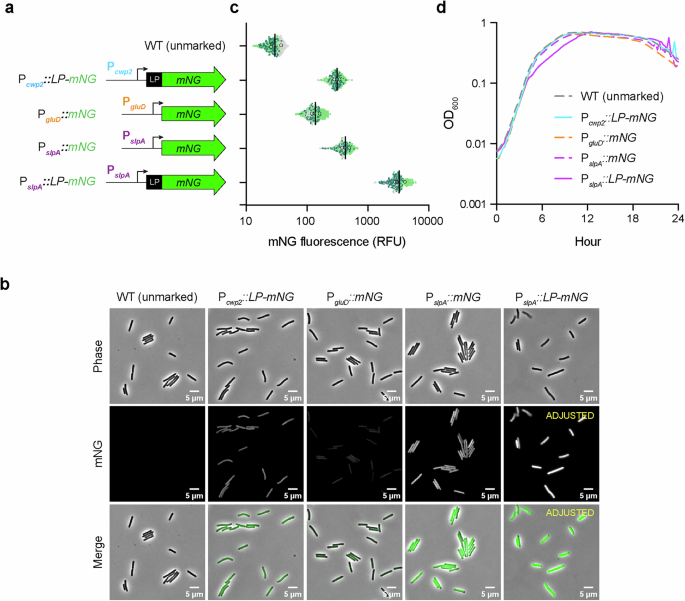

Fig. 1: Optimization of constitutive mNeonGreen reporters. — **Fig. 1: Optimization of constitutive *mNeonGreen* reporters.**

In parallel, we optimized spectrally compatible mScarlet-based constitutive reporters. While we previously generated P_cwp2::LP-mSc and P_slpA::LP-mSc reporter strains³², the recently developed mScarletI3 (mScI3) variant is ~3-fold brighter and matures more rapidly than mScarlet³⁴. Notably, replacing the mSc reporter with the mScI3 reporter increased fluorescence by 6-fold for the P_cwp2 constructs (Fig. 2a–c). In the course of cloning the P_cwp2::LP-mScI3 construct, we serendipitously determined that a G228R substitution enhanced the brightness of mScI3 in C. difficile by 2-fold (Fig. 2c). Expressing mScI3 under the control of P_slpA without the leader peptide sequence increased the mean fluorescence by ~3-fold and led to more uniform fluorescence than the mSc reporters, likely because mScI3 matures faster than mSc³⁴. Similar to our findings with the mNG reporter, the P_gluD::mScI3 construct was the dimmest of the three promoter constructs tested (Fig. 2b, c). Importantly, high-level mSc or mScI3 expression had minimal impact on bacterial growth even for the P_slpA-driven constructs (Fig. 2d).

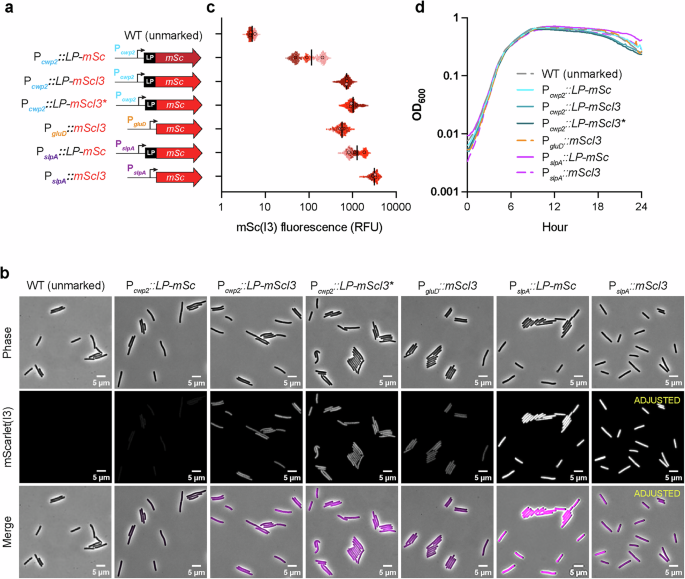

Fig. 2: Optimization of constitutive mScarlet(I3) reporters. — **Fig. 2: Optimization of constitutive *mScarlet*(I3) reporters.**

Visualization of constitutive C. difficile fluorescent reporter strains in vivo

Having identified mNG and mScI3 reporter constructs that allow for stable, robust fluorescence in vitro, we next tested whether the constitutive reporter strains could be visualized during murine infection. Eight-week-old antibiotic-treated, female C57BL/6 mice were orally gavaged with 1 × 10⁶ C. difficile spores derived from reporter strains. Infected mice were sacrificed 48 h post-infection, when peak disease severity is typically observed³⁵. Colonic tissues were harvested, embedded in OCT, and cryosectioned into 10 µm slices (Fig. 3a). Individual cells of the P_gluD::mNG and P_slpA::mNG reporter strains were readily seen (white arrows) in the colonic sections, with P_slpA::mNG being the brighter reporter (Fig. 3b), whereas the P_cwp2::mNG reporter strain was not reliably visualized (Supplementary Fig. 1). Individual cells of all three mScI3 reporter strains were also readily detectable, with the mScI3 reporters providing a better signal-to-noise ratio than the mNG reporters due to lower levels of autofluorescence from plant fiber in the red channel.

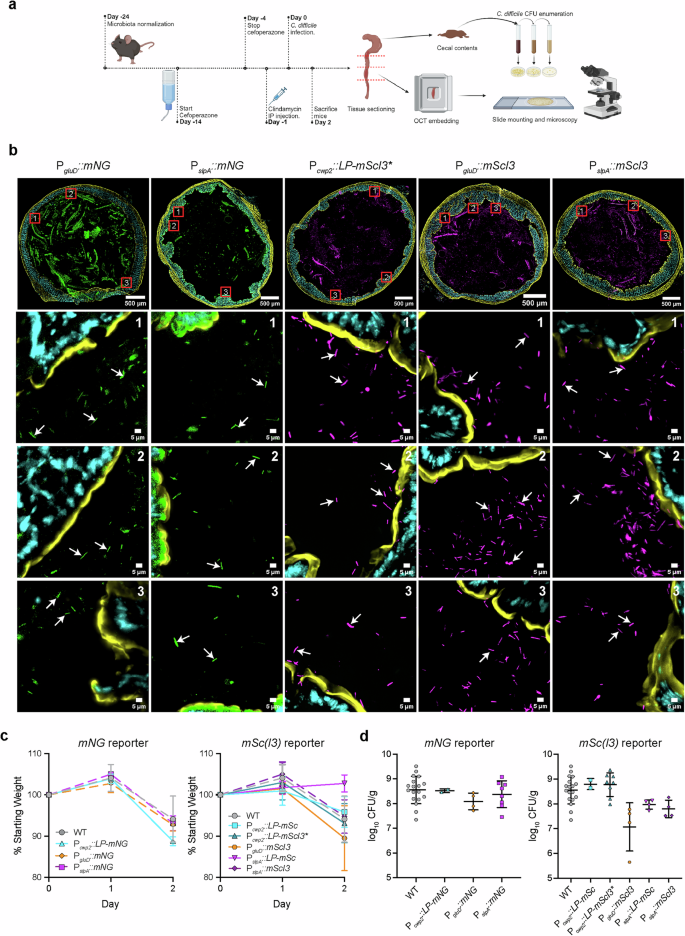

Fig. 3: Validation of mNeonGreen and mScarlet(I3) reporters in vivo. — **Fig. 3: Validation of *mNeonGreen* and *mScarlet(I3*) reporters in vivo.**

Similar to a prior report imaging C. difficile during murine infection using FISH³⁶, we found that most C. difficile cells were luminal, although cells in close association with the epithelium were readily detected, in contrast with this prior report³⁶. C. difficile cells were also frequently found within a distinct border >50 µm above the epithelial layer (identified based on phalloidin staining); this localization was defined as mucosal (Fig. 3b). However, we were unable to directly visualize the mucus layer in these sections because preserving the mucus layer requires methacarn fixation, but this fixation method interferes with the fluorescence of the reporters^37,38. Importantly, we observed these spatial distributions in multiple mice and multiple samples per mouse.

To ensure that the reporter strains were still capable of causing disease, we monitored the percent weight change of mice infected with mNG and mSc(I3) reporter strains relative to WT over the 48-h infection period, as well as their colonization levels in the cecum at the time of tissue harvest. Notably, the mNG strains caused similar levels of weight loss in mice (Fig. 3c) and colonized to similar levels as WT (Fig. 3d), indicating that the reporter constructs did not impair the infection process. Similar results were observed with mSc(I3) reporter strains, except that the P_slpA::LP-mSc reporter strain failed to cause disease (Fig. 3c) and P_gluD::mScI3 and P_slpA::LP-mSc(I3) strains colonized at ~10-fold lower levels than WT (Fig. 3d).

Identification of mNeonGreen and mScarletI3 reporter strains with WT fitness in vivo

We next measured the fitness of mScI3 reporter strains capable of causing disease relative to WT by infecting mice with 50:50 mixes of WT and the P_cwp2::LP-mScI3*, P_gluD::mScI3, or P_slpA::mScI3 reporter strains. Competitive indices were determined based on the ratio of red fluorescent cecal CFUs to WT non-fluorescent cecal CFUs. The P_cwp2::LP-mScI3* and P_gluD::mScI3 strains exhibited equal fitness relative to WT, whereas the P_slpA::mScI3 strain had a slight fitness defect (~3-fold, Fig. 4a). Similar levels of weight loss and colonization were observed for the competition infections as for the WT single-strain infection (Fig. 4b, c), except that the P_gluD::mScI3 vs. WT and P_slpA::mScI3 vs. WT competitions colonized to ~5–10-fold lower levels.

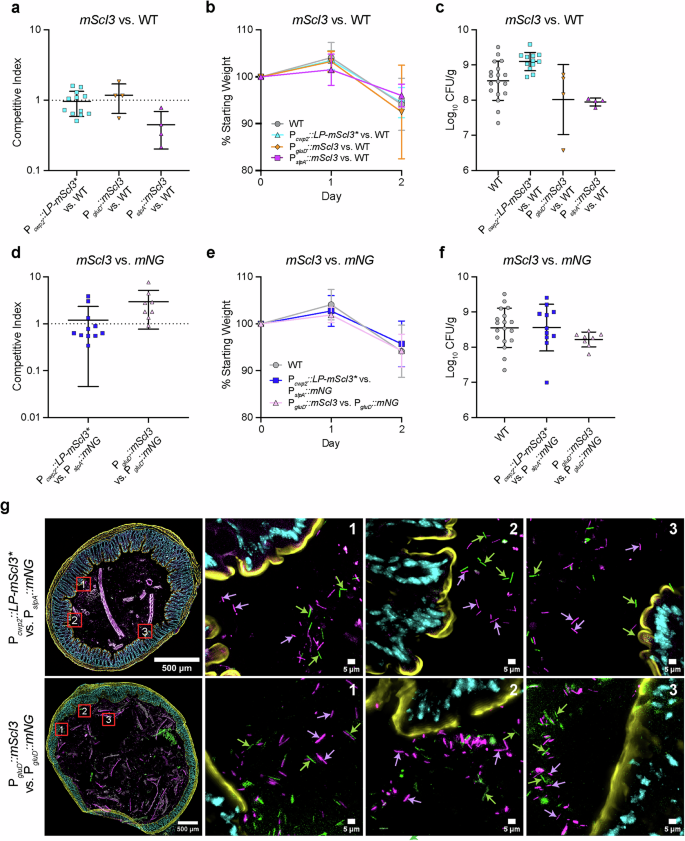

Fig. 4: Relative fitness of mNeonGreen and mScarletI3 reporter strains in vivo. — **Fig. 4: Relative fitness of *mNeonGreen* and *mScarletI3* reporter strains in vivo.**

Since the auto-fluorescent nature of C. difficile in the green channel made it difficult to detect mNG-positive CFUs in a plate reader-based assay, we were unable to directly compare the fitness of mNG reporter strains to WT. Instead, we determined the relative fitness of P_slpA::mNG and P_gluD::mNG to P_cwp2::LP-mScI3* and P_gluD::mScI3 reporter strains, respectively (Fig. 4d). Similar levels of weight loss and colonization were observed for the competition infections as with the WT infections alone (Fig. 4e, f). Similar fitness levels were observed for P_cwp2::LP-mScI3* and P_slpA::mNG strains, whereas the P_gluD::mScI3 strain had a ~ 4-fold fitness advantage over P_gluD::mNG (Fig. 4d). While the P_gluD::mScI3 and P_gluD::mNG reporter strains did not exhibit the highest fluorescence, we nevertheless determined their relative fitness in parallel with the P_cwp2::LP-mScI3* and P_slpA::mNG reporter pair to provide another potential option if the latter strain pair had a fitness defect.

Importantly, mScI3 and mNG reporter cells were readily detected in colonic sections, and they exhibited equivalent spatial distributions in the lumen and close to the colonic epithelium, with green and magenta cells being similarly intermixed in these microenvironments (Fig. 4g). However, it was more challenging to detect the P_gluD::mNG strain because its signal is weaker relative to P_slpA::mNG (Fig. 4g). Taken together, these analyses identified P_cwp2::LP-mScI3* and P_slpA::mNG reporters as the best red and green constitutive reporter strains to visualize during infection.

Development of dual reporter strains for visualizing phenotypic heterogeneity in toxin gene expression in situ during C. difficile infection

We next combined our optimized constitutive reporters with a toxin gene reporter to visualize the subset of cells expressing toxin genes in situ during infection. Specifically, we generated a dual reporter strain carrying the constitutive P_cwp2::LP-mScI3 reporter with a toxin gene-specific mNG reporter that we previously constructed, P_tcdA::mNG³². The reporters were integrated into the chromosomes of WT, ∆tcdR, and ∆rstA strains at a neutral locus to assess the ability of the reporter system to read out toxin gene expression at the single-cell level. TcdR is the toxin gene-specific sigma factor that activates toxin gene expression, so toxin gene expression is essentially null in a ∆tcdR strain in vitro^32,39. Conversely, RstA is a negative regulator of toxin gene expression, so a ∆rstA strain over-expresses toxin genes⁴⁰ and exhibits a higher frequency of toxin gene expression in vitro³².

We first validated the bimodal nature of toxin gene expression in the dual reporter strains after overnight growth in TY broth (Fig. 5a; dual reporter strains are designated with an * from herein). While the constitutive mScI3 reporter exhibited uniform fluorescence regardless of strain background (Fig. 5b), tcdA toxin gene expression was phenotypically heterogeneous, being observed in ~20% of cells in the WT* background (Fig. 5c, d). Toxin gene expression was ~2-fold higher (67%) and more frequent in the ∆rstA* strain than in WT* (Fig. 5c, d), consistent with our prior analyses of toxin gene expression with single reporter strains³². To verify that the transcriptional reporters did not alter toxin production and that the toxin gene reporter fluorescence accurately reflects toxin production, western blot analyses were performed on cultures grown to the stationary phase in TY broth. These blots confirmed that the abundance of TcdA was unchanged in the reporter strains and that the fluorescent signal intensity correlated with protein concentration (Supplementary Fig. 2a, b).

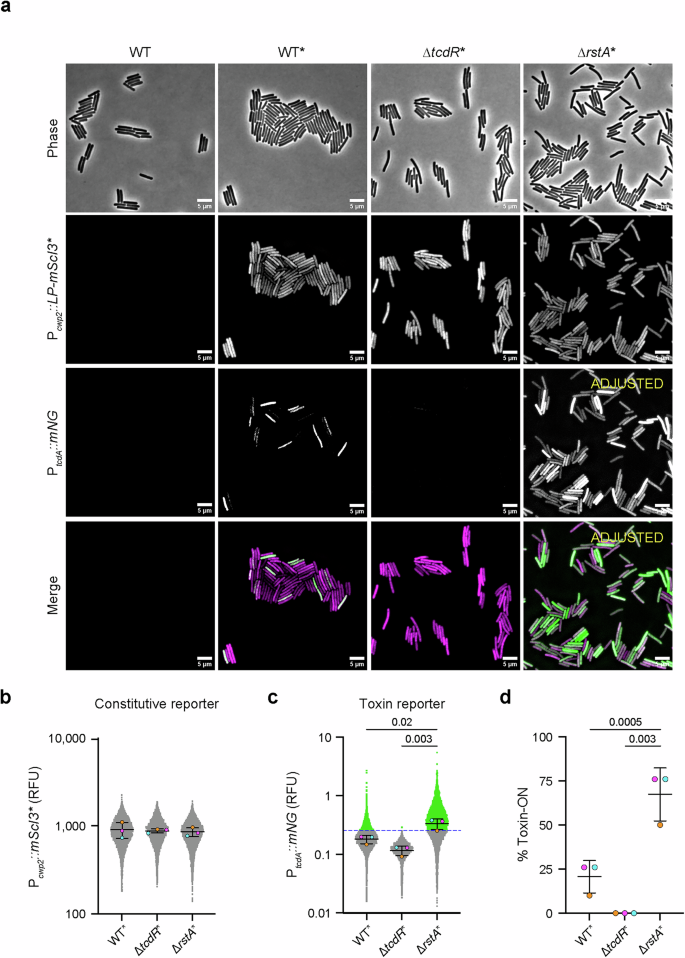

**Fig. 5: Toxin gene expression in dual reporter strains during growth in broth culture.**

When the dual reporter strains were used to infect mice, WT* and ∆tcdR* colonized to similar levels, whereas ∆rstA* colonized at ~4-fold lower levels than WT* on Day 2 post-infection (Fig. 6a). Despite this reduced colonization level on Day 2, the ∆rstA* reporter strain nevertheless caused more weight loss in mice than the WT* reporter strain and unmarked WT strain (Fig. 6b). This virulence phenotype is consistent with prior work showing that an rstA mutant strain causes greater disease in hamsters, likely due to its higher toxin production, and colonizes to lower levels⁴¹. As expected, the ∆tcdR strain failed to cause weight loss (Fig. 6b).

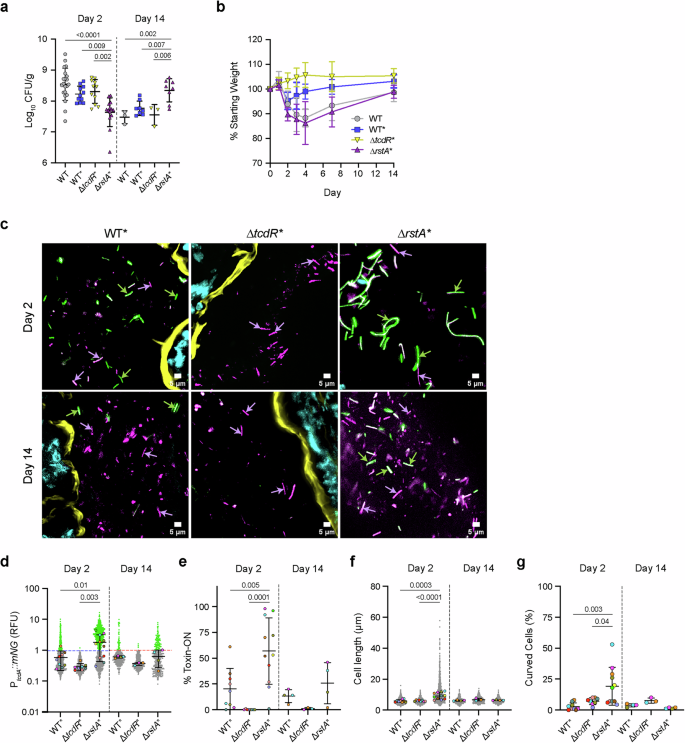

Fig. 6: In situ analyses of phenotypic heterogeneity in toxin gene expression during murine infection reveal that a toxin gene-overexpressing mutant forms filaments during the acute phase of infection.

To determine whether the reduced cecal CFU levels observed with the ∆rstA* reporter strain were specific to acute infection or whether this strain exhibits colonization defects at later time points, we analyzed the infection dynamics of the dual reporter strains over the course of a 14-day infection. While the WT* and ∆rstA* reporter strain and the unmarked WT strain caused similar levels of weight loss on Day 2, ∆rstA* and the unmarked WT strains caused greater weight loss during peak disease severity between days 2 and 4 (10–20% of initial body weight) than the WT* reporter strain, which started to regain weight on Day 3 post-infection (Fig. 6b). Notably, by Day 14, the ∆rstA* reporter strain achieved ~4-fold higher colonization levels than both WT strains tested (p < 0.01), despite colonizing at lower levels on Day 2 (Fig. 6a, p < 0.01).

Since the WT* reporter strain caused less weight loss than the unmarked WT strain on Days 3 and 4 post-infection, we sought to assess whether the ∆rstA* reporter strain behaves differently from its unmarked parental ∆rstA strain by analyzing the weight loss of unmarked ∆rstA and an ∆rstA/rstA complementation strain. Importantly, the ∆rstA dual reporter strain caused similar levels of weight loss as the unmarked strains, indicating that the dual reporter does not affect the virulence of the ∆rstA strain. (Supplementary Fig. 3b).

To analyze toxin gene expression in the dual-reporter strains in colonic sections collected on Days 2 and 14 post-infection, we normalized the toxin gene expression fluorescence (P_tcdA::mNG) to the constitutive P_cwp2::LP-mScI3* fluorescent signal observed within the same cell. This normalization provided a more uniform and accurate measure of fluorescence, correcting for variations caused by cells that were slightly out of focus within the image. When we compared the magnitude of toxin gene expression in the subset of cells identified as Toxin-ON, the ∆rstA* reporter strain expressed toxin genes at ~1.6-fold higher levels on average than the WT* reporter strain on Day 2 (Fig. 6d). Interestingly, the average magnitude of toxin gene expression for Toxin-ON cells was lower on Day 14 for the ∆rstA* strain relative to Day 2. While Day 2 and Day 14 samples were harvested from different mice due to the endpoint nature of the assay, this trend was observed in two independent experimental infections (Fig. 6d). In contrast, there was little change in the magnitude of toxin gene expression for WT* cells between Day 2 and Day 14, although there was a slight decrease in the proportion of WT* cells expressing toxin genes on Day 14 (Fig. 6d, e). In both the WT* and ∆rstA* strains, toxin gene expression was found to be heterogeneous during infection (Fig. 6c, d, e), with a higher proportion of ∆rstA* reporter strain cells expressing toxin genes than WT* at Day 2 (57% vs. 20%, respectively, Fig. 6e), similar to our in vitro analyses (Fig. 5). As expected, the constitutive mScI3* reporter signal remained consistent across the dual reporter strains and between days 2 and 14 (Supplementary Fig. 4).

To address the possibility that C. difficile autofluoresces in the mNG or mScI3 channel or that autofluorescent debris in the gut might be mistaken for C. difficile, we infected mice with an unmarked WT strain. Tissues were harvested, processed, and imaged identically to infections with fluorescently tagged strains. Importantly, we did not observe autofluorescence of C. difficile in the mNG channel, suggesting that metabolites contributing to autofluorescence in C. difficile are not utilized during growth in the gut⁴². In addition, we only observed, on average, a few instances per section where fluorescence in the mScI3* channel could be mistaken for a C. difficile cell (Supplementary Fig. 5). Given that >1000 cells are readily visible in a given cross-section (using the constitutive P_cwp2::mScI3* reporter construct), these rare “cells,” which are <0.5% of the population analyzed, do not meaningfully affect the final data analysis. Nonetheless, it is critical to include an unmarked control to assess the degree to which non-specific debris might be mistaken for C. difficile cells during image analysis.

Relationship between toxin gene expression and spatial localization during infection

Since toxin production changes the metabolic environment surrounding C. difficile by liberating nutrients close to the epithelium⁴³, we asked whether toxin production impacts the localization of C. difficile within the colon. We found that the ∆tcdR* strain exhibited similar spatial distributions in colonic sections relative to WT* and ∆rstA* strains, with ∆tcdR being readily observed close to the epithelium (Fig. 6c, Supplementary Fig. 6). Thus, higher toxin gene expression does not appear to affect the proximity of C. difficile cells to the epithelium, at least under the conditions analyzed.

Since toxin gene expression is responsive to many environmental inputs³⁹, we assessed whether the magnitude and proportion of toxin gene-expressing cells are spatially or temporally regulated during infection. To this end, we grouped cells into three spatial categories, the lumen, mucosa, or epithelium, and measured the fluorescence of the P_tcdA::mNG reporter and quantified the magnitude and frequency of toxin gene expression (Fig. 7, Supplementary Fig. 7). These analyses revealed that neither the proportion of toxin gene-expressing cells nor the magnitude of their gene expression is affected by the proximity of C. difficile to the epithelium (Fig. 7, Supplementary Fig. 7).

**Fig. 7: Spatial distribution of toxin gene expression during murine infection.**

Discovery of a filamentous cell morphology during acute infection by a mutant that over-expresses toxin genes

While no differences in the spatial distribution of C. difficile were observed between the WT*, ∆tcdR*, and ∆rstA* strains, we nevertheless discovered that the ∆rstA strain frequently forms curvy, filamentous cells on Day 2 (Fig. 6c, f, g Supplementary Fig. 6). Indeed, the ∆rstA* reporter strain was ~1.5-fold longer on average than the WT* or ∆tcdR* reporter strains, with some cells exceeding 50 µm. Notably, ∆rstA* cells were more likely to be curved (19%) compared to WT* (3%) and ∆tcdR* (7%) on Day 2, when peak weight loss is often observed (Fig. 6f, g). However, by Day 14, the percentage of curved ∆rstA* cells decreased to 1.5%, which was similar to WT (Fig. 6g).

Since the abnormal cell morphologies observed for the ∆rstA* reporter strains could be due to the over-expression of mNG in ∆rstA* cells during peak infection, we analyzed the morphology of a ∆rstA strain expressing only the constitutive mScI3 reporter (Supplementary Fig. 8). The ∆rstA single constitutive reporter strain was shorter than the ∆rstA* dual reporter strain, but it was ~15% longer on average than the WT single reporter strain, although this difference was not statistically significant (Fig. 6f, Supplementary Fig. 8a, One-way ANOVA F(5, 37) = 9.01, p < 0.0001, R² = 0.549. ΔrstA* vs ΔrstA single reporter (mean difference = 1.72, 95% CI [−0.79, 4.22], Tukey-adjusted p = 0.329). WT and ΔrstA single reporter (mean difference = −1.05, 95% CI [−3.99, 1.88], Tukey-adjusted p = 0.887)). Notably, the ∆rstA single reporter strain showed a trend toward forming more curved cells relative to the WT single reporter strain, similar to analyses of the ∆rstA dual reporter strain to WT and ∆tcdR dual reporter strains (Supplementary Fig. 8b).

To assess if over-expression of the toxin genes alone, irrespective of the toxin gene reporter, contributes to the increase in elongated and/or curved cells, we compared the cell morphologies of a ΔrstAΔtcdR* dual reporter strain to the ∆rstA single constitutive gene reporter and ∆rstA* dual reporter strains. While the ΔrstAΔtcdR* dual reporter strain colonized to similar levels as the unmarked WT strain and did not induce weight loss in mice (Supplementary Fig. 3a, b), the double mutant strain produced cells that were slightly shorter and less curved than the ΔrstA single reporter strain and significantly shorter than the ∆rstA* dual reporter cells (~1.3-fold, ΔrstA* vs ΔrstAΔtcdR*: mean difference = 2.16, 95% CI [0.37, 3.95], p = 0.010) on average (Supplementary Fig. 8a). While this altered morphology appears to be linked to high-level toxin gene expression, it does not appear to be the sole driver of this phenotype because cells expressing P_tcdA::mNG to high levels were more likely to be elongated in the ∆rstA strain background, whereas in the WT background, these cells were more likely to be shorter in the WT strain (Supplementary Fig. 9). Thus, while high-level mNG production exacerbates the morphological changes in the ∆rstA reporter strain, it is not solely responsible for the morphological abnormalities observed with the ∆rstA mutant on Day 2 of infection. These data imply that loss of RstA, irrespective of toxin gene expression, contributes to the curvy, elongated cell morphology observed in the ∆rstA strain backgrounds during the acute stages of infection.

Since the elongated morphology of the ∆rstA* strain was only observed during the acute stage of infection, we sought to determine whether different phases of growth in vitro or minimal media conditions could also induce this phenotype. To this end, we grew WT, ∆tcdR, and ∆rstA dual reporter strains in nutrient-rich TY or minimal CDDM media and imaged cells at mid-log or stationary phase. No morphological differences across strains or conditions were detected (Supplementary Fig. 10a, b), and the magnitude and frequency of toxin gene expression in each strain were similar within growth phases across different media conditions (Supplementary Fig. 10c). Thus, the abnormal morphology of the ∆rstA* strain appears to be specific to the acute phase of murine infection.

Discussion

Phenotypic heterogeneity allows bacteria to maximize their fitness in dynamic environments⁴⁴ such as those found in the gut^15,45, but it has been challenging to image this heterogeneity at the single-cell level in the dense colonic environment in situ. Here, we developed chromosomally encoded, spectrally compatible fluorescent reporters that allow us to visualize the subset of C. difficile cells expressing toxin genes in situ during murine infection. Moreover, our approach could be applied to study heterogeneity in gene expression in situ for the many colonization and virulence factors that C. difficile expresses in a bimodal manner^25,32,33,46.

Our analyses also advance our understanding of the spatial and temporal dynamics of toxin gene expression during C. difficile infection. First, they revealed that, while C. difficile is primarily a luminal pathogen, a sub-population is proximal to the epithelial layer, and a minority of this sub-population directly interacts with the epithelium (Figs. 3–7). Second, they demonstrated that a cell’s location relative to the colonic epithelium does not affect the magnitude or frequency of toxin gene expression, and toxin gene expression does not grossly affect where C. difficile is localized within the colon (Fig. 7, Supplementary Fig. 7). Third, they showed that the frequency and magnitude of toxin gene expression does not change over time, except in the ∆rstA strain, where toxin genes were expressed at lower levels and less frequently 14 days post-infection compared to 2 days post-infection within this strain background (Fig. 6d, e). This could represent an adaptation by the ∆rstA strain or a selection for cells expressing toxin genes at lower levels.

Based on these observations, C. difficile likely uses heterogeneity in toxin gene expression as a bet-hedging strategy to partition the metabolically intensive task of toxin production so that non-toxin-producing cells, and ultimately the entire population, can benefit^25,45,47. Specifically, the ability of toxin-producing cells to damage the host epithelium and release nutrients likely benefits non-toxin-producing cells by freeing this sub-population from the metabolic costs of toxin synthesis. Non-toxin-producing cells may then allocate resources toward processes such as specific metabolic programs or sporulation, a critical step in disease dissemination. Indeed, we previously reported a division of labor between toxin production and sporulation during the growth of C. difficile under certain conditions in vitro³². Consistent with this hypothesis, the ∆rstA mutant’s reduced colonization levels (Fig. 6a) could suggest that overproducing toxin decreases C. difficile’s ability to expand in the gut during the acute phase. Alternatively, it may also reflect filamentous cells producing fewer colonies on a plate. Regardless, given RstA’s multiple roles in regulating sporulation, toxin production, and motility^40,41, testing our hypothesis would require mutants that independently overexpress toxin genes.

Our analyses also highlight a key benefit of localizing bacteria at the single-cell level in situ because we serendipitously discovered that the ∆rstA strain adopts a filamentous, curved morphology specifically during the acute phase of infection. This abnormal morphology may be due to stressful conditions encountered during this infection phase because ∆rstA cells grown in TY or minimal media broth exhibit WT cell morphology despite expressing toxin genes (and the mNG reporter gene) to high levels (Supplementary Fig. 10). The specific conditions responsible for this phenotype remain unclear, but stressors that are present during infection, such as oxidative stress, induce DNA replication arrest through C. difficile’s SOS response, which can cause cell filamentation⁴⁸.

Notably, our identification of spectrally compatible constitutive reporter strains with equivalent fitness (P_cwp2::LP-mScI3* and P_slpA::mNG) will enable future studies focused on identifying genes that impact the relative spatial distribution of C. difficile cells in the colonic epithelium. Indeed, our analyses are the first to show that a subpopulation of C. difficile is found in close proximity to the epithelium (Figs. 3–7). This previously unappreciated subpopulation may be important for delivering C. difficile’s toxins more efficiently to their receptors or for establishing biofilms that promote recurrent infections. In addition, the epithelium-associated subpopulation could be responsible for generating spores that are more readily taken up by epithelial cells, which can serve as a reservoir for seeding recurrent infections⁴⁹. Moreover, since genes important for this localization to the epithelium remain unknown, our reporter system should facilitate the identification of these genes by analyzing the relative distribution of mScI3 and mNG reporter strains in different mutant backgrounds during single or competitive infections. The constitutive reporter pairs can also be used to analyze founder effects^17,50, such as whether avirulent strains can outcompete virulent strains by inhabiting different spatial niches at early stages of infection⁵¹ or whether two strains exhibit different distributions during long-term colonization or recurrent infections.

The spectrally compatible reporters that we have optimized for use in C. difficile may also enable analyses of the division of labor between phenotypically heterogeneous traits, such as the overlap between toxin gene-expressing and sporulation-inducing cells, which we previously showed can occur under certain growth conditions in the lab³². However, addressing this particular possibility will require the development of alternative methods for visualizing all C. difficile cells, such as a constitutive reporter that fluoresces in the blue channel or an antibody that exclusively recognizes C. difficile in the gut environment. Unfortunately, FISH approaches are unlikely to be compatible with the fluorescent proteins optimized here due to the permeabilization and denaturing steps often needed to allow DNA probe access⁵². We attempted to use genetically encoded fluorescent proteins with greater stability, like StayGold⁵³, hfYFP⁵⁴, and GreenLantern⁵⁵, in C. difficile, but they did not exhibit sufficient fluorescence in C. difficile to proceed to animal studies. A similar limitation of our fluorescent reporter system is its incompatibility with standard methods for visualizing mucins, which require methacern fixation³⁸. Additionally, there are challenges in visualizing a non-adherent bacterium like C. difficile within colonic sections; for example, C. difficile is more reliably visualized in tissue sections with a fecal pellet. Another potential limitation is the use of weight loss as a relatively indirect indicator of infection, as it can be influenced by multiple factors beyond toxin abundance. Including additional measures of pathogenicity could provide greater insight into factors affecting disease progression.

Regardless, since promoters in other clostridia are efficiently used in C. difficile and vice versa^{56,57,58,59,60}, our approach opens the door for investigating not only the spatial and temporal regulation of gene expression during infection by C. difficile but also other clostridial organisms that modulate gut health or disease. Given the critical role of clostridial organisms in maintaining gut health⁶¹, the ability to analyze the spatial and temporal dynamics of their colonization and gene expression will enable mechanistic insights into their impacts on the gut microbiome and human health.

Methods

All animal studies were done with prior approval from the Tufts Institutional Animal Care and Use Committee (IACUC protocol #B2024-30).

Bacterial strains and growth conditions

All C. difficile strains used for this study are listed in Supplementary Table 1. All constructed strains derive from the sequenced clinical isolate 630, with the erythromycin-sensitive 630∆erm∆pyrE serving as the parental strain for all strain constructions using pyrE-based allele-coupled exchange (ACE)⁶². Strains were grown on brain heart infusion supplemented with yeast extract and cysteine (BHIS); taurocholate (TA; 0.1% [wt/vol]; 1.9 mM), cefoxitin (8 mg/mL), thiamphenicol (10 to 15 mg/mL), and kanamycin (50 mg/mL) were added as needed. For ACE, the C. difficile defined medium (CDDM)⁶³ was supplemented with 5-fluoroorotic acid (5-FOA; 2 mg/mL) and uracil (5 mg/mL). All C. difficile strains were first grown overnight from glycerol stocks on BHIS plates supplemented with TA (0.1% [wt/vol]).

Escherichia coli strains used for HB101/pRK24-based conjugations are listed in Supplementary Table 1. E. coli strains were grown at 37 °C with shaking at 225 rpm in Luria-Bertani (LB) broth. The medium was supplemented with ampicillin (50 mg/mL) and chloramphenicol (20 mg/mL) as needed.

C. difficile strain construction

Single-reporter strains were generated by conjugating HB101 carrying pMTL-YN1C plasmids into ΔpyrE-based strains using ACE. To generate dual-reporter strains, constitutive reporters were introduced downstream of the sipL locus of 630∆erm∆pyrE, 630∆erm∆tcdR∆pyrE, or 630∆erm∆rstA∆pyrE using ACE and pMTL-YN3-P_cwp2::LP-mScarlet(I3). The second reporter, P_tcdA::mNeonGreen, was then introduced into the pyrE locus of the resulting strains using pMTL-YN1C-P_tcdA::mNeonGreen. At least two clones of each strain generated by allelic exchange were phenotypically characterized prior to restoration of the pyrE locus using pMTL-YN1C. All primer sequences can be found in Supplementary Table 2.

Growth curves

C. difficile cultures were grown in 2 mL BHIS medium to the stationary phase and then were back-diluted 1:50 in 2 mL BHIS and grown until an OD₆₀₀ of 0.5 was reached. All strains were normalized to an OD₆₀₀ of 0.5 if growth rates varied. Next, strains were diluted into 200 µL of BHIS broth in a 96-well plate to a starting OD₆₀₀ of 0.05. Each strain was grown in technical triplicate alongside BHIS blanks. Plates were read in an Epoch plate reader (BioTek) in the anaerobic chamber with OD₆₀₀ readings performed every 15 min after a 2-min linear shake. For in vitro toxin visualization, C. difficile cultures were grown in 2 mL TY broth to mid-log phase, then back-diluted 1:50 in 2 mL TY and grown overnight, followed by fixation and microscopy.

Cell fixation of broth-grown cultures

Cells were grown to mid-log phase in BHIS broth or to stationary phase in TY broth overnight. Next, 500 μL of culture was added directly to a tube containing 120 μL of a 5× fixation cocktail (100 μL of 16% [wt/vol] paraformaldehyde aqueous solution [methanol-free]) and 20 μL of 1 M NaPO₄ buffer (pH 7.4). The samples were mixed and incubated aerobically for 30 min at room temperature in the dark, followed by 30 min on ice in the dark. The fixed cells were washed 3 times in phosphate-buffered saline (PBS) and resuspended in 500 μL (depending on the density of the culture). Two μL of fixed cells were spotted onto a 1.5% agarose pad. Once the spot of cells was dry, a coverslip was added to seal the slide, and the slide was incubated at 37 °C for 2 h to allow for fluorophore maturation before imaging.

Western blots

Cells were grown to the stationary phase, and 3 mL of culture was then lysed by freeze-thawing. 20 μL of lysate was then loaded onto a 7.5% SDS-PAGE gel. Proteins were transferred to polyvinylidene difluoride membranes, which were subsequently probed with mouse (anti-TcdA, 1 mg/mL, 1:5000 dilution, Novus Biologicals) and chicken (anti-glutamate dehydrogenase, 2 mg/mL (1:10,000 dilution, Thermo Scientific) primary antibodies, followed by goat anti-mouse IR680 and donkey anti-chicken IR800 (LI-COR Biosciences, 0.5 mg/mL 1:30,000 dilution) secondary antibodies, respectively. Blots were imaged using a LiCor Odyssey CLx imaging system. The results shown are representative of multiple experiments.

Murine infections

All mouse experiments were performed under the guidance of veterinary staff within the Tufts Comparative Medicine Services (TCMS) core. Seven-week-old female C57BL/6 cage-mate mice (Jackson Laboratory) were housed together in a large sterile rat cage to allow microbiota normalization over a 10-day period. Mice were fed irradiated Lab Diet 2918 throughout. After 10 days, cefoperazone (0.5 mg/mL) was added to the drinking water, which was provided ad libitum for another 10 days. Mice were then returned to sterile drinking water for 2 days before receiving a single intraperitoneal injection of clindamycin (10 mg/kg in 200 µL), prepared in 1× PBS and filter-sterilized.

Twenty-four hours after clindamycin administration, mice were moved from the large rat cage into smaller mouse cages, housing 4 mice per cage, and were inoculated via oral gavage with 1 × 10⁶ C. difficile spores in 200 µL of 1× PBS. At the time of oral gavage, baseline weights were recorded by transferring mice using large forceps into sterile plastic Nalgene cups and weighing them on a digital scale inside a biosafety cabinet.

Following inoculation, mice were monitored daily and weighed using the same procedure for either 2 or 14 days. At the experimental endpoint, mice were euthanized by isoflurane anesthesia followed by cervical dislocation. Tissues were collected as needed.

CFU enumeration

Upon sacrifice, cecal contents were collected into pre-weighed 1.5 mL Eppendorf tubes for C. difficile biomass quantification. The tubes were reweighed to calculate the mass of the collected content. Tubes were then transferred into an anaerobic chamber, where 1 mL of pre-reduced 1× PBS was added to each to resuspend the cecal content. After thorough homogenization, 10 µL of the suspension was added to 90 µL of 1× PBS in the first well of a 96-well plate to begin a series of seven 10-fold serial dilutions. For each subsequent dilution, 10 µL was transferred into 90 µL of PBS in the next well, mixing thoroughly at each step. From each dilution, 5 µL was spotted onto TCCFA plates to select for C. difficile. Plates were incubated for 24 h in the anaerobic chamber, after which colony-forming units (CFUs) were counted and normalized to the mass of the original cecal content.

Competition assays

Mice were infected with a total of 1 × 10⁶ C. difficile spores, consisting of a 1:1 mixture of two strains: either wild-type and a fluorescent reporter strain, or two distinct fluorescent reporter strains (mNeonGreen and mScarlet-I3). Infections were performed as described above, and mice were sacrificed 48 h post-infection. Cecal contents were collected, weighed, and processed by resuspending in 1 mL of 1xPBS in the anaerobic chamber. Once the pellet was completely resuspended, ten-fold serial dilutions were prepared, and 100 µL of dilutions 4–7 were plated onto TCCFA plates to select for C. difficile.

After 24 h of anaerobic incubation, single colonies were picked using a pipette tip and resuspended in 200 µL of 1× PBS in 96-well plates (one plate per mouse). Plates were incubated at 37 °C for at least 1 h to allow fluorophore maturation. Fluorescence was then measured using a Synergy H1 Microplate Reader (excitation: 570 nm, emission: 600 nm). Wells with a positive fluorescence signal were identified as mScarlet-I3-expressing colonies, while wells lacking a signal represented either wild-type or mNeonGreen-expressing colonies. The ratio of mScarlet-I3 to mNeonGreen colonies recovered from each mouse was normalized to the input spore ratio.

Mouse colon tissue preparation

After mice were sacrificed, the entire colon was removed and placed into a 4% wt/vol paraformaldehyde and 1x PBS solution for 4 h. Following the 4-h tissue fixation, cross-sections of tissue were prepared by cutting 5 mm transverse rings. The tissues were then placed in O.C.T. Compound (Tissue-Tek) in Seal’N Freeze Cryotray tissue cassettes (Electron Microscopy Sciences) and flash frozen in a dry ice 100% ethanol bath. Frozen blocks were then processed by the Tufts Animal Histology Core, where 10 μm sections were cryosectioned and mounted to slides. Any remaining tissue that was not embedded was placed in 1x PBS for long-term storage. Mounted slides were kept at −80 °C until they were ready to be stained and imaged.

Staining mouse colon slides

Mounted slides were removed from the freezer and placed on the bench at room temperature for 30 min, and then an ImmEdge Pen (Vector Laboratories) hydrophobic marker was used to trace around the tissue sections to facilitate staining of the sections. Slides were blocked with blocking buffer (1x PBS, 3% BSA [w/v], 0.1% Triton X-100) for 30 min. Blocking buffer was then discarded, and stain containing blocking buffer, DAPI (100 ng/mL), and Phalloidin CruzFluor™ 647 (1:100) were added for 45 min. Following staining, slides were washed with blocking buffer 3X for 5 min before mounting with Prolong Diamond mounting medium. Slides were left to cure overnight at room temperature before imaging the following day.

Fluorescence microscopy

All images were acquired using a Leica DMi8 Thunder imager equipped with an HC PL APO 63×/1.4 numerical aperture (NA) phase-contrast oil immersion objective (in vitro microscopy) or an HC PL APO 20x/0.80 dry objective (mouse tissue sections). Excitation light was generated by a Lumencor Spectra-X multi-LED light source with integrated excitation filters. For all fluorescent channels, an XLED-QP quadruple-band dichroic beam-splitter (Leica) was used along with an external filter wheel (Leica). Phase-contrast images were taken with a 50-ms exposure time. mScarlet(I3) was excited at 550 nm (33% intensity) with 200 ms exposure time, a dichroic mirror at 570 nm, and the emitted light was filtered using a 595/40 nm emission filter (Leica). mNeonGreen was excited at 470 nm with a 300 ms exposure, a dichroic mirror at 419 nm, and the emitted light was filtered using a 515/40 nm emission filter. Emitted and transmitted light was detected using a Leica DFC 9000 GTC sCMOS camera. All strains for a given experiment were spotted and captured sequentially on the same agarose pad.

For imaging mouse colonic tissue, stained slides were imaged using the same Leica microscope as indicated above, using a 20x dry objective lens. DAPI stain for visualizing colonic epithelial cell nuclei was excited at 395 nm (10% intensity) with a 50-ms exposure, dichroic mirror at 415 nm, and emitted light was filtered using a 430/36-nm emission filter (Leica). The phalloidin F-actin stain was excited at 640 nm, a dichroic mirror at 660 nm, and the emitted light was collected at 720/50 nm. Cells containing either mScarlet(I3) or mNeonGreen fluorescent proteins were imaged as described above. 5 µm step sizes were used to image through the colon tissue.

Image analysis and quantification

After image acquisition, images were processed using Leica Instant Computational Clearing (ICC) to eliminate bleed-through of fluorescent signals into neighboring cells. The adaptive strategy was executed with a feature scale of 2500 nm and 98% strength. Following ICC, images were exported from Leica’s LASX software and further processed in FIJI. Specifically, images were cropped to remove out-of-focus regions, and the best-focused Z-plane was selected for each channel to correct for chromatic aberration.

Quantitative analysis of broth-grown cells was performed using the SuperSegger⁶⁴ pipeline in MATLAB with the provided 60× analysis settings. The resulting clist matrices, which contained single-cell data, were exported from MATLAB. For display purposes, image scaling was uniformly adjusted for brightness and contrast across all strains in each experiment (unless marked “ADJUSTED” on the image). At least three images per strain were captured in each replicate, and every strain was analyzed using three biological replicates, with image analysis performed on at least two positions per replicate.

To quantify the proportion and magnitude of C. difficile toxin gene expression in situ during infection, C. difficile cells were first identified using the mScarlet-I3 channel. Median fluorescence intensity for each cell was then measured in both the mScarlet-I3 and mNeonGreen channels. This approach minimizes selection bias by including all identified cells, not just those with the highest mNeonGreen signal. Individual cells were manually traced along their full length using segmented lines in FIJI. The P_tcdA::mNG signal for each cell was normalized to its corresponding P_cwp2::LP-mScI3* signal. This normalization reduced variability due to factors such as slight defocusing or occlusion by debris, which can artificially lower raw fluorescence values. For each experimental group, cross-sectional images of the colon were analyzed from at least three different mice. A minimum of 100 cells per image was measured.

To classify cells as “Toxin-ON,” the normalized mNeonGreen fluorescence from the toxin-null ∆tcdR dual reporter strain was used as a baseline. The highest fluorescence value observed in the ∆tcdR population was used as the threshold for Toxin-ON classification. Cells with fluorescence values exceeding this threshold were defined as Toxin-ON. Cells within the ∆tcdR population that were above the clustering of the datapoints were classified as Toxin-ON. Thresholds were determined independently for Day 2 and Day 14 post-infection. For spatial localization analysis, cells were categorized into three groups: luminal, mucosal, and epithelial. Luminal cells were defined as those located in the central lumen of the colonic cross-section. Mucosal cells formed a distinct border adjacent to the epithelium (>50 µm), as determined by F-actin phalloidin staining. Cells that were in direct contact with the epithelial layer, i.e., where the mScarlet-I3 signal co-localizes with phalloidin, were classified as epithelial-associated.

Cell curvature and length measurements

To assess cell curvature, segmented lines were manually drawn along the length of individual C. difficile cells using FIJI (ImageJ) based on the mScarlet-I3 fluorescence signal from reporter strains. The total length of each segmented line was recorded to represent the cell’s actual path length. X and Y coordinates of the cell endpoints were extracted and used to calculate the Euclidean distance between the two ends of each cell using a FIJI plugin. A curvature ratio was then calculated by dividing the total segmented length by the Euclidean distance. Cells with curvature ratios greater than 1.03 were classified as curved.

Statistics and reproducibility

No statistical method was used to predetermine sample size. No data were excluded from the analyses. All in vitro experiments were done a minimum of three times. Mouse experiments with animals infected with the following strains consisted of the indicated replicates: P_gluD::mNG (1), P_gluD::mScI3 (1), P_slpA::mNG (2), P_slpA::mScI3 (1), P_cwp2::LP-mScI3 (2), WT vs P_cwp2::LP-mScI3 (2), WT vs P_gluD::mScI3 (1), WT vs P_slpA::mScI3 (1), P_cwp2::LP-mScI3 vs P_slpA::mNG (3), P_gluD::mScI3 vs P_gluD::mNG (2), WT unmarked (6), WT-P_cwp2::LP-mScI3 /P_tcdA::mNG (4), ΔtcdR-P_cwp2::LP-mScI3 /P_tcdA::mNG (3), ΔrstA-P_cwp2::LP-mScI3 /P_tcdA::mNG (5), ΔrstA-P_cwp2::LP-mScI3 (1), ΔrstA (1), ΔrstA/rstA (1), and ΔrstAΔtcdR-P_cwp2::LP-mScI3 /P_tcdA::mNG (1).

To quantify both the proportion and magnitude of C. difficile toxin gene expression in situ during infection, individual C. difficile cells were first identified using the mScarlet-I3 channel. For each identified cell, the median fluorescence intensity was then measured in both the mScarlet-I3 and mNeonGreen channels. This unbiased approach ensures that all detected bacteria are included in the analysis, rather than selectively focusing on cells with high mNeonGreen signal, thereby providing an accurate representation of toxin gene expression across the population.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Data used to generate graphs, exact P values from statistical analyses, and uncropped scans of blots can be found within the Supplementary Data/Supplementary Information file or source data file. Raw image files have been deposited in FigShare and can be accessed using the doi 10.6084/m9.figshare.29066990. Plasmids generated to make the strains in this article were deposited with Addgene and are available under the corresponding accession numbers: pMTL-YN1C Promoter-less mNeonGreen (Addgene ID: 251223), pMTL-YN1C P_tcdA::mNeonGreen (Addgene ID: 251224), pMTL-YN1C P_slpA::mNeonGreen (Addgene ID: 251225), and pMTL-YN1C P_cwp2::LP-mScI3 (G228R) (Addgene ID: 251226). E. coli and C. difficile strains described in this study are available upon request from the corresponding author. Source data are provided with this paper.

Code availability

No code was developed specifically for the analyses presented here. All software tools used for bioinformatic analyses are listed in the Methods.
