Identification of protein precursor for thyroid hormone synthesis in basal chordate ascidian Styela clava

Zhang, Jin; Yang, Likun; Beinsteiner, Brice; Ma, Yun; Wei, Jiankai; Yu, Haiyan; Laudet, Vincent; Dong, Bo

doi:10.1038/s41467-026-69290-7

Download PDF

Article
Open access
Published: 07 February 2026

Identification of protein precursor for thyroid hormone synthesis in basal chordate ascidian Styela clava

Nature Communications volume 17, Article number: 2463 (2026) Cite this article

3560 Accesses
1 Citations
1 Altmetric
Metrics details

Subjects

Abstract

Thyroid hormones (THs) are essential for development, growth, and metabolism in animals. Although TH synthesis is well described in vertebrates, it remains elusive in invertebrates due to the lack of identified thyroglobulin (TG) orthologs, the protein precursor for TH synthesis. Here, we identified a functional TG-like protein in ascidian Styela clava via immunoprecipitation-mass spectrometry combined with phylogenetic and expression analyses. In vitro iodination demonstrated that ScTG-like provides hormonogenic sites for TH synthesis. In vivo ScTg-like knockdown significantly reduced THs and inhibited larval metamorphosis. An invaginated follicle-like structure in the larval trunk, deposited with ScTG-like, was identified as the location for THs synthesis and storage. Furthermore, structural analysis of ScTG-like and predicted TG-like proteins across bilaterian phyla suggests that endogenous TH synthesis may be an ancestral and synapomorphic bilaterian trait. This study reports the identification of a TH precursor outside vertebrates, shedding lights on the evolution of the TH synthesis.

Cryo-EM structure of native human thyroglobulin

Article Open access 10 January 2022

Formation of thyroid hormone revealed by a cryo-EM structure of native bovine thyroglobulin

Article Open access 02 May 2022

Radix Scrophulariae regulates proliferation, apoptosis, and autophagy of rat thyroid cells via the MST1/Hippo signaling pathway

Article Open access 16 October 2025

Introduction

In vertebrates, thyroid hormone (TH) biosynthesis involves many essential proteins, the functions of which have been well described^1,2. Among them, thyroglobulin (TG) is the protein precursor of TH, serving as the highly specialized matrix for iodination of specific tyrosine residues to form monoiodotyrosine (MIT) and diiodotyrosine (DIT), and for their coupling to generate triiodothyronine (T3) or thyroxine (T4)^1,2. In all vertebrates, TG is a multi-domain protein with a high-molecular-weight (approximately 330 kDa)¹. It consists of a signal peptide, three types of TG type domains (Tg1-3) repeated several times and separated by different linkers and one cholinesterase-like (ChEL) domain in C-terminus³. The Tg domains are essential for TG functions, including proper folding, iodination, iodine storage, and release^4,5. The ChEL domain is implicated in TG maturation and trafficking, as well as the de novo synthesis of T3^6,7,8. TG proteins, in terms of their domain distribution, structure, and key hormonogenic sites, are highly conserved in vertebrates⁹. The current view of TG evolution holds that lampreys may be the most ancient vertebrate species with a TG protein^10,11, since the orthologs of TG have not been identified outside of vertebrates.

Outside vertebrates, THs are detectable and play crucial functions in development, especially metamorphosis^12,13,14. Yet, how invertebrates synthesize THs remains unclear, as they lack vertebrate-like TG proteins and no functional precursor has been convincingly identified. Previous studies have reported that several marine organisms harbor the ability to synthesize TH in vivo. The sea urchin and sea hare have the ability to incorporate iodine in TH formation¹⁵. In amphioxus, a subset of endostyle proteins exhibits a similar sedimentation coefficient to vertebrate TG protein, and the iodination experiments showed that this protein fraction has the ability to synthesize THs; however, the precise hormonogenic protein has not yet identified¹⁶. In ascidian, the iodoprotein(s), with a similar sedimentation coefficient to vertebrate TG, are mainly distributed in endostyle, pharynx, and tunic^17,18,19,20. Endostyle is a specialized pharyngeal organ, with zone 7-9 representing the thyroid-equivalent region in ascidian adult^18,21. Antibody against mammalian TG could specifically label the thyroid-equivalent region in ascidian Styela clava endostyle²², implying that the immunoreactive protein(s) may be ascidian TG-like protein(s) potentially involved in TH synthesis. However, the exact sequences of these potential iodoproteins or TG-like protein(s) and their functions in the developmental physiology have remained unexplored.

Here, we identify a functional TG-like protein with multiple Tg1 domains in the ascidian S. clava, named ScTG-like. We show that ScTG-like provides hormonogenic sites for TH production in vitro, and that ScTg-like knockdown reduces TH levels and affects larval metamorphosis in vivo. We also discovered an invaginated follicle-like structure in the larval trunk, functionally similar to vertebrate thyroid follicles. Finally, we summarize the features of ScTG-like protein and detect the similarly organized Tg1-containing proteins in multiple bilaterian phyla, supporting the idea that endogenous TH synthesis is an ancestral bilaterian feature. Together, our funding provides the direct evidence of endogenous de novo TH synthesis outside vertebrates, and illuminates the emergence of the vertebrate thyroid endocrine system.

Results

Identification of S. clava Tg1 domain-containing proteins

To determine whether ascidian process vertebrate-like TG protein, we prepared an antibody against mammalian (Bos taurus) TG protein (anti-BtTG) and performed immunofluorescence staining on S. clava endostyle. Consistent with the previous results²², the antibody specifically labeled the thyroid-equivalent region of endostyle (Fig. 1a, b), suggesting that the TG-like protein(s) may be present in S. clava. To further identify the immunolabeled protein(s), immunoprecipitation coupled with mass spectrometry (IP-MS) was conducted to precipitate the immunolabeled protein(s) within the endostyle tissue lysates (Supplementary Fig. 1a). A total of ten Tg1 domain-containing proteins were identified from IP-MS data, including Sc.CG.S33.65, Sc.CG.S284.31, Sc.CG.S566.2, Sc.CG.S166.41, Sc.CG.S140.18, Sc.CG.S6.110, Sc.CG.S3.110, Sc.CG.S79.69, Sc.CG.S131.45, and Sc.CG.S55.56, which represent five-sixths of all predicted Tg1 domain-containing proteins in S. clava genome (Fig. 1c and Supplementary Fig. 1b–e). Furthermore, we performed a phylogenetic analysis comparing these Tg1 domain-containing proteins with vertebrate TG proteins, Tg1 domain-containing proteins in the human genome²³ and predicted TG-like protein in amphioxus and sea urchin⁵. The result revealed that Sc.CG.S284.31 and Sc.CG.S55.56 proteins clustered within the clade of vertebrate TG proteins, suggesting that they were the closest relatives to vertebrate TG proteins among all the identified Tg1 domain-containing proteins (Fig. 1d, e).

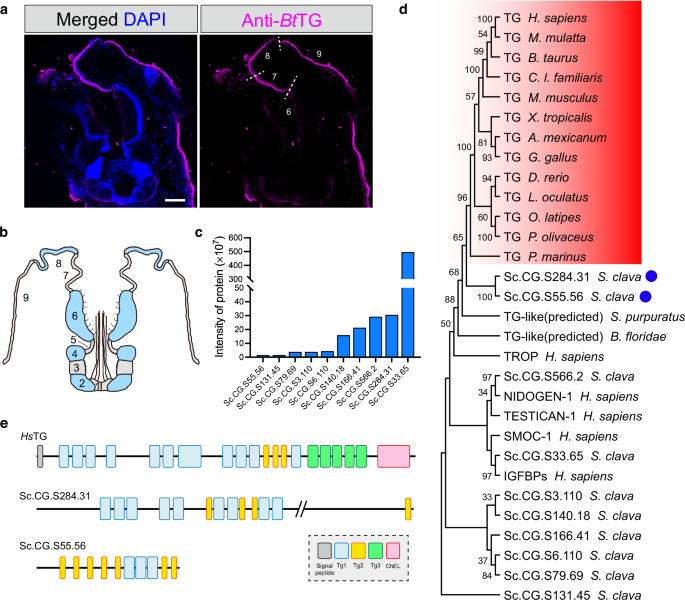

**Fig. 1: Identification of Thyroglobulin-like (TG-like) proteins in ascidian through immunoprecipitation and phylogenetic analysis.**

Sc.CG.S284.31 is a TH protein precursor protein

We further investigated the expression patterns of genes encoding Sc.CG.S284.31 and Sc.CG.S55.56 proteins. Based on transcriptomic data from the embryonic and larval development of S. clava²⁴, we revealed that Sc.CG.S284.31 gene was up-regulated from tail-bud stage with the highest expression level during larval stages, which was similar to the temporal expression profiles of the homologs of vertebrate TH-synthesis-related genes, such as thyroid peroxidase (ScTpo), Sodium/iodide symporter (ScNis), thyroid transcription factors (ScTtf1 & ScTtf2) (Fig. 2a). Distinct from the temporal expression profiles of Sc.CG.S284.31 and ScTpo, Sc.CG.S55.56 gene had the highest expression level at tail-regressed larval stage (Fig. 2a).

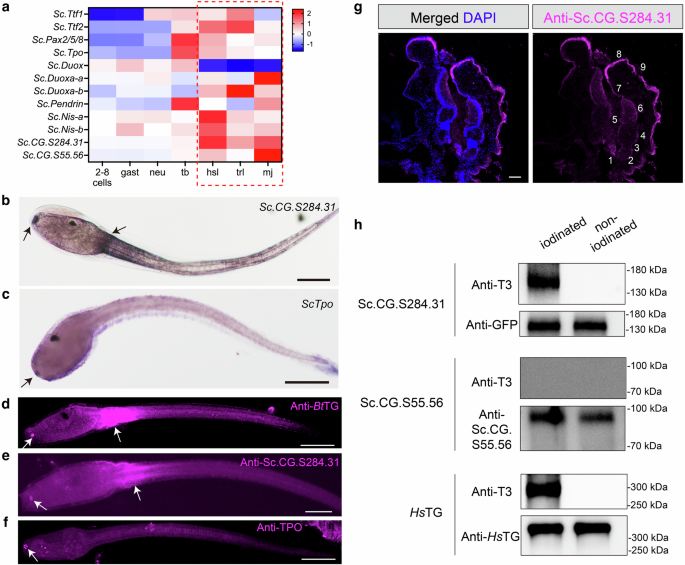

**Fig. 2: Expression patterns and in vitro functional verification.**

The in-situ hybridization showed that the Sc.CG.S284.31 transcripts were distributed in the anterior trunk and the epidermis between the trunk and tail (Fig. 2b and Supplementary Fig. 2a), exhibiting a similar distribution pattern with ScTpo and THs (Fig. 2c and Supplementary Figs. 2b, 3). In contrast, Sc.CG.S55.56 transcripts were distributed in the posterior trunk (Supplementary Fig. 2c, d). These results therefore revealed that Sc.CG.S284.31 has a similar expression dynamics and pattern as ScTpo, and might play a role in TH synthesis. We therefore prepared an antibody against this Sc.CG.S284.31 protein and performed immunofluorescence staining on the S. clava swimming larvae. The staining signals appeared at the anterior trunk and the epidermis between the trunk and tail, which was similar to the distribution pattern of immunolabeled protein(s) through the anti-BtTG staining (Fig. 2d, e). Furthermore, immunofluorescence staining with anti-TPO antibody revealed that ScTPO proteins were also present in the anterior trunk of S. clava larvae (Fig. 2f).

Given that these proteins were originally identified from the endostyle, which in ascidian adult is homologous to the thyroid follicles of vertebrates²¹, we investigated whether Sc.CG.S284.31 protein could be detected in the thyroid-equivalent region of S. clava endostyle. The immunostaining with an antibody specific to Sc.CG.S284.31 confirmed that this protein was specifically localized within zone 7 to 9 in endostyle (Fig. 2g), corresponding to the thyroid-equivalent region.

To determine whether Sc.CG.S284.31 can indeed serve as the matrix, providing hormonogenic tyrosine sites for TH synthesis, we performed immunoblotting assay to detect TH formation after in vitro protein iodination⁶ (Supplementary Fig. 4a). Given the extremely large molecular weight (630.45 kDa) of Sc.CG.S284.31 protein and the difficulty of cloning full-length sequence due to the presence of a large number of repetitive sequences, we constructed a vector to express recombinant Sc.CG.S284.31 protein containing Tg1-domain-enriched sequences (Supplementary Fig. 4b and Supplementary Dataset 1). The purified recombinant Sc.CG.S284.31 was used in iodination and subsequent immunoblotting assay. The results showed that the T3 antibody readily detected specific bands from 130 to 180 kDa (for the recombinant Sc.CG.S284.31) or >300 kDa (for the recombinant human TG) after the proteins were iodinated (Fig. 2h). However, the T3 antibody failed to detect any signal in the iodinated sample of purified Sc.CG.S55.56 (Fig. 2h).

Overall, the results of expression analyses as well as the in vitro iodination experiment clearly demonstrated that Sc.CG.S284.31 protein, rather than Sc.CG.S55.56, could be a TH protein precursor providing hormonogenic sites for de novo TH production, similar to the function of vertebrate TG proteins. Therefore, we named Sc.CG.S284.31 as ScTG-like.

ScTg-like is crucial for TH synthesis and metamorphosis

To demonstrate whether ScTg-like is involved in TH synthesis in vivo, we conducted RNA inference (RNAi) experiments to knockdown its expression and analyzed TH levels and larval metamorphosis (Fig. 3a). After treating larvae with specific siRNAs of ScTg-like, the expression of ScTg-like was decreased in both mRNA and protein levels (Fig. 3b and Supplementary Fig. 5). We simultaneously measured the THs levels by ELISA. Both T4 and T3 levels in S. clava larvae were decreased upon knockdown of ScTg-like, comparable to that of methimazole (MMI, a TPO inhibitor²⁵)-treated larvae (Fig. 3c, d). Meanwhile, we observed that the tail regression of larvae was affected after knocking down ScTg-like (Fig. 3e, f), suggesting the crucial role of ScTg-like in tail regression, a typical event that occurs at the early metamorphosis of ascidian larva²⁴. We further tracked the morphological changes of S. clava larvae with or without ScTg-like knock-down, and found that the process of metamorphosis of siRNA-treated larvae was largely delayed (Supplementary Figs. 6 - 7). In addition, compared with juveniles without ScTg-like knock-down, the “juveniles” in siRNA treated groups exhibited abnormal phenotypes with inextensible siphons and immature organs (Supplementary Fig. 6-7), suggesting that the organ morphogenesis of S. clava larvae during metamorphosis was regulated by ScTg-like gene. Interestingly, we demonstrated that the role of ScTg-like in metamorphosis is effectively linked to its role in TH synthesis, since, in rescue experiments, T3 treatment effectively restored the metamorphosis of ScTg-like knockdown group to a level comparable to those of the siRNA control and seawater control groups (Fig. 3g–i and Supplementary Fig. 6). Collectively, we established that the ScTg-like was indispensable for metamorphosis by functioning as the protein precursor for TH formation in S. clava larvae.

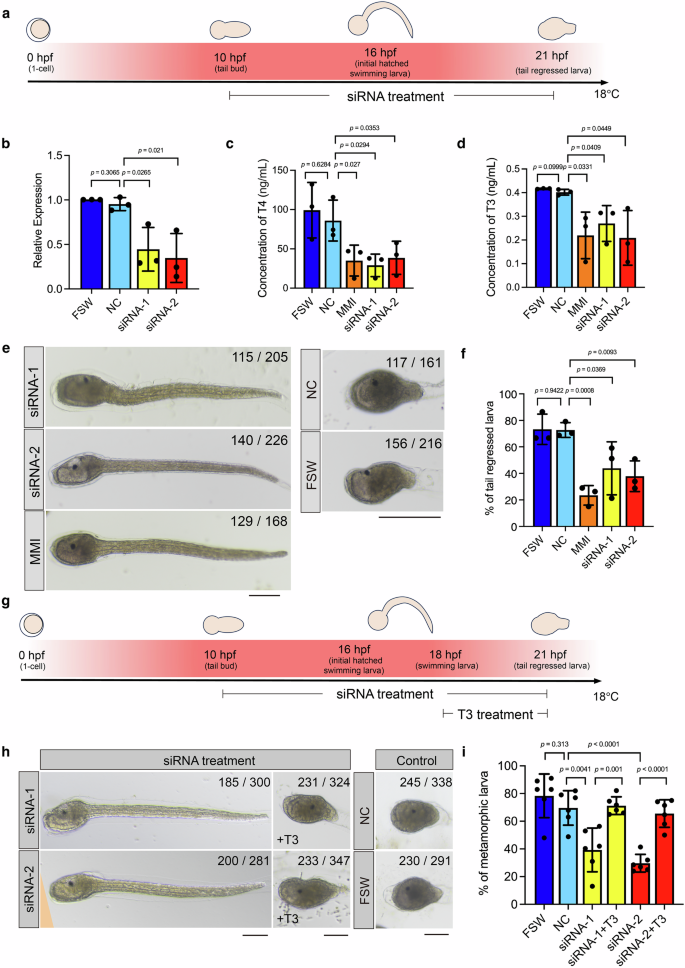

Fig. 3: In vivo functional verification of ScTg-like in S. clava larvae. — **Fig. 3: In vivo functional verification of *ScTg-like* in *S. clava* larvae.**

Follicle-like structure serves as thyroid-equivalent region

In S. clava larvae, our anti-ScTG-like antibodies distinctly detected a signal in an invaginated structure consisting of three to five closely contacted cells, located at the central anterior region of the trunk (Figs. 2e and 4a, b). This invaginated structure could also be specifically labeled by the anti-TPO antibody (Figs. 2f and 4c), suggesting that the cells within this structure might function similarly to a vertebrate thyroid follicle. To validate this hypothesis, we conducted further immunostaining of THs (T3 and T4), ScDUOX1, and several transcriptional factors (including ScFOXQ1, ScPAX2/5/8, and ScTTF-2, whose vertebrate homologs are involved in thyroid morphogenesis and TH synthesis) in the larvae^26,27. Notably, all the antibodies used in immunofluorescence experiment were able to distinctly label this invaginated follicle-like structure (Supplementary Fig. 8). Moreover, the peanut agglutinin (PNA) and wheat germ agglutinin (WGA) apparently labeled the follicle-like structure in S. clava larvae, indicating the glycoproteins were enriched in this structure (Supplementary Fig. 9a–c). Similar results could also be observed in the thyroid follicle of zebrafish (Supplementary Fig. 9d–f). Additionally, the anti-T3 signals were undetectable, as well as the anti-ScTG-like protein signals, in the follicle-like structure after knocking down the ScTg-like gene (Fig. 4d and Supplementary Fig. 5). The findings provide compelling evidence that this invaginated follicle-like structure, with expression of ScTG-like protein, THs, and other thyroid function-related proteins, serves as the site of TH synthesis and storage, representing a proto-thyroid-follicle in S. clava larvae.

Fig. 4: A follicle-like structure in S. clava larva functions in TH synthesis and storage. — **Fig. 4: A follicle-like structure in *S. clava* larva functions in TH synthesis and storage.**

Structural conservation implies homologs across Bilateria

Despite extensive homology searches, we did not identify a clear orthologue of ScTg-like in any other species, including other tunicates such as the closely related Styela plicata. This likely reflects the rapid evolution of tunicate genomes²⁸ and the low primary sequence conservation typical of TG proteins. Indeed, as previously observed in vertebrates⁹, the conservation of TG function appears to rely more on structural architecture than on sequence similarity. ScTG-like protein shares hallmark features with vertebrate TGs, including large size (>2000 aa), multiple Tg1 domains, extensive disulfide bridges, and a C-terminal region devoid of disulfides that may fulfill a ChEL-like role. Using this domain-based signature, we identified several candidate proteins that match the predicted structural organization of ScTG-like protein, not only in other tunicates but also in cephalochordates, echinoderms, hemichordates and protostomes (Supplementary Fig. 10). Although precise sequence-based comparisons remain difficult, these findings support the existence of functional homologs of TG-like proteins across bilaterians—in accordance with the notion that endogenous TH synthesis may be an ancient and conserved feature of this clade.

Taken together, our results demonstrated the existence in S. clava, an urochordate, of a protein encoded by ScTg-like gene that play a key role as a thyroid hormonogenic protein localized in the follicle-like structure of ascidian tadpole larva. These data provide novel insights into the molecular mechanisms of TH synthesis outside vertebrates and contributes to understanding the evolutionary trajectory of the TG protein.

Discussion

THs are crucial factors for metamorphosis of both vertebrates and invertebrates^12,13. The mechanism of TH synthesis has been well documented in vertebrates, but remains elusive in invertebrates. This is due to the fact that TG homologs or functional alternatives in invertebrates have not been exactly identified despite that many orthologues of genes involved in TH synthesis are already present in these species^2,9,27,29. In 1978, based on the positive immunofluorescence results with Anti-BtTG in endostyle of Conklin’s ascidian S. clava that was first used by Conklin for embryonic pattern organization and cell lineage tracking³⁰, it has been proposed that the vertebrate TG protein homolog might exist in S. clava endostyle²². However, over the past decades, no definitive conclusion has been made regarding whether invertebrates really process the TH precursors (e.g., hormonogenic matrix proteins) that directly participate in TH synthesis, as found in vertebrates. Here, we identified a high molecular weight protein ScTG-like in S. clava, which only processes Tg1 domains but exhibits similar function as vertebrate TG proteins. Both in vitro and in vivo studies demonstrated that ScTG-like is a protein precursor that directly participates in TH synthesis as a hormonogenic matrix protein in ascidian. Furthermore, based on the expression of ScTG-like and other TH synthesis-related proteins, we discovered a follicle-like structure in the anterior of the larva trunk, functioning as a proto “thyroid gland”. By identifying and characterizing a molecule that serves as the protein precursor for endogenous TH synthesis in a non-vertebrate chordate, our work provides important new insights into the mechanisms of hormone production in these organisms.

Iodine is a key element for THs synthesis, and it exhibits alive metabolic activity in marine organisms, affecting their life processes^15,31,32. For example, marine bacteria, kelp and sea urchin uptake iodine from seawater through the process of hydrogen peroxide-dependent diffusion^33,34,35. Although the presence of THs and their derivatives, as well as iodoproteins, in marine organisms has been demonstrated by several previous biochemical studies^16,20,31,36, it has not yet conclusively established that the de novo TH synthesis on a matrix protein effectively occurs in these species. Indeed, two alternative possibilities cannot be reasonably ruled out: (1) these species may utilize intermediates sourced from the environment or symbiotic organisms to generate THs without the involvement of endogenous hormonogenic matrix protein^13,37,38, and (2) the previously detected iodoproteins in endostyle extracts may be TH-binding proteins or TH-transporter proteins for hormone transport (e.g., thyroxine-binding globulin and many types of membrane transporters³⁹), rather than proteins directly involved in TH production. With the convincing evidence that ScTG-like protein is directly involved in TH synthesis within the follicle-like structure of larvae and specific zones of adult endostyle (Figs. 2g, h and 4a), we are confident to conclude that the process of TH biosynthesis in invertebrates, at least for ascidian S. clava, is generally analogous to that in vertebrates, using a protein similar but not directly related to vertebrate TG. This clearly suggests that the de novo TH synthesis process is an ancestral and conserved pathway.

The identification of TG-like proteins with conserved domain architectures in non-vertebrate chordates—resembling the vertebrate TG layout but lacking the ChEL domain—raises the possibility that key structural elements of TH precursor proteins may have deeper evolutionary origins, potentially extending to other bilaterian lineages (Supplementary Fig. 10). While this does not constitute definitive evidence, it is consistent with the hypothesis that TG-like proteins, and possibly endogenous TH synthesis, could represent an ancient bilaterian innovation. These findings suggest that other metazoan phyla, such as annelids or molluscs, may harbor structurally conserved but sequence-divergent TG-like proteins, offering new avenues to investigate the synthesis, regulation, and function of TH in invertebrates. Although large-scale synteny is unlikely to be preserved in tunicates, due to their highly rearranged genomes²⁸, examining genomic context and expression patterns—particularly during metamorphosis—in other bilaterians could provide supporting evidence. In addition, structural modeling approaches (e.g., AlphaFold) may help uncover conserved folding and function despite low similarities of primary sequences, contributing to our understanding of the evolutionary emergence of TH signaling and its potential role in the diversification of metazoan life cycles. Additionally, proteins containing the ChEL domain have also been identified in invertebrate deuterostomes, and studies have shown that these genes undergo gene duplication and rearrangement, resulting in proteins with diverse functions⁴⁰. Investigating the interactions between the ChEL domain-containing proteins and TG-like proteins, as well as the potential for gene fusion, may provide insights into the evolutionary transition from invertebrate Tg-like genes to vertebrate Tg gene.

Thyroid follicles serve as the functional units in TH production and storage⁴¹. In vertebrates, thyrocytes surround a single layer of epithelial cells, with the lumen filled with colloid at the center⁴¹. Secreted proteins are synthesized in follicular cells and transported into the colloid. Interestingly, the follicle-like structure identified in S. clava larva exhibited morphological and functional similarities to thyroid follicles (Fig. 4b). The follicle-like structure was observed at the most anterior of S. clava larval trunk, surrounded by epithelial cells (Fig. 4b). It was opened outward to connect with the outer tunic compartment (Fig. 4b). Glycosylation in the vertebrate thyroid gland is thought to be essential for its function^2,42. High glycoprotein content reflects the high secretory activity of a tissue or structure (e.g., follicle structure) since most secretory proteins need to be glycosylated before entering the secretory pathway. Vertebrate TG proteins are the typical glycoproteins, and their glycosylation is essential for secretion and function^1,2. Thus, staining for glycoproteins can be used to reflect the function of thyroid gland⁴³. Thus, we found that both the follicle-like structure in S. clava larva and the thyroid follicle in zebrafish were apparently labeled by PNA and WGA, indicating that both of these two structures are enriched with glycoproteins (Supplementary Fig. 9). Moreover, knockdown of ScTg-like completely eliminated TH production within follicle-like structure (Fig. 4d), further indicating the functional similarity between the thyroid follicles and S. clava follicle-like structure. Furthermore, the genes involved in TH synthesis were expressed both in the follicle-like structure in larvae and thyroid equivalent region of endostyle in adult (Supplementary Fig. 8 and 11). In addition, a similar structure was also detected in the larvae of ascidian Herdmania curvata, implying the conservation of the follicle-like structure and its functions in ascidians⁴⁴.

Previous studies have proved that TH play crucial roles in tail regression of ascidians⁴⁵. In this study, we found that after reducing the TH levels, not only the tail regression, but also the subsequent metamorphic process was impacted (Fig. 3 and Supplementary Fig. 6). After knocking down the expression of ScTg-like gene, the process of metamorphosis was obviously delayed, and the morphology of “juvenile” was abnormal, with the inextensible siphons and immature organs (Supplementary Fig. 6). Considering that the ScTg-like gene contains a length of 17,373 base pairs coding sequence (Supplementary Dataset 1), it is difficult to clone its full-length coding sequence and synthesize mRNA for rescue experiment. Instead, we performed the rescue experiment by T3 treatment, which clearly showed that the rescued larvae developed normally, similar to the wild type (Fig. 3g–i and Supplementary Fig. 6). These results suggest that TH signal is of great importance in controlling the timing of metamorphosis, morphogenesis, and organ formation in S. clava larvae. In vertebrates, T3 is the active form of TH, and can bind to thyroid hormone receptor (TR) to activate downstream genes⁴⁶. However, whether a similar mechanism exists in invertebrates remains unknown. In amphioxus, TRIAC, a derivative of T3, is the ligand of TR, which supports that TRIAC is the active form of the hormone^47,48. However, it remains to be determined the active TH molecule in tunicates.

Altogether, our study provided direct evidence of endogenous de novoTH synthesis outside vertebrates through identifying the TG-like protein in proto-vertebrate ascidian, which solved a long-standing mystery about the evolutionary “missing” TH protein precursor outside vertebrates. Our findings also shed light on the evolutionary trajectory of the TG protein, and the emergence of a major endocrine system in vertebrates.

Methods

Sample collection

Cyrosections

Endostyle tissue was isolated from S. clava adult. The head was isolated from adult zebrafish (Denio rerio). The samples were subsequently fixed in 4% paraformaldehyde (PFA) at room temperature (RT) for 2 h. Following three washes with phosphate-buffered saline (PBS), the tissues were treated with 30% sucrose solution in PBS. The samples were then embedded in Tissue-Tek OCT compound (Sakura, Torrance, CA, 4583) and snap-frozen in liquid nitrogen. The samples were stored at −80 °C before cryosection. Prior to sectioning, the OCT-embedded samples were equilibrated by placing it in a −20 °C freezing microtome for 30 min. Cryosections were collected at 10 μm intervals along the transverse plane utilizing a cryostat (CM3050, Leica). Subsequently, the sections were mounted onto adhesive slides.

Larvae

The fertilization and culture of S. clava embryos were performed according to the previously detailed procedures by Wei et al.²⁴ and Lin et al.⁴⁹. The larvae of S. clava were collected and fixed by 4% PFA at RT for 2 h. Following washing with PBS for three times to eliminate PFA, the larvae were stored at 4 °C.

All guidelines for animal experiments were approved by the Institutional Animal Care and Use Committee of Ocean University of China (OUC-IACUC), with approval numbers 2020-0032-0517 and 2023-0032-0039 for S. clava, OUC2012316 for zebrafish. S. clava is a hermaphroditic species. The thyroid follicle in zebrafish examined in this study are not sex-specific, therefore, samples were randomly selected without distinguishing between sexes.

Staining

Immunofluorescence

For immunofluorescence staining, the samples were initially permeabilized through washing with PBST (0.1% Triton X-100 in PBS) for five times within 8 h. Subsequently, blocking was performed using 10% goat serum at RT for 1 h. The samples were then incubated with primary antibodies (1:100 to 1:50) overnight at 4 °C with shaking. Following this, the samples were washed by PBST for five times within 8 h. Subsequently, samples were incubated with secondary antibody (Goat anti-Mouse IgG, Alexa Fluor™ 555 (A21422, Invitrogen) or Goat anti-Rabbit IgG, Alexa Fluor™ 568 (A11011, Invitrogen)) and Phalloidin 488 (A12379, Invitrogen) overnight at 4 °C with shaking. After repeating the washing step with PBST under the same conditions, the samples were mounted with mounting solution (Vector Laboratories) containing DAPI and observed by a confocal microscope (Zeiss, LSM900). The primary antibodies used in this study are listed in Supplementary Dataset 2.

Peanut agglutinin (PNA) staining

The samples were initially permeabilized through washing with PBST for five times within 8 h. Subsequently, blocking was performed using 10% goat serum at RT for 1 h. The samples were then incubated with biotinylated PNA (1:300) overnight at 4 °C with shaking. Following this, the samples were washed by PBST for five times within 8 h. Subsequently, samples were incubated with Vari Fluor 488-Streptavidin (HY-D1808, MedChemExpress) and TRITC Phalloidin (40734ES75, Yeasen) for 2 h at RT with shaking. Following this, the samples were washed by PBST for three times within 1 h. Subsequently, the samples were mounted with mounting solution (Vector Laboratories) containing DAPI and observed by a confocal microscope (Zeiss, LSM900).

Wheat germ agglutinin (WGA) staining

The samples were initially permeabilized through washing with PBST for five times within 16 h. Subsequently, samples were incubated with WGA (1:50) for 3 days at RT with shaking. Following this, the samples were washed by PBST for five times within 8 h. Subsequently, the samples were mounted with mounting solution (Vector Laboratories) containing DAPI and observed by a confocal microscope (Zeiss, LSM900).

Immunoprecipitation coupled with mass spectrometry (IP-MS)

Sample preparation

The endostyle tissues were isolated from S. clava adults, and subsequently shredded and homogenized. The homogenized tissues were incubated with RIPA lysis buffer, supplemented with 1% PMSF to effectively inhibit protease activity, for 20 min on ice. Following this, high-speed centrifugation was carried out at 13,201 × g for 5 min at 4 °C. The supernatant was then collected, and the protein concentration was determined using the Bicinchoninic Acid (BCA) Assay. Subsequently, the endostyle protein was incubated with the antibody specific to B. taurus TG protein (Supplementary Dataset 2) overnight at 4 °C with shaking, to facilitate the formation of the antigen-antibody complex. Magnetic beads were then introduced into the system and incubated for 2 h at room temperature, allowing the formation of the antigen-antibody-beads complex. Magnetic adsorption was subsequently performed using a magnetic rack to enrich the antigen-antibody-beads complex. After removing the supernatant, the complex was washed three times with PBS to ensure purity. Ultimately, the complex was collected for subsequent mass spectrometry identification. Rabbit IgG was used as a negative control. The experiments were performed with two independent biological replicates. The obtained samples were sent to Shanghai Bioprofile Technology Company Ltd. for pretreatment, data acquisition, and analysis according to the following procedures.

Gel pieces were cut from SDS-PAGE, destained for 20 min in 100 mM NH₄HCO₃ with 30% Acetonitrile and washed with Milli-Q water until the gels were destained. The spots were then lyophilized in a vacuum centrifuge. The in-gel proteins were reduced with dithiothreitol (10 mM DTT/ 100 mM NH₄HCO₃) for 30 min at 56 °C, then alkylated with iodoacetamide (200 mM IAA/100 mM NH₄HCO₃) in the dark at room temperature for 30 min. Gel pieces were briefly rinsed with 100 mM NH₄HCO₃ and ACN, respectively. Gel pieces were digested overnight in 12.5 ng/μl trypsin in 25 mM NH₄HCO₃. The peptides were extracted three times with 60% ACN/0.1% TFA. The extracts were pooled and dried completely by a vacuum centrifuge.

LC-MS/MS

The peptide of each sample was desalted on C18 Cartridges (Empore™ SPE Cartridges, Sigma), then concentrated by vacuum centrifugation and reconstituted in 10 µl of 0.1% (v/v) Formic acid. MS experiments were performed on a Q Exactive HF mass spectrometer that was coupled to Easy nLC (Thermo Scientific). Peptide was first loaded onto a trap column (100 μm × 20 mm, 5 μm, C18) with 0.1% formic acid, then separated by an analytical column (75 μm × 100 mm, 3 μm, C18) with a binary gradient of buffer A (0.1% Formic acid) and buffer B (84% acetonitrile and 0.1% Formic acid) at a flow rate of 300 nL/min over 60 min. The gradient was set as following: 5%–8% buffer B from 0 to 2 min, 8% to 23% buffer B from 2 to 42 min, 23% to 40% buffer B from 42 to 50 min, 40% to 100% buffer B from 50 to 52 min, 100% buffer B kept till to 60 min. MS data was acquired using a data-dependent top20 method dynamically choosing the most abundant precursor ions from the survey scan (350–1800 m/z) for HCD fragmentation. A lock mass of 445.120025 Da was used as internal standard for mass calibration. The full MS scans were acquired at a resolution of 60,000 at m/z 200, and 15,000 at m/z 200 for MS/MS scan. The maximum injection time was set to for 50 ms for MS and 45 ms for MS/MS. Normalized collision energy was 27 and the isolation window was set to 1.5 Th. Dynamic exclusion duration was 30 s.

Database search

The MS data were analyzed using MaxQuant software version 1.5.8.3. MS data were searched against the database of S. clava genome. The trypsin was selected as digestion enzyme. The maximal two missed cleavage sites and the mass tolerance of 4.5 ppm for precursor ions and 20 ppm for fragment ions were defined for database search. Carbamidomethylation of cysteines was defined as fixed modification, while acetylation of protein N-terminal and Lysine, oxidation of Methionine, were set as variable modifications for database searching. The database search results were filtered and exported with <1% false discovery rate (FDR) at peptide level and protein level, respectively.

Bioinformatics analysis

Protein domain prediction for S. clava genome

HMMER was employed with profile Hidden Markov Models (pHMMs) from the Pfam database⁵⁰, which contains domain-specific pHMMs representing conserved protein families, to predict the domain distribution of protein sequences in the whole genome of S. clava²⁴. The hmmscan module was executed using default parameters (e-value ≤ 1e-5) to scan each protein sequence against the pHMM library, prioritizing domain coverage and statistical significance. The Proteins containing Tg1 domain(s) (Pfam ID: PF00086.23) were identified according to the results of protein domain prediction. Predicted domains were manually validated through cross-referencing with SMART database annotations (http://smart.embl-heidelberg.de).

Phylogenetic analysis

The information of protein sequences for phylogenetic analysis was shown in supplementary files (Supplementary Dataset 3). Sequences were aligned with MEGA software (version 11.0)⁵¹ using the ClustalW⁵² with default parameters, followed by manual refinement to optimize conserved motif alignment. The final alignment was used for phylogenetic analysis employing the Neighbor-Joining (NJ) method under the p-distance model. Branch support was assessed via 1000 bootstrap replicates, with nodes considered significant at >30% bootstrap values.

Downloading and preparing genomes

DNA assemblies were obtained via NCBI Datasets CLI v18.3.1. For each organism selected from the taxa Tunicata (txid 7712), Cephalochordata (txid 7735), Petromyzontiformes (txid 7745), Annelida (txid 6340), Echinodermata (txid 7586), Hemichordata (txid 10219) and Mollusca (txid 6447), the most complete assembly level available was downloaded.

Generation or collection of proteomes

When the proteome was available, the *.faa file provided by RefSeq/GenBank was used as is. If absent, GeneMark ES v4.73 predicted ORFs de novo.

Construction of HMM profiles

Thirty vertebrate sequences (25 RefSeqs in the taxa Amphibia (txid 8292), birds (txid 8782), bony fishes (txid 7898), Squamata (txid 8509), Testudines (txid 8459), and 5 mammalia (txid 40674) UniProtKB/Swiss Prot: THYG_HUMAN, THYG_MOUSE, THYG_RAT, THYG_PIG, THYG_BOVIN) were used as a reference set. The 5 annotated Uniprot sequences were used to create a first version of the HMM profile for the Tg1, Tg2, Tg3, and ChEL domains. Then, using hmmsearch (default threshold), the domains were identified in the other 25 sequences. All domain sequences were extracted and aligned with MAFFT v7.525 (--localpair --maxiterate 1000) and then converted into specific HMM profiles via hmmbuild (HMMER v3.4). These are the profiles that will be used for the rest of the pipeline.

Annotation of invertebrate proteomes

For the detection of relevant proteins, three methods were combined: (1) HMM profile search, using hmmsearch (default threshold) for the detection of Tg1, Tg2, Tg3, and ChEL domains. Only sequences with at least 5 Tg1 motifs were retained by this method. (2) Search by regex, the search patterns are Tg2-like domain (C××C×G) and Tg2-like domain (C××C××G), potential disulfide bridges C (1–20) C, and tyrosine residues Y. Blastp v2.16.0+ search against each taxon with lamprey TG protein and S. clava TG-like protein as reference sequences. HMM profile search and regex search methods were applied to the blastp results to create an annotation file. Each domtbl annotation file was converted to gff3 format.

Visualization of protein architecture

To graphically represent the architecture of candidate TG-like proteins, a Python script was developed using the Biopython (for sequence manipulation), Pandas (metadata management), and Matplotlib (visualization) libraries. It takes as input a fasta file with all the sequences (Supplementary Dataset 4), a folder containing all the annotations in gff3 format, and a tsv file listing the metadata for each sequence. For each sequence, it generates three parallel plots: positions of the Tg/ChEL domains, potential disulfide bonds, and tyrosine residues, and generates a svg vector file and a png file for each sequence.

Polymerase chain reaction (PCR) and RT-qPCR

Total RNA was extracted from the fresh samples utilizing the TRIzol method and subsequently dissolved in RNase-free ddH₂O. The cDNA synthesis was performed through reverse transcription employing PrimeScript II RTase (6210 A, Takara). The newly synthesized cDNA served as the template for PCR analysis, employing specific primers of targeting genes (Supplementary Dataset 5). To ensure accurate normalization, the gene expression level of Sc18s rRNA was utilized as an internal reference. PCR reactions were performed under the following conditions: pre-denaturation (3 min at 95 °C) for one cycle, denaturation (15 s at 95 °C)-annealing (15 s at 60 °C)-extension (60 s/kb at 72 °C) for 35 cycles, and complete extension (5 min at 72 °C) for one cycle. PCR products were analyzed by 1 % agarose gel electrophoresis. RT-PCR reactions were performed under the following conditions: pre-denaturation (3 min at 95 °C) for one cycle, cyclic reaction (10 s at 95 °C and 30 s at 58 °C) for 40 cycles, melting curve (15 s at 95 °C, 60 s at 60 °C and 15 s at 95 °C) for 1 cycle. The RT-PCR experiment was performed using Roche LC96. Data analysis was performed through 2^−ΔΔCt method. The primers for these experiments were listed in Supplementary Dataset 5.

In situ hybridization

Specific segments of the target genes were selected for the synthesis of probes. The primers utilized for amplifying specific segments were listed in Supplementary Dataset 5. The transcriptase binding sequence (SP6 RNA polymerase priming: 5’ ATTTAGGTGACACTATA 3’; T7 RNA polymerase priming: 5’ TAATACGACTCACTATAGGG 3’) was added to the 5’ end of the primer. Digoxigenin (DIG)-RNA probes were generated through in vitro transcription using either SP6 RNA polymerase (EP0131, Thermo Fisher Scientific) or T7 RNA polymerase (EP0111, Thermo Fisher Scientific), and subsequently purified using the LiCl and 100% ethanol. These DIG-RNA probes were stored at −80 °C prior to hybridization.

The in situ hybridization procedure was conducted as previously described by Yasuo et al.⁵³. Briefly, samples were digested with proteinase K (15 μg/mL) for 30 min at 37 °C, followed by washing with PBT (0.1% Tween-20 in PBS). Samples were then refixed with 4% PFA (in PBT) for 30 min at RT and washed again with PBT. Pre-hybridization was carried out using pre-hybridization buffer (50% formamide, 5× saline sodium citrate buffer (SSC), 0.1% Tween 20) for 15 min at RT, followed by hybridization buffer (50% formamide, 5× SSC, 0.1% Tween 20, 5× Denhardt’s solution, yeast tRNA (100 μg/mL), and heparin (50 μg/mL)) for 3 h at 50 °C. Hybridization was subsequently performed with 2 ng/μL probes in hybridization buffer overnight at 50 °C. After hybridization, samples were washed four times with wash buffer I (50% formamide, 5× SSC, 0.1% Tween 20), four times with wash buffer II (50% formamide, 0.5× SSC, 0.1% Tween 20), and four times with PBT. Samples were then blocked using 1% blocking buffer for 1 h at RT. Following this, samples were incubated with DIG antibody overnight at 4 °C. Subsequently, samples were washed four times with PBT and twice with TMNT (0.1 M Tris-HCl (pH = 9.5), 0.1 M NaCl, 0.02 M MgCl2, 0.1% Tween 20). Chromogenic detection was achieved using a Nitro blue tetrazolium (NBT)/bromochloroindolyl phosphate (BCIP) solution (1:50 diluted with TMNT).

Protein expression and purification

To improve the expression efficiency in mammalian cells, we synthesized the codon-optimized sequence of Sc.CG.S284.31 gene (Supplementary Dataset 1). The Tg1-enriched fragments of the Sc.CG.S284.31 gene were cloned from the codon-optimized sequences, and subsequently subcloned into a linearized pEGFP-N1 vector (pre-linearization using NheI and KpnI restriction enzymes (Thermo Fisher Scientific)). Additionally, the full-length human TG-encoding sequence was cloned from a commercial plasmid obtained from the DNASU Plasmid Repository (Clone ID: HsCD00867406) and subcloned into a linearized pcDNA3.1(+) vector (pre-linearization using NotI restriction enzymes (Thermo Fisher Scientific)). The full-length Sc.CG.S55.56 protein-encoding sequence was cloned from cDNA library of S. clava and subcloned into a linearized pcDNA3.1(+) vector (pre-linearization using NotI restriction enzymes (Thermo Fisher Scientific)). The primers for clone were listed in Supplementary Dataset 5. Purification of the resulting fragments was performed using the GeneJEL Kit (K0691, Thermo Fisher Scientific), ensuring high-quality material for subsequent experiments. Homologous recombination was carried out using the in-fusion method (C115, Vazyme). The constructed plasmids were transformed into DH5α competent cells. Bacteria successfully transformed with constructed plasmids were inoculated into LB media. Plasmid extraction and purification were performed using EndoFree Mini Plasmid Kit (DP123, Tiangen biotech). The newly generated plasmids are available upon request from the corresponding author.

HEK293T cells (SCSP-502, National Collection of Authenticated Cell Cultures) were employed for the in vitro expression of the recombinant protein. These cells were cultured in DMEM, supplemented with 10% fetal bovine serum, at 37 °C in a 5% CO₂ incubator. Twenty-four hours prior to transfection, the cells were plated in 10 cm cell culture dishes. Transient transfection was performed using Lipofectamine 3000 transfection reagent (L3000001, Invitrogen), following the manufacturer’s protocol. Twenty-four hours after transfection, cells were washed with PBS and cultured with serum-free DMEM for an additional 24h . Ultrasonication and ultracentrifugation techniques were employed to collect the recombinant Sc.CG.S284.31 protein and Sc.CG.S55.56 protein from cells. For the human TG protein, the secreted protein present in the medium of transfected cells was harvested for subsequent purification steps.

Protein purification was performed using Anti-GFP affinity gel (HY-K0229, MedChemExpress) for recombinant Sc.CG.S284.31 protein, and Ni Sepharose 6 FF (17531801, Cytiva) for Sc.CG.S55.56 protein and human TG protein. Prior to incubation, the agarose beads were thoroughly washed with PBS three times. The protein samples were then incubated with the agarose beads in gravity chromatography columns at 4 °C overnight. The protein solvent was flowed out at a controlled rate of 1 mL/min. Subsequently, the agarose beads were washed three times with wash buffer (50 mM NaH₂PO₄, 300 mM NaCl, 20 mM imidazole, final pH = 8.0, filter with 0.22 μm membrane). The recombinant proteins were then eluted using elution buffer (50 mM, NaH₂PO₄, 300 mM NaCl, 500 mM imidazole, final pH = 8.0, filter with 0.22 μm membrane). To exchange the protein from the elution buffer to PBS, Sephadex DeSalting Gravity Columns (C500090, Sango) were employed, following the manufacturer’s protocol. Finally, the concentration of the protein sample was determined using the BCA method.

In vitro enzymatic iodination and western blotting

The in vitro iodination experiment was performed following the protocol previously outlined by Citterio et al.⁵⁴. The iodination mixture comprised 30 ng/μL lactoperoxidase, 2 μg/μL glucose, 0.352 ng/μL glucose oxidase, 100 μM NaI, and 150–200 ng/μL of purified protein. All reagents were purchased from Sigma. Subsequently, the sample was incubated at 37 °C for 1.5 h, and enzymatic reaction was stopped by addition of gel sample buffer and boiling for 10 min.

Western blotting experiment was performed to detect the TH signal of the iodinated proteins. The iodinated samples were subjected to reducing SDS-PAGE, and transferred to 0.45 μm PVDF membrane (Millipore, MA, USA). Blocking was performed using 5% fat-free milk at room temperature (RT) for 1 h. Subsequently, the membranes were incubated overnight at 4 °C with a 1:1000 dilution of T3 Monoclonal Antibody (3A6) (MA1-21669, Invitrogen). Following washes with TBST (TBS containing 0.05% Tween-20), the membranes were incubated with species-specific HRP-conjugated secondary antibodies diluted at 1:2000 in blocking buffer at RT for 2 h. After additional washes with TBST, the specific bands were visualized using a chemiluminescence digital imaging system (ImageQuant Las-4000 Mini, GE Healthcare). To detect the signals of proteins in iodinated and non-iodinated samples, the anti-GFP rabbit polyclonal antibody (T0006, Affinity), anti-HsTG mouse polyclonal antibody (sc-365997, Santa Cruz Biotechnology) and anti-Sc.CG.S55.56 mouse polyclonal antibody (homemade) were employed (Supplementary Dataset 2).

Preparation of anti-Sc.CG.S55.56

The antibody of Sc.CG.S55.56 protein was made in our lab. The full-length Sc.CG.S55.56 protein-encoding sequence was cloned from cDNA library of S. clava (Supplementary Dataset 5), and subcloned into a linearized pET30a vector (pre-linearization using BamHI and EcoRI restriction enzymes (Thermo Fisher Scientific)). Purification of the resulting fragments was performed using the GeneJEL Kit (K0691, Thermo Fisher Scientific), and homologous recombination was carried out using the in-fusion method (C115, Vazyme). The newly generated plasmids are available upon request from the corresponding author.

To obtain the Sc.CG.55.56 protein, prokaryotic expression using bacteria was performed. The recombined plasmids were transformed into BL21(DE3) competent cells. Bacteria successfully transformed with recombined plasmids were inoculated to LB solid media. Monoclonal colony was used for amplification culture in LB liquid media at 37 °C with 4.4 × g. When the OD value reached to 0.6, IPTG was added into bacterial fluid with the final concentration of 0.5 mM. The bacterial fluid was then developed in 20 °C environment at speed of 3.2 × g for 16 h. Ultrasonication was used for extraction of total proteins in bacteria. The coomassie blue staining was performed to labeled the Sc.CG.S55.56 protein. The gels containing Sc.CG.S55.56 protein were split, and were homogenate through ultrasonication. To obtain the antibodies of Sc.CG.S55.56, intraperitoneal injection in mice was carried out once a week for a total of four times. A total of 200 μg protein was used for intraperitoneal injection every time. Finally, the blood of mice was drawn and further separated to obtain serum. The serum contains antibodies and was used in subsequent experiments. The experimental procedures involving mice were approved by the Institutional Animal Care and Use Committee of Ocean University of China (OUC-IACUC), with approval numbers OUC-AE-2022-128.

RNA inference and rescue experiment

Fertilized eggs were cultured at 18 °C until the early tail bud stage, the embryos were gathered and placed into the wells of a 24-well plate, which had been pre-coated with 0.1% BSA. Each well contained more than 50 embryos. The siRNAs were designed and synthesized by Genecefe Biotechnology Co., Ltd (Wuxi, China). The sequences of siRNAs for this experiment were listed in Supplementary Dataset 6. The sequence of the negative control siRNA does not target any gene in the S. clava genome. The siRNAs were dissolved in RNase-free water to achieve a stock concentration of 20 μM. For transfection, the riboFECTTM CP transfection kit (C10511-05, Ribo Bio) was used according to the manufacturer’s instructions. The working concentration of the siRNAs for transfection was set at 0.4 μM, and the embryos were incubated with the siRNAs at 18 °C. For rescue experiment, the T3 was added at 18 hpf with working concentration at 50 μg/mL. Following the incubation period, the phenotypes of the larvae were recorded using a microscope, and the percentages of metamorphic larvae were analyzed. Subsequently, the larvae were collected for RNA extraction.

Enzyme linked immunosorbent assay (ELISA)

The larvae were dissociated using ultrasonication, and ultracentrifugation was performed to obtain the supernatant for ELISA detection. Standardize each group of samples by weighing. The 25 μL of sample was incubated with 100 μL TH-HRP conjugate in each well of 96-well plate for 1 h at RT. After incubation, the content of the wells was discarded, and each well was washed with 300 μL of wash buffer for five times. Subsequently, 100 μL of TMB substrate solution was added to each well, followed by incubation at RT in the dark for 15 min. Then, 100 μL of stop solution was added to each well, and the plate was gently shaken. The absorbance of the samples was measured at a wavelength of 450 nm.

Statistics and reproducibility

All values are depicted as mean ± SEM. Significant test was analyzed by two-tailed T-test. Data were estimated to be statistically significant at p-value ≤ 0.05. ****, p-value ≤ 0.0001. ***, p-value ≤ 0.001, **, p-value ≤ 0.01. *, p-value ≤ 0.05.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The datasets presented in this study can be found in publicly available repositories. The transcriptomic data of S. clava during early developmental processes used in this study are available in NCBI SRA database under accession number PRJNA523303. The Stereo-seq datasets on the S. clava endostyle used in this study are available in China National GenBank DataBase under the accession number CNP0004228. The mass spectrometry data used in this study are available in ProteomeXchange Consortium under accession number PXD073162. Source data are provided with this paper.
