Accurate determination of chemical abundances near a supermassive black hole

Abstract

The metal abundances in galactic nuclei carry key information on the history of star formation and mass transfer in central regions of galaxies. X-ray fluorescence analysis is a unique tool to reliably measure the abundances of various elements via simple physics. Here we present a new observation of the active nucleus in the Circinus galaxy with the XRISM satellite at unprecedented X-ray energy resolution. The fluorescent iron Kα line profile modified by Compton scattering indicates that the material responsible for its emission is cold and metal rich and is located ≳0.024 pc from the supermassive black hole, consistent with the dusty torus region. The abundance pattern derived from comparing fluorescent line intensities of different metals shows subsolar ratios of argon- and calcium-to-iron and a supersolar ratio of nickel-to-iron. This abundance pattern is best produced by a combination in number fraction of $9{2}_{-4}^{+2} \%$ core-collapse supernovae from progenitor stars less massive than $2{0}_{-2}^{+3\,}{M}_{\odot }$ and ${8}_{-2}^{+4} \%$ type Ia supernovae. This suggests that gas feeding the supermassive black hole was enriched by recent core-collapse supernovae. Our findings imply that in metal-rich environments stars more massive than about 20 M_⊙ directly collapse into black holes or make faint supernovae without ejecting heavy metals into the space.

Main

The elemental abundance pattern is a crucial indicator for comprehending the history of metal production and supply in metal-enriched systems¹. It reflects the history of past supernovae (SNe) of various types, roughly divided into type Ia SNe (SNe Ia) and core-collapse SNe (CCSNe). Metals produced by SNe are eventually supplied to intracluster medium and pollute its primordial gas synthesized by the Big Bang, consisting mainly of hydrogen and helium. X-ray observations of hot intracluster medium in galaxy clusters (for example, ref. ²) suggest that the metal abundance ratios integrated over the cosmic time are close to the solar values, which refer to the protosolar table of Lodders et al.³ in all X-ray spectral models employed in this work. This abundance pattern can be explained by a combination of about 20% of SN Ia and about 80% of CCSN events according to current SN nucleosynthesis models^4,5. However, probing the chemical abundance in the very central region of a galaxy, which holds a key to deciphering its evolutionary history, has remained challenging. In the ultraviolet, optical and near-infrared bands, metal abundances in galaxies hosting supermassive black holes (SMBHs) are measured with emission-line ratios from nebulae via photoionization modelling, which traces primarily the interaction of optical and ultraviolet photons with the surrounding gas (for example, refs. ^6,7,8). However, the results sensitively depend on the assumed density distribution, the shape of the ionizing continuum and the degree of dust depletion^6,7, leaving large systematic uncertainties. By contrast, the interaction between X-rays and matter is simpler, permitting a nearly unbiased probe of all matter including gas and dust. A fluorescence line is emitted after photoelectric absorption of a high energy photon by an atom, and hence, its intensity represents the amount of each metal contained in X-ray irradiated medium. Thus, diagnostics based on fluorescence lines in the X-ray spectrum reflected off matter surrounding the SMBH enable a more direct estimate of the elemental abundances in the environments of active galactic nuclei (AGNs). Thanks to its unprecedented energy resolution, the Resolve spectrometer onboard the recently launched X-ray observatory XRISM⁹ enables the precise measurement of faint fluorescence emission lines from elements that were previously beyond reach.

In this study, we focus on the Circinus galaxy (hereafter Circinus), a nearby (4.2 Mpc; ref. ¹⁰), spiral galaxy hosting the nearest Seyfert 2 nucleus¹¹. Previous X-ray observations have revealed that Circinus harbours a Compton-thick AGN (for example, refs. ^12,13,14), where the central engine is heavily obscured by intervening material with a hydrogen column density of N_H > 10²⁴ cm⁻². This makes it an ideal target for studying the properties of the obscuring torus and its reflection spectrum.

Circinus was observed by XRISM on 8–12 February 2024, with a total exposure time of 309 ks. Nearly simultaneous NuSTAR and XMM-Newton observations were carried out to extend our spectral coverage to higher energies and to obtain better spatial resolution below 10 keV. The overall XRISM/Resolve spectrum covering an approximately 3′ × 3′ area centred at the Circinus nucleus is plotted in Fig. 1, where a wealth of emission lines from various elements are noticeable. Its enlarged view around the fluorescence lines of argon, calcium, chromium, manganese, iron and nickel is shown in Fig. 2a–g.

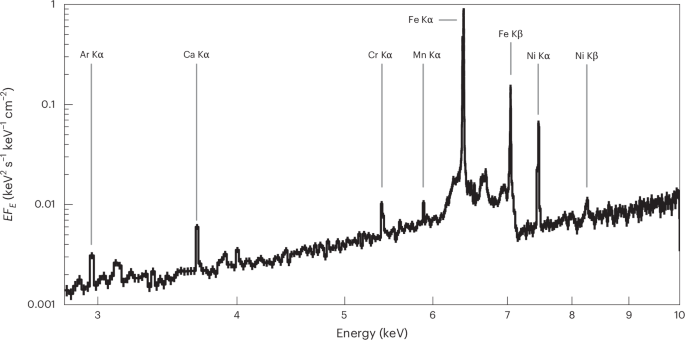

Fig. 1: XRISM/Resolve spectrum of the Circinus galaxy in the 2.8–10-keV band.

It is folded by the instrumental response in units of EF_E, where F_E is the energy flux at energy E (that is, corrected for the effective area). The spectrum is binned according to the ‘optimal binning’ technique⁸², which is used for the spectral analysis throughout the Article. The non-X-ray background component is subtracted. Major fluorescence lines from cold matter are labelled. The error bars denote the 1σ confidence limits in photon statistics.

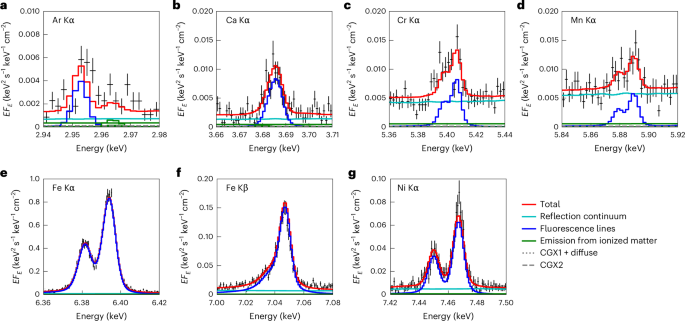

Fig. 2: Enlarged plots of the XRISM/Resolve spectrum of the Circinus galaxy around the major fluorescence lines from neutral matter, overlaid with the best-fit model.

a–g, Ar Kα (a), Ca Kα (b), Cr Kα (c), Mn Kα (d), Fe Kα (e), Fe Kβ (f) and Ni Kα (g). They are folded by the instrumental response in units of EF_E, where F_E is the energy flux at energy E. The observed data are plotted in black with error bars denoting the 1σ confidence limits in photon statistics. The blue, cyan, green and red lines represent the emission lines from cold matter, the reflection continuum from cold matter, emission from ionized matter together with the Thomson-scattered component and the total, respectively, based on our best-fitting model (‘Spectral model description’ section in the Methods). For visualization, the bin size is set at either 2 eV (Ar Kα, Cr Kα and Mn Kα), 1 eV (Ca Kα, Fe Kβ and Ni Kα) or 0.5 eV (Fe Kα) in these plots.

Our primary goal is to model the reflection spectrum from the AGN torus¹⁵, most probably located at about 0.1−10 pc from the SMBH¹⁶ in Circinus, with a particular focus on the fluorescence lines from cold matter. To this end, we employed an updated version of the state-of-art clumpy torus model, XCLUMPY¹⁴, which accounts for the non-uniform distribution of matter in the AGN environment (‘Spectral model description’ section in the Methods). To accurately model the fluorescent line shapes, we incorporated the natural line widths determined from laboratory measurements. This approach is crucial for taking full advantage of the high-spectral resolution provided by XRISM/Resolve. Considering the limited photon statistics below ~2.5 keV in the Resolve spectrum (Extended Data Fig. 1), here, we focus on the lines from Ar and heavier elements. Accordingly, the abundances of Ar, Ca, Cr, Mn, Fe and Ni were left as free parameters.

We simultaneously fitted the XRISM/Resolve spectrum in the 2.0–10-keV band and the NuSTAR one in the 8–70-keV band. The model consists of the torus reflection component described above, transmitted component, emission from ionized gas and emission from contaminating sources other than the AGN (‘Analysis of contaminating sources’ section in the Methods). To take into account Doppler broadening of lines, we convolve the line components from the torus with a Gaussian kernel. This model is found to well reproduce the whole spectra.

We have obtained the best quality spectrum of a narrow iron Kα line (Fig. 3) ever observed from an AGN (see Extended Data Fig. 2 for a comparison with the Chandra/HETG data). It is characterized by its narrowness, with full width half maximum (FWHM) of 210 ± 10 km s⁻¹, which was overestimated in previous studies (for example, refs. ^17,18), most probably due to the non-consideration of the fine structure and/or natural broadening in the intrinsic line profile¹⁹ and to spatial-spectral degeneracies in grating data²⁰. The width is larger than those of atomic and molecular lines at 0.5–4 pc (115.2 ± 0.8 km s⁻¹ in FWHM for [C I]³P₁–³P₀ and 141.1 ± 0.8 km s⁻¹ in FWHM for CO(J = 3 → 2), where J is the total angular momentum quantum number) but is smaller than that of ionized gas in the central core (<0.5 pc), traced by the atomic hydrogen recombination line, H36α, at 135 GHz with ALMA (393 ± 44 km s⁻¹ in FWHM)^21,22. To infer the innermost radius of the line emitter, we convolve the intrinsic line profile with a kernel that represents Doppler broadening by a Keplerian disk (rdblur in XSPEC) instead of a Gaussian. Adopting an inclination of 79.1°, the best-fit value in the XCLUMPY spectral fitting (Extended Data Table 1), and assuming an outermost radius of 10⁸ r_g (r_g ≡ GM/c² is the gravitation radius, where G, M and c are the gravitational constant, black hole (BH) mass and light velocity, respectively), which roughly corresponds to the size of the nuclear dust continuum emission imaged by ALMA²¹, we obtain an emissivity index of q = −1.7 ± 0.1 and an innermost radius of (3.0 ± 0.6) × 10⁵ r_g, which corresponds to 0.024 ± 0.007 pc for an SMBH mass of (1.7 ± 0.3) × 10⁶ M_⊙ (ref. ²³). This is almost consistent with the dust sublimation radius of the torus in Circinus, 0.05 ± 0.02 pc (ref. ²⁰), assuming a factor of 2 uncertainty in the bolometric luminosity. Another key feature is the smeared shape of the low energy side of the Compton shoulder structure (refs. ^24,25) at 6.24 keV (corresponding to the backscattering case by a free electron at rest). When X-rays are scattered by electrons bound in atoms, the edge feature is blurred by an order of the electron binding energies due to the Doppler broadening. Hence, our result suggests that the scatterer is likely to be cold (not-ionized) material. Within our measurement uncertainties, the centroid energy of the Fe Kα line is consistent with the rest-frame energy of cold atom (‘Spectral model description’ section in the Methods), indicating that the bulk of the reflecting material is not undergoing significant systematic motion relative to the host galaxy, unlike the optical lines from the ionization cone that show blueshifts of ≳200 km s⁻¹ (refs. ^26,27). All these considerations suggest that the Fe K lines predominantly come from an innermost part of the ‘cold’, dusty torus, which dominates the mass distribution of the surrounding matter. We note, however, that although our Circinus spectrum does not require contributions from the broad line region as discussed by Gandhi et al.²⁸ and Andonie et al.¹⁸, it may be due to the heavy obscuration by the torus that completely blocks emission inside it. In fact, XRISM observations of less obscured AGNs commonly show broader components in Fe Kα (for example, ref. ²⁹).

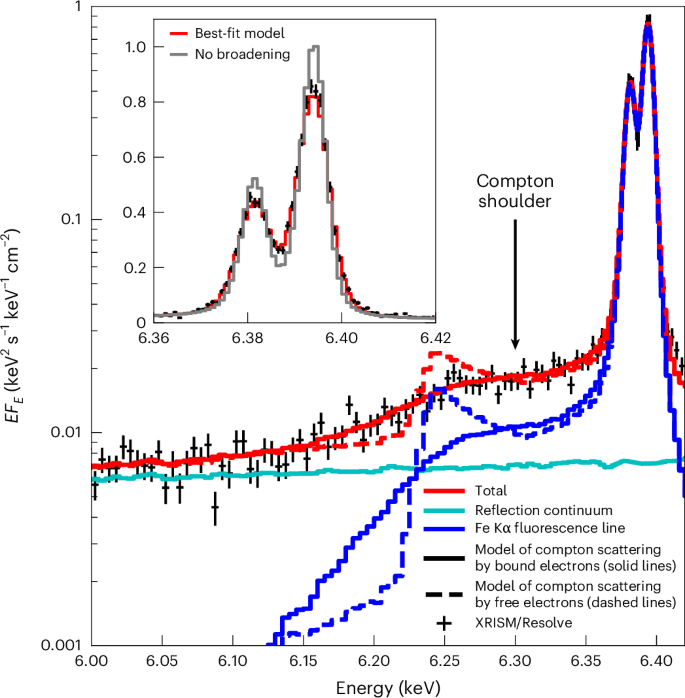

Fig. 3: A zoom-in picture of XRISM/Resolve spectrum of the Circinus galaxy around the Fe Kα emission line.

They are folded by the instrumental response in units of EF_E, where F_E is the energy flux at energy E. The observed data are plotted in black with error bars denoting the 1σ confidence limits in photon statistics. The blue, cyan and red lines represent the models of the emission lines from cold matter, the reflection continuum from cold matter and the total, respectively. The dashed lines denote the case where Compton scattering from free electrons at zero temperature is considered. In the inset, the observational data are compared against our best-fit model (red) and a model to which no Gaussian broadening is applied (grey). This shows that Doppler broadening is very small compared with the intrinsic width of the Fe Kα line.

We have accurately determined the abundance ratio of iron to hydrogen is 2.3 ± 0.1 times the solar value through a joint analysis of the broadband spectra and iron Kα profile (see ‘Spectral model description’ section in the Methods for details). The shape of the broadband reflection continuum basically determines the geometry and hydrogen column density of the torus. Then, as in previous studies³⁰, the equivalent width of iron Kα can be used to infer the Fe/H abundance ratio. To obtain a tighter constraint on Fe/H, we additionally utilize the intensity of iron Kα and its Compton-shoulder fraction f_CS, which are roughly proportional to the amount of iron atoms and hydrogen atoms in the reflector, respectively²⁴. We have confirmed that our results on the Fe/H abundance ratio is robust against different parameters of the torus geometry (‘Effects by adopting different torus geometry’ section in the Methods).

Figure 4 shows the observed abundance ratios relative to iron in the Circinus centre. The Ar/Fe and Ca/Fe ratios exhibit subsolar (0.6–0.8) values, whereas the Ni/Fe ratio is supersolar (1.3). Our abundance pattern differs from that of the Perseus cluster core^2,31, which follows the solar abundance ratios including Ni/Fe, and from nuclear star clusters in the Milky Way³², which show subsolar Ca/Fe but supersolar Mn/Fe ratios.

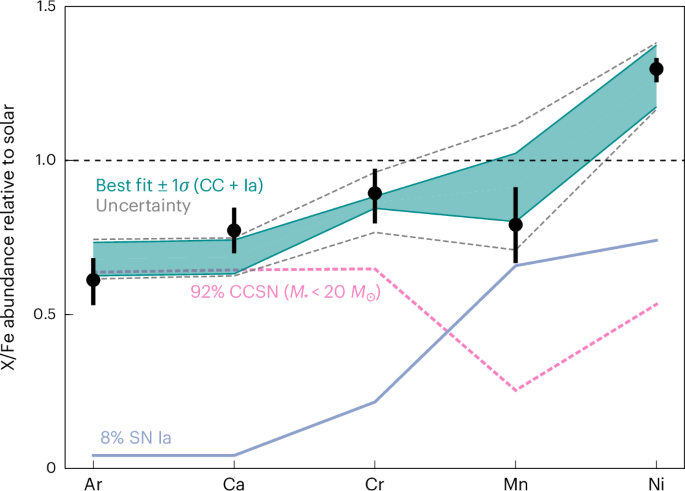

Fig. 4: Observed elemental abundances of the Circinus centre and theoretically calculated values with an upper mass limit of 20 M_⊙ for CCSN progenitors.

Relative abundances with respect to iron determined with XRISM (X/Fe, filled circles) normalized to the corresponding protosolar values (horizontal dashed line). The error bars denote the 1σ confidence limits on the measurement, estimated by Markov chain Monte Carlo method. The green shaded area represents the 1σ statistical uncertainty region of the best-fit model (σ_stat) consisting of 92% CCSNe from progenitor stars with zero-age main-sequence masses (M_*) smaller than 20 M_⊙ and 8% near-M_Ch SNe Ia in number fraction. The contribution that CCSNe and SNe Ia make to the X/Fe are represented by the magenta and blue curves, respectively. Here, we adopt the nucleosynthesis models for CCSNe⁴ and SNe Ia^5,35. The thin, dashed grey lines show the total uncertainty, including differences in the predicted yields by alternative SN Ia and CCSN modelling as $\sqrt{{\sigma }_{{\rm{s}}{\rm{t}}{\rm{a}}{\rm{t}}}^{2}+{\sigma }_{{\rm{I}}{\rm{a}}}^{2}+{\sigma }_{{\rm{C}}{\rm{C}}}^{2}}$ (‘Metal enrichment models’ section in the Methods).

To interpret our result, the observed abundance pattern is modelled by using a linear combination of CCSN and SN Ia nucleosynthesis predictions (for example, ref. ³¹), yielding the abundance ratio of element X to iron as

$$\frac{{A}_{{\rm{X}}}}{{A}_{{\rm{F}}{\rm{e}}}}=\frac{{r}^{{\rm{I}}{\rm{a}}}{A}_{{\rm{X}}}^{{\rm{I}}{\rm{a}}}+{A}_{{\rm{X}}}^{{\rm{C}}{\rm{C}}}}{{r}^{{\rm{I}}{\rm{a}}}{A}_{{\rm{F}}{\rm{e}}}^{{\rm{I}}{\rm{a}}}+{A}_{{\rm{F}}{\rm{e}}}^{{\rm{C}}{\rm{C}}}},$$

where r^Ia denotes the number ratio of SNe Ia to CCSNe. Progenitors for each SN type are assumed to have the solar metallicity (Z = 0.02). The Salpeter initial-mass function (IMF, index of −2.35; ref. ³³) is employed to integrate yields over CCSNe progenitor masses ranging from 9 M_⊙ to ${M}_{\mathrm{CCSN}.\mathrm{up}}$

$$\begin{array}{l}{A}_{{\rm{X}}}^{{\rm{C}}{\rm{C}}}=\displaystyle\frac{{\int }_{9{M}_{\odot }}^{{M}_{{\rm{C}}{\rm{C}}{\rm{S}}{\rm{N}},{\rm{u}}{\rm{p}}}}{M}^{-2.35}{A}_{{\rm{X}}}(M){\rm{d}}M}{{\int }_{9{M}_{\odot }}^{{M}_{{\rm{C}}{\rm{C}}{\rm{S}}{\rm{N}},{\rm{u}}{\rm{p}}}}{M}^{-2.35}{\rm{d}}M},\end{array}$$

where A_X(M) represents the yield of element X as a function of the progenitor mass M. When A_X(M) is available only at discrete values of M in the literature, we simply refer to the value closest to each calculation point in the integration. Here, we assume that all stars formed according to the IMF in the integrated mass range have already undergone CCSNe. This assumption is valid because the young nuclear stellar population in Circinus has estimated ages of 4 × 10⁷ − 1.5 × 10⁸ yr (ref. ³⁴), which is comparable or longer than the life time of a star with an initial mass of 9 M_⊙. For the metal yields, we refer to the well-established CCSN model by Nomoto et al.⁴, alongside with the SN Ia yields from near-Chandrasekhar-mass (M_Ch) progenitors⁵ and merging sub-M_Ch ones³⁵. Note that CCSNe from high mass (≳20 M_⊙) progenitors produce a large amount of α elements relative to iron, compared with SNe Ia^4,5.

Although detailed studies on the origin of the metals in Milky Way stars (for example, ref. ³⁶) consider star formation history to explain the evolution of chemical elements over the cosmic time, in this study, we focus on the relative contributions from different explosion sites (for example, the initial-mass-dependent SN yields), which determine the abundance ratios among the heavy elements. We do not assume that the SNe Ia and CCSNe originate from the same stellar population or consider star formation histories representing the detailed metal enrichment history. The delay time distribution of SNe Ia after birth typically ranges from 100 to 1,000 Myr (for example, ref. ³⁷), whereas that of CCSNe is much shorter (<50 Myr for a single massive progenitor³⁸). Thus, the fraction of CCSNe estimated by our analysis provides key information on contribution from young star formation at the central region of Circinus. Throughout the paper, we assume that the AGN does not influence stellar evolution and distribution of elements.

As a reference model, we first consider a wide mass range for CCSN progenitors by setting ${M}_{{\rm{C}}{\rm{C}}{\rm{S}}{\rm{N}},{\rm{u}}{\rm{p}}}=40\,{M}_{\odot }$ with contribution of near- and sub-M_Ch SNe Ia. The five abundance ratios (Ar/Fe, Ca/Fe, Cr/Fe, Mn/Fe and Ni/Fe) are compared with model predictions by varying the number fractions of three SN types (that is, with two independent free parameters). The fitting is performed by minimizing the χ² statistics. We find that the observed pattern can be roughly explained by a combination of 60% CCSNe and 40% SNe Ia in number fraction (Table 1 and Extended Data Fig. 3). However, the fitting is not statistically acceptable with reduced χ² of 3.3. Furthermore, the typical SN Ia fraction even in ancient systems, such as galaxy clusters and early-type galaxies, varies from 10% to 25% (for example, see ref. ³¹ for a recent comprehensive study); therefore, the substantial SN Ia contribution higher than this level is hard to interpret for the Circinus centre, wherein a continuous star formation is identified^39,40. Thus, this reference model is not favoured due to both statistical and physical issues.

Table 1 The best-fitting number fraction of each type of SN to reproduce the observed abundance ratios of Ar/Fe, Ca/Fe, Cr/Fe, Mn/Fe and Ni/Fe in the Circinus centre

Alternatively, we select a different mass range for CCSN progenitors by employing IMF-weighted integrations with the upper mass limits in the range of M_CCSN,up = 18–35 M_⊙. As summarized in Table 1, the models with ${M}_{{\rm{CCSN}},{\rm{up}}} < 30\,{M}_{\odot}$ give statistically much better fits to the observed abundance pattern than the SNe Ia dominant model, and produce a natural enrichment scenario, with a dominant contribution from CCSNe. Figure 4 shows the best-fitting combination model, where the number fraction of CCSNe with progenitors less massive than $2{0}_{-2}^{+3}\,{M}_{\odot }$ is $9{2}_{-4}^{+2} \%$, globally reproduces the abundance ratios of Ar, Ca, Cr, Mg and Ni, relative to Fe. The attached errors are statistical ones at 1σ confidence limits; we estimate that in ${M}_{{\rm{CCSN}},{\rm{up}}}$ from the ${M}_{{\rm{CCSN}},{\rm{up}}}$ versus χ² plot with 1 M_⊙ steps. The ‘Metal enrichment models’ section in the Methods summarizes other modelling trials assuming different SN Ia models or CCSNe models with alternative yield calculation, IMF, hypernova (HN) contribution and progenitor metallicity. We confirm that our conclusions are not affected. The systematic uncertainty in the CCSN or SN Ia fraction is found to be 2%, which is smaller than the statistical one.

Our findings indicate two important consequences on SMBH-galaxy co-evolution and on the mechanisms of CCSNe. The SN composition suggests that the SMBH is accreting gas whose metal is largely enriched by recent CCSNe rather than old gas produced by SNe Ia. This does not contradict the ‘inside-out’ galaxy formation scenario, where the core of a galaxy formed in the very early universe⁴¹, if gas in the torus region <10–20 pc is continuously supplied from the outer disk, replacing old gas (‘Mass transfer in circinus centre’ section in the Methods). The co-existence of nuclear starburst and AGN activities is in line with models where SNe play a role for obscuration of the central engine⁴². Also, high metallicity in galactic nuclei implies the importance of AGN feedback as a metal enrichment process on galaxy scales and beyond⁴³.

The presence of an upper mass limit for CCSN progenitors at the galactic central region has a critical implication for our understanding of the fate of massive stars. Our scenario is consistent with the suggestion by Mao et al.⁴⁴ based on the chemical abundance measurement of the hot atmosphere of a starburst galaxy. Some theories postulate that stars with zero-age main-sequence masses (M_ZAMS) of a few tens of solar masses will not undergo CCSN explosions but directly collapse into BHs (for example, ref. ⁴⁵) or make faint SNe without emitting heavy metals⁴⁶. Observationally, although there are a few possible examples for such BH-forming events in the local universe⁴⁷, it is still controversial whether this channel can make a substantial contribution to the BH population. Our finding supports the direct BH-forming collapses or faint SNe for stars with ${M}_{{\rm{Z}}{\rm{A}}{\rm{M}}{\rm{S}}} > 2{0}_{-2}^{+3}\,{M}_{\odot }$ in metal-rich environments unless massive stars are not formed due to, for example, a severely distorted IMF. This scenario may also solve the ‘red supergiant (RSG) problem’ (for example, refs. ^48,49) that no CCSNe from RSG stars with M_ZAMS > 18 M_⊙ have been found in the local universe despite the existence of more massive RSGs. In addition, it gives an important clue to understand nucleosynthesis history in the universe. We infer that, in the early universe when the gas is metal poor, very massive stars (for example, M_ZAMS of several tens of solar masses beyond the BH-forming mass window) explode as CCSNe and produce a large amount of alpha elements, to explain the solar abundance ratios in galaxy clusters^2,31.

Methods

XRISM data reduction

We used Heasoft version 6.34 and XRISM Calibration Database version 20240815 for the data reduction. The Resolve data were reduced according to the XRISM Quick Start Guide v2.3, and additional screening was applied using the standard energy-dependent rise time cut⁵⁰. The response matrix file was generated using RSLMKRMF, and its normalization was calculated based on the event grade distribution in the cleaned event file. The cleaned file initially included low-resolution secondary events, which were not caused by the source but resulted from the secondary-pulse detection algorithm processing clipped pulses. As almost all events should have a high-resolution primary grade due to the count rate of 10⁻³to 10⁻¹ s⁻¹ per pixel, the low-resolution secondary events were removed from the cleaned event file before calculating the response matrix file. The ancillary response file was created with XAARFGEN, assuming a point-like source at the aim point as input. Only high-resolution primary grade events were used for spectral analysis.

The gain and thus the energy scale of Resolve is sensitive to its environment. Thus, the gain is monitored using onboard calibration sources during fixed fiducial intervals in the standard Resolve calibration strategy⁵¹. The fiducial intervals are then interpolated to reconstruct the time-dependent energy scale. The efficacy of this strategy is monitored by a continuously illuminated calibration pixel that is located just outside the aperture of the instrument, but part of the 50-mK detector array. The calibration pixel is continuously illuminated by a heavily collimated ⁵⁵Fe source but is corrected using the same fiducial intervals as the main array. For this observation, the calibration pixel energy scale offset was measured to be 0.07 eV at 6 keV. This is added in quadrature to the systematic uncertainty in the Resolve energy scale, which is the standard method for Resolve observations. The systematic uncertainty in the Resolve energy scale is 0.3 eV from 5.4–9 keV (the range of the suite of onboard calibration sources)⁵². Added in quadrature, the systematic uncertainty in the energy scale for this observation is thus 0.31 eV. During the fiducial intervals, the energy resolution of the composite spectrum of the main array was 4.44 eV at 5.9 keV, which is in-line with the standard XRISM/Resolve RMF.

The XRISM/Resolve main array is composed of 36 pixels, one of which is the calibration pixel which is outside of the instrument aperture. For this observation, 34 main array pixels were used in the analysis. Pixel 27 was not used because it has been shown to exhibit gain jumps, which are not correctable with the sparse gain fiducials used in the standard energy scale reconstruction method.

The non-X-ray background (NXB) event file was generated using the RSLNXBGEN task, and it was screened with the same criteria as the source data, excluding pixel 27 and retaining only high-resolution primary grade events. The NXB spectrum was fitted using a model provided by the XRISM Calibration team, which includes a power-law component and 17 narrow emission lines modelled by Gaussian profiles. These lines correspond to Al Kα1/Kα2, Au Mα1, Cr Kα1/Kα2, Mn Kα1/Kα2, Fe Kα1/Kα2, Ni Kα1/Kα2, Cu Kα1/Kα2, Au Lα1/Lα2 and Au Lβ1/Lβ2. Extended Data Fig. 1 plots the observed spectrum of Circinus (not corrected for effective area) and this NXB model.

NuSTAR observations and data reduction

The hard band spectrum of the Circinus galaxy was obtained with NuSTAR on 2 February 2024, with a total exposure time of 24 ks (ID 60901013002). We reprocessed the data from the two FPM detectors, following the standard procedure. The source spectrum was extracted from a circular region with a radius of 60 arcsec centred on the source peak. The background was taken from a circular region with a radius of 60 arcsec that is not contaminated by bright Chandra-detected sources or the PSF wings of the nucleus. The source spectra were binned to contain at least 50 counts per bin.

Analysis of contaminating sources

The Resolve spectrum of the Circinus galaxy is mainly contaminated by three sources: CGX1 (ultraluminous X-ray source), CGX2 (supernova remnant), and diffuse emission (see refs. ^13,53,54,55). To constrain the impact of these contaminating sources, we utilized the high-spatial-resolution image obtained with XMM-Newton. The Circinus galaxy was observed with XMM-Newton from February 2 2024 to February 3 2024, with a total exposure time of 115 ks (ID 0932990101). The unfiltered data were reprocessed following the standard procedure with SAS V21.0.0. We extracted two types of spectra with the following recipe. First, the ‘XMM-all’ spectrum, which contains nearly all of the contaminating sources in the Resolve spectrum, was extracted from a circular region with a radius of 90 arcsec centred on the Circinus galaxy, thus commensurate to the Resolve field-of-view. Here, we utilized the pn data, which have better photon statistics than the MOS1 or MOS2 data. The background spectrum for the ‘XMM-all’ spectrum was extracted from a source-free annulus with a inner radius of 100 arcsec and a outer radius of 140 arcsec. Second, the ‘XMM-CGX2’ spectrum, which represents the source spectrum of CGX2, was extracted from a circular region with a radius of 8 arcsec centred on CGX2. For this we utilized the MOS1 data, which have the best spatial resolution among the three EPIC cameras. The background spectrum for the ‘XMM-CGX2’ spectrum was extracted from three circular regions, each with a radius of 8 arcsec and located at the same distance from the Circinus galaxy. The image of MOS1 is displayed in Supplementary Fig. 1, where the source and background regions for the ‘XMM-CGX2’ spectra are indicated, together with the corresponding source region for the ‘XMM-all’ spectrum. All the source spectra are binned to contain at least 50 counts per bin. Note that there is a known issue in the cross calibration between NuSTAR and XMM-Newton⁵⁶. To correct this issue, we always applied the applyabsfluxcorr=yes option in ARFGEN.

To better constrain the CGX2 spectrum, we also utilized the high spatial and energy resolution spectra obtained with Chandra/HETG. The Circinus galaxy was observed with Chandra/HETG for several times from 8 December 2008 to 4 March 2009 (IDs 10223, 10224, 10225, 10226, 10832, 10833, 10842, 10843, 10844, 10850, 10872 and 10873). We reprocessed all the spectra following the standard procedure with CIAO V4.17. The combined spectra were binned to contain at least one count per bin.

First, we calibrated the spectral model for CGX2 utilizing the Chandra/HETG spectra. We simultaneously fitted the HEG (first order), the MEG (second order) and the zeroth order spectra with a constant temperature plane-parallel shock plasma model modified by Galactic absorption of N_H = 7.02 × 10²¹ cm⁻² (ref. ⁵⁷). The model is expressed as follows in XSPEC terminology:

$$\mathrm{CGX}2=\mathrm{TBabs}* \mathrm{bvpshock}$$

We successfully reproduced the spectra (C statistic = 4,454.6 for 4,536 degrees of freedom) with this model, which gives a similar spectrum to that adopted by Arévalo et al.¹³. Note that the TBabs model implements the photoelectric absorption cross-section in the interstellar medium given by Wilms et al.⁵⁸ and assumes one solar abundances.

Supplementary Fig. 2 plots the Chandra/HETG spectra together with the best-fit model. Next, we fitted the ‘XMM-CGX2’ spectrum with the calibrated model described above. Here, we left the normalization to vary to treat the known time variability of CGX2⁵⁹. We well reproduced the ‘XMM-CGX2’ spectra with χ² = 21.1 for 26 degrees of freedom. The combined spectrum of CGX1 and the diffuse emission was approximated by a single power-law with a cutoff at 10 keV, which was expressed as zcutoffpl in XSPEC terminology. Although Arévalo et al.¹³ adopted a simple absorbed power-law model for CGX1, the difference little affects the spectral fitting of the nuclear emission, which is much harder than the CGX1 spectrum.

The model to fully characterise the contribution of the contaminating sources in the XRISM/Resolve and NuSTAR apertures was determined by fitting them together with the XMM-Newton/EPIC-pn spectra, by using models representing independently the AGN, CGX1 + diffuse and CGX2 contributions. The spectral model for the AGN component is described in the ‘Spectral model description’ section. The model and the parameters of CGX2 were fixed at the values as derived from the XMM-CGX2 spectra. We included a cross-normalization factor (relative to Resolve) to correct for a possible difference in the absolute flux calibration among different instruments. Note that the normalization of CGX2 was set to keep consistency with the cross-calibration factor.

Spectral model description

As mentioned in ‘Main’, the reflection component from an AGN torus carry critical information on its geometry, hydrogen column density and metal abundances. Basically, the broad continuum is determined by the torus geometry and hydrogen column density^{14,60,61,62,63}, whereas the equivalent width³⁰ and Compton shoulder fraction²⁴ of iron Kα are determined by the Fe/H abundance ratio. It is noteworthy that the estimated torus parameters also depend on the intrinsic spectrum (photon index and high energy cutoff); for instance, a harder spectrum produces a stronger iron Kα line because of a larger number of photoionizing photons above the iron K-edge energy. It is not easy to accurately determine the intrinsic spectrum in a heavily Compton-thick AGN, where the transmitted component is not directly observable. Thus, it is crucial to simultaneously fit the broadband continuum spectrum and high energy-resolution spectrum covering the iron Kα band to best constrain the torus parameters by solving the degeneracy among them.

To derive the physical properties of the Circinus galaxy, we developed a new model that is applicable to the state-of-art high-resolution spectrum of XRISM. The basic idea of this model is based on the XCLUMPY model¹⁴, which was designed to reproduce the X-ray reflection from a clumpy torus based on the same formalism as in the CLUMPY model⁶⁴. In XCLUMPY, spheres with a uniform density are distributed according to a Gaussian distribution (with a standard deviation of σ) in the elevation direction and a power-law distribution with an index of −0.5 in the radial direction. The inner and outer radii of the torus are set at r_in = 0.05 pc and r_in = 1.0 pc, respectively, and the radius of each clump is set at R_clump = 0.002 pc. Note that XCLUMPY is a scale-free model (that is, the output spectra are identical as far as the ratios among these three parameters are kept the same). The expected value of number of blobs along the sight line on the equatorial plane is fixed at 10. The free parameters regarding the torus properties are the torus angular width (σ), the total hydrogen column density in the equatorial plane (${N}_{\rm{H}}^{\rm{Equ}}$), and the inclination angle (i). A cross-section view of the distribution of clumps in XCLUMPY is shown in Supplementary Fig. 3a. We expanded the parameter ranges to treat variable abundances and implemented the natural widths of prominent fluorescent lines referring to the following databases: Hölzer et al.¹⁹ (Fe Kα, Fe Kβ, Co Kα, Co Kβ, Ni Kα, Ni Kβ, Cr Kα and Cr Kβ), Hitomi Calibration report (Mn Kα and Mn Kβ), Ito et al.⁶⁵ (Ca Kα and Ca Kβ) and Krause and Oliver⁶⁶ (Ar Kα).

We fitted the Resolve and NuSTAR spectra with the updated version of XCLUMPY. The broadband Resolve-NuSTAR model is attributed to contributions from different components, as follows:

$$\mathrm{const}\times ({\rm{A}}{\rm{G}}{\rm{N}}+{\rm{C}}{\rm{G}}{\rm{X}}2+{\rm{C}}{\rm{G}}{\rm{X}}1\,+\,{\rm{d}}{\rm{i}}\mathrm{ff}{\rm{u}}{\rm{s}}{\rm{e}}).$$

The first term (const) is a cross-normalization factor (relative to Resolve) to correct for a possible difference in the absolute flux calibration among different instruments. The model and the parameters of CGX2 and CGX1 + diffuse were fixed to the values found in the ‘Analysis of contaminating sources’ section. Their summed contributions in the XRISM/Resolve spectrum are approximately 1.1% at 5 keV and 0.2% at 10 keV.

In XSPEC terminology, the AGN component is expressed as follows:

$$\begin{array}{rcl}{\rm{A}}{\rm{G}}{\rm{N}} & = & {\mathtt{T}}{\mathtt{B}}{\mathtt{a}}{\mathtt{b}}{\mathtt{s}}* {\mathtt{T}}{\mathtt{B}}{\mathtt{v}}{\mathtt{a}}{\mathtt{r}}{\mathtt{a}}{\mathtt{b}}{\mathtt{s}}* ({\mathtt{T}}{\mathtt{B}}{\mathtt{v}}{\mathtt{a}}{\mathtt{r}}{\mathtt{a}}{\mathtt{b}}{\mathtt{s}}* {\mathtt{c}}{\mathtt{a}}{\mathtt{b}}{\mathtt{s}}* {\mathtt{z}}{\mathtt{c}}{\mathtt{u}}{\mathtt{t}}{\mathtt{o}}{\mathtt{f}}{\mathtt{f}}{\mathtt{p}}{\mathtt{l}}\\ & + & {\mathrm{xclumpy}}_{{\rm{R}}}.{\mathtt{fits}}+{\mathtt{gsmooth}}* {\mathrm{xclumpy}}_{{\rm{L}}}.{\mathtt{fits}}\\ & + & 3\times {\mathtt{pion}}+{\mathtt{zcutoffpl}})\end{array}.$$

The first term (TBabs) represents the Galactic absorption and the second one (TBvarabs) takes into account foreground absorption towards the nucleus in the host galaxy^67,68 with the same chemical abundances as in the XCLUMPY model. In the parenthesis, the first combination of terms describes the direct component transmitted through the torus. The second and third sets of terms represent the reflection continuum and the fluorescence lines from the torus. To detect energy shifts from the literature values¹⁹, the redshift parameters are allowed to vary. The line components are convolved with a Gaussian kernel to determine additional broadening. As discussed in ‘Main’, the bulk of the iron emitting material is constrained to a location at about 0.03 pc. Based on our analysis of the Chandra imaging data, spatially extended Fe Kα line emission on a 100-pc scale, revealed by Marinucci et al.⁵⁴, makes only a minor (<1%) contribution to the XRISM Fe Kα signal. The metal abundances, photon index, cutoff energy and normalization are linked to those of the direct component. The last set of terms describe the emission from photoionized plasmas seen in the Resolve spectrum. The emission lines, radiative recombination continuum and bremsstrahlung emission produced by them are modelled with the pion code⁶⁹. In addition, we take into account the Thomson-scattered component (for example, ref. ⁷⁰) of the direct emission (zcutoffpl), which is not included in the pion model, by setting its normalization to be consistent with the column density and covering fraction of the photoionized plasmas. Here, we ignore self-absorption by bound electrons. The detailed physical interpretation of this photoionized emission model will be discussed in a forthcoming study (Guainazzi et al., in preparation).

We simultaneously fitted the Resolve and NuSTAR spectra by adopting C statistics for the former and χ² statistics for the latter. Our model successfully reproduced the data: for a total of 30 free parameters, we obtain a C statistic = 2,695.8 for 2,316 bins (Resolve), χ² = 213.4 for 232 bins (FPMA) and χ² = 216.4 for 212 bins (FPMB). We confirm all AGN components introduced above are significantly required at >99% confidence limits. Supplementary Fig. 4 plots the spectra of Resolve and NuSTAR corrected for the effective area, the best-fit models for the total and the AGN component, and the fitting residuals. A zoom of Fig. 1, including only the energy range of the Fe Kα and Kβ fluorescent lines, is shown in Supplementary Fig. 5. The best-fit parameters of the AGN component, together with the parameters of the Gaussian kernel are summarized in Extended Data Table 1. The error on each parameter corresponds to a 1σ confidence limit for a single parameter estimated by Markov Chain Monte Carlo method. Supplementary Fig. 6 presents the corner plot among the metal abundances. The high inclination angle we obtain, i = 79.1° ± 0.4°, is compatible with estimates from other wavelengths: i > 70° (ref. ⁷¹) and i > 83° (ref. ⁷²) from mid-infrared interferometry and i ≈ 90° from H₂O maser observations showing evidence for a warped disk²³. The hydrogen column density of the foreground absorption in the host galaxy is found to be ${N}_{{\rm{H}}}^{{\rm{h}}{\rm{o}}{\rm{s}}{\rm{t}}}\simeq 2\times 1{0}^{22}\,{\mathrm{cm}}^{-2}$, which is consistent with the previous estimate from the optical extinction⁶⁷, assuming that the absorber has similarly high metallicity as in the torus material and that dust mass is proportional to metal mass (that is, it has a 2.3× larger dust-to-gas ratio than in the Galactic interstellar medium where hydrogen column density (N_H) is related to optical V band extinction (A_V) as N_H ≈ 2 × 10²¹ cm⁻² A_V). We have confirmed that our results on the metal abundances are little affected within the uncertainties in the fluxes of the contaminating sources. Because emission lines from the photoionized plasmas are spectroscopically separated from the neutral lines in the Resolve data, their effects on our elemental abundance measurements are ignorable.

We have determined the redshift parameters of the iron Kα and Kβ lines (with respect to the Hölzer et al.¹⁹ values) to be z = 0.00155 ± 0.00001 (± 0.00005) and z = 0.00158 ± 0.00004 (± 0.00005), respectively, after applying a heliocentric correction of 20 km s⁻¹ (that is, for the orbital motion of the Earth around the Sun; here, we have ignored the motion of the satellite relative to the Earth, which has a velocity amplitude of 8 km s⁻¹ with a period of 90 min and is averaged out during the observation). The errors in the parenthesis denote a gain calibration uncertainty of 0.3 eV (Resolve team, private communication). Thus, our results are consistent with the host galaxy redshift, z = 0.001448 ± 0.000010, measured by H I observations⁷³. For reference, Supplementary Table 1 summarizes the line centroid energies of major fluorescence lines in the literature based on ground experiments or theoretical calculations^19,65,74,75. Note that the line energy depends on the chemical state of atoms by an order of 1 eV for iron Kα (for example, ref. ⁷⁶), which produces an additional systematic uncertainty in discussing the Doppler shift of the line emitter. Thus, a conservative limit on the line-of-sight velocity of the torus relative to the galaxy based on iron Kα is −16 to +78 km s⁻¹ (the plus sign corresponds to a receding motion from us).

Possible contamination in neutral line flux from diffuse emission

In our best-fit model, the spectrum of the CGX1 + diffuse component is modelled by a power law with a high energy cutoff and, hence, does not include any emission lines. However, if the diffuse emission around the nucleus contained a scattered component of the AGN emission off cold gas, then it could contain fluorescence lines contaminating the line fluxes from the nucleus in the Resolve spectrum.

To evaluate its possible impact on the measurement of metal abundances of the torus, we estimate maximum fluxes of the fluorescence lines from the diffuse emission, using the continuum flux of the CGX1 + diffuse emission and theoretically expected equivalent widths in the scattered component from low column-density gas. Because the relative contribution from the diffuse emission becomes important at soft energies, here we focus on Ar Kα and Ca Kα lines. We have confirmed that the flux of diffuse emission in the 2.5–4.0 keV detected with Chandra is consistent with that inferred from our best-fit spectral model. Utilizing the Monte Carlo-based radiative transfer code SKIRT⁷⁷, we calculate the X-ray reflection spectrum from neutral, constant density gas in a spherical geometry irradiated by the central source. We assume a power law spectrum with a photon index of 1.9 as the intrinsic emission, the chemical abundances in Extended Data Table 1 and a column density of 10²⁰ cm⁻² integrated from the centre to the outer radius of the sphere, which is necessary to account for the diffuse flux by Thomson scattering. This calculation yields the expected equivalent widths of 31 eV for Ar Kα and 36 eV for Ca Kα. By multiplying the continuum flux of the CGX1 + diffuse emission, we find that these correspond to fractions of 16% (Ar Kα) and 10% (Ca Kα) in the total line fluxes observed with Resolve, which are comparable to the 1σ statistical uncertainties. These numbers should be taken as upper limits, because we assume that the CGX1 + diffuse components is fully attributed to a scattered component from cold gas, which is probably not the case; in fact, the Chandra spectrum of the diffuse emission within a radius of 6 arcsec around the nucleus shows no significant Ar Kα line with a 90% upper limit on the equivalent width of 14 eV, a factor of 0.45 smaller than the above calculation. Thus, we conclude that our results on the metal abundances are robust. Note that the possible contamination from the diffuse emission, if any, works to strengthen our arguments on the subsolar abundance ratios of the Ar/Fe and Ca/Fe.

Effects by adopting different torus geometry

To ensure that our results on the metal abundances do not depend on detailed spectral modelling of the torus reflection component, here we examine the effects by adopting different torus geometry. Here, we focus on (1) the size and number of clumps in the XCLUMPY model and (2) different spatial distribution of clumps from that in XCLUMPY.

Size and number of clumps in XCLUMPY

To examine the effect of adopting a different clump size from R_clump = 0.002 pc (default value), we calculate the reflection spectra by adopting R_clump = 0.001 pc or 0.005 pc by keeping the spectral parameters at the best-fit values in Extended Data Table 1. The results are plotted in Supplementary Fig. 7. As noticed, the spectra with different clump sizes in the 6.0–6.6-keV band are almost identical one another, including the line intensity and Compton shoulder fraction, which are important to constrain the iron to hydrogen abundance ratio (‘Main’). Next, we change the number of clumps along the sight line on the equatorial plane, ${N}_{\rm{clump}}^{\rm{Equ}}$, from 10 (default) to 5 or 15. We confirm that the resultant spectra in the 6.0–6.6-keV band again show no notable differences among them. Thus, we conclude that our results on the chemical abundances are robust against choices of R_clump and ${N}_{\rm{clump}}^{\rm{Equ}}$ in the XCLUMPY geometry.

Clump distribution

To examine if the torus reflection spectra sensitively depend on the clump configuration, here we consider a different torus geometry from that in XCLUMPY characterized by a circular-sector cross-section (Supplementary Fig. 3b). The geometry is similar to those adopted in the smooth torus models eTORUS⁶⁰ and BORUS⁶². The torus structure is defined by the following parameters: the torus angular width θ, the number of clumps along the equatorial plane ${N}_{\rm{clump}}^{\rm{Equ}}$, the equatorial column density ${N}_{\rm{H}}^{\rm{Equ}}$ and the inner and outer radii of the torus, r_in and r_out, respectively. Following the configuration of the XCLUMPY model, we adopted r_in = 0.05, r_out = 1 and ${N}_{\rm{clump}}^{\rm{Equ}}=10$ for our simulations. The clumps are distributed uniformly and randomly.

The number density function, d(r, ϕ, z) (in pc⁻³), is defined in a cylindrical coordinate system (where r is the radius, ϕ is the azimuth and z is the height) as a constant value N

$$d(r,\phi ,z)=N,$$

(1)

where N is the normalization factor. This normalization is determined from the number of clumps along the equatorial plane, ${N}_{clump}^{Equ}$, via the relation

$${N}_{{\rm{c}}{\rm{l}}{\rm{u}}{\rm{m}}{\rm{p}}}^{{\rm{E}}{\rm{q}}{\rm{u}}}={\int }_{{r}_{\mathrm{in}}}^{{r}_{\mathrm{out}}}d(r,0,0)\,\pi {R}_{\mathrm{clump}}^{2}\,{\rm{d}}r,$$

(2)

$$N=\frac{{N}_{{\rm{c}}{\rm{l}}{\rm{u}}{\rm{m}}{\rm{p}}}^{{\rm{E}}{\rm{q}}{\rm{u}}}}{{\rm{\pi }}{R}_{{\rm{c}}{\rm{l}}{\rm{u}}{\rm{m}}{\rm{p}}}^{2}({r}_{{\rm{o}}{\rm{u}}{\rm{t}}}-{r}_{{\rm{i}}{\rm{n}}})}.$$

(3)

The total number of clumps in the torus, ${N}_{\rm{clump}}^{\rm{Tot}}$, is obtained by integrating the number density function over the torus volume

$$\begin{array}{rcl}{N}_{{\rm{c}}{\rm{l}}{\rm{u}}{\rm{m}}{\rm{p}}}^{{\rm{T}}{\rm{o}}{\rm{t}}} & = & {\displaystyle\int }_{-({r}_{{\rm{o}}{\rm{u}}{\rm{t}}}-{r}_{{\rm{i}}{\rm{n}}})\sin \theta }^{({r}_{{\rm{o}}{\rm{u}}{\rm{t}}}-{r}_{{\rm{i}}{\rm{n}}})\sin \theta }{\displaystyle\int }_{0}^{2{\rm{\pi }}}{\displaystyle\int }_{{r}_{{\rm{i}}{\rm{n}}}+| z| \cot \theta }^{{r}_{{\rm{i}}{\rm{n}}}+\sqrt{{({r}_{{\rm{o}}{\rm{u}}{\rm{t}}}-{r}_{{\rm{i}}{\rm{n}}})}^{2}-{z}^{2}}}d(r,\phi ,z)\,r\,{\rm{d}}r\,{\rm{d}}\phi \,{\rm{d}}z\\ & = & \displaystyle\frac{{N}_{{\rm{c}}{\rm{l}}{\rm{u}}{\rm{m}}{\rm{p}}}^{{\rm{E}}{\rm{q}}{\rm{u}}}({r}_{{\rm{o}}{\rm{u}}{\rm{t}}}-{r}_{{\rm{i}}{\rm{n}}})(4({r}_{{\rm{o}}{\rm{u}}{\rm{t}}}-{r}_{{\rm{i}}{\rm{n}}})\sin \theta +6{r}_{{\rm{i}}{\rm{n}}}\theta )}{3{R}_{{\rm{c}}{\rm{l}}{\rm{u}}{\rm{m}}{\rm{p}}}^{2}}.\end{array}$$

(4)

We obtained a C statistic of 2,816.4 (Resolve, 2,316 bins) and χ² of 208.4 (FPMA, 232 bins) and 210.6 (FPMB, 212 bins), with 24 free parameters. This model yields the following parameters: a photon index of Γ = 1.92 ± 0.05, θ = 13.5 ± 0.7°, i = 78.2 ± 0.7° and an iron abundance of $Z(Fe)=2.2{1}_{-0.04}^{+0.03}$ solar. Notably, the derived iron abundance is consistent with that obtained using the XCLUMPY model (Z(Fe) = 2.26 ± 0.04). This indicates that our results on the chemical abundances are not largely affected by the torus geometry adopted.

Metal enrichment models

As described in ‘Main’, our benchmark model to interpret the observed abundance pattern consists of about 90% CCSNe with progenitors less massive than 20 M_⊙ and about 10% SNe Ia. We adopted the SN model by Nomoto et al.⁴ for CCSNe and those by Fink et al.⁵ and Shen et al.³⁵ for near- and sub-M_Ch white dwarfs, respectively, assuming one-solar initial metallicity. We used the Salpeter IMF³³ to integrate the initial-mass-dependent CCSN yields, ignoring the contribution from HN. To ensure that our main results (that is, the high CCSN fraction and the presence of the upper mass limit for the progenitors of CCSNe) are robust against these assumptions, here we examine the effects by adopting other model settings.

SN Ia models

For the SN Ia model, we test two shock-propagation models in an exploding white dwarf: pure deflagration and delayed detonation. The three-dimensional hydrodynamical simulation utilized in Fink et al.⁵ assumes the pure-deflagration scenario, whereas that in Seitenzahl et al.⁷⁸ adopts the delayed-detonation one. These two works also examine three initial core densities for yield calculation: normal, high and low. Accordingly, we try all six settings to fit our metal abundance pattern. For each setting, we adopt five different mass cutoffs for CCSNe progenitors. Supplementary Fig. 8 plots χ²/degrees of freedom values against the estimated SN Ia fractions. The upwards and downwards triangles represent the calculation with Seitenzahl et al.⁷⁸ and with Fink et al.⁵, respectively.

Most of them show a similar trend that the small upper mass limit provides a small fraction of SNe Ia and a better χ². Lower SN Ia fractions than the representative case of Perseus (15–38%³¹; Supplementary Fig. 8, grey shaded area) can only be achieved with the most severe upper limit of 20 M_⊙. As for the densities of the ignition core, the normal density (approximately 3 × 10⁹ g cm⁻³) is preferred for pure deflagration, and the normal and high densities can be acceptable for delayed detonation. Despite the comprehensive analysis of galaxy clusters, it remains unclear which of pure deflagration or delayed detonation predominantly contributes to SN Ia enrichments in the universe. Hence, we do not conclude which SN Ia scenario is better based on our fitting results; instead, the difference between yields with pure deflagration and delayed detonation for a normal density dwarf is taken into account as uncertainty σ_Ia in the best-fitting model (Fig. 4).

CCSN models

Alternative yield calculation

Alternative CCSN calculations by Sukhbold et al.⁷⁹ are examined with both the pure-deflagration and delayed-detonation SNe Ia (Supplementary Fig. 8, pluses and crosses). We find that the classical calculations by Nomoto et al.⁴ generally result in better fits and more reasonable fractions than Sukhbold et al.⁷⁹. This trend is similar to that found by Mao et al.⁴⁴ for the starburst galaxy Arp 299. Thus, we adopt the yield of Nomoto et al.⁴ as our benchmark for enrichment modelling.

IMF

We adopt the IMF-weighted yields of CCSNe using the top-heavy index of −1.0, considering the possibility that the IMF in starburst systems may follow a top-heavy behaviour rather than the Salpeter index of −2.3 (for example, ref. ⁸⁰). The results are given in Supplementary Fig. 8 with vertical rectangles. As noticed, the fraction of SNe Ia increases compared with the Salpeter case; this is naturally interpreted because massive progenitors make a greater contribution to metal enrichment with the top-heavy IMF than with the baseline case. By contrast, the bottom-heavy index of −3.0 slightly reduces the SN Ia fractions as shown by horizontal rectangles in Supplementary Fig. 8, indicating that reducing the contribution from massive progenitors is essential to reproduce the observed abundance pattern. However, the bottom-heavy IMF model suppresses the SN Ia contribution less effectively than the assumption of the CCSN model with an upper mass limit.

HN contribution

We consider a possible contribution from the HN channel in massive stars⁴. To take HNe into account, we replace the CCSN yield tables for the massive progenitor regime (>20 M_⊙) with the HN yields from Nomoto et al.⁴. The wherewithal to calculate the IMF-weighted yield follows the same strategy as described in the main text. The circles in Supplementary Fig. 8 represent the results of this CCSN + HN scenario. Although all cases show slightly lower SN Ia fractions with better χ² values than the pure CCSN case, the estimated values are still comparable to the Perseus environment; thus, this model would not be an alternative to the mass cutoff modelling.

Progenitor metallicity

Our measurement of the Fe/H ratio reveals supersolar metallicity (about 2 solar) in the Circinus centre. If this result is directly interpreted as metal-rich environments in starbursting regions, it motivates us to test high initial metallicity for CCSN progenitors. Since Nomoto et al.⁴ extends their yield calculations to the supersolar metallicity regime, we adopt the CCSN yield tables of ${Z}_{\rm{CCSN}}=0.05$ to replicate the benchmark modelling with white dwarf progenitors^5,35. The resulting enrichment properties are summarized in Table 1 for the progenitor mass upper limits of 40 M_⊙, 25 M_⊙ and 20 M_⊙. As noticed, the supersolar metallicity progenitors also prefer the mass cutoff CCSN model with a lower SN Ia fraction less than 10%, which is consistent with the benchmark scenario. Interestingly, the χ² values with ${Z}_{\rm{CCSN}}=0.05$ are slightly better than with ${Z}_{\rm{CCSN}}=0.02$, implying that the bulk of CCSNe in the Circinus centre are from progenitors formed in a metal-rich environment. However, we keep our benchmark model at solar metallicity for a fair comparison and include the difference between the abundances with ${Z}_{\rm{CCSN}}=0.02$ and ${Z}_{\rm{CCSN}}=0.05$ as uncertainty σ_CC in the best-fitting model (Fig. 4).

Mass transfer in circinus centre

Here, we show that the gas in the torus region must be transferred from outer regions on the basis of our metallicity measurement. Assuming the mass accretion rate of 0.3 M_⊙ yr⁻¹ at r = 0.27 pc (ref. ²²), the star formation rate of 0.16 M_⊙ yr⁻¹ within 15 pc × 15 pc (ref. ⁸¹), and the total gas mass of about 10⁶ M_⊙ (ref. ¹⁶) within 15 pc × 15 pc, the depletion timescale (or replacement timescale assuming a steady state) is estimated to be 2 × 10⁶ yr. During this period, a total of 3 × 10³ SNe take place in the torus and produce an iron mass of 200 M_⊙, corresponding to about 0.1 solar relative to the hydrogen mass. This is not sufficient to explain the observed metallicity in the Circinus centre (Fe/H of 2.3 solar), and therefore, metal-enriched gas must be transferred from the outer disk, for example, from r ≈ 200 pc, where a young starburst region was identified³⁹.
