Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

  • Article
  • Published:

Superconductivity in Sr-doped La3Ni2O7 thin films

Nature Materials volume 24, pages 1756–1762 (2025)Cite this article

Subjects

Abstract

Recent studies have demonstrated ambient pressure superconductivity in compressively strained La3Ni2O7 thin films, yet the phase diagram of heterovalent doping—critical for advancing the field—remains underexplored. Here we report superconductivity in Sr2+-doped La3–xSrxNi2O7 films. The superconducting transition temperature (Tc) follows an incomplete dome-like profile, maintaining similar Tc values across a wide doping range (0 ≤ x ≤ 0.21) before diminishing near x ≈ 0.38. Optimally doped films achieve a Tc value of ~42 K, with a high critical current (Jc > 1.4 kA cm−2 at 2 K) and upper critical fields (μ0Hc,∥(0) = 83.7 T, μ0Hc,⟂(0) = 110.3 T). Scanning transmission electron microscopy reveals that oxygen vacancies predominantly occupy planar NiO2 sites—unlike apical-site vacancies in bulk samples—due to compressive strain. Additionally, the elongated out-of-plane Ni–O bonds, exceeding those in pressurized bulk samples by 4%, likely weaken the interlayer \({d}_{{z}^{2}}\) coupling and contribute to the reduced Tc in strained films.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

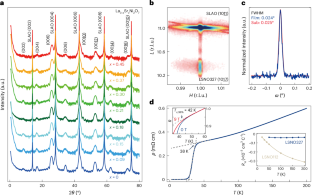

Fig. 1: Structural properties and superconductivity of La3−xSrxNi2O7 thin films.

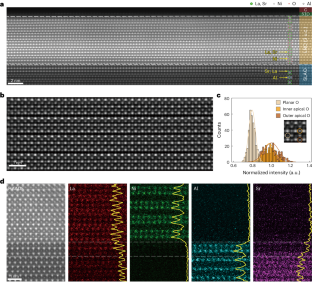

Fig. 2: STEM characterizations of a superconducting La2.79Sr0.21Ni2O7 film.

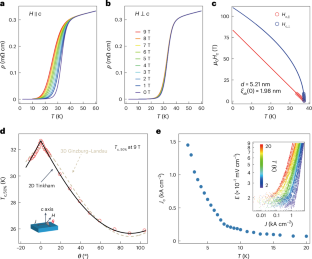

Fig. 3: Transport properties of La2.91Sr0.09Ni2O7 thin films.
Fig. 4: Proposed phase diagram of La3–xSrxNi2O7 thin films.

Similar content being viewed by others

Data availability

Source data are provided with this paper. Any additional data that support the findings of this study are available from the corresponding authors upon request.

References

  1. Sun, H. et al. Signatures of superconductivity near 80 K in a nickelate under high pressure. Nature 621, 493–498 (2023).

    CAS  PubMed  Google Scholar

  2. Hou, J. et al. Emergence of high-temperature superconducting phase in pressurized La3Ni2O7 crystals. Chin. Phys. Lett. 40, 117302 (2023).

    CAS  Google Scholar

  3. Zhang, Y. et al. High-temperature superconductivity with zero resistance and strange-metal behaviour in La3Ni2O7−δ. Nat. Phys. 20, 1269–1273 (2024).

    CAS  Google Scholar

  4. Wang, G. et al. Pressure-induced superconductivity in polycrystalline La3Ni2O7. Phys. Rev. X 14, 011040 (2024).

    CAS  Google Scholar

  5. Wang, N. et al. Bulk high-temperature superconductivity in pressurized tetragonal La2PrNi2O7. Nature 634, 579–584 (2024).

    CAS  PubMed  Google Scholar

  6. Zhu, Y. et al. Superconductivity in pressurized trilayer La4Ni3O10−δ single crystals. Nature 631, 531–536 (2024).

    CAS  PubMed  Google Scholar

  7. Wang, M., Wen, H.-H., Wu, T., Yao, D.-X. & Xiang, T. Normal and superconducting properties of La3Ni2O7. Chin. Phys. Lett. 41, 077402 (2024).

    CAS  Google Scholar

  8. Shi, M. et al. Prerequisite of superconductivity: SDW rather than tetragonal structure in double-layer La3Ni2O7–x. Preprint at https://arxiv.org/abs/2501.14202 (2025).

  9. Li, Q. et al. Signature of superconductivity in pressurized La4Ni3O10. Chin. Phys. Lett. 41, 017401 (2024).

    CAS  Google Scholar

  10. Sakakibara, H. et al. Theoretical analysis on the possibility of superconductivity in the trilayer Ruddlesden-Popper nickelate La4Ni3O10 under pressure and its experimental examination: comparison with La3Ni2O7. Phys. Rev. B 109, 144511 (2024).

    CAS  Google Scholar

  11. Zhang, M. et al. Superconductivity in trilayer nickelate La4Ni3O10 under pressure. Phys. Rev. X 15, 021005 (2025).

  12. Zhang, M. et al. Effects of pressure and doping on Ruddlesden-Popper phases Lan+1NinO3n+1. J. Mater. Sci. Technol. 185, 147–154 (2024).

    CAS  Google Scholar

  13. Feng, J.-J. et al. Unaltered density wave transition and pressure-induced signature of superconductivity in Nd-doped La3Ni2O7. Phys. Rev. B 110, L100507 (2024).

    CAS  Google Scholar

  14. Ko, E. K. et al. Signatures of ambient pressure superconductivity in thin film La3Ni2O7. Nature 638, 935–940 (2025).

    CAS  PubMed  Google Scholar

  15. Zhou, G. et al. Ambient-pressure superconductivity onset above 40 K in (La,Pr)3Ni2O7 films. Nature 640, 641–646 (2025).

    CAS  PubMed  Google Scholar

  16. Liu, Y. et al. Superconductivity and normal-state transport in compressively strained La2PrNi2O7 thin films. Nat. Mater. 24, 1221–1227 (2025).

  17. Chen, X. et al. Polymorphism in the Ruddlesden–Popper nickelate La3Ni2O7: discovery of a hidden phase with distinctive layer stacking. J. Am. Chem. Soc. 146, 3640–3645 (2024).

    CAS  PubMed  Google Scholar

  18. Puphal, P. et al. Unconventional crystal structure of the high-pressure superconductor La3Ni2O7. Phys. Rev. Lett. 133, 146002 (2024).

    CAS  PubMed  Google Scholar

  19. Wang, H., Chen, L., Rutherford, A., Zhou, H. & Xie, W. Long-range structural order in a hidden phase of Ruddlesden–Popper bilayer nickelate La3Ni2O7. Inorg. Chem. 63, 5020–5026 (2024).

    CAS  PubMed  PubMed Central  Google Scholar

  20. Li, F. et al. Ambient pressure growth of bilayer nickelate single crystals with superconductivity over 90 K under high pressure. Preprint at https://arxiv.org/abs/2501.14584 (2025).

  21. Dagotto, E. Complexity in strongly correlated electronic systems. Science 309, 257–262 (2005).

    CAS  PubMed  Google Scholar

  22. Lee, P. A., Nagaosa, N. & Wen, X.-G. Doping a Mott insulator: physics of high-temperature superconductivity. Rev. Mod. Phys. 78, 17–85 (2006).

    CAS  Google Scholar

  23. Taillefer, L. Scattering and pairing in cuprate superconductors. Annu. Rev. Condens. Matter Phys. 1, 51–70 (2010).

    CAS  Google Scholar

  24. Keimer, B., Kivelson, S. A., Norman, M. R., Uchida, S. & Zaanen, J. From quantum matter to high-temperature superconductivity in copper oxides. Nature 518, 179–186 (2015).

    CAS  PubMed  Google Scholar

  25. Hussey, N. E. Phenomenology of the normal state in-plane transport properties of high-Tc cuprates. J. Phys. Condens. Matter 20, 123201 (2008).

    Google Scholar

  26. Yang, J. et al. Orbital-dependent electron correlation in double-layer nickelate La3Ni2O7. Nat. Commun. 15, 4373 (2024).

    CAS  PubMed  PubMed Central  Google Scholar

  27. Lechermann, F., Gondolf, J., Bötzel, S. & Eremin, I. M. Electronic correlations and superconducting instability in La3Ni2O7 under high pressure. Phys. Rev. B 108, L201121 (2023).

    CAS  Google Scholar

  28. Liu, Y.-B., Mei, J.-W., Ye, F., Chen, W.-Q. & Yang, F. s±-wave pairing and the destructive role of apical-oxygen deficiencies in La3Ni2O7 under pressure. Phys. Rev. Lett. 131, 236002 (2023).

    CAS  PubMed  Google Scholar

  29. Luo, Z., Lv, B., Wang, M., Wú, W. & Yao, D.-X. High-TC superconductivity in La3Ni2O7 based on the bilayer two-orbital t-J model. npj Quantum Mater. 9, 61 (2024).

    CAS  Google Scholar

  30. Sakakibara, H., Kitamine, N., Ochi, M. & Kuroki, K. Possible high Tc superconductivity in La3Ni2O7 under high pressure through manifestation of a nearly half-filled bilayer Hubbard model. Phys. Rev. Lett. 132, 106002 (2024).

    CAS  PubMed  Google Scholar

  31. Lu, C., Pan, Z., Yang, F. & Wu, C. Interlayer-coupling-driven high-temperature superconductivity in La3Ni2O7 under pressure. Phys. Rev. Lett. 132, 146002 (2024).

    CAS  PubMed  Google Scholar

  32. Qu, X.-Z. et al. Bilayer t–J–J⊥ model and magnetically mediated pairing in the pressurized nickelate La3Ni2O7. Phys. Rev. Lett. 132, 036502 (2024).

    CAS  PubMed  Google Scholar

  33. Oh, H. & Zhang, Y.-H. Type-II t–J model and shared superexchange coupling from Hund’s rule in superconducting La3Ni2O7. Phys. Rev. B 108, 174511 (2023).

    CAS  Google Scholar

  34. Le, C., Zhan, J., Wu, X. & Hu, J. Landscape of correlated orders in strained bilayer nickelate thin films. Preprint at https://arxiv.org/abs/2501.14665 (2025).

  35. Shao, Z.-Y., Liu, Y.-B., Liu, M. & Yang, F. Band structure and pairing nature of La3Ni2O7 thin film at ambient pressure. Phys. Rev. B 112, 024506 (2025).

  36. Yue, C. et al. Correlated electronic structures and unconventional superconductivity in bilayer nickelate heterostructures. Natl. Sci. Rev. nwaf253 (2025).

  37. Shi, H. et al. The effect of carrier doping and thickness on the electronic structures of La3Ni2O7 thin films. Chin. Phys. Lett. 42, 080708 (2025).

  38. Jiao, K. et al. Enhanced conductivity in Sr doped La3Ni2O7-δ with high-pressure oxygen annealing. Phys. C 621, 1354504 (2024).

    CAS  Google Scholar

  39. Xu, M. et al. Pressure-dependent “Insulator–Metal–Insulator” behavior in Sr-doped La3Ni2O7. Adv. Electron. Mater. 10, 2400078 (2024).

    CAS  Google Scholar

  40. Liu, Y., Ou, M., Wang, Y. & Wen, H.-H. Temperature-independent Hall coefficient in hole-doped La3Ni2O7 thin films: evidence for single-band transport. J. Phys. Condens. Matter 37, 255502 (2025).

  41. Kim, J. et al. Defect engineering in A2BO4 thin films via surface-reconstructed LaSrAlO4 substrates. Small Methods 6, 2200880 (2022).

    CAS  Google Scholar

  42. Dong, Z. et al. Visualization of oxygen vacancies and self-doped ligand holes in La3Ni2O7−δ. Nature 630, 847–852 (2024).

    CAS  PubMed  Google Scholar

  43. Wang, L. et al. Structure responsible for the superconducting state in La3Ni2O7 at high-pressure and low-temperature conditions. J. Am. Chem. Soc. 146, 7506–7514 (2024).

    CAS  PubMed  Google Scholar

  44. Hsu, Y.-T. et al. Transport phase diagram and anomalous metallicity in superconducting infinite-layer nickelates. Nat. Commun. 15, 9863 (2024).

    CAS  PubMed  PubMed Central  Google Scholar

  45. Lee, K. et al. Linear-in-temperature resistivity for optimally superconducting (Nd,Sr)NiO2. Nature 619, 288–292 (2023).

    CAS  PubMed  Google Scholar

  46. Cooper, R. A. et al. Anomalous criticality in the electrical resistivity of La2–xSrxCuO4. Science 323, 603–607 (2009).

    CAS  PubMed  Google Scholar

  47. Wang, B. Y. et al. Electronic structure of compressively strained thin film La2PrNi2O7. Preprint at https://arxiv.org/abs/2504.16372 (2025).

  48. Li, D. et al. Superconducting dome in Nd1–xSrxNiO2 infinite layer films. Phys. Rev. Lett. 125, 027001 (2020).

    CAS  PubMed  Google Scholar

  49. Zeng, S. et al. Phase diagram and superconducting dome of infinite-layer Nd1–xSrxNiO2 thin films. Phys. Rev. Lett. 125, 147003 (2020).

    CAS  PubMed  Google Scholar

  50. Song, Q. et al. Antiferromagnetic metal phase in an electron-doped rare-earth nickelate. Nat. Phys. 19, 522–528 (2023).

    CAS  Google Scholar

  51. Biswas, A. et al. Selective A- or B-site single termination on surfaces of layered oxide SrLaAlO4. Appl. Phys. Lett. 102, 051603 (2013).

    Google Scholar

  52. Lee, J. H. et al. Dynamic layer rearrangement during growth of layered oxide films by molecular beam epitaxy. Nat. Mater. 13, 879–883 (2014).

    CAS  PubMed  Google Scholar

  53. Nie, Y. F. et al. Atomically precise interfaces from non-stoichiometric deposition. Nat. Commun. 5, 4530 (2014).

    CAS  PubMed  Google Scholar

  54. Nord, M., Vullum, P. E., MacLaren, I., Tybell, T. & Holmestad, R. Atomap: a new software tool for the automated analysis of atomic resolution images using two-dimensional Gaussian fitting. Adv. Struct. Chem. Imaging 3, 9 (2017).

    PubMed  PubMed Central  Google Scholar

  55. Kresse, G. & Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15–50 (1996).

    CAS  Google Scholar

  56. Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169–11186 (1996).

    CAS  Google Scholar

  57. Blöchl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953–17979 (1994).

    Google Scholar

  58. Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758–1775 (1999).

    CAS  Google Scholar

  59. Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865–3868 (1996).

    CAS  PubMed  Google Scholar

  60. Ling, C. D., Argyriou, D. N., Wu, G. & Neumeier, J. J. Neutron diffraction study of La3Ni2O7: structural relationships among n = 1, 2, and 3 phases Lan+1NinO3n+1. J. Solid State Chem. 152, 517–525 (2000).

    CAS  Google Scholar

Download references

Acknowledgements

This work was supported by the National Key R&D Program of China (grant numbers 2022YFA1402502 and 2021YFA1400400), the National Natural Science Foundation of China (grant numbers 12434002, U24A2011, 12204394, 123B2051 and 52302181) and the Natural Science Foundation of Jiangsu Province (grant number BK20233001). D.J. acknowledges the start-up grant from the Department of Applied Physics, Hong Kong Polytechnic University (grant number 1-BD6B) and the General Research Fund (grant numbers 15303923 and 15307224) from the Hong Kong Research Grants Council. H.S. acknowledges the China National Postdoctoral Program for Innovative Talents (grant number BX20230152), the China Postdoctoral Science Foundation (grant number 2024M751368) and the Natural Science Foundation of Jiangsu Province (grant number BK20241189).

Author information

Author notes

  1. These authors contributed equally: Bo Hao, Maosen Wang, Wenjie Sun, Yang Yang.

Authors and Affiliations

  1. National Laboratory of Solid State Microstructures, Jiangsu Key Laboratory of Artificial Functional Materials, College of Engineering and Applied Sciences, Nanjing University, Nanjing, China

    Bo Hao, Maosen Wang, Wenjie Sun, Zhangwen Mao, Shengjun Yan, Haoying Sun, Hongyi Zhang, Lu Han, Zhengbin Gu, Jian Zhou, Dianxiang Ji & Yuefeng Nie

  2. Collaborative Innovation Center of Advanced Microstructures, Nanjing University, Nanjing, China

    Bo Hao, Maosen Wang, Wenjie Sun, Zhangwen Mao, Shengjun Yan, Haoying Sun, Hongyi Zhang, Lu Han, Zhengbin Gu, Jian Zhou, Dianxiang Ji & Yuefeng Nie

  3. Department of Applied Physics, The Hong Kong Polytechnic University, Kowloon, China

    Yang Yang & Dianxiang Ji

  4. Jiangsu Physical Science Research Center, Nanjing, China

    Yuefeng Nie

Authors
  1. Bo Hao
    View author publications

    Search author on:PubMed Google Scholar

  2. Maosen Wang
    View author publications

    Search author on:PubMed Google Scholar

  3. Wenjie Sun
    View author publications

    Search author on:PubMed Google Scholar

  4. Yang Yang
    View author publications

    Search author on:PubMed Google Scholar

  5. Zhangwen Mao
    View author publications

    Search author on:PubMed Google Scholar

  6. Shengjun Yan
    View author publications

    Search author on:PubMed Google Scholar

  7. Haoying Sun
    View author publications

    Search author on:PubMed Google Scholar

  8. Hongyi Zhang
    View author publications

    Search author on:PubMed Google Scholar

  9. Lu Han
    View author publications

    Search author on:PubMed Google Scholar

  10. Zhengbin Gu
    View author publications

    Search author on:PubMed Google Scholar

  11. Jian Zhou
    View author publications

    Search author on:PubMed Google Scholar

  12. Dianxiang Ji
    View author publications

    Search author on:PubMed Google Scholar

  13. Yuefeng Nie
    View author publications

    Search author on:PubMed Google Scholar

Contributions

Y.N. conceived the idea and directed the project. B.H. and M.W. synthesized the samples and characterized the crystalline structure with the help of S.Y., Z.M., L.H. and H.S. under the supervision of Z.G. and Y.N.; B.H., M.W., W.S. and H.Z. performed the electrical transport measurements and data analyses under the supervision of Y.N.; Y.Y. performed the STEM measurements under the supervision of D.J.; and J.Z. performed the DFT calculations. B.H., M.W., W.S. and Y.Y. wrote the paper under the supervision of J.Z., D.J. and Y.N. All authors discussed the data and contributed to the paper.

Corresponding authors

Correspondence to Dianxiang Ji or Yuefeng Nie.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Materials thanks Danfeng Li and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Growth and surface topography of the La2.91Sr0.09Ni2O7 thin film shown in Fig. 1d and Fig. 3.

a, Reflection high-energy electron diffraction (RHHED) patterns of as-grown La2.91Sr0.09Ni2O7 thin film taken along [110] and [100] directions. b-c, Atomic force microscopy of the treated SrLaAlO4 substrate (b) before growth and the La2.91Sr0.09Ni2O7 thin film (c) after growth. d, The RHEED intensity oscillations of a 3-u.c.-thick La2.91Sr0.09Ni2O7 film grown on SrLaAlO4 substrate, with the growth sequence of [(La,Sr)O] - [(La,Sr)O] - [NiO2] - [NiO2] - [(La,Sr)O].

Source data

Extended Data Fig. 2 Structural characterization of La2.79Sr0.21Ni2O7 films with varying La content.

a, XRD of 2.5-u.c.-thick La2.79Sr0.21Ni2O7 films on SrLaAlO4. b, The average and the standard deviation of the c-axis lattice constants. The optimal flux ratio for each Sr doping level x is calibrated using XRD measurements, by identifying the sample with a lattice constant of the smallest standard deviation (SD). The change of La content is controlled via La shutter time.

Source data

Extended Data Fig. 3 Relation between c-axis lattice constants and Sr doping levels x in La3-xSrxNi2O7 films at room temperature.

Only samples with a lattice constant of the small standard deviation are shown. The red squares represent the same sample in Fig. 4a.

Source data

Extended Data Fig. 4 Transport properties of a La2.79Sr0.21Ni2O7 thin film.

a, ρ(T) curves of La2.79Sr0.21Ni2O7 thin film under various magnetic fields applied perpendicular to the a-b plane of the film. b, Perpendicular upper critical fields extracted by the Tc,90% values (open circles). Solid lines represent Ginzburg-Landau fitting results. c, Electric field (E) versus current density (J) curves measured at 2-20 K.

Source data

Extended Data Fig. 5 Lattice constants of La3-xSrxNi2O7 films derived from STEM measurements.

Lattice constants of La3-xSrxNi2O7 on SLAO in samples with x = 0.21 (a) and x = 0 (b).

Extended Data Fig. 6 Scanning transmission electron microscopy characterizations of a superconducting La3Ni2O7 film.

a, High-angle annular dark-field (HAADF) image with a large field-of-view of a 3-u.c.-thick La3Ni2O7 film grown on a SrLaAlO4 substrate. Dash lines represent the interface between the film and the SrLaAlO4 substrate. b, HAADF image and atomic-resolution energy-dispersive X-ray spectroscopy (EDS) elemental maps (La, Ni, Al, Sr) of the same region. The yellow curves represent the profiles of atomic row-integrated elements intensity. The area between the dashed lines indicates the surface reconstruction region of the SrLaAlO4 substrate.

Extended Data Fig. 7 The optimalization of annealing conditions for La2.79Sr0.21Ni2O7 films.

a, The Tc,98% and Tc,50% of the La2.79Sr0.21Ni2O7 films annealed under different temperature, and related temperature-dependence of resistance (normalized at 200 K) (b). c, The Tc,98% and Tc,50% of the La2.79Sr0.21Ni2O7 films annealed at 380 °C with different time, and related temperature-dependence of resistance (normalized at 100 K) (d). Each series of experiments were conducted on separate pieces from the same sample with a fixed output power of the ozone generator.

Source data

Extended Data Fig. 8 Analysis of R-T curve of the La2.91Sr0.09Ni2O7 film shown in Fig. 1d.

Red curve is the temperature-dependent deviation of resistivity. The parallel-resistor formula fitting leads to parameters α0 = 0.363 mΩ·cm, α1 = 2.09×10−4 mΩ·cm/K, α2 = 1.52×10−5 mΩ·cm/K2, and ρsat = 1.46 mΩ·cm.

Source data

Extended Data Fig. 9 Relation between Tc,98% (Tc,50%) and Sr doping levels x in La3-xSrxNi2O7 films.

Same as that in Fig. 4b, circles (squares) represent the Tc,98% (Tc,50%) of samples.

Source data

Extended Data Table. 1 Calculated formation energies for three types of oxygen vacancies under varying in-plane biaxial strains
Full size table

Supplementary information

Supplementary Information

Supplementary Figs. 1–3.

Source data

Source Data Fig. 1

Source data for Fig. 1.

Source Data Fig. 2

Source data for Fig. 2.

Source Data Fig. 3

Source data for Fig. 3.

Source Data Fig. 4

Source data for Fig. 4.

Source Data Extended Data Fig. 1

Source data for Extended Data Fig. 1.

Source Data Extended Data Fig. 2

Source data for Extended Data Fig. 2.

Source Data Extended Data Fig. 3

Source data for Extended Data Fig. 3.

Source Data Extended Data Fig. 4

Source data for Extended Data Fig. 4.

Source Data Extended Data Fig. 7

Source data for Extended Data Fig. 7.

Source Data Extended Data Fig. 8

Source data for Extended Data Fig. 8.

Source Data Extended Data Fig. 9

Source data for Extended Data Fig. 9.

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Hao, B., Wang, M., Sun, W. et al. Superconductivity in Sr-doped La3Ni2O7 thin films. Nat. Mater. 24, 1756–1762 (2025). https://doi.org/10.1038/s41563-025-02327-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • Version of record:

  • Issue date:

  • DOI: https://doi.org/10.1038/s41563-025-02327-2

This article is cited by

Search

Advanced search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
