A haplotype-based evolutionary history of barley domestication

Abstract

Barley is one of the oldest cultivated crops, with a complex evolutionary and domestication history¹. Previous studies have rejected the idea of a single origin and instead support a model of mosaic genomic ancestry^2,3. With increasingly comprehensive genome data, we now ask where the haplotypes — the building blocks of this mosaic — originate, and whether all domesticated barleys share the same wild progenitors or whether certain wild populations contribute more heavily to specific lineages. To address these questions, we apply a haplotype-based approach to investigate the genetic diversity and population structure of wild and domesticated barley. We analyse whole-genome sequences from 682 genebank accessions and 23 archaeological specimens, tracing the spatiotemporal origins of haplotypes and identifying wild contributors during domestication and later gene flow events. Ancient DNA supports our genome-wide findings from modern samples. Our results suggest that a founding domesticated population emerged in the Fertile Crescent during a prolonged period of pre-domestication cultivation. A key practical insight is that the high haplotype differentiation among barley populations — arising independently, or layered on top, of selection — poses challenges for mapping adaptive loci.

Main

Barley (Hordeum vulgare) is an old crop. It is mentioned in some of the earliest records of human writing (3100 bce)⁴. By that time, plant cultivation was older than written language is now. Much of what we know about the early stages of the domestication and dispersal of barley and other crops comes from archaeological specimens, the earliest dated to 10,000 years before present (bp)^1,5. These are mainly charred grains from which archaeobotanists can infer hallmarks of domestication such as loss of spike brittleness¹. Molecular genetics has complemented these findings by identifying domestication genes and tracing the origins of their alleles in wild populations⁶. With the advent of affordable whole-genome sequencing, our ability to study crop evolution at high resolution has greatly improved⁷. New methods, such as the pairwise sequentially Markovian coalescent (PSMC), allow researchers to infer historical population dynamics from extant genome⁸. More recently, tools such as IntroBlocker have been developed to define ancestral haplotype groups (AHGs), enabling inference of local ancestry at the haplotype level rather than at the whole-genome scales⁹. These advances make it possible to ask not only where barley was domesticated but also how different genomic regions in domesticated barley trace back to their wild ancestors. Finally, ancient DNA sequences provide valuable insights into past genetic diversity, although their use is limited by the often poor preservation of plant material in many climates¹⁰.

For decades, researchers have sought to identify single centres of domestication using molecular markers, as in the case of einkorn wheat¹¹. However, such a model has been increasingly challenged¹². In barley, strong evidence refutes a monophyletic origin. For example, two independent mutations causing loss of spike brittleness — an essential domestication trait — are associated with geographically distinct wild progenitors⁶. Genome-wide data further support a mosaic ancestry model, in which domesticated barley derives from multiple wild populations^2,13,14. Earlier studies often relied on reduced-representation sequencing or markers ascertained in domesticated lines, limiting their resolution. With the availability of high-quality reference genomes¹⁵ and broader sequencing of wild and ancient barleys^16,17, we can now revisit barley domestication with greater precision.

Here we used whole-genome sequences from 682 genebank accessions and 23 ancient specimens to reconstruct the haplotype-level ancestry of domesticated barley. By assigning local genomic regions to their closest wild relatives, we asked which parts of the domesticated genome derive from which wild ancestors; whether certain wild populations contribute disproportionately to domesticated lineages; and how haplotypes were reshuffled through domestication and post-domestication gene flow. Our integrative, haplotype-based approach sheds new light on the origins and evolutionary assembly of one of the world’s most important crops.

Structure and divergence of wild barley

We started with the assumption that the present-day population structure of wild barley is related to what it was when human beings began to grow barley. Wild barley (H. vulgare subsp. spontaneum) is a genetically diverse taxon that occurs throughout western Asia. We analysed a total of 380 wild barley accessions, many of them from the Wild Barley Diversity Collection¹⁷, which had been sequenced to tenfold coverage with Illumina short reads (Supplementary Tables 1 and 2). Previous studies on wild barley agree on the fact that isolation by distance is the main driver of population differentiation in wild barley^14,18. Using model-based ancestry estimation complemented by principal component analysis (PCA), we divided our panel into five populations whose geographical distributions roughly trace a path from the southern Levant, via the Syrian Desert, the northern Levant, northern Mesopotamia and Central Asia (Fig. 1a, Extended Data Fig. 1a,b, Supplementary Table 3 and Supplementary Fig. 1). These populations had different levels of diversity (Extended Data Fig. 1c and Supplementary Table 4). Low diversity in the Syrian Desert populations, which was accompanied by high differentiation from other populations, might be explained by higher genetic drift in the Syrian Desert (Extended Data Fig. 1d).

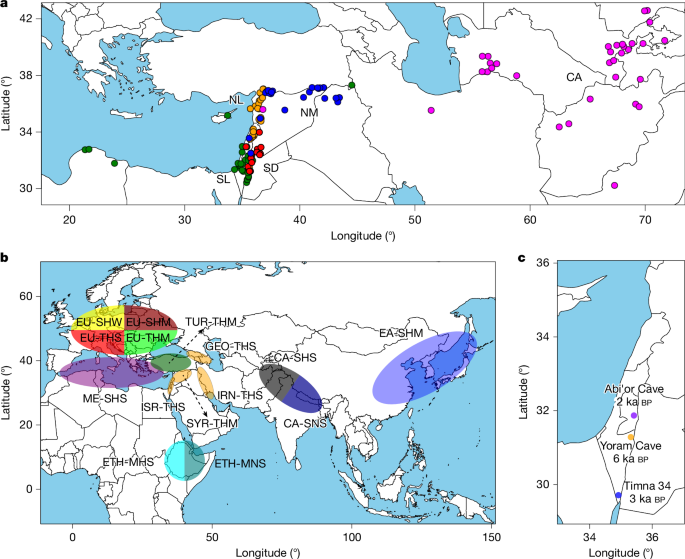

Fig. 1: Diversity panel of wild and domesticated barley.

a, Collection sites and population structure of 143 wild barley genotypes with precise geographical locations. The coloured dots show the results of model-based ancestry estimation with ADMIXTURE (the number of ancestral populations (K) = 5, predominant ancestry component) and are plotted at approximate collection sites. Jitter was added to avoid overlaps between nearby accessions. Only unadmixed samples, that is, those whose major ancestry components was 0.85 or more are shown. CA, Central Asia; NL, northern Levant; NM, northern Mesopotamia; SD, Syrian desert; SL, southern Levant. b, Assignment to macrogeographical regions of 15 populations inferred from GBS data of 19,778 domesticated barley genotypes²⁴. The population names encode the most common origin of samples and their predominant morphological and phenological characters (row type, lemma adherence and annual growth habit) as detailed in Supplementary Table 6. c, Archaeological sites at which ancient barley grains used for ancient DNA extractions were found. Ages of the samples, as determined by radiocarbon dating, are indicated in the figure. Geographical outlines in panels a–c were obtained from the R package ‘maps’ (https://CRAN.R-project.org/package=maps), which uses public domain base map data (under a GNU General public license: version 2).

If there were no recombination and gene flow, the number of sequence variants between two genomes would inform directly about divergence times. Three examples illustrate that this simple model is not applicable in barley: when we counted single-nucleotide polymorphisms (SNPs) in 1-Mb windows and plotted the SNP distribution, we observed, between some pairs of samples, local differences in divergence times, most prominently between distal and proximal regions (Extended Data Fig. 2a,b). In barley and its relatives wheat and rye, proximal non-recombining regions, so-called genetic centromeres, are extensive, have fewer genes and drastically reduced recombination^19,20,21. In domesticated barley, sequence diversity in these regions is lower too^14,19. The situation in wild barley is more nuanced. Looking only at between-population comparisons, the distributions of divergence times were unimodal in distal regions of all chromosomes with a peak at around 600 thousand years before present (ka bp; Fig. 2a and Extended Data Fig. 2c), which corresponds to a trough in effective population size at the same period (Fig. 2b). Fluctuations of population size were also evident from historic trajectories of effective population sizes computed with PSMC⁸. These data indicate that wild barley has recovered from a bottleneck between 2000 and 500 ka bp (Extended Data Fig. 3b). A later bottleneck in all wild barley populations (120 to 11 ka bp) coincided with the Last Glacial Period (Supplementary Fig. 2).

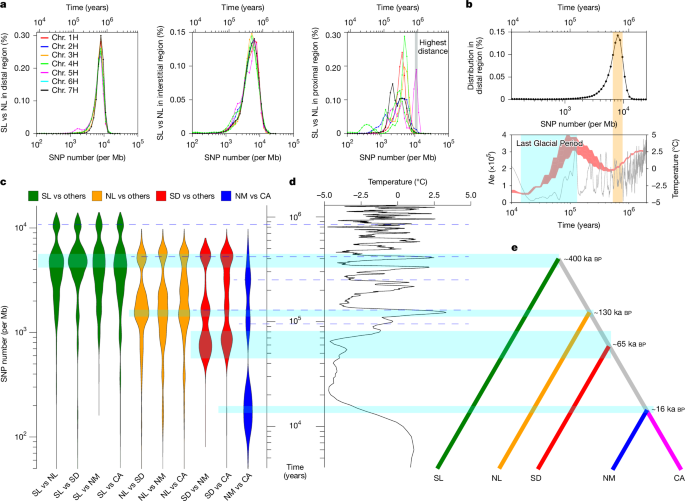

Fig. 2: Evolutionary history of wild barley.

a, Distribution of sequence divergence (SNPs per Mb) between pairs of accessions from the SL and NL populations in distal, interstitial and proximal regions. The grey shading in the right panel marks the highest divergence between both populations owing to the presence of deeply diverged haplotypes on chromosome 5H (Chr. 5H). b, The distribution of pairwise sequence divergence for all sample pairs in distal regions of the genome (top), and the historic trajectories of effective population sizes in wild barley as inferred by PSMC (red) and global average surface temperatures (grey)³⁹ (bottom). The area chart of population size was based on the sample pairs from the lowest identity-by-state (IBS) bin (0.6 < IBS < 0.67) in Extended Data Fig. 3b. The orange shading marks a simultaneous decline of population size and temperature that corresponds to peaks in the SNP distribution. The Last Glacial Period (120 to 11 ka bp) is marked by blue shading. Ne, effective population size. c, Violin plots showing the distributions of pairwise sequence divergence in proximal regions of five wild barley populations. The blue shading highlights the peaks in the distribution that mark the most recent divergence between pairs of populations; earlier such events are marked by dashed lines. d, Global average surface temperatures³⁹ in the past 2 million years. e, The divergence of wild barley populations (most recent inferred split times) is represented as a tree.

Distributions of divergence time in proximal regions were multimodal and differed between chromosomes (Extended Data Fig. 2c). This observation defies easy explanation. It may stem from the paucity of centromeric haplotypes and their persistence as single linkage blocks on evolutionary timescales. To better understand this pattern, we asked whether the divergence of long centromeric haplotypes reflects the divergence between individuals and the split times between populations (Supplementary Fig. 3). To do so, we used SNPs in pericentromeric regions (centromere ±25 Mb) to calculate pairwise divergence times between wild barley individuals and arranged wild barley populations in a tree structure based on their most recent splits from each other (Fig. 2c,e and Extended Data Fig. 3a). This representation simplifies the relationships between barley populations. Of note, divergence times were multimodal, and the peaks in the distribution aligned with fluctuations in global surface temperature (Fig. 2d and Extended Data Fig. 3a). This pattern may be attributable to repeated episodes of colonization of new habitats, contraction and potential loss of populations, recolonization and secondary contact between populations. For example, the common ancestor of the Syrian Desert, northern Mesopotamian and Central Asian populations split from the northern Levantine lineage around 120 ka bp when a warm climate may have created new habitats. The northern Mesopotamian and Central Asian populations split around 17 ka bp. This is consistent with the paleoclimatic modelling of Jakob et al.¹⁸, according to whom wild barley was absent from Central Asia as recently as 21 ka bp. The old age of the southern Levantine population (that is, its early divergence from populations elsewhere) is consistent with the supposed status of that region as a glacial refugium¹⁸. We were intrigued by the presence of a centromeric haplotype in some southern Levantine wild barleys that diverged from other such haplotypes around 900 ka bp (Fig. 2a and Extended Data Figs. 2c and 4). This is much a deeper split than seen within and between other wild barley populations. The ‘relict’ haplotype may be a chance escape from genetic drift owing to larger population sizes in the southern Levant or may have been retained by selection for some adaptive advantage it confers. The latter hypothesis is lent some support by the fact that the relict haplotype predominates in many domesticated barley populations (Extended Data Fig. 4d) and that a selective sweep was detected with XP-CLR²² (Supplementary Fig. 4a). Fang et al.²³ speculated that higher-than-average differentiation between wild barley on chromosome 5H (Extended Data Fig. 1d) may have been caused by a large pericentric inversion on that chromosome. We did see inversions in this region, but they did not extend across the entire haplotypes and occurred in other haplotypes (Extended Data Fig. 4e), making it unlikely that structural variation is the sole explanation for the long persistence of the relict haplotype.

Haplotype perspective on barley evolution

To add domesticated barley to the picture, we selected from a large collection of 19,778 domesticated barley accessions²⁴ a panel of 302 samples, of which we sequenced 116 to about tenfold coverage and 186 to about threefold whole-genome coverage (Fig. 1b, Supplementary Tables 1, 2 and 6–8 and Supplementary Figs. 5–8). We ran IntroBlocker on these data. As was observed in wheat, sequence divergence in domesticated barley, in contrast to its wild relative, was bimodal. This was true irrespective of whether distal or proximal regions were considered (Fig. 3a and Extended Data Fig. 5a). The recent peak at around 98 SNPs per Mb (approximately 8,000 years of divergence) corresponds to a bottleneck that marks the coalescence of many haplotypes into common ancestors in the hypothetical domesticated founder population (or populations). The earlier peak (6,500 SNPs per Mb, 530,000 years) mirrors that seen in wild barley and arises from comparisons between haplotypes that diverged before domestication. To group haplotypes according to whether they split before or after domestication, we set a threshold of 400 SNPs per 1-Mb window (corresponding to a divergence time of 32,000 years; Fig. 3a). We give exemplary figures drawn with a 5-Mb window size (Fig. 3b and Extended Data Fig. 5b), but used 100-kb windows after inspecting haplotype length around a key domestication gene (Supplementary Table 9 and Supplementary Fig. 9).

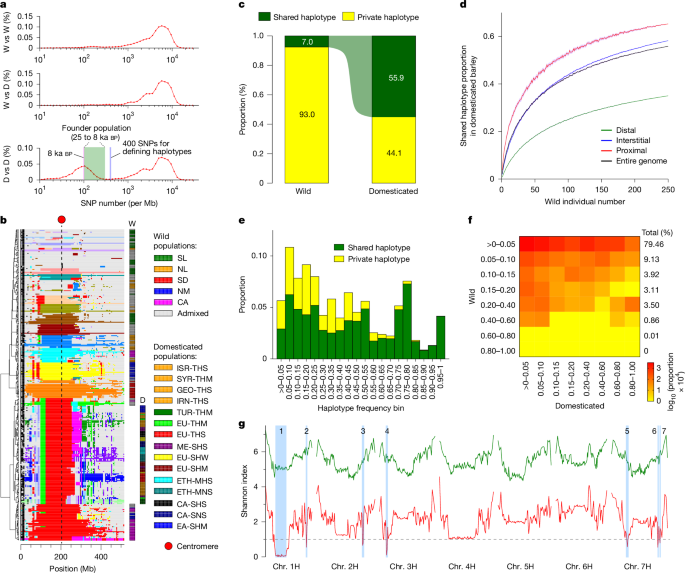

Fig. 3: Haplotype diversity in wild and domesticated barley.

a, Sequence divergence (SNPs per Mb) between pairs of wild (W) and domesticated (D) barley. The blue line marks the 400 SNPs per Mb threshold used by IntroBlocker to distinguish pre-domestication and post-domestication haplotypes. The green shading indicates the persistence of a founder population that began fragmenting into isolated groups from 8 ka bp (purple line). The recent peak started at approximately 300 SNPs corresponds to 25 ka bp, marking divergence between ancestral domesticated and present-day wild barley. b, AHGs on chromosome 1H inferred using 5-Mb windows. The 20 most frequent AHGs are shown in colour; grey indicates rarer AHGs. Sample groups (wild or domesticated) are indicated by side bars. c, Proportions of shared versus private haplotypes in wild and domesticated barley. d, Saturation curves showing how the proportion of shared haplotypes increases with the number of wild barley samples. The lines and shading denote the average and 95% confidence intervals, respectively, from 100 random subsamples. e, Proportions of haplotypes in domesticated barley that are shared with wild barley, grouped by their frequency in the domesticated barley and divided into 20 equal intervals (for example, 0–0.05, 0.05–0.1,…, 0.95–1.0). The data represent the genome-wide pattern across all seven barley chromosomes. f, Normalized two-dimensional haplotype frequency spectrum in wild and domesticated barley. Each cell shows the proportion of shared haplotypes (cell count divided by total counts) displayed on a log scale after multiplying by 10⁴. The percentages on the right margins indicate the relative sizes of frequency bins in domesticated barley (row sums), for example, 79.46% of shared haplotypes occurs at 5% frequency or less in wild barley. g, Haplotype-based Shannon diversity indices in wild (green line) and domesticated (red line) barley populations. Seven regions (blue shading) with an index of less than 1 in domesticated barley (dashed line) were defined as putative selective sweeps. The reference genome used was B1K-04-12.

A prominent feature in the whole-genome AHG maps of barley was the presence of long centromeric haplotypes that were shared between wild and domesticated barley. This haplotype sharing lends immediate visual support to the notion of the mosaic ancestry of domesticated barley (Fig. 3b and Extended Data Fig. 5b). Owing to the lower diversity of haplotypes in proximal than in distal regions of the genome in both wild and domesticated barley, our diversity panel covers nearly all pericentromeric haplotypes, but does not achieve saturation in distal regions (Extended Data Fig. 6a). For example, there was only a single pericentromeric haplotype in domesticated barley on chromosome 1H, which was found mainly in Central Asian wild barleys (Fig. 3b). To paint a more general picture, 55.9% of domesticated haplotypes were present in at least one wild barley sample; in the converse scenario, 7.0% of wild haplotypes were shared with a domesticated barley (Fig. 3c). A saturation analysis makes it seem likely that a larger sample of wild genotypes might unearth more shared haplotypes (Fig. 3d). Conversely, some domesticated haplotypes may lack a wild counterpart: haplotypes private to the domesticate tend to be rare (Fig. 3e). They may have arisen after domestication by recombination of haplotypes inherited from the wild progenitors or their progenitors may have been extinct in the wild because of genetic drift. As expected after a bottleneck, the haplotype frequency spectrum differs between wild and domesticated barley. Common haplotypes (that is, those with a major allele frequency above 20%) are seldom seen in wild barley, but were more frequent in the domesticate (Extended Data Fig. 6b). Still, 79% of haplotypes in domesticated barley with an identifiable wild counterpart occur at low frequency (less than 5%) in the wild (Fig. 3f). Seven regions of the genome showed an extreme reduction of haplotype diversity in domesticated but not in wild barley (Fig. 3g). We inspected local haplotype structure (Supplementary Fig. 10) and annotated the functional effects of genomic variants residing in these intervals to prioritize genes for future inquiry (Supplementary Table 10), even though the large sizes of the regions preclude the confident identification of any single plausible candidate gene. More generally, the high genetic differentiation, evident at the level of both SNPs and haplotypes (Extended Data Fig. 8c,d), may make it impossible to map selection sweeps by outlier scans: in pairwise comparisons between domesticated populations, on average 7.5% of the genome did not share any haplotypes (Supplementary Table 11). Rather than from pervasive forces of adaptive evolution, we suspected that local lineage sorting may underlie this pattern.

Spatiotemporal origins of haplotypes

We enquired into the temporal and spatial origin of haplotypes in domesticated barley by running IntroBlocker with different thresholds corresponding to divergence time brackets and inspecting which extant wild barley genomes have the closest relatives of domesticated barley (Fig. 4 and Extended Data Fig. 7). The resultant genome map of spatiotemporal relations is again testimony to the mosaic genomic constitution of the crop (Fig. 4a and Extended Data Fig. 7). The mosaic structure appears to have emerged early in the evolution of cultivated barley. About 91% of domesticated haplotypes with a wild counterpart split from the latter between 32 and 8 ka bp, that is, during the formation of the immediate wild progenitor of domesticated barley and the initial stages of domestication (Fig. 4b). Fewer than 9% are attributable to more recent gene flow. All five wild barley populations contributed to domesticated barley, albeit in different proportions. Wild barley populations from the southern and northern Levant and Central Asia each contributed between 20% and 27% of haplotypes and those from the Syrian Desert and northern Mesopotamia contributed 16.4% and 12.9%, respectively (Fig. 4b). There were also differences between domesticated barleys as to how much certain wild populations contributed genetic material to them. Haplotypes from Central Asian wild barleys were found more frequently in domesticated barleys from East and Central Asia than in other domesticated populations (Fig. 4d). This close affinity between wild and domesticated barley from ‘the East’ had been noted by Morrell et al.²⁵, who saw it as evidence for a second centre of barley domestication east of the Zagros mountains in Iran. Our explanation is that this trend occurred due to gene flow from local wild populations into already domesticated populations coming from the western Fertile Crescent. The northern Levantine wild barley population contributed more to domesticated forms in western Asia and Europe than to those in East and Central Asia, which had more Central Asian ancestry. Mediterranean barleys had a higher share of southern Levantine ancestry. This relationship may suggest different points of departure of early farmers from the Fertile Crescent. These results are qualitatively similar to those of Poets et al.², but differ in that their analysis, based on 5,000 SNP markers, assigned a greater contribution (more than 50%) of southern Levantine wild barley to all domesticated populations.

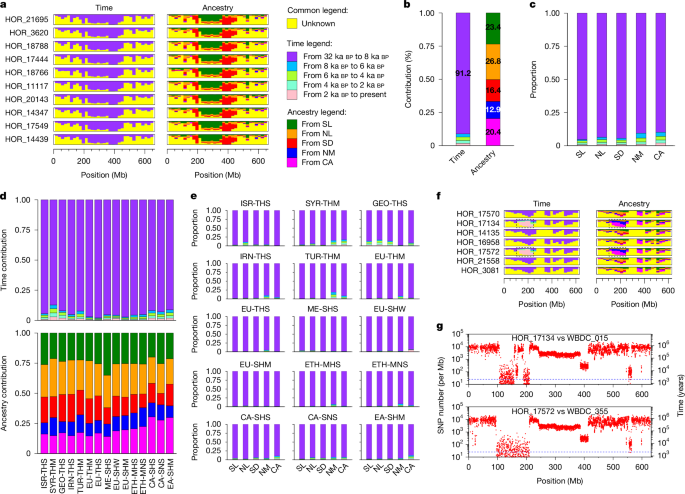

Fig. 4: Spatial and temporal origins of haplotypes in domesticated barley.

a, Spatiotemporal origins of haplotypes of the EU-THS population of domesticated barley on chromosome 2H in 20-Mb windows. The height of the coloured bars is proportional to the probability that a haplotype entered the domesticated gene pool in a certain time period (left) or from a certain wild barley population (right). Yellow denotes haplotypes of unknown provenance owing to missing data, lack of a clear wild counterpart or potential gene flow from domesticated to wild barley. The results for all domesticated populations are shown in Extended Data Fig. 7. b, Spatiotemporal origins of domesticated barley haplotypes across the entire genome. c, Time periods at which haplotypes from each of the five populations entered the domesticated gene pool. d, Spatiotemporal origins of haplotypes in 15 domesticated barley populations. e, Time periods at which haplotypes from each of the five populations entered 15 domesticated barley populations. Haplotypes of unknown provenance were ignored when considering proportions in panels b–e. f, Spatiotemporal origins of haplotypes of the EU-SHW population on chromosome 7H. The dashed rectangle marks a haplotype that owes its presence in domesticated barley to recent gene flow. g, Sequence divergence (SNPs per Mb) on chromosome 7H between two EU-SHW accessions (HOR_17134 and HOR_17572) and two Central Asian wild barleys (WBDC_055 and WBDC_355). The dashed line marks 2 ka bp of divergence (random mutation rate of 6.13 SNPs per Gb per generation).

Domesticated barleys differ also in how much recent gene flow they have received from wild barley (Fig. 4c,e). Wild introgressions are most common in cultivated accessions from western and Central Asia, where wild barlEy is common: 12.8% of haplotypes in Syrian barleys (SYR-THM) are attributable to recent (later than 8 ka bp) wild introgressions (mainly from the Central Asian and northern Mesopotamian populations). We were surprised to see wild haplotypes flowing into northern European barley in apparently recent times: the cultivar ‘Kiruna’ (HOR_17134) shared a haplotype on chromosome 7H, 100–200 Mb with a Central Asian wild barley (Fig. 4f,g and Supplementary Fig. 11). This observation can be explained by the use of wild barley as a genetic resource by breeders: Kiruna’s pedigree features ‘Vogelsanger Gold’, a variety from the 1960s with a wild barley introgression²⁶. The same haplotype is seen in HOR_17572, which is purported to be an Austrian landrace. We considered errors in the passport records or accidental outcrossing during ex situ management as the most likely explanation for this case.

Domesticated lineage relationships

We inspected divergence levels between haplotypes post-domestication to infer split times between different populations of domesticated barley in a hierarchical manner (Fig. 5a,b, Extended Data Fig. 8a,b and Supplementary Table 12). We used only SNPs in haplotypes descended from the same wild lineage to compute pairwise divergence times between samples. First, we divided our domesticated barley panel into three groups: western (Near East + Europe), eastern and Ethiopian barleys, which all diverged from each other around 8.5 ka bp, reflecting the dispersal of agriculture from the Fertile Crescent around that time. Subsequently, western barley split into three lineages (Near East, two-rowed Europe and six-rowed Europe) around 7.5 ka bp. This is consistent with the archaeological records that show that by 7 ka bp barley had been introduced to Europe, North Africa and Central Asia²⁷. These populations subdivided further between 7 and 5 ka bp. Divergence time distributions had multiple peaks in some comparisons. In the case of European barleys, gene flow between populations, which are differentiated by morphology and phenology rather than by geography, is plausible. In the case of western Asian populations from Georgia (GEO-THS) and Iran (IRN-THS), fine-scale population is conceivable: landraces in these mountainous regions may trace back to a common source population but have evolved in mutual reproductive isolation after reaching their current habitats. In Fig. 5c, we provide a graphical summary of these results in relation to known dispersal routes supported by archaeological evidence²⁷.

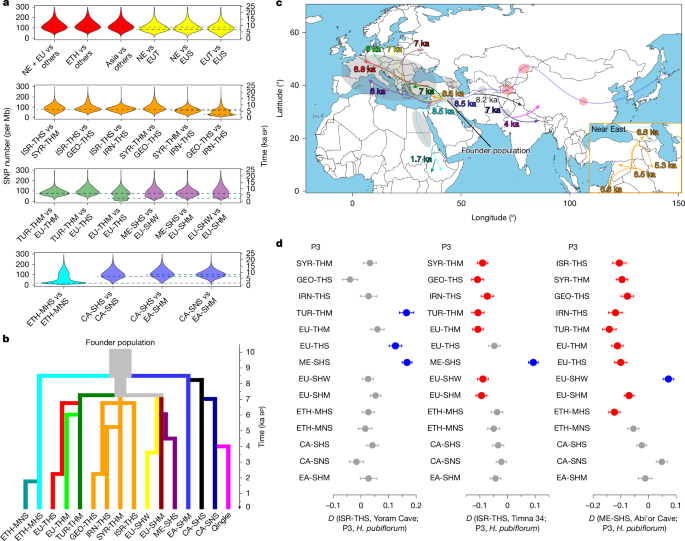

Fig. 5: Divergence and dispersal of domesticated barley.

a, Violin plots showing the distribution of sequence divergence (SNPs per Mb) in pairwise comparisons between samples from different populations of domesticated barley. The dashed lines mark the peaks of the distributions (split times). Multimodal distributions may have risen from episodes of gene flow. b, Schematic illustrating the lineal descent and split times between 15 barley populations defined in this study and Tibetan barleys (Qingke) studied by Zeng et al.⁴⁰. c, Map showing when and along which routes domesticated barley spread from its centre of origin in the Fertile Crescent. The grey shading indicates barley archaeological sites dating back about 7,000 years; the red shading indicates barley archaeological sites dating back about 5,000 years²⁷. We took archaeological sites²⁷, divergence time and population structure (Supplementary Fig. 8) into account when drawing this figure. Geographical outlines were obtained from the R package ‘maps’ (https://CRAN.R-project.org/package=maps), which uses public domain base map data (under a GNU General public license: version 2). d, D statistics for different comparisons among ancient barleys and 15 domesticated barley populations. The outgroup was H. pubiflorum. Blue and red indicate significant results (|Z score| > 3), whereas grey indicates non-significant results (|Z score| < 3). A positive D value (blue) suggests gene flow between P1 and P3, whereas a negative D value (red) indicates gene flow between P2 and P3. The grey bars, with D values close to zero, imply no detectable gene flow. The solid circles represent D values. The error bars indicate ±1 standard error. Sample sizes of each population, standard deviations and Z values are provided in Supplementary Table 19.

A single-gene view of mosaic ancestry

How we think about barley crop evolution owes much to the genetic dissection of loci at which mutant alleles confer traits that are seen only in the domesticate, namely, non-shattering (‘non-brittle’) spikes, fertile lateral grains (‘six-rowed’ spikes) and the loss of lemma adherence to the mature grain (‘naked’ or ‘hulless’ barley). The corresponding genetic loci are BRITTLE RACHIS 1 and 2 (ref. ⁶), SIX ROWED SPIKE 1 (ref. ²⁸) and NUDUM²⁹ with mutant alleles btr1, btr2, vrs1.a1–vrs1.a4 and nud. These genes were not identified in genome-wide scans for regions with extraordinarily low haplotype diversity (Extended Data Fig. 6c,d). The reason for this is that multiple independent loss of function of alleles are present at the BTR1/2 and VRS1 loci and that the widespread cultivation of naked barleys is confined to a few geographical regions such the Himalayas and Ethiopian highland. Even so, the persistence of long haplotypes (Extended Data Fig. 9a–c and Supplementary Fig. 12) around these genes and the accumulation in them of rare variants since the most recent, and indeed recent (less than 10 ka), common ancestor allowed us to date, in an approximate manner, the origin of domesticated loss-of-function alleles. We used Genealogical Estimation of Variant Age (GEVA)³⁰ to estimate ages of mutant alleles and their surrounding haplotypes at the Btr1/2, Vrs1 and Nud loci. Our estimated age of 27 ka bp for the btr1 haplotype (Extended Data Fig. 9d) predates the earliest archaeobotanical remains of domesticated barley by some 17,000 years^1,5, but it is closer to the approximately 22 ka bp estimate from an archaeobotanical modelling study³¹. It is not impossible that non-shattering barleys (and the causal haplotypes) languished as rare variants in the wild before early cultivators selected them for propagation. The btr2 haplotype originated around 15 ka bp, which is very close to the approximately 12 ka bp estimate from Allaby et al.³¹. The vrs1.a1 haplotype dates back to approximately 25 ka bp, consistent with the identification of it as the most ancient six-rowed allele²⁸. By contrast, vrs1.a2 emerged around 8 ka bp, in line with the hypothesis that it was derived from cultivated two-rowed barley²⁸. The age estimation for vrs1.a4 (approximately 7 ka bp) matches its current geographical distribution, being limited to Central and East Asian cultivated barley³². As a control, we also estimated the ages of functional (dominant) haplotypes of the Vrs1 and Nud genes. The estimated origins of the Vrs1.b2, Vrs1.b3 and Nud haplotypes far predate domestication — 26 ka bp, 55 ka bp and 35 ka bp, respectively. As a further control, randomly selected wild barley SNPs from the same genomic regions show estimated ages between 100 and 120 ka bp (Supplementary Fig. 13), consistent with the peak of effective population size inferred from the PSMC results (Fig. 2b). The ppd-H1 haplotype, which confers photoperiod insensitivity³³, is estimated to be approximately 30 ka bp in age, which supports the view that it originated before domestication³⁴. Even though the precision of molecular dating is limited by uncertainties surrounding mutation rate estimates, we can propose the following relative order of emergence of mutant alleles and their surrounding haplotypes: btr1, vrs1.a1, nud, btr2, vrs1.a3, vrs1.a2 and vrs1.a4 (Extended Data Fig. 9d). Their most closely related wild counterparts (Extended Data Fig. 9e,f) were found in different present-day wild barley populations: southern Levant (btr1, nud and vrs1.a3), northern Levant (btr2 and vrs1.a2) and northern Mesopotamia and Central Asia (vrs1.a1 and vrs1.a4). This result aligns with earlier gene-based analyses of the btr1/btr2 locus by Pourkheirandish et al.⁶, who posited two origins of tough-rachis barleys, one in the northern and the other in the southern Levant. The early origin of the nud mutation (16 ka bp) is consistent with the fact that hulless barleys from places as far apart as Tibet and Ethiopia all share the same 17-kb deletion spanning the NUD genes (Extended Data Fig. 9c). Yet, their overall genomic composition is quite different: the ETH-MNS and CA-SNS population do not share any haplotypes in 44.8% of the genome. We speculate that before the respective ancestors of Central Asian and Ethiopian barleys left the Fertile Crescent, they acquired the common nud allele as it was spreading from a single southern Levantine source across barley’s early gene pool.

Ancient DNA reveals persistent structure

We analysed ancient DNA sequences of 23 barley grains (Fig. 1c and Supplementary Table 16) dated to between 6000 and 2000 calibrated years before present (cal bp) to see how they might complement our haplotype map of extant genomes. Fragment lengths, nucleotide misincorporation profiles and high mapping rates (Supplementary Table 16 and Supplementary Fig. 14) confirmed authenticity. All ancient barleys grouped together with cultivated types in a PCA (Extended Data Fig. 10a) and had the domesticated btr1Btr2 haplotype, common in western barleys (Supplementary Table 16). The barleys from Yoram Cave and Timna 34 were two-rowed forms with the Vrs1.b2 allele, likewise common in western types (Supplementary Table 16). Those from Abi’or Cave carried the six-rowed (vrs1.a1) allele. In most cases, the ancient barley samples carried the same long pericentric haplotypes as modern domesticated barley, with only a few exceptions on chromosome 7H, where some ancient barleys contained private haplotypes (Extended Data Fig. 10b and Supplementary Fig. 15). These analyses indicate that the ancient genomes derive not from direct descent of local wild stands but from a more widespread founder population that gave rise to cultivated barley across the Fertile Crescent.

We used identity-by-state clustering with our 19,778-sample genotype-by-sequencing (GBS) panel (Supplementary Table 17 and Supplementary Fig. 16) and genome-wide SNP-based phylogenetic trees (Extended Data Fig. 10c and Supplementary Fig. 17) to understand the relationship between our ancient samples and present-day barley populations. Both analyses supported the clustering of the two-rowed Yoram Cave and Timna 34 samples with the modern ISR-THS population, whereas the six-rowed Abi’or Cave sample clusters with the ME-SHS population. As the grains from Abi’or Cave were dated to 2000 cal bp, that is, to the Roman period, secondary contact between geographically distant barley population may have been mediated by sea-borne trade across the Mediterranean. Owing to the limited number of high-coverage ancient samples (only two per archaeological site), population-level assessments of genetic diversity were not feasible. We sought to detect changes in genetic diversity from ancient to modern Israel barley at the single-sample level by comparing the number of rare alleles (present in wild barley) found in individual ancient and modern genomes (Supplementary Table 18 and Supplementary Fig. 18). The results revealed a gradient in diversity, with Yoram Cave (6 ka bp) showing the lowest, followed by ISR-THS and Timna 34 (3 ka bp) with similar levels, and Abi’or Cave (2 ka bp) exhibiting the highest diversity (Extended Data Fig. 10d and Supplementary Fig. 19). Generally, ancient samples tended to show higher genetic diversity than modern samples. This is because, over the course of prolonged domestication, selective breeding and modern agricultural practices, the gene pools of crops and livestock have often experienced bottlenecks and strong selective pressures, leading to a reduction in genetic diversity. To explain why ancient barleys from Israel shows increasing genetic diversity in more recent times, we used D statistics to test for gene flow that might have caused this pattern (Fig. 5d and Supplementary Table 19). We performed D (ISR-THS, Yoram Cave; P3, H. pubiflorum), D (ISR-THS, Timna 34; P3, H. pubiflorum) and D (ME-SHS, Abi’or Cave; P3, H. pubiflorum). These tests found no detectable gene flow in the Yoram Cave samples, but reveal significant western introgression into Timna 34, and even stronger gene flow into samples from Abi’or Cave. These findings align with the genetic diversity patterns, further supporting the observed gradient. The gene flow detected between Israel and western barley populations approximately 3000 years ago could plausibly be attributed to interregional trade or population movements during the Late Bronze Age. Such exchanges may have involved the intentional or unintentional transport of barley grains or seeds, contributing to the observed genomic admixture between geographically distant regions. For modern two-rowed Israel domesticated barley (ISR-THS), sampling information indicates that they are admixed samples (Supplementary Table 7), and D statistics show that they still exhibit gene flow from the Mediterranean population (ME-SHS). Our study expands the understanding of the historical dynamics of modern Israel barley populations. Domestication-related selection may not have been the primary driver of diversity changes in Israel barley. Instead, long-distance trade, human migration and associated gene flow appear to have had a substantial role in enhancing the genetic diversity of modern cultivated barley in the region.

Discussion

Our findings support and extend the two previously proposed models for the mosaic ancestry of domesticated barley, as outlined by Pankin et al.³: (1) recurrent introgressions from diverse wild populations into an early domesticated ‘proto-vulgare’ lineage, and (2) a pre-existing population structure within the wild progenitor gene pool. These mechanisms are not mutually exclusive, and our data suggest that both shaped the genomic composition of domesticated barley. The haplotypic origins of key domestication loci — Btr1/Btr2, Vrs1 and Nud — underscore this complexity. Their geographically disparate wild relatives point to a polycentric domestication phase, followed by a protracted period of cultivation localized within the Fertile Crescent (Extended Data Fig. 11). During this time, regionally structured barley populations — and the human communities that managed them — began to diverge genetically while maintaining some connectivity.

Our divergence-time analyses further support this scenario. The recent peak in haplotype divergence beginning at approximately 300 SNPs (Fig. 3a), corresponding to approximately 25 ka bp, marks the emergence of a distinct genetic lineage leading to domesticated barley. This estimate aligns with PSMC-inferred declines in effective population sizes between 25 and 10 ka bp (Supplementary Fig. 20), reinforcing the view of a protracted ‘proto-domestication’ phase. This timing is also consistent with archaeobotanical evidence: the high frequency (approximately 36%) of domestic-type abscission scars in wild barley at the Ohalo II site (23 ka bp)³⁵ suggests that cultivation predated the fixation of canonical domestication traits such as non-brittle spikes^35,36.

Gene flow between early cultivated populations and nearby wild barleys contributed to the observed mosaic ancestry. In western Asia, this ongoing introgression continued well beyond domestication, as reflected in modern haplotype sharing patterns. Consequently, present-day western Asian barley varieties are unlikely to be direct descendants of the original domesticated founder population. As agriculture expanded beyond the Fertile Crescent, domesticated barley diversified into regionally distinct lineages. This geographical spread, accompanied by a decline in wild introgression, resulted in populations evolving largely in isolation. However, geography alone does not explain the observed structure. Agricultural practices and selection for distinct agronomic traits — such as the divergence between European two-rowed and six-rowed barleys — further shaped gene pools.

This evolutionary process has important implications for functional genomics. The deep haplotype differentiation across populations — arising from both ancestral structure and post-domestication gene flow — may confound signals of adaptation. In many genomic regions, different lineages carry no shared haplotypes, a pattern also observed in selective sweeps. This overlap between mosaic ancestry and selection signatures complicates the mapping of adaptive loci. One promising avenue for disentangling these effects is mutational genomics, where causative variants can be traced across structural and geographical contexts. The example of HvCENTRORADIALIS illustrates this approach: initially identified in classical barley mutant as a major flowering-time regulator, its broader role became apparent only through population sequencing, which revealed both structural variation³⁷ and association with range expansion³⁸.

In summary, our haplotype-based analysis provides a high-resolution view of barley domestication and post-domestication evolution. It supports a model in which early cultivation involved multiple wild sources, followed by gene flow, geographical divergence and local adaptation. This complex legacy continues to shape the genomic architecture of modern barley, and poses both challenges and opportunities for future genetic and breeding research.

Methods

Sample selection for genome sequencing

Wild barley

Our wild barley panel (Supplementary Table 1) comprised 285 accessions from the Wild Barley Diversity Collection (WBDC)^41,42, a collection of ecogeographically diverse accessions. The whole-genome sequencing (WGS) of the WBDC collection has been described in a companion paper¹⁷. A further 95 diverse barley accessions, mainly from the panel of Russell et al.¹⁴, were also included. The latter set of samples had been sequenced to approximately 3× coverage by Jayakodi et al.³⁷. In the present study, we resequenced 32 of these samples to increase their coverage to approximately 10×.

Domesticated barley

Milner et al.²⁴ defined 12 populations using model-based ancestry estimation with ADMIXTURE⁴³ in a global diversity panel of 19,778 domesticated barley, which had been subjected to GBS²⁴. We used the ADMIXTURE results and GBS SNP matrix of Milner et al.²⁴ for sample selection. Except for the Near-eastern population (coloured orange in figure 1b of Milner et al.²⁴), we selected samples according to the following procedure. First, unadmixed samples, that is, those with an ADMIXTURE ancestry coefficient q ≥ 0.95 were used as input for a PCA with smartpca⁴⁴ (v7.2.1). Then, samples were selected to cover the PCA space evenly (Supplementary Fig. 5). Owing to its higher genetic diversity and internal substructure, a more sophisticated procedure was followed for the Near-eastern population (Supplementary Table 7 and Supplementary Fig. 6). First, ADMIXTURE⁴³ (v1.23) was run on 1,078 samples of Milner et al.²⁴, where the Near-eastern ancestry coefficient q was higher than that of all other populations, with q ranging from 0.25 to 0.98. Before running ADMIXTURE, the SNP set was thinned with PLINK⁴⁵ (v1.9) using the parameters ‘--indep-pairwise 50 10 0.1’. For each value of K (the number of ancestral populations) from 2 to 6, the output of 15 replicate runs of ADMIXTURE with different random seeds was combined with CLUMPP⁴⁶ (v1.1.2) and plotted with Distruct⁴⁷ (v1.1). Individuals with q ≥ 80% for their main ancestry component were considered unadmixed. The results for K = 6 was chosen for further analysis. The genetic separation of the defined populations was confirmed with smartpca⁴⁴ (v7.2.1). Only those samples of the Near-eastern subpopulations that were actually located in the Near East were selected for sequencing. The selected samples were distributed in an equidistant manner in the PCA diversity space. In total, we selected 302 samples from 15 populations (Supplementary Table 8 and Supplementary Fig. 7). The populations were named according to their geographical origins and three key traits closely connected to global population structure²⁴ (Supplementary Table 6): row type (two-rowed (T), six-rowed (S) and mixed (M)); lemma adherence (hulled (H) and naked (N)); and annual growth habit (winter sown (W), spring sown (S) and mixed (M)). For example, ISR-THS refers to a population whose members are predominantly two-rowed hulled spring barleys from Israel. For each population, we selected about 20 accessions for WGS sequencing. Among these, 7–10 samples of each population (total: 116, ‘high-coverage samples’) were sequenced to approximately tenfold coverage. The remaining samples of each population were sequenced to approximately threefold coverage (total: 186, ‘low-coverage samples’). Seeds for all selected accessions can be ordered from the German Federal ex situ genebank at IPK Gatersleben.

Plant growth, DNA isolation and Illumina sequencing

Plant cultivation and DNA isolation were essentially as previously described²⁴. Illumina Nextera DNA Flex WGS libraries were prepared and sequenced (paired end: 2 × 151 cycles) on an Illumina NovaSeq 6000 device at IPK Gatersleben according to the manufacturer’s instructions (Illumina).

Reads mapping and variant calling

The reads of 682 barley genotypes, of which 380 were wild and 302 domesticated, were mapped to the MorexV3 genome sequence assembly¹⁵ using Minimap2 (v2.24)⁴⁸. Mapping statistics of all 682 accessions are shown in Supplementary Table 1. BAM files were sorted and deduplicated with Novosort (v3.06.05; https://www.novocraft.com/products/novosort/). Variant calling was done with bcftools (v1.15.1)⁴⁹ using the command ‘mpileup -a DP,AD -q 20 -Q 20 --ns 3332’. The resultant ‘raw’ SNP matrix was filtered as follows: (1) only biallelic SNP sites were kept; and (2) genotype calls were deemed successful if their read depth ≥ 2 and read depth ≤ 50; otherwise genotypes were set to missing. SNP sites with fewer than 20% missing calls, and fewer than 20% heterozygous calls were used for ADMIXTURE runs (with K ranging from 2 to 4) as described above. At K = 4, wild individuals with 15% or more ancestry from domesticated barley were considered admixed. A total of 80 wild admixed samples were excluded from subsequent analyses (Supplementary Table 2 and Supplementary Fig. 21). A total of 251 wild barley samples with high coverage (approximately 10×) without domesticated admixture were used for subsequent population genetic analyses (Supplementary Table 3).

We prepared two SNP matrices, SNP1 and SNP2, for downstream analysis. For SNP1, we extracted the data for 367 (251 wild and 116 domesticated) high-coverage samples from the raw SNP matrix. SNP1 was filtered as follows: (1) only biallelic SNP sites were kept; (2) homozygous calls were deemed successful if their read depth ≥2 and read depth ≤ 50 and set to missing otherwise; and (3) heterozygous calls were deemed successful if the allelic depth of both alleles was 5 or more and set to missing otherwise. The SNP2 matrix contained variants for 302 domesticated samples and was constructed from another bcftools run using the same parameters as above but with a downsampled dataset, in which the read alignments of the high-coverage samples (n = 116) had been thinned so as to achieve a sequence depth comparable with that of the low-coverage samples (Supplementary Fig. 22) using SAMtools (v1.16.1)⁴⁹ with the command ‘samtools view -s 0.FRAC’ (FRAC is the sampling rate). The targeted number of uniquely mapped (Q20), deduplicated mapped reads for the downsampled high-coverage data was set to a random number between 35 million and 52 million. Note that the read length was 2 × 150 bp in all samples. The matrix SNP2 was filtered as follows: (1) only biallelic SNP sites were kept; (2) homozygous calls were considered successful if their read depth ≥ 2 and read depth ≤ 20 and set to missing otherwise; and (3) all heterozygous calls were set to missing. A flow chart describing the construction of the SNP matrices used in this study is shown in Supplementary Fig. 23. In analyses in which the use of an outgroup was required, we used WGS data of Hordeum pubiflorum⁵⁰. Read mapping and SNP calling were done as described above with one difference: a VCF file for all sites in the genome, including those identical to the reference genome, was obtained. This VCF file was merged with other VCF files to determine ancestral states. We also prepared a SNP matrix with 367 (251 wild and 116 domesticated) high-coverage samples using B1K-04-02 (FT11) as the genome reference¹⁶ for candidate gene search and SNP age calculation. The reads mapping, SNP calling and filtering procedures were the same as those used for generating the SNP1 matrix.

SNP-based genetic distances

The number of SNPs between any two high-coverage genotypes were calculated as follows. First, pairwise SNP numbers were determined in genomic windows with PLINK2 (v2.00a3.3LM)⁵¹ with the command ‘plink2 --from-bp x --to-bp y --sample-diff counts-only counts-cols=ibs0,ibs1 ids=s1 s2 …’, where x and y are the start and end coordinates of a window and ‘s1 s2 …’ is a list of sample IDs. Different window sizes were used: 100 kb (shift of 20 kb), 500 kb (shift of 100 kb), 1 Mb (shift of 200 kb), 2 Mb (shift of 400 kb) and 5 Mb (shift of 5 Mb). Then, in each window, a normalized distance measure was calculated to account for the fact that owing to differences in the mappability of short reads, the effective coverage differs between genomic windows⁴⁰ (Supplementary Fig. 24). Per-bp read depth was determined for each sample and each position of the reference genome with the command ‘samtools view -q 20 -F 3332 | samtools depth’. The effectively covered region of each window was defined as the union of sites with read depths between 2 and 50. For each, pairwise comparison between samples, the effectively covered regions were intersected using a Perl script. The pairwise distance in a genomic window was calculated as (hom + het/2)/cov, where hom and het are numbers of homozygous and heterozygous differences, respectively, and cov is the size of the intersection of the effectively covered regions of both samples. Genomic windows were considered only if the latter quantity amounted to half the size of the window; otherwise the distance was set to missing.

Validation of SNP number estimation using accurate long reads

To evaluate the accuracy of our SNP number estimates, we used data from the second version of the barley pangenome¹⁶. Among the 76 accessions included in the barley pangenome, 13 overlapped with our sample set (Supplementary Table 20). We downloaded the HiFi reads of these 13 accessions and aligned them to the MorexV3 reference genome¹⁵ using pbmm2 (v1.10.0; https://github.com/PacificBiosciences/pbmm2). For HiFi reads, the effectively covered region was defined in the same manner as above but with read depths between 10 and 50 considering average HiFi sequencing coverage of approximately 25×. Variant calling was performed with DeepVariant (v1.6.0)⁵² to generate GVCF files for each sample, followed by joint genotyping using GLnexus (v1.3.1)^53,54 to obtain a SNP matrix across the 13 samples. We applied the following filtering criteria: (1) only biallelic SNPs were retained; (2) only genotype calls with depth between 10× and 50× were kept; otherwise, the genotype was set as missing; and (3) for heterozygous calls, we required a minimum allele depth of 10 for each allele. We compared the effective covered region (uniquely mapped regions) of short-read and HiFi-read data across these 13 samples, as well as the intersection of effective covered regions between each pair of samples (Supplementary Fig. 25). The missing rate was calculated for each sample as the number of missing genotype calls divided by its effectively covered region. We then calculated pairwise SNP number between samples using the same method as described above, with a window size of 1 Mb (shift of 200 kb). Only 1-Mb windows in which the intersection of effective covered regions between the two samples exceeds 0.5 Mb were retained for SNP number calculation. Given that SNP number distributions along chromosomes are not always normally distributed — and may even be bimodal in certain cases — we applied Kendall rank correlation to evaluate the consistency between SNP numbers calculated from short reads and HiFi reads (Supplementary Figs. 26 and 27). Confidence intervals for Kendall’s tau correlation coefficients were calculated using a percentile bootstrap method with 1,000 resamples.

Linkage disequilibrium decay

The barley genome was split into three compartments (distal, interstitial and proximal) based on recombination rates¹⁹ (Supplementary Table 21 and Supplementary Fig. 28). Linkage disequilibrium decay was calculated for both wild and domesticated barley in each compartment using PopLDdecay (v3.42)⁵⁵ with the command ‘-Het 0.99 -Miss 0.2 -MAF 0.01 -MaxDist 500’.

Population structure and divergence times in wild barley

Variants calls of 251 high-coverage wild barley samples were extracted from the matrix SNP1 (see above). SNP sites with fewer than 20% missing calls, fewer than 20% heterozygous calls and minor allele frequency (MAF) ≥ 5% were used in population structure analysis. Model-based ancestry estimation was done with ADMIXTURE (v1.23)⁴³. The number of ancestral populations K ranged from 2 to 5. At K = 5, individuals with more than 85% of its main ancestry were considered as unadmixed wild barleys. PCA was done with smartpca (v7.2.1)⁴⁴. Genotype calls of the outgroup sample H. pubiflorum were merged with the SNP matrix, and an IBS-based genetic distance matrix was calculated with PLINK (v1.9)⁴⁵. The distance matrix was used to construct a neighbour-joining tree with Fneighbor (https://emboss.sourceforge.net/apps/cvs/embassy/phylipnew/fneighbor.html), which is part of the EMBOSS package⁵⁶. The resultant tree was visualized with Interactive Tree Of Life (iTOL; v7)⁵⁷. In each of the five wild barley subpopulations, the nucleotide diversity⁵⁸ (π) and Watterson’s estimator⁵⁹ (θ_W) were calculated from the SNP matrix without MAF filtering using a published Perl script⁴⁰. Pairwise fixation indices (F_ST) between pairs of wild barley populations were calculated in genomic windows (size of 1 Mb, shift of 200 kb) using Hudson’s estimator with the formula given as equation 10 (ref. ⁶⁰) using a published Perl script⁴⁰. Coverage-normalized SNP distances were calculated as described above in 1-Mb genomic windows (shift of 200 kb). Distributions of log₁₀-transformed distances in the genomic compartments distal, interstitial and proximal were plotted for each wild barley population in R (v3.5.1)⁶¹. To infer divergence times, only SNPs in a 50-Mb region flanking the centromeres (±25 Mb) were used. SNP distances were converted into divergence times using the formula g = d/2μ, where g is the number of generations, μ is the mutation rate and d is the number of SNPs per bp. We assumed that the generation time in the annual species H. vulgare is 1 year. We used a random mutation rate of 6.13 × 10⁻⁹ as had been determined by Wang et al.⁶² in the Pooideae grass Brachypodium distachyon. The SNP number distribution was visualized by frequency polygons with logarithmic binning (number of bins of 50, range of 10¹–10^4.5 (31,622 SNPs)).

Demographic history of wild barley

Demographic inference was done with PSMC⁸ (v0.6.5-r67, default parameters) using pseudo-diploid genomes, which were created by combining the BAM files of two homozygous individuals as previously described^63,64,65. We performed two types of PSMC analyses. The first was conducted separately for five wild barley subpopulations to infer their respective demographic histories (Supplementary Fig. 2). The second treated all wild barley samples as a single population to capture the average demographic history of the species (Extended Data Fig. 3b). For the population-specific PSMC analysis, we first calculated the IBS distribution for all pairwise combinations of individuals within each group. On the basis of the distribution, IBS values were divided into two to four bins. Within each bin, we selected either all sample pairs (if the number of combinations was fewer than 50) or 50 pairs (if the number of combinations was more than 50) evenly distributed from low to high IBS values (Supplementary Table 22). In selecting sample pairs, we also considered the sequencing coverage of each individual. A pair was retained only if the ratio of coverage, defined as ratio = coverage_sample2/(coverage_sample1 + coverage_sample2), fell within the range 0.45–0.55. For the species-level PSMC analysis, the method was the same, except that each pair of samples was required to come from different subpopulations (Supplementary Table 23). PSMC is based on a panmictic model, assuming random mating, in which an individual (for example, a mammal) carries haplotypes derived from different ancestors. For selfing species, the outcome of pseudo-diploid PSMC is highly dependent on IBS. The higher the IBS, the closer the relationship between the pair, and the more likely the haplotypes come from a shared ancestor, which violates the assumption of random mating in PSMC. Conversely, pairs with lower IBS values are more likely to carry haplotypes from different ancestors, making them more consistent with the PSMC model. Therefore, we used the sample pairs from the lowest IBS bin (0.60 < IBS < 0.67) to represent the average demographic history of wild barley (Fig. 2b and Extended Data Fig. 3b).

Analysis of deep divergence region on chromosome 5H

We used MUMmer (v4.0.0)⁶⁶ to align eight barley genome assemblies with different haplotypes¹⁶ on chromosome 5H, 100–300 Mb. The minimum alignment identity was 90 and the minimum alignment length was 2,000 bp.

We used cross-population composite likelihood ratio (XP-CLR)²², a method for detecting selective sweeps based on allele frequency differentiation, to assess whether a selective sweep signal exists in the deep divergence region on chromosome 5H. First, we performed genotype imputation and phasing of the SNP matrix using Beagle (v5.5)⁶⁷. We then applied a Python implementation of XP-CLR (https://github.com/hardingnj/xpclr) to calculate XP-CLR scores between the southern Levant population and each of the other four wild barley groups. The analysis was performed using sliding windows of 1 Mb in size (shift of 200 kb). According to our previous definition (Extended Data Fig. 4b), excluding the three intermediate haplotypes, the remaining wild and domesticated barley samples were classified into two haplotype types: haplotype1 and haplotype2. Candidate genes were identified based on the SNP matrix constructed using the wild barley accession B1K-04-02 (FT11) as the reference genome¹⁶ (Supplementary Fig. 4b). The effects of SNPs and indels residing in the genes of those regions were classified with SnpEff (v4.3t)⁶⁸, and variants with high allele frequency differentiation in haplotype1 and haplotype2 were prioritized (Supplementary Table 5).

Definition of ancestral haplotype groups

AHGs were defined with IntroBlocker (v2)⁹. To determine an appropriate threshold for separating haplotypes, we computed coverage-normalized SNP-based distances in 1-Mb windows (shift of 200 kb): (1) among wild samples; (2) among domesticated samples; and (3) between wild and domesticated samples. In each of the three cases, all possible pairwise combinations of samples were considered. We selected a threshold of 400 SNPs per Mb to separate AHGs. Coverage normalized SNP–distance matrices computed from 367 high-coverage samples were used as input for IntroBlocker with the ‘semi-supervised’ model, giving precedence to wild over domesticated samples in the labelling of AHGs. IntroBlocker was run with different window sizes: 100 kb (shift of 20 kb), 500 kb (shift of 100 kb), 1 Mb (shift of 200 kb), 2 Mb (shift of 400 kb) and 5 Mb (shift of 5 Mb). The results of the 5-Mb run are shown in Fig. 3b and Extended Data Fig. 5b. After inspection of results (Supplementary Fig. 9), the results from the 100-kb (shift of 20 kb) run were used for downstream analyses.

Analysis of the AHG matrix

The proportions of shared and private AHGs in wild and domesticated barleys were determined with custom Perl scripts. Saturation curves were calculated as follows. We chose sets of k wild barleys (from a universe of 251 samples) at random, with k ranging from 1 to 250. For each k, the selection was repeated 100 times. For each of the samples, we determined the proportion of haplotypes seen in the domesticate that were shared with that set. Mean values and 95% confidence intervals for each k were calculated in R (v3.5.1)⁶¹based on the t-distribution (via the t.test() function). Two-dimensional haplotype frequency spectra were calculated with custom Perl scripts. Genomic windows with more than 20% missing data points were excluded.

To infer the times at which wild haplotypes entered the domesticated gene pool, we ran IntroBlocker with different thresholds for haplotype separation: 400 SNPs (equivalent to an approximate divergent time of 32,000 years ago), 98 SNPs (8,000 years), 73 (6,000 years), 49 SNPs (4,000 years) and 24 SNPs (2,000 years). For each domesticated haplotype, we compared the results from IntroBlocker runs with different thresholds (divergence time brackets). The latest bracket in which haplotype sharing between wild and domesticated samples occurred was considered a terminus post quem for when a wild haplotype type entered the domesticated gene pool. This method is agnostic about the direction of gene flow. To exclude recent introgressions from domesticated to wild barley, we removed windows in which multiple domesticated barley samples and a few wild barleys share haplotypes that diverged within the past 8,000 years. To determine the spatial origin of haplotypes, we averaged the ancestry ADMIXTURE coefficients of all wild individuals in which a given domesticated haplotype occurred (Supplementary Fig. 29). If two wild samples that shared a domesticated haplotype were highly similar (pairwise IBS ≥ 0.95), only one was used for the calculation.

Haplotype-based genetic diversity and selective sweeps

Saturation curves for the average number of haplotypes in a genomic window as a function of sample size were obtained by randomly selecting k individuals with k ranging from 1 to 115 for domesticated samples and from 1 to 250 for wild samples. For each k, the selection was repeated 100 times. Average haplotype numbers were determined for each subsample. Mean values and 95% confidence intervals were calculated in R (v3.5.1)^{61 based on the t}-distribution (via the t.test() function). θ_W⁵⁹ and the Shannon diversity index⁶⁹ were calculated with a custom Perl script on haplotype matrices including only genomic windows with less than 20% missing data. The θ_W and Shannon index in seven barley chromosomes were plotted with Gnuplot using ‘smooth bezier’.

We looked for regions of reduced diversity in domesticated relative to wild barley and therein searched for genes that might have been potential targets of selection. To not bias the analysis by the use of a domesticated reference genome (that of cultivar Morex), IntroBlocker was re-run using the SNP matrix based on the wild barley accession B1K-04-02 (FT11)¹⁶. Regions with a Shannon index ≤ 1 were considered selective sweeps. The effects of SNPs and indels residing in the genes of those regions were classified with SnpEff (v4.3t)⁶⁸, and variants with high allele frequency differentiation were prioritized.

The differentiation between populations of domesticated barley was assessed by computing the absolute allele frequency difference⁷⁰. The following comparisons were done: NE + EU versus ETH, NE + EU versus Asia, ETH versus Asia, NE versus EUT, NE versus EUS, and EUT versus EUS. In addition, we calculated F_ST in genomic windows (size of 100 kb, shift of 20 kb) using the same method as in wild barley. Allele frequency difference was used for haplotypes derived from high-coverage samples (SNP1); F_ST calculations were performed for all samples, including low-coverage samples (SNP2).

Demographic history of domesticated barley

Trajectories of effective population size across time were inferred with PSMC⁸ (v0.6.5-r67, default parameters) using pseudo-diploid genome sequence from two homozygous barley individuals. A generation time of 1 year and a mutation rate of 6.13 × 10⁻⁹ were used. We ran PSMC on 341 pseudo-haploid genomes obtained from all possible permutation of sample pairs from within 15 domesticated populations to reflect the population history of each subpopulation of domesticated barley. Given that domesticated barley originates from a mosaic genome composed of diverse wild barley lineages, we used the average demographic history of wild barleys (sample pairs from the lowest IBS bin between 0.60 and 0.67 in Extended Data Fig. 3b) as a reference background to compare temporal changes in effective population size (Ne) between 15 cultivated barley groups and wild barley.

Split times between pairs of domesticated barley populations were determined by inspecting the distributions of SNP numbers between pairs of samples in those windows (size of 1 Mb, shift of 200 kb) where a given pair of samples differed by fewer than 300 SNPs (corresponding to a divergence of 24,470 years). Only 1-Mb windows in which the intersection of effective covered regions between the two samples exceeds 0.9 Mb were retained for SNP number calculation.

The SNP number distribution was visualized by frequency polygons (linear binning; number of bins of 50; range of 0–300). SNP numbers were converted to divergence time using the following formula: time = (SNP number per Mb/10⁶)/(2 × 6.13 × 10⁻⁹), where the 6.13 × 10⁻⁹ was the random mutation rate (μ) of B. distachyon⁶².

Validation of inferred split times

We used a previously published two-rowed ancient barley sample, JK3014⁷¹ (approximately 6,000 years old, from Israel), to assess the accuracy of our method (Supplementary Fig. 30). JK3014 was chosen because it is a high-depth sequenced sample (102×) and underwent uracil–DNA–glycosylase (UDG)⁷² treatment, which reduces post-mortem DNA damage. JK3014 was jointly analysed with 116 high-depth modern barley samples for SNP calling. SNPs were filtered using the same preprocessing criteria that we applied in our SNP number calculation. We then calculated the SNP number between JK3014 and each of the 116 samples, without excluding C→T and G→A substitutions. The analysis used a 1-Mb sliding window (shift of 200 kb). To convert the SNP number to time, we used two models:

Model 1 assumes JK3014 is a direct ancestor of modern two-row Israel barley (ISR-THS). In this case, time = d/μ, where d equals the SNP number in 1-Mb windows/10⁶ and μ is the mutation rate.

Model 2 assumes JK3014 and ISR-THS share a common ancestor, and their divergence time slightly predates 6,000 years ago. In this case, time = d/(coefficient × μ). If JK3014 was a modern barley sample, the coefficient would be 2. Therefore, a reasonable estimate for this coefficient lies between 1 and 2. We used 1.2 to approximate a divergence time slightly earlier than 6,000 years ago. In addition, as UDG treatment cannot entirely eliminate ancient DNA damage, we assumed 10% of the C→T and G→A SNPs might be false positives. Thus, the final equation for model 2 becomes: time = (d/1.1)/(1.2 × μ).

Estimation of haplotype age for domestication genes

We used GEVA (v1)³⁰ to estimate the age of haplotypes associated with three domestication genes in barley. For GEVA, the alternative allele is assumed to be the derived allele. As the domesticated haplotypes of these genes in domesticated barley are all recessive mutations compared with wild barley, we used the SNP matrix based on the wild barley reference genome B1K-04-12 (FT11)¹⁶. This setup ensures that the causal variant of the domesticated haplotype is treated as the derived allele. Phasing of the SNP matrix was performed using Beagle (v5.5)⁶⁷. For genes with known causal variants, we applied the following strategies to estimate haplotype age: if the causal variant is a SNP (for example, vrs1.a3 and ppd-H1), we directly used GEVA to estimate the age of that SNP. If the causal variant is a short indel (for example, btr1, btr2, vrs1.a1 and vrs1.a2), we constructed pseudo-SNPs at the indel position (for example, for the 1-bp deletion at position 41,130,358 in btr1, C/−), such as C→A, C→T and C→G, and estimated their ages using GEVA.

In both SNP and indel cases, we also identified haplotype-specific private SNPs that are in complete linkage with the causal variant and used these SNPs to estimate haplotype age. The defining feature of a causal variant is that it is private to the focal population and has a genotype frequency of 100%. ‘Private’ refers to those found exclusively in the focal haplotype relative to all other barley samples, including both wild and domesticated barley. The SNPs that we selected as being in ‘complete linkage with the causal variant’ share these same characteristics: they are private to the population and occur at a genotype frequency of 100%. Therefore, these SNPs probably originated either before or concurrently with the causal variant and can be used alongside it to estimate the age of the haplotype. The actual age of the haplotype is thus equal to or later than the age estimated by this method. For each haplotype, we randomly selected approximately 40 private SNPs, as well as the causal SNP or pseudo-causal SNPs for the calculation (Supplementary Table 14). For large deletions (for example, Nud), haplotypes with unknown causal variants (for example, vrs1.a4) and functional (dominant) haplotypes in cultivated barley (Vrs1.b2, Vrs1.b3 and Nud), we estimated haplotype age using approximately 40 private SNPs specific to the domesticated haplotypes. To avoid confounding effects from recombination, we excluded all domesticated samples showing evidence of recombinant haplotypes in the regions of interest (Supplementary Table 13). GEVA analyses were performed using default parameters, and downstream filtering was conducted using the ‘estimate.R’ script provided in the GEVA package. The mutation rate that we used is 6.13 × 10⁻⁹ from B. distachyon⁶². For each SNP, ten replicate runs were performed with different random seeds. Because recombinant haplotypes were excluded from the domesticated haplotype analyses, we reported haplotype ages based on the mutation clock model. Finally, given that barley is a highly selfing species with negligible heterozygosity (that is, nearly haploid in effect), and GEVA was originally developed under a diploid model (for human data), we multiplied all age estimates by 2 to account for ploidy differences and to report the final haplotype age.

As a control group, for each gene locus, we randomly selected approximately 40 SNPs (0.2 < allele frequency < 0.5) from wild barley within the same genomic region and estimated their ages (Supplementary Table 15). Given their uncertain origin — either recent or ancient in the absence of selection — low-frequency SNPs are less suitable as reliable controls. By contrast, high-frequency SNPs (for example, those with frequencies above 20%) are likely to have arisen in the past and become fixed or nearly fixed in the population, and thus are expected to exhibit older ages. For wild barley SNP, the joint mutation and recombination clock model were used. In addition, the recessive ppd-H1 allele, which may predate domestication³⁴, was also included as a control group.

To infer the most likely spatial origins of three genes, a neighbour-joining tree for each gene was constructed with SNPs from an interval within their sweep region. For the btr1/2, vrs1 and nud loci, the interval extended from 39.4 to 39.7 Mb on chromosome 3H, from 570.5 to 517.2 Mb on chromosome 2H and 525.3–525.7 Mb on chromosome 7H, respectively. The neighbour-joining tree was constructed using SNPs based on the MorexV3 reference (SNP1).

Archaeological excavations

We analysed ancient DNA sequences of 23 barley grains excavated at three archaeological sites in Israel (Supplementary Table 16). This number included published data of five barley grains from Yoram Cave⁷¹. Archaeobotanical procedures were performed as described by Lev-Marom et al. (manuscript in preparation). The sites Yoram Cave and Timna 34 have been described by Mascher et al.⁷¹ and Lev-Marom et al. Abi’or Cave is a medium-sized cave located on the eastern slopes of the Judean Desert, above Jericho, approximately 50 m below sea level, across from the Karantal Monastery. The excavations at the cave were directed by the late H. Eshel in 1986. It is situated above a larger cave known as ‘The Spies Cave’ and has three openings above it. The cave contains a main long tunnel, approximately 50 m long, and has revealed archaeological material dating from the Chalcolithic period to the time of the Bar Kochba Revolt (2nd century ce). The cave was found to be heavily disturbed by animals, antiquities robbers and monks who lived in it during the Islamic and more recent periods.

Ancient DNA sequencing and analysis

All laboratory procedures for sampling, DNA extraction, library preparation and library indexing were conducted in facilities dedicated to ancient DNA work at the University of Tübingen. Before DNA extraction, all seeds were cut into two parts: one part of each seed (36-6.5 mg) was used for DNA extraction and further processing, the other part (26-3.4 mg) was used for radiocarbon dating at the Klaus-Tschira-Archäometrie-Zentrum, Curt-Engelhorn-Zentrum Archäometrie gGmbH. DNA extraction was then performed according to a well-established extraction protocol for ancient plant material⁷¹ and double-stranded dual-indexed DNA libraries were produced^73,74. Six ancient DNA samples (TU697 and JK2281-JK3014) were treated with UDG⁷² before sequencing. Sequencing was done on Illumina devices at IPK Gatersleben, the University of Tübingen and the Max-Planck Institute or the Science of Human History Jena.

Paired-end Illumina reads of each sample were merged with leeHom (v1.2.17)⁷⁵ and mapped to the MorexV3 genome sequence assembly¹⁵ using Minimap2 (v2.24)⁴⁸. BAM files were sorted and duplicates were marked with Novosort (v3.06.05; https://www.novocraft.com/products/novosort/). Nucleotide misincorporation profiles were generated with mapDamage (v2.0.8)⁷⁶. Variant calling was done with bcftools (v1.15.1)⁴⁹ using the command ‘mpileup -a DP,AD -q 20 -Q 20 --ns 3332’. We omitted the parameter ‘--variants-only’ in ‘bcftools call’ to output genotype in all sites. C→T and G→A were excluded, where the C and G are the alleles in the reference genomes and T and A are the alternative alleles called from the short-read data. The resultant SNP matrix was merged with the three different SNP matrices: SNP1 (367 high-coverage samples), SNP2 (302 domesticated barleys) and a published SNP matrix constructed from GBS data of 19,778 domesticated barleys²⁴. The GBS matrices had been filtered for site-level missing rate (less than 20%) before merging. The merged SNP1 matrix was used for PCA with smartPCA (v7.2.1)⁴⁴ using the parameter ‘lsqproject: YES’. Neighbour-joining trees were constructed using only SNPs in a 50-Mb region flanking the centromeres (±25 Mb) on each of the seven chromosomes and including only six high-coverage ancient DNA samples, to determine the proximal haplotypes of ancient barley. The merged GBS matrix was used to compute an IBS matrix with PLINK (v1.9)⁴⁵. To examine the phylogenetic relationships between ancient DNA and modern domesticated barley, we constructed genome-wide phylogenetic trees using two merged SNP datasets: SNP1 and SNP2, each incorporating ancient DNA samples.

To compare genetic diversity between individual ancient and modern barley samples without relying on population-level statistics, we leveraged rare alleles identified in a comprehensive wild barley panel as proxies for ancestral diversity (Supplementary Fig. 18). Wild barley has the most extensive reservoir of allelic variation; alleles with very low frequency in this panel (for example, 0 < MAF ≤ 0.01) are unlikely to persist through strong bottlenecks or selective sweeps, and thus serve as sensitive markers of lost diversity. For each sample pair, we counted the number of these wild-derived rare alleles present in the ancient genome (A) and in the modern genome (M), and defined the ‘relative diversity change’ as (M – A)/A. A positive value indicates retention or gain of ancestral diversity in the modern sample, whereas a negative value signifies diversity loss relative to the ancient sample. This approach allows us to quantify diversity change at the single-sample level in a straightforwards, interpretable manner, without requiring large cohort sizes or population-based diversity estimators. We calculated the relative change in genetic diversity between six high-coverage ancient samples and modern domesticated barley individuals from 15 populations.

The merged SNP1 and SNP2 were also used for the calculation of D statistics with the qpDstat program of ADMIXTOOLS (v3.0)⁷⁷. On the basis of previous phylogenetic analyses, we identified ISR-THS as the closest modern barley population to both Yoram Cave and Timna 34, and ME-SHS as the closest to Abi’or Cave. To test for potential gene flow between ancient and modern barley, we performed the following three D statistics analyses: D (ISR-THS, Yoram Cave; P3, H. pubiflorum), D (ISR-THS, Timna 34; P3, H. pubiflorum) and D (ME-SHS, Abi’or Cave; P3, H. pubiflorum). Here P3 refers to any of the 14 modern barley populations other than ISR-THS or ME-SHS, and H. pubiflorum is the outgroup.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
