Abstract

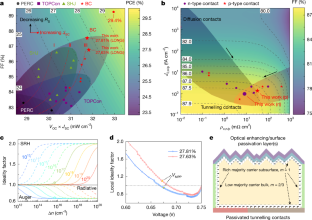

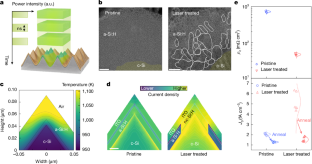

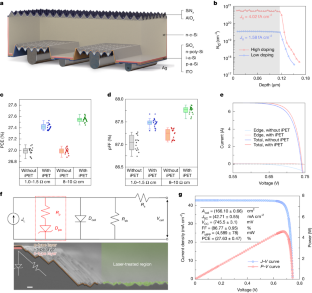

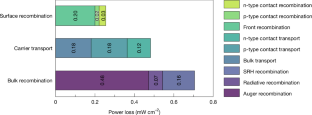

Silicon solar cells are essential for sustainable energy but remain limited by efficiency losses, particularly in the fill factor1,2,3. Here we develop a hybrid interdigitated back-contact solar cell that combines advanced all-surface passivation with laser-treated tunnelling contacts. This approach achieves a power conversion efficiency of 27.81%, approaching 95% of the theoretical limit4. By integrating high- and low-temperature processes, we suppress recombination and enhance contact performance, achieving a fill factor of 87.55%—nearly 98% of the theoretical limit. A model links the ideality factor to carrier loss mechanisms, elucidating carrier recombination in both the bulk and the surface and clarifies key fill factor losses owing to recombination. These innovations provide both experimental and theoretical advances towards scalable, high-efficiency silicon photovoltaics.
This is a preview of subscription content, access via your institution
Access options
Access Nature and 54 other Nature Portfolio journals
Get Nature+, our best-value online-access subscription
$32.99 / 30 days
cancel any time
Subscribe to this journal
Receive 51 print issues and online access
$199.00 per year
only $3.90 per issue
Buy this article
- Purchase on SpringerLink
- Instant access to the full article PDF.
USD 39.95
Prices may be subject to local taxes which are calculated during checkout
Similar content being viewed by others
Data availability
All results are presented as figures, with key experimental and simulation parameters reported. Source data (numerical values behind figures) are available upon request; simulations used commercial third-party software.
References
Haegel, N. M. et al. Terawatt-scale photovoltaics: transform global energy. Science 364, 836–838 (2019).
Li, Z. Prospects of photovoltaic technology. Engineering 21, 28–31 (2023).
Allen, T. G. et al. Passivating contacts for crystalline silicon solar cells. Nat. Energy 4, 914–928 (2019).
Richter, A., Hermle, M. & Glunz, S. W. Reassessment of the limiting efficiency for crystalline silicon solar cells. IEEE J. Photovolt. 3, 1184–1191 (2013).
Green, M. A. et al. Solar cell efficiency tables (version 66). Prog. Photovolt. Res. Appl. 33, 795–810 (2025).
Blankenship, R. E. et al. Comparing photosynthetic and photovoltaic efficiencies and recognizing the potential for improvement. Science 332, 805–809 (2011).
Graus, W. H. J., Voogt, M. & Worrell, E. International comparison of energy efficiency of fossil power generation. Energy Policy 35, 3936–3951 (2007).
Green, M. A. Solar cell fill factors: general graph and empirical expressions. Solid State Electron. 24, 788–789 (1981).
Serenelli, L. et al. Selective contacts and fill factor limitations in heterojunction solar cells. Prog. Photovolt. Res. Appl. 29, 876–884 (2021).
Brendel, R. & Peibst, R. Contact selectivity and efficiency in crystalline silicon photovoltaics. IEEE J. Photovolt. 6, 1413–1420 (2016).
Shockley, W. The theory of p–n junctions in semiconductors and p–n junction transistors. Bell Syst. Tech. J. 28, 435–489 (1949).
Lin, H. et al. Silicon heterojunction solar cells with up to 26.81% efficiency achieved by electrically optimized nanocrystalline-silicon hole contact layers. Nat. Energy 8, 789–799 (2023).
McIntosh, K. Lumps, Humps and Bumps: Three Detrimental Effects in the Current–Voltage Curve of Silicon Solar Cells. PhD thesis, Univ. New South Wales, Sydney (2001).
Babbe, F., Choubrac, L. & Siebentritt, S. The optical diode ideality factor enables fast screening of semiconductors for solar cells. Sol. RRL 2, 1800248 (2018).
Wietler, T. F. et al. Pinhole density and contact resistivity of carrier selective junctions with polycrystalline silicon on oxide. Appl. Phys. Lett. 110, 253902 (2017).
Diggs, A. et al. Pinhole formation by nucleation-driven phase separation in TOPCon and POLO solar cells: structural dynamics and optimization. ACS Appl. Energy Mater. 7, 3414–3423 (2024).
Yoshikawa, K. et al. Silicon heterojunction solar cell with interdigitated back contacts for a photoconversion efficiency over 26%. Nat. Energy 2, 17032 (2017).
Tang, H. et al. Understanding localized current leakage in silicon-based heterojunction solar cells. Prog. Photovolt. Res. Appl. 33, 522–530 (2024).
Hamedani, Y. et al. in Chemical Vapor Deposition—Recent Advances and Applications in Optical, Solar Cells and Solid State Devices (ed. Sudheer N.) Ch. 10 (Intech Open Access, 2016).
Kanevce, A. & Metzger, W. K. The role of amorphous silicon and tunneling in heterojunction with intrinsic thin layer (HIT) solar cells. J. Appl. Phys. 105, 094507 (2009).
Wu, H. et al. Silicon heterojunction back-contact solar cells by laser patterning. Nature 635, 604–609 (2024).
Chichkov, B. N. et al. Femtosecond, picosecond and nanosecond laser ablation of solids. Appl. Phys. A 63, 109–115 (1996).
Procel, P. et al. The role of heterointerfaces and subgap energy states on transport mechanisms in silicon heterojunction solar cells. Prog. Photovolt. Res. Appl. 28, 935–945 (2020).
Qu, X. et al. Identification of embedded nanotwins at c-Si/a-Si:H interface limiting the performance of high-efficiency silicon heterojunction solar cells. Nat. Energy 6, 194–202 (2021).
Narayan, J., Young, R. T., Wood, R. F. & Christie, W. H. p–n junction formation in boron-deposited silicon by laser-induced diffusion. Appl. Phys. Lett. 33, 338–340 (1978).
Young, R. T., Narayan, J. & Wood, R. F. Electrical and structural characteristics of laser-induced epitaxial layers in silicon. Appl. Phys. Lett. 35, 447–449 (1979).
Köhler, M. et al. A silicon carbide-based highly transparent passivating contact for crystalline silicon solar cells approaching efficiencies of 24%. Nat. Energy 6, 529–537 (2021).
Ru, X. et al. Silicon heterojunction solar cells achieving 26.6% efficiency on commercial-size p-type silicon wafer. Joule 8, 1092–1104 (2024).
Green, M. A. The path to 25% silicon solar cell efficiency: History of silicon cell evolution. Prog. Photovolt. Res. Appl. 17, 183–189 (2009).
Feldmann, F. et al. Passivated rear contacts for high-efficiency n-type Si solar cells providing high interface passivation quality and excellent transport characteristics. Sol. Energy Mater. Sol. Cells 120, 270–274 (2014).
Su, Q. et al. Theoretical limiting-efficiency assessment on advanced crystalline silicon solar cells with Auger ideality factor and wafer thickness modifications. Prog. Photovolt. Res. Appl. 32, 587–598 (2024).
Cuevas, A. et al. Carrier population control and surface passivation in solar cells. Sol. Energy Mater. Sol. Cells 184, 38–47 (2018).
Aberle, A. G. Surface passivation of crystalline silicon solar cells: a review. Prog. Photovolt. Res. Appl. 8, 473–487 (2000).
Schmidt, J., Peibst, R. & Brendel, R. Surface passivation of crystalline silicon solar cells: present and future. Sol. Energy Mater. Sol. Cells 187, 39–54 (2018).
Hoex, B. et al. Ultralow surface recombination of c-Si substrates passivated by plasma-assisted atomic layer deposited Al2O3. Appl. Phys. Lett. 89, 042112 (2006).
Wang, G. et al. 27.09%-efficiency silicon heterojunction back contact solar cell and going beyond. Nat. Commun. 15, 8931 (2024).
Acknowledgements
This work was funded by the National Key R&D Program of China (2022YFB4200104, 2022YFB4200203), the National Natural Science Foundation of China (62034009), the Qinchuangyuan Project of Shaanxi Province (2025QCY-KXJ-189), and the Young Talent Fund of Association for Science and Technology in Shaanxi of China (20230525).
Author information
Authors and Affiliations
Contributions
X.X. and Z.L. conceived of the idea. G.W., M. Yu, H.W., Y. Li, L.X., J. Wei, Y.Y., M. Yang, C.S., L.W., J.C., X.R., F.Y. and M.Q. designed the experiments. M. Yu conceived of and led the development of the laser-induced crystallization technique. H.W., L.X. and G.W. fabricated the cell. X.D., S.Z., T.Y., F.L., Z.H., X.T., Q.T., S.Y., H.Q. and Y. Liu fabricated the devices and participated in data acquisition and result discussion. G.W., H.T. and H. Liu conducted the simulations. C.X. developed the mathematical expression for ideality factor. J. Wang, J.L., B.H., L.C. and L.F. administrated the project. H. Lin, Q.L., P.G. and D.H. provided expertise and supervised the study. G.W., M. Yu and C.X. composed the paper. C.X., P.G. and X.X. revised the paper.
Corresponding authors
Ethics declarations
Competing interests
G.W., M. Yu, H.W., Y. Li, L.X., J. Wei, X.D., S.Z., T.Y., F.L., Y.Y., Z.H., X.T., Q.T., S.Y., H.Q., Y. Liu, M. Yang, C.S., L.W., J.C., X.R., F.Y., M.Q., J. Wang, J.L., B.H., L.C., C.X., L.F., X.X. and Z.L. are employed at LONGi Green Energy Technology Co., Ltd, which holds all associated intellectual property. The other authors declare no competing interests.
Peer review
Peer review information
Nature thanks Kean Chern Fong, Kwanyong Seo and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended data figures and tables
Extended Data Fig. 1 The complete fabrication process flow of the HIBC solar cell.
The cell fabrication process comprises 14 major steps including Step 1. Wet chemical cleaning 1, Step 2. CVD deposition 1, Step 3. phosphorus diffusion, Step 4. CVD deposition 2, Step 5. laser patterning 1, Step 6. wet chemical cleaning 2, Step 7. CVD deposition 3, Step 8. wet chemical cleaning 3, Step 9. CVD deposition 4, Step 10. laser patterning 2, Step 11. laser patterning 3, Step 12. Physical vapour deposition, Step 13. isolation, and Step 14. Metallization.
Extended Data Fig. 2 Optical images of HIBC solar cells.
Top and bottom views of a, 27.81%- and b, 27.63%-efficiency solar cells.
Extended Data Fig. 3 The evaluation of optical parameters and electrical passivation for two designed front structures, including i-a-Si/SiNx stack and AlOx/SiNx stack.
a, Effective lifetime measured on samples symmetrically passivated by i-a-Si/SiNx and AlOx/SiNx stacks on both wafer sides, respectively. b, Recombination prefactor J0 derived from effective lifetime measurements. c, Reflectance curves showing the optical loss for the two designed front structures. d, Measurement of the optical constants (refractive index and extinction coefficient). In the box plot, the top lines, bottom lines, lines in the box and boxes represent maximum values, minimum values, median values and 25-75% distributions, respectively.
Extended Data Fig. 4 Effect of in-situ passivated edge technology (iPET) on HIBC’s photoelectrical performance.
a-c, solar cells’ FF, VOC, and JSC are shown for cells fabricated with and without iPET on wafers with low (1-1.5 Ω cm) and high (8-10 Ω cm) resistivity. In the box plot, the top lines, bottom lines, lines in the box and boxes represent maximum values, minimum values, median values and 25-75% distributions, respectively.
Extended Data Fig. 5 Laser treatment effect on HIBC’s p-type contact through technology computer-aided design simulation.
a, Simulated current flow in pristine and laser-treated pyramidal structures at full scale. b, Band alignment of the ITO/p-a-Si/i-a-Si/n-c-Si stack before and after laser-treated state.
Extended Data Fig. 6 Contact and passivation performance measurements for the n-type and p-type contacts.
a, Current-voltage curves from the transfer line method (TLM) of the n-type contact. b, Linear fitting to extract the contact resistivity of n-type contact. c, Current-voltage curves from TLM of the p-type contact. d, Linear fitting to extract the contact resistivity of p-type contact. e, Effective lifetime profiles with derived recombination parameters.
Extended Data Fig. 7 Scaning electron microscopy images of laser-treated pyramids obtained under different laser conditions.
a, 532 nm nanosecond-laser treated surface. b, 355 nm picosecond-laser treated surface.
Extended Data Fig. 8 Topography, current and surface potential mapping of a TCO/p-a-Si/p-c-Si/i-a-Si/p-a-Si stack.
a, Topography and b, current map measured by conductive atomic force microscopy. c, Topography and d, contact potential difference map measured by Kelvin probe force microscopy.
Supplementary information
Rights and permissions
Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.
About this article
Cite this article
Wang, G., Yu, M., Wu, H. et al. Silicon solar cells with hybrid back contacts. Nature 647, 369–374 (2025). https://doi.org/10.1038/s41586-025-09681-w
Received:
Accepted:
Published:
Version of record:
Issue date:
DOI: https://doi.org/10.1038/s41586-025-09681-w
