Relatively warm deep-water formation persisted in the Last Glacial Maximum

Wharton, Jack H.; Kozikowska, Emilia; Keigwin, Lloyd D.; Marchitto, Thomas M.; Maslin, Mark A.; Ziegler, Martin; Thornalley, David J. R.

doi:10.1038/s41586-025-10012-2

Download PDF

Article
Open access
Published: 21 January 2026

Relatively warm deep-water formation persisted in the Last Glacial Maximum

Nature volume 650, pages 116–122 (2026)Cite this article

15k Accesses
1 Citations
51 Altmetric
Metrics details

Subjects

An Author Correction to this article was published on 27 January 2026

This article has been updated

Abstract

The Last Glacial Maximum (19–23 thousand years ago) was characterized by low greenhouse gas concentrations and continental ice sheets that covered large parts of North America and Europe¹. Glacial climate was therefore very different, with colder global mean temperatures and an increased Equator-to-pole temperature gradient, probably resulting in stronger westerlies². However, the state of the deep North Atlantic Ocean under these glacial climate forcings remains uncertain^3,4,5,6, particularly owing to the rarity of deep-ocean temperature and salinity constraints. Here we show that the temperature of the glacial deep (>1.5 km) Northwest Atlantic was approximately 0–2 °C (only 1.8 ± 0.5 °C (2 s.e.) colder than today), and, after accounting for the whole-ocean change, seawater δ¹⁸O was 0.3 ± 0.1‰ (2 s.e.) higher and can be traced back to the surface subtropics via the subpolar Northeast Atlantic and Nordic Seas. Together, our hydrographic data reveal the thermal and isotopic structure of the deep Northwest Atlantic and suggest sustained production of relatively warm and probably salty North Atlantic Deep Water during the Last Glacial Maximum. Furthermore, our results provide updated constraints for benchmarking Earth system models used to project future climate change.

Prevalent North Atlantic Deep Water during the Last Glacial Maximum and Heinrich Stadial 1

Article Open access 06 May 2025

Active Nordic Seas deep-water formation during the last glacial maximum

Article 24 October 2022

Rapid subsurface warming in the subpolar North Atlantic from freshening

Article Open access 27 March 2026

Main

At present, the deep North Atlantic Ocean is predominantly thermally stratified, with relatively warm (2–4 °C) and salty (34.9 practical salinity units (PSU)) North Atlantic Deep Water (NADW) occupying depths between approximately 1 km and 4 km, and colder (0–1 °C) and fresher (34.7 PSU) Antarctic Bottom Water (AABW) below^7,8 (Fig. 1). The hydrographic properties (temperature and salinity) of both NADW and AABW are determined by the processes that govern their formation. NADW is formed from the cooling and densification of relatively warm and salty surface Atlantic waters sourced from the western subtropics and carried northeastwards via the North Atlantic Current (NAC). By contrast, AABW is formed from fresher waters on the continental shelves around Antarctica via intense cooling and brine rejection from sea-ice growth⁹.

**Fig. 1: Modern Atlantic temperature and salinity.**

It remains uncertain whether and how the hydrographic structure of the deep North Atlantic changed during the Last Glacial Maximum (LGM). Modelling results suggest that the glacial climate and ice sheets would have driven stronger wind-driven gyre circulation, resulting in increased northwards salt transport and oceanic heat loss over the subpolar gyre, both of which would have favoured enhanced NADW production^10,11. Conversely, increased glacial sea ice and calving glaciers would have reduced oceanic heat loss, potentially supressing deep-water formation¹². Traditionally, palaeoceanographic nutrient proxies have been used to infer a glacial shoaling of the boundary between glacial NADW and AABW to around 2 km (ref. ³). However, recent modelling studies using stable carbon and oxygen-isotope ratios (δ¹⁸O (¹⁸O/¹⁶O) and δ¹³C (¹³C/¹²C)), nutrient and carbonate-ion concentration proxies (that is, Cd/Ca and B/Ca), and water-mass indicators (εNd (¹⁴³Nd/¹⁴⁴Nd); albeit with uncertainties regarding non-conservative behaviour and end-member non-stationarity) suggest this may be an overestimate^4,5,13. Recent results have also revealed a deeper northern subtropical gyre and associated subtropical mode waters (STMWs)¹⁴, and an abyssal deep-water mass of northern origin below approximately 5 km (ref. ¹⁵).

The associated hydrographic properties of the deep North Atlantic during the LGM are also uncertain—at present, palaeoceanographic reconstructions of temperature and salinity are limited to a small number of discrete sites. Among these, the most frequently cited are derived from sedimentary pore waters, which suggest that the glacial equivalents of NADW and AABW were both near freezing (−1.1 °C and −1.9 °C, respectively), with variations in salinity—rather than temperature—driving glacial stratification⁶. However, further investigations using inverse modelling have queried the assumptions underpinning these data (for example, the use of the prior condition that temporal changes in regional deep-ocean salinity scale with global benthic foraminiferal δ¹⁸O and mean sea-level history), highlighting the need to attribute larger uncertainties to these pore-water-based temperature and salinity estimates^16,17. Therefore, new palaeoceanographic proxy reconstructions are necessary to better constrain the hydrographic properties of the deep North Atlantic during the LGM.

Here we present geochemical reconstructions of seawater temperature and δ¹⁸O (henceforth, δ¹⁸O_sw) from 13 marine sediment cores collected at Cape Hatteras, Blake Outer Ridge, Bermuda Rise and Corner Rise in the Northwest Atlantic. These cores form a depth transect spanning water depths between approximately 1.5 km and 5 km, and are complemented by 3 additional cores retrieved from south of Iceland in the Northeast Atlantic (Fig. 1, Extended Data Fig. 1 and Extended Data Table 1). Not only do these data provide insights into the hydrography of the deep North Atlantic during the LGM but also they offer a means to constrain its vertical structure, given that both temperature and δ¹⁸O_sw behave as conservative tracers.

At present, our Northwest Atlantic sites are predominantly bathed by NADW, which is composed of Labrador Sea Water (LSW)—formed in the Irminger, Iceland and Labrador seas—and the downstream products of Iceland–Scotland Overflow Water and Denmark Strait Overflow Water, both formed in the Nordic Seas¹⁸. Our Northwest Atlantic core sites thus encompass the main export pathway for deep waters formed across the subpolar North Atlantic. In addition, sites from <2.5 km at Blake Outer Ridge allow us to reconstruct the properties of the deep subtropical gyre and associated STMWs, which extended to depths of 2 km to 2.5 km during the LGM¹⁴. Our Northeast Atlantic cores are situated along the main flow path of Iceland–Scotland Overflow Water as it transits through the Iceland Basin before combining with LSW and Denmark Strait Overflow Water to form NADW.

We reconstructed deep-ocean temperatures from the North Atlantic during the mid-to-late Holocene (2–6 thousand years ago (ka) before present (BP)) and the LGM by measuring trace-metal ratios (Mg/Ca and Mg/Li) in multiple species of benthic foraminifera (Methods), both of which are positively correlated with seawater temperature during calcification. In particular, we focused on aragonitic species, and for calcitic taxa, we focused on infaunal species, whose magnesium (Mg) partitioning during calcification is thought to be less affected by a low carbonate-ion saturation state (ΔCO₃²⁻; Methods), as they calcify under the influence of surrounding pore waters, which can be buffered¹⁹. For the aragonitic species, Hoeglundina elegans, and the deep infaunal species, Globobulimina affinis, we converted Mg/Li and Mg/Ca to temperature using published calibrations^20,21, respectively (Fig. 2). For Melonis spp. and Cassidulina neoteretis, we developed a single core-top calibration using data from previous calibration studies (Extended Data Fig. 2), which show that numerous low-Mg, shallow infaunal benthic foraminifera show similar temperature sensitivities (approximately 0.1 mmol mol⁻¹ °C⁻¹; Fig. 2 and Methods). The resultant temperature estimates from these different species are consistent and directly comparable, indicating no significant inter-species bias. We therefore averaged these multi-species data to derive mid-to-late Holocene and LGM mean-temperature estimates for each core, reducing the overall uncertainty (Methods). As ΔCO₃²⁻ may not be completely buffered in sedimentary pore waters, we also generated additional independent temperature estimates by measuring benthic foraminiferal clumped isotopes (Δ₄₇; Methods and Extended Data Fig. 3). Both trace-metal- and Δ₄₇-based temperature estimates were then combined with paired stable oxygen-isotope measurements¹⁴ to derive independent trace-metal- and Δ₄₇-based estimates of δ¹⁸O_sw (Methods), which is correlated with salinity in the modern ocean.

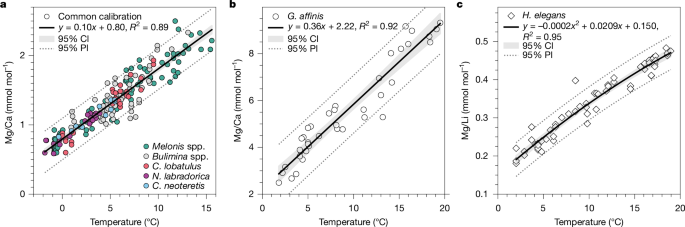

**Fig. 2: Benthic foraminiferal trace-metal temperature calibrations used in this study.**

Temperature and δ¹⁸O_sw reconstructions

Mid-to-late Holocene multi-proxy temperature and δ¹⁸O_sw estimates from similar depths between 1 km and 4.5 km show good agreement, generally showing temperatures and δ¹⁸O_sw ranging from 2 °C to 4 °C and from 0‰ to 0.25‰, respectively (Fig. 3a,b). These data also agree well with both modern observational data^7,8 and ostracod-based Mg/Ca temperature estimates^22,23,24 (Fig. 3a) from the mid-to-late Holocene. If we calculate density using temperature and a single δ¹⁸O_sw–salinity relationship, this incorrectly results in a density inversion with depth, with some sites offset from modern observations²⁵ (Fig. 3c and Methods). This is because different δ¹⁸O_sw–salinity relationships are applicable to the various subcomponents of NADW (for example, LSW versus overflow waters). To avoid this uncertain complexity, we do not make use of a density conversion to the mid-to-late Holocene data, nor is it possible to accurately do so for the glacial data either. Overall, these data imply that a modern-like circulation was prevalent during the mid-to-late Holocene, with relatively warm and salty NADW present down to at least 4 km in the Northwest Atlantic. Given that our multi-proxy data appear to be faithfully capturing in situ deep-ocean temperature and δ¹⁸O_sw, we now apply them to the LGM.

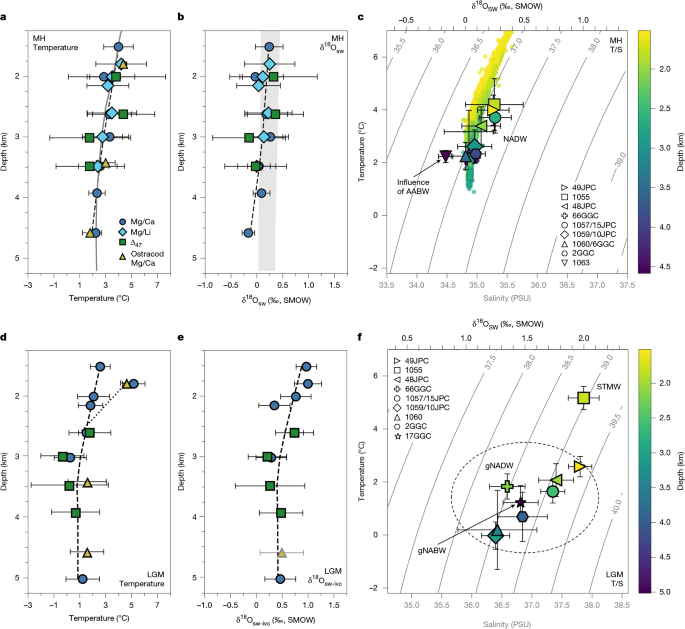

**Fig. 3: Hydrographic structure of the Northwest Atlantic during the mid-to-late Holocene and LGM.**

Apart from site ODP-172-1055 (approximately 1.8 km), which is substantially warmer (about 5 °C), glacial temperature and δ¹⁸O_sw reconstructions are relatively uniform, ranging from 0 °C to 2 °C and from 1.25‰ to 1.75‰, respectively (Fig. 3d,e). Similar to the mid-to-late Holocene, there is strong agreement—within the margin of error—between our Mg/Ca- and Δ₄₇-based temperature and δ¹⁸O_sw estimates, as well as with the few other independent data from the Northwest Atlantic^22,23,24. In particular, the relative warmth of site ODP-172-1055 (33° N) is consistent with the influence of a deeper subtropical gyre extending down to below approximately 2 km during the LGM¹⁴ (Fig. 3d,f). Our deeper data are also consistent with previous work that suggests that the glacial deep Northwest Atlantic was dominated by NADW^5,13, rather than being occupied by distinct northern- and southern-source waters. If we calculate glacial densities using the modern NADW δ¹⁸O_sw–salinity relationship, this again results in a density inversion (Fig. 3f), which implies that the glacial North Atlantic was filled with multiple modes of glacial NADW⁵, probably formed at different locations and characterized by different δ¹⁸O_sw–salinity relationships. For example, our data from sites at 3–4 km hint at being colder and having lower δ¹⁸O_sw, which may be consistent with a deep-water-formation region more affected by sea-ice formation and brine-rejection processes, such as proposed for the glacial Arctic Mediterranean⁵. Furthermore, our abyssal (>5 km) constraints indicate a temperature and δ¹⁸O_sw similar to our other deep North Atlantic data, which is consistent with the inference from previous carbon-isotope (δ¹³C and ¹⁴C) evidence of a northern-origin abyssal water mass in the Northwest Atlantic during the LGM¹⁵.

Warm and salty glacial North Atlantic

Notably, our reconstructed glacial temperatures from depths currently bathed by NADW (1.5–4 km, excluding ODP-172-1055) in the Northwest Atlantic, are on average less than 2 °C colder than modern temperatures at equivalent depths (ΔT_Mg/Ca = −1.63 ± 0.44 °C; ΔT_(Δ47) = −2.02 ± 0.95 °C; Fig. 4a). In addition, glacial temperature constraints from south of Iceland also suggest similarly modest cooling in the Northeast Atlantic (ΔT_Mg/Ca = −1.78 ± 0.56 °C; Fig. 4a). These data stand in contrast to glacial estimates derived from sedimentary pore waters⁶, which suggest near-freezing conditions at 2 sites (2.2 km and 4.6 km; Fig. 4a); thus, our results instead indicate that the deep North Atlantic remained relatively warm (approximately 0–2 °C) during the LGM.

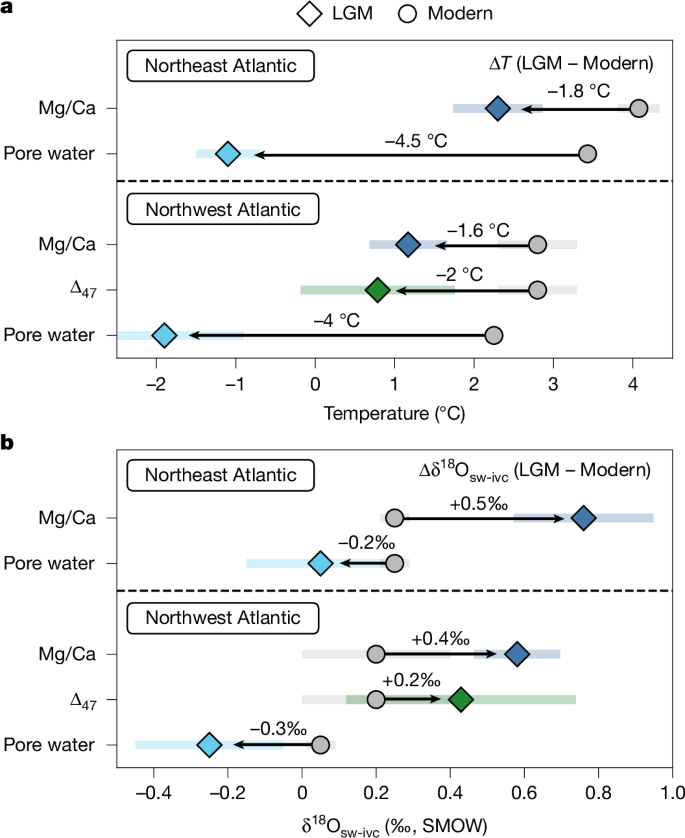

Fig. 4: Summary of deep-ocean temperature and δ18Osw changes in the North Atlantic between the LGM and the modern ocean. — **Fig. 4: Summary of deep-ocean temperature and δ¹⁸O_sw changes in the North Atlantic between the LGM and the modern ocean.**

In comparison, average-ice-volume-corrected glacial δ¹⁸O_sw, hereafter δ¹⁸O_sw-ivc (Methods), is higher than equivalent modern δ¹⁸O_sw in the Northwest Atlantic (Δδ¹⁸O_{sw-ivc (Mg/Ca)} = 0.38 ± 0.14‰; Δδ¹⁸O_sw-ivc(Δ47) = 0.23 ± 0.24‰; Fig. 4b) and Northeast Atlantic (Δδ¹⁸O_{sw-ivc(Mg/Ca)} = 0.51 ± 0.19‰). This suggests that previous glacial deep North Atlantic δ¹⁸O_sw estimates derived from sedimentary pore waters were too low, probably owing to the greater methodological uncertainties and assumptions now recognized with this method, when applied to the North Atlantic^16,17. Therefore, although deriving reliable palaeosalinity estimates for the North Atlantic during the LGM is challenging—owing to the spatial and temporal variability in the δ¹⁸O_sw–salinity relationship²⁶—higher glacial δ¹⁸O_sw-ivc is probably due to a combination of variable δ¹⁸O_sw–salinity relationships and saltier NADW relative to the Holocene.

We also compared our δ¹⁸O_sw-ivc reconstructions with the limited number of available isotope-enabled LGM simulations, which produce a relatively wide range of δ¹⁸O_sw-ivc values for NADW (approximately −0.2‰ to 0.5‰; Methods and references therein). Of these, the iPOP2 (Parallel Ocean Program version 2) simulation²⁷ shows the best agreement with our proxy data, simulating high near-surface δ¹⁸O_sw-ivc values in the western subtropical North Atlantic (1‰), which feed through into NADW at depth. However, neither STMW nor NADW extend as deep in the simulations compared with proxy reconstructions^5,14, probably owing to limitations in the ability of models to simulate deep-water-formation processes, in part linked to their spatial resolution²⁸.

Sustained glacial deep-water production

A comparison of our glacial deep-ocean δ¹⁸O_sw-ivc data with equivalent glacial data from sites along the modern pathway of NADW and its near-surface source waters reveals that the high δ¹⁸O_sw-ivc signature of glacial NADW can be traced along that same route. Figure 5 shows how high δ¹⁸O_sw-ivc—recorded consistently by multiple planktic foraminiferal species that occupy and reflect the properties of the subsurface upper ocean that is the source for NADW—is traceable from the western subtropical Atlantic, northeastwards along the path of the Gulf Stream and NAC into the likely deep-water-formation regions of the glacial subpolar North Atlantic and Nordic Seas, then back south at depth into the deep Northwest Atlantic. We therefore infer that there was sustained deep-water formation in the subpolar North Atlantic (and southern intermediate-depth Nordic Seas) during the LGM, which is consistent with most glacial climate model simulations (for example, ref. ¹⁰). Furthermore, given that glacial Antarctic Intermediate Water (Extended Data Fig. 5a) and equatorial Atlantic surface waters²⁹, both of which feed the subtropical North Atlantic, were characterized by lower δ¹⁸O_sw-ivc (−0.4‰ to 0.3‰ and 0.4‰ to 0.5‰, respectively), we infer that processes occurring in the subtropics contributed to the particularly high δ¹⁸O_sw-ivc signature along the Gulf Stream–NAC–NADW pathway.

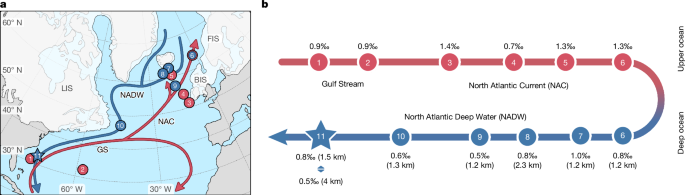

Fig. 5: High δ18Osw-ivc signature reconstructed at multiple sites in the North Atlantic reveals the upstream pathway of glacial Northwest Atlantic deep waters. — **Fig. 5: High δ¹⁸O_sw-ivc signature reconstructed at multiple sites in the North Atlantic reveals the upstream pathway of glacial Northwest Atlantic deep waters.**

Subtropical hydroclimate forcing

As our reconstructed glacial δ¹⁸O_sw-ivc from the Northwest Atlantic is approximately 0.5‰ higher than the Holocene, its source waters must have been subject to additional enrichment by hydrological fractionation processes such as negative precipitation minus evaporation (P − E). In the western subtropical Atlantic, the balance between precipitation and evaporation is probably the predominant control on δ¹⁸O_sw (ref. ³⁰), with negative P − E causing higher δ¹⁸O_sw. Therefore, we infer that the high glacial δ¹⁸O_sw-ivc reconstructed from the Gulf Stream region of the western subtropical gyre (Fig. 5) indicates that the regional P − E during the LGM was negative relative to the Holocene, owing to decreased precipitation and/or increased evapotranspiration. Such a glacial hydroclimatic regime is supported by terrestrial proxy data, indicating reduced precipitation over North America and the Caribbean^31,32, and climate models also consistently simulate negative P − E over the North Atlantic Subtropical Gyre during the LGM, primarily owing to increased evaporation driven by stronger, cold and dry glacial winds^2,14. Although there are complexities in relating δ¹⁸O_sw to salinity²⁶, these model results suggesting lower P − E over the subtropical gyre provide support for our inference that the high δ¹⁸O_sw surface- and deep-water values are recording the higher glacial salinity of the NAC and NADW, and that glacial deep-water production was sustained by the continued supply of salty (and warm) upper-ocean waters to the subpolar North Atlantic^10,11.

Surface–deep-ocean decoupling

In light of these relatively warm temperature constraints, a logical question that arises is why the deep North Atlantic did not cool further, given that much of the surface subpolar region was close to freezing during winter²⁹. Today, the deep Nordic Seas are near the freezing point (−1 °C to −1.5 °C) owing to deep open-ocean convection, and thus have little potential for further cooling. Actually, reconstructed glacial bottom-water temperatures from the intermediate and deep Nordic and Arctic seas instead suggest temperatures of 0–2 °C (up to 3 °C warmer than today³³; Extended Data Fig. 5c and references therein)—a consequence of expanded glacial sea ice limiting heat loss to the atmosphere and thereby reducing open-ocean convection. Previous work has shown that, despite the inferred reduction in Nordic Seas convection, the overflow of dense waters from the Nordic Seas into the subpolar North Atlantic persisted during the LGM⁵, probably driven by processes such as brine rejection or supercooling under glacial ice shelves³⁴. Although the overflow waters themselves were not colder than today, the slightly lower temperatures of their downstream products—as reconstructed in this study—probably reflect the entrainment of colder upper and intermediate waters within the glacial subpolar North Atlantic³⁵.

At present, most deep-water formation occurs south of the Greenland–Scotland Ridge, in the subpolar North Atlantic, through convection processes and entrainment¹⁸, and palaeoceanographic evidence indicates that this subpolar overturning was sustained and/or strengthened during the LGM, with an overall southwards shift in the locus of deep-water formation³⁶. This overturning would have been facilitated, in part, by the relatively high inferred salinity of the glacial NAC, which would have promoted deep convection before surface waters cooled to freezing point. In addition, simplified conceptual models have shown that as climate cools, it becomes increasingly difficult to form very cold NADW³⁷. This is because the buoyancy flux associated with surface cooling is reduced at lower temperatures, and the upper water column becomes more haline stratified, which inhibits deep convection. Consequently, deep-water formation shifts farther south to relatively warmer regions, producing deep waters with temperatures around 2–3 °C—broadly consistent with our glacial deep-ocean temperature reconstructions. A more extreme version of this process is the cooling of water at the northern edge of the subtropical gyre, forming deeper STMW³⁸. As STMW forms from warm subtropical waters, our data showing STMW temperatures of approximately 5 °C imply substantial heat loss—highlighting the importance of this low-latitude deep-water formation in glacial meridional heat transport.

This concept of continued glacial NADW formation aligns with a recent multi-proxy synthesis that concludes that glacial NADW was composed of multiple deep-water masses sourced from different regions throughout the North Atlantic and Arctic oceans and formed by a variety of mechanisms⁵. Here we show that the integrated downstream product of these different formation modes is hydrographically homogeneous, characterized by temperatures of 0–2 °C and a δ¹⁸O_sw-ivc of 0.25–0.75‰, the latter of which suggests that glacial NADW was probably also relatively salty compared with the modern.

LGM and future ocean implications

Our temperature and δ¹⁸O_sw transects reveal sustained production of relatively warm and probably salty NADW during the LGM. However, as δ¹⁸O_sw serves only as an approximate indicator of salinity, it remains unclear whether the glacial ocean was thermally—as it is today—or haline stratified, as inferred from pore-water measurements⁶. In light of recent estimates that the mean ocean temperature (MOT) during the LGM was approximately 2.3 ± 0.5 °C (1σ) colder than today³⁹, our data—showing that NADW was only 1.8 ± 0.5 °C colder—imply that other deep-water masses such as AABW or Pacific Deep Water must have cooled by more than NADW to account for the overall MOT decrease. Furthermore, given that the densest class of modern AABW found close to Antarctica (T_AABW-ANT = −0.5 °C (ref. ⁷)) is already near the freezing point of seawater (approximately −2 °C), its capacity for further cooling is limited; therefore, Pacific Deep Water (T_PDW = 1–1.5 °C) seems a more likely candidate for greater cooling. However, not all AABW, such as that found in the South Atlantic, is as cold (T_AABW-SATL = 0–1 °C), and thus some portions probably had greater cooling potential. Alternatively, and/or in addition, an increased relative volume of AABW globally, such as in the deep Pacific, could explain the glacial reduction in MOT⁴⁰, despite the relatively modest cooling of NADW. Moreover, it has been suggested that NADW supercooling was a trigger for glacial inception (for example, ref. ⁴¹); however, the presence of relatively warm NADW in the glacial North Atlantic implies that other processes in the Southern Ocean may have had a more important role in thermally isolating Antarctica.

This study demonstrates that, despite the colder climate state of the LGM, there was sustained production of NADW that was only 1.8 ± 0.5 °C colder than today. This persistence was probably driven by continued buoyancy loss, enabled by sufficient cooling of a steady supply of warm, salty water transported to mid-to-high latitudes via the NAC, in part maintained by the wind-driven gyre circulation¹⁰. Oceanographic observations of the twenty-first century⁴², and modelling studies of future climate scenarios⁴³, suggest that NADW production can occur at different locations than those that were typical during the twentieth century. The ability to accurately predict the future of NADW thus depends on climate models correctly simulating deep-water formation processes across a range of climatic and geographic settings—an area where our data can provide valuable test-bed constraints.

Methods

Age models and core sampling

The Northwest Atlantic Ocean samples are the same as those used by ref. ¹⁴; therefore, we adopt the same age models and same sampling strategies (Extended Data Table 1). For our Northeast Atlantic cores, we also use previously published age models^51,52. Stratigraphic information for each core, including multi-species benthic and planktic foraminiferal δ¹⁸O and age constraints, is also shown alongside our multi-proxy temperature estimates in Extended Data Fig. 6.

Multi-species and multi-proxy approach

As no single species of benthic foraminifera is present across all depths between 1.5 km and 5 km, we used a multi-species approach, measuring trace-metal ratios in multiple different taxa. We also took a multi-proxy approach, reconstructing deep-ocean temperatures using independent techniques: Δ₄₇ and trace-metal ratios, thus providing additional support for the individual proxy reconstructions.

Trace-metal analyses

Monospecific benthic foraminiferal samples consisting of between 5 and 15 individuals (where possible) were picked from the >250-μm sediment size fraction (where foraminiferal abundances were low, we also picked from the >212-μm fraction). Foraminifera were then gently crushed between glass slides, after which approximately one-third of the material was removed for isotopic analyses (these data were previously reported¹⁴). The remaining material was then loaded into 500-μl Bio-Rad polypropylene microcentrifuge tubes that had been pre-leached in hot 10% hydrochloric acid and used for trace-metal analysis.

All samples underwent oxidative and reductive cleaning following established methods⁵³, before each individual sample was analysed for a suite of trace and minor elemental ratios on a Thermo Finnigan Element2 magnetic sector inductively coupled plasma mass spectrometer at the University of Colorado, Boulder, as described in ref. ⁵⁴. Long-term ±1σ precision is 0.5% for Mg/Ca, 0.9% for Li/Ca and 4.2% for B/Ca. Mn/Ca, Al/Ca and Fe/Ca ratios were also measured to screen for potential contamination from detrital material and/or secondary phases. For low-Mg species (for example, Melonis pompilioides), samples with contaminant ratios >0.1 mmol mol⁻¹ were rejected. For high-Mg species, for example, G. affinis, this threshold was scaled accordingly⁵⁵. However, in cases where contamination indicators were only marginally above threshold and/or Mn/Ca values were elevated, but Mg/Ca was in good agreement with multiple coeval samples with low contaminant ratios, these data were retained (individual measurements are provided in the Source Data).

We also omitted all trace-metal data from the shallow infaunal benthic foraminifera Uvigerina peregrina, despite suggestions that it is less affected by ΔCO₃²⁻ (ref. ⁵⁶). This is because the global calibration poorly constrains the relationship between Mg/Ca and temperature (R² = 0.68)⁵⁷, particularly at the cold end of the calibration (<5 °C), which is most relevant to the deep ocean. The temperature sensitivity (approximately 0.07 mmol mol⁻¹ °C⁻¹) is also substantially lower than that of other shallow, low-Mg infaunal species and does not align well with our common calibration dataset (Extended Data Fig. 2f). As a result, U. peregrina Mg/Ca yielded implausibly warm glacial temperature estimates (>5 °C) at our core sites, which are not compatible with our clumped isotope temperature estimates from this species.

Trace-metal temperature calibrations

Deep-ocean temperatures were reconstructed using benthic foraminiferal Mg/Ca and species-specific calibrations taking the form: Mg/Ca = s × T + c, where T is the calcification temperature in °C, and s and c are the calibration slope (temperature sensitivity) and intercept, respectively (Fig. 2a,b). One-sigma uncertainties on individual monospecific temperature estimates were propagated, incorporating analytical error (assumed as a relative percentage error on Mg/Ca (see ‘Trace-metal analyses’)) and uncertainties in both the slope and intercept (Extended Data Fig. 4a,c,d).

Mid-to-late Holocene deep-ocean temperatures were also reconstructed using benthic foraminiferal Mg/Li, which has been shown to be less sensitive to carbonate-ion effects, especially in the aragonitic foraminifera, H. elegans⁵⁸. Mg/Li-based temperature estimates were derived first by dividing Mg/Ca by Li/Ca and using the H. elegans temperature–Mg/Li calibration²¹, which takes the form: Mg/Li = aT² + bT + c, where T is the calcification temperature in °C and a, b and c are the quadratic, linear and intercept coefficients, respectively (Fig. 2c). One-sigma uncertainties on individual H. elegans temperature estimates were propagated using Monte Carlo analysis (10,000 iterations), in which each Mg/Li value was perturbed according to analytical uncertainty, and each of the 3 calibration coefficients was randomly sampled from a normal distribution defined by its respective 1σ uncertainty. The quadratic equation was solved for each perturbed Mg/Li value and coefficient set, yielding 10,000 plausible temperature estimates per sample. The 1σ standard deviation of these simulated temperatures was taken as the uncertainty for that sample (Extended Data Fig. 4b).

Mean mid-to-late Holocene and LGM trace-metal-based temperature estimates for each core were derived by first averaging data from the same species within each core. The uncertainty on this mean was expressed as a total ±2 standard error (2 s.e.), combining the ±1 standard error of the mean (s.e.m.), calculated as the variability among replicate samples (n > 1), with the average 1σ propagated temperature measurement uncertainty (Extended Data Fig. 4e–g). Where n = 1, the 2 s.e. approximates to the 2σ propagated temperature measurement uncertainty (we note that this n = 1 uncertainty estimate does not account for variability among replicate measurements and thus probably underestimates the true uncertainty). When multiple different species were present in a core, we calculated a multi-species mean by averaging the species-specific means. The associated uncertainty was determined by propagating the individual species-specific uncertainties to the multi-species mean, treating temperature estimates derived from different foraminiferal species as independent estimates. We also combined data from cores at similar water depths (for example, 1057 and 15JPC; 1059 and 10JPC; 1060 and 6GGC) by averaging their mean values and propagating uncertainties using the same approach (Fig. 3a,d).

Common Mg/Ca temperature calibration

Previous calibration studies have shown that Melonis spp.⁵⁹, Bulimina spp.⁶⁰, Cibicides lobatulus⁶¹, Nonionella labradorica⁶² and C. neoteretis⁶³ show similar Mg/Ca temperature sensitivities (approximately 0.1 mmol mol⁻¹ °C⁻¹; Extended Data Fig. 2), suggesting a shared underlying mechanism governing Mg incorporation during calcification. Therefore, rather than selecting species-specific calibrations for different low-Mg, shallow infaunal species, we developed a common calibration for these five species using published core-top calibration data (Fig. 2a). To do this, we first corrected any non-reductively cleaned data⁶⁴, then converted each dataset to Mg/Ca and temperature anomalies (ΔMg/Ca and ΔT) to place them on a common scale. We then performed simple linear regression on the combined dataset, revealing a temperature sensitivity of 0.1 mmol mol⁻¹ °C⁻¹ (R² = 0.88). Finally, we calculated the average intercept for each species, assuming a common temperature sensitivity of 0.1 mmol mol⁻¹ °C⁻¹. Species-specific intercepts are shown in Extended Data Table 2.

Clumped isotope analyses (Δ₄₇)

To provide independent support for our trace-metal-based temperature reconstructions, we generated additional temperature estimates by measuring benthic foraminiferal clumped isotopes (Δ₄₇). These analyses were possible because of the high abundances of G. affinis, U. peregrina, C. neoteretis, Cibicidoides pachyderma and H. elegans in several of our cores. As this technique also yields foraminiferal δ¹⁸O (δ¹⁸O_c) data, we were also able to independently estimate paired δ¹⁸O_sw with these same samples. The benthic foraminifera were clean and showed no sign of post-depositional alteration from authigenic carbonate precipitation and/or diagenetic overgrowths or contamination from nannofossils and organic material (scanning electron microscope images of representative benthic foraminifera are provided as Supplementary Information); therefore, they were not cleaned or crushed before analysis.

A total of 575 stable and clumped isotope analyses were performed across 30 runs at Utrecht University. Samples weighing approximately 95 µg and 135 µg were prepared for analysis using a Thermo Scientific Kiel IV carbonate preparation device coupled to a Thermo Scientific MAT 253 mass spectrometer (conventional dual inlet method), and a Thermo Scientific 253 Plus mass spectrometer using the long-integration dual-inlet method, respectively. Each of the 30 analytical runs consisted of 46 samples, including 24 carbonate standards—ETH-1, ETH-2 and ETH-3—in a 1:1:5 ratio. These ETH standards differ in their δ¹³C, δ¹⁸O and Δ₄₇ composition and were used to calibrate the sample measurements, correct for δ¹³C and δ¹⁸O drift, and calculate empirical transfer functions. Δ₄₇ values were reported on the Inter-Carbon Dioxide Equilibrium Scale (I-CDES90)⁶⁵. Additional carbonate standards, MERCK and IAEA-C2, were measured alongside the samples to monitor the long-term reproducibility of the Kiel–253 Plus system, which showed a post-correction reproducibility of 0.033‰. To account for potential temporal drift, each run included both mid-to-late Holocene and LGM samples, alternating between the two where possible. This approach minimized drift-related bias and focused on reconstructing ΔT between the two time periods, thereby reducing reliance on the accuracy of any single Δ₄₇–temperature calibration.

In the Kiel IV, each sample was dissolved in phosphoric acid (104% H₃PO₄) at 70 °C, converting carbonate to carbon dioxide (CO₂). The evolved gas was cooled to −196 °C using two liquid-nitrogen traps to concentrate the CO₂ and remove excess water. It was then further purified at −40 °C using a PoraPakQ trap to eliminate possible organic contaminants. Negative pressure base lines were corrected for as described in refs. ^66,67. Pressure base lines were recorded at various m/z 44 intensities (0 V, 5 V, 10 V, 15 V, 20 V, 25 V) before each analytical run. The relationship between background signal and intensity was used to correct for nonlinearities in isotopologues measurements. Samples with extreme initial intensities (<11,000 V or >20,000 V) or high Δ₄₇ standard deviations were excluded. Standardized Δ₄₇ values were calculated using an empirical transfer function based on the offset between measured and accepted ETH values. To correct for subtle nonlinearity, an initial offset correction was applied using ETH-3 standards within a ±1,000 V range. For the MAT 253 Plus, most runs used ETH-3 data from two preceding and following runs to ensure at least ten standards in the target range.

δ¹⁸O_c values were normalized to Vienna PeeDee Belemnite using 15 ETH-3 standards preceding and following each sample. Species-specific offsets from isotopic equilibrium, were corrected for using published species-specific offsets¹⁴, and we also excluded any outliers based on corrected δ¹⁸O_c. We omitted data from samples with δ¹⁸O_c < 4.00‰ and δ¹⁸O_c > 5.00‰ and δ¹⁸O_c < 2.15‰ and δ¹⁸O_c > 3.15‰ for the LGM and mid-to-late Holocene, respectively. Raw Δ₄₇ values for each core and time period were averaged and converted to temperature using the calibration equation of ref. ⁶⁸: Δ₄₇ = (0.0397 ± 0.0011) × 10⁶/T² + 0.1518 ± 0.0128, where T is temperature in °C. Associated errors are reported as ±2 s.e., with standard error calculated as σ/√n, where σ is the standard deviation of Δ₄₇ values and n is the number of measurements for each core for each time period. For sites represented by two cores from similar water depths (for example, 1057/15JPC and 1059/10JPC), Δ₄₇ values from both cores were averaged before temperature conversion. This calibration of ref. ⁶⁸ was selected because (1) it yields mid-to-late Holocene temperature estimates that provide the best statistical match with modern in situ deep-ocean observations, whereas alternative calibrations yield poorer statistical agreement and/or implausible temperature estimates (Extended Data Fig. 3b,c), and (2) it is based exclusively on foraminifera and was produced in clumped isotope laboratories that use analytical procedures identical to those applied in this study

δ¹⁸O_sw

Mid-to-late Holocene and glacial δ¹⁸O_sw were calculated for each core using multi-proxy mean-temperature data (Fig. 2a,d), paired with benthic foraminiferal δ¹⁸O_c and the following linear equation: (δ_c – δ_sw + 0.27) = −0.224 ± 0.002 × T + 3.53 ± 0.02, where T is the calcification temperature in °C, δ_sw is δ¹⁸O_sw on the Standard Mean Ocean Water scale, and δ_c is δ¹⁸O_c on the PeeDee Belemnite scale⁴⁵. Multi-species mean Mg/Ca- and Mg/Li-derived temperatures were combined with previously published paired δ¹⁸O_c data¹⁴, whereas δ¹⁸O_sw derived from Δ₄₇ temperatures used δ¹⁸O_c measurements from clumped isotope analyses. δ¹⁸O_c from benthic foraminiferal species known to calcify in disequilibrium with seawater (for example, G. affinis) was corrected using empirically derived, species-specific offsets¹⁴. For each core, the ±2 s.e. uncertainty on each δ¹⁸O_sw estimate was calculated by propagating and combining uncertainties in quadrature, which included contributions from the ±2 s.e. uncertainty on the mean δ¹⁸O_c, the mean multi-proxy temperature estimate, and the slope and intercept of the δ¹⁸O_sw–temperature equation. When combining data from cores at similar water depths (for example, 1057 and 15JPC), we first averaged the species-specific δ¹⁸O_c estimates and then calculated the ±2 s.e. using the same error propagation approach as used for our temperature estimates.

δ¹⁸O_sw-ivc

To facilitate comparison with modern and mid-to-late Holocene δ¹⁸O_sw, we calculated ice-volume-corrected δ¹⁸O_sw (δ¹⁸O_sw-ivc) for the LGM by subtracting 1.0‰ to account for the global-ice-volume effect. This correction is based on a global mean change in δ¹⁸O_sw of 1.0 ± 0.1‰ (ref. ⁶⁹), derived from sedimentary pore-water measurements, including non-Atlantic sites, which are considered more appropriate for estimating global mean glacial δ¹⁸O_sw (ref. ¹⁶). Notably, this value also agrees well with other independent estimates (0.94 ± 0.18‰ (ref. ⁷⁰) and 1.05 ± 0.2‰ (ref. ⁷¹), based on simple numerical models of ice-sheet growth and benthic δ¹⁸O change at polar sites, respectively). To further evaluate this correction, we also estimated the global mean δ¹⁸O_sw change using the LR04 benthic foraminiferal stack⁷² and the most recent estimate of glacial MOT³⁹. Assuming a MOT change of 2.3 ± 0.5 °C and temperature sensitivity of 0.224‰ °C⁻¹ (ref. ⁴⁵), a glacial-to-modern benthic foraminiferal δ¹⁸O shift of 1.65‰, yields a global mean δ¹⁸O_sw shift of 1.13 ± 0.11‰ (1σ). This estimate is consistent, within uncertainty, with published values, supporting our use of the canonical 1.0‰ correction to derive δ¹⁸O_sw-ivc for the LGM.

Temperature–salinity plots

Multi-proxy temperature and δ¹⁸O_sw data were averaged to produce individual estimates for each core during the mid-to-late Holocene and LGM, with associated uncertainties expressed as ±1 s.e. after combining the error associated with each proxy (for example, Mg/Ca, Mg/Li, Δ₄₇). For the mid-to-late Holocene, where Δ₄₇ estimates were not available for all combined core pairs (for example, 1057/15JPC), multi-proxy data for both cores were averaged, and where multiple estimates from the same proxy were present (for example, Mg/Ca), their uncertainties were combined as described previously.

For the mid-to-late Holocene, δ¹⁸O_sw and its associated uncertainty were then converted to salinity using a single empirically derived δ¹⁸O_sw–salinity relationship²⁵, taking the form S = (δ¹⁸O_sw + c)/s, where S is salinity in PSU, and s and c are the calibration slope and intercept, respectively. For the LGM, δ¹⁸O_sw was first corrected for the global-ice-volume effect, then converted to salinity using the same δ¹⁸O_sw–salinity relationship, before a global +1.1 PSU offset was applied to account for the higher mean salinity of the glacial ocean, enabling direct comparison with modern salinity data. Whereas previous work has shown that different δ¹⁸O_sw–salinity relationships apply at different depths in the Northwest Atlantic¹⁴, probably reflecting distinct deep-water masses sourced from different regions across the subpolar North Atlantic, for simplicity, we apply the NADW-specific relationship (s = 0.51, c = 17.75), as it is the most appropriate for the majority of our core sites, that is, using this relationship yields the best agreement between our reconstructions and modern observations (Fig. 3c). Therefore, we are cautious not to over-interpret the derived salinity and density values, and instead focus primarily on the underlying δ¹⁸O_sw signal. Furthermore, owing to the large and regionally variable uncertainties in converting δ¹⁸O_sw to salinity⁷³, we do not propagate uncertainty using the errors associated with the slope and intercept of the δ¹⁸O_sw–salinity relationship; instead, we convert δ¹⁸O_sw uncertainties directly into salinity using a fixed slope and intercept.

Extended Data Figure 5 also includes published Atlantic glacial temperature and δ¹⁸O_sw estimates^{20,74,75,76,77,78,79,80}. However, given the uncertainty surrounding the glacial δ¹⁸O_sw–salinity relationships associated with the water masses bathing these sites, we do not convert these δ¹⁸O_sw data to salinity. The salinity axis and isopycnals are shown to enable visualization for the Northwest Atlantic transect data originally shown in Fig. 2c,f.

ΔT and Δδ¹⁸O_sw

Because we do not have a complete set of both mid-to-late Holocene and glacial temperature estimates for all our cores—in general, there are more mid-to-late Holocene data from shallower sites and glacial data from deeper sites—simply averaging all data from each time period would introduce an artificial cold bias. To avoid this, we calculated the mean LGM–modern deep-ocean temperature difference (ΔT) based on the individual ΔT values for each core site. This was done by first determining the ΔT for each core from between 1.5 km and 4 km depth (excluding subtropically influenced site ODP-172-1055), using the closest World Ocean Atlas 2023 (WOA23) data point to each site (it is noted that each WOA23 data point represents the annual average based on all valid data from 1955 to 2022)⁷. These per-core ΔT values were then averaged to derive regional ΔT estimates from Mg/Ca-derived temperature data for the Northwest Atlantic and Northeast Atlantic. The associated uncertainty (±2 s.e.) was determined by combining the uncertainty associated with each core’s ΔT in quadrature. For Δ₄₇, ΔT was calculated as a weighted average, with the number of individual measurements per core used as weights. We note that the mean ΔT ± 2 s.e. (0.94 °C) is almost identical to the mean ±2 s.e. associated with the mean of all Δ₄₇ glacial temperature estimates (0.96 °C, n = 284). We followed the same procedures to derive LGM–modern Δδ¹⁸O_sw; however, in the absence of modern in situ δ¹⁸O_sw measurements, δ¹⁸O_sw for each core was estimated using salinity data from WOA23 (ref. ⁸) and modern salinity–δ¹⁸O_sw relationships for NADW, North Atlantic (NATL) and LSW²⁵. These three estimates were then averaged to produce a modern δ¹⁸O_sw value for each core. To check for a potential proxy–climatology bias, we also calculated ΔT and Δδ¹⁸O_sw using paired LGM and mid-to-late Holocene data where available for both trace-metal-derived (n = 5) and Δ₄₇-derived (n = 3) reconstructions. To do this, we followed the same procedure outlined above; however, for mid-to-late Holocene sites with both Mg/Ca- and Mg/Li-based temperatures, we used their combined mean values. For 6GGC, where only Holocene data are available, we compared these with LGM estimates from the nearby site 1060, which is also located at approximately 3.5 km water depth.

Carbonate-ion effects

Previous work suggests that tthe bottom-water carbonate-ion (ΔCO₃²⁻) concentration affects the partitioning of Mg during calcification in epifaunal benthic foraminifera, with lower Mg/Ca where the carbonate-ion saturation state (ΔCO₃²⁻, defined as ΔCO₃²⁻ = CO₃²⁻_in-situ − CO₃²⁻_saturation) is low or undersaturated (<0 μmol kg⁻¹)^56,81. Although infaunal benthic foraminiferal Mg/Ca are generally considered to be less susceptible to undersaturation, pore-water ΔCO₃²⁻ is spatially and temporally variable, such that infaunal species may also be affected by ΔCO₃²⁻ (refs. ^20,82). To assess the potential impact of low ΔCO₃²⁻ on our infaunal benthic foraminiferal Mg/Ca ratios, we also reconstructed bottom-water ΔCO₃²⁻ using B/Ca ratios measured on Cibicidoides wuellerstorfi (where present) applying the calibration⁸¹: B/Ca = 1.14 ± 0.048 × ΔCO₃²⁻ + 177.1 ± 1.41, where ΔCO₃²⁻ is the carbonate-ion saturation state of seawater in μmol kg⁻¹. One-sigma uncertainties were propagated, incorporating analytical error (see ‘Trace-metal analyses’) and uncertainties in both the slope and intercept (Extended Data Fig. 7). Modern Northwest Atlantic ΔCO₃²⁻ was calculated using temperature, salinity, total alkalinity and total dissolved inorganic carbon data from nearby Global Ocean Data Analysis Project (GLODAP, v2022) stations⁴⁷ with PyCO2sys⁸³.

Overall, reconstructed ΔCO₃²⁻ is generally >0 μmol kg⁻¹, suggesting that the glacial deep Northwest Atlantic was oversaturated with respect to ΔCO₃² (Extended Data Fig. 7b). Although this implies that any ΔCO₃²⁻-effect-related suppression of Mg incorporation in our infaunal benthic foraminifera was probably minimal, ΔCO₃²⁻ at abyssal site KNR-197-10-17GGC is much lower (−37 ± 4 μmol kg⁻¹, n = 2), and it is also possible that pore waters may be more undersaturated than the overlying bottom waters²⁰. However, given that undersaturated conditions supress the Mg incorporation during calcification, any ΔCO₃²⁻ effect would bias Mg/Ca-derived temperatures towards colder values. Therefore, our reconstructed glacial deep-ocean temperatures may represent a conservative (cold) estimate and attempting to correct for any ΔCO₃²⁻ effect at this abyssal site would produce slightly warmer glacial temperatures.

Isotope-enabled models

To provide additional context for our proxy reconstructions, we compared our δ¹⁸O_sw-ivc estimates with available isotope-enabled simulations of the glacial Atlantic^{27,84,85,86,87,88}. These models generally simulate a slightly shallower glacial Atlantic Meridional Overturning Circulation, with NADW temperatures ranging from approximately 1 °C to −2 °C (refs. ^27,88) and δ¹⁸O_sw-ivc between −0.2‰ and 0.5‰ (refs. ^{27,84,85,86,87,88}). Although this is broadly consistent with the traditional view—based on palaeoceanographic nutrient proxies³—that the Atlantic Meridional Overturning Circulation shoaled during the LGM, and with pore-water-based estimates suggesting that glacial NADW was much colder⁶, these simulations are not consistent with more recent work⁵ and our temperature and δ¹⁸O_sw constraints from the North Atlantic. However, the iPOP2 model does reproduce comparably high δ¹⁸O_sw values, although these are restricted to the upper approximately 2 km of the North Atlantic²⁷.

Published data

Glacial deep-ocean temperature and δ¹⁸O_sw data and associated uncertainties were calculated following the same procedures used for our Northwest Atlantic data (Extended Data Table 3 and Source Data). Where appropriate, we used our common calibration to derive temperature, applying a 10% correction to any non-reductively cleaned trace-metal data (for example, Mg/Ca_reduc. = (Mg/Ca)/1.1) and appropriate δ¹⁸O_c offsets to benthic foraminiferal δ¹⁸O_c from species that calcify in disequilibrium with the surrounding seawater¹⁴. Consistent with our previous approach, U. peregrina-based temperature and δ¹⁸O_sw estimates were omitted from this compilation owing to concerns with the Mg/Ca temperature calibration of U. peregrina.

Glacial surface-ocean temperature and δ¹⁸O_sw estimates and associated uncertainties were also calculated from published Mg/Ca and δ¹⁸O_c data using species-specific Mg/Ca temperature calibrations (Extended Data Table 3), appropriate vital-effect corrections^89,90,91, and the updated δ¹⁸O–temperature relationship based on inorganic calcite precipitation experiments⁹¹ (Source Data). Although recent Mg/Ca temperature calibrations for planktic foraminifera include non-thermal influences such as whole-ocean salinity and pH, they do not account for spatial variations in local salinity⁹². For species with a known salinity effect on Mg/Ca (that is, Globigerinoides ruber and Globigerina bulloides), we iteratively solved for a salinity value that is self-consistent with the North Atlantic δ¹⁸O_sw–salinity relationship (s = 0.55, c = 18.98)²⁵. For both G. ruber and G. bulloides, we assume a glacial pH of 8.2 ± 0.2 (refs. ^92,93), recognizing that this conservative uncertainty is the primary contributor to the relativley large errors on the final temperature and δ¹⁸O_sw estimates (Source Data).

Data availability

The proxy data that support these findings are publicly available through the data repository Pangaea at https://doi.org/10.1594/PANGAEA.988210^94,95. GLODAP Bottle Data (version2.2022)⁴⁷ and World Ocean Atlas data^7,8 were downloaded from https://glodap.info/index.php/merged-and-adjusted-data-product-v2-2022/ and https://www.ncei.noaa.gov/products/world-ocean-atlas, respectively. Figure 1 was generated using Ocean Data View software⁴⁴. Source data are provided with this paper.

Code availability

Python code used to perform statistical analyses as part of this study are freely available on Zenodo at https://doi.org/10.5281/zenodo.17733604 (ref. ⁹⁶).

Change history

27 January 2026
A Correction to this paper has been published: https://doi.org/10.1038/s41586-026-10186-3
