Abstract

Realizing the full potential of organoids and assembloids to model neural development and disease will require improved methods for long-term, minimally invasive recording of electrical activity. Current technologies, such as patch clamp, penetrating microelectrodes, planar electrode arrays and substrate-attached flexible electrodes, do not allow chronic recording of organoids in suspension, which is necessary to preserve architecture. Inspired by kirigami art, we developed flexible electronics that transition from a two-dimensional to a three-dimensional basket-like configuration with either spiral or honeycomb patterns to accommodate the long-term culture of organoids in suspension. Here we show that this platform, named kirigami electronics (KiriE), integrates with and enables chronic recording of cortical organoids for up to 120 days while preserving their morphology, cytoarchitecture and cell composition. We demonstrate integration of KiriE with optogenetic and pharmacological manipulation and modeling phenotypes related to a genetic disease. Moreover, KiriE can capture corticostriatal connectivity in assembloids following optogenetic stimulation. Thus, KiriE will enable investigation of disease and activity patterns underlying nervous system assembly.

You have full access to this article via your institution.

Download PDF

Flexible kirigami microelectrode arrays for neuronal activity recordings in non-human primate brains

Article 05 February 2026

Engineering brain assembloids to interrogate human neural circuits

Article 06 January 2022

Long-term maturation of human cortical organoids matches key early postnatal transitions

Article 22 February 2021

Main

Self-organizing neural organoids and assembloids derived from human induced pluripotent stem (hiPS) cells hold promise for studying human neurodevelopment, including the generation of cell diversity, cell migration and early circuit assembly^1,2. One of the goals of these in vitro systems is to reveal how electrical activity arises and changes as the nervous system develops in the context of neuropsychiatric disorders. However, longitudinal tracking of these processes over months is nontrivial as these three-dimensional (3D) cultures are often maintained in suspension to self-organize.

Fluorescence imaging methods, such as those using calcium indicators³ and voltage sensors⁴, are widely used to measure activity in neuronal populations but are limited by their temporal resolution, photobleaching or phototoxicity. Electrophysiological recordings, which are considered the gold standard for monitoring electrical activity, have the potential to monitor neural activity over many months with high temporal resolution. Previous studies monitoring electrical activity in neural organoids using patch clamp^5,6, rigid penetrating electrodes⁷ or planar multielectrode arrays (MEAs)^8,9,10,11 are either acute or require slicing the organoids. Recent efforts using buckled MEAs¹², self-folding shell MEAs¹³, stretchable mesh MEAs¹⁴ and planar mesh MEAs¹⁵ have enabled electrical recordings from neural organoids without insertion or slicing. These approaches, however, are either nondeformable or require organoids to be in contact with the substrate, which may interfere with their cytoarchitecture and development.

In this Article, we employed the concept of kirigami—the art of paper cutting and 3D folding—to develop an electrical recording platform that can seamlessly integrate with and chronically record from intact neural organoids and assembloids in suspension without interfering with their 3D self-organization and differentiation. These ultrathin electronic devices, kirigami electronics (KiriE), are geometrically tailored to accommodate neural organoids in suspension, which enables their long-term integration and continuous recording. We demonstrate that KiriE is capable of monitoring spontaneous neural activity in human cortical organoids (hCOs), detecting phenotypes related to genetic disorders associated with autism spectrum disorder and schizophrenia and capturing activity in corticostriatal assembloids.

Results

KiriE design, optimization and device fabrication

To chronically integrate with and record from 3D neural organoids in suspension, we employed the kirigami concept to design an ultrathin two-dimensional (2D) kirigami pattern that spontaneously transforms into a 3D geometry upon release in suspension (Fig. 1a and Supplementary Video 1). The 3D geometry is a basket with a diameter of 1 cm and 32 microelectrodes (25 µm in diameter) located in a 1 mm central area. KiriE patterns are nanofabricated with two SU-8 insulation layers encapsulating metal connections for a total thickness of approximately 0.9 μm. In the central area integrating with organoids, SU-8 and metal interconnects are 9 µm and 3 µm wide, respectively.

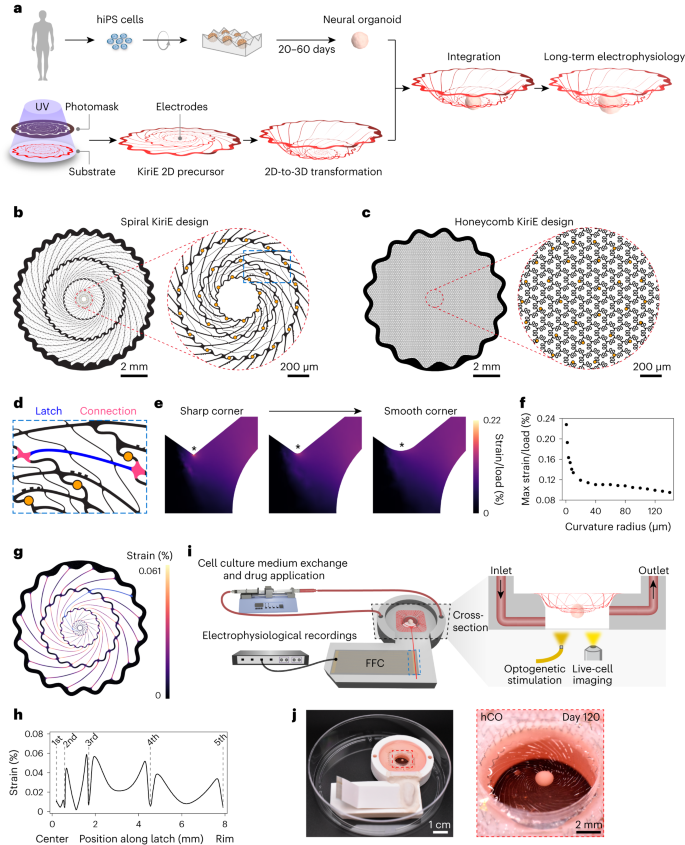

**Fig. 1: Design, optimization and fabrication of KiriE for long-term KiriE–hCO integration.**

To design KiriE patterns with substantial deformability and robust mechanical stability that can withstand potential stresses over months of organoid growth, medium exchange and handling, we designed two KiriE patterns: spiral and honeycomb (Fig. 1b,c). The spiral pattern consists of concentric rings interconnected by spiral latches, which rotate and vertically extend under a load. The honeycomb pattern is a tiling of serpentine-lined hexagonal units, which expand in size under a load. We developed scripts to create complex KiriE patterns based on a set of input parameters (Extended Data Fig. 1a–i and Methods) and automatically find the interconnect lines (Extended Data Fig. 1j–o and Methods). To iteratively simulate and optimize the design, we developed a pipeline combining scripted design with a finite element method (FEM) simulation framework that quantifies deformation under a load and stress accumulations at different locations (Methods).

To achieve high deformability and mechanical durability in the spiral design, we identify and iteratively optimize three critical parameters. The first is the shape of connection between the ring and the latch (Fig. 1d). FEM simulations show that the strain accumulates at the corner when the ring and the latch are connected at a sharp angle (Fig. 1e,f). The maximum strain can be substantially reduced by rounding off the sharp corner and designing wavy rings to reduce horizontal tensions. The second parameter is the shape of the spiral latch, which affects the vertical extension and maximum strain when the latch length, width and connecting points are kept the same (Extended Data Fig. 2a–e). From 150 simulated shapes, we optimized the latch shape for its overall smoothness to reduce local strain accumulation (Extended Data Fig. 2f,g). The third parameter is the latch length, which is determined by the location of the connecting point in the inner ring. With the optimized shape smoothness, the vertical deformation depends linearly on the latch length (Extended Data Fig. 2h). We chose a latch length that allows sufficient deformation without too much ring rotation during vertical extension, which would compromise durability. Our final spiral design had a maximum strain of 0.06% when the pattern is subjected to the weight of KiriE itself and an organoid ranging from 0.2 mm to 1.2 mm in diameter in a cell culture medium (Fig. 1g and Extended Data Fig. 2i–k), which is well below the strain (2–4%) at an elastic limit of SU-8 (ref. ¹⁶). A plot of strain along the metal interconnect (the blue curve in Fig. 1g) shows minimal strain between the first and second rings, where the organoid resides (Fig. 1h).

To build a highly deformable and mechanically durable honeycomb pattern, we first designed a node that smoothly connects three serpentine lines to avoid sharp angles and local stress accumulations (Extended Data Fig. 3a). Then, we designed the serpentine line shape by leveraging prior knowledge of how serpentine deformability is affected by geometric variables¹⁷. The nodes and serpentines are arranged into a hexagonal unit and tiled within the device area (Extended Data Fig. 3b–d). The resulting honeycomb design shows a maximum strain of 0.026% under the weight of KiriE itself and a 1.2-mm-diameter organoid in the medium (Extended Data Fig. 3e,f). KiriE devices with the optimized patterns were nanofabricated by photolithography (PL; Extended Data Fig. 3g–l and Methods). Channel-indexing barcodes¹⁸ are incorporated for identification of electrodes (Extended Data Fig. 3m,n).

Long-term KiriE integration with neural organoids in suspension

To integrate KiriE with organoids, we derived hCOs from hiPS cells as previously described^19,20 (Fig. 1a and Extended Data Fig. 4a,b). We designed and printed a 3D culture chamber that holds KiriE in suspension and is compatible with live-cell imaging, long-term electrophysiology, pharmacological application and optogenetic modulation (Fig. 1i). The inlet and outlet channels enable gentle and efficient media perfusion (Extended Data Fig. 5a–e). Upon the release of KiriE from the wafer, KiriE is transferred onto the culture chamber with a polydimethylsiloxane (PDMS)-supporting ring attached to the area outside the KiriE pattern (Extended Data Fig. 5f–j). The contact pads located at the tail of KiriE are aligned with a flat flexible cable (FFC; Extended Data Fig. 5k). Upon drying the tail region, electrical connection is established by direct contact interfacing between KiriE and FFC²¹. In our setup, electrophysiological measurements are performed in situ, which can be coupled with the built-in drug perfusion and in-incubator optogenetic stimulation. Moreover, the glass bottom of the chamber allows light access and, therefore, enables longitudinal characterization of hCO morphology, live imaging and optogenetic stimulation.

To investigate KiriE–hCO integration, we nanofabricated fluorescent KiriE by covalently incorporating a Rhodamine fluorophore within the SU-8 polymer¹⁸. We derived hCOs from an hiPS cell line that expresses a green fluorescent protein (CAG::eGFP). We gently pipetted an hCO into the center of KiriE (Fig. 1j). Confocal imaging demonstrated that, as expected, both spiral and honeycomb KiriEs are highly deformable (Fig. 2a and Extended Data Fig. 6a). Fluorescence intensity of CAG::eGFP cells remained relatively constant in relation to the distance from KiriE (Extended Data Fig. 6b). After 26 days, KiriE was embedded in hCOs as deep as 300–500 µm (Extended Data Fig. 6c,d and Supplementary Video 2). Moreover, hCOs on KiriE maintained a spherical morphology similar to hCOs maintained in suspension in ultralow attachment plates (Fig. 2b). We note that only the bottom part of the hCOs was live imaged due to the limited penetration depth. KiriE devices can be cleaned and reused for integration with new organoid cultures (Extended Data Fig. 5l–p).

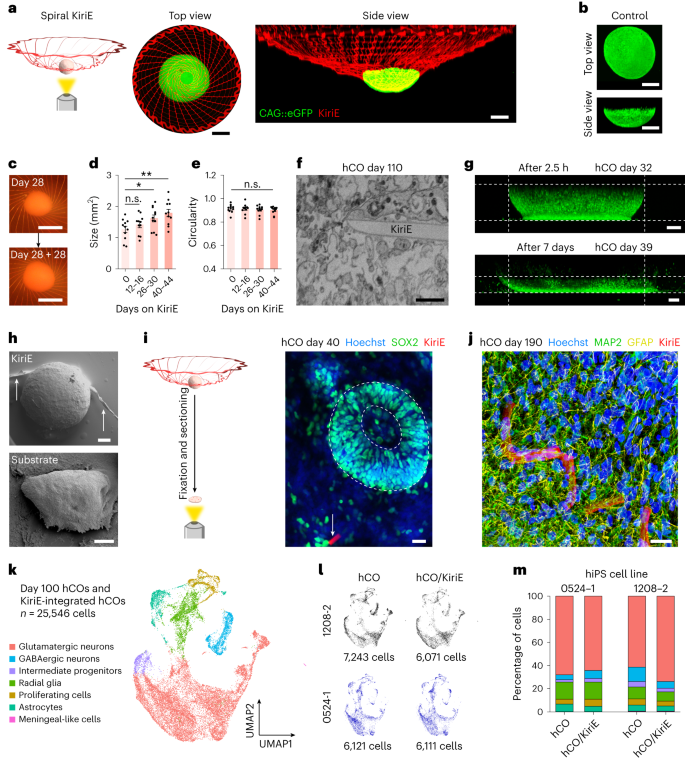

**Fig. 2: KiriE enables long-term organoid integration without interfering with hCO development.**

We continuously monitored hCOs on KiriE and observed that hCOs cultured on either spiral KiriE (Fig. 2c) or honeycomb KiriE (Extended Data Fig. 6e) grew in size (Fig. 2d) and maintained their spherical morphology over 44 days (Fig. 2e). We found that nanofabricated spiral KiriE devices usually have fewer connection defects, as their electrode routing lines (∼8 mm) are shorter than those in the honeycomb pattern (∼17 mm). Moreover, the integration of hCO with spiral KiriE with an easily identifiable center is more straightforward. Therefore, we primarily focused on spiral KiriE.

To verify the integration of KiriE with hCOs, we employed focused ion beam-scanning electron microscopy (FIB-SEM) to examine the KiriE–hCO interface. KiriE–hCO assemblies were fixed, excised from the culture chamber, stained with heavy metal and then embedded into epoxy resins using an ultrathin resin embedding method (Methods). FIB-SEM images showed the deformation of KiriE as it penetrates into the hCO (Extended Data Fig. 6f) and, at ∼180 µm depth within hCO, KiriE came in close contact with cells (Fig. 2f).

To test the impact of 3D suspended cultures versus attached cultures, we carried out time-lapse live-cell confocal imaging and scanning electron microscopy (SEM) imaging of hCOs in suspension (control or KiriE) or in contact with an adhesive, rigid substrate. We observed dramatic and time-dependent flattening of hCOs derived from the hiPS cell line LMNB1–mEGFP after contact with an adhesive substrate (Fig. 2g and Extended Data Fig. 7a). After 28 days of culture, hCOs took a flat shape with reduced thickness of 100–200 µm (Extended Data Fig. 7a). Moreover, SEM images showed that hCOs maintained their spherical shape after 60 days on KiriE, while hCOs plated on the adhesive substrate had flattened after 14 days (Fig. 2h). These results suggest that maintaining cultures in suspension is critical to preserving 3D morphology. Moreover, the SYTOX deep red dead cell stain indicated a lower cell viability in hCOs cultured on the adhesive substrate compared to hCOs cultured in suspension (control) or on KiriE after 40–45 days of culture (Extended Data Fig. 7b,c). Similarly, the expression of the apoptosis marker cleaved caspase-3 (c-Cas3) in day 91–102 hCOs was higher in hCOs on the adhesive substrate than in hCOs kept in suspension (control) or on KiriE (Extended Data Fig. 7d,e). These results indicate that maintaining 3D cultures in suspension is associated with improved cell health.

KiriE integration does not interfere with hCO development

To examine whether KiriE affects the cytoarchitectural organization of hCOs, we placed hCOs on KiriE at day 20 of differentiation and examined them up to day 190. As previously described^19,20,22, we found SOX2⁺ neural progenitors organized in the ventricular zones (Fig. 2i and Extended Data Fig. 6g,h) as well as expression of neuronal (MAP2) and glial cell lineage (GFAP) markers (Fig. 2j). Fluorescence analysis as a function of distances from KiriE showed relatively uniform distribution of SOX2⁺, MAP2⁺ and GFAP⁺ cells at the KiriE–hCO interface (Extended Data Fig. 7f,g).

To investigate whether KiriE integration interferes with corticogenesis, we performed single-cell RNA sequencing (scRNA-seq) of KiriE-integrated hCOs and control hCOs maintained in ultralow attachment plates at day 100 (n = 25,546 cells from n = 4 samples from two hiPS cell lines). Uniform Manifold Approximation and Projection (UMAP) dimensionality reduction revealed seven major cell clusters (Fig. 2k and Extended Data Fig. 4c–g), including glutamatergic neurons expressing SLC17A7 and SLC17A6 (66.59%), radial glia expressing MOXD1 (11.85%), proliferating cells expressing TOP2A (5.00%), intermediate progenitors expressing EOMES (3.46%) and astroglial lineage cells expressing AQP4 (5.26%). Next, we compared cell composition between KiriE-integrated hCOs and control hCOs (Fig. 2l) and found a similar distribution of cell types for both hiPS cell lines (Fig. 2m). Pearson analysis of normalized gene expression showed high levels of correlation between hCOs and KiriE-integrated hCOs (Extended Data Fig. 4g). These experiments suggest that incorporation of KiriE into hCO does not interfere with corticogenesis.

Recording and modulation of activity in KiriE–hCO

We next performed recordings of spontaneous neuronal activity in intact hCOs from day 75 to 179 of hCO differentiation (Fig. 3a and Extended Data Fig. 8a). We did not detect spontaneous activity at day 75 but detected notable activity in the same hCO after day 96. Analysis of single-unit activity across channels showed that an individual electrode can detect as many as four neurons (Fig. 3b and Extended Data Fig. 8b–f). The action potentials exhibited characteristic waveforms with spike amplitudes primarily in the range of 30–140 µV, which remained stable across days (Extended Data Fig. 8g). The majority of single-unit spikes were stable for days, while some signals emerge and disappear over time. Longitudinal measurements of multiple KiriE–hCO assemblies showed that neural activity arises around day 100 ± 5 of differentiation (Fig. 3c). The electrode impedance in the KiriE–hCO assemblies remained relatively stable at ∼0.3 MΩ (Extended Data Fig. 8h). Moreover, firing rates of hCOs day 116–125 measured by KiriE are similar to those measured by acutely inserted silicon shank electrodes (Extended Data Fig. 8i).

**Fig. 3: KiriE enables long-term single-unit recordings from intact hCOs.**

We manipulated activity in hCO and verified if KiriE can reliably detect neural responses. We infected hCOs with an adeno-associated virus (AAV) expressing hSyn1::ChrimsonR-tdTomato, which is an opsin that activates neurons in response to 590 nm light²³ (Fig. 3d). We delivered light from the bottom of the chamber using an optical fiber (Extended Data Fig. 8j) and reliably detected light-evoked responses in hCOs (Fig. 3e,f). Quantification of the average firing rates over all channels shows that firing rates during light-on periods were ∼20 times higher than during light-off periods (Fig. 3g).

Next, we tested the ability of the KiriE–hCO to detect responses to pharmacological manipulation using the built-in perfusion system (Fig. 3h). The application of the potassium channel blocker 4-aminopyridine (4-AP) led to a threefold increase in firing rate (from 0.49 ± 0.08 Hz to 1.60 ± 0.25 Hz; Fig. 3i,j). In contrast, application of tetrodotoxin (TTX), a sodium channel blocker, almost completely abolished spontaneous activity (Fig. 3k,l), which was reversible upon washout (Extended Data Fig. 8k).These results show that KiriE can record spontaneous activity in hCOs over time and can be integrated with optogenetic and pharmacological perturbations.

Detecting disease-related phenotypes in KiriE–hCO

To verify the ability of KiriE−hCO to identify disease phenotypes, we integrated KiriE with hCO derived from an hiPS cell line carrying a heterozygous loss of the DGCR8 gene, which is a gene in the 22q11.2 deletion syndrome region (Fig. 4a). We previously showed that dissociated cortical neurons derived from this mutant line (or from patients carrying the 22q11.2 deletion) display increased spontaneous activity using calcium imaging and patch clamp²⁴. Electrophysiological recordings showed that the spontaneous firing rate of DGCR8^+/− KiriE–hCOs at day 133–141 was approximately three times of the control KiriE–hCOs at day 137–138 (Fig. 4b,c and Extended Data Fig. 9a). About 30% of the channels probing DGCR8^+/− hCOs showed firing rates greater than 1 Hz (in contrast to 2% in control hCOs), and some were as high as ∼7 Hz. Therefore, KiriE can capture disease-related phenotypes in intact hCOs without dissociation or slicing.

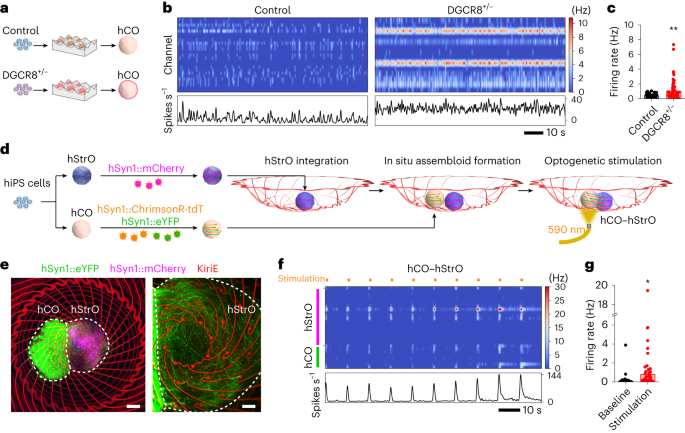

**Fig. 4: KiriE recording captures disease-related phenotypes and neural activity in corticostriatal assembloids.**

Probing neural circuits in corticostriatal assembloids

We previously showed that hCOs can be integrated with human striatal organoids (hStrOs) to form assembloids and study corticostriatal circuits²⁵. The basket-like geometry of KiriE provides an ideal platform to support the in situ fusion of organoids into assembloids and long-term monitoring of electrical activity.

To test this, we first differentiated hStrOs from hiPS cells and integrated them with KiriE using the same procedure for hCOs. Immunofluorescence staining of MAP2⁺ neurons and GFAP⁺ glial lineage cells in KiriE–hStrO (Extended Data Fig. 9b) demonstrated a seamlessly integrated neural interface. We also successfully obtained single-unit recordings of KiriE–hStrOs that were stable across days (Extended Data Fig. 9c,d).

We then separately derived hCOs and hStrOs, infected hStrOs with AAV–hSyn1::mCherry for fluorescence visualization and infected hCOs with AAV–hSyn1::eYFP and AAV–hSyn1::ChrimsonR–tdTomato for fluorescence visualization and optogenetic stimulation (Fig. 4d). To build a corticostriatal assembloid on KiriE, we first placed an hStrO at days 80–82 of differentiation in the center of KiriE. Two days later, and after the hStrO had adhered to the electrode area, we placed an hCO at the same stage, adjacent to the hStrO, to assemble.

Projections of eYFP⁺ hCO neurons into hStrO were found in hCO–hStrO–KiriE assembloids as early as ∼30 days post-assembly (Extended Data Fig. 9e,f); however, minimal projections of mCherry⁺ hStrO neurons into hCO were found (Extended Data Fig. 9g), which is a feature consistent with the unilateral corticostriatal connectivity in vivo²⁶. We then leveraged the channel-indexing barcodes to identify the subset of KiriE electrodes embedded in hStrOs or in hCOs. In the assembloid shown in Fig. 4e, we found 20 electrodes embedded in the hStrO and 7 electrodes in the hCO (top part and bottom part in Fig. 4f and Extended Data Fig. 9h). Since hCO neurons, but not hStrO neurons, expressed ChrimsonR, we optogenetically activated hCO neurons and probed the evoked responses. We detected increased activity in hCO neurons upon optogenetic stimulation and a corresponding increase in neuronal activity in hStrO neurons (Fig. 4f,g and Extended Data Fig. 9j). To explore hCO–hStrO connectivity over time, we longitudinally monitored the activity from 3 weeks post-assembly onward and observed light-induced response only after 7 weeks (Extended Data Fig. 9i). Together, these results demonstrate that the KiriE–assembloids can probe connectivity across functionally integrated organoids.

Discussion

We developed KiriE, a kirigami-inspired electrophysiology platform, that is flexible, fully suspended in liquid and deformable in 3D. Live-cell imaging, immunohistochemistry and single-cell transcriptomics suggested that KiriE integration does not perturb the morphology or cell composition of organoids. KiriE can chronically record from intact neural organoids over several months and can detect electrophysiological phenotypes associated with disease. Furthermore, KiriE can be used to monitor the circuit connectivity in assembloids in vitro.

The KiriE platform has several advantages compared to prior technologies^{5,6,7,8,9,10,11,12,13,14,27}. First, the 3D basket-like geometry of KiriE is designed for stable integration with intact neural organoids in suspension without the need for insertion, slicing or contacting the substrate. This strategy helps preserve the self-organization of 3D cultures with minimal perturbation. Second, the multimodal culture platform enables long-term medium perfusion and in situ assays, including longitudinal morphology monitoring, live-cell imaging, electrophysiology and optogenetic and pharmacological modulation, without the need to transfer across setups that could perturb development or induce cellular stress. Finally, KiriE detects disease-associated electrophysiological phenotypes and network connectivity in assembloids integrated in situ, which could be applicable to other multicellular systems such as cardiac organoids and cortico–spinal–muscle assembloids. There are a number of limitations of the KiriE platform. For instance, simulating and optimizing the mechanical behavior of KiriE is computationally intensive, thus posing a potential challenge to design more complex geometric patterns. Furthermore, the process of fabricating and assembling KiriE devices requires advanced expertise. Future developments of this platform could incorporate pH, oxygen and neurotransmitter sensors, or micro-LEDs, for localized optogenetic activation^28,29. It is also conceivable to design KiriE into complex 3D geometries, such as interconnected baskets, for probing neural transmission in linear or loop assembloids.

Methods

Script-assisted design of KiriE

The designs were generated via the Python package PHIDL³⁰. Polygons were defined using Boolean operators and the GSD-II output is compatible with PL (Extended Data Fig. 1a). Numerical libraries of Python were leveraged to help generate complex geometries. The latches of the spiral design were generated via nonuniform rational basis spline (NURBS) curves (Extended Data Fig. 1b–g). In brief, two polygons are connected by a latch at user-defined points on each polygon. The normal vectors to each polygon’s outline at the chosen points are calculated. The normal vectors’ magnitude and angle can be adjusted. The adjusted vectors define two control points. In addition to the beginning and end points of the latch, these additional two points allow generation of a 4-point NURBS curve, which outlines the general shape of the latch. Normal vectors to the polygons’ outline were used to ensure that the latch connects to the polygons without any mechanically unfavorable kinks. Furthermore, NURBS curves are at least twice continuously derivable, ensuring smoothness of the outline, which is important for mechanical stability. The final layout is built by a generator script that takes parameters as input, such as shape controls of the latch, number of rings, latches and electrodes (Extended Data Fig. 1h).

For the purpose of automatically routing the electrode lines to the contact pads, Device and Polygon classes within PHIDL were made, where each polygon (latch, electrode, pad and so on) is endowed with extra node points and implicit paths within the polygons (Extended Data Fig. 1j,k). Once all the polygons are placed, the nodes are converted to nodes in a graph object (NetworkX package). The nodes are connected by an edge within this graph if they are close to each other. All the nodes corresponding to electrodes are connected to a common, virtual ‘source’ node, while all the pads are connected to a common, virtual ‘drain’ node. The Edmonds–Karp flow algorithm (NetworkX) is used to find the node-disjoint path between the source and the drain, which translates to finding nonintersecting (that is, not short-circuited) paths between electrodes and pads. The graph therefore gives a pathing through polygon nodes from electrode to pad (see Extended Data Fig. 1l–o for details).

Mechanical analysis of KiriE

The designs generated during the script-assisted design are a collection of polygons. By using pygmsh, a Python package bundling the Gmsh finite element mesh generator³¹, the designs were turned into a triangulated geometry adapted to finite element analysis (Extended Data Fig. 1i). Technically, this is done by a Boolean union of domains, where each polygon is treated as a closed-loop domain. The vertical dimension of KiriE (its thickness) is about 10,000 times smaller than its lateral dimensions. Therefore, a shell formulation was employed, whereby the geometry was treated as a 2D surface embedded in 3D space, and the pattern thickness was implicitly integrated into the equations. This allowed for much better triangular meshing of the geometry, with about 80,000 triangles. Nonlinear Naghdi-shell formulation was employed to simulate the deformation of KiriE, as it is suited for large displacement simulation of shell mechanics. The weak formulation of the mechanical equations and the choice of functional space were inspired by a previous work using Python’s FEniCS package (FEniCS-Shells)³². FeniCS is an open-source FEM solver package³³.

The deformation of KiriE was simulated when it is subjected to gravitational loading plus the weight of a 1.2-mm-diameter organoid in a medium. The bending, shear and membrane strain tensors were retrieved to verify whether the compounded strain was within the elastic limit of SU-8.

The general limitation of nonlinear shell theories used to simulate KiriE’s mechanical behavior is that the thickness of the material needs to be much smaller than the radius of the curvature in the deformed pattern. This is indeed the case for KiriE (≪1%), but this optimization will not apply for devices with thick meshes. Furthermore, the optimization procedure is computationally intensive and, thus, limits the complexity of the features that can be optimized. Notably, triangle units in the simulations need to be sufficiently small to capture details (such as the connection points), but the execution time scales as N² (N is the number of triangles). Therefore, patterns consisting of fewer than 100,000 triangles can be processed efficiently. While this was already sufficient for our current KiriE design, it poses a potential limit for more complicated patterns.

Fabrication of KiriE

The fabrication of KiriE is achieved by multi-layer PL, as previously described^18,21,34, with minor optimizations. The key fabrication steps are as follows: (1) A 80-nm thick Ni sacrificial layer was evaporated (AJA International Inc) onto a 100-mm Si wafer (p-type 0.1–0.9 Ωcm, Pure Wafer). (2) The Si wafer was cleaned with oxygen plasma (100 W for 2 min; Technics PE II-A) immediately before being spin coated with LOR 3A (Kayaku Advanced Materials) at 1,000 rpm and baked at 180 °C for 3 min. Positive photoresist (S1805, Kayaku Advanced Materials) was spin coated on the Si wafer at 4,000 rpm and baked at 115 °C for 3 min. The positive photoresist was patterned by PL with a mask aligner (SUSS MA6 mask aligner, SUSS MicroTec) and developed (MF-26A developer) for 90 s. (3) Electron-beam evaporation sequentially deposited 5 nm of Ti and 100 nm of Au (AJA International), followed by a lift-off step (MF-26A) for the Au input/output (I/O) pads. (4) Negative photoresist SU-8 2000.5 (Kayaku Advanced Materials) was diluted in cyclopentanone (Sigma-Aldrich) at a 4:1 ratio, spin coated on the Si wafer at 4,000 rpm, prebaked sequentially at 65 °C for 1 min and 95 °C for 3 min and patterned by PL. The Si wafer was postbaked sequentially at 65 °C for 1 min and 95 °C for 3 min after PL exposure. (5) The negative photoresist was developed (SU-8 Developer, Kayaku Advanced Materials) for 2 min, rinsed with isopropanol (IPA), dried and hard baked at 180 °C for 1 h. (6) Negative photoresist SU-8 2000.5 was mixed with Lissamine rhodamine B ethylenediamine (∼10 μg ml⁻¹; Thermo Fisher Scientific) and placed in the dark at room temperature (RT) for at least 3 days to afford stable fluorescence labeling¹⁸. PL using the completely dissolved SU-8/rhodamine B ethylenediamine solution was performed by repeating steps 4 and 5 at 3,000 rpm to pattern the bottom SU-8 layer. (7) Steps 2 and 3 were repeated for PL patterning of the interconnect layer consisting of 5 nm Ti, 100 nm Au and 50 nm Pt. (8) Step 6 was repeated for PL patterning of the top SU-8 layer as the insulating layer of the interconnect lines. The Si wafer was hard baked at 195 °C for 1.5 h to allow for interdiffusion of the bottom and top SU-8 layers.

Design and production of multifunctional culture platform

A 3D design of the multifunctional culture platform was performed using the Autodesk 3ds Max (Autodesk). The culture platforms were produced using the Original Prusa i3 MK3S + 3D printer (Prusa Research) with a biocompatible thermoplastic polyester polylactic acid filament (Prusa Research). For 3D printing, structures are 100% filled with randomized seams.

Assembly and electrical connection of KiriE on the culture chamber

The process of assembling KiriE on the culture chamber is illustrated in Extended Data Fig. 5f–j. PDMS at a 10:1 ratio (w/w; base:curing agent; Sylgard 184 silicone elastomer, VWR) was cast into a 3D-printed square shape mold and cured at 55 °C for 24 h to make PDMS support. The Si wafer with KiriE was treated with oxygen plasma (50 W, 30 s; Technics PE II-A), and then the cured PDMS support was glued on the KiriE using uncured PDMS and cured at 100 °C for 1 h. Then, the Si wafer with PDMS support on top was transferred to a Ni etchant solution comprising 40% FeCl₃:39% HCl:H₂O = 1:1:10 for 30 min. Released KiriE with PDMS support was rinsed with 70% IPA and deionized (DI) water three times. KiriE with PDMS support remained at the liquid–air interface in the DI water until transferred to the 3D culture chamber.

The preparation of the 3D culture chamber includes gluing a no. 1.5 glass coverslip (VWR) at the bottom and an FFC (Digi-Key) on the top surface. The glass coverslip was glued to the bottom of the culture chamber using PDMS and cured at 55 °C for 24 h. An FFC was mounted onto the 3D culture chamber with Metabond cement (Metabond quick luting cement; Parkell). The whole chamber was treated for 1 min by oxygen plasma (Basic Plasma Cleaner, PDC-32G, Harrick Plasma) and sterilized in 70% ethanol.

To assemble KiriE on the 3D culture chamber, KiriE was transferred to and aligned with the 3D culture chamber. The culture chamber was initially immersed under water to avoid an accidental tear of KiriE. Then, the liquid level was slowly reduced. Electrical connection of the KiriE direct contact interfacing pads to the FFC was performed using a previously described method²¹. In brief, the interfacing pads of KiriE were aligned with the FFC leads using a transfer pipette. Aligned interfacing pads were fully dried by surgical spears (Braintree Scientific) and fixed in place using epoxy adhesive (5 min epoxy, Devcon). The interface was covered with Metabond cement. Metabond cement was also used to fix the PDMS support of KiriE to the culture chamber. A 3D-printed bar was glued to the opening of the circular chamber with Metabond cement to seal the chamber. The culture chamber was housed individually in the 10-cm tissue culture dish.

Characterization and maintenance of hiPS cells

The hiPS cell lines used in this study were validated using standardized methods as previously described²⁰. Cultures were regularly tested to ensure they were free of mycoplasma. A total of seven control hiPS cell lines derived from fibroblasts from seven healthy individuals were used for experiments. The DGCR8^+/− hiPS cell line was generated as previously described²⁴. Approval for this study was obtained from the Stanford Institutional Review Board panel, and informed consent was obtained from all participants.

Generation of CAG::eGFP hiPS cell line

The CAG::eGFP hiPS cell line was generated as previously described³⁵. The parental hiPS cell line (8858-3) was maintained in six-well plates using a StemFlex medium (Life Technologies, A3349401). Cas9, gRNA and donor plasmids were obtained from Addgene (plasmids nos. 42230, 41818 and 52344, respectively). For nucleofection, 3 μg Cas9, 1 μg gRNA and 1 μg donor plasmids were used. On the day of nucleofection, hiPS cells were washed with Dulbecco’s phosphate-buffered saline (DPBS) and incubated with 1 ml Accutase at 37 °C for 10 min, after which 9 ml of Essential 8 medium (Thermo Fisher Scientific, A1517001) was added to the well for resuspension. After cell counting, the single-cell suspension containing 3 × 10⁶ cells was centrifuged. The cell pellet was used for nucleofection using the P3 Primary Cell 4D-Nucleofector X Kit L (Lonza, V4XP-3024), a 4D-nucleofector core unit and an X unit (Lonza) using the nucleofection program DC100. After nucleofection, the cells were immediately seeded into a well of a six-well plate that was precoated with vitronectin and contained a prewarmed Essential 8 medium supplemented with the ROCK inhibitor Y-27632 (10 μM; Selleck Chemicals, S1049). While the nucleofected cells recovered to reach 70–80% confluency, 1 μg ml⁻¹ of puromycin was applied for 5 days, after which the media were switched back to StemFlex media. Puromycin-resistant clones became visible after 7 days. Clones were pooled together, expanded, cryopreserved and later sorted into 96-well plates to ensure single clone formation by seeding one cell per well. The sorting was performed on a BD Aria II (Stanford Shared FACS Facility). The clone used in this study was selected based on its morphology and uniform expression of eGFP. Validation of hiPS genome integrity was performed by high density SNP arrays.

Generation of hCOs and hStrOs from hiPS cells

The hCOs and hStrOs were generated as previously described^20,25. The hiPS cells (0524-1, DGCR8^+/−, 8858-3, 1208-2, 8119-1, 1205-4, KOLF2.1J and LMNB1–mEGFP) were cultured on plates coated with vitronectin (5 µg ml⁻¹; Thermo Fisher Scientific, A14700) in Essential 8 medium. Cells were passaged every 4–5 days with UltraPure 0.5 mM EDTA (Thermo Fisher Scientific, 15575020). For the generation of 3D neural organoids, hiPS cells were incubated with Accutase (Innovative Cell Technologies, AT104) at 37 °C for 7 min and dissociated into single cells. Then, 1–2 days before organoid formation, the hiPS cells were exposed to 1% dimethyl sulfoxide (Sigma-Aldrich, 472301) in Essential 8 medium. For aggregation into organoids, approximately 3 × 10⁶ single cells were added per well in AggreWell 800 plates in Essential 8 medium supplemented with the ROCK inhibitor Y-27632 (10 µM), centrifuged at 100g for 3 min and then incubated at 37 °C with 5% CO₂. After 24 h, organoids consisting of approximately 10,000 cells were collected from each microwell by pipetting the medium up and down in the well with a cut P1000 pipette tip and transferred into ultralow-attachment dishes (Corning, 3262) in an Essential 6 medium (Thermo Fisher Scientific, A1516401) supplemented with the SMAD pathway inhibitors dorsomorphin (2.5 µM; Sigma-Aldrich, P5499) and SB-431542 (10 µM; R&D Systems, 1614). For the first 5 days, the Essential 6 medium supplemented with dorsomorphin and SB-431542 was changed every day. Optionally, the WNT pathway inhibitor XAV-939 (1.25 μM; Tocris, 3748) could be added with the two SMAD pathway inhibitors.

To generate hCOs, day 6 neural organoids were transferred to a neural medium containing Neurobasal-A medium (Thermo Fisher Scientific, 10888022), B-27 supplement minus vitamin A (Thermo Fisher Scientific, 12587010), GlutaMAX (1:100; Thermo Fisher Scientific, 35050079) and penicillin–streptomycin (10,000 U ml⁻¹, 1:100; Thermo Fisher Scientific, 15140122). The neural medium was supplemented with 20 ng ml⁻¹ epidermal growth factor (EGF; R&D Systems, 236-EG) and 20 ng ml⁻¹ basic fibroblast growth factor (FGF2; R&D Systems, 233-FB) for 16 days, with the medium changed daily in the first 10 days and every other day for the following 6 days. From day 22, the neural medium was supplemented with brain-derived neurotrophic factor (20 ng ml⁻¹; PeproTech, 450-02) and neurotrophin-3 (20 ng ml⁻¹; PeproTech, 450-03), with medium changes every other day. From day 46, neural medium containing B-27 plus supplement (Thermo Fisher Scientific, A3582801) was used for medium changes every 4 days.

To generate hStrOs, day 6 neural organoids were transferred to neural medium containing Neurobasal-A medium, B-27 supplement minus vitamin A, GlutaMAX and penicillin–streptomycin and supplemented with a WNT pathway inhibitor IWP-2 (2.5 µM; STEMCELL Technologies, 72124) and recombinant human/murine/rat activin A (50 ng ml⁻¹; PeproTech, 120-14P). From day 12, neural medium was additionally supplemented with a retinoid X receptor agonist SR 11237 (100 nM; Tocris, 3411). From day 22, the neural medium was supplemented with brain-derived neurotrophic factor, neurotrophin-3, l-ascorbic acid 2-phosphate trisodium salt (AA; 200 µM; FUJIFILM Wako Chemical Corporation, 323-44822), N⁶-2′-O-dibutyryladenosine 3′,5′-cyclic monophosphate sodium salt (cAMP; 50 µM; MilliporeSigma, D0627) and cis-4,7,10,13,16,19-docosahexaenoic acid (DHA; 10 µM; MilliporeSigma, D2534). From day 42, the neural medium was additionally supplemented with N-[2S-(3,5-difluorophenyl)acetyl]-ʟ-alanyl-2-phenyl-1,1-dimethylethyl ester-glycine (2.5 µM; STEMCELL Technologies, 72082). From day 46, the neural medium containing a B-27 plus supplement was used for medium changes every 4 days.

RT–qPCR

For quantitative real-time polymerase chain reaction (RT–qPCR) analysis, three to four hCOs were pooled per sample. The mRNA from day 25 hCOs was isolated using the RNeasy Mini Kit (Qiagen, 74106). The template complementary DNA was prepared by reverse transcription using the SuperScript III First-Strand Synthesis SuperMix for RT–qPCR (Thermo Fisher Scientific, 11752250). RT–qPCR was performed using the SYBR Green PCR Master Mix (Thermo Fisher Scientific, 4312704) on a QuantStudio 6 Flex RT-qPCR System (Thermo Fisher Scientific, 4485689). The primers used in this study are listed in Supplementary Table 1.

Viral labeling

Viral infection of neural organoids was performed as previously described²⁵. Briefly, neural organoids were transferred to a 1.5-ml Eppendorf tube containing 200 µl neural medium and incubated with the virus at 37 °C overnight. The next day, neural organoids were transferred to the fresh neural medium in ultralow attachment plates (Corning, 3473).

The viruses used in this study are AAV-DJ-hSyn1::eYFP (Stanford University Neuroscience Institute Gene Vector and Virus Core, GVVC-AAV-16, 6597), AAV-DJ-hSyn1::mCherry (Stanford University Neuroscience Institute Gene Vector and Virus Core, GVVC-AAV-17, 5297) and AAV1-Syn::ChrimsonR-tdT (Addgene, 59171-AAV1)²³.

Integration of neural organoids with KiriE

The assembled KiriE on the culture chamber housed in the 10-cm tissue culture dish was brought into the biosafety hood. Next, 70% IPA was perfused into the culture chamber and added to the 10-cm tissue culture dish to sterilize the whole setup. Then, the 70% IPA was completely replaced with DPBS. The culture chamber was filled with a laminin solution (1:100 dilution in DPBS; Sigma-Aldrich, L2020) and incubated overnight to promote the adhesion of KiriE.

The laminin solution was completely replaced by neural media before plating neural organoids on the KiriE. To ensure the organoids are placed on the electrodes of KiriE, a homemade real-time imaging setup, including a CMOS camera (OMAX) and a zoom lens, was used during organoid integration. Media exchange was performed using a syringe pump media perfusion system (Extended Data Fig. 5a) starting from 2 days after integration.

Reusability of KiriE

The cleaning procedure for the KiriE was adapted from a previously established protocol³⁶. To dissolve the organoids that have been integrated with KiriE, the KiriE in the 3D culture chamber was incubated in 1× TrypLE Express (Thermo Fisher Scientific, 12604013) at 37 °C for 30 min and subsequently incubated in sodium dodecyl sulfate (Fisher Scientific, BP166500, diluted in water at a ratio of 4:100) overnight. The organoid residues were removed from the chamber with DPBS. To clean debris from the KiriE surface, a tablet of Ultrazyme enzymatic cleaner (Ultrazyme, 90278) was dissolved in 15 ml of DPBS and incubated in the chamber at 37 °C overnight. Then, 70% IPA was used to sterilize the culture chamber for the next culture.

Generation and integration of corticostriatal assembloids with KiriE

To simultaneously generate corticostriatal assembloids and integrate them with KiriE, hCOs and hStrOs were differentiated separately and placed on the KiriE sequentially in close proximity. First, an hStrO was placed on the electrodes in the center of KiriE, and 2 days later, an hCO was placed on the KiriE adjacent to the hStrO.

Plating hCOs on the adhesive substrate

For plating hCOs on the adhesive substrate, 24-well glass-bottom plates (Cellvis, P24-0-N) were coated with Matrigel¹⁴. Specifically, the glass-bottom plates were coated with a 2% Matrigel solution (Corning, 356234) in DPBS overnight. On the following day, the Matrigel solution was removed, and a single hCO was placed in the center of each well. Neural medium was added and changed according to the same schedule as typical hCO cultures. The plates were incubated at 37 °C with 5% CO₂.

Live-cell imaging and analysis

The multifunctional culture chamber allows for live-cell confocal imaging of neural organoids, assembloids and KiriE through the glass bottom. The culture chamber was incubated in an environmentally controlled chamber on a Leica Stellaris 5 inverted confocal microscope with a motorized stage for 15 min before imaging.

The cell viability assay was conducted using SYTOX deep red nucleic acid stain for dead cells (Thermo Fisher Scientific, S11381), as per the manufacturer’s instructions. In brief, LMNB1–mEGFP hCOs were incubated with SYTOX, which was diluted in neural medium to a 1:1,000 ratio, in a CO₂ incubator at 37 °C for 15 min. Subsequently, the hCOs were rinsed twice with neural medium before undergoing live-cell confocal imaging.

Imaging data were analyzed as previously described^18,34. Briefly, Imaris 9 software (Bitplane) was used for visualization and segmentation. A combination of Imaris, ImageJ (National Institutes of Health) and MATLAB (MathWorks) was used for quantitative analysis of fluorescence intensity as a function of the distance from the KiriE. Imaris was used to define the KiriE structures and the 3D volume of hCOs. ImageJ was used to export fluorescence intensities, distances from the KiriE and associated 3D coordinates. MATLAB was used to calculate fluorescence intensity as a function of the distance from the KiriE. The average fluorescence intensity values for all voxels with distances binned over an interval of 10 μm were normalized against the baseline value as the average fluorescence intensity of all voxels 150–160 μm away from KiriE. The cell counting for the SYTOX cell viability assay was conducted using Imaris 9 software. Due to the far-red background, only nuclei with clear, round morphology were quantified as SYTOX⁺ cells. Two individuals carried out the cell counting independently, and the mean values were reported as the final results.

Characterization of size and circularity of hCOs on KiriE was performed using ImageJ.

FIB-SEM imaging

FIB-SEM samples were prepared using our previously developed ultrathin plasticization protocol^37,38. The buffer was 0.1 M sodium cacodylate (Electron Microscopy Sciences) unless stated otherwise. Briefly, specimens were fixed overnight in 2.5 % glutaraldehyde (Electron Microscopy Sciences) at 4 °C, washed three times in chilled buffer and quenched with 20 mM glycine (Merck & Co.). Each organoid was post-fixed in 2% osmium tetroxide (Electron Microscopy Sciences) and 1% potassium ferrocyanide (Electron Microscopy Sciences), washed three times in chilled buffer and then incubated with 1% thiocarbohydrazide (Electron Microscopy Sciences) in distilled water. After three washes in water, samples were incubated again in 1% osmium tetroxide in water for 1 h and then rinsed in water. Subsequently, the en bloc staining was carried out overnight with 1% uranyl acetate (Electron Microscopy Sciences) at 4 °C followed by three washes in water. Before dehydration, 0.15% tannic acid aqueous solution was added. Dehydration was achieved by immersing the sample in an increased concentration of ethanol (Merck & Co.), starting from 30% to 100%. For resin embedding, a mixture of low viscosity Spurr’s resin (Electron Microscopy Sciences) in ethanol was added with the following ratio: 1:3 (2 h); 1:2 (2 h); 1:1 (overnight); 2:1 (2 h); 3:1 (2 h). Then, specimens were embedded in fresh resin for 24 h and then placed in vertical position for 2–3 h to remove the excess resin. Each sample was washed for 3–5 s with absolute ethanol to further remove excess resin on the surface. Polymerization was initiated by moving the sample into an oven at 70 °C. After 24 h polymerization, samples were cut into smaller parts for easy mounting and imaging. Each organoid part was mounted on a 12-mm aluminum stub using silver paste. Mounted samples were coated with 20 nm of gold by using an HR 208 Sputter coater (Cressington) and then loaded into FIB-SEM chamber (Helios CX5, Thermo Scientific). The sample surface was first scanned with a 3 kV electron beam to identify the region of interest. A region of interest for a regular cross-section was located for milling with a nominal depth of 15–20 µm and length of 30–40 µm, but the width varied within a range of 30–100 µm. After polishing the region of interest, image acquisition was performed in immersion mode with a through-the-lens detector with a back-scattered configuration at 2–3 kV, 0.17–0.34 nA of current in a range of magnification from 5,000× to 40,000×.

Cryopreservation and immunohistochemistry

Cryopreservation and immunohistochemistry were performed as previously described^25,35. In brief, neural organoids were fixed in 4% paraformaldehyde (Electron Microscopy Sciences, 15710) in PBS at 4 °C for 2 h. They were washed in PBS and transferred to 30% sucrose in PBS for 2 days until they sank in the solution. Then, the neural organoids were rinsed and embedded in a mixture comprising an optimal cutting temperature (OCT) compound (Tissue-Tek OCT Compound 4583, Sakura Finetek) and 30% sucrose in PBS at a 1:1 ratio. Sections of 20–30-µm-thick were cut using a Leica Cryostat (Leica, CM1860). Cryosections were washed with PBS to remove excess OCT and blocked in 10% normal donkey serum (NDS; Sigma-Aldrich, S30-M) and 0.3% Triton X-100 (Sigma-Aldrich, T9284) at RT for 1 h. Then the sections were incubated with primary antibodies diluted in PBS containing 2% NDS and 0.3% Triton X-100 at 4 °C overnight. The next day, excess primary antibodies were washed away by PBS, and the cryosections were incubated with secondary antibodies in PBS containing 2% NDS and 0.3% Triton X-100 at RT for 1 h. Following PBS washes, nuclei were counterstained with Hoechst 33258 (1:10,000 dilution; Thermo Fisher Scientific, H3569, 2086723). Finally, the slides were mounted with coverslips using Aqua-Poly/Mount (Polysciences, 18606). The slides were kept in the dark for at least 24 h before microscopic imaging.

The following primary antibodies were used for staining: anti-SOX2 (rabbit, Cell Signaling Technology, 3579S, 8, 1:300 dilution), anti-MAP2 (guinea pig, Synaptic Systems, 188004, 3-37, 1:200 dilution), anti-GFAP (rabbit, Dako, Z0334, 41259205, 1:500 dilution), c-Cas3 (Asp175) antibody (rabbit, Cell Signaling Technology, 9661, 45 and 47, 1:200 dilution), anti-neurofilament heavy polypeptide antibody (mouse, Abcam, ab7795, GR299862-23, 1:200 dilution), anti-TBR1 (rabbit, Abcam, ab31940, GR3215726-2, 1:100 dilution) and anti-SATB2 (mouse, Abcam, ab51502, GR3235758-6, 1:50 dilution). The following secondary antibodies were used at a 1:1,000 dilution for staining: Alexa Fluor 647 AffiniPure donkey anti-rabbit IgG (H + L) (Jackson ImmunoResearch, 711-605-152), Alexa Fluor 647 AffiniPure donkey anti-guinea pig IgG (H + L) (Jackson ImmunoResearch, 706-605-148), donkey anti-rabbit IgG (H + L) highly cross-adsorbed secondary antibody Alexa Fluor 488 (Thermo Fisher Scientific, A-21206), donkey anti-mouse IgG (H + L) highly cross-adsorbed secondary antibody Alexa Fluor 647 (Thermo Fisher Scientific, A-31571) and donkey anti-mouse IgG (H + L) highly cross-adsorbed secondary antibody Alexa Fluor 488 (Thermo Fisher Scientific, A-21202).

The average fluorescence intensity values for all voxels with distances binned over an interval of 1 μm were normalized against the baseline value as the average fluorescence intensity of all voxels 50–51 μm away from KiriE.

Single-cell RNA sequencing and data analysis

Dissociation of hCOs into single cells for scRNA-seq was performed as previously described³⁹ with minor optimizations. A total of three to four hCOs at day 100 were pooled from a KiriE-integrated condition or control condition from each hiPS cell line. hCOs were transferred to a six-well plate (Corning, 3506) and incubated for 45–60 min at 37 °C with 3 ml enzymatic dissociation solution. The enzymatic solution consisted of 30 U ml⁻¹ papain (Worthington Biochemical, LS003127), 1× Earle’s balanced salt solution (Sigma-Aldrich, E7510), 0.46% d⁺-glucose, 0.5 mM ethylenediaminetetraacetic acid (EDTA), 26 mM NaHCO₃, 10 μM Y-27632, 125 U ml⁻¹ Deoxyribonuclease I (Worthington Biochemical, LS002007) and 6.1 mM l-cysteine (Sigma-Aldrich, C7880). Upon the completion of papain incubation, samples were collected in a 15 ml Falcon tube and centrifuged at 200g for 1 min. After removing the supernatant, the samples were washed with 1 ml inhibitor solution with 2% trypsin inhibitor (Worthington Biochemical, LS00308) and resuspended in 1 ml of the same solution for trituration. Upon the completion of trituration, 1 ml inhibitor solution with 4% trypsin inhibitor was slowly added beneath the cell suspension to create a gradient layer. The gradient solution was centrifuged at 200g for 5 min. Cell pellets were resuspended in 0.2% bovine serum albumin/PBS and passed through a 40-μm cell strainer (Corning, 352340). The inhibitor solution differs from the enzyme solution in that it does not contain papain nor EDTA. All centrifugation steps were performed at RT.

Approximately 8,000 cells were loaded onto a Chromium Next GEM Single Cell 3′ GEM Kit v3.1 chip (10x Genomics, PN-1000123). Libraries were generated with the Chromium Next GEM Single Cell 3′ Library Kit v3.1 (10x Genomics, PN-1000157) using the Dual Index Kit TT Set A (10x Genomics, PN-1000215). Libraries were sequenced and demultiplexed by Admera Health using the Illumina NovaSeq S4 2 × 150. Mapping to the human reference genome (Human (GRCh38) 2020-A provided by 10x Genomics) and generation of count matrices (including introns) were performed using a 10x Genomics Cloud Analysis using Cell Ranger software (version 7.0.0). Samples were aggregated including normalization for mapped reads using the aggregate function in 10x Genomics Cloud Analysis. Downstream analyses were performed on the filtered count matrices in RStudio (version 1.4.1717 and R version 4.1.1) using the Seurat R package (version 4.1.1)⁴⁰. Cells with more than 9,000 or less than 1,000 detected genes or with mitochondrial content higher than 10% were excluded. Genes that were not expressed in at least three cells were not included in the analysis. Gene expression was normalized using a global-scaling normalization method (normalization method, ‘LogNormalize’; scale factor, 10,000), and the 2,000 most variable genes were selected (selection method, ‘vst’) and scaled (mean of 0 and variance of 1 for each gene) before principal component analysis. The top 21 principal components were used for clustering (resolution of 0.6) using the ‘FindNeighbors’ and ‘FindClusters’ functions and for visualization with UMAP. Clusters were grouped based on the expression of known marker genes and differentially expressed genes as identified by the ‘FindAllMarkers’ function, and more resolved clusters and the top ten genes are shown in Extended Data Fig. 4e,f. Then, the standard workflows for visualization with UMAP and clustering were used.

Electrophysiological recording, optogenetic and pharmacological modulation and data analysis

The electrophysiology of neural organoids and assembloids was recorded by KiriE in the multifunctional culture chamber in the cell culture incubator. The FFC was connected to an Intan RHS 32-channel stim/recording headstage (Intan Technologies) through a homemade printed circuit board. Stainless steel wires were used as references. Electrophysiological recordings were acquired at a 20 kHz sampling rate. The electrical impedance of each electrode at 1 kHz was also measured. All working channels are included in the reported data. The determination of working channels is based on impedance measurements with an upper cutoff value of ∼0.8 MΩ and a lower cutoff value of ∼0.1 MΩ.

For optogenetic stimulation, AAV1-Syn::ChrimsonR–tdTomato⁺ cells in hCOs or in hCOs of corticostriatal assembloids were activated with 590 nm light through a fiber optic cannula (Thorlabs) from the bottom of the culture chamber (Extended Data Fig. 8j). A custom-designed 3D-printed adapter was used to attach the fiber optic cannula vertically to the shelf in the incubator. The optogenetic stimulation is a pulse train of 1 s light pulse every 10 s. The pulse was generated by a Cyclops LED driver (Open Ephys), which was controlled by Arduino Uno (Arduino).

The application of pharmacology was performed using the built-in perfusion system of the multifunctional culture chamber. Upon completion of measurement, the drugs were completely washed out by perfusing excessive neural medium through the culture platform. Firing rates of individual channels were compared before and after treatment with a potassium channel blocker 4-AP (50 µM; Tocris, 0940), sodium channel blocker TTX (1 µM; Tocris, 1069), AMPA receptor antagonist NBQX (20 µM, Tocris, 0373) and N-methyl-d-aspartate receptor antagonist APV (50 µM, Tocris, 0106).

Acute electrophysiological recordings using silicon shank electrodes were conducted following our recently published protocol⁴¹. Briefly, the neural organoids were embedded in 3% low-melting agarose (IBI Scientific, IB70056) and then transferred into artificial cerebrospinal fluid containing 124 mM NaCl, 3 mM KCl, 1.25 mM NaH₂PO₄, 1.2 mM MgSO₄, 1.5 mM CaCl₂, 26 mM NaHCO₃ and 10 mM d⁺-glucose with the addition of GlutaMAX. The organoids were perfused with artificial cerebrospinal fluid maintained at 37 °C. Electrophysiological recordings were acquired using an acute 32-channel probe (Cambridge NeuroTech) connected to the Intan 1024-channel recording controller (Intan Technologies).

Data analysis was performed in Python. The recordings generated by the Intan RHS interface are stored in an .rhs format, which can be opened via the pyintan package in Python. The recordings were made into npy (numpy) format. The recordings were filtered with a third-order Butterworth bandpass filter between 150 Hz and 9,000 Hz. The filter was applied in a noncausal way to preserve the shape of action potentials and to help differentiate artifacts from real electrophysiological signals. This filtering is performed with the scipy.signal package using its functions butter and filtfilt.

Bandpass-filtered large deviations from baseline were collected via scipy.signal’s find_peaks function. The standard deviation was computed as a sliding standard deviation in 1-s windows using Fourier-space convolutions. First, all signals deviating more than five standard deviations from the baseline (either positive or negative) were collected by taking 1.5 ms before and after their maximal point (minimal if negative) for a total of 3 ms as depicted in Extended Data Fig. 8b. The detected signals from all electrodes were grouped for a given recording and clustered according to their shape (Extended Data Fig. 8c,d). A two-component UMAP (umap-learn package) dimensionality reduction was followed by a density-based clustering (DBSCAN function of the sklearn.cluster package). The identified clusters correspond to spikes of similar shape (Extended Data Fig. 8e). Representative spikes are presented by averaging all the signals belonging to a given cluster. Spikes representing real signals (but not artifacts) were extracted from the recordings by means of z-normalized template matching (match function of the stumpy package; Extended Data Fig. 8f). Overall, this method provides a noise-robust, shape-based spike detection in our electrophysiology recordings.

After spike detection, a binary array with the same length and number of channels as the recording was built. This array contains 1’s at the timestamps where spikes were detected and 0 s everywhere else. A gaussian kernel of 3 s in length and 0.5 s of standard deviation was convolved over the binary array for every channel. This convolution operation with such a kernel behaves as a smooth, sliding event counter. The resulting array was displayed in false color to convey the instantaneous firing rate of the neural organoids.

Statistics

Comparisons between experimental groups were made using two-tailed t-tests or one-way analysis of variance (ANOVA) tests with multiple comparisons. P values of less than 0.05 were considered statistically significant. Origin (OriginLab) was used for statistical analysis.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Single-cell gene expression data are deposited to the Gene Expression Omnibus under the accession number GSE221032. The data that support the other findings of this study are available from the corresponding authors.

Code availability

The custom code used in this study is available on GitHub at https://github.com/cforro/KiriE_2023_NatureBiotech.
