Abstract
Genetic studies of human metabolism have been limited in scale and allelic breadth. Here we provide a data-driven map of the genetic regulation of circulating small molecules and lipoprotein characteristics (249 traits) measured using proton nuclear magnetic resonance spectroscopy across the allele frequency spectrum in ~450,000 individuals. Trans-ancestral meta-analyses identify 29,824 locus–metabolite associations mapping to 753 regions with effects largely consistent between men and women and large ancestral groups represented in UK Biobank. We observe and classify extreme genetic pleiotropy, identify regulators of lipid metabolism, and assign effector genes at >100 loci through rare-to-common allelic series. We propose roles for genes less established in metabolic control (for example, SIDT2), genes characterized by phenotypic heterogeneity (for example, APOA1) and genes with specific disease relevance (for example, VEGFA). Our study demonstrates the value of broad, large-scale metabolomic phenotyping to identify and characterize regulators of human metabolism.
Similar content being viewed by others
Main
Our understanding of human metabolism is mostly based on dedicated hypothesis testing in experimental settings, informed by model organisms or observations in patients with rare diseases. Only recently has high-throughput profiling of small molecules in large-scale studies enabled systematic testing of genetic variation across the genome and provided an agnostic approach for discovering genes that encode key metabolic regulators1,2,3,4,5,6,7,8,9,10,11. These efforts have provided important new insights into how genetic variation shapes human chemical and metabolic individuality1 and have corroborated a large body of biochemical knowledge1,2,10,12.
The importance of such genome–metabolome-wide association studies (mGWAS) extends beyond the mapping of biochemical pathways, sometimes demonstrating almost immediate clinical value. They provided examples of how readily available supplementation strategies may prevent disease or delay onset in high-risk individuals, such as serine for macular telangiectasia type 2, a rare eye disorder2. They further identified unknown variants that affect the absorption, distribution, metabolism and excretion of exogenous compounds, most importantly drugs1,13, thereby providing pathways to mitigate adverse drug effects. However, there are several challenges that currently limit the potential of mGWAS analyses, particularly for causal inference. These include (1) the still rather small number of, at most, a dozen genetic variants linked to single molecules, (2) the inability to distinguish whether pleiotropic variants act on different molecules or pathways independently (horizontal pleiotropy), or whether they serve as ‘root causes’ of successive downstream changes (vertical pleiotropy), (3) the difficulty in distinguishing between locus-specific and metabolite abundance effects when colocalization at disease-risk loci is observed1 and (4) the challenge of confidently assigning effector genes at newly identified loci.
Here, we integrated rare (based on whole exome sequencing) and common genetic variation with measures of 249 metabolic phenotypes, including small molecules and detailed lipoprotein characteristics, among >450,000 UK Biobank (UKB) participants representing three distinct ancestries. We demonstrate largely consistent genetic regulation across ancestries and sexes for almost 30,000 locus–metabolite associations and systematically categorize abundant genetic pleiotropy. By integrating machine-learning-derived effector gene assignments with rare exonic variation, we identify previously unknown regulators of metabolism and observe heterogeneity in association profiles for variants mapping to the same gene. Finally, we demonstrate how systematic integration of statistical colocalization and Mendelian randomization can identify pathways with the potential to mitigate cardiovascular disease (CVD) risk beyond current approaches focused primarily on lowering low-density lipoprotein (LDL) cholesterol.
Results
We integrated genome-wide association studies (GWAS; population-specific minor allele frequency (MAF) ≥0.5%) with rare exome-wide association studies (ExWAS; MAF ≤0.05%) on plasma concentrations of 249 metabolite phenotypes, quantified using 1H nuclear magnetic resonance (NMR) spectroscopy. We included up to 450,000 UKB participants across three major ancestries (British White European, EUR (n = 434,646); British African, BA (n = 6,573); British Central/South Asian, BSA (n = 8,796)) (Extended Data Fig. 1). The NMR measures comprised 14 lipoprotein subclasses and associated characteristics (that is, extra-large very-low-density lipoprotein (VLDL) to small high-density lipoprotein (HDL) particles), along with small molecules such as amino acids and ketone bodies quantified in molar concentration units (Supplementary Table 1).
Common genetic variation underlying circulating metabolites
We identified 29,824 regional sentinel–NMR measure associations in trans-ancestral meta-analyses, representing 753 nonoverlapping genomic regions (Fig. 1a and Supplementary Table 2). Nearly half of these regions (n = 359, 47%) associated with more than ten NMR measures, demonstrating considerable pleiotropy. Characteristics of large HDL particles, such as particle size and lipid composition, were associated with the largest number of regions (median 166, interquartile range 126–195), compared with all NMR measures (median 105, interquartile range 68–142), findings that considerably extended previous work3 and replicated parallel efforts using UKB9 (Extended Data Fig. 2). Genes with well-characterized roles in human metabolism were significantly enriched across different significance bins (adjusted P values <4.24 × 10−9; Supplementary Fig. 1), suggesting that ever-larger studies of omnigenic traits, such as metabolites, still yield biological plausible findings.

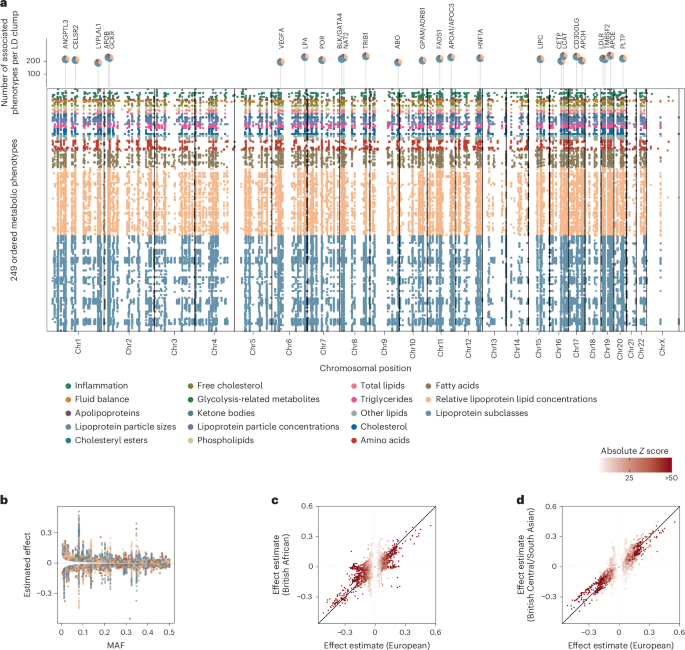

a, A top-down Manhattan plot showing trans-ancestral sentinel variants for 249 metabolic phenotypes at a metabolome-adjusted genome-wide significance threshold of P < 2.0 × 10−10. Each row represents an NMR measure, colored for biochemical class. Chromosomal positions are shown on the x axis. P values are raw −log10(P value) from a two-sided Z test across effect estimates derived within three ancestral groups. b, Weighted average allele frequency compared with estimated effect size for trans-ancestral sentinel variants. Points are colored for biochemical classification. c, A comparison of effect sizes between British White European samples (x axis) and British African samples (y axis). We considered variants that were significant in either population. d, Similar to c but comparing British Central/South Asian samples. Dots are colored according to their absolute Z score in British White European samples.
We observed significant evidence of heterogeneity (P < 1 × 10−4) across ancestries for very few loci (n = 342; 1.14%), and ancestral-wise comparison of effect estimates demonstrated largely concordant effect estimates (Fig. 1c,d, Extended Data Fig. 3 and Supplementary Table 3). All sentinels seen in individuals of British African and British Central/South Asian ancestry were replicated in individuals of European ancestry, except for one locus that was specific to British Africans. The previously reported14 missense variant rs3211938 within CD36, which is common among individuals of African ancestry (MAFBA = 0.12) but absent among individuals of European ancestry (MAFEUR = 0.0), was significantly associated (P values <1.49 × 10−10) with lower plasma concentrations of omega 3 fatty acids and 15 other NMR measures, including lipoprotein particle characteristics. This is in line with the role of CD36 encoding for a fatty acid translocase, facilitating the recognition and uptake of long-chain fatty acids. We note that the sample sizes in the smaller ancestral groups did not permit comprehensive replication.
Sex-differential effects at loci encoding metabolic genes
While we observed highly correlated effect sizes across female and male participants (median r = 0.98, range 0.90–0.99), we also identified 360 putative sex-differential loci for 239 NMR measures, representing 1,800 heterogenous associations in sex-stratified meta-analyses (heterogeneity P value <5 × 10−8), most of which (65.3%; n = 1,175 loci) could not be explained by confounding factors (Supplementary Note, Supplementary Fig. 2 and Supplementary Table 4). Putative sex-differential loci were generally directionally concordant between the sexes (Fig. 2a), in line with previous proteomics analyses and suggesting that significant sex interactions do not reflect sex-discordant effects15.

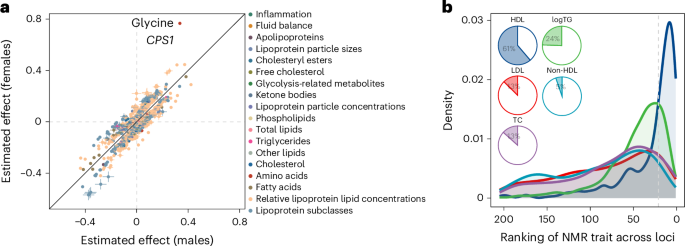

a, Comparison of effect sizes of putatively sex-differential loci (defined as loci with heterogeneity P < 5 × 10−8 in a two-sided Z-score meta-analysis across the sexes). b, Rank distributions for each of the five matching NMR traits compared with the Lipids Genetics traits across genetic loci. Per locus–trait combination, 205 lipid-related NMR traits were ranked based on their absolute effect size and compared with the NMR trait that corresponds the Lipids Genetics consortium trait. Pie charts show the percentage of loci where the corresponding NMR trait is ranked among the top 10% of associated traits. TC, total cholesterol; TG, triglycerides.
Refinement of regional associations through multi-ancestry fine-mapping
We next used a two-stage strategy to refine regional associations to a smaller number of candidate causal variants. We first identified 3,007 statistically independent metabolite quantitative trait loci (mQTLs) associated with one or more NMR measure, representing a total of 43,322 credible set–NMR measurement pairs (Supplementary Table 5). Lead fine-mapped mQTLs per NMR trait explained on average 6.9% (range 0.57–13.42%) of variance in plasma metabolite concentrations (Extended Data Fig. 4). Second, we leveraged the different linkage disequilibrium (LD) structure in British African and British Central/South Asian individuals to further refine 3,386 credible sets that contained >1 variant and with suggestive evidence in either ancestry, leading to an increase in the number of credible sets with high-confidence variants and decrease in mean credible set size from 9 to 4 variants (Supplementary Note and Supplementary Fig. 3). Trans-ancestral fine-mapping improved resolution in loci that did not resolve in individuals of European ancestry alone, but we note that the overall improvement was marginal. Instead of refining already tight credible sets, future studies should therefore focus on scaling discovery in non-European ancestries to identify unknown causal variants.
Biological reclassification of established ‘lipid’ loci
To assess the value of metabogenomic studies of 1H NMR-spectrometry-based lipoprotein profiling over standard clinical markers, we classified NMR metabolome association profiles for 1,657 genetic variants reported for commonly measured clinical markers (LDL cholesterol, HDL cholesterol, total cholesterol and triglycerides) obtained in 1.6 million people16. Around 25% of associated variants had the corresponding NMR measure among the top 10% of the most strongly associated NMR measures, with 22.5% of genetic variants showing significantly stronger association with refined lipoprotein measures compared with their matching measure on the NMR platform, an observation most pronounced for non-HDL and LDL cholesterol concentrations (Fig. 2b). Relevant loci for lipoprotein metabolism can thus be discovered using readily available clinical measurements; however, refined lipoprotein profiles are necessary for better understanding the relevant biological pathways, including any inference about druggability or use for genetic causal inference methods. One such example was the PNPLA3 locus (tagged by rs3747207, associated with LDL cholesterol by the Global Lipids Genetics Consortium; β = −0.014, P = 2.3 × 10−21), where we observed no association with LDL cholesterol (β = −0.001, P = 0.49) but with LDL particle size (β = 0.045, P = 1.04 × 10−73), and multiple characteristics of extra-large VLDL particles (Extended Data Fig. 5). The intronic rs3747207 variant is in strong LD (r2 = 0.98) with the well-known missense variant rs738409 (p.Ile148Met) that has been demonstrated to confer hepatic lipid accumulation by altering ubiquitination of patatin-like phospholipase domain-containing protein 3 (PNPLA3)17. Our results provide human genetic support for a recently proposed role of PNPLA3 in the secretion of large VLDL particles18.
Machine-learning-guided effector gene assignment
We successfully assigned effector genes for almost three-quarters of European ancestry fine-mapped mQTLs (73.6%; n = 2,213) with at least moderate confidence (candidate gene score ≥1.5, range 0–3), including about 28.2% with high-confidence assignments (score ≥2; n = 848), by training a machine learning model that integrates functional genomic resources with pathway information inspired by the ProGeM framework19 (Supplementary Table 6). For example, we prioritized the fatty acid elongase gene ELOVL6 for 16 different VLDL/HDL characteristics (tagged by rs3813829). The gene product, ELOVL fatty acid elongase 6, catalyzes the rate-limiting step in long-chain fatty acid elongation, which are subsequently incorporated into lipoprotein particles. We also prioritized genes with upstream roles in metabolism, including a locus on 17q25.3 where we prioritized cytohesin-1 (CYTH1) as the putative effector gene for 5 independent genetic variants linked to 11 distinct NMR measures mostly comprising characteristics of VLDL particles. CYTH1, previously associated with type 2 diabetes20, promotes activation of ADP-ribosylation factors (ARF)1, ARF5 and ARF6, regulators of lipid vesicle transport, membrane lipid composition and modification21, demonstrating a relevant but indirect link to lipoprotein metabolism.
We observed considerable overlap of machine-learning-guided effector gene predictions (top three genes) with those reported based on manually curated biological plausibility (191 out of 283 loci)3 or based on colocalization with protein quantitative trait loci (pQTLs) that have not been used to train the algorithm22 (81 out of 143; Supplementary Table 6). While missing overlap indicates room for improvement, 24 high-confidence assignments strongly disagreed with either external source (gene score > 2 but no match among pQTLs prioritized or manually curated ones). For example, we prioritized PEPD (score 2.42) as opposed to CEBPA3 for rs62102718. PEPD encodes peptidase D, which has been shown to promote adipose tissue fibrosis in mouse knock-out models promoting insulin resistance23. Insulin resistance, in turn, provides a very plausible explanation for the pleiotropic effect of the variant on diverse lipoprotein characteristics (n = 31).
Tissue distribution of effector genes
Assigned effector genes were significantly enriched in different tissues, reflecting known and lesser-established organ contributions (Extended Data Fig. 6a and Supplementary Table 7). Genes characteristic of the liver, adipose tissue, adrenal gland and female breast tissue (probably reflecting its high adipose tissue content) were significantly enriched among effector gene sets across the metabolic measures captured by NMR. This included significant enrichment of all amino acids in liver tissue (for example, phenylalanine: odds ratio (OR) 14.8, P < 1.3 × 10−8, histidine: OR 7.9, P < 2.9 × 10−11) but also for skeletal muscle in alanine metabolism (OR 3.82; P < 7.9 × 10−9). Similar enrichments were observed when using the closest gene instead of our annotated effector genes for mQTLs (Extended Data Fig. 6b).
Metabolic versus systemic pleiotropy
Pleiotropy is widespread but poorly understood. We developed a framework to characterize four different modes of metabolic pleiotropy (Fig. 3a–d, Extended Data Fig. 7, Supplementary Table 6 and Methods). About half of the pleiotropic mQTLs (n = 880; ≥2 NMR measures) showed evidence for two different modes of vertical pleiotropy. First, within confined pathways (n = 218; ‘pathway pleiotropy’; Fig. 3a) or, second, as a function of the correlation with the ‘lead’ NMR measure (n = 662; ‘proportional pleiotropy’; Fig. 3b). A prototypical example for proportional pleiotropy was an mQTL tagged by rs624698 for which we prioritized ANGPTL3 as the likely effector gene (Fig. 3b). Angiopoietin-like 3, encoded by ANGPTL3, inhibits lipoprotein lipase activity but also endothelial lipase, resulting in increased triglycerides, HDL cholesterol and phospholipid concentrations, consistent with HDL-particle characteristics being the most strongly associated NMR measure (P < 1.0 × 10−546). Other associations reflected downstream effects on lipoprotein metabolism rather than acting on independent pathways (Fig. 3b), considerably expanding previous genetic observations24.

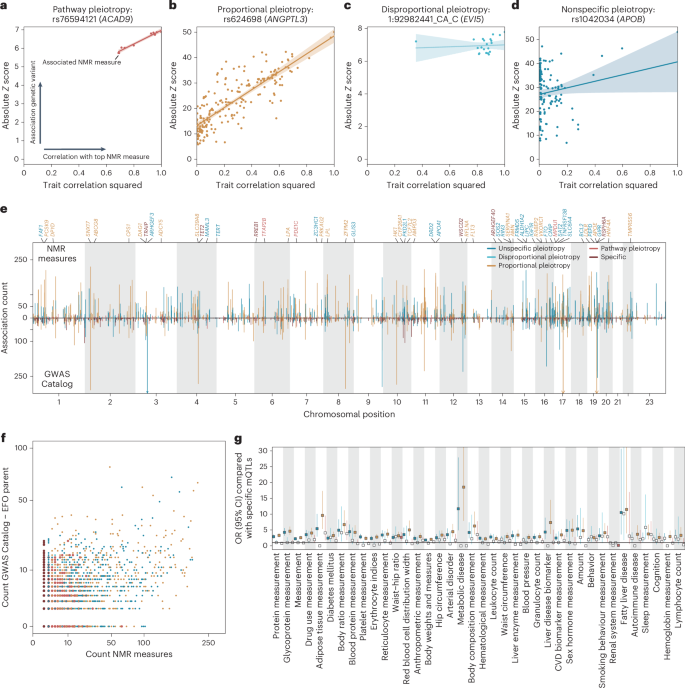

a–d, Representative scatterplots opposing the squared trait correlation of the lead NMR measure for the listed variant against the absolute Z score from linear regression models for all associated NMR measures. The colors indicate different modes of pleiotropy and correspond to the legend in e. For each plot, a linear regression fit (lines) with 95% confidence interval (bands) is given. Scatterplots in a–d represent examples of mQTLs classified as pathway pleiotropy (a), proportional pleiotropy (b), disproportional pleiotropy (c) and nonspecific pleiotropy (d). e, The number of associated NMR measures for each of 3,007 mQTL groups opposed to associations reported in the GWAS Catalog after pruning the GWAS Catalog for metabolic phenotypes (Methods). Coloring is according to modes of pleiotropy. f, A scatterplot opposing the number of associated NMR measures (x axis) of each mQTL group with the number of reported EFO parent categories in the GWAS Catalog. g, ORs (rectangle) and 95% confidence intervals (CIs; lines) from logistic regression models testing whether EFO categories (x axis) are more frequently reported for pleiotropic mQTL groups compared with specific ones. Darker colors indicated estimates passing corrected statistical significance. n = 3,007 mQTL groups have been used for enrichment testing.
The remaining half of pleiotropic mQTLs showed evidence for two modes of horizontal pleiotropy: those with evidence for ‘disproportional pleiotropy’ (n = 68) and a larger group with evidence for ‘nonspecific pleiotropy’ (n = 720). For example, a small deletion on chromosome 1 (chr1:92982441:CA>C) was associated with a highly correlated cluster of NMR measures, including characteristics of intermediate density lipoprotein (IDL), LDL and VLDL particles (Fig. 3c), but for which we detected no correlation of association strengths according to the lead NMR measure, the concentration of esterified cholesterol in medium-sized VLDL particles (P < 6.8 × 10−14). We prioritized EVI5 as the most likely effector gene, supported by previous studies on rare functional variants25. The gene product of EVI5, ecotropic viral integration site 5, has no apparent link to (lipoprotein) metabolism, in line with most of the gene assignments for mQTLs with a similar nonspecific pleiotropy pattern. An example of nonspecific pleiotropy was the APOB missense variant rs676210 (p.Pro2739Leu) associated with 126 NMR measures across the entire lipoprotein density range, but also creatinine and glycoprotein acetyl concentrations (Fig. 3d). The differential effects of the same genetic variation on distinct lipoprotein subgroups aligns with changes in lipid profiles seen with mipomersen, an antisense oligonucleotide against APOB, that demonstrated reductions in LDL cholesterol but also subsequent increases in the triglyceride content of VLDL particles as hepatic adaption occurs26.
Modes of molecular pleiotropy only partially translated into phenotypic pleiotropy (Fig. 3e,f). We observed a twofold enrichment of ‘proportional pleiotropic’ (OR 2.11; P < 2.0 × 10−14) and to a lesser extent an enrichment of ‘nonspecific pleiotropic’ (OR 1.52; P < 1.1 × 10−5) variants among variants reported in the GWAS Catalog for ≥5 nonmetabolomic trait categories (Methods). By contrast, the set of pleiotropic GWAS Catalog variants was significantly depleted for ‘specific’ mQTLs (OR 0.42; P < 1.6 × 10−21). Systemic mechanisms explaining effects of ‘proportional’ and ‘nonspecific’ pleiotropic mQTLs were further indicated by a more than 20-fold significant enrichment of associated trait categories such as ‘metabolic disease’, ‘fatty liver disease’ and ‘arterial disorders’ (Fig. 3g).
Convergence of common and rare genetic variation shaping metabolism
We next sought to understand convergence of rare and common genetic findings to systematically identify allelic series that increase confidence in causal gene assignment. We identified rare variation (MAF ≤0.05%) in 209 genes to be significantly (P < 1.1 × 10−8) linked to one or more of 249 NMR measures combining ultrarare gene burden analysis (3,709 significant associations; Supplementary Table 8) and rare exonic variant analysis (4,131 significant associations; Supplementary Table 9). Effect sizes were significantly larger compared with more frequent variant effects (Fig. 4a). For example, participants carrying rare predicted loss-of-function (LoF) variants in SLC13A5 had more than 1.4 s.d. units higher plasma citrate concentrations per copy of the possibly damaging allele (β = 1.41; P < 2.6 × 10−20).

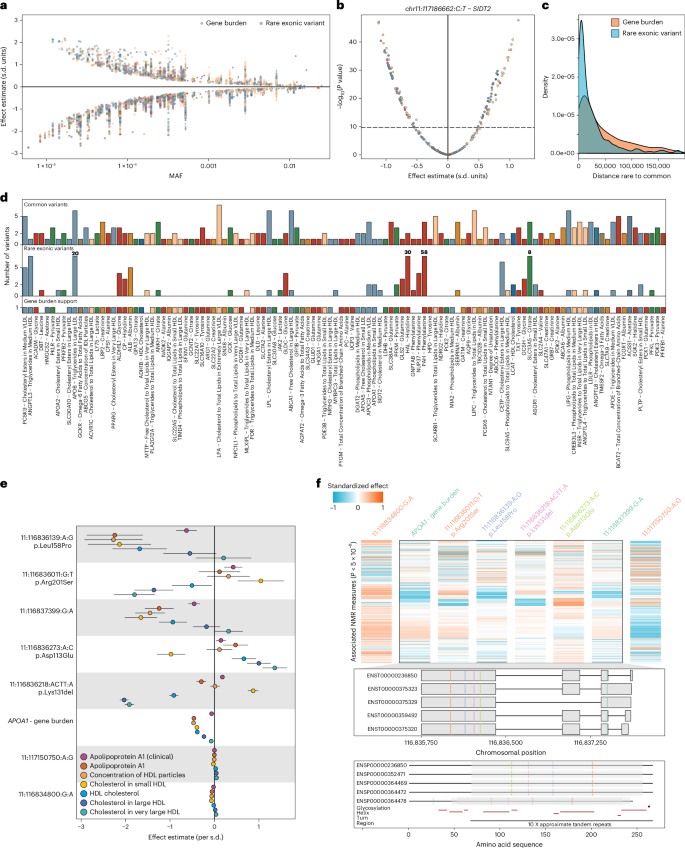

a, Effect estimates against MAF of significantly associated gene burden (diamonds; two-sided P < 1.2 × 10−8 and rare exonic variants (MAF <0.05%; circles; two-sided P < 2.0 × 10−10). b, Effect estimates and two-sided raw −log10(P values) for associations of the rare intronic variant chr11:117186662:C>T within SIDT2 across all 249 NMR measures. The dotted horizontal line indicates the multiple testing threshold (P < 2.0 × 10−10). c, Genomic distance between gene burden (blue) or rare exonic variants (orange) toward the next common credible set variant. d, Evidence for allelic series based on (i) gene burden analysis (bottom), (ii) rare exonic variants (middle) and (iii) common variants with prioritized effector gene matching to the evidence from exonic analysis. For each gene, only the NMR measure most significantly associated with the strongest common variant is shown in cases where multiple NMR measures were associated. Some bars for the number of associated rare exonic variants have been capped to fit into plotting margin, but the number is given in the plot. e, Effect estimates (dots) and 95% CIs (lines) from our European-based exWAS for 7 variants mapping to APOA1 as well as a cumulative burden of high-confidence pLOF variants within APOA1 and bespoke circulating measures of ApoA1 (clinical indicates measurements by immunoturbidimetric analysis on a Beckman Coulter AU5800) and HDL particles (color gradient). f, Top: a heatmap of standardized effect estimates (per variant) across 87 NMR measures for each associated variant and a cumulative burden within APOA1. Variants mapping into the region encoding the protein are surrounded by a rectangle. Variant effects have been aligned to the minor allele. Middle: the corresponding variants mapped to their respective transcripts encoding different forms of APOA1. Bottom: missense variants mapped onto the amino acid sequence of the protein. Variant names colored similarly had highly correlated association profiles.
We also observed considerable pleiotropy, including 47 genes associated with 20 or more NMR measures. Many of these genes encode for well-known enzymes and transportes, with nearly half (n = 23/51 genes) being involved in (peripheral) cholesterol metabolism (Extended Data Fig. 8). Some rare pleiotropic variants with large effect sizes (MAF <0.02% and β > 0.6 s.d. units) pointed toward less-established regulators of metabolism, including SIDT2 (chr11:117186662:C>T, n = 124 associated NMR traits), JAK2 (chr9:5073770:G>T (p.Val617Phe), n = 73 associated NMR traits) or CEP164 (chr11:117356670:C>G, n = 49 associated NMR traits). Experimental work already suggested a role for the gene product of SIDT2 (SID1 transmembrane family member 2) in hepatic lipid metabolism and apolipoprotein A1 (ApoA1) secretion, the main protein component of HDL particles, which constituted the majority of associated NMR measures27,28 (Fig. 4b). Variation in JAK2 predisposes to somatic mutations inducing hematopoiesis of indeterminate potential (CHIP)29, but other studies linked the gene product Janus kinase 2 (JAK2) to metabolism in liver30, adipocytes31 or macrophages32. The strong inverse association with parameters of HDL particles thereby best aligned with a role of JAK2 in promoting the interaction with ATP-binding cassette transporter A1 (ABCA1) and subsequent HDL-mediated lipid removal from cells, including atherogenic macrophages32. These findings considerably expanded an earlier hypothesis that attributed effects of the same JAK2 variant on LDL cholesterol primarily to myeloid cells in a mouse model33. This hypothesis only partially aligns with—and in some respects contrasts—our human genetic findings across the lipoprotein-density gradient.
We observed strong overlap between gene burden and common variant findings, with 85.4% of rare variant (n = 3,528) and 75.5% of gene burden (n = 2,802) associations being <100 kb away from the nearest statistically independent lead credible set variant (Fig. 4c). By contrast, most common variant findings (92.3%) were not within 500 kb of matching rare variant/burden evidence. Notably, 12.1% of gene burden results were more than 1 Mb away from the next common credible set variant for the respective NMR measure, aligning with recent observations that both approaches prioritize partly different genes34.
At 116 genes (55.5%), rare variant and/or burden evidence overlapped with effector gene predictions for close by common credible set variants (≤200 kb) for one or more associated NMR measure (Fig. 4d), providing independent support for allelic series (Fig. 4d and Supplementary Table 10). For example, we identified an allelic series composed of seven rare LoF, one gain-of-function and four common variants for serum citrate levels at SLC13A5 encoding a sodium-dependent citrate co-transporter. Another allelic series at ANKH comprised four common variants (rs185448606, MAF 1.3%; rs17250977, MAF 4.0%; rs826351, MAF 44.3%; rs2921604, MAF 45.9%) and a rare missense variant chr5:14745916:T>C (MAF 0.0069%) being also associated with lower serum concentrations of citrate (β = −2.18 s.d. units, P < 5.2 × 10−11) (Fig. 4d). ANKH encodes a multipass transporter, recently shown to transport citrate35, with an important role in bone health35.
Phenotypic heterogeneity within allelic series
We observed evidence that genetic variants within 17 genes associated with >10 NMR measures had differential metabolic consequences within an allelic series (Supplementary Table 10). The most outstanding example included seven variants (five rare; two common) and a cumulative burden of rare predicted LoF variants at APOA1. They distinctively associated with one or more of 87 NMR measures, most strongly with diverse characteristics of HDL particles of which the gene product, Apolipoprotein A1 (ApoA1), is the major component (Fig. 4e,f). This included four rare missense variants (MAF ≤0.03%) encoded in exon 4 that partly differentially associated with the number, size and cholesterol content of HDL particles (Fig. 4e), only one of which (p.Leu158Pro) primarily associated with serum ApoA1 concentrations and HDL particle number, mimicking the cumulative burden of high-confidence predicted LoF variants in APOA1 and suggesting a potentially dysfunctional protein that lacks interaction with lecithin cholesterol acyl transferase to facilitate cholesterol uptake36. By contrast, p.Lys131del and p.Arg201Ser seemed to rather predispose to a shift in cholesterol content from large towards small HDL particles, a pattern opposed by p.Asp113Glu (Fig. 4e). Consistently, amyloid formation by ApoA1 has been observed in early case reports of p.Lys131del (ApoA-IHelsinki37) in which HDL-cholesterol or ApoA1 concentrations are only mildly changed but aggregation of misfolded ApoA1 protein can confer organ damage later in life38. Because p.Asp113Glu and p.Arg201Ser have not yet been identified to cause amyloidosis, we cannot rule out the possibility that each variant maps to distinctive parts of ApoA1 with subsequently different consequences on function and/or stability (Supplementary Fig. 4). While results for serum ApoA1 concentrations were largely confirmed using an alternative assay, we observed some discrepancies that may imply that, in the presence of rare missense variants, the procedure to quantify ApoA1 concentrations from 1H NMR spectra may need recalibration.
Phenotypic consequences of rare variation in metabolic genes
We observed a >3-fold enrichment of genes previously linked to Mendelian diseases39 (‘OMIM genes’) among those associated with NMR measures in gene burden and rare exonic variant analyses (OR 3.30, P < 6.5 × 10−17; Supplementary Table 11), in line with previous mGWAS1,2,7,8. For 15 out of 106 genes, we found evidence of significantly associated disease risk (P < 7.5 × 10−7), largely replicating signs and symptoms of corresponding rare disorders (Supplementary Note and Supplementary Table 12). When we tested more generally whether a rare variant burden in metabolic genes was associated with disease susceptibility, we observed a significant enrichment among susceptibility genes for endocrine and metabolic disorders, such as type 2 diabetes and different lipidemias but not among other disease categories (Supplementary Fig. 5).
Risk mitigation of atherosclerotic CVD beyond LDL cholesterol
Genetic predisposition to high LDL cholesterol is strongly associated with increased atherosclerotic CVD (ACVD) risk (‘level effect’), and genetic variations that mimic potent drug targets, such as at PCSK9, show strong evidence of shared effects on both LDL cholesterol and ACVD (‘locus effect’)40. To identify potential pathways to mitigate the residual risk not addressed by lowering of LDL cholesterol41, we systematically integrated outcome data across 25 CVD phenotypes42,43,44,45,46,47,48,49,50,51,52,53,54,55,56 with NMR phenotypes (Supplementary Table 13).
We identified significant evidence (false discovery rate (FDR) <5%) for 1,146 ‘level effects’ across 218 NMR measures with one or more of 22 CVD phenotypes using pleiotropy-curated genetic instruments in Mendelian randomization (Fig. 5a and Supplementary Table 14). Independently, we observed evidence for 5,527 ‘locus effects’, suggesting a shared genetic architecture (posterior probability (PP) >80%) between 87 mQTLs associated with 247 NMR measures and 17 CVD phenotypes (Fig. 5b and Supplementary Table 15). For 46 NMR–CVD combinations, we found converging evidence for level and locus effects, including 23 not associated in our study with parameters of LDL metabolism (Fig. 5b), providing potential alternatives for addressing residual cardiovascular risk (Supplementary Table 16).

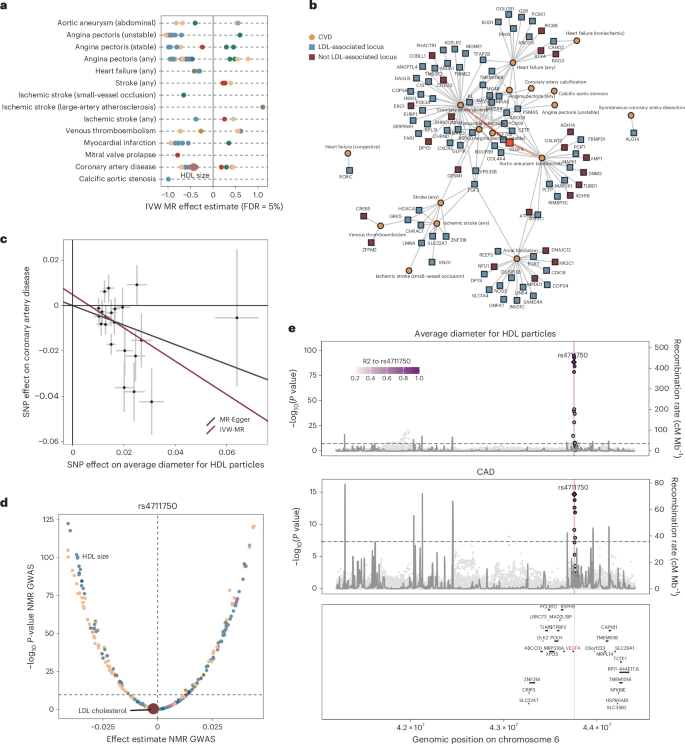

a, Summary of two-sample Mendelian randomization analysis testing for putatively causal effects of NMR measures on the risk on diverse CVD. Shown are effect estimates for NMR–disease pairs passing multiple testing. Metabolites are colored according to the scheme from Fig. 1. b, Locus–disease network highlighting loci for which at least 1 NMR measure showed evidence of colocalization with 1 or more CVDs (PP ≥80%). Only loci without evidence for unspecific pleiotropy are depicted. Loci were annotated with the most likely causal gene. Loci colored in blue showed evidence for being associated with LDL cholesterol whereas red did not. c, Dose–response plot for SNPs associated with HDL particle size (after filtering for pleiotropic SNPs) against the risk for CAD. Effect estimates (dots) and 95% CIs (lines) are given and MR-regression lines added. Effect estimates derived from our European ancestry-based GWAS (x axis, n = 434,646) and Aragam et al.42 (y axis, n = 1,589,012). d, Effect of rs4711750 across the NMR metabolome. The y axis is a two-sided raw −log10(P value) derived from the European ancestry-based GWAS (n = 434,646). e, LocusZoom plot centered around VEGFA demonstrating colocalization for the genetic signal for HDL particle size and CAD. The y axis represents the raw −log10(P value) from the European ancestry-based GWAS.
For example, we observed robust evidence that, among other measures related to HDL size and composition, genetic susceptibility to larger HDL particle size was associated with a 35% reduced risk of coronary artery disease (CAD; OR 0.65; 95% CI 0.50–0.83; Padj < 0.007; Fig. 5c) along with evidence of a shared and directionally concordant genetic signal at the VEGFA locus (rs4711750, PP 99%; Fig. 5e). The locus has been implicated in CAD risk42, and our results now suggest that one likely pathway to modulate CAD risk might be via HDL particle size or characteristics of large HDL particles not captured by HDL cholesterol. Vascular endothelial growth factor A (VEGFA), encoded by VEGFA, is primarily known for its role in angiogenesis57 but has been described as a regulatory factor of transendothelial transport of esterified cholesterol from HDL but not LDL particles via activation of scavenger receptor BI (SR-BI) during reverse cholesterol transport58. Inhibition of VEGFA is a major pharmaceutical target to suppress vascularization of malignant tumors57, and agents targeting VEGF signaling are well known for adverse cardiovascular effects59, suggesting that VEGFA activation, rather than inhibition, might be necessary to reduce CAD risk. Our observations contribute to a growing body of evidence that more tailored approaches, rather than increasing HDL cholesterol content, will probably be needed for potential cardiovascular benefits, given the discouraging trials for most agents increasing HDL cholesterol60. We note, however, that HDL-particle size might still only be a ‘measurable’ surrogate, rather than being the true underlying mechanism. For example, inhibition of reverse cholesterol transport via dysfunctional SR-BI increased HDL particle size as well as CAD risk61.
Disease-wide Mendelian randomization screen for nonlipoprotein measures
Having established pleiotropy categories, we finally aimed to demonstrate its application for nonlipid NMR measures in a disease-wide Mendelian randomization screen (Supplementary Note and Supplementary Table 17).
We observed converging evidence for a risk-increasing effect of genetically predicted plasma glycoprotein acetyl concentrations on type 2 diabetes risk (OR per 1 s.d. increase 1.67; P < 3.9 × 10−7) that persisted after exluding variants with evidence for phenotypic pleiotropy (OR 1.69; P < 9.1 × 10−5). This is in line with the rare LoF variant chr20:44413714:C>T (MAF 0.02%) within HNF4A on plasma glycoprotein acetyl concentrations (β = 0.60; P < 8.3 × 10−15) and the cumulative effect of ultrarare LoF HNF4A variants on type 2 diabetes risk (OR 2.68; P = 6.5 × 10−10). However, we note that plasma glycoprotein acetyl concentrations proxy a complex chronic inflammatory state62 that warrants further follow-up analysis to establish mechanistic links to type 2 diabetes.
Discussion
The genetic basis of circulating metabolites provides insights into the complexity of human metabolic regulation and its subsequent influence on health and disease. By integrating common and rare genetic variation with circulating metabolite concentrations in 450,000 individuals from three different ancestries, we provide here a data-driven map of the circulating metabolome across the allele frequency spectrum. This map identifies previously unrecognized modulators of metabolism with potential health implications.
By combining machine-learning-guided common variant-to-gene annotation with rare exonic variation, we provided high-confidence effector gene assignments at >100 loci, including some with less established roles in (lipoprotein) metabolism, such as SIDT2, presenting compelling candidates for functional follow-up studies in humans. Large-scale studies similar to ours, but with a broader coverage of the plasma metabolome, will probably uncover more genes with yet undefined roles in metabolism, complementing hypothesis-driven research in experimental models.
After more than two decades of GWAS, it has become clear that pleiotropic effects of genetic variants are ubiquitous (see, for example, ref. 63). Little distinction has been possible beyond the generic concepts of ‘vertical’ and ‘horizontal’ pleiotropy or measures of simple counting. We refine these concepts by observing variants associated with dozens of NMR measures but consistent with the concept of effects diluting or propagating along. Conversely, we observe variants associated with comparatively few NMR measures in an inconsistent pattern, suggesting distinct effects on otherwise highly correlated traits. Our data-driven approach augments previous concepts based on biochemical pathways reporting directionally discordant pleiotropy to discover metabolic bottlenecks64.
Disturbance in metabolism or rearrangements thereof are a hallmark of many diseases, including those not classically considered as ‘metabolic’, such as eye disorders2, but whether these are pathways for prevention or intervention, rather than a consequence of the disease, often remains elusive in humans. We demonstrated considerable overlap between mQTLs with disease risk loci, including rare-to-common allelic series that can reveal unknown effector genes. However, many such ‘locus effects’ were characterized by nonspecific pleiotropy, implicating the plasma metabolite as a bystander rather than cause of the disease. This observation aligns with the relatively few notable exceptions, such as HDL particle characteristics and CAD, from two-sample Mendelian randomization (MR) analyses that contrasted the broad spectrum of observed disease associations described for the same NMR platform65. These observations might be best explained by the concept of metabolic flexibility, which includes built-in redundancy in key pathways to combat various intrinsic and extrinsic perturbations.
An important distinction of our study compared with most previous efforts was the availability of highly standardized measurements in a well-designed single large cohort, mitigating influences of preanalytical variables and enabling analyses of even ultrarare variants. However, this also meant that we had little opportunity to investigate the influence of different states of metabolism on our genetic results (such as an overnight fast) or investigate robustness of findings in different environments or at scale in other ancestries. For example, UKB participants were not asked to fast overnight before their baseline visit, which has been shown to impact genetic findings3. Other limitations included the sensitivity and coverage of the 1H NMR platform, and future efforts are likely to reveal more diverse phenotypic consequences of genetically constrained flexibility of human metabolism. Another technical aspect to consider in the interpretation of our results is the indirect nature of 1H NMR derived measurements of certain analytes, including apolipoproteins, that may no longer be reliable in the presence of rare damaging variants that change the properties of apolipoproteins as observed for ApoA1.
Methods
Study design
The UKB is a prospective cohort study from the UK that contains more than 500,000 volunteers between 40 and 69 years of age at inclusion. The study design, sample characteristics and genotype data have been described elsewhere66,67. The UKB was approved by the National Research Ethics Service Committee North West Multi-Centre Haydock and all study procedures were performed in accordance with the World Medical Association Declaration of Helsinki ethical principles for medical research. We included 460,036 individuals across the three major ancestries in UKB in our analyses for whom inclusion criteria (given consent to further usage of the data, availability of genetic data and passed quality control (QC) of genetic data) applied. Data from UKB were linked to death registries and hospital episode statistics (HES). We used the ancestry assignments as defined by the pan-UKB68 and further assigned unclassified individuals to their respective ancestries based on a k-nearest neighbor approach using genetic principal components. All analyses were conducted under UKB applications 44448 and 30418.
Metabolomic measurements
Up to 249 targeted metabolomic measurements were quantified using the Nightingale NMR platform in human EDTA plasma samples. Detailed experimental procedures for the NMR platform are described elsewhere65,69. The NMR platform covers a wide range of metabolic biomarkers, including lipoprotein lipids, fatty acids and small molecules such as amino acids, ketone bodies and glycolysis metabolites, quantified in molar concentration units. We combine here three data releases that cover the full breadth of the UKB. Metabolomics data were available for 482,276 individuals, including 19,699 samples with data from baseline and repeat visit.
Metabolites were reliably detected, with only one biomarker over 2.5% missingness in releases 1/2 (creatinine) and release 3 (3-hydroxybutyrate). Ninety-eight percent of the samples had <5% missingness over all biomarkers in releases 1/2 and release 3. We used the ukbnmr70 R package (v2.2, R v4.3.2) for QC and removal of technical variation in the NMR data. This includes technical confounders such as sample preparation time, shipping plate well, spectrometer effects, time drift within spectrometers and outlier plates.
We removed samples that were flagged by Nightingale for poor quality and used the MICE (Multivariate Imputation by Chained Equations)71 R package to impute the remaining dataset. In total, we imputed 0.16% and 0.17% of data in releases 1/2 and release 3, respectively.
We observed overall good consistency with the overlapping routine blood biomarkers previously measured in the same cohort (median r = 0.9, range 0.62–0.94) (Extended Data Fig. 9).
Adjustment of metabolomic data for medication use
We sought to adjust the NMR data for medication use, especially cholesterol-lowering medication, to avoid false-positive results driven by medication use in downstream genetic analyses. For male and female participants separately, we fit linear models to quantify the impact of six drug categories on each NMR phenotype: cholesterol-lowering medicine, blood pressure medication, diabetic medication including Metformin usage, oral contraceptive pill or minipill (female only) and hormone replacement therapy (female only) (UKB fields 6177 and 6153) (Supplementary Fig. 6 and Supplementary Table 18).
We used data from individuals with both baseline (NMRbaseline) and repeat (NMRfollow-up) assessment metabolic data available and estimated the effect of medication (med terms) in individuals that did not take any drugs at the time of the baseline visit (n = 6,312 male, n = 6,713 female participants) using the following model:
We note that the sample sizes for diabetic medication (nmale = 45, nfemale = 29), oral contraceptive medication (n = 27) and hormone replacement therapy (n = 148) were too small to reliably estimate any effects. Effect estimates for diabetic medication were correlated to estimates for cholesterol-lowering medicine. The effect estimates for blood pressure medication were minimal across the phenotypes. We considered thus only the impact of cholesterol-lowering medicine and corrected the metabolic data in a sex-specific manner.
Genotyping and GWAS analyses
GWAS was performed on 249 metabolic traits measured by the NMR platform on British European (n = 434,646), British Central/South Asian (n = 8,796) and British African participants (n = 6,573) that had complete phenotypic, covariate and genetic information available. We used the Haplotype Reference Consortium-imputed genetic data, including all autosomal chromosomes and the X chromosome. We performed GWAS under the additive model using REGENIE (v3.2.5)72 that uses a two-step procedure to account for population structure. We derived a set of high-quality genotyped variants per population by applying the following filters: (MAF >1%, minor allele count (MAC) >100, missingness rate <10%, PHWE > 1 × 10−15). Furthermore, linkage disequilibrium pruning was performed using a 1,000-kb window, shifting by 100 variants and removing variants with LD (r2) >0.8. We used these variants as input for the first step of REGENIE to generate individual trait predictions using the leave-one-chromosome-out scheme. These predictions are used in the second step where individual variants are tested. Models were adjusted for age, sex and the first ten genetic principal components. We tested variants with a MAF >0.5%, amounting to 11.5 million variants in British European individuals, 11.5 million variants in British Central/South Asian individuals and 19.3 million variants in British African individuals.
For initial discovery, we performed a meta-analysis across the three ancestral groups using METAL73. We required variants to be present in at least two ancestral groups. To declare significance, we considered a stringent P-value threshold (2.0 × 10−10) by dividing the standard genome-wide threshold by the number of metabolic phenotypes (5.0 × 10−8/249).
We tested our results for genomic inflation and calculated the single-nucleotide polymorphism (SNP)-based heritability using LD-score regression74 (Supplementary Table 19).
Regional clumping and fine-mapping
We used regional clumping (±500 kb) around sentinel variants from the analyses including British European samples to select independent genomic regions associated with a metabolic phenotype and collapsed neighboring regions using BEDtools (v2.30.0). We treated the extended MHC region (chr6: 25.5–34.0 Mb) as one region.
Within each region of interest, excluding the MHC region, we performed statistical fine-mapping for all phenotypes associated with that region using the ‘Sum of single effects’ model (SuSiE) implemented in the susieR (v0.12.35) R package75. In brief, SuSiE uses a Bayesian framework for variable selection in a multiple regression problem with the aim to identify sets of independent variants each of which probably contains the true causally underlying genetic variant. We implemented the workflow using default prior and parameter settings, apart from the minimum absolute correlation, which we set to 0.1. Because SuSiE is implemented in a linear regression framework, we used the GWAS summary statistics with a matching correlation matrix of dosage genotypes instead of individual-level data to implement fine-mapping (susie_rss()) as recommended by the authors75.
To determine the appropriate number of credible sets within each region, we iterated over the maximum credible sets parameter in susieR from two to ten, thus generating fine-mapped results constrained to a range of maximum number of credible sets. For each collection of credible sets, we pruned sets where the lead variant was correlated to the lead variant of other credible sets (r2 > 0.25). After pruning, we considered the fine-mapped results with the largest number of credible sets.
We performed several sensitivity analyses by computing joint models per locus–phenotype combination, jointly modeling the effect of all distinct lead credible set variants in a single linear model. Subsequently, we retained only credible sets where the lead variant reached genome-wide significance (P = 5.0 × 10−8) in both marginal and joint statistics. Furthermore, we ensured the estimated coefficients were directionally concordant and of similar magnitude between joint and marginal models (±25%). Linear models were implemented in R using the glm() function and used only unrelated British European participants and the same set of covariates as described above.
Finally, we used LD clumping (r2 > 0.6) to identify credible sets shared across metabolic phenotypes.
We computed the correlation matrix with LDscore v2.0 using genetic data from 50,000 randomly selected, unrelated White European UKB participants. In situations where SuSiE did not deliver a credible set, we used the Wakefield approximation76 to compute 95%-credible sets.
Replication of genetic associations
We replicated our trans-ancestral genetic signals using two independent studies: (1) the so-far largest published mGWAS3 and (2) a parallel effort using overlapping UKB data9, both using the same NMR platform. We considered a set of metabolic traits that were directly measured by the NMR platform and not inferred from other traits to avoid multiplicative errors in these more sensitive phenotypes. In total, we were able to match 144 (Karjalainen et al.3) and 169 (Tambets et al.9) metabolic traits, for which we compared sentinel variants that passed metabolome-adjusted, genome-wide significance in our trans-ancestral meta-analysis and that overlapped between the studies.
Causal gene assignment
To assign candidate genes for all metabolite QTLs residing outside the MHC region, we first collected annotations for each genetic variant or proxies thereof (r2 > 0.6), including distance to the gene body and putative functional consequences based on the Variant Effect Predictor (VEP) tool offered by Ensembl. We further collated up to ten closest genes within a 2-Mb window and subsequent gene features such as: (1) eQTL evidence for a given variant–gene pair for each tissue available in the eQTL Catalogue release 777; (2) evidence of being annotated as metabolic in the MGI or Orphanet databases as defined in ProGem19; (3) evidence of being listed in the Online Mendelian Inheritance in Man (OMIM) database39; (4) and evidence of being an already assigned drug target in Open Targets78 clinical stages III and IV.
With no universally accepted standard for variant-to-gene assignments, we relied on prior biological and genomic information to create three sets of ‘putative true positive’ (PTP) set: genes part of cholesterol pathway in the Kyoto Encyclopedia of Genes and Genomes (KEGG)79 or REACTOME80 database (n = 6,791, 722 unique SNPs), lipid pathway (n = 5,670, 603 unique SNPs) and amino acid-related pathway (n = 8,349, 895 unique SNPs). We used all fine-mapped SNPs associated with metabolites classified in the respective NMR metabolite class (Cholesterol: cholesterol, cholesteryl esters, free cholesterol; Lipid: total lipids, other lipids, relative lipid concentration, phospholipids; Amino Acid: amino acid) in the PTP set and used overlapping SNPs in only one PTP set. We trained (7:3 training:test ratio without overlapping variants) a random forest classifier using fivefold cross-validation with subsampling to account for the unbalanced datasets (scikit-learn v1.4.1). We used the balanced accuracy score to choose the best-performing forest from each training set. Subsequently, we used the best-performing classifier from each PTP set to assign candidate scores for all putative effector genes across the entire set of metabolite QTLs. We calculated the median score across classifiers and selected the highest-scoring gene per variant. Within each PTP set, we omitted features used to define true positive sets. Each of the three classifiers exhibited consistent performance (mean ROC-AUC: 0.80, mean balanced accuracy score 0.69) (Supplementary Fig. 7). We used the sum across all three classifiers to assign effector gene scores but present only genes as potential effector genes that reached sufficient support as indicated by largest difference between consecutively prioritized genes.
To provide another layer of evidence for assignment of causal genes at metabolic loci, we performed cis-colocalization with protein targets measured in the independent Fenland study22. Cis (for example, gene body ± 500 kb) summary statistics were preprocessed using MungeSumStats81. To relax the single causal variant assumption, we used a colocalization approach where we fine-mapped all traits with SuSiE and then performed colocalization among all credible sets using functionality of the coloc (v5.2.3)82,83 and susieR (v0.12.35)75 R packages. For this, we set the prior probability that a SNP is associated with both traits to 5 × 10−6 and restricted the maximum number of credible sets for the outcome data to five82.
Tissue enrichment of metabolic loci
We tested whether genes proximal to metabolic loci and assigned effector genes were enriched in tissue compartments by leveraging data from the Human Protein Atlas84. Specifically, we used a two-sided Fisher’s test whether metabolic genes were enriched among tissue-specific genes (tissue-enriched or tissue-enhanced as defined by the Protein Atlas) against all protein-coding genes as background.
Pleiotropy assignment and overlap with the GWAS Catalog
To assign modes of pleiotropy for each mQTL, we first clumped lead credible set variants across NMR measures by LD, collating variants with r2 ≥ 0.6 as a single signal, referred to hereafter as mQTL group. This was done based on dosage files of all unrelated British European UKB participants and implemented with the igraph (v.2.0.1.1) package in R. For each mQTL, we computed pairwise Pearson correlation coefficients among associated NMR measures. We classified each mQTL group on: (1) the 25th percentile of all pairwise correlations, and (2) the Pearson correlation coefficient between the association strengths for each measure (− log10(P value)) and its correlation coefficient with the most strongly associated measure within the mQTL. The latter is a measure to what extent the association between NMR measures at a given locus (‘pleiotropy’) can be explained by being correlated with the most proximal associated measure. Based on opposing those two measures for all mQTLs we defined the following five groups: (1) ‘specific’ mQTLs associated with only ≤3 highly correlated NMR measures (rho ≥0.6); (2) ‘pathway pleiotropic’ mQTLs associated with highly correlated NMR measures (rho ≥0.6) that followed the described association pattern (rho ≥0.6); (3) ‘proportional pleiotropic’ mQTL groups associated with, in part, uncorrelated NMR measures but highly correlated association statistics (rho ≥0.6); (4) ‘disproportional pleiotropic’ mQTLs associated with highly correlated NMR measures (rho ≥0.6), but without evidence that this translated into a correlation of association statistics (rho <0.6), and; (5) all remaining mQTLs as ‘unspecific pleiotropic’ groups.
To quantify the extent to which our pleiotropy assignment extends beyond the NMR measures analyzed here, we intersected mQTLs and proxies thereof with results reported in the GWAS Catalog (downloaded 20 May 2024). We first pruned GWAS Catalog entries for those with mapped traits (to minimize double counting), results that met genome-wide significance (P < 5 × 10−8) and had location information available. We further dropped results similar to NMR measures based on broad Experimental Factor Ontology (EFO) terms (for example, EFO:0005105 and child terms indicating ‘lipid or lipoprotein measurement’). To further account for traits mapping to similar categories, we iteratively traced back-mapped EFO terms to broader parent terms. We finally classified mQTLs to be ‘specific’ in the GWAS Catalog if they associated with fewer than five parent EFO terms and ‘unspecific’ otherwise.
Integration with cardiovascular endpoints
We next aimed to investigate the shared genetic basis of the 249 NMR and 25 selected CVD traits. We utilized public databases (GWAS Catalog, openGWAS, CVD-KP) to collect CVD data comprising the largest currently publicly available GWAS datasets on CAD and myocardial infarction, angina pectoris, aortic aneurysm, heart failure and stroke, and peripheral arterial disease, including two to five subtypes for some phenotypes (Supplementary Table 13). Data were harmonized and, if necessary, lifted over to GRCh37 using the MungeSumstats (v1.13.2) R package81. We queried mQTL lead variants and proxies in strong LD (r2 > 0.8; LD backbone based on UKB, as described above) of each NMR trait in each region and corresponding summary statistics for each CVD trait.
To investigate ‘locus’ effects, we performed statistical colocalization for all combinations of the NMR traits–CVD traits as described before (see ‘Causal gene assignment’ section).
To estimate ‘level’ effects of NMR metabolite concentrations on CVD outcomes, we performed Mendelian Randomization analysis using the TwoSampleMR package (v0.5.1), implementing the inverse-variance weighted and the MR-Egger methods. We used all 249 NMR metabolites as exposure variables, the 25 CVDs as outcome variables and assessed separately four sets of instruments: (1) sentinel variants, (2) lead credible set variants, (3) lead credible set variants restricted for molecular pleiotropy (for example, ‘pathway pleiotropy’) and (4) lead credible set variants restricted for both molecular and phenotypic pleiotropy. We used the Wald ratio method to estimate the effect of NMR concentrations on CVD outcomes using only single genetic variants85. We used MR-Egger to test for evidence of a pleiotropic association, an intercept P value >0.0001 indicating evidence of no pleiotropy and checked for concordance between the effect estimates of inverse-variance weighted Mendelian randomisation (IVW-MR), MR-Egger and single genetic variant MR. We controlled the FDR at 5% (ref. 86). To further limit the possible extent of pleiotropic associations, we only reported ‘level effects’ passing these filters in the variant sets 2–4, prioritizing the association in the more stringent variant set.
The overlap of ‘locus effects’ showing no ‘disproportional pleiotropy’ according to the section ‘Pleiotropy assignment and overlap with the GWAS Catalog’ as well as a significant single variant MR (FDR 5%) and ‘level effects’ calculated from metabolite-specific or metabolite- and phenome-specific variants was used to identify gene–metabolite pairs associated with CVD risk independent of LDL metabolism. We considered loci as independent from LDL metabolism if they did not associate with clinical LDL cholesterol at the locus with P < 2.0 × 10−10 and the effect estimate of any variant on clinical LDL-C ranked upward the 80th percentile of all effect estimates at the locus.
Whole exome sequencing data QC for rare variant analyses
An in-depth description of whole exome sequencing, including experimental details, variant calling and standard QC measures for the UKB has been extensively reported by Backman et al.87. We performed additional QC steps at the UKB Research Analysis Platform (RAP; https://ukbiobank.dnanexus.com/).
We used bcftools (v1.15.1) to process population-level Variant Call Format (pVCF) files. Initially, we normalized the data using the reference sequence GRCh38 build, followed by splitting multiallelic variants. Subsequently, we conducted QC on these variants using a set of parameters outlined below to filter high-quality variants for downstream genetic analyses. Genotypes for SNPs were set to missing if the read depth was less than 7 (or less than 10 for INDELs) or if the genotype quality was below 20. Furthermore, we excluded variants if the allele balance was less than 0.25 or greater than 0.8 in heterozygous carriers. Finally, we excluded variants with missingness >50%.
Variant annotation and gene burden masks
Variants were annotated using ENSEMBL VEP88 (v106.1) with the most severe consequence for each variant chosen across all protein-coding transcripts. We further utilized additional plugins REVEL89, CADD v1.690 and LOFTEE91 for variant annotation. Based on these scores, we defined six partially overlapping variant masks: (1) high-confidence predicted LoF (pLOF, based on LOFTEE and includes stop-gained, splice site disrupting, and frameshift variants); (2) any pLOF assigned high impact by VEP; (3) pLOF and high-impact missense variants (CADD score >20 or REVEL score >0.5); (4) pLOF and any missense variants; (5) only high-impact variants; and (6) any missense variants but not pLOF. We tested synonymous variants separately as a negative control. We tested each mask in different MAF bins, using 0.5% and 0.005% as thresholds.
We performed rare variant association testing (RVAT) using whole exome sequencing (WES) data across 249 NMR phenotypes using REGENIE (v3.1.1) via the DNAnexus Swiss Army Knife tool (v4.9.1). Similar to common variant GWASs, we used a two-step approach by REGENIE. We additionally generated step 1 leave-one-chromosome-out (LOCO) files with and without adjusting for common signals via a polygenic score (PGS derived from all lead credible set variant per NMR trait) in the RVAT models per phenotype. All RVAT models were then adjusted for PGS in addition to age, biological sex, fasting duration and the first ten genetic PCs. We first performed aggregated gene burden testing across for 19,026 genes using a set of masks as defined above. For gene burden testing, we used the aggregated Cauchy association test to estimate P values for each gene across masks and allele frequency bins. The aggregated Cauchy association test first computes P values for all sets defined by various masks within a gene and then takes these P values as input to compute one P value for the respective gene via a well-approximated Cauchy distribution.
We performed single variant association testing for exonic variants (ExWAS). For the ExWAS, we tested variants with MAC >5 and reported results for variants with MAF <0.0005. We have performed these analyses in individuals of British European, British African and British Central/South Asian ancestry.
We considered findings as robust if they passed multiple-testing-corrected statistical significance (gene burden: P < 1.2 × 10−8 (corrected for the number of genes × number of traits); ExWAS: P < 2.0 × 10−10 (same as for common variant GWAS, conventional genome-wide significance corrected for the number of traits)) in both the model with and without adjusting for the common variant PGS and effect sizes did not differ by more than 20% between these models, as this might otherwise indicate that rare variant findings cannot clearly be distinguished from common variant effects.
Phenotype definition
To systematically test for phenotypic consequences of genes identified through rare variant analysis, we collated 626 disease entities following previous work1 by aggregating information from self-report, HES, death certificates and primary care data (45% of the UKB population). Each disease entity had at least one significant common variant, and we used a similar analysis workflow using REGENIE as described for NMR measures but using logistic regression with saddle point approximation.
Integration of OMIM
We downloaded the OMIM gene–disease list (9 November 2023) and kept 7,327 unique entries after filtering for gene entries with high confidence (level 3). We computed the enrichment of genes associated with any NMR measure from rare variant or gene burden analysis against a background of 19,989 protein coding genes using Fisher’s exact test.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
All individual-level data are publicly available to bona fide researchers via the UKB at https://www.ukbiobank.ac.uk/. Full summary statistics for all analyses are publicly available through the NHGRI-EBI GWAS Catalogue (GWAS Catalog identifiers GCST90497044–GCST90501341; see GitHub repository).
Code availability
Code for the main analyses is freely available via GitHub at https://github.com/comp-med/ukb-mgwas and permanently archived via Zenodo at https://doi.org/10.5281/zenodo.14716599 (ref. 92).
