Abstract
Most animal genomes are partitioned into topologically associating domains (TADs), created by cohesin-mediated loop extrusion and defined by convergently oriented CCCTC-binding factor (CTCF) sites. The dynamics of loop extrusion and its regulation remain poorly characterized in vivo. Here we tracked the motion of TAD anchors in living human cells to visualize and quantify cohesin-dependent loop extrusion across multiple endogenous genomic regions. We show that TADs are dynamic structures whose anchors are brought in proximity about once per hour and for 6–19 min (~16% of the time). Moreover, TADs are continuously extruded by multiple cohesin complexes. Remarkably, despite strong differences in Hi-C patterns across chromatin regions, their dynamics is consistent with the same density, residence time and speed of cohesin. Our results suggest that TAD dynamics is primarily governed by the location and affinity of CTCF sites, enabling genome-wide predictive models of cohesin-dependent chromatin interactions.
Similar content being viewed by others
Main
Genome-wide chromosome conformation capture methods (such as Hi-C1) revealed that mammalian genomes are folded into thousands of topologically associating domains (TADs) spanning 100–1,500 kb2,3,4,5. TADs are characterized by an increased frequency of internal contacts compared to outside their boundaries, appearing as blocks on the diagonal of Hi-C matrices2,3. Additionally, TADs can exhibit contact frequency peaks at their corners, interpreted as signatures of chromatin loops. Both TADs and loops depend on the cohesin complex, as the removal of its subunit RAD21 results in their genome-wide disappearance6,7. These structures arise from loop extrusion, wherein cohesin progressively enlarges a DNA loop by consuming ATP6,8,9,10,11. This process is halted by CCCTC-binding factor (CTCF) proteins bound to their respective sites in converging orientation, which define TAD boundaries by acting as barriers to cohesin4,6,12,13,14,15,16. Loop extrusion has an important role in key nuclear functions such as gene expression regulation17,18,19,20,21,22, DNA repair23,24 and V(D)J recombination25; therefore, characterizing extrusion dynamics is essential to understand these processes. Critical questions include how frequently genomic regions undergo extrusion, how frequently and for how long boundaries come into contact and how rapidly DNA is extruded6,10,11,26,27. It also remains open how loop extrusion is regulated across the genome and whether factors beyond CTCF or cohesin modulate TAD dynamics.
TADs and loops are usually characterized using bulk Hi-C, which averages contacts over millions of fixed cells at a single time point. Although single-cell Hi-C28 and multiplexed DNA fluorescence in situ hybridization29,30,31,32 revealed cell-to-cell variability in chromatin structure, these techniques cannot directly characterize loop extrusion dynamics. Real-time visualization of loop extrusion in vitro measured cohesin-mediated extrusion speeds of 0.5–1 kb s−1 (refs. 10,11). However, it remains uncertain whether extrusion occurs at a similar rate in living cells, where many factors may slow down or accelerate this process. Likewise, other factors (for example, WAPL or STAG subunits) can potentially tune the loading and release rates of cohesin in vivo33,34,35,36. Two recent studies in living mouse embryonic stem cells (mESCs) provided crucial insights, revealing that TADs are dynamic structures whose anchors contact only rarely and briefly26,27. Being limited to a single locus each, however, these studies did not reveal how extrusion dynamics is regulated across the genome. Additionally, mESCs differ from differentiated cells37,38,39, including less condensed chromatin and a short G1 phase (~1–2 h40). Thus, a broader characterization of loop extrusion in living human cells is needed.
Here we use live-cell microscopy and polymer simulations to visualize and quantitatively characterize cohesin-dependent loop extrusion across multiple endogenous TADs in human HCT116 cells. We show that TAD anchors are frequently brought together by loop extrusion, but only briefly. Moreover, we find that TADs are almost always folded into multiple loops, extruded by several cohesin complexes simultaneously. Finally, we provide evidence that cohesin dynamics is uniform across multiple genomic regions rather than locally tuned, and that TAD dynamics is primarily governed by CTCF binding.
Results
Visualizing the dynamics of TAD anchors
To visualize cohesin-mediated chromatin looping in living cells, we labeled endogenous TAD anchors by CRISPR-mediated insertion of TetOx96 and CuOx150 arrays, respectively bound by TetR-splitGFPx16-NLS and CymR-NLS-2xHalo, imaged with the bright and photostable dye JFX646 (ref. 41; Fig. 1a,b).

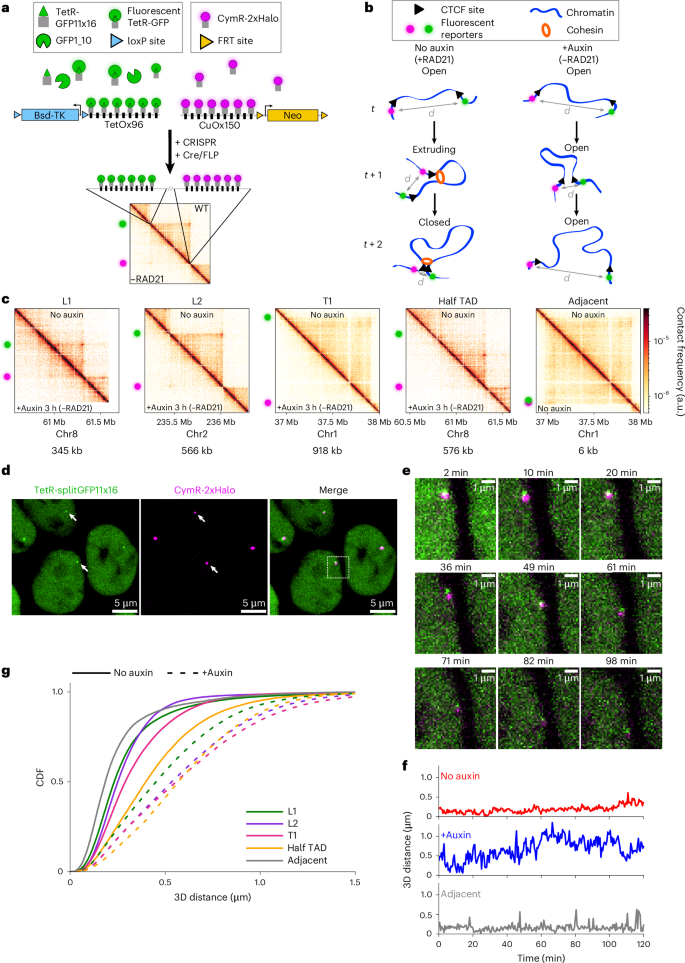

a, TetOx96 and CuOx150 repeat arrays were inserted at TAD anchors in HCT116 cells and visualized using TetR-splitGFPx16 (GFP11 and GFP1_10) and CymR-2xHaloJFX646, respectively. Multimerized GFP11 fragments are not shown for clarity. Antibiotic cassettes (Bsd-TK and Neo) were removed by Cre (through loxP sites) and FLP (through FRT sites) recombinases to avoid interference of transcription with loop extrusion. A Capture Micro-C contact map corresponding to TAD L2 is shown. b, Cells were imaged without or with auxin treatment, which leads to RAD21 depletion. The 3D distance (d) between the two fluorescent reporters was computed as function of time. In absence of auxin, the chromatin region between the two anchors is in one of three states: open (no loop), extruding (that is, containing one or more DNA loop(s)) or closed (the two anchors are maintained in direct contact). c, Capture Micro-C maps of cells left untreated or treated with auxin for 3 h. Green and magenta spots indicate the genomic locations of the inserted repeat arrays. The genomic distance between TAD anchors is indicated below each Micro-C map. All Micro-C maps show a 1,125-kb region, at 2-kb resolution. The T1 Micro-C map was used to illustrate the Adjacent locus. The white space in the L1 map corresponds to a region that was not covered by capture probes. d, Live-cell images of L1 TAD anchors at t = 0 min. The arrows indicate spots that were identified as not replicated. Example image from 1 of 30 image time series. Scale bars = 5 µm. e, Time-lapse images of the region inside the dotted white box in d. Scale bars = 1 µm. f, Time series of 3D anchor–anchor distances of the L1 TAD in untreated cells (red, corresponding to images in d and e) or auxin-treated cells (blue) and the adjacent locus (gray). g, CDF of 3D anchor–anchor distances. All images are maximum-intensity projections of 20 z-stacks. CDF, cumulative distribution function; a.u., arbitrary units.
TADs span a large range of genomic sizes and exhibit a diversity of Hi-C patterns42,43,44. To account for this, we selected TADs with distinct sizes and Hi-C patterns: L1 (345 kb) and L2 (566 kb) display a strong corner peak characteristic of a loop, while T1 (918 kb) lacks a corner peak (Fig. 1c). All three domains exhibited chromatin immunoprecipitation followed by sequencing (ChIP–seq) peaks of SMC1, RAD21 and CTCF at both anchors and at least one pair of convergent and bound CTCF sites. L1 and L2 anchors each contained only one to two strong CTCF sites, while T1 contained one strong CTCF site and four weak CTCF sites at its anchors. Although all three TADs were located within the transcriptionally active A compartment, L1 and L2 exhibited weak signal for the repressive H3K27me3 histone mark, whereas T1 showed higher levels of H3K27me3 (Extended Data Fig. 1a). Moreover, these TADs lacked genes and enhancers at their anchors and displayed little or no gene expression. We also used Cre-mediated and flippase (FLP)-mediated recombination to eliminate transcription from the antibiotic resistance genes used for selecting repeat array integration, thus avoiding potential interferences of transcription with loop extrusion45 (Fig. 1a and Extended Data Fig. 1a). We additionally generated two control cell lines. The first, hereafter called ‘half TAD’ (576 kb, similar to L2), has one of the two labeled loci outside the TAD, far from CTCF sites (Extended Data Fig. 1a). Therefore, prolonged contacts between these two loci are not expected. The second, hereafter called ‘adjacent’, features two fluorescence reporters genomically adjacent to each other (midarray distance of 6 kb) to approximate anchors in close spatial proximity (Fig. 1c).
We first confirmed, using Capture Micro-C, that fluorescent tagging of chromatin did not disrupt TAD formation (Extended Data Fig. 1b,c). Then, we used spinning disk confocal microscopy to image live cells in three-dimensions (3D), every 30 s during 2 h (Fig. 1b,d,e and Supplementary Video 1). We excluded cells containing replicated spots to only examine cells in G1 or early S phase, and we detected, localized and tracked fluorescent spots, and computed their 3D distance as function of time (Fig. 1d–f and Extended Data Fig. 2a–g). Notably, we computed the fundamental localization precision limit46 for each fluorescent spot, allowing us to estimate uncertainties in distance measurements. We obtained 150–694 time series per locus and experimental condition, totaling 12,269–93,431 measured distances for each, with mean uncertainties of 70–105 nm (Extended Data Fig. 2d and Supplementary Table 1).
To analyze the effect of cohesin, we homozygously inserted the auxin-dependent degron mini-AID47 in the endogenous RAD21 gene. Auxin treatment resulted in efficient and rapid cohesin depletion of 91% and >94% after 1 and 3 h, respectively (Extended Data Fig. 3a–e), while minimizing basal degradation thanks to the AtAFB2 ubiquitin ligase48,49 (on average 80% of endogenous RAD21 level remained in untreated cells; Extended Data Fig. 3d,f). As expected, auxin treatment led to TAD disappearance (Fig. 1c), and to increased anchor–anchor distances and chromatin motion (Fig. 1g and Extended Data Fig. 3g,h), in agreement with prior experiments6,26,27,50. Thus, we could visualize endogenous TAD anchors in living cells and track their 3D distance over time, in the presence or the absence of cohesin.
TADs are dynamic structures
At any given time, a pair of anchors occupies only one of the following three states: (1) the open state, where the DNA between the anchors is free of loops; (2) the extruding state, where one or more loops are being extruded; and (3) the closed state, where the DNA between anchors is fully extruded and the anchors are maintained in direct contact (Fig. 1b). We first aimed to quantify the fraction, frequency and lifetime of closed states.
Accurately identifying closed states is challenging because stochastic motion of chromatin can bring the anchors in close proximity even without loop extrusion (Fig. 1f). Additionally, distance measurements are affected by noise from random localization errors and the genomic distance between reporters and anchors51,52. Thus, as a proxy for closed states, we defined ‘proximal states’ as temporally sustained intervals during which anchor–anchor distances remained small (Fig. 2a and Extended Data Fig. 4a). We segmented time series into proximal states using a method involving a spatial and temporal threshold (Supplementary Table 2), previously validated on polymer simulations51. In untreated cells, we determined average proximal state fractions of 17% for L1, 16% for L2 and T1 and 8% for half TAD (Fig. 2b). Auxin treatment reduced these fractions by 3.1-fold to 3.9-fold, highlighting the importance of cohesin in establishing long-range chromatin interactions (Fig. 2b). Distances in the Adjacent locus were the smallest (Fig. 1g), but slightly larger than expected, as previously observed for adjacent chromatin loci26,27, possibly due to increased chromatin stiffness at repeat arrays (Extended Data Fig. 4b,c). Nevertheless, the Adjacent locus exhibited the highest fraction of proximal states (44%; Fig. 2b).
a, Time series of 3D anchor–anchor distances with or without auxin treatment. The blue bar indicates segmented proximal states. b–d, Fraction (b), frequency (c) and lifetime (d) of proximal states. In b and c, bars represent means and errors bars show the 2.5–97.5 percentile ranges of 10,000 bootstrap samples. ***P < 0.001, two-sided Mann–Whitney U test. Exact P values can be found in Source Data. In d, data are represented as mean ± 95% confidence interval. The number of time series for each condition can be found in Supplementary Table 1. e, Fraction of each loop state in untreated cells, estimated from an analytical model of anchor–anchor vectors. The black cross indicates the median and violin plots extend from the minimum to the maximum of n = 10,000 bootstrap samples. ***P < 0.001, post hoc Dunn’s test corrected with Bonferroni correction to adjust for multiple comparisons after a Kruskal–Wallis test. Exact P values can be found in Source Data.
Next, we estimated the frequency of proximal states, that is, the number of transitions to proximal states per hour. Proximal states occurred on average 1.1–1.2 h−1 for L1, L2 and T1, 0.6 h−1 for half TAD and 2.3 h−1 for the Adjacent locus while auxin-treated cells exhibited lower frequencies (~0.4 h−1), as expected (Fig. 2c). Finally, we estimated mean proximal state lifetimes of 9.8 min for L1 and T1, 9.4 min for L2 and 8.7 min for half TAD, and the longest lifetimes (16.6 min) for the Adjacent locus (Fig. 2d and Extended Data Fig. 4d). Auxin treatment shortened lifetimes by only ~1.3-fold (Fig. 2d), a counterintuitive result that nonetheless agrees with polymer simulations (Extended Data Fig. 4e).
To assess the robustness of these estimates on the temporal threshold, we varied it such that proximal state fractions in auxin-treated cells ranged from 1% to 10%. In untreated cells, this resulted in mean proximal state fractions of 8–26%, 8–25%, 7–24% and 3–12% for L1, L2, T1 and half TAD, respectively (Extended Data Fig. 4f). Therefore, proximal states always represented a minor fraction of loop states. The mean proximal state frequency varied in the range of 0.3–2.7 h−1 for L1 and L2, 0.3–2.6 h−1 for T1 and 0.2–1.4 h−1 for half TAD (Extended Data Fig. 4g). Although mean proximal state lifetimes slightly depended on the threshold, their averages remained within the ranges 6–19 min for L1 and T1, 6–16 min for L2 and 5–15 min for half TAD (Extended Data Fig. 4h).
In summary, we found that proximal states between TAD anchors occur about 3–27 times during a 10-h G1 phase and last for 6–19 min, for a total of 0.8–2.6 h in G1.
TADs are constantly extruded
We then quantified the fractions of each loop state (proximal, open and extruding) using a different method, also validated on simulations, which relies only on the distribution of anchor–anchor vectors and on knowing the proximal and open state distributions separately51 (Extended Data Fig. 5a). We used segmented proximal states in untreated cells for the former distribution and data from RAD21-depleted cells for the latter.
In auxin-treated cells, we estimated open state fractions of 89–94%, proximal state fractions of 9–11% for L1, L2 and T1 and 5% for half TAD (similar to estimates obtained by segmenting proximal state intervals; Fig. 2b), and extruding state fractions of 0% for all four regions (Extended Data Fig. 5b), consistent with the disappearance of chromatin loops following RAD21 depletion6 (Fig. 1c). In untreated cells, proximal state fractions increased to 24%, 21%, 16% and 9% for L1, L2, T1 and half TAD, respectively (Fig. 2e), in agreement with our previous results (Fig. 2b). Most strikingly, we found that the open state was completely absent in L1 and L2 (median state fractions of 0%) and accounted for only 11% in T1 and 42% in half TAD (Fig. 2e). By contrast, we estimated extruding state fractions of 76%, 79%, 73% and 49% for L1, L2, T1 and half TAD, respectively. This quasi-absence of open states in TADs was confirmed by a model-free analysis showing that open state fractions cannot exceed 18%, 4% and 5% for L1, L2 and T1, respectively (Extended Data Fig. 5c). These findings indicate that TADs are rarely, if ever, in a completely relaxed (open) state but almost continuously undergo cohesin-dependent loop extrusion.
Quantification of TAD dynamics is robust to spatiotemporal resolution
Quantifications of TAD dynamics from live-cell microscopy inevitably face limits in spatiotemporal resolution. To evaluate the impact of these limitations on our conclusions, we first compared experimental time series with polymer simulations (described below) that included or excluded localization errors. Distance fluctuations primarily arose from stochastic chromatin motion rather than from localization errors, indicating that our measurements reflect biological variations in anchor distances (Extended Data Fig. 6a–c).
Second, we applied a stringent quality filtering to raw distance time series, which eliminated on average threefold more time points (22–70% versus 8–26%) than in the original dataset (Extended Data Fig. 6d,e,g,h). Despite this reduced measurement noise, the estimated fractions of proximal states remained close to our initial estimates: 13–15% with stringent filtering versus 16–17% originally for L1, L2 and T1, and 6% versus 8% for half TAD. Similarly, proximal state frequencies and lifetimes, as well as the loop state fractions, were largely unaltered (Extended Data Fig. 6d,e).
Third, we acquired live-cell images at a higher frequency (one image per 9 s instead of 30 s) for L2 and half TAD. Strikingly, proximal state fractions remained similar: 14% versus 16% for L2 and 9% versus 8% for half TAD in the high frequency and original datasets, respectively. Likewise, proximal state frequencies, lifetimes and loop state fractions remained largely unaffected (Extended Data Fig. 6d,f). Thus, our findings that proximal states are transient and that TADs most often undergo extrusion are robust to both spatial and temporal resolution.
TAD anchors are brought together at rates of ~0.1 kb s−1
Next, we aimed to determine the speed at which TAD anchors are brought together. We hereafter distinguish the two following quantities, both expressed in bp s−1: (1) the motor speed, that is, the molecular speed at which cohesin pulls out DNA strands to form a loop (estimated at 0.5–1 kb s−1 in vitro10,11) and (2) the closing rate (CR), that is, the rate at which the unextruded DNA between anchors is reduced (Fig. 3a). For a single cohesin complex extruding DNA without obstacles, the CR equals the motor speed. However, in the presence of multiple cohesin complexes and internal CTCF sites where cohesin can stall, these quantities may differ.

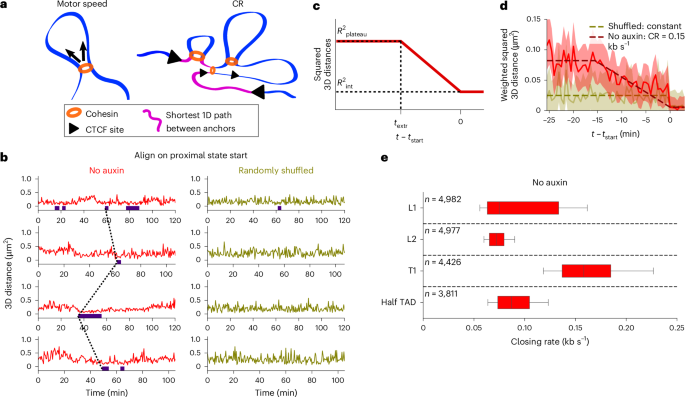

a, Cohesin motor speed and CR are two different measures of extrusion speed. The cohesin motor speed is the number of DNA base pairs extruded by a single cohesin complex per unit time on DNA devoid of obstacles such as CTCF sites (left). The CR measures the rate at which the effective loop-free DNA between TAD anchors—the shortest 1D path between them (pink)—decreases due to extrusion (right). The CR reflects the action of single or multiple cohesin complexes extruding simultaneously, as well as cohesin stalling at internal CTCF sites. Cohesin complexes not involved in the shortest 1D path do not contribute to the CR. b, Distance time series of the T1 TAD without auxin treatment before (left) and after (right) random shuffling of time points. Indigo bars indicate segmented proximal state intervals. Dotted lines indicate alignment of the starting times of proximal states (\({t}_{{\rm{start}}}\)) across single time series. c, Fitting strategy to determine CRs. A piecewise linear model with three parameters (\({R}_{{\rm{plateau}}}^{2},\,{R}_{\mathrm{int}}^{2},\,{t}_{{\rm{extr}}}\)) is fitted to the mean squared 3D anchor–anchor distances as function of time after alignment to \({t}_{{\rm{start}}}\). The slope of the linear decrease defines the CR. d, Aligned time series of mean-squared 3D distances measured on the T1 TAD, weighted by localization precisions, before (red, n = 46 time series) or after (olive, n = 19 time series) random shuffling. The piecewise linear fit is shown as a dashed line. The shaded area represents the weighted s.e.m. e, CRs estimated from time series of untreated cells. Box plot lines show the median, lower and upper quartiles, and whiskers extend from 10th to 90th percentiles; n indicates the number of bootstrap samples including at least 15 time series and associated with nonconstant distances out of a total of 5,000 bootstrap samples.
We first focused on the CR. Reasoning that time points preceding closed states should be undergoing extrusion, we aligned distance time series on the start of proximal states51 (\({t}_{{\rm{start}}}\)), ignoring proximal states preceded by another one (Fig. 3b). The progressive decrease in anchor–anchor distance expected from extrusion can be obscured by stochastic chromatin motion and localization errors51. To reduce these fluctuations, we averaged many time series51 and fitted a constant plateau followed by a linear decrease to the averaged squared distances (Fig. 3c). We used the slope to estimate the CR unless the decrease was not supported by at least three time points (Extended Data Fig. 7a).
As a control, we randomly shuffled all time points within a single time series, thereby destroying any signature of processive dynamics (Fig. 3b,d). Randomly shuffled time series were consistent with constant distances, as expected, in ~90% of bootstrap samples. By contrast, ~97% of bootstrap samples in unshuffled time series showed a linear decrease, as expected from processive loop extrusion (Extended Data Fig. 7b). We estimated median CRs of 0.07 kb s−1 for both L1 and L2, 0.16 kb s−1 for T1 and 0.09 kb s−1 for half TAD (Fig. 3e) and similar CRs of 0.08–0.14 kb s−1 using time series with stringent quality filtering (Extended Data Fig. 6d,e).
Because the relation between CR and cohesin motor speed is complicated by the locus-specific locations and binding affinities of CTCF sites, we then turned to polymer simulations to better understand the impact of cohesin dynamics on TAD structure and motion.
Polymer modeling of cohesin-dependent and CTCF-dependent TAD dynamics
To investigate how cohesin dynamics, together with CTCF site locations and affinities, affect contact patterns and TAD anchor dynamics, we simulated 2.6-Mb-long polymers centered on each genomic region, accounting for cohesin and CTCF binding dynamics to chromatin. We independently varied cohesin residence times (2–33 min), density (1–40 Mb−1), considered two motor speeds (0.25 and 1 kb s−1) and assumed that cohesin stalls at CTCF with 50% probability (Fig. 4a), encompassing previous estimates9,26,27,35,53,54,55,56,57,58. CTCF ChIP–seq peaks were used to determine the local residence time of CTCF at each binding site, assuming a genome-wide residence time of 2.5 min53,59 (Fig. 4b).

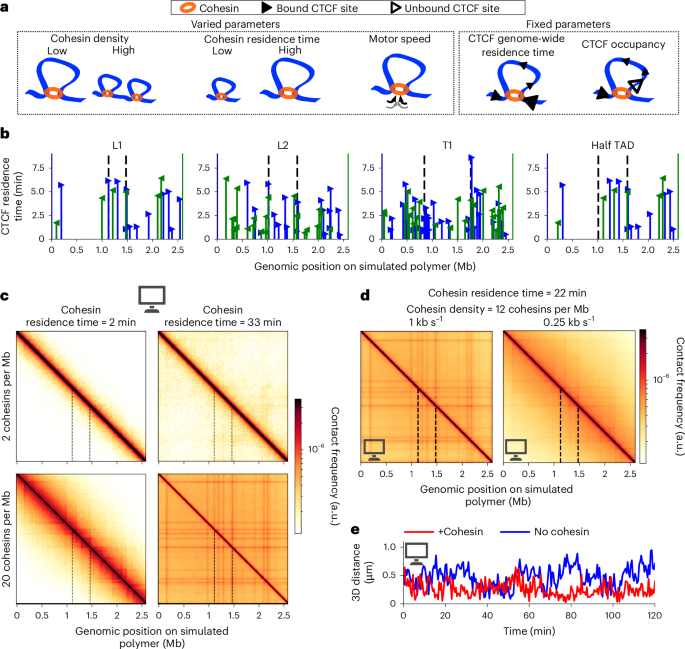

a, Parameters used to model loop extrusion in polymer simulations. Three parameters characterizing cohesin dynamics (density, residence time and motor speed) were varied systematically, while the CTCF genome-wide residence time and occupancy of CTCF sites were held constant. b, CTCF residence times used for simulations at the four genomic regions. The color and orientation of arrowheads indicate CTCF site orientation, with height reflecting CTCF residence time. c,d, Contact maps from polymer simulations of the L1 TAD for different combinations of cohesin residence time, density and motor speed. In c, the motor speed is fixed to 1 kb s−1; in d, the cohesin density and residence time are fixed to 12 Mb−1 and 22 min, respectively. In b–d, dashed black lines indicate the location of TAD anchors (or of fluorescence reporters for the half TAD locus). e, Simulated 3D anchor–anchor distance time series of the L1 TAD. Simulations include random localization errors and photobleaching consistent with experiments, and reporter–anchor separations. Simulations assume a cohesin density of 12 Mb−1, a residence time of 22 min and a motor speed of 0.25 kb s−1. Panels c–e were created in part with BioRender.com.
From the simulated polymer conformations, we computed contact maps and p(s), the averaged contact frequencies as function of genomic distance s. The simulated contact maps featured TADs, corner peaks and stripes (Fig. 4c). Longer cohesin residence times yielded longer loops and flatter p(s) curves, while higher cohesin densities produced sharp stripes and increased overall contact frequencies (Extended Data Fig. 8a). Reducing cohesin motor speed from 1 to 0.25 kb s−1 at constant residence time shortened loops, reflecting reduced genomic processivity (Fig. 4d).
Next, we generated simulated time series of anchor–anchor distances, including reporter–anchor separations and random localization errors consistent with experiments, and increasing with time due to photobleaching. Even without extrusion, stochastic polymer motion occasionally brought anchors together (Fig. 4e). Notably, closed state fractions did not exceed 12%, even at a cohesin density of 40 Mb−1 (Extended Data Fig. 8b). Nevertheless, increasing cohesin density reduced overall distances, and six cohesin complexes per Mb sufficed to reduce distances by ~50% (Extended Data Fig. 8c). The collective action of multiple cohesin complexes therefore greatly contributed to reducing anchor–anchor distances.
Increasing cohesin density constrained anchor motion, as reflected by a decrease in the plateau of two-point mean-squared displacement (MSD) curves (Extended Data Fig. 8d), in agreement with previous studies26,27. Interestingly, cohesin residence time had a nonmonotonous effect. For intermediate residence times (10–20 min), cohesin complexes reached TAD anchors and constrained their motion. By contrast, shorter or longer residence times caused cohesin complexes to fall off before reaching anchors or to bypass them, respectively, in both cases reducing constraints on anchor motion (Extended Data Fig. 8d–f). Polymer simulations thus predict the complex interplay between cohesin dynamics and CTCF site locations and affinities.
CTCF binding and uniform cohesin dynamics govern TAD dynamics
Analyzing multiple genomic regions allowed us to ask whether cohesin dynamics varies across the genome. Using polymer simulations, we determined the cohesin parameters consistent with both live-cell imaging and Micro-C data, considering the four chromatin regions independently. Differences between these parameters across genomic domains may indicate locus-specific and CTCF-independent regulation of TAD dynamics, whereas similar values would indicate uniform cohesin dynamics across these regions.
For Micro-C data, we considered the p(s) curve and, for imaging data, we considered two-point MSD curves, anchor–anchor distances, and fractions, frequencies and lifetimes of proximal states (Extended Data Fig. 9a). We varied cohesin density and residence time, initially assuming a motor speed of 1 kb s−1, and computed the deviation of polymer simulations from experimental data (Fig. 5a). Before analyzing experiments, we validated our parameter estimation method with polymer simulations. We successfully recovered the ground truth cohesin density for residence times longer than 5 min, covering the 5–24-min range of experimental estimates35,53,55,57,58, and identified a broad range of cohesin residence times that correctly encompassed the ground truth value (Extended Data Fig. 9b). Thus, our approach accurately estimated cohesin density and provided a broad but reliable range for residence times. Turning to experiments, we first separately considered Micro-C and live-cell imaging data. The best parameter combinations estimated separately from Micro-C or imaging datasets were in excellent agreement with each other for L1 and L2, and overlapped for T1 and half TAD (Fig. 5b), thereby providing reciprocal validation from two completely orthogonal experimental techniques.

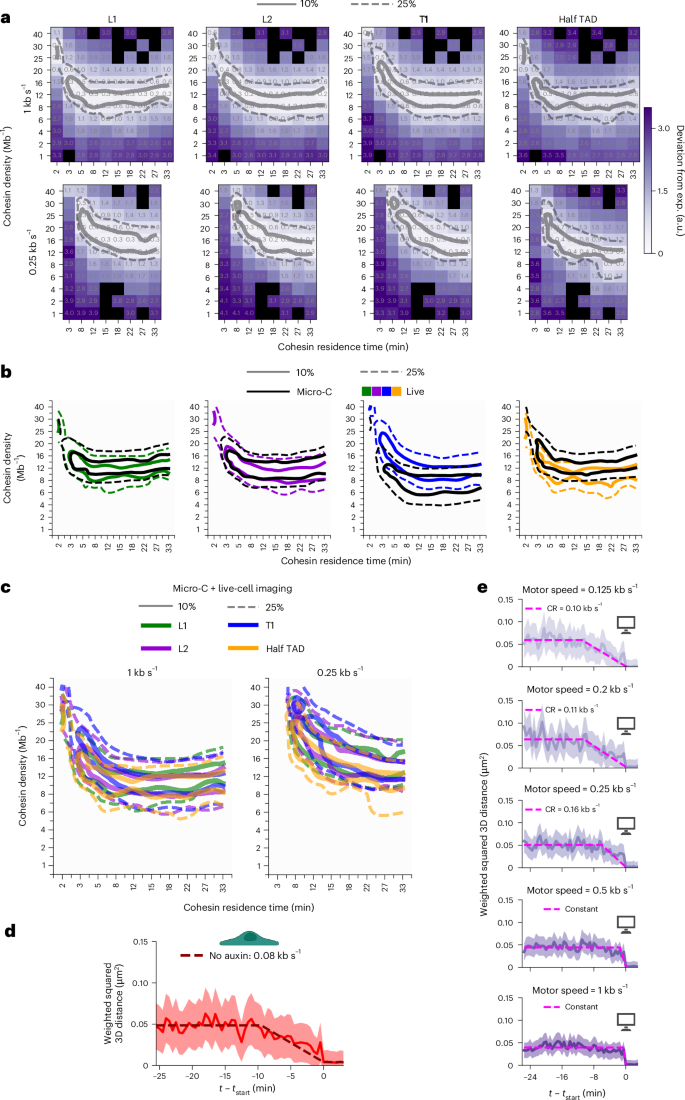

a, Deviation of simulations from experiments, assuming a cohesin motor speed of 1 kb s−1 (top) or 0.25 kb s−1 (bottom). Black squares correspond to nonassessed parameter combinations. b, Deviation of simulations from experiments, separately considering Micro-C (black) or live-cell imaging (colors) data, and assuming a cohesin motor speed of 1 kb s−1. c, Superposed contour plots for all genomic regions, based on Micro-C and live-cell imaging data taken together, for a motor speed of 1 kb s−1 (left) or 0.25 kb s−1 (right). In a–c, solid and dashed lines indicate the 10% and 25% best parameter sets, respectively. d,e, Average squared 3D anchor–anchor distance time series weighted by localization precision, aligned on the starting times of proximal states (\({t}_{{\rm{start}}}\)), from experiments (d) and simulations (e) of the L1 TAD. The shaded area indicates the weighted s.e.m. Simulations (e) assume cohesin motor speeds ranging from 0.125 kb s−1 (top) to 1 kb s−1 (bottom), as indicated, and assume a cohesin density and residence time of 12 Mb−1 and 22 min, respectively. Dashed lines show a fitted piecewise linear function used to estimate the CR. For simulations with motor speeds of 0.5 and 1 kb s−1, the time series do not exhibit a linear decrease and CR cannot be estimated. Panels d and e were created in part with BioRender.com.
We then analyzed Micro-C and live-cell imaging data together. Strikingly, cohesin parameters estimated independently across the four chromatin regions largely agreed with each other (Fig. 5c). Thus, the observed dynamics of these four regions could be reproduced using the same cohesin density and residence time, with differences in anchor dynamics arising solely from differences in CTCF binding. In auxin-treated cells, the different metrics used to compute the deviation between simulations and experiments yielded divergent parameter estimates (Extended Data Fig. 9c), suggesting that a biological process not included in our simulations may influence chromatin dynamics in the absence of cohesin, whereas loop extrusion dominates TAD anchor dynamics in the presence of cohesin.
We then sought to estimate cohesin motor speed. Because both motor speeds of 1 and 0.25 kb s−1 allowed similar agreements between experiments and simulations (Fig. 5a and Extended Data Fig. 9d), we turned to a different approach and compared CRs measured in experiments to simulations with cohesin motor speeds of 0.125, 0.2, 0.25, 0.5 or 1 kb s−1 (Fig. 5d,e). For computational tractability, we only varied the motor speed, setting cohesin density to 12 Mb−1 and residence time to 22 min, a parameter combination consistent with experiments for motor speeds of both 0.25 and 1 kb s−1 (Fig. 5c). We first considered distance time series generated by simulations with varying motor speeds. For motor speeds of 0.5 and 1 kb s−1, we failed to detect the progressive reduction in distances expected from loop extrusion (68% of bootstrapped samples yielded flat profiles; Fig. 5e and Extended Data Fig. 9e). Therefore, speeds of 0.5 kb s−1 or higher cannot be measured at our imaging frequency (Extended Data Fig. 9e–g). At speeds of 0.125, 0.2 and 0.25 kb s−1, however, we could detect the expected distance decrease for all four genomic regions (in ~86% of bootstrap samples; Extended Data Fig. 9e). Critically, we consistently detected this linear decrease in experimental data from all genomic regions (~97% of bootstrap samples; Extended Data Fig. 7b). Thus, our analysis indicates that cohesin extrudes DNA at speeds below 0.5 kb s−1 in living cells.
Together, our results argue against strong variations in cohesin density and instead indicate that this parameter is uniform across different genomic regions. While we cannot rule out differences in residence times or motor speeds across regions, our data are also consistent with uniform values of these parameters. Therefore, the observed variations in TAD dynamics across different genomic regions can be explained without major changes in cohesin dynamics, but rather by differences in CTCF site locations and binding strengths.
Implications for TAD dynamics
To further characterize TAD dynamics, we analyzed polymer simulations consistent with experimental data. We fixed cohesin density, residence time and motor speed to 12 Mb−1, 22 min and 0.25 kb s−1, respectively, a parameter combination matching experimental data across all four regions (Fig. 5c). Using these parameters, simulations reproduced experimental contact maps (Fig. 6a) and p(s) curves (Extended Data Fig. 9h), two-point MSD curves (Extended Data Fig. 9i) and anchor–anchor distance distributions (Fig. 6b,c) for L1, L2 and T1 at once, although agreement was poorer for half TAD (Fig. 5a). Notably, closed state fractions were <1% for all TADs, indicating that direct anchor–anchor contacts are rare (Extended Data Fig. 10a–e).
a,b, Contact maps (a) and distance distributions (b) from experiments and simulations. Contact maps display a 1,125-kb region centered around TAD anchors (indicated by the green and magenta spots), at 2-kb resolution. c, Anchor–anchor 3D distance time series (red) from polymer simulations. The length of the shortest 1D path (unextruded DNA length) connecting TAD anchors is shown in gray. Green and purple rectangles indicate closed states and segmented proximal states, respectively. d, Snapshots of 1D representations of extruding loops. Red curves show the shortest 1D path between TAD anchors. Black vertical dotted lines indicate the location of TAD anchors. Blue and green lines with arrowheads indicate CTCF sites as in Fig. 4b. Simulations assume a cohesin density of 12 Mb−1, a residence time of 22 min and a motor speed of 0.25 kb s−1. Panels a, c and d were created in part with BioRender.com.
We estimated the number of loops connecting TAD anchors by computing the shortest one-dimensional (1D) (unextruded) DNA path between them. TAD anchors were connected by 2.5–3.7 internal loops on average (Fig. 6d, Extended Data Fig. 9j and Supplementary Video 2) and separated by 112, 128 and 161 kb of unextruded DNA for L1, L2 and T1, respectively. Thus, despite a 2.7-fold size difference between these TADs (345–918 kb), their unextruded DNA length varied by only 1.4-fold, suggesting that loop extrusion tends to homogenize effective genomic distances (Extended Data Fig. 8h). Counterintuitively, DNA sequences outside TADs and up to 600 kb from the anchors could also contribute to the shortest 1D path (Fig. 6d and Supplementary Video 2). Thus, the dynamics of TADs can be influenced by CTCF and cohesin positioned far from TAD anchors, highlighting the importance of neighboring regions for cohesin-dependent chromatin interactions at a specific locus.
Discussion
We used live-cell microscopy to track the motion of endogenous TAD anchors at multiple genomic regions in human cells, in the presence or absence of cohesin. We quantitatively characterized TAD dynamics and used polymer simulations to estimate the parameters of cohesin dynamics governing DNA loop extrusion.
First, our data show that TADs are highly dynamic structures and that anchor–anchor contacts are transient. We thereby extend findings from mESCs26,27 to human cells, which have a ~tenfold longer G1 phase. For TADs of 345–918 kb, our analysis indicates that their anchors are in proximity for 7–26% of the time, but that direct anchor–anchor contacts are rare (closed state fractions of 0–1%; Table 1). This is consistent with previous results in mESCs where closed state fractions ranged from 2–3% for an endogenous 505 kb TAD26 to 20–31% for a strong synthetic 150-kb TAD27. We further estimated proximal state durations of 6–19 min, again in agreement with lifetimes of 5–45 min in mESCs26,27, despite the different species and analysis methods. While proximal states are transient, our data indicate that they are relatively frequent, because we estimated that TAD anchors come into proximity 0.3–2.7 times per hour, that is, 3–27 times during a 10 h-long G1 phase. Thus, our results establish the highly dynamic nature of TADs in human cells, suggesting that the dynamic process of loop extrusion itself is functionally more important than anchor–anchor interactions (Fig. 7).
Cohesin dynamics is uniform across multiple genomic regions. The figure was created in part with BioRender.com.
Second, we found that TADs are predominantly in a partially extruded state, almost constantly undergo loop extrusion, and are rarely, if ever, in a fully open state (Table 1 and Fig. 7). This agrees with a previous estimate of 92% extruding state in mESCs26, and supports a model where TADs emerge from a collection of growing loops rather than from a single loop, with several cohesin complexes simultaneously bound within a single TAD60.
Third, our study provides constraints on the speed of DNA loop extrusion in vivo. We determined CRs of 0.07–0.16 kb s−1 and an upper bound for the cohesin motor speed of 0.5 kb s−1, which agrees with a previous estimation of 0.125 kb s−1 in mESCs26, but is slower than the 0.5–1 kb s−1 measured in vitro with purified proteins10,11. This deceleration in vivo possibly results from the crowded chromatin environment (for example, nucleosomes acting as roadblocks61) or from cellular factors directly reducing cohesin motor speed.
Fourth, polymer simulations indicate a cohesin density of 12–18 Mb−1 (Table 1), in line with previous estimations of 4–8 Mb−1 (refs. 9,26,54,62), 9–15 Mb−1 (ref. 59) or 8–32 Mb−1 (ref. 27). This corresponds to 2.8–4.1 cohesin complexes simultaneously bound within a ‘median’ loop of 230 kb. Our estimates translate into ~74,000–112,000 chromatin-bound cohesin complexes extruding the 6.2-Gb-long human genome of the diploid HCT116 cells in G1, aligning with absolute quantifications of cohesin complexes (43,000–114,000 for a virtually ‘diploid’ HeLa cell)55. The estimated densities further confirm that multiple cohesin complexes simultaneously extrude loops within single TADs.
Fifth, our analyses are consistent with cohesin residence times ranging from 15 to 25 min (Table 1), in accordance with previous estimations of 3–25 min27,35,53,55,56,57,58. Combined with the estimated cohesin density and an assumed motor speed of 0.25 kb s−1, and taking into account stalling at CTCF sites, this predicts effective genomic processivities of 190–340 kb, intersecting previous estimations of 120–240 kb9,26. The estimated cohesin loading rates fell between 0.5 and 1.2 Mb−1 min−1 (Extended Data Fig. 8i), narrower than previous estimates of 0.06–1.2 Mb−1 min−1 in mESCs27. Thus, within a median 230-kb loop, a total of 69–166 cohesin complexes extrude loops during a 10-h G1 phase. We note that these parameters agree with experimental observations of cohesin binding kinetics after mitotic exit6,63 (Extended Data Fig. 9k).
Sixth, our study analyzed multiple genomic regions featuring different CTCF site distributions, histone marks, Hi-C patterns and dynamics with the same methods, allowing us to compare extrusion dynamics and their determinants across chromatin regions. Strikingly, we found that their strong differences can be largely explained by a single combination of cohesin density, residence time and motor speed. Polymer simulations indicate that differences between regions mainly result from the different locations and strengths of CTCF sites rather than from local variations in cohesin dynamics. Thus, our study suggests uniform dynamics of cohesin across the genome, rather than local regulation (Fig. 7). Moreover, the consistency of our estimates with previous studies in mESCs raises the possibility that cohesin dynamics is conserved among mammalian species26,27. At the same time, these results suggest the crucial and potentially exclusive regulatory role of CTCF in controlling TAD dynamics. Because the sole knowledge of CTCF site locations and affinities appears sufficient to quantitatively predict TAD dynamics from polymer physics, our study enables predictive models of loop extrusion across the genome, and of nuclear functions such as enhancer–promoter contacts regulating gene transcription19,20,64.
Nonetheless, we acknowledge several limitations. First, our conclusions are based on only three genomic regions, with particularly strong TADs (Extended Data Fig. 1d,e). Hence, some quantitative estimates (for example, proximal state fraction, frequency and lifetime) may be larger than for an ‘average’ TAD. Second, these regions were all located in the A compartment. Although a previous study suggested that differences in Hi-C patterns between A and B compartments result from differences in CTCF binding rather than from differences in cohesin dynamics65, it remains important to assess cohesin dynamics in B compartments. Third, our analyses are contingent on the assumption that loop extrusion occurs in vivo and that 2 h of RAD21 depletion affect anchor dynamics through its loop extrusion activity specifically, as supported by multiple lines of evidence6,7,9,10,11,12,13,14,26,27. Fourth, our analyses provide only an upper bound on the cohesin motor speed. Narrower estimates would require a more systematic exploration of the simulation parameter space. Fifth, although we experimentally minimized interference from biological processes such as transcription, we cannot rule out that other factors may be influencing chromatin interactions (for example, compartmentalization or other extruding complexes such as SMC5/SMC6 (refs. 12,50,66,67)), which our simulations ignored. This could potentially lead to discrepancies between simulations and experiments. Finally, our simulations ignored the reported increase in cohesin residence time upon interaction with CTCF16,26. Accounting for such interactions may lead to decreased estimates of cohesin density and motor speed.
Together, our results describe the highly dynamic nature of cohesin-induced chromatin interactions in the human genome. They support a model in which cohesin complexes almost constantly extrude loops and form transient, rather than stable, contacts between TAD anchors. The proposed uniformity of cohesin dynamics and the crucial regulatory role of CTCF will empower predictive models of TAD dynamics and extrusion-dependent genomic functions.

Methods
This research complies with all relevant ethical regulations as required by Institut Pasteur and the CNRS.
Experimental methods
Cell line culture, generation and treatment conditions
Cell culture
HCT116 cells (ATCC, CCL-247) were cultured in McCoy’s medium supplemented with GlutaMAX (Thermo Fisher Scientific, 36600021), 10% FBS (Sigma-Aldrich, F7524) and penicillin–streptomycin (50 U ml−1 and 50 μg ml−1, respectively; Thermo Fisher Scientific, 15140122). Cells were grown at 37 °C in a humidified incubator with 5% CO2 and split every 2–3 days. Cells were tested monthly for the presence of Mycoplasma spp., Ureaplasma spp. and Acholeplasma laidlawii by qPCR68. None of the proteins directly involved in cohesin-dependent loop extrusion (RAD21, NIPBL, WAPL, CTCF, STAG1 or STAG2) carries mutations in HCT116 cells69.
Cell line generation and genome editing
CRISPR-based genome editing was performed using a Cas9 nickase to reduce off-target effects. We cotransfected a repair plasmid (0.6 µg), a nickase Cas9 expressing plasmid (0.4 µg; Addgene, 42335 (ref. 70)) and a pair of single guide RNAs (sgRNAs; 0.5 µg each) using JetPrime (Polyplus, 101000001) according to the manufacturer’s protocol. The pairs of sgRNAs were designed using ChopChop (v3 (ref. 71)) with the parameters: ‘hg19’, ‘nickase’ and ‘knock-in’. For repeat array insertion, homology arms were PCR-amplified and cloned by a four-fragment Gibson assembly (NEB, E2621S) within the loxP-Blasticidin-HSVTK-loxP-TetOx96 and CuOx150-FRT-Neomycin-FRT plasmids72 (Supplementary Tables 3 and 4). We used homology arms of 581–1,436 bp.
A total of 300,000 cells were seeded in a six-well plate and transfected 24 h later. Less than 24 h after transfection, cells were detached from the well and split into four different 10-cm plates for antibiotic selection. Each 10-cm plate contained a different dilution of the initial six-well plate (from 1/40 to 4/5). Cells were kept under antibiotic selection until unique colonies were seen (about 2 weeks). Single colonies were then picked using cloning disks (Merck, Z374431) and put into 24-well plates. Once sufficiently grown, each clone was split in half. One half was used for clone expansion and the other half was seeded on a glass slide for image-based screening. Three days after seeding, Halo tag was labeled, if needed, with 100-nM JFX646 (ref. 41; gift from Luke Lavis Lab) in culture medium by incubating the cells for 15 min at 37 °C. Cells were then fixed with 4% formaldehyde (Thermo Fisher Scientific, 28908), diluted in PBS (Sigma-Aldrich, D8537), for 20 min, washed thrice in PBS, and slides were mounted in Vectashield Antifade Medium with DAPI (Vector, H-1200-10). Clones were imaged with a widefield microscope (Zeiss Axioimager, ×63 1.4-NA Plan-Apochromat objective with an LED Xcite 120LED as illumination source and an ORCA-Flash4 LT Hamamatsu camera with 2048 × 2048 pixels and a pixel size of 6.5 µm). Clones that displayed one or two fluorescent spots per nucleus were further split into a six-well plate and genomic DNA (gDNA) was extracted (Lucigen, QE0905T). PCR (Promega, M7801) genotyping was performed by amplifying 5′ and 3′ junctions (Supplementary Table 3)72. The unmodified wild-type (WT) band was amplified to assess the zygosity of the insertion. High-quality gDNA of clones verified by microscopy and PCR was purified (Promega, A1120) and each genotyping PCR fragment was sequenced. Finally, we checked the integrity of the TetOx96 array by PCR amplifying and sequencing the whole array.
To enable auxin-dependent RAD21 degradation, we first homozygously inserted the RAD21–mAID–SNAP–IRES–Hygromycin fusion at the endogenous RAD21 gene locus, using the WT Cas9 (0.4-µg Cas9; Addgene, 41815 (ref. 73), and 0.8 µg each for the repair DNA and sgRNA plasmids), and 100 μg ml−1 Hygromycin B (Thermo Fisher Scientific, 10687010) for selection. Next, we inserted the AtAFB2-weakNLS-IRES-Puromycin at the AAVS1 locus, using a WT Cas9 (Addgene, 72833 (ref. 74)) and by selecting cells with 1 μg ml−1 puromycin (Invivogen, ant-pr-1). The AtAFB2 ubiquitin ligase was reported to minimize basal degradation of the degron-tagged protein, as compared to the more common OsTIR1 degron48. The weak NLS allowed depletion of both nuclear and newly synthesized cytoplasmic RAD21 (ref. 48). Cell lines were regularly cultured with 1 μg ml−1 puromycin for 1 week to ensure high expression of the AtAFB2 degron48 before switching to regular culture medium.
We then expressed the fluorescence reporters required to visualize the repeat arrays. Using an optimized piggyBac transposase (we transfected 0.3 µg of transposase plasmid to insert a single copy of each reporter75, among 2 µg of total DNA), we inserted CymR-NLS-2xHalo (Addgene, 119907 (ref. 76)) to visualize CuO repeats and TetR-GFP11x16-GB1-NLS to visualize TetO repeats in the cells. We infected the cells with lentiviruses carrying the GB1-GFP1_10-GB1-NLS fragment (bearing the A206K mutation to prevent dimerization77) to reconstitute splitGFP. Cells were sorted thrice, once a week, to retain only low-expressing levels of the reporter proteins. Then, we re-infected the cells with the GFP1_10 lentiviruses to increase the ratio of GFP1_10 over TetR-GFP11x16-GB1-NLS and optimize the signal from the multimerized GFP11 fragments78. These cells served as the parental cell line for repeat array insertion.
We then sequentially inserted the CuOx150-FRT-Neomycin-FRT and loxP-Blasticidin-HSVTK-loxP-TetOx96 arrays at each anchor of the TADs (Fig. 1a). The insertion of these TetOx96 and CuOx150 repair plasmids was selected using 6 μg ml−1 blasticidin (Invivogen, ant-bl-1) and 400 μg ml−1 G418 (Invivogen, ant-gn-5), respectively. The expression of antibiotic resistance genes was designed to direct transcription outwards of the TAD interior to avoid interference with cohesin complexes extruding from inside the TAD (Fig. 1a). Finally, once TetOx96 and CuOx150 array insertions on the same allele were verified by microscopy, we removed the neomycin and blasticidin antibiotic cassettes using Cre and FLP recombinases. Because transcription is known to alter chromatin dynamics79,80 and RNA polymerase II can slow down, or push extruding cohesin, acting as a mobile barrier for cohesin45, the absence of strong transcription from antibiotic cassettes allows us to measure cohesin-mediated motion of TAD anchors as purely as possible. A total of 1 µg of Cre (Addgene, 123133 (ref. 81)) and 1 µg of FLP (Addgene, 13793 (ref. 82)) expressing plasmids were transfected. Clones that lost the antibiotic cassettes were selected for loss of the herpes simplex virus thymidine kinase (HSVTK) gene, making cells sensitive to 8 μg ml−1 ganciclovir (Invivogen, sud-gcv). Thus, 5′, 3′ junctions and the WT allele were sequenced as previously described. These clones were subsequently used for live-cell imaging.
For all cell lines, we obtained heterozygous insertions of the repeat arrays, allowing us to track one pair of green and far-red spots in the cells. For the L2 cell line, the CuOx150 array was inserted homozygously, resulting in two distinct far-red spots, while the TetOx96 cassette only integrated in a single allele. Upon sequencing of the L2 clone, we found a plasmid fragment of 396 bp integrated within the inserted exogenous sequence, at the 3′ end of the CuO repeats. This sequence contained a lac operon and promoter, Gateway attB2 sites and a catabolite activator protein binding site. In the T1 cell line, a small fraction of cells retained the antibiotic resistance genes after Cre and FLP recombinations, as assessed by PCR amplification of the nonrecombined alleles.
TetOx96 and CuOx150 arrays were inserted at the following locations in the human genome (hg19): L1 (chr8: 60,964,180 and chr8: 61,310,370), L2 (chr2: 235,458,700 and chr2: 236,026,413), T1 (chr1: 36,980,442 and chr1: 37,901,640), half TAD (chr8: 60,733,873 and chr8: 61,310,370) and adjacent (chr1: 37,900,310 and chr1: 37,901,640). The distance between repeat arrays in the Adjacent locus was chosen to match reporter–anchor separations in other cell lines (Supplementary Table 2).
Auxin-mediated RAD21 degradation and western blotting
To deplete RAD21 fused to the mini auxin inducible degron (mAID)74, we added auxin (Sigma-Aldrich, I5148) to a final concentration of 500 µM (from a 500X stock solution diluted in PBS) in fresh culture or imaging medium.
RAD21 depletion kinetics was measured by both live-cell imaging and western blotting (Extended Data Fig. 3a–f). For western blotting, 300,000 cells were seeded and grown for 48 h in six-well plates and incubated with auxin for the indicated times. Cells were washed thrice with cold PBS and lysed with 200 µl of HNTG buffer (HEPES pH 7.4 50 mM, NaCl 150 mM, Glycerol 10%, Triton X-100 1%) with 1× protease inhibitor (Roche, 5056489001). After cell collection, lysates were rotated for 30 min at 4 °C, sonicated and rotated for 30 min at 4 °C before centrifugation, and supernatants were stored at −80 °C until loading. Protein levels were quantified using the Pierce BCA protein assay (Thermo Fisher Scientific, 23225). Samples were boiled for 5 min at 100 °C in 1× Laemmli buffer and 10 µg of protein extract were loaded into a 10% Mini-PROTEAN TGX gel (Bio-Rad, 4561036). Samples were run for 90 min at 110 V in Tris–glycine 1× (Euromedex, EU0550) and 0.5% sodium dodecyl sulfate (Euromedex, EU0660s) buffer, and proteins were transferred to a nitrocellulose membrane (Pall BioTrace, 66485) for 75 min at 100 V in Tris–glycine 1× and 20% ethanol (VWR, 83804.360) buffer. Membranes were blocked with 5% milk in 1× Tris-buffered saline (TBS; Tris 20 mM, NaCl 150 mM) for 1 h at room temperature. Immunostaining was performed overnight at 4 °C with primary antibodies (Rad21 1:1,500 (Abcam, ab154769), GAPDH 1:50,000 (Abcam, ab8245)) diluted in 5% milk in 1× TBS–Tween (0.02% Tween; Thermo Fisher Scientific, 11368311). The membrane was washed thrice for 5 min with 1× TBS–Tween at room temperature and incubated for 1 h with secondary antibodies diluted in 1× TBS–Tween at room temperature (antirabbit IR800 1:10,000 (Advansta, R-05060), antimouse IR800 1:10,000 (Advansta, R-05061)). The membrane was washed thrice in 1× TBS–Tween for 5 min and once in 1× TBS for 10 min. Before imaging, membranes were soaked in 70% ethanol and air-dried in a dark chamber. We measured fluorescence intensity with the Chemidoc MP Imaging system (Bio-Rad).
For live-cell quantification of auxin-mediated RAD21 degradation kinetics (Extended Data Fig. 3a,c), we used Rad21–mAID–SNAP cells containing the TetR-GFP11x16-NLS and CymR-NLS-2xHalo constructs (parental cell line). A total of 300,000 cells were seeded and cultured in glass-bottom imaging dishes (Ibidi, 81158) for 2 days. Before imaging, the SNAP JF646 dye (gift from Luke Lavis Lab) was added to fresh medium at a final concentration of 100 nM and cells were incubated for 90 min at 37 °C. Cells were washed thrice with warm PBS and imaging medium (DMEMgfp (Evrogen, MC102) supplemented with 10% FBS or FluoroBrite DMEM (Thermo Fisher Scientific, A1896701) supplemented with 1× GlutaMAX (Thermo Fisher Scientific, 35050061) and 10% FBS) was added to the cells. Time-lapse images were acquired in a bespoke microscope equipped with a 488-nm TA Deepstar Diode Laser (Omicron-Laserage Laserprodukte GmbH) and a 647-nm OBIS LX laser (Coherent) for excitation. The microscope was equipped with an Olympus UPLAPO ×60, 1.42-NA objective, and additional optics leading to a 102-nm pixel size in the final image. Green and far-red fluorescence emission was split at 580 nm by an FF580-FDi02-t3-25×36 dichroic mirror (Semrock) and filtered with 525/50 nm and 685/40 nm fluorescence filters (Alluxa), respectively. Two-color images were captured by two separate sCMOS cameras—a Zyla 4.2 plus for the green channel and a Zyla 4.2 for the far-red (Oxford Instruments) channel. The sample environment (CO2 concentration, temperature and humidity) was controlled with a top-stage chamber (Okolab SRL). All devices of the microscope were controlled using Python-microscope83 and using cockpit as graphical interface84. We took 31 z-slices separated by 0.4 µm each and z-stacks were taken every 15 min for 45 min at multiple positions. Then, cells were removed from the microscope stage and auxin was added to the medium. After placing the cells back in the microscope chamber, we selected new positions on the slide and imaged cells at the same frequency for 4 h.
To measure RAD21 levels in live-cell images, we used a custom Python script on maximum-intensity projection images. Nuclei were segmented using Labkit (v0.4 (ref. 85)) and tracked using TrackMate (v7 (ref. 86)), based on the green channel containing the TetR-splitGFPx16-NLS signal. We removed all dividing cells and cells at the edge of the image from the analysis. Using these segmentation masks, we measured the median fluorescence intensity in the RAD21 channel. Background intensity was subtracted, and fluorescence intensities were normalized to the first time point of imaging without auxin.
Cell cycle analysis by fluorescence-activated cell sorting (FACS)
To assess the fraction of cells in G1 to early S phase and compare it with our image-based assessment of replicated spots, we used FACS with propidium iodide (PI; Sigma-Aldrich, P4864) staining of fixed cells (Extended Data Fig. 2e–g). A total of 300,000 cells were seeded and grown in six-well plates and cells were collected 48 h later. Cells were trypsinized, washed in PBS and resuspended in 500-µl PBS. Then, 5.5 ml of ice-cold 70% ethanol was added for fixation. Cells were kept at 4 °C in 70% ethanol for at least 12 h until staining. For staining, cells were washed twice in PBS and incubated for 5 min at room temperature with 50 µl of a 50 μg ml−1 RNAse A solution (Promega, A7973). Finally, 400 µl of 50 μg ml−1 PI solution was added and cells were incubated for 15 min at room temperature before FACS sorting. We used a Miltenyi MACSQuant Analyzer 10 Flow Cytometer with the 488-nm laser and a 692/75-nm bandpass filter. We gated cells based on forward scatter relative to side scatter, and single cells based on PI height relative to PI area. We did not consider polyploid cells (at least triploid) in the analysis (they represented <2.5% of cells). Finally, we analyzed at least 12,000 cells within the final gate of interest (Supplementary Fig. 1).
From the distribution of propidium intensity, the percentage of cells in each cell cycle phase was computed using the Dean–Jett–Fox model87 without constraints in FlowJo (v10) software (Extended Data Fig. 2g).
Capture Micro-C
Micro-C libraries were generated with the Dovetail Micro-C kit (21006) protocol (v1.0) with tiling capture of genomic loci (Agilent) with minor modifications. Thus, 1.2 to 2 × 10⁶ cells from each cell line containing the repeat arrays were washed in PBS, the supernatant was carefully removed and cell pellets were stored at −80 °C for at least a day. Prefreezing is required to get an optimal micrococcal nuclease (MNase) digestion profile. Cell pellets were then thawed and processed as prescribed by the Dovetail Micro-C protocol. The first crosslinking step was performed with 3 mM DSG (Thermo Fisher Scientific, A35392) in PBS for 10min at room temperature with rotation, and formaldehyde was added to a final concentration of 1% for another 10 min. The MNase digest was carried out according to kit instructions and the digestion profile was routinely verified on a Bioanalyzer 2100 instrument (Agilent). For the end repair and adaptor ligation steps, the NEBNext Ultra II DNA Library Prep Kit for Illumina (NEB, E7645) was used. Afterwards, DNA was purified through solid-phase reversible immobilization (SPRI) beads (Beckman, A63880) as described in the Dovetail kit. Biotin pulldown and library amplification were performed using the Dovetail Micro-C Kit reagents. After verifying that the libraries had the correct concentrations and size distributions, we proceeded with the Agilent SureSelectXT HS2 kit (G9987A; design S3442002). Capture probe design was performed by Agilent. The coordinates of capture probes were as follows: chr8: 60,458,500–61,587,500 for L1 and half TAD regions; chr2: 235,182,500–236,297,500 for L2 and chr1: 36,700,000–38,175,000 for T1. We followed the manufacturer’s protocol for prepooling eight sequencing libraries. Finally, we checked concentrations and size distributions before sending capture-sequencing libraries for sequencing. We sequenced with BGI Illumina 100-bp paired-end sequencing (PE100).
The data presented in this manuscript were pooled from two biological replicates for each cell line, except for the half TAD and untagged cell lines (Extended Data Fig. 1b,c), where a single experiment was performed. Raw sequencing data from BGI were checked by FastQC88 (FastQC, v0.12.1). None of the replicates showed any irregularities. All raw fastq reads were trimmed to 50 bp using TrimGalore (Cutadapt, v0.6.10 (ref. 89)). Next, valid Micro-C contacts were obtained with the HiC-Pro pipeline90 (HiC-Pro_v3.1.0). HiC-Pro uses Bowtie2 (v2.4.4 (ref. 91)) to map the reads to the human genome. All valid Micro-C contact pair files obtained from HiC-Pro were filtered for the corresponding region of interest. Contact matrices were generated using the Cooler package (v0.9.1 (refs. 92,93)).
Live-cell imaging of TAD anchors
For live-cell microscopy of TAD anchors, cells were plated on a 35-mm glass-bottom imaging dish (Fluorodish, FD35-100). For 48–72 h after seeding, the medium was replaced with fresh medium containing 100 nM of JFX646 Halo dye and the cells were incubated for 15 min at 37 °C. Cells were washed twice with PBS and the medium was replaced with live-cell imaging medium (DMEMgfp supplemented with 10% FBS or Fluorobrite DMEM supplemented with 1× GlutaMAX and 10% FBS). For RAD21 degradation, cells were treated with 500-µM auxin. Auxin was maintained in the Halo labeling medium and in the imaging medium during acquisition. Cells were imaged for 2 h, starting 2 h after the addition of auxin. Before imaging, cells were allowed to equilibrate in the microscopy incubation chamber for at least 15 min at 37 °C and 5% CO2.
Time-lapse image acquisition was performed with an inverted microscope (Nikon) coupled to the Dragonfly spinning disk (Andor) using a 100X Plan Apo 1.45-NA oil immersion objective. Excitation sources were 488-nm (150 mW) and 637-nm (140 mW) lasers. Exposure time was set to 85 ms for both channels, with 1% laser power in the far-red channel and 5–8% in the GFP channel, depending on the imaged cell line. z-stacks of 29 optical slices separated by 0.29 µm each were acquired every 30 s using the perfect focus system and five different stage positions were imaged for each 2-h acquisition. The two channels were acquired simultaneously on two distinct electron-multiplying charge-coupled device iXon888 cameras (1024 × 1024 pixels, effective pixel size = 0.121 µm). For the high-frequency dataset (Extended Data Fig. 6f,i), images were acquired every 9 s for a total duration of 36 min (instead of every 30 s for 2 h in the original dataset). For RAD21-depleted cells imaged at high frequency, we acquired images between 2 and 4 h after auxin treatment.
Computational methods
All computational methods, including genomic analysis, image and data analysis, and polymer model and simulations, are detailed in the Supplementary information.
Statistics and reproducibility
No statistical method was used to predetermine sample size. No randomization was performed as the study did not require sample allocation into different groups. Blinding was not possible for data collection, as data acquisition required identification of the samples for further processing. No data were excluded from the analysis, except during quality filtering of distance time series, as detailed in the Supplementary Information—‘Quality filtering of time series’. Data analysis was not performed blindly to the experimental conditions, except for the Capture Micro-C analysis. Live-cell imaging experiments were performed in two to six biological replicates and all replicates showed consistent results. Unless indicated otherwise, we used bootstrapping to estimate the s.d. of our quantifications. To generate bootstrap samples, we randomly selected individual time series with replacements from the full dataset (creating bootstrap sets of the same size as the original dataset). Normality and homoscedasticity were tested before running any statistical test. The statistical test, sampling size and type of error bars are indicated in the legend of Figs. 1–3, Fig. 5, Table 1 and Extended Data Figs. 2–7 and Extended Data Figs. 9,10.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
Capture Micro-C data have been uploaded to the Gene Expression Omnibus (GEO) under accession GSE273257. This paper analyzed existing, publicly available Hi-C, ChIP–seq and PRO-Seq data from GEO under accession GSE104334. Raw and quality-filtered distance time series are available at Zenodo https://doi.org/10.5281/zenodo.16949930 (ref. 94). All plasmids and cell lines generated in this study are available upon request to corresponding authors. Source data are provided with this paper.
Code availability
The code (v0 (ref. 95)) used to generate polymer simulations, process live-cell microscopy images, quantify the distance between TAD anchors and process the Capture Micro-C data is available at https://github.com/imodpasteur/Sabate_et_al_TAD_Anchors and at Zenodo https://doi.org/10.5281/zenodo.16949930 (ref. 94).
