Quantitative molecular imaging using deep magnetic resonance fingerprinting

Nature Protocols volume 20, pages 3024–3054 (2025)Cite this article

Subjects

Abstract

Deep learning-based saturation transfer magnetic resonance fingerprinting (MRF) is an emerging approach for noninvasive in vivo imaging of proteins, metabolites and pH. It involves a series of steps, including sample/participant preparation, image acquisition schedule design, biophysical model formulation and artificial intelligence and computational model training, followed by image acquisition, deep reconstruction and analysis. Saturation transfer-based molecular MRI has been slow to reach clinical maturity and adoption for clinical practice due to its technical complexity, semi-quantitative contrast-weighted nature and long scan times needed for the extraction of quantitative molecular biomarkers. Deep MRF provides solutions to these challenges by providing a quantitative and rapid framework for extracting biologically and clinically meaningful molecular information. Here we define a complete protocol for quantitative molecular MRI using deep MRF. We describe in vitro sample preparation and animal and human scan considerations, and provide intuition behind the acquisition protocol design and optimization of chemical exchange saturation transfer (CEST) and semi-solid magnetization transfer (MT) quantitative imaging. We then extensively describe the building blocks for several artificial intelligence models and demonstrate their performance for different applications, including cancer monitoring, brain myelin imaging and pH quantification. Finally, we provide guidelines to further modify and expand the pipeline for imaging a variety of other pathologies (such as neurodegeneration, stroke and cardiac disease), accompanied by the related open-source code and sample data. The procedure takes between 48 min (for two proton pools or in vitro imaging) and 57 h (for complex multi-proton pool in vivo imaging) to complete and is suitable for graduate student-level users.

Key points

  • The procedure includes in vitro sample preparation, animal and human scan considerations, acquisition protocol design, and optimization of chemical exchange saturation transfer and semi-solid magnetization transfer quantitative imaging. We include artificial intelligence models for diagnostic applications.

  • Deep magnetic resonance fingerprinting does not require steady-state imaging conditions, enabling a reduction in scan time when compared with QUESP/QUEST, QUESTRA, Omega Plot, BM fitting, multi-pool Lorentzian fitting or chemical exchange saturation transfer-weighted imaging.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

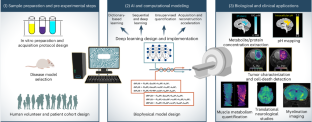

Fig. 1: Practical overview of the deep molecular MRF protocol.

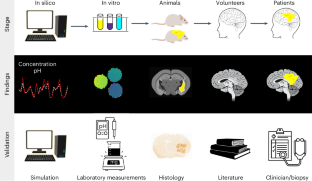

Fig. 2: Experimental validation pipeline for CEST–MRF.

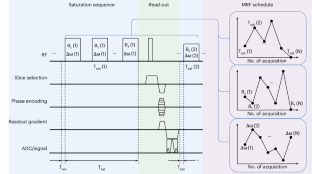

Fig. 3: A typical CEST–MRF pulse sequence diagram.

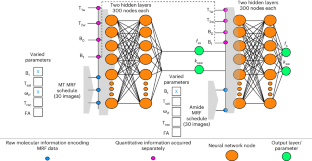

Fig. 4: Sequential learning of multi-proton pool information.

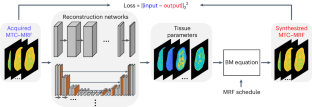

Fig. 5: Unsupervised learning-based MRF reconstruction.
Fig. 6: Dot product-based parameter quantification example.

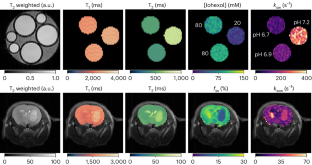

Fig. 7: Quantitative parameter maps reconstructed using sequential neural networks30.

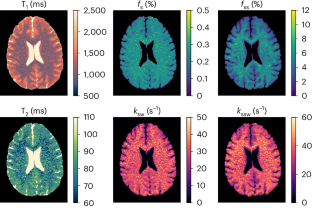

Fig. 8: Quantitative parameter maps from a healthy human volunteer scanned at 3T, obtained using a supervised and deep reconstruction network42.

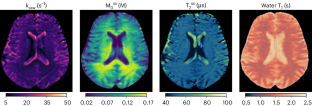

Fig. 9: Quantitative semi-solid MT and water proton pool parameter maps from a healthy human volunteer scanned at 3T, obtained using an unsupervised deep learning approach41.
