Modeling heart rhythm using human engineered heart tissues

Nature Protocols volume 21, pages 827–850 (2026)Cite this article

Subjects

Abstract

Heart rate is both an indicator and modulator of cardiovascular health. Prolonged elevation in heart rate or irregular heart rhythm can trigger the onset of cardiac dysfunction, a condition termed ‘tachycardia-induced cardiomyopathy’. While large animals have historically served as the primary model for studying this condition owing to their similar resting heart rates to humans, their use is limited by cost and throughput constraints. We recently developed the first engineered model of tachycardia-induced cardiomyopathy to overcome this technical bottleneck. Our model uses matured human engineered myocardium coupled with programmable electrical stimulation to emulate the pathophysiological changes in human heart rhythm. This in vitro model, capable of acutely and chronically modulating both beating rate and rhythm, recapitulated the clinical hallmarks of tachycardia-induced cardiomyopathy, and its utility was further validated via molecular comparisons against data from a canine model and human patients. Moreover, this model has improved the throughput and relevance to human genetics, enabling deep mechanistic explorations that were previously impossible. Here we present a comprehensive workflow detailing the fabrication and maturation of human engineered heart tissue, assembly of the electrical pacing system, functional analysis using open-source software and preparation for proteomic and transcriptomic analyses. This 5-week Protocol could be implemented by an experienced bench scientist with strong expertise in cell culture, ideally involving stem cell-derived cardiomyocytes. Given the broad implications of heart rhythm alterations in various cardiac conditions, this workflow can be employed with other biophysical and chemical cues to generate more complex and physiologically relevant cardiac models.

Key points

  • The programmable stimulation of mature engineered heart tissue (EHT) emulates diverse patterns of heartbeats associated with physiological and pathological changes, providing a platform to dissect the intricate role of heart rhythm on cardiac physiology at functional and molecular levels.

  • This procedure covers EHT fabrication and maturation; the construction of a cost-effective, portable and programmable pacing system; ready-to-use example code; the functional analysis of EHTs and sample preparation for proteomic and transcriptomic analysis.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

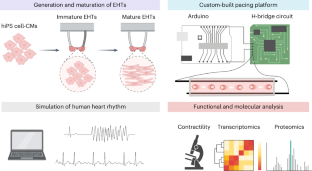

Fig. 1: Graphical illustration of modeling heart rhythm using human EHT.

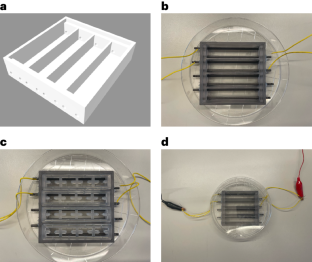

Fig. 2: Customized stimulation chamber for EHTs.

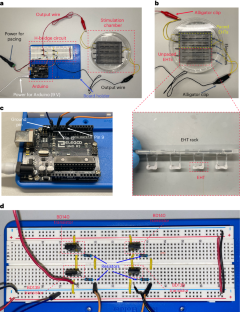

Fig. 3: Overview of the setup.

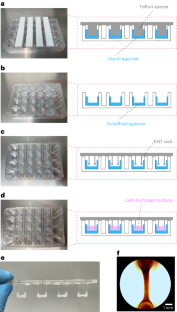

Fig. 4: Steps of EHT fabrication.

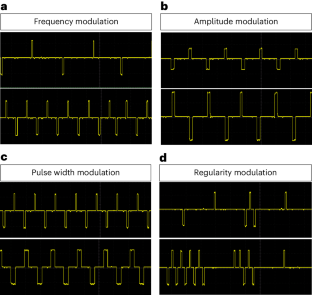

Fig. 5: Representative stimulation patterns from the customized pacing device.

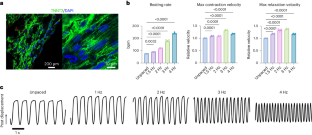

Fig. 6: Mature EHTs are highly responsive to electrical pacing.

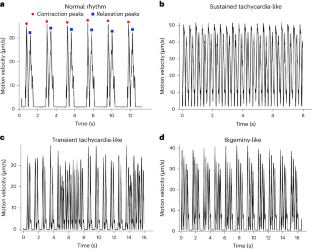

Fig. 7: Simulation of arrhythmias in EHTs.

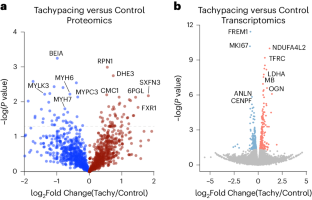

Fig. 8: Proteomic and transcriptomic changes induced by simulated tachycardia.

Similar content being viewed by others

Data availability

All source data and design files are provided within the paper. RNA-seq data are available at the National Center for Biotechnology Information Gene Expression Omnibus repository, under accession number GSE242727. Source data are provided with this paper.

Code availability

Custom code is provided within the paper.
