Introduction

Craniopharyngioma (CP) is a rare benign tumor originating from the remnants of Rathke’s pouch, with a bimodal age distribution of 5–14 years and 50–75 years1,2,3. It is the most common suprasellar tumor in childhood and the second most common tumor following pituitary adenoma in adults4. Although it is classified as a benign tumor, CP often exhibits aggressive behavior5. Because of the anatomical closeness of CP to critical structures, including the pituitary, hypothalamus, and visual apparatus, pediatric CP is one of the most challenging childhood brain tumors6,7. Consequently, long-term survivors live independently but have a lower overall quality of life as a consequence of visual and hypothalamic dysfunction8.

Because of the proximity to visual structures, CP may cause severe damage to the optic nerve, with corresponding visual field (VF) defects or loss of visual acuity. As a consequence, patients with pediatric CP usually present with visual complaints. However, young children are frequently unable to complete visual function testing due to a lack of cooperation, and it is difficult to evaluate visual dysfunction related to CP9. Optical coherence tomography (OCT) measurements have been suggested as a parameter that indirectly reflects visual function in children with tumors involving the optic pathway9,10. OCT enables structural imaging of the retina with a resolution higher than any other non-invasive imaging modality11. It is sensitive to spatial variations in the optical reflectivity or scattering of tissue associated with local changes in the refractive index or structure11. OCT is reported to be useful in diagnosing and predicting the prognosis of adult patients with brain tumors affecting the visual pathway12. Tieger et al. reported that nasal ganglion cell layer complex (GCC) loss seen on OCT might be a useful marker for detecting chiasmal compression due to brain tumors12.

There are several normative OCT databases for the pediatric population13,14,15. Studies on OCT in children with visual loss have also proved the reproducibility of OCT measurements16,17. The usefulness of OCT in children with tumors compressing the optic nerve or optic chiasms, such as optic pathway glioma18,19 and CP10,20, was reported previously. Avery et al. investigated the relationship between visual acuity and RNFL thickness in patients with optic pathway glioma and suggested that RNFL thickness might be useful as an indicator of visual function in patients who are unable to cooperate with visual acuity testing18. Gu et al. reported that GCC thickness measured by OCT could distinguish between patients with and without a loss of visual function from optic pathway glioma19. Yang et al. studied OCT results in eyes with CP and reported that the GCC thickness was sensitive in detecting optic nerve injury especially in pediatric or juvenile patients20. Bialer et al. also reported that a thinner RNFL on OCT was well-correlated with poorer visual acuity and VF defects in pediatric CP10. However, there have been no studies on changes in the whole retinal layer using retinal segmentation analysis in pediatric and juvenile patients with CP. In this study, we evaluated changes in both the inner and outer retinal layer thicknesses in pediatric and juvenile patients with CP compared to healthy controls using OCT auto-segmentation software and analyzed the association between retinal layer thickness and other ocular structural and functional parameters.

Results

This study included a total of 18 eyes of 18 patients with pediatric and juvenile CP and 20 eyes of 20 healthy controls. Except for only one patient with papillary type CP, all patients were diagnosed with adamantinomatous CPs histologically. The mean age was 11 ± 4 years in patients with CP, and 10 ± 4 years in the healthy controls (p = 0.3310). There were significant differences in visual acuity between the two groups (p = 0.0360). Also, there was a significant thinning of the peripapillary RNFL in the patient group compared to the healthy controls (p < 0.0001). In the patient group, 12 patients had permanent hemianopsia with visual acuity greater than 20/40, and two patients had permanent loss of both the VF and visual acuity after tumor resection. VF testing was not performed in four patients due to poor cooperation (Table 1).

Table 1 Demographics of postoperative pediatric and juvenile craniopharyngioma patients and healthy controls.
Full size table

Table 2 presents the results of each retinal layer thickness in four quadrants of the two groups. A significant difference was observed in almost all quadrants of the macular RNFL (estimates (standard error), superior, − 10.68 (1.46), p < 0.0001; inferior, − 7.24 (1.20), p < 0.0001; nasal, − 14.22 (1.20), p < 0.0001), ganglion cell layer (GCL) (superior, − 16.53 (1.50), p < 0.0001; inferior, − 14.37 (1.52), p < 0.0001; nasal, − 24.34 (1.40), p < 0.0001; temporal, − 9.91 (2.24), p = 0.0026), and inner plexiform layer (IPL) (superior, − 11.45 (0.94), p < 0.0001; inferior, − 9.76 (0.91), p < 0.0001; nasal, − 15.25 (0.82), p < 0.0001; temporal, − 4.97 (1.12), p = 0.0024) between the patients with CP and the healthy controls after adjusting for age and spherical equivalent (SE). No significant difference was detected in the inner nuclear layer (INL), outer plexiform layer (OPL), outer nuclear layer (ONL), or photoreceptor layer (PRL) thickness between the two groups.

Table 2 Comparison of intraretinal layer thickness between pediatric and juvenile craniopharyngioma patients and healthy controls.
Full size table

To compare the retinal layer thickness between the eye with better visual function and the eye with poor visual function in the CP patients, we performed a subgroup analysis. Table 3 presents the measurements of each retinal layer thickness in four quadrants of the worse eye (worse VF) and better eye (better VF) in the CP patients compared to the controls. The mean thickness of the RNFL, GCL, and IPL was less in the worse eye group than in the better eye group. However, the differences did not reach statistical significance. Both the better eye and worse eye groups showed significant differences in RNFL, GCL, and IPL thickness compared to the control group in most sectors (all p < 0.05).

Table 3 Comparison of intraretinal layer thickness between worse and better eye in pediatric and juvenile craniopharyngioma patients and healthy controls.
Full size table

Table 4 and Fig. 1 present the associations between postoperative intraretinal layer thickness and other ocular parameters. Peripapillary RNFL thickness was associated with macular RNFL (r = 0.7450, p = 0.0004), GCL (r = 0.7739, p = 0.0002), and IPL (r = 0.8257, p < 0.0001) thickness. Regarding the functional parameters, postoperative VF defects were associated with the thickness of the nasal quadrant GCL (r = 0.6806, p = 0.0074) and IPL (r = 0.5662, p = 0.0348). The postoperative best-corrected visual acuity (BCVA) was also associated with the average value of GCL, nasal quadrant GCL (r = − 0.7162, p = 0.0008; r = − 0.5413, p = 0.0203) and nasal quadrant INL (r = 0.4962, p = 0.0362) thickness.

Table 4 Association analysis of postoperative intra-retinal layer thickness versus visual field defects, visual acuity, and peripapillary retinal nerve fiber layer thickness.
Full size table
Figure 1
figure 1

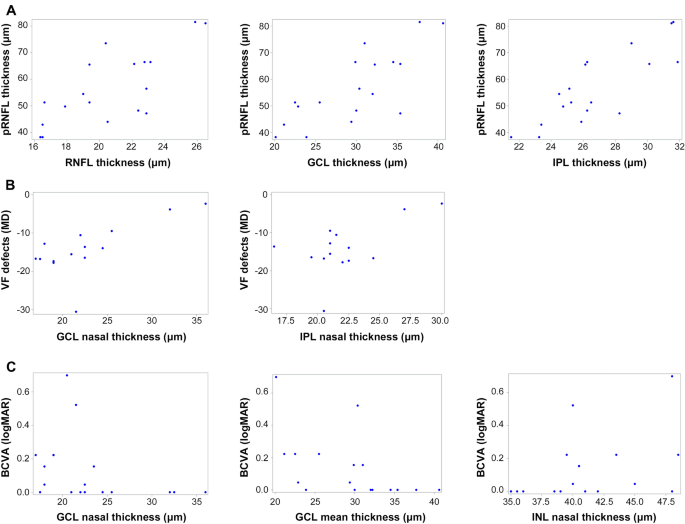

Scatter plots show the association between postoperative intra-retinal layer thickness and other ocular parameters including peripapillary retinal nerve fiber layer thickness (pRNFL), visual field (VF) defects, and best-corrected visual acuity (BCVA). The associations between (A) postoperative pRNFL thickness and the macular RNFL (r = 0.7450, p = 0.0004), GCL (r = 0.7739, p = 0.0002), and IPL (r = 0.8257, p < 0.0001) are presented. (B) Postoperative VF defects were associated with nasal quadrant GCL (r = 0.6806, p = 0.0074) and IPL (r = 0.5662, p = 0.0348) thickness, and (C) the postoperative BCVA was associated with the average value of GCL and nasal quadrant GCL (r = − 0.7162, p = 0.0008; r = − 0.5413, p = 0.0203) and INL (r = 0.4962, p = 0.0362) thickness.

Full size image

Discussion

Compared to pituitary adenoma, which is the most common type of sellar tumor in adults, CP is known to be deep-seated, with a midline location and intimate relationship with critical neurovascular structures, leading to increased struggles in surgical removal21. Mediero et al. reported that 60% of the eyes with CP had a BCVA below 20/40, and VF defects were more frequently observed than the loss of visual acuity after surgery22. Also, Wan et al. reported that 58% of the CP patients had visual impairment in at least one eye at the final follow-up23. In contrast, in pediatric patients with pituitary adenoma, only 6% of the pediatric patients presented with permanent visual dysfunction after surgery24. Also, the visual outcomes of patients with pediatric CP are reported to be poorer than those of adult CP. Chen et al. demonstrated that temporal hemianopsia was particularly predominant in pediatric patients who tended to present late because of the late detection of visual dysfunction25. They reported that adult CP patients tended to have more subtle VF changes, such as generalized field constriction and central scotoma25.

Retinal layer thinning in chiasmal compression or other optic neuropathies was reported to be caused by retrograde degeneration26,27. In animal studies, a complete loss of ganglion cells in the medial retina was found after axonal injury due to chiasmal compression28. This was also confirmed by OCT studies in adult patients with chiasmal compression29,30. Previous studies using OCT reported inner-retinal layer thinning following chiasmal compression29,30. Akashi et al. reported that macular inner retinal layer thinning in the nasal hemiretina had diagnostic value for band atrophy due to chiasmal compression29. Monteiro et al. also evaluated macular inner retinal layer thickness using OCT in eyes with band atrophy due to chiasmal compression30 and reported that band atrophy led to macular RNFL, GCL, and IPL thinning and INL thickening. And, segmented retinal layer analysis was suggested to be a useful tool for the assessment of structure–function relationships in patients with temporal VF defects30. Reports on the OCT results in pediatric tumors involving the visual pathway are relatively scarce compared to studies in the adult population, and there have been a few reported studies using OCT in pediatric patients with optic pathway glioma9,18,19 and CP10,22. Avery et al. reported that in optic pathway glioma, decreased RNFL thickness was correlated with low visual acuity or VF deficits18. Gu et al. also reported that GCC thickness had discriminatory ability between normal and abnormal vision in patients with optic pathway glioma19. Since the use of other visual functional testing is often limited in pediatric patients due to the lack of cooperation, Banc et al. suggested that OCT may serve as a potential tool for screening or follow-up examinations in children with optic pathway glioma9. In 20 pediatric patients with CP, Bialer et al. demonstrated peripapillary RNFL thinning and a significant correlation between peripapillary RNFL thickness and visual acuity and the VF10. They also demonstrated that OCT measurements might be successfully performed in children who are neurologically disabled10. Mediero et al. also reported that the GCC and RNFL thickness was significantly associated with VF defects in 10 pediatric patients with CP22. In addition, Yang et al. reported a comparison of GCC and peripapillary RNFL thickness between children and adults with CP20. The GCC thickness in the pediatric and juvenile CP patients was significantly thinner than that in the adult CP patients and reflected more severe retinal structural degeneration due to retrograde degeneration28 following axonal damage in pediatric and juvenile CP patients compared to adult CP patients20.

In this study, we first performed whole retinal layer segmentation analyses in pediatric and juvenile patients with CP. Previous studies in adult patients with chiasmal compression revealed pathologic changes in various retinal layers such as the INL30, IPL31,32, and PRL31 following chiasmal compression and significant association between the thinning of retinal layers and visual prognosis29,32. We also found a significant thinning of the RNFL, GCL, and IPL in pediatric and juvenile CP patients compared to healthy controls. Otherwise, no significant alterations were observed in the INL, OPL, ONL, and PRL in patients with CP. We also found that the nasal GCL and IPL thickness was associated with the degree of postoperative VF defects, which suggests that retinal layer thickness changes represent postoperative visual function in these subjects. Retinal layer segmentation analysis, especially including inner retinal layers such as the GCL and IPL, might be useful for the postoperative follow-up of pediatric and juvenile CP patients.

A number of important limitations should be considered when interpreting the data from our study. First, we used a retrospective cross-sectional design, thereby limiting our ability to reveal the temporal aspects of changes in the OCT parameters. Second, our dataset was relatively small and the patients were inconsistently followed after decompression surgery. This was uncontrollable with a retrospective design. Ultimately, a larger longitudinal cohort study is needed to observe the serial changes in intraretinal layer thicknesses. Third, since this was an exploratory study, and a primary analysis was not planned before the study, all results should be read as descriptive and interpreted with caution33.

In conclusion, this study revealed inner retinal layer degeneration in pediatric and juvenile CP patients with chiasmal compression. The nasal GCL and IPL thicknesses were associated with the degree of postoperative VF defects. These results suggest that retinal layer segmentation analysis using OCT may be a useful tool in estimating the degree of functional damage in pediatric CP patients.

Methods

Study participants

This retrospective case–control study included 18 patients with pediatric and juvenile CP and 20 healthy controls at the Neuro-ophthalmology Department of Samsung Medical Center between March 2012 and April 2020. This study was conducted according to the tenets of the Declaration of Helsinki and was approved by the Institutional Review Board of the Samsung Medical Center (Seoul, Republic of Korea, IRB No. 2018-06-085-003). Informed consent was waived for the patients with chiasmal compression by the Institutional Review Board of the Samsung Medical Center (Seoul, Republic of Korea). For all included patients, the clinical diagnosis of chiasmal compression with CP was based on magnetic resonance imaging (MRI) evidence of tumor compression of the optic chiasm and pathologically confirmed as CP postoperatively. All patients underwent a trans-sphenoidal approach or open craniotomy with tumor resection. Seven patients also received adjuvant radiotherapy. All patients were followed up for at least 6 months after surgery. The control group consisted of 4 to 17-year-old healthy volunteers who underwent routine eye examinations. Written informed consent was obtained from their legal guardians and, when appropriate, the healthy children, before enrollment. None of the controls had a history of ocular or neurologic disease. The healthy controls were required to have normal visual acuity, a normal intraocular pressure of ≤ 21 mmHg, and normal optic discs. The following categories of patients or healthy controls were excluded: those diagnosed with other ophthalmic diseases (glaucoma, a refractive error greater than + 6.0 diopters of SE or less than − 6.0 diopters of spherical equivalent, astigmatism of 3.0 diopters or more, amblyopia, epiretinal membrane, age-related macular degeneration, diabetic retinopathy, retinal artery/vein occlusion, optic neuritis, or other ischemic optic neuropathy) and previous retinal surgery that affected the thickness of the intra-retinal layer, and those diagnosed with known systematic/inflammatory diseases such as cancer and multiple sclerosis.

Ophthalmic examinations

All subjects were scanned using fundus color photography and spectral-domain OCT (SD-OCT, Spectralis, Heidelberg Engineering, Heidelberg, Germany). The VF perimetry of the patients was measured with a Humphrey Field Analyzer using the 30-2 SITA-standard protocol (Humphrey 740 Visual Field Analyzer, Carl Zeiss Meditec Inc. Dublin, CA). Only reliable VFs (≤ 33% false positives and false negatives; fixation losses of < 20%) were used in the study. The mean deviation (MD) was used for analysis.

OCT analysis and segmentation

In patients with chiasmal compression, all OCT imaging was performed postoperatively. In each patient, only a single eye showing the worse visual acuity or VF defects was selected for the main analysis in order to avoid biases resulting from inter-eye correlation. However, if visual acuity was less than 20/200 in the eye with worse VF defects, the other eye with visual acuity greater than 20/200 was selected for more accurate OCT examination with better cooperation. In healthy controls, only the right eye data were analyzed, except when the data quality of the right eye was inappropriate and the data quality of the left eye was appropriate for the analysis of retinal layer thickness. If the pupil diameter was not sufficient to obtain OCT images successfully, mydriatic eye drops (0.5% tropicamide and 0.5% phenylephrine hydrochloride) were used. High-resolution retinal imaging was performed with Spectralis OCT. The raster scan was composed of 25 B-scans covering an area of 20° × 15°. Each B-scan consisted of 512 A-lines, 6.0 mm in length, and spaced 240 μm apart. The automatic, real-time mode with active eye-tracking was used to automate eye alignment (TruTrack Active Eye Tracking; Heidelberg Engineering), improving the quality and accuracy of segmentation, and to obtain retinal scans, including 19 single horizontal axial scans in the macular area. All OCT images fulfilled the OSCAR-IB quality control criteria for retinal OCT scans. The 9-point advised protocol for OCT study terminology and elements (Advised Protocol for OCT Study Terminology and Elements [APOSTEL] recommendations) is presented in Supplemental Table 1.

Seven retinal layers were identified via automated segmentation using Spectralis software with manual correction as needed. The thickness of each layer between the vitreoretinal interface and the outer border of the retinal pigment epithelium was measured automatically. The whole retinal layer was segmented into seven respective retinal layers: the RNFL, the GCL, the IPL, the INL, the OPL, the ONL, and the PRL. Following the automated segmentation of each retinal layer, the thickness of each retinal layer in the 3- and 6-mm subfields as defined by the ETDRS grid was automatically measured using the Spectralis mapping software (Fig. 2). The average thickness of the four macular quadrants measured within the 3 mm and 6 mm zones was calculated for each layer. The segmentation was based on a validated algorithm used to measure the average thickness values within a 3 × 3 mm circle and a 6 × 6 mm extended area centered at the fovea. The foveal region, consisting of a 1 × 1 mm circle, was excluded from the analysis. The quality of all images was reviewed by two independent graders (G.I.L. and K.A.P.). We manually corrected any errors in the automated segmentation, as reported previously by Oberwahrenbrock et al.34.

Figure 2
figure 2

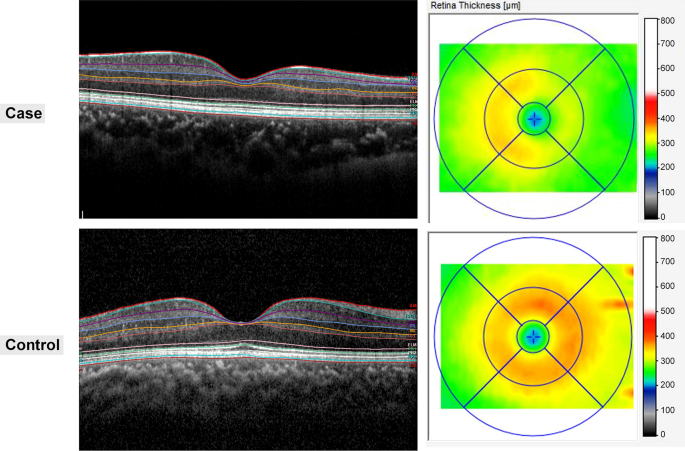

Two representative cases of patients diagnosed postoperatively with juvenile craniopharyngioma and healthy controls. B-scan of spectral-domain optical coherence tomography with auto-segmentation (in-built Spectralis mapping software, Heidelberg Eye Explorer HEYEX version 1.10.2.0) into the following retinal layers: RNFL retinal nerve fiber layer, GCL ganglion cell layer, IPL inner plexiform layer, INL inner nuclear layer, OPL outer plexiform layer, ONL outer nuclear layer, PRL photoreceptor layer.

Full size image

Statistical analysis

The demographic and clinical characteristics of the CP patients and healthy controls are presented as standard descriptive summaries (e.g., means and standard deviations for continuous variables such as age, and percentages for categorical variables such as gender). The BCVA was converted to a logarithmic scale (logMAR). The chi-squared test was used to compare categorical variables such as gender between the groups. The Mann–Whitney U test was used to compare clinical characteristics such as age, SE, BCVA, and peripapillary RNFL thickness between the group of patients and the healthy controls. The intraretinal layer thickness of the patients was compared to that of the healthy controls using linear regression analysis adjusting for age and SE. We divided all CP patients into two groups of the worse eye and better eye and performed subgroup analysis using the paired t-test and independent t-test. Bonferroni’s correction for multiple comparisons was applied to the p-values by multiplying the uncorrected p-values by 28 in the main anlaysis and the subgroup analysis. Pearson’s and Spearman’s correlation coefficients were calculated to analyze the association between intra-retinal layer thickness and functional parameters and peripapillary RNFL thickness. A p-value of less than 0.05 was considered statistically significant. All statistical analyses were performed with SAS version 9.4 (SAS Institute, Cary, NC, USA).
