Zinc finger nuclease-mediated gene editing in hematopoietic stem cells results in reactivation of fetal hemoglobin in sickle cell disease

Samuel Lessard^1,8^na1,
Pauline Rimmelé¹^na1,
Hui Ling¹,
Kevin Moran¹,
Benjamin Vieira¹,
Yi-Dong Lin¹,
Gaurav Manohar Rajani¹,
Vu Hong¹,
Andreas Reik²,
Richard Boismenu²,
Ben Hsu²,
Michael Chen²,
Bettina M. Cockroft²,
Naoya Uchida³,
John Tisdale³,
Asif Alavi⁴,
Lakshmanan Krishnamurti⁵,
Mehrdad Abedi⁶,
Isobelle Galeon¹,
David Reiner¹,
Lin Wang¹,
Anne Ramezi¹,
Pablo Rendo¹,
Mark C. Walters⁷,
Dana Levasseur¹,
Robert Peters¹,
Timothy Harris¹ &
…
Alexandra Hicks^1,9

Scientific Reports volume 14, Article number: 24298 (2024) Cite this article

10k Accesses
14 Citations
11 Altmetric
Metrics details

Subjects

Abstract

BIVV003 is a gene-edited autologous cell therapy in clinical development for the potential treatment of sickle cell disease (SCD). Hematopoietic stem cells (HSC) are genetically modified with mRNA encoding zinc finger nucleases (ZFN) that target and disrupt a specific regulatory GATAA motif in the BCL11A erythroid enhancer to reactivate fetal hemoglobin (HbF). We characterized ZFN-edited HSC from healthy donors and donors with SCD. Results of preclinical studies show that ZFN-mediated editing is highly efficient, with enriched biallelic editing and high frequency of on-target indels, producing HSC capable of long-term multilineage engraftment in vivo, and express HbF in erythroid progeny. Interim results from the Phase 1/2 PRECIZN-1 study demonstrated that BIVV003 was well-tolerated in seven participants with SCD, of whom five of the six with more than 3 months of follow-up displayed increased total hemoglobin and HbF, and no severe vaso-occlusive crises. Our data suggest BIVV003 represents a compelling and novel cell therapy for the potential treatment of SCD.

In vivo genome editing of human haematopoietic stem cells for treatment of blood disorders using mRNA delivery

Article 12 August 2025

Base editing of haematopoietic stem cells rescues sickle cell disease in mice

Article 02 June 2021

Ex vivo prime editing of patient haematopoietic stem cells rescues sickle-cell disease phenotypes after engraftment in mice

Article Open access 17 April 2023

Introduction

Sickle cell disease (SCD) is a hereditary hemoglobinopathy characterized by inflammation, hemolytic anemia, vaso-occlusive crises, organ damage, and early mortality^1,2,3,4. Elevated expression of fetal hemoglobin (HbF) has a well-established beneficial effect on the clinical course of SCD, with decreased disease severity in patients with naturally occurring genetic variants or mutations leading to a persistence of HbF into adulthood^5,6,7,8. The ameliorative effect of HbF in patients with SCD has prompted assessment of genetic and pharmacological therapeutic approaches aimed at inducing HbF^9,10,11,12.

Allogeneic hematopoietic stem cell (HSC) transplant remains the only curative option for SCD but is limited to the minority of patients with a matched donor and carries a risk of graft failure or rejection and graft-versus-host disease^13,14,15,16. Transplantation of autologous, genetically modified HSC has therefore been pursued as an alternative. Several gene-addition and gene-editing strategies using autologous HSC are currently approved or in clinical development in patients with SCD, including approaches to reactivate HbF^{9,11,12,17,18}. Several of these share a common approach of targeting the BCL11A erythroid-specific enhancer (ESE), a key regulatory element in the fetal-to-adult hemoglobin (Hb) switch, to selectively generate erythroid cells with reduced BCL11A expression (and induced HbF production) without affecting non-erythroid cells^{9,11,12,19,20,21,22}. Other gene editing strategies to reactivate HbF include mimicking mutations in the promoter of the gamma-globin gene that lead to high persistence of fetal hemoglobin (HPFH)^23,24,25,26.

BIVV003 is a novel gene-edited autologous cell therapy in clinical development for the potential treatment of SCD, in which HSC are genetically modified with mRNA encoding zinc finger nucleases (ZFN) that target and disrupt a specific regulatory GATAA motif in the BCL11A ESE to reactivate HbF^27,28. Zinc finger proteins combined with the nuclease domain of the restriction endonuclease FokI create double-strand breaks (DSBs) at precisely defined genomic locations. Repair of the DSBs via non-homologous end joining (NHEJ) or microhomology-mediated end joining (MMEJ) results in target sequence disruption²⁹.

ZFN-mediated gene editing of the BCL11A ESE in HSC from healthy donors and donors with β-thalassemia reactivates HbF in erythroid cells without compromising in vivo engraftment^30,31. In these studies, we show that ZFN-mediated editing is highly efficient and produces HSC capable of long-term multilineage engraftment in vivo,independent of mobilization strategy or disease state, and robustly express HbF in the erythroid progeny. Through clonal analysis of edited HSC from healthy donors and donors with SCD, we have also shown enriched biallelic editing with a high frequency of small indels, generating a high efficiency of ZFN gene editing. Together with preliminary clinical studies^32,33, our data suggest BIVV003 represents a novel cell therapy for the potential treatment of SCD and support ongoing clinical development of this approach (NCT03653247).

Results

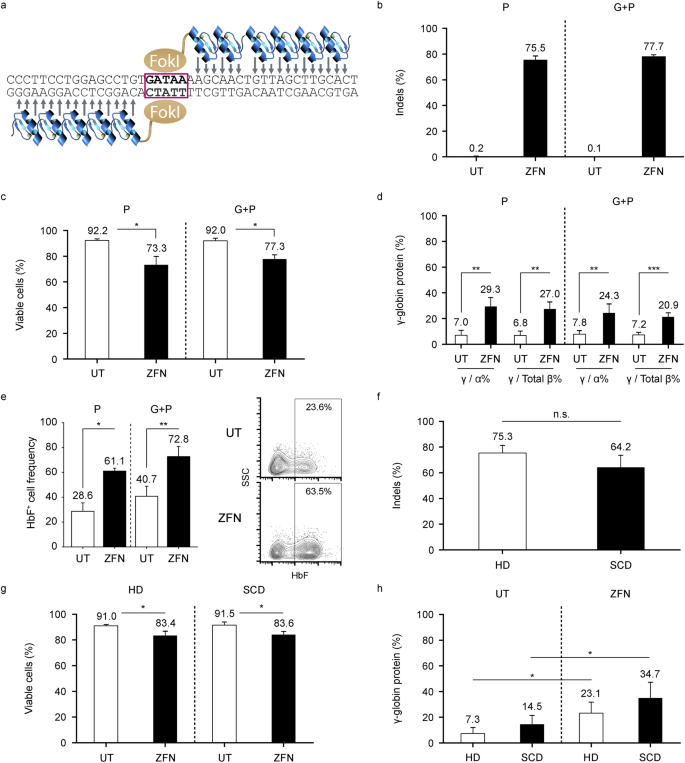

ZFN-mediated gene editing is highly efficient and leads to HbF induction ex vivo independently of mobilization strategy or disease state

In individuals with β-thalassemia, the combination of granulocyte colony–stimulating factor (G-CSF) with plerixafor is used for stem cell mobilization^34,35. However G-CSF is not recommended for hematopoietic stem-progenitor cell (HSPC) mobilization in patients with SCD due to the risk of vaso-occlusive complications associated with leukocytosis, therefore single-agent plerixafor mobilization is utilized³⁶. We characterized ZFN-edited HSPC from healthy donors from single (plerixafor)- or dual-agent (plerixafor plus G-CSF) mobilization. Modification of the BCL11A ESE target site (Fig. 1a) was efficient using both mobilization strategies, with > 75% of alleles modified as measured by frequency of indels (i.e., insertions and deletions) and high post-editing viability (Figs. 1b and 1c).

For both mobilization strategies, we observed approximately 3–fold increases in γ-globin protein and the frequency of HbF⁺ cells after erythroid differentiation of ZFN-edited HSPC, compared with unedited control cells (Figs. 1d and 1e).

ZFN transfection in HSPC from four healthy donors and three participants with SCD (all from single-agent plerixafor mobilization) resulted in comparable BCL11A ESE target site editing in a majority of both healthy and SCD donor HSPC (75.3% and 64.2%, respectively; p > 0.05; Fig. 1f), with high post-editing viability (Fig. 1g). Editing led to approximate 2–threefold increases in γ-globin levels in erythroid progenies from healthy and SCD donor HSPC at day 18 of differentiation (Fig. 1h).

Owing to unexpected differential growth kinetics between SCD donors and premature cell death of unknown cause in two SCD donor HSPC preparations, we were only able to evaluate HbF⁺ cell frequency in HSC derived erythroid cells from one SCD donor. We found comparable increases in HbF⁺ cell frequency after editing in healthy (n = 1) and SCD (n = 1) donor HSPC derived erythroid cells (Figure S1a). Red blood cell (RBC) sickling from the same SCD donor under hypoxic conditions was lower after editing (Figure S1b-d).

ZFN-mediated gene editing does not compromise the function or progenies of HSC and results in stable editing levels after engraftment in in vivo mouse models

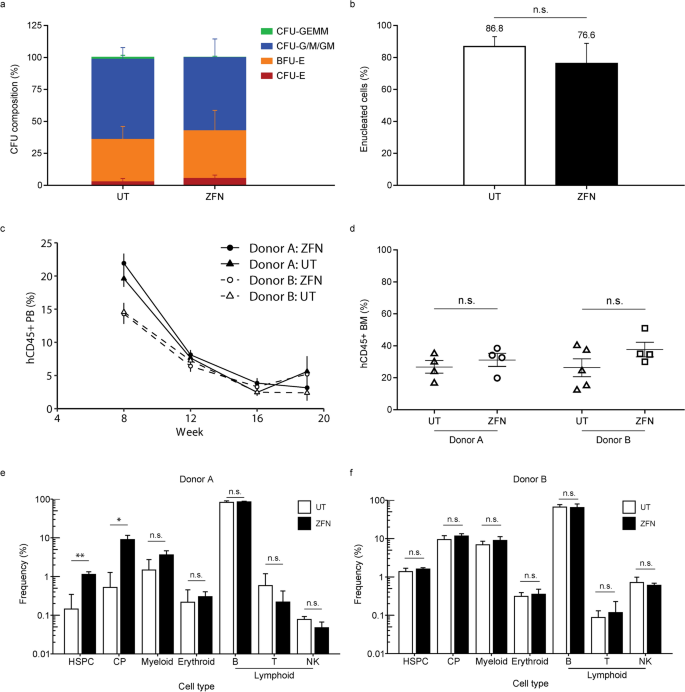

We next measured colony-forming unit (CFU) production in single-agent mobilized HSPC from healthy donors in vitro. CFU composition was similar between edited and unedited cells 2 days post-ZFN editing (Fig. 2a; n = 3). Furthermore, there were no significant differences in frequency of enucleated cells after 20 days of in vitro erythroid differentiation (n = 4, p > 0.05; Fig. 2b).

To determine the effect of ZFN editing on the function of HSC and engraftment potential, we transplanted ZFN-edited and unedited dual-agent mobilized control HSPC from two healthy donors into immune-deficient NOD scid gamma (NSG) mice. Mice treated with edited or unedited HSPC had similar chimerism (Figs. 2c and 2d). We observed a small increase in HSPC and committed progenitors in the bone marrow of mice engrafted with the first donor between edited and unedited cells after engraftment in NSG mice (p < 0.05; Fig. 2e). No significant difference was observed in the bone marrow of mice engrafted with cells from the second donor (Fig. 2f).

Comparable indel levels were observed in both healthy donor HSPC in the cell input and after transplantation at Week 19 in peripheral blood (Fig. 3a). No significant difference in indel levels were measured in BCL11A-dependent (CD19⁺ B cells; CD34⁺CD38⁺ primitive progenitors) and BCL11A-independent (CD33⁺ myeloid cells) lineages at Week 19 after engraftment of HSC from both donors (p > 0.05; Fig. 3b). Human in vitro differentiated erythroid cells derived from engrafted HSPC showed similar indel levels to the other lineages (p > 0.05; Fig. 3b). In addition, no significant differences in terminal erythroid differentiation in vitro were observed based on the proportion of enucleated cells in recipients treated with edited or unedited HSPC at Week 19 post-engraftment (p > 0.05; Fig. 3c). A significant increase in γ-globin in the erythroid progeny was observed in edited versus unedited HSPC (Fig. 3d).

We determined that the most common indel sequences at input resulting from editing in both donors were comparable, with 15-, 13-, and 2-bp deletions the most frequently observed (Fig. 3e). The frequencies of indel patterns and sizes of insertions or deletions after 19 weeks of engraftment were similar between the two donors (Fig. 3g), with no difference between the fractions of total indels likely derived from microhomology-mediated end-joining (MMEJ; Fig. 3f). The frequency of -13 and -15 MMEJ indels dropped significantly after engraftment in both donors, likely reflecting loss of short-term HSC and committed progenitors (Fig. 3f and 3g, Figure S2). Insufficient cell preparations were available to conduct these experiments for HSPC from sickle cell donors.

ZFN-mediated gene editing leads to enriched biallelic-edited cells and allele-additive increases in HbF

We sorted single-agent mobilized, ZFN-edited HSPC from healthy (n = 5) and SCD (n = 3) donors into single cells and performed erythroid differentiation on each resulting colony (Fig. 4)³⁷. We genotyped 1,175 single-cell–derived HSPC colonies by next-generation sequencing (Table S1a). Similar levels of editing, up to 95%, were observed after erythroid differentiation in single cells from healthy and SCD donor HSPC (Fig. 4a). Indel levels in single-cell derived colonies were generally higher than in bulk HSPC or in vitro differentiated erythroid cells (Figure S3). The most observed indel patterns in healthy donor and SCD donor samples were comparable, with the 15-bp, 2-bp, and 13-bp deletions the most frequent (Fig. 4b).

The distribution of wild-type (WT), monoallelic-, and biallelic-edited genotypes was highly skewed towards biallelic-edited cells in both healthy donor and SCD donor HSPC, representing > 90% and 88% of edited clones, respectively, and indicating that ZFN-edited cells contained edits at both alleles (Fig. 4c and 4d; Table S1b and S1c). Background HbF protein levels varied across donors, which were processed in batches, ranging from 7 to 22% in WT clones from healthy donors and from 22 to 51% for WT clones from SCD donors. Nevertheless, we observed a similar increase in HbF across donors: HbF protein measurements indicated that each edited allele contributed additively to an increase of γ/(γ + β) ratio of ~ 15% (Figs. 4e and 4f). Biallelic-edited clones from healthy donors and SCD donors had a 29% and 27% increase, respectively, of γ/(γ + β) ratio, compared with basal levels in unedited clones.

To understand the contribution of different indel patterns to HbF induction, we separated indels according to whether they disrupted the internal GATAA motif. We observed a similar additive increase in HbF in clones with GATAA-disrupting indels in both healthy (n = 5) and SCD (n = 3) donor cells compared with WT, with biallelic clones expressing ~ 34% more HbF than WT (Fig. 4g, Figure S4). In contrast, biallelic-edited clones with both GATAA motifs intact expressed ~ 13% more HbF compared with WT, suggesting that non–GATAA-disrupting indels contribute to HbF up-regulation, albeit to a lower extent (Fig. 4g).

To determine the effect of ZFN editing on erythroid function, we examined the frequency of cell enucleation based on genotype and whether the indel pattern disrupted the internal GATAA motif. In healthy donor HSC (n = 3), biallelic-edited cells showed a slight decrease in enucleation frequency compared with WT (Figure S5a). However, biallelic-edited cells with intact GATAA sites (“WT/WT”) did not show differences in enucleation compared with biallelic-edited cells with disrupted GATAA sites (Figure S5b), suggesting that the observed differences in enucleation may be due to the process of transfection and editing rather than specific effects of BCL11A knockdown. No differences in enucleation frequency were observed among various genotypes or indel patterns within GATAA sites in SCD donor HSPC (n = 3; Figures S5c and S5d).

ZFN-mediated gene editing is characterized by high frequency of small indels

It was possible that biallelic-edited homozygous clones (N = 162) and clones that failed to genotype (N = 16 with visible colonies and good HbF detection) harbored larger deletions at the target sites in one of the alleles, encompassing the primer sites used for the amplicon, and thus were not captured by sequencing. Therefore, we further genotyped these clones from healthy donors (n = 4) using an amplicon design that included both the target site and an informative heterozygous single nucleotide polymorphism that allowed the discrimination of both alleles. We subsequently sequenced clones that remained indeterminate using a larger 12 kb Nextera XT amplicon assay centered on the target site (Fig. 5a). Overall, the majority (89.7%) of edited alleles were small indels (1–50 bp; N = 963; Fig. 5b). Large deletions and insertions > 1 kb accounted for less than 1% and 0.3%, respectively. Similarly, we observed a very small number of complex events involving both insertions and deletions (0.5%). The largest deletion was 5.9 kb within the BCL11A ESE (Fig. 5c). However, this was an outlier considering that the second largest deletion was ~ 2.5 kb and the median size of large deletions (> 1 kb) was 1.4 kb. The largest insertion was estimated to be 2.9 kb. All large insertions mapped to other genomic loci. Overall, between 79.9% and 86.6% of total indels disrupted the GATAA motif (Fig. 5d).

To understand the effect of indel size on HbF, we correlated the mean indel length per clone with HbF using a linear model accounting for sample differences. There was a significant effect of mean size on HbF, although this was attenuated when accounting for GATAA-disrupting indels (Figure S6a and S6b). There was no significant correlation between edit length and enucleation rate, suggesting that larger indels do not negatively impact erythroid function (Figure S6c). Finally, we hypothesized that deletions > 50 bp may be more frequent in either committed progenitors or HSC. We observed an enrichment of MMEJ indel patterns in the second allele of clones harboring deletions > 50 bp compared with clones with NHEJ small indels (Fig. 5e) and observed an increased frequency of microhomologies around deletions > 50 bp compared to smaller deletions (< 50 bp; p < 0.00005). Since MMEJ mediated repair is less frequent in long-term engrafting HSC, these results suggest that large deletions are less likely to arise in this population.

Interim results from the phase 1/2 PRECIZN-1 study

To show how the preclinical research data shown above translate to the clinical setting, we are summarizing the current results from the PRECIZN-1 study, which was conducted following extensive safety studies.

Participant disposition

At the cutoff date (August 15, 2023), seven participants with SCD had received infusions of BIVV003 (Table S2)^32,33. Group 1 comprised four participants administered BIVV003 using the original manufacturing process, each with up to 30 months of follow-up as of the cutoff. Participants in Group 2 received BIVV003 manufactured according to an improved process designed to increase the number of long-term progenitors present at the end of the process without affecting their editing frequency. One participant in Group 2 had 1 month of follow-up at the cutoff. Six of 13 enrolled participants who underwent mobilization and apheresis at least once did not collect sufficient CD34 + HSPC on the first attempt to manufacture the minimal dose of BIVV003 and discontinued from the study without being dosed (Table S3). Four of 13 (31%) participants underwent two cycles of mobilization and apheresis; two collected sufficiently through the repeat cycle to manufacture a dose of BIVV003 and subsequently received the infusion.

Hematopoietic reconstitution and engraftment of edited HSPC

Seven participants underwent busulfan conditioning and infusion of autologous, ZFN-edited HSPC. The mean hemoglobin on the day of BIVV003 infusion was 9.9 g/dL. Median times for neutrophil and platelet recovery were 21 days and 29 days, respectively. Participants received RBC transfusion support up to Day 21 post-transplant. After hematopoietic recovery, all participants were transfusion-free except for Participant 3, who required sporadic transfusions.

The indel frequency in the BIVV003 drug product infused ranged from 56–78% (Table S4). At Week 26, indel frequency ranged from 17–34% in unsorted bone marrow in all four Group 1 participants, and 37% and 33% in two Group 2 participants. The corresponding values for Week 52 were 17–32%. While both input indel percentages and indel percentages at equilibrium tended to be slightly lower in the clinical study, with no strict correlation between the two values for individual samples, the indel patterns in the patient samples mirror those observed after engraftment of ZFN treated human HSC in mice (Fig. 3) with a steep reduction of the percentage of the MMEJ derived 15 and 13 bp deletions compared to the drug product and a high degree of complexity with no specific indel dominant but the 2 bp deletion as the most common indel observed post-infusion in the bone marrow or PBMC derived samples from all patients (data not shown).

Hb fractionation following BIVV003 infusion

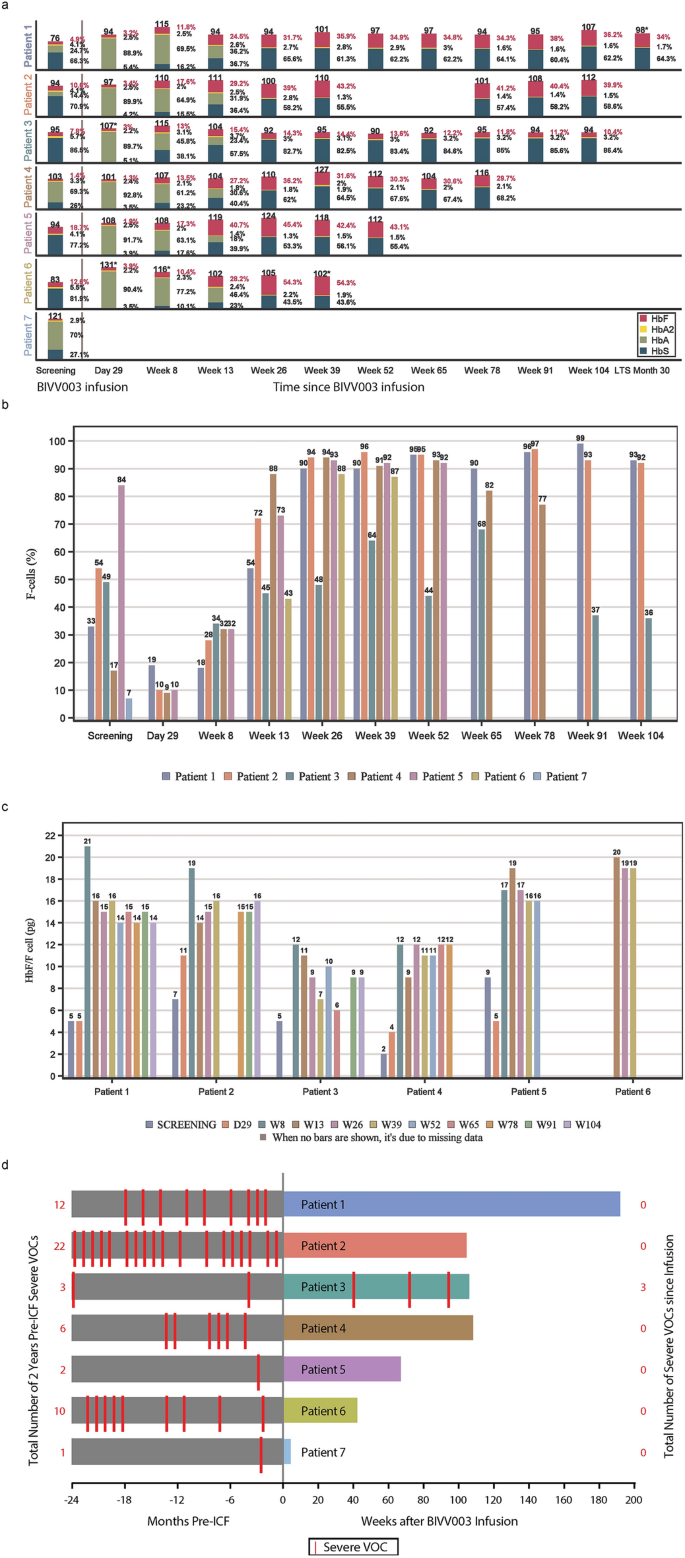

Total hemoglobin (Fig. 6a) and clinical markers of hemolysis (Figure S7) stabilized by Week 26 post- BIVV003 infusion in all six participants with ≥ 26 weeks of follow-up. In Group 1, percent HbF level (1–11% at screening) increased to 14–39% by Week 26 in all four participants. Notably, one participant had an HbF level which dropped below 15% from Week 26 onwards (Fig. 6a). In Group 2, percent HbF level increased to 45–54% at Week 26.

Percent F cells increased up to 99% and reached a stable level by 26 weeks of follow-up in six infused participants (one subject having reached only Day 29 post-infusion by the cutoff date). F cell levels persisted at 77% or greater in five participants for up to 104 weeks of follow-up (Fig. 6b). At Week 26, five of six participants had stably achieved the average level of ≥ 10 pg of HbF/F cells that inhibits sickle hemoglobin (HbS) polymerization²⁵ and sustained this level for up to 104 weeks of follow-up (Fig. 6c). Group 2 participants generally attained higher HbF/F cell levels than Group 1 participants. (Fig. 6c).

Safety and tolerability

Overall, the AEs reported in the study were generally consistent with mobilization, apheresis, and conditioning treatment (Table S5). Two SAEs of sickle cell anemia with crisis in two patients were reported by the investigator as related to plerixafor. One SAE of nausea was reported by the investigator as related to busulfan. There were no related SAEs and only one Grade 2 AE of anxiety assessed by the investigator as related to BIVV003. As of the cutoff, three vaso-occlusive crises had been reported ~ 9 ,17 and 22 months after BIVV003 infusion in one participant in Group 1 (Fig. 6D). No other SCD-related events were reported.

Discussion

BIVV003 is a novel gene-edited autologous cell therapy in development for SCD (NCT03653247), in which HSPC are genetically modified with mRNA encoding ZFNs that disrupt a specific regulatory GATAA motif in the BCL11A ESE to reactivate HbF. ZFN-mediated gene editing does not require viral transduction or the use of DNA-annealing oligonucleotides, such as guide RNAs. In our preclinical studies, ZFN editing was highly efficient, as evidenced by high indel frequency, and led to HbF induction ex vivo, in plerixafor-mobilized HSC from both healthy donors and donors with SCD. ZFN-mediated gene editing did not impact terminal erythroid differentiation, consistent with previously published approaches targeting the ESE of BCL11A^{30,31,38,39,40,41}. Erythroid progenies from ZFN gene-edited HSC from an SCD donor showed attenuated in vitro sickling, supporting the therapeutic impact of ZFN editing and HbF induction, and expanding on our previous studies in β-thalassemia³¹.

ZFN-mediated gene editing did not compromise the function and potency of hematopoietic progenitors, consistent with our previous studies^30,31. Following engraftment of ZFN-edited HSPC into immunodeficient mice, similar human chimerism in circulation and bone marrow was observed compared to non-edited HSPC. Furthermore, the frequency of engrafted, gene-edited cells in total and sorted bone marrow populations persisted. Erythroid cells differentiated ex vivo from the chimeric bone marrow of primary recipients showed that ZFN-mediated gene editing resulted in effective HbF reactivation with no impact on enucleation, consistent with our in vitro findings. Our studies show a long-term and sustainable effect in an in vivo mouse model.

Long-term HSC were shown to preferentially undergo NHEJ-mediated repair following ZFN-mediated gene editing. Sequencing of input cells showed the most common edits were 15- and 13-bp deletions, due to MMEJ repair. After in vivo engraftment, we observed a reduced frequency of MMEJ repair alleles in engrafted versus input cells, suggesting that long-term HSC favor repair by NHEJ. Consistently, preclinical data from CRISPR-mediated gene editing in HSC suggest that long-term HSC favor NHEJ-repair and that MMEJ may be less common in these cell types^40,41.

A major consideration for the clinical development of gene therapies is high efficiency of therapeutic editing and the reduction of off-target editing. We demonstrate that ZFN-mediated gene editing in HSC from healthy donors and donors with SCD results in highly efficient and precise disruption of the BCL11A ESE. Genotype distributions of edited HSC were highly skewed towards biallelic editing, suggesting that ZFN-expressing cells are characterized by complete allelic disruption. Colonies with biallelic modifications also exhibited increased HbF levels in an edited allele- and GATAA site disruptive-dependent fashion. The high precision of ZFN-mediated gene editing was confirmed by sequencing a 12 kb region around the target site. High rates of unintended on-target large deletion of genes, including BCL11A, in CRISPR/Cas9 gene-edited SCD HSC were recently reported^42,43. We observed that indels resulting from ZFN editing of healthy donor and SCD donor HSC were generally small and located well within the intronic region of BCL11A. The largest deletion was contained within the BCL11A ESE and all large insertions appeared to be random integrations. Our data also suggest that large deletions are less likely to arise in the long-term engrafting HSC as large deletion rates positively correlate with MMEJ repair usage⁴⁴. However, a limitation of our study is that long-range sequencing was not conducted, which would have provided a more accurate characterization of potential large deletions, insertions, and complex events.

Interim safety and efficacy results confirm the potential therapeutic value of ZFN-mediated modification of the BCL11A ESE region and BIVV003 infusion to address current unmet needs of individuals with SCD. Five of six infused participants with more than 3 months of follow-up showed sustained increases in total Hb, HbF, and percent F cells. Participant 3, the one who displayed a non-sustained level of HbF expression, likely did not have adequate myeloablation and/or engraftment of ex vivo LT-HSC despite receiving a cell product with a high percentage of edited cells. This is supported by the large difference between the indel percentage in the drug product and after infusion (Table S4). BIVV003 was well tolerated in all seven participants infused to date, with all three post-infusion severe VOC events reported in one participant (participant 3) after treatment, which were associated with HbF levels below what is inhibitory of HbS polymerization. The manufacturing process used in group 1 has been shown to result in a reduction in the LT-HSPC population in the drug product (data not shown). This manufacturing process was also used in our study of ZFN-edited autologous HSPC transplant in patients with transfusion-dependent beta-thalassemia (NCT03432364), and, in addition to the different mobilization procedure and patient population, may have factored into the short-lived increases in HbF in RBC observed in that study. It may also have factored in the non-sustained HbF expression in participant 3, although unique aspects of the treatment of this patient or their biology may have contributed to this outcome. In group 2, a refined manufacturing process with improved culture conditions during CD34 + HSPC isolation and culture to leading to an increased number of LT-HSC in the drug product has been used. Remaining participants to be dosed in the Phase 1/2 study will receive drug product manufactured using the improved process. Despite this manufacturing challenge, there was natural enrichment of modified erythroid lineage cells in the blood with elevated HbF, sufficient for a clinical benefit in all participants, in terms of prevention of severe VOC and not requiring transfusion therapy with the exception of participant 3.

Our results show that ZFN-mediated disruption of the BCL11A ESE results in highly efficient editing and produces HSC that are capable of long-term multilineage engraftment in vivo, independent of mobilization strategy or disease state, and express increased levels of HbF as erythroid progeny. The HbF and Hb levels achieved in group 2 to date indicate an improvement compared to group 1 and appear comparable to those observed with exa-cel, a CRISPR-based, BCL11A ESE editing approach that targets the same site and that recently received marketing approval. Through clonal analysis of edited HSPC from healthy donors and donors with SCD, we have also shown enriched biallelic editing and a high frequency of small indels, supporting the high efficiency of ZFN gene editing. While highlighting the challenges of consistently manufacturing clinical grade, autologous, gene-edited HSPC therapy for patients with SCD, our preliminary data support further clinical development of this approach and suggest that BIVV003 represents a novel cell therapy for the potential treatment of SCD.

Online methods

Experimental approaches used in this study have been described previously³⁰. All experiments were performed in accordance with relevant guidelines and regulations. All animal procedures were approved by the Sanofi Institutional Animal Care and Use Committee (IACUC) and performed in accordance. The study is reported in accordance with the ARRIVE guidelines (https://arriveguidelines.org). The PRECIZN-1 study was performed in accordance with the Declaration of Helsinki and local regulations and was approved by independent ethics committees or institutional review boards as described in the PRECIZN-1 section.

Cell culture

Human CD34 + cells were mobilized from de-identified healthy or sickle cell disease volunteers using granulocyte colony stimulating factor (G-CSF) and plerixafor or plerixafor as previously described³⁵. Mobilized CD34 + HSPC and/or chimeric bone marrow cells were cultured for 3 days in a maintenance media consisting of X-VIVO 10 (VWR), 100 U/mL penicillin–streptomycin (ThermoFisher), 2 mM L-glutamine (Fisher Scientific), 100 ng/mL Recombinant Human Stem Cell Factor (SCF; ThermoFisher), 100 ng/mL Recombinant Human Thrombopoietin (TPO; ThermoFisher), and 100 ng/mL Recombinant Human Flt-3 Ligand (Flt-3L; ThermoFisher). Cells were then differentiated into erythroid cells using a three-step differentiation protocol developed by Giarratana et al. (2005)⁴⁵. In brief, CD34 + cells were cultured for 7 days in Step1 media consisting of Iscove’s modified Dulbecco’s medium (IMDM) (ThermoFisher) supplemented with 1X GlutaMAX, 100 U/mL penicillin–streptomycin (ThermoFisher), 5% human AB + plasma, 330 ug/mL human holo-transferrin, 10 ug/mL human insulin, 2 U/mL heparin, 1 uM hydrocortisone (Sigma-Aldrich), 3 U/mL recombinant human erythropoietin (EPO) (ThermoFisher), 100 ng/mL SCF (ThermoFisher), and 5 ng/mL interleukin 3 (IL3; Sigma-Aldrich). On Day 7, cells were transferred to Step2 media i.e., Step1 media without hydrocortisone and IL3, and cultured for 3–4 days. Lastly, cells were cultured for 8–9 days in Step3 media i.e., Step2 media without SCF.

BCL11A Editing of human CD34 + Cells Using ZFNs

Zinc-finger nucleases (ZFN)

ZFN were designed and assembled as previously described²⁸. The ZFN are composed of a triple flag domain, a nuclear localization signal, an engineered DNA-binding domain and a mutated obligate heterodimer FokI nuclease domain. The pGEM-based expression vectors contain a T7 promoter 5′ and 3′ UTRs and a synthetic 64-bp poly(A) stretch for optimized mRNA production. Compared to a ZFN pair described earlier (Psatha, Ref. 31) ZFN activity and specificity was further optimized. On the one hand, this was achieved by fine tuning DNA binding affinity through extensive screening of zinc finger domain variants containing mutations which remove nonspecific phosphate contacts to the DNA backbone. The ZFNs described in this publication both contain three variant amino acids in the zinc finger domain compared to the original left and right BCL11A targeting ZFNs. On the other hand, ZFN performance was further improved via optimization of the DNA cleavage kinetics by mutating one residue in the FokI domain of the right ZFN. Both approaches are described in Reference 29 (Miller et al.).

The amino acid sequence in the zinc finger DNA binding domains is as follows:

F1	F2	F3	F4	F%	F6
Left ZFN DQSNLRA	RNFSTM	STGNTN	TSGSLTR	DQSNLRA	AQCCLFH
Right ZFN DQSNLRA	QKAHLIR	QKGTLGE	RGRDLSR	RRDNLHS

Electroporation

To edit CD34 + cells, cells were thawed and cultured in the CD34 maintenance media described above for 1 or 2 days at 37C, 5% CO2 in a humidified incubator. CD34 + cells were electroporated using a MaxCyte GT transfection instrument (MacCyte) or Lonza Nucleofector 4D in the presence of the ZFN mRNAs. After transfection, cells were incubated in the CD34 maintenance media at 30C for 18–24 h and then at 37C for 24 h. Two days after electroporation, cells were harvested, resuspended in CryoStor CS10 (10% dimethyl sulfoxide [DMSO]), and transferred to cryovials. The cells were then cryopreserved and stored in liquid nitrogen.

Transplantation of human CD34 + HSPC in NSG mice

Female NOD.Cg-Prkdcscid IL2rgtm1Wjl/SzJ (NSG) mice (Jackson Laboratories) at the age of 6–7 weeks, pre-treated with 10 mg/kg/day Baytril water for two days were sub-lethally irradiated at 300 rad 1 day before transplant. For primary recipients, human CD34 + cells were injected into the mice via the tail vein at 1 million viable cells per mouse.

Flow cytometry

Enucleation

To determine the enucleation rate of the erythroid differentiation culture at Day 20, cells were stained with NucRed (used for living cells; ThermoFisher) per the manufacturer’s instructions (2 drops/mL) and fluorescein isothocyanate (FITC)-conjugated anti-CD235 (Glycophorin A) antibody (Clone JC159-Dako-Agilent), washed with PBS (ThermoFisher) supplemented with 0.5% BSA (Sigma-Aldrich).

HbF staining

To determine the percentage of HbF + cells, cells were fixed and permeabilized according to ThermoFisher protocol. Cells were also stained with Phycoerythrin (PE)-conjugated anti CD235 antibody (ThermoFisher) and NucBlue (Hoechst 33,342, used for fixed cells; ThermoFisher). HbF levels were detected using Allophycocyanin (APC)-conjugated anti-HbF antibody (ThermoFisher) after gating on the enucleated (Hoechst low) CD235 positive cell fraction.

For enucleation and HBF staining methods, the acquisition of stained cells was performed on FACSCanto and the analysis was done using FlowJo software.

Ex vivo staining and sorting

To assess the degree of human chimerism, fractions of cells in peripheral blood (at 8-, 12-, 16-, and 19-weeks post-engraftment) and bone marrow (at 12 and 19 weeks post-engraftment) were stained with mCD45 (Biolegend) and hCD45 (BD Biosciences) antibodies respectively and FACS analysis was performed. In addition, hematopoietic lineage analysis was performed by staining bone marrow cells with anti-hCD3 (clone UCHT1), anti-hCD19 (clone SJ25C1), anti-hCD45, anti-hCD33, anti-hCD38, anti-hCD34, anti-hCD71, and anti-hCD56 antibodies (BD Biosciences) and lineage cocktail (Biolegend) (Table S6).

To purify and sort HSC populations, an enrichment/depletion strategy using magnetic cell separation (MACS) was used (Table S7). Bone marrow cells were first stained with hCD19-biotin (clone HIB19), hCD3-biotin (clone HIT3a), mB220-biotin, mTER119biotin and -m-ckitbiotin (BD Biosciences) and then incubated with -antibiotin- beads (Miltenyi Biotec). The positive fraction and depleted fraction were separated using LS columns (Miltenyi Biotec) placed in the magnetic field of a MACS. After separation, the positive fraction was stained with StreptavidinAPC-, hCD3-FITC, hCD19-PE, hCD45-BV510 (BD Biosciences) and the depleted fraction was stained with hCD34-FITC (BD Biosciences), hCD19APC (BD, clone SJ25C1), -LinAPC- (Biolegend), StreptavidinAPC-, hCD45-BV510, hCD33-PE-CF594 (BD Biosciences), and hCD38-PECy-7 (Biolegend). Cell populations were sorted and processed for MiSeq analysis.

In vitro HSPC flow staining

Purified CD34 + cells were stained with anti-CD34, anti-CD38, anti-CD45rA, anti CD49f. (BD), anti CD123, anti CD90 (ebioscience) and CD34hCD38-CD90 + CD45RA-CD49f. + (LT-HSC), CD34hCD38-CD90-CD45RA-CD49f.- (MPP), CD34hCD38-CD90-CD45RA-CD49f. + (ST-HSC), CD34hCD38-CD90 + CD45RA- (HSC),CD34hCD38-CD90-CD45RA + (LMPP), CD34hCD38 + CD123 + CD45RA- (CMP), CD34hCD38 + CD123-CD45RA- (MEP), CD34hCD38 + CD123 + CD45RA + (GMP), CD34 low and CD34- were sorted and processed for MiSeq.

Assessment of RBC sickling

Sickling of CD34 + HSPC-derived RBCs was assessed under hypoxic and normoxic conditions. Approximately 2–10 × 10⁶ RBCs were pelleted by centrifugation and resuspended in 800 µL phosphate buffered saline (PBS) supplemented with 10 mmol/L^-1 glucose and 0.2% w/v (bovine serum albumin (BSA). Two duplicate 24-well plates were prepared using 400 µL of each sample. The hypoxia plate was incubated at 1% oxygen for 2 h in a hypoxia chamber and the control plate incubated in normoxic conditions. Following incubation, all cell samples were fixed with 40 µL of fresh 25% glutaraldehyde (EM grade), before pelleting by centrifugation and resuspension in 50 µL. Sickling was measured by imaging flow cytometry (ImageStream). The number of sickled or normal cells is reported as a percentage of all cells.

Reverse phase UPLC

Reverse phase high-performance liquid chromatography (RP UPLC or RPLC) of human globin chains was used to determine any changes in the ratios of γ-globin, β-globin, and α-globin protein. Under conditions of varying pH (such as used in the UPLC gradient), the globin chains (β, δ, α, G γ and A γ) were denatured and separated from the heme groups. Hemolysates from 1.0 × 10⁶ RBCs obtained from Day 18 or 21 cultures were washed twice with PBS and resuspended in 50 µL of UPLC grade water for lysis. The sample was then vortexed and the hemolysate clarified by centrifugation at 10,000 × g for 5 min at 4 °C. The hemolysate supernatant was then transferred to a new tube or plate and stored at -80 °C until analysis. For the UPLC runs, 20 µL of hemolysate was injected directly into the column for each assay. UPLC analyses were performed on a Waters Acquity BEH300 C4 column (C4 Reversed Phase, 300 A Pore Size 2.1 × 100 mm, 1.7 μm particle size; Waters Acquity; Product No. 186004496) on an Agilent 1290 Infinity II Ultra High-Performance Liquid Chromatographer (Agilent). Globin chains were eluted with a two solvent system (100% UPLC H2O + 0.1% trifluoroacetic acid and solvent B, 100% acetonitrile + 0.1% trifluoroacetic acid) and a multi-step RPLC elution program starting at 35% Solvent B and gradually increasing to 38% Solvent B over a time period of 4 min, increasing again to 42.5% Solvent B over a time period of 18 min, an increase to 70% Solvent B in 4 min followed by a 4 min flush of the column at 70% Solvent B and re-equilibration down to 35% solvent B within 5 min. The flow rate was 0.2 mL/min. Quantitation of the amounts of the various globins was obtained by integration of the peak areas monitored by absorbance at 220 nm with reference wavelength of 360 nm using software provided with the UPLC unit (Agilent OpenLab Chemstation Rev. C.01.07).

Colony forming unit CFU) assay

Human CD34 + enriched were washed with PBS (1X) / 0.5% BSA and added to 300 mL media (IMDM with GlutaMAX; Invitrogen; Cat No. 31980030). The cells were then mixed in semi solid methycellulose media supplemented with cytokines (MethoCult H4435 Classic; StemCell Technologies; Cat No. 04445) per the manufacturer’s instructions. In brief, 500 cells per well were plated in duplicates (1.1 mL cell culture per well) in six well meniscus free cell culture plates (SmartDish; StemCell Technologies; Cat No. 27301). The plates were incubated for 14 days in a humidified incubator at 37 °C with 5% CO2 and then scored for total progenitors and type of colony using an automated colony counter (STEMvision; StemCell Technologies; Cat No. 22000). The automated colony counter recorded the total number of erythroid colony forming units (CFU E), erythroid burst forming units (BFU E), granulocyte colony forming unit / macrophage colony forming unit / granulocyte, macrophage colony forming units (CFU G/M/GM) and granulocyte, erythrocyte, macrophage, megakaryocyte forming units (CFU GEMM) in each well.

Miseq indel analysis (or genotyping the targeted loci by deep sequencing)

Disruption of targeted BCL11A ESE loci was quantitated by MiSeq deep sequencing of a 140-bp amplicon using procedures described previously³⁰. The primer sequences bearing sample-specific barcodes and the Illumina flow cell-specific sequences (P5 and P7) are provided in Methods Table 1. We used a MiSeq Reagent Kit v2 (300 cycles) for deep sequencing of the amplicon.

Table 1 Primers used for deep sequencing.

Full size table

N: mixed base containing 25% of each nucleotide of ACGT (to increase sequence diversity). We merged paired-end reads using SeqPrep (https://github.com/jstjohn/SeqPrep), then trimmed reads using a custom script to remove any remaining adapter sequence as well as the 4 random nucleotides from the left primer. The script also filtered out sequences where the first and last 20 bp do not match the reference amplicon sequence. We then removed reads with lower quality bases using prinseq⁴⁶(-min_qual_score 15) and aligned remaining sequences to the human genome (hg38) using bowtie2⁴⁷.

We filtered out sequences that aligned outside the target site but kept reads that failed to align. As a last filtering step, we removed reads ≤ 70 bp long to filter out potential PCR artifacts.

Finally, we aligned sequences to the expected amplicon using the Needleman-Wunsch algorithm as implemented in seq-align (https://github.com/noporpoise/seq-align). To count indels, a window of 21 bp was defined around the central GATAA motif (GATAA ± 8 bp each side), and contiguous gaps in either the query or reference sequence that overlapped this window were considered indels.

Single-cell clonal expansion analysis

Single-cell clonal expansion analysis was performed as described previously³⁰. Briefly, ZFN-edited CD34 + cells were seeded at 2 cells/well into 96-well non-TC treated plates (Corning) using FACSAria III. The cells were subjected to 3-step expansion in erythroid differentiation media for 20 days; genomic DNA and protein lysate were collected at Day 14 and 20, for deep sequencing and RP-UPLC analysis, respectively. Additionally, at Day 20, cells were stained with GlyA-FITC antibody and Nuc Red for enucleation rate.

We called genotypes of single clones as above, with the following differences: For a subset of clones from sample 1 and all clones from samples 3 and 4, we used a larger amplicon (471 bp) (MethodsTable 2) that covered common SNPs to potentially distinguish homozygous clones from clones where one allele failed to amplify due to a deletion covering the primer sites. For the individuals with informative heterozygous SNP, this method allows confirmation of whether the originally assigned homozygous clones (biallelic edits with same editing pattern) are true homozygotes or false homozygous where one allele failed to amplify due to a deletion covering the primer sites. We used a MiSeq Reagent Kit v2 (500 cycles) for deep sequencing of the larger amplicon. We also included reads that failed merge with SeqPrep due to the overlap being too small. We called SNPs using bcftools mpileup⁴⁸ on all clones.

Table 2 Primers used for larger amplicon.

Full size table

We only considered clones with read counts > 50 reads and allele frequencies consistent with a clonal population (i.e. 2 major alleles with read counts of 50% each or one major allele at ~ 100% frequency). Specifically, we used the following criteria: For heterozygotes, the top 2 indels needed to each comprise 40% to 60% of reads and together more than 85%, and the third most common indel constitute less than 5% of read sequences. For homozygotes, the most common sequence needed to comprise more than 85% of reads, with the second indel less than 5%.

For clones with uncharacterized alleles (including homozygotes and clones that failed to amplify), we amplified a ~ 12 kb region centered on the target site (Methods Table 3) with PrimeSTAR® GXL DNA Polymerase (R050A, Takara). After purification of the ~ 12 kb PCR products, we fragmented and tagged the DNA with adapter sequences using Nextera XT DNA library prep kit (FC-131–1096, Illumina), following the instruction from the manufacturer. We amplified the library using Nextera XT Index Kit v2 Set A (FC-131–2001, Illumina) and pooled the library for deep sequencing with MiSeq Reagent Kit v2 (300 cycles).

Table 3 Primers used for 12 kb amplification.

Full size table

We trimmed adapters from reads using Trimmomatic⁴⁹, then aligned reads to the genome (hg38) using SpeedSeq align⁵⁰. We used LUMPY⁵¹to call large indels and bcftools mpileup⁴⁸ to call small indels and SNPs. Moreover, each alignment was visually inspected in Integrated Genomics Viewer (IGV) to assure that editing events were not missed by the variant callers, and to filter out events likely reflecting PCR artifacts (e.g. structural variants at the ends of the amplicon).

Association of HbF with editing in single clones

We used linear regression to test the association of indels with HbF, adjusting for the differences between donors by incorporating a donor-specific covariate, specifically:

$$\text{Y}={\beta }_{0}+ {\beta }_{indels}{X}_{editing}+{\beta }_{donor}{X}_{donor}$$

where Y represents the HbF levels, ${\beta }_{0}$ is the intercept, ${\beta }_{indels}$ is the slope (beta) coefficient for the editing level variable and ${\beta }_{donor}$ is the slope coefficient for the donor effect variable${X}_{donor}$ . We represented HbF levels as the ratio of gamma-globin over all beta-like globins.

Biallelic enrichment analysis

To calculate the enrichment of biallelic clones, we first calculated the expected number of clones using an equation analogous to the Hardy–Weinberg equilibrium⁵²:

$${f}_{unedited}^{2}+ {2f}_{unedited}{f}_{edited}+{f}_{edited}^{2}=1$$

where ${f}_{unedited}$ and ${f}_{edited}$ are the frequencies of unedited and edited alleles respectively. ${f}_{unedited}^{2}$ represents the expected frequency of unedited clones,${2f}_{unedited}{f}_{edited}$ the expected frequency of monoallelic edited clones and ${f}_{edited}^{2}$ the expected frequency of biallelic edited clones. We multiplied the frequencies by the total number of clones to obtain the expected number of wild-type, monoallelic edited, and biallelic edited clones. Finally, we constructed a contingency table with the observed and expected number of clones and calculated significant deviations using a chi-squared test. This analysis was done separately for each donor.

Homozygote enrichment analysis

To calculate the enrichment of homozygote clones, we first permuted each allele 100,000 times. Then, we derived a P value by counting the number of permutations that lead to a count of homozygotes higher than observed and dividing that number by 100,000.

Microhomology indels identification

We used the CRISPR RGEN Microhomology online tool⁵³ to predict MMEJ indels, using the following sequence as input:

CGCCCCCA CCCTAATCA GAGGCCAA ACCCTTC CTGGAGCC TGTGATAA AAGCAAC TGTTAG CTTGCAC TAGACTA GCTTCA AAGTT GTATT. We used Pearson correlation to relate pattern scores with MMEJ-based indel frequencies. In addition, we inferred microhomology sequences around small (< 50 bp) and large (> 50 bp) deletions using mhscanR⁴⁴.

PRECIZN-1: Bivv003 phase 1/2 study design and methodology

PRECIZN-1 (NCT03653247) is an ongoing, first-in-human, open-label, single arm, multi-site, US-based study to evaluate safety, tolerability, and efficacy of BIVV003 in adult participants age 18–40 years with severe SCD . Eligibility was based on having HbSS or HbSβ0 genotype, and at least one of the following: (1) history of clinically significant neurologic event (stroke) or any neurological deficit lasting > 24 h; (2) history of 2 or more episodes of ACS in the 2-year period preceding informed consent; (3) six or more pain crises (requiring intravenous [IV] pain management) in the prior 2 years; (4) 2 or more episodes of priapism with subject seeking medical care or following a pre-approved management plan in the prior 2 years; (5) regular (≥ 8) RBC transfusions in the preceding year to prevent vaso-occlusive clinical complications; (6) tricuspid valve regurgitant jet velocity ≥ 2.5 m/s by echocardiography. Hydroxyurea (HU) use was permitted but one had to be willing to discontinue HU at least 30 days prior to stem cell mobilization through Day 100 post-transplantation.

There was an initial 12-week screening period to assess participants’ suitability for the study. At the screening visit, participant 2 reported cerebral infarction, participant 4 reported stroke, and participant 7 reported cerebral microembolism. No stroke was reported after the screening visit in the study. Transfusion therapy was used within 2 months of mobilization and prior to myeloablative conditioning to target levels of HbS < 30% and total Hb at least 9–10 g/dL. Enrolled participants underwent plerixafor mobilization (240 μg/kg/day for up to 3 days) and apheresis to collect autologous CD34 + HSC with a target of 10 × 10⁶ CD34 + HSC/kg for manufacturing BIVV003 using a LOVO device. Additional apheresis cycles were allowed to collect the minimum cell dose and unmodified rescue aliquots. Selected CD34 + cells were cultured in the presence of cytokines (SCF, FLT-3L, TPO). Two days after CD34 + cell isolation autologous HSC were transfected ex vivo with ZFN messenger ribonucleic acids (mRNAs) targeting the ESE region of the BCL11A locus using a MaxCyte device. Transfected cells were cultured in the presence of cytokines for another two days and then harvested, formulated in cryopreservation medium, aliquoted, frozen using a controlled-rate freezer and stored in the vapor phase of liquid nitrogen at ≤ −150 °C. For CD34 + cell culture in Group 1 Lonza X-Vivo 10 Medium and ThermoFisher cytokines were used, in Group 2 Cell Genix media and cytokines. In addition, for Group 2 manufacturing the LOVO instrument was upgraded with software version 3.0 which improved CD34 + cell recovery. Myeloablation of the participant’s bone marrow was performed using busulfan 3.2 mg/kg/day IV × 4 days, with pharmacokinetically adjusted dosing. At least 72 h after the final busulfan dose, a single IV infusion of 3–20 × 10⁶ CD34 + HSC/kg was administered.

Participants were monitored for hematopoietic engraftment and recovery, adverse events (AE), clinical and laboratory hemolysis markers, total Hb and HbF, percentage of F cells, and sickle-cell-related events post-BIVV003 infusion.

Key study endpoints

Primary endpoints (to evaluate safety and tolerability of BIVV003) were survival at post transplantation Day 100, Week 52, and Week 104 (last study visit), successful engraftment, and the occurrence of adverse events and serious adverse events. Secondary endpoints (to assess the success and kinetics of stem-cell collection, manufacturing, and engraftment) were CD34 + HSC yield from stem-cell mobilization, yield of ZFN-edited CD34 + HSC, time to initial neutrophil recovery following infusion (first of three consecutive days with absolute neutrophil count ≥ 500/μL), time to platelet recovery post infusion (first of three consecutive measurements with a platelet count ≥ 50,000/μL at least 7 days after last platelet transfusion) and clinical assessments after BIVV003 infusion. Data cutoff for study endpoints was September 2022.

Statistical analyses

No formal statistics were performed. All statistics are presented as descriptive.

Data availability

Next-generation sequencing data generated during the current study are available in the Sequence Read Archive (BioProject PRJNA1053294, https://www.ncbi.nlm.nih.gov/bioproject/PRJNA1053294). Qualified researchers may request access to patient level data and related study documents. Patient level data will be anonymized, and study documents will be redacted to protect the privacy of our trial participants. Further details on Sanofi’s data sharing criteria, eligible studies, and process for requesting access can be found at: https://www.vivli.org/.Other datasets generated during the current study are available from the corresponding author on reasonable request.
