Introduction

Over the past 30 years, the incidence of thyroid cancer (TC) has rapidly increased across various populations worldwide, with papillary thyroid carcinoma (PTC) being the most prevalent subtype, accounting for approximately 80–90%1,2,3. Despite being classified as a low-grade malignancy, about 30–80% of PTC patients present with lymph node metastasis (LNM), which is strongly associated with higher rates of locoregional recurrence4,5.

Hashimoto’s thyroiditis (HT) is the most common autoimmune thyroid disease and the most frequent benign comorbidity in PTC patients (10-58% of PTC patients also have HT)6,7,8,9,10. Although some studies suggest that HT may have a protective role against LNM in PTC patients11,12,13,14, there remains a considerable risk of LNM (28-62%) in patients with concurrent PTC and HT7,15,16. The presence of LNM, the number of LNM, and the regions affected significantly influence the surgical approach and prognosis for PTC patients. Current research suggests that the factors influencing LNM in PTC patients with concurrent HT may differ from those in PTC patients without HT17,18,19. While LNM in PTC-only patients has been well-studied, there remains a gap in understanding the risk factors for LNM in patients with both HT and PTC, primarily due to incomplete inclusion of relevant variables and the absence of comprehensive criteria for assessing LNM. Additionally, reactive hyperplasia commonly observed in cervical lymph nodes, particularly in the central compartment, complicates the preoperative radiological evaluation of metastasis in patients with both PTC and HT8,20. Therefore, investigating the factors contributing to LNM and constructing predictive models is crucial for improving the accuracy of preoperative diagnosis in this patient population.

Moreover, while the majority of prior clinical studies have employed group-based differential testing methods to investigate the potential risk factors for LNM, the experimental design based on specific indicators has limited capacity to exclude the influence of potential confounding factors21. Furthermore, these studies have failed to conduct an in-depth exploration of the mutual influences between the key outcome variable and the risk factors. Therefore, building upon the risk factors for LNM in patients with HT and PTC revealed by regression models, this study aims to further investigate the intricate interplay between the severity of LNM and the associated risk factors among patients with concurrent HT and PTC who exhibit LNM, through the employment of robust data-driven analytical methodologies. The emerging paradigm of symptom network analysis presents an opportune avenue to address this inquiry.

Network analysis is a data-driven analytical approach grounded in mathematical graph theory, which has been widely utilized in recent years to conduct in-depth investigations of the interrelationships among different omics data. In symptom network analysis, variables are represented as nodes within the network, and the correlations between variables are depicted as edges. Algorithms such as the extended Bayesian information criterion (EBIC) and the least absolute shrinkage and selection operator (LASSO) are employed to eliminate spurious correlations within the network, thereby controlling for the potential influence of confounding factors on the associations between nodes22,23. Moreover, symptom network analysis not only allows for the visualization of complex interrelationships among variables but also facilitates the detection of clustering communities within the network, further elucidating the clustering preferences among variables. By leveraging the novel capabilities of symptom network analysis and other data-driven techniques, we aim to unravel the intricate interdependencies between the extent of LNM and the pertinent associated factors in the clinical cohort.

In summary, within this study, we systematically gathered data encompassing age, gender, preoperative serum autoantibody levels, tumor ultrasound characteristics, and the presence of the BRAFV600E mutation. The primary objective was to elucidate the integrated clinical and pathological features of PTC combined with HT and to explore their correlation with LNM. Furthermore, we employed emerging network analysis methods to further investigate the complex relationships between the severity of LNM and its associated factors.

Materials and methods

Participants and study design

This study received approval from the Ethics Review Committee of Xiangya Hospital, Central South University (202211733). All procedures were conducted in accordance with relevant guidelines and regulations, including the Declaration of Helsinki. Written informed consent was obtained at the time of surgery for general use of clinical information in future studies.

The study cohort comprised individuals who underwent total thyroidectomy and ipsilateral or bilateral central LN dissection and other necessary lateral neck LN dissection procedures at Xiangya Hospital, Central South University, spanning from January 2020 to December 2021. Data from the 2020 cohort were used as the training set for constructing the predictive model, while data from the 2021 cohort served as the validation set. Inclusion criteria encompassed pathologically confirmed PTC concomitant with HT. Exclusion criteria were applied to (i) individuals with mixed thyroid carcinomas, (ii) PTC combined with other head and cervical malignancies or inflammatory diseases, (iii) a history of cervical surgery, or (iv) incomplete clinical information. Ultimately, 271 patients in 2020 and 300 in 2021 with both PTC and HT were included in this investigation (Fig. 1).

Fig. 1
figure 1

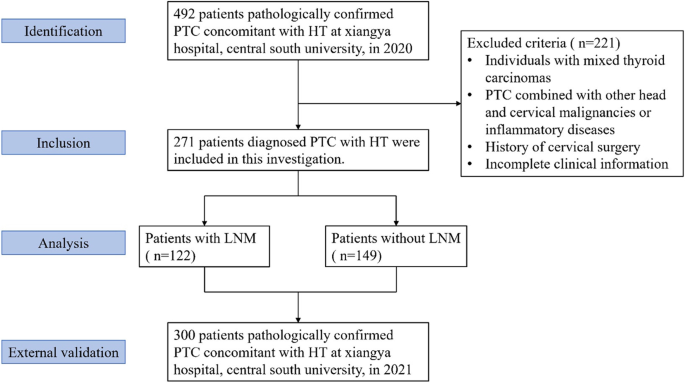

The strobe flow of the inclusion and exclusion criteria for the study.

Full size image

Variable definition and evaluation

The clinicopathological characteristics including age, gender, results of thyroid function tests [free triiodothyronine (FT3); free thyroxine (FT4); thyroid-stimulating hormone (TSH)], preoperative level of antithyroglobulin antibodies (TgAb) and thyroid peroxidase antibody (TPOAb), thyroglobulin (TG), parathyroid hormone (PTH), complete blood count, serum Ca2+ levels, BRAFV600E mutation. Capsular invasion, extrathyroidal extension and vascular invasion were determined from postoperative pathological findings. The reference TgAb and TPOAb ranges were less than 115 IU/mL and less than 34 IU/mL, respectively.

Ultrasound characteristics of thyroid nodules such as tumor maximum diameter (TMD), sum of tumor diameters, multifocality, tumor location (left, right, isthmus, and bilateral of the thyroid gland), aspect ratio (the anteroposterior dimension/the transverse diameter: ≤1 or > 1) and calcification. To ensure the reliability of ultrasound assessments, all examinations were performed by experienced thyroid radiologists utilizing high-resolution ultrasound systems, with reports subsequently reviewed and verified by both junior and senior radiologists. Additionally, preoperative evaluations commonly included follow-up imaging at multiple time points, allowing for comparison of findings to enhance diagnostic accuracy and reliability.

HT coexistence was ascertained through postoperative sectioning and examination of paraffin-embedded thyroid tissue specimens. A positive determination entailed the identification of diffuse lymphocytic and plasma cell infiltrate, oxyphilic cells, the development of lymphoid follicles, and the presence of reactive germinal centers.

LN status was defined based on post-operation pathological results. The LNM status encompasses (1) the presence of LNM (metastasis or non-metastasis) for all patients, (2) the regions of LNM [central lymph node metastasis (CLNM) or lateral lymph node metastasis (LLNM)] and (3) the quantity of LNM (According to the 2015 ATA Guidelines for Differentiated TC recurrence risk stratification4, 1–5 nodes are categorized as few LNM and > 5 nodes as numerous LNM) for patients diagnosed with LNM. Patients were staged according to the eighth edition of the International Union Against Cancer/American Joint Committee on Cancer TNM staging system24. All acquired surgical specimens were examined by two or more board-certified pathologists from the department of pathology of the Xiangya Hospital, Central South University.

Descriptive and regression analysis

Continuous variables were expressed as mean ± standard deviation (SD), while categorical variables were presented as frequencies and percentages (%). Clinicopathologic characteristics were compared among groups using the t-test for continuous variables and the Pearson χ2 test (for expected values > 5) or Fisher’s exact χ2 test (for expected values ≤ 5) for categorical variables. Stepwise logistic regression was used to identify independent factors associated with LNM: Initially, an analysis was conducted across all patients to determine the factors that influence LNM in individuals with concurrent HT and PTC. Subsequently, for patients diagnosed with LNM, the investigation was focused on identifying the factors that affect the quantity and regions of lymph node metastases in this specific patient cohort. A two-tailed P-value of < 0.05 was considered statistically significant for variable inclusion. Receiver operating characteristic (ROC) curves were constructed, and area under the curve (AUC) values were calculated to assess the predictive performance of the regression model, with higher AUC values indicating better predictive accuracy.

Network analysis

Network estimation and visualization

The severity of LNM (regions and quantity of metastases) and their independent associated factors were utilized in the network construction to explore the complex interrelationships among them. This study employed the Least Absolute Shrinkage and Selection Operator (LASSO) combined with the Extended Bayesian Information Criterion (EBIC) to eliminate spurious correlations among variables, thereby making the network easily analyzable and comprehensible. The detailed process and parameter settings for the network analysis can be found in Method S1.

Community clustering analysis

The Walktrap algorithm was utilized in community clustering analysis to detect the clustering characteristics of different nodes within the network, thereby determining the bias of various independent associated factors towards different severity indicators of LN metastasis. The Walktrap algorithm is based on the concept of random walks25, identifying communities within the network model through the simulation of random walks. In this study, the igraph R package was employed to perform the aforementioned steps.

Network accuracy and stability

To ensure the reliability of edge in the network, this study evaluated both the accuracy of individual edges and the differences between pairwise edge weights26. A non-parametric bootstrap method was employed to construct 95% confidence intervals, which were used to assess edge weight accuracy, with narrower intervals indicating higher reliability. Additionally, to determine statistical differences between pairwise edge weights, a bootstrap difference test was conducted using confidence intervals. The presence of statistically significant differences between compared edges was inferred if the confidence intervals did not contain zero for any pairwise comparisons. Procedures above were completed with the bootnet (version 1.5) R package.

Results

Descriptive statistics

A total of 271 patients with pathologically confirmed PTC and concurrent HT were included in this study, comprising 233 women and 38 men (female-to-male ratio: 6.1:1). LNM was found in 122 (45.0%) patients, with 29 patients exhibiting LLNM. In this study, 238 patients (78.7%) were younger than 55 years, and 157 (57.9%) patients had a TMD ≤ 1 cm. Additionally, this study indicated a significantly high prevalence of BRAFV600E gene mutations and calcification in this patient cohort, at 78.7% (192/244) and 73.8% (200/271) respectively (Table 1).

Table 1 Correlations between LNM and clinicopathological characteristics of patients with concurrent PTC and HT.
Full size table

Univariate analysis

The presence or absence of lymph node metastasis

Univariate analysis was conducted among 271 patients in2020 with concurrent HT and PTC, aiming to preliminarily explore the clinicopathological factors affecting the occurrence of LNM within this cohort. We observed that LNM was significantly correlated with age (P < 0.001) with a notably greater number of patients under the age of 55 in the group exhibiting LNM compared to the group without (92.6% VS 83.9%, P = 0.029). And LNM in PTC patients with HT was significantly correlated with FT3 (P = 0.01) and preoperative level of TgAb (P = 0.039). Certain ultrasound characteristics, including TMD (P < 0.001), sum of tumor diameters (P < 0.001), and calcification (P < 0.001), were also significantly associated with LNM. Meanwhile, while there was a slightly higher prevalence of BRAF gene mutation positivity among patients with LNM (79.7% vs. 77.9%), this discrepancy did not reach statistical significance (P = 0.734). This suggests that BRAF gene mutation may not exert an influence on LNM in patients with concurrent HT and PTC (Table 1).

The quantity and regions of lymph node metastases

Table 2 illustrates the correlations between the quantity of LNM and clinicopathological characteristics of PTC patients with HT, comprising a total of 122 patients diagnosed with LNM. A significant association was found between tumor diameter and the quantity of LNM, with both TMD (P = 0.003) and sum of tumor diameters (P = 0.013) showing statistical significance. Conversely, several variables—FT4 levels (P = 0.037), Erythrocyte count (RBC) levels (P = 0.031), hemoglobin (Hb) levels (P = 0.027), serum Ca2+ levels (P = 0.033), capsular invasion (P = 0.041)—previously lacking significant correlation with LNM in Table 1, demonstrated statistical significance. Of interest, there was no significant correlation between age and quantity of LNM in this cohort.

Table 2 Correlations analysis of the quantity or regions of LNM in patients diagnosed with lymph node metastasis.
Full size table

As demonstrated in Table 2, Significant differences were observed in the TMD (P = 0.031), sum of tumor diameters (P = 0.026), FT4 levels (P = 0.047), PTH (P = 0.020), and serum Ca2+ (P = 0.049) among groups divided by regions of LNM.

Multivariate logistic regression analyses

Multivariate logistic regression analyses in all patients with PTC and HT

Among all the PTC patients with HT, we selected statistically significant indicators from Table 1 for logistic regression analysis. As shown in Table 3, the regression results for following indicators were statistically significant. The association between age and LNM is significantly negative (p < 0.001). With each additional year of age, there is a 5% reduction in the likelihood of LNM (odds ratio [OR] = 0.950). Elevated serum FT3 levels (P = 0.039, OR = 1.448), increased TMD (P = 0.049, OR = 1.635) and calcification (P = 0.024, OR = 2.167) are identified as independent risk factors for LNM. Subsequently, ROC curves were generated for each indicator and the overall model, with the overall model achieving an area under the curve (AUC) of 0.769, indicating good predictive accuracy (Fig. 2A). The cut-off values for age, maximum tumor diameter, and FT3 were 47.5 years, 1.15 cm, and 4.825 pmol/L, respectively. Additional data from the ROC curve analysis, including positive predictive value (PPV), negative predictive value (NPV), and accuracy, are provided in Table S1.

Table 3 Multivariate logistic analysis of LNM in patients with concurrent PTC and HT.
Full size table
Fig. 2
figure 2

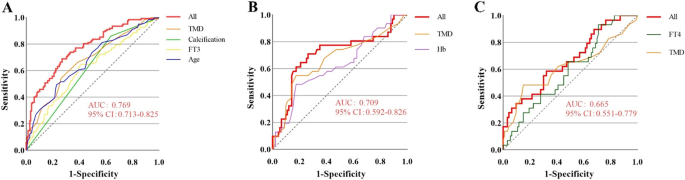

ROC curve of multivariate logistic regression analysis in papillary thyroid cancer patients with Hashimoto thyroiditis. (A) ROC forpresence or absence of lymph node metastasis (LNM); (B) ROC for the quantity of LNM; (C) ROC for the regions of LNM.

Full size image

Multivariate logistic regression analyses in patients diagnosed with lymph node metastasis

Based on Table 2, we selected statistically significant variables from each of the two groups for logistic regression analysis. Table 3 presents the logistic regression results for patients diagnosed with LNM. In assessing the factors influencing the quantity of LNM, increased TMD (P = 0.010, OR = 1.796) was identified as an independent risk factor for extensive LNM in patients with PTC and HT. Conversely, elevated hemoglobin (Hb) levels (P = 0.029, OR = 0.967) were found to be a protective factor. For regions of LNM, TMD (P = 0.010, OR = 1.856) emerged as an independent risk factor for LLNM. Interestingly, elevated FT4 levels (P = 0.008, OR = 0.747) were identified as an independent protective factor against metastasis from the central to the lateral lymph node region. The ROC curves for the two models, shown in Fig. 2B-C, had AUCs of 0.709 and 0.665, respectively, indicating acceptable model reliability. Further ROC curve data, including cut-off values, PPV, NPV, and accuracy, are provided in Table S1.

External validation of the predictive model

The ROC curves from the external validation of three predictive models for LNM in patients with HT and PTC are displayed in Fig. 3. The AUC values for the models were 0.765, 0.709, and 0.607, respectively. Although Model 3 exhibited a decline in predictive accuracy for regions of LNM, the overall performance of the first two models, especially Model 1, suggests robust clinical utility. Additional clinicopathological information for the validation cohort can be found in Table S2.

Fig. 3
figure 3

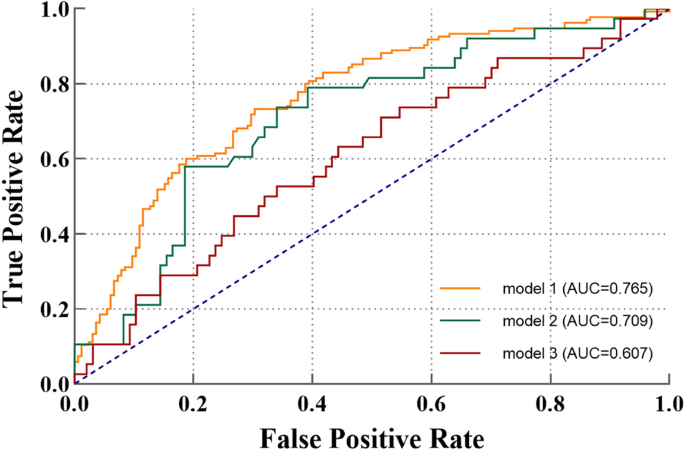

ROC Curve for External Validation of Logistic Regression Model. Model 1for the presence of LNM; Model 2for the quantity of LNM; Model 3 for the regions of LNM.

Full size image

Network of lymph node metastasis severity and associated factors

Based on the results of the regression models, three independent associated factors (TMD, FT4, Hb) and two indicators of LNM severity (Regions of LNM (RM), Quantitative Grading of LNM (QG)) were incorporated into the network model, as depicted in Fig. 4A. Consistent with the regression models, TMD exhibited a positive correlation with both RM and QG, while Hb and FT4 were negatively correlated with RM and QG. However, with regard to edge weights, the edge weights between TMD and RM, as well as TMD and QG, were more substantial compared to the edge weights between the other two associated factors and RM and QG. Furthermore, concerning the internal associations among the associated factors, the only negative correlation was observed between TMD and FT4, whereas the remaining edges exhibited positive correlations. The detailed edge weight matrix is provided in the Table S3.

Fig. 4
figure 4

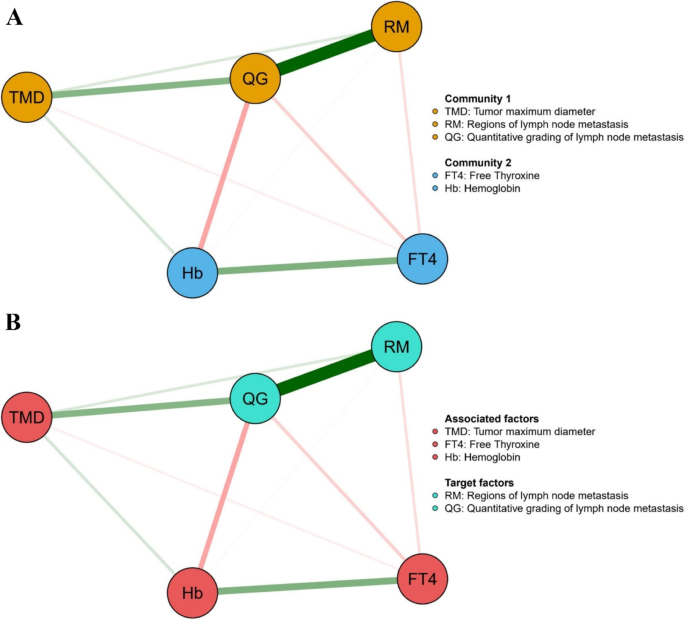

Network structure and community clustering results of lymph node metastasis severity and associated factors. (A) Network structure of lymph node metastasis severity and associated factors. (B) Community clustering results of lymph node metastasis severity and associated factors.

Full size image

The results of the community clustering are presented in Fig. 4B. The Walktrap algorithm identified two communities: one comprising TMD, RM, and QG, and the other comprising FT4 and Hb. The community clustering results suggest that, despite all being independent associated factors, the association between TMD and both RM and QG may be closer than the association between FT4 and Hb with RM and QG.

The evaluation of edge weight accuracy revealed that the 95% confidence intervals produced by the non-parametric bootstrap tests were of average width. Additionally, the analysis of edge weight differences showed that the edge weights were statistically robust. Further details can be found in Figure S1-2.

Discussion

To the best of our knowledge, this study is the first to employ both regression models and network analysis—two reliable data-driven approaches—to thoroughly investigate LNM in patients with coexistent PTC and HT. Not only did this study construct and externally validate three predictive models for LNM in patients with coexistent PTC and HT, but it also delved into the complex interrelations of the severity of LNM and its risk factors.

We identified four key characteristics associated with LNM in patients with HT and PTC: age ≤ 47 years, calcifications, serum FT3 > 4.825 pmol/L, and TMD > 1.15 cm. Consistent with previous studies, age, calcifications, and tumor size are confirmed independent risk factors for predicting LNM in patients with HT and PTC or PTC alone. Interestingly, we found that elevated FT3 levels, even within the normal range, increased the likelihood of LNM.

Few studies have analyzed the relationship between thyroid hormones and LNM in HT combined with PTC. Wang et al.27 found a positive correlation between FT3 levels and central LNM in PTC (P< 0.001); Diessl et al.28 suggested higher FT3 levels are associated with worse prognosis in advanced differentiated thyroid cancer. The relationship between elevated thyroid hormones and the proliferation and invasiveness of various solid tumors, including thyroid cancer, has been increasingly validated29. This study firstly demonstrated a positive correlation between FT3 levels and LNM in patients with both HT and PTC, although further verification in larger samples and exploration of the molecular basis are needed.

The regression model identified distinct independent risk factors in two subgroups of LNM severity. In the quantitative subgroup, TMD > 1.75 cm and Hb < 121.5 g/L are indicators of a higher number of LN metastases (> 5 nodes); while in the regional subgroup, TMD > 1.85 cm and serum FT4 < 18.25 pmol/L were associated with LLNM.

As expected, TMD emerged as an independent risk factor across subgroups, reinforcing its importance as a primary predictor of LNM in patients with both PTC and HT. In contrast to the commonly used tumor diameter threshold (> 10 mm) for predicting LNM in patients with differentiated thyroid carcinoma (DTC)30, we propose a higher cutoff value specifically to assess whether patients with HT combined with PTC experience more severe lymph node metastases.

Additionally, our research proposes for the first time that lower Hb levels may serve as an independent risk factor for increased LNM. Although directly linking hemoglobin levels to LNM in TC remains underexplored, the broader implications of low hemoglobin levels on cancer aggressiveness and outcomes are well-established in oncology literature31,32,33. Generally, reduced hemoglobin levels are correlated with increased malignancy severity and poorer prognoses across diverse cancer types. This association might suggest similar implications for TC, where systemic manifestations like anemia could indicate advanced or more aggressive disease states.

The finding that lower serum FT4 levels are linked to lateral LNM suggests a complex interplay of thyroid hormones affecting tumor behavior. Unlike FT3, lower FT4 appears to reduce LNM risk, potentially due to interactions within the hypothalamic-pituitary-thyroid (HPT) axis and the conversion of FT4 to the more active FT3. Typically, FT4 circulates predominantly and converts to FT3 locally. The HPT axis regulates thyroid hormones through feedforward and feedback mechanisms. Elevated T4 levels or reduced conversion to FT3 decreases TSH, which could influence LNM outcomes. Previous research has identified TSH as a risk factor for LNM in PTC34,35, although our study did not find significant TSH differences. Further clinical and molecular investigations are needed to understand these hormone interactions and their effects on LNM.

The results of the network analysis indicate that TMD exhibits a more intimate relationship with LNM compared to Hb or FT4. Furthermore, TMD is more closely associated with the quantity of LNM than with region of LNM. Tumors with larger TMD dimensions have an increased surface area for interstitial dissemination and metastatic spread, rendering them more likely to breach the thyroid capsule and invade adjacent tissues, consequently elevating the probability of metastasis to regional LN36,37. Furthermore, larger tumors may induce significant alterations in the local tissue microenvironment, including enhanced angiogenesis, the formation of an immunosuppressive milieu, and the activation of stromal cells, collectively facilitating cancer cell metastasis38,39. Although previous studies have identified potential associations between FT4, Hb, and LNM, these connections are more likely to be indirectly mediated through their effects on tumor cell biochemical metabolism40,41.

Limitations

This study is subject to certain limitations. Firstly, as a single-center, case-control study, it only reflects the disease characteristics of patients from one institution, potentially introducing selection bias. Secondly, the data collection was not exhaustive regarding variables that might influence LNM in patients with HT combined with PTC, such as family history, behavioral factors, and body mass index (BMI). Therefore, future research should include multicenter, larger-scale cohort studies to validate and extend the findings presented herein.

Conclusion

This study innovatively employs both regression models and network analysis to explore potential factors related to LNM in patients with coexisting PTC and HT, as well as the complex associations between these factors and the severity of LNM. The findings indicate that age, Hb, FT3, FT4, calcification, and TMD are all associated with LNM in patients with PTC and HT. Specifically, FT4 and Hb correlate with the regions and quantity of LNM, respectively, while TMD shows a significant association with both, exhibiting a stronger correlation than either FT4 or Hb. Overall, our results provide a theoretical basis for predicting preoperative LNM in patients with PTC and HT in future clinical practice.
