Introduction

The SARS-CoV-2 coronavirus is the causative agent of the COVID-19 (Coronavirus disease-2019) pandemic, which had a devastating impact on public health and the global economy. SARS-CoV-2 dysregulates the immune inflammatory response and is characterized by organ dysfunction, high levels of cytokines, and lymphopenia1. Nsp1 is a major virulence factor for SARS, which plays an important role in the suppression of the innate immune response2,3. Nsp1 mainly targets the Type 1 interferon (IFN-1) signaling pathway, which activates hundreds of genes responsible for the antiviral response4. Nsp1 inhibits phosphorylation of STAT1, a signal transcription protein, which forms a heterodimer with STAT2 and associates with the regulatory factor IRF9, resulting in formation of the IFN-stimulated gene factor 35.

In addition, Nsp1 inhibits the IFN-1 response by blocking the expression of host proteins in different ways. Nsp1 interacts with the nuclear pore complex and inhibits the export of nuclear mRNA into the cytoplasm6,7. Nsp1 also facilitates the degradation of host mRNA by recruiting cellular nucleases8,9. Also, Nsp1 binds near the mRNA entry channel of the 40S ribosome subunit and inhibits the initiation of translation10,11. At the same time, structural features of viral RNAs allow them to escape Nsp1-mediated degradation and inhibition of translation3.

The SARS-CoV-2 protein interaction map, published in 2020, shows that the human primosome is a potential target for Nsp112. Intriguingly, among all DNA replication factors, only the primosome, the hetero-tetrameric complex of primase and DNA polymerase α (Polα), is targeted by SARS-CoV-2. The cryoEM structure of the complex of human primosome with a small globular domain of Nsp1 revealed that Nsp1 interacts with an exonuclease domain of Polα13. Nsp1 docked away from the active site and the DNA-binding cleft of Polα and showed no effect on its DNA polymerase activity.

The primosome initiates synthesis of every DNA strand by making the chimeric RNA–DNA primers required for loading the main DNA replicases14,15. During self-regulated intramolecular primosome reactions, primase synthesizes de novo the RNA primer, which is then extended by Polα with deoxyribonucleotides. Polα belongs to the B-family of DNA polymerases and contains catalytic and accessory subunits. The catalytic domain of human Polα (PolαCD, residues 335–1244) adopts the universal “right-hand” DNA polymerase fold containing the following domains: N-terminal, exonuclease, “palm”, “thumb”, and “fingers”16. The exonuclease domain does not possess a 3’-exonuclease activity and plays a structural role.

Recently we have shown that RPA, a single-strand DNA-binding protein, is critical for the human primosome and Polα during DNA synthesis across inverted repeats17. RPA is composed of three subunits: RPA70, RPA32, and RPA14, and contains four DNA-binding domains, resulting in a high affinity to DNA18,19. The C-terminus of RPA32 contains the flexible wHTH domain (residues 178–270, including the linker), which interacts with different DNA-dependent enzymes including Polα20,21,22.

We recently reported the cryo-EM structure of the RPAcore/PolαCD/DNA complex, which uncovered the flexible mode of RPA-Polα interaction where the wHTH domain plays a critical role17. According to biochemical studies, this domain is essential for RPA-Polα cooperation and DNA synthesis across hairpins17. Strikingly, superposition of RPAcore/PolαCD/DNA and Nsp1/primosome complexes revealed overlapping binding sites on Polα for wHTH and Nsp1 (Fig. 1). This finding points to a potential role of Nsp1 in the disruption of the RPA-Polα interaction, resulting in the primosome stalling at DNA hairpins. To evaluate this hypothesis, we compared the wHTH-Polα and Nsp1-Polα interaction interfaces and conducted biochemical studies demonstrating the inhibitory effect of Nsp1 on hairpin bypass by the RPA/PolαCD complex. Inhibitory assays have shown that Nsp1 forms a more stable complex with Polα than the wHTH domain does, which is consistent with the analysis of the corresponding interaction interfaces.

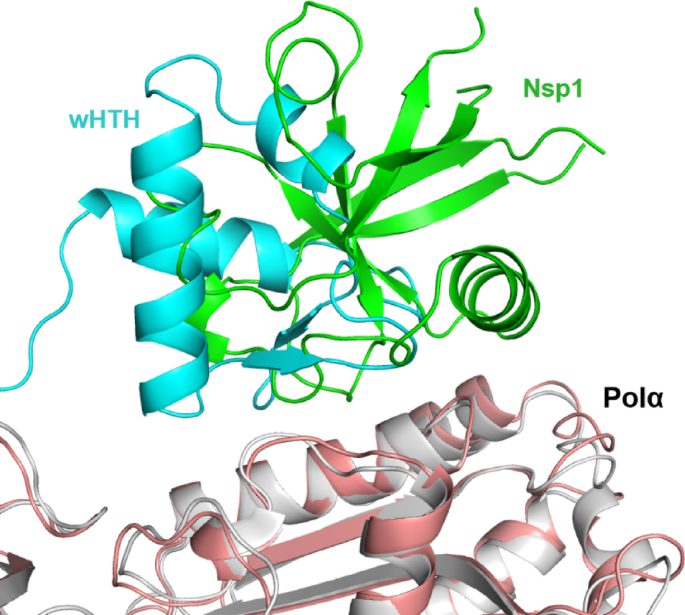

Fig. 1
figure 1

Nsp1 and the wHTH domain of RPA have overlapping docking sites on Polα. Nsp1, wHTH, and Polα in the complexes with Nsp1 and wHTH are represented as cartoons and colored green, cyan, gray, and salmon, respectively. The coordinates of Nsp1/primosome and RPAcore/PolαCD/DNA complexes were used for figure preparation (pdb codes 7opl and 9mj5, respectively). Two complexes were superposed using the Polα region 612–661 involved in interaction. PyMol Molecular Graphics System (version 1.8, Schrödinger, LLC) was used for alignment and figure preparation.

Full size image

Results and discussion

Comparison of interaction interfaces between Polα and Nsp1, and between Polα and the wHTH-domain of RPA, indicates that the contact area is larger in the Nsp1/Polα complex (Fig. 2). There are five potential H-bonds between Polα and the wHTH-domain, with involvement of Glu610, Thr617, Arg616, His658, and Lys661 of Polα and Ser250, Asn251, Tyr256, Thr258, and Val259 of RPA (Fig. 2A). At the Nsp1-Polα interface, there are eight potential H-bonds, with contribution from Polα residues Lys599, Ala613, Thr614, Arg616, Thr617, Lys628, and Lys655 and Nsp1 residues Arg24, Asp33, Glu41, His45, Aspn48, and Gly49 (Fig. 2B). Of note, Asp33 of Nsp1 may form salt bridges with Arg616 and Lys655 of Polα. The side chains of two Polα residues, Arg616 and Thr617, participate in H-bonding with both Nsp1 and the wHTH-domain. Three wHTH residues, Tyr256, Thr258, and Thr267, are involved in hydrophobic interactions with Polα (amino acids Thr617, Gly620, Phe621, and Ala624) (Fig. 2C). The same Polα residues interact with Nsp1, with the addition of Ala613 (Fig. 2D). The hydrophobic Polα-binding interface of Nsp1 is formed by six residues: Leu27, Val28, His45, Thr50, Pro109, and Val111.

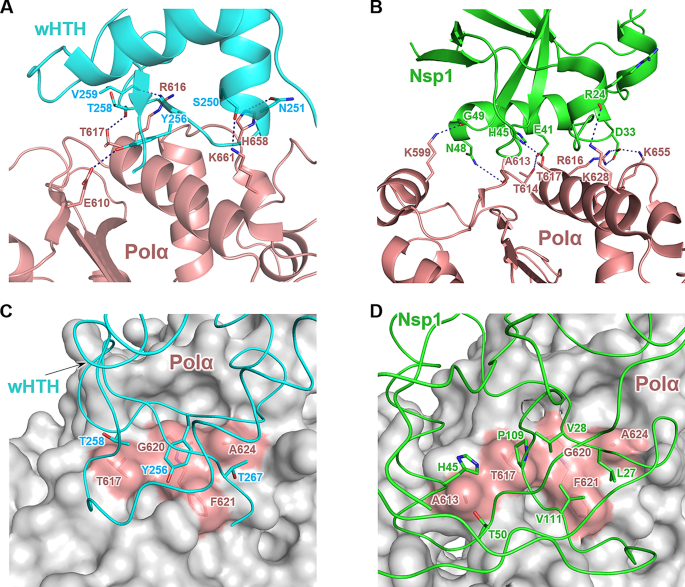

Fig. 2
figure 2

Nsp1 has a larger interaction interface with Polα than the wHTH domain of RPA. (A) and (B), analysis of potential hydrogen bonds at the wHTH-Polα and Nsp1-Polα interfaces, respectively. Nsp1, wHTH, and Polα are represented as cartoons and colored green, cyan, and salmon, respectively. H-bonds are depicted as dark-blue dashed lines. A position of the Lys599 side-chain was adjusted for optimal H-bond formation with Gly49 (C) and (D), analysis of potential hydrophobic contacts at the wHTH-Polα and Nsp1-Polα interfaces, respectively. Polα is represented as a surface. Polα residues, involved in hydrophobic interactions with Nsp1 or wHTH, are shown as sticks and colored salmon. Nsp1 and wHTH are represented as ribbon and colored green and cyan, respectively. Their residues, involved in hydrophobic interactions with Polα, are shown as sticks. PyMol Molecular Graphics System and the coordinates of Nsp1/primosome and RPAcore/PolαCD/DNA complexes were used for figure preparation (pdb codes 7opl and 9mj5, respectively).

Full size image

As we showed previously17, the nine base-pair (bp) hairpin stalls PolαCD, which requires RPA for efficient hairpin bypass (Supplementary Fig. S1 and Fig. 3, lanes 1–3). Intriguingly, addition of Nsp1 significantly inhibits DNA synthesis across the hairpin by the RPA/PolαCD complex (Fig. 3, lanes 4–6). Replacement of the conserved residue Val28 with aspartate, a mutation known to disrupt the Nsp1/Polα complex13, almost completely recovered the hairpin bypass (Fig. 3, lanes 7–9). These results indicate that the inhibitory effect of Nsp1 on DNA synthesis across inverted repeats is mediated by its specific interaction with Polα.

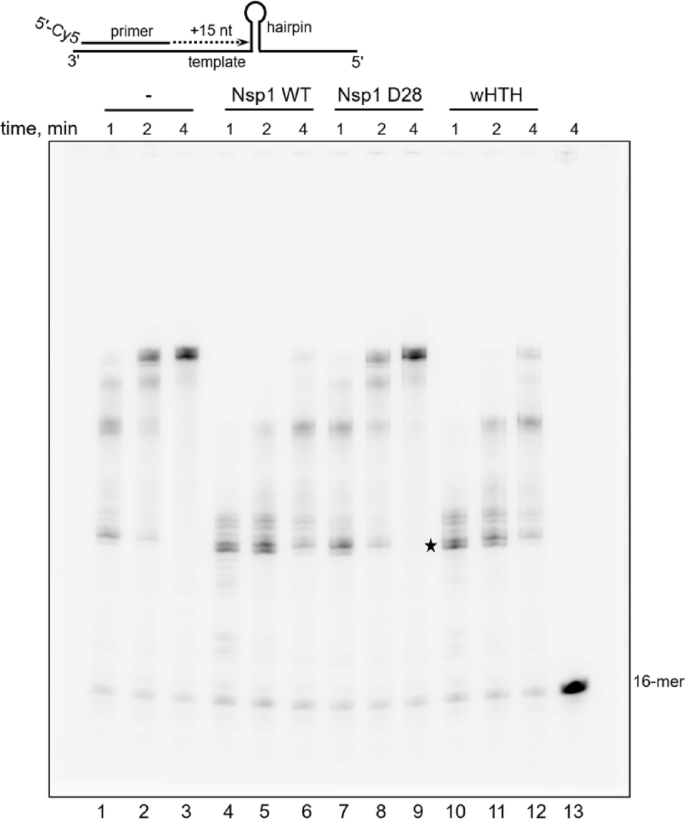

Fig. 3
figure 3

Nsp1 inhibits DNA synthesis across a 9-bp hairpin by the RPA/Polα complex. The DNA synthesis activity of Polα in extension of a 16-mer DNA primer with a Cy5-fluorophore attached to the 5′-end was tested in a 10 μl reaction containing 0.25 μM template:primer, 20 nM Polα, 0.7 µM RPA, and 25 μM dNTPs; 8 µM Nsp1 or 40 µM wHTH were added as indicated on the figure. Lane 13 is a control incubation in the absence of proteins. The star denotes the pause site at the beginning of a hairpin located 15 nucleotides from the 3’-end of the primer. Reactions were incubated at 35 °C, and the products were resolved by 20% Urea-PAGE and visualized by imaging on Typhoon FLA 9500. The substrate schematic is shown at the top.

Full size image

The wHTH domain also inhibits hairpin bypass but with a lower efficiency (Fig. 3, lanes 10–12). We compared the inhibitory effect of Nsp1 and wHTH on hairpin bypass by the RPA/PolαCD complex (Fig. 4). The obtained IC50 values (1.03 ± 0.04 µM for Nsp1 and 8.14 ± 0.38 µM for wHTH) are consistent with structural data showing more contacts at the Nsp1-Polα interface (Fig. 2). These data indicate that Nsp1 efficiently competes with RPA for interaction with Polα. The effect of Nsp1 on hairpin bypass by the RPA/Polα complex is therefore similar to deletion of the wHTH domain17.

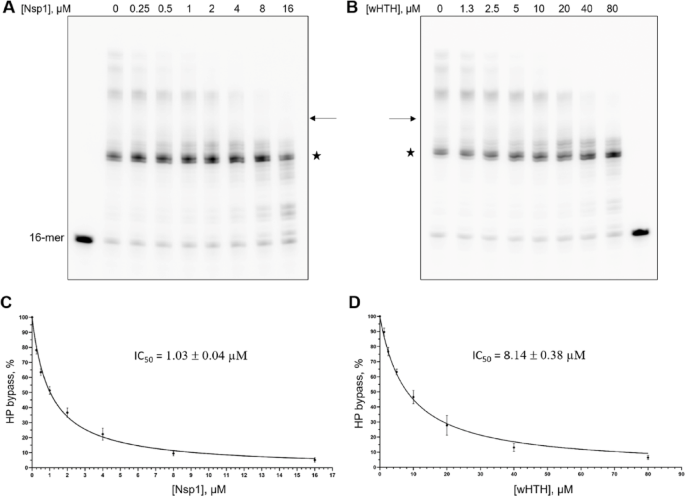

Fig. 4
figure 4

Comparison of the inhibitory effect of Nsp1 and wHTH on hairpin bypass by RPA/Polα. (A) and (B), representative gels showing titration of DNA-synthetic activity by Nsp1 and wHTH, respectively. The star denotes the pause site at the beginning of a hairpin. The bands above the arrow were counted as products of hairpin bypass. Reactions were incubated for 1 min at 35 °C, and the products were resolved by 20% Urea-PAGE and visualized by imaging on Typhoon FLA 9500. Original images of the gels are presented in Supplementary Fig. S4. (C) and (D), the mean value of the percent of hairpin bypass is plotted against Nsp1 and wHTH concentrations, respectively. Error bars denote the standard deviation. The IC50 values were calculated from three independent experiments using GraphPad Prism.

Full size image

Polα localizes both in the nucleus and in the cytoplasm23,24. Nsp1 is a cytoplasmic protein12. A small fraction of Nsp1 was detected in the nucleus of Vero cells 9 h post-infection25. The nuclear localization of Nsp1 was also observed in plasmid-transfected cells6,12,26. It is possible that Nsp1 binds to Polα in the cytoplasm, and the complex then migrates to the nucleus. The findings of this study allow us to speculate that Nsp1 has the potential to inhibit synthesis of the telomeric C-strand by the CST/primosome complex because the wHTH2 domain of CST binds Polα at the same site as the wHTH domain of RPA (Supplementary Fig. S2)13,27.

A deficiency in the catalytic subunits of primase and Polα causes the X chromosome-linked reticulate pigmentary disorder (XLPRD), which is characterized by persistent inflammation, the activation of type I interferon signaling, and recurrent lung infections28,29. It was proposed that a reduced level of cytosolic RNA/DNA hybrids triggers this disease, but the molecular mechanism is not well understood29. On the other hand, inhibited host DNA replication, mediated by Polα deficiency or inhibition of Polα activity, may cause damage to genomic DNA and the accumulation of replication fork-derived DNA in the cytoplasm, which then stimulates the production of IFN-1 and pro-inflammatory cytokines through the cGAS-STING pathway30,31. Interestingly, an abnormal level of cytokines is a hallmark of severe forms of COVID-19, where a dysregulated inflammatory response primarily affects the lungs1. The possibility exists that Nsp1 contributes to the development of such symptoms through the inhibition of host DNA replication. In addition, Nsp1 may affect the proliferation of T- and B-lymphocytes and therefore suppress the adaptive immune response against SARS-CoV-2.

Materials and methods

Human RPA and the Polα catalytic domain were obtained as previously described17. The expression vector pMCSG53 encoding for the globular domain of Nsp1 SARS-CoV-2 (residues 13–127) with an N-terminal His-tag followed by the Tev-cleavage site was obtained from Addgene (catalog # 167,256) and described in32. The Nsp1 variant bearing a point mutation V28D was generated by site-directed mutagenesis. The pASHSUL-1 vector for expression of the wHTH domain was made by inserting the coding sequence for the RPA32 residues 178–270 downstream of the sequence encoding for the His-Sumo tag33. Nsp1 and wHTH were expressed in the Escherichia coli strain BL21 (DE3) at 16 °C for 15 h following induction with 0.05% α-lactose and 0.3 µg/ml anhydrotetracyclin, respectively. Nsp1 and its V28D variant were purified to near-homogeneity (Supplementary Fig. S3) in two chromatographic steps using Ni-IDA column (Bio-Rad) and Q HiTrap (Cytiva) columns. After the first step, the His-tag was removed by Tev protease during overnight incubation at 4 °C. The wHTH domain of RPA was purified in a similar way, with a His-Sumo tag being digested by dtUD1 protease33 and removed from the sample by passing through a HisTrap column (Cytiva). The purified proteins were dialyzed against buffer containing 20 mM Tris-Hepes, pH 7.8, 150 mM NaCl, 2% glycerol, and 1 mM TCEP, concentrated to ~ 1 mM, and frozen in 10 µl aliquots. Protein concentrations were estimated by measuring the absorbance at 280 nm and using the extinction coefficients calculated with ProtParam34.

DNA synthesis activity of Polα was tested in 10 μl reactions containing 0.25 μM template:primer, 20 nM Polα, 0.7 µM RPA, 25 μM dNTPs, and the buffer: 30 mM Tris-Hepes, pH 7.8, 120 mM KCl, 30 mM NaCl, 1% glycerol, 1.5 mM TCEP, 5 mM MgCl2, and 0.2 mg/ml BSA. Nsp1 and wHTH were added to the reactions as indicated in the figure legends. The 16-mer DNA primer contains a Cy5 fluorophore attached to its 5′-end. The 73-mer template 5′-AATGATGAAGATATCT GGTCGCTCCATTCT GGAGCGACC TCTTAATCTAAGCACTCGCTATGTTTTCAAGTTT is prone to formation of a 9-bp hairpin (bases contributing to the hairpin stem are shown in italics; the primer annealing site is underlined). Reactions were incubated for the indicated time points at 35 °C and stopped by mixing with equal volume of stopper solution containing 90% v/v formamide, 50 mM EDTA, pH 8, and 0.02% Bromophenol blue, heated at 95 °C for 1 min, and resolved by 20% Urea-PAGE. Reaction products were visualized by imaging on Typhoon FLA 9500 (Cytiva) and quantified by ImageJ, version 1.54 (NIH). Experiments were repeated three times.
