Introduction

The number of patients with chronic kidney disease (CKD) and those undergoing hemodialysis (HD) is increasing. In 2017, the estimated global prevalence of CKD was 9.1%, representing a 29.3% increase since 19901. Nutrition therapy is the first step in CKD management and is pivotal in protecting renal function and reducing the risk of complications, including cardiovascular disease. Specifically, regulating sodium, protein, potassium, and phosphorus intake has been shown to slow disease progression and alleviate symptoms2,3,4. Furthermore, while reno-protective drugs such as renin-angiotensin system inhibitors and sodium-glucose cotransporter 2 inhibitors reduce the risk of kidney dysfunction progression5,6,7,8,9, novel therapeutic options are required to address the residual risks of end-stage kidney disease. In this context, we focused on D-amino acids (AAs) as a novel dietary and therapeutic candidate for CKD. We have previously reported the reno-protective effects of D-serine (D-Ser) and D-alanine (D-Ala) in a mouse model of acute kidney injury (AKI) induced by ischemia/reperfusion (I/R). The D-Ser and D-Ala levels reportedly increase in the blood of humans and mice with AKI10,11,12. D-Ser showed anti-inflammatory effects in tubular I/R injury and promoted tubular epithelial cell (TEC) proliferation10. The kidneys of mice treated with D-Ser show increased TEC proliferation due to the activation of the mammalian target of rapamycin (mTOR)-related pathway11. D-Ala also increased TEC proliferation and anti-renal fibrosis by inhibiting the production of mitochondrial reactive oxygen species (ROS)12. Therefore, increased D-Ser and D-Ala blood levels might reduce renal damage in AKI cases.

In addition to AKI, D-Ser and D-Ala blood levels are elevated in patients with CKD and those undergoing hemodialysis (HD)13. Based on the reno-protective effects of D-Ser and D-Ala observed in AKI models, we hypothesized that these D-amino acids (D-AAs) could potentially aid in mitigating CKD progression. To test this hypothesis, we assessed long-term renal function in patients treated with risperidone, an inhibitor of the D-AA degrading enzyme. Patients taking risperidone exhibited higher blood concentrations of D-Ser and D-Ala compared to non-treated patients and exhibited a slower decline in the estimated glomerular filtration rate (eGFR)14. Further evidence is provided by a study that evaluated eGFR in healthy participants before and after D-Ala supplementation. Post-supplementation, both eGFR and blood D-Ala levels increased, returning to baseline levels once supplementation was discontinued15. These findings suggest that elevated D-Ser and D-Ala blood levels might contribute to renal function maintenance over the long term, suggesting their potential relevance in CKD management.

In this study, we aimed to determine whether long-term administration of D-Ser or D-Ala in a CKD mouse model improves kidney function and pathology, leading to an extended lifespan. Additionally, the associations between the blood D-Ser or D-Ala levels and renal prognosis were evaluated in patients with CKD.

Results

Survival rate of 5/6-Nx mice receiving D-Ser or D-Ala orally

Blood levels of D-Ser and D-Ala were significantly elevated in 5/6 nephrectomized (5/6-Nx) mice treated with D-Ser or D-Ala in drinking water compared to non-treated mice (Fig. 1a,b). Conversely, levels of L-AAs such as L-Ser and L-Ala remained unchanged. (Fig. 1c,d). Female 5/6-Nx mice treated with D-Ser or D-Ala in drinking water lived longer than those untreated (log-rank p < 0.05) (Fig. 1e,f). Female 5/6-Nx mice treated with D-Ser or D-Ala in drinking water survived almost as long as female sham mice (log-rank p > 0.05) (Fig. 1g,h). No significant difference was observed between sham and 5/6-Nx male mice (log-rank p = 0.058) (Fig. 1i).

Fig. 1
Fig. 1Fig. 1
Full size image

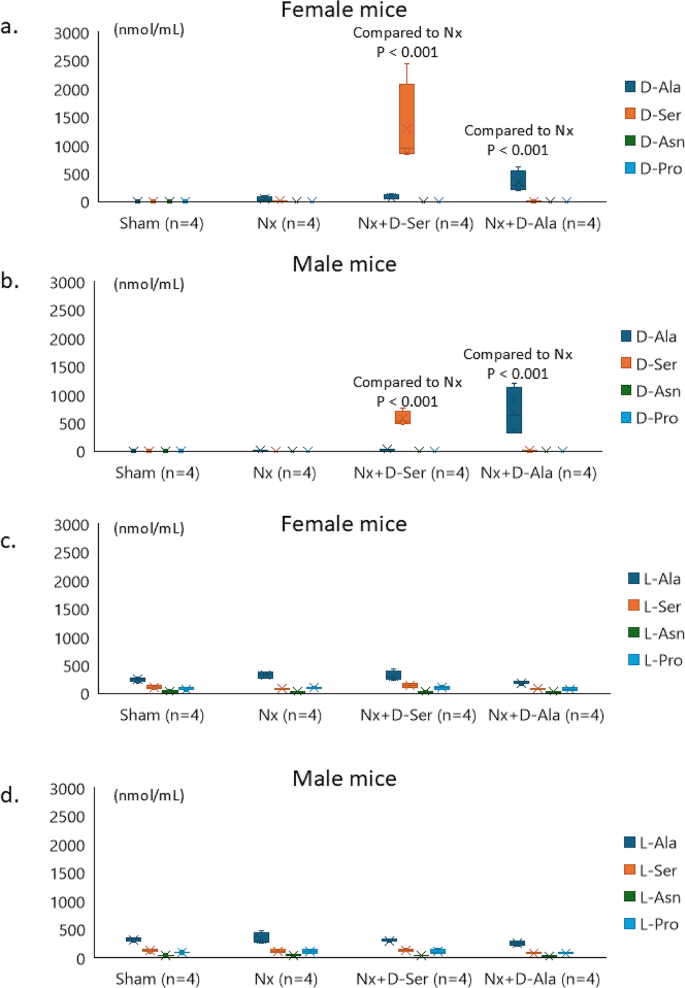

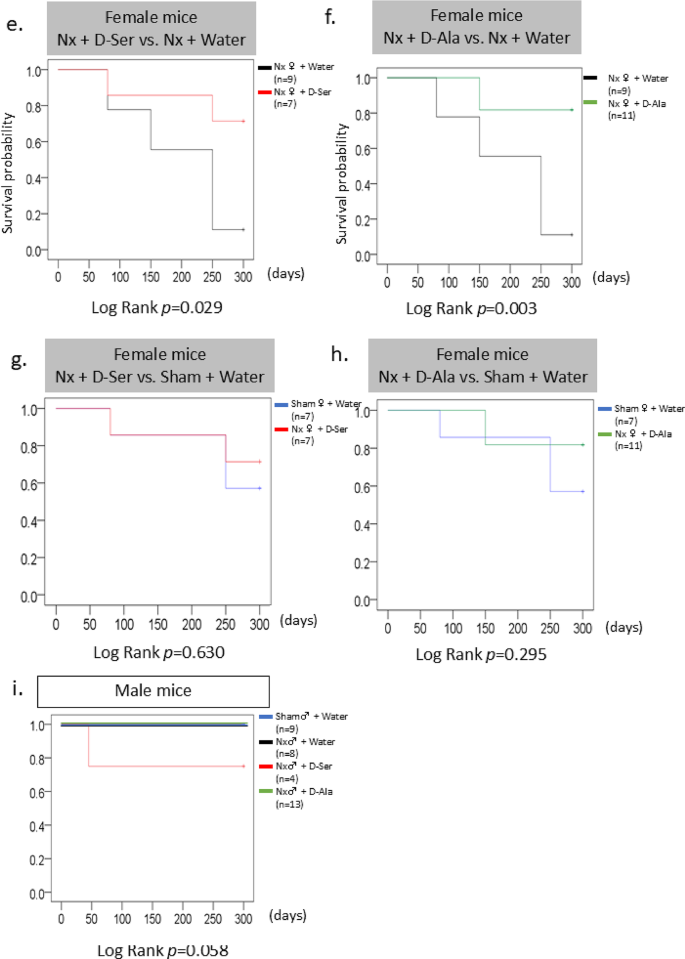

Oral administration of 20 mM D-Ser or D-Ala improves renal function in female 5/6-Nx mice. Plasma Ala, Ser, Asn, and Pro levels were measured in male and female mice (a–d); D-amino acid (ab) and L-amino acid levels (cd) were shown. Survival data of female (e–h) and male mice (i) orally administered D-Ser or D-Ala are shown. Female 5/6-Nx mice treated with D-Ser (e) and D-Ala (f) survived longer than untreated female 5/6-Nx mice (p < 0.05). No significant difference was found between the survival time of 5/6-Nx female mice treated with D-Ser (g) and D-Ala (h) and that of sham female mice. Statistical analysis was performed using the Kaplan–Meier method. Ala alanine, Ser serine, Asn asparagine, Pro proline, Nx nephrectomy.

Renal function of 5/6-Nx mice receiving D-Ser or D-Ala orally

The renal function was assessed to investigate the reno-protective effects of D-Ser or D-Ala in female mice. Female 5/6-Nx mice treated with D-Ser or D-Ala in drinking water had lower plasma blood urea nitrogen (BUN) and Cr levels than those untreated (Fig. 2a,b). Furthermore, the 24-h urine volume from female 5/6-Nx mice treated with D-Ala in drinking water decreased (Fig. 2c). However, the male 5/6-Nx and sham mice showed only slight differences. On day 100, male 5/6-Nx mice treated with D-Ser or D-Ala showed lower plasma BUN levels than those untreated (Fig. 2d). Plasma Cr levels and 24-h urine volume did not differ between male 5/6-Nx mice receiving D-Ser or D-Ala and those untreated (Fig. 2e,f).

Fig. 2
Fig. 2
Full size image

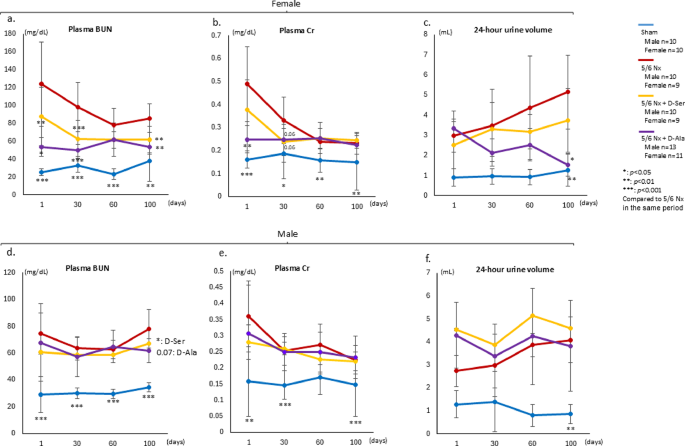

Oral administration of 20 mM D-Ser or D-Ala improves renal function in female 5/6-Nx mice. Plasma BUN (a, d), plasma Cr (b, e), and 24-h urine volume (c, f) from the sham and 5/6-Nx mice of both sexes were measured. Oral administration of 20 mM D-Ser or D-Ala improved the plasma BUN and Cr levels in female 5/6-Nx mice (a, b). Oral administration of 20 mM D-Ala improved 24-h urine volume in female 5/6-Nx mice (c). *p < 0.05, **p < 0.01, ***p < 0.001, as analysed using a t-test. BUN blood urea nitrogen, Cr creatinine, D-Ala D-alanine, D-Ser D-serine, Nx nephrectomy.

Next, we explored whether long-term D-Ser or D-Ala administration could cause kidney dysfunction in mice. Renal function was evaluated in normal mice, and 20 mM D-Ser or D-Ala was administered orally for 500 days. No differences in plasma BUN (Supplemental Fig. S1a) and Cr (Supplemental Fig. S1b) levels and 24-h urine volume (Supplemental Fig. S1c) were found between the mice with/without D-Ser or D-Ala supplementation. Therefore, long-term D-Ser or D-Ala oral administration did not affect renal function.

In female 5/6-Nx mice, the survival rate and renal function improved upon treatment with D-Ser or D-Ala in drinking water compared with those in untreated mice. Therefore, we subsequently focused on female mice and comprehensively examined renal pathology, physical characteristics, and genetic changes.

Renal pathology of female 5/6-Nx mice treated with D-Ser or D-Ala

Female 5/6-Nx mice treated with D-Ser or D-Ala showed less necrosis and better brush border scores than untreated female 5/6-Nx mice (Fig. 3a–d,i,j). Furthermore, female 5/6-nephrectomy mice treated with D-alanine exhibited less severe renal fibrosis than untreated mice (Fig. 3e–h). Quantitative evaluation using hydroxyproline also showed that female 5/6-Nx mice treated with D-Ala in their drinking water had lower hydroxyproline levels compared to untreated female 5/6-Nx mice (Fig. 3k).

Fig. 3
Fig. 3
Full size image

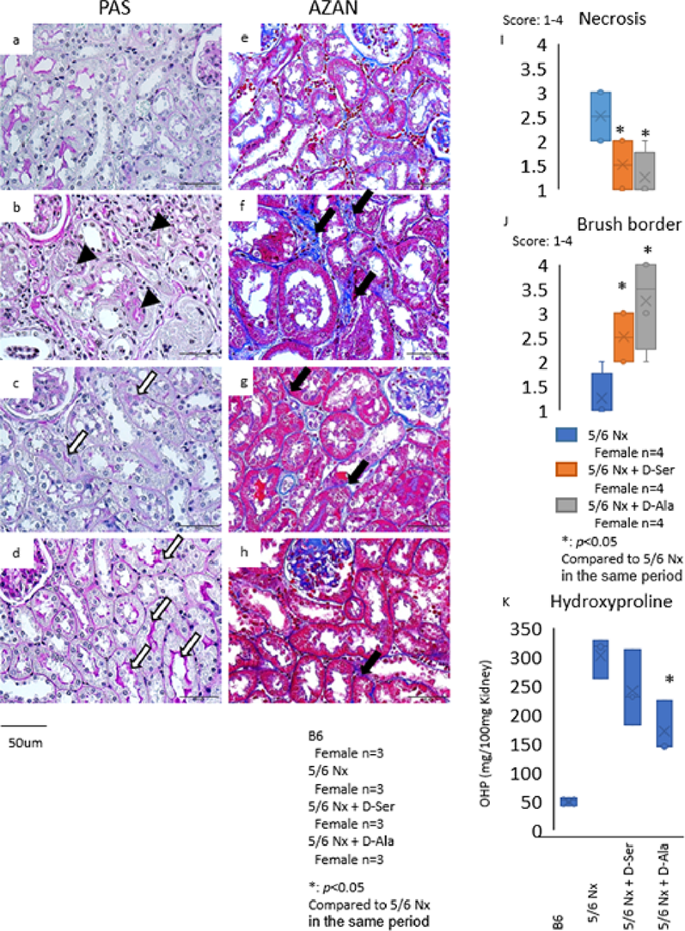

Oral administration of D-Ser or D-Ala improves renal impairment in female 5/6-Nx mice. Results of PAS and azan staining of the kidneys are shown. Sham (a, e), female 5/6-Nx (b, f), orally supplemented with 20 mM D-Ser (c, g), and orally supplemented with D-Ala (d, h) female 5/6-Nx mice. Necrosis score (i), brush border score (j), and hydroxyproline level (k) are shown. Box plots use horizontal lines to indicate the median, 25th, and 75th percentile values. Black arrowheads denote necrosis. Black arrows denote fibrosis. White arrows denote the brush border. *p < 0.05, as analyzed using a t-test. D-Ala D-alanine, D-Ser D-serine, Nx nephrectomy, PAS periodic acid-Schiff.

Physical characteristics of female 5/6-Nx mice receiving D-Ser or D-Ala orally

Next, changes in physical characteristics were evaluated. Female 5/6-Nx mice and D-Ser-treated female 5/6-Nx mice continued to lose weight compared to sham mice. However, the body weight of female 5/6-Nx mice treated with D-Ala did not differ from that of sham mice (Fig. 4a). At 200 days after 5/6-Nx surgery, the 5/6-Nx and D-Ser-treated 5/6-Nx mice were smaller in size compared to the sham mice and showed alopecia. However, female D-Ala-treated 5/6-Nx mice were similar in size to the sham mice; they exhibited no shedding (Fig. 4b). Blood pressure and heart rate showed variations in 5/6-Nx mice compared to sham controls but did not exhibit consistent increases or decreases over time. (Supplemental Fig. 2a,b).

Fig. 4
Fig. 4
Full size image

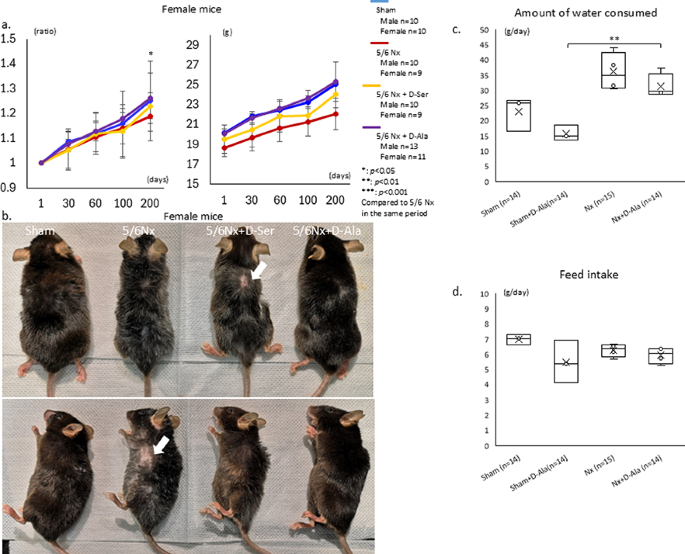

Oral administration of D-Ala prevents weight and hair loss in female 5/6-Nx mice. Weight (a) and appearance (b) of sham and female 5/6-Nx mice. Oral administration of 20 mM D-Ala suppressed female 5/6-Nx mice’s weight and hair loss (white arrows). Intake of water (c) and feed (d) by sham and female 5/6-Nx mice. *p < 0.05, as analyzed using a t-test. D-Ala D-alanine, D-Ser D-serine, Nx nephrectomy.

Water consumption increased in 5/6-Nx mice compared to sham controls (Fig. 4c), whereas feed intake remained unchanged (Fig. 4d). No difference was observed in these parameters between 5/6-Nx mice and 5/6-Nx mice that had been administered D-Ala in their drinking water.

RNA-Seq analysis of kidneys from female 5/6-Nx mice receiving D-Ser or D-Ala orally

Next, we evaluated the effects of D-Ser or D-Ala administration on the kidneys of female 5/6-Nx mice at the gene level to elucidate the reno-protective mechanisms of D-Ser or D-Ala. The expression of 11 of 13,483 genes was altered in D-Ala-supplemented female 5/6-Nx mice, compared with that in untreated female 5/6-Nx mice; nine genes (Cndp1, Mtfr1, Bhmt, Apool, Unc13c, Bmp7, Lonp1, Etv5, and Zfp704) were upregulated, and two (Herpud1 and Noct) were downregulated (Fig. 5a). For D-ser, no genes met the significance threshold of q-value < 0.10 and Log2 Fold Change > 0.5. For reference, genes that showed changes when q-value < 0.20 and Log2 Fold Change > 0.5 are shown. The expression of two of 13,483 genes was altered in D-Ser-supplemented female 5/6-Nx mice, compared with that in untreated female 5/6-Nx mice; Bhmt was upregulated, and Polr1a was downregulated (Fig. 5b).

Fig. 5
Fig. 5Fig. 5
Full size image

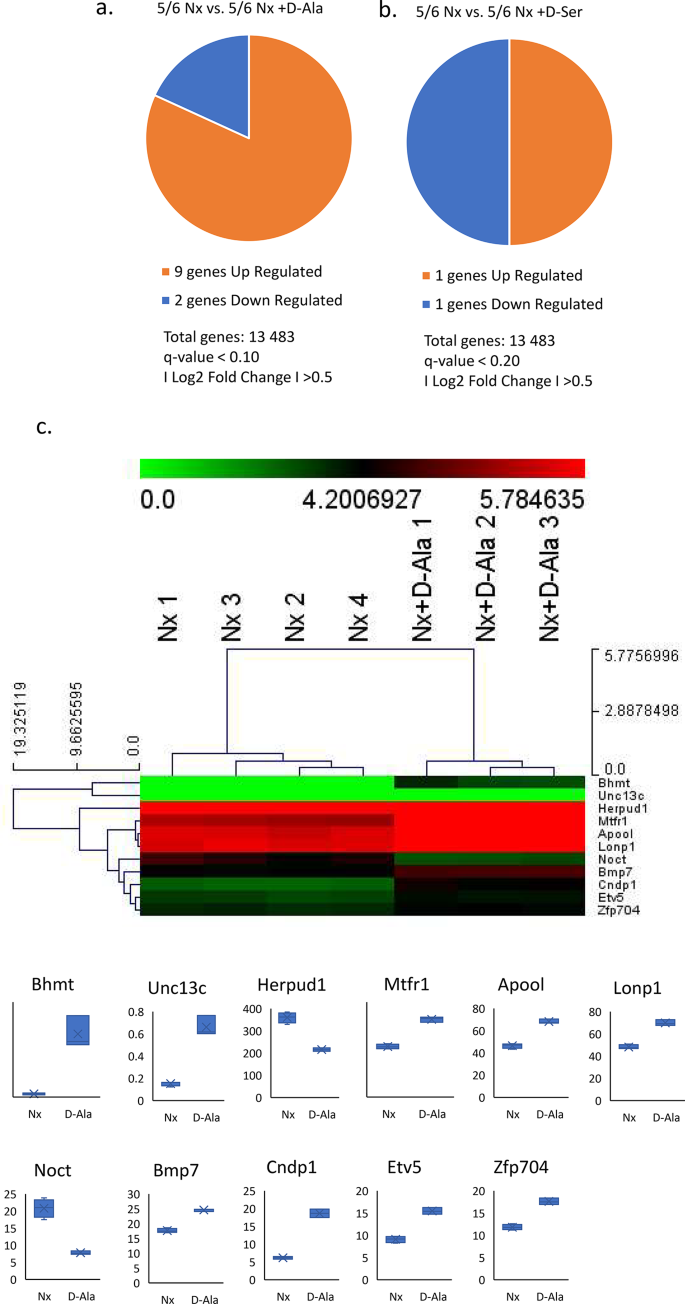

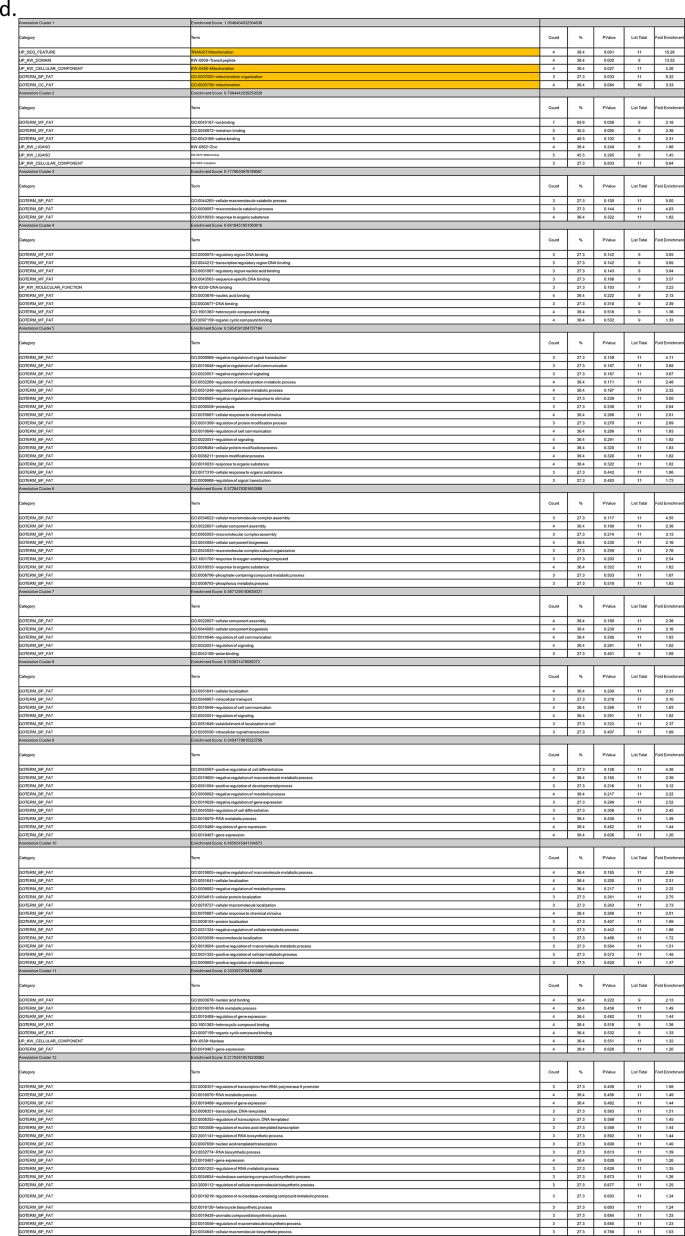

RNA-Seq analysis of kidney tissues. Gene alteration in mice administered with D-Ala (a) and D-Ser (b) compared to mice administered with water. Heatmap (c) shows the differentially expressed genes between female 5/6-Nx mice and 20-mM D-Ala-treated female 5/6-Nx mice. Gene Ontology analysis (d) using 11 related female 5/6-Nx mice treated with 20 mM D-Ala. D-Ala D-alanine, D-Ser D-serine, Nx nephrectomy, RNA-Seq RNA-sequencing.

The cluster analysis was performed using the 11 genes differentially expressed between untreated and D-Ala-treated female 5/6-Nx mice. Two major clusters were identified (Fig. 5c). We analyzed gene ontology (GO) using the genes differentially expressed upon oral administration of D-Ala. Terms primarily associated with mitochondria were classified into annotation cluster 1 (Fig. 5d). No relevant GO terms were obtained using the genes differentially expressed by oral D-Ser administration (data not shown).

Relationship between blood D-AA levels and renal prognosis in patients with CKD

Next, we analyzed the relationship between plasma D-Ala or D-Ser levels and annual eGFR loss in a longitudinal study of human participants. The mean observation period was 31.6 months. At baseline, the plasma D-Ala levels were higher in patients with diabetic kidney disease (DKD) than in healthy volunteers (Fig. 6a). The plasma D/L-Ala levels—corrected for D-AA levels with L-AA levels—were also higher in patients with DKD compared to those in healthy individuals. Plasma D/L-Ser levels were higher in patients with CKD and those with DKD than in healthy volunteers (Fig. 6b).

Fig. 6
Fig. 6
Full size image

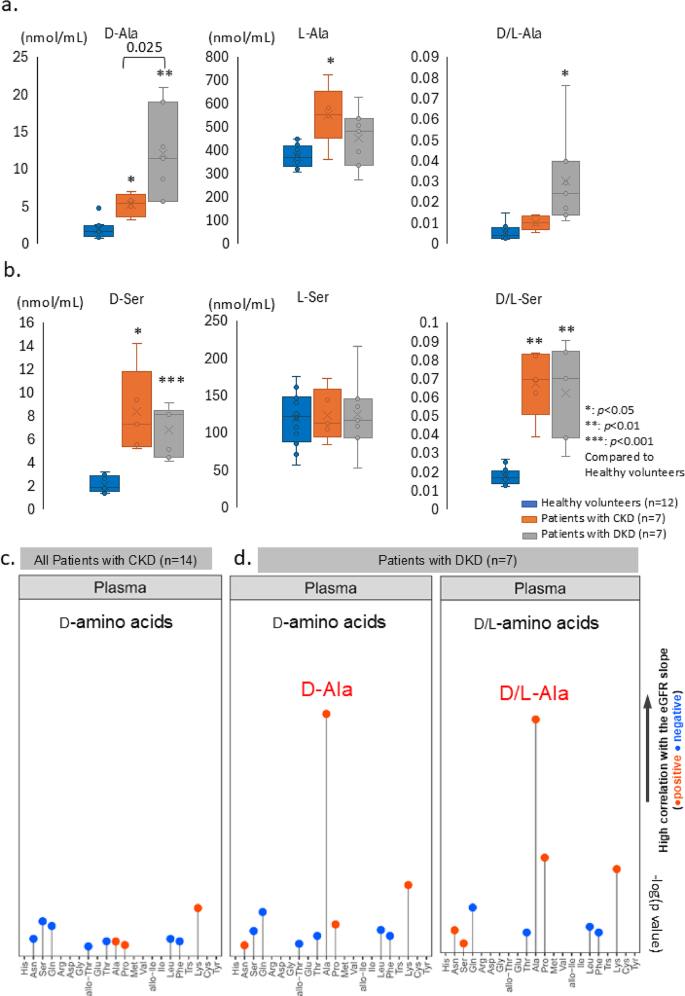

Longitudinal study of associations between D-amino acids and kidney function. The plasma D-Ala (a) and D-Ser levels (b) of all patients with CKD. Box plots use horizontal lines to indicate the median, 25th, and 75th percentile values. D-Amino acid analysis of all patients with CKD (c). D-Amino acid and D/L-amino acid analysis in patients with DKD (d). The length of the bars indicates the statistical significance, and the color of the circles at the ends represents the direction of eGFR change associated with the amino acids, whether positive or negative. For example, in (c), the D-Ala bar shows a red circle at the end of a long bar, indicating that individuals with higher D-Ala levels had a significantly slower eGFR change (p < 0.0001). *p < 0.05, ***p < 0.001, as analysed using one-way ANOVA. CKD chronic kidney disease, D-Ala D-alanine, DKD diabetic kidney disease, DM diabetes mellitus, D-Ser D-serine, D-Ala D-alanine, eGFR estimated glomerular filtration rate. *p < 0.05, **p < 0.01, ***p < 0.001.

No association was found between the plasma D-Ala or D-Ser levels and the eGFR slope in patients with CKD (Fig. 6c). Patients with CKD were divided into the DKD and no DKD groups. Figure 6d shows an association between higher plasma D-Ala levels and slower eGFR decline in patients with DKD (p < 0.0001). Conversely, there was no significant association between the L-Ser or L-Ala levels and eGFR slopes in patients with DKD (Supplementary Fig. 3). Therefore, patients with DKD and high D-Ala levels were protected from an eGFR decline. Thus, an association between D-Ala levels and eGFR slope was observed in patients with DKD.

Proliferative effects of D-Ser or D-Ala on human TECS

Then, we examined the effects of D-Ser or D-Ala on the human TEC line HK-2. D-Ser treatment promoted HK-2 proliferation at 10–100 µM and inhibited proliferation at 1,000 µM. D-Ala also promoted HK-2 proliferation at 10–1,000 µM (Supplementary Fig. 4). Therefore, concentrations of approximately 100 µM and 1,000 µM of D-Ser and D-Ala in vitro facilitated cell proliferation without including cytotoxic effects.

Discussion

D-Ser or D-Ala administration improved renal function and histological outcomes in female 5/6-Nx mice, with treated mice exhibiting higher survival rates than untreated controls. Their renoprotective potential has been demonstrated in previous ischemia-reperfusion injury models, with mitochondrial protection and mTOR activation identified as key mechanisms10,11,12. Given the well-established link between renal function and life expectancy16, our findings further support the therapeutic potential of D-Ser or D-Ala in CKD.

In this study, we demonstrated that oral D-Ala administration alleviated kidney injury and performed RNA-seq analysis to elucidate its underlying mechanism. The results confirmed an increase in Lonp1 expression in D-Ala-treated mice. Lonp1 is a mitochondrial protease essential for maintaining mitochondrial homeostasis, oxidative stress response, and protein quality control17. Reduced Lonp1 expression has been associated with CKD progression, whereas its overexpression has been shown to mitigate renal injury and mitochondrial dysfunction18. Furthermore, pharmacological Lonp1 activation has been shown to attenuate renal fibrosis and enhance mitochondrial function in CKD19. These findings suggest that Lonp1 upregulation in D-Ala-treated mice is a key mechanism underlying D-Ala’s renoprotective effects, likely by enhancing mitochondrial function and reducing oxidative stress.

Additionally, RNA-seq analysis revealed a significant upregulation of Bmp7 expression in D-Ala-treated mice. Bmp7 plays a crucial role in kidney development and renal tissue maintenance20,22,23 It exerts anti-inflammatory effects by suppressing macrophage infiltration and fibrosis in kidney injury models21,22,24. Exogenous Bmp7 administration has been shown to alleviate renal fibrosis and inflammation in animal models22,24. Importantly, Bmp7 antagonizes TGF-β signaling, inhibiting TGF-β/Smad3-mediated renal fibrosis through the Smad1/5/8 pathway24. Given that TGF-β/Smad3 activation is a major driver of CKD progression, our findings suggest that D-Ala-mediated Bmp7 induction mitigates kidney injury by modulating fibrotic pathways. However, the precise molecular mechanisms underlying D-Ala-induced Bmp7 upregulation remain unclear and require further investigation.

Interestingly, RNA-seq analysis also revealed increased Cndp1 expression in D-Ala-treated mice. Cndp1 encodes carnosinase-1, an enzyme that degrades carnosine, a dipeptide with antioxidant and anti-inflammatory properties. Previous studies suggest increased Cndp1 activity may reduce renal protection by lowering carnosine levels, which contradicts our findings25,26,27. This discrepancy may stem from compensatory regulatory mechanisms or context-dependent effects of Cndp1 expression in CKD. Further studies are needed to elucidate the functional significance of Cndp1 upregulation in response to D-Ala treatment.

In contrast, D-Ser administration resulted in only minor changes in Bhmt and Polr1a expression. While D-Ser has been shown to promote TEC proliferation and tissue remodeling via the mTOR-related pathway10,11, its full effects may not be captured through transcriptomic analysis alone. Future studies integrating proteomic and metabolomic approaches may provide deeper insights into D-Ser’s renoprotective mechanisms.

This study has several limitations. First, sex differences in survival rates were observed, with female 5/6-Nx mice exhibiting higher mortality than males. Future studies should evaluate the nephroprotective effects of D-Ser and D-Ala, specifically in male mice. Second, the systemic effects of these AAs on adipose tissue, muscle, and metabolic parameters were not extensively investigated. Third, the small patient cohort (n = 14) had limited statistical power for robust conclusions. Larger, controlled clinical studies are needed to validate these findings.

In conclusion, D-Ser and D-Ala exhibited renoprotective effects in a severe CKD mouse model, likely through mitochondrial protection and inflammation reduction. D-Ala, in particular, may exert its effects via Lonp1-mediated mitochondrial protection, Bmp7 induction, and NMDA receptor-mediated mitochondrial stabilization and ROS suppression12. The unexpected increase in Cndp1 expression highlights the complexity of D-Ala’s mechanisms and warrants further investigation. These findings underscore the therapeutic potential of D-Ala for CKD, necessitating further mechanistic and clinical studies.

Methods

Mice

The experimental groups included Sham + water, Nx + water, Nx + D-Ser, and Nx + D-Ala. Wild-type C57BL/6 mice (20 males and 20 females per group, totaling 160 mice) were purchased from CLEA (Osaka, Japan) and housed at Kanazawa University. All animal experiments were conducted following Kanazawa University’s guidelines for animal care and were approved by the Institute for Experimental Animals, Kanazawa University (approval number: AP-204160). The experiments complied with the ARRIVE guidelines (https://arriveguidelines.org) (Supplementary Table 1). Mice were used for survival assessment, renal function evaluation, and renal tissue analysis. The final number of animals varied across experiments due to mortality, with exact numbers specified in the respective figures.

A combination of three anesthetic agents—medetomidine (Domitor), midazolam, and butorphanol (Vetorphale)—was used for anesthesia. The mixture was administered at a dose of 0.1 mL per 10 g of body weight via intraperitoneal injection. Upon completion of the procedure, a medetomidine antagonist solution was administered intraperitoneally at a dose of 0.1 mL per 10 g of body weight. Isoflurane inhalation was used for euthanasia.

D-Ser and D-Ala (Wako Co., Ltd., Tokyo, Japan) was orally administered at a concentration of 20 mM in distilled water. This concentration was selected based on previous studies demonstrating the nephroprotective effects of D-Ser at low concentrations (20 mM) and nephrotoxicity at higher concentrations (80 mM)10. For D-Ala, a concentration-dependent renoprotective effect was observed between 20 mM and 80 mM, with no nephrotoxic effects12. We used 20 mM for D-Ser and D-Ala to ensure safety and efficacy. Blood amino acid levels were measured on the first day following 5/6-Nx surgery. The mice’s daily water and food intake was recorded over five days and averaged. Food and water intake was examined in additional mice. A graphical representation is shown in Supplemental Fig. 5a.

5/6-nephrectomy (Nx) CKD induction

Progressive renal failure was induced by 5/6 nephrectomy (5/6-Nx) through a two-step procedure in 6–8-week-old mice. All surgeries were performed under anesthesia. The upper and lower poles of the left kidney were severed using bipolar forceps (2/6-Nx). Liquid thrombin (Mochida Pharmaceutical Co. Ltd., Tokyo, Japan) was applied to the incision to prevent bleeding. Right kidney nephrectomy was performed after 2 weeks of recovery (5/6-Nx). The removal of the second kidney was designated as day 0. Sham surgery involved a two-step procedure in which the respective kidneys were exposed and repositioned.

Sample collection and measurement

Urine was collected for 24 h in a mouse metabolic cage (SAN783No.2 A; Shinano Seisakusho Co., Ltd., Tokyo, Japan). Plasma BUN levels were measured using UN-S (Denka Co., Ltd., Tokyo, Japan). Plasma creatinine (Cr) levels were measured using a CRE・M (Wako, Co., Ltd., Osaka, Japan). Mouse blood pressure and heart rate were measured non-invasively using BP-98AL and BP98-MCFm (Softlon Co., Ltd., Taren Point, Australia). The mice were placed in a fixation device (ICN6; ICM Co., Ltd., Seoul, South Korea) to measure arterial pulse waves. An animal lancet (18310400, 5 mm; BRC Co., Ltd., Incheon, South Korea) was inserted into the mouse’s sub-forehead vein to withdraw blood into ethylenediaminetetraacetic acid blood collection tubes (VP-DK053; Terumo Corp., Tokyo, Japan).

Renal histopathology

Mouse kidneys were fixed in 10% formalin and embedded in paraffin. Paraffin sections were stained with periodic acid-Schiff (PAS) and azan. Kidney pathology was scored as previously described10,28. The PAS-stained debris at the corticomedullary junction, brush border, and cortical region were quantified in at least 10 kidney sections. Based on the proximal tubule dilation, brush border damage, presence of proteinaceous casts, interstitial widening, and necrosis, the acute tubular necrosis of the sections was scored and graded as follows: 0, none; 1, < 30%; 2, 30–60%; and 4, > 60% of the field.

Hydroxyproline assay

Kidney fibrosis was evaluated using the hydroxyproline assay, as previously described10. The kidneys were assessed following the standard manufacturer’s protocol. The results are expressed as micrograms (µg) of hydroxyproline per 100 mg of kidney tissue.

RNA-Sequencing (Seq) analysis

Total RNA was extracted from kidney samples of female 5/6-Nx mice or 20 mM D-Ser- or D-Ala-treated female 5/6-Nx mice (n = 4 per group) using the NucleoSpin RNA Kit (Macherey-Nagel, Düren, Germany). The concentration and quality of the extracted RNA were measured using TapeStation and BioAnalyzer (Agilent Technologies, Santa Clara, CA, USA). Next, the cDNA libraries were prepared from RNAs using the SMART-Seq v4 Ultra Low Input RNA Kit for sequencing (Takara Bio, Tokyo, Japan) and the Nextera XT DNA Library Prep Kit (Illumina, San Diego, CA, USA) for RNA-Seq. RNA-Seq analysis was performed on a NovaSeq 6000 (Illumina) with a 2 × 150 bp paired-end mode, providing an average of 69 million reads per sample. Finally, the RNA-Seq reads were mapped to the mouse genome (GRCm39), and gene-level expression was quantified (per gene read count) using the DRAGEN Bio-IT Platform (Illumina).

RNA-Seq of kidney samples from female 5/6-Nx mice were analyzed based on Benjamini–Hochberg-corrected p < 0.1 and expression ratio > 1-fold (log FC > 0.5 or log FC < − 0.5). A comparison of D-Ala-treated and untreated mice showed significant differences in genes based on Benjamini–Hochberg-corrected p < 0.1 and expression ratio > 1-fold (log FC > 0.5 or log FC < − 0.5). A comparison of D-Ser-treated and untreated mice showed no significant difference in genes based on Benjamini–Hochberg-corrected p < 0.1 and expression ratio > 1-fold (log FC > 0.5 or log FC < − 0.5). Therefore, the Benjamini–Hochberg-corrected p < 0.2 and expression ratio > 1-fold (log FC > 0.5 or log FC < − 0.5) were used.

Cluster analysis of genes was performed using MultiExperiment Viewer (https://mev.tm4.org/#/about). Then, GO enrichment analysis (Biological Process, Loves Park, IL, USA) was performed to estimate the function and subcellular localization of the D-Ser- or D-Ala-related genes using Database for Annotation, Visualization, and Integrated Discovery (https://david.ncifcrf.gov/)29,30.

HK-2 cell proliferation assay

HK-2 cells (American Type Culture Collection, Manassas, VA, USA) were cultured in the recommended medium and maintained at 37 °C in a humidified chamber supplemented with 5% CO2. For the proliferation assay, cells were seeded in 96-well plates (4,000 cells/well) using Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 1% fetal bovine serum (FBS) and 1% penicillin–streptomycin. The next day, the culture medium was replaced with AA-free DMEM [048–33575] supplemented with MEM essential AAs [132–15641] and 100 µM glycine [073–00732] and GlutaMax (L-Alanyl-L-Glutamine) [016–21841] (Fujifilm Wako, Tokyo, Japan) with 1% dialyzed FBS (26400–036, Gibco, Waltham, MA, USA), as previously described12. D-Ser or D-Ala was added to the culture medium after overnight incubation. After 1–2 days of culture, TEC proliferation was determined using Cell Counting Kit-8 (CK04; Dojindo, Tokyo, Japan), following the manufacturer’s protocol. Live cells were detected by measuring the absorbance at 450 nm. Data are presented as the ratio of the sample optical density to the control optical density.

Study population and sample collection

This prospective observational study included 14 patients with CKD. Their physical characteristics are shown in Table 1. This study investigated the association between increased blood D-Ser or D-Ala levels and long-term decline in renal function in these patients. The decline in renal function was evaluated using the estimated glomerular filtration rate (eGFR) slope. CKD was defined as an eGFR of ≤ 60 mL/min/1.73 m2. Patients treated with immunosuppressive drugs and antibiotics and those with suspected infectious diseases, body temperature > 37 °C, diarrhea, or cancer were excluded. Blood samples were collected early in the morning from fasting participants. Immediately after collection, the samples were stored on ice, and plasma was separated by centrifugation and stored at − 80 °C until amino acid measurements were performed. Blood samples were collected from patients with CKD between 2013 and 2019 at Kanazawa University Hospital. A graphical representation of the process is shown in Supplemental Fig. 5b.

Table 1 Clinical characteristics of the study participants.
Full size table

Chiral AA determination using two-dimensional (2D) high-performance liquid chromatography (HPLC)

D- and L-Aas were evaluated using a 2D HPLC system (Nanospace SI-2 series; Shiseido, Tokyo, Japan), as previously described31,32. Briefly, 4-nitrobenzo-2-oxa-1,3-diazole (NBD)-AAs were isolated using an online fraction collecting system in the first dimension with a microbore-octadecyl silica column, prepared in a fused silica capillary (1,000 × 0.53 mm i.d., 45 °C; Shiseido). The isolated fractions were automatically transferred to the second dimension comprising a narrow-bore enantio-selective column KSAACSP-001 S (250 × 1.5 mm i.d, 25 °C; prepared in collaboration with Shiseido) to determine D- and L-enantiomers. The mobile phase used for the second dimension was a mixture of methanol and acetonitrile containing formic acid. Finally, fluorescence detection of NBD-AAs was conducted at 530 nm with excitation at 470 nm.

Statistical analysis

Survival time analysis was performed using the Kaplan–Meier method. The t-test was used to test the differences between 5/6-Nx mice, healthy volunteers, and other mice or patients with CKD. Statistical significance was set at *p < 0.05, **p < 0.01, and ***p < 0.001.

A mixed-effects model with a random intercept and slope was applied to calculate eGFR slopes during the study, using eGFR as the dependent variable and D-AA levels at baseline, time from baseline, and their multiplication terms as independent variables. The p-value was calculated to determine the association between the baseline AA levels and eGFR slopes.

Bonferroni correction was used to minimize type I errors because 22 AAs were tested for isomerism (type L, D, and D/L ratio). Statistical significance was set at a two-tailed p-value of 0.0001 (0.05/88).
