Introduction

With the development of deep learning techniques, researchers have proposed numerous retinal disease detection and segmentation algorithms to aid in clinical diagnosis1. However, these algorithms require high-quality retinal image inputs, while cataract retinal images are typically characterized by capture device and patient variability, making it difficult to ensure image quality. The quality of cataract retinal images is often shown as blurriness and poor image readability, Rendering the diagnosis of diseases by ophthalmologists challenging. Meanwhile, these poor-quality retinal images also may lead to suboptimal outcomes in automatic image processing, such as disease detection and segmentation, consequently impacting further disease diagnosis. Therefore, the restoration of cataract fundus images has clinical value2. Figure 1 shows the fundus images of cataract image and the enhancement image restored by our TSMSA-Net. It can be observed that compared to Fig. 1c, d, Fig. 1a, b are relatively blurry, with lower visibility of the fundus structures. It is difficult to accurately extract the fundus information of these blurred images, indicating the effectiveness of our TSMSA-Net.

In addressing the blurriness of the cataract retinal images, researchers have extensively explored retinal image enhancement methods3,4,5,6,7, utilizing classical methods to improve image quality. However, these manually designed algorithms fail to adequately preserve image details and suffer from the issue of amplifying image noise, leading to erroneous guidance in image restoration. Subsequently, with the advancement of deep learning, researchers began to utilize deep learning to enhance retinal images, achieving promising results8,9,10,11.

Although the artificial synthesis methods12,13,14 can effectively obtain a large number of paired cataract retinal images, the synthetic function cannot fully cover the degradation conditions of cataract images, resulting in poor generalization ability of well-trained networks in real cataract retinal image application scenarios. In addition, unsupervised methods9,15 are prone to losing detailed information of retinal images during the enhancement process due to the lack of supervised constraints.

To address the above challenges, we propose a two-stage multi-scale attention-based weakly supervised cataract retinal image enhancement network (TSMSA-Net). Our TSMSA-Net mainly leverages a real-like cataract image synthesis stage to simulate more realistic paired degradation images. Specifically, we firstly apply a synthetic function to narrow the domain gap between synthetic and real cataract retinal images. Subsequently, we use the synthetic cataract images as the source domain and real cataract images as the target domain for domain transformation, resulting in real-like paired synthetic cataract retinal images. To further enhance the detail rendition, we introduce a multi-scale attention-based cataract retinal image enhancement stage. Unlike the widely used U-Net16, we utilize multi-scale attention modules to extract more abundant image detail features, avoiding the loss of details during the down-sampling process. TSMSA-Net combines the conversion capabilities of CycleGAN, the structural information retention strategy of ArcNet, and the unsupervised learning idea of EnlightenGAN, introduces a multi-scale attention mechanism and a high-frequency extraction module, and achieves better image enhancement effects.

We summarise the main contributions of this paper as follows:

  • We propose a real-like cataract image synthesis stage to obtain more paired realistic synthesized cataract images, addressing the problem of difficult acquisition of paired images and the inability of the synthesis function to effectively cover the degradation of cataract images.

  • We propose a multi-scale attention-based cataract image enhancement stage to better fuse multi-scale features, enabling the enhancement network to better recover image details and reduce the generation of artifacts.

  • Qualitative and quantitative experiments on the Kaggle and ODIR-5K datasets demonstrate that our TSMSA-Net outperforms existing state-of-the-art cataract image enhancement methods. And the enhancement can improve the automatic image processing, such as disease classification and segmentation.

Fig. 1
figure 1

Fundus images. (a,b) Cataract images. (c,d) The image enhanced by our TSMSA-Net.

Full size image

Related work

Classical retinal image enhancement methods

Classical methods for retinal image enhancement typically involve manually designing algorithms using prior information of the images, often focusing on enhancing contrast and brightness. For instance, many methods utilize contrast limited adaptive histogram equalization (CLAHE) to improve image contrast and achieve retinal image enhancement17. Additionally, some researchers employ filtering techniques for image enhancement18. In addition, Dash et al.4 propose a joint model of fast guided filter and matching filter to enhance vascular extraction performance. Mohammed et al.3 present a hybrid algorithm that utilizes wiener filtering and CLAHE to enhance color retinal fundus images, reducing noise generation and achieving better enhancement effects.

Although the aforementioned methods can achieve excellent enhancement results, they also exist some limitations. Firstly, they are unable to precisely control the enhancement level, resulting in extracted features that struggle to preserve image details and are prone to amplifying image noise. Secondly, these manually designed prior information is often simplistic and cannot fully adapt to the various retinal degradations present in the real world, thus limiting their applicability.

Deep learning-based retinal image enhancement methods

In recent years, deep learning has shown outstanding performance and has been widely applied to low-level visual tasks, such as segmentation19, dehazing20, and image enhancement21. In the field of image enhancement, there are also many methods that have achieved excellent enhancement effects22,23,24. However, most methods use the supervised learning method, leveraging a large amount of paired training data to learn the mapping from low-quality images to high-quality images25. However, obtaining the paired data in medical scenarios is extremely difficult and time-consuming. Therefore, researchers have proposed artificially degrading high-quality images to synthesize low-quality images for supervised training10,12,26,27,28.nBy computing the OT cost in feature space, this method is able to better preserve local structures and minimize unnecessary artifacts29. An end-to-end optimized teacher-student framework is proposed for simultaneous image enhancement and domain adaptation30. This paper proposes a model based on a teacher-student network, combining NoiseContextNet Block and iterative pruning technology to improve denoising effect and computational efficiency31.

Since the degradation conditions that can be covered by artificially degraded methods are limited and cannot fully restore the degradation of real cataract images, and there exists a domain gap between artificially synthesized fundus degradation images and real degraded fundus images, the models trained by these methods often lack generalization ability when processing real degraded fundus images. Subsequently, some researchers propose semi-supervised methods for fundus image enhancement to reduce the dependence on the requirement of paired data. Wu et al.8 propose a semi-supervised generative adversarial network (SSGAN-ASP) to train the network using both supervised data and unsupervised data. In addition, there are also methods proposed to use unpaired images for unsupervised learning in fundus image enhancement to reduce the need for paired data. Yang et al.15 introduce an unpaired fundus image enhancement method based on high-frequency extraction and feature description to preserve the structural information of the image and reduce the generation of vascular-like artifacts during the enhancement process. Li et al.9 propose an unsupervised cataract fundus image restoration network (ArcNet) that does not require annotations. However, due to the lack of supervision constraints, unsupervised learning methods mainly simulate the results of high-quality images from low-quality images through image style transformation, which easily leads to the loss of detailed information in low-quality images.

Proposed approach

Fig. 2
figure 2

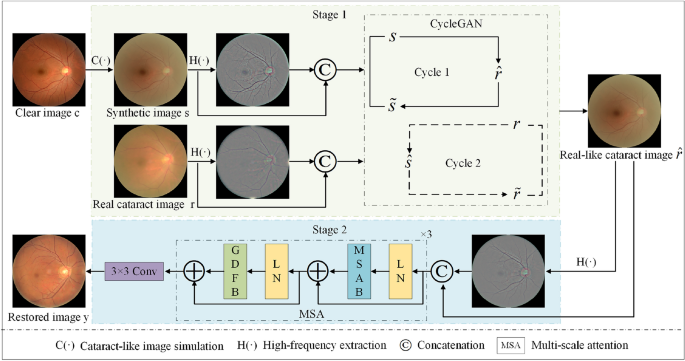

The overall architecture of the proposed network. Our network consists of stage 1 and stage 2. In stage 1, given a clear image c and a real cataract image r, we first extract structural information from each image for guidance. Subsequently, we employ CycleGAN32 to perform domain transformation on the synthetic image and the real cataract image, And in stage 2, we use a series of multi-scale attention (MSA) to extract more details from the synthetic real-like cataract images.

Full size image

Due to the inability of synthesized images generated by the composite function to fully simulate the degradation of real cataract fundus images, and the risk of losing structural and detailed information in unsupervised learning methods, we propose a Two-Stage Multi-Scale Attention-based Network (TSMSA-Net) for weakly supervised cataract fundus image enhancement. To better obtain synthesized cataract fundus images that are closer to realistic scenarios, we propose a real-like cataract fundus image synthesis stage. To better capture the detailed information of cataract fundus images, we design a multi-scale attention-based enhancement stage, which learns informative features under weak supervision to preserve fine details and improve image quality.

Overall pipeline

Figure 2 illustrates the overall architecture of our two-stage multi-scale attention-based weakly supervised cataract retinal image enhancement network (TSMSA-Net), which consists of a real-like cataract fundus image synthesis stage as stage 1 and a multi-scale attention-based cataract fundus image enhancement stage as stage 2. In stage 1, we first utilize a composite function C\(\left( \cdot \right)\) to generate simulated cataract fundus images, aiming to reduce the domain gap between the synthesized and real cataract fundus images. Subsequently, we use the CycleGAN32 network for domain translation between the synthesized cataract fundus images and the corresponding real cataract fundus images, to make the synthesis images are closer to the real ones. We utilize these synthesized cataract fundus images paired with their corresponding clear fundus images as the input for the stage 2. In stage 2, we employ multi-scale attention to further extract the detailed information of the degraded images more precisely.

Real-like cataract fundus image synthesis stage

To generate synthetic cataract fundus images that better reflect real-world conditions, we propose a real-like cataract fundus image synthesis stage, as shown stage 1 in Fig. 2. S represents the source domain, \({\tilde{S}}\) represents the image mapped from the source domain S to the target domain T through the generative network. r represents the target domain,\({\tilde{r}}\) represents the image mapped from the source domain S to the target domain T through the generative network. \({\hat{r}}\) represents the image mapped from the target domain T to the source domain S through the generative network.resulting in the generation of real-like cataract image. Inspired by ArcNet9, we adopt the degradation model proposed in33 to simulate the cataract-induced degradation process and further improve it to better suit our task. The simulate formulation is represented as:

$$\begin{aligned} \ C({s_C}) = \alpha \cdot {s_C} * {g_B}\left( {{r_B},{\sigma _B}} \right) + \beta \cdot J * {g_L}\left( {{r_L},{\sigma _L}} \right) \cdot \left( {{L_C} - {s_C}} \right) , \end{aligned}$$
(1)

where \(C({s_C})\) represents the simulated cataract fundus image, \({s_C}\) denotes the clear image, c stands for the image’s r, g, b channel, \(\alpha\) and \(\beta\) represent the weights of the clear fundus image and the noise from the cataract, \(*\) denotes the convolution operation, \({g_B}\) and \({g_L}\) represent gaussian filters for smoothing the clear image and the cataract panel, respectively, \({g}\left( {{r},{\sigma }} \right)\) denotes a gaussian filter with radius r and spatial constant \(\sigma\), J represents the cataract panel, and \({L_C}\) represents the highest intensity of \({s_C}\).

In the proposed two-stage multi-scale attention weakly supervised cataract retinal image enhancement network (TSMSA-Net), the reason for dividing \(F_{\text {a}}\) into three parts along the channel dimension is to better capture feature information at different scales. After decomposition, features can be learned on different channels, thereby understanding the image content more comprehensively. The network is also able to focus on feature representations at different levels, which helps to improve the effect of image enhancement. Specifically, \(F_a\) is divided into three parts \(F_{a_1}\), \(F_{a_2}\), and \(F_{a_3}\), and each part passes through an attention block with different convolution kernel sizes, so that diverse features can be extracted. These different scale features are then merged and multiplied with \(F_{\text {b}}\) to obtain multi-scale attention features. This helps the network work effectively on different image regions and objects of different sizes.

The segmentation and multi-scale processing enhance the expressiveness of feature representations. If the original feature F is directly input into the attention block, the details and hierarchical structures that can be captured by segmentation and multi-scale processing may be missed. In addition, the segmented features are processed through different attention blocks, which can learn richer and more diverse feature representations.

However, the degradation that can be simulated by mathematical formulas is limited. Therefore, we further synthesize cataract fundus degraded images that are closer to real-world scenarios through an improved CycleGAN32. Through two GAN networks, we learn mappings from the sythesized cataract image domain s to the real cataract image domain r, and from real cataract image domain r to the synthesized cataract image domain s. We ensure the similarity between generated images and input image content through GAN loss functions and cycle consistency loss functions. The generative networks are adapted from Johnson et al.34, which contains two convolutional layers with stride 2, several residual blocks and two convolutional layers with stride \(\frac{1}{2}\). For the discriminator network, we use 70 \(\times\) 70 PatchGANs35,36. In order to retain as much structural information of the fundus image as possible, inspired by ArcNet9, based on the Retinex theory37, we utilize a high-frequency extraction module \(H\left( \cdot \right)\) to extract structural information from the fundus image as the guidance. The high-frequency extraction module \(H\left( \cdot \right)\) can be represented as:

$$\begin{aligned} \ H\left( I \right) = I - I * {g_P}\left( {{r_P},{\sigma _P}} \right) ,\ \end{aligned}$$
(2)

where I represents the fundus image, and \({g_P}\left( {{r_P},{\sigma _P}} \right)\) denotes a gaussian filter with radius \(r_P\) and spatial constant \(\sigma _P\).

Fig. 3
figure 3

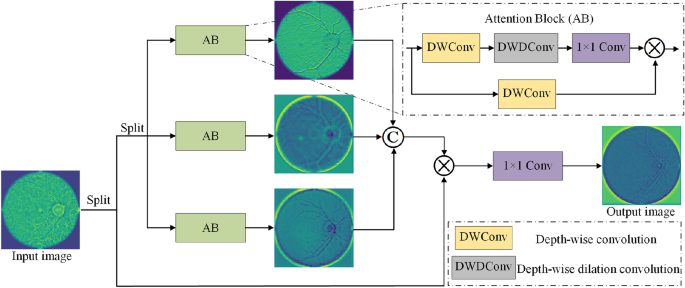

The architecture of multi-scale attention block (MSAB). Our MSAB mainly consists of 3 attention blocks (AB) with different scales of convolution kernel to explore the multi-scale features for the better enhancement.

Full size image

Multi-scale attention-based cataract fundus image enhancement stage

To fully leverage the features of the synthesized real-like cataract fundus images and enhance the enhancement effect, we propose a multi-scale attention-based cataract fundus image enhancement stage, as shown in the stage 2 of Fig. 2. This stage consists of a high-frequency extraction module and three multi-scale attention (MSA) modules. The high-frequency extraction module aims to preserve the structural information of the fundus image for better restoration of cataract fundus image details. Inspired by38, the MSA is designed to exploit the features of the synthesized real-like cataract fundus images and learn richer characteristics of the fundus images. The learning process of the multi-scale attention modules can be represented as follows:

$$\begin{aligned} & \ {M_i} = {F_i} + {f_{MSAB}}\left( {LN\left( {{F_i}} \right) } \right) ,\ \end{aligned}$$
(3)
$$\begin{aligned} & \ F_{i + 1} = {M_i} + {f_{GDFB}}\left( {LN\left( {{M_i}} \right) } \right) ,\ \end{aligned}$$
(4)

where \({F_i}\) and \({F_{i+1}}\) represent the input and output features of the multi-scale attention module, \({M_i}\) represents the extracted multi-scale features, \(f_{MSAB}\left( \cdot \right)\) denotes the MSAB module, \(f_{GDFB}\left( \cdot \right)\) denotes the Global Dual-Branch Fusion Block (GDFB), and \(LN\left( \cdot \right)\) represents the layer normalization operation.

As shown in Fig. 3, the MSAB module consists of three attention blocks (AB). Firstly, the features are divided into two parts along the channel dimension, resulting in features \(F_a\) and \(F_b\). Next, \(F_a\) is further divided into three parts along the channel dimension, yielding \(F_{a_1}\), \(F_{a_2}\), and \(F_{a_3}\), which are then fed into the attention blocks (AB). Each AB module employs different convolutional kernels to extract multi-scale features and capture richer image detail information. Subsequently, the features of different scales are concatenated and multiplied element-wise with \(F_b\) to obtain the multi-scale attention features. AB is shown in Fig. 3, which consists of two deep-wise convolutions, a deep-wise dilation convolution, and a 1\(\times\)1 convolution to achieve a larger receptive field for feature extraction. The GDFB firstly adopt a channel-wise splitting to split the input into two halves. We remain one branch while applying a deep-wise convolution operationt to the other branch. Afterwards, we merge the dual cranch together by multiplied to obtain the global spatial information.

Loss function

Real-like cataract fundus image synthesis stage We train the real-like cataract fundus image synthesis stage using the loss function from CycleGAN32, which can be formulated as follows:

$$\begin{aligned} \begin{aligned} {L_{CycleGAN}} = \lambda {L_{cyc}}\left( {G_S^R,G_R^S} \right) +{L_{GAN}}\left( {G_S^R,{D_R},S,R} \right) + {L_{GAN}}\left( {G_R^S,{D_S},S,R} \right) , \end{aligned} \end{aligned}$$
(5)

where S and T respectively represent the source domain and target domain, \(G_{XY}\) represents the mapping function from domain X to Y, \(D_S\) and \(D_T\) represent the discriminators for the source and target domains, \(L_{GAN}\) and \(L_{cyc}\) represent the adversarial loss and cycle consistency loss, \(\lambda\) represents the weight parameter. In addition, we also use the structural loss \(L_R\) in10 to preserve the structural information of the fundus. The overall loss function can be expressed as:

$$\begin{aligned} \begin{aligned} L_{total} = \ {L_{CycleGAN}}\left( {\cdot } \right) + {L_R}\left( {S_G}, \mathop {R_G}\limits ^\wedge \right) + {L_R}\left( {R_G}, \mathop {S_G}\limits ^\wedge \right) , \end{aligned} \end{aligned}$$
(6)

where \(X_G\) represents the structural graph of X.

Multi-scale attention-based cataract fundus image enhancement stage: To preserve the content information of fundus images, retain their structural details, color brightness, and minimize the occurrence of artifacts during the restoration process, we utilize several loss functions. These include the mean squared error loss \(L_{MSE}\) to constrain structural variations, color loss \(L_{Color}\) to maintain color brightness consistency, total variation loss \(L_{TV}\) and \(L_{1}\) loss to preserve image edges and promote smoothness, and structural similarity index loss \(L_{ssim}\) to recover both brightness and structural details. \(L_{ssim}\) can improve the structural quality of the generated image, mainly helping to maintain the structural information of the image, not just the pixel-level error, but also maintaining consistency at a higher level of visual structure. \(L_{color}\) is used to maintain the consistency of the image color, making it visually closer to the true value image. The overall loss function can be expressed as:

$$\begin{aligned} \begin{aligned} {L_{multi}} = {\lambda _{TV}}\Delta (c - y) + {\lambda _{MSE}}||c - y|{|_2} + {\lambda _{L1}}||c - y|{|_2} + {\lambda _{ssim}}\mathop {ssim}\limits ^ \sim ((c,y)) + {\lambda _{Colour}}||\mathop {\max }\limits _{rgb} {c^{rgb}} - \mathop {\max }\limits _{rgb} {y^{rgb}}||, \end{aligned} \end{aligned}$$
(7)

where \(\lambda\) represents the hyperparameter, \(rgb\) denotes the r, g, b channels, and \(\mathop {ssim}\limits ^ \sim = 1 - ssim\).

Experiments

Dataset and evaluation metrics

Dataset. We train and test our TSMSA-Net on publicly available datasets. Specifically, we use the normal and cataract subsets of the Kaggle dataset to create an unpaired dataset for unsupervised training in stage 1. And in stage 2, we use the normal subset of the Kaggle dataset and the degraded normal subset generated from stage 1 to form a paired dataset for supervised training. All images are resized to 512 \(\times\) 512 before being sent to the model. For testing, we use a subset of cataract-labeled images from the ODIR-5K dataset and the cataract subset of the Kaggle dataset.

Evaluation metrics. We assess the effectiveness of our TSMSA-Net by using the natural image quality evaluator (NIQE)39 and initial score (IS)40 as metrics to evaluate the image enhancement quality, where lower values of NIQE and higher values of IS indicate better performance.

Implementation details

We implement our TSMSA-Net on the PyTorch framework, optimize using the Adam optimizer41 and train on a single V100 GPU. In stage 1, we start with an initial learning rate of 0.0002, and the model is trained for 150 epochs with a linear decay of the learning rate. The batch size is set to 8. In stage 2, during the training phase, we start with an initial learning rate of 0.0001, and the model is trained for 100 epochs. The input image size is 512\(\times\)512, and we random crop size to 256\(\times\)256 and fed into the network. The batch size is set to 4. For the loss function, we use the weights as follows: \(\lambda _{TV}\)=1, \(\lambda _{MSE}\)=1, \(\lambda _{Color}\)=0.1, \(\lambda _{ssim}\)=0.1, and \(\lambda _{L_1}\)=0.5. The MSAB employ convolutional kernels with scales of 7-9-1, 5-7-1, and 3-5-1 for different branches. During the testing phase, the input image size is set to 512\(\times\)512, and the batch size is set to 1.

Comparision with state-of-the-art methods

Quantitative results

We compare our TSMSA-Net with six state-of-the-art models, including CycleGAN32, CofeNet27, EnlightenGAN24, ArcNet9, PCENet12, and GFENet10. Tables 1 and 2 summarize the comparison results, which are based on the pre-trained models provided by the networks and tested on our dataset. From Tables 1 and 2, we can clearly observe that our TSMSA-Net achieves the best results in NIQE and IS on Kaggle and ODIR-5K. Concretely, our method surpasses GFENet by 0.15 and 0.09 in NIQE on Kaggle and ODIR-5K respectively, although GFENet is trained on a larger dataset. Although ArcNet9 has seen the test set images during the training process, our method still outperforms ArcNet by 0.87 and 0.15 in NIQE and IS on the Kaggle dataset. As shown in Table 6, We also test the value of PSNR and our method achieved the best results.

Fig. 4
figure 4

Visual comparsion with state-of-the-art methods on Kaggle, and areas of contrast are marked with green and yellow boxes on the original image. (a) Cataract image. (b) CycleGAN32. (c) CofeNet27. (d) EnlightenGAN24. (e) ArcNet9. (f) PCENet12. (g) GFENet10. (h) TSMSA-Net(ours).

Full size image
Fig. 5
figure 5

Visual comparsion with state-of-the-art methods on ODIR-5K, and areas of contrast are marked with green and yellow boxes on the original image. (a) Cataract image. (b) CycleGAN32. (c) CofeNet27. (d) EnlightenGAN24. (e) ArcNet9. (f) PCENet12. (g) GFENet10. (h) TSMSA-Net(Ours).

Full size image
Table 1 Quantitative results on Kaggle dataset. The best results are highlighted in bold.
Full size table
Table 2 Quantitative results on ODIR-5K dataset. The best results are highlighted in bold.
Full size table

Visual comparison

Meanwhile, we also provide the visual comparison between TSMSA-Net and other models on the cataract sub-dataset of Kaggle and the ODIR-5K cataract sub-dataset in Figs. 4 and 5, respectively. It is important to note that unlike other models, our model is trained only on the 300 images in the Kaggle sub-dataset, which may contribute to the stylistic differences in the restored images compared to other models. From Fig. 4, it can be observed that our model is capable of restoring clean and clear vessels in the optic disk, demonstrating the ability of the multi-scale attention module to extract image features. Additionally, as our model has not seen the ODIR-5K dataset during the entire training process, Fig. 5 also reflects the generalization capability of our model. It is evident that our model can effectively restore detailed features such as blood vessels even when trained on a relatively small dataset.

Ablation study

In this section, we conduct ablation experiments to investigate the effect of the proposed different components. We test the NIQE39 and IS metrics40 on the Kaggle dataset. The experimental results are summarized in Table 3. “w/o stage1” indicates that paired images are not obtained through training in stage 1, and synthetic images generated using the composition function are directly paired with corresponding clear images. “w/o MSAB” means that the multi-scale module is not used in stage 2. We only use a single AB module with a convolution kernel of scale 3-5-1 instead of the three AB modules of different scales.

Table 3 Ablation study on Kaggle dataset. The best results are highlighted in bold.
Full size table
Table 4 The comparison of model complexity. The best results are highlighted in bold.
Full size table
Table 5 Ablation study on Kaggle dataset. The best results are highlighted in bold.
Full size table
Table 6 Quantitative results on widely-used benchmarks. The best results are marked in bold. Higher SSIM values reflect improved performance.
Full size table
Fig. 6
figure 6

Visual comparison on ablation study. (a) Represents using synthetic cataract images by simulate formulation directly without the first stage and without multi-scale feature extraction. (b) Represents using synthetic cataract images by simulate formulation directly without the first stage. (c) Represents without multi-scale feature extraction. (d) Represents our method, utilizing both the first stage and multi-scale feature extraction. The magnified areas are indicated by green boxes in the retinal image.

Full size image

From the first and fourth rows of Table 3, it can be observed that without the learning from stage 1 network, the NIQE and IS indicators decrease by 0.06 and 0.04, respectively. This indicates that the synthesized cataract images from stage 1 are closer to real cataract degradation compared to the synthesized function. As a result, better enhancement effects can be achieved for real cataract images. Moreover, from the second and fourth rows of Table 3, it can be seen that employing multi-scale attention significantly boosts performance by 0.42 and 0.03 in NIQE and IS metrics respectively, demonstrating that the extraction of multi-scale information can effectively enhance the ability of image enhancement. Notablely, from the second and third rows of Table 3, it can be observed that the effect of using only the image enhanced by the stage 1 network is slightly inferior to directly using the synthesized image. This may be because there is some degree of feature loss during the domain adaptation process. As shown in Table 3, using both stage 1 and the multi-scale attention module can achieve the best results on the Kaggle dataset, which can further demonstrate the proposed components’s effectiveness. We also add the ablation study to evaluate the effect of concatenating the real-like cataract image with the high-frequency image. As shown in Table 5, when concatenating the real-like cataract image with the high-frequency image, the NIQE and IS achieve the better results.

Fig. 7
figure 7

Application in vessel segmentation (a) Low-quality image, (b) segmentation result of the low-quality image, (c) enhanced image, (d) segmentation result of the enhanced image.

Full size image

Furthermore, we also provide visual comparison, as shown in Fig. 6. It can be observed that compared with Fig. 6d, without the stage 1 training, Fig. 6a,b have more obvious black shadows in the enhanced images. Moreover, comparing the magnified vessel images in Fig. 6c,d, it shows that the introduction of multi-scale feature extraction can extract richer vessel details, resulting in clearer recovery of vessels.

Model complexity comparisons

An analysis of the model’s complexity is essential for a comprehensive evaluation. As shown in Table  4, a comparative study of parameters and inference time among various models is presented. The inference time is obtained by inferring 100 images on a V100 GPU. In addition, since our model only synthesizes pseudo cataract images in the stage 1, the cataract image enhancement process only occurs in the stage 2, which is equivalent to the image pre-processing process in stage 1. Therefore, when comparing model complexity, only the complexity of the stage 2 of the model is calculated. It can be seen that our method has achieved optimal results in terms of both parameter quantity and inference time. Specifically, the parameter quantity of our model is only 1.9\(\%\) of that of GFE-Net, and the inference time is only 37\(\%\) of that of GFE-Net. This fully demonstrates the outstanding performance of our method in terms of model complexity.

Table 7 Accuracy of automatic disease diagnosis.
Full size table

Applications

Our enhancement method can be used as the pre-processing for cataract retinal vessel segmentation tasks. We use the U-Net16 trained for vessel segmentation on the DRIVE46 and STARE47 datasets. The results are shown in Fig. 7. It can be observed that before enhancement, the structure of the retina fundus is relatively blurred, making it difficult to effectively segment vessels, resulting in less than ideal segmentation outcomes. However, after our enhancement network, the visibility of vessels in the retinal image is significantly improved, and the segmentation results are noticeably enhanced, effectively improving the ability of retinal vessel segmentation. More vessel structures can be segmented, which is beneficial for further medical diagnosis.

Furthermore, our approach aslo can contribute to automatic disease diagnosis. We use the retinal fundus multi-disease dataset (RFMiD)48 to train the ConvNeXt network49 for automatic detection. RFMiD is created for training automatic classification methods for both common and rare diseases, camprising 3200 fundus images captured by three different fundus cameras. Among them, 317 images are labeled with media haze, which may hinder disease diagnosis. We perform automatic disease detection on the original images and the enhanced images in this chapter. The results are shown in Fig. 7. Among them, DR represents diabetic retinopathy, ARMD represents age-related macular degeneration, MH represents media haze, BRVO represents branch retinal vein occlusion, ODC represents optic disc cupping, and ODE represents optic disc edema. We use recall and F1 metrics to evaluate the classification results. The results are shown in Table 7. It can be seen that the images enhanced by our model can achieve better classification results than the original images. Specifically, for ARMD, the images enhanced by our method show improvements of 0.36 and 0.39 in recall and F1 metrics, respectively. For ODE, the enhanced images show improvements of 0.47 and 0.29 in recall and F1 metrics, respectively. Especially for images with MH, the images enhanced by our method can achieve recall and F1 metrics of 0.94 and 0.96. This also demonstrates that our enhancement model can contribute to further automated disease detection and diagnosis, while effectively preserving the structural information of the fundus during the enhancement process, thus enhancing the accuracy of automated diagnosis.

Conclusion

In this paper, we have proposed a two-stage multi-scale attention-based network (TSMSA-Net) for weakly supervised cataract fundus image enhancement. To obtain more paired cataract fundus images which are close to the realistic scenarios, we have proposed a real-like cataract fundus image synthesis stage. To better utilize the features of the fundus images, we have proposed a multi-scale attention-based cataract fundus image enhancement stage, which extracts the structural features from different scales to facilitate better image enhancement. Extensive experiments have demonstrated that our TSMSA-Net favors against state-of-the-art cataract fundus image enhancement approaches. Furthermore, TSMSA-Net can improve the results of blood vessel segmentation and automatic disease detection tasks and can improve the accuracy of classification. So it can be used as a pre-processing of computer-aided algorithms for the facilitate diagnosis of ocular diseases. In future work, we will pay more attention to optic disc besides vessels to make the diseases easier for ophthalmologists to distinguish.
