Introduction

Diabetes is a lifelong disease in which the amount of glucose in the blood increases due to a lack of control over insulin levels1. It affects different body parts, such as the nerves, kidneys, heart, and retinas1. The retina is the light-sensitive lining at the innermost layer of the eye, which lines the posterior part of the eye2. The function of the retina is to process visual information and coordinate with the brain by transmitting light through nerve signals3. The retina receives blood nourishment through microvessels4, and it is necessary to maintain blood glucose levels with uninterrupted blood flow. Even in pre-diabetes, high blood sugar levels can damage microvessels. A complication of diabetes may cause progressive damage (swell, leak fluids, and bleed) to the blood vessels in the retina, which is called Diabetic Retinopathy (DR)5,6. DR causes progressive vision loss and is one of the most common causes of permanent blindness7. The International Diabetes Federation estimated that about 537 million diabetic adults worldwide in 2021, and almost 30% suffer from DR8. Early diagnosis of DR is essential since conditions are more treatable in the early stages9, and the progression of visual impairment can be slowed or avoided if DR is detected in time10. DR is a progressive eye disease classified by four stages (No DR is Class 0):

  • Mild nonproliferative diabetic retinopathy (Mild NPDR, Class 1);

  • Moderate nonproliferative diabetic retinopathy (Moderate NPDR, Class 2);

  • Severe nonproliferative diabetic retinopathy (Severe NPDR, Class 3);

  • Proliferative diabetic retinopathy (PDR, Class 4).

Mild DR is characterized by swelling of retinal blood vessels and is usually asymptomatic. During the moderate DR stage, there is a significant increase in microvascular swelling. Swelling will interfere with blood flow from blood vessels to the retina, prevent proper nourishment, and lead to blurred vision. In the severe DR stage, abnormal vascular growth can significantly reduce retinal blood flow. Late DR shows hyperplastic retinal detachment with significant retinal breaks that can lead to complete vision loss. The diagnosis of DR requires ophthalmologists to identify the presence of retinal vascular abnormalities associated with related lesions. However, as the number of DR patients increases, most areas with large populations still lack professional knowledge resources from clinicians. With the development of deep learning in recent years, many works have made considerable progress in DR automatic screening using image classification9,10,11,12, image detection13,14,15, and image segmentation16,17,18.

Medical image classification is a challenging task for practical computer vision applications because medical images contain a large amount of irrelevant information. Therefore, it is necessary to utilize attention algorithms to concentrate on the critical parts of the image for classification decisions. However, the research methods in this field are complicated with heavy calculations, and the lack of intuitive explanation makes it difficult to generalize. In order to notice the different spatial regions corresponding to various lesions more effectively, this paper uses a class-specific residual multi-attention algorithm and applies it to the current popular algorithm model. By proposing a spatial attention score, class-specific residual multi-attention generates specific features for each category, and average pooling is then used for feature fusion. The algorithm is easy to implement with small computation, can be directly fused to the fully-connected layer of deep learning models, and has multiple advantages such as solid interpretability and easy visualization. The deep learning models used in this paper all use pre-training techniques19, and the proposed methods have been trained, validated, and tested on publicly available datasets from EyePACS20. The experimental results show that the proposed method has considerable performance improvement on the original basis. The methodology presented in this paper has the following contributions:

  • A novel class-specific multi-attention mechanism is developed to dynamically weight spatial features according to their diagnostic relevance for each DR severity level, resulting in improved classification accuracy and model interpretability.

  • An enhanced preprocessing approach utilizing space-to-depth layers is proposed to preserve spatial information during downsampling, effectively expanding the receptive field compared to conventional methods.

  • Squeeze-and-Excitation blocks are strategically integrated into the residual framework to optimize channel-wise feature representations, enhancing model capacity while maintaining computational efficiency.

Related work

Attention model

The attention model is derived from the human biological system, which can focus on the most critical points when processing high-resolution images or large amounts of text information21. The attention mechanism has become essential in deep learning models in recent years. Several studies have shown that the attention mechanism can visually express the understanding of model learning21. For medical image classification, this mechanism can directly highlight the most concerned part of the model and further explain the decision-making principle of the model. Attention mechanisms can be used in various tasks such as image classification, machine translation, image segmentation, etc. It can solve the underfitting caused by the diversification of information, focus on the more valuable information in big data, and filter out the useless parts. It has recently attracted lots of awareness from researchers, and its design philosophy is gradually improved. For example, multi-attention mechanisms can focus on multiple vital parts of the images simultaneously, which is better than single-attention mechanisms22.

Residual network refinement

The residual network23 is a famous architecture with high training efficiency and better accuracy. Numerous recent studies have proposed architecture optimization methods based on residual neural networks24. These optimization methods usually vary the number of layers of residual neural networks to obtain better performance than the original model. Alternatively, the bottleneck in the original model can be redesigned to generate model variants to improve the theoretical stability boundary. The feature extraction ability can be significantly enhanced by introducing new architectures and increasing the model depth. Due to the limitation of computational resources, many researchers focus on the trade-off between computational complexity and accuracy. For example,25 provided an explicit mechanism for establishing model dynamics and nonlinear channel dependence to simplify the learning process and enhance the ability of network representation.

Methods

This section focuses on the method of the proposed model. We first introduced the class-specific residual attention module and then proposed a multi-attention mechanism to improve the ability of small object detection (lesions detection). Then, we present the refinements of the model, such as using the Space-to-depth layer to improve the receptive field and redesigning the residual block to enhance the information flow in the model.

Class-specific multi-attention module

Medical image classification requires focused attention on discriminative regions that vary across different pathological conditions. To address this challenge, we propose a class-specific multi-attention mechanism that dynamically weights spatial features according to their relevance for each diagnostic category, enabling more precise and interpretable classification decisions.

Class-specific residual attention module

The feature matrix \(\textrm{x} \in \mathbb {R}^{d \times h \times w}\) of the image I is extracted using the feature extractor (convolutional neural network). d, h, and w represent the dimension, height, and width of the feature matrix, respectively. The feature extraction process can be represented by the function \(\theta\):

$$\begin{aligned} \text {x}=\phi (I;\theta ). \end{aligned}$$
(1)

Assume that the dimension of the feature matrix from the function \(\theta\) is 2048\(\times\)7\(\times\)7. Firstly, the feature matrix is decoupled into a group of the position feature matrix: \(x_1,x_2,\cdots ,x_{49}\) (\({{\text {x}}_{\text {j}}}\in {{\mathbb {R}}^{2048}}\)). Then, a fully-connected layer (1\(\times\)1 convolution) is used as a classifier. Note that each class has its specific classifier, and the parameter of the classifier for the class i is \({{\text {m}}_{i}}\in {{\mathbb {R}}^{2048}}\). The constant 49 here can be changed according to different model settings.

Define the class-specific residual attention score for class i and position j:

$$\begin{aligned} s_{j}^{i}=\frac{\exp \left( T \text {x}_{j}^{T} \text {m}_{i}\right) }{\sum _{k=1}^{49} \exp \left( T \text {x}_{k}^{T} \text {m}_{i}\right) }, \end{aligned}$$
(2)

where T (\(T > 0\)) is a temperature factor that controls the sensitivity of the attention score. It represents the probability of the class i appearing in the position j.

For class i, the weight corresponding to the position feature vector \({{\text {x}}_{\text {j}}}\) is \(s_j^i\). All the groups of the position feature matrix are weighted and summed to get the class-specific feature vector:

$$\begin{aligned} \text {a}^{i}=\sum _{k=1}^{49} s_{k}^{i} \text {x}_{k}. \end{aligned}$$
(3)

In traditional average pooling, the entire group of position feature vectors is directly averaged without considering the corresponding weights of the position feature vectors:

$$\begin{aligned} \textrm{g}=\frac{1}{49} \sum _{k=1}^{49} \textrm{x}_{k}. \end{aligned}$$
(4)

Since average pooling has been widely used in practice and achieved superior results, we fuse vectors \(\text {a}^{i}=\sum _{k=1}^{49} s_{k}^{i} \text {x}_{k}\) and \(\textrm{g}=\frac{1}{49} \sum _{k=1}^{49} \textrm{x}_{k}\). Finally, the class-specific residual attention \(\text {f}^i\) for the class i is:

$$\begin{aligned} {{\text {f}}^{i}}=(1-\lambda )\text {g}+\lambda {{\text {a}}^{i}}, \end{aligned}$$
(5)

where \(\lambda\) is the hyperparameter (\(\lambda\)=0.2). The above formulas constitute the whole class-specific residual attention module.

Multi-attention module

We introduced the multi-attention mechanism to extend the class-specific residual attention module. With the introduction of the multi-attention mechanism, there is no need to finetune temperature hyperparameters T manually. Multi-attention uses different temperature parameters to calculate and output multiple probabilities sequentially. In the experimental design of multi-attention, most proposed methods usually follow the convention that the probability value of the output is gradually controlled and reduced according to the orders, and the last attention output tends to be 0. We also follow this design and define a rule for the temperature factor T and the number of attention heads H, as shown in Table 1.

Table 1 The rule maps of temperature factor T and attention heads H.
Full size table

Multiple logical probability outputs can be obtained successively using multi-attention: \(\hat{\text {y}}_{T_{1}}, \hat{\text {y}}_{T_{2}}, \ldots , \hat{\text {y}}_{T_{H}}\). Note that each output here is from a class-specific residual attention module. In this paper, the logical output of each head is summed directly to get the final multi-attention logic output:

$$\begin{aligned} {{\widehat{\textbf{y}}}_{o}}=\sum \limits _{i=1}^{H}{{{\widehat{\textbf{y}}}_{{{T}_{i}}}}}=\sum \limits _{i=1}^{H}{\left( {{y}^{1}},{{y}^{2}},\ldots ,{{y}^{C}} \right) {{|}_{{{T}_{i}}}}}=\sum \limits _{i=1}^{H}{\left( \text {m}_{1}^{T}{{\text {f}}^{1}},\text {m}_{2}^{T}{{\text {f}}^{2}},\ldots ,\text {m}_{C}^{T}{{\text {f}}^{C}} \right) {{|}_{{{T}_{i}}}}},\end{aligned}$$
(6)

where C is num of classes, \(T_i\) is the temperature factor of the class i. The class-specific residual attention module incorporates the attention features of all locations. Intuitively, when complex textures exist in the medical image, this module has a clear advantage over global average pooling or maximum pooling alone.

Residual refinement method

To enhance the performance of convolutional neural networks while maintaining computational efficiency, we propose a systematic residual refinement approach that operates on both the input preprocessing stage and the feature representation enhancement. Our methodology introduces two key architectural modifications: (1) a space-to-depth preprocessing layer that preserves spatial information while expanding the receptive field, and (2) channel-wise attention mechanisms via Squeeze-and-Excitation blocks to boost representational capacity.

Improving the extent of receptive field

Deep learning networks usually first resize the input image and down-sample the spatial dimension to 224\(\times\)224\(\times\)3. Sandler et al.26 prove that simply increasing the image resolution does not significantly improve the model’s performance because the high resolution only plays a limited role in the first few layers of the network. The accuracy of the model is affected by the receptive field other than high resolution. The model accuracy can gradually increase by increasing the image resolution in a specific receptive field. However, when the image resolution exceeds the receptive field, the increasing trend of model accuracy will slow down or even decline. In this paper, the Space-to-depth layer is used to increase the extent of the receptive field, which can retain more pixel information for later layers. On the contrary, most popular networks use the convolution module to reduce image resolution directly. Figure 1 shows the transformation of the Space-to-depth layer: the high-resolution matrix is converted into a deeper matrix with lower resolution, while the original image information is not lost.

We use the Space-to-depth layer followed by 1\(\times\)1 convolution to match the required number of channels, which can replace the traditional 7\(\times\)7 convolution down-sampling method, thus preserving more information, as seen in Fig. 2. In this research, we used the input resolution higher than the classic image resolution, which is 448\(\times\)448. After the Space-to-depth layer and 1\(\times\)1 convolution processing, we can get the output matrix with 112\(\times\)112\(\times\)64 dimensions.

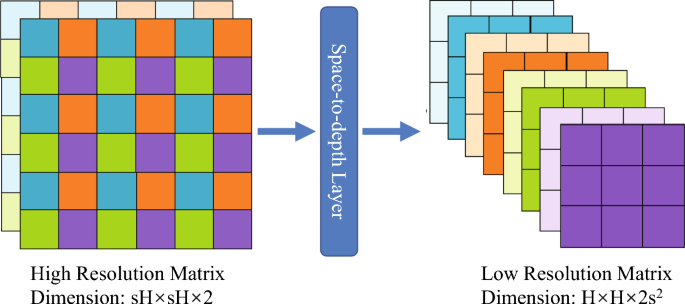

Figure 1
figure 1

The transformation process of the Space-to-depth Layer. The high-resolution matrix is converted into a deeper matrix with lower resolution, while retaining more pixel information for later layers. s is the upscaling factor, H represents the height of the matrix.

Full size image
Figure 2
figure 2

The proposed down-sampling method. The Space-to-depth layer is followed by 1\(\times\)1 convolution, which can replace the traditional 7\(\times\)7 convolution down-sampling method, thus preserving more information.

Full size image
Table 2 The overall architecture of the ResNet50 enhanced model.
Full size table

Boosting the representation power of the model

To improve the representation of the model, we introduce the Squeeze-and-Excitation block [25]to optimize our network. For a given convolutional transformation:

$$\begin{aligned} \textbf{F}_{t r}: \textbf{X} \rightarrow \textbf{U},\textbf{X}\in {{\mathbb {R}}^{{{H}^{\prime }}\times {{W}^{\prime }}\times {{C}^{\prime }}}},\textbf{U}\in {{\mathbb {R}}^{H\times W\times C}}, \end{aligned}$$
(7)

where \(\textbf{X}\) is input matrix, \(H^{\prime }\), \(W^{\prime }\), and \(C^{\prime }\) represent the height, width, and channel of the input matrix, \(\textbf{U}\) is output matrix from the convolution or a set of the convolutions, H, W, and C represent the height, width, and channel of the output matrix. First, we passed the feature matrix \(\textbf{U}\) through to the Squeeze operation, which aggregates its spatial dimensions \(H \times W \times C\) into embedding space \(\textbf{Z}\) with \(1 \times 1 \times C\). The embedding space can respond to the global feature distribution channel-wise, conveying the information flow to the bottom layer and improving the overall model representation ability. The global average pooling is used to perform the squeeze operation, and \(\textbf{Z}\) is calculated by:

$$\begin{aligned} \textbf{Z}=\textbf{F}_{s q}(\textbf{U})=\frac{1}{H \times W} \sum _{i=1}^H \sum _{j=1}^W \textbf{U}(i, j) \end{aligned}$$
(8)

To fully capture the channel-wise dependence, the excitation operation is used to learn the nonlinearity between the channels and ensure that the multiple channels are activated. We utilize the gating mechanism with a sigmoid activation to implement the excitation process, and excitation output \(\textbf{S}\) is calculated by:

$$\begin{aligned} \textbf{S}=\textbf{F}_{e x}(\textbf{Z}, \textbf{W})=\sigma (g(\textbf{Z}, \textbf{W}))=\sigma \left( \textbf{W}_{2} \delta \left( \textbf{W}_{1} \textbf{Z}\right) \right) , \end{aligned}$$
(9)

where \(\sigma\) is the ReLU function, \(\textbf{W}_{1} \in \mathbb {R}^{\frac{C}{r} \times C}\), \(\textbf{W}_{2} \in \mathbb {R}^{C \times \frac{C}{r}}\), and r is hyperparameter. The actual module construction of the Excitation process uses two fully-connected layers to stack. The first fully-connected layer compresses the number of channels according to the parameter r to reduce the number of channels to C/r, and the second expands the channels to the original size C. Finally, the feature matrix \(\textbf{U}\) is reweighted according to the excitation output \(\textbf{S}\) to generate the output of the entire Squeeze-and-Excitation block, which will feed in subsequent layers, as shown in Fig. 3. The output of the Squeeze-and-Excitation block \(\tilde{\textbf{X}}\) is calculated by:

$$\begin{aligned} \tilde{\textbf{x}}_{c}=\textbf{F}_{\text{ scale } }\left( \textbf{u}_{c}, s_{c}\right) =s_{c} \cdot \textbf{u}_{c},\tilde{\textbf{X}}=[\tilde{\textbf{x}}_{1}, \tilde{\textbf{x}}_{2}, \dots , \tilde{\textbf{x}}_{c}], \end{aligned}$$
(10)

where \(s_{c}\) is the c-th element of \(\textbf{S}\),the \({{\textbf{F}}_{\text {scale}}}\) means the channel-wise multiplication of the scalar \(\textbf{S}\) and matrix \(\textbf{U}\).

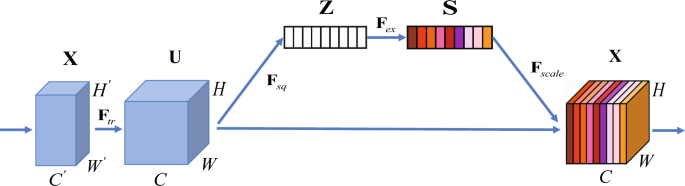

Figure 3
figure 3

The design of the Squeeze-and-Excitation block. First, we passed the feature matrix \(\textbf{U}\) through to the squeeze operation to generate the embedding space \(\textbf{Z}\) with \(1 \times 1 \times C\), then we utilized the gating mechanism with a sigmoid activation to implement the excitation process to get excitation output \(\textbf{S}\). Finally, the feature matrix \(\textbf{U}\) is reweighted according to the excitation output \(\textbf{S}\) to get the output \(\tilde{\textbf{X}}\) of the Squeeze-and-Excitation block.

Full size image

Overall architecture

The novel Squeeze-and-Excitation block was introduced to design the ResNet50 enhanced model to obtain better model representation capabilities based on the classical residual network design concept. We proposed a new down-sampling method based on the Space-to-depth layer followed by 1\(\times\)1 convolutions to increase the size of the receptive field. For the classifier of the model, the proposed multi-attention method is used to set different classifier parameters according to the category to improve the accuracy of the model. The block design, width, and quantity of each layer of ResNet50 enhanced model are shown in Table 2.

Computational complexity

Our refinement framework is specifically designed to maintain computational efficiency while enhancing model capability. The modular design ensures that each enhancement component contributes meaningfully to performance improvement while minimizing computational overhead. We present a detailed breakdown of FLOPs consumption for each architectural modification when applied to the ResNet50 backbone with 448\(\times\)448 input resolution Table 3.

Table 3 Detailed FLOPs analysis of the proposed architectural enhancements.
Full size table

Experiments

This section discusses the evaluation metrics, comparisons from different models, and ablation experiments. The proposed and currently popular medical classification models are pre-trained on open source datasets28 and then fine-tuned on the EyePACS dataset20. The EyePACS dataset is presently the largest RA public classification dataset, containing 88702 classified color fundus images. This dataset can be divided into five categories: 0 (No DR), 1 (Mild DR), 2 (Moderate), 3 (Severe), and 4 (Proliferative DR). The dataset is relatively close to the needs of the actual clinical environment. The dataset contains noise from images and labels, such as the image may be underexposed and out of focus. Due to the large dataset size and the near-realistic data noise, the accuracy and robustness of each model can be compared appreciably. The officially divided training set (46032) and test set (42670) were used in this experiment on different models.

Due to the unavailability of public labels for the original Kaggle competition’s EyePACS test set, we implemented a comprehensive data split strategy to ensure robust and fair evaluation. We combined two data sources: the EyePACS dataset and clinical images from our institution. The EyePACS training set was randomly divided in an 8:2 ratio to create training and validation partitions. Additionally, we collected 1,800 fundus images from the ophthalmology outpatient clinic of the First Affiliated Hospital of Anhui University of Chinese Medicine. These clinical images were evenly distributed across all three splits (training, validation, and test) in a 1:1:1 ratio to ensure balanced representation. All clinical images were independently labeled and cross-validated by three experienced professional ophthalmologists to ensure label accuracy and provide objective assessment on real-world clinical data. We applied standard data augmentation techniques including horizontal flipping (p=0.5) and random rotation (\(\pm 15^{\circ }\)).

The models we constructed are all built on the PyTorch library, and other deep learning libraries also can implement these models. We used stochastic gradient descent for learning and fine-tuned all parameters of models after pre-training, with learning rate set to 0.001, weight decay set to 0.001, momentum set to 0.9, and batch size set to 32. We do not use dropout. Training was conducted for a maximum of 200 epochs with early stopping enabled (patience=10 epochs) based on validation loss to prevent overfitting. The training environment was Ubuntu 18.04 workstation with an Intel(R) Xeon(R) Silver 4114 CPU and 1080Ti 8GB GPU.

Evaluation metrics

We calculated the mean values of sensitivity, specificity, and AUC for the five categories in the test set. The optimal threshold is determined according to the maximum sum of the sensitivity and specificity, also known as the Youden index. We also used the Kappa coefficient to evaluate the model. The mathematical calculations of these metrics are as follows:

$$\begin{aligned} \text {Sensitivity}&= \frac{TP}{TP+FN}, \end{aligned}$$
(11)
$$\begin{aligned} \text {Specificity}&= \frac{TN}{TN+FP}, \end{aligned}$$
(12)
$$\begin{aligned} \text {Kappa}&= \frac{p_0-p_e}{1-p_e}, \end{aligned}$$
(13)

where TP represents the number of the sample which correctly classified as positive, FP is incorrectly classified as positive, TN is correctly classified as negative, FN is incorrectly classified as negative, \(p_0\) indicates the relative observed agreement among raters, and \(p_e\) represents the probability of each observer seeing each category randomly from the observed data.

Comparison

The fine-tuning process of the ResNet50 enhanced model is shown in Fig. 4. It can be seen that the training loss and validation loss slowly decline with the iteration of epochs, and the model does not suffer from overfitting problems. We selected the optimal training model with the lowest validation loss. The metrics of the different models in the test set are compared in Table 4. It shows that our ResNet50 enhanced model is better than other famous models and may indicate the effectiveness of our method in improving the size of the receiving field and representation capability.

To further analyze the ability of the ResNet50 enhanced model to discriminate between different diabetes categories, ROC curves are provided in Fig. 5. According to the ROC curves, the comprehensive classification performance of this model was good, but label 4 (proliferative DR) was inadequate. The normalized confusion matrix is provided in Fig. 6, and it can be seen that the part of proliferative DR samples is classified as severe or moderate DR. This indicates that the algorithm needs to be improved in the discrimination of proliferative DR. The algorithm has good discrimination ability for other DR classifications (No DR, Mild DR, Moderate DR, and Severe DR) and has specific clinical application value. Figure 7 shows attention heatmaps that validate our model’s training effectiveness by demonstrating focused attention on pathological features in moderate NPDR cases.

Table 4 Performance comparison of baseline models and their enhanced versions using our proposed refinement framework on the EyePACS test dataset.
Full size table
Figure 4
figure 4

The fine-tuning process of the ResNet50 enhanced model in the test dataset.

Full size image

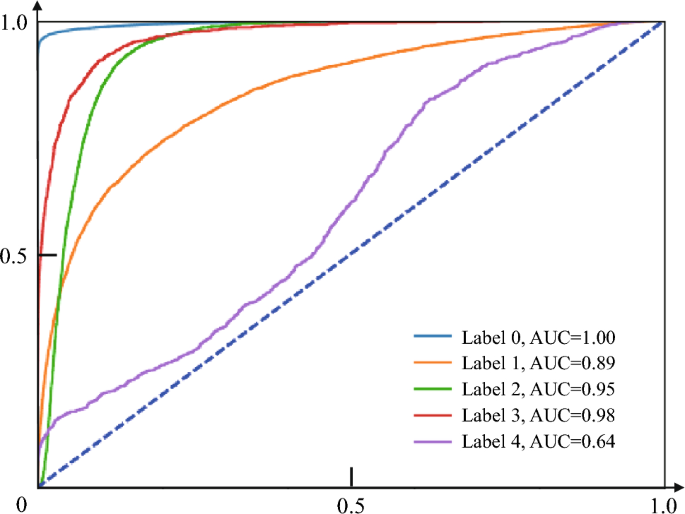

Figure 5
figure 5

ROC curve of the ResNet50 enhanced model on our test datasets.

Full size image

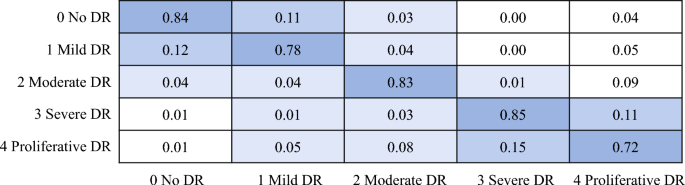

Figure 6
figure 6

Normalized confusion matrix of the ResNet50 enhanced model on the test dataset.

Full size image
Figure 7
figure 7

ResNet50 enhanced model effectiveness demonstration on Grade 2 moderate NPDR cases. Original fundus images (a, c) and corresponding attention heatmaps (b,d) show strong correlation between pathological features and model focus regions.

Full size image
Table 5 Performance of ResNet50 enhanced model indifferent ablation experiments on our test dataset.
Full size table
Table 6 Performance of the ResNet50 enhanced model used different numbers of attention heads on the test dataset.
Full size table

Ablation study

We performed ablation experiments on the ResNet50 enhanced model to better understand its relative importance. The experimental results are shown in Table 5. It shows that the multi-attention module, the proposed down-sampling method, and the Squeeze-and-Excitation block all affect the model’s performance. Among these methods, the Squeeze-and-Excitation block has the most significant impact on the model performance, suggesting that the higher complexity of the model may have a higher feature extraction ability. The multi-attention module has a specific influence on the results, which means that multi-attention can improve the model’s accuracy. Compared with the traditional 7\(\times\)7 convolution down-sampling method, the model accuracy of the proposed down-sampling method is improved, which indicates that the proposed down-sampling method can theoretically improve the model performance by improving the receiver domain of the model.

We also performed ablation experiments to explore the effect of the number of multi-attention heads on the model’s accuracy. As seen in Table 6, increasing the number of heads will improve the model’s accuracy to a certain extent, but the precision will decrease if the number of heads exceeds 5. This may indicate that the appropriate number of multi-attention heads may lead to better performance.

Conclusions

This study presents a multi-attention residual refinement framework that systematically enhances CNN architectures for diabetic retinopathy classification through class-specific attention, space-to-depth preprocessing, and Squeeze-and-Excitation blocks. Our experimental evaluation demonstrates consistent 2-5% performance improvements across multiple architectures (ResNet, DenseNet, EfficientNet, MobileNet) while maintaining computational efficiency and providing interpretable attention visualizations. Although our results suggest potential for clinical applications, we acknowledge important limitations including the need for external validation on independent datasets, formal clinical evaluation by additional ophthalmologists, and assessment of real-world deployment challenges beyond technical performance metrics. Future work should focus on prospective clinical validation and evaluation across diverse healthcare settings to establish the practical utility of our approach in actual clinical workflows.
