Background

Hepatocellular carcinoma (HCC) is the fourth most prevalent cancer and the second leading cause of cancer-related mortality worldwide1,2. Surgical resection remains the primary treatment for HCC. Despite this, patients who develop extrahepatic metastasis post-surgery face a dismal prognosis. Median survival for advanced HCC patients with extrahepatic metastasis is less than one year3, compared to a five-year survival rate of approximately 70% for those without metastasis4,5. Extrahepatic metastasis is a critical prognostic factor, with 13.5–42% of patients exhibiting these metastases at diagnosis6,7,8. Common metastatic sites include the lungs, bones, adrenal glands, and brain9,10,11. Aggressive management of extrahepatic metastases can improve survival rates12,13. Thus, identifying reliable predictors of extrahepatic metastasis is essential for risk assessment and improving long-term survival.

Radiomics offers a sophisticated approach to tumor characterization by converting standard medical images into high-dimensional datasets, enabling detailed analysis of intra-tumor heterogeneity. It captures subtle imaging phenotypes beyond human visual perception, allowing comprehensive tumor profiling14,15,16,17. By analyzing these extensive data, radiomics holds promises for predicting various post-treatment outcomes, such as overall survival, tumor recurrence, and treatment response18,19,20. Studies indicate that radiomic features can effectively forecast these outcomes in HCC, as well as in other malignancies21,22,23. Specifically in hepatocellular carcinoma, radiomics has shown value in predicting microvascular invasion, early recurrence, and histopathological subtypes, facilitating personalized treatment planning24,25,26.

However, few studies have specifically explored the use of radiomics for predicting extrahepatic metastasis in HCC, particularly in the context of postoperative surveillance. To address this gap, our study aims to develop and validate a combined model that incorporates both CT-based radiomic features and clinical variables to predict extrahepatic metastasis after hepatectomy. By comparing this model with clinical and radiomics models, we aim to provide a more accurate, individualized, and non-invasive tool for early risk stratification in HCC patients.

Materials and methods

Patients

This study was approved by the Ethics Committees of Hospital 1 and Hospital 2 and informed consent was waived for this retrospective study. We included patients who underwent hepatectomy for HCC from January 2013 to November 2018. The selection criteria were: (1) pathologically confirmed HCC. (2) Newly diagnosed intrahepatic HCC lesions without any distant metastasis before surgery. (3) CT scans performed within two weeks prior to hepatectomy. Exclusion criteria included: (1) CT images were either unrecognizable or the lesion was less than three layers (scan layer thickness = 5 mm, pitch = 1.0); (2) incomplete clinical data; (3) preoperative anticancer treatments (n = 20); and (4) errors in feature extraction. Ultimately, 277 patients with complete data were selected from Hospital 1 and 97 from Hospital 2. Figure 1 depicts the patient selection flowchart.

Fig. 1
figure 1

Flow diagram of the patient selection.

Full size image

Clinical endpoints and follow-up

The primary endpoint of this study was the development of liver cancer metastasis. Postoperative follow-up consisted of monthly liver ultrasounds for the first three months, transitioning to quarterly ultrasounds thereafter. Lung CT scans and enhanced CT or MRI of the liver were scheduled every three months for the initial two years. Following this period, imaging frequency was reduced to every six months to facilitate timely evaluation and intervention for potential disease recurrence or progression. During these follow-ups, liver function tests, including alanine aminotransferase (ALT), aspartate aminotransferase (AST), and alpha-fetoprotein (AFP), were conducted to monitor postoperative conditions and document any occurrences of extrahepatic metastases.

Image acquisition and tumor segmentation

CT imaging was performed using Siemens SOMATOM Definition Flash and GE Healthcare Discovery CT scanners at both hospitals. The imaging parameters were: 120 kV voltage, 200 to 350 mA current, 5 mm slice thickness and spacing, and a 512 × 512 matrix. A dual-head high-pressure injector administered contrast medium with 350 mg/mL iodine concentration, at 3.0 mL/s and 1.5 mL/kg dose. Enhancement phases were timed as follows: arterial phase at 30 s, portal venous phase at 60 s, and equilibrium phase at 120 s.

Feature extraction

Tumor regions of interest (ROIs) of the arterial, venous, and delayed phases were manually outlined by experienced radiologists using ITK-SNAP version 3.6.0 (http://www.itksnap.org). Image preprocessing and feature extraction of the three phases were conducted using the Radiomics package in 3D Slicer (https://www.slicer.org/). To evaluate the reproducibility of the segmentation results, ROI segmentation was repeated on CT images from 50 HCC patients. Additionally, another experienced radiologist independently performed ROI segmentation on these same patients. Intraclass and interclass correlation coefficients (ICCs) were calculated, retaining only features with ICCs greater than 0.75 for further analysis.

During the initial extraction phase, preprocessing was essential to enhance the differentiation of texture features. To address the batch effects arising from the use of different imaging equipment, all data underwent normalization via z-score standardization, adjusting the intensity values to have a mean of 0 and a standard deviation of 1. Additionally, the image slices were resampled to achieve a voxel size of 1 × 1 × 1 cm. A total of 1130 CT radiomic features were extracted from the tumor regions in each phase, including First order statistical features, Shape features, gray-level cooccurrence features, matrix-based features (GLCM), gray-level.

run-length matrix-based features (GLRLM), gray-level size zone matrix-based features (GLSZM), gray-level dependence matrix-based features (GLDM), Neighborhood Gray-Tone Difference Matrix (NGTDM) and Laplace wavelet changes. Figure 2 shows the flow diagram of feature selection and model construction.

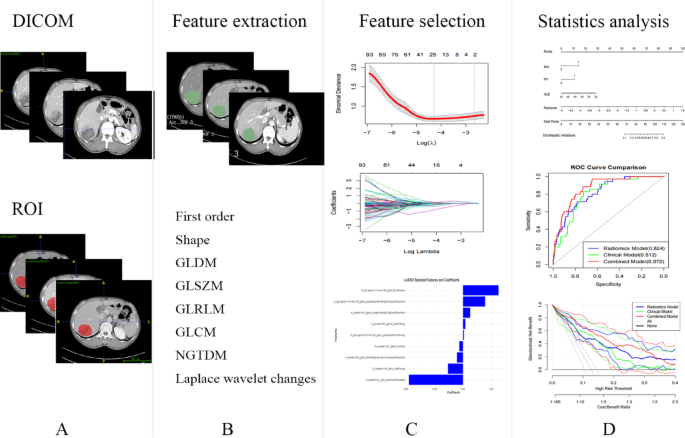

Fig. 2
figure 2

The flow diagram of feature selection and model construction.

Full size image

Model and nomogram construction

To prevent overfitting the model, the Least Absolute Shrinkage and Selection Operator (LASSO) with 10 folds cross validation was used to further select key features and then compute the radiomic score (Radscore) and to build a radiomic model based on this score. Univariate and multivariate logistic regression analyses were conducted to identify clinical risk factors and independent predictors of extrahepatic metastasis in HCC patients, with p-values under 0.05 deemed statistically significant. The clinical risk factors determined through multivariate analysis were used to construct clinical models, for which corresponding nomograms were created. Additionally, a combined model was developed by integrating clinical risk factors with the Radscore, accompanied by a nomogram for this combined model. The predictive performance of the clinical, radiomic, and combined models in assessing the risk of liver cancer metastasis was evaluated using ROC curve analysis in both training and validation cohorts. Calibration curves were generated to assess model consistency. The DeLong test was employed to compare the predictive efficiency of the models, while decision curve analysis (DCA) was used to evaluate the net clinical benefit of predicting extrahepatic metastasis.

Statistical analysis

All statistical analyses were performed by R version 4.3.1 Categorical variables between the two groups were compared using the chi-square test or Fisher’s exact test, while continuous variables were analyzed using either the t-test or the Mann-Whitney U test. A p-value of less than 0.05 was considered statistically significant.

Results

Patient characteristics

Table 1 summarizes the characteristics of patients in the training and validation cohorts. The training cohort consisted of 277 individuals, including 230 males (83.03%) and 47 females (16.97%). Among them, 35 patients had extrahepatic metastases, with 19 cases involving a single site: 7 lung metastases, 2 vertebral metastases, 8 lymph node metastases, 1 renal metastasis, and 1 diaphragm metastasis. Additionally, 16 patients experienced multiple metastases, primarily involving the lungs, bones, and lymph nodes. The validation cohort included 97 patients, with 83 males (85.57%) and 14 females (14.43%). Postoperative extrahepatic metastases were observed in 10 patients (10.31%), including 6 cases with a single site (4 lung metastases and 2 lymph node metastases) and 4 cases with multiple metastases.

Table 1 Characteristics of patients in the training and validation cohorts.
Full size table

Radiomics score construction

Feature selection was performed using the LASSO logistic regression algorithm (Fig. 2C), which identified the most relevant features. Ultimately, 9 features were selected from the training cohort, and a radscore was calculated. The radiomics model built based on a radscore showed that the AUC for the training group was 82.4% (95% CI: 75.8%−89.0%), with a sensitivity of 74.2%, a specificity of 78.6% and a F1-score of 74.8%. The AUC for validation group was 78.5% (95% CI: 62.9%−94.1%). The sensitivity was 80%, the specificity was 77.8% and the F1-score was 71.7%.

Radscore=

log-sigma-1-5-mm-3D_gldm_LargeDependenceHighGrayLevelEmphasis×0.188

+wavelet-HLL_gldm_SmallDependenceLowGrayLevelEmphasis×−0.062

+wavelet-HLH_glszm_LargeAreaHighGrayLevelEmphasis×0.067

+wavelet-HHL_glszm_ZoneEntropy×0.033

+log-sigma-0-5-mm-3D_glszm_SizeZoneNonUniformity×0.009

+log-sigma-1-0-mm-3D_glrlm_RunVariance×0.301

+wavelet-LHL_ngtdm_Contrast×−0.033

+wavelet-LHH_glcm_JointEnergy×−0.157

+wavelet-LLL_glcm_MaximumProbability×−0.499+(−2.157)

Development and assessment of clinical models

As shown in Table 2, univariate analysis identified BMI, histopathological grade, tumor diameter, MVI, PV, AST, ALB, PLT, and Cr as clinical risk factors for extrahepatic metastasis in liver cancer. Multivariate analysis further confirmed BMI, MVI, PV, and ALB as independent risk factors for postoperative extrahepatic metastasis. Using these independent predictors, we created a clinical prediction model. The AUC for the training set was 81.2% (95% CI: 74.7–87.7%), with sensitivity at 85.7%, specificity at 74.0% and F1-score at 79.4% (Fig. 3A). In the validation set, the AUC was 76.4% (95% CI: 57.5–95.4%), demonstrating a sensitivity of 80%, a specificity of 76.7% and a F1-score of 74.0% (Fig. 3B).

Table 2 Univariate and multivariate analyses were conducted on the training cohort to identify clinical features associated with extrahepatic metastasis in patients.
Full size table
Fig. 3
figure 3

Development and evaluation of clinical prediction models. Clinical prediction models for training (A) and validation (B) cohorts. (C): Nomogram predicting extrahepatic metastasis. Calibration curves for the training (D) and validation (E) cohorts. Decision curve analyses for the training (F) and validation (G) cohorts.

Full size image

A nomogram was constructed using these independent risk factors (Fig. 3C), and it visually represents the contribution of each predictor to the overall risk of postoperative extrahepatic metastasis. The calibration curves for both the training and validation sets showed good agreement between predicted probabilities and actual outcomes (Fig. 3D and E). Additionally, decision curve analysis (Fig. 3F and G) demonstrated that the nomogram provided a significant net benefit in predicting extrahepatic metastasis.

Development and assessment of combined models

According to Table 3, multivariate analysis integrating Radscore with clinical risk factors identifies MVI, PV, ALB, and Radscore as independent prognostic factors for predicting extrahepatic metastasis in HCC.

Table 3 Clinical risk factors combined with Radscore analysis results.
Full size table

A combined model was developed using these factors, resulting in an AUC of 87.2% (95% CI: 81.8%−92.6%) for the training cohort, showing a sensitivity of 88.6%, a specificity of 70.1% and a F1-score of 81.6% (Fig. 4A). In the validation cohort (Fig. 4B), the AUC was 86.0% (95% CI: 69.4%−100%), achieving a sensitivity of 80%, a specificity of 85.1% and an F1-score of 78.2%. As shown in Fig. 4C, the nomogram that combines radscore and clinical risk factors provides a clear assessment of the risk of postoperative extrahepatic metastasis. Additionally, it plays a significant role in personalized medicine and clinical decision-making aimed at improving overall patient outcomes. The calibration curves in Fig. 4D and E demonstrate excellent consistency in predicting extrahepatic metastasis after surgery. Decision curve analysis for both the training and validation cohorts further confirmed that the nomogram offered substantial net clinical benefit in predicting extrahepatic metastasis (Fig. 4F and G).

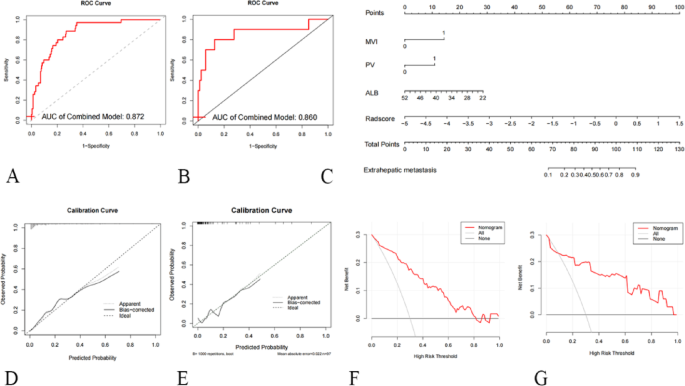

Fig. 4
figure 4

The performance of Combined prediction model. ROC curves for the combined model in the training (A) and validation (B) cohorts. C: Nomogram combining radscore and clinical risk factors to predict extrahepatic metastasis. Calibration curves for the combined model in the training (D) and validation (E) cohorts shows a high degree of agreement between the predicted probabilities and actual outcomes, indicating that the combined model is well-calibrated and performs reliably when applied to unseen data. Decision curves for the combined model in the training (F) and validation (G) cohorts demonstrate that the combined model provides the highest net clinical benefit across a wide range of threshold probabilities, compared with the radiomics-only and clinical-only models.

Full size image

Comparative predictive performance of clinical, radiomics, and combined models

In the training cohort (Fig. 5A), the combined model achieved the highest predictive performance with an AUC of 87.2% (95% CI: 81.8%−92.6%), followed by the radiomics model at 82.4% (95% CI: 75.8%−89.0%), and the clinical model with the lowest AUC of 81.2% (95% CI: 74.7%−87.7%). The combined model significantly outperformed both the radiomics model (DeLong test P = 0.028) and the clinical model (DeLong test P = 0.008), while no significant difference was found between the radiomics and clinical models (DeLong test P = 0.739). Additionally, the decision curve analysis indicated that the combined model with Radscore offered the highest clinical net benefit compared to the other models in the threshold range of 0-0.4 (Fig. 5C).

Fig. 5
figure 5

Comparison of the performance of three prediction models. Comparative analysis of ROC curves of radiomic, clinical, and combined models in training (A) and validation (B) cohorts. The ROC curves reveal that the combined model achieves the highest AUC, outperforming both the clinical and radiomic models alone. Decision curves for the radiomics, clinical, and combined models were compared in the training (C) and validation (D) cohorts. This indicates that the combined model is more effective in supporting clinical decision-making.

Full size image

In the validation cohort (Fig. 5B), the combined model again demonstrated the highest predictive accuracy, achieving an AUC of 86.0% (95% CI: 69.4%−100%). It was followed by the clinical model at 76.4% (95% CI: 57.5%−95.4%) and the radiomics model at 78.5% (95% CI: 62.9%−94.1%). While no significant differences in predictive power were observed among the three models (DeLong test P > 0.05), decision curve analysis consistently showed that the combined model offered the greatest clinical net benefit compared to the other two models in the threshold range of 0-0.3 (Fig. 5D).

Discussion

Previous research has explored radiomics models for predicting tumor prognosis using contrast-enhanced CT27. To the best of our knowledge, this is the first study to utilize enhanced CT sequence data specifically for assessing postoperative extrahepatic metastasis in HCC patients.

Radiomics has garnered significant attention in cancer research due to its ability to extract a vast array of feature data from standard medical images, thereby potentially enhancing clinical decision-making28. By employing advanced imaging analysis techniques, radiomics can identify subtle patterns and features within tumors, offering a cost-effective, and reproducible method for characterizing tumor phenotypes related to internal heterogeneity. This approach enhances our understanding of tumor biology and may contribute to the development of more personalized treatment strategies29. These features are derived from imaging modalities such as CT, MRI, and PET scans30,31,32, encompassing various aspects of tumor morphology, texture, and intensity, which collectively offer a comprehensive understanding of tumor biological behavior. Radiomic feature scoring, when integrated with clinical and pathological risk factors, can improve diagnostic accuracy, predict therapeutic responses, and monitor disease progression33,34, ultimately advancing the field of precision oncology. As research progresses, radiomics has been applied to liver tumors for diverse purposes, including diagnosis, prognosis, pathological grading, and microvascular invasion (MVI)35,36,37,38. A comprehensive summary of recent radiomics studies related to hepatocellular carcinoma and other malignancies in Supplementary Table S1.

In this study, we utilized enhanced CT imaging data from patients with liver cancer for tumor region segmentation and feature extraction. We assessed the consistency of the segmentation results using ICC to ensure that the extraction of tumor characteristics is highly stable and reproducible across different time points and observers. This evaluation method is crucial for enhancing the reliability of imaging features in clinical research, as it ensures the accuracy and consistency of the research data and minimizes variations introduced by observer39,40. Additionally, features with high consistency contribute to improving the predictive capability of models, thereby enhancing the quality of diagnostic and therapeutic decision-making.

We employed the LASSO algorithm to identify features most relevant to extrahepatic metastasis, utilizing ten-fold cross-validation to mitigate overfitting. The LASSO algorithm is effective for analyzing large feature sets with relatively small sample sizes, reducing data noise interference and enhancing model reliability41. Imaging features linked to extrahepatic metastasis were selected through LASSO regression, and Radscore values were computed. Our analysis confirmed that BMI, MVI, PV, ALB and Radscore are independent predictors of HCC prognosis, aligning with previous findings42,43,44.

We developed predictive models for postoperative extrahepatic metastasis in HCC patients, including a radiomics model, a clinical model, and a combined model integrating clinical factors and Radscore. In both the training and validation cohorts, the combined model that includes Radscore, MVI, PV, and ALB exhibited better AUC performance than both the radiomics and clinical models (P < 0.05). There was no significant difference between the clinical and radiomics models in predicting extrahepatic metastasis (P > 0.05), which aligns with previous research findings45,46. The clinical net benefit of patients was analyzed according to the decision curve. Whether in the training group or the validation group, the net benefit of patients in the combined model was generally higher, indicating that the model was safe. Our study validated the use of enhanced CT imaging tools that can predict postoperative extrahepatic metastases in patients with liver cancer, further demonstrating the stability and reproducibility of radiomics in prognostic assessment of liver cancer47,48.

However, this study has limitations: manual 2D ROI delineation was time-consuming, suggesting that automated lesion segmentation should be a focus of future research. In future studies, the performance of automatic and semi-automatic segmentation methods can be further improved through algorithm optimization, integration of multimodal imaging data (such as CT and MRI), and enhancement of user interactivity. Developing interactive semi-automatic tools may help balance segmentation accuracy and clinical usability. Furthermore, the complex relationship between radiomics features and biological behaviors remains challenging to fully elucidate. Integrating radiomics with genomics or pathology data may help elucidate the biological basis of the radiomic features, thus enhancing model interpretability and clinical utility.

Conclusions

Our findings indicate that radscore is an independent prognostic indicator for predicting extrahepatic metastasis in HCC. By integrating radscore with clinical risk factors, we developed a non-invasive radiomics model that provides a data-driven tool for the early prediction of extrahepatic metastasis after hepatectomy. This model may assist in formulating personalized follow-up strategies and enabling timely interventions. Future research directions include validating this model in larger, multicenter, and prospective cohorts to ensure generalizability.
