Introduction

In 2022, primary liver cancer accounted for approximately 865,000 new cases and 757,000 deaths worldwide, making it the sixth most common cancer and the third leading cause of cancer death1. Additionally, the liver is a common site for metastasis from other cancers2. Unfortunately, over 70% of liver tumor patients are unsuitable for surgery3. Radiofrequency ablation (RFA) is also limited in cases where tumors are near major blood vessels, bile ducts, or the subdiaphragm4. Consequently, radiotherapy (RT) has emerged as a promising, non-invasive treatment for liver tumors due to their sensitivity to radiation. Stereotactic body radiation therapy (SBRT) delivers a high focused radiation dose to eradicate tumor cells while minimizing the risk of radiation therapy-related complications, such as bleeding and nausea5,6. Studies have confirmed that SBRT is an effective treatment option, achieving high local control rate for inoperable early-stage primary liver cancer and oligometastasis7,8,9.

However, liver tumor motion caused by respiration, which can reach up to 30 mm10presents a significant challenge for SBRT. Large margins around the gross tumor volume (GTV) are often required to ensure adequate dose coverage, which increases the exposure of normal tissue to high radiation dose11. The fundamental principle of SBRT is to minimize irradiation of normal liver tissue while protecting organs at risk (OARs) and delivering an optimal dose to the tumor. Managing liver motion is critical for reducing margins, sparing normal tissue, and elevating the prescribed tumor dose12.

Common respiratory motion management strategies include active breath-holding (BH), abdominal compression (AC), and respiratory gating (GAT). The choice of an optimal strategy depends on equipment availability, staff expertise, and patient comfort and compliance. However, approximately 32% of patients undergoing SBRT are ineligible for BH13. Real-time tracking is only possible with advanced CyberKnife (CK) Synchrony system14. AC is a straightforward approach that reduces respiration motion to less than 5 mm by applying abdominal pressure, making it suitable for patients without specialized respiratory training15,16,17. GAT, on the other hand, uses stable and reproducible phases of the respiratory cycle to treat tumors with more comfort than BH18. Previous studies have reported the significant dosimetric advantages of GAT in liver radiotherapy, including reducing normal tissue complication probability (NTCP)19. As a result, AC and GAT are currently the most prevailing consideration for liver SBRT20.

However, prior studies have primarily focused on the benefits of AC from the perspective of motion amplitude and target volume21,22with limited analysis of its dosimetry and radiobiology advantages. Whether the tumor motion and target volume reduction achieved with AC translate into clinical benefits remains unclear. Additionally, while GAT offers dosimetric advantages, it uses only a few respiratory phases, leaving residual tumor motion and significantly increasing treatment time13,19. In contrast, AC substantially reduces motion without prolonging treatment time13. A direct comparison of GAT and AC for liver tumor patients with SBRT has not been thoroughly investigated.

This study aimed to evaluate the benefits of AC in liver tumor with SBRT using 4DCT, focusing on tumor motion amplitude, target volume, dosimetry and radiobiology. Additionally, we assessed whether AC could provide benefits similar to GAT, offering insights into its clinical applicability.

Materials and methods

Patient characteristics

This study prospectively included 23 consecutive patients with liver tumor treated with SBRT between February 2023 and February 2024 at our institution. Due to the retrospective nature of the study, the Ethics Committee of Fujian Medical University Union Hospital waived the need to obtain informed consent. All study protocols were approved and carried out in accordance with the institutional guidelines and regulations of Fujian Medical University Union Hospital (NO.2024ky017). The basic clinical characteristics of the patients are summarized in Table 1.

Table 1 Baseline clinical characteristics.
Full size table

Abdominal compression

Radiation oncologists conducted a one-minute shallow breathing training session for each patient to help them adapt to the AC device. Compression was applied during the end-expiratory phase, with the device positioned approximately 3 to 4 cm below the xiphoid process23. Patients were closely monitored to ensure a transition from abdominal to thoracic respiration until their maximum tolerance was reached.

4DCT data acquisition

The patients were positioned supine and immobilized using thermoplastic film and a multifunctional integrated frame. Each patient underwent two 4DCT scans using a CT simulator (Brilliance CT Big Bore, Philips, The Netherlands) with a slice thickness of 3 mm. The first 4DCT scan was performed with AC applied. Subsequently, the compression was removed, and a second 4DCT scan was conducted under the same procedure and conditions once the patient’s respiratory pattern stabilized. The scanning area extended from 3 cm above the diaphragm to the iliac crest. Respiratory cycle signals were monitored using an optical body surface tracking system (C-RAD Sentinel 4DCT, Sweden). A retrospective 4DCT scanning method was used, and motion trajectory signals were converted into respiratory motion information integrated into the 4DCT image data. Each respiratory cycle was divided into 10 phases, labeled from 0 to 90%, where 50% corresponded to the end-expiratory phase and 0% to the end-inspiratory phase.

Delineation of target volumes

The 4DCT images of each patient were transferred to the Varian treatment plan system (Varian, Eclipse V.15.6, USA). Organ at risk (OAR) across all phases were initially contoured using the MANTEIA automatic outlining system. GTVs were manually contoured by the same radiation oncologist and reviewed by a senior radiation oncologist, with magnetic resonance images (MRI) and other imaging studies assisting in accurate delineation. The internal target volume (ITV) was derived using 4DCT, as recommended by the International Commission on Radiation Units and Measurements (ICRU) 83 report24. The free-breathing internal target volume (ITVFB) and abdominal compression internal target volume (ITVAC) were created by fusing the GTVs from 10 respiratory phases under respective conditions. The respiratory gating internal target volume (ITVGAT) was derived from the 40–60% respiratory phases19. Planned target volumes (PTVs) were Generated by adding a uniform 3 mm margins to each ITV: PTVAC for ITVAC, PTVGAT for ITVGAT, and PTVFB for ITVFB25.

Evaluation of tumor

The tumors in the ten respiratory phases generated corresponding centroid coordinate points (Px, Py, and Pz). The maximum motion variations of the tumors were determined based on the centroid positions in the LR, AP, and SI directions. To represent the overall motion of tumors, a three-dimensional vector motion (V3D) was introduced, calculated using the following formula:

$$\:{V}_{3D}=\sqrt{{LR}^{2}+{AP}^{2}+{SI}^{2}}$$
(1)

The motion variations of the tumors in the LR, AP, SI direction, and V3D were compared between the FB, AC and GAT settings.

Treatment planning and dosimetric analysis

All treatment plans were designed and optimized on the corresponding average intensity projection (AIP) images26,27. Based on existing studies, 50 Gy delivered by 5 fractions is a commonly used prescription dose scheme for liver tumor with SBRT28,29,30. This study adopted the same prescription dose. For all three treatment plans, volumetric modulated arc therapy (VMAT) was used for optimization with consistent beam arrangements, dose constraints, weighting factors, and computational grids. Clinical plan acceptance criteria required at least 95% of the PTV and 99% of the GTV/ITV to receive the prescribed dose of 50 Gy. Plan normalization ensured 95% PTV coverage of the prescription dose. The OAR dose constraints adhered to the Timmerman criteria31. Dose distributions were calculated using the AAA algorithm. Differences in dose delivery to the tumors and OARs among PlanAC, PlanFB and PlanGAT were calculated and recorded. In addition, this study categorized patients into two groups: Group A included all 23 patients, while group B included 11 patients with tumors < 5 cm in diameter.

Calculation of EUD and NTCP

Dose-volume histograms (DVH) of OARs were generated from the three plans. With the dose converted to EQD2 based on the LQ model, the EUD was calculated using an effective dose reduction scheme as follows32,33,34:

$$\:EUD={\left(\sum\:_{i}({V}_{i}{D}_{i}^{a}\right)}^{\frac{1}{a}}$$
(2)

Where Vi is the fraction of the target volume irradiated by a dose Di, and a is a unitless model parameter specific to the tissue or tumor under evaluation. The normal tissue complication probability (NTCP) was calculated based on the EUD using the following formula33.

$$\:NTCP=\frac{1}{1+{\left(\frac{{TD}_{50}}{EUD}\right)}^{{4}_{{\gamma\:}_{50}}}}$$
(3)

Where TD50 represents the dose tolerance for a 50% complication rate for the normal tissue within a specific time interval, and γ50 is a parameter standing for the slope of the dose-response curve. The parameters used for different tissues are as follows (36–39):

Liver: a = 3, TD50 = 40 Gy, γ50 = 3; Kidney: a = 1, TD50 = 28 Gy, γ50 = 3; Duodenum: a = 6, TD50 = 41 Gy, γ50 = 4; Small intestine: a = 6, TD50 = 55 Gy, γ50 = 4; Spinal cord: a = 13, TD50 = 66.5 Gy, γ50 = 4; Stomach: a = 6, TD50 = 59 Gy, γ50 = 4 35–38. These calculations provided a comprehensive analysis of dosimetric and radiobiological differences among the three plans.

Statistical analysis

All data were presented as mean ± standard deviation (SD). For data with a normal distribution and homogeneity of variance, overall statistical differences were assessed using two-way ANOVA, followed by multiple comparisons using the least significant difference (LSD) test. For data that did not conform to these assumptions, comparisons were conducted using Fridman’s M test, followed by multiple comparisons with the q test and Bonferroni correction. Pearson’s correlation was calculated to evaluate the relationship between parameter reductions. Statistical analyses were performed using SPSS 27.0 software, and a p-value < 0.05 was considered statistically significant.

Results

Tumor motion and target volume in the AC and GAT groups were significantly reduced compared to FB. Tumor motion was found to be anisotropic, especially in the SI direction, showing much greater displacement than the LR and AP directions (p < 0.001). The tumor motion and target volume parameters are illustrated in Fig. 1. The average tumor motion in V3D was 9.45 ± 3.28 mm, 6.40 ± 3.34 mm and 2.15 ± 1.44 mm in the FB, AC and GAT groups, respectively (p < 0.001). With the application of AC, tumor motion exceeding 10 mm was reduced to 4 cases (12.5%), and motion exceeding 5 mm was reduced to 16 cases (50%). Motion in the SI direction increased in only 2 tumors (6.3%), while the remaining 30 tumors (93.8%) showed varying degrees of reduction. Among these, 13 tumors (40.6%) showed a reduction of more than 3 mm. Displacement in the AP direction decreased in 24 tumors (75%). Tumor motion in the AP and SI directions decreased by 30.0% and 32.8% (p = 0.026, p < 0.001, respectively); while V3D was reduced by 32.3% (p < 0.001). Compared to AC, GAT further reduced tumor motion in the LR, AP, and SI directions (p < 0.001, p = 0.026, p = 0.008, respectively) and demonstrate an additional reduction in V3D (p = 0.026). ITVAC and ITVGAT were significantly smaller than ITVFB (p < 0.001). Further pairwise comparison revealed that ITVGAT was also significantly smaller than ITVAC (p = 0.012). Similar results were observed for PTV, mirroring the trends seen in ITV (Fig. 1B).

Fig. 1
Fig. 1
Full size image

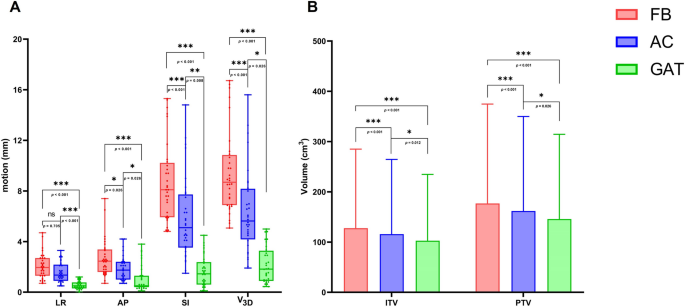

Comparisons of tumor motion, ITV and PTV under different motion management strategies.

Dose parameters comparison for OARs among PlanFB, PlanAC, and PlanGAT are presented in Tables 2 and 3. Compared to FB, planAC significantly reduced liver Dmean (p < 0.001), Vd<21.5 Gy (p < 0.001), V10Gy (p = 0.002), stomach D50cc (p = 0.030) and spinal cord Dmean (p = 0.019), D0.1cc (p = 0.041), D1cc (p = 0.037) in Group A. In Group B, PlanAC also reduced liver Dmean (p < 0.018), Vd<21.5 Gy (p < 0.012), V10Gy (p = 0.036), as well as spinal cord Dmean (p = 0.029), D0.1cc (p = 0.007), D1cc (p = 0.018). For GAT vs. FB, PlanGAT significantly reduced most OAR dose indicators (p < 0.05) except for spinal cord D0.1cc (p = 0.186) and D1cc (p = 0.137) in Group (A) PlanGAT also significantly reduced massive parameters except for left kidney Dmean (p = 0.057), stomach D50cc (p = 0.066), spinal cord D0.1cc (p = 0.070) and D1cc (p = 0.125) In Group (B) As regards GAT vs. AC, PlanGAT significantly reduced OAR dose indicators in Group A, including liver Dmean (p < 0.001), Vd<21.5 Gy (p = 0.003), V10Gy (p = 0.030), right kidney Dmean (p = 0.005), duodenum Dmean (p = 0.004), D0.5cc (p = 0.006), D1cc (p = 0.006), D5cc (p = 0.001), D10cc (p = 0.003), intestine Dmean (p = 0.003), D0.5cc (p = 0.024), D5cc (p = 0.006), D10cc (p = 0.005), stomach Dmean (p < 0.002) and spinal cord Dmean (p = 0.006), V5Gy (p = 0.004). These results suggest that GAT was the optimal respiratory motion management method for Group A. For group B, however, GAT only reduces liver Dmean (p = 0.004) and duodenum Dmean (p = 0.032), D5cc (p = 0.012), D10cc (p = 0.043) compared to AC. This indicates that the benefits of GAT were less pronounced in Group B compared to Group A.

Table 2 Dosimetric comparison of oars among PlanFB, PlanAC and PlanGAT (group A).
Full size table
Table 3 Dosimetric comparison of oars among PlanFB, PlanAC and PlanGAT (group B).
Full size table

The distribution of OAR doses in Group A was more variable, with values spread across both the white (motion management effective) and gray (motion management ineffective) regions, especially for serial organs under AC (Fig. 2A and C). In contrast, OAR doses in Group B under AC were primarily located in the white region (Fig. 2B and D), indicating that AC was highly effective in this group. Under GAT, OAR doses in both Group A and Group B were predominantly located in the white region (Fig. 2), suggesting that the benefits of GAT were greater for Group A than Group B. Motion management strategies were shown to tighten the dose distribution (Fig. 3). Both PlanAC and PlanGAT significantly tightened the isodose lines, especially in the SI direction for Group B. However, for Group A, PlanGAT demonstrated a better dose distribution than PlanAC. These dose findings were indicative of the fact that AC was effective for the group B. For group A, GAT proved to be more effective, especially for serial organs.

Fig. 2
Fig. 2
Full size image

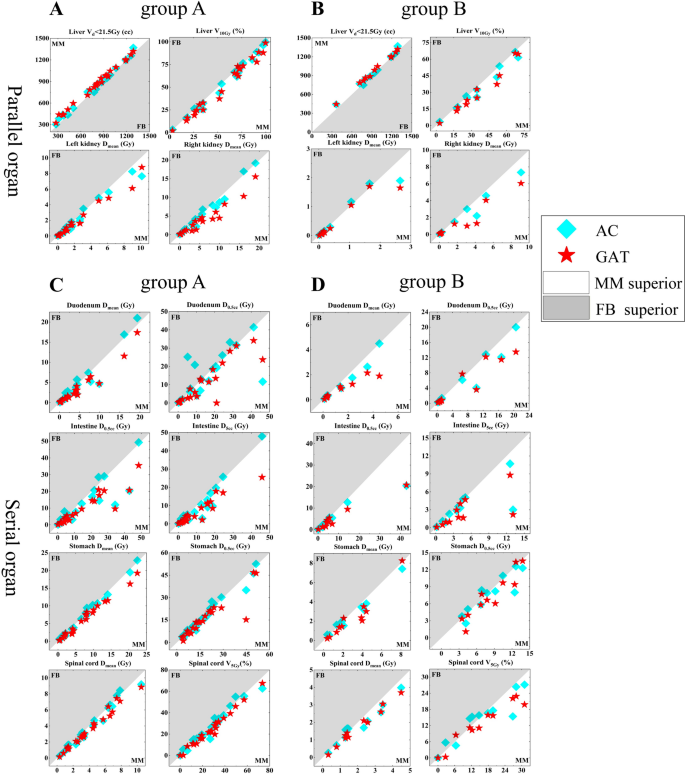

Comparisons of the PlanFB, PlanAC and PlanGAT by the dosimetric parameters to the OARs. For every patient, each parameter is associated with three values (from PlanFB, PlanAC and PlanGAT). In each graph, for the parameter X, each patient will contribute a pair of symbols, i.e., a rhomboid and a star; the cyan rhomboid is plotted by the coordinates XFB, XAC, while the red star is plotted by XFB, XGAT. A symbol falling in the gray area implies the parameter is favorable in the PlanFB. A symbol falling in the white area implies the parameter is favorable in the MM (motion management) plan.

Fig. 3
Fig. 3
Full size image

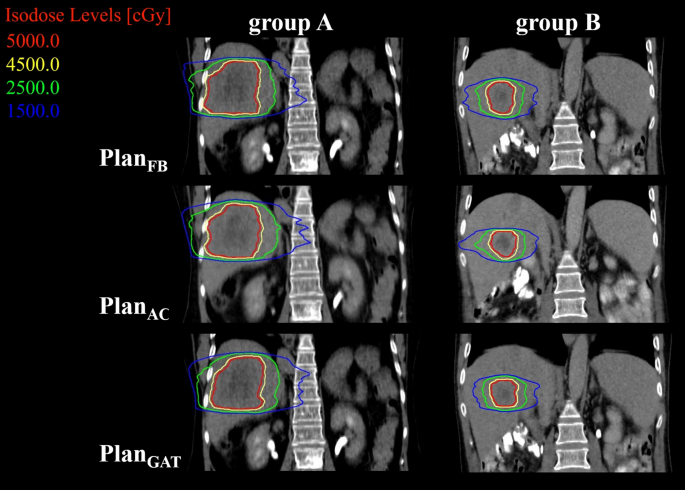

Dose distributions among PlanFB, PlanAC and PlanGAT for a representative patient in group A and B. The 5000 cGy, 4500 cGy, 2500 cGy and 1500 cGy isodose lines are in red, yellow, green and dark blue, respectively.

The results of EUD and NTCP were detailed in Tables 4 and 5. For AC vs. FB, Liver EUD, intestine EUD and spinal cord EUD were significantly lower in PlanAC compared to PlanFB; PlanAC significantly reduced liver NTCP (p = 0.033) in Group B, whereas no difference was observed in Group A (p = 0.231). AC demonstrated greater radiobiological benefits in Group B than in Group A, particularly for liver NTCP. In regard to GAT vs. FB, EUD of all OARs in PlanGAT were significantly reduced compared to other plans, except for the spinal cord. Liver EUD and right kidney EUD were significantly lower with PlanGAT compared to PlanAC. For liver NTCP, there was significant difference between PlanAC and PlanGAT in Group A (p = 0.001), while no significant difference was observed in Group B (p = 0.136). Similar to Fig. 2, the radiobiological benefits of OARs were graphically illustrated in Fig. 4 using two zones: the white region representing motion management (MM) effectiveness, and the gray region representing MM ineffectiveness. As shown, under GAT, radiobiological parameters of OARs were predominately located in the white region for both Group A and Group B. However, under AC, the radiobiological parameters were mainly distributed in the white region only in Group B (Fig. 4B, D). This indicates that AC and GAT provide comparable radiobiological benefits in Group B. These findings align with the dose parameters results, further confirming that GAT offers the greatest dosimetric and radiobiological benefits for liver tumors treated with SBRT. However, for liver tumors with a diameter < 5 cm, AC provides comparable benefits to GAT.

Table 4 Radiobiological comparison of oars among PlanFB, PlanAC and PlanGAT (group A).
Full size table
Table 5 Radiobiological comparison of oars among PlanFB, PlanAC and PlanGAT (group B).
Full size table
Fig. 4
Fig. 4
Full size image

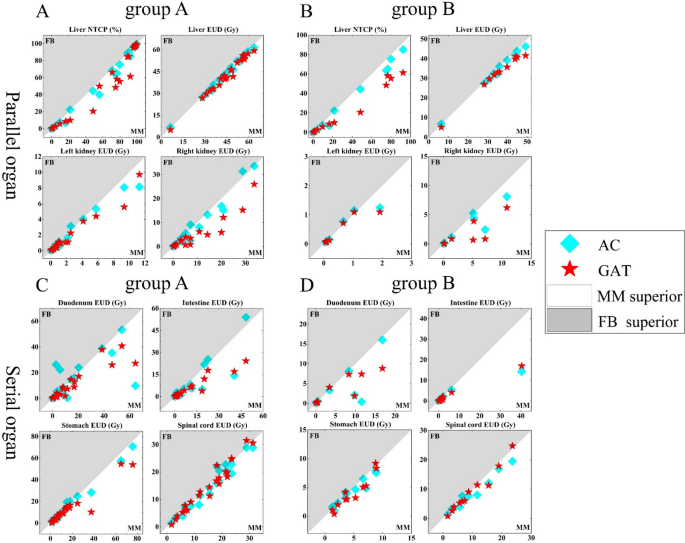

Comparisons of the PlanFB, PlanAC and PlanGAT by the radiobiological parameters in relation to the OARs. For every patient, each parameter is associated with three values (from PlanFB, PlanAC and PlanGAT). In each graph, for the parameter X, each patient will contribute a pair of symbols, i.e., a rhomboid and a star; the cyan rhomboid is plotted by the coordinates XFB, XAC, while the red star is plotted by XFB, XGAT. A symbol falling in the gray area implies the parameter is favorable in the PlanFB, but in the white area is favorable in the MM (motion management) plan.

We further analyzed the correlations of the reduction in the parameters under AC. All correlations values in Group B were monotonically increasing, except for the correlation between intestine EUD and V3D (r = −0.139). Strong correlations (r > 0.7) were observed in Group B between liver Dmean, Vd<21.5 Gy, EUD and stomach EUD with V3D, liver Vd<21.5 Gy with ITV, and liver Dmean, Vd<21.5 Gy with PTV (Fig. 5). However, no strong correlations were found in group A. These findings indicate that the correlations between tumor motion, target volume, and dose or radiobiological parameters were significantly stronger in group B than in group (A) This suggests that the benefits of tumor motion management benefits with AC are more clinically relevant in Group (B) Specifically, small tumors (diameter < 5 cm) derive more benefits from AC.

Fig. 5
Fig. 5
Full size image

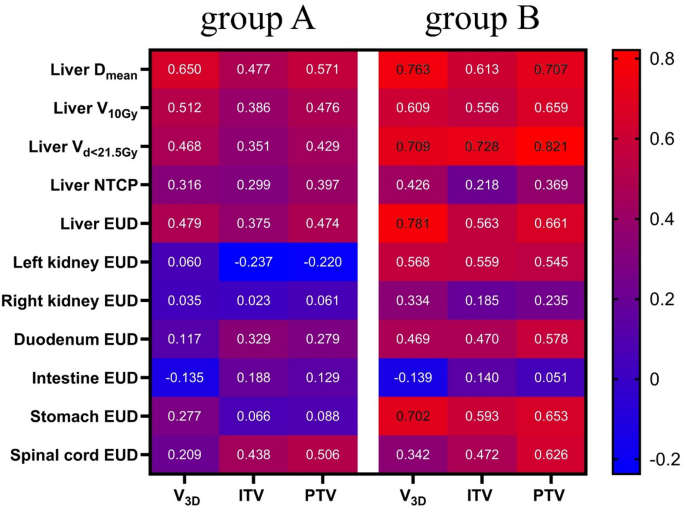

Correlation between the dose–volume and radiobiology reduction to OARs and the reduction in V3D, ITV and PTV under AC.

Discussion

Respiratory motion management strategies can be highly effective in reducing the magnitude of tumor motion, leading to significantly reductions in target volume and sparing more normal tissue35. This reduction in normal tissue exposure decreases the radiation-induced complications probability, such as radiation-induced liver disease (RILD)36,37. The availability of multiple motion management strategies offers flexibility in clinical practice. While early studies focused on changes in the amplitude of tumor motion and target volume with AC in liver tumor SBRT21,22little attention has been given to dosimetric and radiobiological benefits. Additionally, the comparative clinical benefits between GAT and AC remain unclear. Thus, this study aimed to evaluate the effects of respiratory motion management strategies on liver tumor SBRT using 4DCT, focusing not only on tumor motion and target volume, but also on dose distribution and the expected clinical outcome based on EUD and NTCP of OARs.

Respiratory motion management strategies, including AC and GAT, have been shown to significantly reduce tumor motion amplitude. In this study, AC reduced overall tumor motion significantly (p < 0.001), consistent with findings by Eccles et al. and Heinzerling et al.38,39. AC reduced tumor motion by 2.9 and 0.8 mm in the SI and AP directions respectively, with 40.6% of tumors exhibiting a reduction of > 3 mm in the SI direction. This reduction in tumor motion resulted in significantly decreases in ITV (p < 0.001) and PTV (p < 0.001). Similarly, GAT further reduced tumor motion (p < 0.001) and resulted in reductions in ITV (p < 0.001) and PTV (p < 0.001) compared to FB. Compared to AC, GAT achieved additional reduction in V3D (p = 0.026), ITV (p = 0.012) and PTV (p = 0.026). These results align with previous studies19,40.

Focusing solely only on reductions in amplitude of movement is insufficient for clinical needs. Decreasing radiation doses to normal liver tissue, kidneys, spinal cord, and intestines translate into fewer side effects and improved clinical outcomes. This study showed that AC reduced the number of patients exceeding dose limits from 6 to 3 in Group A and achieved full compliance in Group B. These dosimetric benefits of AC for liver tumor SBRT are among the highlights of this study, rarely addressed in prior research. In contrast, all patients using GAT met dose restriction criteria and reduced most OAR dose parameters, consistent with the findings of Xi et al. and Gabryś et al.19,40. Comparisons between GAT and AC showed that GAT provided superior dosimetric benefits, particularly in Group A. Both AC and GAT increased the likelihood of SBRT eligibility without excessive radiation-related complications, with GAT being more effective in Group A.

For liver, Vd < 21.5 Gy (cc) is a key evaluation parameter based on the Timmerman criteria. AC and GAT significantly reduced this volume compared to FB in both groups (p < 0.05). However, compared with AC, GAT further reduced liver Vd < 21.5 Gy in Group A (p = 0.003), while no significant difference was found in Group B (p = 0.139). These findings suggest that AC works well-suited for Group B, while GAT is the optimal choice for Group A.

While dosimetric benefits focus on physical parameters, radiobiological modeling better reflects clinical outcomes due to differences in tissue radiosensitivity41,42,43,44. This study is the first to use a radiobiological model to compare EUD and NTCP of OARs between FB, AC and GAT. AC significantly reduced liver NTCP in Group B (p = 0.033) compared to FB but showed no significant difference in Group A (p = 0.231). Further comparisons revealed that GAT did not reduce liver NTCP in Group B (p = 0.136), but significantly reduced it in Group A (p = 0.001). These findings confirm that AC and GAT have the comparable benefits for Group B, while GAT is more effective for Group A.

Our study showed that AC provided greater dosimetric and radiobiological benefits in Group B than in Group A. Correlation analysis revealed stronger relationships in Group B, indicating greater benefits (Fig. 5). V3D was reduced by 29.04 ± 22.38% and 30.09 ± 26.87% in Group A and Group B respectively, with no statistical significance (p = 0.906), suggesting that the difference in dose reduction was not due to tumor motion amplitude. ITV and PTV were reduced by 12.69 ± 9.99% and 11.14 ± 8.48% in Group A, compared to 17.22 ± 11.82% and 15.11 ± 10.20% in Group B, with no significant differences (p = 0.253 for ITV, p = 0.241 for PTV). The greater ITV and PTV reductions in Group B, compared to no difference of V3D reductions between Group A and B, may result from Group A containing larger tumors (diameter > 5 cm). As Gargett M et al. reported, larger GTVs reduce the correlation between the PTV reduction and tumor motion12. Thus, reduced tumor motion amplitude by AC did not translate into significant dosimetric and radiobiologic benefits in Group A. AC is more suitable for Group B with small tumors (diameter < 5 cm).

The deficiency of this article lies in the fact that the high attenuation of radiation by the abdominal compression device may cause skin exposure for high-dose irradiation, it is necessary to avoid setting the radiation field in the high-density structure of the abdominal compression frame during the planning design process (such as fixed screws and frame fixed points)45. This study also found that the application of abdominal compression devices might cause irregular breathing in patients, resulting in artifacts in 4DCT images and reducing the reliability of this 4DCT scan. Therefore, each patient in this study received basic respiratory training before the 4DCT scan, and the scan range as well as the positions of the primary and secondary gated points were adjusted multiple times to perform 4DCT image acquisition during the period when the respiratory waveforms were the most regular and the fluctuations were the most obvious. Finally, the overall sample size of the experiment was relatively small and might not be able to replace the real situation of patients with liver tumors. Subsequently, the sample size will continue to be increased to improve the reliability of the study.

Conclusions

Respiratory motion management strategies have capability to achieve significant reductions in liver tumor motion, target volume, and clinically advantageous dosimetric and radiobiological values of OARs. GAT provides the greatest dosimetric and radiobiological benefits for liver tumors treated with SBRT, while AC offers comparable benefits for tumors < 5 cm in diameter. Therefore, AC is recommended for liver tumors < 5 cm in diameter undergoing SBRT.
