Introduction

Brain research is vital for understanding brain disease pathophysiology, which represents 35% of disorders in Europe. Key challenges include assessing disability-adjusted life years1. Brain tumors arise from uncontrolled cell growth, emphasizing the need for early detection and targeted therapies. Mathematical models for evaluating solid tumors, such as those addressing proliferation and cellular motility, enhance our understanding of brain tumors, particularly gliomas due to their invasive characteristics2,3. Millions of people worldwide suffer from neurodegenerative diseases, which mostly cause cognitive and behavioral impairments. The creation of successful treatments and a deeper comprehension of their mechanisms are crucial4. Variations in mitochondrial viscosity are associated with a number of cellular functions and illnesses. The fluorescent probes used today to detect mitochondrial viscosity are not photostable or permeable. Mito-DDP successfully penetrated cell membranes and dyed the cells, demonstrating its potential practical applications, according to confocal laser scanning microscopy5. Alzheimer’s disease is a neurodegenerative disorder characterized by memory deterioration due to the dysfunction and death of neurons. It influences neuronal and synaptic function, causing abnormalities such as amyloid-beta buildup and tau tangles, which impair synaptic activity and lead to significant brain atrophy6. Often viewed as a consequence of aging, it has become a major public health concern due to its socioeconomic impacts and the rising number of cases. Alois Alzheimer’s 1906 description highlights pathological signs and disorientation7. The US government invested 226 million in 2015 to address Alzheimer’s disease, which is expected to impact 131 million people worldwide by 2050, particularly in middle and low-income nations, with annual health care costs surpassing those of cancer and cardiovascular diseases8.

A mathematical model in9 explains Alzheimer’s disease pathophysiology using differential rate equations, including microglia, astrocytes, neurons, and amyloid-beta, involving seven species and intercellular signaling influences. A prospective cohort study10 aimed to develop a multiattribute model of the progression of Alzheimer’s disease (AD) from moderate to fatal. Researchers analyzed 91 proteins in cerebral fluid or plasma of Alzheimer’s patients and cognitively normal controls to mathematically describe disease-specific molecular characteristics11. They found a limited number of signaling proteins that can identify Alzheimer’s disease and model pathological markers like tau and amyloid-beta levels. Alzheimer’s disease patients have decreased expression of brain-derived neurotrophic factor, an essential neurotrophic factor present throughout the brain12. The study13 highlights the use of data-driven computer models in Alzheimer’s disease research, which are based on experimental data, providing quick insights and testable predictions. These models are continuously developed and improved to capture a significant portion of existing knowledge. The study14 proposed a mathematical model concentrating on the function of prions in memory impairment, utilizing differential equations to describe the dynamic production of amyloid plaques. The model works with four distinct species. Researchers used transport and diffusion equations to develop a mathematical model for Alzheimer’s disease15. Gastrodin has antioxidant qualities, protects neurons, and improves brain function. Its effects and mechanisms on Parkinson’s disease in a rat model16 were examined in a study. Another study17 looked at the role of ceramide in Alzheimer’s disease and neuronal aging as well as icariin’s possible mitigating effect. Some other contributions related to the mathematical modeling approach for brain disorders are discussed in18,19,20, optimizing the treatments and results of brain disorders derived in21,22.

Fractional operators are now widely used as a common methodology for investigating the spread of epidemics and as a way to solve real-world problems. Fractional calculus has been the subject of numerous published studies, with new developments improving its theoretical and practical aspects. Fractional calculus is a quickly expanding branch of mathematics and is used to model various biological phenomena for disease models, fractional approaches, and modeling concepts for various diseases discussed in23,24,25. In26, the authors studied the dynamics of hepatitis B transmission with real data. Because of the order of differential equations, it overcomes the drawbacks of classical models based on derivatives and incorporates intricate real-world dynamics. Researchers are increasingly utilizing fractional calculus to tackle these issues. The fractional order model for Parkinson’s disease patients is examined in the paper27, which also suggests an identification method based on the frequency behavior of wheelchair movements.

The fractional dynamic model of a “disabled man-wheelchair” system is also covered in the essay, along with a control technique that takes into account the wheelchair driver’s impairment31. offers a mathematical model of Alzheimer’s disease that takes gender disparities into consideration. Using variable-order fractional temporal derivatives, the model illustrates how cells and aggregation-prone amyloid fibrils change over time. The model also accounts for neuroprotective memory loss, which is particularly common in postmenopausal women due to the dramatic drop in estrogen levels. The study32 proposed a simpler and more efficient fractional order-based convolutional neural network model that integrates an improved attention mechanism and a new optimization strategy to accurately and effectively classify Alzheimer’s disease. Some of the recent research comes up with the artificial neural network techniques to solve various disease models28,29,30.

Our research incorporates the amyloid-beta, tau protein, and microglia compartments that contribute to the transmission of Alzheimer’s disease, drawing inspiration from the aforementioned publications. This study introduces a novel model that categorizes neurons into functioning and infected types, incorporating the roles of tau protein, amyloid beta, and microglia in neuronal functionality. Notably, this model has not been previously addressed in existing literature. Introducing fractional calculus into Alzheimer’s disease mathematical models addresses research deficiencies by accommodating the disease’s memory and hereditary characteristics. Unlike standard integer-order models, fractional models accurately represent the non-local and cumulative impacts of Alzheimer’s, offering deeper insights into the complex biological processes involved. This paper’s structure is as follows: In Sect. 2, we go over the Caputo fractional derivative and review the essential mathematical principles. We describe the development of the suggested fractional order Alzheimer’s disease model in Sect. 3. In order to guarantee biological viability and practicality, Sect. 4 provides a thorough analysis that proves the solutions’ existence, uniqueness, boundedness, and positivity. The calculation of the basic reproduction number and equilibrium points is examined in Sect. 5. We do sensitivity analysis of several factors in relation to the model’s basic reproduction number in Sect. 6. The model is extended to chaos control in Sect. 7. The numerical method is presented in Sect. 7, while the numerical simulations and comments are presented in Sect. 8. The conclusion is finally given in Sect. 9.

Key definitions

Definition 2.1

33,34 Consider the function Q(t), which is differentiable to the \(j^{th}\) derivative. The definition of the Caputo derivative of Q(t) of order \(0<\sigma \le 1\) is as follows:

$$\begin{aligned} {}_0^{c}D_t^{\sigma } Q(t)=\frac{d^{\sigma }}{dt^{\sigma }}Q(t)= {\left\{ \begin{array}{ll} \frac{1}{\Gamma (j-\sigma )}\int _0^t\frac{Q^{j}(\varsigma )}{(t-\varsigma )^{\sigma -j+1}}d\varsigma ,& ~~~~~\sigma \in (j-1,j),~~t>0,~j\in {\mathbb {N}},\\ Q^{j}(t),& ~~~~ \sigma =j. \end{array}\right. } \end{aligned}$$
(1)

The Caputo fractional derivative of a constant k is zero, specifically \(\frac{d^{\sigma }}{dt^{\sigma }}k=0\) and ensures:

$$\begin{aligned} \frac{d^{\sigma }}{dt^{\sigma }}t^{j} {\left\{ \begin{array}{ll} 0,& j\le \sigma -1,\\ \frac{\Gamma (j+1)t^{j-\sigma }}{\Gamma (j-\sigma +1)},& j>\sigma -1. \end{array}\right. } \end{aligned}$$
(2)

At \(j=1\), the Eq. (1) is reduced to

$$\begin{aligned} {}_0^{c}{D}_t^{\sigma } Q(t) = \frac{1}{\Gamma (1-\sigma )}\frac{d}{dt}\int _0^t (t-\varsigma )^{-\sigma } Q(\varsigma )d\varsigma . \end{aligned}$$
(3)

Remark 2.1

The Caputo fractional derivative is an ordinary derivative if \(\sigma =1\). Consequently, the ordinary derivative is generalized by the Caputo fractional derivative.

Definition 2.2

The corresponding fractional integral operator is given by35

$$\begin{aligned} {}^{c}{I}_t^{\sigma } Q(t) = \frac{1}{\Gamma (\sigma )}\int _0^t (t-\varsigma )^{(\sigma -1)} Q(\varsigma )d\varsigma . \end{aligned}$$
(4)

Lemma 2.1

36 The solution to the cauchy problem:

$$\begin{aligned} {\left\{ \begin{array}{ll} {}_0^{c}{D}_t^{\sigma } Q(t)= \psi (t,Q(t)),~~~~~~~0<\sigma \le 1,~~t>0,\\ Q(0)= Q_0, \end{array}\right. } \end{aligned}$$
(5)

is given by

$$\begin{aligned} Q(t)=Q_0+\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{(\varsigma -1)}\psi (\varsigma , Q(\varsigma ))d\varsigma . \end{aligned}$$
(6)

Alzheimer’s disease model formulation

There are two primary proteins believed to disrupt communication between brain cells: tau and amyloid. This disruption instigates a positive feedback loop that results in increased production of amyloid-beta and abnormal tau37. Both amyloid-beta plaques and tau tangles contribute to neuro-inflammation, which can also be triggered by various microbes, including bacteria and viruses38. Microglia, the resident innate immune cells of the central nervous system, play a role in disease progression by modifying their physiological functions and activating inflammatory pathways. The presence of toxic amyloid-beta and tau proteins is believed to activate microglia39. Microglia tries to clear the toxic proteins as well as widespread debris from dead and dying cells. Chronic inflammation may set in when microglia cannot keep up with all that needs to be cleared, resulting in neuronal dysfunction, injury, and loss.

Based on previous studies, we develop a new mathematical model of Alzheimer’s disease including:

  • \(\textrm{F}_{N}(t)\): Functioning neurons;

  • \(\textrm{I}_{N}(t)\): Infected neurons;

  • \(\textrm{A}_{\beta }(t)\): Amyloid-beta;

  • \(\textrm{T}_{\mu }(t)\): Tau protein; and

  • \(\textrm{M}_{\delta }(t)\): Microglia.

We assume that the density of functioning neurons rises with the brain’s neuron production rate of \(\Pi _N\) and falls with the proliferation of neurons in the amyloid-beta cascade at a rate of \(\alpha\) and due to the natural death of neurons at a rate of \(\phi _1\). In Alzheimer’s disease, the amyloid-beta peptide forms aggregates that deposit as plaques around neuronal cells and brain vasculature. This deposition is associated with the degradation of neuronal function, leading to impaired memory and cognition, such as compromised thinking, speaking, writing, and other day-to-day activities40. Beyond innate immunity, microglia, the central nervous system’s macrophages, play critical roles in brain growth, preservation, homeostasis, and restoration. Through a variety of interactions, they not only serve as phagocytes but also influence how neurons and glial cells operate. Understanding the mechanisms underlying the early pathophysiology of neurodevelopmental diseases requires an understanding of the factors influencing microglial homeostasis and diversity throughout normal brain development41. To illustrate the possible impact of microglia on the development of functional neurons, we introduced a parameter \(\upsilon\). Consequently, the dynamic of active neurons at time t is given by

$$\begin{aligned} \textrm{F}_{N}(t) = \Pi _N+\rho \textrm{T}_{\mu }-\alpha \textrm{F}_N\textrm{A}_{\beta }-\phi _1\textrm{F}_N. \end{aligned}$$
(7)

Amyloid-beta plaques around brain vasculature and neuronal cells are linked to the deterioration of neuronal function. Beta-amyloids are released into plasma and cerebrospinal fluid when secretases cleave the Amyloid-beta protein, which is found on different cell membranes. These beta-amyloids are ingested and misfolded into beta-folded designs, which eventually develop into fibrils and aggregates known as plaques after adhering to neuronal and glial cell receptors at nanomolar concentrations. Beta-amyloids affect brain signaling and memory function as monomers, dimers, or multimers on cell membranes prior to plaque accumulation42. Microglia kill the infected neurons at the rate of \(\beta _1\). Amyloid-beta clears a percentage of infected neurons at a \(\gamma\) rate. Additionally, the normal death rate of \(\phi _2\) reduces the number of infected neurons. Therefore, we have

$$\begin{aligned} \textrm{I}_{N}(t) = \alpha \textrm{F}_N\textrm{A}_{\beta }-\beta _1\textrm{I}_N\textrm{M}_{\delta }-(\gamma +\phi _2)\textrm{I}_N. \end{aligned}$$
(8)

By eliminating amyloid-beta, microglia act as the brain’s main immune cells, avoiding the plaque development that can damage neurons. We assume that microglia clean amyloid-beta at a rate of \(\beta _2\). A wide range of peptidases and proteinases, collectively referred to as amyloid-beta-degrading proteases (A\(\beta\)DPs), are capable of proteolytically breaking down the amyloid-beta protein. These proteases are crucial in controlling the levels of endogenous cerebral amyloid-beta under various physiological and pathological circumstances43. Amyloid-beta clusters appear first and are followed by a surge in abnormal tau once amyloid-beta has accumulated to a certain level. We suppose that the proteolytic degradation rate of \(d_\beta\) and the tau protein initialization rate of \(\kappa\) by amyloid-beta also reduce the density of amyloid-beta. Consequently, the amyloid-beta density at time t is given by

$$\begin{aligned} \textrm{A}_{\beta }(t)= \gamma \textrm{I}_N-\beta _2\textrm{A}_{\beta }\textrm{M}_{\delta }-(d_{\beta }+\kappa )\textrm{A}_{\beta }. \end{aligned}$$
(9)

Tau protein is triggered by amyloid-beta at a \(\kappa\) rate. By internalizing and breaking down tau seeds, microglia perform protective roles that slow the proliferation of tau. We assume that microglia reduce the density of tau protein at a rate of \(\beta _3\). Cellular mechanisms, such as the ubiquitin-proteasome system, which mostly breaks down soluble tau, control the degradation of tau proteins. Because tau aggregates into toxic structures like tangles and oligomers, which are detrimental to neurons, neurodegeneration results in decreased functional tau concentrations. Therefore, we suppose that the natural rate of tau protein degradation \((d_{\mu })\) and neuro-degeneration also cause a decrease in tau protein concentration. Consequently, tau protein density is expressed as

$$\begin{aligned} \textrm{T}_{\mu }(t)= \kappa \textrm{A}_{\beta }-\beta _3\textrm{T}_{\mu }\textrm{M}_{\delta }-(d_{\mu }+\rho )\textrm{T}_{\mu }. \end{aligned}$$
(10)

Microglia are triggered by tau protein, amyloid beta, and infected neurons. By removing protein clumps and pruning malfunctioning synapses, microglia first defend the nervous system. Chronic activation, on the other hand, turns them into a pro-inflammatory state that leads to increased toxic factors, synapse loss, and neuronal death. Apoptosis and necroptosis are two natural cell death processes that microglia experience, which contribute to a constant turnover necessary for preserving brain health. Despite the extended lifespans of microglia, illness can speed up this sluggish pace of cell renewal. We suppose that, at a rate of \(\phi _3\), natural death lowers the density of microglia. Consequently, the following represents the microglia concentration at time t:

$$\begin{aligned} \textrm{M}_{\delta }(t) = (\beta _1\textrm{I}_N+\beta _2\textrm{A}_{\beta }+\beta _3\textrm{T}_{\mu })\textrm{M}_{\delta }-\phi _3\textrm{M}_{\delta }. \end{aligned}$$
(11)

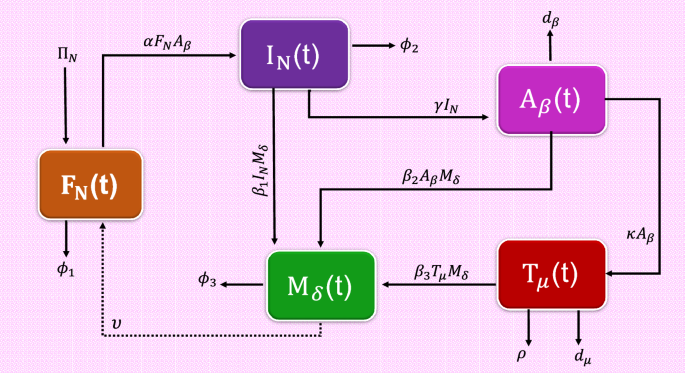

Figure 1 describes the dynamics of Alzheimer’s disease based on the stated assumptions.

Fig. 1
figure 1

Flowchart of dynamical system.

Full size image

Memory effects in physical system models are crucial for assessing non-local effects, with integer order differential equations being limited in this regard. Fractional order derivatives, featuring power-law memory kernels, provide a better representation as they account for a state variable’s rate of change based on its entire past behavior. The key difference lies in accuracy, where lower fractional order values signify more pronounced memory effects. The Caputo derivative offers a key advantage over the Riemann-Liouville derivative due to its compatibility with standard initial conditions, while the latter requires initial conditions to be expressed in fractional integral form, which is often impractical for various physical systems. Additionally, the Atangana-Baleanu derivative utilizes a non-singular kernel, specifically the Mittag-Leffler function, effectively addressing the singularity issues that arise with the kernels of the Caputo and Riemann-Liouville derivatives. The Caputo fractional derivative is suited for systems with well-defined initial conditions, as it incorporates past states and non-local interactions, thereby integrating memory effects. Its power-law memory kernels improve system stability and numerical simulations. Additionally, it introduces a new parameter allowing for real number orders of derivatives in fractional order systems. Therefore, we examine the Caputo operator model in order to take these dynamical aspects into account. Using first-order Caputo derivatives of order \(\sigma\), \(0<\sigma \le 1\), the fractional-order model is introduced as a nonlinear system.

$$\begin{aligned} \begin{aligned} {}_0^{c}D_t^{\sigma }\textrm{F}_{N}(t)&= \Pi _N+\upsilon \textrm{M}_{\delta }-\alpha \textrm{F}_N\textrm{A}_{\beta }-\phi _1\textrm{F}_N,\\ {}_0^{c}D_t^{\sigma }\textrm{I}_{N}(t)&= \alpha \textrm{F}_N\textrm{A}_{\beta }-\beta _1\textrm{I}_N\textrm{M}_{\delta }-(\gamma +\phi _2)\textrm{I}_N,\\ {}_0^{c}D_t^{\sigma }\textrm{A}_{\beta }(t)&= \gamma \textrm{I}_N-\beta _2\textrm{A}_{\beta }\textrm{M}_{\delta }-(d_{\beta }+\kappa )\textrm{A}_{\beta },\\ {}_0^{c}D_t^{\sigma }\textrm{T}_{\mu }(t)&= \kappa \textrm{A}_{\beta }-\beta _3\textrm{T}_{\mu }\textrm{M}_{\delta }-(d_{\mu }+\rho )\textrm{T}_{\mu },\\ {}_0^{c}D_t^{\sigma }\textrm{M}_{\delta }(t)&= (\beta _1\textrm{I}_N+\beta _2\textrm{A}_{\beta }+\beta _3\textrm{T}_{\mu })\textrm{M}_{\delta }-\phi _3\textrm{M}_{\delta }, \end{aligned} \end{aligned}$$
(12)

where \(\sigma \in (0,1]\) is the derivative order and \({}^{c}{D}\) is the Caputo fractional derivative.

The initial condition: \(\Delta =\{\Lambda _1,\Lambda _2,\Lambda _3,\Lambda _4,\Lambda _5\}\) is stated in the space:

$$\begin{aligned} {\mathbb {C}}_{+}=\left\{ \Delta \in {\mathbb {C}}([0,{\textbf{T}}],{\mathbb {R}}_{+}^5)~|~\Lambda _1=\textrm{F}_{N}(\tau ),~\Lambda _1=\textrm{I}_{N}(\tau ), ~\Lambda _3=\textrm{A}_{\beta }(\tau ),~\Lambda _4=\textrm{T}_{\mu }(\tau ),~\Lambda _5=\textrm{M}_{\delta }(\tau )\right\} , \end{aligned}$$
(13)

where \(\textrm{F}_{N}(0)>0,~\textrm{I}_{N}(0)>0,~\textrm{A}_{\beta }(0)>0,~\textrm{T}_{\mu }(0)>0,~\textrm{M}_{\delta }(0)>0\). Also, \(\tau \in {\mathbb {C}}[0,{\textbf{T}}]\) and

$$\begin{aligned} \Lambda _1(\tau )\ge 0,~~\Lambda _2(\tau )\ge 0,~~\Lambda _3(\tau )\ge 0,~~\Lambda _4(\tau )\ge 0,~~\Lambda _5(\tau )\ge 0. \end{aligned}$$
(14)

\({\mathbb {C}}_{+}\) denotes the Banach space of continuous functions in the domain \([0,{\textbf{T}}]\rightarrow {\mathbb {R}}_{+}^5\), with an appropriate sub-norm and

$$\begin{aligned} {\mathbb {R}}_{+}^5= & \left\{ \textrm{F}_{N},\textrm{I}_{N},\textrm{A}_{\beta },\textrm{T}_{\mu },\textrm{M}_{\delta }\right\} ,~~~~~ \textrm{F}_{N},\textrm{I}_{N},\textrm{A}_{\beta },\textrm{T}_{\mu },\textrm{M}_{\delta }\ge 0. \end{aligned}$$
(15)

Parameters values are given in the Table 1.

Table 1 Initial variables’ states and parameters values.
Full size table

Key features analysis

The existence, uniqueness, non-negativity, and boundedness of the suggested model are all investigated in this section.

Existence and uniqueness

Theorem 4.1

46 There exists a unique solution for every non-negative initial condition in the suggested model (12).

Proof

We are evaluating the given model (12)’s solutions for their existence and uniqueness in the region \(\Omega \times [0,{\textbf{T}}]\), where

$$\begin{aligned} \Omega = (\textrm{F}_{N}, \textrm{I}_N, \textrm{A}_{\beta }, \textrm{T}_{\mu }, \textrm{M}_{\delta })\in {\mathbb {R}}^{5} ~:~\max \left( \Vert \textrm{F}_{N}\Vert , \Vert \textrm{I}_N\Vert , \Vert \textrm{A}_{\beta }\Vert , \Vert \textrm{T}_{\mu }\Vert , \Vert \textrm{M}_{\delta }\Vert \right) . \end{aligned}$$
(16)

We define the mapping:

$$\begin{aligned} {\textbf{X}}(H)=\left( {\textbf{X}}_1(H),{\textbf{X}}_2(H),{\textbf{X}}_3(H),{\textbf{X}}_4(H),{\textbf{X}}_5(H)\right) , \end{aligned}$$
(17)

where \(H=\left( \textrm{F}_{N}, \textrm{I}_N, \textrm{A}_{\beta }, \textrm{T}_{\mu }, \textrm{M}_{\delta }\right)\) and

$$\begin{aligned} \begin{aligned} {\textbf{X}}_1(H)&= \Pi _N+\upsilon \textrm{M}_{\delta }-\alpha \textrm{F}_N\textrm{A}_{\beta }-\phi _1\textrm{F}_N,\\ {\textbf{X}}_2(H)&= \alpha \textrm{F}_N\textrm{A}_{\beta }-\beta _1\textrm{I}_N\textrm{M}_{\delta }-(\gamma +\phi _2)\textrm{I}_N,\\ {\textbf{X}}_3(H)&= \gamma \textrm{I}_N-\beta _2\textrm{A}_{\beta }\textrm{M}_{\delta }-(d_{\beta }+\kappa )\textrm{A}_{\beta },\\ {\textbf{X}}_4(H)&= \kappa \textrm{A}_{\beta }-\beta _3\textrm{T}_{\mu }\textrm{M}_{\delta }-(d_{\mu }+\rho )\textrm{T}_{\mu },\\ {\textbf{X}}_5(H)&= (\beta _1\textrm{I}_N+\beta _2\textrm{A}_{\beta }+\beta _3\textrm{T}_{\mu })\textrm{M}_{\delta }-\phi _3\textrm{M}_{\delta }. \end{aligned} \end{aligned}$$
(18)

Let \({\bar{H}}=\left( \bar{\textrm{F}_{N}}, \bar{\textrm{I}_N}, \bar{\textrm{A}_{\beta }}, \bar{\textrm{T}_{\mu }}, \bar{\textrm{M}_{\delta }}\right)\), then

$$\begin{aligned} \begin{aligned} \Vert {\textbf{X}}(H)-{\textbf{X}}({\bar{H}})\Vert&=|{\textbf{X}}_1(H)-{\textbf{X}}_1({\bar{H}})|+|{\textbf{X}}_2(H)-{\textbf{X}}_2({\bar{H}})|+|{\textbf{X}}_3(H)-{\textbf{X}}_3({\bar{H}})| +|{\textbf{X}}_4(H)-{\textbf{X}}_4({\bar{H}})|\\&~~~~+|{\textbf{X}}_5(H)-{\textbf{X}}_5({\bar{H}})| \\&\le -(\alpha \textrm{A}_{\beta }+\phi _1)|\textrm{F}_{N}-\bar{\textrm{F}_{N}}|-(\gamma +\phi _2)|\textrm{I}_N-\textrm{I}_N|-(\alpha \textrm{F}_N +d_{\beta }+\kappa ) |\textrm{A}_{\beta }-\bar{\textrm{A}_{\beta }}|\\&~~~~-(d_{\mu }+\rho )|\textrm{T}_{\mu }-\bar{\textrm{T}_{\mu }}|-\phi _3|\textrm{M}_{\delta }-\bar{\textrm{M}_{\delta }}|\\&\le {\textbf{X}}_1|H-{\bar{H}}|+{\textbf{X}}_2|H-{\bar{H}}|+{\textbf{X}}_3|H-{\bar{H}}|+{\textbf{X}}_4|H-{\bar{H}}|+{\textbf{X}}_5|H-{\bar{H}}|\\&\le {\textbf{X}}\Vert H-{\bar{H}}\Vert , \end{aligned} \end{aligned}$$
(19)

where \({\textbf{X}}=\max \left\{ {\textbf{X}}_1, {\textbf{X}}_2, {\textbf{X}}_3, {\textbf{X}}_4, {\textbf{X}}_5\right\}\) and

$$\begin{aligned} {\left\{ \begin{array}{ll} {\textbf{X}}_1=-\alpha \textrm{A}_{\beta }-\phi _1,\\ {\textbf{X}}_2=-\gamma -\phi _2,\\ {\textbf{X}}_3=-\alpha \textrm{F}_N -d_{\beta }-\kappa , \\ {\textbf{X}}_4=-d_{\mu }-\rho ,\\ {\textbf{X}}_5=-\phi _3. \end{array}\right. } \end{aligned}$$
(20)

The existence and uniqueness of the proposed fractional-order system (12) are thus guaranteed since \({\textbf{X}}(H)\) meets the Lipschitz condition. \(\square\)

Biological feasibility

Examine the closed set \(\Omega\) for the system (12), which is defined by

$$\begin{aligned} \Omega = \left\{ ({\textbf{X}}_1, {\textbf{X}}_2, {\textbf{X}}_3, {\textbf{X}}_4, {\textbf{X}}_5)\in {\mathbb {R}}^{+}~:~{\textbf{X}}_1(t), {\textbf{X}}_2(t), {\textbf{X}}_3(t), {\textbf{X}}_4(t), {\textbf{X}}_5(t) \ge 0 \right\} , \end{aligned}$$
(21)

is biological feasible.

Lemma 4.2

47 Let \(q(t)\in {\mathbb {C}}[0,{\textbf{T}}]\) and \({}_0^{c}D_t^{\sigma } q(t)\in {\mathbb {C}}[0,{\textbf{T}}]\) for \(\sigma \in (0,1]\). Then, we have

$$\begin{aligned} q(t)=q(0)+\frac{1}{\Gamma (\sigma )}{}_0^{c}D_t^{\sigma } q(t)(t-\varsigma )^{\sigma }, \end{aligned}$$
(22)

where \(\varsigma \in [0,t]\) for all \(t\le {\textbf{T}}\).

Remark 4.1

Let \(q(t)\in {\mathbb {C}}[0,{\textbf{T}}].\) and \({}_0^{c}D_t^{\sigma } q(t)\ge 0\) for all \(t\in (0,{\textbf{T}}]\) and \(\sigma \in (0,1]\), it results from Lemma 4.2 that q(t) is non-decreasing for all \(t\in [0,{\textbf{T}}]\).

Theorem 4.3

47 \(\forall t\ge 0\), the solution of the system (12), starting in \({\mathbb {R}}_{+}^{5}\) and with initial conditions, is constrained and positive invariant.

Proof

First, we show the positive invariance of the set \(\Omega\). For this reason, it is developed from system (12) that

$$\begin{aligned} \begin{aligned} {}_0^{c}D_t^{\sigma }\textrm{F}_{N}(t)\Big |_{\textrm{F}_{N}=0, ~\textrm{T}_{\mu }\ge 0}&= \Pi _N+\upsilon \textrm{M}_{\delta } \ge 0, \\ {}_0^{c}D_t^{\sigma }\textrm{I}_{N}(t)\Big |_{\textrm{I}_{N}=0, ~\textrm{F}_N\ge 0, ~\textrm{A}_{\beta }\ge 0}&= \alpha \textrm{F}_N\textrm{A}_{\beta } \ge 0,\\ {}_0^{c}D_t^{\sigma }\textrm{A}_{\beta }(t)\Big |_{\textrm{A}_{\beta }=0, ~\textrm{I}_N\ge 0}&= \gamma \textrm{I}_N \ge 0,\\ {}_0^{c}D_t^{\sigma }\textrm{T}_{\mu }(t)\Big |_{\textrm{T}_{\mu }=0,~\textrm{A}_{\beta }\ge 0}&= \kappa \textrm{A}_{\beta } \ge 0,\\ {}_0^{c}D_t^{\sigma }\textrm{M}_{\delta }(t)\Big |_{\textrm{M}_{\delta }=0}&= 0. \end{aligned} \end{aligned}$$
(23)

Our conclusion is that the set \(\Omega\) is positive invariant with respect to model (12) since Lemma 4.2 and system (23) hold for all points of \(\Omega\). Next, we establish the boundedness of the set \(\Omega\). Adding all of the model’s Eq. (12) yields the fractional derivative of the entire population \({\textbf{N}}(t)\), namely

$$\begin{aligned} {}_0^{c}D_t^{\sigma }{\textbf{N}}(t)= \Pi _N-\phi _1\textrm{F}_N-\phi _2\textrm{I}_N-d_{\beta }\textrm{A}_{\beta }-d_{\mu }\textrm{T}_{\mu }-\phi _3\textrm{M}_{\delta }. \end{aligned}$$
(24)

Let

$$\begin{aligned} {}_0^{c}D_t^{\sigma }{\textbf{N}}(t)= \Pi _N-\phi _{*}{\textbf{N}}, \end{aligned}$$
(25)

The problem is reformulated as the subsequent initial value problem:

$$\begin{aligned} {\left\{ \begin{array}{ll} {}_0^{c}D_t^{\sigma }{\textbf{N}}(t)+\phi _{*}{\textbf{N}}= \Pi _N,\\ {\textbf{N}}(0)={\textbf{N}}_{0}. \end{array}\right. } \end{aligned}$$
(26)

When we apply the Laplace transform on both sides, we get

$$\begin{aligned} {\mathscr {L}}\left[ {\textbf{N}}(t)+\phi _{*}{\textbf{N}}\right] ={\mathscr {L}}\left[ \Pi _N\right] . \end{aligned}$$
(27)

We get

$$\begin{aligned} {\textbf{N}}(s)=\frac{s^{-1}(\Pi _N+s^{\sigma }{\textbf{N}}_{0})}{s^{\sigma }+\phi }. \end{aligned}$$
(28)

From inverse Laplace transform, we get

$$\begin{aligned} \begin{aligned} {\textbf{N}}(t)&=\Pi _N t^{\sigma }\textrm{E}_{\sigma ,\sigma +1}(-\phi t^{\sigma })+{\textbf{N}}_{0}\textrm{E}_{\sigma ,\sigma +1}(-\phi t^{\sigma })\\&\le ~ \frac{\Pi _N}{\phi }\left[ \phi t^{\sigma }\textrm{E}_{\sigma ,\sigma +1}(-\phi t^{\sigma })\right] +\textrm{E}_{\sigma ,\sigma +1}(-\phi t^{\sigma })\\&\le ~ \frac{\Pi _N}{\phi }\frac{1}{\Gamma (1)}\le \frac{\Pi _N}{\phi }, \end{aligned} \end{aligned}$$
(29)

where \(\textrm{E}_{\sigma ,\sigma +1}\) represents Mittag-Leffler function.

Because the entire population is bounded, the sub-populations are as well, completing the proof. \(\square\)

Qualitative analysis

Equilibrium points and reproductive number

Lemma 5.1

The equilibrium point of (12) is the solution to the

$$\begin{aligned} \begin{aligned} \Pi _N+\upsilon \textrm{M}_{\delta }-\alpha \textrm{F}_N\textrm{A}_{\beta }-\phi _1\textrm{F}_N=0,\\ \alpha \textrm{F}_N\textrm{A}_{\beta }-\beta _1\textrm{I}_N\textrm{M}_{\delta }-(\gamma +\phi _2)\textrm{I}_N=0,\\ \gamma \textrm{I}_N-\beta _2\textrm{A}_{\beta }\textrm{M}_{\delta }-(d_{\beta }+\kappa )\textrm{A}_{\beta }=0,\\ \kappa \textrm{A}_{\beta }-\beta _3\textrm{T}_{\mu }\textrm{M}_{\delta }-(d_{\mu }+\rho )\textrm{T}_{\mu }=0,\\ (\beta _1\textrm{I}_N+\beta _2\textrm{A}_{\beta }+\beta _3\textrm{T}_{\mu })\textrm{M}_{\delta }-\phi _3\textrm{M}_{\delta }=0. \end{aligned} \end{aligned}$$
(30)

If every eigenvalue \((\varpi _i)\) of the Jacobian matrix evaluated at the equilibrium point satisfies

$$\begin{aligned} |\arg (\varpi _i)|>\frac{\sigma \pi }{2}, \end{aligned}$$

then the equilibrium point is locally asymptotically stable.

According to the Lemma 5.1, Eq. (12)’s disease-free equilibrium point is

$$\begin{aligned} P^0=\{\textrm{F}_{N}^0,~\textrm{I}_{N}^0,~\textrm{A}_{\beta }^0,~\textrm{T}_{\mu }^0,~\textrm{M}_{\delta }^0\}=\left\{ \frac{\Pi _N}{\phi _1},0,0,0,0\right\} . \end{aligned}$$
(31)

Next, the next-generation matrix approach48,49 is used to calculate the basic reproduction number \(({\mathscr {R}}_0)\) of Eq. (12). The number of secondary instances of the primary cases that occur during the infectious period as a result of the infection type is known as the basic reproduction number. For this purpose, consider the system

$$\begin{aligned} \begin{aligned} {}_0^{c}D_t^{\sigma }\textrm{I}_{N}(t)&= \alpha \textrm{F}_N\textrm{A}_{\beta }-\beta _1\textrm{I}_N\textrm{M}_{\delta }-(\gamma +\phi _2)\textrm{I}_N,\\ {}_0^{c}D_t^{\sigma }\textrm{A}_{\beta }(t)&= \gamma \textrm{I}_N-\beta _2\textrm{A}_{\beta }\textrm{M}_{\delta }-(d_{\beta }+\kappa )\textrm{A}_{\beta },\\ {}_0^{c}D_t^{\sigma }\textrm{T}_{\mu }(t)&= \kappa \textrm{A}_{\beta }-\beta _3\textrm{T}_{\mu }\textrm{M}_{\delta }-(d_{\mu }+\rho )\textrm{T}_{\mu }. \end{aligned} \end{aligned}$$
(32)

The associated transition matrix \(({\textbf{V}})\) and incidence matrix \(({\textbf{F}})\) for the system (12), at \({P}^0\), are obtained as follows, respectively:

$$\begin{aligned} {\textbf{F}}=\left( \begin{array}{ccc} 0 & \frac{\alpha \Pi _N}{\phi _1} & 0 \\ 0 & 0 & 0 \\ 0 & 0 & 0 \\ \end{array} \right) ,~~ {\textbf{V}}=\left( \begin{array}{ccc} \gamma +\phi _2 & 0 & 0 \\ -\gamma & d_{\beta }+\kappa & 0\\ 0 & -\kappa & d_{\mu }+\rho \\ \end{array} \right) . \end{aligned}$$
(33)

Then, from spectral radius of \({\textbf{F}}{\textbf{V}}^{-1}\), we have the reproductive number \(({\mathscr {R}}_0)\) as:

$$\begin{aligned} {\mathscr {R}}_0=\frac{\alpha \gamma \Pi _N}{(\gamma +\phi _2)(d_{\beta }+\kappa )}. \end{aligned}$$
(34)

One important epidemiological statistic that is connected to cognitive capacities and the likelihood of incident Alzheimer’s disease is the fundamental reproduction number \({\mathscr {R}}_0\). The risk of incident Alzheimer’s disease will be higher if \({\mathscr {R}}_0>1\) and lower if \({\mathscr {R}}_0<1\). In terms of biology, the term “reproductive number \(({\mathscr {R}}_))\)” in Alzheimer’s refers to the transmission of misfolded proteins and illness from neuron to neuron or from region to region rather than from person to person. The average number of new neurons or brain regions infected by a pathogenic protein, like tau, that originate from a single infected neuron or region during its infectious phase is indicated here by \({\mathscr {R}}_0\). When the \({\mathscr {R}}_0>1\), it means that the pathology is gradually expanding and advancing the disease. On the other hand, \({\mathscr {R}}_0<1\) indicates that the pathology is contained and cannot spread further, which could lead to a very sluggish or non-progressive disease state.

Equation (12)’s endemic equilibrium point is \(P^*=\{\textrm{F}_{N}^*,~\textrm{I}_{N}^*,~\textrm{A}_{\beta }^*,~\textrm{T}_{\mu }^*,~\textrm{M}_{\delta }^*\}\), where

$$\begin{aligned} \begin{aligned} \textrm{F}_{N}^*=&\frac{\Pi _N+\upsilon \textrm{M}_{\delta }^*}{\alpha \textrm{A}_{\beta }^*+\phi _1},~~~~~ \textrm{I}_{N}^*= \frac{\alpha \textrm{F}_N^*\textrm{A}_{\beta }^*}{\beta _1\textrm{M}_{\delta }^*+\gamma +\phi _2},\\ \textrm{A}_{\beta }^*=&\frac{\gamma \textrm{I}_N^*}{\beta _2\textrm{M}_{\delta }^*+d_{\beta }+\kappa },~~~~~ \textrm{T}_{\mu }^*= \frac{\kappa \textrm{A}_{\beta }^*}{\beta _3\textrm{M}_{\delta }^*+d_{\mu }+\rho },\\ \textrm{M}_{\delta }^*=&\max \left\{ \frac{\alpha \textrm{F}_N^*\textrm{A}_{\beta }^*-(\gamma +\phi _2)\textrm{I}_N^*}{\beta _1\textrm{I}_N^*},~\frac{\gamma \textrm{I}_N^*-(d_{\beta }+\kappa ) \textrm{A}_{\beta }^*}{\beta _2\textrm{A}_{\beta }^*},~\frac{\kappa \textrm{A}_{\beta }-(d_{\mu }+\rho )\textrm{T}_{\mu }^*}{\beta _3\textrm{T}_{\mu }^*}\right\} . \end{aligned} \end{aligned}$$
(35)

\(P^*\) exists when \({\mathscr {R}}_0>1\).

Sensitivity of \({\mathscr {R}}_0\)’s parameters

The sensitivity analysis of the \({\mathscr {R}}_0\) to the parameters in Eq. (38) is presented in this subsection. This analysis’s goal is to quantify the factors that most affect \({\mathscr {R}}_0\). We use normalized sensitivity index50 and the following formula can be used to get the index of each parameter involved in \({\mathscr {R}}_0\):

$$\begin{aligned} \Im _{z}^{{\mathscr {R}}_0}=\frac{\partial {\mathscr {R}}_0}{\partial z}\frac{z}{{\mathscr {R}}_0}, \end{aligned}$$
(36)

where \(\Im _{z}^{{\mathscr {R}}_0}\) is the normalized sensitivity index formula in which z represents the parameter to be analyzed. Table 2 displays the findings of the sensitivity index calculation on the model parameters.

Table 2 Parameters sensitivity index results.
Full size table

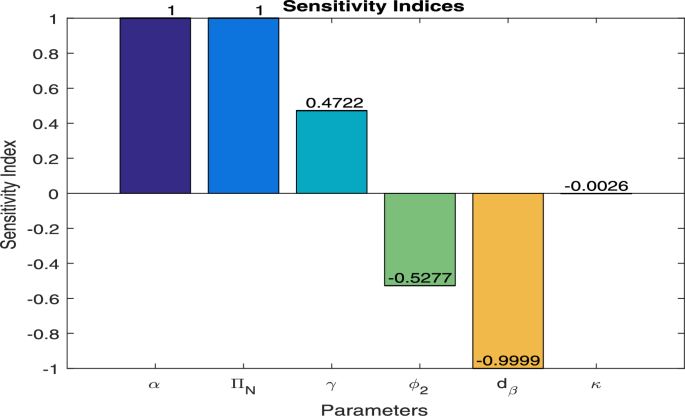

Fig. 2
figure 2

Sensitivity indices of the \({\mathscr {R}}_0\)’s parameters.

Full size image

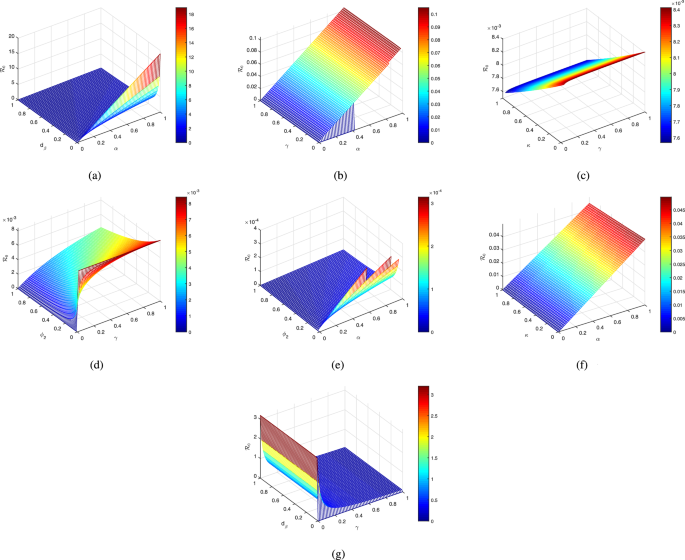

Fig. 3
figure 3

Variations in \({\mathscr {R}}_0\) via different parameters.

Full size image

A positive sensitivity index means that higher parameter values result in higher basic reproduction numbers, whereas negative sensitivity means that higher parameter values result in lower basic reproduction numbers. As an illustration, if the sensitivity index is \(\Im _{\alpha }^{{\mathscr {R}}_0}=1\), then raising the \(\alpha\) value by \(10\%\) will raise \({\mathscr {R}}_0\) by \(10\%\), and if \(\Im _{\phi _2}^{{\mathscr {R}}_0}=-0.5277\), then raising the \(\phi _2\) value by \(10\%\) will reduce \({\mathscr {R}}_0\) by \(5.277\%\). They thereby help to lower the basic reproduction number, which in turn helps to lower the disease’s prevalence. Figure 2 shows a bar graph of these results. Additionally, the sensitivity plots in Fig. 3(a) - 3(g) show how different model parameters affect the \({\mathscr {R}}_0\).

Ulam-hyres stability

This section goes into the Ulam-Hyers stability of nonlinear fractional-order systems utilizing fractional methods, a concept that dates back to the twentieth century and originated with Ulam and Hyers’ work between 1940 and 1941. In numerical analysis and optimization, Ulam-Hyers stability is essential because it yields near-precise results rather than perfect ones. Ulam-Hyers-Rassias has made a substantial contribution to this issue. Simulations that show how small variances in solutions disappear over time can be used to numerically verify Ulam-Hyers stability. This entails proving convergence, comparing perturbed solutions to accurate ones, and offering information about the mathematical model’s adaptability and reliability. It ensures that slight variations in initial conditions or external factors do not produce unanticipated results, with the system’s response proportionate to the scale of the perturbation. Because of the intrinsic complexity of nonlinear fractional-order models, analytical solutions are frequently unattainable, necessitating reliance on numerical techniques and approximate analytical methods. Proving UH stability for fractional models uses fixed-point theorems within appropriate function spaces, simplifying the approach and eliminating the necessity for Lyapunov analysis. Furthermore, proving Ulam-Hyers stability validates the use of numerical methods by assuring that calculated numerical solutions are consistently close to the genuine but unknown precise solutions of the models, protecting against mathematically nonsensical findings.

Lemma 6.1

The solution of the problem

$$\begin{aligned} {\left\{ \begin{array}{ll} {}_0^{c}D_t^{\sigma }Q(t)=\varpi (t,Q(t))+m(t),\\ Q(0)=Q_0, \end{array}\right. } \end{aligned}$$
(37)

satisfies the following:

$$\begin{aligned} \left| Q(t)-Q_0-\frac{1}{\Gamma (\sigma )}\int _0^t\varpi (\varsigma , Q(\varsigma )) (t-\varsigma )d\varsigma \right| \le \frac{\Im ^{\sigma }}{\Gamma (\sigma +1)}\eta =\varphi \eta . \end{aligned}$$
(38)

Definition 6.1

The system (12) is Ulam-Hyers-Rassias stable for \(\eta (t)\in \textrm{L}^{1}([0, {\textbf{T}}], {\mathbb {R}})\) and a real valued continuous function z(t) on \([0,\infty )\), provided that

  • \(\exists\) a real value \(\delta _{\sigma }> 0\), and

  • for each of the solutions \((\textrm{F}_{N}, \textrm{I}_N, \textrm{A}_{\beta }, \textrm{T}_{\mu }, \textrm{M}_{\delta })\in \textrm{L}^{1}([0, {\textbf{T}}], {\mathbb {R}})\) of the following inequality

    $$\begin{aligned} \big |{}_0^{c}D_{t}^{\sigma }Q(t)-{z}(t,{Q}(t))\big | ~ \le ~ \eta (t), \end{aligned}$$
    (39)

    there is a solution \((\bar{\textrm{F}_{N}}, \bar{\textrm{I}_N}, \bar{\textrm{A}_{\beta }}, \bar{\textrm{T}_{\mu }}, \bar{\textrm{M}_{\delta }})\in \textrm{L}^{1}([0,{\textbf{T}}],{\mathbb {R}})\) of (12) satisfying

    $$\begin{aligned} |{Q}(t)-\bar{{Q}}(t)| ~ \le \delta _{\sigma }\eta (t). \end{aligned}$$
    (40)

Theorem 6.1

The system (12) is Ulam-Hyers-Rassias stable for \(\textrm{L}^{1}([0,{\textbf{T}}],{\mathbb {R}})\) if

$$\begin{aligned} Q{M}^{\sigma } <1. \end{aligned}$$
(41)

Proof

For \(\varpi>0\),

$$\begin{aligned} \int _0^t(t-\varsigma )\eta (\varsigma )d\varsigma \le \varpi \eta (t),~~~~~~~\forall t\in [0,{\textbf{T}}]. \end{aligned}$$
(42)

According to Definition 6.1, \(\eta\) is a non-decreasing function of t. It has been demonstrated that the function \(\varphi\) is continuous and that the solutions’ positivity satisfies the Lipschitz conditions. Therefore, we have

$$\begin{aligned} {\bar{Q}}(t)=Q_0+\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1}\Vert {z}(\varsigma ,\bar{{{Q}}}(\varsigma ))\Vert d\varsigma . \end{aligned}$$
(43)

Integrating gives us

$$\begin{aligned} \big |Q(t)-Q_0-\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1}{z}(\varsigma ,{{Q}}(\varsigma ))d\varsigma \big | ~\le ~\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1}\eta (\varsigma ) d\varsigma ~ \le ~ \frac{\varpi {M}^{\sigma }}{\Gamma (\sigma +1)}\eta (t). \end{aligned}$$
(44)

Also, we get

$$\begin{aligned} \begin{aligned} \big |Q(t)-{\bar{Q}}(t)\big |&\le \Big |Q(t)-Q_0-\big \{\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1} {z}(\varsigma ,\bar{{{Q}}}(\varsigma ))d\varsigma \\&~~~+\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1} {z}(\varsigma ,{{Q}}(\varsigma ))d\varsigma -\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1} {z}(\varsigma ,{{Q}}(\varsigma ))d\varsigma \big \}\Big |\\&\le \Big |Q(t)-Q_0-\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1} {z}(\varsigma ,{{Q}}(\varsigma ))d\varsigma \Big |\\&~~~+\frac{1}{\Gamma (\sigma )}\int _0^t(t-\varsigma )^{\sigma -1} \Big |{z}(\varsigma ,{{Q}}(\varsigma ))-{z}(\varsigma ,\bar{{Q}}(\varsigma ))\Big | d\varsigma \\&\le \frac{\varpi {M}^{\sigma }\eta (t)}{\Gamma (\sigma +1)}+\frac{\Psi _{{z}}{M}^{\sigma }}{\Gamma (\sigma +1)}\int _0^t(t-\varsigma )^{\sigma -1} \big |Q(\varsigma )-{\bar{Q}}(\varsigma )\big | d\varsigma \\&\le ~ \frac{\varpi {M}^{\sigma }\eta (t)\textrm{E}_{\sigma }(\Psi _{{z}}{M}^{\sigma })}{\Gamma (\sigma +1)}. \end{aligned} \end{aligned}$$
(45)

Let \(\frac{\varpi {M}^{\sigma }\textrm{E}_{\sigma }(\Psi _{\varphi _i}{M}^{\sigma })}{\Gamma (\sigma +1)}=\delta _{\sigma }\), then

$$\begin{aligned} |Q(t)-{\bar{Q}}(t)| ~~ \le ~~ \delta _{\sigma }\eta (t). \end{aligned}$$
(46)

\(\square\)

Chaos control

Adaptive techniques can be used to regulate the chaos in the fractional order system (12) when uncertainties and disturbances are taken into account. The objective is to appropriately build controllers to stabilize chaos around fixed points in the system’s trajectories. We use a linear feedback regulate method to stabilize the regulated design of the proposed system (12) based on its equilibrium points.

Theorem 7.1

Under the following control law, the fractional-order chaotic system is stabilized.

$$\begin{aligned} \begin{aligned} {}_0^{c}D_t^{\sigma }\textrm{F}_{N}(t)&= \Pi _N+\upsilon \textrm{M}_{\delta }-\alpha \textrm{F}_N\textrm{A}_{\beta }-\phi _1\textrm{F}_N-\psi _1(\textrm{F}_{N}-\textrm{F}_{N}^{\star }),\\ {}_0^{c}D_t^{\sigma }\textrm{I}_{N}(t)&= \alpha \textrm{F}_N\textrm{A}_{\beta }-\beta _1\textrm{I}_N\textrm{M}_{\delta }-(\gamma +\phi _2)\textrm{I}_N-\psi _2(\textrm{I}_{N}-\textrm{I}_{N}^{\star }),\\ {}_0^{c}D_t^{\sigma }\textrm{A}_{\beta }(t)&= \gamma \textrm{I}_N-\beta _2\textrm{A}_{\beta }\textrm{M}_{\delta }-(d_{\beta }+\kappa )\textrm{A}_{\beta }-\psi _3(\textrm{A}_{\beta }-\textrm{A}_{\beta }^{\star }),\\ {}_0^{c}D_t^{\sigma }\textrm{T}_{\mu }(t)&= \kappa \textrm{A}_{\beta }-\beta _3\textrm{T}_{\mu }\textrm{M}_{\delta }-(d_{\mu }+\rho )\textrm{T}_{\mu }-\psi _4(\textrm{T}_{\mu }-\textrm{T}_{\mu }^{\star }),\\ {}_0^{c}D_t^{\sigma }\textrm{M}_{\delta }(t)&= (\beta _1\textrm{I}_N+\beta _2\textrm{A}_{\beta }+\beta _3\textrm{T}_{\mu })\textrm{M}_{\delta }-\phi _3\textrm{M}_{\delta }-\psi _5(\textrm{M}_{\delta }-\textrm{M}_{\delta }^{\star }). \end{aligned} \end{aligned}$$
(47)

where \(\{\}^{\star }\) depicts the system (6)’s equilibrium point and control parameters are: \(\psi _1\); \(\psi _2\); \(\psi _3\); \(\psi _4\), \(\psi _5\).

Proof

The Jacobian matrix at equilibrium point is given as follows:

$$\begin{aligned} J(P^{\star })= \left[ \begin{array}{ccccc} -\phi _1-\psi _1 & 0 & -\alpha \frac{\Pi _N}{\phi _1} & \rho & 0 \\ 0 & -\gamma -\phi _2-\psi _2 & \alpha \frac{\Pi _N}{\phi _1} & 0 & 0 \\ 0 & \gamma & -d_{\beta }-\kappa -\psi _3 & 0 & 0 \\ 0 & 0 & \kappa & -d_{\mu }-\rho -\psi _4 & 0\\ 0 & 0 & 0 & 0 & -\phi _3-\psi _5\\ \end{array}\right] . \end{aligned}$$
(48)

The characteristic equation can be expressed as follows:

$$\begin{aligned} f(\xi )= \left| \begin{array}{ccccc} \xi +\phi _1+\psi _1 & 0 & \alpha \frac{\Pi _N}{\phi _1} & -\rho & 0 \\ 0 & \xi +\gamma +\phi _2+\psi _2 & -\alpha \frac{\Pi _N}{\phi _1} & 0 & 0 \\ 0 & -\gamma & \xi +d_{\beta }+\kappa +\psi _3 & 0 & 0 \\ 0 & 0 & -\kappa & \xi +d_{\mu }+\rho +\psi _4 & 0\\ 0 & 0 & 0 & 0 & \xi +\phi _3+\psi _5\\ \end{array}\right| =0. \end{aligned}$$
(49)

Letting \(\psi _{1}=1\), \(\psi _{2}=2\), \(\psi _{3}=3\), \(\psi _{4}=4\), and \(\psi _{5}=5\) gives us

$$\begin{aligned} \xi _1&=\phi _1-1, ~~~~~~\xi _2=-\gamma -\phi _2-2, ~~~~\xi _3=-d_{\beta }-\kappa -3, \end{aligned}$$
(50)
$$\begin{aligned} \xi _4&=-d_{\mu }-\rho -4,~~~~~~ \xi _5=-\phi _3-5. \end{aligned}$$
(51)

We can easily verify that

$$\begin{aligned} |\arg \xi _i|=\pi>\frac{\sigma \pi }{2}~~~~\textit{and}~~~~~|\xi _i|<\left[ 2cos\left( \frac{|\arg \xi _i|-\pi }{2-\sigma }\right) \right] ^{\sigma },~~~~~0<\sigma <1. \end{aligned}$$
(52)

We can observe that all of the eigenvalues are negative, as shown below, using the parameter values from Table 1, which provides the asymptotic stability for the equilibrium point.

$$\begin{aligned} \xi _1=-1.08, ~~~~\xi _2=-2.00036, ~~~~\xi _3=-12.535,~~~~\xi _4=-4.302,~~~~ \xi _5=-5.015. \end{aligned}$$
(53)

\(\square\)

Numerical scheme

According to recent research, power-law processes can be simulated using the Caputo derivative. Given the dynamics seen in fractional calculus, we employed the temporal derivative in conjunction with the Caputo derivative to incorporate power law effects into our model. The problem is then discretized using a numerical approach51,52 based on Newton polynomial interpolation. We can generalize the system (12) in abstract form:

$$\begin{aligned} {\left\{ \begin{array}{ll} {}_0^{{\mathfrak {C}}}\textrm{D}_t^{\sigma } Q(t)=\lambda (t,Q(t)),~~~~~\sigma \in (0,1],~~~t\in [0,{\textbf{T}}],\\ Q(0)=Q_{0}, \end{array}\right. } \end{aligned}$$
(54)

Then we have

$$\begin{aligned} Q(\textrm{t}_{\zeta + 1}) = Q_0 + \frac{1}{\Gamma (\sigma )} \sum _{j=2}^\zeta \int _{t_j}^{\textrm{t}_{j+1}} \lambda (\textrm{t}_{\zeta +1} - \varsigma )^{\sigma -1} d\varsigma . \end{aligned}$$
(55)

Approximating \(\lambda (t,\Delta (t))\) using the Newton polynomial as

$$\begin{aligned} & {\text{P}}_{l} (\phi ) \simeq \lambda (t_{{j - 2}} ,Q^{{j - 2}} ) \\ & \quad + \frac{1}{{Qt}}\left[ {\lambda (t_{{j - 1}} ,Q^{{j - 1}} ) - \lambda (t_{{j - 2}} ,Q^{{j - 2}} )} \right] \times (\phi - t_{{j - 2}} ) \\ & \quad + \frac{1}{{2Qt^{2} }}\left[ {\lambda (t_{j} ,Q^{j} ) - 2\lambda (t_{{j - 1}} ,Q^{{j - 1}} ) + \lambda (t_{{j - 2}} ,Q^{{j - 2}} )} \right] \times (\phi - t_{{j - 2}} )(\phi - t_{{j - 1}} ). \\ \end{aligned}$$
(56)

After some computations, we get

$$\begin{aligned} Q(\textrm{t}_{\zeta +1})&= Q_0 + \frac{(\Delta t)^\sigma }{\Gamma (\sigma +1)} \sum _{j=2}^\zeta \lambda (\textrm{t}_{j-2},Q^{j-2}) \times \Big ((\zeta -j+1)^\sigma -(\zeta -j)^\sigma \Big )\nonumber \\&~~~+ \frac{(\Delta t)^\sigma }{\Gamma (\sigma +2)} \sum _{j=2}^\zeta \Big \{ \lambda (\textrm{t}_{j-1},Q^{j-1})-\lambda (\textrm{t}_{j-2},Q^{j-2})\Big \} \times \begin{pmatrix} (\zeta -j+1)^\sigma (\zeta -j+3+2 \sigma )\\ -(\zeta -j)^\sigma (\zeta -j+3(1+\sigma )) \end{pmatrix}\nonumber \\&~~~+ \frac{\sigma (\Delta t)^\sigma }{2\Gamma (\sigma +3)} \sum _{j=2}^\zeta \Big \{\lambda (\textrm{t}_{j},Q^{j}) -2\lambda (\textrm{t}_{j-1}, Q^{j-1})+\lambda (\textrm{t}_{j-2}, Q^{j-2})\Big \} \nonumber \\&~~~\times \begin{pmatrix} (\zeta -j+1)^\sigma \{2(\zeta -j)^2+(3 \sigma +10)(\zeta -j)+(2 \sigma +9)\sigma +12\}\\ -(\zeta -l)^\sigma \{2(\zeta -j)^2+(5 \sigma +10)(\zeta -j)+6(\sigma ^2+3 \sigma +2)\}. \end{pmatrix} \end{aligned}$$
(57)

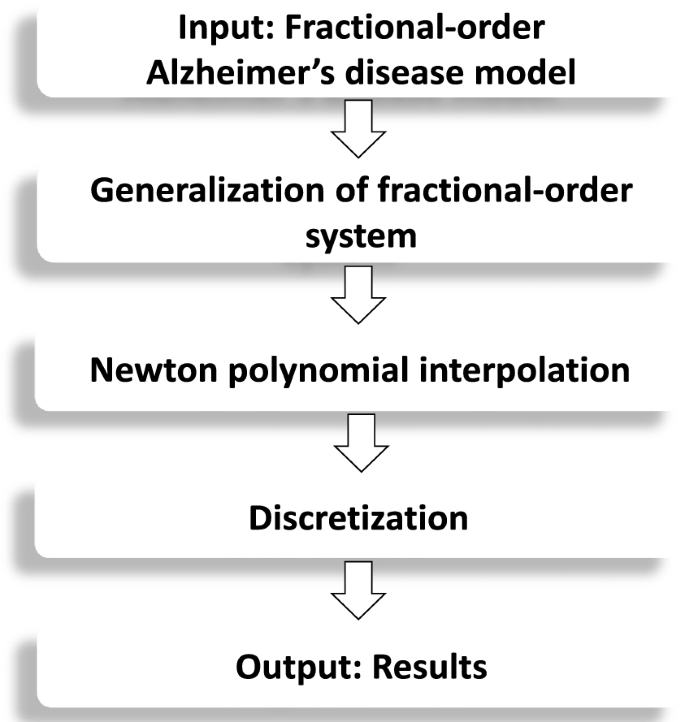

The proposed scheme’s algorithm is illustrated in Fig. 4.

Fig. 4
figure 4

Numerical scheme’s algorithm.

Full size image

Simulations discussion

This section investigates the temporal dynamics of our fractional-order model, revealing a variety of shifting patterns in different compartments and providing numerical evidence to support our findings. Using the Newton polynomial method described in the previous section, we mathematically examine the effects of fractional order changes on the density of functioning neurons, infected neurons, amyloid-beta, tau protein and microglia. The values of the parameters are taken from Table 1. We used MATLAB programming to run these simulations. The analysis shows consistent behavior patterns and a substantial correlation between the dynamics of the fractional-order and integer-order models. The inquiry centers on various fractional order cases, all of which are available through the figures. Numerical results are derived for various ways of assessing the feasibility and accuracy of the proposed model, as shown in Figures 6-19, which support theoretical observations. Details of each sub-figure are also explained below for better representation and understanding of the behavior of the model.

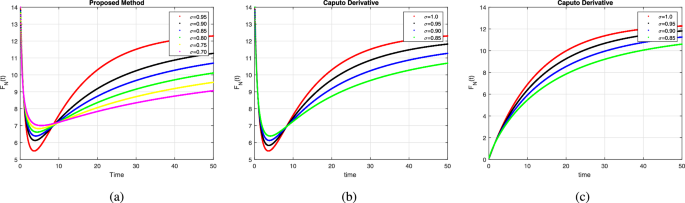

  • Fig. 5a shows the analysis of functioning neurons at various \(\sigma\) levels. We see that functional neurons first decline in the presence of harmful proteins and then resume normal functioning once microglia are activated. The comparison study of integer-order and fractional-order model is displayed in Fig. 5b. At larger fractional orders, we observe an increase in functioning neurons. Using actual data from the literature, Fig. 5c illustrates the dynamics of \(\textrm{F}_N(t)\) at different \(\sigma\) levels. At increasing \(\sigma\) values, we observe an increase in functioning neurons.

  • The study of infected neurons at different \(\sigma\) levels is shown in Fig. 6a. Infected neurons accumulate as a result of the infection, and as they recover, they start to deteriorate and stabilize. Figure 6b shows the comparison study of the integer-order and fractional-order models. The density of tau and amyloid-beta proteins, as well as infected neurons, noticeably decreases at increasing fractional orders. Figure 6c shows the dynamics of \(\textrm{I}_N(t)\) at various \(\sigma\) values using real data from the literature. The dynamics of infected neurons decrease more quickly at large \(\sigma\) values than at high fractional orders.

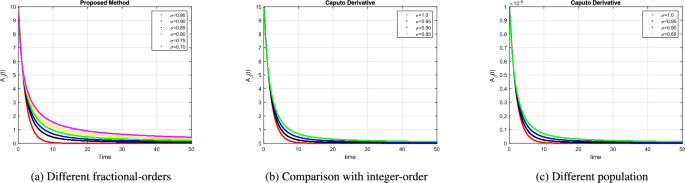

  • Figure 7a displays the amyloid-beta analysis at different \(\sigma\) values. Amyloid-beta protein levels gradually decline as a result of microglia activation. The comparative study between the fractional-order and integer-order models is shown in Fig. 7b. The density of amyloid-beta decreases noticeably with higher fractional orders. The dynamics of \(\textrm{A}_{\beta }(t)\) at various \(\sigma\) values are depicted in Fig. 7c using real data from the literature. Compared to high fractional orders, the dynamics of \(\textrm{A}_{\beta }\) decrease more quickly for large \(\sigma\) values.

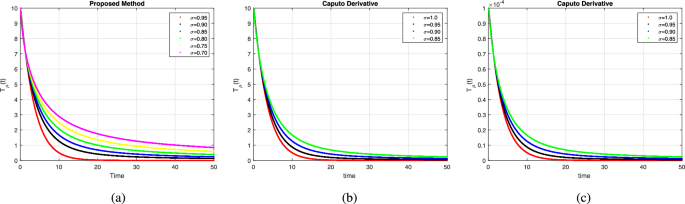

  • The simulation of tau protein at different \(\sigma\) levels is shown in Fig. 8a. High \(\sigma\) values cause the tau protein’s dynamics to drop more quickly than high fractional orders. Figure 8b shows the comparison study of the integer-order and fractional-order models. The tau protein density noticeably decreases with higher fractional orders. Figure 8c shows the dynamics of \(\textrm{T}_{\mu }(t)\) at various \(\sigma\) values using real data from the literature. The dynamics of \(\textrm{T}_{\mu }\) decrease more quickly at large \(\sigma\) values than they do at high fractional orders.

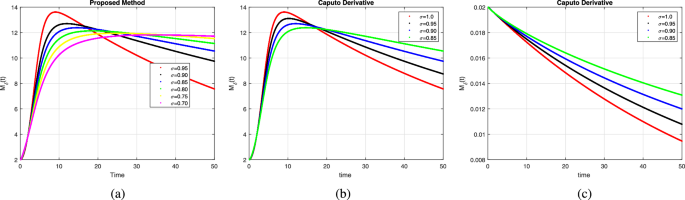

  • In Fig. 9a, microglia are analyzed at different \(\sigma\) levels. Microglia first become more functional at high fractional orders, but thereafter their functionality declines at high fractional orders. In Fig. 9b, the comparison study of integer-order and fractional-order models is shown. Microglia proliferate more rapidly at low fractional orders than at higher fractional orders and integer-order order. The dynamics of \(\textrm{M}_{\delta }(t)\) at various \(\sigma\) values are depicted in Fig. 9c using real data from the literature. Microglia’s performance decreases at large fractional orders in contrast to smaller \(\sigma\) values.

  • When it comes to representing memory and hereditary characteristics in biological systems, a Caputo fractional model performs better than conventional integer-order models. These effects are crucial for examining the course of Alzheimer’s disease. The Caputo derivative is preferred among fractional approaches because it can include integer-order initial conditions. It is especially useful for expressing phenomena with nonlocal features because of this capability. The non-locality of the Caputo fractional operator illustrates the role of memory in the dynamics of Alzheimer’s disease. Its spectrum of low to high prevalence is analyzed to determine its efficacy. The fractional order \(\sigma\) in the fractional model of Alzheimer’s disease characterizes memory or time-delay effects, illustrating how past states affect disease dynamics. A smaller \(\sigma\) indicates a stronger memory effect, which is dependent on the disease’s complete history, whereas values near 1 indicate lesser memory and behavior, similar to standard integer-order differential equations. This technique helps describe the complicated, non-local temporal dynamics of Alzheimer’s disease, such as amyloid-\(\beta\) buildup and Microglia activation. The conventional integer order model solution at \(\sigma = 1\) is used in the study to compare integer-order results with numerical simulation results. Over longer time periods, curves with \(\sigma = 0.95, 0.90, 0.85\) exhibit a slower increase or decrease. A fair ratio can be employed to lessen the consequences of amyloid beta and tau protein. With the system’s memory effect and derivative order decreasing from 1, the concentration of tau and amyloid-beta proteins rises, suggesting that fractional-order dynamics with memory effects are more robust. For long-range interactions between neurons, amyloid-beta, tau protein, infected neurons, and microglia, the model provides more accurate predictions. Effective therapy of Alzheimer’s disease requires an understanding of its historical dynamics.

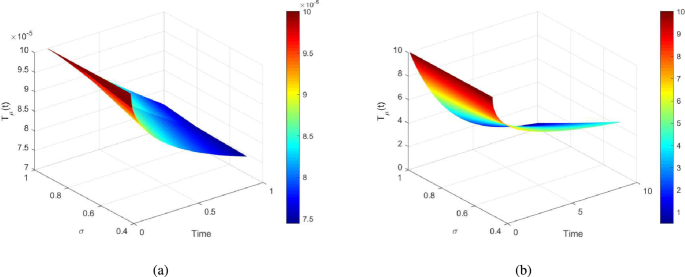

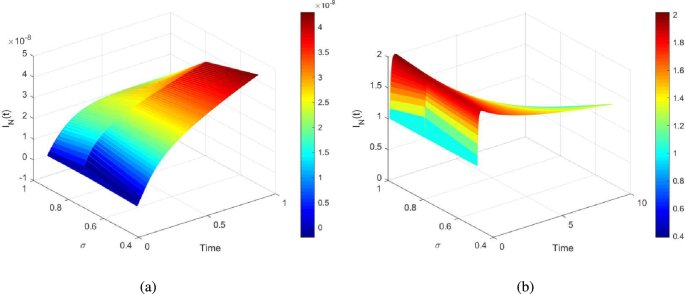

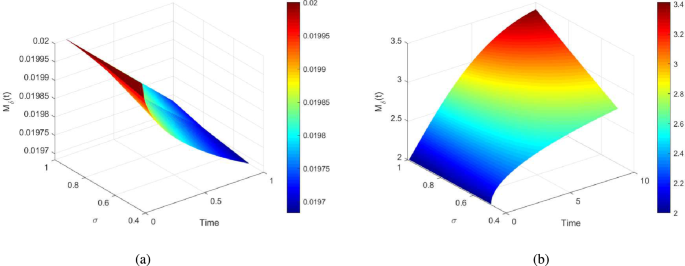

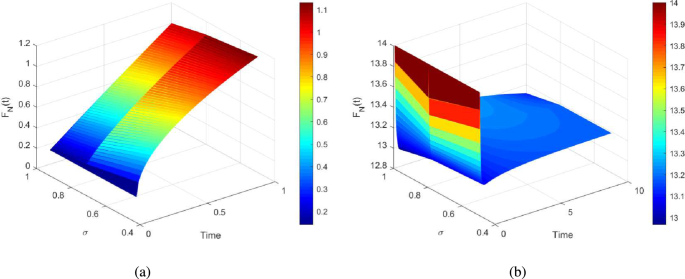

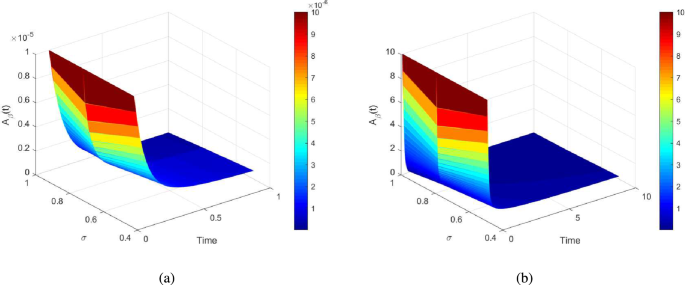

  • A surface plot shows a three-dimensional relationship in two dimensions with variables on the two axes and a smooth surface. Figure 10a and b show 3D surface graphs for functional neurons with suggested parameter values and different population, respectively. Figure 11a and b show 3D surface graphs for infected neurons with suggested parameter values and different population, respectively. Figure 12a and b show 3D surface graphs for amyloid-beta concentration with suggested parameter values and different population, respectively. Figure 13a and b show 3D surface graphs for tau protein concentration with suggested parameter values and different population, respectively. Figure 14a and b show 3D surface graphs for microglia density with suggested parameter values and different population, respectively. Surface plots of the feasible zone’s stable relation and the chaos region for various compartments in the phase trajectory are displayed. These response surface plots show the main effects and interaction effects of independent variables. The idea that fractional derivatives influence neuron concentration is supported by variations in outlines. Compartment densities are shown by surface peaks.

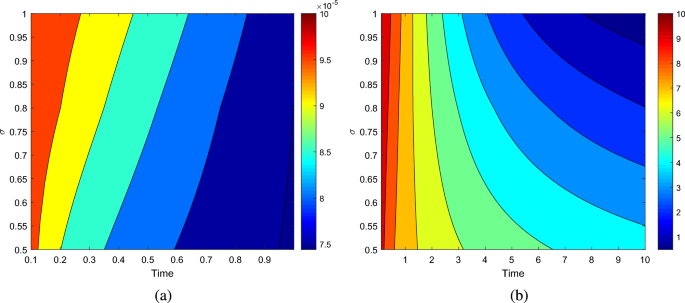

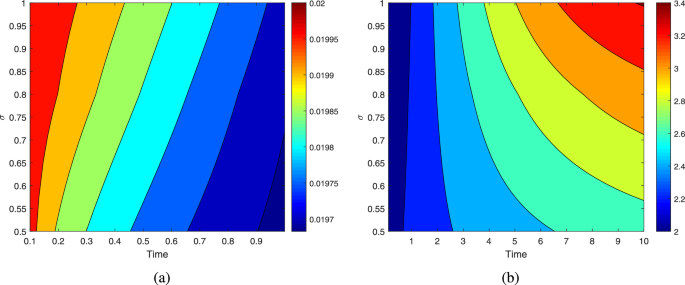

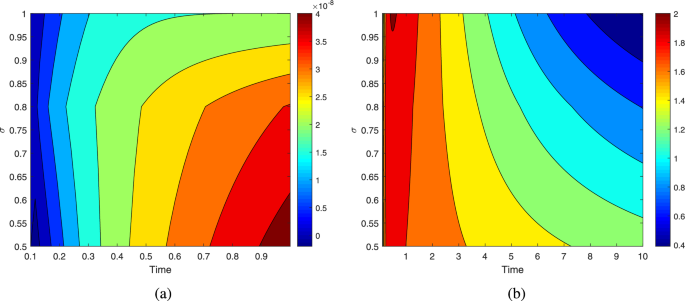

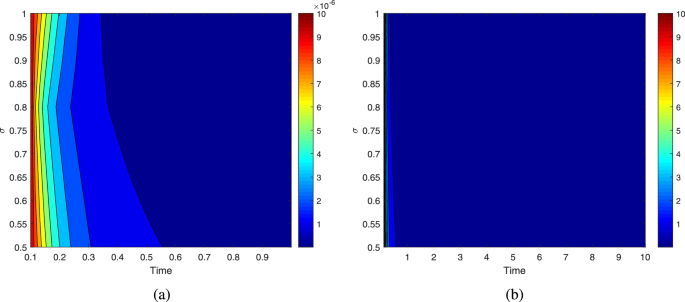

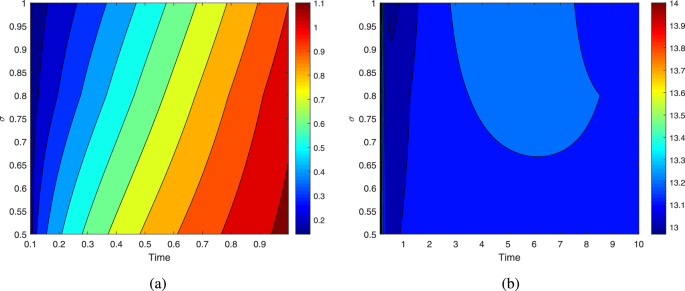

  • Two-dimensional contour plots give visual representations of response values. A contour plot joins points with the same response value to show a two-dimensional representation of a response variable. Contour plots for functioning neurons with recommended parameter values and distinct populations are displayed in Fig. 15a and b, respectively. Contour plots for infected neurons with varied populations and recommended parameter values are displayed in Fig. 16a and b. Contour plots for amyloid-beta concentration with recommended parameter values and distinct populations are displayed in Fig. 17a and b, respectively. Contour plots for tau protein concentration with recommended parameter values and distinct populations are displayed in Fig. 18a and b, respectively. Contour plots for microglia density with recommended parameter values and distinct populations are displayed in Fig. 19a and b, respectively. These contour plots show stepwise behavior and reveal fractional order \(\sigma\) for each compartment. For compartment densities as shown by contour plots, darker areas imply slower progression and lighter patches indicate higher densities.

Fig. 5
figure 5

Comparison results of \(\textrm{F}_N(t)\) using integer-order, fractional-order and different population.

Full size image
Fig. 6
figure 6

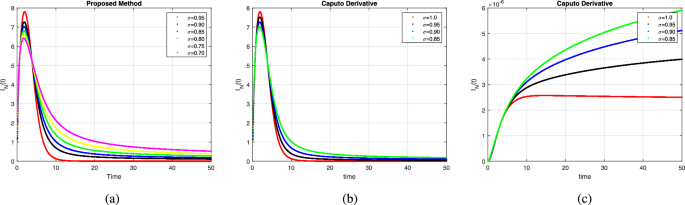

Comparison results of \(\textrm{I}_N(t)\) using integer-order, fractional-order and different population.

Full size image
Fig. 7
figure 7

Comparison results of \(\textrm{A}_{\beta }(t)\) using integer-order, fractional-order and different population.

Full size image
Fig. 8
figure 8

Comparison results of \(\textrm{T}_{\mu }(t)\) using integer-order, fractional-order and different population.

Full size image
Fig. 9
figure 9

Comparison results of \(\textrm{M}_{\delta }(t)\) using integer-order, fractional-order and different population.

Full size image
Fig. 10
figure 10

Response surface plot of \(\textrm{F}_N(t)\).

Full size image
Fig. 11
figure 11

Response surface plot of \(\textrm{I}_N(t)\).

Full size image
Fig. 12
figure 12

Response surface plot of \(\textrm{A}_{\beta }(t)\).

Full size image
Fig. 13
figure 13

Response surface plot of \(\textrm{T}_{\tau }(t)\).

Full size image
Fig. 14
figure 14

Response surface plot of \(\textrm{M}_{\delta }(t)\).

Full size image
Fig. 15
figure 15

Contour plot of \(\textrm{F}_N(t)\) within feasible domain.

Full size image
Fig. 16
figure 16

Contour plot of \(\textrm{I}_N(t)\) within feasible domain.

Full size image
Fig. 17
figure 17

Contour plot of \(\textrm{A}_{\beta }(t)\) within feasible domain.

Full size image
Fig. 18
figure 18

Contour plot of \(\textrm{T}_{\tau }(t)\) within feasible domain.

Full size image
Fig. 19
figure 19

Contour plot of \(\textrm{M}_{\delta }(t)\) within feasible domain.

Full size image

The comparative numerical outcomes for all biological compartments associated with Alzheimer’s disease (AD) under integer-order conditions are presented in Tables 3, 4, 5, 6 and 7. Table 3 illustrates the temporal evolution of the \(F_N\) compartment, representing the population of normal neurons. The results indicate that neuronal activity initially increases but gradually declines over time, reflecting the progressive nature of neuronal degradation characteristic of AD. Table 4 presents the results for the \(I_N\) compartment, which corresponds to infected or impaired neurons. A noticeable decline is observed for lower fractional values, signifying that diminished memory effects suppress the progression of neuronal impairment. The dynamic response of the \(A_\beta\) compartment, shown in Table 5, demonstrates a steady decrease in amyloid-beta concentration over time, implying that the integer-order case promotes a faster clearance mechanism compared to fractional dynamics. Similarly, Table 6 reports the variations in the \(T_\mu\) compartment, representing activated microglial cells. Here, smaller fractional parameters yield faster decay and lower steady-state values, highlighting the sensitivity of microglial activation to the order of differentiation. Finally, Table 7 summarizes the \(M_\delta\) compartment results, which describe the density of pro-inflammatory cytokines. The integer-order condition yields the highest magnitude, whereas fractional parameters closer to zero correspond to reduced inflammatory responses.

Table 3 Comparative analysis of the \(F_N(t)\) dynamics obtained under integer-order.
Full size table
Table 4 Comparative analysis of the \(I_N(t)\) dynamics obtained under integer-order.
Full size table
Table 5 Comparative analysis of the \(A_{\beta }(t)\) dynamics obtained under integer-order.
Full size table
Table 6 Comparative analysis of the \(T_{\mu }(t)\) dynamics obtained under integer-order.
Full size table
Table 7 Comparative analysis of the \(M_{\delta }(t)\) dynamics obtained under integer-order.
Full size table

Conclusion

A novel mathematical model of Alzheimer’s disease has been introduced, which includes nonlinear fractional differential equations for tau protein, amyloid-beta, microglia, infected neurons, and functioning neurons. The study analyzed the dynamics of a proposed model for Alzheimer’s disease transmission using the next-generation technique. It found two equilibrium points and subjected reproductive number parameters to sensitivity analysis. The study confirmed the Ulam-Hyers-Rassias stability requirements. The model was solved using Newton polynomial interpolation and the discretization of the Caputo fractional-order operator. Simulations were conducted to investigate the global effects of factors on generating circumstances that prevent Alzheimer’s disease incidence. Fractional calculus has proven to be a helpful tool for understanding the complex dynamics associated with memory disorders and cognitive deficits in Alzheimer’s disease research. Better illness prediction and treatment design are made possible by the analysis, which shows that fractional-order models accurately depict health processes. According to the simulation results, the concentration of tau and amyloid-beta proteins rises with derivative order and memory impact. By tracking changes in treatment controls and illness impacts over time, researchers can improve the design of their models. For increased accuracy, future research recommends including time delay in model dynamics. Validation of real-world data will help improve parameter estimations for useful applications. Collecting statistics on Alzheimer’s disease is difficult since patients’ cognitive deficits limit communication and self-reporting. The disease’s gradual growth makes tracking its development difficult, and variable diagnosis techniques result in untrustworthy data. Ethical concerns about disadvantaged groups provide moral quandaries for researchers, while logistical challenges such as patient accessibility, data sharing issues, and funding limits impede complete data collection. Our model uses arbitrary parameter values identified in the literature, with some values assumed, limiting its applicability to clinical practice. Accurate and interpretable parameters are required for models to provide important insights for early identification and effective treatment. A worldwide data format for normalizing and standardizing measures could greatly improve data integration, making future cohort studies more efficient. This would save researchers a tremendous amount of time. Furthermore, emerging computer modeling methodologies may address present issues in Alzheimer’s disease modeling, thereby assisting in the development of medical interventions and procedures. Furthermore, Alzheimer’s disease models can be improved by including treatment effects and stochastic disturbances, resulting in more realistic simulations. This method exposes how random variability drives illness progression and how different therapies can alter these dynamics, potentially changing the results reached from the models.
