Introduction

With the continuous development of laser technology, the absorption performance of film components within laser systems has become increasingly important. During a long period of high-power continuous laser irradiation, a weak absorption loss causes the conduction and accumulation of heat from the light energy in a film. Thus, the surface temperature of the film rises, which can cause a certain degree of melting or changes in the material characteristics and optical properties, ultimately resulting in damage to the film components. Furthermore, heat deposition from absorption can distort film components, resulting in poor beam quality. Therefore, laser films with ultralow absorption are crucial for high-power laser systems such as laser weapons1,2,3, laser inertial confinement fusion (ICF) systems4,5,6,7,8, and high-precision measurement systems, including gravitational wave detection9,10,11 and laser gyroscope systems12,13.

Ta2O5, generally deposited using electron beam evaporation, ion beam sputtering, and ion-assisted deposition (IAD)14,15,16,17,18,19,20, is a high-refractive-index material commonly used in laser systems, particularly for ultrahigh reflectivity and ultralow absorption applications. Among these methods, IAD and bombarding a film with an oxygen ion beam improve the structural defects in the film and better replenish the oxygen loss of the source material, thus reducing the oxygen vacancy defects in the film, which plays an important role in decreasing its absorption loss.

The absorption loss of a film is mainly due to absorption during the deposition process, considerably influenced by process parameters such as the ion source voltage and current, oxygen flow rate, auxiliary gases, and substrate temperature. In particular, the oxygen flow rate directly affects the stoichiometric ratio of an optical oxide film. Zhang et al.21 used an IAD method to control the absorption of Ta2O5 films by adjusting the oxygen flow rate and substrate temperature, which produced films with reasonable optical properties in the near-infrared region. Liu et al.22 investigated the effects of the process parameters on the optical band gap of Ta2O5 films and found that the oxygen flow rate had the most effect on the forbidden bandwidth. A higher oxygen flow rate improved the forbidden bandwidth of the films—the key to preparing ultralow-loss films. Chen et al.23 used two different molecular oxygen flows and four different ionic oxygen flows to study the effect of the ionic oxygen concentrations and oxygen flow rates on the optical properties of Ta2O5 films. With an increase in the ionic oxygen concentration, the refractive index first increased and then decreased. The extinction coefficient of Ta2O5 films with 25sccm O2+ were much higher than those of Ta2O5 films with 30, 35, and 40sccm O2+. The extinction coefficient of the last three groups of samples exhibited little difference. In IAD, an ion beam is emitted by ionizing pure oxygen in the ion source, known as ionic oxygen. This process significantly affects the properties of ultralow-absorption films. Although ionic oxygen can increase the oxidizing capacity and reduce the oxygen vacancy defects, bombarding films with an ion beam stream may also selectively sputter out the oxygen in the films, leading to new oxygen vacancy defects. Thus, when using different IAD processes for dielectric films, the absorption performance is not positively correlated with the oxygen concentration; hence, an optimal concentration exists, which has not been extensively studied. Thus, conducting absorption studies of films deposited with the assistance of different ion-source oxygen flow rates is necessary.

In this study, Ta2O5 monolayers were deposited via ion-assisted electron-beam evaporation, and the effects of the oxygen flow rate in an advanced plasma source (APS) on the absorption and structural properties of Ta2O5 films during deposition were investigated. The optical band-gaps of the Ta2O5 films deposited at different ionic oxygen concentrations were calculated using Tauc curve fitting. The O and Ta contents of the Ta2O5 films were determined by X-ray photoelectron spectroscopy (XPS), with the binding energies and relative contents of the adsorbed oxygen peaks obtained by fitting the elemental O split peaks. The temperature rise under continuous laser irradiation and the weak absorption at 1064 nm of the Ta2O5 films were tested, and a correlation with the microstructure was established. The absorption properties of the films were elucidated based on microscopic mechanisms, with the coating process optimized accordingly. Using the optimal ionic oxygen concentration parameters for film deposition can enhance the absorption performance of the films and facilitate the preparation of laser films with ultralow absorption loss in optical systems.

Experiments

Ta2O5 monolayers were deposited using ion-assisted electron-beam evaporation. The film samples were coated using a Syruspro1110DUV coating machine (Leybold Optics, Germany). The coating source material consisted of high-purity Ta2O5 solid particles, and the films were deposited on JGS1 fused silica substrates. The initial vacuum pressure used for the film deposition was approximately 9 × 10− 4 Pa, while that for the coating was approximately 2 × 10− 2 Pa. The substrate baking temperature was 140 °C, and the evaporation rate of the material was 0.4 nm/s. The film thickness was set to 1500 nm and was monitored using a crystal. The actual film thicknesses for the different APS oxygen flow rates were fitted by Essential Macleod 11.0 software24 and are listed in Table 1. An Advanced Plasma Source (APS, Leybold Optics) was used as an auxiliary ion source and charged with two channels of krypton (Kr) gas as the working gas: Kr1 at a flow rate of 2 sccm and Kr2 at 8 sccm, while oxygen (O2) with purity better than 99.999% was filled in the ion source at a flow rate varying from 25 to 35 sccm. The ion source discharge current was 50 A, and the ion source bias voltage was 130 V. Finally, the deposited films were annealed in an atmospheric environment for 12 h at an annealing temperature of 250 °C. Ionic oxygen refers to the emission of an oxygen ion beam generated when pure oxygen passes into the APS, with its concentration controlled by the oxygen flow rate through the APS. The process parameters for the different APS oxygen flow rates are listed in Table 2.

Table 1 Ta2O5 film actual thickness.
Full size table
Table 2 Ta2O5 process parameters.
Full size table

A spectrophotometer (Perkin-Elmer Lambda 1050 UV/VIS/NIR) with a resolution of 0.1 nm and measurement accuracy of 0.08% was used to test the transmission spectra of the films at an incidence of 0°. The refractive index and extinction coefficient of the film material were obtained by fitting the transmission spectral data using the envelope method25 based on the Essential Macleod 11.0 optical design software24. The refractive index at either wavelength could be obtained using the Cauchy formula:

\({\text{n}}\left( {\text{\varvec{\uplambda}}} \right){\text{=A+}}{{\text{B}} \mathord{\left/ {\vphantom {{\text{B}} {{{\text{\varvec{\uplambda}}}^{\text{2}}}{\text{+}}{{\text{C}} \mathord{\left/ {\vphantom {{\text{C}} {{{\text{\varvec{\uplambda}}}^{\text{4}}}}}} \right. \kern-0pt} {{{\text{\varvec{\uplambda}}}^{\text{4}}}}}}}} \right. \kern-0pt} {{{\text{\varvec{\uplambda}}}^{\text{2}}}{\text{+}}{{\text{C}} \mathord{\left/ {\vphantom {{\text{C}} {{{\text{\varvec{\uplambda}}}^{\text{4}}}}}} \right. \kern-0pt} {{{\text{\varvec{\uplambda}}}^{\text{4}}}}}}},\)

where n(λ) is the refractive index at the corresponding wavelength; λ is the wavelength; A, B, and C are the coefficients to be fitted. The weak absorption of the films at 1064 nm was measured using a self-made system based on the surface thermal lensing technique26,27. The test environment temperature was 23.5 °C, relative humidity was 35%, and the incidence angle was 0°. A total of 12 measurement points were randomly selected on the sample surface, with their average value obtained. The temperature rise of films irradiated with a continuous 1064 nm laser was measured, and the surface temperature was monitored using an infrared thermal imager before and after irradiation. The optical band gap of the films was calculated using the Tauc equation28:

\({{\text{E}}_{\text{g}}}={\text{h\varvec{\upnu}}} - {({\text{\varvec{\upalpha}h\varvec{\upnu})}}^{{\text{1/2}}}}{\text{/A,}}\)

where h, ν, α, A, and Eg represent Planck’s constant, the frequency of incident light, the absorption coefficient, the band-edge parameter, and the optical band gap, respectively. The chemical composition of the Ta2O5 films was analyzed using an X-ray photoelectron spectrometer (XPS, Thermo Scientific K-Alpha) equipped with a monochromated Al-Kα (energy: 1486.6 eV) X-ray source. To remove any water and oxygen adsorbed on the surface of the films, the surface was etched using 1 KeV argon ions for two cycles, each lasting 8 s, before scanning. The binding energy of the tested element was calibrated through translation based on the disparity between the binding energy values of the C1s fine spectrum and standard peak (284.8 eV)29.

Results and discussion

Optical constants of Ta2O5 films

Figure 1 shows the transmission spectra of Ta2O5 films deposited on quartz substrates at different APS oxygen flow rates. Figure 2(a) and (b) show the refractive indices and extinction coefficients of the Ta2O5 films deposited at different APS oxygen flow rates, respectively. As the APS oxygen flow rate of groups A–C gradually increased, the refractive index showed a slight and insignificant decrease, while the extinction coefficient initially decreased and then increased. To visualize the correlation between the refractive index and extinction coefficient of Ta2O5 films and the APS oxygen flow rates, the refractive index and extinction coefficient at 532 nm were selected, and accordingly, their trends with the change of the APS oxygen flow rates were plotted, as shown in Fig. 3. The extinction coefficient of the group B samples deposited at the optimum ionic oxygen concentration was smaller than that of the group C samples deposited at a higher ionic oxygen concentration. These findings indicated that a higher ionic oxygen concentration increased the absorption of the Ta2O5 films.

Fig. 1
Fig. 1
Full size image

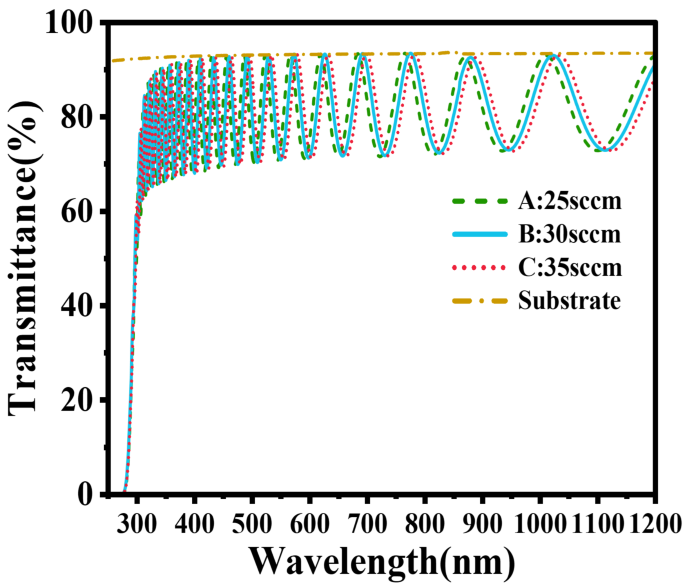

Transmission spectra of Ta2O5 films.

Fig. 2
Fig. 2
Full size image

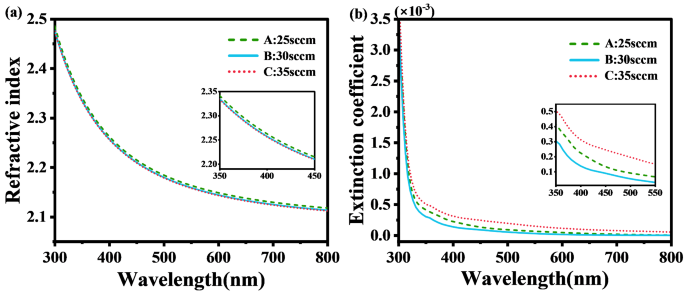

Optical constants of Ta2O5 films: (a) refractive index and (b) extinction coefficient.

Fig. 3
Fig. 3
Full size image

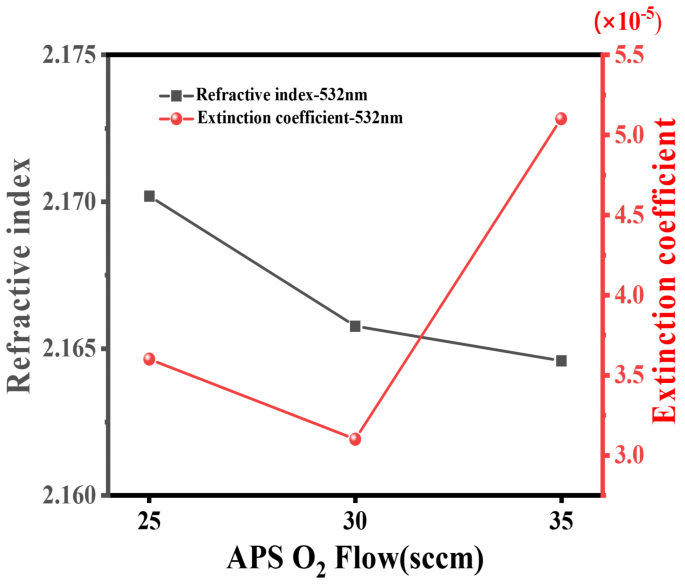

Refractive index and Extinction coefficient at 532 nm of Ta2O5 films with different APS oxygen flow rates.

Absorption loss and temperature rise of Ta2O5 films

The weak absorption values at 1064 nm in the group A–C samples were measured using the surface thermal lensing technique26,27. Figure 4 shows the relationship between the weak absorption at 1064 nm and the APS oxygen flow rate of the Ta2O5 films. The figure shows that the group B samples exhibited the smallest absorption values, lower than those for groups A and C, consistent with the extinction coefficients shown in Fig. 2(b). The absorption values of the Ta2O5 films decreased from 10 ppm to 7.2 ppm as the APS oxygen flow rate increased from 25 sccm to 30 sccm, and the absorption increased significantly to 31.3 ppm when the APS oxygen flow rate increased to 35 sccm. These results indicated no positive correlation exists between the absorption performance and oxygen concentration, suggesting the presence of an optimal concentration.

Fig. 4
Fig. 4
Full size image

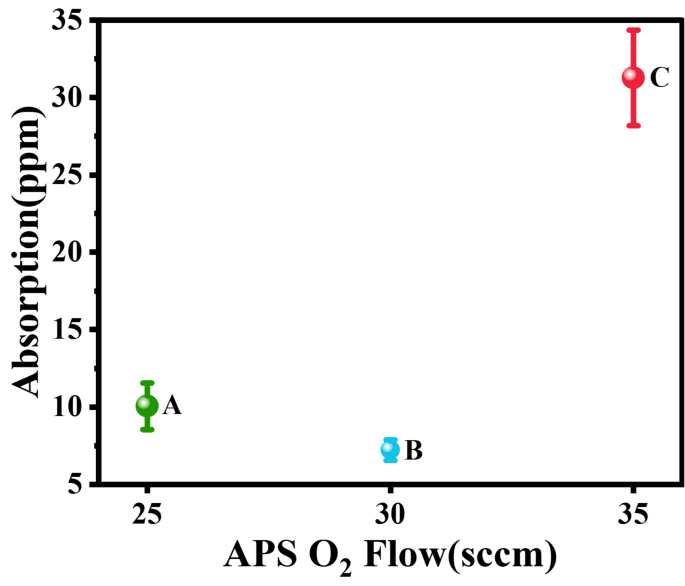

Weak absorption at 1064 nm of Ta2O5 films with different APS oxygen flow rates.

The surface temperature increases for the samples in groups A–C were tested using continuous laser irradiation, where the laser parameters are listed in Table 3. A thermal imaging camera was used to monitor the surface temperature distributions of the samples in groups A–C—irradiated with a laser power density of 35 kW/cm2, as illustrated in Fig. 5. The figure clearly shows that the change in the surface temperature within the laser-irradiated region was significantly greater for group C than for groups A and B.

Table 3 Laser parameters for surface temperature rise testing.
Full size table
Fig. 5
Fig. 5
Full size image

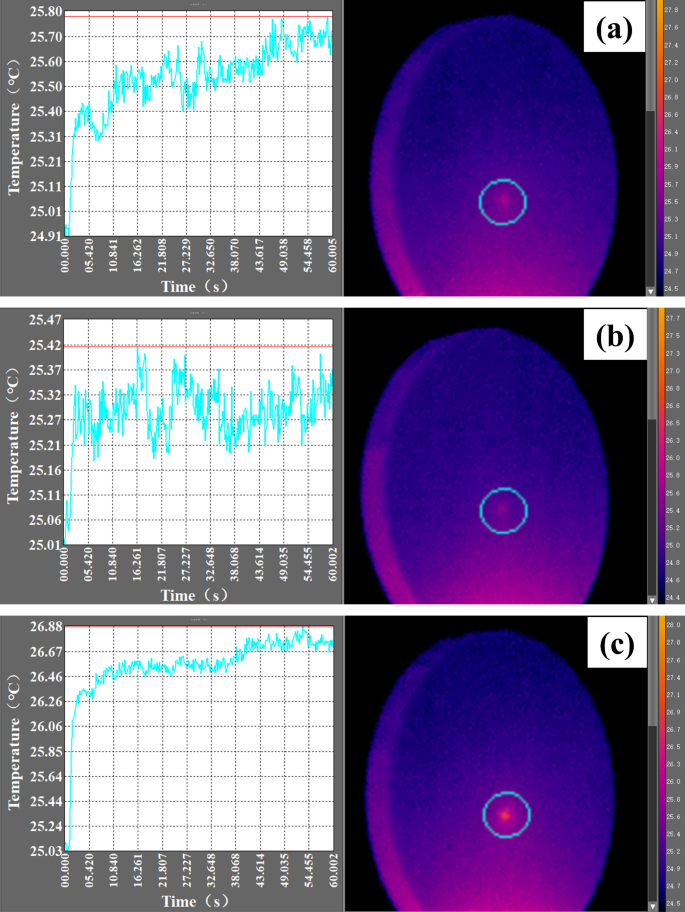

Thermal camera monitoring results for the surface temperature distributions of Ta2O5 films with different APS oxygen flow rates: (a) 25, (b) 30, and (c) 35 sccm.

Figure 6 shows the temperature rise values of the samples in groups A–C irradiated with different laser power densities. When the laser power density was low, the surface temperature of the films did not change significantly; in contrast, when the laser power density increased, the surface temperature continued to increase. The samples in group C had the highest temperature increase values, followed by those in group A. The samples in group B had the lowest values, consistent with the results of weak absorption at 1064 nm shown in Fig. 4. The temperature increase reflected the heat absorption capacity of the film, where a higher temperature increase indicated a greater absorption loss. The temperature rise values of the Ta2O5 films irradiated using a laser power density of 35 kW/cm2 decreased from 0.9 °C to 0.6 °C as the APS oxygen flow rate increased from 25 sccm to 30 sccm, and increased significantly to 2.0 °C when the APS oxygen flow rate increased to 35 sccm. Therefore, a higher ionic oxygen concentration increased the absorption loss of the Ta2O5 film.

Fig. 6
Fig. 6
Full size image

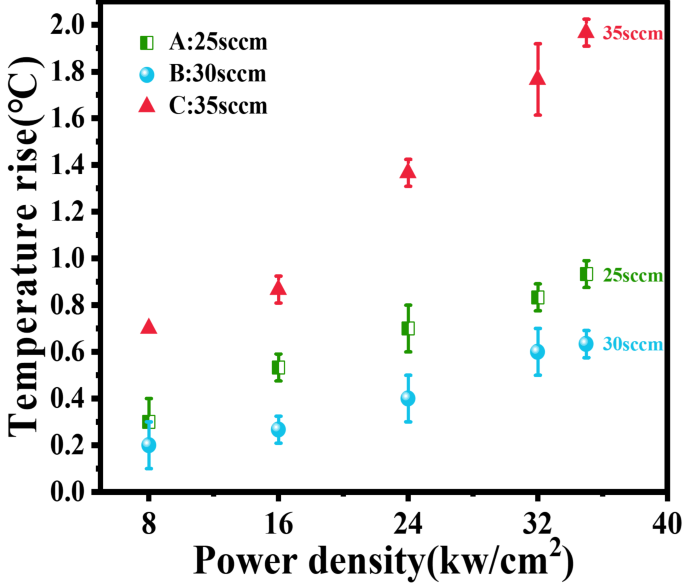

Temperature rise values for samples in groups A–C at different irradiation power densities.

In addition, increasing the temperature in the area of continuous laser irradiation distorted the film surface, leading to a deterioration of the beam quality. Theoretical simulations were performed using the COMSOL Multiphysics 6.0 software30 to fully understand the thermal distortion of the group A–C samples under continuous laser irradiation. Figure 7 shows the simulated surface morphology distribution of the group A–C samples irradiated using a laser power density of 35 kW/cm2. The figure shows that the maximum surface deformation of the samples in group C was 2.26 nm, significantly larger than the values of 0.97 and 0.46 nm for groups A and B, respectively. These results were consistent with the results of the temperature rise test. Therefore, a higher ionic oxygen concentration increased the temperature rise of the Ta2O5 films under continuous laser irradiation, with a higher temperature rise causing a higher absorption loss and more serious thermal distortion.

Fig. 7
Fig. 7
Full size image

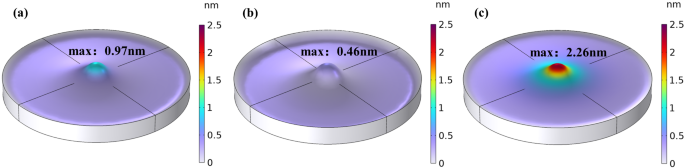

COMSOL simulation results for the surface morphology distributions of Ta2O5 films with different APS oxygen flow rates: (a) 25, (b) 30, and (c) 35 sccm.

Microstructure of Ta2O5 films

To understand the differences in the absorption losses of the Ta2O5 films prepared under different processing conditions, thoroughly studying the microstructure of each film, linked to the macroscopic absorption properties, was necessary. The coating process was then optimized to improve the absorption properties of the films.

XPS tests were performed on films deposited at different ionic oxygen concentrations to study the stoichiometric ratios and oxygen vacancy defects in the films. Figure 8(a)–(c) show the fine spectra of Ta 4f, where the split-peak fitting can be separated into two peaks, 4f5/2 and 4f7/2, with binding energies of approximately 28.4–28.7 eV and 26.4–26.8 eV, respectively, suggesting that the composition of the Ta in the films was mainly Ta5 + 31,32. Figure 8(d)–(f) show the fine O 1s spectrum, which consists of an asymmetric Gaussian-type curve with a distinct tail toward the high-binding-energy side. Thus, the O 1s peak decomposes into two Gaussian peaks, where the lattice oxygen peak located near 531 eV corresponds to the Ta-O bond and the typical XPS peak located near 532.5 eV can be attributed to adsorbed oxygen33. The O/Ta ratios were obtained from the integrated areas of the two elements in the XPS spectra and the sensitivity factors. The results showed that when the APS oxygen flow rate was 30 sccm, the area percentage of the adsorbed oxygen peak of the Ta2O5 films was 8.93%, and the O/Ta ratio was 2.499. As the APS oxygen flow rate was increased to 35 sccm, the area percentage of the adsorbed oxygen peak of the Ta2O5 films increased to 9.93%, and the O/Ta ratio decreased to 2.469, indicating that an excessive ionic oxygen concentration was detrimental to the full oxidation of the films. Meanwhile, the binding energy of the adsorbed oxygen peak in the Ta2O5 films shifted from 532.38 to 532.48 eV as the APS oxygen flow rate increased from 30 to 35 sccm. The binding energy of the adsorbed oxygen peak shifted toward a higher binding energy33,34,35, suggesting an increased presence of oxygen vacancies at higher APS oxygen flow rates. More oxygen vacancy defects created defect energy levels in the forbidden band, leading to an increase in the absorption loss of the film; therefore, the ionic oxygen concentration could not be excessively increased.

Fig. 8
Fig. 8
Full size image

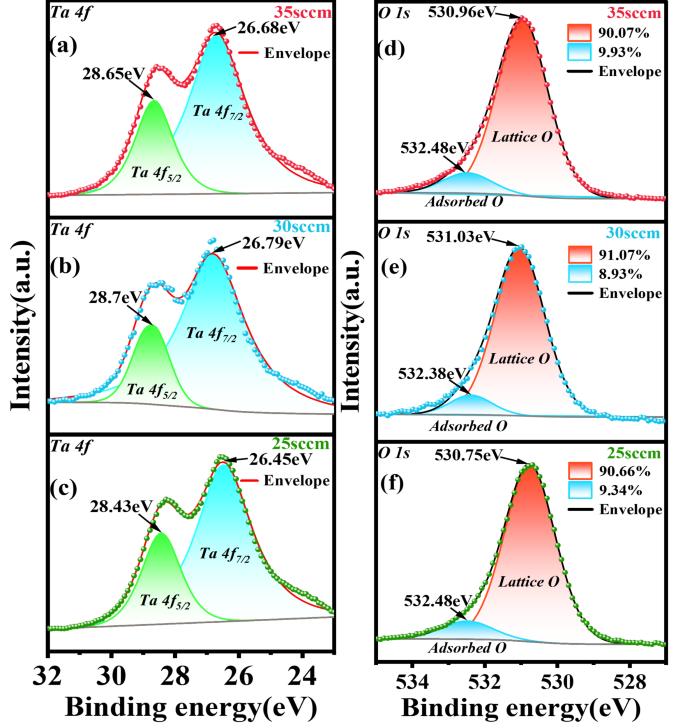

(a–c) Ta 4f fine spectra; (d–f) O 1s fine spectra of Ta2O5 films deposited with different APS oxygen flow rates.

To study the energy band structure of the Ta2O5 films deposited with different ionic oxygen concentrations, the optical band gap, Eg, was determined using the Tauc mapping method28. The optical band gap is an important parameter for characterizing the short-wave absorption limit and evaluating film absorption. Figure 9 shows the (αhν)1/2 and hν spectra of Ta2O5 films deposited at different APS oxygen flow rates. Compared to the films deposited with an APS oxygen flow rate of 30 sccm, the optical bandgap of the deposited films decreased from the initial value of 4.20 eV to 4.17 and 4.14 eV with APS oxygen flow rates of 25 and 35 sccm, respectively. These decreases in the optical band gap were attributed to the increase in oxygen vacancy defects and the decrease in the stoichiometric ratio of the Ta2O5 films36,37,38. Therefore, an appropriate ionic oxygen concentration could increase the oxidizing ability of the films, decrease the imbalance of the stoichiometric ratio, and decrease the oxygen vacancy defects in the films, which play an important role in the preparation of ultralow-absorption optical thin films.

Fig. 9
Fig. 9
Full size image

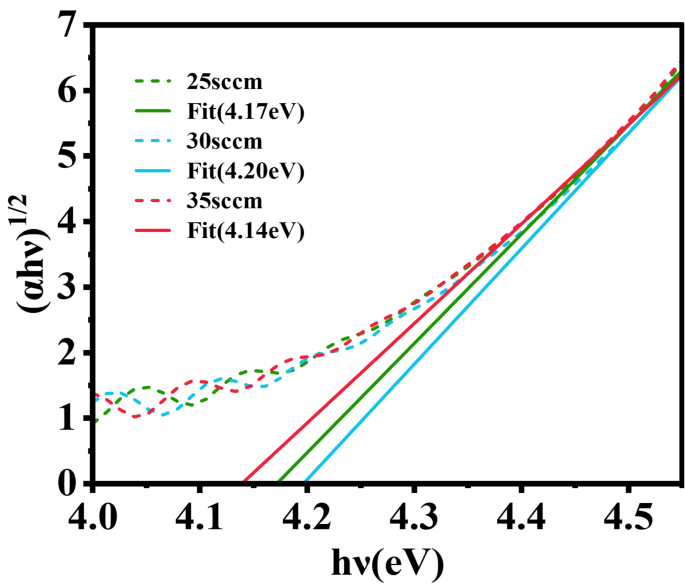

Variation of (αhν)1/2 with photon energy for Ta2O5 films deposited at different APS oxygen flow rates.

Conclusion

Ta2O5 monolayers with different ionic oxygen concentrations were prepared using ion-assisted electron-beam evaporation. The effects of different ionic oxygen concentrations on the elemental content, binding energy, energy band structure, weak absorption at 1064 nm, and temperature increase of the Ta2O5 films were investigated. The ionic oxygen concentration affected the optical bandgap of the Ta2O5 films, and an appropriate ionic oxygen concentration could produce films with a larger optical bandgap. XPS tests and Ta and O elemental split-peak fitting results showed that Ta2O5 films deposited with an appropriate ionic oxygen concentration had fewer oxygen vacancy defects, better stoichiometric ratios, and better oxidation, resulting in less absorption and temperature rise. In addition, the link between the macroscopic absorption properties and microstructure of the Ta2O5 films was explained from the microstructural perspective. The primary reason for the reduced absorption loss in the Ta2O5 films was the appropriate ionic oxygen concentration, which improved the optical bandgap, refined the stoichiometric ratio, and reduced the oxygen vacancy defects of the films. For Ta2O5 monolayers deposited with an appropriate ionic oxygen concentration, the weak absorption at 1064 nm was approximately 7.2 ppm, and the temperature rise during 1064 nm continuous laser irradiation at a power density of 35 kW/cm2 for 60 s was approximately 0.6 °C, 1/4 and 1/3 of the values for monolayers deposited with an excessive ionic oxygen concentration, respectively. This study showed that regulating the ionic oxygen concentration during the evaporative deposition of the film layer could improve the film absorption characteristics. The optimal ionic oxygen concentration was beneficial for compensating for the loss of oxygen in the film material during the evaporation process, whereas an excessively high ionic oxygen concentration increased the film layer loss. Thus, these results provide a reference for the development of ultralow absorption loss multilayer laser films for optical systems.
