Introduction

The diaphragm is the principal muscle for active inspiration and induces approximately 75% of the airflow into the lungs1. However, most people after stroke are affected by contralateral hemidiaphragmatic weakness due to the loss of central motor control2. Diaphragmatic weakness was found to be associated with decreased lung function, higher risk of pneumonia, poor functional outcomes, prolonged hospitalization, and even an increased risk of mortality3,4.

Inspiratory muscle training (IMT) is an intervention which has been deployed in people after stroke to improve inspiratory muscle strength and endurance5. Positive efficacy of IMT on diaphragm function, spirometry lung function, and exercise capacity in the stroke population has also been reported5. IMT intensities in the stroke population reportedly range between 30 and 80% of maximum inspiratory pressure (MIP)6,7,8. A higher MIP however may not necessarily result in an effective diaphragm muscle contraction. As illustrated in studies involving healthy adults, surface electromyography (sEMG) signals demonstrated that an inspiratory effort above 60%MIP was associated with a dramatic increase in the sternocleidomastoid (SCM) muscle activity9,10. Excessive activation of accessory muscles implies an increase in the work of breathing, and may result in fatigue and a decrease in exercise capacity11,12. Ideally, in an IMT program, the inspiratory load intensity adopted should generate maximal diaphragmatic contraction but without causing fatigue or inducing excessive activation of the accessory muscles of respiration. The ‘ideal’ inspiratory load intensity (%MIP) is yet to be determined.

Superficial muscle activity is commonly assessed by sEMG13, and sEMG has been used to evaluate the impact of inspiratory pressure on diaphragm contraction in healthy adults9,14. However, due to signal interference from nearby superficial muscles, the reliability of sEMG for assessment of deep muscles including the diaphragm remains questionable15. On the other hand, measurement of diaphragm thickness by ultrasonography, a portable, noninvasive emerging technique provides a reliable and rapid assessment of diaphragmatic function in people after stroke16,17.

Assessment of simultaneous recruitment of the diaphragm and SCM muscles, by ultrasonography and sEMG respectively, under various inspiratory load pressures (%MIP), could provide useful information on the relationship between inspiratory load and respiratory muscle recruitment patterns. Therefore, the aims of this study were to explore (1) the pattern of simultaneous activities of the diaphragm and SCM muscles (by ultrasonography and sEMG, respectively) under different inspiratory pressure loads, and (2) the differences in recruitment pattern of the diaphragm and SCM muscles between the hemiplegic and non-affected sides, in people after stroke.

Methods

This cross-sectional observational study has received approval from the Institutional Review Board of the Hong Kong Metropolitan University (Ethics approval number: HE-OT2023/13) and Shenzhen Second People’s Hospital, China (Ethics approval number: 2023-274-01PJ). The study protocol was registered on the website of ClinicalTrials.gov, with the registration number NCT06267768. All procedures were performed in accordance with the guidelines and regulations of the hospital and university involved.

Participants

People diagnosed with stroke and receiving medical and rehabilitation treatment in the stroke rehabilitation ward at the involved hospital, between 2nd March 2024 and 17th August 2024, were screened for inclusion and exclusion criteria (see below) by a physiotherapist investigator (FL). Participants meeting the inclusion criteria were invited to participate in this study.

Inclusion criteria: (1) age ≥ 18 years; (2) breathing spontaneously; (2) clinically diagnosed with ischemic and/or hemorrhagic stroke; (3) a duration of stroke from onset between 1 and 12 months after diagnosis; (4) no limitation to labial occlusion; (5) no thoracic or abdominal surgery within the last 6 months; (6) able to understand and follow verbal instructions; (7) stable cardiovascular function, and (8) no history of chronic respiratory illness.

Exclusion criteria: (1) acute myocardial infarction or acute heart failure; (2) acute pain in any part of the body; (3) positive clinical signs of impaired respiratory function (such as shortness of breath, hypoxemia, chronic cough and sputum retention); (4) presence of a nasal feeding tube, tracheal tube and/or any condition that impeded measurement and implementation of the study procedure.

Sample size

The sample size calculation was based on the use of repeated-measures analysis of variance (ANOVA) and was conducted using G*Power 3.1.9.7. The findings from our pilot study with stroke patients were used for this calculation. Considering an effect size of 0.20, an alpha error probability of 0.05, and a power of 0.80, the estimated sample size was determined to be 28. An additional 20% was added to account for potential attrition, resulting in a final required sample size of at least 34.

Procedures

The nature of the study was explained to all participants, and written informed consent obtained before data collection. Demographic data for each participant included age, gender, height, weight, body mass index, and smoking history were recorded. The stroke type (cerebral infarction, intracerebral hemorrhage), medical history and comorbidities were recorded. Scores of the National Institutes of Health Stroke Scale, Modified Rankin Scale, and Barthel index were obtained from the patient’s medical records.

Participants were invited to attend the cardiopulmonary laboratory at Shenzhen Second People’s Hospital at least 2 h after a light meal to participate in the measurement. All participants were also requested to avoid consumption of caffeine-containing products, nicotine, alcohol, and vigorous exercise for at least 12 h before the assessment.

All participants undertook a standard spirometry lung function test. Forced vital capacity (FVC), forced expiratory volume in one second (FEV1), and MIP data were recorded.

Participants were then instructed to breathe using a pressure threshold inspiratory load device (POWERbreathe, KH2, UK). A nose clip was used to prevent air leakage. Participants were asked to inspire through the device, in random order (load intensity randomization was achieved by placing 6 notes inscribed with each load intensity inside an envelope. Upon arrival of each participant, a physiotherapist withdrew each of the 6 notes from the envelop one after another, thereby designating the load intensity sequence for that participant), for 10 breaths, at each specific inspiratory load intensities of 30%, 40%, 50%, 60%, 70%, or 80% of their MIP. Instructions on diaphragmatic breathing (focused inspiration of air to the lower part of the chest in the epigastric region) were given to facilitate diaphragmatic recruitment18. A rest period of 15 min was allowed after each set of 10 breaths.

Bilateral diaphragmatic thickness at the end of each loading breath was recorded by ultrasonography and simultaneously, the bilateral activity in the SCM muscles were recorded using sEMG. Self-perceived exertion level for each inspiratory pressure load was recorded using the modified Borg’s Rating Scale of Perceived Exertion19 at the end of each 10-breath set.

Measurements

Spirometry lung function

Spirometry lung data, including FVC and FEV1, were measured using a spirometer (X1, XEEK, China). MIP was measured using another spirometer (POWER breathe, KH2, UK). All lung function tests were conducted following the American Thoracic Society guidelines20. All tests were repeated 3 times, with no variation exceeding 5% or 100 ml between tests, and the highest value adopted for final analysis21.

Diaphragm contraction

Two researchers were involved in ultrasonography measurement. Both had received previous training from a radiologist specialized in ultrasonography. The inter-rater reliability of these two researchers was previously established prior to data collection. The intraclass correlation coefficients (ICCs) were all above 0.8 (see S1 Appendix).

Activity of diaphragmatic contraction at each inspiratory pressure loading was represented by the diaphragmatic thickening fraction (DTf)22. DTf is calculated by the difference between mean diaphragmatic thickness at the end of each specific inspiratory pressure load (DTi) and mean diaphragmatic thickness at end-tidal expiration (DTe), and divided by the diaphragmatic thickness at end-tidal expiration22, i.e. [(DTi-DTe)/DTe].

Two identical ultrasound machines (Mindray M9, Shenzhen, China) were used for simultaneous measurement of hemidiaphragm thickness. Participants adopted an upright sitting position on a chair throughout the measurement process. Two linear array transducer probes, operating on B mode with a bandwidth of 4–12 MHz were placed on either side of the chest, between the anterior-axillary and mid-axillary lines, at the level of 8th and 9th intercostal space, with a 45° cephalic tilt at the abdominal wall surface.

To enhance the precision and continuity of diaphragmatic thickness measurements for each inspiratory pressure load, the changes in diaphragmatic thickness for each 10-breath set were video recorded. The mean diaphragmatic thickness at the end of each breath was manually identified and measured at a recording review. Hemi diaphragmatic thickness data harvested from each 10-breath set were averaged and used to calculate the DTf for each inspiratory pressure load, for each hemi diaphragm.

Measurement of muscle activity of SCM

Prior to electrode application, the skin surface over the SCM was cleaned with alcohol to ensure optimal electrode impedance. To measure SCM muscle activity, 2 self-adhesive, disposable, surface Ag/AgCl electrodes (3 M™ Red Dot™, USA) were placed bilaterally on the skin of the neck, 2 cm apart, in alignment with the muscle fibers, and midway between the mastoid process and the medial end of the clavicle23. Participants were instructed to contract the SCM muscles by turning their head against slight resistance to verify proper electrode placement and validate the acquisition of electrical signals.

A Noraxon Ultium wireless multichannel sEMG system (Noraxon USA, Inc., Scottsdale, AZ, USA) was employed to concurrently monitor the muscle activity of the SCM muscles bilaterally. The system was configured with a common-mode rejection ratio of > 100 dB, and an input impedance of > 100 MΩ. Processing of the recorded sEMG signal was conducted by the MyoMotion system 3.8 MR (Noraxon Ltd., USA), with sensor sampling rate at 2000 Hz. Bandpass filtering between 20 and 500 Hz was applied for initial filtering followed by signal smoothing and rectification24. Root mean square (RMS) values were calculated using a moving average window of 100 ms24. The peak EMG amplitudes were determined for each SCM muscle from 3 maximal voluntary inspiratory maneuvers during the MIP measurement. The peak EMG value for each SCM muscle was used for normalization18. Bilateral activity of the SCM muscle at each inspiratory pressure load was determined by averaging the peak EMG amplitude over each 10-breath set and expressed as a percentage of the MIP amplitude.

Maximum EMG was defined as the highest level of EMG observed from maximal voluntary inspiratory maneuvers (sniff, MIP, and inspiratory capacity maneuvers) and during IMT. Regardless of the maneuver, the highest EMG value was used to represent the maximum EMG for normalization purposes.

Statistical analysis

IBM SPSS Statistics for Windows Version 25.0 (Armonk, NY: IBM Corp) was utilized for all data analysis. Demographic data and clinical characteristics for all participants were summarized using descriptive statistics. The intraclass correlation coefficient (ICC2,1) was employed to determine the inter-rater reliability of the two ultrasonic operators25. The standard error of measurement (SEM) was calculated as the square root of the mean square error of repeated measurements (MSE)25. Changes in DTf and SCM muscle activity under different inspiratory pressure loads between the hemiplegic and non-affected sides, and within each side, were analyzed using repeated-measures ANOVA. Post-hoc multiple comparisons were adjusted using the Bonferroni correction. The level of significance for all statistical tests was set at 0.05. Differences in perceived exertion levels were compared using the Wilcoxon signed-rank test for the six comparisons with a Bonferroni correction of α set at < 0.05/6 = 0.0083.

Results

Thirty-six people after stroke, with a mean duration of 3.6 ± 2.9 months, were included for data analysis (Fig. 1). Among all participants, sixteen participants (44%) exhibited left-side hemiplegia. The demographic data and clinical characteristics of these individuals are summarized in Table 1.

Fig. 1
figure 1

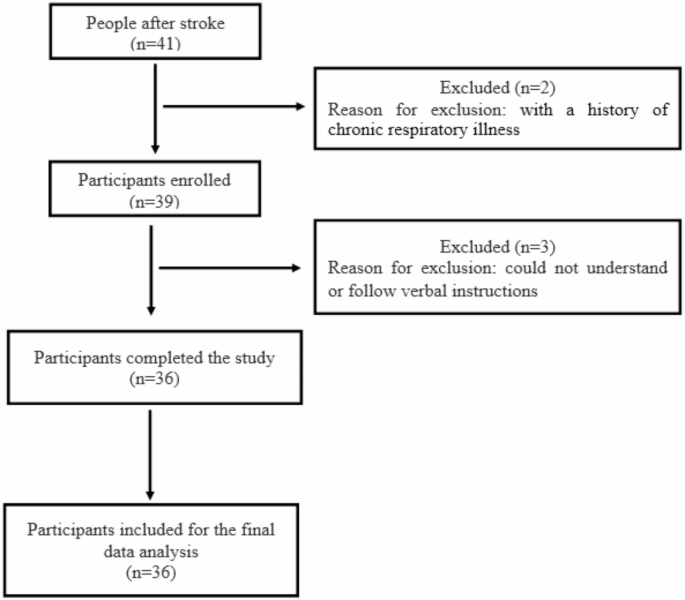

The flow diagram of participants.

Full size image
Table 1 Demographic data and clinical characteristics of the 36 participants (data in n (%) or mean ± SD).
Full size table

Changes in diaphragmatic thickness and DTf

The thickness of the diaphragm on the hemiplegic side was significantly thinner than the non-affected side across the respiratory cycle, irrespective of the increasing inspiratory load (Table 2; Fig. 2). However, the changes in DTf at different inspiratory loads followed a similar pattern on both the hemiplegic and non-affected side. DTf in both the non-affected and hemiplegic sides increased from 42 to 84%, and 43 to 83% respectively when the inspiratory load was increased from 30% MIP to 50% MIP; DTf peaked at 50% MIP, but then decreased with any further increase in inspiratory load, down to only 27 and 31% respectively at 80% MIP (Tables 2 and 3; Fig. 3). The mean reduction in DTF between 80% MIP and 30% MIP was 15% (P < 0.001, 95% CI − 24 to − 5) on the non-affected side and 12% (P = 0.003, 95% CI − 22 to − 2) on the hemiplegic side. At any loading intensity, there was no statistical difference in the calculated DTf between the two hemidiaphragms.

Table 2 Diaphragmatic thickness, diaphragm thickening fraction, sternocleidomastoid muscle activity, and Borg scores at different inspiratory loads (data in mean ± SD or median).
Full size table
Fig. 2
figure 2

Diaphragmatic thickness on both sides at end tidal inspiration, end tidal expiration and maximal inspiration. **p < 0.001: mean difference comparison between non-affected and hemiplegic side under the same inspiratory loading condition.

Full size image
Table 3 Change in diaphragm thickness fraction, sternocleidomastoid activity, and Borg score with incremental increase of inspiratory pressure load.
Full size table
Fig. 3
figure 3

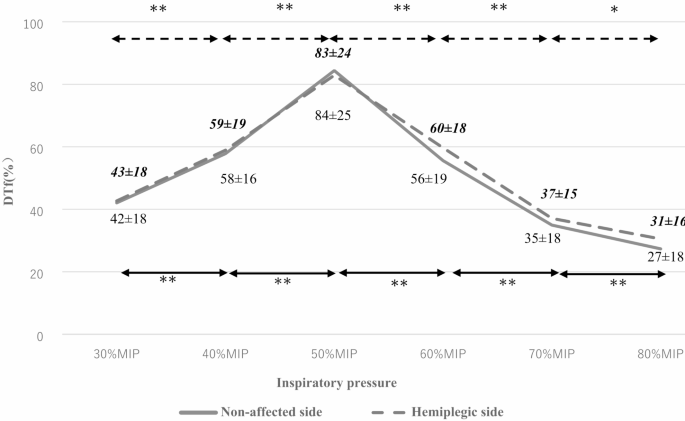

Diaphragmatic thickening fraction (DTf) on both hemi diaphragms under different inspiratory pressure loads. DTf: Diaphragm thickening fraction; MIP: Maximum inspiratory pressure; Inserted numbers are mean DTf% ± SD. Data of the hemiplegic side are in italics and bold. \(< - - - - >\)Between intensity load comparison on hemiplegic side. \(\longleftrightarrow\) Between intensity load comparison on non-affected side. *Denotes p<0.05. **denotes p<0.001 (mean difference values refer to Table 3).

Full size image

Changes in SCM muscle activity

The activity of the SCM muscles on both sides increased with increasing inspiratory pressure loading, reaching the highest sEMG signal at 80% MIP. As the inspiratory pressure load increased from 30% MIP to 80% MIP, the SCM muscle activity increased from 60 to 106% on the non-affected side and from 72 to 129% (nearly 60% increase) on the hemiplegic side (Tables 2 and 3; Fig. 4). The change in muscle activity, whether an increase or decrease, with each 10% incremental change in MIP, was statistically significant (Table 3). At all inspiratory pressure loads, the muscle activity of the SCM on the hemiplegic side was significantly higher than the non-affected side (Table 2; Fig. 4).

Fig. 4
figure 4

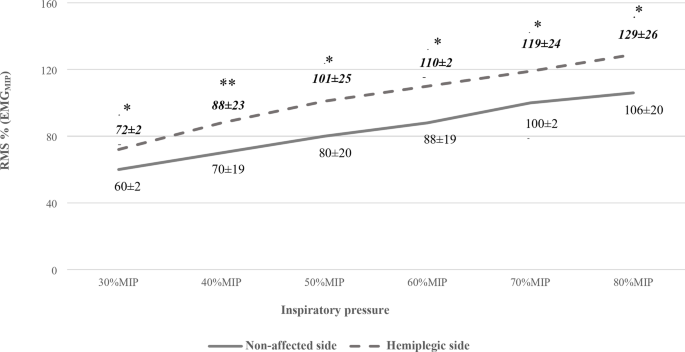

Changes in sEMG activity of both sides of sternocleidomastoid under different inspiratory pressure loads. RMS Root mean square, sEMG Surface electromyography, MIP Maximum inspiratory pressure; Inserted numbers are mean sEMG ± SD. Data of the hemiplegic side are in italics. Comparison between hemiplegic and non-affected sides at different inspiratory pressure loads denoted by *p < 0.05 or **denotes p < 0.001.

Full size image

Changes in self-perceived exertion level

The recorded Borg score was 2 at 30% MIP and increased with increasing inspiratory loads, peaking at 9 at the maximal inspiratory load of 80% MIP. Participants demonstrated high exertion levels when the inspiratory load exceeded 60% MIP, with Borg scores of 8 at 70% MIP and 9 at 80% MIP (Table 2).

Discussion

This is the first study to examine simultaneous diaphragmatic contraction and SCM muscle activity under various inspiratory pressure loads in people after stroke. In accord with previous reports, the diaphragm thickness on the hemiplegic side of an individual with stroke was thinner than that on the non-affected side3,26. This observed difference in diaphragmatic thickness is likely attributable to brain cortex injury after stroke, affecting the regulation of the contraction of the contralateral diaphragm27,28.

IMT is used to improve diaphragmatic strength and endurance5, implying a higher inspiratory resistance load will induce a stronger diaphragm contraction. However, our study showed that the maximum diaphragmatic contraction occurred at the intensity of 50% MIP, and any further increase in inspiratory resistance was associated with a decline of diaphragm contraction as reflected by a decrease in DTf. Accessory muscles (e.g., SCM) are typically activated when inspiratory demand is increased29. As predicted, our results demonstrated that activity of the SCM muscle increased with increasing inspiratory loads, peaking at the highest inspiratory resistance (80%MIP). The result of our simultaneous recording of the diaphragm and SCM muscles suggest that, in patients after stroke, when the inspiratory resistance is greater than 50%MIP, further inspiratory demand is mainly met by contraction of the accessory muscles and not the diaphragm. Jung and Kim measured recruitment of SCM and the diaphragm in healthy subjects by EMG and found SCM activity continued to increase with increases in inspiratory load from 40 to 80% but the diaphragmatic activity decreased when the load was increased from 40–60%9. Our recent study of healthy adults30 (adopting a similar measurement methodology) also demonstrated that diaphragmatic muscle recruitment followed a non-linear pattern, peaking at 50% MIP, but SCM recruitment continued to increase as the inspiratory load increased to 80% MIP30. This suggests that the recruitment pattern of the diaphragm and SCM during increasing inspiratory load intensity appeared similar between healthy cohorts and people after stroke.

Simultaneous recording of activity of the SCM muscle illustrated in this current study showed that irrespective of the inspiratory resistance load, activity of the SCM muscle was higher on the hemiplegic side compared to the non-affected side. Although the diaphragm muscle was found to be thinner on the hemiplegic side in our stroke cohort, the diaphragm contraction activity, as reflected by DTf, was the same for both the hemiplegic and non-affected hemidiaphragms. This suggests that in people with stroke, the increased demand of an inspiratory task on the hemiplegic hemi diaphragm are contributed to by a significant contraction of the SCM muscle.

A study employing phrenic nerve stimulation showed that an inspiratory resistance of 60% MIP was associated with diaphragm fatigue in healthy adults31. Excessive activation of accessory muscles during contraction is not recommended in clinical practice, as it can lead to dyspnoea and fatigue in healthy adults32. Our findings affirmed that our cohort of participants with stroke exhibited a very high level of exertion at high resistance levels, particularly, at 70% MIP and 80% MIP. Our findings suggest that IMT at intensity levels greater than 50% MIP may be ineffective for diaphragmatic training, as the training stimulus then appears to promote the contribution of the accessory muscles to meet the additional work of breathing requirements.

Limitation

Our study only investigated the effects of a single set of 10 breaths at each inspiratory pressure load. IMT programs commonly involve 5 sets of 8 to 10 breaths, with 1 or 2-min rest intervals33. However, requiring participants in this study to complete 5 sets of 10 breaths at each testing load would likely increase the risk of muscle fatigue and was therefore considered impractical.

Stroke duration, side of hemiplegia, and comorbidities may influence respiratory muscle recruitment during inspiratory resistance loading. A systematic review on the effect of IMT on patients after stroke showed that the improvement in MIP was greater in patients with chronic stroke (stroke duration > 6 months), compared to the improvement in MIP in the sub-acute cohort (duration of stroke < 6 months)34. However, this inference is confounded by the fact that the training intensity adopted in IMT programs for patients with chronic stroke was higher than the training intensity reported in patients with sub-acute stroke. In our study, the stroke duration in the majority of our cohort was between 1 and 6 months; less than a third were less than 1 month and only 5 patients were over 6 months. With such a small sample size, we were unable to conduct any meaningful sub-group analysis to determine whether stroke duration might have an impact on the SCM and diaphragm recruitment pattern during increased inspiratory resistance loads. This aspect of our research warrants further investigation.

In conclusion, this study elucidates the simultaneous, bilateral muscle activity of the diaphragm and sternocleidomastoid under various inspiratory loads in people after stroke. In our post-stroke cohort, an inspiratory load of 50% MIP was associated with the highest diaphragmatic contraction bilaterally. Increasing the inspiratory load beyond this intensity did not further enhance diaphragmatic contraction but resulted in further recruitment of the sternocleidomastoid muscle, particularly on the hemiplegic side. Further RCTs exploring the holistic effects of IMT programs at training intensity of 50% MIP in the stroke population are warranted.
