Introduction

Magnesium oxide particles and nanoparticles are used in many application areas, such as agriculture (plant protection and growth support), biomedicine (bone regeneration), medicine (antimicrobial agents), electrotechnics (sensors, batteries), wastewater treatment (removal of toxic pollutants), and as flame retardants1. These particles possess a high melting point, low density, good mechanical properties, high thermal conductivity, self-cleaning activity (via photooxidation), high luminescence, and a high refractive index for photonic applications. They also exhibit low electrical conductivity, excellent optical transparency, and biocompatibility, among other beneficial properties2,3,4,5. Additionally, they are incorporated into compounds for so-called FIR (far infrared emitted) textiles, which can reuse infrared radiation emitted by humans for heating purposes6,7,8,9. The main application areas of MgO are illustrated in Fig. 1.

Magnesium oxide nanoparticles are sparingly soluble in water1 and can easily be converted into magnesium hydroxide2. Magnesium hydroxide is also used as an antibacterial agent, flame retardant, and precursor for the production of magnesium oxide. Mg(OH)2 acts as a neutralizer for acidic wastewater and as a fertilizer2. Of particular interest are its various morphological forms, including needles, tubes, fibers, platelets, rods, and even “flower-like” shapes2.

Figure 1 shows the primary application areas of Mg(OH)2. Numerous methods exist for synthesizing Mg(OH)2 and MgO, ranging from simple precipitation and calcination to chemical vapor deposition (see Fig. 2).

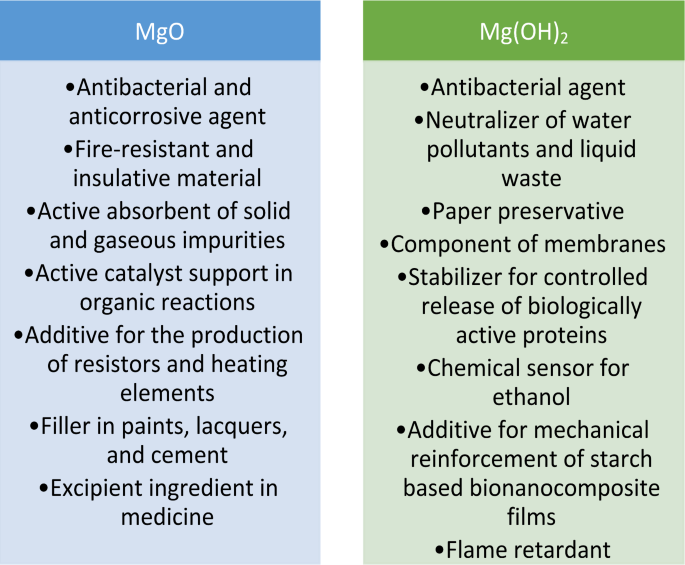

Fig. 1
figure 1

(adapted from2).

Main applications areas of MgO and Mg (OH)2.

Full size image

The use of coatings made from magnesium oxide and magnesium hydroxide and their possible combinations with ammonium polyphosphate in water dispersion for functional antibacterial finishing of textiles is described in the patent10. A simple method to fabricate multifunctional PET fabrics with excellent flame retardant and antibacterial properties based on functionalized Mg (OH)2 is described by Wang et al.11. They used nano-Mg (OH)2 modified using titanate coupling agent and stearic acid to ensure better compatibility with PET fibers. Zhang et al. used Mg(OH)2 nanoparticles and polycarboxylic acid as cross-linkers for the surface coating of silk fabric to improve its flame retardancy and smoke suppression12.

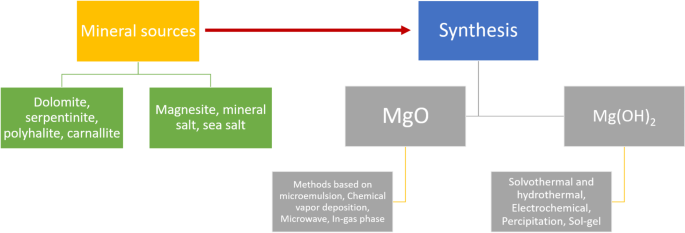

Fig. 2
figure 2

Basic ways of Mg (OH)2 and MgO preparation (adopted from2 and13).

Full size image

This report presents a methodology for the quantitative nondestructive evaluation of Raman spectra of typical synthetic fibers and Mg (OH)2 coated on their surfaces in low concentrations. Regression analysis, based on the assumption of additivity of the spectra, was used to determine the concentration of this component. The developed methodology was applied to analyze polyester and polyamide textiles with Mg (OH)2 surface deposits.

Evaluation of Mg (OH)2 content

For the qualitative indication of MgO and Mg (OH)2, spectroscopic techniques such as XRD, FTIR, and Raman spectroscopy are used14,15,16. The quantitative analysis of Mg (OH)2 content is commonly based on titration. Spectroscopic methods need to create calibration curves relating the intensity of the typical peak in spectra to known concentrations of Mg (OH)2 powder often dissolved, e.g., in selected acids such as acetic acid. In the case of analysis of low concentrations of Mg (OH)2 coated on the surface of fabrics, it is necessary first to extract this compound by using suitable chemicals as acids, which lead to the destruction of the coating. In these cases, Mg (OH)2 particles frequently cover the fiber’s surfaces only partially. To avoid the destruction of coating and laborious construction of calibration curves, it is possible to use a new simple method based on whole XRD, FTIR, or Raman spectra of the uncoated and Mg (OH)2 coated fabric and spectra of pure Mg (OH)2 The amount of Mg (OH)2 is calculated based on the assumption of spectra additivity. Raman spectroscopy, particularly micro-Raman spectroscopy, offers better spatial resolution, wider spectral coverage, narrower spectral bands, and lower water interference compared to XRD and FTIR spectroscopy17.

The Raman effect occurs when a sample is illuminated with monochromatic (laser) light, causing a small fraction of the scattered radiation to exhibit frequency shifts corresponding to the vibrational transitions of the material. Raman spectroscopy detects light scattered inelastically at frequencies different from the incident light, corresponding to molecular or lattice vibrations within the tested sample18,19. Raman scattering is the process of re-radiation of scattered light by dipoles induced in molecules by incident light, which is modulated by the vibrations of the molecules20. Therefore, the intensity of one peak in spectra is not sufficient for quantitative analysis of the sample because it corresponds to the presence of some groups only.

In normal Raman scattering, the dipoles are generated through the interaction between the electric field component (E) of the incident light and the molecules20. Raman scattering thus arises from the oscillatory polarization of the molecule as a function of its vibrations rather than from the molecule’s permanent dipole. Molecules in the ground state produce bands shifted to lower energies than the incident light, while higher-frequency bands result from molecules in excited vibrational states. These bands originate from the material’s inelastic scattering of light. Elastic collisions, on the other hand, result in Rayleigh scattering, which appears more intense than the unshifted component of the scattered light20.

Materials and methods

Fabrics

The knitted PAD 6,6 (hexamethylene adipate, fabric thickness 30 mm) and woven PET (polyethylene terephthalate, fabric thickness 32 mm) produced by Sintex Company Czechia and specified in Table 1 were used as starting material. Fiber surface roughness was evaluated by confocal laser microscope Olympus Lext 3000 (see Fig. 3). Illustrative images of both fabrics are in Fig. 3.

Table 1 Material description.
Full size table
Fig. 3
figure 3

Structure of starting fabrics.

Full size image

Before the actual coating, the surfaces of the PET fabric were activated using the following steps:

  1. 1.

    Hydrolytic cleaning in 5 wt% H2SO4 for 30 min with stirring and then rinsing and drying at 140 °C for 2 min.

  2. 2.

    Washing in 1 wt% NaOH for 5 min and then rinsing.

  3. 3.

    Drying at 120 °C for 20 min.

Activation of PAD 6.6 textiles was carried out only by alkaline hydrolysis in 2% NaOH and 0.2% decyl glycoside solution at 50 °C for 30 min, followed by rinsing and centrifugation.

Preparation of Mg(OH)2

A solution of 40 g of MgSO₄ (P.A., Lach-Ner) was precipitated with an equivalent amount of NaOH. After vacuum filtration at 80 °C using a Büchner funnel, the precipitate was washed with distilled water and finally with isopropanol. It was then air-dried at 20 °C. The Mg (OH)2 powder is shown in Fig. 4 (left).

Preparation of MgO

The dried and homogenized Mg (OH)2 was annealed at 900 °C for 5 min. The resulting MgO powder is shown in Fig. 4 (right).

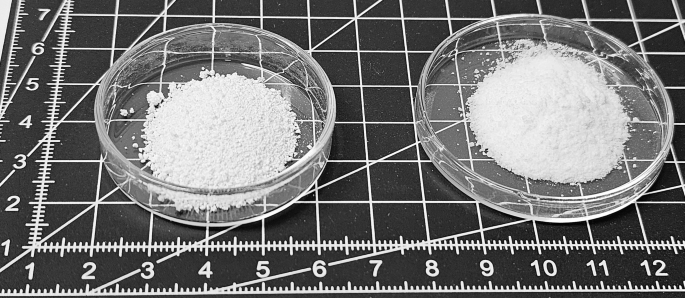

Fig. 4
figure 4

Powdered magnesium oxide (right) and hydroxide (left).

Full size image

Coating

The methodology used for coating PET knitted fabric is described in the first column of Table 2. The methodology used for coating polyamide fabric is given in the second column of Table 2.

Table 2 Textile coating procedure.
Full size table

Evaluation of Raman spectra

For the evaluation of Raman spectra, the Dual Lightnovo mini Raman spectrometer was used with excitation lasers of 785 nm and 660 nm, covering the spectral ranges of 2400–400 cm⁻¹ and 4000–2600 cm⁻¹. Accompanying Miraspec communication software was used to acquire the spectra. To improve focus, a stand with micrometric XY shifts and coarse Z shift adjustment was constructed by the company Trilobyte (see Fig. 5).

Fig. 5
figure 5

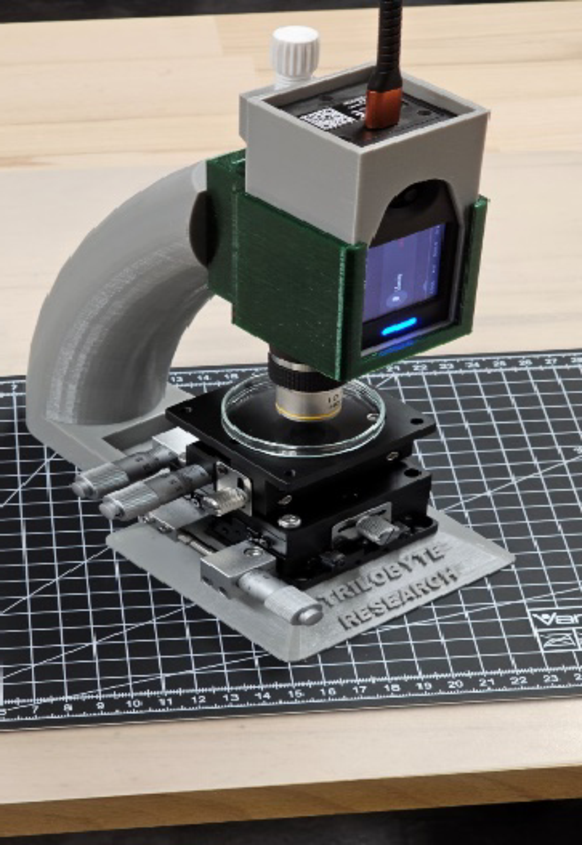

Lightnovo mini Raman spectrometer is on stand with the XYZ shift.

Full size image

Results and discussion

All Raman spectra have a y-axis intensity [-]. and x axis wavenumber [cm− 1] as standard output from the spectrometer. Raman spectrum of MgO is shown in Fig. 6 and of Mg (OH)2 in Fig. 7.

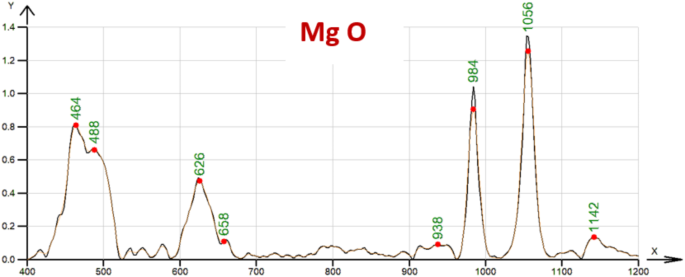

Fig. 6
figure 6

Raman spectrum of MgO, excitation laser 785 nm.

Full size image
Fig. 7
figure 7

Raman spectrum of Mg (OH)2, excitation laser 785 nm.

Full size image

The Raman spectrum clearly distinguishes magnesium oxide from magnesium hydroxide by a very strong emission band at 1056 cm⁻¹, which is present in the oxide but absent in the hydroxide. The spectrum of Mg (OH)2 has been utilized to detect the presence of hydroxide in coated textile fabrics.

Raman spectra in the Raman shift range of 400 to 2400 cm⁻¹ for uncoated PAD 6,6 fabric are shown in Fig. 8, and for Mg (OH)2 – coated PAD 6,6 fabric in Fig. 9.

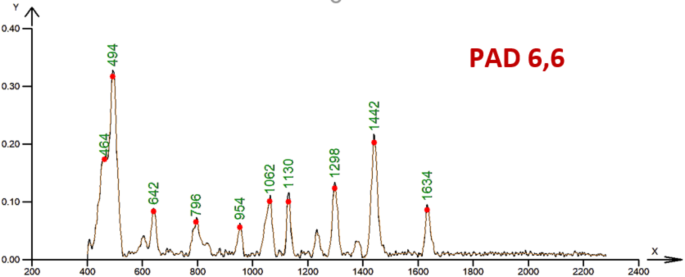

Fig. 8
figure 8

Raman spectrum of uncoated PAD 6,6 fabric, excitation laser 785 nm.

Full size image

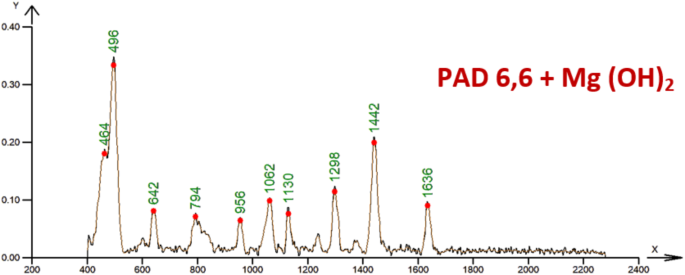

Fig. 9
figure 9

Raman spectrum of PAD 6,6 fabric coated by Mg (OH)2, excitation laser 785 nm.

Full size image

Raman spectra in the Raman shift range of 400 to 2400 cm – 1 of uncoated PET fabric are shown in Fig. 10, and for Mg (OH)2 coated PET fabric is shown in Fig. 11.

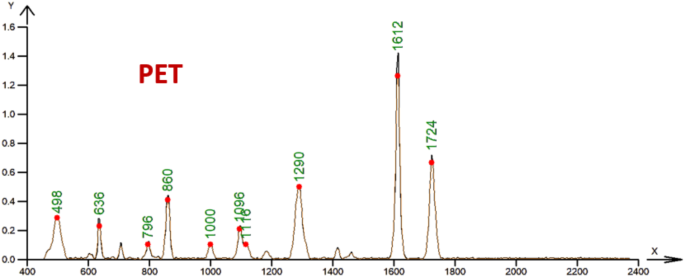

Fig. 10
figure 10

Raman spectrum of uncoated PET fabric, excitation laser 785 nm.

Full size image
Fig. 11
figure 11

Raman spectrum of PET fabric coated by Mg (OH)2, excitation laser 785 nm.

Full size image

The spectra of the uncoated and Mg (OH)2 coated fabrics show no marked visible differences. Table 3 shows the strongest bands of the two fabrics (PAD 6,6 and PES).

Table 3 The most significant Raman bands for PAD 6,6 and PES) fabrics.
Full size table

Based on the availability or experimental spectra of uncoated fabric, Mg (OH)2 coated fabric, and pure Mg (OH)2, it is possible to calculate the relative portion of uncoated fabric and magnesium hydroxide without the necessity to create calibration curves.

Assuming the additivity of Raman spectra, the spectrum of a mixture of two substances, in the absence of chemical interaction between them, can be expressed as a linear combination of the spectra of the individual substances. For the case where Raman spectra of coated fabric (RC), uncoated fabric (RU), and pure Mg (OH)2 (RM) are at disposal (measured), the following relationship can be used:

$${R_C}=a \cdot {R_U}+b \cdot {R_M}$$
(1)

Here, a represents the relative proportion of the uncoated fabric, and b represents the relative proportion of Mg (OH)2 (proportional to the percentages of their relative concentration). These parameters can be calculated from the whole spectrum, i.e., at all measured wavenumbers (frequencies).

It is, therefore, possible to predict the Raman spectrum of coated fabric using a linear regression model, where a and b are the regression coefficients estimated using the ordinary least squares (OLS) method (see21).

Table 4 summarizes the results of the OLS analysis for PAD 6,6 coated with Mg (OH)2. For the characterization of the significance of parameters, the P values corresponding to each parameter estimate were calculated. This value P is the smallest significance level at which the null hypothesis H0 (estimated parameter is zero) is still rejected based on the given data. Denote that for confidence intervals, the significance level is equal to 0.05.

Table 4 Parameter estimates for PAD 6,6 coated by Mg (OH)2.
Full size table

The results of OLS for PET coated by Mg (OH)2 are summarized in Table 5.

Table 5 Parameter estimates for PET coated by Mg (OH)2.
Full size table

A detailed description of the calculation and interpretation of these characteristics is provided in21.

The coefficient of determination R2 was selected as a characteristic of overall model quality21. It is well known that the predictive linear model (1) describes experimental data precisely (the sum of squared deviations between predicted values of Raman intensity and predicted values is approaching zero). In the case of coated PAD 6,6 fabric, R2 = 0.92 was calculated, and for coated PET fabric, R2 = 0.94 was calculated.

For the tested coated PAD 6,6 fabric, the concentration of Mg (OH)2 was found to be 0.802%, while for the tested PET fabric, it was determined to be 4.715%. These values closely match the results obtained through titration of extracted Mg (OH)2 using HCl (a destructive method) with NaOH and methyl orange as an indicator. The titration revealed an Mg (OH)2 concentration of 0.44% for the coated PAD 6,6 fabric and 4.30% for the coated PET fabric.

If heteroskedasticity in the noise distribution is considered—since noise may have greater variance at higher signal intensities—it may be more appropriate to use the weighted least squares method with weights inversely proportional to the signal intensity. The set of tests for the characterization of peculiarities of experimental errors of measured spectra and corresponding changes of OLS criterion are described in the book21.

Conclusions

Utilization of Mg (OH)2 is very common in plenty of applications. It ranges from thermochemical energy storage22 and shape-stabilized phase change materials23 to CO2 adsorption at room temperature24 and hydration of Mg (OH)2 in reactive cement24,25,26. In the case of using coatings as a full surface layer or partial covering surface in the case of porous materials, it is necessary not only to identify the presence of Mg (OH)2 but also concentration because it is directly related to changes of some properties. This task is not easy and obviously needs the construction of a calibration curve for the prediction of concentration from the measured signals. For high concentrations of Mg (OH)2 powder, it is often sufficient to use image analysis of SEM images. A very low (few percent) content of Mg (OH)2 in surface coatings cannot be easily identified visually by using SEM images. More sensitivity for the presence of Mg (OH)2 in the coating is used in spectral methods such as Fourier transform infrared analysis (FTIR) or Raman spectroscopy, which is less sensitive to water content and the presence of colored substances. The linear regression-based method outlined herein is direct, uncomplicated, and requires no calibrations.

A verified methodology for the nondestructive evaluation of coated Mg (OH)2 on different fibrous materials, based on Raman spectra and standard regression analysis, is novel, straightforward, and can replace more complex other analytical techniques. A simple modification of the Lightnovo mini Raman spectrometer into a specialized Raman microscope can serve as a cost-effective alternative to expensive Raman spectrophotometers. This method can be forecasted to support the use of Mg (OH)2 in many applications and will serve as a tool for the optimization of its concentration.
